Operating Manual of
Wireless Controller SR528Q
for Split Pressurized Solar Hot Water System
Operation manual of SR528Q wireless controller
- 1 -
Contents
1. Safety information ................................................................................................................. 3
1.1 Installation and commissioning......................................................................................... 3
1.2 About this manual ............................................................................................................... 3
1.3 Liability waiver ..................................................................................................................... 3
1.4 Important remark ................................................................................................................. 4
1.5 Description of symbols ....................................................................................................... 4
1.6 Operation button ................................................................................................................. 4
2. Installation of controller ........................................................................................................ 6
2.1 Display installation .............................................................................................................. 6
2.2 Controller installation .......................................................................................................... 7
2.3 Preparation before wire connection ................................................................................. 7
2.4 Wire collocation ................................................................................................................... 7
2.5 Wire connection................................................................................................................... 8
3. Wireless connection ............................................................................................................ 10
3.1 Code match between controller and display ................................................................ 10
3.2 Application of wireless controller .................................................................................... 12
4. Debugging ............................................................................................................................ 13
4.1 Time/week setup ............................................................................................................... 13
4.2 Menu structure................................................................................................................... 14
4.3 Menu description ............................................................................................................... 15
4.4 System description ........................................................................................................... 16
5.Functions operation and parameters setup (user grade) .............................................. 17
5.1 Timing Heating................................................................................................................... 17
5.2 Energy save mode ............................................................................................................ 20
5.3 Temperature / time setting for DHW circulation pump ................................................ 21
6. Functions operation and parameters setup (engineer grade) ..................................... 24
6.1 Access main menu ............................................................................................................ 24
6.2 Access submenu ............................................................................................................... 25
6.3 Temperature difference for solar circuit pump（DT O/DT F） .................................. 25
6.4 TEMP Temperature main menu ...................................................................................... 27
6.4.1 EMOF Maximum switch-off temperature of collector (for collector emergency
close function) .......................................................................................................................... 27
6.4.2 EMON Maximum switch-on temperature of collector (for collector emergency
Operation manual of SR528Q wireless controller
- 2 -
close function) .......................................................................................................................... 28
6.4.3 CMX Maximum limited temperature of collector (collector cooling function) ...... 29

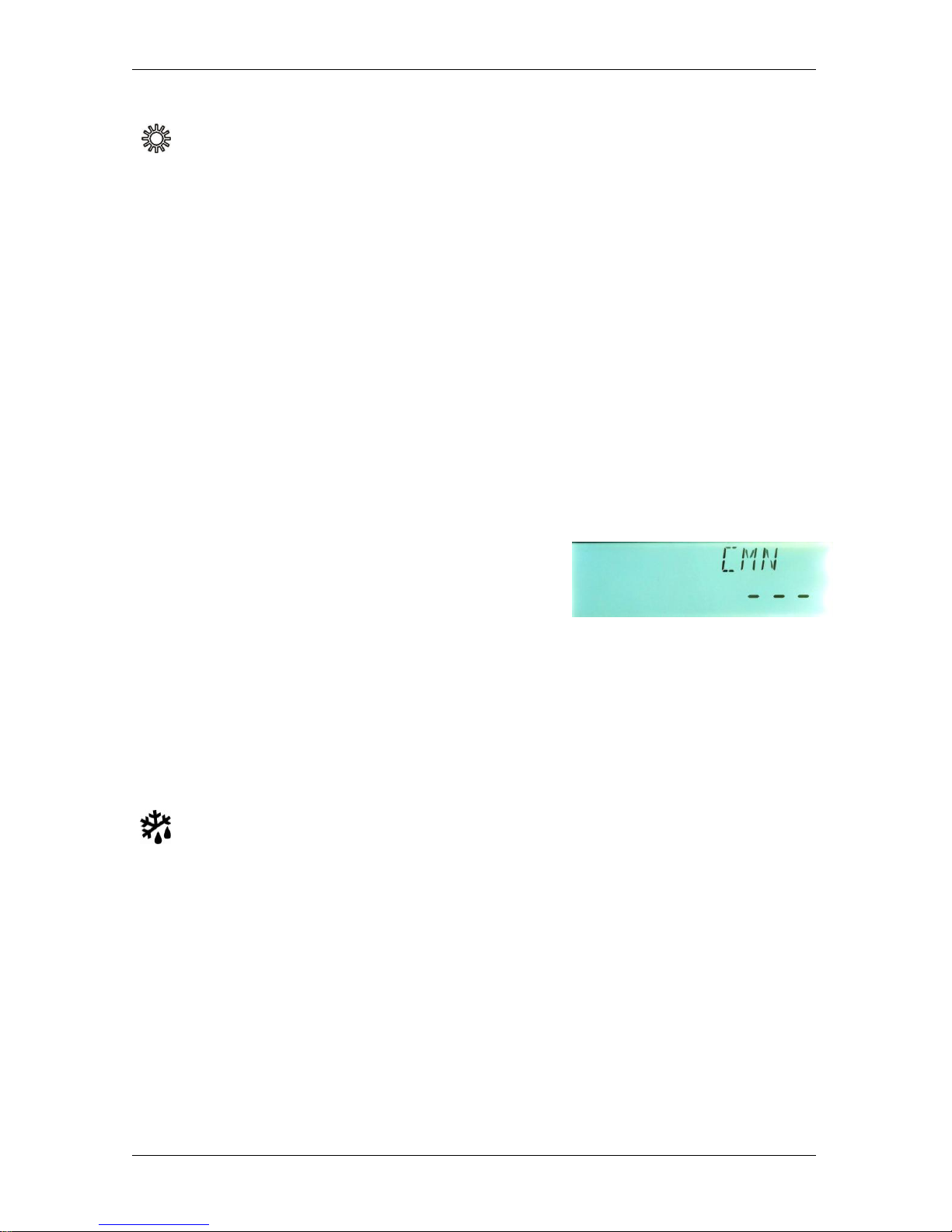

6.4.4 CMN Low temperature protection of collector .......................................................... 30
6.4.5 CFR frost protection temperature of collector .......................................................... 30
6.4.6 SMX Maximum temperature of tank ........................................................................... 31
6.4.7 REC Cooling temperature of tank ............................................................................... 32
6.4.8 C＿F Switch between Celsius and Fahrenheit ......................................................... 33
6.5 FUN Auxiliary functions .................................................................................................... 33
6.5.1 DVWG Anti legionnaires' function ............................................................................... 34
6.5.2 CIRC DHW circulation pump on/off ............................................................................ 34
6.5.3 COOL Tank cooling function ........................................................................................ 34

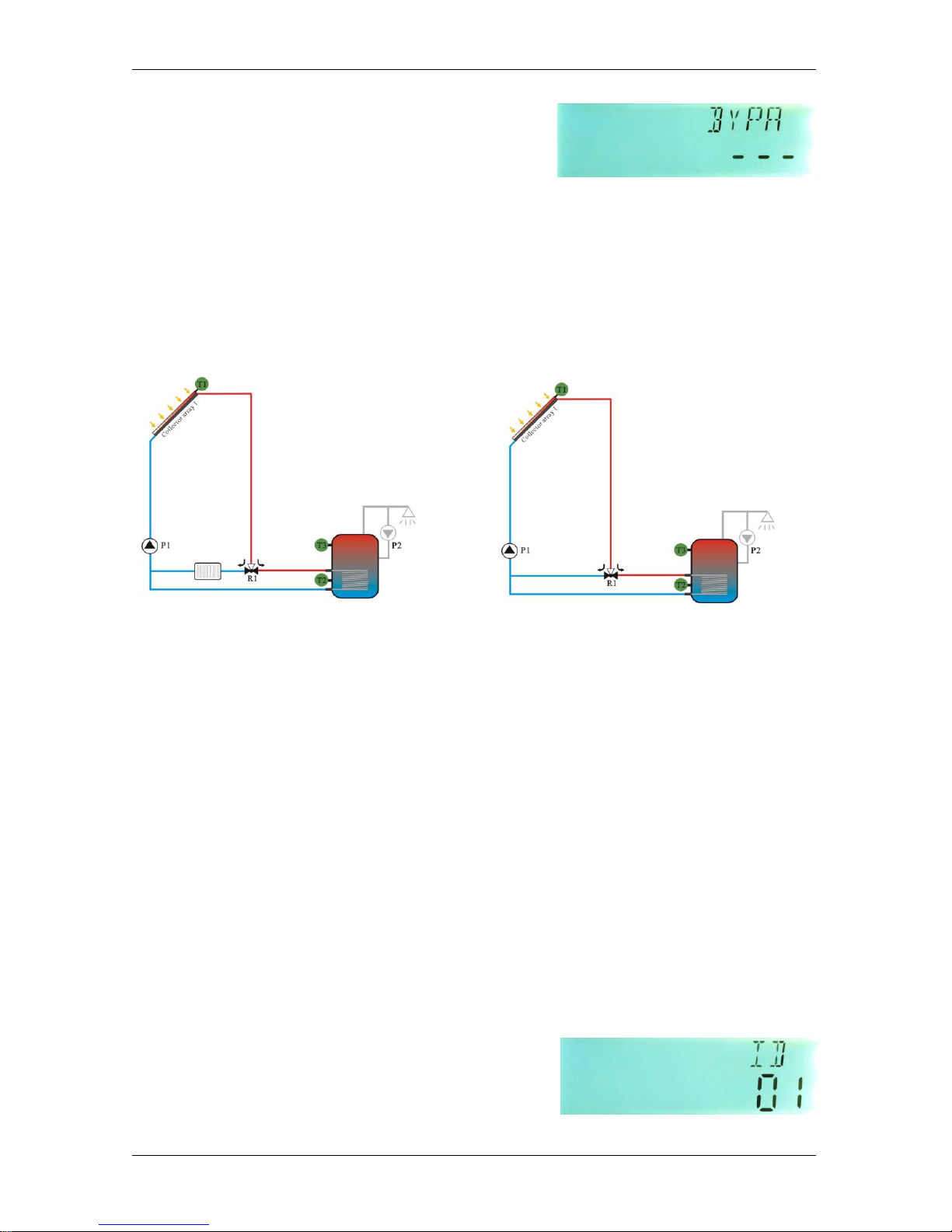

6.5.4BYPR Bypass function (high temperature) ................................................................ 35
6.6 COMM Communication function menu ......................................................................... 36
6.6.1 ID Address ...................................................................................................................... 36
6.6.2 MAC Network address .................................................................................................. 37
6.6.3 FREQ Communication frequency ............................................................................... 37
6.6.4 RSSI Signal intensity .................................................................................................... 37
6.7 HND Manual control ......................................................................................................... 37
6.8 PASS Password set .......................................................................................................... 39
6.9 LOAD Recovery to factory set ........................................................................................ 39
6.10 “ON/OFF” Controller switch on/off button ................................................................... 40
6.11 Holiday function ............................................................................................................... 40
6.12 Manual heating ................................................................................................................ 41
6.13 Temperature query function .......................................................................................... 41
7. Protection function .............................................................................................................. 42
7.1. Memory protection ........................................................................................................... 42
7.2 Screen protection .............................................................................................................. 42
8. Trouble shooting .................................................................................................................. 43
8.1 Trouble protection ............................................................................................................. 43
8.2 Trouble checking ............................................................................................................... 44
9. Quality Guarantee ............................................................................................................... 45
10. Technical specification ..................................................................................................... 46
11. Package list ........................................................................................................................ 47
12. Device matched to this controller ................................................................................... 47
Operation manual of SR528Q wireless controller
- 3 -
1. Safety information
1.1 Installation and commissioning
When laying cables, please ensure that no damage occurs to any of the constructional
fire safety measures presented in the building.
The controller must not be installed in rooms where easily inflammable gas mixtures are
present or may occur.
The permissible environmental conditions can’t be exceeded at the site of installation.
Before connecting the device, make sure that the energy supply matches the
specifications that controller requires.
All devices connected to the controller must conform to the technical specifications of
the controller.
All operations on an open regulator are only to be conducted cleared from the power
supply. All safety regulations for working on the power supply are valid.
Connecting and /or all operations that require opening the regulator (e.g. changing the
fuse) are only conducted by specialists.
1.2 About this manual
This manual describes the installation, functions and operation of a solar thermal controller.
When installing the remaining components e.g. the solar collectors, pump stations and the
water storage, it should be sure to observe the appropriate installation instructions provided
by each manufacturer. Only trained professional personnel may perform installation,
electrical connection, commissioning and maintenance of the device. The professional
personnel must be familiar with this manual and follow the instructions contained herein.
1.3 Liability waiver
The manufacturer cannot monitor the compliance with these instructions or the
circumstances and methods used for installation, operation, utilization and maintenance of
this controller. Improper installation can cause damages to material and person. This is the
reason why we do not take over responsibility and liability for losses, damages or cost that
might arise due to improper installation, operation or wrong utilization and maintenance or
that occurs in some connection with the aforementioned. Moreover we do not take over
liability for patent infringements or infringements – occurring in connection with the use of
this controller- on third parties rights. The manufacturer preserves the right to put changes
to product, technical date or installation and operation instructions without prior notice. As
Operation manual of SR528Q wireless controller
- 4 -
soon as it becomes evident that safe operation is no longer possible (e.g. visible damage).
Please immediately take the device out of operation. Note: ensure that the device cannot
be accidentally placed into operation.
1.4 Important remark
We have carefully checked the text and pictures of this manual and provided the best of our
knowledge and ideas, however inevitable errors maybe exist. Please note that we cannot
guarantee that this manual is given in the integrity of image and text, they are just some
examples, and they apply only to our own system. Incorrect, incomplete and erroneous
information and the resulting damage we do not take responsibility.
1.5 Description of symbols
Safety instruction:
The safety instructions in the manual are marked with a warning triangle. They
indicate measures, which can lead to personal injury and safety risks.
Operation steps: small triangle “►”is used to indicate operation step.
Notes: Contains important information about operation or function.
1.6 Operation button
Operation manual of SR528Q wireless controller
- 5 -
Button
Button function description
ON/OFF
Controller switch on/off;Manually control DHW pump
Clock
Time setting
Manual
Manual starting heating button
Set
Setup parameters
▲
Parameters upwards adjust
▼
Parameters downwards adjust
Esc
Exit
Power Save
Power save mode starting button
Heating
Timing heating starting button
DHW
DHW timing circulation starting button
Holiday
Holiday mode
Match
Code match
Reset
Parameters reset
Operation manual of SR528Q wireless controller
- 6 -
2. Installation of controller
Controller can be only installed indoors, not installed in a dangerous and moist place and far
away from the electromagnetic field.
2.1 Display installation
► Determine the mounting site of display.
► Mount the base board on an 86 type wire connection box.
► Hang the display on the base board and rivet it with screw.
► Put the cover on the display
Demount the cover of display
►Unclench the bottom fix hook of display with a flat “-“screw driver,
►Upwards unclench the cover with another flat “-“screw driver,
Operation manual of SR528Q wireless controller
- 7 -
2.2 Controller installation
Controller can only be installed in an area having an adequate level of
protection.
Fix the base board of controller
► Determine the mounting site of controller.
► Fix the base board on the wall with plastic expand screw
► Hang the controller on the base board.
2.3 Preparation before wire connection
Open/Close the wire terminal cover
►Loosen the screw ①②, upwards move the terminal
cover and take off the cover
►Cover reset: downwards the cover
►Fix it with screw on position ①②。
2.4 Wire collocation
Switch-on power only when cover of the controller is closed and installer should ensure
the IP safety protection is not damaged during the installation process.
Depending on the type of installation, the cables may enter the controller through the rear
Operation manual of SR528Q wireless controller
- 8 -
hole of the case ④ or the lower side hole of the case ⑤.
Cable enters from the rear hole④ : Remove the plastic flaps ④ from the rear side of the
case using an appropriate tool.
Cable enters from the below hole⑤ : Cut the left and right plastic flaps using an
appropriate tool (e.g. knife) and break them out of the case.
Notes: the flexible wire must be fastened on the case using the clamps⑥ provided.
2.5 Wire connection
Before open the wire connection terminal, please be sure to switch-off the
power and conform to the instructions of local power supply.

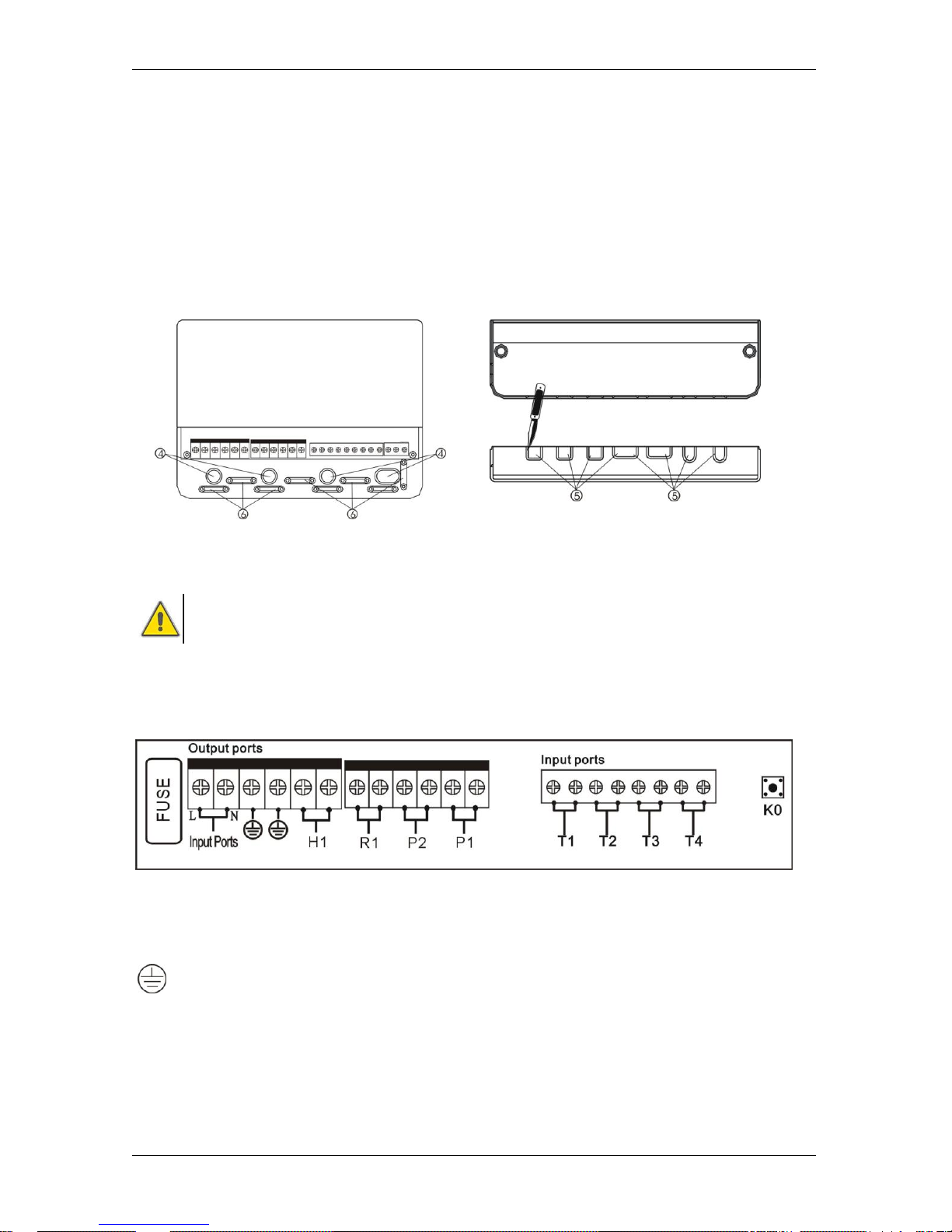

Terminal layout
Power connection ports
Input Ports: is for power connection, connect L, N wire correctly.
: is ground port.
FUSE:2A/250V
K0：Code match button of controller
Temperature sensor inputs
Input T1: For PT1000 temperature sensor, used to measure the temperature of
Operation manual of SR528Q wireless controller
- 9 -
collector
Input T2～T4: For NTC10K, B=3950 temperature sensor, used to measure the
temperature of tank or pipe
Advice regarding the installation of temperature sensors
Only original factory enclosed Pt1000 temperature sensors are approved for use with
the collector, it is equipped with 1.5meter silicon cable and suitable for all weather
conditions, the temperature sensor and cable are temperature resistant up to 280oC,
not necessary to distinguish the positive and negative polarity of the sensor connection.
Only original factory enclosed NTC10K, B=3950 temperature sensors are approved for
use with tank and pipe, it is equipped with 3.0meter PVC cable, and they are
temperature resistant up to 105oC, not necessary to distinguish the positive and
negative polarity of the sensor connection.
All sensor cables carry low voltage, and to avoid inductive effects, must not be laid
close to 230 volt or 400-volt cables (minimum separation of 100mm)
If external inductive effects are existed, e.g. from heavy current cables, overhead train
cables, transformer substations, radio and television devices, amateur radio stations,
microwave devices etc, then the cables to the sensors must be adequately shielded.
Sensor cables may be extended to a maximum length of ca. 100 meter, when cable’s
length is up to 50m, and then 0.75mm
2
cable should be used. When cable’s length is up
to 100m, and then 1.5mm2 cable should be used.
Outputs
Output (P1): Electromagnetic relay, for DHW circulation pump, Max. Switching current:
3.5A. P2 output port: normal status is open
Output (P2): Electromagnetic relay, for DHW circulation pump, Max. Switching current:
3.5A. P2 output port: normal status is open
Output (R1): Electromagnetic relay, for circulation pump or valve, Max. Switching
current: 3.5A. R1 output port: normal status is open
Output (H1): Electromagnetic relay, for back-up electrical heater , Max. Switching
current: 10A. H1 output port: normal status is open
Operation manual of SR528Q wireless controller
- 10 -
3. Wireless connection
Before power switched-on, connect the sensor on the input ports; connect pump or
valve on the output ports.
Power switched-on, first of all to match the code between controller and display, then to
set up time, password and relevant parameters of system.
Note：the display is powered on, but before it is matched with controller, E1
shows on the screen,
it means data is not synchronized, after successful code matching, controller
just enters a orderly operation status.
3.1 Code match between controller and display
► Open the connection terminal of controller; switch
on the power of controller and display.
► Press K0 button (on the right side of controller
terminal) for three seconds until the LED indicator light
(on the right side of controller) blinks (1 second 1
blink)
►then release K0 button, wait for match of display.
Note:
When there is only a display in the system, then
set the code “ID01” for this display.
When there are several displays in the system,
then set the start code “ID01” for the first display,
the code of every display should be different and
not repeated.
►Press “Match” button of display 1 for 3 seconds, “ID
01” blinks on the screen.
►Press “▲ ▼” button, adjust the address of display,
adjustable range is 01-08, maximum 8 displays can
be matched with this controller.(Code of the first
display must be set as “ID 01”,the second display
must be set as ”ID 02”,set like this, one by one)
Operation manual of SR528Q wireless controller
- 11 -
►Press “Match” button on the display, “SAVE” shows on the screen,
►Press “Match” button on the display, “WAIT - - -“shows on the screen, (waiting for the
connection between controller and display), when display automatically returns to the
normal operation screen, it indicates the success of code match.
If “WAIT- - - “shows on the screen always, it indicates the un-success of code match,
this display’s installation place is not suitable (distance to the controller may be too far),
remount the display in a suitable place.
When 2 or above 2 displays in the system
►Press the “Match” button of display 2 for 3 seconds, “ID 01” blinks on the screen.
►Then press “ ▲ ▼” button to adjust the ID address of display, adjustable range is
01-08, and set “ ID 02” for the second display.
►Press “Match” button on the display, “SAVE” shows on the screen, save the above
set.
►Press “Match” button on the display, “WAIT - - -“shows on the screen, (waiting for the
connection between controller and display), display automatically returns to the normal
operation screen in 6 seconds.
(According to the configured displays quantity, set the ID code and match the code for
every display one by one, and please note the ID code should not be repeated.)
After success code match for all displays,
►Press “KO” button for 3 seconds, the indicator light on the right side of controller
shines without blink (continuously shine).
►Then release “KO” button, code match finishing, controller enters the orderly
communication status.
Note：After the code match, you can press “▲ ▼” button to check the current
signal intensity (RSSI), if you encounter the problem like signal is too weak,
communication is unstable, lots of same frequency interfere signals occur
nearby, you can modify the communication frequency and select a ideal
frequency under the menu “COMM” (to modify the frequency must start from the
display with ID address of “ ID 01”), detailed steps see paragraph 6.7.3
(433M is an ideal communication frequency; do not change it at unnecessary
case).
Operation manual of SR528Q wireless controller
- 12 -
3.2 Application of wireless controller
Note: standard delivery package includes 1 controller and 1 display. Extra
displays should be ordered separately, 1 controller can be matched with
maximum 8 displays.
Operation manual of SR528Q wireless controller
- 13 -
4. Debugging
4.1 Time/week setup
►Press “Clock” button, display shows time on the screen, hour “00” blinks on the
screen.
►Press “ ▲ ▼” button to adjust the hour,
►Press “Clock” again, minute “00” blinks,
►Press “ ▲ ▼” button to adjust the minute,
►Then press “Clock” again, week “MO” blinks on the screen
►Press “▲ ▼” to adjust day of week,
►Press “Esc” button to exit the system setting, or waiting for 20 seconds to exit
automatically.
Code
Week
MO
Monday
TU
Tuesday
WE
Wednesday
TH
Thursday
FR
Friday
SA
Saturday
SU
Sunday
Operation manual of SR528Q wireless controller
- 14 -
4.2 Menu structure
Submenu:
Through submenu, user can set the parameter as desired value, please check it carefully.
Operation manual of SR528Q wireless controller
- 15 -
4.3 Menu description
Code
(Main menu)
Code
(Submenu)
Code
(Submenu)
Code description
DT O
Switch-on temperature difference
DT F
Switch-off temperature difference
TEMP
Temperature menu
EMOF
The maximum switch-off temperature of
collector
EMON
The maximum switch-on temperature of
collector
CMX
The maximum temperature of collector
(Collector cooling function)
CMN
Low temperature protection of collector
CFR
Frost protection temperature of collector
SMX
Maximum temperature of tank
REC
Cooling temperature of Tank
C-F
Switch between Celsius and Fahrenheit
FUN
Auxiliary functions
DVWG
Anti legionnaires' function
CIRC
DHW circulation pump on/off
COOL
Tank cooling function
BYPA
Bypass ( high temperature)
COMM
Communication function menu
ID
ID code of displays
MAC
Network address
FREQ
Communication frequency
RSSI
Signal intensity
HDN
Manual controlling
PASS
Password set
LOAD
Recovery to factory set
Operation manual of SR528Q wireless controller
- 16 -
4.4 System description
Note: storage temperature sensor T3 is an optional sensor, if this sensor is not installed on
the upper part of the storage, controller will adopt the temperature signal from sensor T2
installed on the bottom part of storage to control back-up heater or circuit pump.
1 collector array- 1tank -1 circuit pump-back-up heater
System description:
Controller compares the temperature between collector T1 and storage T2 ( bottom part), if
the temperature difference （DT） rises up to the preset switch-on (ΔT1)or is over it, circuit
pump P1 is triggered , and then storage is heated until DT drops to the switch-off DT or
when the storage temperature T3 rises up to its preset maximum temperature. Then circuit
pump P1 is ceased.
Back-up heating: (see details at paragraph 5.4)
Within the preset heating time section, if tank temperature (T3) drops to the switch-on
temperature of heating, then back-up heater H1 is triggered automatically, when tank
temperature T3 rises up to the preset switch-off temperature, then output H1 is closed.
Operation manual of SR528Q wireless controller
- 17 -
T1: Temperature sensor Pt1000 on collector
T2: Temperature sensor NTC10K on the bottom part of tank
T3: Temperature sensor NTC10K on the top part of tank (optional)
T4: Temperature sensor NTC10K on the DHW pipe (optional)
P1: Solar circuit pump
P2: DHW circuit pump
R1: High temperature bypass pump or valve (optional)
H1: Back-up heater
5.Functions operation and parameters setup (user grade)
5.1 Timing Heating
Description:
Electrical heater, gas boiler or oil boiler can be integrated into solar system used as back-up
heat source, and they can be triggered automatically at preset schedule by preset
temperature. Within a preset schedule, when the temperature (T3) of top part of tank
drops below the preset switching-on temperature of this function, back-up heating H1 starts
to work, when T3 rises up to the preset turning off temperature, back-up heating H1 is
stopped. Within 24 hours, three time sections can be set with this controller.
Factory set:
The first schedule: back-up heating function starts at 4:00 and ends at 5:00 am. Within this
time section, default switch-on temperature is 40oC; default switch-off temperature is 45oC.
The second schedule: starts at 10:00 and ends also at 10:00 am, it means no back-up
heating in this time.
The third schedule: back-up heating function starts at 17:00 and ends at 22:00 pm. Within
this time section, default switch-on temperature is 50oC; default switch-off temperature is
55oC.
The switch-on temperature adjustable range: 10 oC ~ (OFF-2 oC)
The switch-off temperature adjustable range: (ON+2 oC) ~ 80 oC
If you want to shut off one timing heating, then you can set the turning on time and turning
off time with a same value (for example, the second time section without this function, then
you can set turning on/off time is 10:00 ~ 10:00)
When time is outside of the preset schedule, back-up heating doesn’t work automatically
Operation manual of SR528Q wireless controller
- 18 -
even when the tank temperature drops to the switch –on temperature of heating.
Note:
When there is no sensor installed in the top part of tank (no T3 sensor),
controller will take the signal of T2 (sensor in bottom of tank) automatically to
control this function.
The time in this controller is 24 hours mode, when you set schedule, the
switch-off time of heating should be larger than switch-on time. For example: if
you set the switch-on time of heating is at 17:00, but switch-off time of heating is
6:00, then this setting doesn’t take effect, that means within this time section,
heating function doesn’t work. The correct set is like flowing: it should be
divided into two time sections, one time section is from 17:00 to 23:59, the other
time section is from 00:00 to 06:00.
Setup steps: under standby status,
► Press “ Heating” button to enter the timing setup interface, “tH 1o 04:00” shows on
the screen, access the submenu of the switch-on time
and temperature for the first schedule of heating
function.
► Press “Set” button, hour “04” blinks on the screen, the switch-on time and temperature for
the first schedule of heating function can be set.
►Press “▲ ▼” button to adjust hour of time.
►Repress “Set” button again, minute “00” blinks on the screen.
►Press “▲ ▼” button to adjust minute of time.
►Repress “Set” button, temperature “40oC” blinks on the screen.
►Press “▲ ▼” button, to set the switch-on temperature of heating.
►Then, press “Esc” to exit this submenu.
----------------------------------------------------------------------------------------------------------------►Press “ Heating” button, “tH 1F 05:00” shows on the screen, access the submenu of
the switch-off time and temperature for the first
schedule of heating function.
► Press “Set” button again, hour “05” blinks on the
screen.
►Press “▲ ▼”button to adjust hour of time.
►Repress “Set” button again, minute “00” blinks on the screen.
Operation manual of SR528Q wireless controller
- 19 -
►Press “▲ ▼”button to adjust minute of time.
►Repress “Set” button, temperature “45oC” blinks on the screen.
►Press “▲ ▼”button, to set the switch-off temperature of heating.
►Then, press “Esc” to exit this submenu; value of the parameters are saved automatically.
-----------------------------------------------------------------------------------------------------------------
► Press “ Heating” button to enter the timing setup
interface, “tH 2o 10:00” shows on the screen, access
the submenu of the switch-on time and temperature for
the second schedule of heating function.
► Press “Set” button, hour “10” blinks on the screen; the switch-on time and temperature for
the second schedule of heating function can be set.
►Press “▲ ▼” button to adjust hour of time.
►Repress “Set” button again, minute “00” blinks on the screen.
►Press “▲ ▼” button to adjust minute of time.
►Repress “Set” button, temperature “50oC” blinks on the screen.
►Press “▲ ▼” button, to set the switch-on temperature of heating.
►Then, press “Esc” to exit this submenu.
----------------------------------------------------------------------------------------------------------------►Press “ Heating” button, “tH 2F 10:00” shows on the screen, access the submenu of
the switch-off time and temperature for the second
schedule of heating function.
► Press “Set” button again, hour “10” blinks on the
screen.
►Press “▲ ▼”button to adjust hour of time.
►Repress “Set” button again, minute “00” blinks on the screen.
►Press “▲ ▼”button to adjust minute of time.
►Repress “Set” button, temperature “55oC” blinks on the screen.
►Press “▲ ▼”button, to set the switch-off temperature of heating.
►Then, press “Esc” to exit this submenu; value of the parameters are saved automatically.
-------------------------------------------------------------------------------------------------------------------

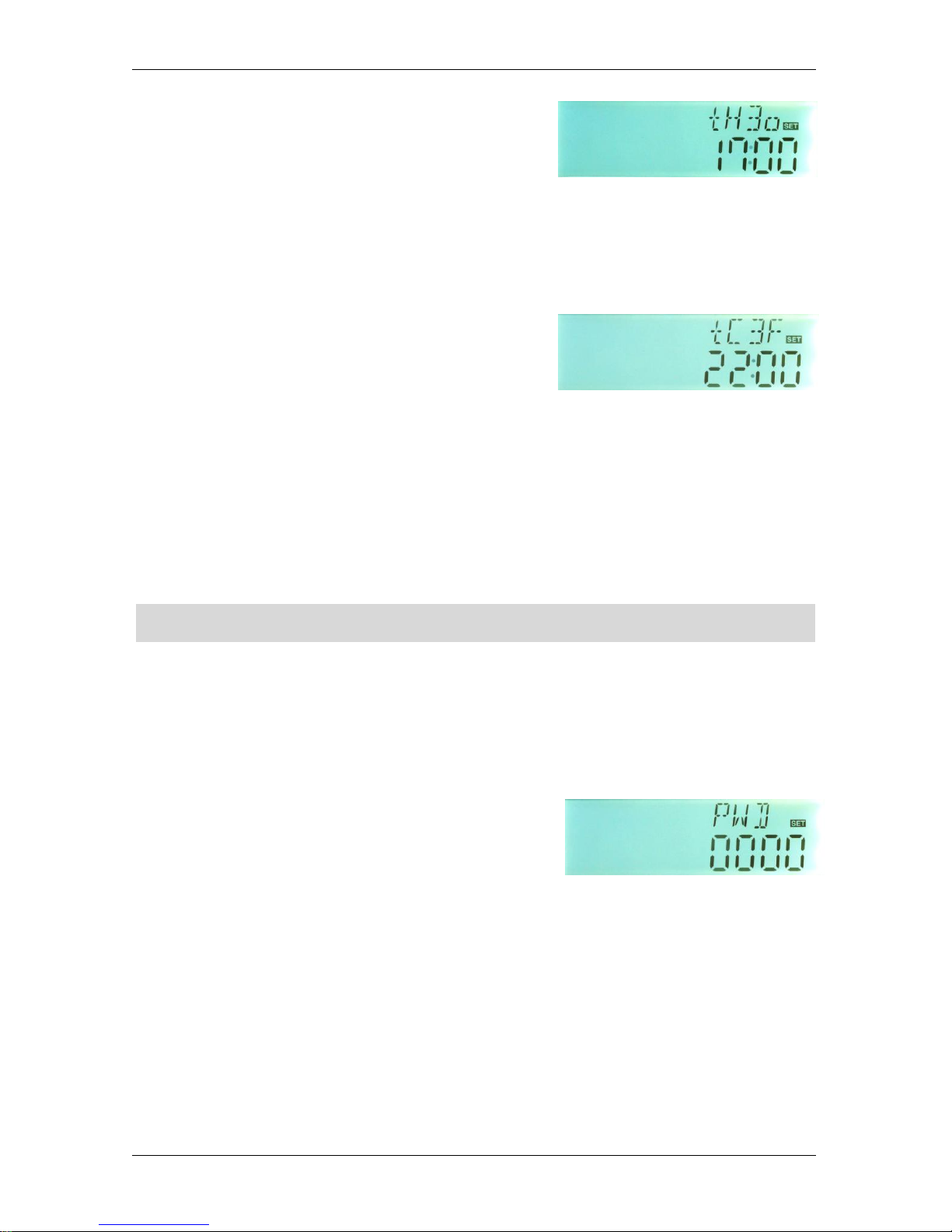

► Press “ Heating” button to enter the timing setup interface, “tH 3o 17:00” shows on
the screen, access the submenu of the switch-on time
and temperature for the third schedule of heating
function.
Operation manual of SR528Q wireless controller
- 20 -
► Press “Set” button, hour “17” blinks on the screen; the switch-on time and temperature for
the third schedule of heating function can be set.
►Press “▲ ▼” button to adjust hour of time.
►Repress “Set” button again, minute “00” blinks on the screen.
►Press “▲ ▼” button to adjust minute of time.
►Repress “Set” button, temperature “50oC” blinks on the screen.
►Press “▲ ▼” button, to set the switch-on temperature of heating.
►Then, press “Esc” to exit this submenu.
----------------------------------------------------------------------------------------------------------------►Press “ Heating” button, “tH 3F 22:00” shows on the screen, access the submenu of
the switch-off time and temperature for the third schedule of heating function.
► Press “Set” button again, hour “22” blinks on the
screen.
►Press “▲ ▼”button to adjust hour of time.
►Repress “Set” button again, minute “00” blinks on the screen.
►Press “▲ ▼”button to adjust minute of time.
►Repress “Set” button, temperature “55oC” blinks on the screen.
►Press “▲ ▼”button, to set the switch-off temperature of heating.
►Then, press “Esc” to exit this submenu or wait for 20 seconds to exit automatically; value
of the parameters are saved automatically.
Note: when no gas or oil boiler is connected to solar system, electrical heater can be
installed as back-up device, when electrical heater is in operation status, sign
blinks on the screen.
If customer uses electrical heater as back-up, please according to the power of electrical
heater to equip corresponding safety devices like contactor and breaker with this controller,
we strongly recommend equipping with SR802 device with this controller, (SR802 detailed
technical data see paragraph spare parts)
5.2 Energy save mode
Description:
At the time that user doesn’t need electrical heater ( e.g in Summer), if you trigger on
this function, then timing heating function is overridden, but manual heating is effective
Operation manual of SR528Q wireless controller
- 21 -
continuously, by this way you can save electricity.
► Press “Power Save” button, energy save sign
shows on the screen, Energy save function is
activated.
►Press “Power Save” button again to deactivate this function.
5.3 Temperature / time setting for DHW circulation pump
Description:
This controller can provide an output to control a DHW circulation pump, this function
needs an extra circuit pump (connect with output P2) and an extra temperature sensor
(connect with input T4) which mounted on the hot water return pipe. When the
measured temperature is lower than the switch-on temperature of circulation pump,
pump is triggered, until temperature rises up to the switch-off temperature, pump is
stopped.
Note:
The running of DHW circulation pump can be controlled by temperature and time
section. In below text how to set the time and temperature is described; it doesn’t
mean the function is activated. If you want to activate this function, you should
access main menu FUN and select CIRC submenu and activate it. (See paragraph
6.5.2)
Manually control DHW pump:
It is possible to manually trigger DHW pump P2 at any time, default running time is 3
minutes, after 3 minutes, pump P2 is stopped automatically.
Setup steps:
► Press “ON/OFF” button, “03” displays and blinks
on the screen
► Press “▲ ▼” button to adjust running time of pump P2, (default running time is 3
minutes, adjustable range is 1-60 minutes)
Three time sections control DHW pump:
Within a time section, pump runs repeatedly as default: running for 3 minutes and
Operation manual of SR528Q wireless controller
- 22 -
interval for 15 minutes.
Temperature and time control DHW pump:
Within a time section, default condition: pump P2 runs when T4 drops to 40oC, pump P2
is stopped when T4 rises up to 45oC.
Startup condition of DHW temperature control: when tank temperature T3 is 1oC higher
than the switch-off temperature of DHW circuit pump, DHW pump can be triggered.
Default time section:
The first time section: start at 05:00, stop at 07:00
The second time section: start at 11:00, stop at 13:00
The third time section: start at 17:00, stop at 22:00
If it is needed to close one time section, just set the start time and stop time at a
same value (e.g. 10:00 start, 10:00 stop)
Note:
1)Temperature control mode is prior to time control mode
2)When pipe temperature sensor T4 is installed, the controller is automatically
stop time control mode and transfer to the temperature control mode.
3)If install T4 sensor, in order to avoid measuring error, please be sure to install it
at place minimum 1.5 meter far away to tank.
Setup steps: (time control mode):
Note: time setting steps for time and temperature mode is same like here
described steps.
►Press “ DHW” button, to access DHW time setting, “tC 1O 05:00” shows on the
screen, now the start time of the first time section can be set.
►Press “Set button, hour “05” blinks
►Press “▲ ▼” button, to adjust hour
►Press “Set” button, minute “00” blinks
►Press “▲ ▼” button, to adjust minute
►Press “Set” button, figure “03 MIN” blinks
►Press “▲ ▼” button, to adjust pump running time
►Press “Esc” button, to exit submenu
►Press “▲” button, “tC 1F 07:00” shows on the screen, now the stop time of the first
Operation manual of SR528Q wireless controller
- 23 -
time section can be set.
►Press “Set” button, hour “07” blinks
►Press “▲ ▼” button, to adjust hour
►Press “Set” button, minute “00” blinks
►Press “▲ ▼” button, to adjust minute
►Press “Set” button, figure “15 MIN” blinks
►Press “▲ ▼” button, to adjust pump interval time
►Press “Esc” to exit this submenu or wait for 20 seconds to exit automatically; value of the
parameter is saved automatically.
------------------------------------------------------------------------------------------------------------------►Press “▲” button, “tC 2O 11:00” shows on the screen, now the start time of the
second time section can be set.
►Press “Set” button, hour “11” blinks
►Press “▲ ▼” button, to adjust hour
►Press “Set” button, minute “00” blinks
►Press “▲ ▼” button, to adjust minute
►Press “Set” button, figure “03 MIN” blinks
►Press “▲ ▼” button, to adjust pump running time
►Press “Esc” button, to exit submenu
►Press “▲” button, “tC 2F 13:00” shows on the screen, now the stop time of the
second time section can be set.
►Press “Set” button, hour “13” blinks
►Press “▲ ▼” button, to adjust hour
►Press “Set” button, minute “00” blinks
►Press “▲ ▼” button, to adjust minute
►Press “Set” button, figure “15 MIN” blinks
►Press “▲ ▼” button, to adjust pump interval time
►Press “Esc” to exit this submenu or wait for 20 seconds to exit automatically; value of the
parameter is saved automatically.
-------------------------------------------------------------------------------------------------------------------►Press “▲” button, “tC 3O 17:00” shows on the screen, now the start time of the third
time section can be set.
►Press “Set” button, hour “17” blinks
►Press “▲ ▼” button, to adjust hour
Operation manual of SR528Q wireless controller
- 24 -
►Press “Set” button, minute “00” blinks
►Press “▲ ▼” button, to adjust minute
►Press “Set” button, figure “03 MIN” blinks
►Press “▲ ▼” button, to adjust pump running time
►Press “Esc” button, to exit submenu
►Press “▲” button, “tC 3F 22:00” shows on the screen, now the stop time of the third
time section can be set.
►Press “Set” button, hour “22” blinks
►Press “▲ ▼” button, to adjust hour
►Press “Set” button, minute “00” blinks
►Press “▲ ▼” button, to adjust minute
►Press “Set” button, figure “15 MIN” blinks
►Press “▲ ▼” button, to adjust pump interval time
►Press “Esc” to exit this submenu or wait for 20 seconds to exit automatically; value of the
parameter is saved automatically.
6. Functions operation and parameters setup (engineer grade)
6.1 Access main menu
Under standby, do like following steps to access main menu.
►Press “Set” button, “PWD 0000” appears on the screen, the left first figure blinks to ask for
entering password, factory default set password is “0000” ( press “SET” five times, to enter
menu directly). If you have set password, then enter
password like below steps.
►Press “▲ ▼” button to enter first figure of password.
►Repress “Set” button, the second figure blinks
►Repress “▲ ▼” button, to enter second figure of password.
►Repeat press “Set” button, the third figure blinks
►Repress “▲ ▼” button, to enter third figure of password.
►Repeat press “Set” button, the forth figure blinks
►Repress “▲ ▼” button, to enter forth figure of password.
►Repress “Set” button, to access the main menu.
►Press “▲ ▼” button, select any menu you wanted.
Operation manual of SR528Q wireless controller
- 25 -
►Press “Esc” button, you can exit main menu.
6.2 Access submenu
After access main menu and select a menu,
► Press “Set” button, to access the submenu option.
► Press “▲ ▼” button, roll the submenu and select
one.
► Press “Set” button, to access the submenu setting.
► Press “▲ ▼” button, to adjust the parameter.
► Press “Esc” button, to exit the submenu.
► Repress “Esc” button, to exit the main menu.
6.3 Temperature difference for solar circuit pump（DT O/DT F）
Description:
Solar circuit pump P1 is triggered by the temperature difference function, so long as the
temperature difference between collector and storage reaches the switch-on DT, solar circuit
pump is triggered. When the temperature difference between collector and storage drops to
the switch-off DT, then solar pump is ceased.
For example: the switch-on DT is 8oC, switch-off DT is 4oC, if the temperature on the bottom
part of storage is 20oC, then just when collector temperature rises up to 28oC, pump is
triggered, and when collector temperature drops to 24oC, pump is ceased.
Note: the switch-on/off DT of 8 oC and 4 oC are standard system setting according to
many years’ experience, only in special application cases it may be changed, (e.g. far
distance heat transferring), normally we recommend using default set. Switch-on and
switch-off DT are alternating set. To avoid mistake the minimum difference between
two temperature differences (ΔTon –ΔToff) is set as 2
o
C.
Setup switch-on temperature difference DT O
Under standby, following steps description in paragraph 6.1 to access main menu DT O
►Press “Set” button, to access settings program of main menu DT O, “DT O 08
o
C” shows
on the screen, “08
o
C” blinks, the switch-on temperature difference can be set.
Operation manual of SR528Q wireless controller
- 26 -
►Press “▲ ▼” button, to adjust the value of switch-on
DT O, adjustable range (OFF+2
o
C）～20
o
C, factory
setting is 8 oC
►Press “Esc” button to exit this setting, parameter is saved automatically.
Setup switch-off temperature difference DT F
Under standby, following steps description in paragraph 6.1 to access main menu DT F
►Press “Set” button, to access settings program of main menu DT F, “DT F 04
o
C” shows
on the screen, “04
o
C” blinks, and the switch-off temperature difference can be set.
►Press “▲ ▼” button, to adjust the value of switch-off
DT F, adjustable range 0oC ~ (ON-2 oC）, factory setting
is 4 oC
►Press “Esc” button to exit this setting, parameter is saved automatically.
►Press “Esc” to exit menu, or wait for 20 seconds to exit automatically, the setup
parameters are saved automatically.
Operation manual of SR528Q wireless controller
- 27 -
6.4 TEMP Temperature main menu
For solar system, the factory set parameters are for the best operation condition, which is
fully integrated into the entire solar system. But these parameters can also be set
individually to cater the special requirements, please carefully observe the operation data of
system components after setting.
Note: Parameters that can be set rely on the system design, it means not all the parameters
is suitable for all solar systems,
Following submenu can be access though TEMP main menu.
Tem.
Code
Function of temperature
Adjustable
range
Factor
y set
Function
exit tem.
Paragrap
h
EMOF
Maximum switch-off
temperature of collector
(ON+3oC)~200
o
C
130 oC
6.4.1
EMON
Maximum switch-on
temperature of collector
60 oC ~ (OFF-3
o
C)
120 oC
6.4.2
CMX
Maximum limited temperature
of collector (collector cooling
function)
60 oC ~190 oC
110 oC
107 oC
6.4.3
CMN
Low temperature protection of
collector
0 oC~90 oC
OFF
6.4.4
CFR
Frost protection temperature of
collector
-10 oC~10 oC
OFF
6.4.5
SMX
Maximum temperature of tank
2 oC~95 oC
60 oC
58 oC
6.4.6
REC
Cooling temperature of tank
OFF
6.4.7
C - F
Switch between Celsius and
Fahrenheit
o
C ～oF
o
C 6.4.8
6.4.1 EMOF Maximum switch-off temperature of collector (for collector
emergency close function)
Function description:
When collector temperature rises up to this maximum switch-off temperature (EM), collector
emergency function is activated, solar circulation pump is stopped in order to avoid the
damage of system’s other components caused by high temperature. The adjustable range
of EMOF temperature is （ON+3 oC～200 oC）, factory set is 130 oC. If the temperature of
Operation manual of SR528Q wireless controller
- 28 -
collector rises up to EMOF limited temperature, solar circuit pump is ceased, but when
collector temperature drops to the collector maximum switch-on temperature EMON（factory
set is 120oC）, solar circuit pump will be recovery, and collector emergency close function
is deactivated.
Setup steps:
To access main menu TEMP, then select submenu EMOF, “EMOF 130oC” shows on the
screen
►Press “Set” button, parameter “130
o
C” blinks.
►Press “▲ ▼” button, to adjust this maximum
switch-off temperature, adjust range (ON+3 oC）～200 oC, factory set is 130 oC
►Repress “Set” button to activate and deactivate this function, if deactivate the function,
“EMOF - - -” shows on the screen.
► Press “Esc” button to exit menu or wait for 20 seconds to exit automatically, set
parameters are saved automatically.
6.4.2 EMON Maximum switch-on temperature of collector (for collector
emergency close function)
Setup steps:
To access main menu TEMP, then select submenu EMON, “EMON 120oC” shows on the
screen
►Press “Set” button, parameter “120 oC” blinks.
►Press “▲ ▼” button, to adjust this maximum
switch-on temperature, adjust range 60 oC ~ (OF-3 oC), factory set is 120 oC
►Repress “Set” button to activate and deactivate this function, if deactivate the function,
“EMON - - -” shows on the screen.
► Press “Esc” button to exit menu or wait for 20 seconds to exit automatically, set
parameters are saved automatically.
When these 2 signs of collector emergency close function blink on the
screen, it indicates the function is activated, and tank temperature reaches up to its
maximum limitation.
When only this sign of collector emergency close function blinks on the screen, it
indicates the function is also activated, but temperature of tank doesn’t reach to its
Operation manual of SR528Q wireless controller
- 29 -
maximum limited temperature
6.4.3 CMX Maximum limited temperature of collector (collector cooling function)
Function description:
If hot water in tank isn’t used for long time, then the capacity that solar system absorbs solar
irradiation reduces, when tank temperature rises to its preset maximal temperature, solar
circuit pump is ceased compulsively even the temperature difference is satisfied. then when
more solar irradiation shines in, as a result collector temperature will rise continuously,
temperature of collector maybe rise up to the evaporated temperature of heat fluid, this
phenomenon names collector - overheat, it should be avoided. Through set the Maximum
limited collector temperature（collector cooling function） it can delay the vaporization of the
heat transfer fluid. Shortly before reaching the maximum temperature of the collector, the
solar pump starts working to cool down the heat transfer fluid using the heat losses
occurring in pipelines and storage cylinder.
When collector temperature rises up to its maximal temperature, solar pump will be
triggered again even at the case that tank temperature is already to its maximal temperature.
And solar pump works until the temperature of collector drops because of this reversed
circulation or when tank temperature rises its emergency temperature (95oC).
When displays, and blinks on the screen, it indicates that tank emergency
temperature reaches, tank emergency stop function is activated, and tank temperature is
≥95℃
Setup steps:
To access main menu TEMP, then select submenu CMX, “CMX 110
o
C” shows on the
screen
►Press “Set” button, “110 oC” blinks.
►Press “▲ ▼” button to adjust collector limited
maximum temperature , adjust range :（60 oC～190 oC）,
Factory set is 110 oC
►Press “Set” button to activate and deactivate this function, if deactivate the function, “CMX
- - -” shows on the screen.
► Press “Esc” button to exit menu or wait for 20 seconds to exit automatically, set
parameters are saved automatically.
Operation manual of SR528Q wireless controller
- 30 -
CMX sign displays on the screen, it indicates that collector cooling function is
activated.
6.4.4 CMN Low temperature protection of collector
Description:
When the actual temperature of collector is below the preset CMN temperature, solar circuit
pump is ceased, even when the temperature difference between collector and storage
exceeds switch-on temperature difference, solar pump doesn’t work yet. When the
temperature of collector is 3oC higher than the preset CMN temperature, solar circuit pump
is standby to work, controller exits this program.
Setup steps:
To access main menu TEMP, then select submenu CMN, “CMN - - -” shows on the screen,
default set is OFF.
►Press “Set” button, default off sign “- - -” blinks on the
screen.
►Repress “Set” button to activate and deactivate this
function.
►Press “▲ ▼” button to adjust the low protection temperature of collector CMN,
adjustable range (00 oC ～90 oC ), after activate the function, factory set is 10 oC
► Press “Esc” button to exit the menu or wait for 20 seconds to exit automatically,
parameters are saved automatically.
CMN sign displays on the screen, it indicates that this function is activated.
6.4.5 CFR frost protection temperature of collector
Description:
In winter when the temperature of collector is below the preset frost protection temperature
(factory set is 4 oC), solar circuit pump is triggered to transfer hot water from tank to collector
and to heat collector by this reversed circuit. And when tank temperature (T2) drops to 6oC,
electrical heater is triggered automatically and it keeps running until tank temperature T2
rises up to 21
o
C or it is stopped when program of CFR is exited. When collector
temperature rises up to 7
o
C, solar circuit pump is ceased, program of CFR exits
Operation manual of SR528Q wireless controller
- 31 -
automatically.
This function is used in system, which uses water as heat transfer liquid, to avoid the
freezing of solar heat transfer fluid.
Setup steps:
To access main menu TEMP, then select submenu CFR, “CFR ----” shows on the screen,
default set is off.
►Press “Set” button, default off “- - -” blinks.
►Repress “Set” button to activate or deactivate this
function
►Press “▲ ▼” button to adjust the temperature of frost protection function, adjustable
range is （-10 oC～10 oC）, after function is activated, default set is 4 oC
► Press “Esc” button to exit the menu or wait for 20 seconds to exit automatically,
parameters are saved automatically.
CFR sign shows on the screen, it indicates that this function is activated.
Note: this function is only available in special solar system which using
un-anti-freezing liquid; this kind of system is only suitable in area where the ambient
temperature is near to 0oC only for a few days. If safety requirement is very high, then
anti-freezing liquid is necessary, we suggest using suitable anti-freezing liquid to
avoid frost problem.
6.4.6 SMX Maximum temperature of tank
Description:
When the DT between collector T1 and tank T2 caters the switch-on DT of circulation, solar
pump is triggered, but in order to avoid the high temperature inside tank, controller will
check whether the temperature (T3) of the top part of tank is higher than the maximum
temperature of tank, when T3 is higher than the preset maximum tank temperature SMX,
solar pump is ceased even at the case that DT caters condition. When tank temperature
drops and is 2oC below the SMX temperature, solar pump restarts when DT caters
condition.
Operation manual of SR528Q wireless controller
- 32 -
Setup steps:
To access main menu TEMP, then select submenu SMX, “SMX 60
o
C” shows on the screen.
►Press “Set” button, parameter “60 oC” blinks
►Press “▲ ▼” button to adjust the value of maximum
temperature of tank, adjustable range is（2 oC～95 oC）,
default set is 60 oC
►Repress “Set” button to activate and deactivate this function, if function deactivated, “SMX
- - -” displays on the screen.
► Press “Esc” button to exit the menu or wait for 20 seconds to exit automatically,
parameters are saved automatically.
SMX sign shows on the screen, it indicates that this function is activated.
6.4.7 REC Cooling temperature of tank
Description:
If storage temperature rises up to its maximum temperature, and at the same time, collector
temperature is 5oC lower than storage temperature, then solar pump can be triggered,
through this reversed circulation, storage temperature is reduced by heat loss occurs in
collector, solar pump keeps in working until storage temperature drops below its maximum
temperature.
Setup steps:
To access main menu TEMP, then select submenu REC, “REC OFF” shows on the screen,
default set is off.
►Press “Set” button, parameter “OFF” blinks on
screen
►Repress “Set” button to activate or deactivate this
function; after function activated, factory set is “REC ON”
► Press “Esc” button to exit the menu or wait for 20 seconds to exit automatically,
parameters are saved automatically.
REC sign displays on the screen, it indicates that this function is activated.
Operation manual of SR528Q wireless controller
- 33 -
6.4.8 C＿F Switch between Celsius and Fahrenheit
Setup steps:
To access main menu TEMP, then select submenu C_F, “C_F oC” shows on the screen,
►Press “Set” button, displayed parameter blinks on
the screen
►Press “▲” button, to select Celsius or Fahrenheit
temperature unit, default set is oC
► Press “Esc” button to exit the menu or wait for 20 seconds to exit automatically,
parameters are saved automatically.
6.5 FUN Auxiliary functions
The auxiliary functions of this controller can be set under menu “FUN”; it is possible to
activate several auxiliary functions at the same time.
Note:
Sometimes, the selected function needs controller to have an extra input to connect a
temperature sensor or an extra output to control a pump or electromagnetic valve.
Under main menu “FUN”, some submenu functions maybe deactivated, so the
displayed contents for below mentioned submenu functions maybe different.
For example:
If you deactivate thermal energy measuring function ( OHQM), then FMAX, MEDT,
MED% submenu will not be displayed, only when you activate OHQM function, they
can be displayed under submenu ( see menu structure in paragraph 4.2).
Following submenu can be access though FUN main menu.
Function code
Function description
Paragraph
DVWG
Anti legionnaires' function
6.5.1
CIRC
DHW circulation pump on/off
6.5.2
COOL
Tank cooling function
6.5.3
BYPA
Bypass ( high temperature)
6.5.4
Operation manual of SR528Q wireless controller
- 34 -
6.5.1 DVWG Anti legionnaires' function
Description:
In order to avoid occurring bacteria in water tank when the temperature of tank is lower for a
long time, controller will check the temperature of tank every 7 days in a period
automatically, if the temperature of tank is never over 70oC during this period, then at the
factory default time of 01:00 on Sunday, auxiliary heating system is triggered automatically
to heat water until its temperature rises up to 70oC（ this is factory default set, impossible to
reset）, bacteria is killed by high temperature, thereafter function is deactivated.
Setup steps:
To select submenu DVWG, “DVWG OFF” shows on the screen. Default set is “OFF”.
►Press “Set” button, parameter “OFF” blinks on the
screen.
►Press “▲ ▼” button and “DVWG ON” shows on the
screen, then to activate this function.
►Press “Esc” button to exit the menu or wait for 20 seconds to exit automatically,
parameters are saved automatically.
6.5.2 CIRC DHW circulation pump on/off
Setup steps:
To select submenu CIRC, “CIRC OFF” shows on the
screen. Default set is “OFF”.
►Press “Set” button, parameter “OFF” blinks on the
screen.
►Press “▲ ▼” button and “CIRC ON” shows on the
screen, then to activate this function.
►Press “Esc” button to exit the menu or wait for 20 seconds to exit automatically,
parameters are saved automatically.
6.5.3 COOL Tank cooling function
Description:
Tank cooling function is independent from solar system, it is used to transfer the extra
thermal energy from tank to other heat release device, and as a result, tank temperature
can be kept at a constant value. So for this function, an extra pump should be installed in
Operation manual of SR528Q wireless controller
- 35 -
Example (only for reference)
the system, and it is controlled by output R1.
For example:
We set the temperature of 80oC is the condition to run the cooling function, then when tank
temperature T3 rises up to 80oC, cooling function is activated automatically, pump R1 starts
to work, when tank temperature drops to 77oC, the pump P1 is stopped.
Setup steps:
To access submenu COOL, “COOL - - -” displays on the
screen.
►Press “Set” button, parameter “- - -” blinks on the
screen, default set is OFF.
►Repress “Set” button to activate or deactivate
this function; after function activated, “COOL
80
o
C” displays on the screen and 80
o
C blinks,
►Press “▲ ▼” button to adjust temperature,
adjustable range (5 oC ～95oC）
► Press “Esc” button to exit the menu or wait for
20 seconds to exit automatically, parameters are
saved automatically.
Note:Both functions of “COOL” and “BYPR” use same output R1,so only one
(“COOL” or “BYPR”)available at the same time.
6.5.4BYPR Bypass function (high temperature)
Description:
In the case that tank temperature rises up to its maximum temperature ( SMX), and if the
collector temperature T1 rises up to BYPR temperature, then solar pump can be triggered,
at the same time, electromagnetic T-valve R1 is triggered also to release extra heat by
radiator or pipe. Collector temperature drops and when it is 10oC below the BYPR
temperature or when tank temperature T3 is below its maximum tank temperature (SMX),
then P1 and R1 are stopped at the same time.
Setup steps:
To access submenu BYPR, “BYPR - - -” displays on the screen.
Operation manual of SR528Q wireless controller
- 36 -
►Press “Set” button, parameter “- - -” blinks on the
screen, default set is OFF.
►Repress “Set” button to activate or deactivate this
function; after function activated, “BYPR 80
o
C” displays on the screen and 80
o
C blinks.
►Press “▲ ▼” button to adjust temperature, adjustable range (5 oC ～120oC）
► Press “Esc” button to exit the menu or wait for 20 seconds to exit automatically,
parameters are saved automatically.
Application example (only for reference)
Note:Both functions of “COOL” and “BYPR” use same output R1,so only one
(“COOL” or “BYPR”)available at the same time.
6.6 COMM Communication function menu
Note:
1)The MAC, FREQ of displays which are matched with this controller should all be
same.
2)ID, MAC and RSSI are not adjustable in this controller, these submenu are used
only for checking the value used in this controller.
6.6.1 ID Address
Select COMM communication menu, “COMM” shows
on the screen.
►Press “Set” button, to check ID address of this
Release heat by radiator
Release heat by pipe
Operation manual of SR528Q wireless controller
- 37 -
display, “ID 01” shows on the screen.
6.6.2 MAC Network address
Select MAC network address submenu, “MAC 685”
shows on the screen.
6.6.3 FREQ Communication frequency
Select FREQ submenu, “FREQ 433” shows on the screen.
►Press “Set” button, parameter “433” blinks on the
screen; factory set is “433”. Adjustable frequency is
431-435 MHz.
►Press “▲ ▼” button, to adjust parameter
►Press “ Esc” button to confirm the parameter you
set.
►Press “▲”2 times, “SAVE” blinks on the screen.
►Press “ Set” button, “WAIT- - -” shows on the
screen, waiting for 10 seconds, “ SAVE” blinks, and
system recover to normal operation status in 20 seconds automatically, then new
communication frequency is successful.
(if after setting the new frequency, and “WAIT - - -“ displays on the screen, but
matching with controller is unsuccessful, then error code “ ERR” shows on the screen,
you need to revise the communication frequency).
6.6.4 RSSI Signal intensity
Select RSSI signal intensity submenu, “RSSI 31”
shows on the screen.
6.7 HND Manual control
When using this controller first time or when debugging this controller, outputs of this
controller(P1, P2,R1,H1）can be triggered manually with “On, OFF” control.
Operation manual of SR528Q wireless controller
- 38 -
Setup steps:
To access main menu HND,
-------------------------------------------------------------------------------------------------------------------------
►Press “Set” button, “HND1 off” displays on the screen,
P1 output manually set
►Repress “Set” button, “HND1 on” displays on the
screen, P1 output is switched-on
►Repress “Set” again, “HND1 off” displays, P1 output is switched-off
►Press “Esc” to exit setup P1.
------------------------------------------------------------------------------------------------------------------
►Press “▲” button, “HND2 off” displays on the screen,
P2 output manually set
►Press “Set” button, “HND2 on” displays on the screen,
P2 output is switched-on
►Repress “Set” again, “HND2 off” displays, P2 output is switched-off
►Press “Esc” to exit setup P2.
--------------------------------------------------------------------------------------------------------------------
►Press “▲” button, “HND3 off” displays on the screen,
R1 output manually set
►Press “Set” button, “HND3 on” displays on the screen,
R1 output is switched-on
►Repress “Set” again, “HND3 off” displays, R1output is switched-off
►Press “Esc” to exit setup R1.
--------------------------------------------------------------------------------------------------------------------
►Press “▲” button, “HND4 off” displays on the screen, H1 output manually set
►Press “Set” button, “HND4 on” displays on the screen,
H1 output is switched-on
►Repress “Set” again, “HND4 off” displays, H1 output is
switched-off
►Press “Esc” to exit setup H1.
-----------------------------------------------------------------------------------------------------------------
Note: when manual mode is activated, sign displays on the screen, after 15
minutes all outputs are switched-off automatically, controller exits manual mode.
Operation manual of SR528Q wireless controller
- 39 -
6.8 PASS Password set
Setup steps:
To access main menu PASS,
►Press “Set” button, “PWDC 0000” appears, the left
figure blinks, ask for entering current password ( factory
set is “0000”)
►Press “▲ ▼”button to enter the first figure
►Repress “Set” button, the second figure blinks
►Press “▲ ▼”button to enter the second figure
►Repress “Set” button, the third figure blinks
►Press“▲ ▼” button to enter the third figure
►Repress “Set” button, the fourth figure blinks
►Press“▲ ▼” button to enter the fourth figure
►Press “Set” button, “PWDN 0000” shows on the screen, ask for entering a new password,
doing like above to enter the new password
►Press “Set” button, “PWDG 0000” shows on the screen, ask for reentering the new
password, doing like above to reenter the new password, “PWOK” shows on the screen to
indicate reentering password successfully.
►Press “Esc” button to exit set program or wait for 20 seconds to exit automatically.
Warning!
If the password is forgot, it is not possible to recover, but you can recover the
password to factory set, then you can reedit a password like above descript steps, doing like
following to recover to factory set.
► Open the cover of display’s button panel
►Press “ON/OFF” and hold it down, and press “Reset”.
Buzzer makes “du-----“ 3 times, then release “ON/OFF” button. Controller recovers to factory
set( factory set possword is 0000), a new password can be reset now.
6.9 LOAD Recovery to factory set
Setup steps:
To access main menu LOAD,
►Press “Set” button, “YES” displays on the screen.
Operation manual of SR528Q wireless controller

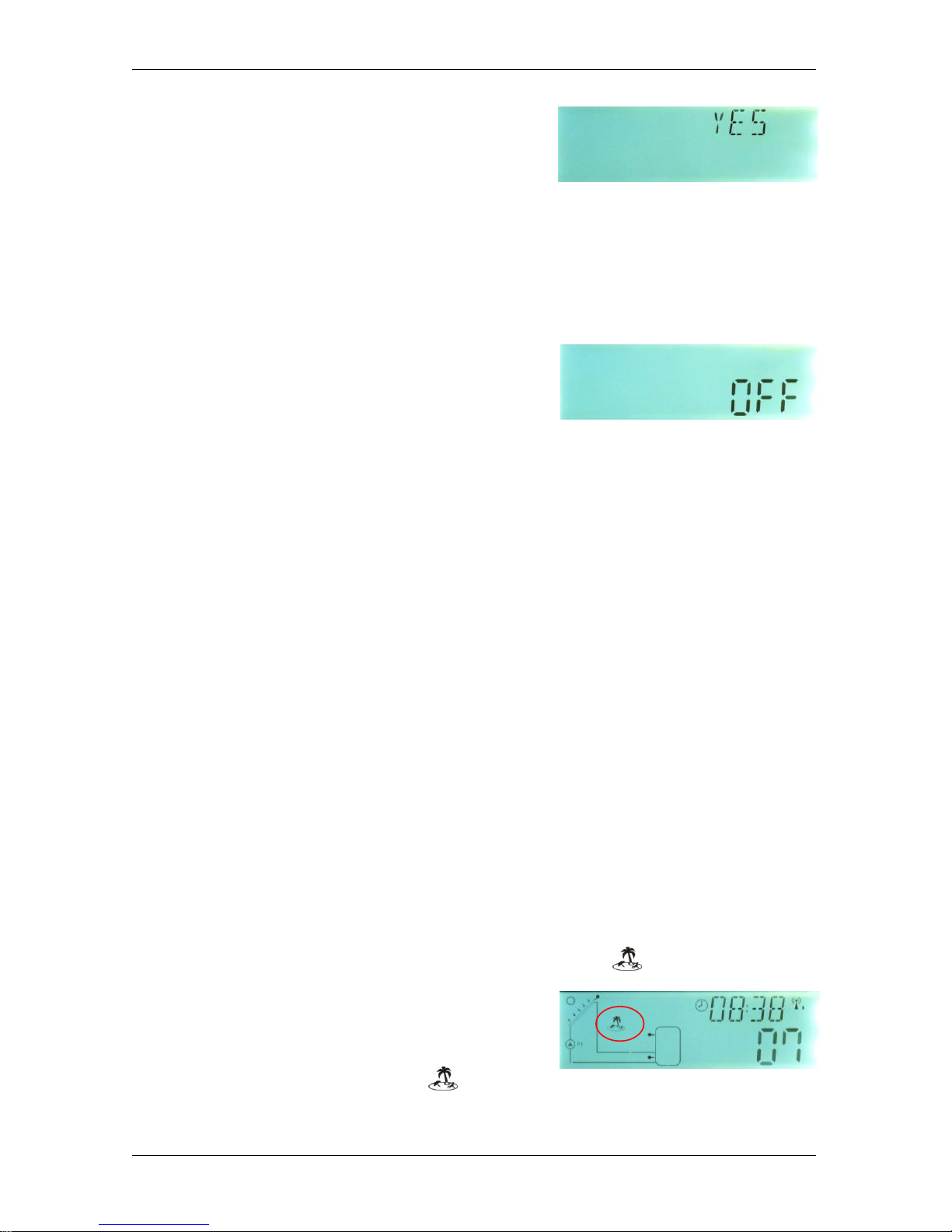

- 40 -
►Hold down “Set” button, buzzer makes “du-----“ 3
times, then release “Set” button and wait for display
recovery to initial interface, that means controller
recovers to factory set, new paramters can be reset now.
►Press “Esc” button to exit set program or wait for 20 seconds to exit automatically.
6.10 “ON/OFF” Controller switch on/off button
Under standby status,
►Press “ON/OFF” button for 2 seconds, controller
enters close status, “OFF” displays on the screen (and
left LED indicator light blinks 1 time every 2 seconds).
►Press “ON/OFF” button, Controller recovers to open status.
6.11 Holiday function
Description:
This function activates in night, solar liquid will flow from storage tank to collector to cool the
tank, and therefore to prevent overheating problem of the solar system in the case that tank
is already heated completely. The function is activated at night between 10 pm and 6 am,
when the temperature of collector is 8 oC below the tank temperature (T2), solar circuit
pump starts to work until the temperature of collector is 2 oC below the tank temperature,
and then solar circuit pump is ceased.
Activate this function if:
You intend to be absent for an extended period (holiday)
No hot water is required for an extended period.
The function is deactivated when the temperature on bottom of tank is below 35
o
C.
When the holiday is pass by, holiday function is deactivated automatically.
Activate/ deactivate this function:
►Press “Holiday” button for 3 seconds, sign of holiday function displays on the
screen, holiday day number “07” blinks on the screen.
►Press “▲ ▼” button to adjust the holiday period,
adjustable range is 1-60 days.
►Press “Holiday” button, holiday sign disappears, holiday function is deactivated.
Operation manual of SR528Q wireless controller
- 41 -
6.12 Manual heating
Description:
Electrical heater, gas or oil boiler can be as back-up devices in a solar system, this
controller can achieve constant temperature controlling, when temperature of top part tank
(T3) is 3 oC below the preset switch-on temperature, back-up heating will be triggered.
When the temperature on the top part tank (T3) rises up to the preset temperature, then
heating is ceased.
Conditions for triggering manual heating function: the preset switch-on temperature of
this function should be 3 oC higher than the tank temperature.
Activate/deactivate the function:
►Press “Manual ” button, temperature “60 oC” blinks on the screen.
►Press “▲ ▼” button to adjust switch-on temperature, adjustable range 10 oC～80 oC,
factory set is 60 oC.
After 20 seconds, this function is activated, signal displays on the screen, and heating
sign blinks also.
►Press “Manual ” button again, to switch-off manual heating function.
Note: manual heating can only heat tank one time, after manual heating is triggered,
when temperature of tank rises up to the preset temperature, manual heating ceases,
and manual heating function will be deactivated automatically, if customer wants to
heat again, you need redo according to above steps.
6.13 Temperature query function
Under standby status,
►Press “▲ ▼”button , you can check the value of temperature sensors T1~ T4, signal
intensity(RSSI), time and date.
When checking temperature, T1 – T4displays one by one, corresponding sensor signal
blinks.
►Press “Esc” button, current time and tank temperature display on the screen.
Note: T4 temperature can only be checked after triggering the function of CIRC
DHW circulation pump.
Operation manual of SR528Q wireless controller
- 42 -
7. Protection function
7.1. Memory protection
In case power failure occurs, controller keeps the parameter settings unchanged.
7.2 Screen protection
When no any press on button for 3 minutes, screen protection is activated automatically,
and then LED background lamp is switched-off. Through press any button to light LED lamp
again.
Operation manual of SR528Q wireless controller
- 43 -
8. Trouble shooting
8.1 Trouble protection
a. When there is a break or short circuit between the connection of temperature sensors,
controller switches off the corresponding functions and no more output signals are given,
LED indicator lamp blinks, at the same time error sign shows on the screen. If
controller does not work correctly, please check following points.
►Press “▲ ▼”button to check error code, warning sign blinks on the LCD screen
Display
LED lamp
LCD shows
Error message
CODE Meaning
Cause of error
Error rectification
blinks
T1 - - -
T1 sensor problem
Sensor wiring
short or open
Check resistance
value or replace
blinks
T2 - - -
T2 sensor problem
Sensor wiring
short or open
Check resistance
value or replace
blinks
T4 - - -
T4 sensor problem
Sensor wiring
short or open
Check resistance
value or replace
DHW circuit pump
temperature control
is activated.
T4 sensor not
connected
Connect T4 sensor,
deactivate
functions( CIRC）
blinks
E0
Communication
error
No
communication
between
controller and
display
Code match again
blinks
E1
Data synchronize
error
Display and
controller is not
synchronized
Press display reset
button to recover
again
Distance to the
controller may
be too far
Remount the
display in a
suitable place
Operation manual of SR528Q wireless controller
- 44 -
8.2 Trouble checking
The controller is a qualified product, which is conceived for years of continuous trouble-free
operation. If a problem occurs, the most of causes is from the peripheral components but no
relation with controller itself. The following description of some well-known problems should
help the installer and operator to isolate the problem, so that the system can be put into
operation as quickly as possible and to avoid unnecessary costs. Of course, not all possible
problems can be listed here. However, most of the normal problems encountered with the
controller can be found in the list below, only return the controller to seller when you are
absolutely sure that none of the problems listed below is responsible for the fault.
Warning！ Remove the device from the mains supply before opening the case
A potentially defective sensor can be checked using an ohmmeter. To do this, the
Symptoms
Secondary symptoms
Possible cause
Procedure
Controller does
not appear any
functions at all
Display shows nothing,
no display illumination
Controller power
supply is interrupted or
program is out of work
Check the
controller power
cable and fuse
The solar pump
doesn’t operate,
despite the fact
that switch-on
conditions are
satisfied
The pump symbol on the
display blinks
Pump power supply is
interrupted
Check the pump
power cable
Solar circuit
pump doesn’t
operate
The pump symbol in the
display doesn’t blink.
Lighting
blinks
The maximum storage
tank temperature
(SMX) has been
reached
The maximum
collector temperature
(EM) has been
reached.
No fault
T1 - - Error message displays
on the screen
Sensor fault (short
circuit or open circuit)
Check values of
every connected
sensor; replace all
defective sensors
and /or cabling.
The solar pumps
operated, despite
the fact that the
switch-on
conditions are not
satisfied
The pump symbol on the
display blinks.
Holiday function or
Frost protection
function or tank
re-cooling function is
activated.
No problem, it is
normal. If
necessary to
deactivate the
corresponding
functions.
Operation manual of SR528Q wireless controller
- 45 -
sensor must be disconnected, its resistance measured, and the value compared with
the figure in the table below, small deviation (±1%) is acceptable.
PT1000 resistance value
o
C 0 10
20
30
40
50
60
70
80
90
100
Ω
1000
1039
1077
1116
1155
1194
1232
1270
1309
1347
1385
NTC 10K B=3950 resistance value
o
C 0 10
20
30
40
50
60
70
80
90
100
Ω
33620
20174
12535
8037
5301
3588
2486
1759
1270
933
697
9. Quality Guarantee
Manufacturer provides following quality responsibilities to end-users: within the period of
quality responsibilities, manufacturer will exclude the failure caused by production and
material selection. A correct installation will not lead to failure. When a user takes incorrect
handling way, incorrect installation, improper or crud handling, wrong connection of sensor
in system and incorrect operation, the quality responsibility is invalid for them.
The quality warranty expires within 24 months after the date of purchasing the controller.
Operation manual of SR528Q wireless controller
- 46 -
10. Technical specification
Parameter
Value
Size of display
130mm×130mm×25mm
Size of controller
200mm×140mm×43mm
Power supply
AC100～240V, 50～60Hz
Power consumption
＜ 1.8W
Measure accurate
±2oC
Measure scope of collector sensor
-10～220oC
Measure scope of tank sensor
0～110oC
Pump can be controlled
3 pumps, pump power ≤ 300W
Electrical heater can be controlled
1 heater, heater power≤ 1500W
Signal inputs
Collector : 1* PT1000 , ≤ 500oC (Silicon cable ≤
280oC）
Tank or pipe: 3 * NTC10K, B=3950, ≤135 oC（PVC
cable ≤105
o
C）
Signal outputs
3 outputs, to control circuit pump or
electromagnetic valve, 1 output for control
electrical heater
Operation frequency
430-450MHz , free to use without ISM admission
certificate
Emission power:
≤20dBm
Communication distance in open
field
Up to 600 meter ( baud rate 4.8Kbps/9.6Kbps）
Ambient temperature
-10～50 oC
Water proof grade
IP40
Operation manual of SR528Q wireless controller
- 47 -
11. Package list
Products name
Quantity
Display
1 piece
Controller
1 piece
User manual
1 piece
PT1000 sensor ( φ6*50mm, cable length 1.5m）
1 piece
NTC10K sensor (φ6*50mm, cable length 3m）
2pieces
Mounting accessories ( expansion screw, clamps)
1 piece
Power cable
1 piece
12. Device matched to this controller
Products listed in below table are useful accessories for this controller; it is not included
in the standard package, if you need, please order it separately.
Products name
Specification
Products picture
A01
High accurate
Pt1000 sensor for
collector
PT1000, Ф6*50mm
A02
High accurate
sensor for tank
and pipe
NTC10K, B=3950, Ф6*50mm
A05
304 stainless steel
thermowell
304 stainless steel with thread 1/2’ OT,
Size: Ф8*200
Operation manual of SR528Q wireless controller
- 48 -
SR528Q
Wireless display
Operation frequency: 430-450MHz
frequency, free to use without ISM
admission certificate.
Emission power: ≤ 20dBm
Modulation mode: FSK modulation
Communication distance in open
field:
up to 600 meter, (baud rate
4.8Kbps/9.6Kbps）
SR802
Unit for high power
electrical heater
Dimension:100mmx100mmx65mm
Power supply: AC180V ~ 264V,
50/60Hz
Suitable power: ≤ 4000W
Available ambient temperature: -10
~ 50oC
Waterproof grade: IP43
SR802 connection diagram:
Note: Switch-off power, and perform by profession installer.
Relay
L
GND
N
Tank
Protection switch
PA Protection
flexible pipe
Electrical
heater
Controller
PA Protection
flexible pipe
Connect with heater
output of controller
Loading...
