Sunlit System Technology SLC 10200 User Manual
RFID CF Type Reader User’s Guide
Model Name: SLC-10200
Version: 1.0
Date: 2006.09.20
-1
Content
No. Item Page
1 Hardware environment 3
2 Demo software environment 4
3 How to contact us 12
Notice:
In order to avoid misuse or any unexpected damage, please read this
guide first.
-2
1. Hardware environment
(1) Product introduction
Sunlit’s RFID CF type reader is based on Hitachi µ-solution to develop.
It was operated at microwave 2.45GHz frequency band.
This is small and light, can be easily install to PDA, tablet PC.
(2) Specification
Power Supply DC 3.3V +/-5%
Operating Environment
Storage Environment
Storing Humidity 5-85% RH
Static Consumption 90 mW
Dimensions 130 x 60 x 47 (mm)
Interface CF Type II
RF Output Power 20dBm
Frequency Range 2435-2465 MHz
Total Channel 31 channels
Modulation FHSS
Reading Distance
0°C ~45°C
0°C ~60°C
5 - 7 cm @PVC card
Connector U.FL connector
Frequency Range 2.4-2.4835 GHz
Antenna
Impedance 50 ohm nominal
Gain 0dBi
Radiation Direction
Polarization Semi circular
Beam Degree
-11
90°
(3) System requirement
Item Condition Quantity
Hardware requirement PDA support CF interface 1
Platform requirement Windows Pocket PC 2003 1
(4) How to install reader
Face the side with LED up, and insert it into PDA CF slot as shown in picture.
Normally always insert CF reader by put LED side up, but some PDA put CF slot at
reverse side, it means user needs to insert CF reader at back side. (LED down)
-4
2. Demo software environment
(1) Demo software introduction
This demo program can build a database include TAG ID、TAG information and
picture. It can be use to demo ex. material manager、In/out control for people… etc.
(2) Block diagram
Main Program
Data base
Picture Information

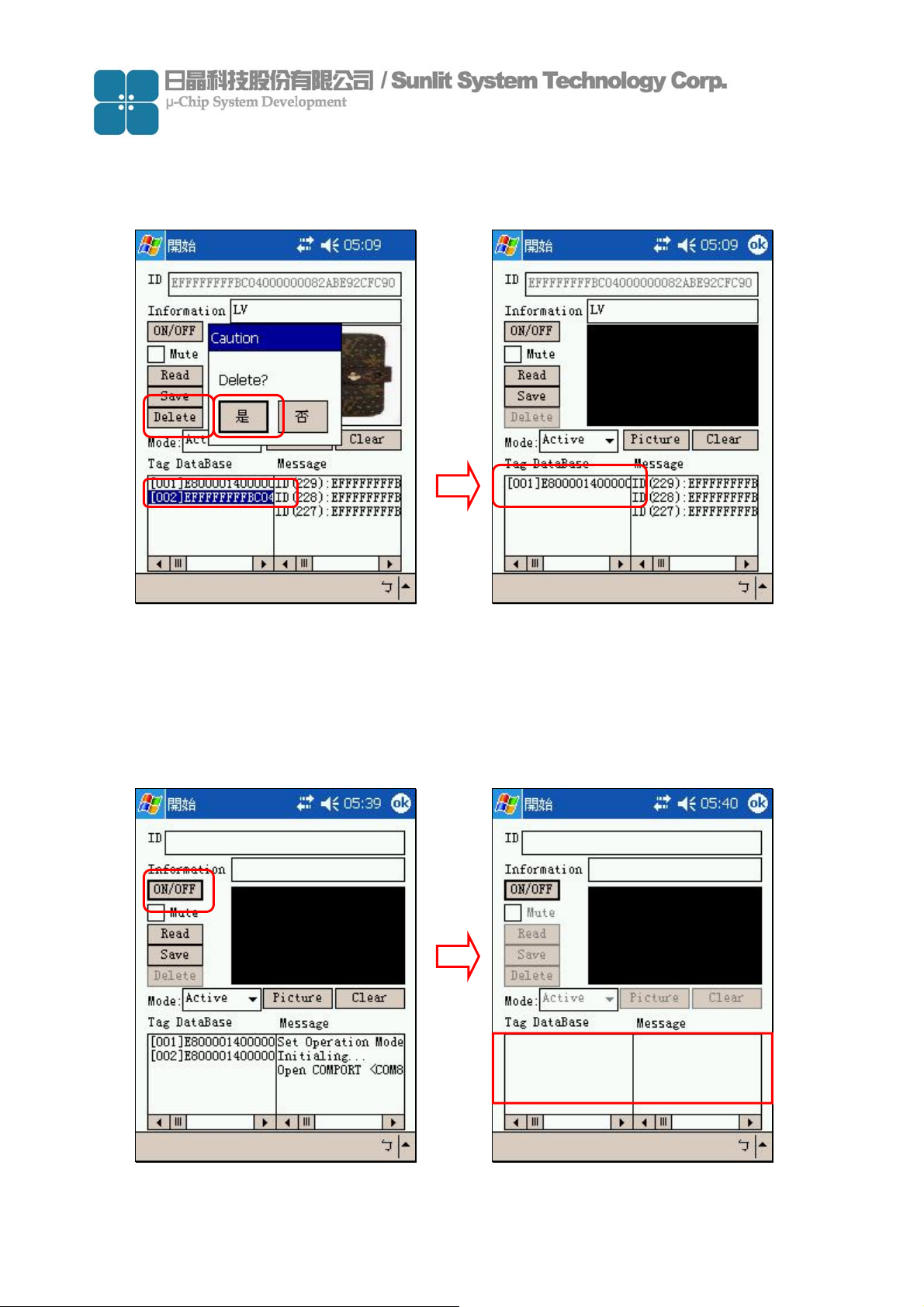

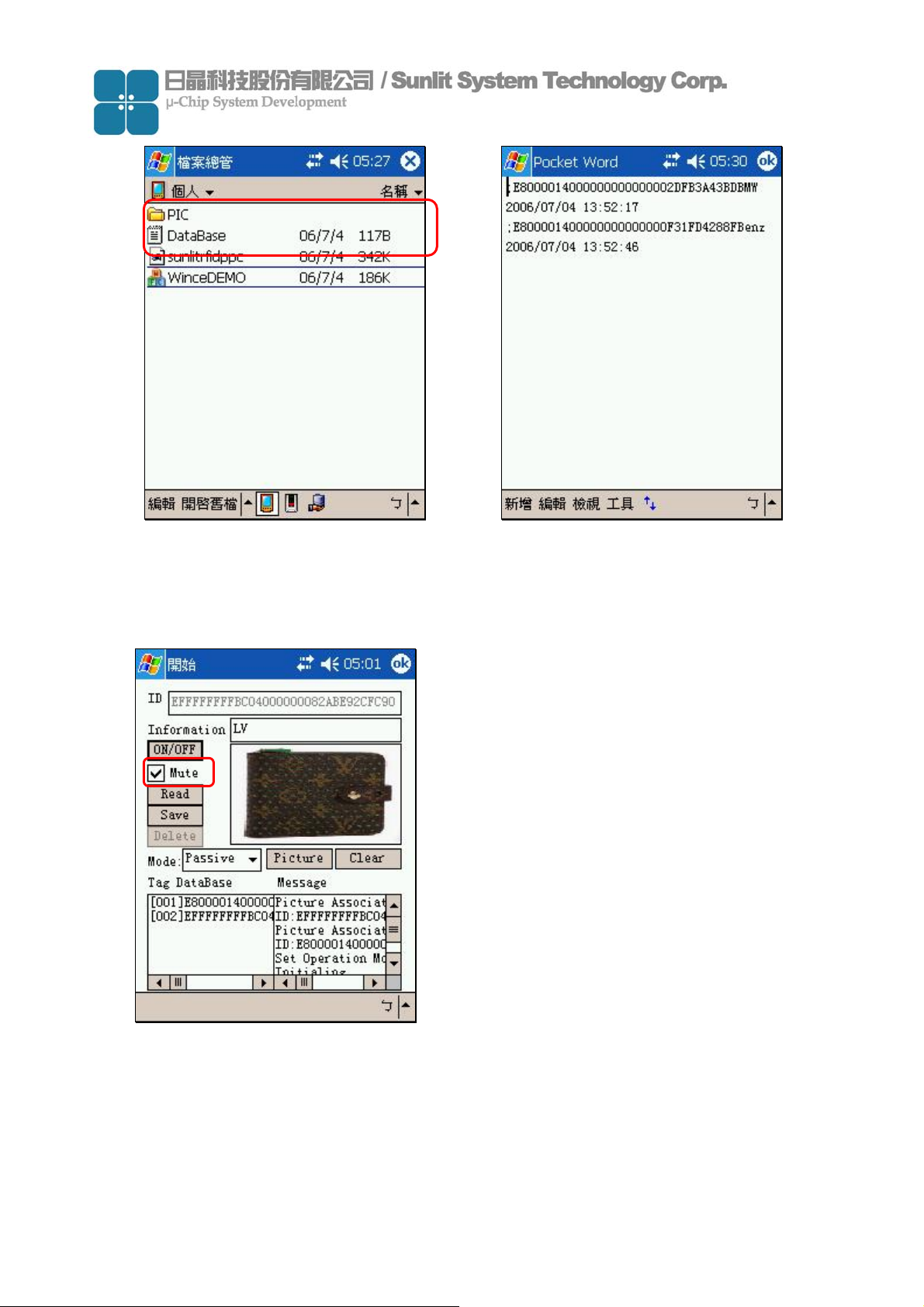

(3) Demo program operation
System requirement
Tag ID
Item Condition Quantity
PDA Support CF interface
64MB Flash ROM
64 MB RAM
System platform Windows Pocket PC 2003 1
RFID CF reader 1
Tag Include Hitachi µ-chip inlet 1
-5
1
