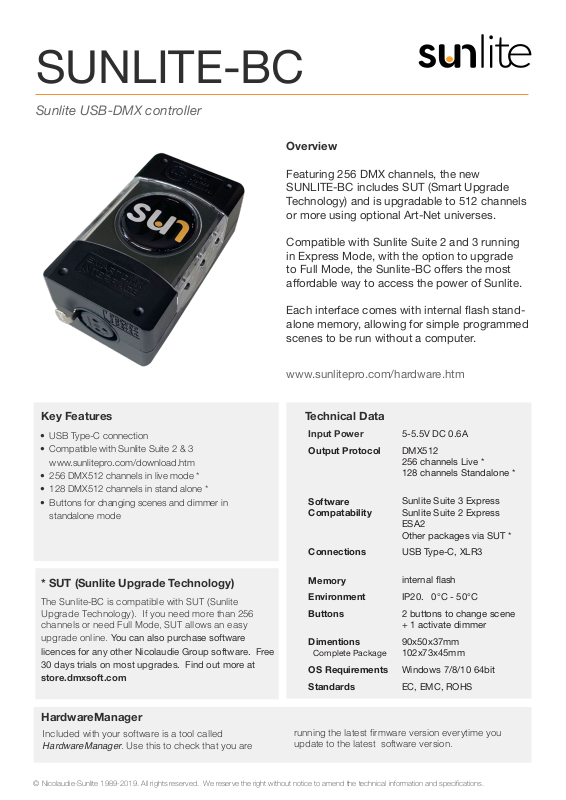

SUNLITE-BC
Sunlite USB-DMX controller
Overview
Featuring 256 DMX channels, the new
SUNLITE-BC includes SUT (Smart Upgrade
Technology) and is upgradable to 512 channels
or more using optional Art-Net universes.
Compatible with Sunlite Suite 2 and 3 running
in Express Mode, with the option to upgrade
to Full Mode, the Sunlite-BC oers the most
aordable way to access the power of Sunlite.
Each interface comes with internal ash standalone memory, allowing for simple programmed
scenes to be run without a computer.
Key Features
• USB Type-C connection
• Compatible with Sunlite Suite 2 & 3
www.sunlitepro.com/download.htm
• 256 DMX512 channels in live mode *
• 128 DMX512 channels in stand alone *
• Buttons for changing scenes and dimmer in
standalone mode
* SUT (Sunlite Upgrade Technology)
The Sunlite-BC is compatible with SUT (Sunlite
Upgrade Technology). If you need more than 256
channels or need Full Mode, SUT allows an easy
upgrade online. You can also purchase software
licences for any other Nicolaudie Group software. Free
30 days trials on most upgrades. Find out more at
store.dmxsoft.com
www.sunlitepro.com/hardware.htm
Technical Data
Input Power
Output Protocol
Software
Compatability
Connections
Memory
Environment
Buttons
Dimentions
Complete Package
OS Requirements
Standards
5-5.5V DC 0.6A
DMX512
256 channels Live *
128 channels Standalone *
Sunlite Suite 3 Express
Sunlite Suite 2 Express
ESA2
Other packages via SUT *
USB Type-C, XLR3
internal ash
IP20. 0°C - 50°C
2 buttons to change scene
+ 1 activate dimmer
90x50x37mm
102x73x45mm
Windows 7/8/10 64bit
EC, EMC, ROHS
HardwareManager
Included with your software is a tool called
HardwareManager. Use this to check that you are
© Nicolaudie-Sunlite 1989-2019. All rights reserved. We reserve the right without notice to amend the technical information and specications.
running the latest rmware version everytime you
update to the latest software version.
