SunLED ZVG55W-3 Technical data
www.SunLED.com
Features
z
3.2mmx1.6mm SMT LED,1.8mm THICKNESS.
z
LOW POWER CONSUMPTION.
z
WIDE VIEWING ANGLE.
z
IDEAL FOR BACKLIGHT AND INDICATOR.
z
VARIOUS COLORS AND LENS TYPES AVAILABLE.
z
PACKAGE : 2000PCS / REEL.
z
MOISTURE SENSITIVITY LEVEL : LEVEL 3.
z
RoHS COMPLIANT.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.2(0.008") unless otherwise noted.
3. Specifications are subject to change without notice.
Part Number: ZVG55W-3
3.2x1.6mm SMD CHIP LED LAMP
Absolute Maximum Ratings
A=25°C)
(T
Reverse Voltage V
Forward Current I
R 5 V
F 30 mA
VG
(InGaAlP)
Forward Current (peak)
1/10 Duty Cycle
i
FS 150 mA
0.1ms Pulse Width
Power Dissipation P
Operating Temperature T
T 75 mW
A -40 ~ +85
Storage Temperature Tstg -40 ~ +85
Part
Number
Emitting
Color
Emitting
Material
Unit
°C
Lens-color
Operating Characteristics
(T
A=25°C)
Forward Voltage (Typ.)
(I
F=20mA)
Forward Voltage (Max.)
F=20mA)
(I
Reverse Current (Max.)
R=5V)
(V
F 2.1 V
V
F 2.5 V
V
R 10 uA
I
VG
(InGaAlP)
Unit
Wavelength Of Peak
Emission (Typ.)
(I
F=20mA)
Wavelength Of Dominant
Emission (Typ.)
F=20mA)
(I
λ P
λ D
574 nm
570 nm
Spectral Line Full Width
nm
At Half-Maximum (Typ.)
F=20mA)
(I
Capacitance (Typ.)
(V
F=0V, f=1MHz)
Luminous
Intensity
(IF=20mA)
mcd
Δλ
C 15 pF
Wavelength
nm
λ P
20
Viewing
Angle
2 θ 1/2
min. typ.
ZVG55W-3 Green InGaAlP Water Clear 70 198 574 50°
Published Date : FEB 23, 2008 Drawing No : SDSA4505 V3 Checked : B.L.LIU P.1/4
www.SunLED.com
VG
Part Number: ZVG55W-3
3.2x1.6mm SMD CHIP LED LAMP

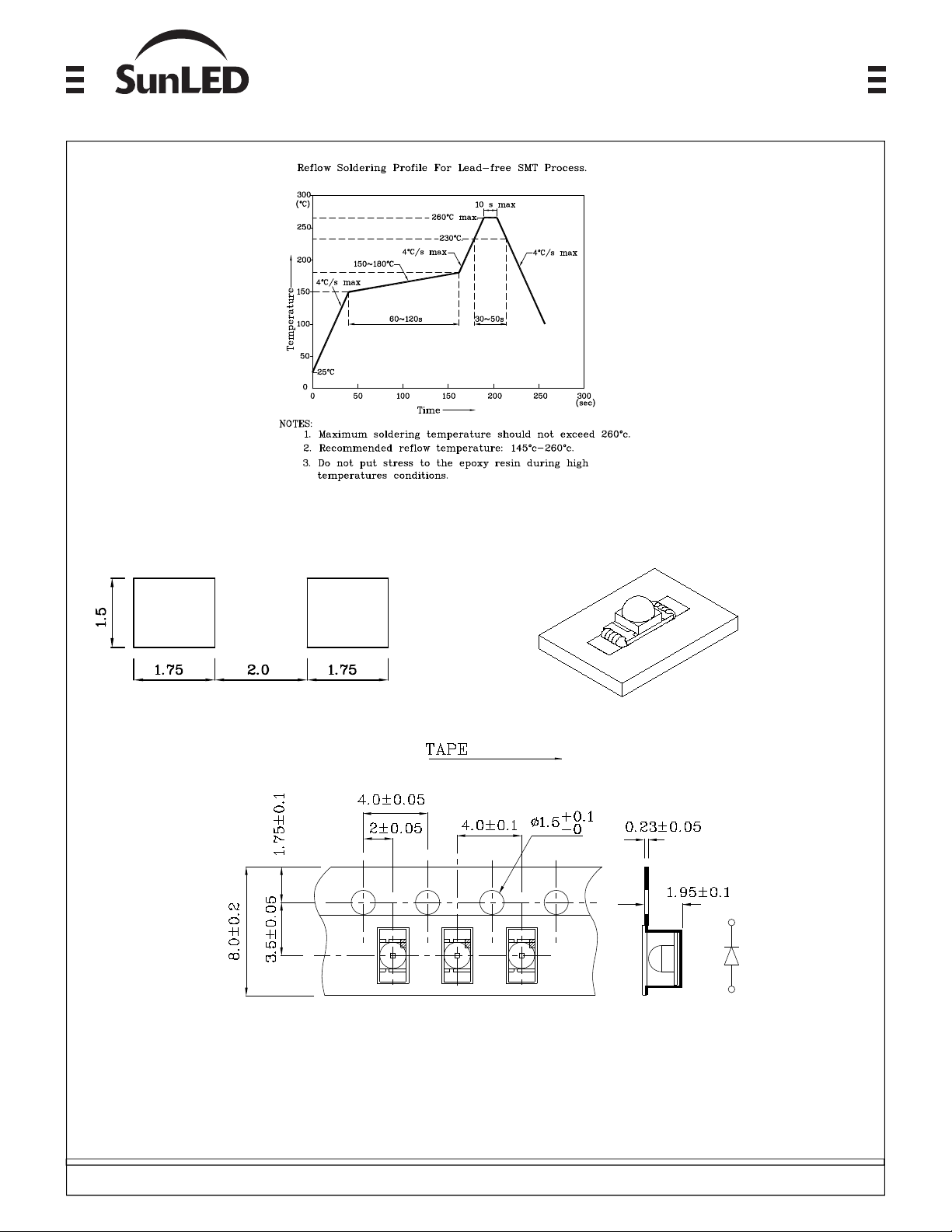

Published Date : FEB 23, 2008 Drawing No : SDSA4505 V3 Checked : B.L.LIU P.2/4
