SunLED ZM2BB87W Technical data

www.SunLED.com

PRELIMINARY SPEC

Features

z 1.6mmx0.6mm RIGHT ANGLE SMT LED, 1.2mm

THICKNESS.

z LOW POWER CONSUMPTION.
z WIDE VIEWING ANGLE.
z IDEAL FOR BACKLIGHT AND INDICATOR.
z VARIOUS COLORS AND LENS TYPES AVAILABLE.

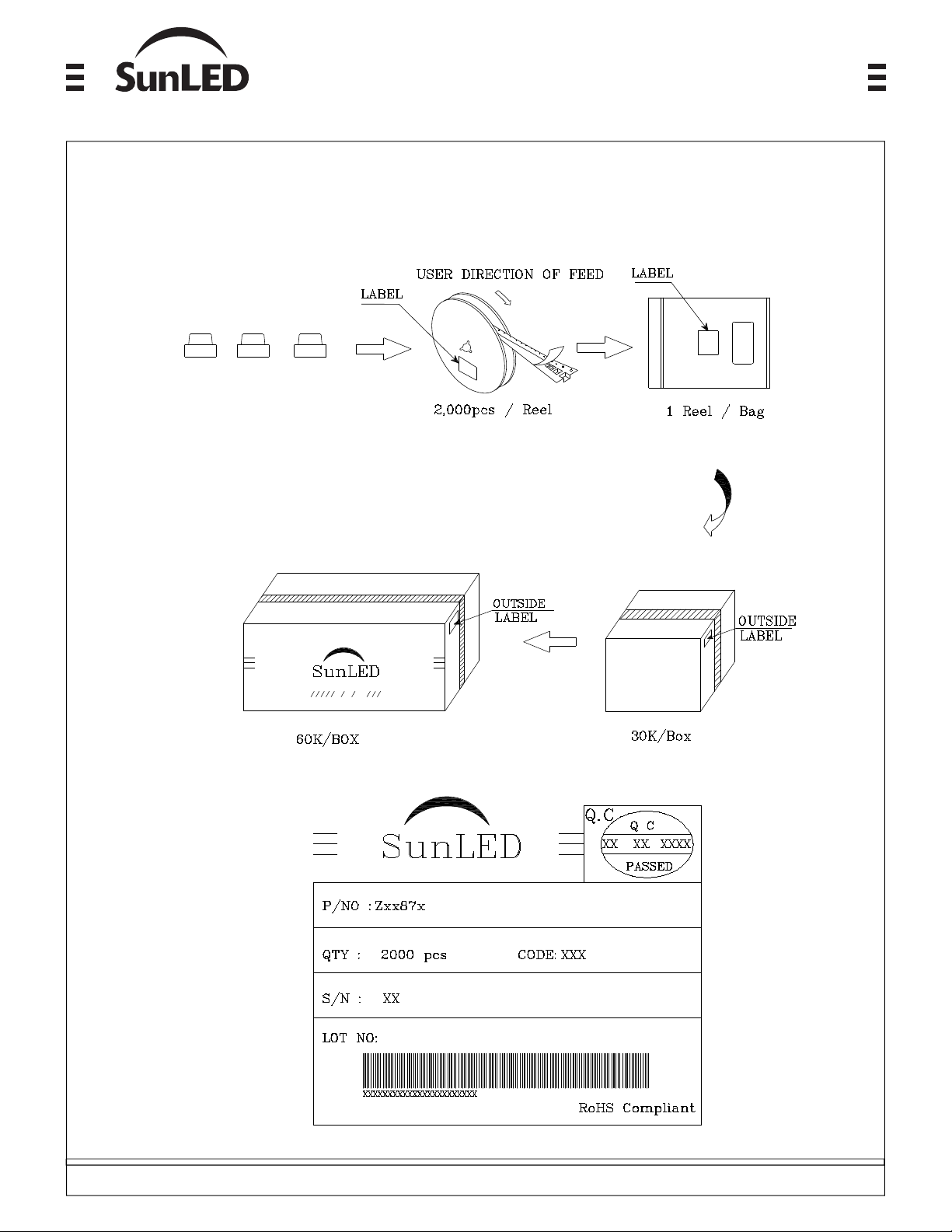

z PACKAGE : 2000PCS / REEL.

z MOISTURE SENSITIVITY LEVEL : LEVEL 3.

z RoHS COMPLIANT.

ATTENTION

OBSERVE PRECAUTIONS

FOR HANDLING

ELECTROSTATIC

DISCHARGE

SENSITIVE

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.1(0.004") unless otherwise noted.

3.Specifications are subject to change without notice.

Absolute Maximum Ratings

A=25°C)

(T

Reverse Voltage VR 5 V

Forward Current I

F 30 mA

Forward Current (peak)
1/10 Duty Cycle

FS 100 mA

i

0.1ms Pulse Width

Power Dissipation P

Operating Temperature T

T 111 mW

A -40 ~ +85

Storage Temperature Tstg -40 ~ +85

Electrostatic Discharge Threshold
(HBM)

DEVICES

M2BB

(InGaN)

1000 V

Unit

°C

Part Number:

ZM2BB87W

1.6x0.6mm RIGHT ANGLE SMD CHIP
LED LAMP

Operating Characteristics

A=25°C)

(T

Forward Voltage (Typ.)
(I

F=20mA)

Forward Voltage (Max.)

F=20mA)

(I

Reverse Current (Max.)

R=5V)

(V

F 3.2 V

V

F 3.7 V

V

R 10 uA

I

Wavelength Of Peak
Emission (Typ.)

F=20mA)

(I

Wavelength Of Dominant
Emission (Typ.)
(I

F=20mA)

λ P

λ D

Spectral Line Full Width
At Half-Maximum (Typ.)

F=20mA)

(I

Capacitance (Typ.)

F=0V, f=1MHz)

(V

Δλ

C 110 pF

M2BB

(InGaN)

458 nm

465 nm

22 nm

Unit

Part

Number

Emitting

Color

Emitting
Material

Lens-color

Luminous

Intensity

(IF=20mA)

mcd

min. typ.

Wavelength

nm
λ P

ZM2BB87W Blue InGaN Water Clear 110 228 458 110°

Published Date : FEB 26,2008 Drawing No : SDSA6412 V1 Checked : B.L.LIU P.1/4

Viewing

Angle

2 θ 1/2

www.SunLED.com

 M2BB

Part Number:

1.6x0.6mm RIGHT ANGLE SMD CHIP
LED LAMP

ZM2BB87W

Published Date : FEB 26,2008 Drawing No : SDSA6412 V1 Checked : B.L.LIU P.2/4
