PRELIMINARY SPEC
Features
z
2.8mmX1.0mm RIGHT ANGLE SMT LED, 1.2mm
THICKNESS.
z
LOW POWER CONSUMPTION.
z
IDEAL FOR BACKLIGHT AND INDICATOR.
z
VARIOUS COLORS AND LENS TYPES AVAILABLE.
z
PACKAGE : 2000PCS / REEL.
z
MOISTURE SENSITIVITY LEVEL : LEVEL 4.
z
RoHS COMPLIANT.
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES

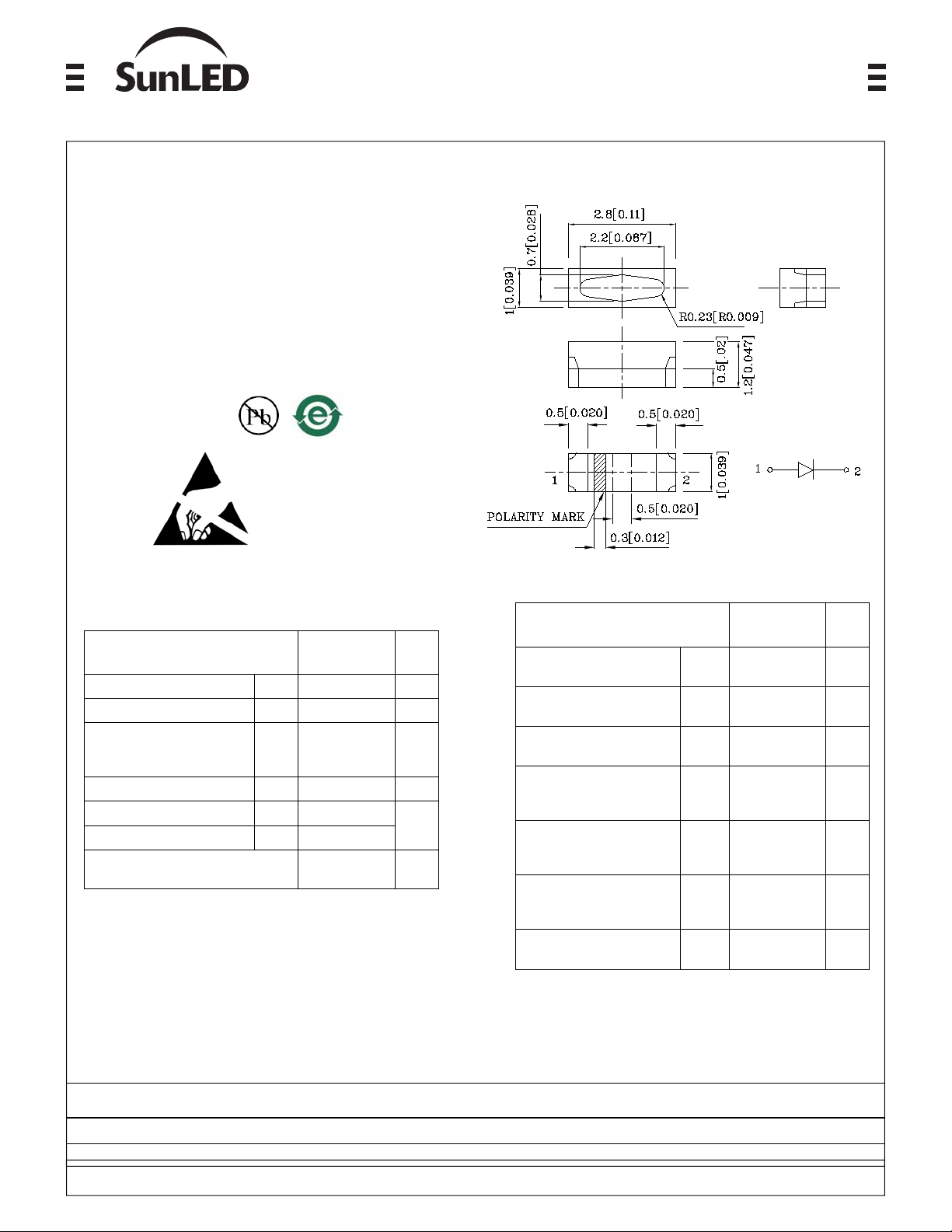

Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.25(0.01") unless otherwise noted.
3. Specifications are subject to change without notice.
Absolute Maximum Ratings
A=25°C)
(T
Reverse Voltage VR 5 V
Forward Current I
F 30 mA
Forward Current (peak)
1/10 Duty Cycle
i
FS 100 mA
0.1ms Pulse Width
Power Dissipation P
T 111 mW
Operating Temperature TA -40 ~ +85
Storage Temperature Tstg -40 ~ +85
Electrostatic Discharge Threshold
(HBM)
M2BB
(InGaN)
1000 V
Unit
°C
Part Number:
ZM2BB81W-1
2.8X1.0mm RIGHT ANGLE SMD CHIP LED LAMP
Operating Characteristics
A=25°C)
(T
Forward Voltage (Typ.)
(I
F=20mA)
Forward Voltage (Max.)
F=20mA)
(I
Reverse Current (Max.)
R=5V)
(V
F 3.2 V
V
F 3.7 V
V
R 10 uA
I
Wavelength Of Peak
Emission (Typ.)
F=20mA)
(I
Wavelength Of Dominant
Emission (Typ.)
(I
F=20mA)
λ P
λ D
Spectral Line Full Width
At Half-Maximum (Typ.)
F=20mA)
(I
Capacitance (Typ.)
(V
F=0V, f=1MHz)
Δλ
C 110 pF
M2BB
(InGaN)
458 nm
465 nm
22 nm
Unit
Part
Number
Emitting
Color
Emitting
Material
Lens-color
Luminous
Intensity
(IF=20mA)
mcd
min. typ.
Wavelength
nm
λ P
ZM2BB81W-1 Blue InGaN Water Clear 110 248 458
Published Date : FEB 25,2008 Drawing No : SDSA6403 V1 Checked : B.L.LIU P.1/4
Viewing
Angle
2 θ 1/2
110°
www.SunLED.com
M2BB
Part Number:
2.8X1.0mm RIGHT ANGLE SMD CHIP LED LAMP
ZM2BB81W-1
Published Date : FEB 25,2008 Drawing No : SDSA6403 V1 Checked : B.L.LIU P.2/4
www.SunLED.com
Part Number:
2.8X1.0mm RIGHT ANGLE SMD CHIP LED LAMP
ZM2BB81W-1
Recommended Soldering Pattern
(Units : mm; Tolerance: ± 0.1)
Tape Specification (Units : mm)
The device has a single mounting surface. The device
must be mounted according to the specifications.
Remarks:
If special sorting is required (e.g. binning based on forward voltage, Luminous intensity / luminous flux, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous intensity / luminous flux: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
Published Date : FEB 25,2008 Drawing No : SDSA6403 V1 Checked : B.L.LIU P.3/4
www.SunLED.com
Part Number:
2.8X1.0mm RIGHT ANGLE SMD CHIP LED LAMP
ZM2BB81W-1
PACKING & LABEL SPECIFICATIONS ZM2BB81W-1
Published Date : FEB 25,2008 Drawing No : SDSA6403 V1 Checked : B.L.LIU P.4/4
