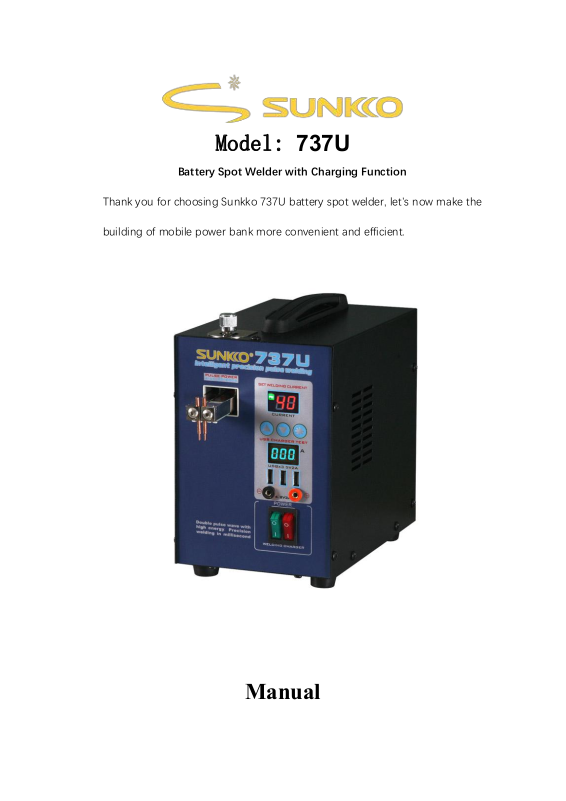

Model: 737U
Battery Spot Welder with Charging Function
Thank you for choosing Sunkko 737U battery spot welder, let's now make the
building of mobile power bank more convenient and efficient.
Manual
Page 2

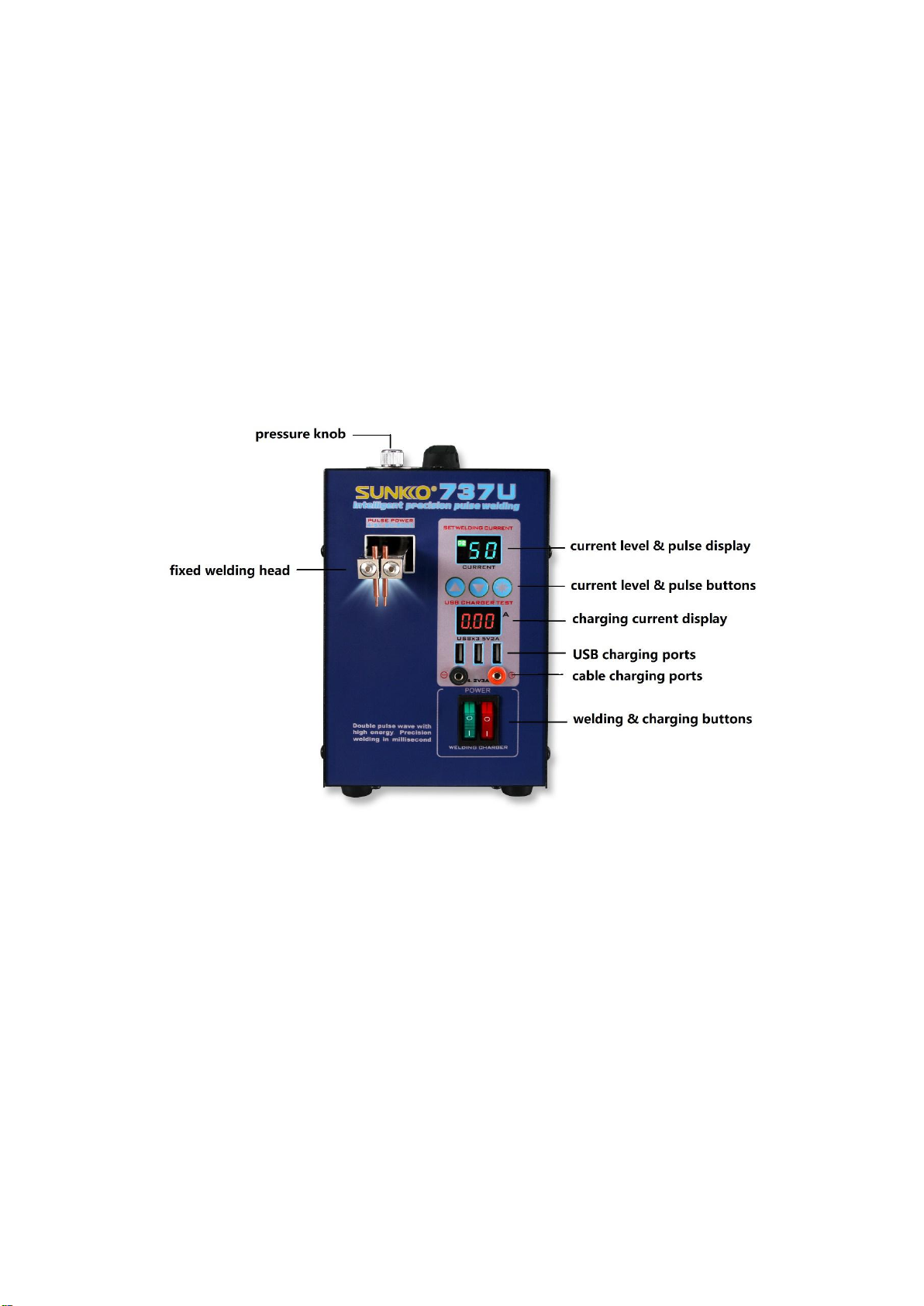

Summary
Now let’s talk about the welding part.
1. The 737U welder can weld nickel strip with thickness under 0.2mm for nickel plated steel,
2. The only welding method: fixed welding head.
Functionally speaking, 737U is a combination of 737B and 788H-USB. It is
specifically designed for battery welding (18650, 14500 and any other lithium
batteries, etc) and can be used to weld nickel strips with thickness between 0.05 and
0.2 mm for nickel plated steel or between 0.05 and 0.15 mm for pure nickel strip.
With the built-in LED light, you can even work at night.
We understand that after the power bank is done, the next step would be charging
and testing, which is why 737U is equipped with three USB fast charging ports whose
voltage and current are 5V and 2A.
or 0.05 - 0.15 mm for pure nickel strip.
(Attention: The welding thickness also depends on the material of batteries’ poles, some
batteries’ poles are made of iron or iron alloy, and some are made of stainless steel,
generally, stainless steel is easier to weld than iron.)
You can build your battery pack with the fixed welding head, in this case, you need to
adjust the pressure adjustor to make the spots more reliable and elegant.
Page 3
In general, there are two methods to improve the output power of spot welding:
1. Fit the fixed welding head with copper welding rods before the machine powers on.
2. Turn on the welding power switch.
3. Adjust the pulse quantity, welding current level and pressure knob to make the spots
Battery charging part:
adjusting welding current level, adjusting pulse quantity. You may need to play with
them a bit to get the best combination for your specific use.
(Attention: This spot welder can be used to weld pure nickel, nickel plated steel,
nickel plated iron, iron and other alloys. It CANNOT weld metal like copper and
aluminum.)
Specification for the welding part:
Input voltage: AC 110 V/220 V±10%
Primary current: 2 ~ 15 A
Welding current: 50 ~ 800 A
Single pulse time: 5ms
Max. pulse quantity: 2
Max. power output: 2.88 KW (instantaneous)
Welding thickness for nickel plated steel: 0.05 ~ 0.2 mm
Welding thickness for pure nickel: 0.05 ~ 0.15 mm
Product dimension: 9.1x5.5x7.9”
Product weight: 9.6 lbs
Preparation steps before welding:
more reliable and elegant.
How is the pressure knob works?
The pressure knob regulates the pressure between copper welding rods and nickel
strip. Generally speaking, the thinner the nickel strip, the smaller the pressure. A
proper pressure between nickel strip and welding rods can also make the spots more
elegant.
Specification:
Standard of cable charging ports: 4.2 V, 3A
Standard of USB charging ports: 5 V, 2A
Precision of constant current: ±2.5%
Voltage stability: ±1.5%
Measurement error: ±1.5%
Page 4
(Attention: This model is only suitable for charging 5V power bank and single
Packing List:
battery whose rated voltage is 4.2 volts.)

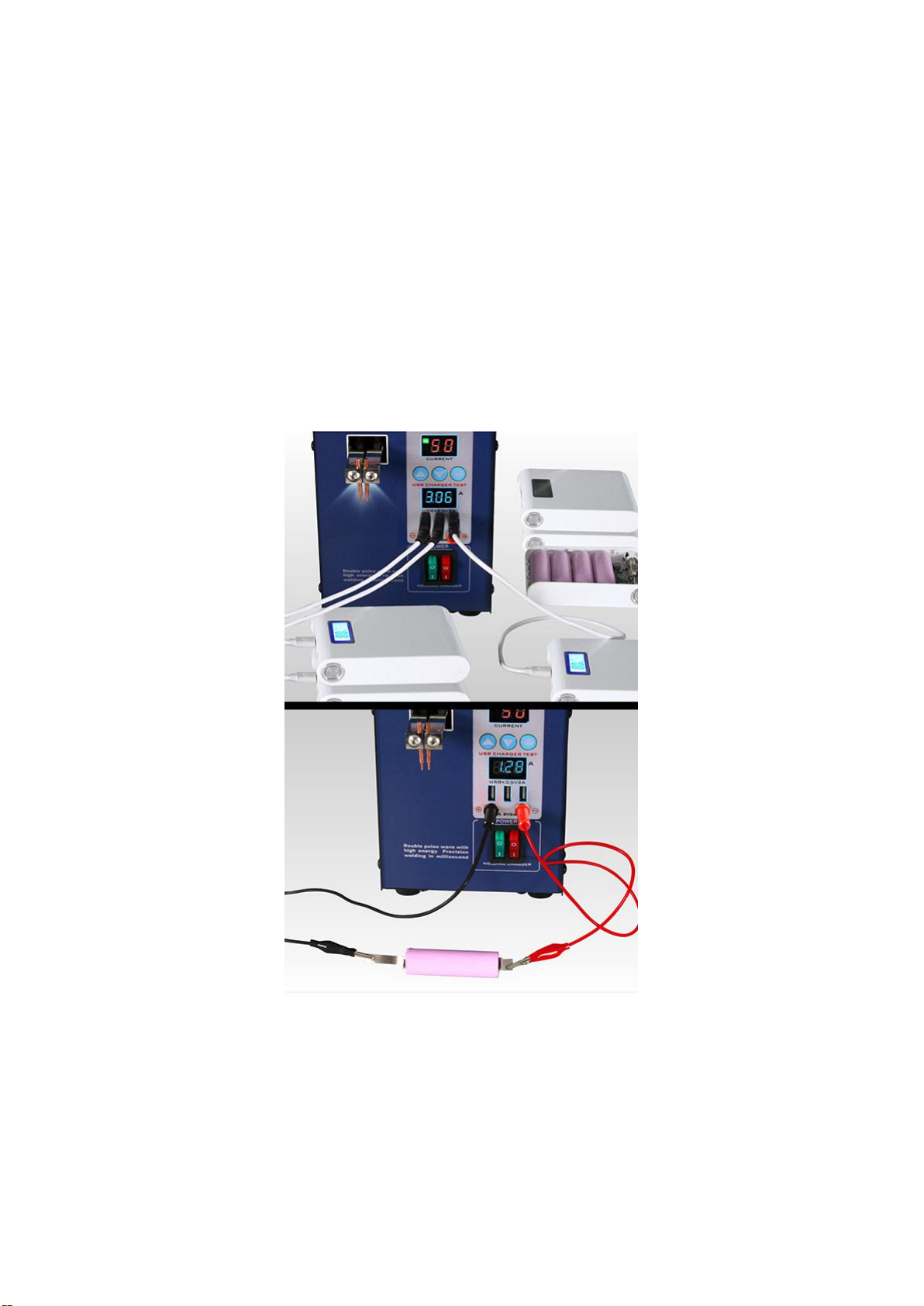

Charge with cables: in this mode, you can charge your single rechargeable battery
whose rated voltage is 4.2 volts.
Plug in the charging cables and connect them to your battery. Once the displayed
charging current decreases to 0, your charging process is done.
Charge with USB ports: in this mode, three power banks can be charged at the same
time, the charging current of each USB port is 3 amps, when the power banks getting
full, the charging current in the LCD display will approach to 0.
(Attention: 1: During charging process, the displayed charging current is the sum of
three USB ports; 2: Do not use the two modes at the same time.)
737U main machine: 1 pc
Copper welding rods: 2 pairs
Battery fixture: 1 pc
Charging cables: 1 pair
Page 5
Fuse: 2 pcs
Notice
1. When building battery pack with Sunkko welders, if the home circuit system keeps
2. Please put on gloves and mask during your battery pack welding process to protect
3. Unplug the welder when you are not using the welder.
4. During your welding process, the instantaneous large current generated by the welder
5. Do not short circuits during spot welding or charging.
6. Do not use Sunkko welders with a voltage transformer as Sunkko welders are not
7. Continuously spot weld too fast will speed up the loss of internal components of the
Hexagon wrench: 1 pc
0.1 x 4 x 100 mm (nickel plated) 30 pcs
0.15 x 5 x 100 mm (nickel plated) 30 pcs
Manual: 1pc
tripping, please replace your Circuit Air Breaker. For 110V version machine, the Circuit Air
Breaker in your circuit system should be higher than 40 A. For 220V version machine, the
Circuit Air Breaker in your circuit system should be higher than 30 A.
yourself(Sparks may occur during welding process).
may cause the lighting equipment under the same power system flash and it is
considered normal.
compatible with the common voltage transformers in the market.
spot welder. We recommend that the time between each spot welding should be 3
seconds or longer.
