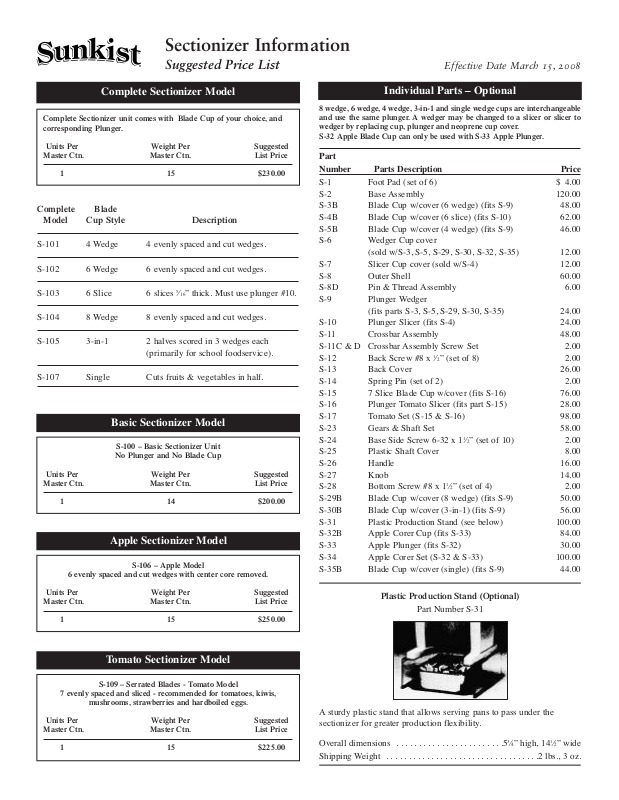

Page 1

Sectionizer Information

Suggested Price List E

Complete Sectionizer Model

Complete Sectionizer unit comes with Blade Cup of your choice, and corresponding Plunger.

Units Per Weight Per Suggested

Master Ctn. Master Ctn. List Price

1 15 $230.00

Complete Blade

Model Cup Style Description

S-101 4 Wedge 4 evenly spaced and cut wedges.

S-102 6 Wedge 6 evenly spaced and cut wedges.

S-103 6 Slice 6 slices5⁄16” thick. Must use plunger #10.

S-104 8 Wedge 8 evenly spaced and cut wedges.

S-105 3-in-1 2 halves scored in 3 wedges each

(primarily for school foodservice).

S-107 Single Cuts fruits & vegetables in half.

Basic Sectionizer Model

S-100 – Basic Sectionizer Unit

No Plunger and No Blade Cup

Units Per Weight Per Suggested

Master Ctn. Master Ctn. List Price

1 14 $200.00

Apple Sectionizer Model

S-106 – Apple Model

6 evenly spaced and cut wedges with center core removed.

ffective Date March 15, 2008

Individual Parts – Optional

8 wedge, 6 wedge, 4 wedge, 3-in-1 and single wedge cups are interchangeable and use the same plunger. A wedger may be changed to a slicer or slicer to wedger by replacing cup, plunger and neoprene cup cover. S-32 Apple Blade Cup can only be used with S-33 Apple Plunger.

Part

Number Parts Description Price

S-1 Foot Pad (set of 6) $ 4.00 S-2 Base Assembly 120.00 S-3B Blade Cup w/cover (6 wedge) (fits S-9) 48.00 S-4B Blade Cup w/cover (6 slice) (fits S-10) 62.00 S-5B Blade Cup w/cover (4 wedge) (fits S-9) 46.00 S-6 Wedger Cup cover

(sold w/S-3, S-5, S-29, S-30, S-32, S-35) 12.00 S-7 Slicer Cup cover (sold w/S-4) 12.00 S-8 Outer Shell 60.00 S-8D Pin & Thread Assembly 6.00 S-9 Plunger Wedger

(fits parts S-3, S-5, S-29, S-30, S-35) 24.00 S-10 Plunger Slicer (fits S-4) 24.00 S-11 Crossbar Assembly 48.00 S-11C & D Crossbar Assembly Screw Set 2.00 S-12 Back Screw #8 x S-13 Back Cover 26.00 S-14 Spring Pin (set of 2) 2.00 S-15 7 Slice Blade Cup w/cover (fits S-16) 76.00 S-16 Plunger Tomato Slicer (fits part S-15) 28.00 S-17 Tomato Set (S-15 & S-16) 98.00 S-23 Gears & Shaft Set 58.00 S-24 Base Side Screw 6-32 x 1 S-25 Plastic Shaft Cover 8.00 S-26 Handle 16.00 S-27 Knob 14.00 S-28 Bottom Screw #8 x 1 S-29B Blade Cup w/cover (8 wedge) (fits S-9) 50.00 S-30B Blade Cup w/cover (3-in-1) (fits S-9) 56.00 S-31 Plastic Production Stand (see below) 100.00 S-32B Apple Corer Cup (fits S-33) 84.00 S-33 Apple Plunger (fits S-32) 30.00 S-34 Apple Corer Set (S-32 & S-33) 100.00 S-35B Blade Cup w/cover (single) (fits S-9) 44.00

⁄2” (set of 8) 2.00

⁄2” (set of 10) 2.00

⁄2” (set of 4) 2.00

Units Per Weight Per Suggested

Master Ctn. Master Ctn. List Price

1 15 $250.00

Tomato Sectionizer Model

S-109 – Serrated Blades - Tomato Model

7 evenly spaced and sliced - recommended for tomatoes, kiwis,

mushrooms, strawberries and hardboiled eggs.

Units Per Weight Per Suggested

Master Ctn. Master Ctn. List Price

1 15 $225.00

Plastic Production Stand (Optional)

Part Number S-31

A sturdy plastic stand that allows serving pans to pass under the sectionizer for greater production flexibility.

Overall dimensions . . . . . . . . . . . . . . . . . . . . . . . .5

⁄4” high, 141⁄2” wide

Shipping Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 lbs., 3 oz.

Page 2

Sectionizer Information

Blade Cup Styles

PLUNGER S-9 CUP S-5

Wedge

PLUNGER S-9 CUP S-3

6 Wedge

PLUNGER S-10 CUP S-4

6 Slice

PLUNGER S-9 CUP S-29

8 Wedge

Suggested Price List E

ffective Date March 15, 2008

PLUNGER S-9 CUP S-30

3-in-1

PLUNGER S-33 CUP S-32

Apple Model

PLUNGER S-9 CUP S-35

Single

PLUNGER S-16 CUP S-15

Tomato Model

Complete Sectionizer Specifications

Safe...Listed by NSF International

Overall dimensions . . . . .15

⁄2” high, 151⁄4” wide, 131⁄8” deep

Net weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 pounds

Shipping weight . . . . . . . . . . . . . . . . . . . . . . . . . . .15 pounds

Cube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.32

Carton size . . . . . . . . . . . .17

⁄2” high, 171⁄4” wide, 131⁄4” deep

www.sunkistfs.com/equipment

All prices quoted are subject to change without notice. The amount of any present or future tax shall be paid by the purchaser. Address all inquiries

to your local dealer, or contact Sunkist Foodservice Equipment Customer Service at (800) 383-7141.

Products must not be returned to Sunkist without a return authorization number.
