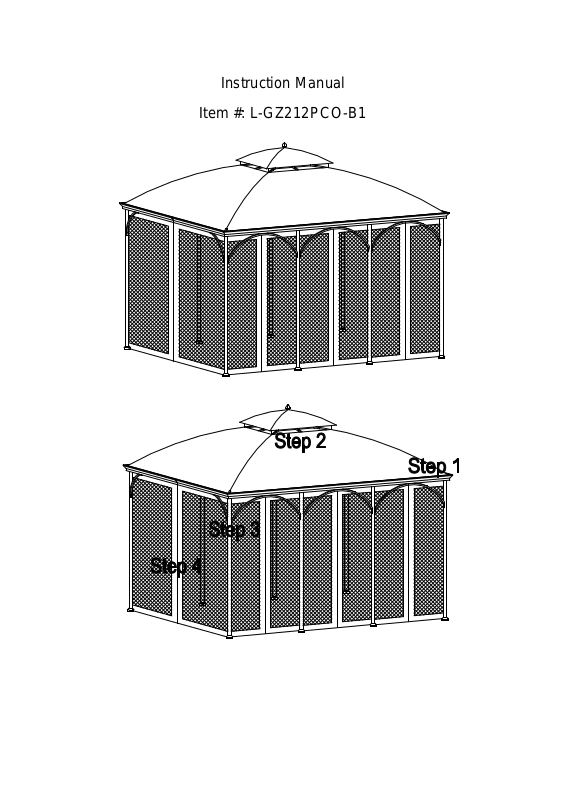

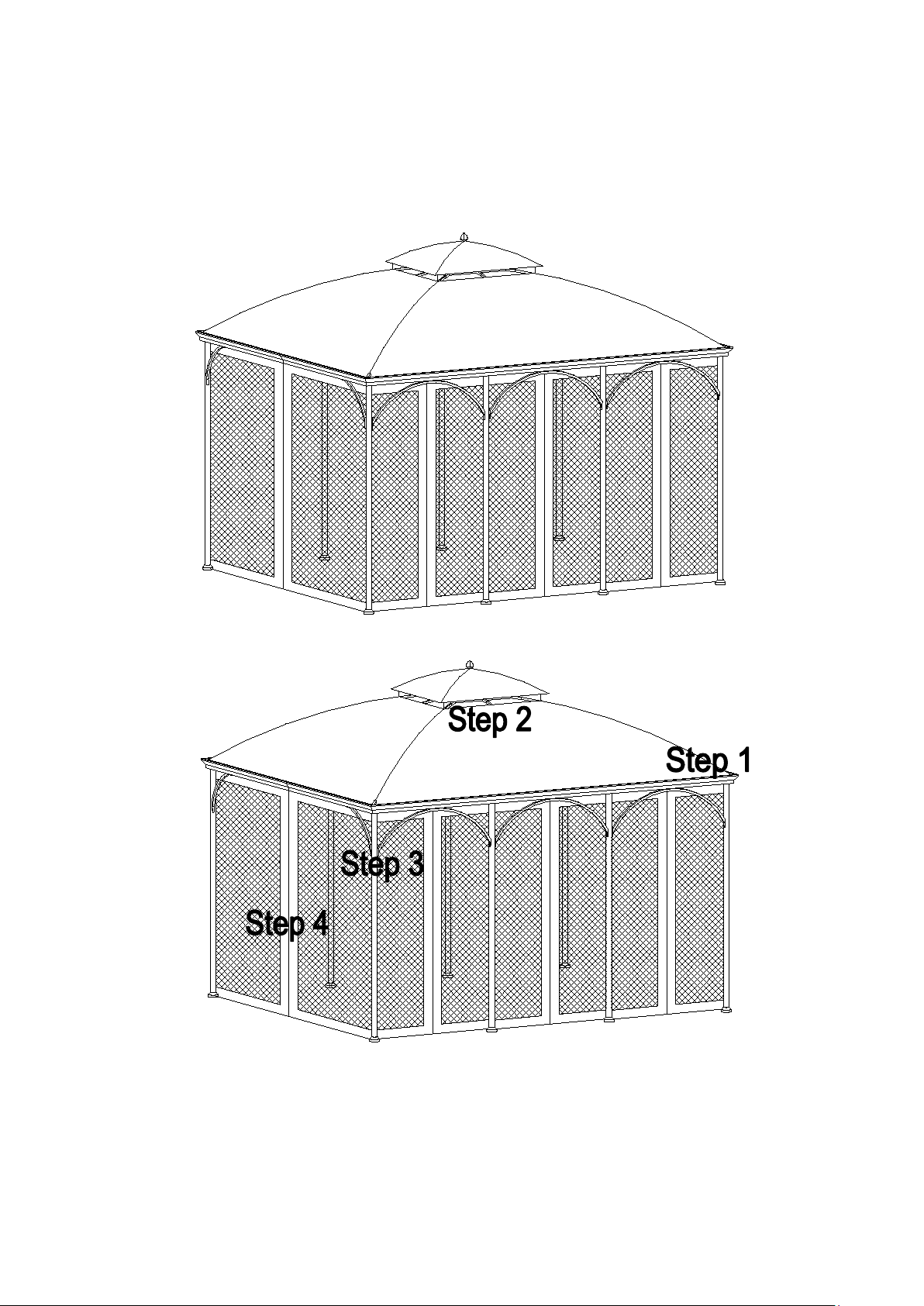

Page 1
Instruction Manual
Item #: L-GZ212PCO-B1
Page 2
IMPORTANT:
1. Keep all children and pets away from assembly area. Children and pets should be
supervised when they are in the area of gazebo construction.
2. The area for assembly should not be less than 6 feet from any obstruction such as fence,
garage, house, overhanging branches, laundry line or electrical wires.
3. This unit is heavy. Do not assemble this item alone. Six people are recommended for safe
assembly.
4. Some parts may contain sharp edges. Wear protective gloves if necessary during assembly .
5. When assembling and using this product, basic safety precautions should always be
followed to reduce the risk of personal injury and damage to equipment. Please read all
instructions before assembly and use.
6. For outdoor use onl y. Install on leve l ground. Stakes are provided to secure the gaze bo in
grass ground. If you wish to secure the gazebo t o a wood dec k or concrete s urface, you will
need to purchase fasteners appropriate for these surfaces. These are readily available at your
local hardware store or home center.
7. Check all bolts for tightness before and during usage.
8. While this gazebo is m anufactured to withstand gale for ce winds utilizing on ly the supplied
ground stakes, in are as subject to frequent s evere weather, securing the gazebo to a deck,
concrete patio or footings should be considered.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list. If any part is missing or damaged, do not attempt to assemble the
product.
Page 3

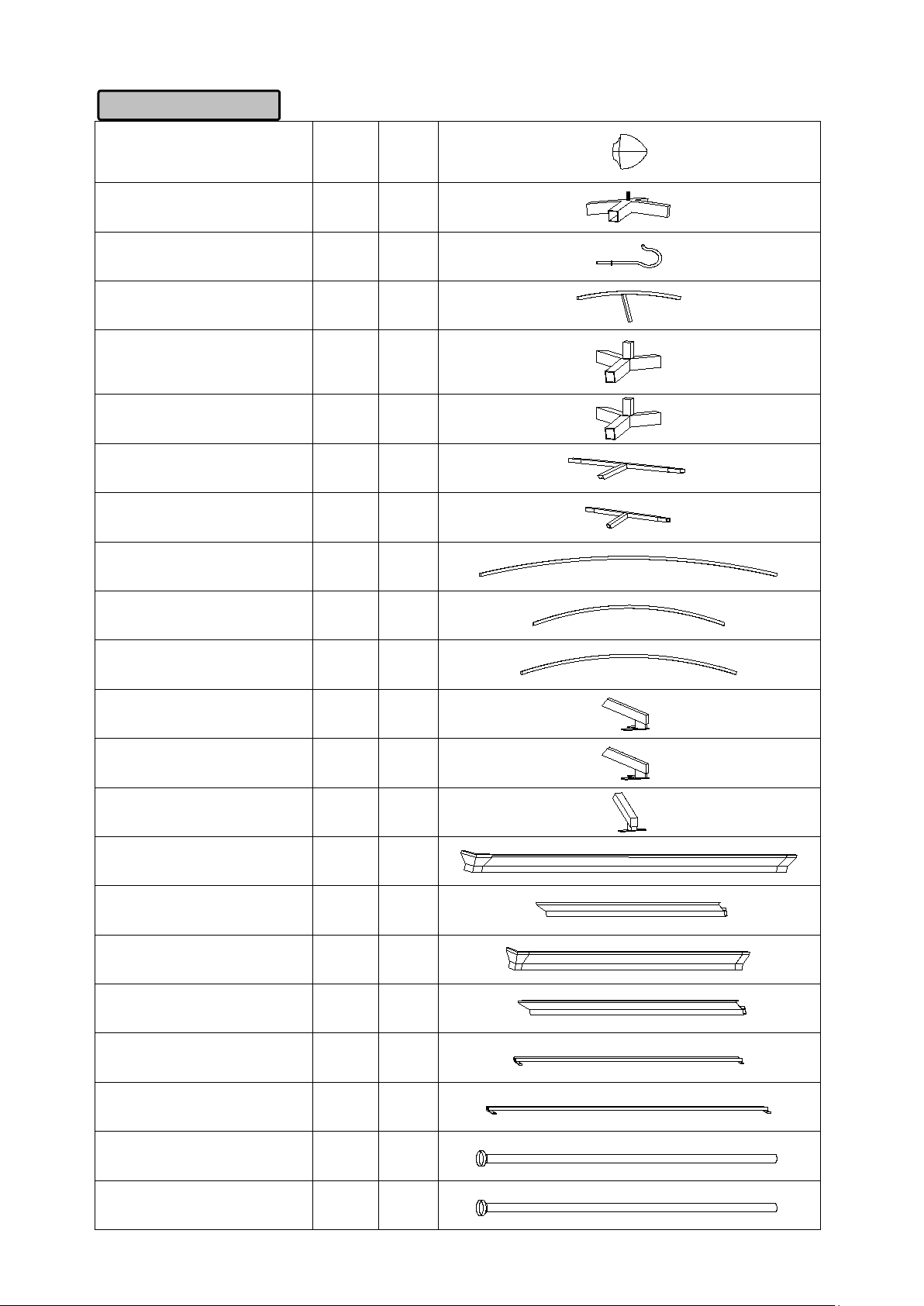

Parts List
Finial A 1
Small top connector B1 1
Hook B2 1
Small top arch beam C 4
Upper screen corner
connector 1
Upper screen corner
connector 2
D1 2
D2 2
Upper screen long connector E 2
Upper screen short
connector
Arch beam G1 4
Long side middle beam G2 2
Short side middle beam G3 2
Arch beam connector 1 H1 2
Arch beam connector 2 H2 2
Middle beam connector I 4
Short decorative slot 1 J1 2
Short decorative slot 2 J2 2
F 2
Short mosquito netting pipe L1 4
Long mosquito netting pipe L2 4
Long decorative slot 1 K1 2
Long decorative slot 2 K2 2
Post 1 M1 4
Post 2 M2 4
Page 4

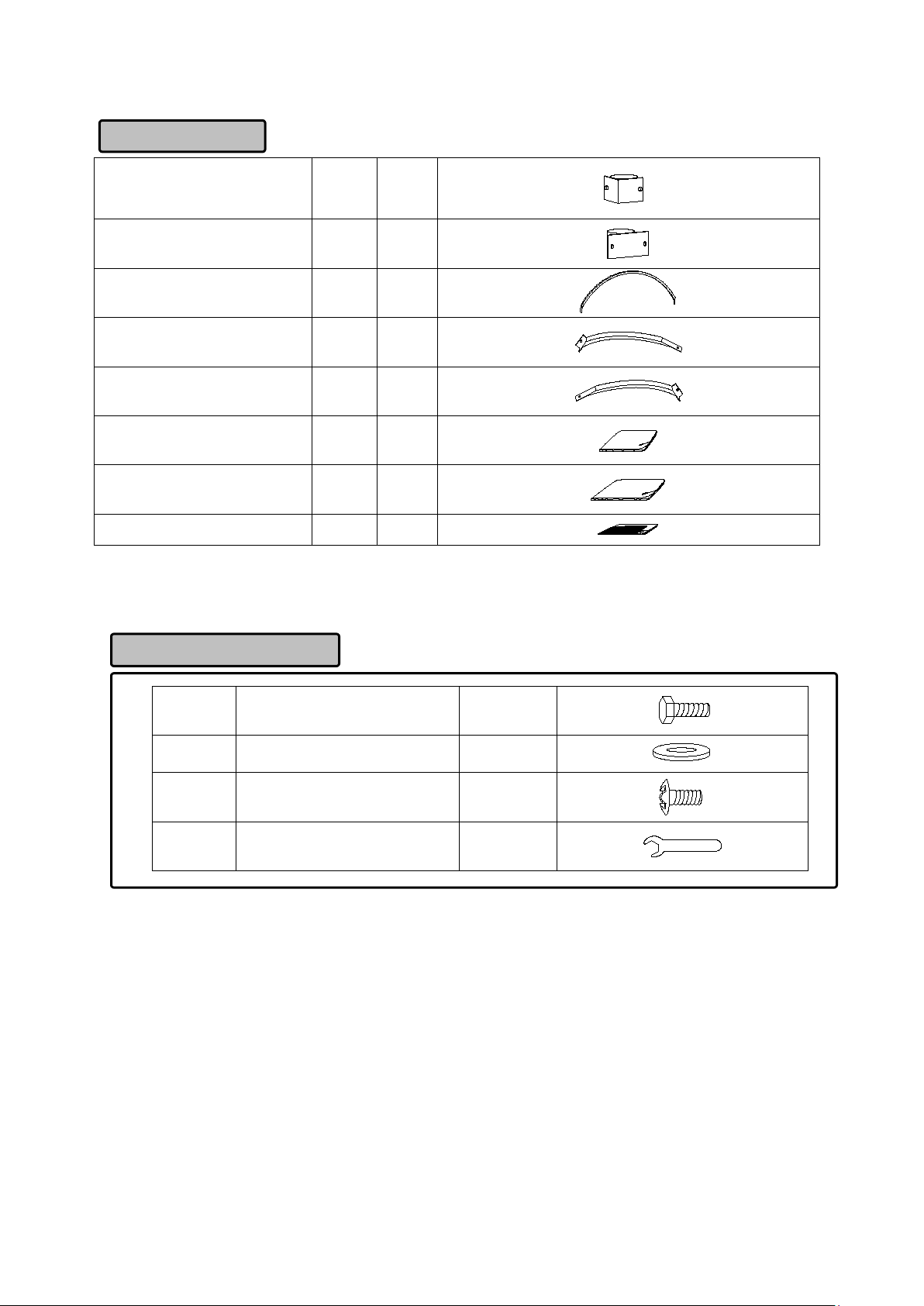

Parts List
Post connector 1 N1 4
Post connector 2 N2 4
Long side arch support beam O1 6
Short side arch support
beam 1
Short side arch support
beam 2
Small canopy P 1
Large canopy Q 1
Mosquito netting R 1
O2 2
O3 2
Hardware Pack 1
AA M6X15 Bolt 36 PCS
BB M6 Flat washer 52 PCS
CC M6X15 Screw 16 PCS
W M6 Wrench 1 PCS
Page 5
Insert short
Insert short
rch beam
(K1) by bolt (AA) and
the same way.
Attach post
long decorative slot
Attach mosquito
screen connector (E)
Insert middle
Insert middle
upper screen

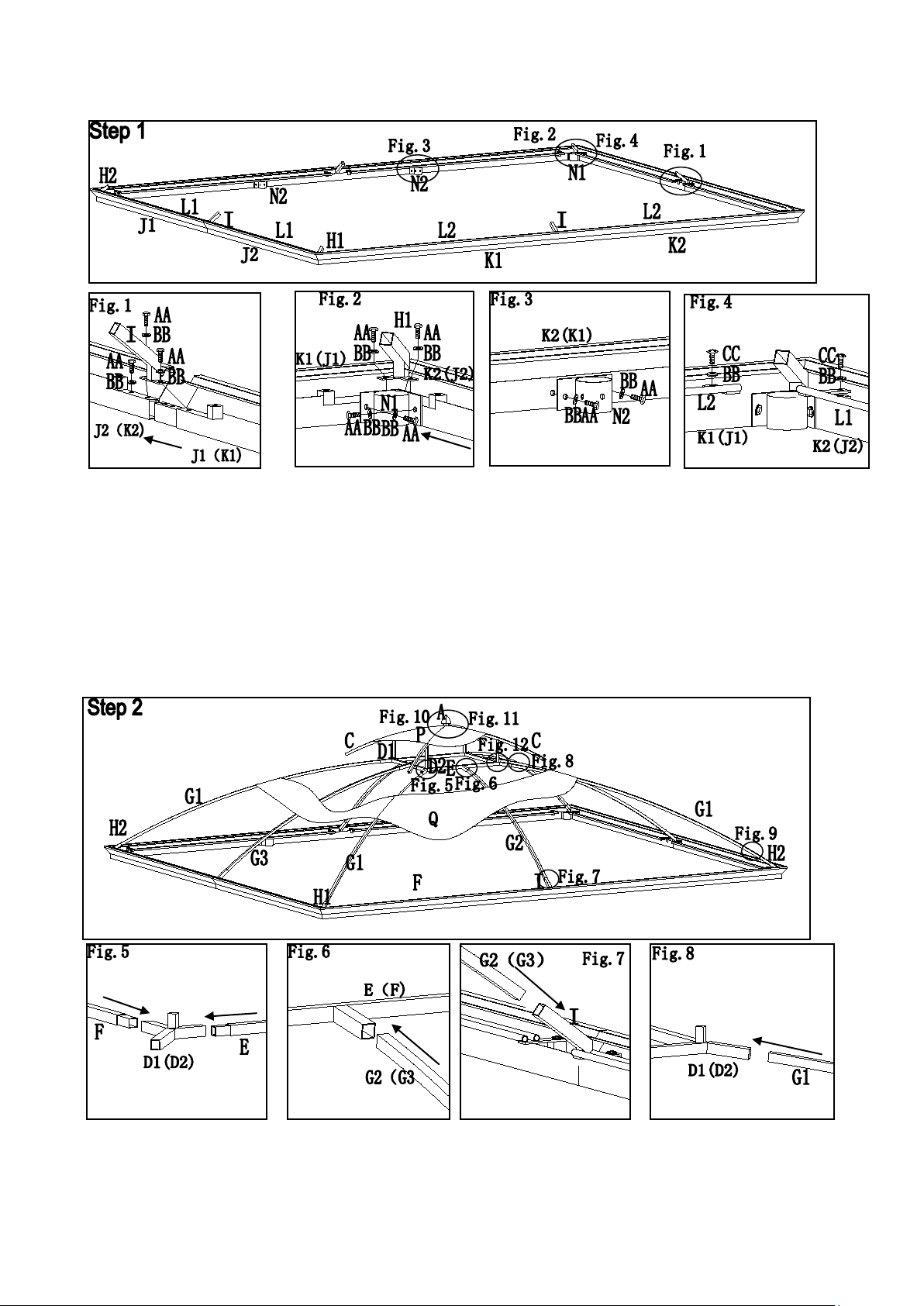

Fig.1:
decorative slot 1 (J1) into
(J2), then secure middle
beam connector (I) to (J 1)
& (J2) by bolt (AA) and
washer (BB). Install long
decorative slot (K1) and
(K2) in the same way.
Fig.2:
decorative slot 2 (J2) into
long decorative slot 1 (K1).
Secure A
connector 1 (H1) and Post
connector 1 (N1) to (J2) &
washer (BB). Install H2 in
F
Fig.3:
connector 2 (N2) to
(K1) & (K2) bolt (AA)
and washer (BB).
Fig.4:
netting pipe (L1) and ( L2)
to decorative slot (J1) &
(J2) & (K1) & (K2) by
screw (CC) and washer
(BB).
Fig.5: Insert upper
and (F) into upper
screen corner connector
(D1) & (D2).
Fig.6:
beam (G2) & (G3) into
upper screen connector
(E) & (F).
Fig.7:
beam (G2) and (G3) into
middle beam connector
(I).
Fig.8: Insert arch beam
(G1) into
corner connector (D1) &
(D2).
Page 6
canopy (P) onto the
connector (B1).
Lift the
connector (N1), fully
into post connector
side arch support
beam (O1) to post
(AA) and washer

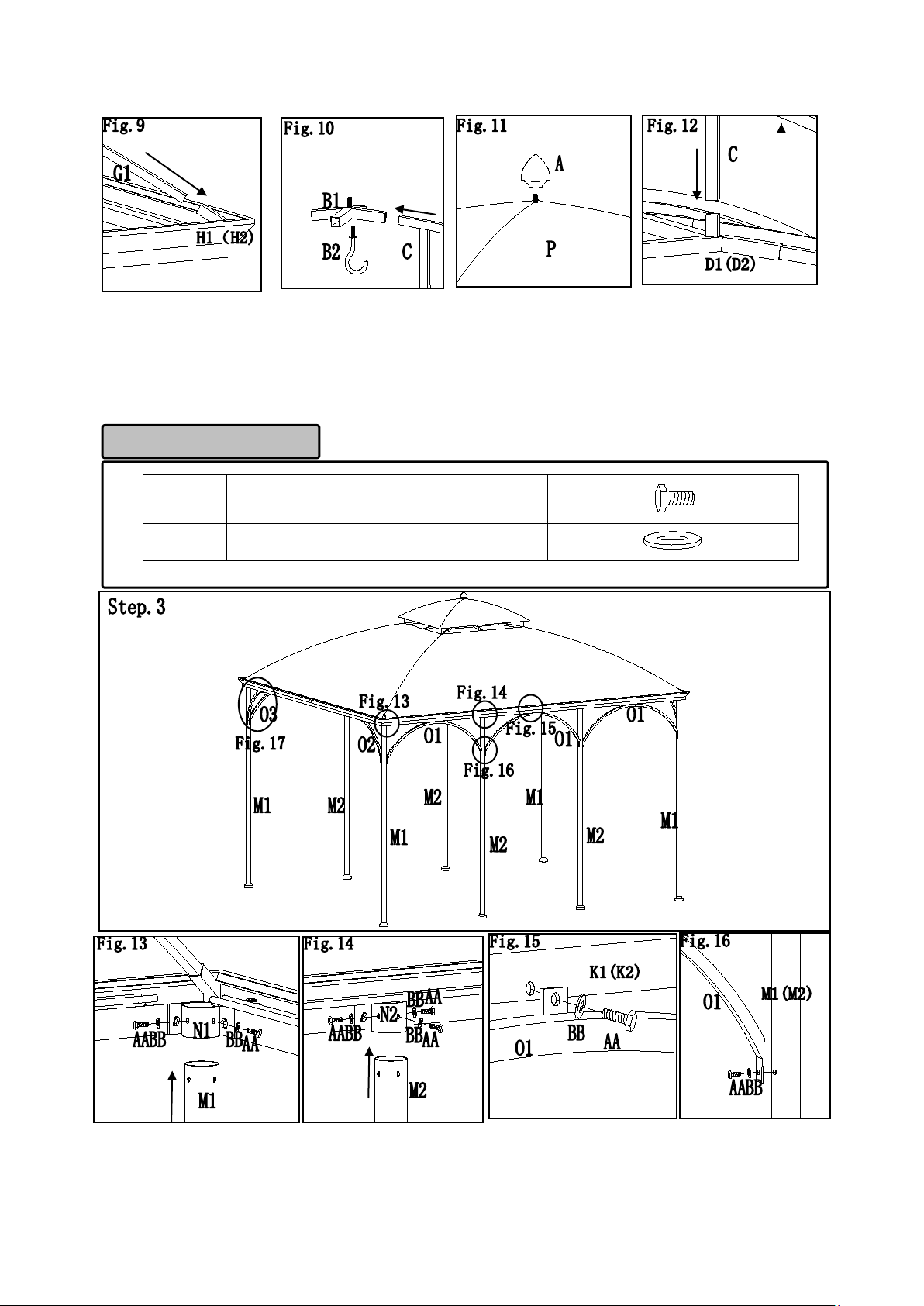

Fig.9: Insert arch
beam (G1) into arch
beam connector (H1)
or (H2).
Hardware Pack 2
AA M6X15 Bolt 46 PCS
BB M6 Flat washer 46 PCS
Fig.10: Insert small top
arch beam (C) into small
top connector (B1), and
attach hook (B2) to (B1).
Fig.11: Put the small
small top, then attach
finial (A) to small top
Fig.12: Put the large canopy
(Q) onto the top, then insert
small top arch beam (C) into
(D1) & (D2). Spread (Q) and
fix it to the fram e by the hook
on the canopy.
Fig.13:
assembled fram e, insert
post 1 (M1) into post
tighten by bolt (AA) and
washer (BB).
Fig.14: Insert post (M2)
(N2), fully tighten by bolt
(AA) and washer (BB).
Fig.15: Attach long side
arch support beam ( O1)
to long decorative slot
(K1) & (K2) b y bolt (AA)
and washer (BB).
Fig.16: Attach long
(M1) or (M2) by bolt
(BB).
Page 7
Hardware Pack 3
EE Plastic ring 60PCS
FF Φ6X180MM Stake 24PCS

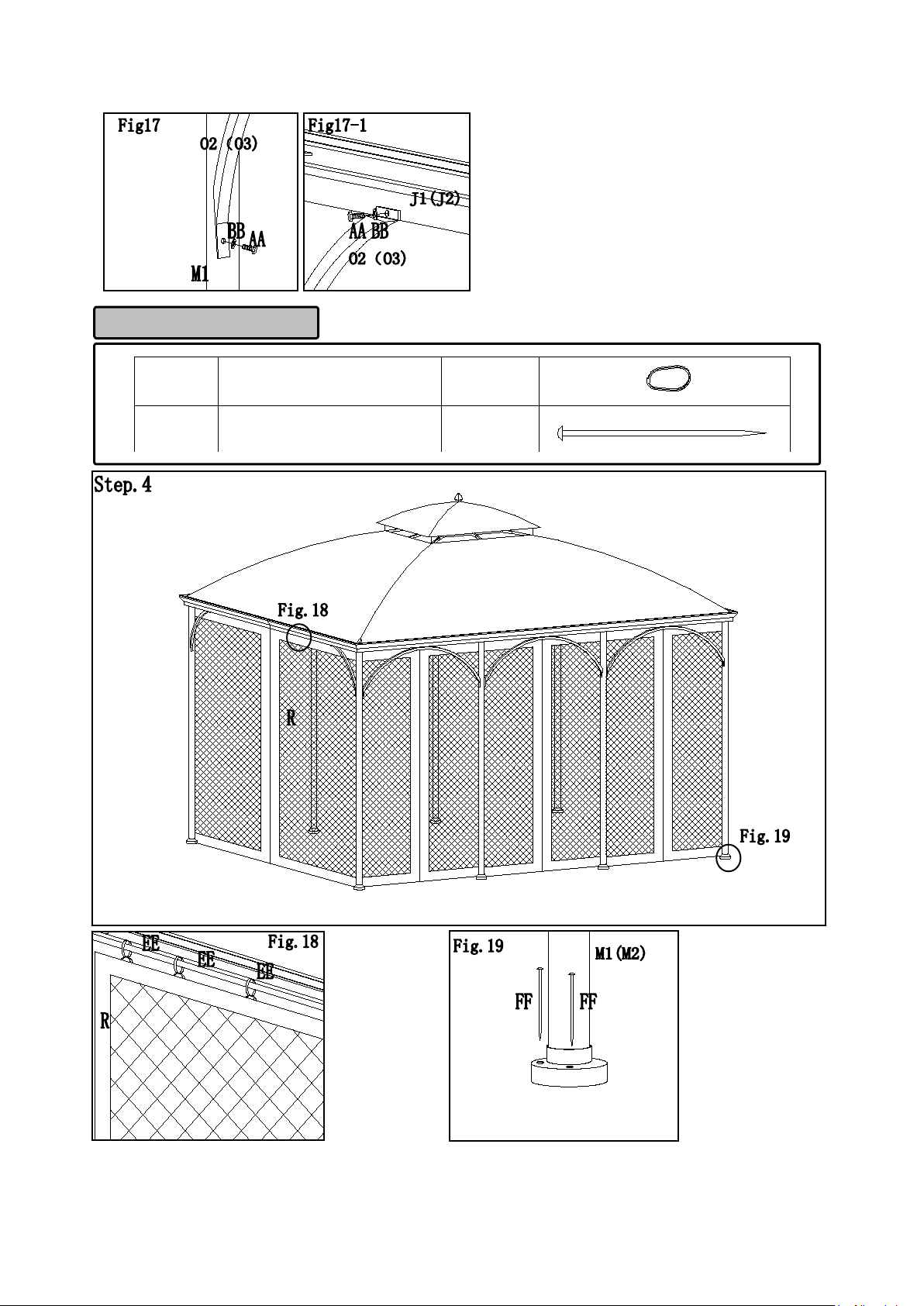

Fig.17&17-1: Attach short side arch
support beam (O2/O3) to post (M1) &
decorative slot (J1) & (J2) by bolt (AA)
and washer (BB).
Fig.18: Attach the mosquito netting (R)
to mosquito netting pipe (L2) & (L1).
Fig.19: Fix the assembled gazebo to the
ground by stake (FF).
Page 8
Limited Warra n ty:
This limited warranty is ext ended to the origina l purchaser and app lies to defects in materials
and workmanship of your item provided the item is maintained with care and us ed only for
personal, residentia l purposes. The item is warranted to be free from defects in material or
workmanship for a period of one (1) year. We don't reimburse for transportation or
delivery costs, or compensate the individual or any outside party for assembling or
disassembling the product.
Exclusions:
Items used for commercial, contract, or other non-residential purposes, or items damaged due
to acts of nature, vandalism, misuse, or improper assembly are not covered. Corrosion or
rusting of hardware is n ot covered. Pro of of purchase (dat ed register receipt) is required for
warranty claims. Warranty is to the original purchaser and is non-transferable. Any
replacement of warranted items will be in the original style and col or, or a similar style and
color if the original is unavailable or has been discontinued. As some states do not allow
exclusions or limitations on an implied warranty, the above exclusions and limitations m ay not
apply. This warra nty g ives you s pecif ic rig hts, and you m ay also have other r ights, which var y
from state to state.
Maintenance:
Our iron/steel components for garden accessories and patio items are coated with rust
inhibiting paint that protects it from rusting.
oxidation (rusting) will occur once these protec tive coatings are scratc hed.
process and is not a defect! To minimize this condition, we recommend care when assembling
& handling the product to prevent scratching the paint. Should any scratching or damage occur,
we recommend imm ediate touch-up with rust inhibit ing paint. Surface r ust can also be easily
removed with a very light application of common cooking oil. If surface oxidation (rusting)
occurs and if no measure is taken to prevent this, the oxidation may start dripping on to deck or
patio and cause damaging stains, which m ay be difficult to remove. This can be prevented if
measure is taken to keep the product from oxidizing.
Important: Please do not return this product to the store. For technical assistance on
assembly or replacement parts. Please call Sunjoy Industries at 1-866-578-6569 from 8:00 am
EST to 8:00 pm PST or fax the replacement part form which is in the box to 1-740-283-3549 or
Email [email protected] for assistance.
However, due to the nature of iron, surface
This is a natural
Made in China
2016-2
