Model iON12TL
OPERATOR’S MANUAL
SAVE THESE INSTRUCTIONS
40-VOLT 12-INCH CORDLESS
TILLER + CULTIVATOR
Form No. SJ-iON12TL-880E-M
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Always follow these safety guidelines. Failure to do so may
result in serious bodily injury or death.
General Safety WARNINGS!
You and any other operator of this garden tiller + cultivator
must read, understand, and follow these instructions in their
entirety. Failure to follow these instructions may result in
ELECTRIC SHOCK, FIRE, and/or serious PERSONAL INJURY.
Notice the personal safety alert symbol m used in this
manual to draw your attention to a WARNING given along
with the particular operating instruction. This means that
the operation requires special ATTENTION, CAUTION, and
AWARENESS.
1. Keep work area clean and well-lit – Cluttered, dark
areas invite accidents.
2. Replacement parts – When servicing this unit, use only
identical replacement parts. Replace or repair damaged
parts immediately.
3. Keep children, bystanders, and pets away – All
spectators, including pets, should be kept a safe distance
away from the work area.
4. Know your product – Know how to start and stop the
machine. Be thoroughly familiar with the controls.
5. Use the right tool – Do not use this machine for any job
except that for which it was intended.
6. Dress properly – Do not wear loose clothing or jewelry as
such articles can become caught in moving parts. Wear
a protective covering to contain long hair. Wearing rubber
gloves and substantial non-slip footwear is recommended
when working outdoors.
7. Avoid accidental starting – Do not carry the garden tiller
+ cultivator with your nger on the switch.
mCAUTION! Moving parts will continue to run for several
seconds after turning o the machine.
8. Moving parts – Keep hands and feet away from moving
parts. Keep guards in place and in proper working order.
9. Do not force the tool – It will perform better with less
likelihood of personal or mechanical injury if it is used at
the rate for which it was designed.
10. Do not overreach – Keep proper footing and balance at
all times.
If the tiller + cultivator strikes a foreign object, follow these
steps:
• Stop the cordless tiller + cultivator.
• Inspect for damage.
• Repair any damage before restarting and
operating the tool.
11. Use safety glasses – Also use safety footwear, snug-
tting clothing, protective gloves, hearing, and head
protection.
12. Remove the battery – Remove the battery from the tiller
+ cultivator when it is not in use, before servicing it, when
changing accessories, and when performing any other
maintenance task.
13. Store idle tool indoors – When not in use, the tiller +
cultivator should be stored indoors in a dry and high or
locked-up place out of the reach of children.
14. Maintain the tiller + cultivator with care – Keep the
cutting edges sharp and clean for optimal performance
and to reduce the risk of injury. Keep the handles dry,
clean, and free from oil and grease. Follow the additional
recommendations described in the maintenance section
of this manual.
15. Avoid dangerous environments – Do not use the tiller
+ cultivator in rain or in damp or wet locations. Do not
operate the tiller + cultivator in gaseous or explosive
atmospheres or use the tiller + cultivator near ammable
or combustible liquids. Motors in these tools normally
spark, and the sparks might ignite fumes.
16. Stay alert – Watch what you are doing. Use common
sense. Do not operate the tiller + cultivator when you are
tired or under the inuence of drugs, alcohol, or other
medication.
17. Check for damaged parts – Before further use of the
appliance, a guard or other part that is damaged should
be carefully checked to determine that it will operate
properly and perform its intended function. Check for
alignment of moving parts, binding of moving parts,
breakage of parts, mounting, and any other condition
that may aect its operation. A guard or other part that
is damaged should be properly repaired or replaced.
Contact the Snow Joe® + Sun Joe® customer service
center at 1-866-SNOWJOE (1-866-766-9563) for
assistance.
1
2
Training
• Read, understand, and follow all instructions on the tiller
+ cultivator and in the manual before operating this unit.
Thoroughly familiarize yourself with the controls and the
proper use of the equipment. Know how to stop the unit
and disengage the controls quickly.
• Children should never be allowed access to the equipment.
Adults should never operate the equipment without carefully
reading and understanding these instructions.
• Keep the area of operation clear of all persons, particularly
small children or pets.
• Exercise caution to avoid slipping or falling.
• Always plan your cultivating path to avoid discharge of
material toward people, pets, and property (e.g. windows,
cars, etc.). Thrown objects can cause serious personal
injury and property damage. Do not allow anyone in front of
a running machine.
• Keep people, pets, and property at least 25 feet from the
tiller + cultivator while it is in operation. Stop the tiller +
cultivator if people or pets enter the discharge area.
• Always observe the surface conditions in order to avoid
slipping, falling, and unexpected objects.
Preparation
• Always inspect the area where the tiller + cultivator is to
be used. Remove all objects (i.e. stones, sticks, wires, and
other foreign materials) that could be thrown by the blades
or cause the operator to trip.
• Thrown objects can cause serious injury to the eyes and
exposed body. Always wear safety glasses or eye shields
during operation and while making an adjustment or repair.
• Always operate the tiller + cultivator wearing adequate
garments. Do not wear jewelry or other loose clothing,
which could become entangled in moving parts. Wear nonslip footwear to ensure proper footing.
• Observe any noise-prevention regulations and laws.
• Inspect the tiller + cultivator for worn, missing, or damaged
parts and safety labels. See maintenance section for
detailed instructions.
Operation
• Do not operate the machine while under the inuence of
alcohol or drugs.
• Keep all safety devices in place and in proper working order.
Do not operate with missing or damaged components.
• Ensure the controls (start/stop) function properly before
cultivating.
• Hold onto the tiller + cultivator with both hands during
operation. Ensure the grips are dry.
• Contact with rotating parts can amputate hands and feet.
Keep hands and feet away from all rotating parts.
• Only operate the tiller + cultivator when there is good
visibility or light and dry conditions. Always watch your
footing and keep a rm hold on the grips. Walk; don't run!
• Do not operate the tiller + cultivator on slippery surfaces.
Check your footing during use.
• Exercise caution when changing direction and operating the
tool on slopes. Always keep feet and legs a safe distance
away from the machine. Look for hidden obstacles or
hazards.
• Do not overload machine capacity by attempting to
cultivate too deeply. It will cause excessive resistance.
• Stop the tiller + cultivator and remove the battery before
leaving the operating position (behind the handles) to adjust
or inspect the unit. Wait until the blades have come to a
complete stop.
• If the tiller + cultivator should start to vibrate abnormally,
stop the machine and inspect thoroughly for damage.
• Turn the machine OFF when moving to a new work area.
Allow the blades to completely stop rotating before
transporting the unit.
• Always use proper care and good judgment when you
are confronted with a situation that is not covered in
this manual. If you are unsure of what to do, contact
your authorized Snow Joe® + Sun Joe® dealer or call
the Snow Joe® + Sun Joe® customer service center at
1-866-SNOWJOE (1-866-766-9563).
• Do not use in rain or wet conditions.
• Do not grasp the exposed cutting blades or cutting edges
when picking up or holding the appliance.
Stopping Work
• Always turn the tiller + cultivator OFF and remove the
battery when stopping work or when changing work areas.
Never leave the machine running when unattended.
• The blades will continue to rotate for a short period after
turning OFF the tiller + cultivator. Wait until the blades
have completely stopped before lifting the machine or
conducting inspection and maintenance.
• The motor housing remains hot for a short period after the
machine is turned OFF. Allow the motor housing to cool
completely before touching or storing near combustible
material.
Maintenance + Storage
• Maintain or replace safety and instruction labels.
• Disengage all controls, stop the engine, and wait until the
blades come to a complete stop before cleaning, repairing,
or inspecting the tiller + cultivator.
• Regularly check the following:
i) Blades are clear and can rotate freely – Accumulation
of debris around the blades could impair performance
or damage the motor. Inspect and clean the area around
the blades before every use.
3
ii) Safety devices are operating properly – Do not
tamper with or adjust safety devices.
iii) Bolts and screws are properly tightened – Visually
inspect the machine for any damage and ensure that
the tiller + cultivator is in safe working condition.
iv) Use only identical replacement parts – Always
replace damaged parts with original equipment
manufacturer’s (OEM) parts only. Replacement parts
that do not meet the original equipment specications
may lead to improper performance and compromise
safety.
Battery & Charger
Safety Instructions
We pay a great deal of attention to the design of every battery
pack to ensure that we supply you with batteries that are safe,
durable and have a high energy density. The battery cells have
a wide range of safety devices. Each individual cell is initially
formatted and its electrical characteristic curves are recorded.
This data is then used exclusively to be able to assemble the
best possible battery packs.
Despite all the safety precautions, caution must always be
exercised when handling batteries. The following points must
be obeyed at all times to ensure safe use. Safe use can only
be guaranteed if undamaged cells are used. Incorrect handling
of the battery pack can cause cell damage.
IMPORTANT! Analyses conrm that incorrect use and poor
care of high-performance batteries are the main factors
responsible for personal and/or product damage.
mWARNING! Use only approved replacement batteries;
other batteries may damage the cordless tiller + cultivator and
cause it to malfunction, which can lead to serious personal
injury.
mCAUTION! To reduce the risk of injury, charge the
EcoSharp® iBAT40 lithium-ion battery pack only in its
designated lithium-ion charger, the iCHRG40. Other types of
chargers present risk of re, personal injury and damage. Do
not wire a battery pack to a power supply plug or car cigarette
lighter. Such misuse will permanently disable or damage the
battery pack.
• Avoid dangerous environments – Do not charge the
battery pack in rain, snow or in damp or wet locations.
Do not use the battery pack or charger in the presence of
explosive atmospheres (gaseous fumes, dust or ammable
materials) because sparks may be generated when inserting
or removing the battery pack, which could lead to a re.
• Charge in a well-ventilated area – Do not block the
charger vents. Keep them clear to allow for proper
ventilation. Do not allow smoking or open ames near a
charging battery pack. Vented gases may explode.
NOTE: The safe temperature range for the battery is -4°F
(-20°C) to 113°F (45°C). Do not charge the battery outside
in freezing weather; charge it at room temperature.
• Maintain charger cord – When unplugging the charger, pull
the plug, not the cord, from the receptacle to reduce the
risk of damage to the electrical plug and cord. Never carry
the charger by its cord or yank it by the cord to disconnect
it from the receptacle. Keep the cord away from heat, oil
and sharp edges. Make sure the cord will not be stepped
on, tripped over or subjected to damage or stress when the
charger is in use. Do not use the charger with a damaged
cord or plug. Replace a damaged charger immediately.
• Do not use an extension cord unless it is absolutely
necessary – Using the wrong, damaged or improperly
wired extension cord poses a risk of re and electric shock.
If an extension cord must be used, plug the charger into a
properly wired 16 gauge or larger extension cord with the
female plug matching the male plug on the charger. Make
sure that the extension cord is in good electrical condition.
• Charger iCHRG40 is rated for 120 volt AC only – The
charger must be plugged into an appropriate receptacle.
• Use only recommended attachments – Use of an
attachment not recommended or sold by the battery
charger or battery pack manufacturer may result in risk of
re, electric shock or personal injury.
• Unplug charger when not in use – Make sure to remove
battery packs from unplugged chargers.
mWARNING! To reduce the risk of electric shock,
always unplug the charger before performing any cleaning
or maintenance. Do not allow water to ow into the charger.
Use a Ground Fault Circuit Interrupter (GFCI) to reduce shock
hazards.
• Do not burn or incinerate battery packs – Battery packs
may explode, causing personal injury or damage. Toxic
fumes and materials are created when battery packs are
burned.
• Do not crush, drop or damage battery packs – Do not
use the battery pack or charger if they have sustained a
sharp blow, been dropped, run over or have been damaged
in any way (i.e. pierced with a nail, hit with a hammer,
stepped on, etc.).
• Do not disassemble – Incorrect reassembly may pose
a serious risk of electric shock, re or exposure to toxic
battery chemicals. If the battery or charger are damaged,
contact an authorized Snow Joe® + Sun Joe® dealer or
call the Snow Joe® + Sun Joe® customer service center at
1-866-SNOWJOE (1-866-766-9563) for assistance.
• Battery chemicals cause serious burns – Never let a
damaged battery pack contact the skin, eyes or mouth.
If a damaged battery pack leaks battery chemicals, use
rubber or neoprene gloves to safely dispose of it. If skin
is exposed to battery uids, wash the aected area with
soap and water and rinse with vinegar. If eyes are exposed
to battery chemicals, immediately ush with water for 20
minutes and seek medical attention. Remove and dispose
of contaminated clothing.
• Do not short circuit – A battery pack will short circuit if
a metal object makes a connection between the positive
and negative contacts on the battery pack. Do not place a
battery pack near anything that may cause a short circuit,
such as paper clips, coins, keys, screws, nails and other
metallic objects. A short-circuited battery pack poses a risk
of re and severe personal injury.
• Store your battery pack and charger in a cool, dry
place – Do not store the battery pack or charger where
temperatures may exceed 104ºF (40ºC), such as in direct
sunlight or inside a vehicle or metal building during the
summer.
Information about the battery
1. The battery pack supplied with your cordless tiller +
cultivator is only partially charged. The battery pack has to
be charged completely before you use the tool for the
rst time.
2. For optimum battery performance, avoid low discharge
cycles by charging the battery pack frequently.
3. Store the battery pack in a cool place, ideally at 59°F
(15°C) and charged to at least 40%.
4. Lithium-ion batteries are subject to a natural aging
process. The battery pack must be replaced at the latest
when its capacity falls to just 80% of its capacity when
new. Weakened cells in an aged battery pack are no
longer capable of meeting the high power requirements
needed for the proper operation of your tiller + cultivator,
and therefore pose a safety risk.
5. Do not throw battery packs into an open re as this poses
a risk of explosion.
6. Do not ignite the battery pack or expose it to re.
7. Do not exhaustively discharge batteries. Exhaustive
discharge will damage the battery cells. The most
common cause of exhaustive discharge is lengthy storage
or non-use of partially discharged batteries. Stop working
as soon as the performance of the battery falls noticeably
or the electronic protection system triggers. Place the
battery pack in storage only after it has been fully charged.
8. Protect batteries and the tool from overloads. Overloads
will quickly result in overheating and cell damage inside
the battery housing even if this overheating is not apparent
externally.
9. Avoid damage and shocks. Immediately replace batteries
that have been dropped from a height of more than one
meter or those that have been exposed to violent shocks,
even if the housing of the battery pack appears to be
undamaged. The battery cells inside the battery may have
suered serious damage. In such instances, please read
the waste disposal information for proper battery disposal.
10. If the battery pack suers overloading and overheating,
the integrated protective cuto will switch o the
equipment for safety reasons.
IMPORTANT! Do not press the ON/OFF switch any more
if the protective cut-o has been activated. This may
damage the battery pack.
11. Use only original battery packs. The use of other batteries
poses a re risk and may result in injuries or an explosion.
Information about the charger and the
charging process
1. Please check the data marked on the rating plate of the
battery charger. Be sure to connect the battery charger
to a power supply with the voltage marked on the rating
plate. Never connect it to a dierent mains voltage.
2. Protect the battery charger and its cord from damage.
Keep the charger and its cord away from heat, oil and
sharp edges. Have damaged cords repaired without delay
by a qualied technician at an authorized Snow Joe® +
Sun Joe® dealer or call the Snow Joe® + Sun Joe®
customer service center at 1-866-SNOWJOE
(1-866-766-9563).
3. Electrical plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
grounded appliances. Unmodied plugs and matching
outlets will reduce the risk of electric shock.
4. Keep the battery charger, battery pack(s) and the cordless
tool out of the reach of children.
5. Do not use the supplied battery charger to charge other
cordless tools.
6. During periods of heavy use, the battery pack will become
warm. Allow the battery pack to cool to room temperature
before inserting it into the charger to recharge.
7. Do not overcharge batteries. Do not exceed the maximum
charging times. These charging times only apply to
discharged batteries. Frequent insertion of a charged or
partially charged battery pack will result in overcharging
and cell damage. Do not leave batteries in the charger for
days on end.
8. Never use or charge batteries if you suspect that it has
been more than 12 months since the last time they were
charged. There is a high probability that the battery pack
has already suered dangerous damage (exhaustive
discharge).
9. Charging batteries at a temperature below 50°F (10°C) will
cause chemical damage to the cells and may cause a re.
10. Do not use batteries that have been exposed to heat
during the charging process, as the battery cells may have
suered dangerous damage.
11. Do not use batteries that have suered curvature or
deformation during the charging process or those that
exhibit other atypical symptoms (gassing, hissing,
cracking, etc.).
12. Never fully discharge the battery pack (maximum
recommended depth of discharge is 80%). A complete
discharge of the battery pack will lead to premature aging
of the battery cells.
4
Protectionfromenvironmentalinuences
1. Wear suitable work clothes. Wear safety goggles.
2. Protect your cordless tool and the battery charger from
moisture and rain. Moisture and rain can cause dangerous
cell damage.
3. Do not use the cordless tool or the battery charger near
vapors and ammable liquids.
4. Use the battery charger and cordless tools only in dry
conditions and at an ambient temperature of 50-104°F
(10-40°C).
5. Do not keep the battery charger in places where the
temperature is liable to reach over 104°F (40°C). In
particular, do not leave the battery charger in a car that is
parked in the sunshine.
6. Protect batteries from overheating. Overloads,
overcharging and exposure to direct sunlight will result
in overheating and cell damage. Never charge or work
with batteries that have been overheated – replace them
immediately, if possible.
7. Store the charger and your cordless tool only in dry
locations with an ambient temperature of 50-104°F
(10-40°C). Store your lithium-ion battery pack in a cool,
dry place at a temperature of 50-68°F (10-20°C). Protect
the battery pack, charger and cordless tool from humidity
and direct sunlight. Only place fully charged batteries in
storage (charged to at least 40%).
8. Prevent the lithium-ion battery pack from freezing. Battery
packs that were stored below 32°F (0°C) for more than 60
minutes must be discarded.
9. When handling batteries, be wary of electrostatic
charge. Electrostatic discharges can damage the
electronic protection system and the battery cells. Avoid
electrostatic charging and never touch the battery poles.
5
6
Safety Symbols
The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all
instructions on the machine before attempting to assemble and operate.
READ THE OPERATOR'S
MANUAL(S) – Read, understand,
and follow all instructions in the
user manual(s) before attempting
to assemble and operate.
SAFETY ALERT – Indicates
a precaution, a warning, or
a danger.
WARNING! Do not expose the unit
to rain or wet conditions.
WARNING! Rotating parts may
cause serious injury. Make sure the
blades come to a complete stop
before transporting the machine
or before inspecting, cleaning, or
conducting any other maintenance.
Wear eye protection, breathing
protection, and ear protection
(i.e. safety goggles, dust masks, and
ear defenders).
Inspect the work area prior to
use and remove all objects that
could be thrown by the appliance. If
a hidden object is discovered while
working, stop the engine and remove
the object.
Work across slopes; never work up
and down such surfaces.
Symbols SymbolsDescriptions Descriptions
Beware of foreign objects
that could be thrown from the
appliance. Keep bystanders a
safe distance away from the
work area.
The rotating part will continuously
run for several seconds after you
turn o the machine.
STOP
Wear safety footwear at all times to
provide protection against objects
that may accidentally fall on feet.
Wear safety gloves during use to
protect hands.
Indoor use only. Only use battery
charger indoors.
7
Know Your Cordless Tiller + Cultivator
Read the owner’s manual and safety instructions carefully before operating the cordless tiller + cultivator. Compare the illustration
below to the cordless tiller + cultivator in order to familiarize yourself with the location of the various controls and adjustments.
Save this manual for future reference.
1. ON/OFF trigger
2. Safety lock button
3. Upper handle
4. Upper handle knob and bolt (2)
5. Cable clip (2)
6. Middle handle
7. Lower handle knob and bolt (2)
8. Battery compartment
9. Motor housing
10. Gear box
11. Steel blades
12. Wheels
13. Guard
14. Air outlet
15. Lower handle
16. Push lock button
17. Battery indicator
18. Push button for battery indicator
19. EcoSharp® lithium-ion battery (iBAT40)
20. EcoSharp® battery charger (iCHRG40)
1
2
3
4
5
6
7
8
11
10
12
13
14
16
17
18
19
20
15
9
Technical Data
Battery Voltage* 40 V D.C.
Battery Capacity 4.0 Ah
Charging Time 2.5 – 3 hours (for full charge)
Battery Run Time 20 – 30 mins
Cultivating Width (Max) 12 in. (30 cm)
Cultivating Depth (Max) 8 in. (20 cm)
Blade 4 steel tilling blades
Motor 650 W Brushless
No Load Speed 300 rpm
Wheel Adjustment 3 positions
Weight (tiller + cultivator alone) 22.3 lbs (10.1 kg)
Weight (with battery installed) 24.8 lbs (11.2 kg)
*Initial no-load voltage, when fully charged, peaks at 40 volts; nominal voltage under typical load is 36 volts.
8
Unpacking
Carton Contents
• Cordless tiller + cultivator housing
• Upper handle
• Middle handle
• Cable clip (2)
• Handle knob, washer and bolt (4)
• 40 V EcoSharp® battery
• EcoSharp® battery charger
• Manuals with registration card
1. Carefully remove the cordless tiller + cultivator and check
to see that all of the above items are supplied.
2. Inspect the product carefully to make sure no breakage or
damage occurred during shipping. If you nd damaged or
missing parts, DO NOT return the unit to the store. Please
call the Snow Joe® + Sun Joe® customer service center at
1-866-SNOWJOE (1-866-766-9563).
NOTE: Do not discard the shipping carton and packaging
material until you are ready to use the cordless tiller +
cultivator. The packaging is made of recyclable materials.
Properly dispose of these materials in accordance with
local regulations or save the packaging for long-term
product storage.
IMPORTANT! The equipment and packaging material are not
toys. Do not let children play with plastic bags, foils, or small
parts. These items can be swallowed and pose a suocation
risk!
Assembly
mWARNING! Do not insert the battery until assembly is
complete. Failure to comply could result in accidental starting
and serious personal injury.
mWARNING! To prevent serious personal injury, make
sure the battery is removed, and the blades have come to a
complete stop before inspecting, cleaning, or servicing the
unit.
mWARNING! The product must be fully assembled
before operation. Do not use a product that is only partially
assembled or assembled with damaged parts.
Follow the assembly instructions step-by-step and use the
pictures provided as a visual guide to easily assemble the
product.

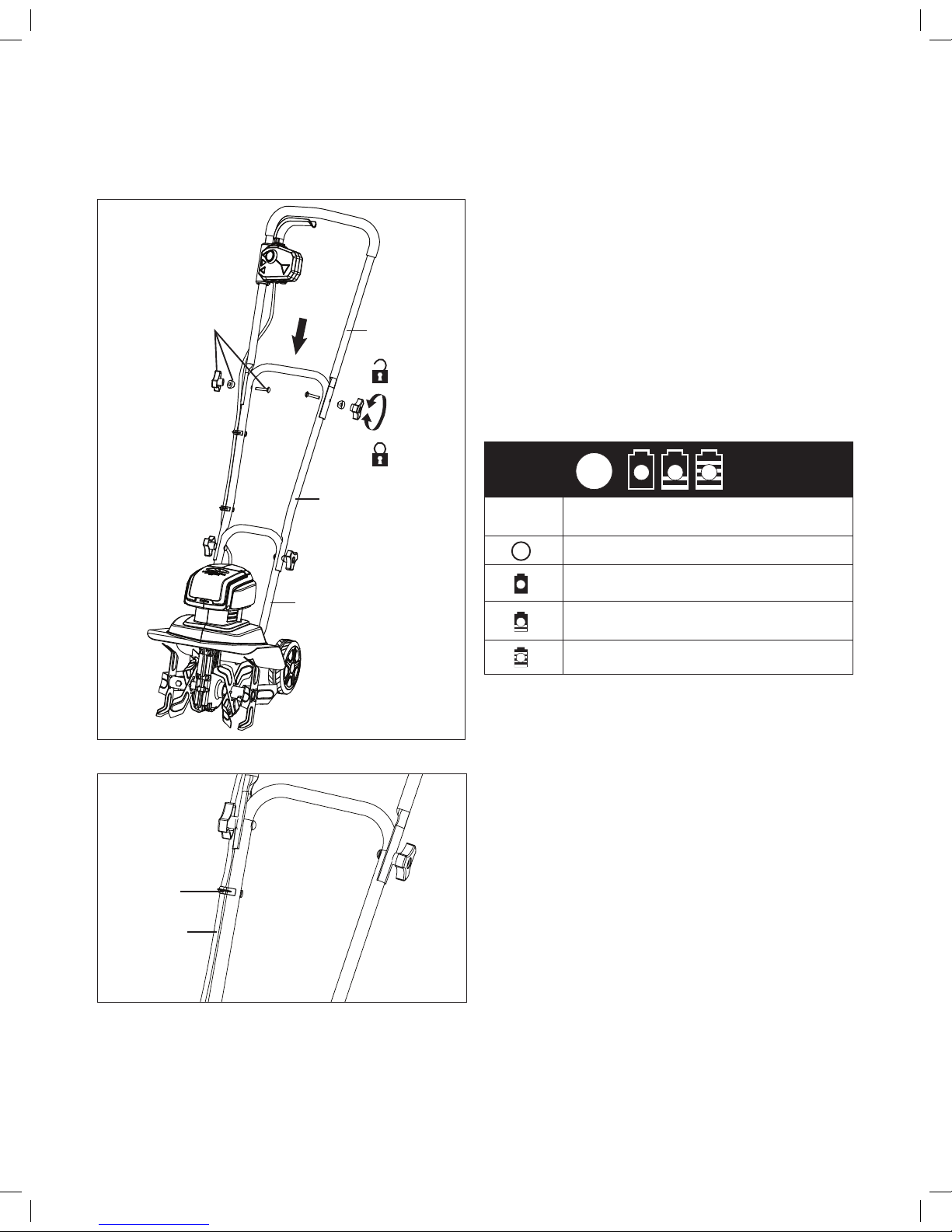

1. Attach the cable clips on the middle handle bar (Fig. 1).
2. Secure the middle handle to the lower handle using the
rst set of knobs, bolts, and washers. Tighten the knobs
on each side to ensure a secure t (Fig. 2).
Fig. 1
Cable clips
Middle handle
Fig. 2
Knob + bolt + washer
Middle handle
Lower handle
9
3. Connect the upper handle to the middle handle using
the second set of knobs, bolts and washers. Tighten the
knobs on each side to ensure a secure t (Fig. 3).
4. Secure the cable inside the cable clips (Fig. 4).
mWARNING! Make sure all handle knobs are properly
tightened before using the cordless tiller + cultivator.
Battery Pack Operation
The equipment is powered by a lithium-ion battery. The battery
pack is completely sealed and maintenance free.
Battery Charge Level Indicator
The battery pack is equipped with a push button for checking
the charge level. Simply press the push button to read o the
battery charge level from the LEDs of the battery indicator:
• All 3 level monitoring LEDs are lit: Battery charge level
is high.
• 2 level monitoring LEDs are lit: Battery charge level is
decreasing. Stop work as soon as possible.
• 1 level monitoring LED is lit: Battery is at. Stop work
IMMEDIATELY and charge the battery. Otherwise the
battery’s service life will be greatly shortened.
NOTE: If the charge level button does not appear to be
working, place the battery pack on the charger and charge as
needed.
NOTE: Immediately after using the battery pack, the charge
level button may display a lower charge than it will if checked
a few minutes later. The battery cells “recover” some of their
charge after resting.
Charger Operation
mWARNING! Charge only EcoSharp
®
iBAT40 lithium-ion
battery packs in compatible EcoSharp® iCHRG40 lithium-ion
battery chargers. Other types of batteries may cause personal
injury and damage.
To reduce the risk of electric shock, do not allow water to ow
into the charger's AC/DC plug.
Fig. 3
Knob + bolt + washer
Middle handle
Lower handle
Upper handle
Fig. 4
Cable
Cable clip
Charge level button
The battery is at 30% capacity
and requires charging
The battery is at 60% capacity
and requires charging soon
The battery is at full capacity
Light IndicatorsLights
10
When to Charge the EcoSharp® iBAT40
Lithium-Ion Battery
NOTE: The EcoSharp® iBAT40 lithium-ion battery packs do
not develop a "memory" when charged after only a partial
discharge. Therefore, it is not necessary to run down the
battery pack before placing it into the charger.
• Use the battery charge indicator lights to determine when to
charge your EcoSharp® iBAT40 lithium-ion battery pack.
• You can "top-o" your battery pack's charge before starting
a big job or after a long day of use.
Charging the Battery
1. Pull the push lock button on the battery to pull the battery
pack up and out of the equipment (Fig. 5).
2. Check that the mains voltage is the same as that marked
on the rating plate of the battery charger. Then, insert the
charger's plug into the electrical wall outlet. When you
plug in the charger, the top green light will illuminate and
stay green (Fig. 6).
3. Place the battery pack into the charger by sliding the
pack as shown to lock it into position. When you insert
the battery into the charger, the bottom red light will
illuminate to indicate that the battery is charging (Fig. 7).
4. When the bottom light turns green, the battery is fully
charged (Fig. 7).
NOTE: If the top light remains green while the bottom light
alternately ashes red and green, this indicates a temperature
abnormality (i.e. that the battery pack is either too hot or too
cold). If there is only a red blinking light, this indicates that
something is wrong with the battery. Contact Snow Joe® +
Sun Joe® customer service center at 1-866-SNOW-JOE
(1-866-766-9563) for assistance.
5. A fully discharged pack with an internal temperature in the
normal range will fully charge in 2.5 to 3 hours (between
32ºF/0ºC and 113ºF/45ºC). Heavily cycled battery packs
may take longer to charge completely.
6. If the charging light indicator alternately blinks red and
green or the light indicator does not come on at all, check
that the battery pack is fully seated into the bay. Remove
the pack and reinsert. If the problem persists, contact the
Snow Joe® + Sun Joe® customer service center at
1-866-SNOWJOE (1-866-766-9563) for assistance.
7. When charging is complete, remove the battery from the
charger by pulling the push lock button and sliding the
battery backward to unlock it from the charger (Fig. 8).
Fig. 5
Push lock
button
Fig. 6
green
Power on
Fig. 7
green
green
Fully charged
green
red
Charging
Green
Flashing red/green
Temperature abnormal
Flashing red only
Something is wrong
11
8. Timely recharging of the battery will help prolong the
battery's life. You must recharge the battery pack when
you notice a drop in the equipment's power.
IMPORTANT! Never allow the battery pack to become fully
discharged as this will cause irreversible damage to the battery.
Charging a Hot or Cold Battery Pack
A red and green ashing indicator light on the charger indicates
that the battery pack temperature is outside the charging
range. Once the pack is within the acceptable range, normal
charging will take place and the red light will be continuous.
Hot or cold battery packs may take longer to charge.
Operation
Intended Use
The iON12TL cordless tiller + cultivator is designed for small
gardens and ower beds, this cordless tiller + cultivator
eectively loosens and turns over new soil. It may also be
used to mix coarse soil with fertilizer, peat, and compost. This
product may not be used to till extremely dry or wet soil.
The use of this product in rain or wet conditions is prohibited.
For safety reasons, it is essential to read the entire instruction
manual before rst use and to observe all the instructions
contained within this manual.
This product is intended for private domestic use only. It is not
intended for any commercial trade use. It must not be used for
any purposes other than those described.
Wheel Adjustment
mWARNING! Always switch the product o and remove
the battery before making any adjustments.
The wheels can be adjusted to 3 dierent positions to control
the cultivating depth.
1. Pull the wheel and move it to the desired position; let go of
the wheel and make sure it locks into position (Fig. 9). Be
sure to set both wheels to the same height.
mWARNING! Always ensure the wheels are securely
locked. Do not attempt to use the product with the wheels in
unlocked positions.
Starting the Machine
mWARNING! Rotating blades may cause serious injury.
The blades will continue to turn for a few seconds after the
tool has been switched OFF. Do not touch the rotating blades.
Contact with hot components (i.e. motor housing, gear box,
etc.) on the machine may cause burns. Allow the machine to
cool before handling.
1. Open the battery compartment cover and slide the battery
down until it clicks to lock it into position, then close the
battery compartment cover (Fig. 10).
2. To turn the tool ON, press and hold the safety lock button
while pulling the ON/OFF trigger toward you. Once the tool
is running, release the safety lock button (Fig. 11).
Fig. 8
Push lock button
Battery Pack
Temperature
Lithium-Ion Charging Status
Too hot Flashing Not charging
Normal range Continuous Normal charging
Too cold Flashing Not charging
Red Charger
Indicator Light
Charging
Status
Fig. 9
Transport
position
Wheel
adjustment
Wheel
Work position
(low)
Work position
(high)
Fig. 10
Battery
compartment cover
12
3. To switch OFF, release the ON/OFF trigger (Fig. 11).
Operating Tips
• Before each use, check the product, the battery, and any
other accessories for damage. Do not use the product if it is
damaged or shows wear.
• Double check that the accessories and attachments are
properly tted.
• Always hold the product by its handles. Keep the handles
dry to ensure a secure grip.
• Ensure that the air vents are always unobstructed and clear.
Clean them if necessary with a soft brush. Blocked air vents
may lead to overheating and damage the product.
• Switch the product o immediately if you are disturbed
while working by other people entering the working area.
Always let the product come to a complete stop before
averting your attention.
• Do not overwork yourself. Take regular breaks to ensure you
can concentrate on the task at hand and have full control
over the product.
mWARNING! In some countries, regulations dene
restrictions for use of such products, including the times and
days when operation is permissible. Ask your community for
detailed information and observe these regulations in order
to preserve a peaceful neighbourhood and avoid committing
administrative oences.
Tilling
• Make sure that the work area is clear of stones, sticks, wire,
or other objects that could damage the product or its motor.
• Do not till very wet soil because wet soil tends to stick to
the working tool, preventing proper blade rotation; it could
also cause you to slip and fall.
• Always maintain a rm grip on the product. For better
guidance, apply light pressure to the handles.
mWARNING! Do not place hands, feet, or any other part
of the body or clothing near the rotating blades or any other
moving part. The blades begin to rotate forward once the
trigger switch is depressed. The blades continue to rotate until
the trigger switch is released. Failure to avoid contact with the
rotating blades could cause serious personal injury.
• Do not try to till too deeply or force the product into soil that
is extremely hard or resistant.
• Walk the product through the soil at a normal pace and in
as straight a line as possible.
• Till in slightly overlapping rows. To till most eectively,
follow the pattern indicated in Fig. 12. Start by moving the
tiller + cultivator up and down in vertical lines, then work
horizontally from left to right. This will keep the rows even
and ensure that all the ground is tilled without missing any
spots.
• Pay special attention when changing direction. Apply
light pressure to the handle in order to lift the blades and
facilitate the turn. Turn the product around using the wheels
as a guide. Gradually release pressure on the handle and
move the blades back to the ground.
mWARNING! Stop the motor if the product strikes a
foreign object. Switch the product o, remove the battery,
and let it cool completely. Inspect the product thoroughly for
damage and have any damage repaired before restarting.
Fig. 11
Safety lock
button
ON/OFF trigger
Fig. 12
13
Extensive vibration of the product during operation is an
indication of damage. Immediately stop the motor and
promptly inspect and repair the tool.
After Use
• Switch the product o, remove the battery, and let it cool
completely.
• Check, clean, and store the product as described below.
Care + Maintenance
The Golden Rules for Care
mWARNING! Always switch the product o, remove the
battery, and let the product cool completely before inspecting,
cleaning, or performing any other maintenance task.
• Keep the product clean. Remove any debris after each use
and before storage.
• Regular and proper cleaning will help ensure safe use and
prolong the life of the product.
• Inspect the product before each use for worn and damaged
parts. If you nd broken and/or worn parts, do not use the
tool.
mWARNING! Only perform the repairs and maintenance
work described in this manual. Any other work must be
performed by a qualied technician.
General Cleaning
• Clean the product with a dry cloth. Use a brush for areas
that are hard to reach.
• Be sure to clean the air vents after every use with a cloth
and brush.
• Remove stubborn dirt with high pressure air (max. 3 bar).
NOTE: Do not use chemical, alkaline, abrasive, or other
aggressive detergents or disinfectants to clean this product as
such substances might damage the tool's surfaces.
• Check for worn or damaged parts. Replace worn parts as
necessary or contact the Snow Joe® + Sun Joe® customer
service center at 1-866-SNOWJOE (1-866-766-9563) for
repair before using the product again.
Cleaning the Underbody + Working Tool
mWARNING! Wear safety gloves when working on or
near the working tool. Use appropriate tools (e.g a wooden
stick) when necessary; never use your bare hands!
• Keep the underbody and blades clean and free of debris.
Use a brush or another implement to remove soil from the
working tool.
• All nuts and bolts must be checked periodically for
tightness before operation. After prolonged use, especially
in sandy soil conditions, the working tool will become worn
and lose some of its original shape. Tilling eciency will be
reduced and the working tool should be replaced.
• Have worn or damaged working parts replaced with new
ones of the same type by a qualied technician.
• To prolong the life span of the working tool and the product,
lubricate the blades after each use.
mWARNING! Unexpected blade movement may cause
personal injury. Before servicing, repairing, or inspecting the
unit, turn the motor OFF and remove the battery. Wait for
the blades to completely stop rotating before conducting
inspection, cleaning, or maintenance.
Before and after each use, check the product and accessories
(or attachments) for wear and damage. When necessary, only
use identical replacement parts that are approved by the
manufacturer.
mWARNING! Contact with hot components (e.g. motor
housing, gear box, etc.) on the machine may cause burns.
Allow the machine to cool o before handling.
IMPORTANT!
• Wear protective gloves when cleaning or maintaining the
machine.
• Do not use cleaning uids or solvents or spray the
machine down with water (especially water under
pressure) when cleaning the machine.
NOTE: After each use, follow these steps to properly clean the
unit:
1. Remove soil, dirt, and foliage stuck in the blades, drive
shaft, tool surface, and vents with a brush or dry cloth.
2. Spray or rub biodegradable oil onto the blades.
3. Clean soiled grips with a damp cloth.
Always inspect the machine for damaged and worn parts after
each use. Check that safety features (i.e. labels, guards, etc.)
are in place. Check that nuts, bolts, and screws are tight.
Changing the Blades
NOTE: The machine is tted with four tilling blades that can
easily be changed in pairs. Both of the steel blade pairs can
be tted on the left or right, as required. Always change both
blade pairs at the same time to avoid imbalance and damage
to the machine.
To replace the blades, follow the steps below:
1. While standing on a at and stable surface, switch o the
unit and remove the battery.
2. Remove the 2 bolts and 2 nuts, then remove the steel
blades (Fig. 13).
14
3. Clean the drive shaft with biodegradable oil (Fig. 14).
4. Place the new blades onto the drive shaft so that the
holes on the axles line up with the holes on the drive shaft
(Fig. 14).
5. Insert the 2 bolts through the holes and secure them with
the 2 nuts (Fig. 14).
IMPORTANT: The blades must be set in the correct turning
direction. Note the way the old blades came o and replace
the new ones exactly the same way.
Repair
This product does not contain any parts that can be repaired
by the consumer. Contact an authorized Snow Joe® +
Sun Joe® dealer or call the Snow Joe® + Sun Joe® customer
service center at 1-866-SNOWJOE (1-866-766-9563) for
assistance.
Storage
• Examine the cordless tiller + cultivator thoroughly for worn,
loose, or damaged parts. Should you need to repair or
replace a part, contact an authorized Snow Joe® +
Sun Joe® dealer or call the Snow Joe® + Sun Joe® customer
service center at 1-866-SNOWJOE (1-866-766-9563) for
assistance.
• Remove the battery from the cordless tiller + cultivator
before storing.
• Clean the product as described above.
• Store the product and its accessories in a dark, dry,
frost-free, and well-ventilated place.
• Always store the product in a place that is inaccessible to
children.
• The ideal storage temperature is between 50ºF (10°C) and
86ºF (30°C).
• We recommend using the original package for storage or
covering the product with a suitable cloth or enclosure to
protect it against dust.
Battery+ChargerO-SeasonStorage
1. Do not expose your battery pack or charger to water,
rain or allow them to get wet. This could permanently
damage the charger and the battery pack. Do not use oil
or solvents to clean or lubricate your battery pack as the
plastic casing can become brittle and crack, causing a
serious risk of injury.
2. Store the battery pack and charger at room temperature
away from moisture. Do not store in damp locations where
corrosion of terminals may occur. As with other battery
pack types, permanent capacity loss can result if the pack
is stored for long periods of time at high temperatures
(over 120ºF/49ºC).
3. EcoSharp® iBAT40 lithium-ion battery packs maintain
their charge during storage longer than other battery
pack types. As a general practice, it is best to unplug the
battery charger and remove the battery pack when they
are not in use. Recharge the battery pack every 6 months
to 50% capacity (2 lights on) during o-season storage to
maintain optimal battery performance.
Transportation
• Switch the product o. Ensure that the wheels are set to the
transport position (see Fig. 9, pg. 11).
• Always carry the product by its transport handle.
• If you are transporting the tiller + cultivator in a vehicle,
brace it properly to protect it from heavy impact or strong
vibrations.
• Secure the product to prevent it from falling over or
slipping.
Recycling + Disposal
The product comes in a package that protects it against
damage during shipping. Keep the package until you are
sure that all parts have been delivered and the product is
functioning properly. Recycle the package afterwards or keep
it for long-term storage.
WEEE symbol. Waste electrical products should not
be disposed of with household waste. Please recycle
where facilities exist. Check with your local authority
or local store for recycling regulations.
Fig. 13
2 bolts + 2 nuts
Steel
blades
Drive shaft
Fig. 14
2 bolts + 2 nuts
15
Battery Caution + Disposal
Always dispose of your battery pack according to federal,
state, and local regulations. Contact a recycling agency in your
area for recycling locations.
mCAUTION! Even discharged battery packs contain
some energy. Before disposing, use electrical tape to cover
the terminals to prevent the battery pack from shorting, which
could cause a re or explosion.
mWARNING! To reduce the risk of injury or explosion,
never burn or incinerate a battery pack even if it is damaged,
dead or completely discharged. When burned, toxic fumes and
materials are emitted into the surrounding atmosphere.
1. Batteries vary according to device. Consult your manual
for specic information.
2. Install only new batteries of the same type in your product
(where applicable).
3. Failure to insert batteries in the correct polarity, as
indicated in the battery compartment or manual, may
shorten the life of the batteries or cause batteries to leak.
4. Do not mix old and new batteries.
5. Do not mix Alkaline, Standard (Carbon-Zinc) or
Rechargeable (Nickel Cadmium, Nickel Metal Hydride, or
Lithium-Ion) batteries.
6. Do not dispose of batteries in re.
7. Batteries should be recycled or disposed of as per state
and local guidelines.
Service + Support
If your Sun Joe® iON12TL cordless tiller + cultivator requires
service or maintenance, please call the Snow Joe® +
Sun Joe® customer service center at 1-866-SNOWJOE
(1-866-766-9563).
Model + Serial Numbers
When contacting the company, reordering parts, or arranging
service from an authorized dealer, you will need to provide the
model and serial numbers, which can be found on the decal
located on the housing of the unit. Copy these numbers into
the space provided below.
iCHRG40
Federal Communications Commission
(FCC)
mWARNING! Any changes or modications to this
unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the
equipment.
Class B device:
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur
in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
Record the following numbers from the housing or handle of your
new product:
Model #:
Serial #:
i O N 1 2 T L
Optional Accessories
mWARNING! ALWAYS use only authorized Snow Joe
®
+ Sun Joe® replacement parts and accessories. NEVER use
replacement parts or accessories that are not intended for use with this cordless tiller + cultivator. Contact Snow Joe® + Sun Joe®
if you are unsure whether it is safe to use a particular replacement part or accessory with your cordless tiller + cultivator. The use
of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.
EcoSharp® 40 V 4.0 Ah Lithium-Ion Battery
Charging Time: 2.5 – 3 hours (for full charge)
Battery Run Time (Max): 40 min
EcoSharp
®
PRO 40 V 5.0 Ah
Lithium-Ion Battery Charging Time: 3 – 3.5
hours (for full charge)
Battery Run Time (Max): 50 min
EcoSharp
®
40 V Lithium-Ion Battery Charger
iBAT40
iBAT40XR
iCHRG40
ModelAccessoires Item
1
2
3
EcoSharp® PRO 40 V 5.0 Ah
Lithium-Ion Battery
Charging Time: 4 – 5 hours (for full charge)
Battery Run Time (Max): 60 min
iBAT40XRP
4
5
EcoSharp® 40 V Lithium-Ion
Dual Port Battery Charger
iCHRG40-DPC
NOTE: Accessories are subject to change without any obligation on the part of Snow Joe® + Sun Joe®. Accessories can
be ordered online at snowjoe.com or via phone by contacting the Snow Joe® + Sun Joe® customer service center at
1-866-SNOWJOE (1-866-766-9563).
16
NOTES
17
NOTES
18
19
SNOW JOE® + SUN JOE® CUSTOMER PROMISE
PRODUCT REGISTRATION:
Snow Joe®, LLC (“Snow Joe® + Sun Joe®”) strongly encourages
you to register your purchase. You can register online at
snowjoe.com/ProductRegistration, by calling our Customer
Service Department at 1-866-SNOWJOE (1-866-766-9563), by
e-mailing us at help@snowjoe.com or by mailing in your yellow
registration card. Failure to register your product purchase will not
diminish your warranty rights. However, registering your purchase
will allow Snow Joe® + Sun Joe® to better serve you with any of
your customer service needs
WHO CAN SEEK WARRANTY COVERAGE?
This Warranty is extended by Snow Joe® + Sun Joe® to the owner
of this Machine (a “Machine” consists of a product powered by
a motor) for residential and personal household use only. This
Warranty does not apply to products used for commercial, rental
or re-sale purposes. Should ownership of this machine change
during the 2-year period, please update the Machine’s owner
information at snowjoe.com/ProductRegistration.
WHAT IS COVERED?
Snow Joe® + Sun Joe® warrants to the owner that if this Machine
fails within 2 years from the date of purchase due to a defect in
material or workmanship or as a result of normal wear and tear
from ordinary household use, Snow Joe® + Sun Joe® will send a
replacement part or product, as needed, free of charge and with
free shipping to the original purchaser.
If, in Snow Joe® + Sun Joe®’s sole discretion, the failed Machine
cannot be repaired with a part, Snow Joe® + Sun Joe® will elect to
either (A) send a new Machine at no charge and with free shipping
or (B) refund the full purchase price to the owner.
WHAT IS NOT COVERED?
This Warranty does not apply to the Machines that have been used
commercially or in non-household applications. This Warranty
does not cover cosmetic changes that do not aect performance.
This Warranty is only valid if the Machine is used and maintained
in accordance with the instructions, warnings and safeguards
contained in the owner’s manual. Snow Joe® + Sun Joe® will not
be responsible for the cost of any unauthorized warranty repairs.
This warranty does not cover any cost or expense incurred by
the purchaser in providing substitute equipment or service during
reasonable periods of malfunction or non-use of this product
while waiting for a replacement part or unit under this warranty.
Wearing parts like belts, augers, chains and tines are not covered
under this warranty, and can be purchased at snowjoe.com or
by calling 1-866-SNOWJOE (1-866-766-9563). Batteries are
covered in full for 90-days from the date of purchase.
Repair, replacement or refund of the purchase price are the
exclusive remedies of purchaser and the sole liability of Snow Joe®
+ Sun Joe® under this warranty. No employee or representative
of Snow Joe® + Sun Joe® is authorized to make any additional
warranty or any modication to this warranty which may be
binding upon Snow Joe® + Sun Joe®. Accordingly, purchaser
should not rely upon any additional statements made by any
employee or representative of Snow Joe® + Sun Joe®. In no event,
whether based on contract, indemnity, warranty, tort (including
negligence), strict liability or otherwise, shall Snow Joe® +
Sun Joe® be liable for any special, indirect, incidental, or
consequential damages, including, without limitation, loss of
prot or revenue.
Some states do not allow limits on warranties. In such states, the
above limitations may not apply to you.
Outside the USA, other warranties may apply.
ABOVE ALL ELSE, Snow Joe® + Sun Joe® are dedicated to you, our customer. We strive to make your experience as pleasant
as possible. Unfortunately, there are times when a product does not work or breaks under normal operating conditions. We
think it’s important that you know what you can expect from us. That’s why we created the Snow Joe® + Sun Joe® promise.
OUR PROMISE: Snow Joe® + Sun Joe® warrant new products for two years from the date of purchase. If your product does
not work, or there’s an issue with a specic part, we will x this by either sending you a free replacement part or by sending
you a new or comparable product at no charge. How cool is that! Before you know it, you’ll be back in action cutting,
sawing, mowing, washing and…?
snowjoe.com
mWARNING! This product or its power cord contains chemicals, including lead, known to the
State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.
mWARNING! Some dust created by power sanding, sawing, grinding, drilling, and other construction
activities contains chemicals known [to the State of California] to cause cancer, birth defects, or other
reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your
exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment,
such as those dust masks that are specically designed to lter out microscopic particles.
Loading...
