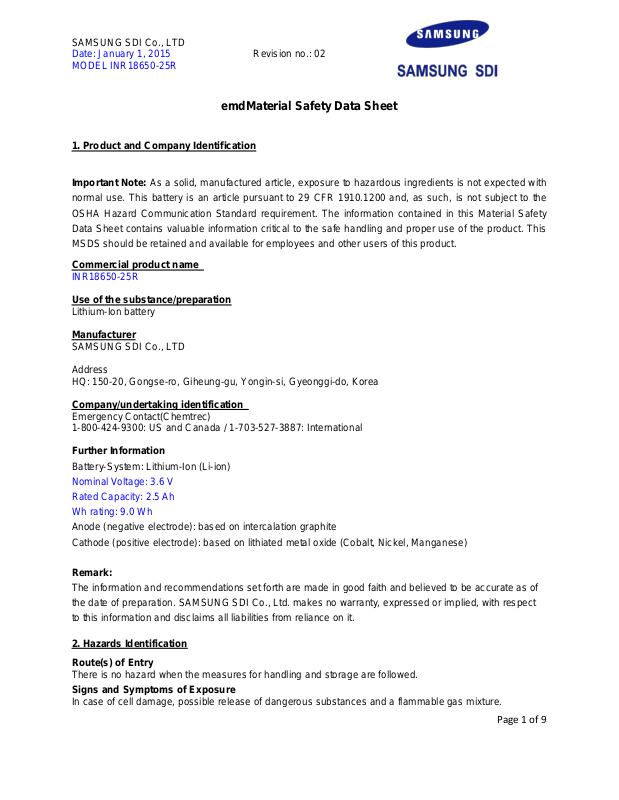

SAMSUNG SDI Co., LTD
Date: January 1, 2015 Revision no.: 02
MODEL INR18650-25R
emdMaterial Safety Data Sheet
1. Product and Company Identification
Important Note: As a solid, manufactured article, exposure to hazardous ingredients is not expected with
normal use. This battery is an article pursuant to 29 CFR 1910.1200 and, as such, is not subject to the
OSHA Hazard Communication Standard requirement. The information contained in this Material Safety
Data Sheet contains valuable information critical to the safe handling and proper use of the product. This
MSDS should be retained and available for employees and other users of this product.
Commercial product name
INR18650-25R
Use of the substance/preparation
Lithium-Ion battery
Manufacturer
SAMSUNG SDI Co., LTD
Address
HQ: 150-20, Gongse-ro, Giheung-gu, Yongin-si, Gyeonggi-do, Korea
Company/undertaking identification
Emergency Contact(Chemtrec)
1-800-424-9300: US and Canada / 1-703-527-3887: International
Further Information
Battery-System: Lithium-Ion (Li-ion)
Nominal Voltage: 3.6 V
Rated Capacity: 2.5 Ah
Wh rating: 9.0 Wh
Anode (negative electrode): based on intercalation graphite
Cathode (positive electrode): based on lithiated metal oxide (Cobalt, Nickel, Manganese)
Remark:
The information and recommendations set forth are made in good faith and believed to be accurate as of
the date of preparation. SAMSUNG SDI Co., Ltd. makes no warranty, expressed or implied, with respect
to this information and disclaims all liabilities from reliance on it.
2. Hazards Identification
Route(s) of Entry
There is no hazard when the measures for handling and storage are followed.
Signs and Symptoms of Exposure
In case of cell damage, possible release of dangerous substances and a flammable gas mixture.
Page 1 of 9
SAMSUNG SDI Co., LTD
Carcinogenicity (NTP):
Not listed
Carcinogenicity (IARC):
Not listed
Carcinogenicity (OSHA):
Not listed
CAS-No.
Chemical name
Quantity
24937-79-9
1,1-Difluoroethene homopolymer
< 1%
96-49-1
1,3-Dioxolan-2-one
< 2%
25640-14-6
1,4-Benzenedicarboxylic acid dimethyl ester polymer
with 1,4-cyclohexanedimethanol and 1,2-ethanediol
< 1%
36619-23-5
1,4-Benzenedicarboxylic acid, dimethyl ester, polymer
with 1,3-propanediol
< 1%
25038-81-7
1H,3H-Benzo[1,2-c:4,5-c']difuran-1,3,5,7-tetrone
polymer with 4,4'-oxybis[benzenamine]
< 1%
872-50-4
1-Methyl-2-pyrrolidinone
< 1%
9003-07-0
1-Propene homopolymer
< 1%
9010-94-0
2-Methyl-2-propenoic acid methyl ester polymer with
1,3-butadiene, ethenylbenzene and 2-propenenitrile
< 1%
9010-93-9
2-Methyl-2-propenoic acid polymer with 1,3-butadiene
and ethenylbenzene
< 1%
88254-10-8
2-Propenenitrile polymer with 1,3-butadiene,
hydrogenated
< 1%
35239-19-1
2-Propenoic acid polymer with butyl 2-propenoate,
ethenyl acetate and 2-ethylhexyl 2-propenoate
< 1%
114435-02-8
4-Fluoro-1,3-dioxolan-2-one
< 1%
26337-35-9
Acetic acid ethenyl ester polymer with carbon monoxide
and ethene
< 1%
24937-78-8
Acetic acid ethenyl ester polymer with ethene
< 1%
7429-90-5
Aluminium
< 7%
11089-89-7
Aluminum lithium oxide (LiAlO)
< 1%
110-61-2
Butanedinitrile
< 1%
7440-44-0
Carbon
< 17%
1333-86-4
Carbon black
< 1%
9004-32-4
Cellulose, carboxymethyl ether, sodium salt
< 1%
12190-79-3
cobalt lithium dioxide
< 5%
7440-50-8
Copper
< 14%
Date: January 1, 2015 Revision no.: 02
MODEL INR18650-25R
OSHA Hazard Communication: This material is not considered hazardous by the OSHA Hazard
Communication Standard 29CFR 1910.1200.
Special hazards for human health and environment
There is no hazard when the measures for handling and storage are followed.
In case of cell damage, possible release of dangerous substances and a flammable gas mixture.
3. Composition/information on ingredients
Hazardous components
Page 2 of 9
SAMSUNG SDI Co., LTD
616-38-6
dimethyl carbonate
< 5%
623-53-0
Ethyl methyl carbonate
< 2%
7782-42-5
Graphite
< 2%
26023-21-2
imide resin
< 1%
7439-89-6
Iron
< 15%
554-13-2
lithium carbonate
< 1%
21324-40-3
lithium hexafluorophosphate(1-)
< 2%
12057-17-9
Lithium manganese oxide
< 4%
12325-84-7
Lithium Nickel Oxide
< 17%
12031-65-1
Lithium nickelate
< 7%
14283-07-9
lithium tetrafluoroborate, anhydrous
< 1%
244761-29-3
Lithium-bis-oxaiatoborate
< 1%
7439-95-4
Magnesium
< 1%
7439-96-5
Manganese
< 1%
7440-02-0
Nickel
< 1%
16812-54-7
Nickel monosulfide
< 1%
7786-81-4
Nickel sulfate
< 1%
7791-20-0
nickel(ii) chloride hexahydrate
< 1%
24968-12-5
poly(1,4-butylene terephthalate)
< 1%
9002-88-4
Polyethylene
< 3%
7440-21-3
Silicon
< 1%
9003-55-8
Styrene, butadiene copolymer
< 1%
14807-96-6
Talc (Mg3H2(SiO3)4)
< 1%
13463-67-7
titanium dioxide
< 1%
4325-85-3
Tris(trimethylsilyl)borate
< 1%
Date: January 1, 2015 Revision no.: 02
MODEL INR18650-25R
Full text of each relevant R phrase can be found in heading 16.
Further Information
For information purposes:
(*) Main ingredients: Lithium hexafluorophosphate, organic carbonates
Because of the cell structure the dangerous ingredients will not be available if used properly.
During charge process a lithium graphite intercalation phase is formed.
4. First Aid Measures
General information
The following first aid measures are required only in case of exposure to interior battery components after
damage of the external battery casing.
Undamaged, closed cells do not represent a danger to the health.
After inhalation
Ensure of fresh air. Consult a physician.
Page 3 of 9
SAMSUNG SDI Co., LTD
Date: January 1, 2015 Revision no.: 02
MODEL INR18650-25R
After contact with skin
In case of contact with skin wash off immediately with plenty of
water. Consult a physician.
After contact with eyes
Rinse immediately with plenty of water, also under the eyelids, for at least 15
minutes. Seek medical treatment by eye specialist.
After ingestion
Drink plenty of water.
Call a physician immediately.
5. Fire Fighting Measures
Suitable extinguishing media
Cold water and dry powder in large amount are applicable.
Use metal fire extinction powder or dry sand if only few cells are involved.
Special hazards arising from the chemical
May form hydrofluoric acid if electrolyte comes into contact with water.
In case of fire, the formation of the following flue gases cannot be excluded:
Hydrogen fluoride (HF), Carbon monoxide and carbon dioxide.
Protective equipment and precautions for firefighters
Wear self-contained breathing apparatus and protective suit.
Additional information
If possible, remove cell(s) from fire fighting area. If heated above 125°C, cell(s) can explode/vent. Cell is
not flammable but internal organic material will burn if the cell is incinerated.
6. Accidental Release Measures
Personal precautions
Use personal protective clothing.
Avoid contact with skin, eyes and clothing.
Avoid breathing fume and gas.
Environmental precautions
Do not discharge into the drains/surface waters/groundwater.
Methods for cleaning up/taking up
Take up mechanically and send for disposal.
7. Handling and Storage
Handling
Advice on safe handling
Avoid short circuiting the cell. Avoid mechanical damage of the cell. Do not open or disassemble.
Advice on protection against fire and explosion
Keep away from open flames, hot surfaces and sources of ignition.
Storage
Page 4 of 9
SAMSUNG SDI Co., LTD
Ingredient
Risk
Codes
Safety
Description
Hazard
Exposure Controls/Personal Protection
Cobalt oxide
R22;R43;
R50/53
S24;S37;S60;S61
Xn(Harmful)
N
(Dangerous for
the environment)
0.1 mg/m3 (TWA)
Manganese
(VI) oxide
R20/22
S25
Xn(Harmful)
Airborne Exposure Limits:
- OSHA Permissible Exposure Limit (PEL):
5 mg/m3 Ceiling for manganese compounds
as Mn
- ACGIH Threshold Limit Value (TLV):
0.2 mg/m3 (TWA) for manganese, elemental
and inorganic compounds as Mn
Nickel oxide
R43,R49,
R53
S45,S53,S61
T(Toxic)
Airborne Exposure Limits:
For Nickel, Metal and Insoluble Compounds,
as Ni:
- OSHA Permissible Exposure Limits (PEL) -
1 mg/m3 (TWA).
For Nickel, Elemental / Metal:
- ACGIH Threshold Limit Value (TLV) -
1.5 mg/m3 (TWA), A5 - Not suspected as a
human carcinogen.
For Nickel, Insoluble Compounds, as Ni:
- ACGIH Threshold Limit Value (TLV) -
0.2 mg/m3 (TWA), A1 - Confirmed human
carcinogen
Carbon
R36/37/3
8,
R36/37
R20, R10
S22;S24/25
F(Highly Flammable)
Xn(Harmful)
Xi(Irritant)
Airborne Exposure Limits:
- OSHA Permissible Exposure Limits (PELs):
activated carbon (graphite, synthetic):
Total particulate = 15 mg/m3
Aluminium
foil
R17,R15,
R36/38,
R10,R67,
R65,R62,
R51/53,
R48/20,
R38,R11,
S7/8,S43,S26,S62
,S61, S36/37,
S33,S29,S16,S9
F(Highly Flammable)
Xn(Harmful)
Xi(Irritant)
Airborne Exposure Limits:
-OSHA Permissible Exposure Limit (PEL):
15 mg/m3 (TWA) total dust and 5 mg/m3
(TWA)
repairable fraction for Aluminum metal as Al
-ACGIH Threshold Limit Value (TLV):
10 mg/m3 (TWA) Aluminum metal dusts
Date: January 1, 2015 Revision no.: 02
MODEL INR18650-25R
Requirements for storage rooms and vessels
Storage at room temperature (approx. 20°C) at approx. 20~60% of the nominal capacity
(OCV approx. 3.6 - 3.9 V/cell).
Keep in closed original container.
8. Exposure controls/personal protection Exposure limit values Exposure limits
Page 5 of 9
SAMSUNG SDI Co., LTD
Copper foil
R11 R36
R37 R38
S5,S26,S16,S61,
S36/37
F(Highly Flammable)
N(Dangerous for
the environment)
Xn(Harmful)
Xi(Irritant)
Copper Dust and Mists, as Cu:
- OSHA Permissible Exposure Limit (PEL) 1 mg/m3 (TWA)
- ACGIH Threshold Limit Value (TLV) 1 mg/m3 (TWA)
Copper Fume:
- OSHA Permissible Exposure Limit (PEL) -
0.1 mg/m3 (TWA)
- ACGIH Threshold Limit Value (TLV) -
0.2 mg/m3 (TWA)
Polyvinylide
ne fluoride
(PVdF)
S22;S24/25
Date: January 1, 2015 Revision no.: 02
MODEL INR18650-25R
Additional advice on limit values
During normal charging and discharging there is no release of product.
Occupational exposure controls
No specific precautions necessary.
Protective and hygiene measures
When using do not eat, drink or smoke. Wash hands before breaks and
after work.
Respiratory protection
No specific precautions necessary.
Hand protection
No specific precautions necessary.
Eye protection
No specific precautions necessary.
Skin protection
No specific precautions necessary.
9. Physical and Chemical Properties
Appearance
Form: Solid
Color: Various
Odor: Odourless
Important health, safety and environmental information
Test method
pHValue: n.a.
Flash point: n.a
Lower explosion limits: n.a.
Vapour pressure: n.a.
Density: n.a.
Page 6 of 9
SAMSUNG SDI Co., LTD
14. Transport Information
Date: January 1, 2015 Revision no.: 02
MODEL INR18650-25R
Water solubility: Insoluble
Ignition temperature: n.a.
10. Stability and Reactivity USA, EU
Stability
Stable
Conditions to avoid
Keep away from open flames, hot surfaces and sources of ignition. Do not
puncture, crush or incinerate.
Materials to avoid
No materials to be especially mentioned.
Hazardous decomposition products
In case of open cells, there is the possibility of hydrofluoric acid and carbon monoxide release.
Possibility of Hazardous Reactions
Will not occur
Additional information
No decomposition if stored and applied as directed.
11. Toxicological Information
Empirical data on effects on humans
If appropriately handled and if in accordance with the general hygienic rules, no damages to health have
become known.
12. Ecological Information
Further information
Ecological injuries are not known or expected under normal use. Do not flush into surface water or
sanitary sewer system.
13. Disposal Considerations
Advice on disposal
For recycling consult manufacturer.
Contaminated packaging
Disposal in accordance with local regulations.
With regard to transport, the following regulations are cited and considered:
- The International Civil Aviation Organization (ICAO) Technical Instructions, Packing Instruction
965, Section ⅠB or Ⅱ (2015-2016 Edition),
Page 7 of 9
SAMSUNG SDI Co., LTD
Manual of Test and Criteria (38.3 Lithium battery)
Test Results
Remark
No
Test item
T1
Altitude Simulation
Pass
T2
Thermal Test
Pass
T3
Vibration
Pass
T4
Shock
Pass
T5
External Short Circuit
Pass
T6
Impact/Crush
Pass
T7
Overcharge
Pass
For pack and
single cell
battery only
T8
Forced Discharge
Pass
Date: January 1, 2015 Revision no.: 02
MODEL INR18650-25R
- The International Air Transport Association (IATA) Dangerous Goods Regulations, Packing
Instruction 965, Section ⅠB or Ⅱ (56th Edition, 2015)
- The International Maritime Dangerous Goods (IMDG) Code (2014 Edition),
[Special provision 188, 230]
- US Hazardous Materials Regulations 49 CFR(Code of Federal Regulations)
Sections 173.185 Lithium batteries and cells,
- The UN Recommendations on the Transport of Dangerous Goods, Manual of Tests and Criteria
38.3 Lithium batteries, Revision 3, Amendment 1 or any subsequent revision and amendment
applicable at the date of the type (latest version is Revision 5, Amendment 2)
- UN No. 3480
If those lithium-ion batteries are packed with or contained in an equipment, then it is the responsibility of
the shipper to ensure that the consignment are packed in compliance to the latest edition of the IATA
Dangerous Goods Regulations section Ⅱ of either Packing Instruction 966 or 967 in order for that
consignment to be declared as NOT RESTRICTED (non-hazardous/non-Dangerous). If those lithium-ion
batteries are packed with or contained in an equipment, UN No. is UN3481
Our products are properly classified, described, packaged, marked, and labeled, and are in proper
condition for transportation according to all the applicable international and national governmental
regulations, not limited to the above mentioned. We further certify that the enclosed products have been
tested and fulfilled the requirements and conditions in accordance with UN Recommendations (T1 – T8)
on the Transport of Dangerous Goods Model Regulations and the Manual of Testes and Criteria.
Test results of the UN Recommendation on the Transport of Dangerous Goods
15. Regulatory Information
U.S. Regulations
National Inventory TSCA
All of the components are listed on the TSCA inventory.
SARA
To the best of our knowledge this product contains no toxic chemicals subject to the supplier notification
requirements of Section 313 of the Superfund Amendments and Reauthorization Act (SARA/EPCRA) and
the requirements of 40 CFR Part 372.
Regulatory information EU
Labeling
Page 8 of 9
SAMSUNG SDI Co., LTD
As an article the product does not need to be labeled in accordance with EC directives or respective national laws.
EU regulatory information
1999/13/EC (VOC):
0 %
Date: January 1, 2015 Revision no.: 02
MODEL INR18650-25R
Hazardous components which must be listed on the label
16. Other Information
Hazardous Materials Information Label (HMIS)
Health: 0
Flammability: 0
Physical Hazard: 0
NFPA Hazard Ratings
Health: 0
Flammability: 0
Reactivity: 0
Unique Hazard:
Full text of R-phrases referred to under sections 2 and 3
R10 Flammable.
R20/22 Harmful by inhalation and if swallowed.
R22 Harmful if swallowed.
R34 Causes burns.
R40 Limited evidence of a carcinogenic effect.
R43 May cause sensitization by skin contact.
R48/23 Toxic: danger of serious damage to health by prolonged exposure through inhalation.
R49 May cause cancer by inhalation.
R50 Very toxic to aquatic organisms.
R53 May cause long-term adverse effects in the aquatic environment.
Further Information
Data of sections 4 to 8, as well as 10 to 12, do not necessarily refer to the use and the regular handling of
the product (in this sense consult package leaflet and expert information), but to release of major amounts
in case of accidents and irregularities. The information describes exclusively the safety requirements for
the product
(s) and is based on the present level of our knowledge. This data does not constitute a guarantee for the
characteristics of the product(s) as defined by the legal warranty regulations. "(n.a. = not applicable; n.d. =
not determined)"
The data for the hazardous ingredients were taken respectively from the last version of the
sub-contractor’s safety data sheet.
Page 9 of 9
Loading...
