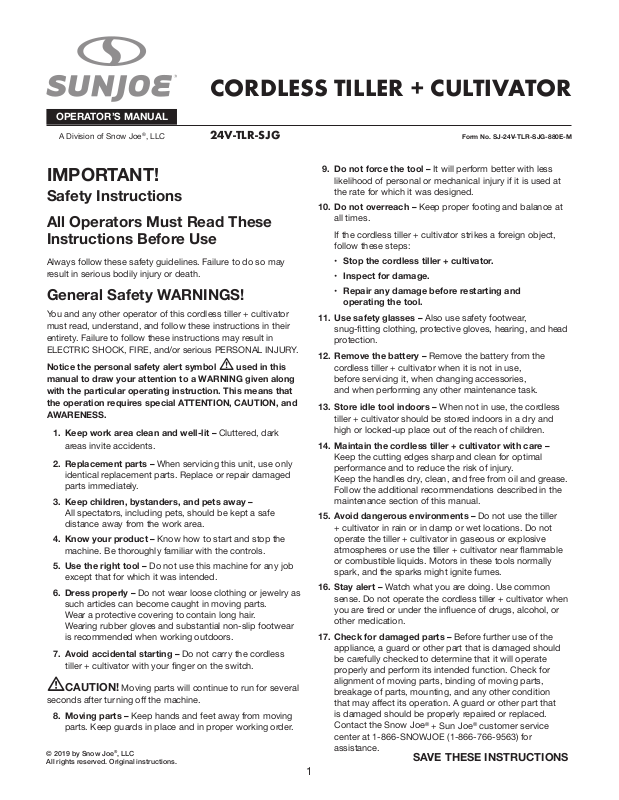

CORDLESS TILLER + CULTIVATOR
OPERATOR’S MANUAL
A Division of Snow Joe®, LLC 24V-TLR-SJG Form No. SJ-24V-TLR-SJG-880E-M
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Always follow these safety guidelines. Failure to do so may
result in serious bodily injury or death.
General Safety WARNINGS!
You and any other operator of this cordless tiller + cultivator
must read, understand, and follow these instructions in their
entirety. Failure to follow these instructions may result in
ELECTRIC SHOCK, FIRE, and/or serious PERSONAL INJURY.
Notice the personal safety alert symbol
manual to draw your attention to a WARNING given along
with the particular operating instruction. This means that
the operation requires special ATTENTION, CAUTION, and
AWARENESS.
1. Keep work area clean and well-lit – Cluttered, dark
areas invite accidents.
2. Replacement parts – When servicing this unit, use only
identical replacement parts. Replace or repair damaged
parts immediately.
3. Keep children, bystanders, and pets away –
All spectators, including pets, should be kept a safe
distance away from the work area.
4. Know your product – Know how to start and stop the
machine. Be thoroughly familiar with the controls.
5. Use the right tool – Do not use this machine for any job
except that for which it was intended.
6. Dress properly – Do not wear loose clothing or jewelry as
such articles can become caught in moving parts.
Wear a protective covering to contain long hair.
Wearing rubber gloves and substantial non-slip footwear
is recommended when working outdoors.
7. Avoid accidental starting – Do not carry the cordless
tiller + cultivator with your nger on the switch.
m used in this
mCAUTION! Moving parts will continue to run for several
seconds after turning o the machine.
8. Moving parts – Keep hands and feet away from moving
parts. Keep guards in place and in proper working order.
© 2019 by Snow Joe®, LLC
All rights reserved. Original instructions.
9. Do not force the tool – It will perform better with less
likelihood of personal or mechanical injury if it is used at
the rate for which it was designed.
10. Do not overreach – Keep proper footing and balance at
all times.
If the cordless tiller + cultivator strikes a foreign object,
follow these steps:
• Stop the cordless tiller + cultivator.
• Inspect for damage.
• Repair any damage before restarting and
operating the tool.
11. Use safety glasses – Also use safety footwear,
snug-tting clothing, protective gloves, hearing, and head
protection.
12. Remove the battery – Remove the battery from the
cordless tiller + cultivator when it is not in use,
before servicing it, when changing accessories,
and when performing any other maintenance task.
13. Store idle tool indoors – When not in use, the cordless
tiller + cultivator should be stored indoors in a dry and
high or locked-up place out of the reach of children.
14. Maintain the cordless tiller + cultivator with care –
Keep the cutting edges sharp and clean for optimal
performance and to reduce the risk of injury.
Keep the handles dry, clean, and free from oil and grease.
Follow the additional recommendations described in the
maintenance section of this manual.
15. Avoid dangerous environments – Do not use the tiller
+ cultivator in rain or in damp or wet locations. Do not
operate the tiller + cultivator in gaseous or explosive
atmospheres or use the tiller + cultivator near ammable
or combustible liquids. Motors in these tools normally
spark, and the sparks might ignite fumes.
16. Stay alert – Watch what you are doing. Use common
sense. Do not operate the cordless tiller + cultivator when
you are tired or under the inuence of drugs, alcohol, or
other medication.
17. Check for damaged parts – Before further use of the
appliance, a guard or other part that is damaged should
be carefully checked to determine that it will operate
properly and perform its intended function. Check for
alignment of moving parts, binding of moving parts,
breakage of parts, mounting, and any other condition
that may aect its operation. A guard or other part that
is damaged should be properly repaired or replaced.
Contact the Snow Joe
center at 1-866-SNOWJOE (1-866-766-9563) for
assistance.
®
+ Sun Joe® customer service
SAVE THESE INSTRUCTIONS
1
Training
• Read, understand, and follow all instructions on the
cordless tiller + cultivator and in the manual before
operating this unit. Thoroughly familiarize yourself with the
controls and the proper use of the equipment. Know how to
stop the unit and disengage the controls quickly.
• Children should never be allowed access to the equipment.
Adults should never operate the equipment without carefully
reading and understanding these instructions.
• Keep the area of operation clear of all persons,
particularly children or pets.
• Exercise caution to avoid slipping or falling.
• Always plan your cultivating path to avoid discharge of
material toward people, pets, and property (e.g. windows,
cars, etc.). Thrown objects can cause serious personal
injury and property damage. Do not allow anyone in front of
a running machine.
• Keep people, pets, and property at least 25 feet from the
cordless tiller + cultivator while it is in operation.
Stop the cordless tiller + cultivator if people or pets enter
the discharge area.
• Always observe the surface conditions in order to avoid
slipping, falling, and unexpected objects.
Preparation
• Always inspect the area where the tiller + cultivator is to
be used. Remove all objects (i.e. stones, sticks, wires, and
other foreign materials) that could be thrown by the blades
or cause the operator to trip.
• Thrown objects can cause serious injury to the eyes and
exposed body. Always wear safety glasses or eye shields
during operation and while making an adjustment or repair.
• Always operate the cordless tiller + cultivator wearing
adequate garments. Do not wear jewelry or other loose
clothing, which could become entangled in moving parts.
Wear non-slip footwear to ensure proper footing.
• Observe any noise-prevention regulations and laws.
• Inspect the cordless tiller + cultivator for worn, missing,
or damaged parts and safety labels. See maintenance
section for detailed instructions.
Operation
• Do not operate the machine while under the inuence of
alcohol or drugs.
• Keep all safety devices in place and in proper working order.
Do not operate with missing or damaged components.
• Ensure the controls (start/stop) function properly before
cultivating.
• Hold onto the cordless tiller + cultivator with both hands
during operation. Ensure the grips are dry.
• Contact with rotating parts can amputate hands and feet.
Keep hands and feet away from all rotating parts.
• Only operate the cordless tiller + cultivator when there is
good visibility or light and dry conditions. Always watch
your footing and keep a rm hold on the grips.
Walk; don't run!
• Do not operate the cordless tiller + cultivator on slippery
surfaces. Check your footing during use.
• Exercise caution when changing direction and operating the
tool on slopes. Always keep feet and legs a safe distance
away from the machine. Look for hidden obstacles or
hazards.
• Do not overload machine capacity by attempting to
cultivate too deeply. It will cause excessive resistance.
• Stop the cordless tiller + cultivator and remove the battery
before leaving the operating position (behind the handles)
to adjust or inspect the unit. Wait until the blades have
come to a complete stop.
• If the cordless tiller + cultivator should start to vibrate
abnormally, stop the machine and inspect thoroughly for
damage.
• Turn the machine OFF when moving to a new work area.
Allow the blades to completely stop rotating before
transporting the unit.
• Always use proper care and good judgment when you
are confronted with a situation that is not covered in
this manual. If you are unsure of what to do, contact
your authorized Snow Joe
the Snow Joe
1-866-SNOWJOE (1-866-766-9563).
• Do not use in rain or wet conditions.
• Do not grasp the exposed cutting blades or cutting edges
when picking up or holding the appliance.
®
+ Sun Joe® customer service center at
®
+ Sun Joe® dealer or call
Stopping Work
• Always turn the cordless tiller + cultivator OFF and remove
the battery when stopping work or when changing work
areas. Never leave the machine running when unattended.
• The blades will continue to rotate for a short period after
turning OFF the cordless tiller + cultivator. Wait until the
blades have completely stopped before lifting the machine
or conducting inspection and maintenance.
• The motor housing remains hot for a short period after the
machine is turned OFF. Allow the motor housing to cool
completely before touching or storing near combustible
material.
Maintenance + Storage
• Maintain or replace safety and instruction labels.
• Disengage all controls, stop the engine, and wait until the
blades come to a complete stop before cleaning, repairing,
or inspecting the tiller + cultivator.
2
• Regularly check the following:
i) Blades are clear and can rotate freely –
Accumulation of debris around the blades could impair
performance or damage the motor. Inspect and clean
the area around the blades before every use.
ii) Safety devices are operating properly –
Do not tamper with or adjust safety devices.
iii) Bolts and screws are properly tightened –
Visually inspect the machine for any damage and ensure
that the cordless tiller + cultivator is in safe working
condition.
iv) Use only identical replacement parts –
Always replace damaged parts with original equipment
manufacturer’s (OEM) parts only. Replacement parts
that do not meet the original equipment specications
may lead to improper performance and compromise
safety.
Battery & Charger
Safety Instructions
We pay a great deal of attention to the design of every battery
pack to ensure that we supply you with batteries that are safe,
durable and have a high energy density. The battery cells have
a wide range of safety devices. Each individual cell is initially
formatted and its electrical characteristic curves are recorded.
This data is then used exclusively to be able to assemble the
best possible battery packs.
Despite all the safety precautions, caution must always be
exercised when handling batteries. The following points must
be obeyed at all times to ensure safe use. Safe use can only
be guaranteed if undamaged cells are used. Incorrect handling
of the battery pack can cause cell damage.
IMPORTANT! Analyses conrm that incorrect use and poor
care of high-performance batteries are the main factors
responsible for personal and/or product damage.
mWARNING! Use only approved replacement batteries;
other batteries may damage the power tool and cause it to
malfunction, which can lead to serious personal injury.
mWARNING! Do not use a battery pack or appliance that
is damaged or modied. Damaged or modied batteries may
exhibit unpredictable behavior resulting in re, explosion or risk
of injury.
Do not modify or attempt to repair the appliance or the battery
pack except as indicated in the instructions for use and care.
Have your battery pack serviced by a qualied repair person
using only identical replacement parts. This will ensure that the
safety of the battery pack is maintained.
mCAUTION! To reduce the risk of injury, charge the
24V iON+ lithium-ion battery pack only in its designated 24V
iON+ lithium-ion charger. Other types of chargers present risk
of re, personal injury and damage. Do not wire a battery pack
to a power supply plug or car cigarette lighter. Such misuse
will permanently disable or damage the battery pack.
• Avoid dangerous environments – Do not charge the
battery pack in rain, snow or in damp or wet locations.
Do not use the battery pack or charger in the presence of
explosive atmospheres (gaseous fumes, dust or ammable
materials) because sparks may be generated when inserting
or removing the battery pack, which could lead to a re.
• Charge in a well-ventilated area – Do not block the
charger vents. Keep them clear to allow for proper
ventilation. Do not allow smoking or open ames near a
charging battery pack. Vented gases may explode.
NOTE: The safe temperature range for the battery is 41°F
(5°C) to 105°F (40.5°C). Do not charge the battery outside in
freezing weather; charge it at room temperature.
• Maintain charger cord – When unplugging the charger,
pull the plug, not the cord, from the receptacle to reduce
the risk of damage to the electrical plug and cord.
Never carry the charger by its cord or yank it by the cord
to disconnect it from the receptacle. Keep the cord away
from heat, oil and sharp edges. Make sure the cord will not
be stepped on, tripped over or subjected to damage or
stress when the charger is in use. Do not use the charger
with a damaged cord or plug. Replace a damaged charger
immediately.
• Do not use an extension cord unless it is absolutely
necessary – Using the wrong, damaged or improperly
wired extension cord poses a risk of re and electric shock.
If an extension cord must be used, plug the charger into a
properly wired 16 gauge or larger extension cord with the
female plug matching the male plug on the charger.
Make sure that the extension cord is in good electrical
condition.
• Use only recommended attachments – Use of an
attachment not recommended or sold by the battery
charger or battery pack manufacturer may result in risk of
re, electric shock or personal injury.
• Unplug charger when not in use – Make sure to remove
battery packs from unplugged chargers.
mWARNING! To reduce the risk of electric shock,
always unplug the charger before performing any cleaning
or maintenance. Do not allow water to ow into the charger.
Use a Ground Fault Circuit Interrupter (GFCI) to reduce shock
hazards.
• Do not burn or incinerate battery packs –
Battery packs may explode, causing personal injury or
damage. Toxic fumes and materials are created when
battery packs are burned.
• Do not crush, drop or damage battery packs –
Do not use the battery pack or charger if they have
sustained a sharp blow, been dropped, run over or have
been damaged in any way (i.e. pierced with a nail, hit with a
hammer, stepped on, etc.).
3
• Do not disassemble – Incorrect reassembly may pose
a serious risk of electric shock, re or exposure to toxic
battery chemicals. If the battery or charger are damaged,
contact an authorized Snow Joe
call the Snow Joe
®
+ Sun Joe® customer service center at
®
+ Sun Joe® dealer or
1-866-SNOWJOE (1-866-766-9563) for assistance.
• Battery chemicals cause serious burns – Never let a
damaged battery pack contact the skin, eyes or mouth.
If a damaged battery pack leaks battery chemicals,
use rubber or neoprene gloves to safely dispose of it. If skin
is exposed to battery uids, wash the aected area with
soap and water and rinse with vinegar. If eyes are exposed
to battery chemicals, immediately ush with water for 20
minutes and seek medical attention. Remove and dispose
of contaminated clothing.
• Do not short circuit – A battery pack will short circuit if
a metal object makes a connection between the positive
and negative contacts on the battery pack. Do not place a
battery pack near anything that may cause a short circuit,
such as paperclips, coins, keys, screws, nails and other
metallic objects. A short-circuited battery pack poses a risk
of re and severe personal injury.
• Store your battery pack and charger in a cool, dry
place – Do not store the battery pack or charger where
temperatures may exceed 105ºF (40.5ºC), such as in direct
sunlight or inside a vehicle or metal building during the
summer.
Information about the battery
1. The battery pack supplied with your cordless power tool is
only partially charged. The battery pack has to be charged
completely before you use the tool for the rst time.
2. For optimum battery performance, avoid low discharge
cycles by charging the battery pack frequently.
3. Store the battery pack in a cool place, ideally at 59°F
(15°C) and charged to at least 40%.
4. Lithium-ion batteries are subject to a natural aging
process. The battery pack must be replaced at the latest
when its capacity falls to just 80% of its capacity when
new. Weakened cells in an aged battery pack are no
longer capable of meeting the high power requirements
needed for the proper operation of your cordless
tiller + cultivator, and therefore pose a safety risk.
5. Do not throw battery packs into an open re as this poses
a risk of explosion.
6. Do not ignite the battery pack or expose it to re.
7. Do not exhaustively discharge batteries. Exhaustive
discharge will damage the battery cells. The most
common cause of exhaustive discharge is lengthy storage
or non-use of partially discharged batteries. Stop working
as soon as the performance of the battery falls noticeably
or the electronic protection system triggers. Place the
battery pack in storage only after it has been fully charged.
8. Protect batteries and the tool from overloads.
Overloads will quickly result in overheating and cell
damage inside the battery housing even if this overheating
is not apparent externally.
9. Avoid damage and shocks. Immediately replace batteries
that have been dropped from a height of more than
3 feet (1 meter) or those that have been exposed to violent
shocks, even if the housing of the battery pack appears to
be undamaged. The battery cells inside the battery may
have suered serious damage. In such instances,
please read the waste disposal information for proper
battery disposal.
10. If the battery pack suers overloading and overheating,
the integrated protective cuto will switch o the
equipment for safety reasons.
IMPORTANT! Do not press the ON/OFF trigger any more
if the protective cut-o has been activated. This may
damage the battery pack.
11. Use only original battery packs. The use of other batteries
poses a re risk and may result in injuries or an explosion.
Information about the charger and the
charging process
1. Please check the data marked on the rating plate of the
battery charger. Be sure to connect the battery charger
to a power supply with the voltage marked on the rating
plate. Never connect it to a dierent mains voltage.
2. Protect the battery charger and its cord from damage.
Keep the charger and its cord away from heat, oil and
sharp edges. Have damaged cords repaired without delay
by a qualied technician at an authorized Snow Joe
Sun Joe
®
dealer or call the Snow Joe® + Sun Joe®
customer service center at 1-866-SNOWJOE
(1-866-766-9563).
3. Electrical plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
grounded appliances. Unmodied plugs and matching
outlets will reduce the risk of electric shock.
4. Keep the battery charger, battery pack(s) and the cordless
tool out of the reach of children.
5. Do not use the supplied battery charger to charge other
cordless tools.
6. During periods of heavy use, the battery pack will become
warm. Allow the battery pack to cool to room temperature
before inserting it into the charger to recharge.
7. Do not overcharge batteries. Do not exceed the maximum
charging times. These charging times only apply to
discharged batteries. Frequent insertion of a charged or
partially charged battery pack will result in overcharging
and cell damage. Do not leave batteries in the charger for
days on end.
®
+
4
8. Never use or charge batteries if you suspect that it has
been more than 12 months since the last time they were
charged. There is a high probability that the battery pack
has already suered dangerous damage (exhaustive
discharge).
9. Charging batteries at a temperature below 41°F (5°C) will
cause chemical damage to the cells and may cause a re.
10. Do not use batteries that have been exposed to heat
during the charging process, as the battery cells may have
suered dangerous damage.
11. Do not use batteries that have suered curvature or
deformation during the charging process or those that
exhibit other atypical symptoms (gassing, hissing,
cracking, etc.).
12. Never fully discharge the battery pack (maximum
recommended depth of discharge is 80%). A complete
discharge of the battery pack will lead to premature aging
of the battery cells.
Protectionfromenvironmentalinuences
1. Wear suitable work clothes. Wear safety goggles.
2. Protect your cordless tool and the battery charger from
moisture and rain. Moisture and rain can cause dangerous
cell damage.
3. Do not use the cordless tool or the battery charger near
vapors and ammable liquids.
4. Use the battery charger and cordless tools only in dry
conditions and at an ambient temperature of 41°F – 105°F
(5°C – 40.5°C).
5. Do not keep the battery charger in places where the
temperature is liable to reach over 104°F (40°C).
In particular, do not leave the battery charger in a car that
is parked in the sunshine.
6. Protect batteries from overheating. Overloads,
overcharging and exposure to direct sunlight will result
in overheating and cell damage. Never charge or work
with batteries that have been overheated – replace them
immediately, if possible.
7. Store the charger and your cordless tool only in dry
locations with an ambient temperature of 40°F – 105°F
(4.5°C – 40.5°C). Store your lithium-ion battery pack in a
cool, dry place at a temperature of 50°F – 68°F
(10°C – 20°C). Protect the battery pack, charger and
cordless tool from humidity and direct sunlight. Only place
fully charged batteries in storage (charged to at least
40%).
8. Prevent the lithium-ion battery pack from freezing.
Battery packs that were stored below 32°F (0°C) for more
than 60 minutes must be discarded.
9. When handling batteries, be wary of electrostatic
charge. Electrostatic discharges can damage the
electronic protection system and the battery cells. Avoid
electrostatic charging and never touch the battery poles.
5
Safety Symbols
The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all
instructions on the machine before attempting to assemble and operate.
Symbols SymbolsDescriptions Descriptions
READ THE OPERATOR'S
MANUAL(S) – Read, understand,
and follow all instructions in the
user manual(s) before attempting
to assemble and operate.
SAFETY ALERT – Indicates
a precaution, a warning, or
a danger.
Beware of foreign objects
that could be thrown from the
appliance. Keep bystanders a
safe distance away from the
work area.
Work across slopes; never work up
and down such surfaces.
STOP
Wear eye protection, breathing
protection, and ear protection
(i.e. safety goggles, dust masks, and
ear defenders).
WARNING! Do not expose the unit
to rain or wet conditions.
WARNING! Rotating parts may
cause serious injury. Make sure the
blades come to a complete stop
before transporting the machine
or before inspecting, cleaning, or
conducting any other maintenance.
Inspect the work area prior to
use and remove all objects that
could be thrown by the appliance. If
a hidden object is discovered while
working, stop the engine and remove
the object.
Wear safety gloves during use to
protect hands.
The rotating part will continuously
run for several seconds after you
turn o the machine.
Wear safety footwear at all times to
provide protection against objects
that may accidentally fall on feet.
Indoor use only. Only use battery
charger indoors.
6
Know Your Cordless Tiller + Cultivator
Read the owner’s manual and safety instructions carefully before operating the cordless tiller + cultivator. Compare the illustration
below to the cordless tiller + cultivator in order to familiarize yourself with the location of the various controls and adjustments.
Save this manual for future reference.
1
2
3
4
6
7
8
9
1. Soft grip
2. Safety lock switch
3. ON/OFF trigger
4. Battery compartment
5. Auxiliary handle
5
6. Handle knob
7. Upper pole
8. Telescoping lock
9. Telescoping pole
10. Tiller + cultivator head lock
11. Releasing tabs (2)
12. Air vents
13. Tiller + cultivator head
14. Steel blade (2)
15. 24V iON+ lithium-ion charger
(24VCHRG-AC)
16. Charger plug
17. Charger socket
18. 24V iON+ lithium-ion battery
(24VBAT-LTE)
19. Push button for battery indicator
20. Battery indicator
10
11
12
Technical Data
Battery Voltage* .......................................24 V D.C.
Battery Capacity ......................................2.0 Ah
Charging Time .........................................80 min (for full charge)
Battery Run Time Max .............................30 min
Cultivating Width Max .............................4.25 in. (10.8 cm)
Blades .....................................................6 in. (15.2 cm)
steel tilling blades
15
16
13
17
18
19
14
20
No Load Speed ..............................................280 rpm
Telescoping Pole Length ................................28.3 in. – 37.3 in.
(72 cm – 95 cm)
Weight (tiller + cultivator alone) ......................5.1 lbs (2.3 kg)
Weight (with battery installed) ........................6.2 lbs (2.8 kg)
*Initial no-load voltage, when fully charged, peaks at 24 volts; nominal voltage under typical load is 21.6 volts.
7
Unpacking
Carton Contents
• Tiller + cultivator head
• Tiller + cultivator pole assembly
• 24V iON+ lithium-ion battery
• 24V iON+ lithium-ion charger
• Manual with registration card
1. Carefully remove the cordless tiller + cultivator and check
to see that all of the above items are supplied.
2. Inspect the product carefully to make sure no breakage or
damage occurred during shipping. If you nd damaged or
missing parts, DO NOT return the unit to the store.
Please call the Snow Joe
center at 1-866-SNOWJOE (1-866-766-9563).
NOTE: Do not discard the shipping carton and packaging
material until you are ready to use the cordless tiller +
cultivator. The packaging is made of recyclable materials.
Properly dispose of these materials in accordance with
local regulations or save the packaging for long-term
product storage.
IMPORTANT! The equipment and packaging material are not
toys. Do not let children play with plastic bags, foils, or small
parts. These items can be swallowed and pose a suocation
risk!
®
+ Sun Joe® customer service
Fig. 1
Tiller +
cultivator
head lock
Tiller +
cultivator
head
2. Flip up the tiller + cultivator head lock to lock the tiller +
cultivator head in place (Fig. 2).
Fig. 2
Pole assembly
Pole assembly
Assembly
m
WARNING! Do not insert the battery until assembly is
complete. Failure to comply could result in accidental starting
and serious personal injury.
mWARNING! To prevent serious personal injury,
make sure the battery is removed, and the blades have come
to a complete stop before inspecting, cleaning, or servicing the
unit.
mWARNING! The product must be fully assembled
before operation. Do not use a product that is only partially
assembled or assembled with damaged parts.
Follow the assembly instructions step-by-step and use the
pictures provided as a visual guide to easily assemble the
product.
Assembling + Fitting the Head
1. With the tiller + cultivator head lock unlocked, insert the
tiller + cultivator head into the end of the pole assembly
until it clicks in place (Fig. 1).
Tiller +
cultivator
head lock
Tiller +
cultivator
head
mWARNING! Make sure nuts, screws and locks are
properly tightened before using the cordless tiller + cultivator.

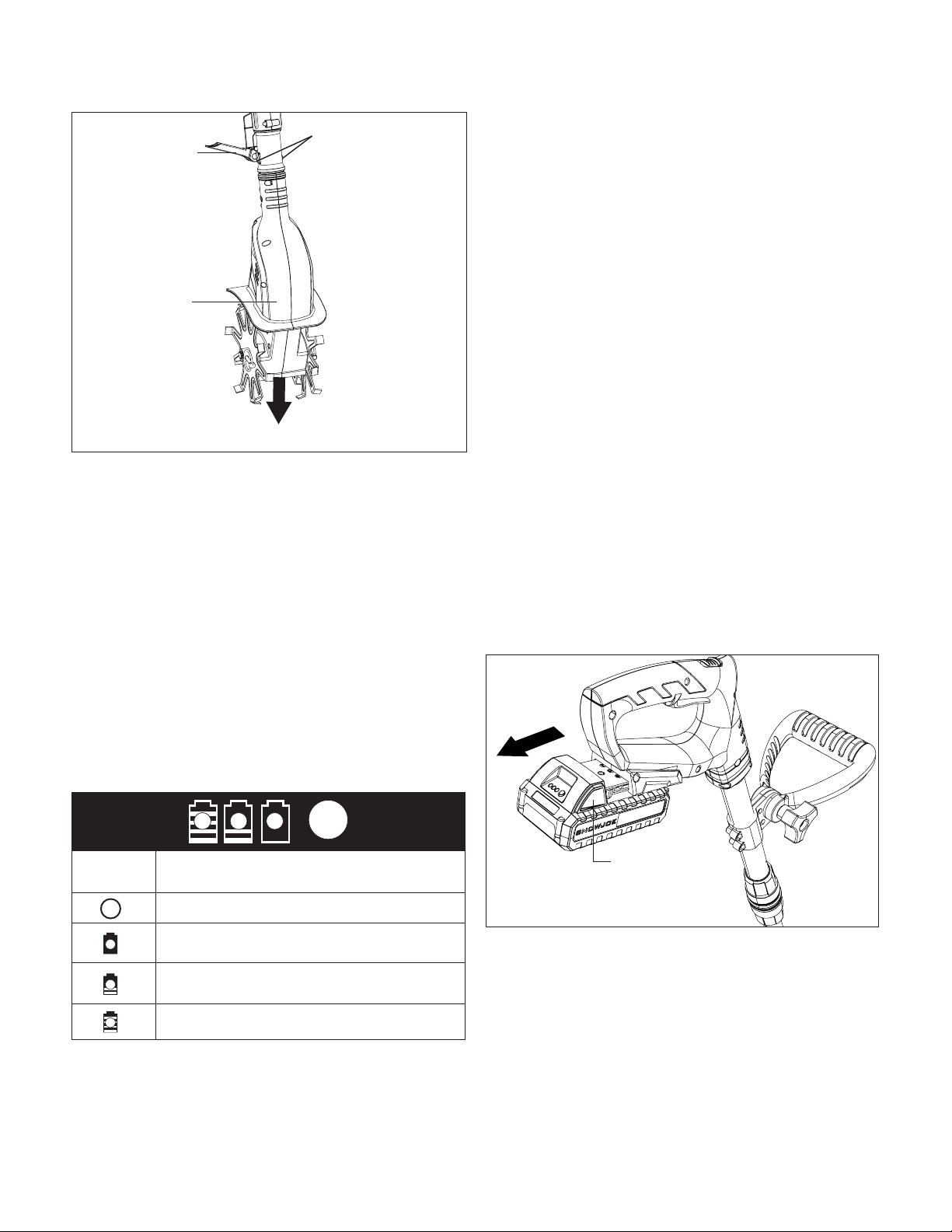

3. To disassemble the tiller + cultivator head from the pole
assembly, unlock the tiller + cultivator head lock,
then press in the releasing tabs on each side, and at the
same time pull the tiller + cultivator head out from the pole
assembly (Fig. 3).
8
Fig. 3
Tiller +
cultivator
head lock
Tiller +
cultivator
head
PULL OUT
Releasing tabs
Battery Pack Operation
The equipment is powered by a lithium-ion battery.
The battery pack is completely sealed and maintenance free.
Battery Charge Level Indicator
The battery pack is equipped with a push button for checking
the charge level. Simply press the push button to read o the
battery charge level from the LEDs of the battery indicator:
• All 3 level monitoring LEDs are lit: Battery charge level
is high.
• 2 level monitoring LEDs are lit: Battery charge level is
decreasing. Stop work as soon as possible.
• 1 level monitoring LED is lit: Battery is at. Stop work
IMMEDIATELY and charge the battery. Otherwise the
battery’s service life will be greatly shortened.
NOTE: Immediately after using the battery pack, the charge
level button may display a lower charge than it will if checked
a few minutes later. The battery cells “recover” some of their
charge after resting.
Charger Operation
m
WARNING! Charge only 24V iON+ lithium-ion battery
packs with its compatible 24V iON+ lithium-ion charger.
Other types of batteries may cause personal injury and
damage. To reduce the risk of electric shock, do not allow
water to ow into the charger's AC/DC plug.
When to Charge the iON+ 24VBAT-LTE
Lithium-iON Battery
NOTE: The iON+ 24VBAT-LTE lithium-ion battery packs
do not develop a "memory" when charged after only a partial
discharge. Therefore, it is not necessary to run down the
battery pack before inserting the charger plug.
• Use the battery indicator lights to determine when to charge
your iON+ 24VBAT-LTE lithium-ion battery pack.
• You can "top-o" your battery pack's charge before starting
a big job or after a long day of use.
Charging the Battery
1. Push the push lock buttons on the battery to pull the
battery pack out from the battery compartment (Fig. 4).
Fig. 4
Light IndicatorsLights
Charge level button
The battery is at 30% capacity
and requires charging
The battery is at 60% capacity
and requires charging soon
The battery is at full capacity
NOTE: If the charge level button does not appear to be
working, insert the charger and charge as needed.
Push lock button
2. Check that the main voltage is the same as that marked
on the rating plate of the battery charger. Then, plug the
charger adapter into an appropriate AC power outlet.
Connect the charger plug into the charge socket of the
battery to start charging (Fig. 5).
9
Fig. 5
NOTE: Push poles toward each other to shorten the pole
or pull them away from each other to lengthen the pole.
Only extend the pole to the minimum length required to
reach the ground.
Fig. 6
Battery
indicators
Telescoping lock
Telescoping pole
3. The battery will take approximately 80 minutes to charge.
The battery indicator LEDs will twinkle and illuminate one
by one during the charging process. Unplug the charger
immediately when the 3 LEDs are all illuminated.
mCAUTION! FIRE HAZARD. When disconnecting the
charger from the battery, be sure to unplug the charger from
the outlet rst, then disconnect the charger from the battery
Operation
Intended Use
The 24V-TLR-SJG cordless tiller + cultivator is designed for
small gardens and ower beds: this cordless tiller + cultivator
eectively loosens and turns over new soil. It may also be used
to mix coarse soil with fertilizer, peat, and compost.
This product may not be used to till extremely dry or wet soil.
The use of this product in rain or wet conditions is prohibited.
For safety reasons, it is essential to read the entire instruction
manual before rst use and to observe all the instructions
contained within this manual.
This product is intended for private domestic use only. It is not
intended for any commercial trade use. It must not be used for
any purposes other than those described.
2. Lock the telescoping pole in position by turning the
telescoping lock counterclockwise, and ensure that the
pole is secured.
mWARNING! Always ensure the telescoping pole is
securely locked. Do not attempt to use the product with the
pole unlocked.
Auxiliary Handle Adjustment
mWARNING! Always switch the product o and remove
the battery before making any adjustments.
NOTE: For maximum comfort and control, adjust the auxiliary
handle to t your height. Shorter users adjust the auxiliary
handle to a lower position (away from your body). Taller users
adjust the auxiliary handle to an upper position (towards to
your body). Make sure your forearm is straight when using the
machine.
1. Loosen the auxiliary handle by turning the handle knob
counterclockwise (Fig. 7).
Fig. 7
Auxiliary handle
Telescoping Pole Adjustment
mWARNING! Always switch the product o and remove
the battery before making any adjustments.
This product is equipped with a telescoping pole that can be
adjusted. To adjust the pole, follow the instructions below.
1. Unlock the telescoping pole by turning the telescoping
lock clockwise. Extend the pole to the desired length
(Fig. 6).
Handle knob
10
2. Adjust the auxiliary handle to a comfortable working
position (Fig. 8).
Fig. 10
Safety lock switch
Fig. 8
3. Turn the handle knob back to lock the auxiliary handle in
position.
Auxiliary handle
Starting + Stopping
mWARNING! Rotating blades may cause serious injury.
The blades will continue to turn for a few seconds after the
tool has been switched OFF. Do not touch the rotating blades.
Contact with hot components (i.e. motor housing, gear box,
etc.) on the machine may cause burns. Allow the machine to
cool before handling.
1. Slide the battery in the battery compartment until it clicks
and locks into position (Fig. 9).
Fig. 9
Battery
compartment
ON/OFF trigger
3. To switch OFF, release the ON/OFF trigger (Fig. 10).
Operating Tips
• Before each use, check the product, the battery, and any
other accessories for damage. Do not use the product if it is
damaged or shows wear.
• Double check that the accessories and attachments are
properly tted.
• Always hold the product by its handles. Keep the handles
dry to ensure a secure grip.
• Ensure that the air vents are always unobstructed and clear.
Clean them if necessary with a soft brush. Blocked air vents
may lead to overheating and damage the product.
• Switch the product o immediately if you are disturbed
while working by other people entering the working area.
Always let the product come to a complete stop before
averting your attention.
• Do not overwork yourself. Take regular breaks to ensure you
can concentrate on the task at hand and have full control
over the product.
Battery
2. To turn the tool ON, press and hold the safety lock switch
while squeezing the ON/OFF trigger. Once the tool is
running, release the safety lock switch (Fig. 10).
mWARNING! In some municipalities, regulations dene
restrictions for use of such products, including the times and
days when operation is permissible. Ask your community for
detailed information and observe these regulations in order
to preserve a peaceful neighborhood and avoid committing
administrative oenses.
Tilling
• Make sure that the work area is clear of stones, sticks, wire,
or other objects that could damage the product or its motor.
• Do not till very wet soil because wet soil tends to stick to
the working tool, preventing proper blade rotation; it could
also cause you to slip and fall.
• Always maintain a rm grip on the product. For better
guidance, apply light pressure to the handles.
11
mWARNING! Do not place hands, feet, or any other part
of the body or clothing near the rotating blades or any other
moving part. The blades begin to rotate forward once the
ON/OFF trigger is depressed. The blades continue to rotate
until the ON/OFF trigger is released. Failure to avoid contact
with the rotating blades could cause serious personal injury.
• Do not try to till too deeply or force the product into soil that
is extremely hard or resistant.
• Walk the product through the soil at a normal pace and in
as straight a line as possible.
• Till in slightly overlapping rows. To till most eectively,
follow the pattern indicated in Fig. 11. Start by moving the
tiller + cultivator up and down in vertical lines, then work
horizontally from left to right. This will keep the rows even
and ensure that all the ground is tilled without missing any
spots.
Fig. 11
• Pay special attention when changing direction. Apply
light pressure to the handle in order to lift the blades and
facilitate the turn. Turn the product around using the wheels
as a guide. Gradually release pressure on the handle and
move the blades back to the ground.
mWARNING! Stop the motor if the product strikes a
foreign object. Switch the product o, remove the battery,
and let it cool completely. Inspect the product thoroughly for
damage and have any damage repaired before restarting.
Extensive vibration of the product during operation is an
indication of damage. Immediately stop the motor and
promptly inspect and repair the tool.
After Use
• Switch the product o, remove the battery, and let it cool
completely.
• Check, clean, and store the product as described in Care +
Maintenance.
Care + Maintenance
The Golden Rules for Care
mWARNING! Always switch the product o, remove the
battery, and let the product cool completely before inspecting,
cleaning, or performing any other maintenance task.
• Keep the product clean. Remove any debris after each use
and before storage.
• Regular and proper cleaning will help ensure safe use and
prolong the life of the product.
• Inspect the product before each use for worn and damaged
parts. If you nd broken and/or worn parts, do not use the
tool.
mWARNING! Only perform the repairs and maintenance
work described in this manual. Any other work must be
performed by a qualied technician.
General Cleaning
• Clean the product with a dry cloth. Use a brush for areas
that are hard to reach.
• Be sure to clean the air vents after every use with a cloth
and brush.
• Remove stubborn dirt with high pressure air (max. 3 bar).
NOTE: Do not use chemical, alkaline, abrasive, or other
aggressive detergents or disinfectants to clean this product as
such substances might damage the tool's surfaces.
• Check for worn or damaged parts. Replace worn parts as
necessary or contact the Snow Joe
service center at 1-866-SNOWJOE (1-866-766-9563)
for repair before using the product again.
®
+ Sun Joe® customer
Cleaning the Underbody + Working Tool
mWARNING! Wear safety gloves when working on or
near the working tool. Use appropriate tools (e.g a wooden
stick) when necessary; never use your bare hands!
• Keep the underbody and blades clean and free of debris.
Use a brush or another implement to remove soil from the
working tool.
• All nuts and bolts must be checked periodically for
tightness before operation. After prolonged use, especially
in sandy soil conditions, the working tool will become worn
and lose some of its original shape. Tilling eciency will be
reduced and the working tool should be replaced.
• Have worn or damaged working parts replaced with new
ones of the same type by a qualied technician.
• To prolong the life span of the working tool and the product,
lubricate the blades after each use.
12
mWARNING! Unexpected blade movement may cause
personal injury. Before servicing, repairing, or inspecting the
unit, turn the motor OFF and remove the battery. Wait for
the blades to completely stop rotating before conducting
inspection, cleaning, or maintenance.
Before and after each use, check the product and accessories
(or attachments) for wear and damage. When necessary,
only use identical replacement parts that are approved by the
manufacturer.
Fig. 12
Lock pin
Steel blade
Blade notch
IMPORTANT!
• Wear protective gloves when cleaning or maintaining the
machine.
• Do not use cleaning uids or solvents or spray the
machine down with water (especially water under
pressure) when cleaning the machine.
NOTE: After each use, follow these steps to properly clean
the unit:
1. Remove soil, dirt, and foliage stuck in the blades,
drive shaft, tool surface, and vents with a brush or dry
cloth.
2. Spray or rub biodegradable oil onto the blades.
3. Clean soiled grips with a damp cloth.
Always inspect the machine for damaged and worn parts after
each use. Check that safety features (i.e. labels, guards, etc.)
are in place. Check that nuts, bolts, and screws are tight.
Replace the Tilling Blades
The machine is tted with two 10 tine steel tilling blades that
can easily be changed. Only use the original replacement part
specied for this tiller + cultivator.
You can purchase replacement blades (Model 24V-TLR-BLD)
and other genuine replacement parts by visiting us online at
sunjoe.com or calling our toll-free customer service helpline
at 1-866-SNOWJOE (1-866-766-9563). The use of parts
that do not meet the original equipment specications may
lead to improper performance of the tiller + cultivator, may
compromise operator safety and will void the manufacturer's
warranty.
mWARNING! The tilling blades are sharp and can
cause severe personal injury if handled incorrectly. Wrap the
blades or wear protective gloves, and use extra caution when
handling.
To replace the blades, follow the steps below:
1. Turn o the unit, remove the battery and wait until the
blades have come to a standstill.
2. Open the ring on the lock pin, then slide the pin out of the
hole on the old blade. Then, remove the old blade from the
motor shaft (Fig. 12).
Tiller +
cultivator head
3. Insert the new blade onto the motor shaft. Make sure to
align the notches on the blade's hole with the notches on
the motor shaft (Fig. 12). Then, slide the lock pin into the
holes of the blade and motor shaft to keep the blade in
place. Close the ring over shaft to lock the pin. Insert the
battery and resume working (Fig. 13).
Fig. 13
Pin
Ring
Motor notch
Repair
This product does not contain any parts that can be repaired
by the consumer. Contact an authorized Snow Joe
Sun Joe
service center at 1-866-SNOWJOE (1-866-766-9563)
for assistance.
®
dealer or call the Snow Joe® + Sun Joe® customer
®
+
Storage
• Examine the cordless tiller + cultivator thoroughly for worn,
loose, or damaged parts. Should you need to repair or
replace a part, contact an authorized Snow Joe
Sun Joe
service center at 1-866-SNOWJOE (1-866-766-9563)
for assistance.
• Remove the battery from the cordless tiller + cultivator
before storing.
• Clean the product as described in Care + Maintenance.
®
dealer or call the Snow Joe® + Sun Joe® customer
13
®
+
• Store the product and its accessories in a dark, dry,
frost-free, and well-ventilated place.
• Always store the product in a place that is inaccessible to
children.
• The ideal storage temperature is between 50ºF (10°C)
and 86ºF (30°C).
• We recommend using the original package for storage or
covering the product with a suitable cloth or enclosure to
protect it against dust.
Battery Caution + Disposal
Always dispose of your battery pack according to federal,
state, and local regulations. Contact a recycling agency in your
area for recycling locations.
mCAUTION! Even discharged battery packs contain
some energy. Before disposing, use electrical tape to cover the
terminals to prevent the battery pack from shorting,
which could cause a re or explosion.
Battery+ChargerO-SeasonStorage
1. Do not expose your battery pack or charger to water,
rain or allow them to get wet. This could permanently
damage the charger and the battery pack. Do not use oil
or solvents to clean or lubricate your battery pack as the
plastic casing can become brittle and crack, causing a
serious risk of injury.
2. Store the battery pack and charger at room temperature
away from moisture. Do not store in damp locations where
corrosion of terminals may occur. As with other battery
pack types, permanent capacity loss can result if the pack
is stored for long periods of time at high temperatures
(over 120ºF/49ºC).
3. iON+ 24VBAT-LTE lithium-ion battery packs maintain
their charge during storage longer than other battery
pack types. As a general practice, it is best to unplug the
battery charger and remove the battery pack when they
are not in use. Recharge the battery pack every 6 months
to 50% capacity during o-season storage to maintain
optimal battery performance.
Transportation
• Switch the product o.
• Always carry the product by its handle.
• If you are transporting the tiller + cultivator in a vehicle,
brace it properly to protect it from heavy impact or strong
vibrations.
• Secure the product to prevent it from falling over or
slipping.
mWARNING! To reduce the risk of injury or explosion,
never burn or incinerate a battery pack even if it is damaged,
dead or completely discharged. When burned, toxic fumes and
materials are emitted into the surrounding atmosphere.
1. Batteries vary according to device. Consult your manual
for specic information.
2. Install only new batteries of the same type in your product
(where applicable).
3. Failure to insert batteries in the correct polarity,
as indicated in the battery compartment or manual,
may shorten the life of the batteries or cause batteries to
leak.
4. Do not mix old and new batteries.
5. Do not mix Alkaline, Standard (Carbon-Zinc) or
Rechargeable (Nickel Cadmium, Nickel Metal Hydride,
or Lithium-Ion) batteries.
6. Do not dispose of batteries in re.
7. Batteries should be recycled or disposed of as per state
and local guidelines.
Recycling + Disposal
The product comes in a package that protects it against
damage during shipping. Keep the package until you are
sure that all parts have been delivered and the product is
functioning properly. Recycle the package afterwards or keep
it for long-term storage.
WEEE symbol. Waste electrical products should not
be disposed of with household waste. Please recycle
where facilities exist. Check with your local authority
or local store for recycling regulations.
14
Service + Support
24VCHRG-AC
If your Sun Joe® 24V-TLR-SJG cordless tiller + cultivator
requires service or maintenance, please call the Snow Joe
Sun Joe
(1-866-766-9563).
®
customer service center at 1-866-SNOWJOE
®
+
Model + Serial Numbers
When contacting the company, reordering parts, or arranging
service from an authorized dealer, you will need to provide the
model and serial numbers, which can be found on the decal
located on the housing of the unit. Copy these numbers into
the space provided below.
Record the following numbers from the housing or handle of your
new product:
2 4 V - T L R - S J G
Model #:
Serial #:
Federal Communications Commission
(FCC)
mWARNING! Any changes or modications to this
unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the
equipment.
Class B device:
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur
in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
15
Optional Accessories
WARNING! ALWAYS use only authorized Snow Joe
m
replacement parts or accessories that are not intended for use with this cordless tiller + cultivator. Contact Snow Joe
®
+ Sun Joe® replacement parts and accessories. NEVER use
®
+ Sun Joe®
if you are unsure whether it is safe to use a particular replacement part or accessory with your cordless tiller + cultivator. The use
of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.
Accessories Item Model
1
2
3
24V iON+ 2.0 Ah Lithium-Ion Battery
Battery Charge Time Max:
24VCHRG-AC: 1 hr 20 min
24VCHRG-QC: 55 min
Battery Runtime Max: 60 min
24V iON+ 2.5 Ah Lithium-Ion Battery
Battery Charge Time Max:
24VCHRG-AC: 1 hr 40 min
24VCHRG-QC: 1 hr 10 min
Battery Runtime Max: 1 hr 15 min
24V iON+ 4.0 Ah Lithium-Ion Battery
24VCHRG-AC: 2 hrs 40 min
24VCHRG-QC: 1 hr 50 min
Battery Runtime Max: 2 hr
24VBAT-LTE
24VBAT-LT
24VBAT
4
24V iON+ 5.0 Ah Lithium-Ion Battery
Battery Charge Time Max:
24VCHRG-AC: 3 hrs 20 min
24VCHRG-QC: 2 hrs 20 min
Battery Runtime Max: 2 hr 30 min
5
24V iON+ Lithium-Ion Battery Charger 24VCHRG-AC
6
24V iON+ Lithium-Ion Battery Quick Charger 24VCHRG-QC
7
Replacement Blade 24V-TLR-BLD
NOTE: Accessories are subject to change without any obligation on the part of Snow Joe
ordered online at sunjoe.com or via phone by contacting the Snow Joe
(1-866-766-9563).
®
+ Sun Joe® customer service center at 1-866-SNOWJOE
24VBAT-XR
®
+ Sun Joe®. Accessories can be
16
NOTES
17
NOTES
18
SNOW JOE® + SUN JOE® CUSTOMER PROMISE
ABOVE ALL ELSE, Snow Joe® + Sun Joe® are dedicated to you, our customer. We strive to make your experience as pleasant
as possible. Unfortunately, there are times when a product does not work or breaks under normal operating conditions. We
think it’s important that you know what you can expect from us. That’s why we created the Snow Joe® + Sun Joe® promise.
OUR PROMISE: Snow Joe® + Sun Joe® warrant new products for two years from the date of purchase. If your product does
not work, or there’s an issue with a specic part, we will x this by either sending you a free replacement part or by sending
you a new or comparable product at no charge. How cool is that! Before you know it, you’ll be back in action cutting,
sawing, mowing, washing and…?
PRODUCT REGISTRATION:
®
Snow Joe
, LLC (“Snow Joe® + Sun Joe®”) strongly encourages
you to register your purchase. You can register online at
snowjoe.com/ProductRegistration, or by printing and mailing
in a registration card available online from our website, or
calling our Customer Service Department at 1-866-SNOWJOE
(1-866-766-9563), or by e-mailing us at help@snowjoe.com.
Failure to register your product purchase will not diminish your
warranty rights. However, registering your purchase will allow
®
Snow Joe
+ Sun Joe® to better serve you with any of your
customer service needs.
WHO CAN SEEK WARRANTY COVERAGE?
®
This Warranty is extended by Snow Joe
+ Sun Joe® to the owner
of this Machine (a “Machine” consists of a product powered by
a motor) for residential and personal household use only. This
Warranty does not apply to products used for commercial, rental
or re-sale purposes. Should ownership of this machine change
during the 2-year period, please update the Machine’s owner
information at snowjoe.com/ProductRegistration.
WHAT IS COVERED?
®
Snow Joe
+ Sun Joe® warrants to the owner that if this Machine
fails within 2 years from the date of purchase due to a defect in
material or workmanship or as a result of normal wear and tear
®
from ordinary household use, Snow Joe
+ Sun Joe® will send a
replacement part or product, as needed, free of charge and with
free shipping to the original purchaser.
®
If, in Snow Joe
cannot be repaired with a part, Snow Joe
+ Sun Joe®’s sole discretion, the failed Machine
®
+ Sun Joe® will elect to
either (A) send a new Machine at no charge and with free shipping
or (B) refund the full purchase price to the owner.
WHAT IS NOT COVERED?
This Warranty does not apply to the Machines that have been used
commercially or in non-household applications. This Warranty
does not cover cosmetic changes that do not aect performance.
This Warranty is only valid if the Machine is used and maintained
in accordance with the instructions, warnings and safeguards
®
contained in the owner’s manual. Snow Joe
+ Sun Joe® will not
be responsible for the cost of any unauthorized warranty repairs.
This warranty does not cover any cost or expense incurred by
the purchaser in providing substitute equipment or service during
reasonable periods of malfunction or non-use of this product
while waiting for a replacement part or unit under this warranty.
Wearing parts like belts, augers, chains and tines are not covered
under this warranty, and can be purchased at snowjoe.com or
by calling 1-866-SNOWJOE (1-866-766-9563). Batteries are
covered in full for 90-days from the date of purchase.
Repair, replacement or refund of the purchase price are the
exclusive remedies of purchaser and the sole liability of Snow Joe
®
+ Sun Joe
of Snow Joe
under this warranty. No employee or representative
®
+ Sun Joe® is authorized to make any additional
®
warranty or any modication to this warranty which may be
®
binding upon Snow Joe
+ Sun Joe®. Accordingly, purchaser
should not rely upon any additional statements made by any
®
employee or representative of Snow Joe
+ Sun Joe®. In no event,
whether based on contract, indemnity, warranty, tort (including
®
negligence), strict liability or otherwise, shall Snow Joe
®
Sun Joe
be liable for any special, indirect, incidental, or
+
consequential damages, including, without limitation, loss of
prot or revenue.
Some states do not allow limits on warranties. In such states, the
above limitations may not apply to you.
Outside the USA, other warranties may apply.
19
