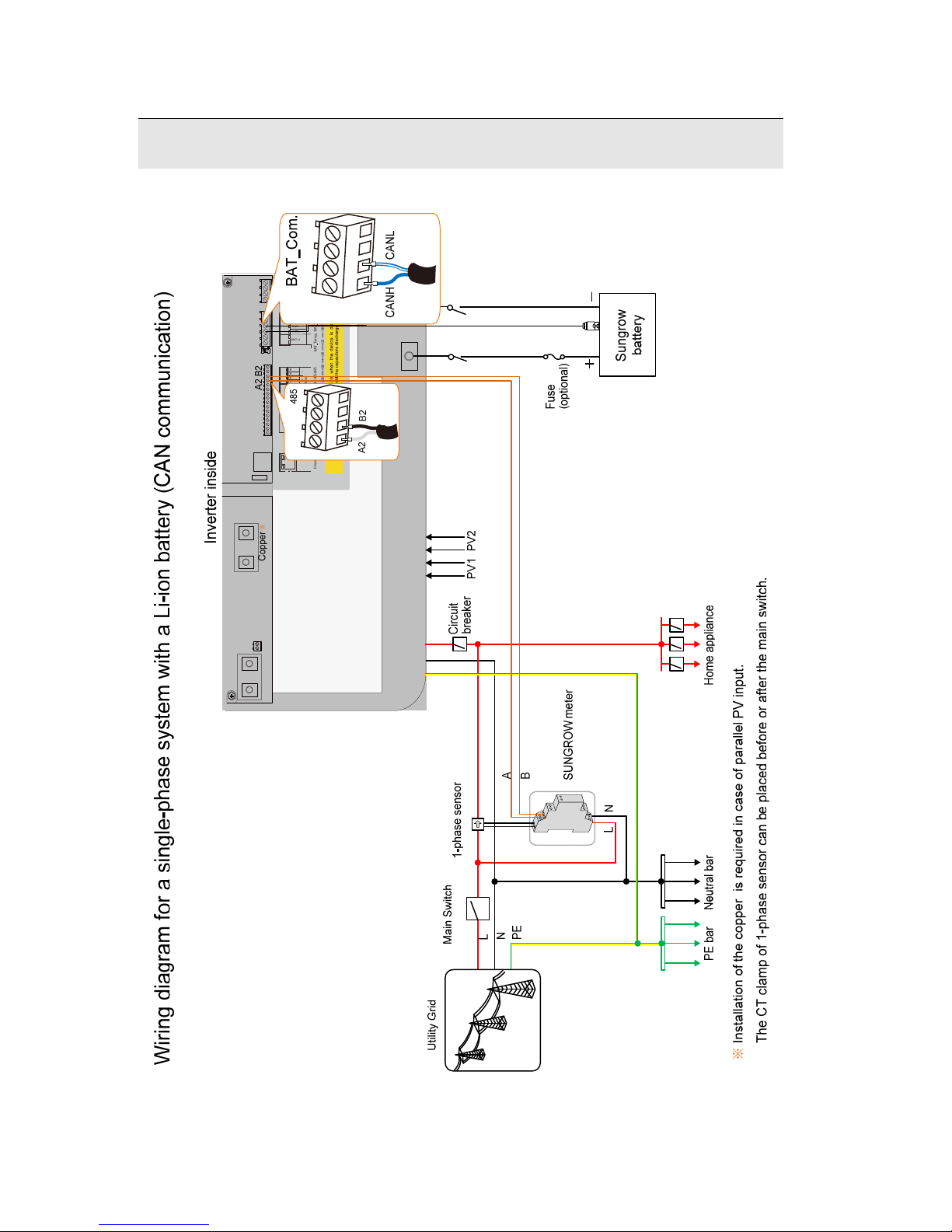

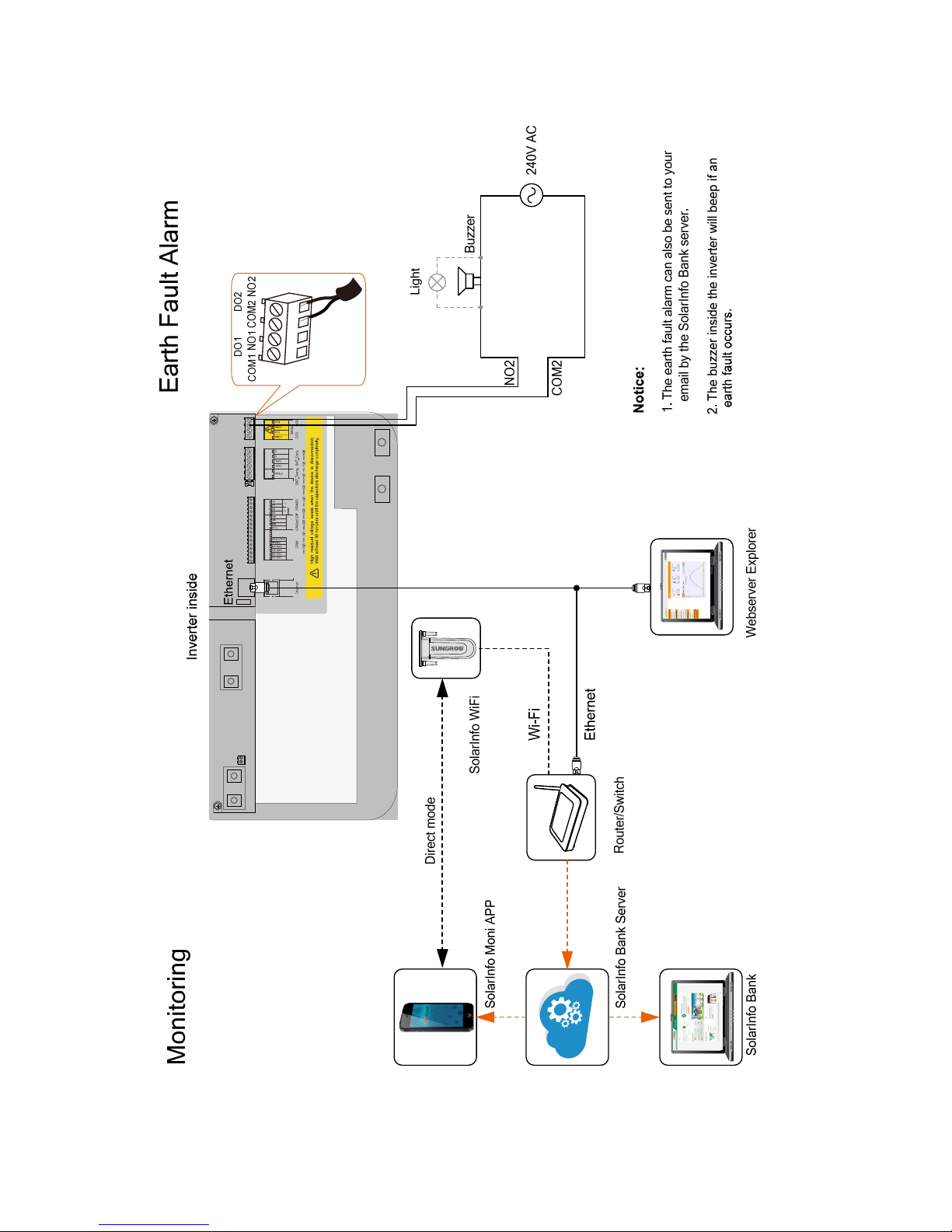

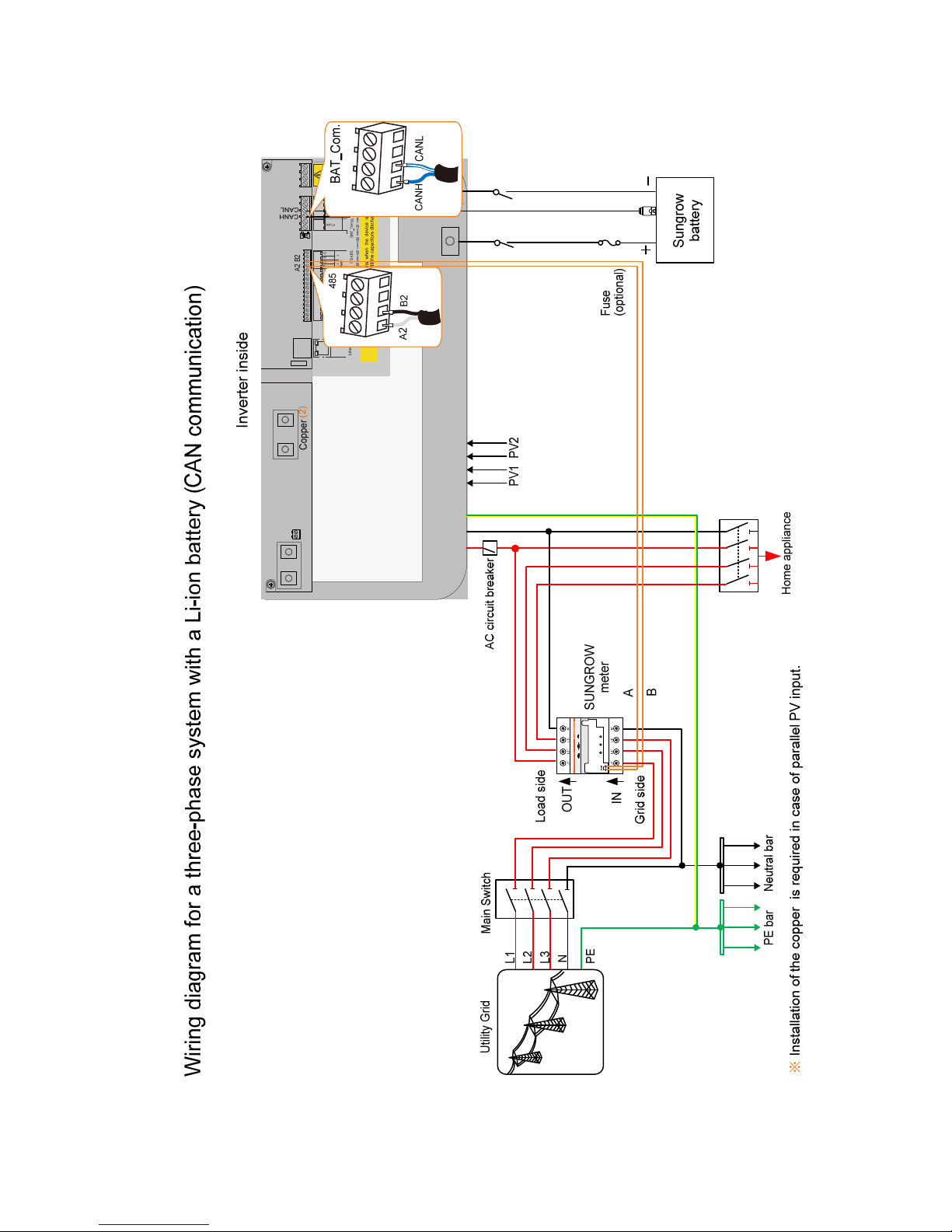

System Overview

III

IV

V

VI

VII

Contents

System Overview ............................................................................ II

1 Installation ............................................................................... 1

1.1 Location Requirements ........................................................................................ 1

1.2 Installing the Inverter ........................................................................................... 2

1.3 Grounding the Inverter ........................................................................................ 3

1.4 Installing the Meter ............................................................................................... 4

2 Electrical Connection ............................................................... 5

2.1 Terminal Description ............................................................................................ 5

2.2 Meter Connection .................................................................................................. 6

2.3 Grid Connection ..................................................................................................... 6

2.4 PV Connection ........................................................................................................ 7

2.5 Communication Connection ............................................................................. 8

2.6 Battery Connection ............................................................................................ 10

2.7 DO Connection .................................................................................................... 12

2.8 Retrofitting the Existing PV System .............................................................. 13

2.9 Connecting to Interface Device for SPI (Italy) ........................................... 15

3 Commissioning ...................................................................... 16

3.1 Button Function .................................................................................................. 16

3.2 Commissioning Procedure .............................................................................. 17

3.3 Result Verification ............................................................................................... 21

4 SolarInfo Moni App Configuration ....................................... 26

4.1 App Operation Requirements ........................................................................ 26

4.2 Installing the App ............................................................................................... 26

4.3 Visiting in “Local Access” Mode ...................................................................... 27

4.4 Visiting in "[Login]" Mode ................................................................................ 28

5 Operation ............................................................................... 29

5.1 Main Screen .......................................................................................................... 29

VIII

5.2

 Viewing the Error Codes .................................................................................. 30

5.3 LCD Menu .............................................................................................................. 31

5.4 Setting the Country Code ................................................................................ 32

5.5 Setting the Protective Parameters ............................................................... 33

5.6 Setting the Communication Parameters ................................................... 34

6 Troubleshooting ..................................................................... 35

6.1 Troubleshooting of the Indicator ................................................................. 35

6.2 Troubleshooting of the Errors ........................................................................ 35

7 Appendices ............................................................................. 44

7.1 Inverter Technical Data ..................................................................................... 44

7.2 Meter Technical Data ......................................................................................... 46

1

1 Installation

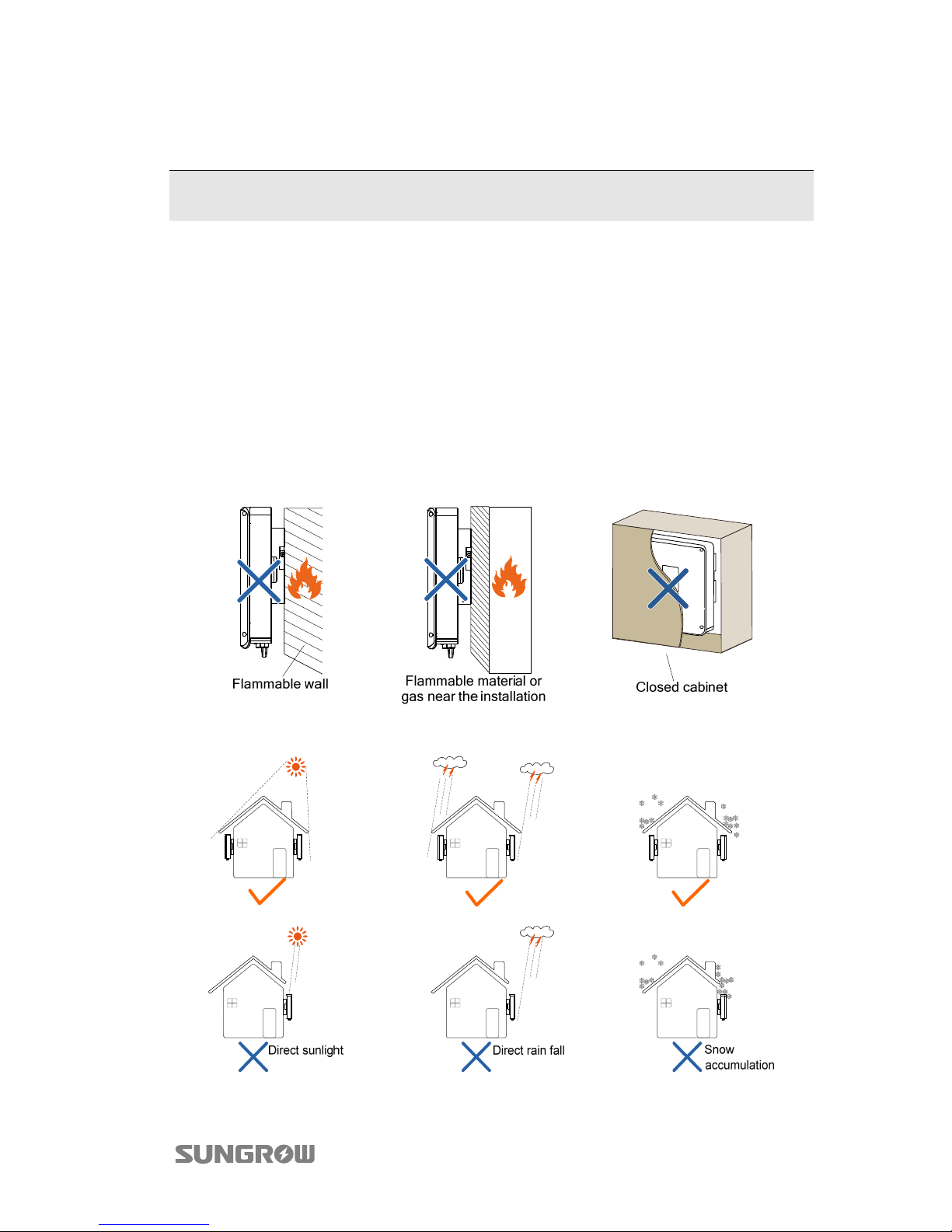

1.1 Location Requirements



The concrete wall should be suitable for the weight and dimensions of the
inverter.



The location should be convenient for installation, cable connection and service.



The location should be not accessible to children.



The location should be away from flammable materials or gas, and the
environment should not be enclosed.



The shaded side of the building would be better.

1 Installation Quick User Manual

2



Install vertically for sufficient heat dissipation.



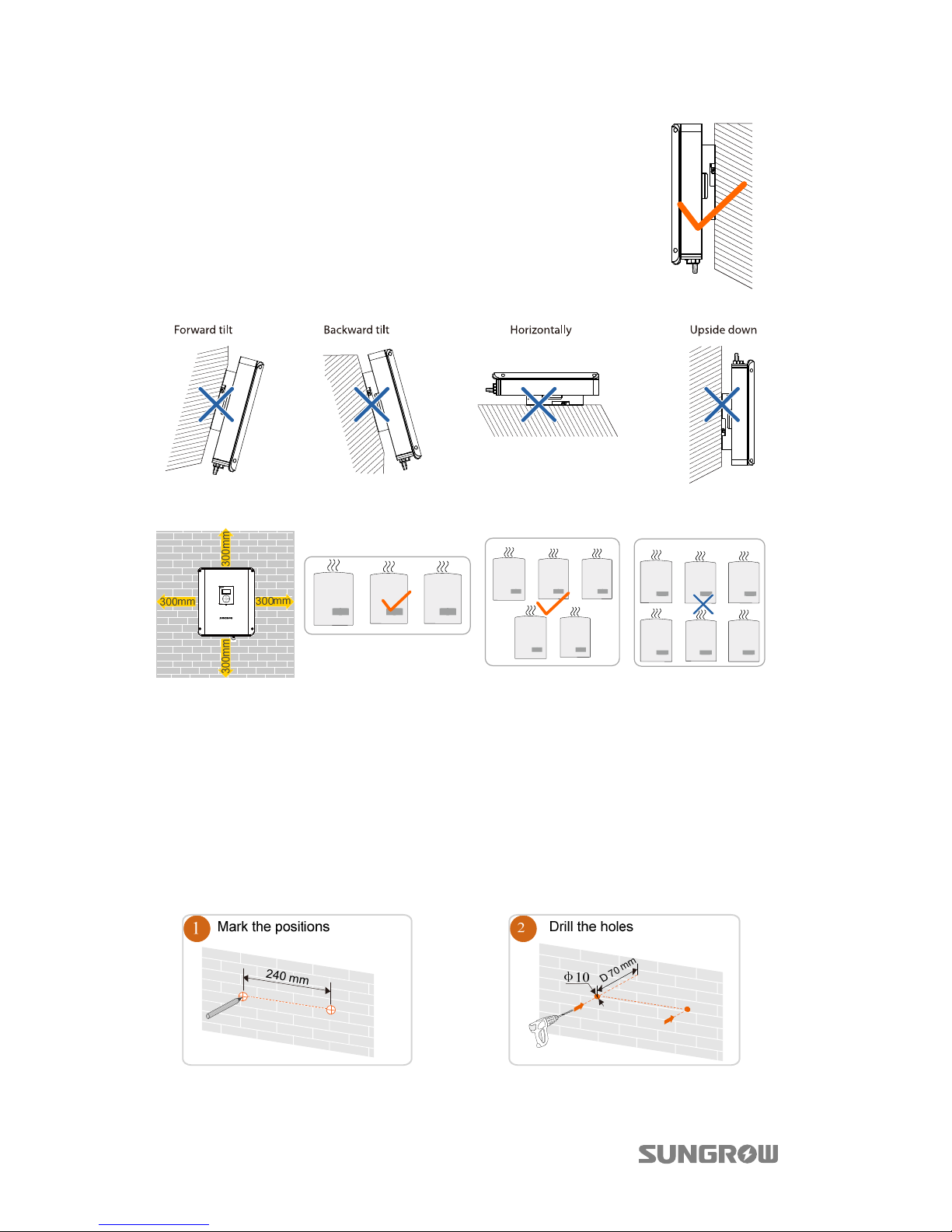

Clearance requirements for single and multiple installation:

1.2 Installing the Inverter

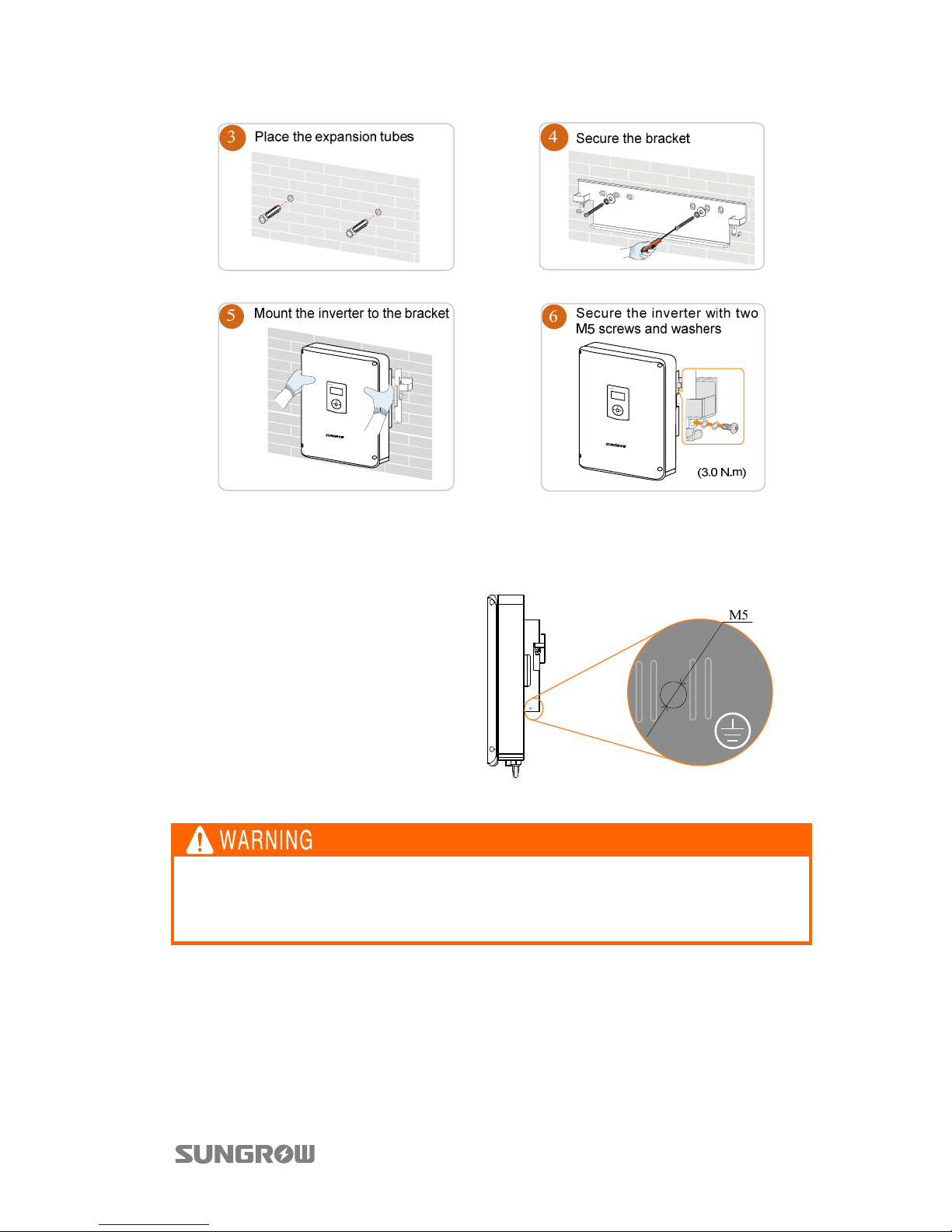

Install the inverter on the wall by means of the wall-mounting bracket and the
expansion plug sets.

The depth of the holes should be about 70 mm. Be sure to adhere to the following
screw assembly sequence: self-tapping screw, spring washer, fender washer,
wall-mounting bracket.

Quick User Manual 1 Installation

3

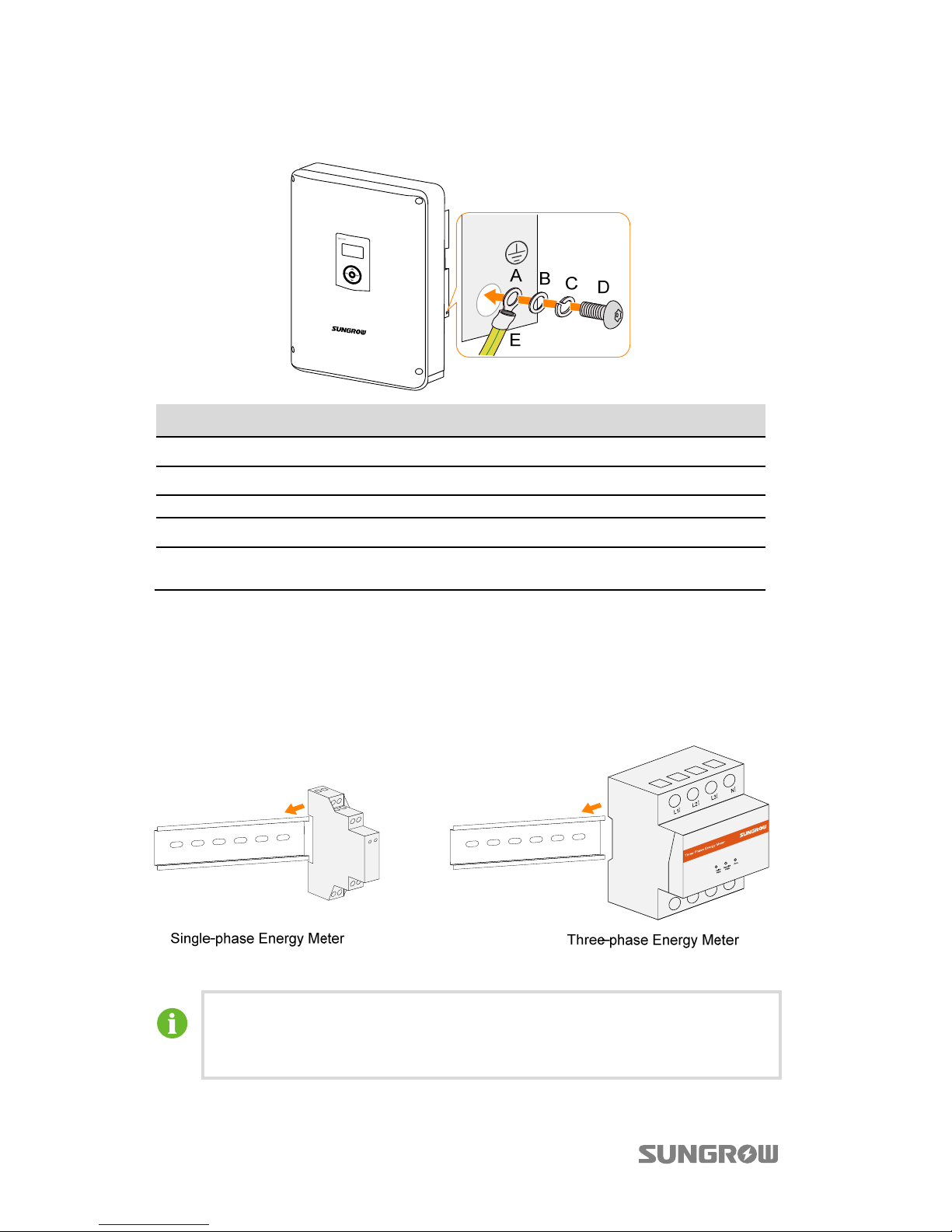

1.3 Grounding the Inverter

A second protective earth (PE)
terminal is equipped at the side
of the inverter. Be sure to
connect this PE terminal to the
PE bar for reliable grounding.

Fig. 1-1 Second PE Terminal

In no case shall the second PE connection substitute for the PE connection
on the terminal block of AC connector. Be sure to connect both PE terminals
for reliable grounding. The loss of any or all rights may follow if otherwise.

1 Installation Quick User Manual

4

Second PE Connection

Item Description Specification

A Cable socket -

B Washer ­C Spring washer ­D Screw M5 x 12 mm (3.0 Nm)

E Yellow-green cable

6–10 mm

2

copper wire or 10–16 mm2 aluminum

wire

1.4 Installing the Meter

The SUNGROW meter should be installed next to the main switch. It supports a 35
mm DIN-rail installation, as shown in the following figure.

Fig. 1-2 Installing the Energy Meter to the Rail

The single-phase Energy Meter and the three-phase Energy Meter are
alternative in the delivery. The meter figures in this document have been
created for the three-phase Energy Meter unless otherwise specified.

5

2 Electrical Connection

For the TT utility grid, the N line voltage to ground must be less than 30 V.

2.1 Terminal Description

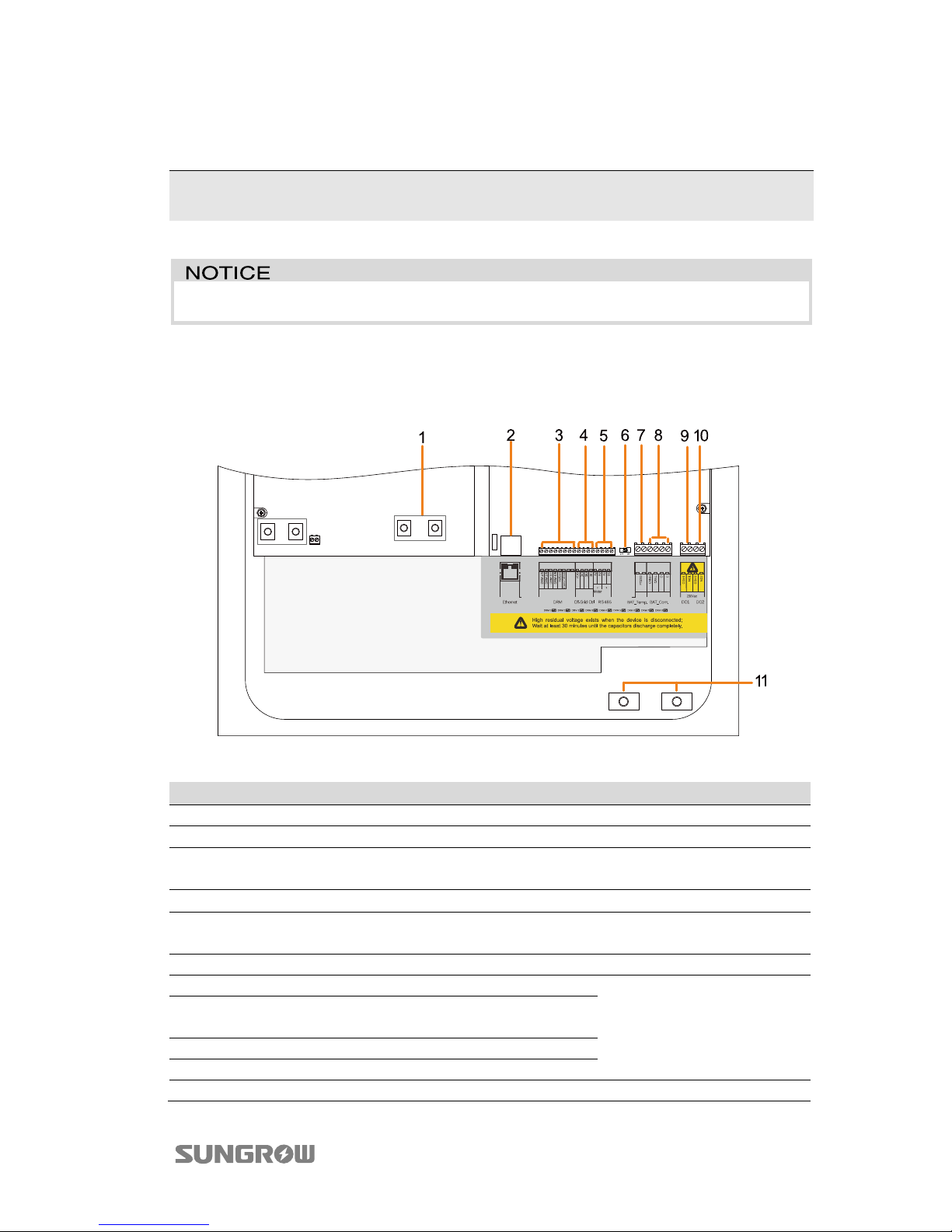

Fig. 2-1 Configuration Circuit Board Inside the Inverter

No.

Label Connection Tool Requirements

1 Copper PV (for parallel mode) Phillips screwdriver
2 Ethernet Communication -

3 DRM

Local control for SPI (Italy)

Flat-head screwdriver
with an open end of 2 mm

4 DI Reserved -

5 RS485

A1, B1 for the battery,
A2, B2 for the meter

Flat-head screwdriver

with an open end of 2 mm
6 120 Ohm RS485 ­7 BAT_Temp. Temperature sensor PT1000

Flat-head screwdriver

with an open end of 3 mm

8

BAT_Com.
(CANH, CANL)

Battery communication

9 DO1 Power management
10 DO2 Earth fault alarm
11 BAT+, BAT- Battery Phillips screwdriver

2 Electrical Connection Quick User Manual

6

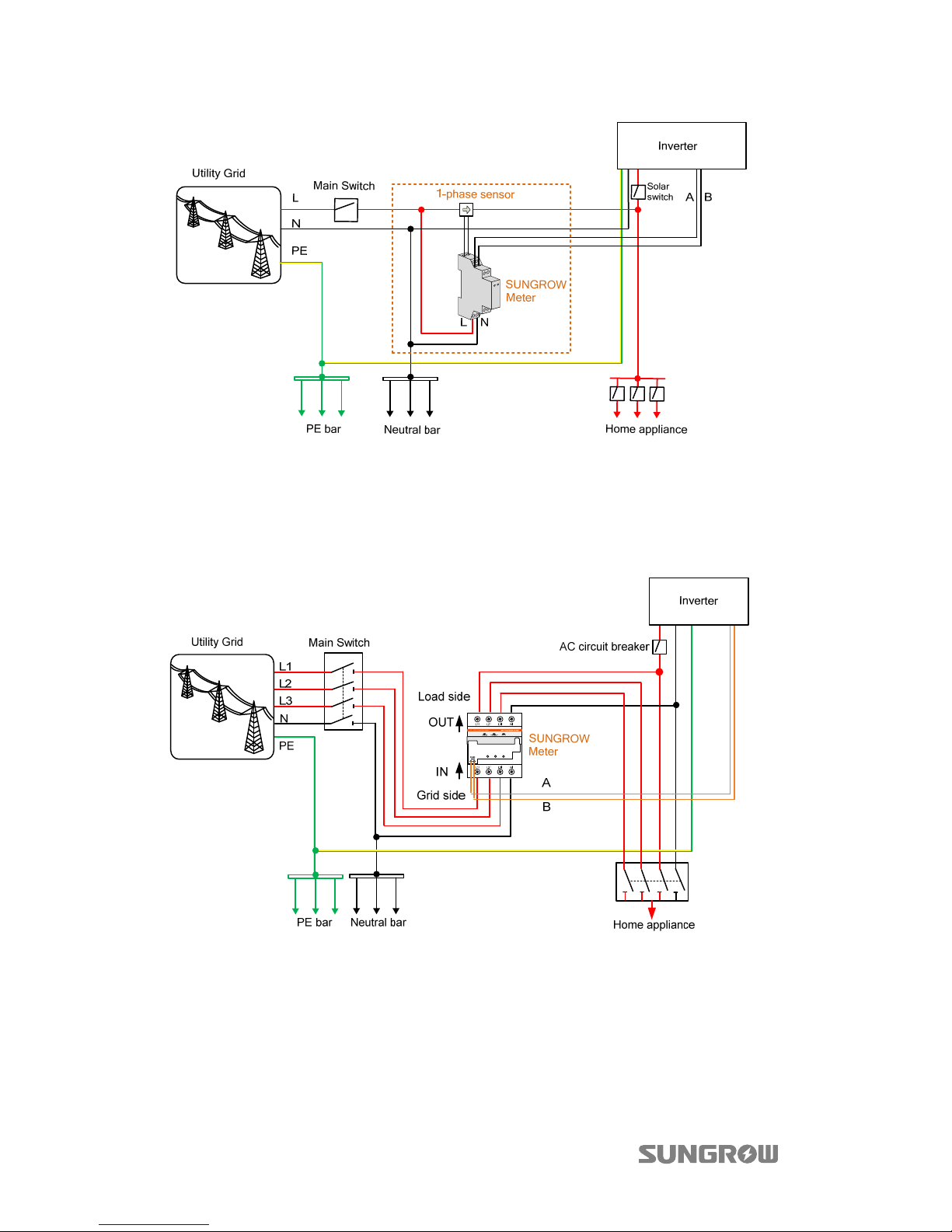

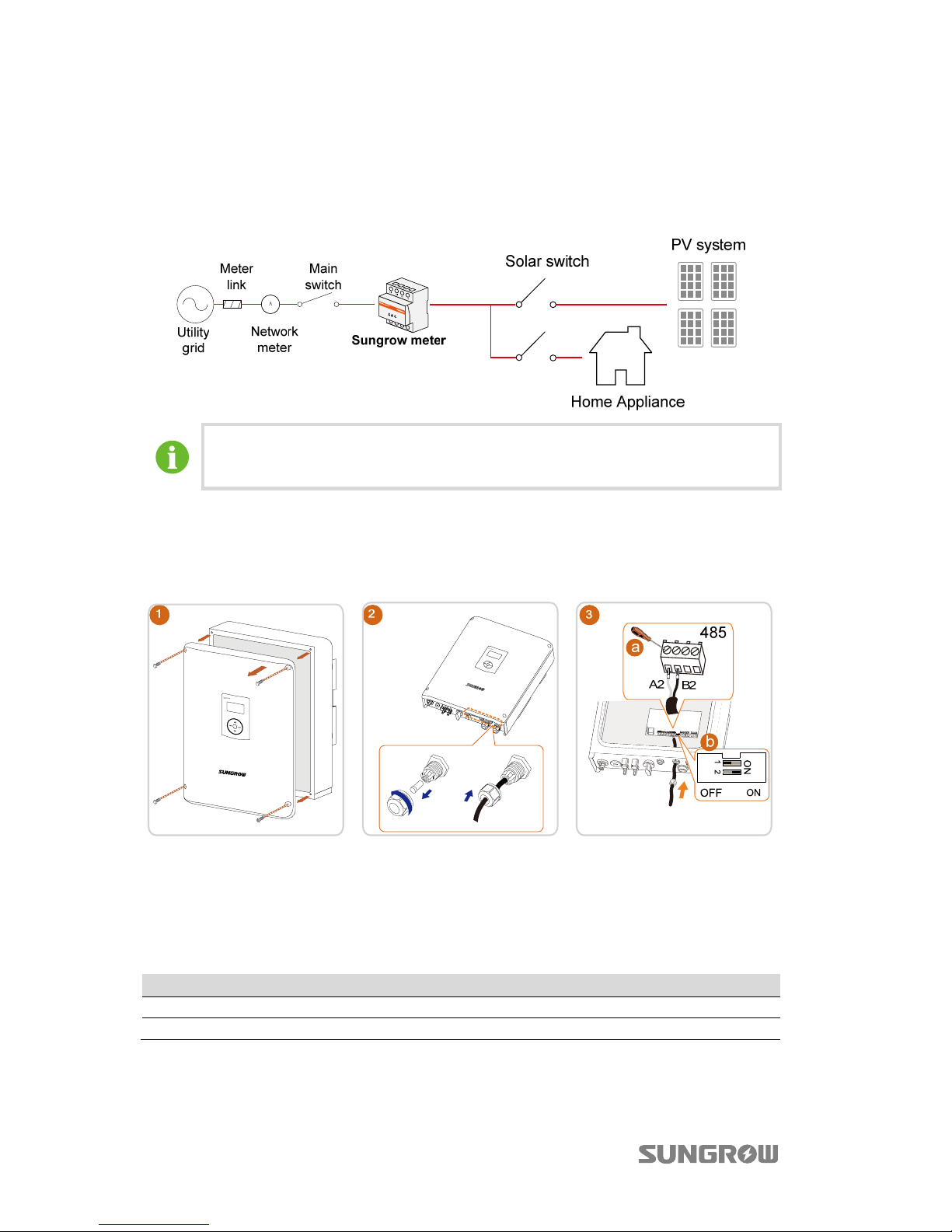

2.2 Meter Connection

The Sungrow meter should be connected to the distribution board of household
loads behind the main switch.

For details about the cable connections on the Sungrow meter side, see
the Quick Installation Guide for it.

Proceed as follows to connect the RS485 wires to the inverter.

When the length of RS485 cable is longer than 100 m, push the 120ohM (2) switch
to “ON” to ensure stable communication

2.3 Grid Connection

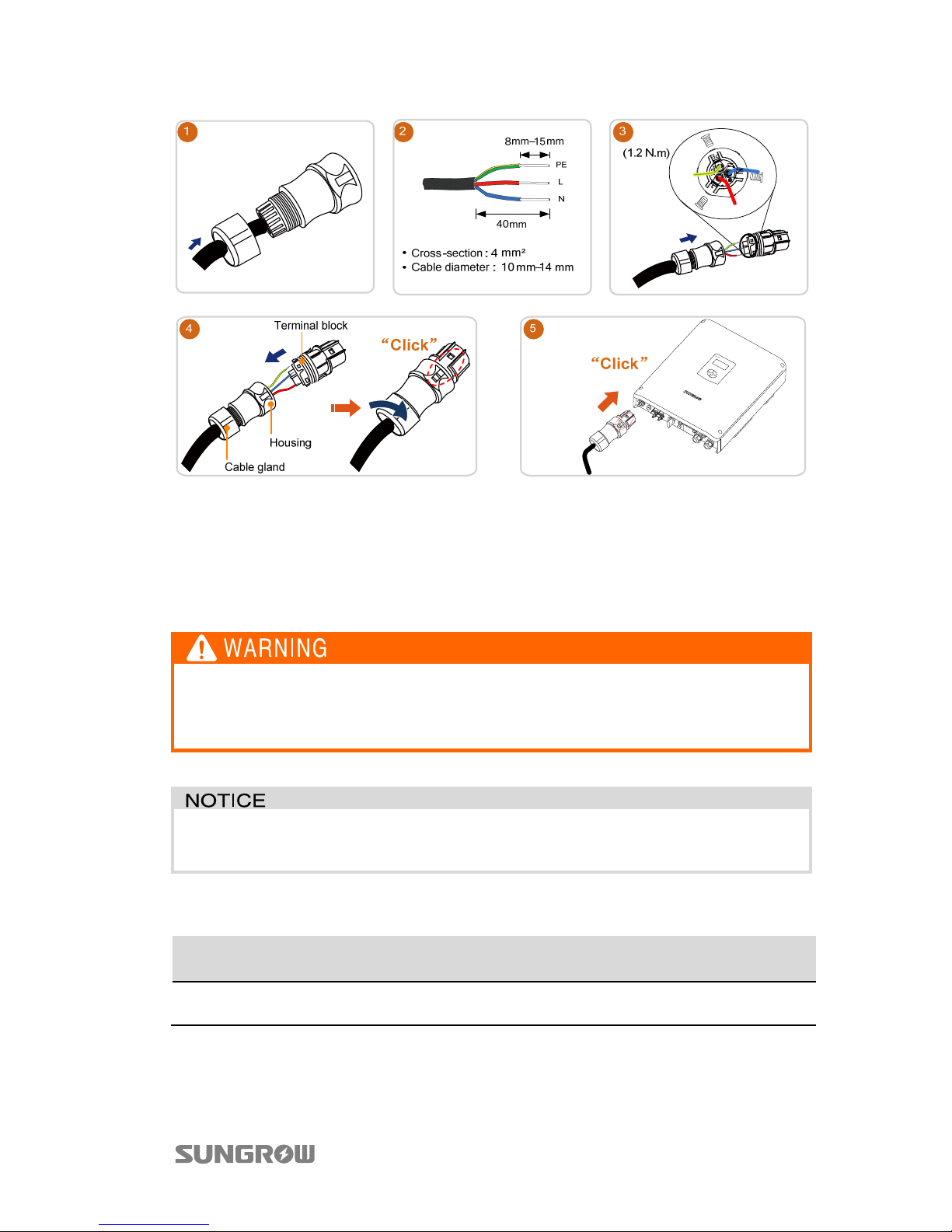

Install an AC circuit breaker next to the AC output of the inverter.

Inverter Type Specification for AC Circuit Breaker

SH3K6 20 A
SH4K6 32 A

Make sure to disconnect the AC circuit breaker and secure it against reconnection
before cable connection.

Quick User Manual 2 Electrical Connection

7

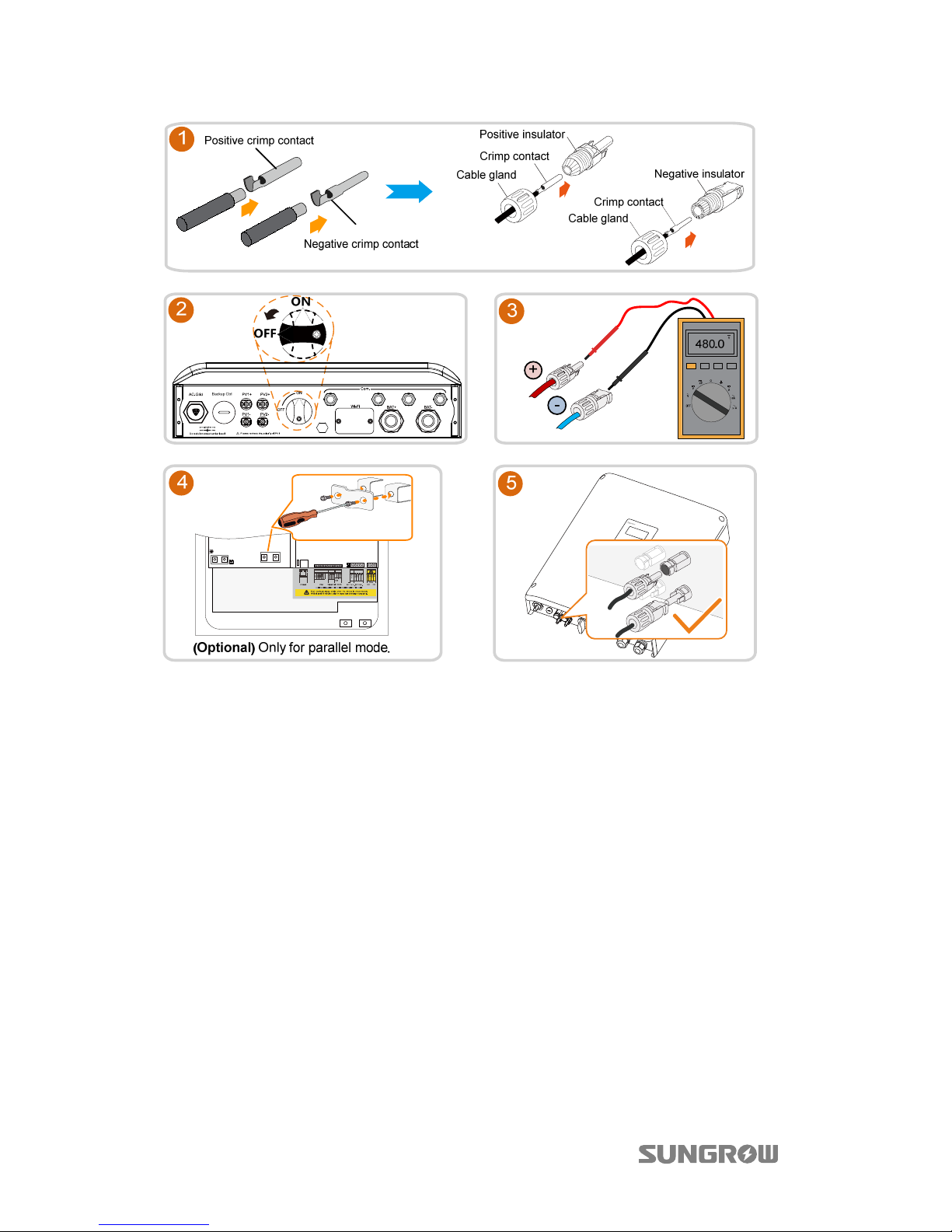

2.4 PV Connection

The inverter has two PV inputs and can be configured in independent mode or
parallel mode. Refer to the user manual for mode selection.

Before connecting the PV arrays to the inverter, ensure that the impedances
between the positive terminals of the PV string and Earth, and between the
negative terminal of the PV string and Earth are larger than 200 kOhm.

The inverter will not function properly if the DC polarities are reversed.

Check the positive and negative polarities of the PV cells.

Cable Requirements

Cross-Section

Cable
Diameter

Max. Withstand
Voltage

Max. Withstand
Current

4 mm2–6 mm

2

AWG12–AWG10

3 mm–6 mm 600 V

Same as short-circuit
current



Strip the insulation from the cables by 7 mm–8 mm.



Tighten the cable gland with torque of 2.5 Nm–3.0 Nm.

2 Electrical Connection Quick User Manual

8

2.5 Communication Connection

2.5.1 Ethernet Connection

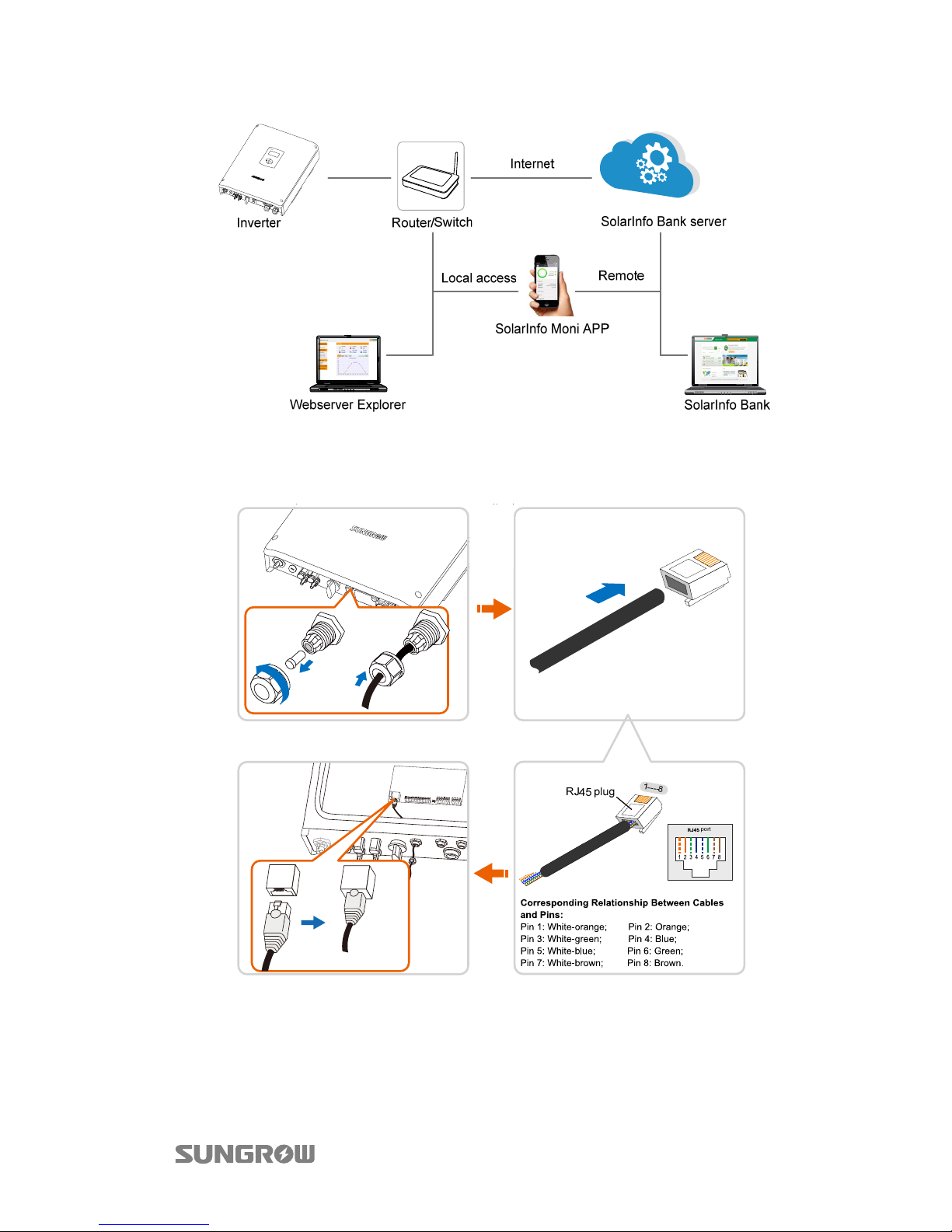

Connect the inverter to the PC through the Ethernet port to set up the Ethernet
communication. The Ethernet connection with a router is shown in the following
figure.

Quick User Manual 2 Electrical Connection

9

Use a TIA/EIA 568B standard network cable with a diameter of 3 mm–5.3 mm.
Remove the cable jacket by 8 mm–15 mm, and use the Ethernet crimper to crimp
the cable.

Refer to “4 SolarInfo Moni App Configuration” to use SolarInfo Moin App to view
the inverter information.

2 Electrical Connection Quick User Manual

10

2.5.2 Wi-Fi Connection

1. Unscrew the waterproof lid from the Wi-Fi terminal.

2. Install the Wi-Fi module. Slightly shake it by hand to determine whether it is
installed firmly.

3. Refer to the Quick User Manual delivered with the Wi-Fi module to
configure the Wi-Fi.

2.6 Battery Connection

For the connections on the battery side, see the manuals supplied by the
battery manufacturer.

2.6.1 Connecting the Power Cable

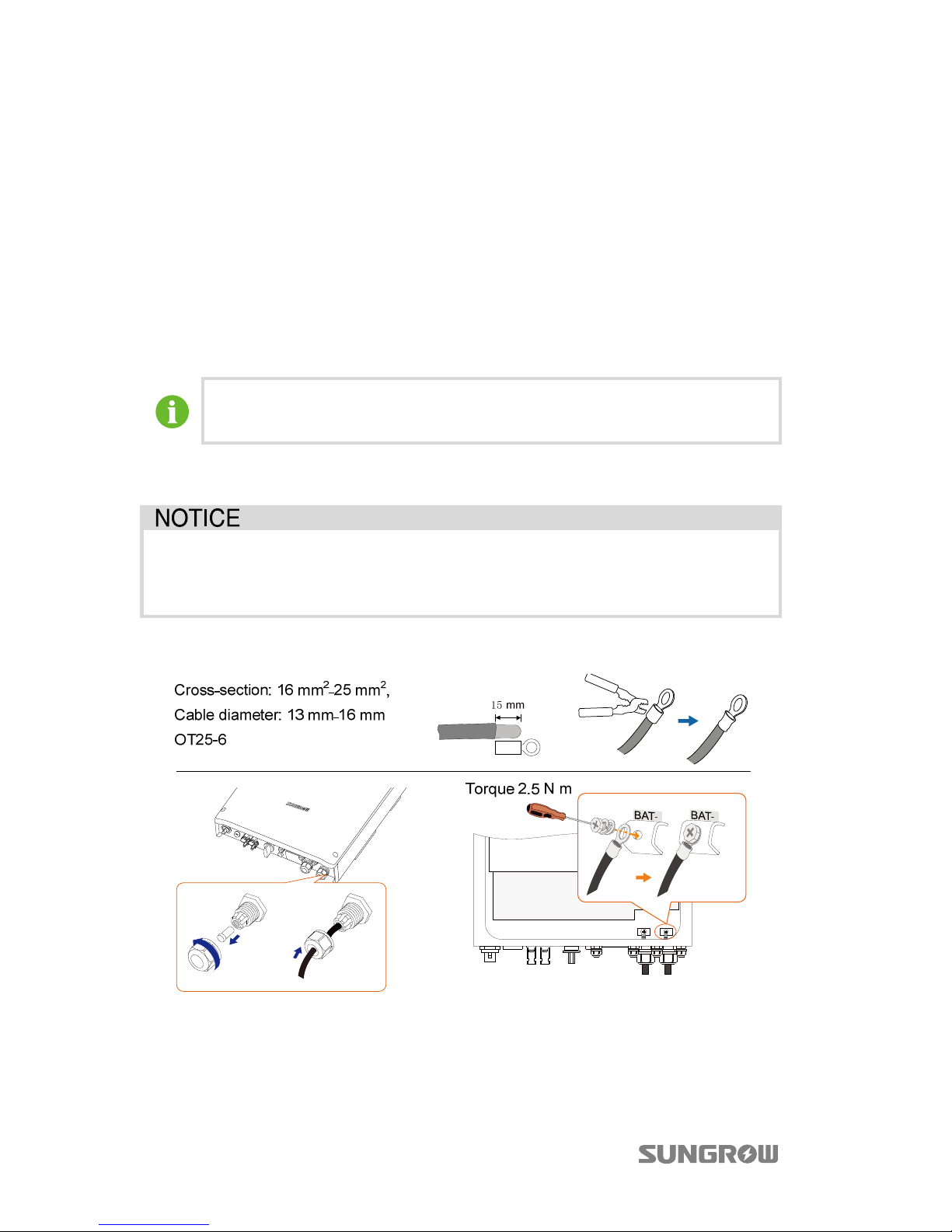

A two-pole DC circuit breaker with over-current protection (specification:
100 V DC / 100 A DC) should be installed between the inverter and the
battery module.

Be sure to adhere to the following screw assembly sequence: screw head, spring
washer, fender washer, OT terminal.

Quick User Manual 2 Electrical Connection

11

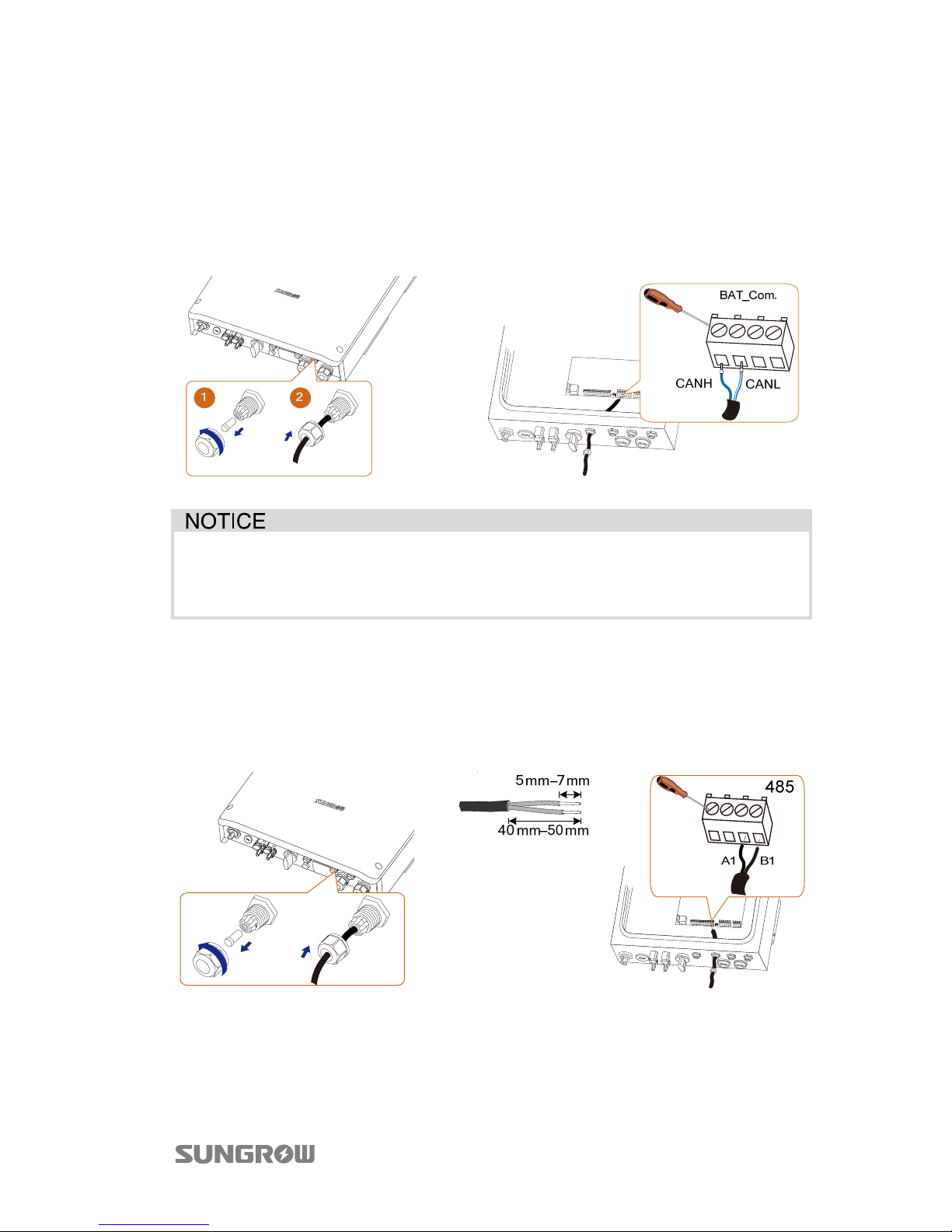

2.6.2 Connecting the CAN Cable

The CAN cable enables communication between the inverter and the Li-ion battery
from LG, GCL, Pylon (US2000B), BlueSun, BYD or Sungrow.

Take out the CAN cable from the packaging. Lead the cable through the cable gland
and tighten the wires to the corresponding terminals.

For GCL/BlueSun/BYD battery, please cut through the green (pin 6) and
white-green (pin 3) wires from the CANH and CANL terminals to set up
successful communication.

2.6.3 Connecting the RS485 Cable

The RS485 cable enables communication between the inverter and the Pylon Li-ion
battery US2000A.

Cross-section: 2*0.5 mm², cable diameter: 3 mm–5.3 mm

2 Electrical Connection Quick User Manual

12

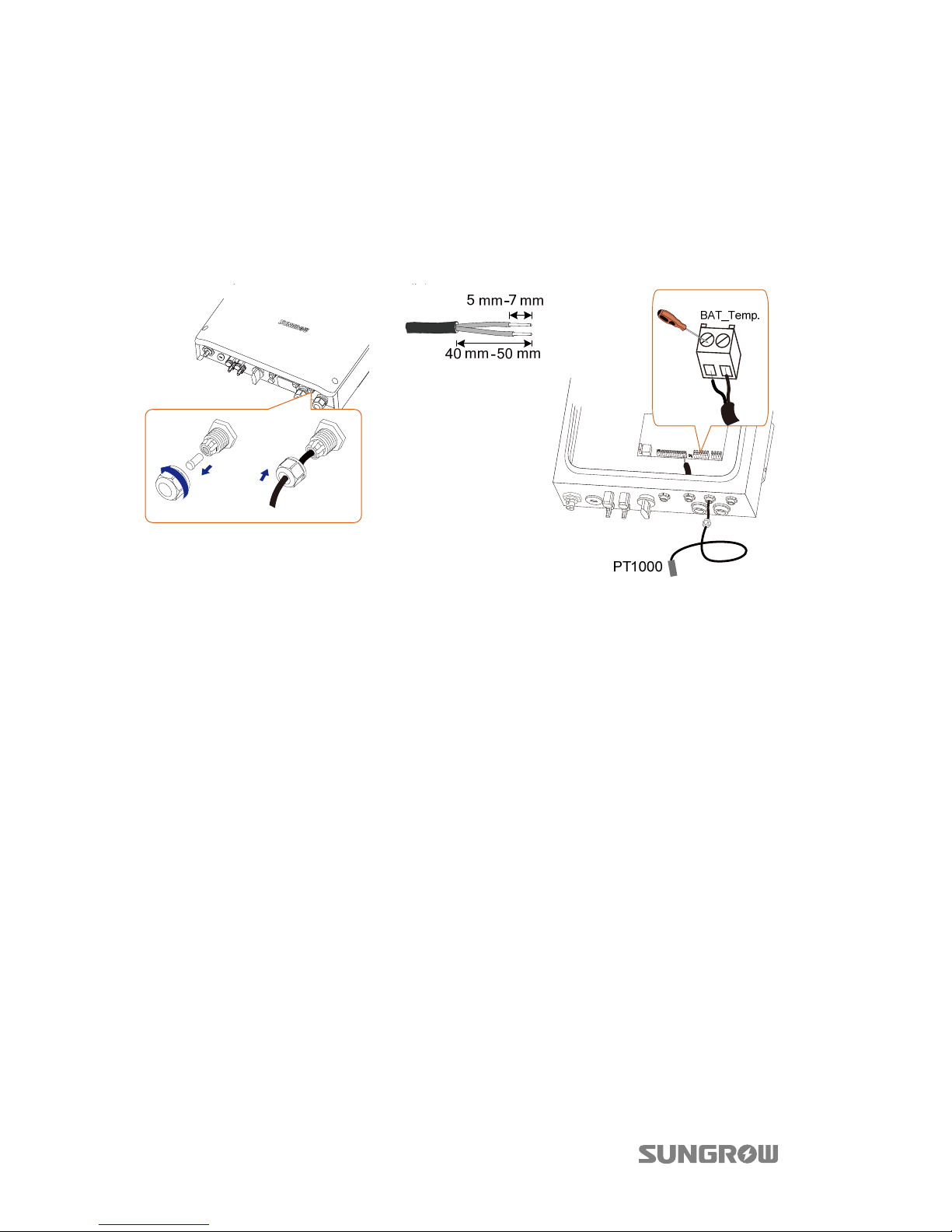

2.6.4 Connecting the Temperature Sensor

It is recommended that the PT1000 is connected to the inverter to sample the
temperature of the lead-acid battery or the external environment of the battery.

The temperature sensor is located next to the lead-acid battery.

Cross-section: 1.0 mm², cable diameter: 3 mm–5.3 mm

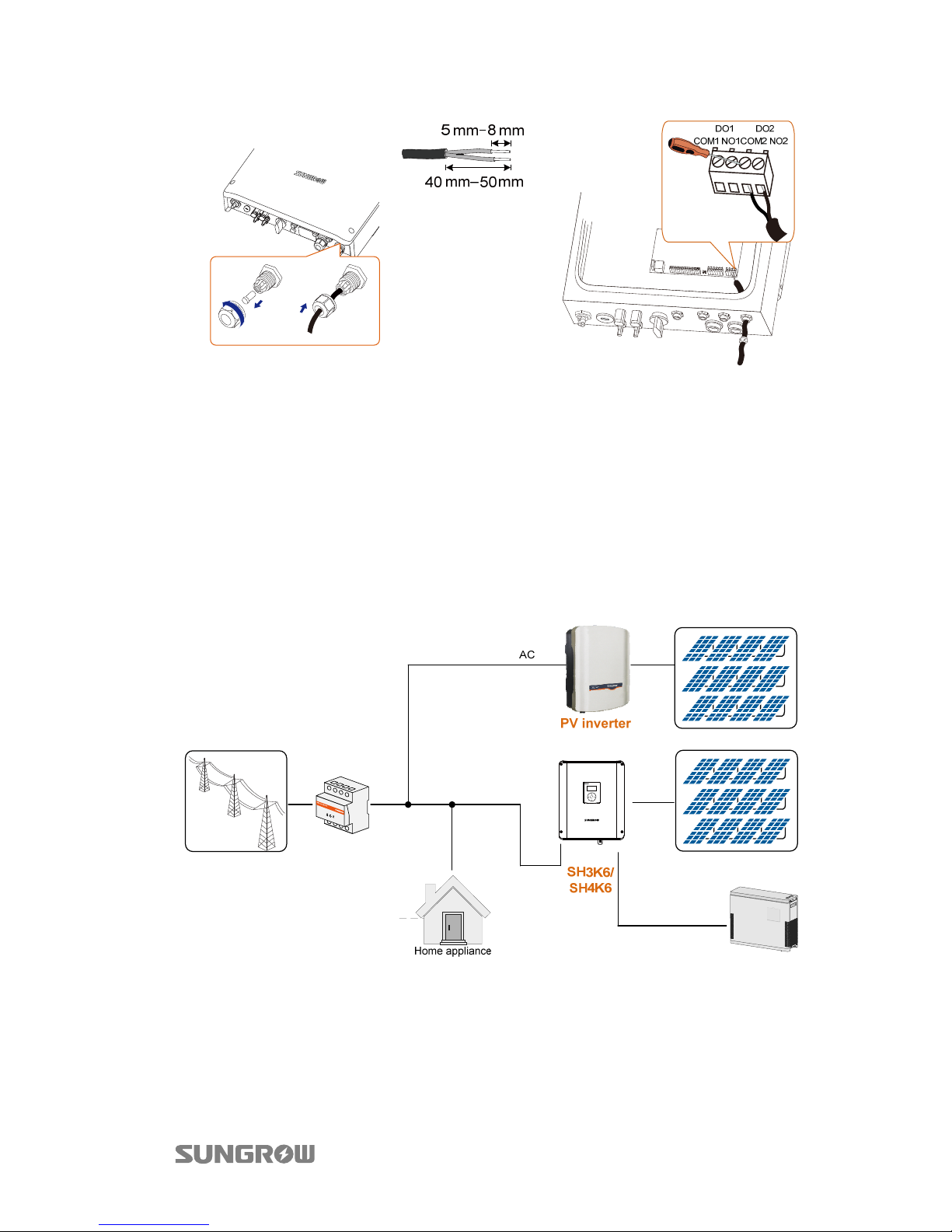

2.7 DO Connection

The inverter has two DO relays with different functions as follows:



DO1: Consumer load control. Please choose the appropriate contactor according
to the load power, e.g., the contactor types of the 3TF30 series from SIEMENS
(3TF30 01-0X). The relay is activated once the conditions of the control mode are
satisfied.



DO2: Earth fault alarm. Once the inverter receives the earth fault signal, the relay
closes the contact. The relay remains triggered until the fault is removed.

Cross-section: 1.0 mm², cable diameter: 3 mm–5.3 mm

Quick User Manual 2 Electrical Connection

13

2.8 Retrofitting the Existing PV System

The hybrid inverter is compatible with any single-phase PV grid-connected inverters.
An existing PV system can be retrofitted to be a PV Energy Storage System with the
addition of SH3K6 / SH4K6.

The power generation from the existing PV inverter will be firstly provided to the
loads and then charge the battery. With the energy management function of the
hybrid inverter, the self-consumption of the new system will be greatly improved.

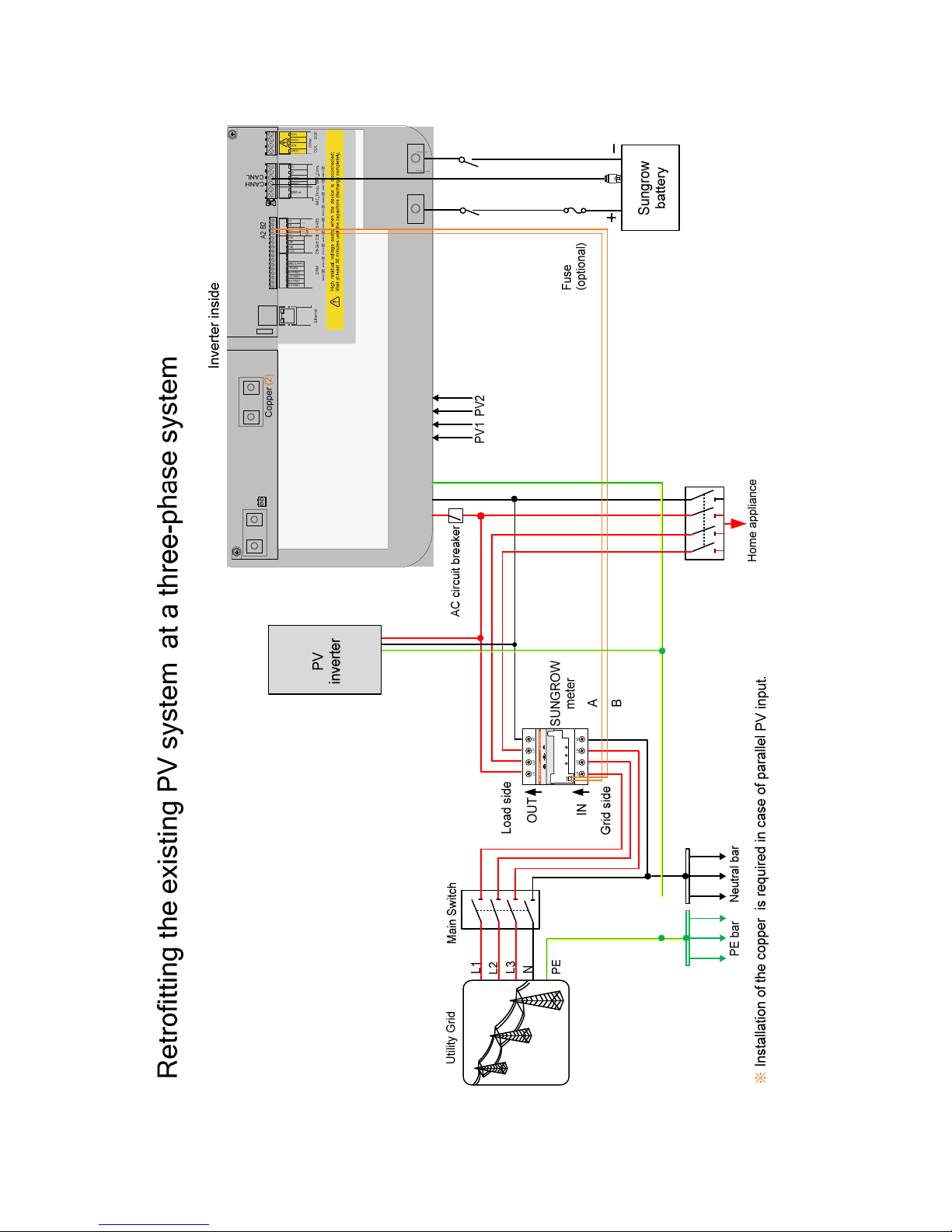

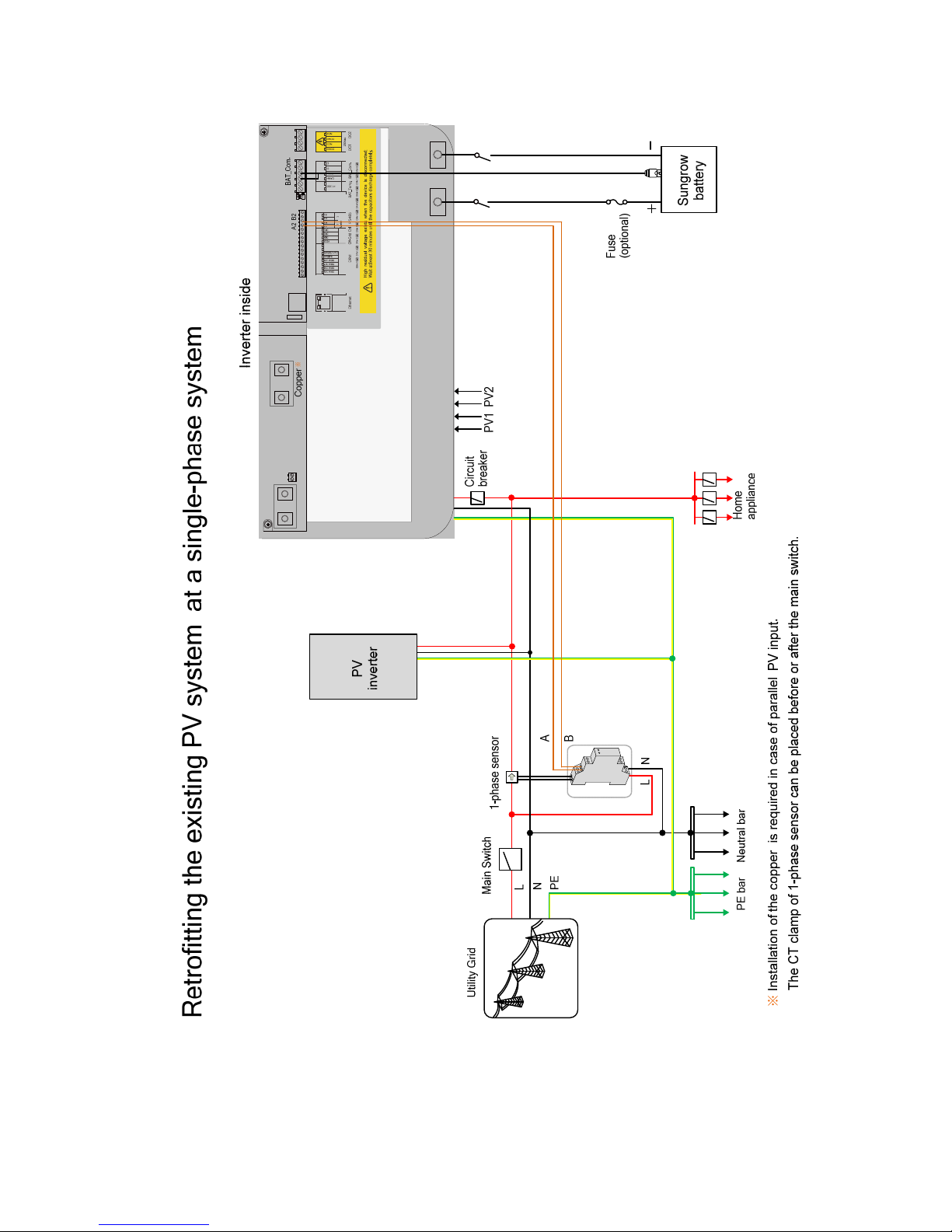

Fig. 2-2 Retrofitting the Existing PV System

* The existing PV inverter works as a load in the whole system but supply PV power
to the energy storage system, as the power flow shown on the main screen.

2 Electrical Connection Quick User Manual

14

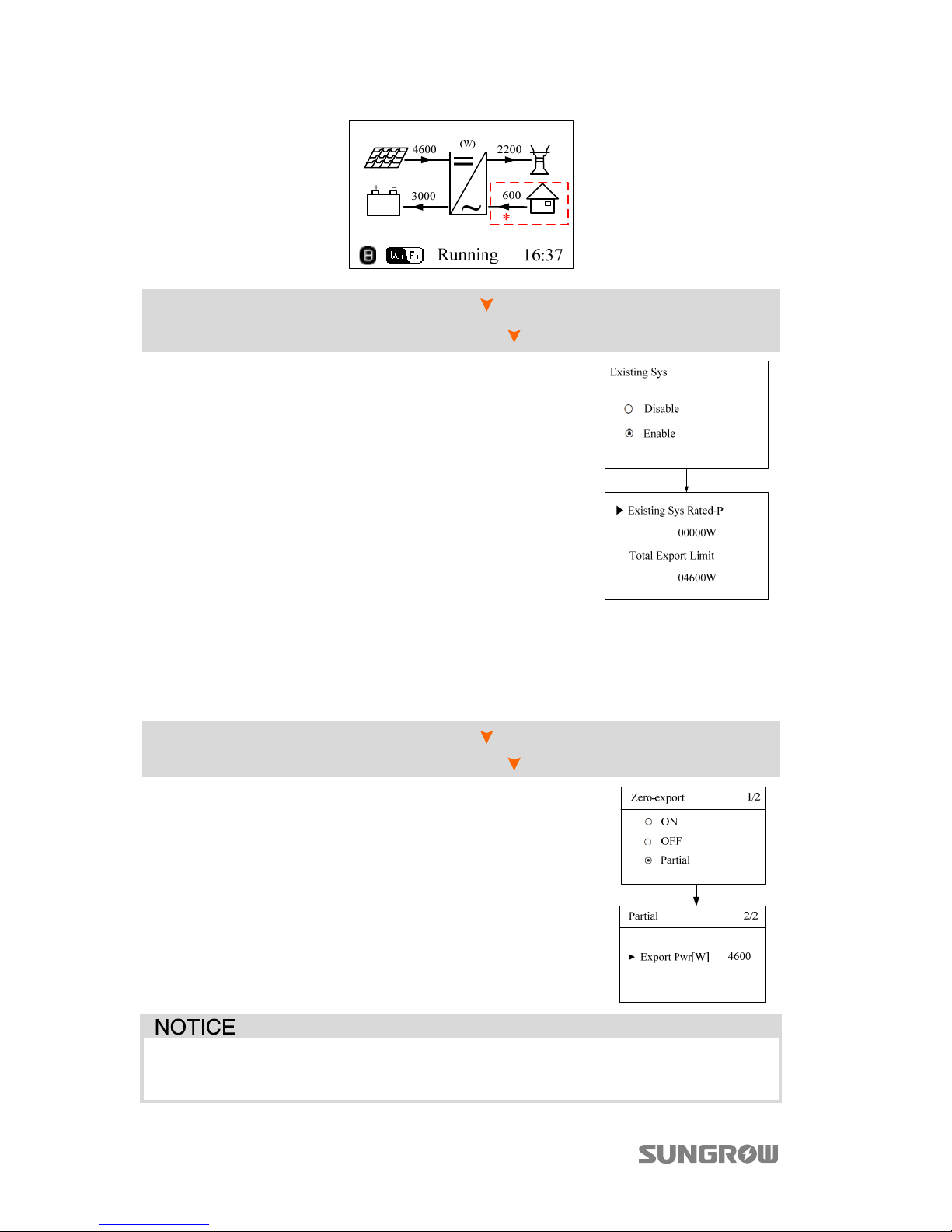

Main Screen (Press ENT)→Menu (Press ×2)→Settings (Press ENT)→Input

password 111 (Press ENT)→Settings (Press ×10)→Existing Sys (Press ENT)

Existing Sys Rated-P: the rated power of the existing PV

system.

Total Export Limit: the export power limit of the new
system



The lower limit is the rated power of the existing PV
system.



The upper limit is ([rated power of the hybrid
inverter] + [rated power of the existing PV system]).

For example, retrofit an existing PV system (rated power:
3000 W) with the hybrid inverter SH4K6 (rated power:
4600 W). The total export limit can be set from 3000 W to
7600 W.

T

he export power limit can also be set via the submenu of Zero-export. Proceed

as follows to perform the settings.

Main Screen (Press ENT)→Menu (Press ×2)→Settings (Press ENT)→Input

password 111 (Press ENT)→Settings (Press ×2)→Zero-export (Press ENT)

According to the local regulations in Germany, please set
the export power to 70 % of the installation capacity.

For example, with a total maximum installation capacity of
4600 W (SH4K6), the export power should be set to 3220 W
(i.e. 4600 * 70 %).

The settings in the two submenus are from the same source. If one is
changed, the other will synchronize the value.

Quick User Manual 2 Electrical Connection

15

2.9 Connecting to Interface Device for SPI (Italy)

The inverter has integrated the interface protection system (SPI) to provide the
following functions:



Maximum/minimum frequency protection;



Ability to receive signals aimed at changing the frequency protection thresholds
and to receive the command of remote shutdown.

NO. Interface SPI Function

1 Ethernet

Remote control. Receive external signal/command to change
the frequency protection parameters or shutdown the
inverter. See “

2.5.1 Ethernet Connection

“ for the cable

connection.

2

RefGen,
Com/DRM0

Local control. Shortly connecting the two terminals will
change the frequency protection parameters.

3 A1, B1

Receive external command to shutdown the inverter remotely.
See “

2.6.3 Connecting the RS485 Cable

” for the cable

connection.

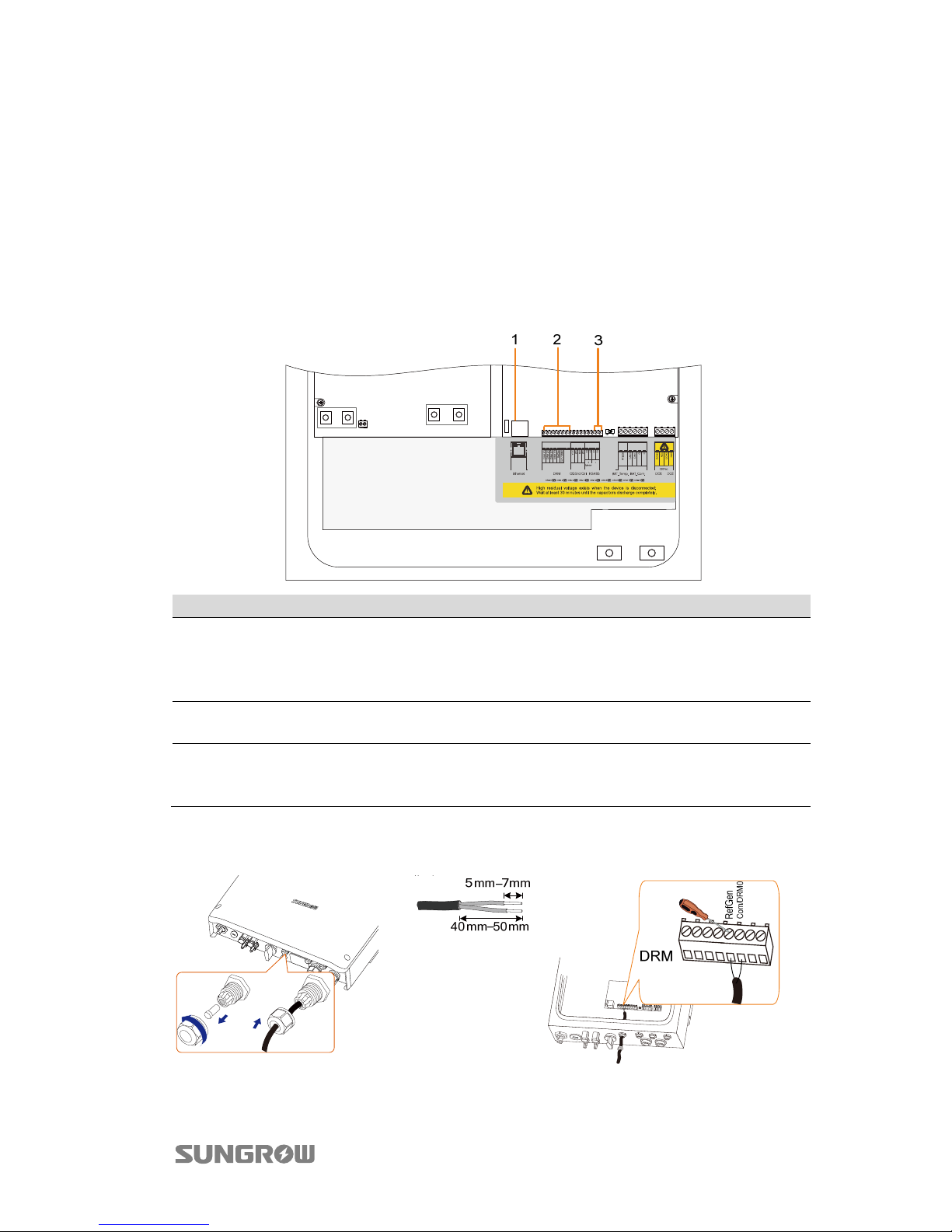

The following figure shows the cable connection to external interface device.

Cross-section: 2*0.5 mm², cable diameter: 3 mm–5.3 mm

16

3 Commissioning

3.1 Button Function

The inverter offers four buttons for operation. Please refer to the following table
before any operation of the inverter.

Tab. 3-1 Button Function

Button Description

For navigating up or increasing the setting value.
For navigating down or decreasing the setting value.

ESC

For navigating to the left, quitting the menu or canceling the settings.

ENT

For navigating to the right or confirming a selection or settings.

Fig. 3-1 Button Operations

Quick User Manual 3 Commissioning

17

3.2 Commissioning Procedure

Before starting the inverter, make sure all the installation and connections are
completed and verified. Proceed as follows to start the inverter for the first time.

1. Connect the AC circuit breaker.

2. Connect the DC circuit breaker between the inverter and the battery pack.

3. (Optional) Power on the battery pack manually if a battery is equipped.

4. Rotate the DC switch to “ON”. The DC switch may be integrated in the inverter
or installed by the customer.

5. The LCD screen will be activated 5s later and enter the initial settings.

6. Refer to Fig. 3-1 for button operations and complete all initial settings
according to the procedure in Fig. 3-2.

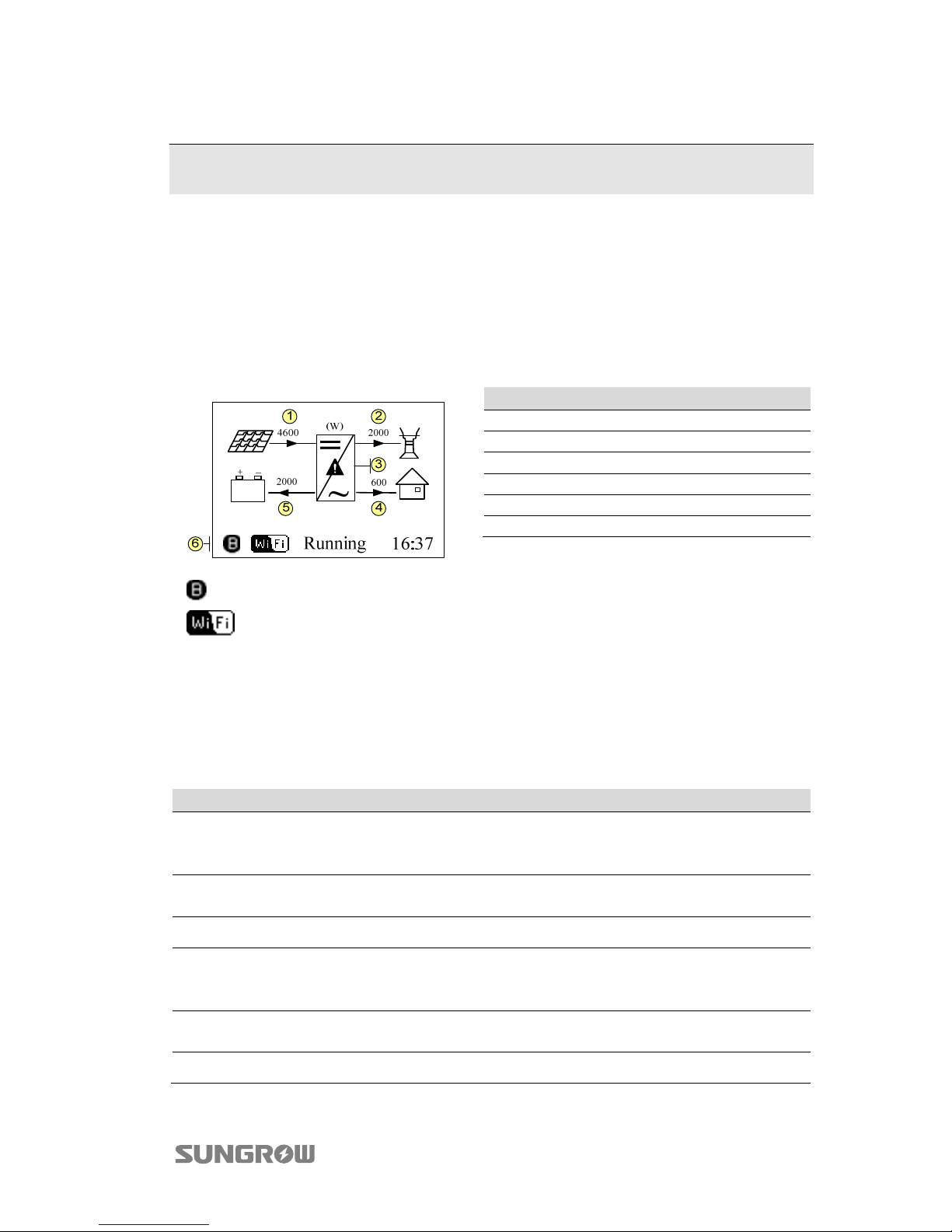

7. Check the icons on the main screen. Refer to Tab.

5-1 for the explanations.

8. Check the state of the indicator.

Tab. 3-2 State Descriptions of the Indicator

Colour State Description

Green

On The inverter is running normally.
Blinking The inverter is in the process of starting.

Off

Other states except Running and Startup.
(Refer to Tab. 5-1 for state descriptions.)

Red

On Permanent fault or upgrade failure.
Blinking Other system faults or main alarms.
Off No fault occurs.

9. Visit www.solarinfobank.com or SolarInfo Moni APP to view inverter
information. Get the related manuals at www.sungrowpower.com.

If the inverter commissioning fails, Press

to view the current errors. Remove the
existing malfunctions and then repeat starting up the inverter according to the
procedure detailed in this section.

3 Commissioning Quick User Manual

18

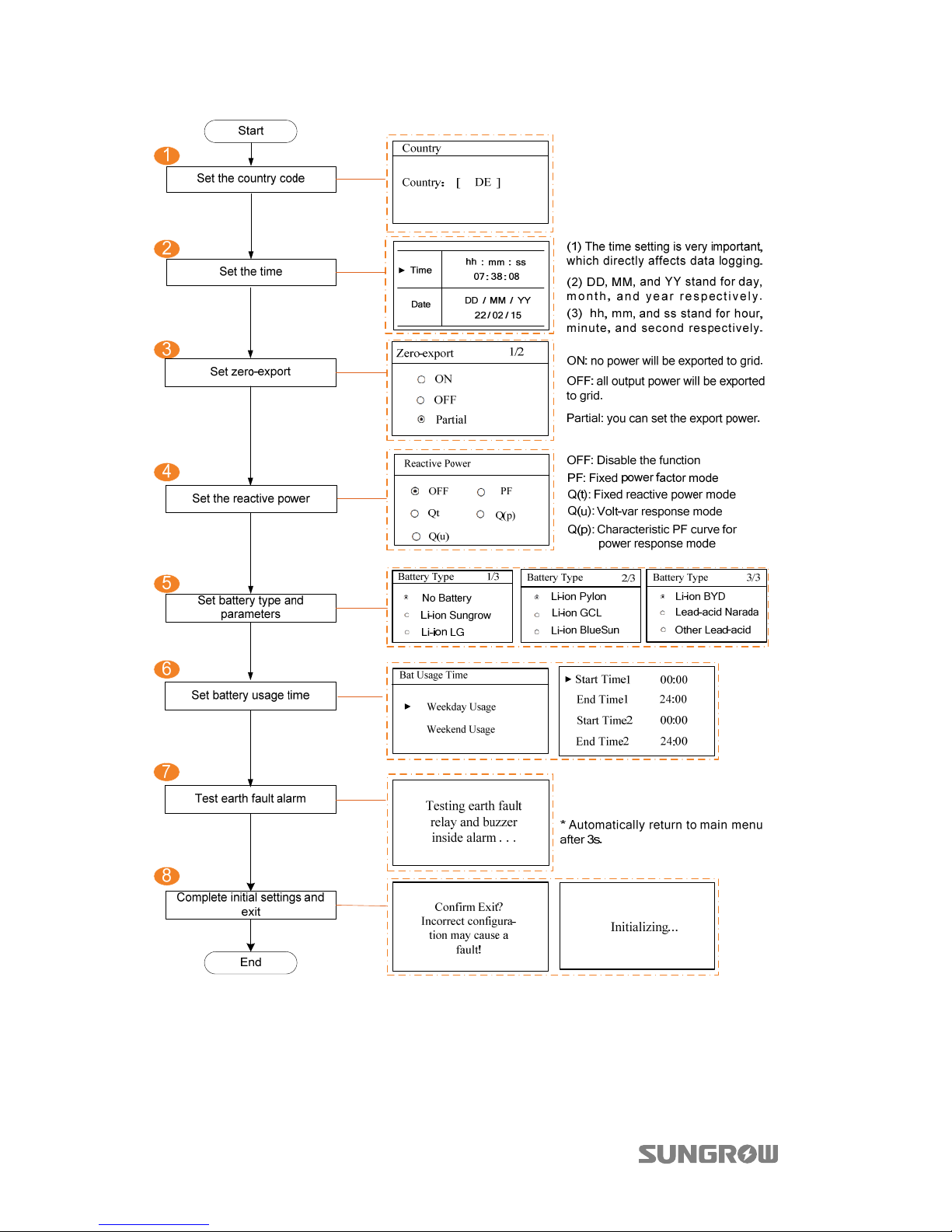

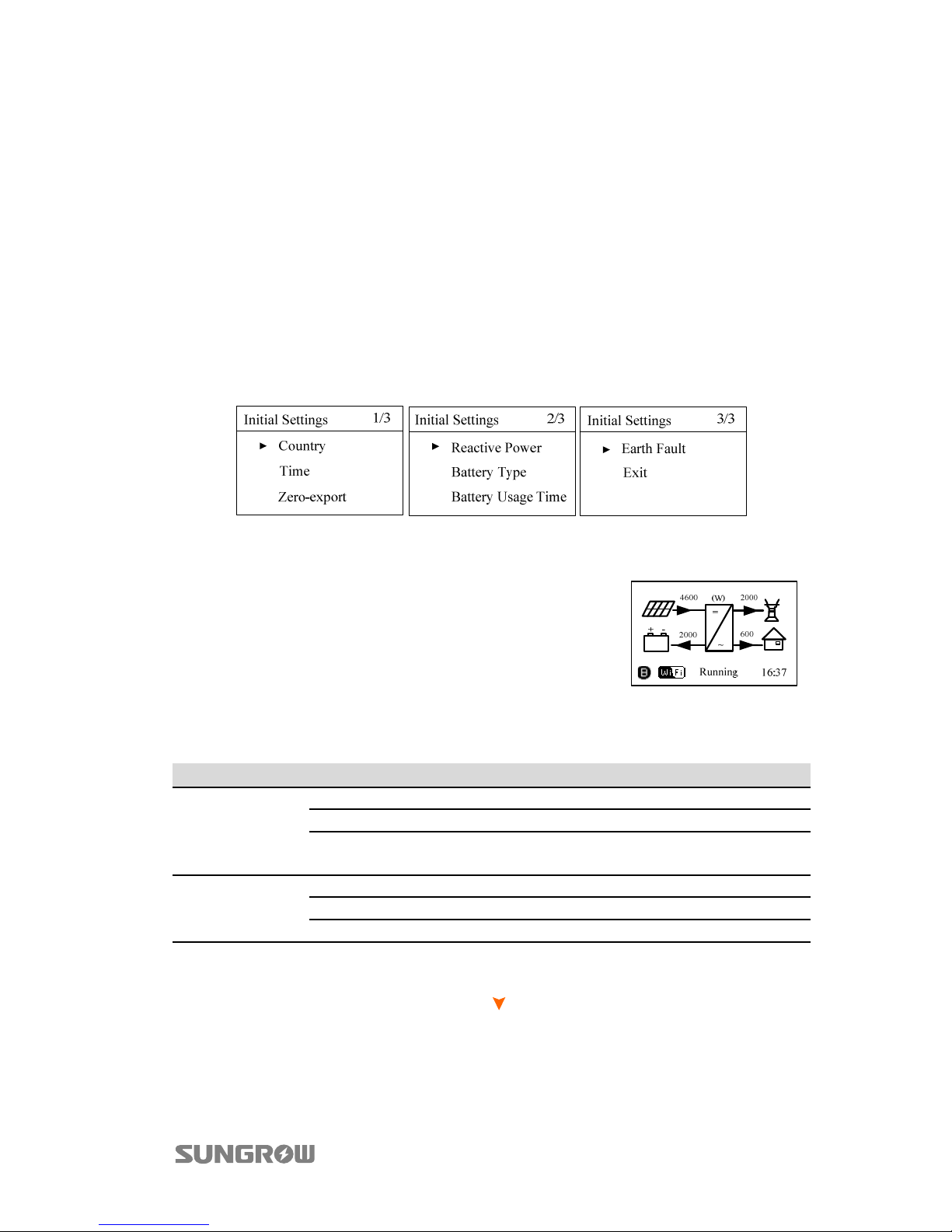

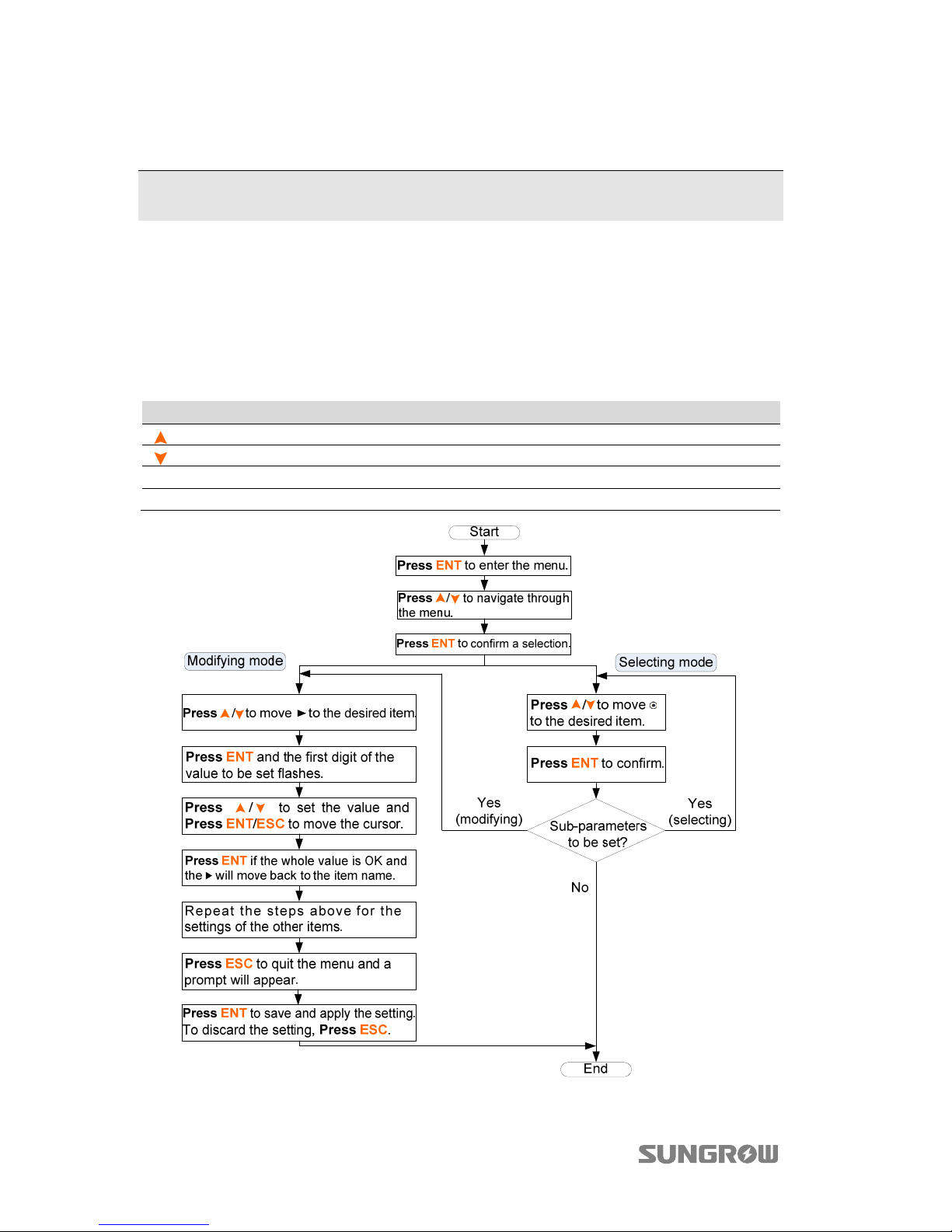

Fig. 3-2 Initial Settings

Quick User Manual 3 Commissioning

19



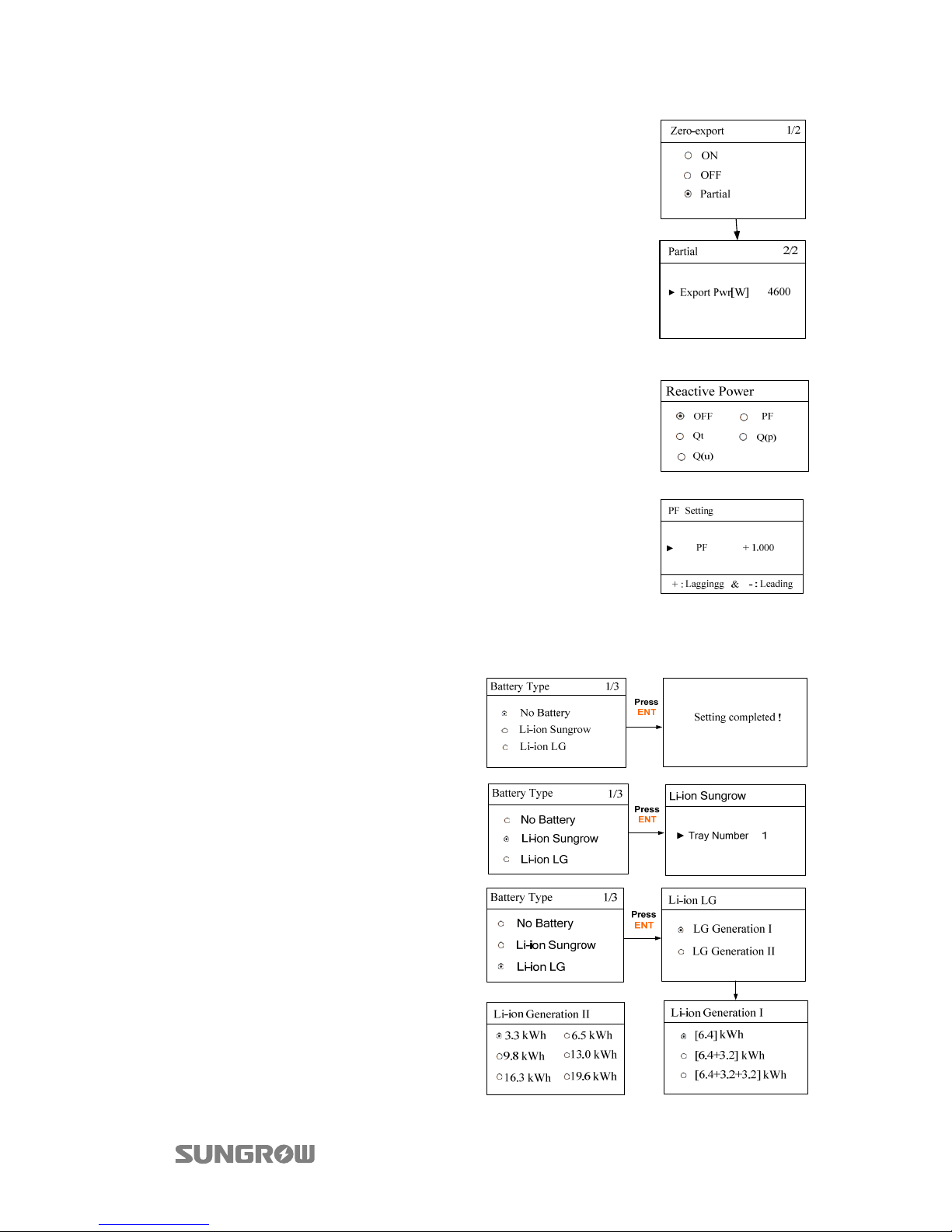

Zero-export (Partial):

According to the local regulations in Germany, please
set the export power to 70 % of the installation
capacity.

For example, with a total maximum installation
capacity of 4600 W (SH4K6), the export power should
be set to 3220 W (i.e. 4600 * 70 %).



Reactive power regulation:

OFF:
The reactive power regulation function is disabled.
The power factor (PF) is limited to +1.000.

“PF” mode:
The inverter is capable of operating with fixed power factor.
The PF ranges from 0.8 leading to 0.8 lagging.

Leading: the inverter is sourcing reactive power to the grid.
Lagging: the inverter is sinking reactive power from the grid.

For the explanations of other modes, see the User Manual in the CD.



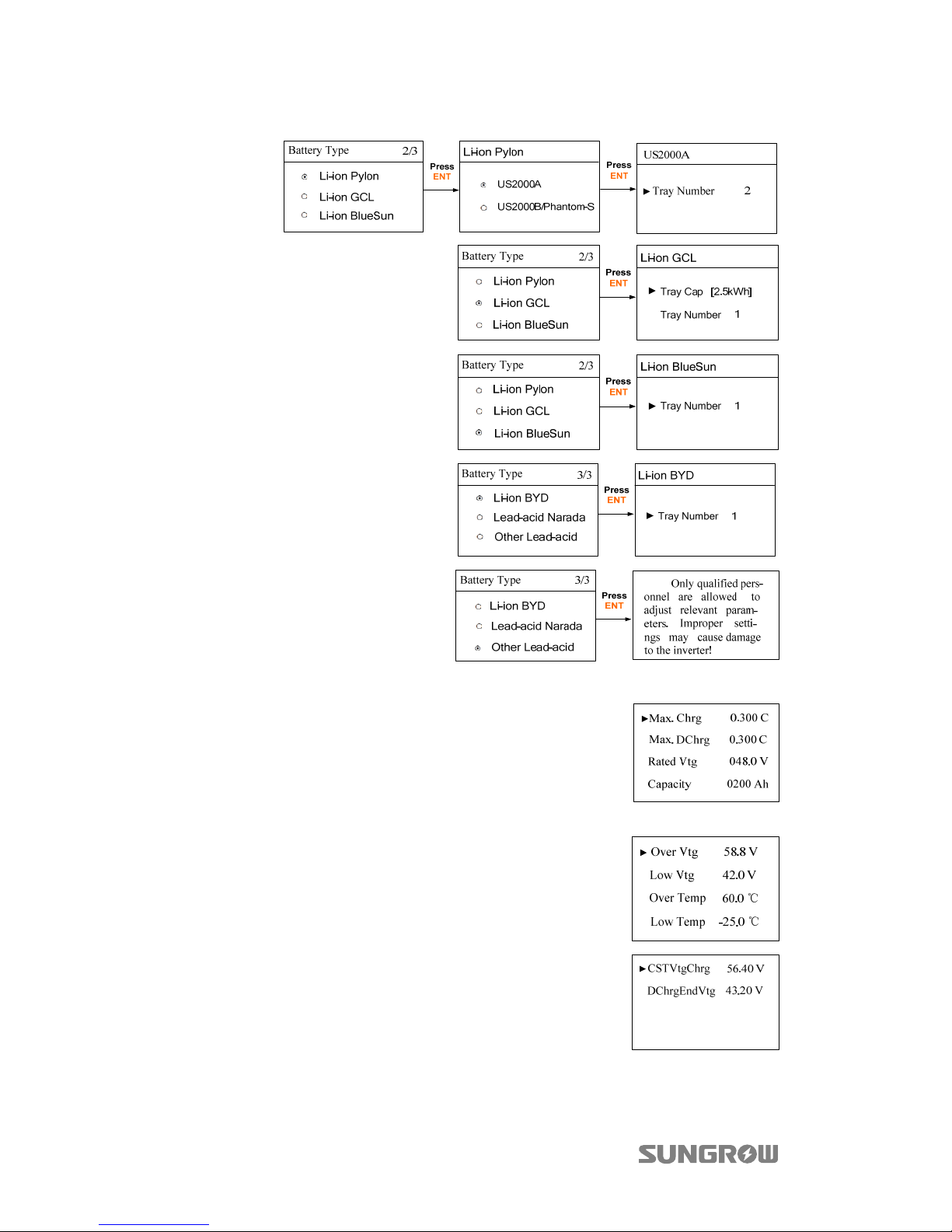

Battery parameters:

“No Battery” or “Lead-acid Narada”
option:

“Li-ion Sungrow” option:

“Li-ion LG” option:

Set the battery capacity.

3 Commissioning Quick User Manual

20

“Li-ion Pylon” option:

“Li-ion GCL” option:

“Li-ion BlueSun” option:

“Li-ion BYD” option:

“Other Lead-acid” option:

Max. Chrg / Max. DChrg:
Make sure that the charge or discharge current is not beyond
the upper limit (65 A) to protect the battery from overcharging
or deep discharging.
The unit C is the “capacity”. If the max charge or discharge is
set to more than 65 A (e.g. C = 600 Ah, 0.3 C = 180 A), then the
inverter will limit the charge and discharge current to 65 A.

If the battery voltage or temperature is beyond the allowable
range, the related error codes will be triggered and the
protection function will be activated to stop charging or
discharging.

DChrgEndVtg:
Stop discharging at a voltage not lower than DChrgEndVtg, so
as to protect the battery from deep discharging.
The DChrgEndVtg setting value should be higher than the
Low Vtg setting value.

Quick User Manual 3 Commissioning

21

Tab. 3-3 Description of Other Lead-acid Battery Parameter

Parameter Description Default Range

Max. Chrg

The upper limit of the
charging current

0.300C 0.05C to 2C

Max. DChrg

The upper limit of the
discharging current

0.300C 0.1C to 2C

Rate Vtg

The rated voltage of the
equipped battery

48.0 V 30 V to 60 V

Capacity Capacity of the battery tray 200 Ah 10 Ah to1000 Ah

Over Vtg

The upper limit of battery
voltage when charging

58.8 V 48 V to 70 V

Low Vtg

The lower limit of battery
voltage when discharging

42.0 V 26 V to 48 V

Over Temp

The upper limit of battery
temperature

60.0℃ 20℃ to 70℃

Low Temp

The lower limit of battery
temperature

-25.0℃ -30℃ to 10℃

CSTVtgChar

The voltage of
constant-voltage charging.

56.4 V 40 V to 63 V

DChrgEndVtg

The voltage at which the
discharging is stopped

43.20 V 30 V to 53 V



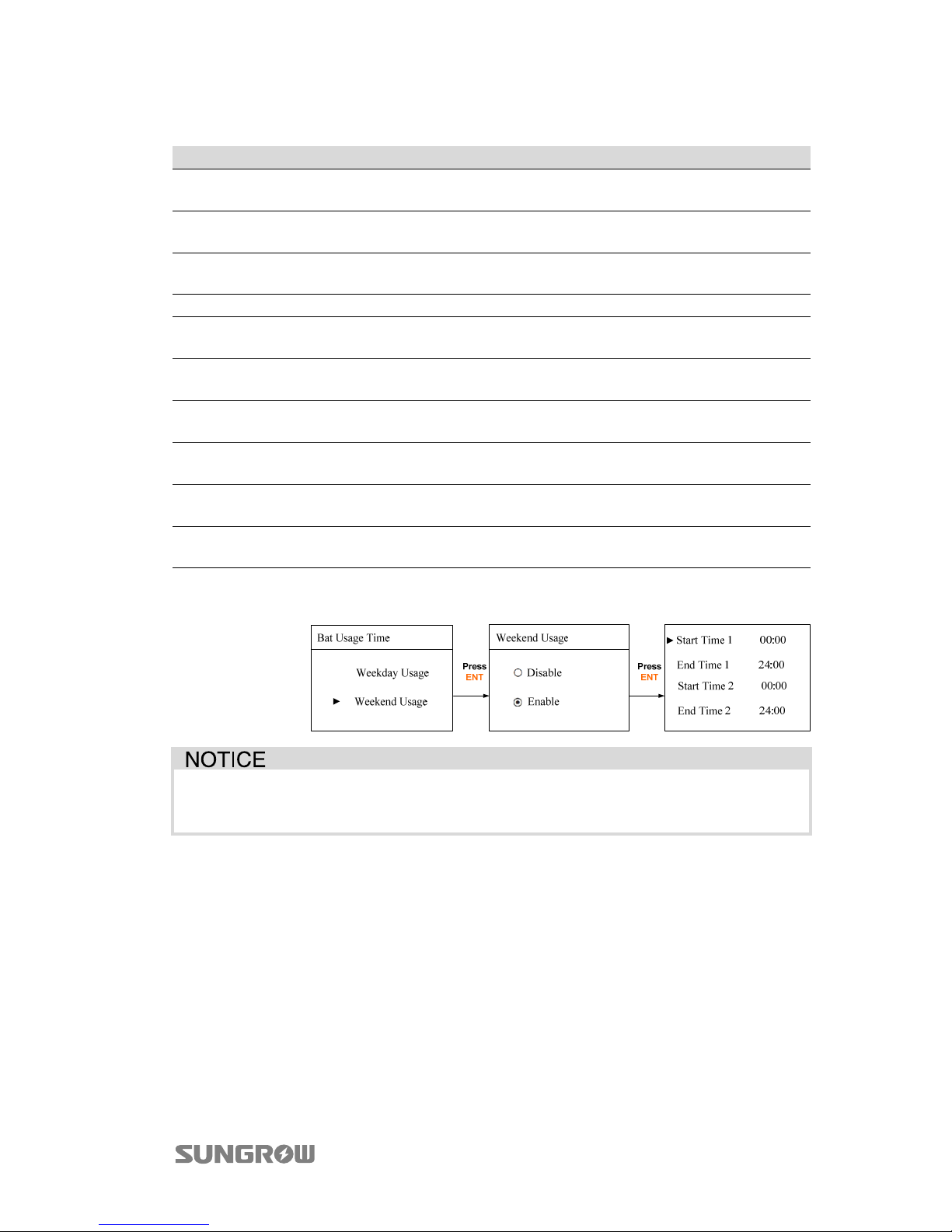

Battery usage enabled (Weekend):

In the case of commissioning failure, power off the system and wait 1
minute to commission the system again.

3.3 Result Verification

3.3.1 Meter Installation and Connection

For the single-phase meter, with the signal from the 1-phase sensor, the inverter
determines the energy exchange with the utility grid on one phase.

3 Commissioning Quick User Manual

22

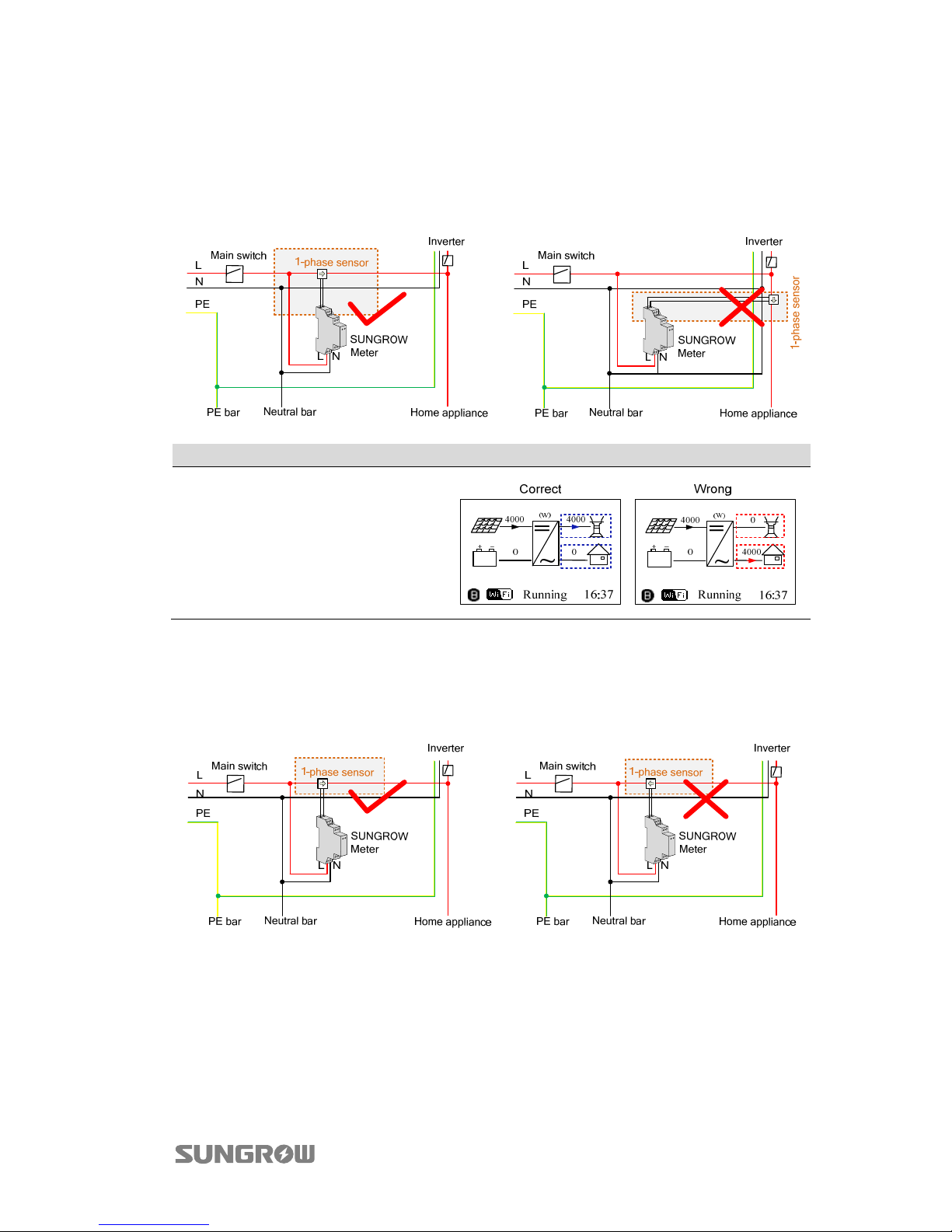

Fig. 3-3 Correct Installation and Connection of the Single-phase Meter

* The CT clamp of 1-phase sensor can be placed before or after the main switch.

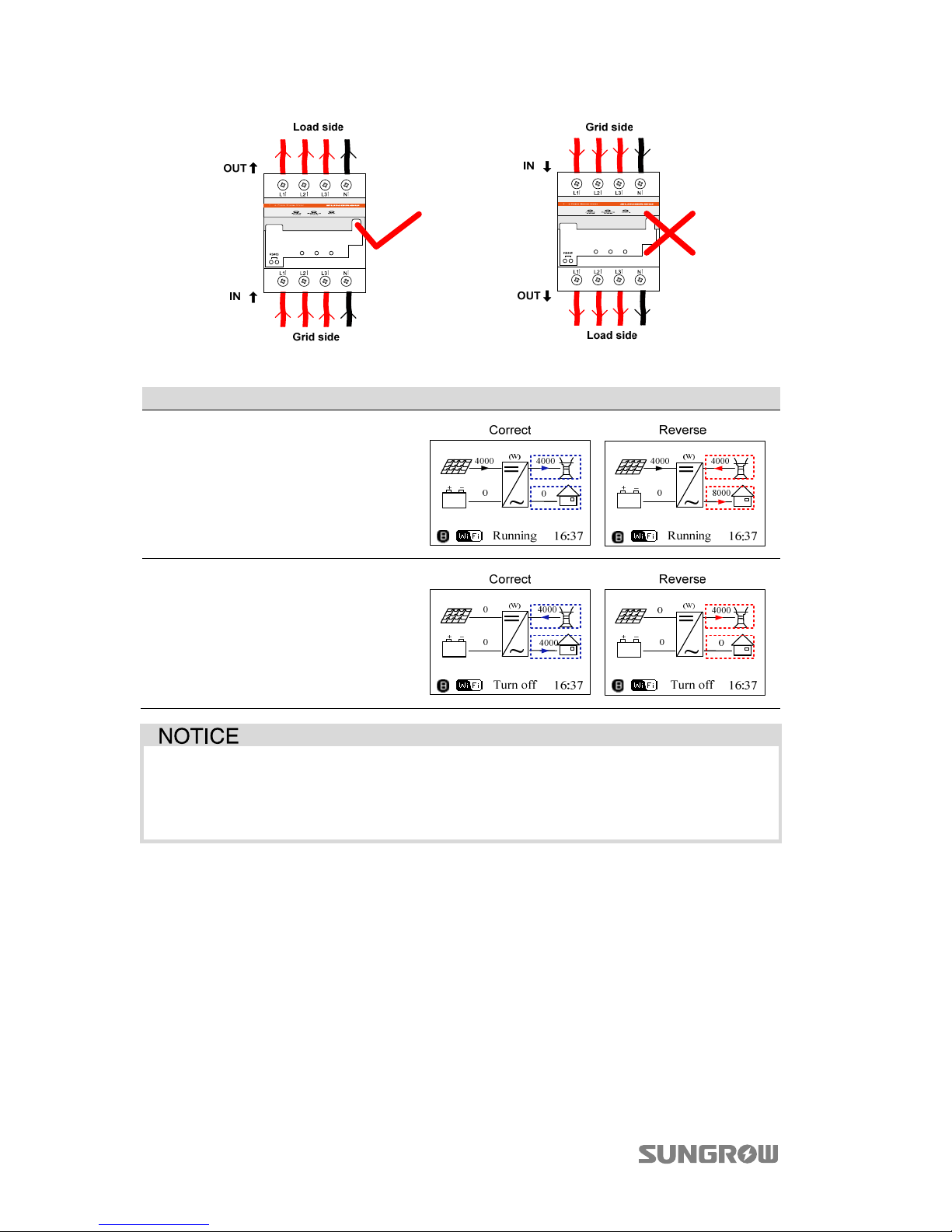

The following figure shows the correct installation and connection of the
three-phase meter.

Fig. 3-4 Correct Installation and Connection of the Three-phase Meter

Before the verification, disconnect the DC switch between the inverter and the
battery module.

Quick User Manual 3 Commissioning

23

For Incorrect Installation Position

Make sure that the 1-phase sensor of the SUNGROW meter should be placed to the
phase line (L) from the main switch. If otherwise, the energy flow indicated on the
LCD will be wrong.

Action LCD Display Explanation

Turn off all the household loads.
All the PV power generation
should be exported to the grid, as
shown in the “Correct” figure.

For Reverse Sensor Connection

Make sure that the arrow on the 1-phase sensor must point away from the grid
towards the load. If otherwise, the energy flow indicated on the LCD will be wrong.

Fig. 3-5 Correct CT Installation for Single-phase Meter

3 Commissioning Quick User Manual

24

Fig. 3-6 Correct Power cable connection for Three-phase Meter

Action LCD Display Explanation

Method 1:
Turn off all the household loads.
All the PV power generation
should be exported to the grid, as
shown in the “Correct” figure.

Method 2:
Stop the inverter via the LCD
menu and turn on the household
loads.
All the load power consumption
should be imported from the grid,
as shown in the “Correct” figure.

The reverse sensor connection will cause the communication fault 084.

To clear the fault 084, please turn off the DC sources and then restart the
system after reconnecting the sensor in correct direction.

3.3.2 Battery Information

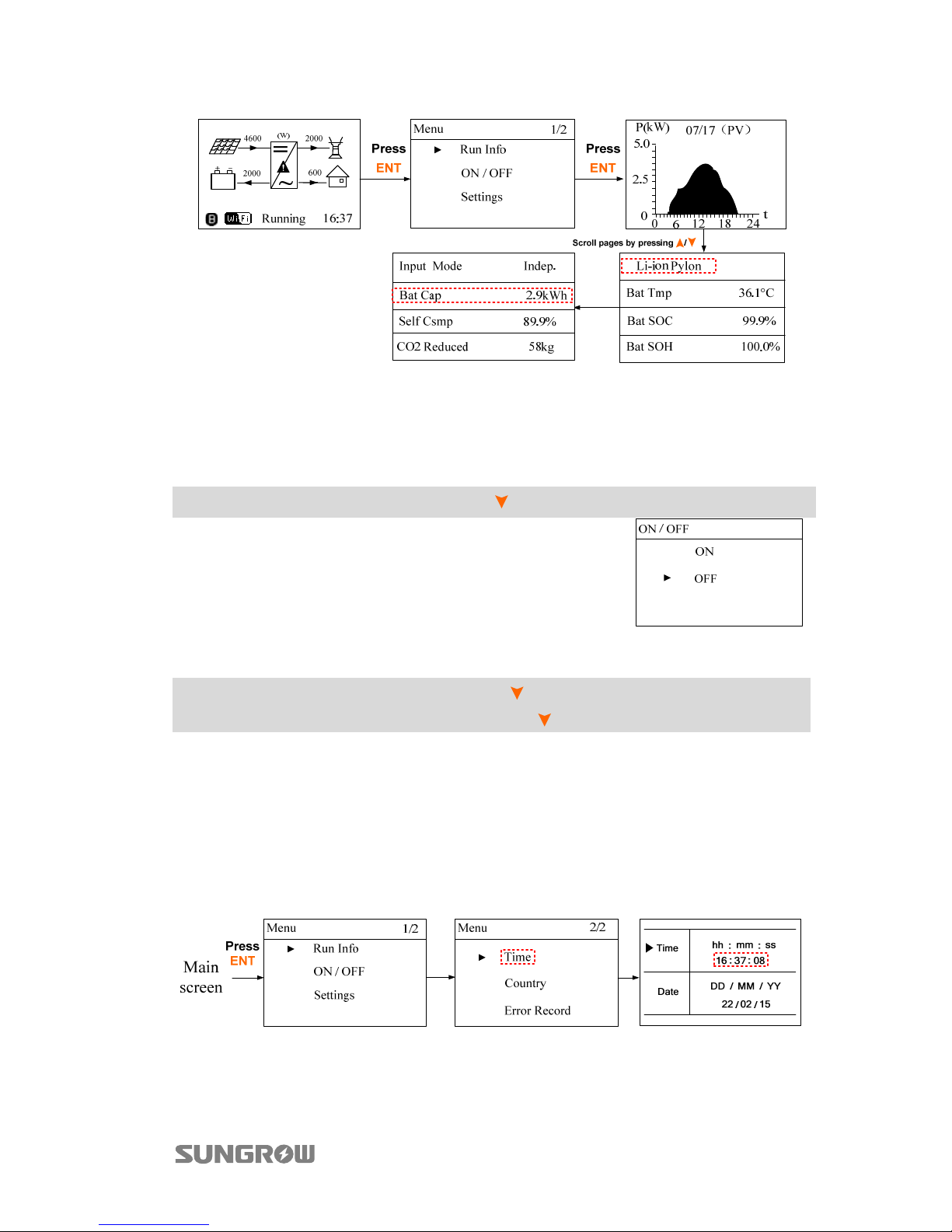

After initial settings, check the detailed battery information on the LCD display.

Quick User Manual 3 Commissioning

25

If the battery type or capacity setting is inconsistent with the actual, the
charge/discharge current may be less than the actual charge/discharge ability.
However, the system can operate normally. Proceed as follows to modify.

1. Stop the inverter via the LCD menu.

Main Screen (Press ENT)→Menu (Press ×1)→ON / OFF (Press ENT)

Confirm your choice by pressing ENT.

2. Reset the battery type and parameters. Proceed as follows to enter the

submenu.

Main Screen (Press ENT)→Menu (Press ×2)→Settings (Press ENT)→Input

password 111 (Press ENT)→Settings (Press ×8)→Battery Type (Press ENT)

3. Start the inverter via the LCD menu.

3.3.3 System Time

The correct system time is very important. If there is deviation between the system
time and the local time, the inverter will not operate normally. The clock is in
24-hour format. Proceed as follows to set the correct time.

26

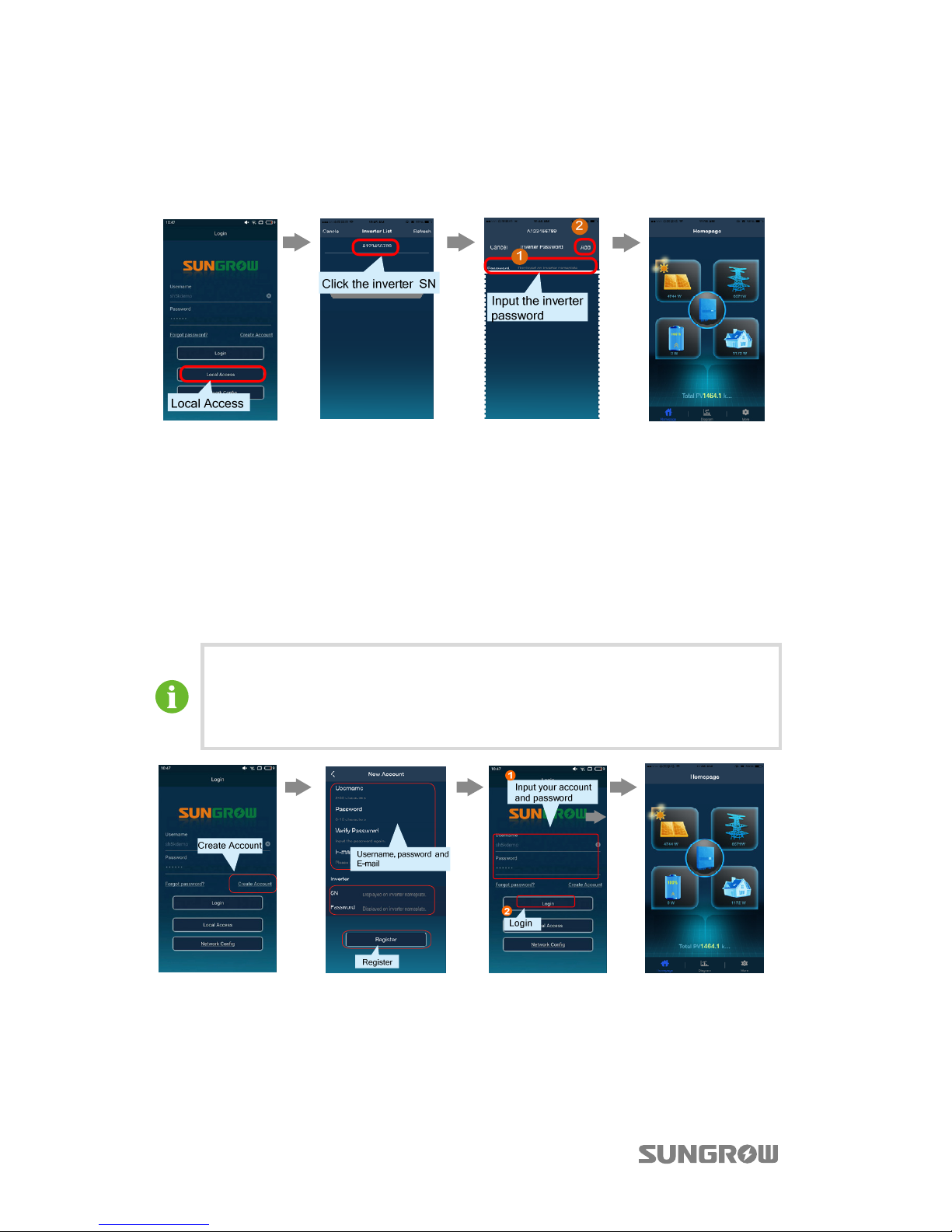

4 SolarInfo Moni App Configuration

If the inverter has been connected to the home router with an Ethernet cable, the
user can view inverter information via the SolarInfo Moni App.

4.1 App Operation Requirements

Item Android System iOS System

System version Android 4.0 or above iOS 7.1 or above

System resolution

1280*720, 1920*1080,
800*480, 2560*1440,
960*540

960*640, 1136*640,
1334*750, 1920*1080

System memory 512 MB

Normal Net speed Higher than 40 kB/s
Distance between phone and

WiFi module (for local access)

Less than 150 m and no obstacles

4.2 Installing the App

Download the SolarInfo Moni App and install it into your smart phone. You can
select the App version for iOS or Android.

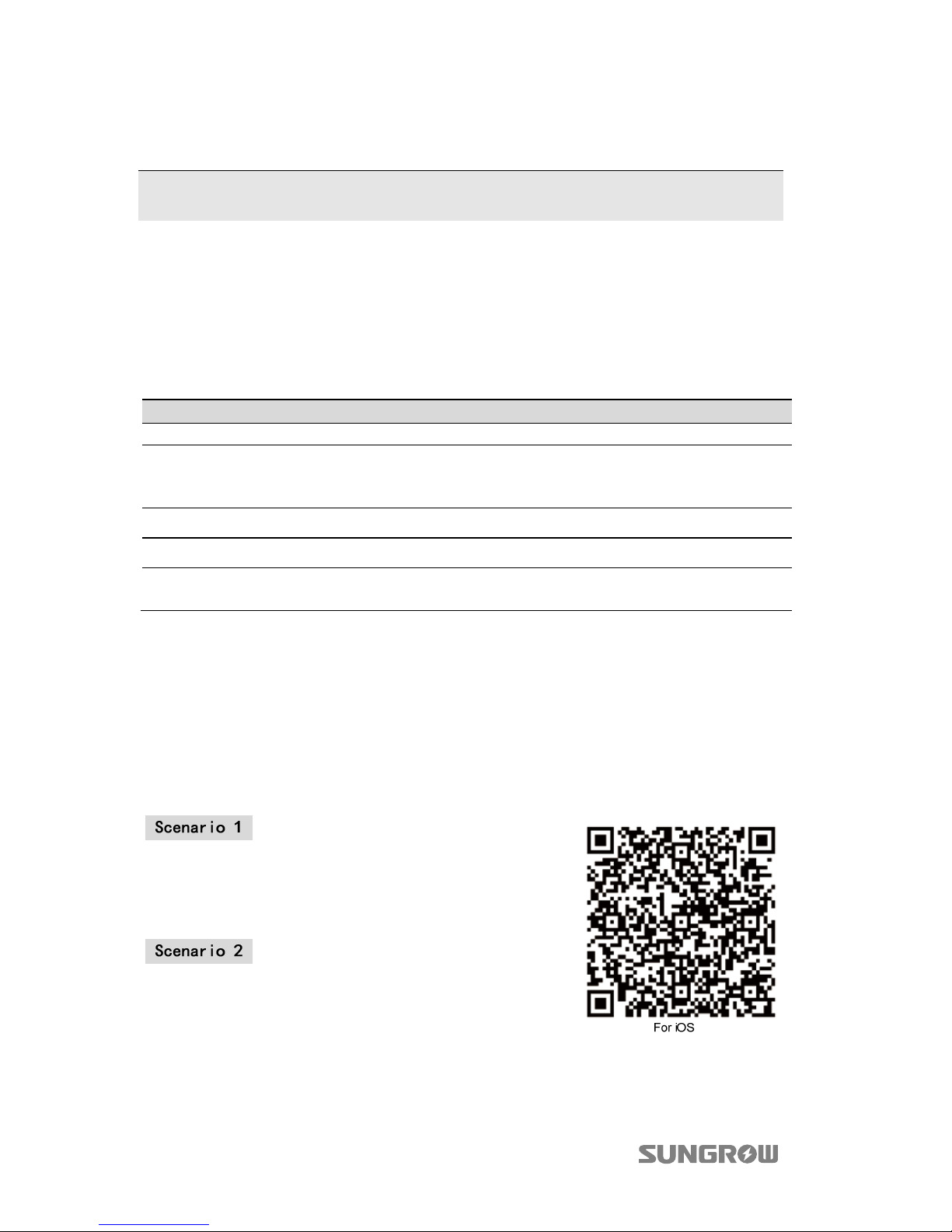

For iOS

Download SolarInfo Moni App at
https://itunes.apple.com/us/app/solarinfo-moni
/id1048873556?l=zh&ls=1&mt=8.

Use your smart phone to scan the QR code to
download and install the App.

Quick User Manual 4 SolarInfo Moni App Configuration

27

Search for SolarInfo Moni in your App Store to download and install it.

For Android

Download SolarInfo Moni APP at

http://www.solarinfobank.com/app/list. Choose

the SolarInfo Moni App for Android.

Use the scanning function of the Play Store or
Explorer in your smart phone to scan the QR
code to download and install the App.

4.3 Visiting in “Local Access” Mode

Do not name your router started with "SG-". Otherwise you cannot find it.
The SN and password are displayed on the inverter nameplate.

Proceed as follows to use the SolarInfo Moni APP in "[Local Access]" mode.

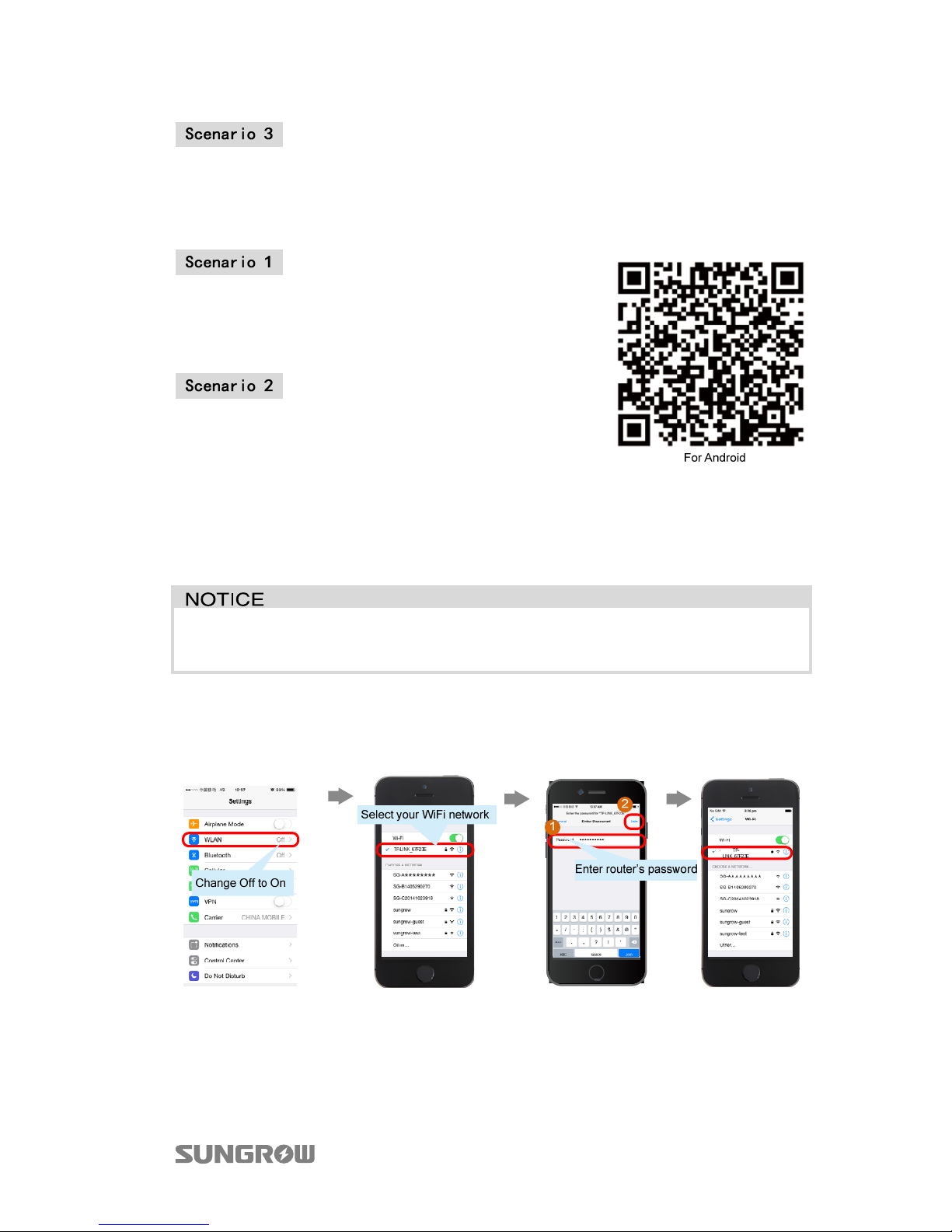

1. Enable the Wi-Fi function of your smart phone and connect it to the home

router.

4 SolarInfo Moni App Configuration Quick User Manual

28

2. Visit the App in “Local Access” mode, select you inverter SN and input the
password, then you can view the inverter information.

4.4 Visiting in "[Login]" Mode

Connect the inverter to your home router and complete the App registration. Then
you can visit SolarInfo Moni App in "[Login]" mode and view the information
wherever you happen to carry the smart phone. To perform the operations in this
section, be sure that your smart phone can access the Internet.



T

he e-mail address will be used to receive relevant mails, so it must be

valid.

 The username will be needed when you find the forgotten password. If

you forget the username, re-register.

29

5 Operation

Refer to Tab. 3-1 Button Function for the operation instructions.

5.1 Main Screen

If the inverter succeeds in commissioning, the LCD screen will enter the main screen.

No. Description

1 Current PV input power
2 Current export power
3 Warning information
4 Total load consumption
5 Battery charge/discharge power
6 System status bar

: The inverter and the SolarInfo Bank server are successfully connected.

: Blinks if the Wi-Fi is not connected to the router’s Wi-Fi network;

Steady if the Wi-Fi is successfully connected to the router’s Wi-Fi network.

Running: The inverter is in its normal running state.
16:37: Current system time.

Neither the grid power nor the load power will be displayed on the main screen in case
of no SUNGROW meter installed.

Tab. 5-1 State Descriptions

State Description

Running

After being energized, the inverter tracks the PV arrays’ maximum
power point (MPP) and runs with the combination of the energy
management system. This mode is the normal mode.

Maintain

The system is running normally, with the battery in maintenance
process. (Only for lead-acid battery)

Forced The system is running normally, with the EMS in forced mode.

Standby

The inverter waits for sufficient sunlight or battery level, then the
DC voltage recovers. Refer to Chapter 11 in the user manual for
standby time setting.

Turn off

The inverter will stop running by manual “OFF” through the LCD
menu. Set to “ON” if you want to restart the inverter.

Startup The inverter is initializing and synchronizing with the grid.

5 Operation Quick User Manual

30

State Description

Upgrade The DSP or LCD software is in its upgrading process.

Error

If an error occurs, the inverter will automatically stop operation,
trigger the AC relay and show “Error” on the LCD with the
indicator lit red.

Upd-fail The master DSP program online upgrade failure.

If the inverter is in standby mode for more than 10 minutes, please check:

 Whether the insolation is sufficient and the PV connection is correct.

 Whether the battery level is sufficient and the cable connection is correct.

 If no anomaly is found, disconnect the DC switch and main switch to

restart.

 If it still does not work, contact SUNGROW.

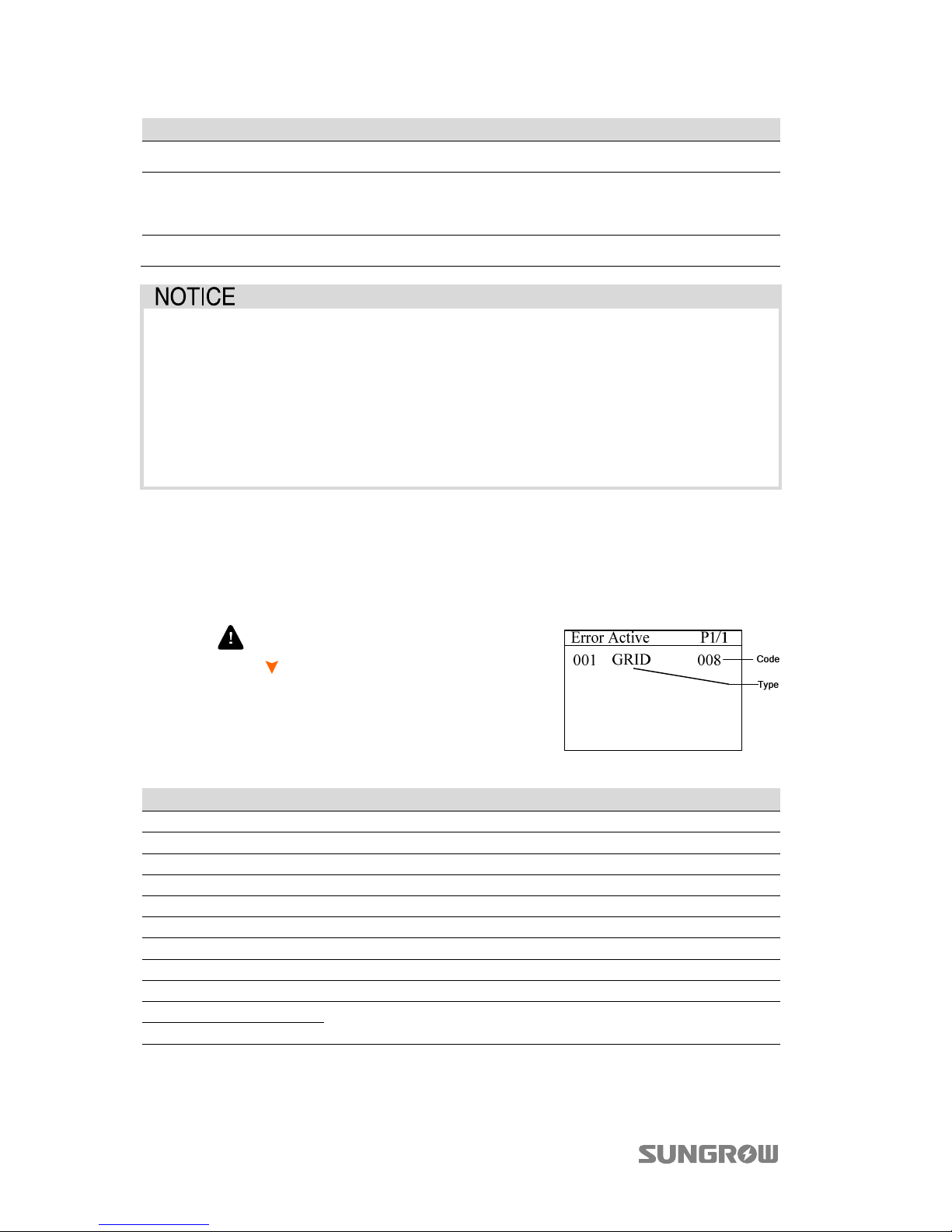

5.2 Viewing the Error Codes

Viewing the Active Error

For the icon or the “Error” state on the main
screen, press

to view the active errors. Refer

to “6 Troubleshooting” for the fault definition.

Refer to the following table for the fault type explanations.

Fault Type Explanation

GRID Grid faults (AC side)
PV PV faults (DC side)
SYS System faults (inverter)
PER Permanent faults
WARN Warnings
BDCF Faults of battery charge/discharge circuit
BDCPF Permanent faults of battery charge/discharge circuit
BATW Battery warnings
BATP Battery protection
BATF1

Battery faults

BATF2

Quick User Manual 5 Operation

31

Viewing the Error Records

Main Screen (Press ENT)→Menu (Press ×5)→Error Record (Press ENT)

Press

/ to turn pages and view all error

records.

5.3 LCD Menu

Fig. 5-1 LCD Menu Tree

(1) The power values indicated represent the average values during the time

interval. The energy yields displayed are indicative only. For the actual yields,
please refer to the electric energy meter.

5 Operation Quick User Manual

32

(2) The value of battery SOH will be displayed as “--” for Pylon US2000A and GCL
battery that do not have this parameter.

(3) The “Restart” option will appear only if an unrecoverable fault occurs.

Abbreviations

Abbreviation Complete Abbreviation Complete

Csmp Consumption Exp Export
Chrg Charge Tot Total
Bat Battery Tmp Temperature
SOC State of Charge SOH State of Health
Vtg Voltage Curr Current
Stt State Inv Inverter
Pwr Power Frq Frequency
Cap Capacity DRM Demand response mode
Ver. Version Ref. Reference

CSTVtgChrg

Constant charging
voltage

MDCV

Max. discharging current
value

DChrg Discharge MCCV

Max. charging current

value
Prot. Protection Multi. Multiple
Comm. Communication DChrgEndVtg Final discharg voltage
Sys System En. Enable

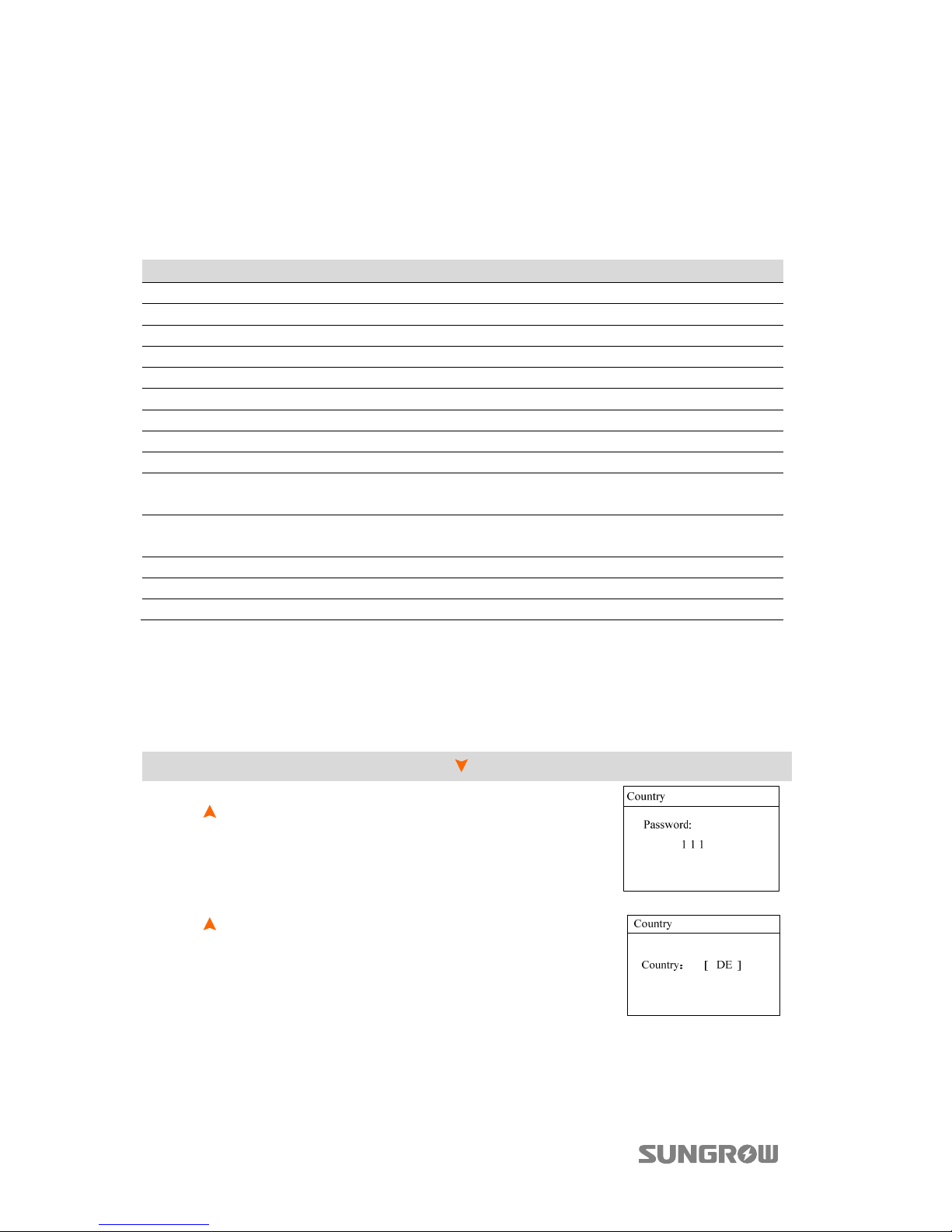

5.4 Setting the Country Code

The country setting is protected with a password.

Main Screen (Press ENT)→Menu (Press ×4)→Country (Press ENT)

Press

and Press ENT to input the password 111.

Press ENT to confirm the password.

Press to choose the correct country code.

Only the codes of GB, DE, IT, AT, AU, BE, NL, CN and SA
are supported.

Quick User Manual 5 Operation

33

Descriptions of the country codes are as follows:

Country Code Full Name Language

GB Great Britain English
DE Germany German
IT Italy Italian
AT Austria German
AU Australia English
BE Belgium French
NL Netherlands English
CN China Chinese
SA South Africa English
Other Country not included above English

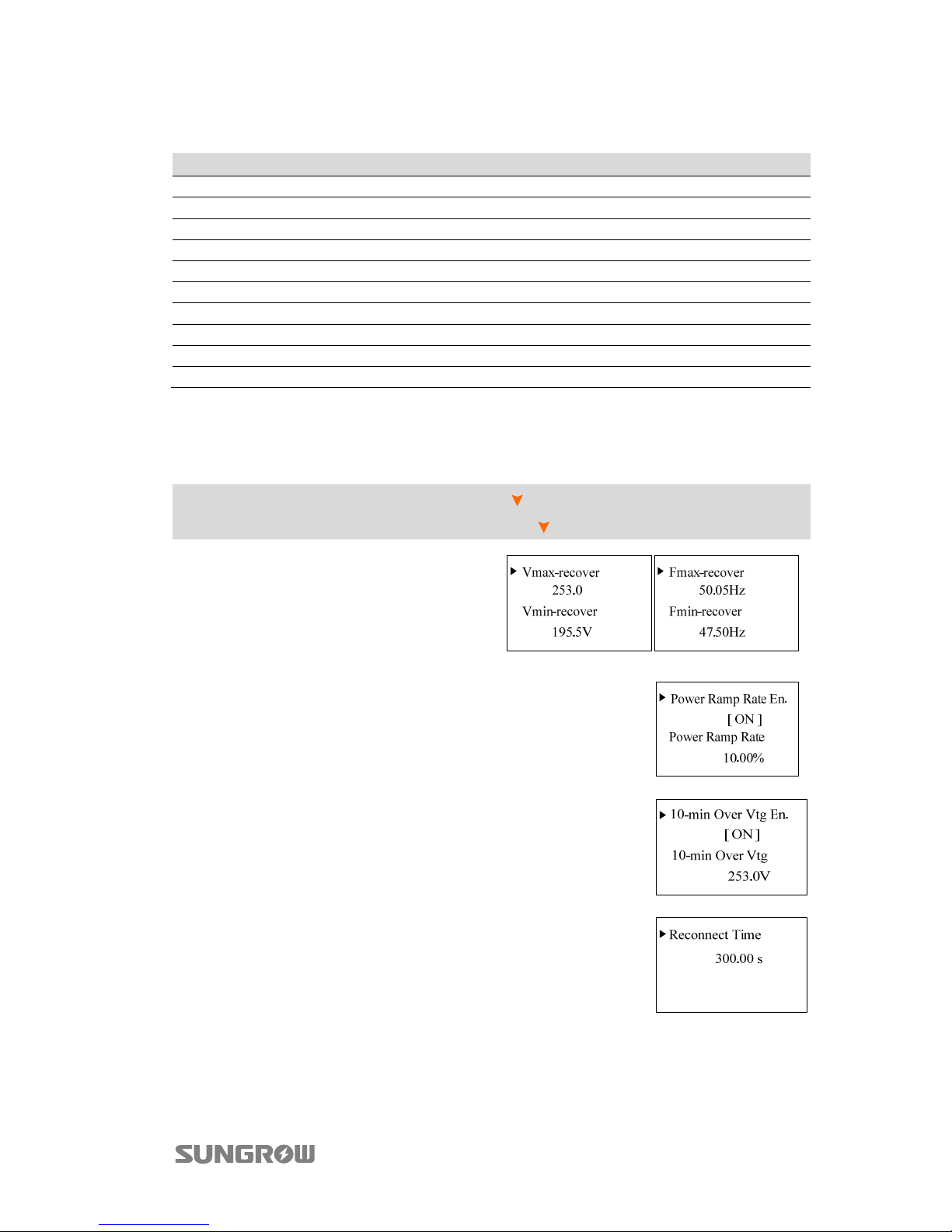

5.5 Setting the Protective Parameters

Main Screen (Press ENT)→Menu (Press ×2)→Settings (Press ENT)→Input

password 111 (Press ENT)→Settings (Press ×9)→Prot. Param (Press ENT)

When the grid voltage or frequency
reaches the recovery value, the
corresponding fault code displayed on
the LCD will be cleared and the inverter
can start operating.

Power Ramp Rate: the ramp up/down rate of power variation.
The power rate limit mode is enabled (ON) by default.
Set to OFF to turn off the function.

The inverter will automatically disconnect from the grid within
3 s when the average voltage for a 10 min period exceeds the
set-point of 10-min Over Vtg.
Set to OFF to turn off the function.

Reconnection time (Italy only):
A reconnection to the network can take place only if the
voltage is between 85 % and 110 % of the nominal value and
the frequency is stably maintained in the range of 49.90
Hz–50.10 Hz.

The reconnection operation will be allowed if the frequency and voltage are stable in
the reconnection time of 300 s if is to be performed with a Gradient positive power not
exceeding 20 % * (maximum power) per minute.

5 Operation Quick User Manual

34

Tab. 5-2 Protective Parameter Explanations

Parameter Explanation

Vmax-recover

Recovery value for over-voltage fault. Inverter can start
operating only when the grid voltage is below this value.

Vmin-recover

Recovery value for under-voltage fault. Inverter can start
operating only when the grid voltage is above this value.

Fmax-recover

Recovery value for over-frequency fault. Inverter can start
operating only when the grid frequency is below this value.

Fmin-recover

Recovery value for under-frequency fault. Inverter can start
operating only when the grid frequency is above this value.

Power Ramp Rate The ramp rate of power variation.
10-min Over Vtg Over-voltage protection value of 10-min average voltage
Reconnect Time

For Italy only.

5.6 Setting the Communication Parameters

Main Screen (Press ENT)→Menu (Press ×2)→Settings (Press ENT)→Input

password 111 (Press ENT)→Settings (Press ×7)→Comm. Param (Press
ENT)



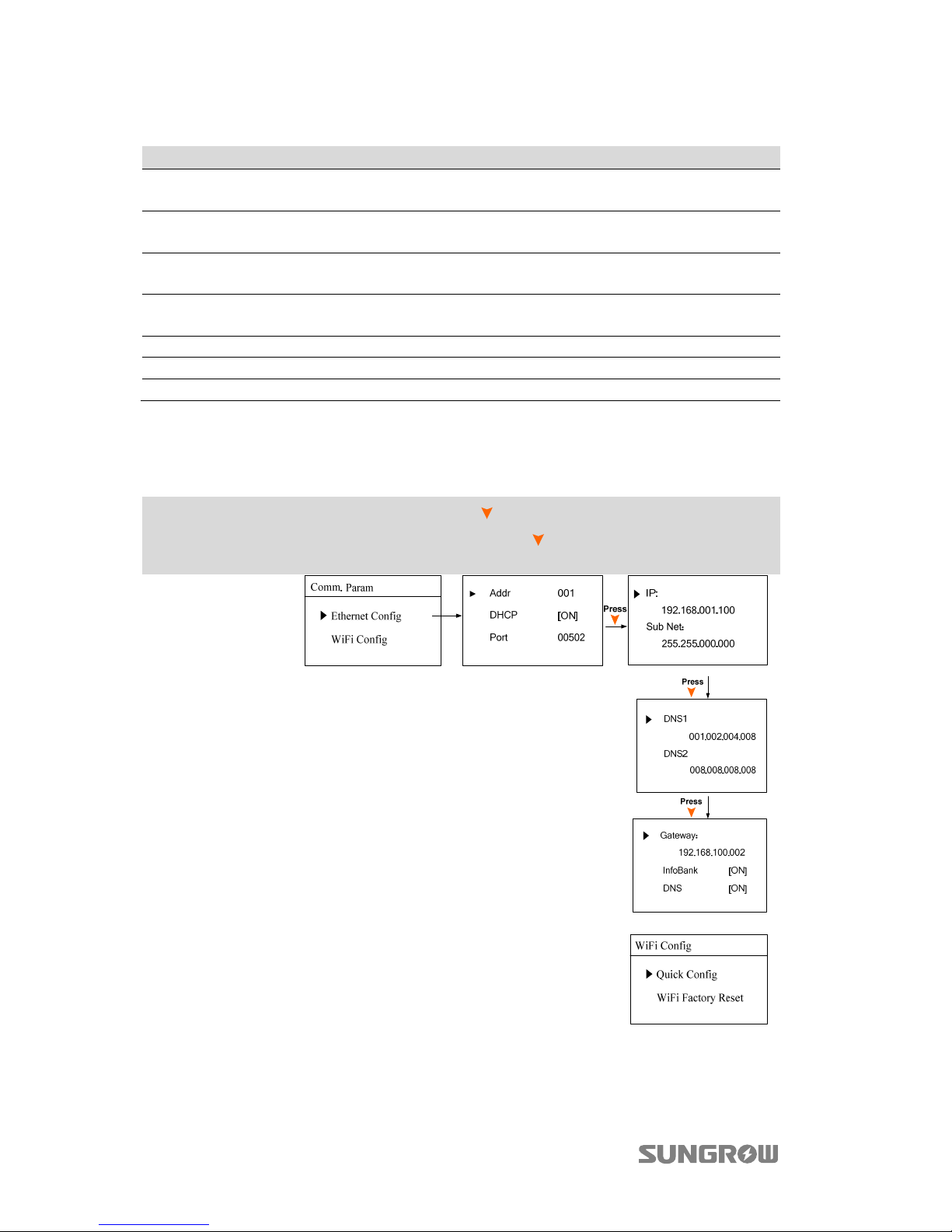

Ethernet:

− The communication address ranges from 1 to 247.

− The IP, sub net, gateway, DNS1 and DNS2 can be

modified only when the DHCP is set to OFF.

− Acquire the IP, subnet mask, gateway, DNS1 and

DNS2 from the network professional.



WiFi:

Press ENT to enable this function and then you can

connect the inverter WiFi to your home router quickly
with SolarInfo Moni APP. For details, see the manual
delivered with the WiFi module.

35

6 Troubleshooting

6.1 Troubleshooting of the Indicator

Refer to “Tab. 3-2 State Descriptions of the Indicator“ for the definition of
indicator states.

Fault Type Troubleshooting

The indicator and LCD
screen cannot be lit.

1. Disconnect the AC circuit breaker.

2. Rotate the DC Switch to “OFF”.

3. Check the polarities of the DC inputs.

4. If all of the above are OK, please contact SUNGROW.

The indicator goes out
from green.

1. Disconnect the AC circuit breaker.

2. Rotate the DC Switch to “OFF”.

3. Check the electrical connection.

4. Check whether the DC input voltage exceeds the start
voltage of the inverter.

5. If all of the above are OK, please contact SUNGROW.

The indicator is lit red.

1. A fault is not resolved.

2. Perform troubleshooting according to the fault type
on the LCD screen.

3. If the fault persists, please contact SUNGROW.

6.2 Troubleshooting of the Errors

When an error occurs, the “Error” state will be shown on the main screen. Press
to view all the error information.

 For the battery error codes, if all the conditions are OK but the error still

occurs, contact the distributor or the battery manufacturer.

 We need the following information to provide you with the best

assistance: inverter type (e.g. string, central, grid-connected, hybrid,
transformerless, single phase, triple phase, single MPPT, multiple
MPPTs), or product name, serial number of the inverter, fault
code/name, and a brief description of the problem.

6 Troubleshooting Quick User Manual

36

For Inverter Side

Code Specification Troubleshooting

002

Grid over-voltage.
(default range: 264.5 V)

1. Check the grid voltage.

2. If the grid voltage exceeds the
permissible range, consult the utility
grid for a solution.

003

Temporary grid over-voltage in
the on-grid mode.
(default value: 400 V)

This is a short-term fault.
Wait a moment for inverter recovery
or restart the system.

004

Grid under-voltage.
(default range: 184.0 V–195.5 V)

1. Check the grid voltage.

2. If the grid voltage exceeds the
permissible range, consult the utility
grid for a solution.

005

Grid under-voltage.
(default value: 195.5 V)

007

Temporary AC over-current.
The transient AC current has
exceeded the allowable upper
limit.

Wait a moment for inverter recovery
or restart the system.

008

Grid over-frequency.
(default range: 50.5 Hz–51.5 Hz)

1. Check the grid frequency.

2. If the grid frequency exceeds the
permissible range, consult the utility
grid for a solution.

009

Grid under-frequency.
(default range: 47.5 Hz–49.5 Hz)

010

Islanding.
Abnormal connection between
the system and the grid.

1. Check whether the AC circuit
breaker is triggered.

2. Check whether all the AC cables
are firmly connected.

3. Check whether the grid is in
service.

011

DC injection over-current.
The DC injection of the AC
current exceeds the upper limit.

Wait a moment for inverter recovery
or restart the system.

012

Leakage current over-current.
The leakage current exceeds the
upper limit.

1. Check whether there is a
grounding fault in the PV strings.

2. Wait a moment for inverter
recovery or restart the system.

014

10-minute grid over-voltage.
The average grid voltage is
outside the permissible range for
over 10 minutes.
(default range: 253.0 V–257.6 V)

1. Check whether the grid is
operating normally.

2. Wait a moment for inverter
recovery or restart the system.

015

Grid over-voltage.
(default value: 264.5 V)

1. Check the grid voltage.

2. If the grid voltage exceeds the
permissible range, consult the utility
grid for a solution.

019

Bus over-voltage.
The transient bus voltage
exceeds the upper limit.

Wait a moment for inverter recovery
or restart the system.

Quick User Manual 6 Troubleshooting

37

Code Specification Troubleshooting

021

PV1 over-current.
The input current of PV1 exceeds
the upper limit.

1. Check the PV input power and
configuration.

2. Wait a moment for inverter
recovery or restart the system.

022

PV2 over-current.
The input current of PV2 exceeds
the upper limit.

024

Neutral point voltage imbalance.
The deviation of the neutral
point voltage exceeds the
allowable limit.

1. The inverter will recover once the
deviation falls below the protective
limit.

2. Wait a moment for inverter
recovery or restart the system.

028

Reverse polarity of the PV1
connection.

1. Disconnect the DC switch.

2. Check the polarity of the PV
inputs.

3. Reconnect the PV strings if the
polarity is incorrect.

029

Reverse polarity of the PV2
connection.

037

Inner over-temperature fault.
The ambient temperature inside
the inverter exceeds the upper
limit.

1. Check and clean the heat sink.

2. Check whether the inverter is
installed in sunlight or the ambient
temperature of the enclosure

exceeds 45℃. If not, please contact
SUNGROW for a solution.

038 Relay fault on the grid side.

Wait 5 minutes for inverter recovery

or restart the system.
041,
622

Leakage current sampling fault.

Wait 5 minutes for inverter recovery

or restart the system.

043

Inner under-temperature fault.
The ambient temperature inside
the inverter is too low

The inverter will recover once the

ambient temperature rises above

-25℃.

044 INV open-loop self-check fault.

Wait 5 minutes for inverter recovery

or restart the system.

045 PV1 boost circuit fault.

046 PV2 boost circuit fault.
048 Phase current sampling fault.

051

Load overpower fault in the
off-grid mode.

If the fault persists, disconnect some

non-key loads.

052

INV under-voltage fault in the
off-grid mode.

Wait 5 minutes for inverter recovery

or restart the system.

062 DI fault of the backup box STB5K.

1. Check whether the DI connection

between the inverter and the

backup box is correct.

2. Wait 5 minutes for inverter

recovery.

063

The version of CPLD (complex
programmable logic device)

Power off the system and program

the CPLD

6 Troubleshooting Quick User Manual

38

Code Specification Troubleshooting

cannot be detected.

064

INV over-voltage fault in the
off-grid mode.

Wait 5 minutes for inverter recovery
or restart the system.

065

INV under-frequency fault in the
off-grid mode.
(default value: 47 Hz)

066

INV over-frequency fault in the
off-grid mode.
(default value: 52 Hz)

067

Temporary grid over-voltage in
the off-grid mode.
(default value: 500 V)

083 Fan2 abnormal speed warning.

1. Check if the fan is blocked.

2. Restart the system.

084

Warning for reverse cable
connection of the Sungrow
Meter.

1. Check whether the power cable
connections are correct.

2. For Sungrow single-phase meter,
check whether the CT clamp of the
1-phase sensor is correctly placed.
Refer to “3.3.1 Meter Installation
and Connection”.

100

INV hardware over-current fault.
The AC current exceeds the
protective value.

Wait 5 minutes for inverter recovery
or restart the system.

101

Grid over-frequency.
(default value: 51.5 Hz)

Check the grid frequency.

102

Grid under-frequency.
(default value: 47.5 Hz)

106

Earth fault.
Neither the PE terminal on the
AC connection block nor the
second PE terminal on the
enclosure is reliably connected.

1. Check whether there is a reliable
grounding connection.

2. If there is access to the ground,
and the fault still exists, please
contact SUNGROW for a solution.

3. Check whether the L-line and
N-line are connected correctly.

107

DC injection over-voltage fault in
the off-grid mode.
The DC injection of INV voltage
exceeds the upper limit.

The inverter will recover once the
DC injection voltage falls below the
recovery value.

200

Bus hardware over-voltage fault.
The bus voltage exceeds the
protection value.

Wait 5 minutes for inverter recovery
or restart the system.

201 Bus under-voltage fault.

202

PV hardware over-current fault.
The PV1 or PV2 current exceeds
the protective value.

Quick User Manual 6 Troubleshooting

39

Code Specification Troubleshooting

203

The PV input voltage exceeds the
bus voltage.

Check the functionality of the PV

connection terminals.
204 PV1 boost short-circuit fault

The inverter may be damaged.

Contact SUNGROW for a solution.

205 PV2 boost short-circuit fault

300 INV over-temperature fault.

1. Check and clean the heat sink.

2. Check whether the inverter is

installed in sunlight or the ambient

temperature of the enclosure

exceeds 45℃-60℃.

3. Restart the system.

302 PV insulation resistance fault.

1. Check whether the PV cable

connection is intact.

3. Wait for a sunny day to check

whether the system can run well.
308 Slave DSP redundant fault.

Restart the system.

309 Phase voltage sampling fault.
312 DC injection sampling fault.
315 PV1 current sampling fault.
316 PV2 current sampling fault.
317 PV1 MPPT current sampling fault.
318 PV2 MPPT current sampling fault.

319

System power supply failure
fault.

320

Leakage current CT self-check
fault.

321

SPI communication failure.
Communication faults between
the master DSP and the slave

DSP.
322 Master DSP communication fault.
401­408

Permanent faults.

409

All temperature sensors failed

fault.

Forced restart the system.

501 FRAM1 reading warning.

1. Inverter can normally be
connected to the grid.

2. Restart the system.

503­506,
511

Temperature sensor warnings.

507 Error alarm of DO power settings.

Modify the DO control power
according to the load power. Refer
to “Optimized Control” in the user
manual.

509 Clock reset fault.

Manually reset the clock or
synchronize the clock with the
network time. This will clear the

6 Troubleshooting Quick User Manual

40

Code Specification Troubleshooting

fault.

510 PV over-voltage fault.

1. Check whether the configuration
of the PV array exceeds the
permissible range of the inverter.

2. Wait a moment for inverter
recovery or restart the system.

513 Fan1 abnormal speed warning.

1. Check if the fan is blocked.

2. Restart the system.

514

Abnormal communication
warning of the Sungrow Meter.
(Inverter can be normally
connected to the grid.)

1. Check whether the power cable
connections of the meter are
correct.

2. Check whether the RS485
connection is correct.

3. Check if the 120 Ohm (2) resistor
for RS485_2 is pushed to “ON” when
the length of RS485 cable is longer
than 100 m.

600

Temporary BDC charging
over-current fault.

Wait a moment for system recovery
or restart the system.

601

Temporary BDC discharging
over-current fault.

602

Clamping capacitor
under-voltage fault.

1. Check the cable connection of the
battery.

2. Wait a moment for system
recovery or restart the system.

603

Temporary clamping capacitor
over-voltage fault.

Wait a moment for system recovery
or restart the system.

608 BDC circuit self-check fault.

612 BDC over-temperature fault.

1. Check and clean the heat sink.

2. Check whether the inverter is
installed in sunlight or the ambient
temperature of the enclosure

exceeds 45℃.

3. Restart the system.

616 BDC hardware over-current fault.

The system will resume once the
battery charge/discharge current
falls below the upper limit or restart
the system.

620 BDC current sampling fault.

Wait a moment for system recovery
or restart the system.

623 Slave DSP communication fault.
624 BDC soft-start fault.
800,802
804,807

BDC internal permanent faults. Restart the system

900,901

BDC temperature sensor
warnings

1. Check and clean the heat sink.

2. Check whether the inverter is

Quick User Manual 6 Troubleshooting

41

Code Specification Troubleshooting

installed in sunlight or the ambient
temperature of the enclosure

exceeds 45℃.

3. Restart the system.

906

Transformer direction

recognition error.

1. The inverter can normally be
connected to the grid but
charge/discharge has stopped.

2. Wait a moment for system
recovery or restart the system.

910 FRAM2 warning Restart the inverter.

For Battery Side

For the battery faults, please consult the battery manufacturer for a solution.

Code Specification Troubleshooting

703

Battery average
under-voltage fault.

1. The inverter can normally be
connected to the grid but
charge/discharge has stopped.

2. Wait a moment for system recovery or
restart the system.

707

Battery over-temperature
fault.

1. The inverter can normally be
connected to the grid but
charge/discharge has stopped.

2. Check the ambient temperature of the
battery location.

3. Wait a moment for system recovery or
restart the system.

708

Battery under-temperature
fault.

711

Instantaneous battery
over-voltage.

1. The inverter can normally be
connected to the grid but
charge/discharge has stopped.

2. Wait a moment for system recovery or
restart the system.

712

Battery average
over-voltage fault.

714

Abnormal communication
between battery and the
hybrid inverter.

1. The inverter can normally be
connected to the grid but
charge/discharge has stopped.

2. Check the battery type and
communication connection.

3. Wait a moment for system recovery or
restart the system.

715

Battery hardware
over-voltage fault.

1. The inverter can normally be
connected to the grid but
charge/discharge has stopped.

2. Wait a moment for system recovery or
restart the system.

732 Battery over-voltage 1. The inverter can normally be

6 Troubleshooting Quick User Manual

42

Code Specification Troubleshooting

protection. connected to the grid. Charge has

stopped but discharge is allowed.

2. Wait a moment for system recovery.

733

Battery over-temperature
protection.

1. The inverter can normally be
connected to the grid but
charge/discharge has stopped.

2. Check the ambient temperature of the
battery location.

3. Wait a moment for system recovery or
restart the system.

734

Battery under-temperature
protection.

735

Battery
charging/discharging
over-current protection.

1. The inverter can normally be
connected to the grid but
charge/discharge has stopped.

2. Wait a moment for system recovery or
restart the system.

739

Battery under-voltage
protection.

1. The inverter can normally be
connected to the grid. Discharge has
stopped but charge is allowed.

2. Wait a moment for system recovery or
restart the system.

832

Battery FET fault or
electrical switch failure.

1. The inverter can normally be
connected to the grid but
charge/discharge has stopped.

2. Check the battery port voltage and the
battery communication cable
connection.

3. Force a shutdown and restart the
inverter and battery system.

4. Wait a moment for system recovery or
restart the system.

834

Battery
charging/discharging
over-current permanent
fault.

836 ID competing failure.

Restart the system, if the fault persists,
please contact SUNGROW for a solution.

837,
838

Battery internal faults.

1. The inverter can normally be
connected to the grid but
charge/discharge has stopped.

2. Check the cable connection of the
battery.

3. Try to restart the inverter and battery.

839

Mismatched software
version.

Contact SUNGROW for a solution.

844

Software self-verifying
failure.

Restart the system, if the fault persists,
please contact SUNGROW for a solution.

866

Battery precharge voltage
fault.

1. The inverter can normally be
connected to the grid but
charge/discharge has stopped.

2. Check the battery port voltage and the

867 Battery under-voltage fault.
868 Battery cell voltage

Quick User Manual 6 Troubleshooting

43

Code Specification Troubleshooting

imbalance fault. battery communication cable

connection.

3. Force a shutdown and restart the
inverter and battery system.

4. Wait a moment for system recovery or
restart the system.

870

Battery cable connection
fault.

909

Low SOH (State of Health)
warning.

1. The inverter can normally be
connected to the grid and the
charge/discharge function is normal.

2. Batteries are beyond the scope of the
warranty. It is recommended to contact
the distributor for replacements.

932

Battery over-voltage
warning.

1. The inverter can normally be
connected to the grid. Charge has
stopped but discharge is allowed.

2. The system will resume after a certain
time of discharging.

933

Battery over-temperature
warning.

1. The inverter can normally connected
be to the grid but charge/discharge has
stopped.

2. Check the ambient temperature of the
battery location.

3. Wait a moment for system recovery or
restart the system.

934

Battery under-temperature
warning.

935

Battery
charging/discharging
over-current warning.

1. The inverter can normally be
connected to the grid but
charge/discharge has stopped.

2. Wait a moment for system recovery or
restart the system.

937

Battery tray voltage
imbalance warning.

1. The inverter can normally be
connected to the grid and the
charge/discharge functions are normal.

2. Check whether the cable connection of
the battery is correct.

939

Battery under-voltage
warning.

1. The inverter can normally be

connected to the grid. Discharge has
stopped but charge is allowed.

2. The system will resume after a certain

time of charging.

964 Battery internal warning.

Consult the battery manufacturer for a
solution.

44

7 Appendices

7.1 Inverter Technical Data

PV Input Data SH3K6 SH4K6

Max. PV input power 6500 W 6500 W
Max. PV input voltage 600 V 600 V
Startup voltage 125 V 125 V
Nominal input voltage 360 V 360 V
MPP voltage range 125 V–560 V 125 V–560 V
MPP voltage range for nominal power 180 V–520 V 220 V–520 V
No. of MPPTs 2 2

Max. number of PV strings per MPPT
(DC1/DC2)

1 / 1 1 / 1

Max. PV input current (DC1/DC2) 22 A (11 A / 11 A) 22 A (11 A / 11 A)
Max. current for input terminals 12 A 12 A
Short circuit current of PV input 24 A (12 A / 12 A) 24 A (12 A / 12 A)
Max. inverter backfeed current to array 0 A 0 A

Battery Data

Battery type Li-ion battery / Lead-acid battery
Battery voltage (rated voltage / range) 48 V (32 V–70 V)
Max. charging / discharging current 65 A / 65 A

AC Input and Output Data

Max. AC input power 3000 W 3000 W
Nominal AC output power 3680 W 4600 W
Nominal AC output current 16 A 20 A
Max. AC output apparent power 3680 VA 4600 VA
Max. AC output current 16 A 20 A
Max. inrush current (peak/duration) 10 A / 12 ms 10 A / 12 ms
Max. output fault current
(peak/duration)

100 A/3.2 ms 100 A / 3.2 ms

Max. output over-current protection 32 A 32 A
Nominal grid voltage 230 Vac

Grid voltage range

180 Vac–276 Vac
(this may vary with grid standards)

Nominal grid frequency 50 Hz

Grid frequency range

45 Hz–55 Hz
(this may vary with grid standards)

Total Harmonic Distortion (THD) < 3 % (of nominal power)
DC current injection < 0.5 % (of nominal current)

Quick User Manual 7 Appendices

45

Power factor

> 0.99 at default value at nominal power
(adj. 0.8 overexcited/leading–0.8
underexcited/lagging)

Protection

Anti-islanding protection Yes
AC short circuit protection Yes
Leakage current protection Yes
DC switch (solar) Yes
DC fuse (solar) No
DC fuse (battery) Yes
Over-voltage category III [Main], II [PV] [Battery]

System Data

Max. efficiency 97.7 % 97.7 %
Max. European efficiency 97.0 % 97.2 %
Max. charge / discharge efficiency 94.0 % 94.0 %
Isolation method (solar) Transformerless
Isolation method (battery) HF
Ingress protection (IP) rating IP65

Power loss in night mode < 1 W
Operating ambient temperature range

-25℃ to 60℃(＞ 45℃ derating)
Allowable relative humidity range 0–100 %
Cooling method Natural convection

Max. operating altitude 2000 m
Display Graphic LCD

Communication 2 x RS485, Ethernet, Wi-Fi (optional), CAN
Analogue input

PT1000

Power management 1 x Digital output
Earth fault alarm 1 x Digital output, email, buzzer inside
PV connection type MC4

AC connection type Clamping yoke connector

Certificates and approvals (planned)

VDE-AR-N-4105, DIN VDE0126-1-1, G83/2,
CEI 0-21, IEC 62109-1, IEC62109-2, EN
62477-1, EN 61000-6-1/-3

Mechanical Data

Dimensions (W x H x D) 457 mm x 515 mm x 170 mm
Mounting method Wall-mounting bracket
Weight 22 kg

7 Appendices Quick User Manual

46

7.2 Meter Technical Data

Item Single-phase Three-phase

Nominal voltage 240 Vac 230 Vac / 400 Vac
Input voltage range 180 Vac–286 Vac 180 Vac–276 Vac
Power consumption < 2 W (10 VA) < 2 W (10 VA)
Max. operating current 100 A 65 A
Grid frequency 50 Hz
Measurement accuracy Class I
Interface and communication RS485
Ingress protection rating IP20

Operating temperature range

-25℃ to 75℃ -25℃ to 70℃

Allowable relative humidity 0–95%
Mounting method 35 mm DIN-rail
Dimensions (W x H x D) 18 x 117 x 65 (mm) 85 x 72 x 72 (mm)
Weight 0.2 kg 0.4 kg

Exclusion of Liability

The content of these documents is periodically checked and revised, please contact
us or visit the website www.sungrowpower.com for the latest information.
Discrepancies cannot be excluded. No guarantee is made for the completeness of
these documents. Please contact our company or distributors to get the latest
version.

Guarantee or liability claims for damage of any kind are excluded if they are caused
by one or more of the following items:



inappropriate use or installation of the products;



installing or operating the products in an unintended environment;



ignoring relevant safety regulations in the deployment location when installing
or operating the products;



ignoring safety warnings and instructions contained in all documents relevant to
the products;



installing or operating the products under incorrect safety or protection
conditions;



altering the products or supplied software without authority;



the product faults due to operating attached or neighboring devices beyond
allowed limit values; and



damage caused by the natural environment beyond the rated operating range of
the inverter.

Quick User Manual 7 Appendices

47

The use of supplied software produced by SUNGROW is subject to the following
conditions:



SUNGROW rejects any liability for direct or indirect damage arising from the use
of the SolarInfo software. This also applies to the provision or non-provision of
support activities.



Using the SolarInfo software for commercial purposes is prohibited.



Decompiling, decoding or destroying the original program, including SolarInfo
software and the embedded software, is prohibited.

About Us

SUNGROW is a China-leading manufacturer of various power electronic products for
renewable energy generation systems, supplying to a global customer base. Our
products include converters, inverters, battery chargers and other power supplies
for distributable generation systems in both grid-connected and stand-alone
applications. The power rating of SUNGROW products covers from hundred watt to
mega-watt systems.

The vision of SUNGROW is to help our customers acquire stable and clean power
with minimum cost, maximum reliability and enhanced safety.

Contact Information

Should you have any problems, please contact us through the following information.
We will be more than happy to assist you!

Company: Sungrow Power Supply Co., Ltd.
Website: www.sungrowpower.com
Email: [email protected], [email protected]

Address:

No. 1699 Xiyou Rd., New & High Technology Industrial Development

Zone, Hefei, P. R. China.
Zip: 230088
Telephone: [phone]
Fax: [phone]
