About This Manual

This manual applies to inverter SG2KTL-S, SG2K5TL-S SG3KTL-S, SG3K6TL-S, SG4KTL-S, SG3KTL-D, SG3K6TL-D, SG4K6TL-D and SG5KTL-D. We hope that the device will meet your satisfaction when you use it with your PV plant system.

Purpose

The purpose of this manual is to provide detailed product information and instructions for the use of SG2KTL-S, SG2K5TL-S SG3KTL-S, SG3K6TL-S, SG4KTL-S, SG3KTL-D, SG3K6TL-D, SG4K6TL-D and SG5KTL-D PV grid-connected inverter.

related documents;

y been familiar with safety requirements for electrical system.

Technical personnel mentioned above may perform the following work:

Secure the inverter to the wall

Connect the inverter to the PV power system

Connect other devices to the PV power system

Commission the inverter

Maintain and service the inverter

Page 10

1 Safety Instructions User Manual

Before Installation

There is a risk of injury if the product is mishandled!

y Always follow the instructions in the manual when moving and

positioning the inverter.

y The weight of the equipment can cause injuries, serious wounds, or

bruising if mishandled.

During Installation

Prior to securing the inverter to the wall, it is crucial to make certain that the inverter is not electrically connected.

System performance can be impaired by poor ventilation!

The equipment requires well ventilation during operation. It is essential to keep the unit upright and nothing covering the heat sink to let the equipment interior well cool down.

During Electrical Connection

Lethal voltage exists!

PV arrays will produce electrical energy when exposed to sunlight and thus can cause an electrical shock hazard.

y Wiring of the PV arrays should only be performed by qualified personnel.

All cables must be firmly attached, undamaged, properly insulated and adequately dimensioned.

Page 11

User Manual 1 Safety Instructions

During Inverter Operation

There is a risk of inverter’s damage or personal injury!

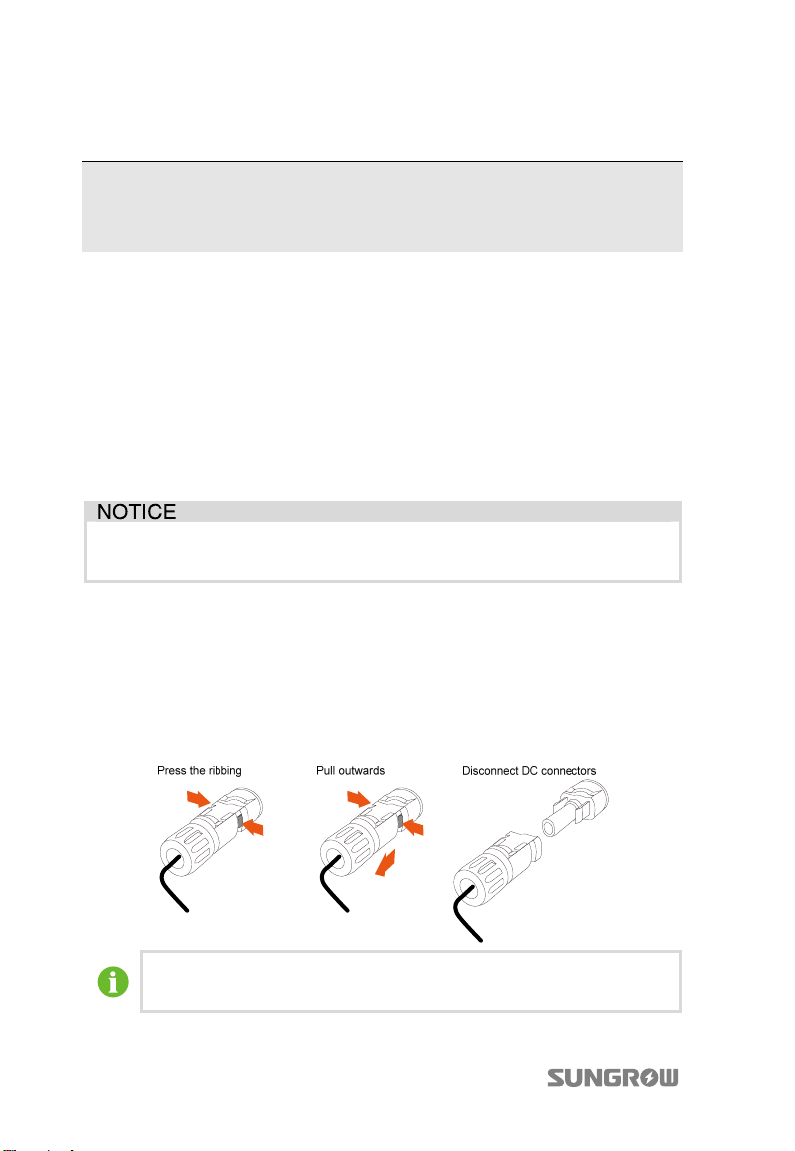

Do not disconnect DC connectors while the inverter is under AC load! First de-energize the equipment from the dual power sources and then verify that there is no voltage existing.

There is a risk of burns!

Avoid touching device hot parts (such as the heat sink) during operation. Only the LED indicator panel and the optional DC switch can be touched during inverter operation.

Maintenance and Service

y Any malfunction that may impair the inverter safety operation must be

repaired immediately before the inverter is restarted.

y Inverter contains no customer serviceable parts inside. Please contact

local authorized personnel if any service work is required.

Servicing of the device in accordance with the manual should never be undertaken in the absence of proper tools, test equipments or the more recent revision of the manual which has been clearly and thoroughly understood.

Page 12

1 Safety Instructions User Manual

There is a risk of inverter damage or personal injury due to incorrect service work!

Always keep in mind that the inverter is power supplied by dual power source: PV arrays and utility grid.

Before any service work, observe the following procedures.

y Disconnect the inverter from the utility grid side first and then PV arrays;

y Wait at least 10 minutes for inner capacitors to discharge completely;

y Verify that no voltage and current existing with appropriate testing

devices.

Keep non-related persons away!

A temporary warning sign or barrier must be posted to keep non-related persons away while performing electrical connection and service work.

Do not open the enclosure when the inverter is under voltage. There is a high likely risk of explosion in very specific cases of malfunction. The enclosure will protect persons and property from such an explosion, only if it is correctly sealed.

There is a risk of inverter damage if it is improperly serviced.

Use accessories and spare parts approved by the inverter manufacturer only. Never modify the inverter or other components of the inverter. The loss of any or all warranty rights may follow if otherwise.

There is a risk of inverter damage due to electrostatic discharge!

The printed circuit boards contain components sensitive to electrostatic discharge. Wear a grounding wrist band when handling the boards. Avoid unnecessary touch of the boards during replacement.

Page 13

User Manual 1 Safety Instructions

Others

The selected country settings can be changed by qualified personnel only!

Alternation of the country settings may cause a breach to the type-certificate marking

All safety instructions, warning labels and nameplate on the inverter body:

y must be clearly visible;

y must not be removed, covered or pasted.

These regulations should also be followed:

y the regulations related to the electricity fed into grid;

y the safety instructions related to PV arrays;

y the safety instructions related to other electrical devices.

Page 14

2 Product Introduction

2.1 Intended Usage

SG2K5TL-S, SG3KTL-S, SG3K6TL-S, SG4KTL-S, SG4K6TL-D and SG5KTL-D (They will be referred to as inverter hereinafter unless otherwise specified), single-phase without transformer string inverter, is a crucial unit between the PV arrays and the utility grid in the small-scaled PV power system.

Inverter is dedicated to converting direct current power generated by the PV modules into alternating current, which conforms to parameters of local utility grid, and feeds the alternating current into the utility grid. An example about intended usage of the inverter is shown in Fig. 2-1.

Where the positive or negative terminal of PV strings needs to be grounded, inverter cannot be connected to PV modules of this type.

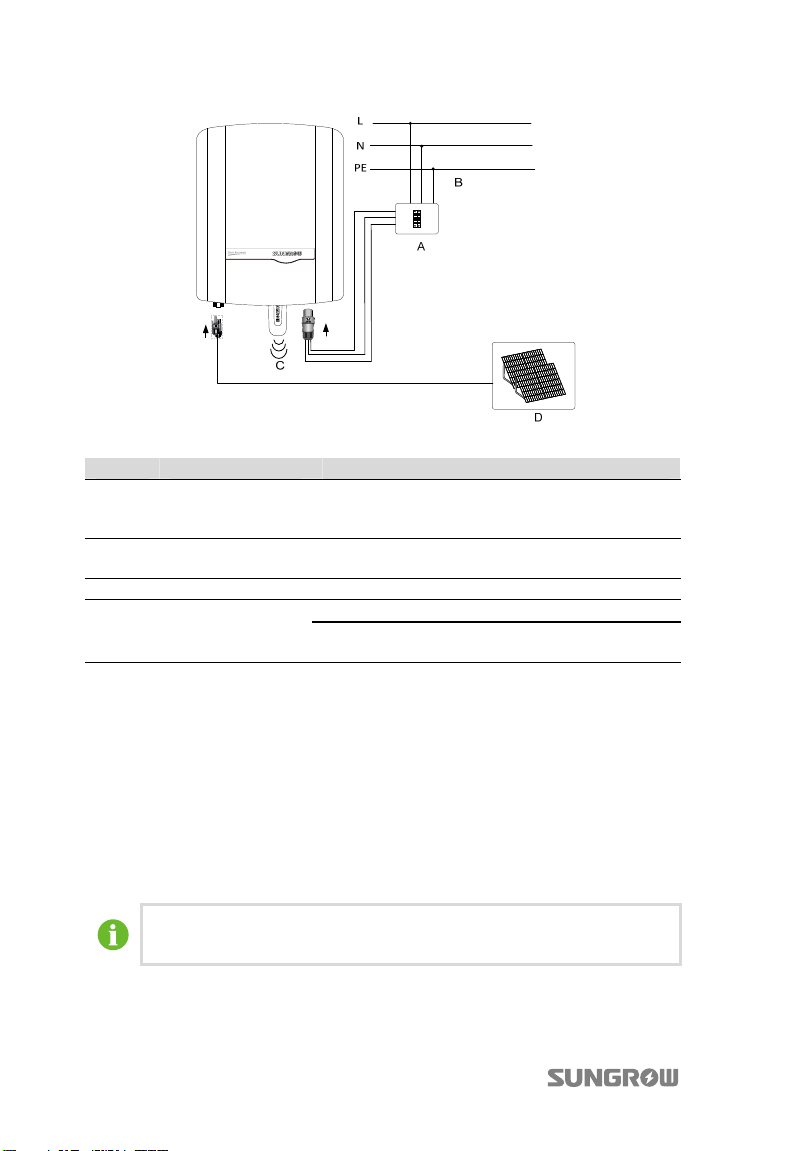

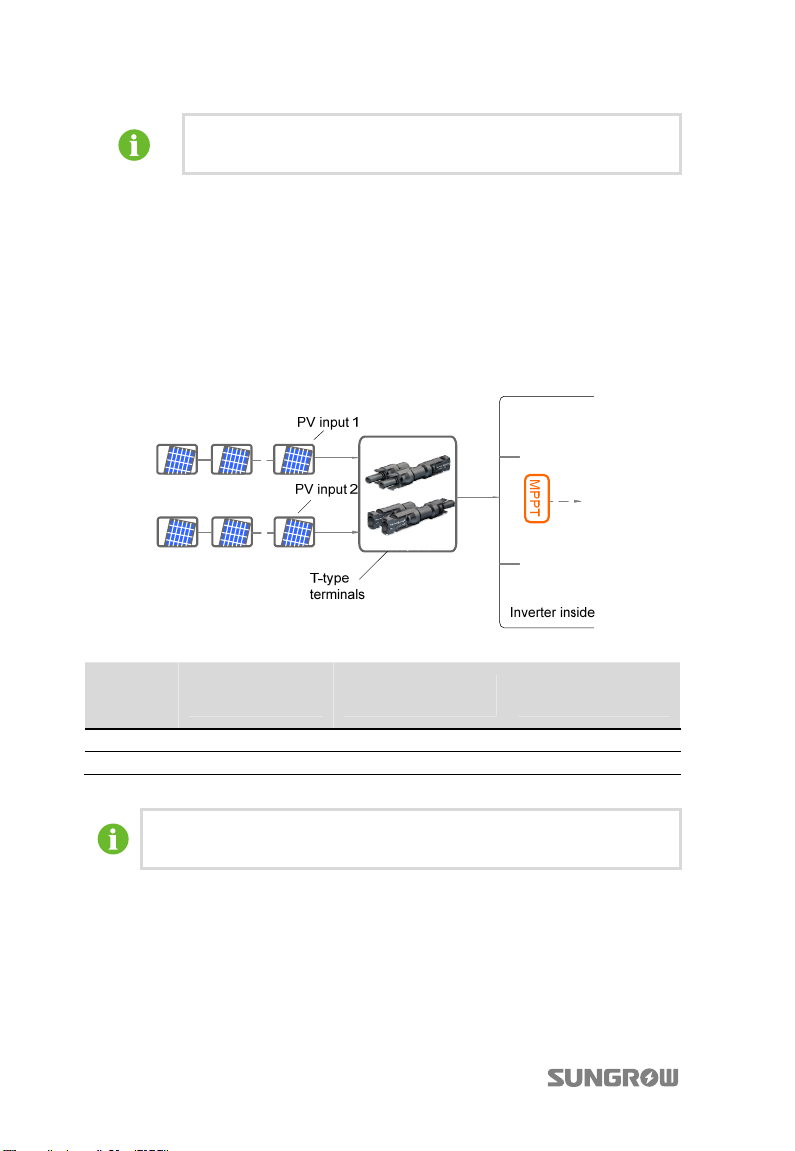

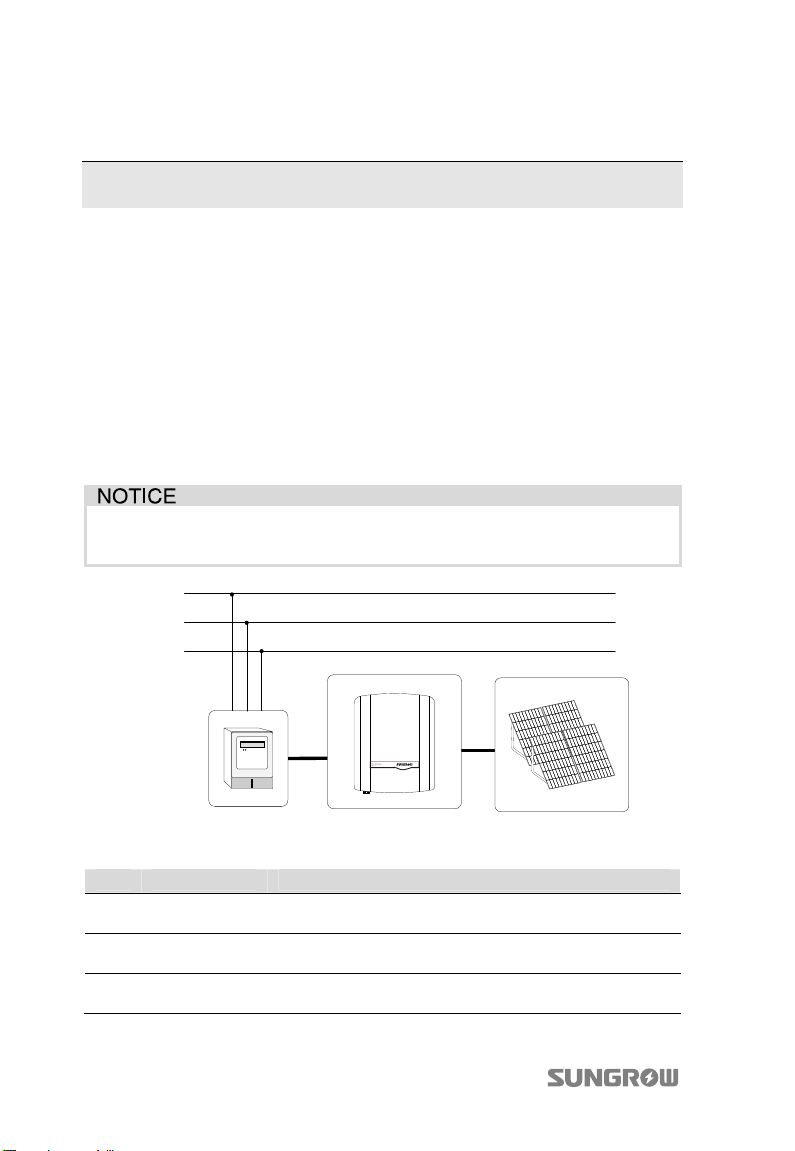

Fig. 2-1 Application of Inverter to the PV Power System

Item Description Remar

A PV strings

B Inverter

Metering

device

Monocrystalline silicon; polycrystalline silicon and thin-film of protection class II without grounding SG2K5TL-S, SG3KTL-S, SG3K6TL-S, SG4KTL-S, SG4K6TL-D and SG5KTL-D.

Meter cupboard with power distribution system

Page 15

User Manual 2 Product Introduction

Item Description Remar

D Utility grid TT, TN

For TT utility grid, N line voltage to ground must be less than 30V.

Any other or additional usage other than the intended usage is not permitted.

Inverter only accepts PV modules of Protection Class II as its input.

Inverter may only be connected to utility grid via distribution board. Local loads (home appliance, lights, motor loads, etc.) cannot be connected between the inverter and AC circuit breaker on the distribution board.

2.2 Product Description

2.2.1 Product Appearance

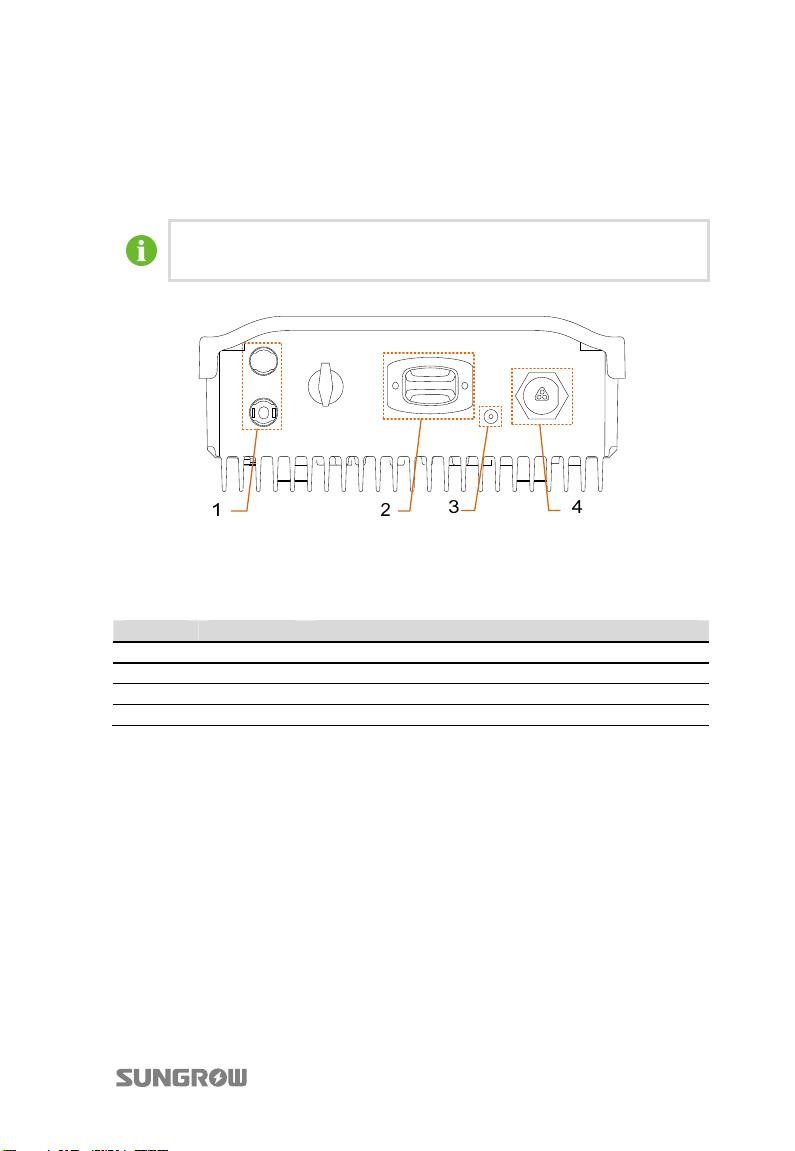

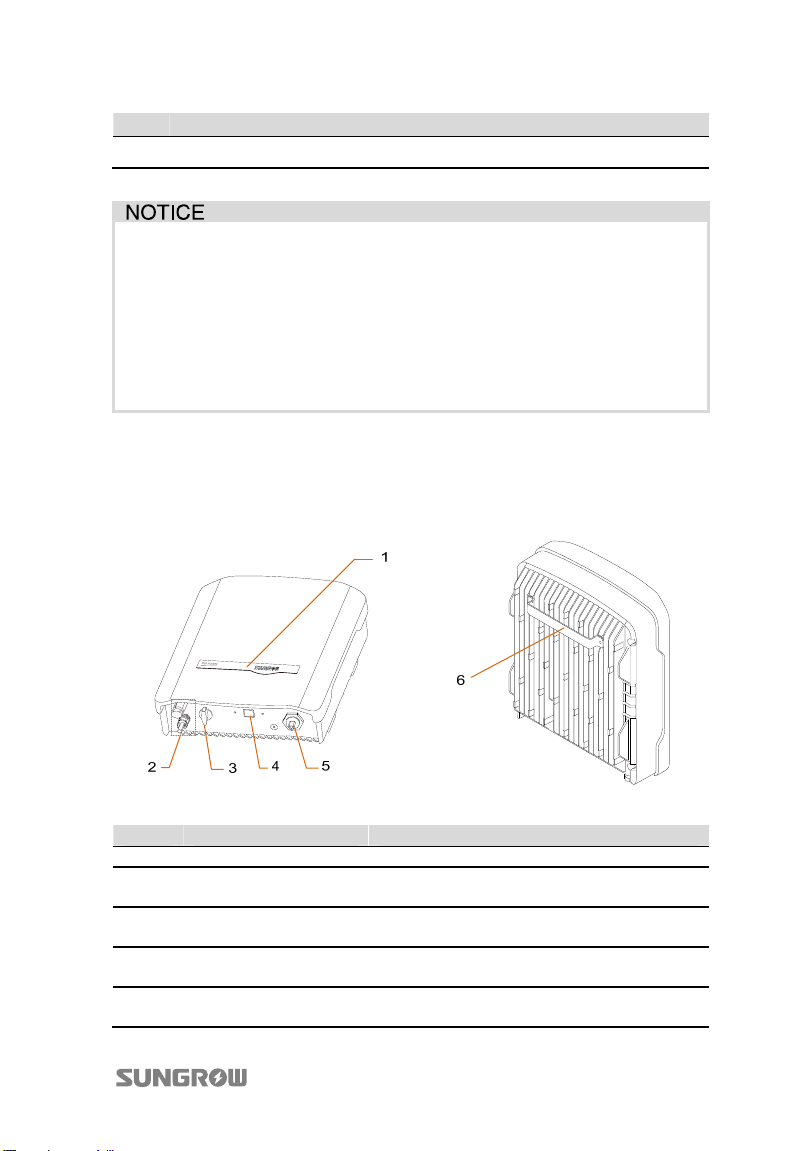

Fig. 2-2 Product Description

Item Name Description

1 LED indicator panel Indicate the working statues of the inverter.

2 DC terminals

3 DC switch (Optional)

4 RS485 terminal

5 AC terminal

There is a pair or two pairs of DC terminals between PV arrays and inverter. Optional component. It is designed for safely disconnecting DC current. It is provided for connecting LCD display panel, WiFi or HEMU module. Inverter feeds power to utility grid via this terminal.

Page 16

2 Product Introduction User Manual

Item Name Description

6 Mounting rack It is used to hang inverter onto the backplate.

HEMU module mainly provides the following functions: zero export, LCD display, partial export, reactive power control and so on.

2.2.2 Dimensions and Weight of Inverter

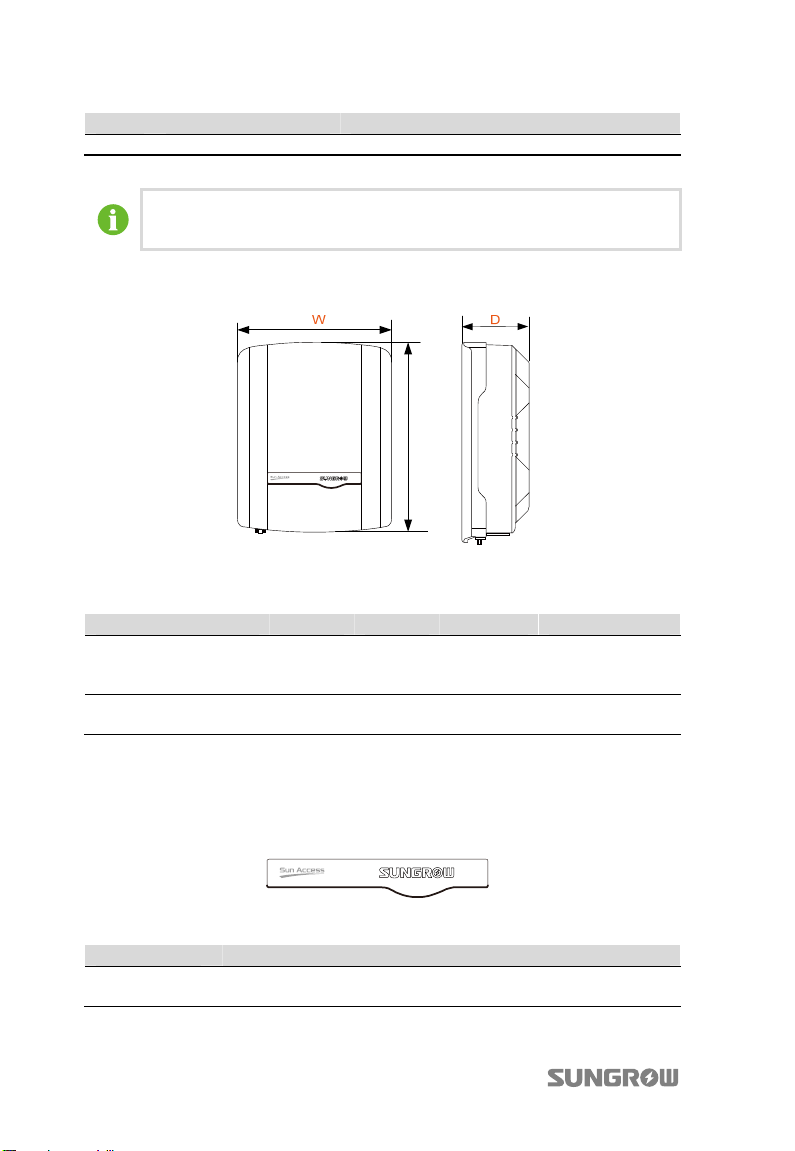

Fig. 2-3 Dimensions of Inverter

Tab. 2-1 Dimensions Value

Type W(mm) H(mm) D(mm) Net weight(kg)

SG2KTL-S/SG2K5TL-S/S G3KTL-S/SG3K6TL-S/ SG4KTL-S SG3KTL-D/SG3K6TL-D/ SG4K6TL-D/SG5KTL-D

300 370 125 9

360 390 133 11

2.2.3 LED Indicator Panel

As a human-computer interaction interface, the LED indicator on the inverter front panel indicates the working statues of the inverter.

Fig. 2-4 LED Indicator Panel

Name Description

LED indicator

User can observe the indicator’s flashing color to get the current state of inverter. Detailed definition is shown in Tab. 2-2.

Page 17

User Manual 2 Product Introduction

Tab. 2-2 Description of LED Indicator

State Description

Green& Red

Green

Red Flicker once every 0.3 second

Flicker once in turn every 1 second

Flicker once every 0.2 seconds to 2 seconds （ The greater the inverter current power, the faster the green light flashing）

Non-running or Non-fault (For example, the inverter is in standby state.)

Inverter is running.

A malfunction happens, or protection function triggers.

The red and green LEDs will be on at the same time when the inverter is in the upgrade status. If the red and green LEDs are on at the same time in other status, please contact the service provider for troubleshooting.

2.3 Technical Description

2.3.1 Circuit Description

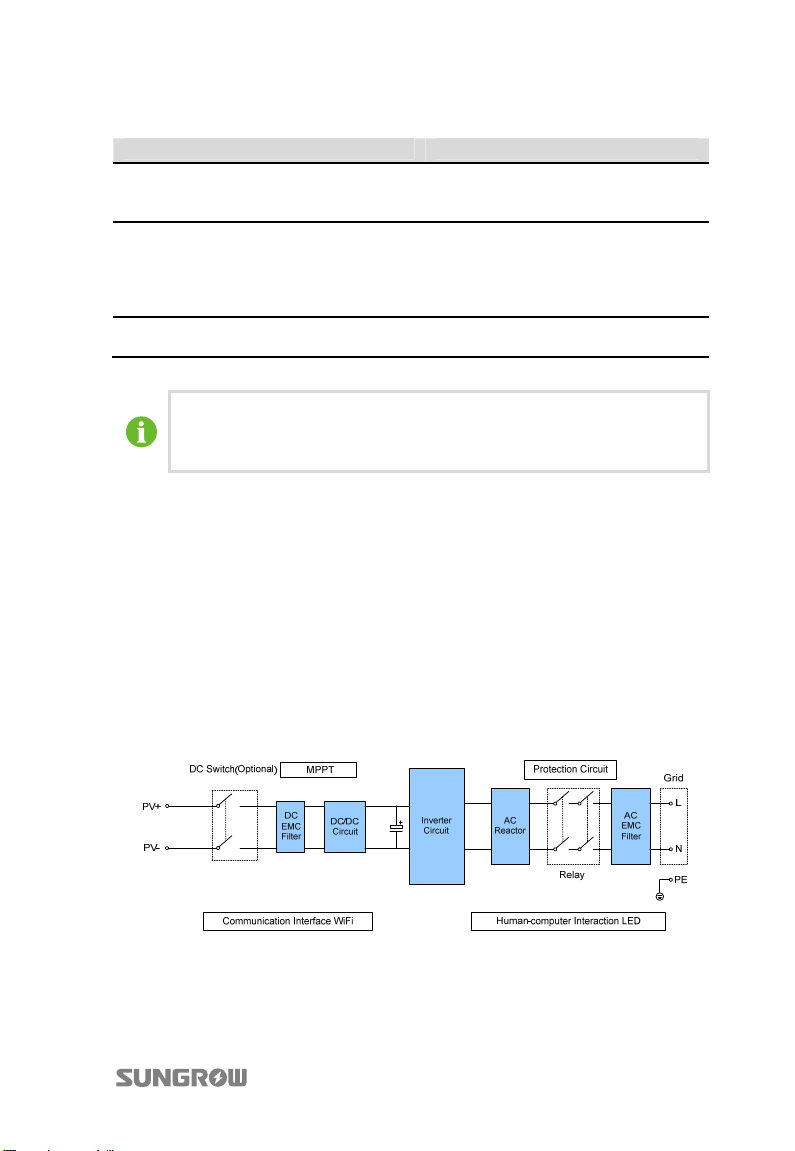

Fig. 2-6 and Fig. 2-6 show the main circuit of inverter.

The inverter boost circuits raise DC input voltage. The MPP trackers ensure the maximum power from PV arrays can be utilized. Then the inverter circuit converts DC power to AC power. Meanwhile inverter is equipped with protective circuit to guarantee its safety operation which can triggers the AC relay if required.

Additionally, inverter provides WiFi interface for communication.

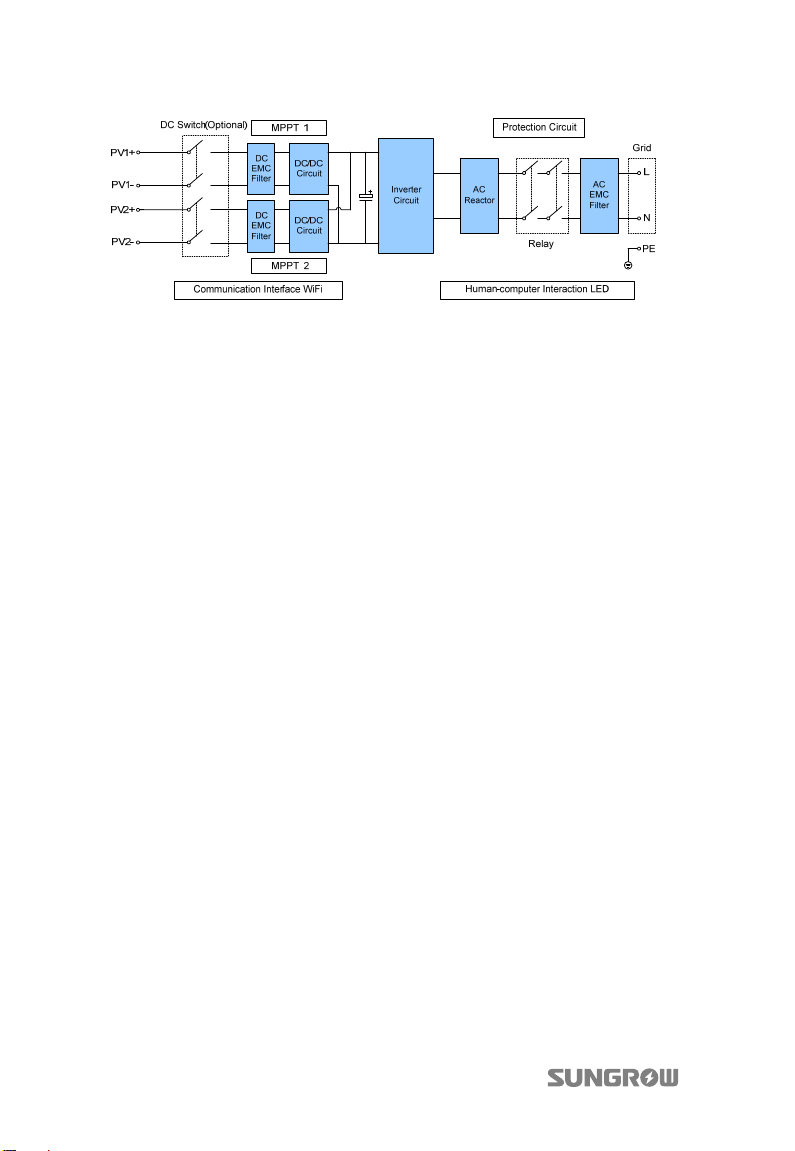

Fig. 2-5 Main Circuit Diagram of single MPPT inverter

Page 18

2 Product Introduction User Manual

Fig. 2-6 Main Circuit Diagram of double MPPTs inverter

2.3.2 Functions Description

Inverter functions can be grouped as the following:

Conversion function

Inverter converts the direct current power into the alternating current power, which conforms to the grid requirement of its installation country.

Data storage and display

Inverter archives essential data including running information and fault records.

Parameters configuration

Inverter provides various parameters configuration for optimal operation. You can choose the type of country by APP, if you need a more professional setting, please contact Sungrow.

Communication interface

WiFi module for connecting other monitoring devices to the PV system is included.

Protection functions include

− short circuit protection

− grounding insulation resistance surveillance

− inverter output voltage surveillance

− inverter output frequency surveillance

− residual current protection

− DC injection of AC output current surveillance

− anti-islanding phenomena protection

− ambient temperature surveillance

Page 19

User Manual 2 Product Introduction

− DC over-voltage protection

− over-current protection

− over-temperature protection

2.3.3 Temperature-related Power Derating

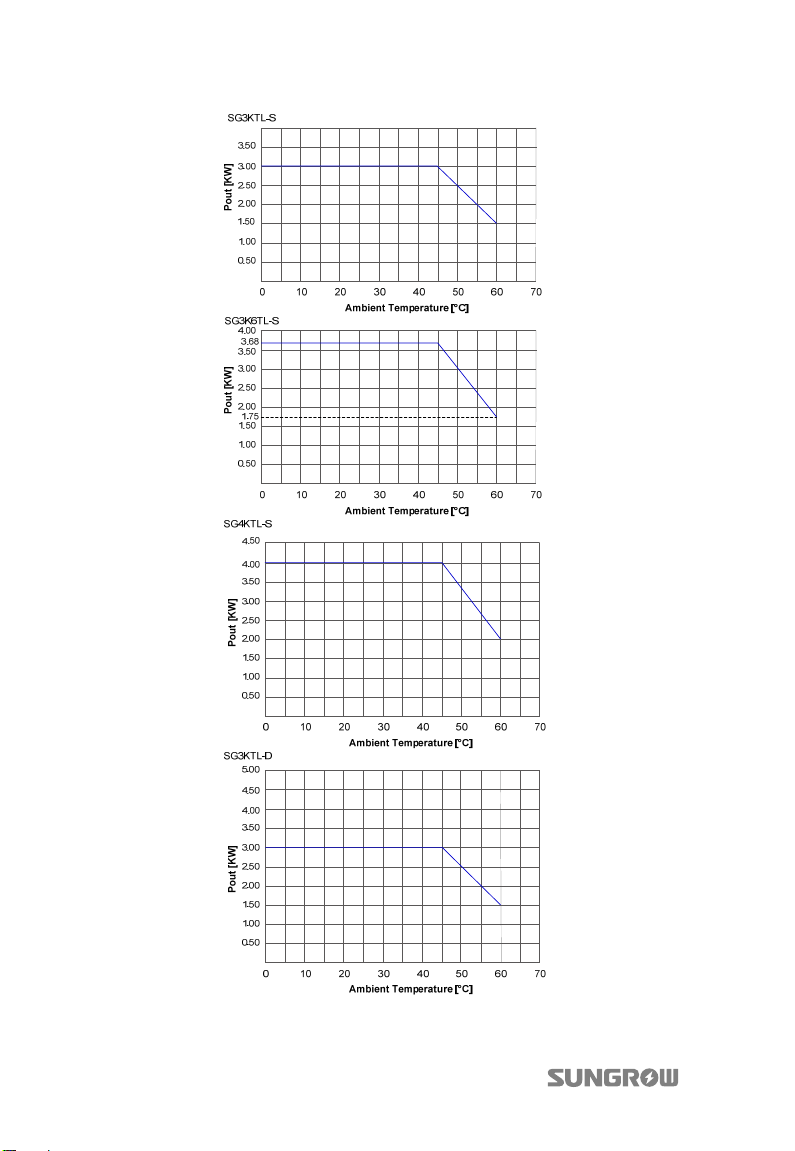

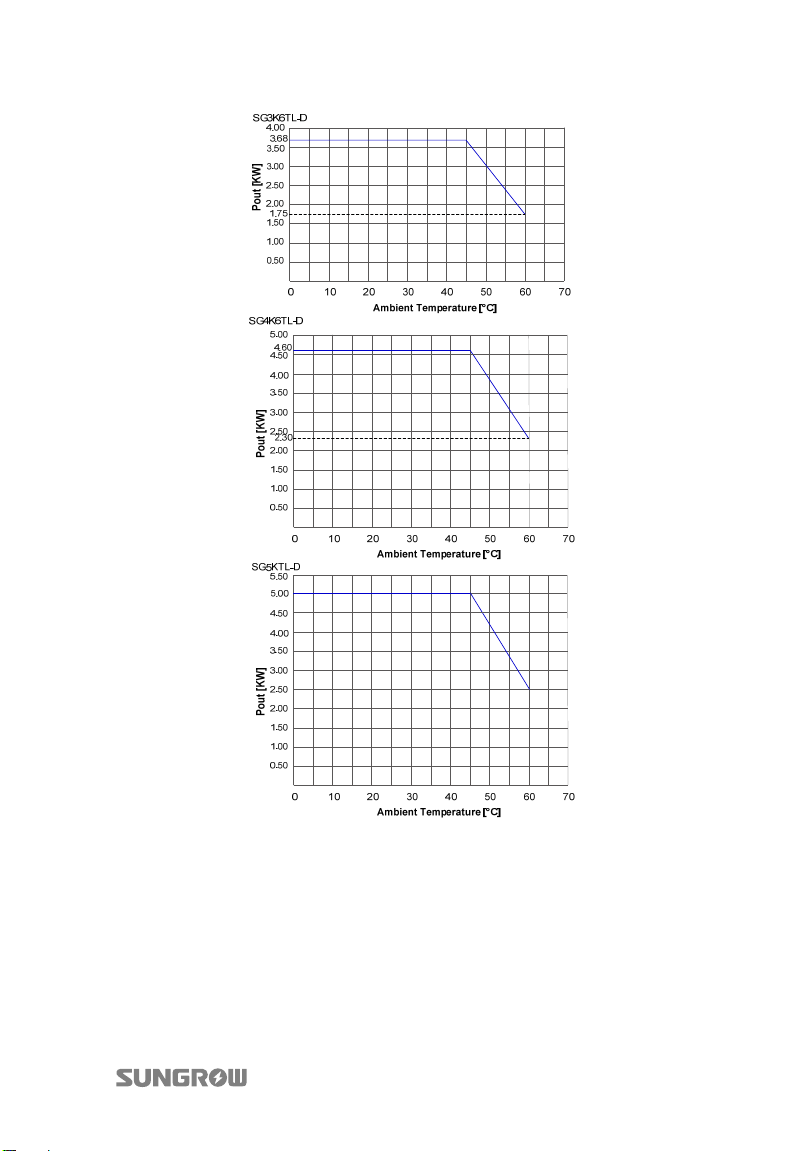

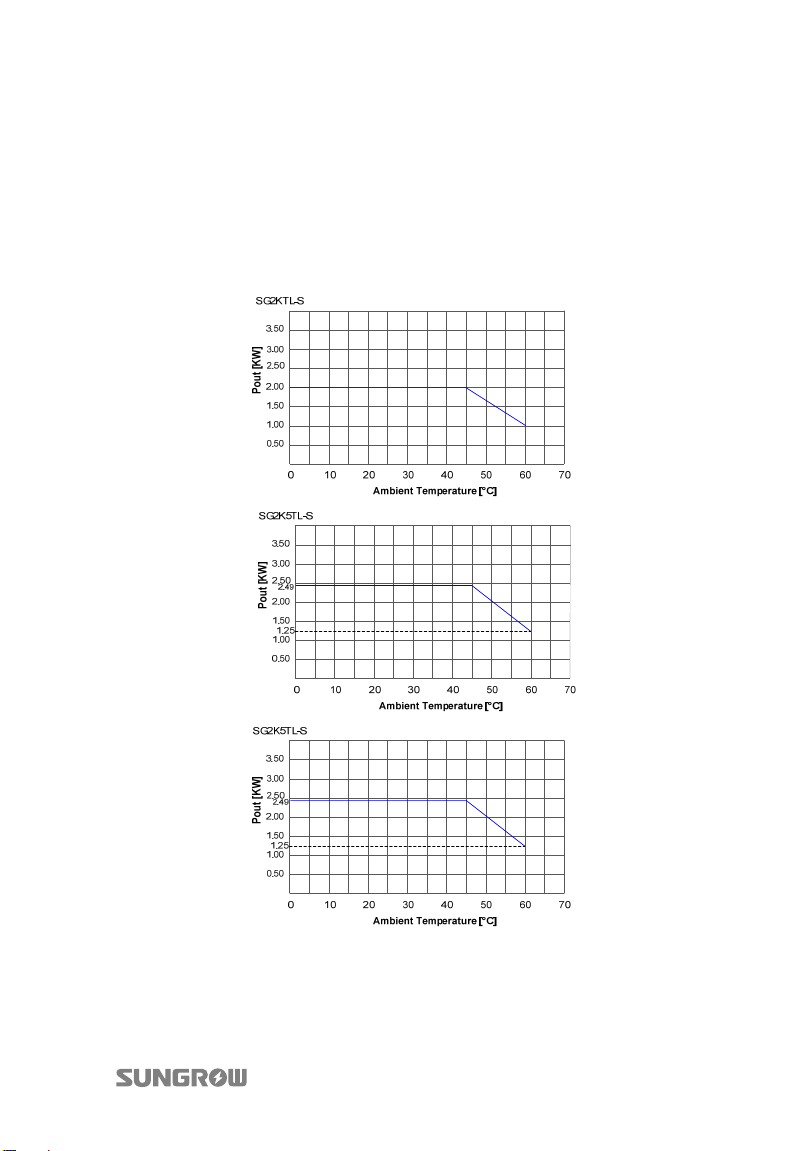

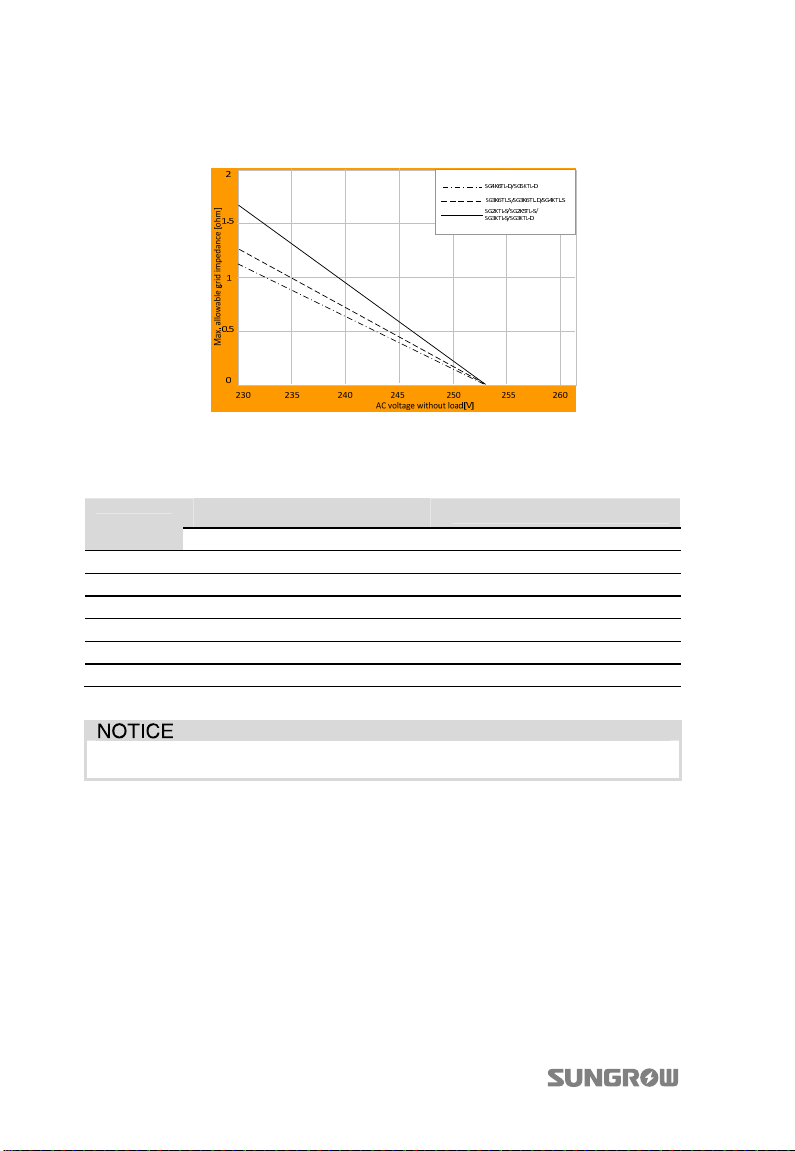

The following graph shows the automatic reduction in output power in relation to ambient temperature.

Page 20

2 Product Introduction User Manual

Page 21

User Manual 2 Product Introduction

*The derating curve shown in the graph above is obtained by the test in high temperature environmental chamber.

−

Page 22

3 Unpacking and Storage

3.1 Unpacking and Inspection

The unit is thoroughly tested and strictly inspected before delivery. Although sturdy packaging is used, damages may still occur during shipping.

Check the packing for any visible damages upon receiving.

Check the inner contents for damage after unpacking.

Check the completeness of the delivery contents according to the supplied packing list.

If there are visible damages to the packaging or the inner contents, or something missing, please contact the unit dealer.

Do not dispose of the original packaging. It is the best choice to store the inverter in the original packaging.

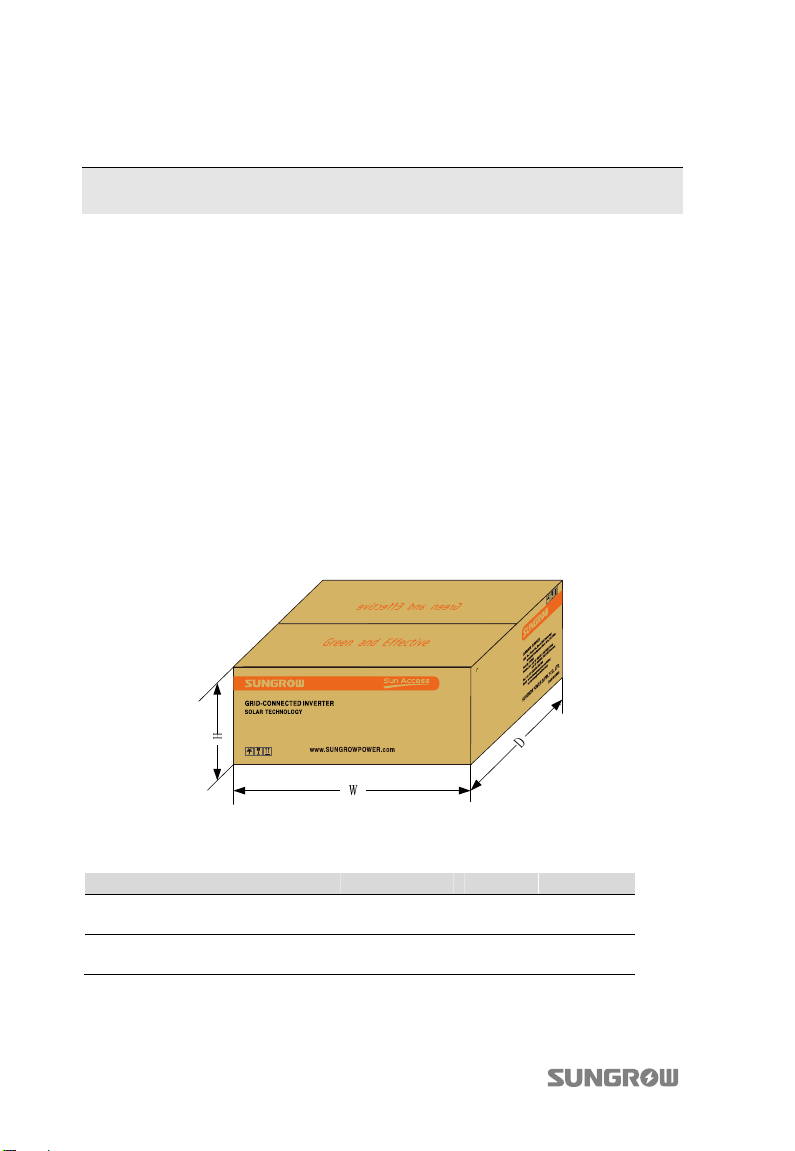

Fig. 3-1 Single Inverter Packing

* The dimensions shown in the image here is for reference only.

Item W H D

SG2KTL-S/SG2K5TL-S/SG3KTL-S/ SG3K6TL-S/SG4KTL-S SG3KTL-D/SG3K6TL-D/ SG4K6TL-D/SG5KTL-D

500mm 210mm 385mm

530mm 215mm 445mm

Page 23

User Manual 3 Unpacking and Storage

3.2 Identifying Inverter

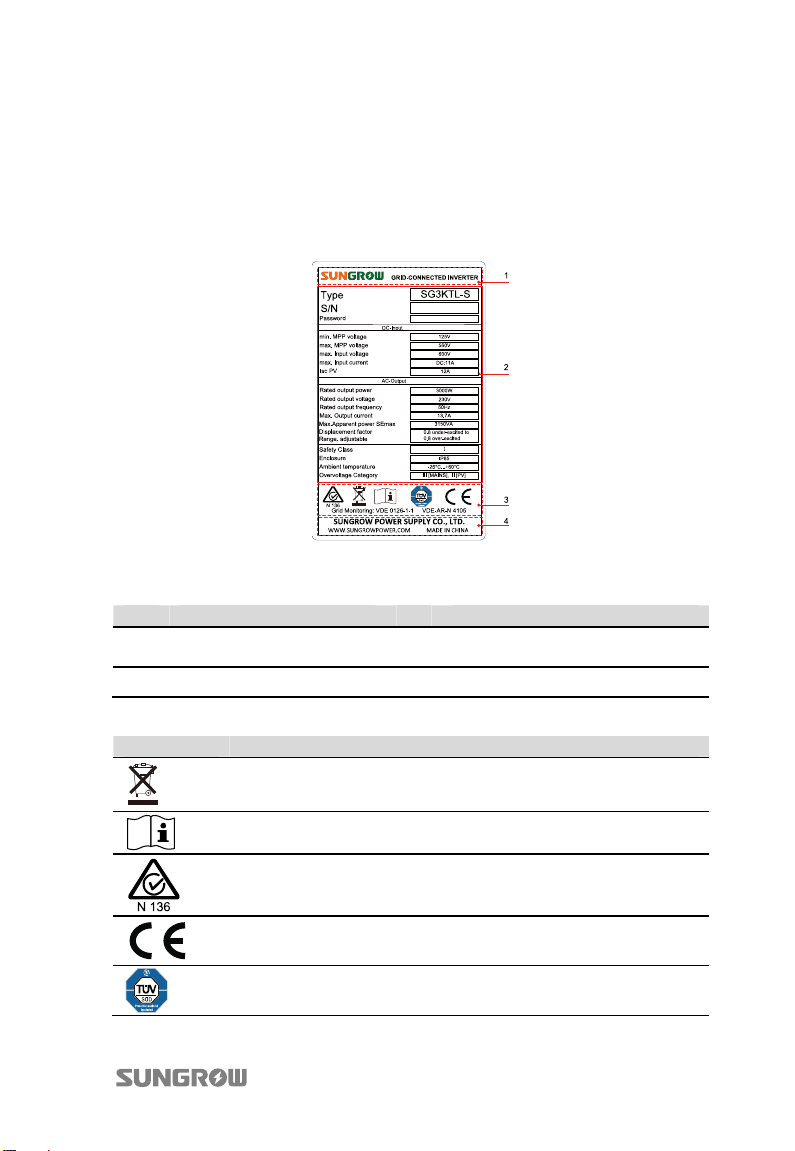

Two nameplates are attached to one side of the inverter and the carton respectively. They provide information on the type of inverter, the most important specifications, marks of certification institutions, website and serial number which are available and identified by Sungrow.

Fig. 3-2 Nameplate of Inverter

* Image shown here is for reference only. Actual product you receive may differ.

Item Description Item Description

SUNGROW logo and product

type

2 Technical data of inverter 4 Company name, website and origin

Tab. 3-1 Description of Icons on the Nameplate

Marks of certification institutions of

inverter

Icon Description

Do not dispose of the inverter with the household waste.

Refer to the corresponding instructions.

C-tick mark of conformity. The inverter is in compliance with directives of C-tick.

CE mark of conformity. The inverter is in compliance with directives of CE.

TUV mark of conformity. The inverter is in compliance with directives of TUV.

Page 24

3 Unpacking and Storage User Manual

3.3 Delivery Contents

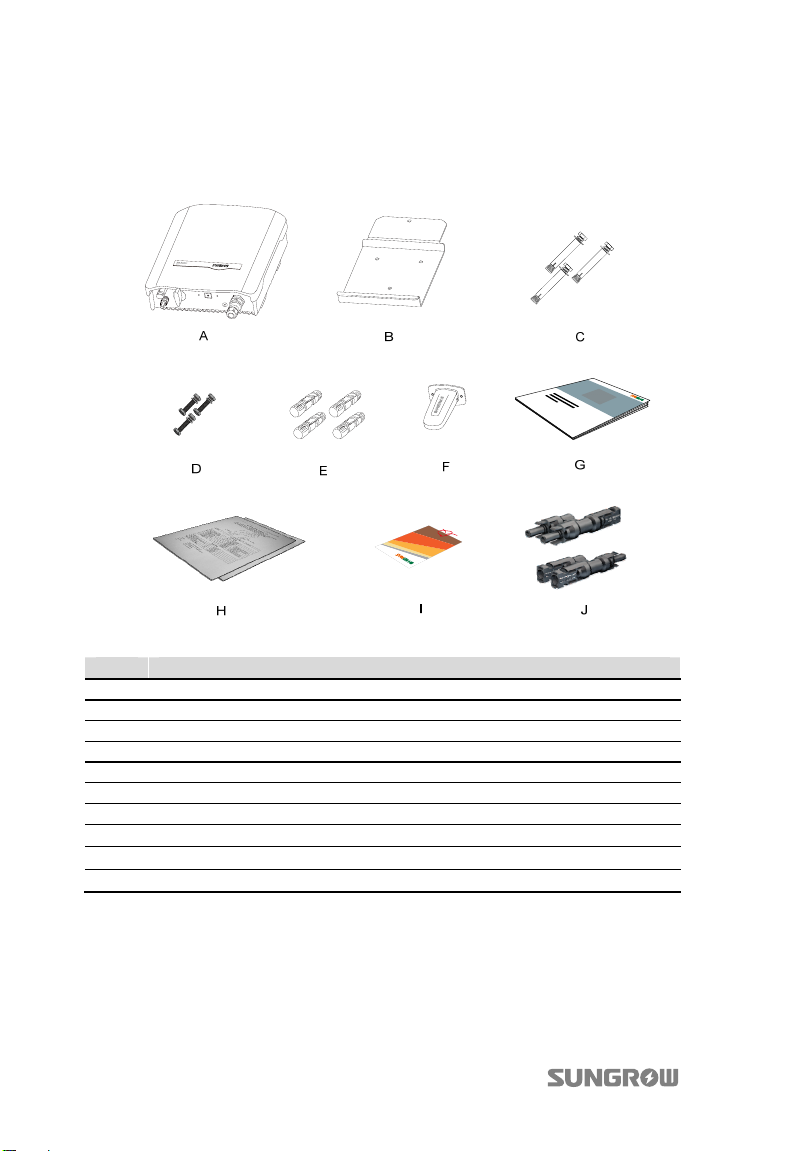

Fig. 3-3 Delivery Contents

Item Description

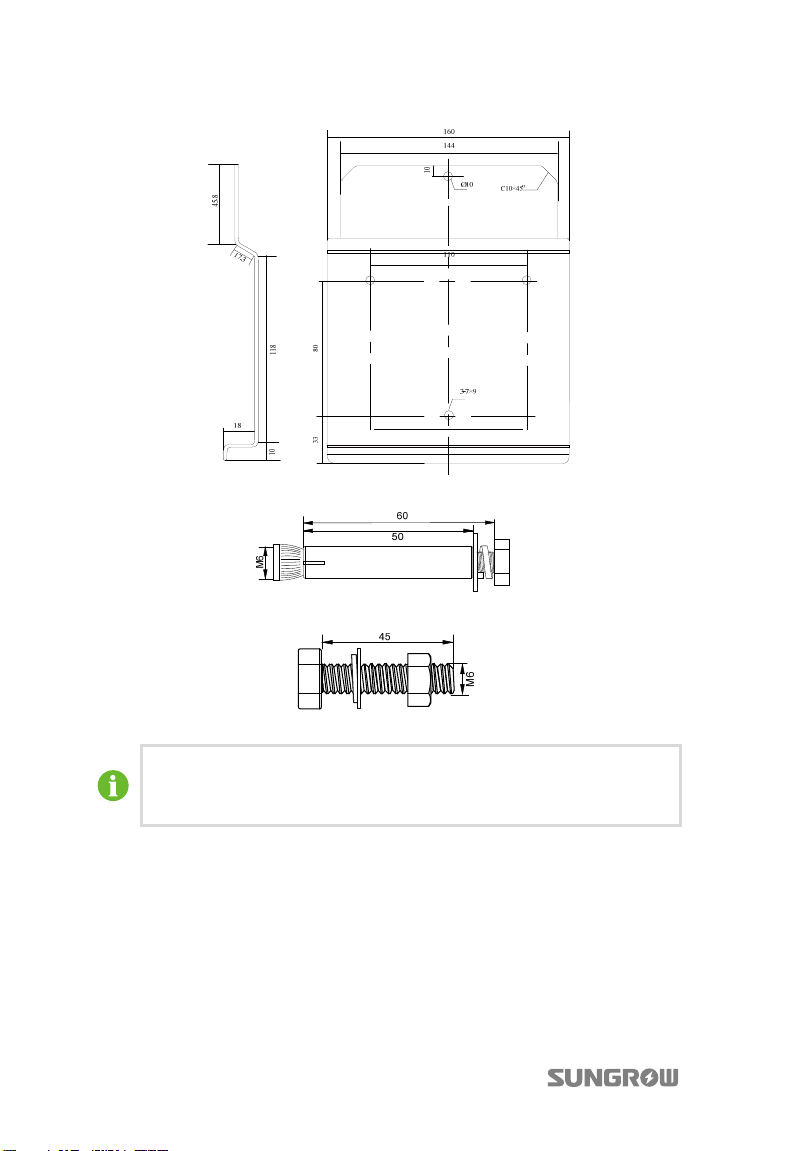

A Inverter unit B It is used to mount the inverter onto the wall C Expansion bolts for fastening the backplate onto concrete wall D Fastener set for installing the inverter onto metal frame E PV input connectors, including positive and negative connectors F WiFi, for wireless communication(Optional) G Quick user manual and CD H Packing list and product test report I Quality certificate J T-type terminals. It is only for SG3K6TL-S/SG4KTL-S.

Page 25

User Manual 3 Unpacking and Storage

3.4 Storage of Inverter

If you do not install the inverter immediately, you should choose an appropriate location to store it.

The unit must be stored in original packaging and the desiccant must be left in the packaging.

The unit must be stored in a clean and dry place to protect against dust and moisture.

The storage temperature should be always between -30 °C and +85 °C. And the storage relative humidity should be always between 0 and 100%.

It is very important to keep the packaging away from chemicals. Otherwise it will lead to corrosion.

During the storage time, check periodically for visible damages by rats. Replace the packaging if necessary.

If there is more than one inverter to be stored, the maximum layers for original paper packaging are five.

After long-term storage or decommissioning, local installer or Service Dept. of Sungrow should perform a comprehensive test before connecting the inverter into PV power system.

Page 26

4 Securing Inverter to the Wall

4.1 Selecting Installation Location

Selecting an optimal installation location for the inverter is decisive for its operating safety as well as its expected efficiency and service life.

1. Take the load capacity of the wall into account. The wall (such as concrete wall or metal structure) should be strong enough to hold the weight of the inverter over a long period of time.

2. Install the unit where is accessible to install, electrical connect and service.

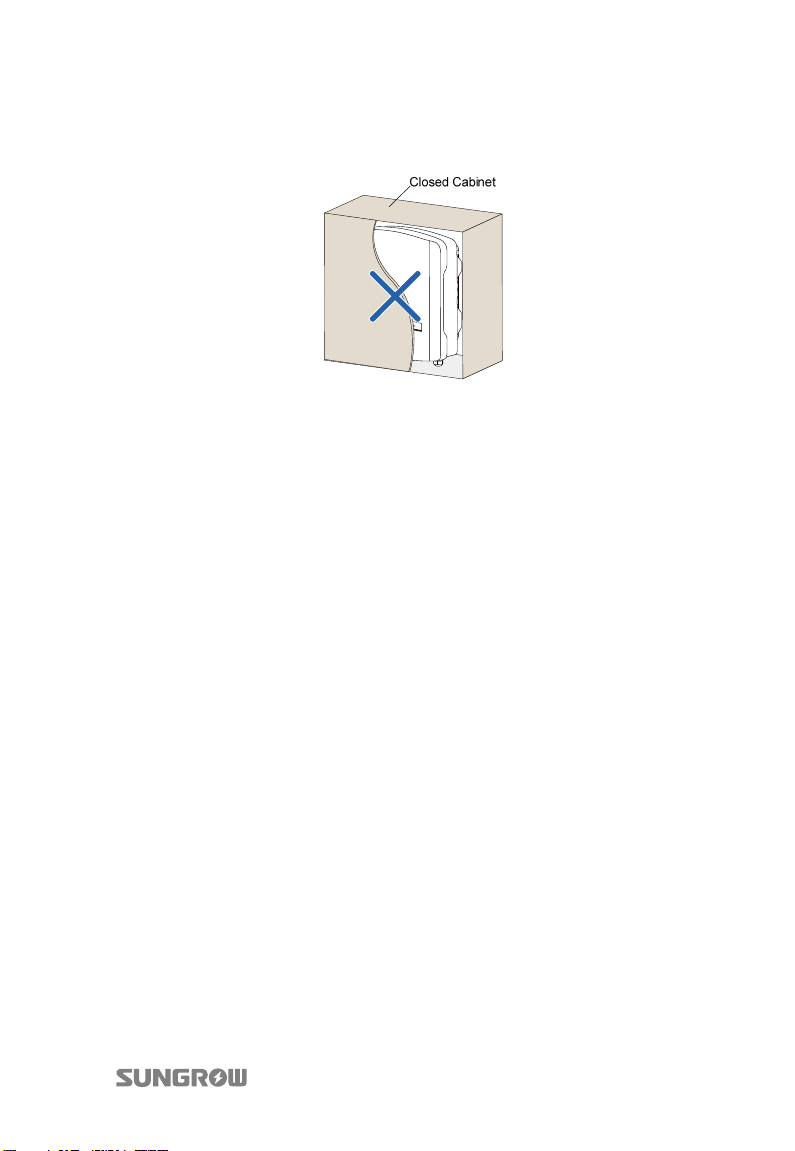

3. Do not install the inverter where contains flammable materials or flammable gas in the vicinity of the unit installation site.

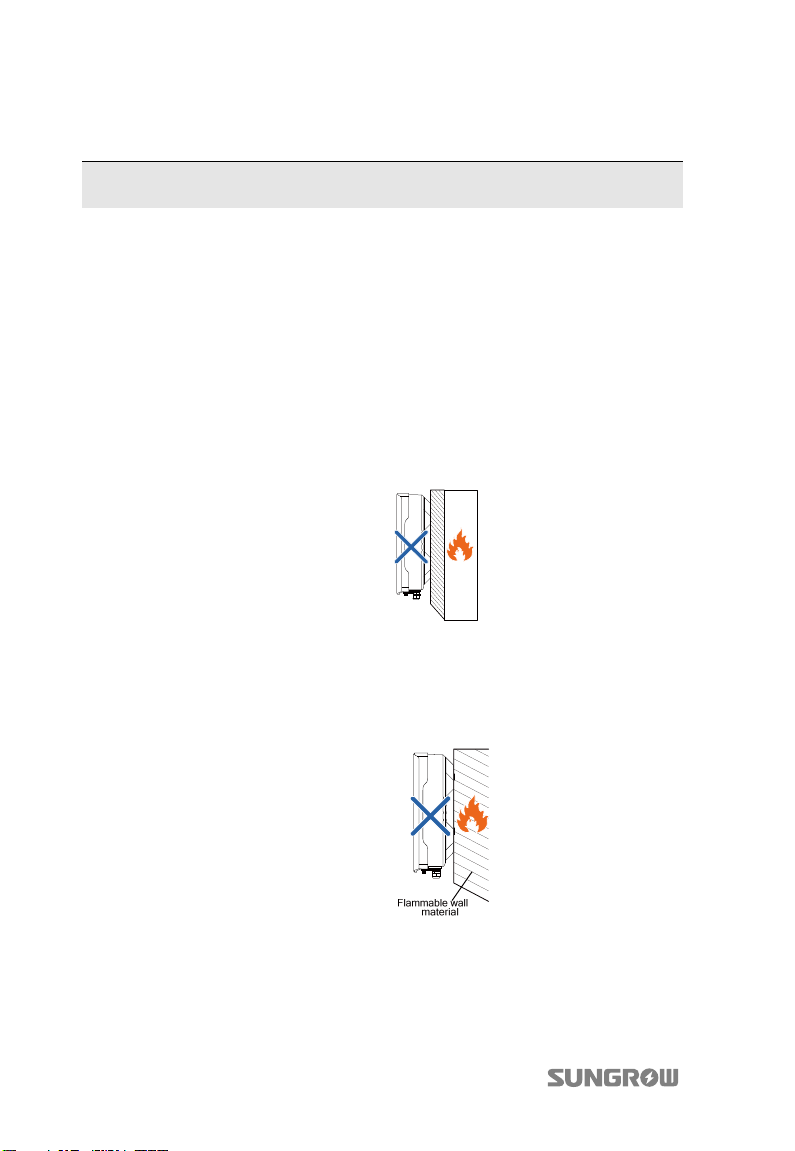

Flammable material or gas near the installation

4. Do not install the unit on wall of flammable materials.

Page 27

User Manual 4 Securing Inverter to the Wall

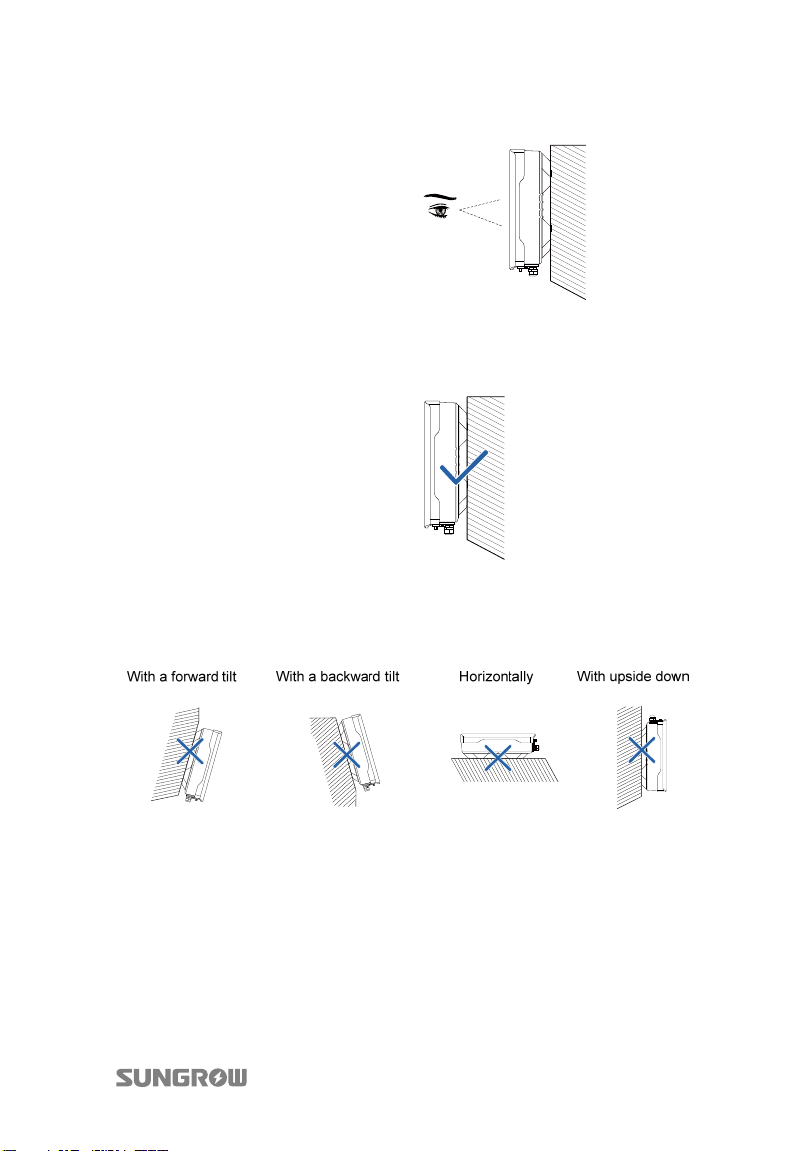

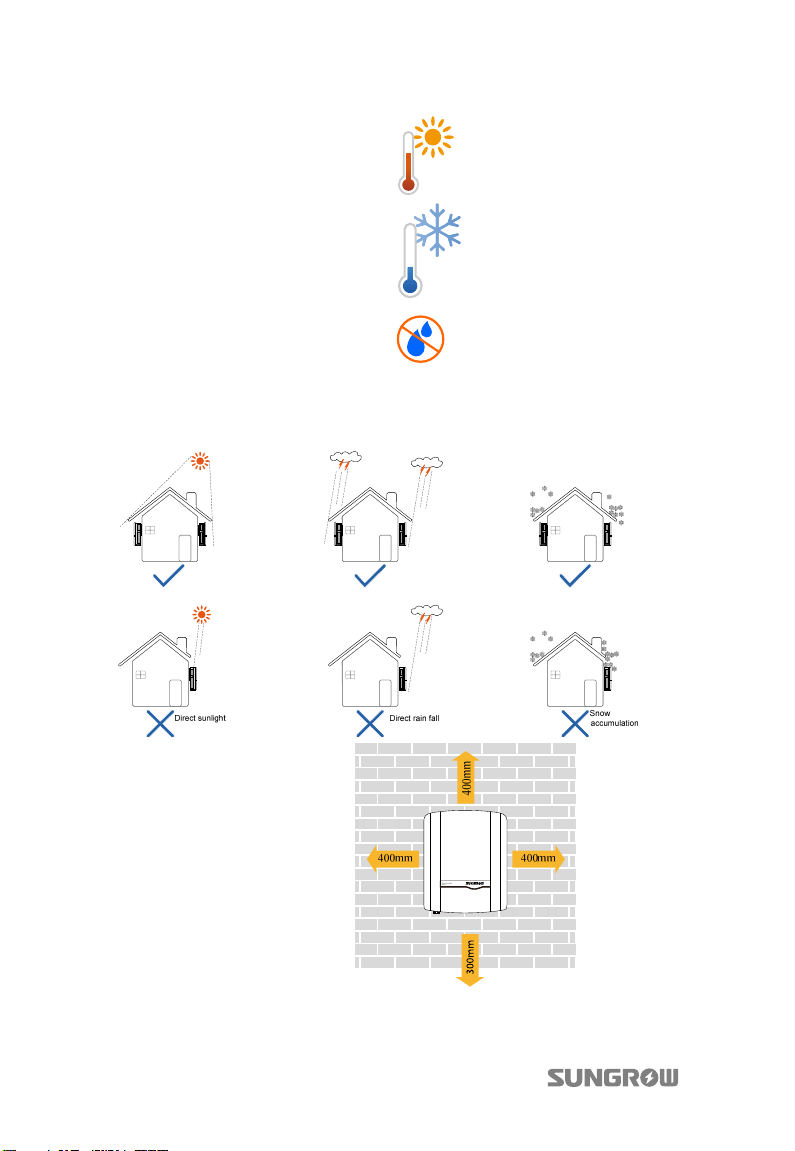

5. Install the unit at eye level for easy button operation and display read.

6. It is suggested that the inverter be installed vertically with upside up for good heat dissipation.

7. Never install the inverter horizontally, or with a forward tilt or with a backward tilt or even with upside down.

8. The inverter unit with IP65 can be installed indoors or outdoors.

Page 28

4 Securing Inverter to the Wall User Manual

9. The ambient temperature should range from -25°C to 60°C. The power output will reduce when the ambient

Max. ambient temperature:

+60°C

temperature exceeds 45°C.

10. The relative humidity of chosen

Min. ambient temperature:

-25°C

installation site should never exceed 100%. Moisture may result in corrosion and damage to the internal device components.

Max. relative humidity:

100%

11. Avoid exposing the inverter to direct sunlight, rain or snow to extend its service life despite of IP65 rating. Shaded site of the building would be better.

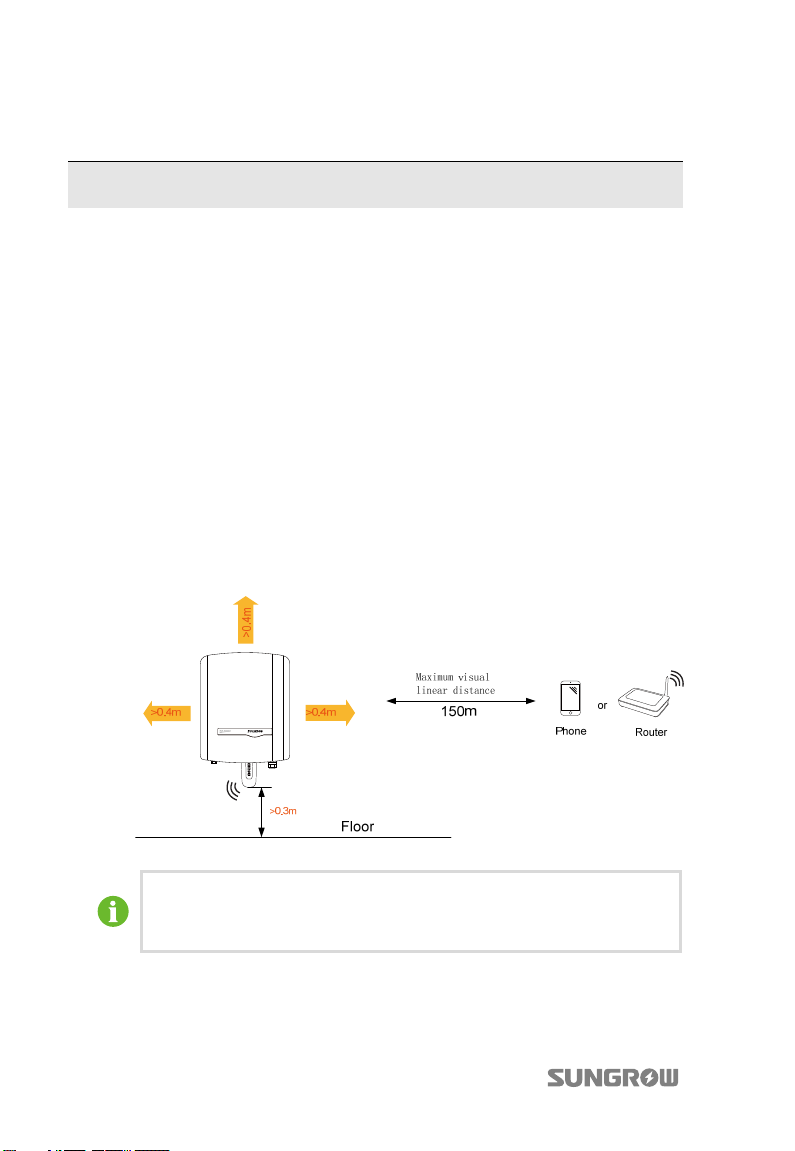

12. Take enough space for convection into consideration during installation. For details, see ”6.2 Distance between the inverter and the

smartphone/router”.

Page 29

User Manual 4 Securing Inverter to the Wall

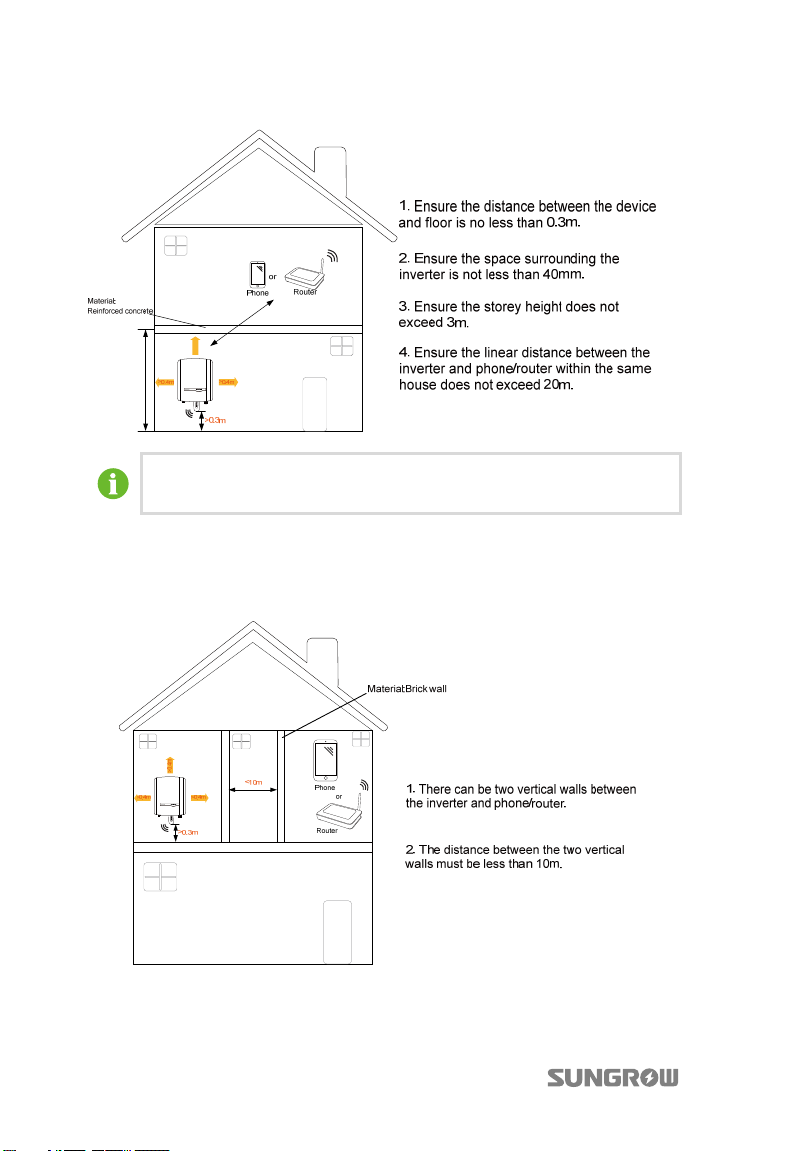

13. Do not install the inverter in a closed cabinet. Otherwise, the inverter will not operate normally.

14. Do not install the inverter where children can reach.

15. Do not install the inverter in residential area. Noise can be produced during the running of the inverter and may affect your daily life.

4.2 Moving Inverter to Installation Site

If the inverter is to be installed, remove the unit from the packaging and move it to the chosen installation site. During the moving process, the instructions below should be obeyed.

1. Beware of the weight of the inverter.

2. Grasp the equipment with both hands by means of handles.

3. Do not release the equipment unless it has been firmly secured to the wall.

4.3 Installation Procedure

Inverter is installed onto the wall by means of backplate in the packaging. If you don’t use the supplied backplate, you can drill holes according to its dimension below.

Page 30

4 Securing Inverter to the Wall User Manual

Fig. 4-1 Fastener(unit: mm)

Fig. 4-2 Dimensions of Expansion Bolt Set for Concrete Wall (unit: mm)

Fig. 4-3 Dimensions of Fastener Set for Metal Frame(unit: mm)

Please select the appropriate length of the expansion screw according to the thickness of the wall insulation layer. The dimensions shown in the image here is for reference only.

In the following, we will introduce how to secure the inverter to the wall using the provided backplate.

Concr ete Wall

Step 1 Remove the backplate and expansion bolts from the packaging.

Step 2 WiFi connection.(If you purchase WiFi module)

1. Plug SolarInfo WiFi into the corresponding terminal under the inverter.

Page 31

User Manual 4 Securing Inverter to the Wall

2. Fasten the screws with appropriate torque.

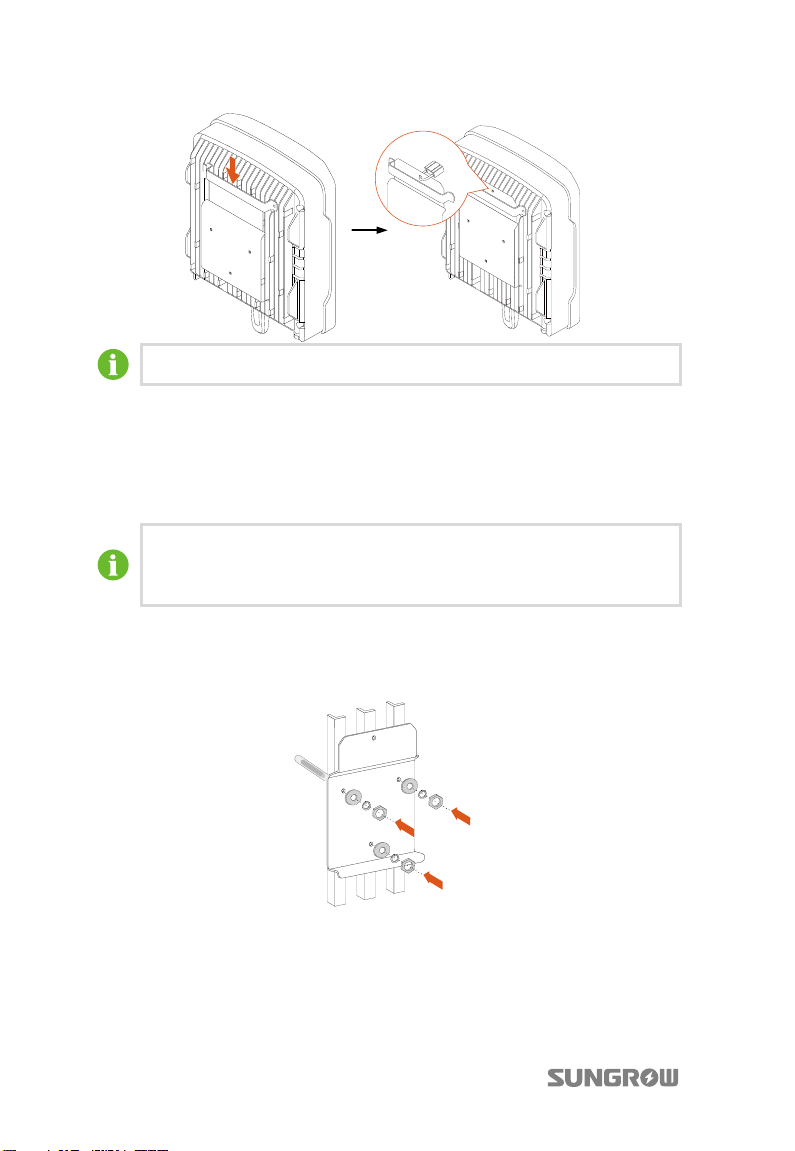

Step 3 Screw a M5 screw onto the chosen concrete wall.

In order to avoid electrical shock or other injury, inspect if there is electricity or plumbing installation before drilling holes.

Step 4 Fasten the backplate to the wall with the supplied expansion bolt set. The

torque for fastening the nut should be at least 10 Nm.

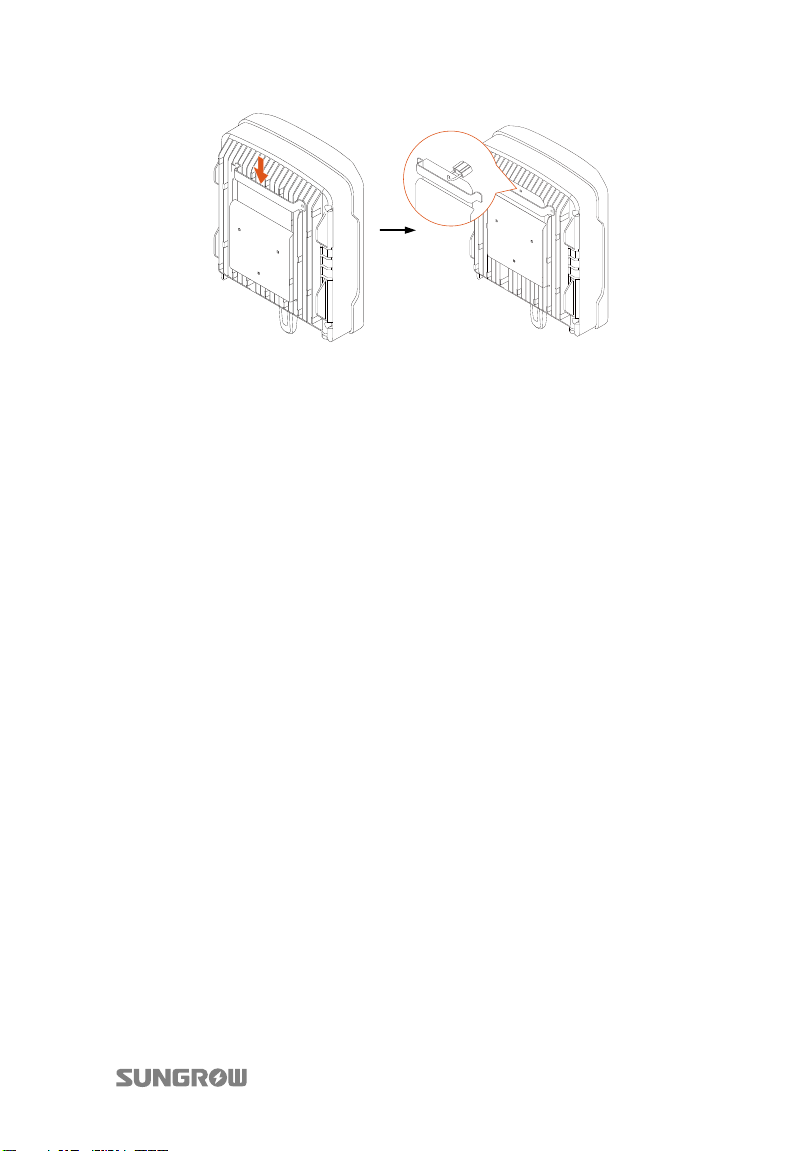

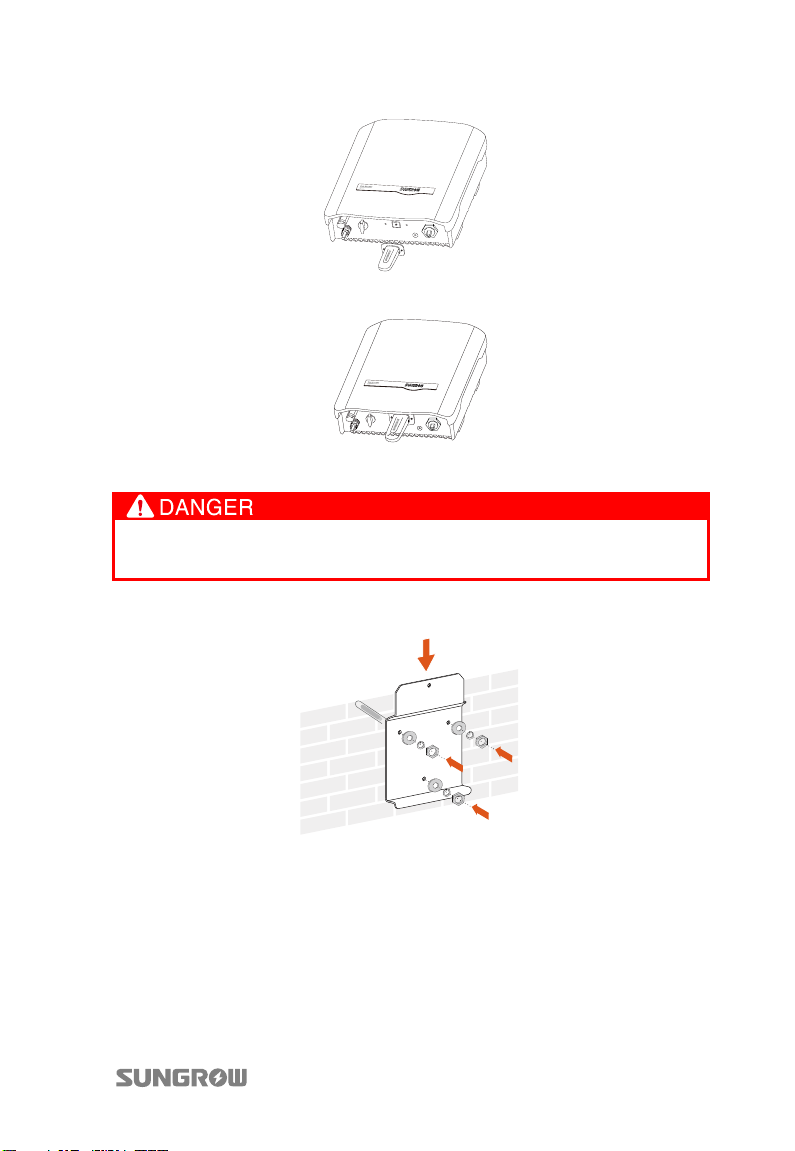

Step 5 Hang the inverter onto the backplate and lock the device.

Page 32

4 Securing Inverter to the Wall User Manual

The lock is an optional accessory. Users need to purchase it.

Metal Frame

Step 1 Remove the supplied backplate from the packaging.

Step 2 WiFi connection. (If you purchase WiFi module)

Step 3 Screw a M5 screw onto the chosen mental frame.

If the shape of the metal frame doesn’t fit the holes on the backplate, you need to re-drill holes on the backplate at appropriate position according to the chosen frame.

Step 4 Choose the best installation site according to the abovementioned

requirements. Fasten the backplate to the mental framel with the supplied expansion bolt set. The torque for fastening the nut should be at least 10 Nm.

Step 5 Hang the inverter onto the backplate and lock the device.

Page 33

User Manual 4 Securing Inverter to the Wall

Page 34

5 Electrical Connection

5.1 General Safety Instruction

Once the inverter is firmly attached to the appropriate location, it can be connected into the PV power system.

Prior to any electrical connection, keep in mind that the inverter has dual power supplies. It is mandatory for technical personnel to wear personal protective equipments: helmet, footwear and gloves during the electrical work.

Improper operation during the wiring process can cause fatal injury to operator or unrecoverable damages to the inverter.

All electrical installations must be in accordance with local and national electrical codes.

Only after being approved by the utility company and installed by qualified personnel can you connect the inverter to the utility grid.

All cables must be firmly attached, undamaged, properly insulated and adequately dimensioned.

These regulations should also be followed:

y The regulations related to the electricity fed into the grid

y The safety instructions related to the PV arrays

Page 35

User Manual 5 Electrical Connection

5.2 Terminals Description

All electrical terminals are located at the bottom of unit. Fig. 5-1 shows the connection area.

Enough space should be kept for electrical connection at the bottom of the inverter when choosing the installation site.

Fig. 5-1 Terminals Description

* Image shown here is for reference only. Actual product you receive may differ.

Tab. 5-1 Terminals Specification

Item Terminals Description

1 DC MC4 terminals for PV input. 2 WiFi --3 PE A second PE terminal 4 AC AC terminals to the power grid.

5.3 Overview of Electrical Connection

Electrical connections of the inverter include DC connection, AC connection and communication connection.

Page 36

5 Electrical Connection User Manual

Fig. 5-2 Electrical Connection Diagram

Item Description Remar

A AC circuit breaker

B Utility grid

C SolarInfo WiFi It is used for wireless communication.

D PV arrays

Used as a protective device during electrical connection. User equips this device according to the maximum output voltage and current. Nominal line-to-neutral voltage of the utility grid is 230V.

-S series: one input area with one pair of terminals.

-D series: two input areas with two pairs of

terminals.

5.4 Connecting Inverter to AC Grid

The inverter is connected to the grid via 3 wires (L, N, and PE). Feeding power is always single-phase via AC terminal at the bottom of the unit.

An appropriately sized AC circuit breaker is suggested as the protection equipment in AC connection, as shown in Fig. 5-2.

5.4.1 AC Side Requirements

Only after being approved by the local grid company can you connect the inverter to the grid.

Prior to connecting the inverter to the utility grid, verify whether the grid voltage and frequency are within the range of inverter output parameters (refer to Appendix). Consult the local grid company for solution if otherwise.

Page 37

User Manual 5 Electrical Connection

AC Side Circuit Breaker

An independent two-pole circuit breaker for the inverter must be installed at the output side to ensure that the inverter can be securely disconnected under load.

Inverter Type Specification Recommended of AC Circuit Breaker

SG2KTL-S 25A

SG2K5TL-S 25A

SG3KTL-S 25A

SG3K6TL-S 25A

SG4KTL-S 32A

SG3KTL-D 25A SG3K6TL-D 25A SG4K6TL-D 32A

SG5KTL-D 32A

y It is not allowed for several inverters to use the same circuit breaker.

y It is not allowed to connect loads between the inverter and the circuit

breaker.

Residual Current Device

With an integrated universal current-sensitive residual current monitoring unit inside, the inverter is able to distinguish the fault current from normal capacitive leakage current. The inverter will disconnect immediately from the mains when a fault current out of the limit value has been detected.

However if an external RCD or residual current breaker is mandatory, the switch must be triggered at a failure current of 300mA or higher.

5.4.2 Assembling AC Cables to Connector

Inverter is equipped with water-proof direct plug-in connectors for AC connection, which match AC terminals at the bottom of the inverter.

“L”, “N” and “PE” should be equipped with correctly colored cables for distinguishing. Please refer to related standards for specific wiring color.

AC Cable Requirements

Select AC cable specifications and types considering the following facts:

Page 38

5 Electrical Connection User Manual

The grid impedance of the AC cable must correspond to the specification to avoid unintended disconnection from the grid or derating of the output power.

The cable cross-sectional areas and recommended value are shown in the following table, avoiding power loss in the cables of more than 1% of the nominal power.

Type

SG2K5TL-S 4…6 4 10…14 14 SG3KTL-S 4…6 4 10…14 14 SG3K6TL-S 4…6 6 10…14 14 SG4KTL-S 4…6 6 10…14 14 SG4K6TL-D 4…6 6 10…14 14 SG5KTL-D 4…6 6 10…14 14

Conductor Cross Section(mm²)

Range Recommended Value Range Recommended Value

Outer cable diameter(mm)

The AC cables can be Hard-line&flexible wires.

Withstand ambient temperature;

Layout type (inside wall, underground, free air etc.);

UV resistance and so on.

5.4.3 AC Wiring Procedure

Step 1 Loosen all four screws on the AC terminal lid and remove the lid.

Step 2 Unscrew Thread-Lock Sealing Nut, pull out the Waterproof Sealing Insert

from the opening.

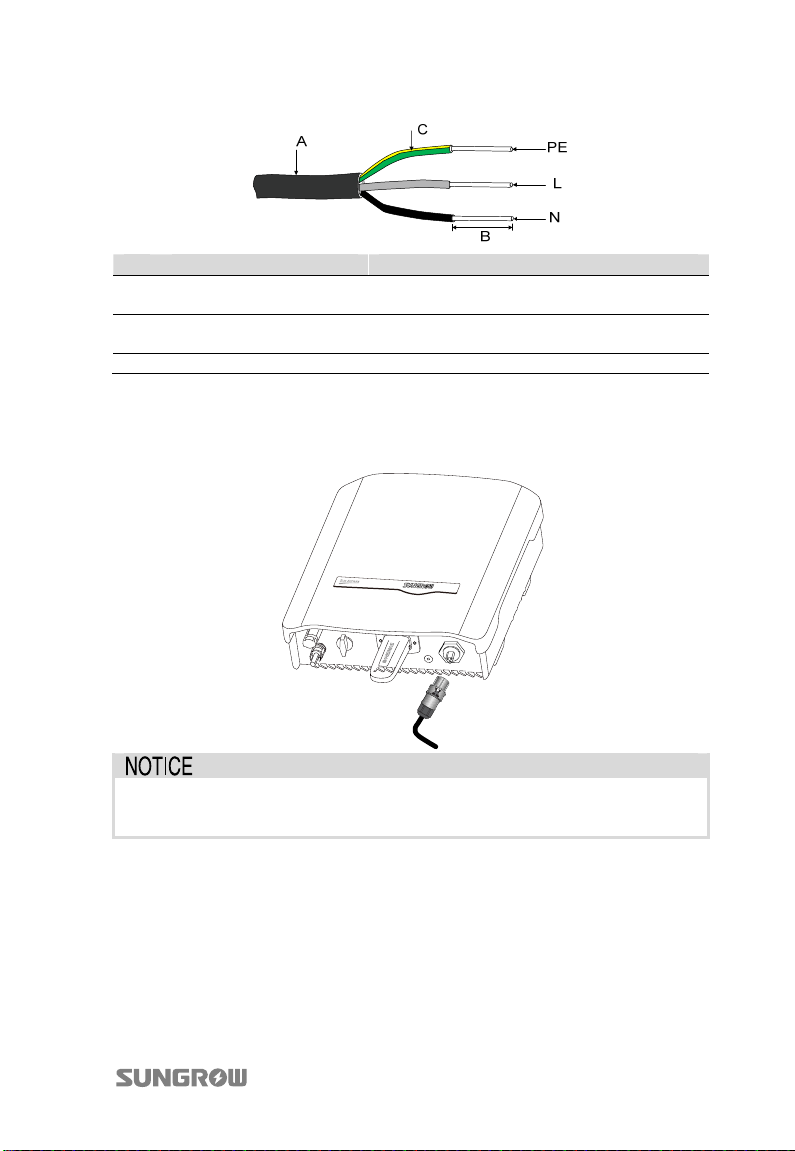

Step 3 Strip off insulation layer of all AC cables. The length of strip insulation is

approximate 18mm.

Page 39

User Manual 5 Electrical Connection

No. Description Remar

A Protective layer

Length of insulation to be

stripped off

C Insulation layer -

Step 4 Lead the AC cable through the Thread-Lock Sealing Nut, and the cable gland.

Step 5 Fix all cables to the corresponding terminals according to markings on the

Accepted cable external diameter ranges from 10mm to 14mm.

18 mm

connector with a screwdriver, especially the “PE” cable.

L and N line must not be swapped, otherwise it may permanently destroy the inverter.

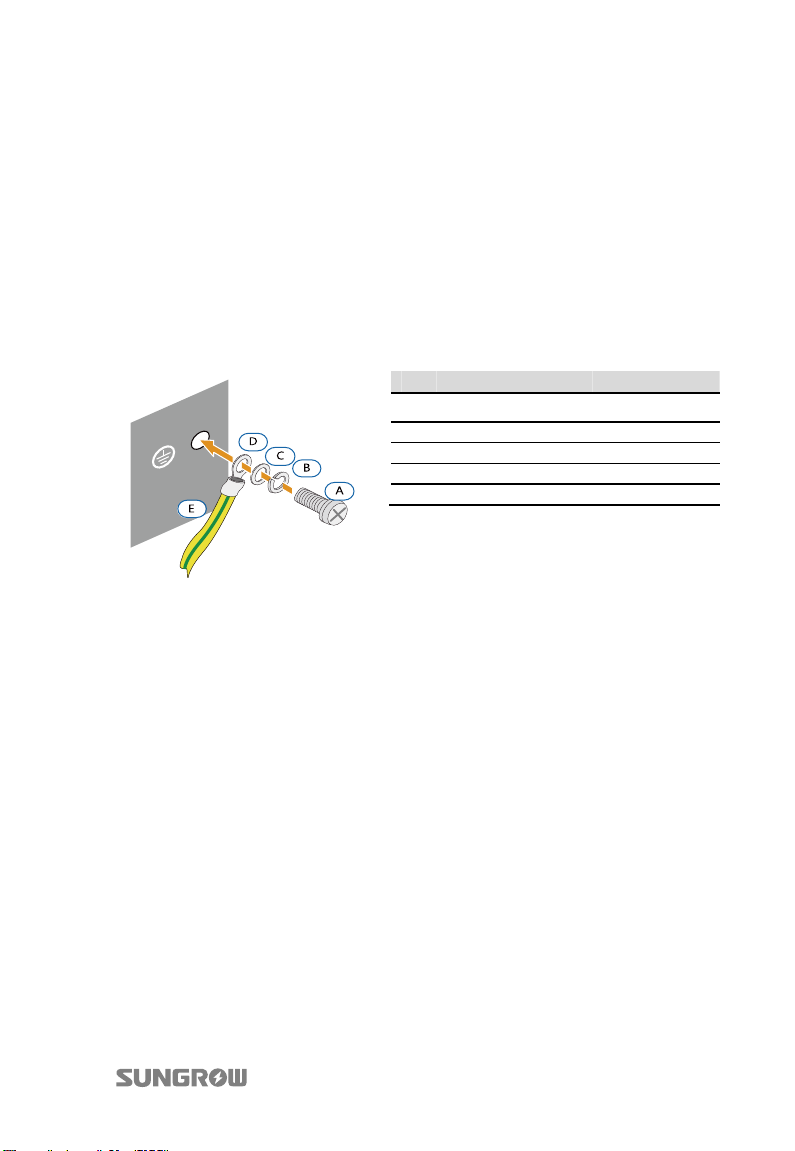

Step 6 Connect “PE” cable to the grounding electrode. Where there are multiple

inverters in the PV power system, connect “PE” cables of all inverters and the mounting frame of PV arrays to the same copper bus bar, which may establish equipotential connection.

Step 7 Pull cables outward to check whether they are firmly installed.

Step 8 Fix all four screws to the AC terminal lid. Insert the Waterproof Sealing Insert

back to AC opening and tighten the Thread-Lock Sealing Nut firmly to the cable gland.

Page 40

5 Electrical Connection User Manual

Step 9

Make sure the AC and DC circuit breaker are disconnected.

Step 10 Connect phase cable and “N” cable to AC circuit breaker.

Step 11 Connect AC circuit breaker to utility grid.

Step 12 Make sure all AC cables are firmly installed.

5.5 Connecting Inverter to PV Arrays

Lethal voltage exists!

PV arrays produce electrical energy when exposed to light and thus can create an electrical shock hazard. Wiring should only be performed by qualified personnel.

Before connecting the PV arrays to the inverter, make sure that the impedances between the positive terminal of the PV string and Earth and the impedances between the negative terminal of the PV string and Earth are larger than 200Kohm.

There is a risk of inverter damage! The following requirements should be met; otherwise they will lead to loss of any and all warranty rights.

y Make sure that the maximum short circuit current of each DC input is less than

inverter allowable limit.

y Make sure that the maximum open voltage of each string is less than 1000V.

Voltage over 1000V can damage the inverter.

If the input line is changed, such as input line falls off, etc. You need to reset the work mode.

5.5.1 PV Inputs Configuration

For -S series inverters, there’s one input area with one MPP tracker. They can be configured in parallel mode only.

For –D series inverters, there’re two PV input areas, each owning its MPP tracker. The

Page 41

User Manual 5 Electrical Connection

two PV inputs can be configured in independent mode or parallel mode.

PV Configuration Mode-Independent Mode

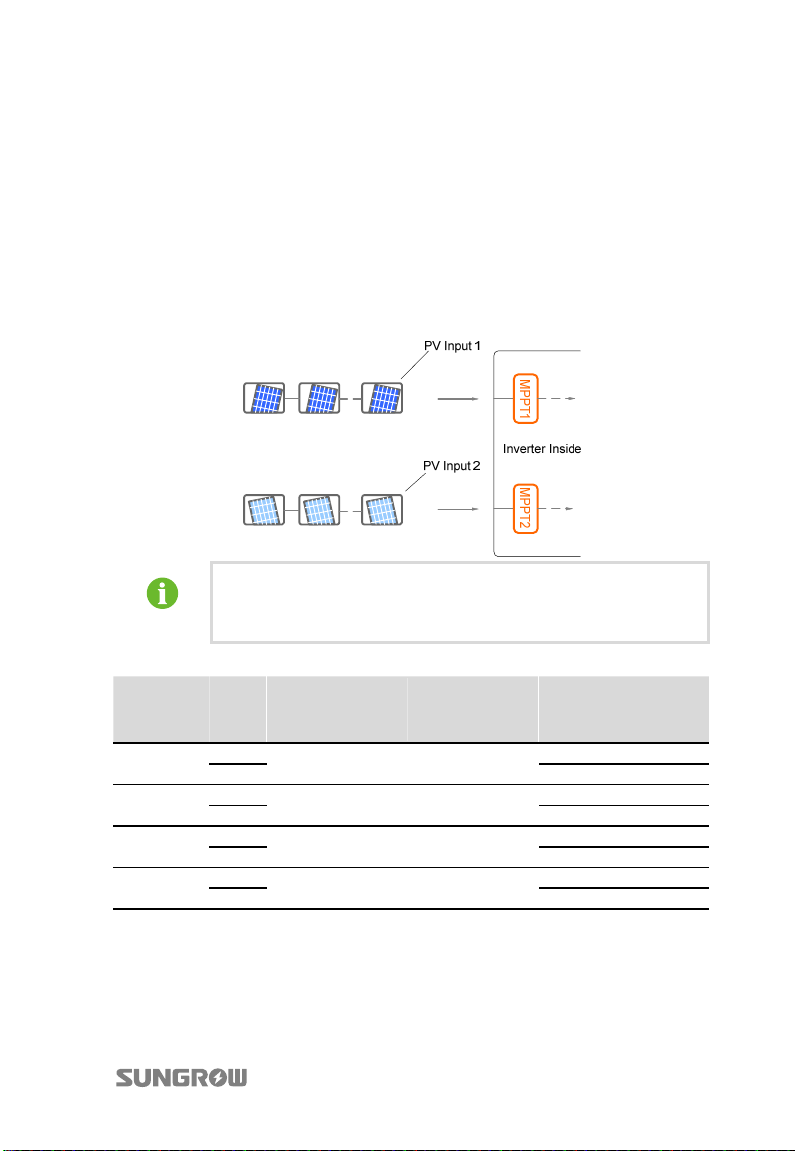

For independent mode, the two PV inputs work independently, each with its own MPPT. Therefore the two PV inputs can be different from each other in PV module types, numbers of PV panels in PV string, tilt angles and orientation angle of PV modules.

As shown in the following diagram, the inverter should be configured to independent mode due to different orientation angle between the two PV inputs.

To make sure the maximum DC power, PV strings connected to individual input area should have a homogenous structure, i.e. the same type, identical tilt and identical orientation.

Type Area

SG3KTL-D

SG3K6TL-D

SG4K6TL-D

SG5KTL-D

Total DC Input Power Limit

DC1

3300W 600V

DC2 12A DC1

3900W 600V

DC2 12A DC1

4900W 600V

DC2 12A DC1

5400W 600V

DC2 12A

Open-circuit Voltage Limit for Each Input

Short-circuit Current Limit for Each Input

12A

Page 42

5 Electrical Connection User Manual

Only the current is limited for a single input and the power is not limited.

PV Configuration Mode-Parallel Mode

For parallel mode, all PV strings with the same type, the same number of PV panels, identical tilt and identical orientation in series can be connected to the same single input area.

• SG3K6TL-S/ SG4KTL-S

Connect the 2 PV strings in parallel using T-type terminals and then connect them to inverter DC input.

Type

SG3K6TL-S 3900 W 600V 20A SG4KTL-S 4300 W 600V 20A

Total DC Input Power Limit

Open-circuit Voltage Limit

Short-circuit Current Limit

To avoid input power unbalance of the two inputs or input load-restriction, ensure the two PV input cables are of the same model.

• SG2KTL-S/SG2K5TL-S/ SG3KTL-S

As shown in the following diagram.

Page 43

User Manual 5 Electrical Connection

MPPT

Type

SG2KTL-S 2300W 600V 12A SG2K5TL-S 2800W 600V 12A SG3KTL-S 3300 W 600V 12A

Total DC Input Power Limit

Open-circuit Voltage Limit

Short-circuit Current Limit

5.5.2 Assembling DC Cable to Connector

All DC cables are equipped with water-proof direct plug-in connectors, which match the DC terminals at the bottom of the inverter.

The positive and negative connectors are marked with polarity symbols and should be equipped with correctly colored cable.

e.g. Red cable should be connected with DC positive terminal while the blue one be connected with the negative.

DC Cable Requirements

Type Cross-Section

Area Range

SG2KTL-S/SG2K5TL-S/ SG3KTL-S

SG3K6TL-S/SG4KTL-S 2.5...6mm2 5…8mm 600 V

SG3KTL-D/SG3K6TL-D /SG4K6TL-D/SG5KTL-D

2.5...6mm

Outer Cable Diameters

5…8mm 600 V

Max. Withstand Voltage

Max. Withstand Current

Same with short-circuit current. Same with short-circuit current. Same with short-circuit current.

Page 44

5 Electrical Connection User Manual

The DC cables must be flexible wires.

DC Connector Assembling Procedure:

Make sure that all the DC and AC cables to the inverter are not live before you start the electrical work.

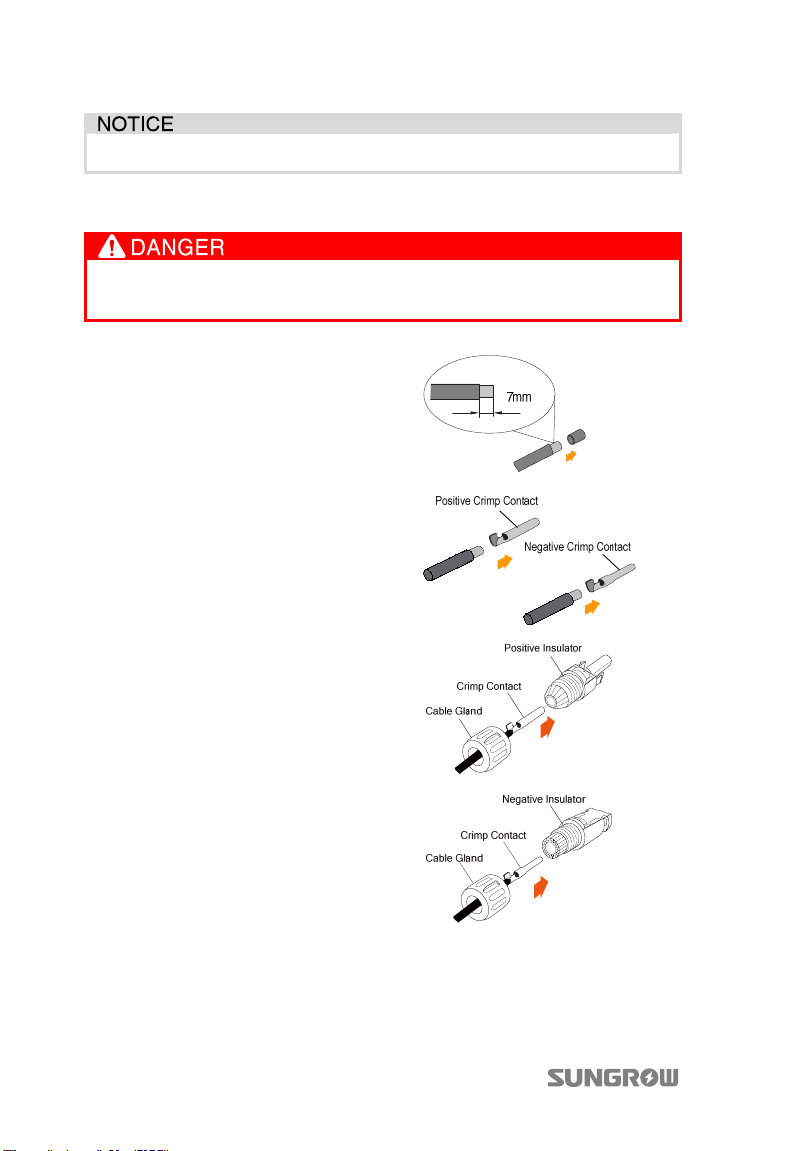

Step 1 Strip of

7mm insulation layer from all

DC cables.

Step 2 Assemble cable ends with crimp

contacts by crimping pliers.

Step 3 Lead cable through cable gland.

Step 4 Insert the crimp contact into the

insulator until it snaps into place. Then pull gently to check if it is correctly engaged.

Step 5 Screw the cable gland to front

insulator with tightening torque

2.5…3 Nm.

Page 45

User Manual 5 Electrical Connection

For further assembly and connection instruction, please visit the webpage of the device manufacturer.

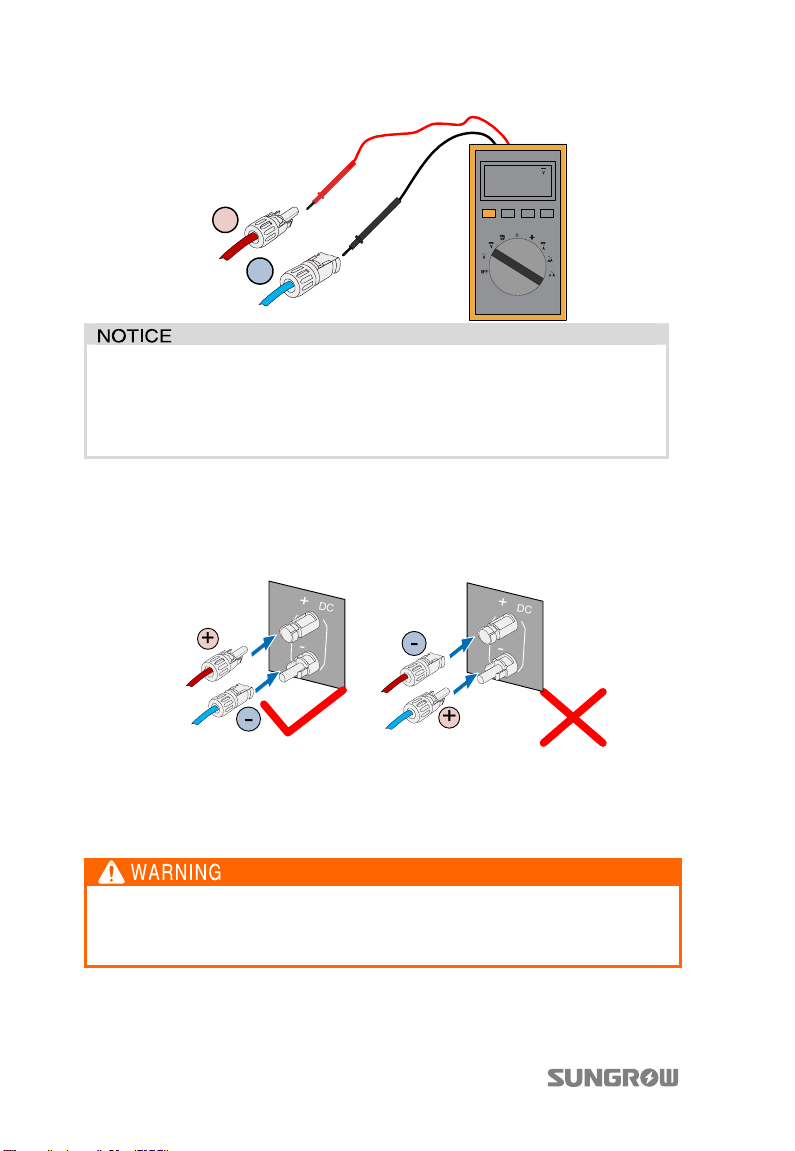

Step 6 Make sure the connection cable of PV string for the correct polarity.

The inverter will not function properly if the DC polarities are reversed.

Step 7 Disconnect the DC switch.

Step 8 Configure PV configuration mode according to actual PV conditions. Please

refer to ”5.5.1 PV Inputs Configuration”.

5.5.3 DC Wiring Procedure

Make sure that none of the DC or AC cables connected to the inverter is live before the electrical work.

Connect the inverter to PV array as the following procedures:

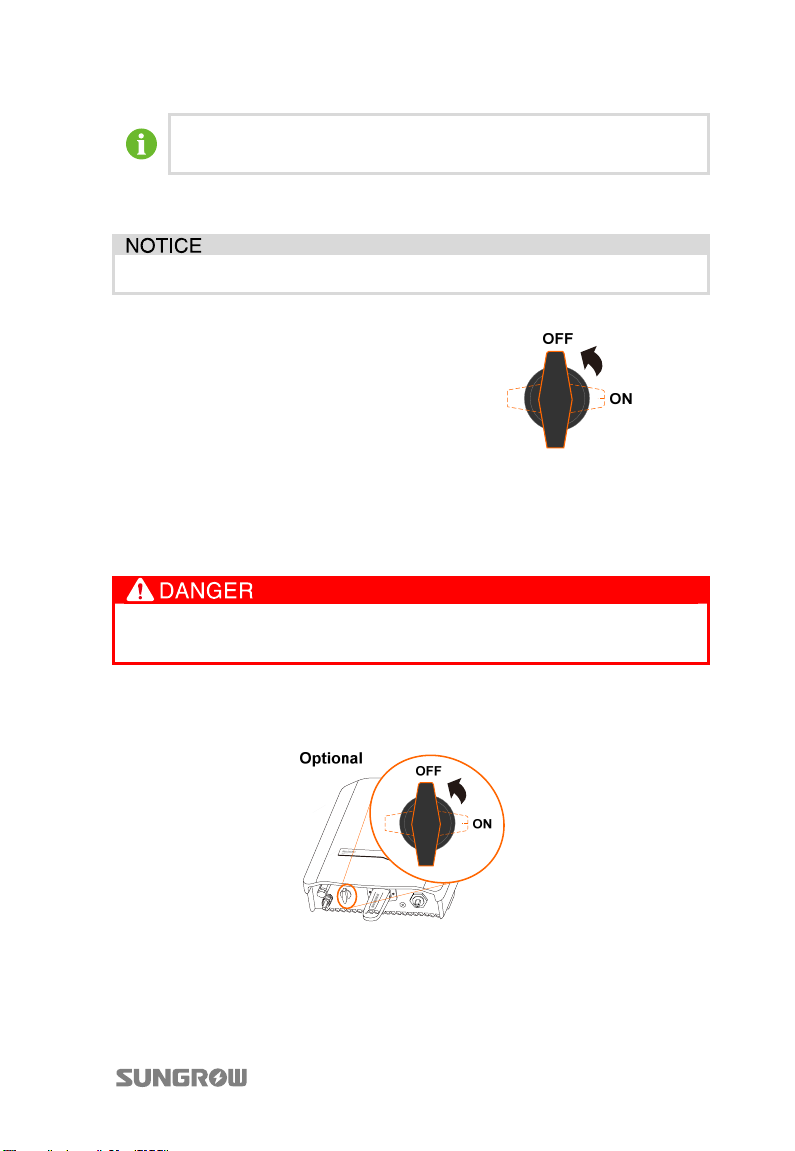

Step 1 Rotate the optional DC switch at the bottom to the “OFF” position.

Step 2 Check the connection cable of PV string for the correct polarity and that the

open-circuit voltage does not exceed the inverter input limit 550V, even under the lowest operating temperature. Refer to module specification supplied by module manufacturer for detailed information.

Page 46

5 Electrical Connection User Manual

480.0

y Check the positive and negative polarity of the PV cells. After confirmation,

you can insert the DC connectors into the input terminals on the bottom of the inverter.

y For the same MPPT, reverse connection of a single string is prohibited. A

permanent failure of the system or inverter may follow if otherwise.

Step 3 Plug the positive and negative DC connectors into corresponding terminals

until there is an audible click.

* Image shown here is for reference only. Actual product you receive may differ.

5.6 Grounding of Inverter

Because of the transform-less design of the inverter, DC positive pole and DC negative pole are not permitted to be grounded. A permanent destroy to the inverter may follows if otherwise.

All non-current carrying exposed metal parts of the equipment and other enclosures in the PV power system should be grounded (e.g., PV arrays frame and inverter enclosure).

Page 47

User Manual 5 Electrical Connection

Where there is only one inverter in the PV power system, connect the “PE” cable to the installation ground.

5.6.1 Second Protective Earth Terminal

The inverter is equipped with second protective earth terminal as specified in EN

50178. There is a second PE terminal at the bottom of the inverter. Users may choose to connect PE connection.

Second PE Connection

Item Description Remar

A Screw

B Lock washer C Washer D Cable socket E Yellow-green cable 6mm2(9AWG)

M4×12mm

Fig. 5-3 Connection of the Second PE Connection

*The connection parts are not included in the delivery scope.

Page 48

6 Communication

6.1 Communication System

The communication connection between the inverter and mobile smartphone/router can be established via SolarInfo WiFi. If you have problems, please refer to "10 FAQ for SolarInfo WiFi Installation and Configuration".

6.2 Distance between the inverter and the smartphone/router

6.2.1 Linear distance

If there are no obstructions between the inverter and smartphone/router, the maximum linear distance between them can be 150m.

If smartphone is connected to the router, the effective distance between them depends on the technical parameters of the route and the external environment.

Page 49

User Manual 6 Communication

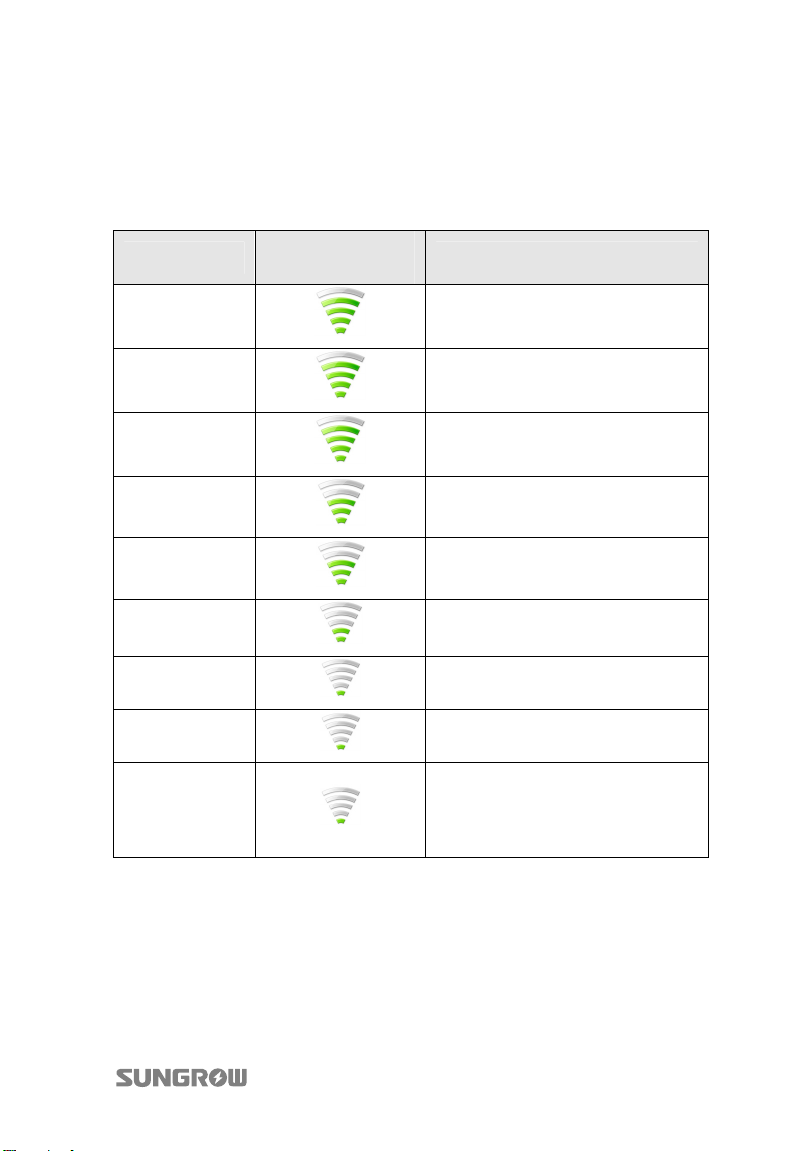

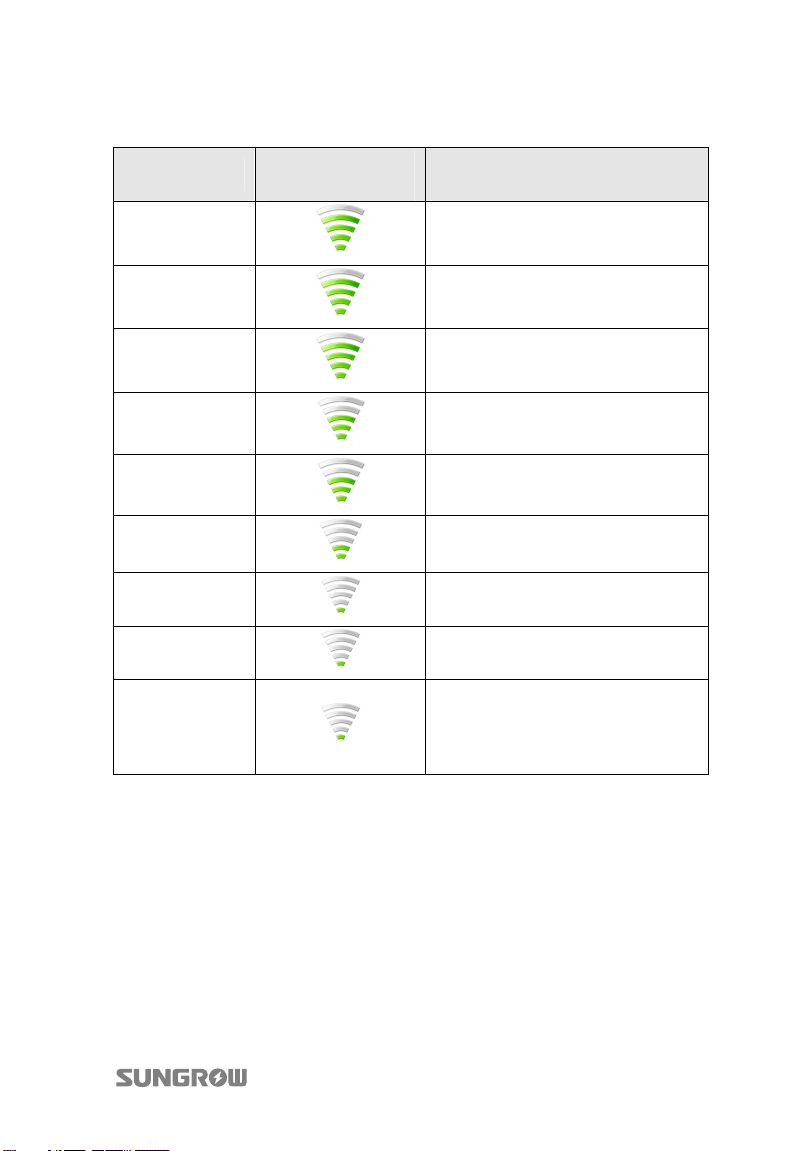

Impacts of common materials on the wireless signal

Material

Wireless signal

strength

Possible Environment

Wood

Plaster\Asbestos

Glass

Water

Brick wall

Marble

Reinforced

concrete

Metal

cordless

smartphones,

microwave

ovens

Compartment

Wall

Window

Aquarium, pool

Partition

Floor

Floor panels, wall

Iron sheet

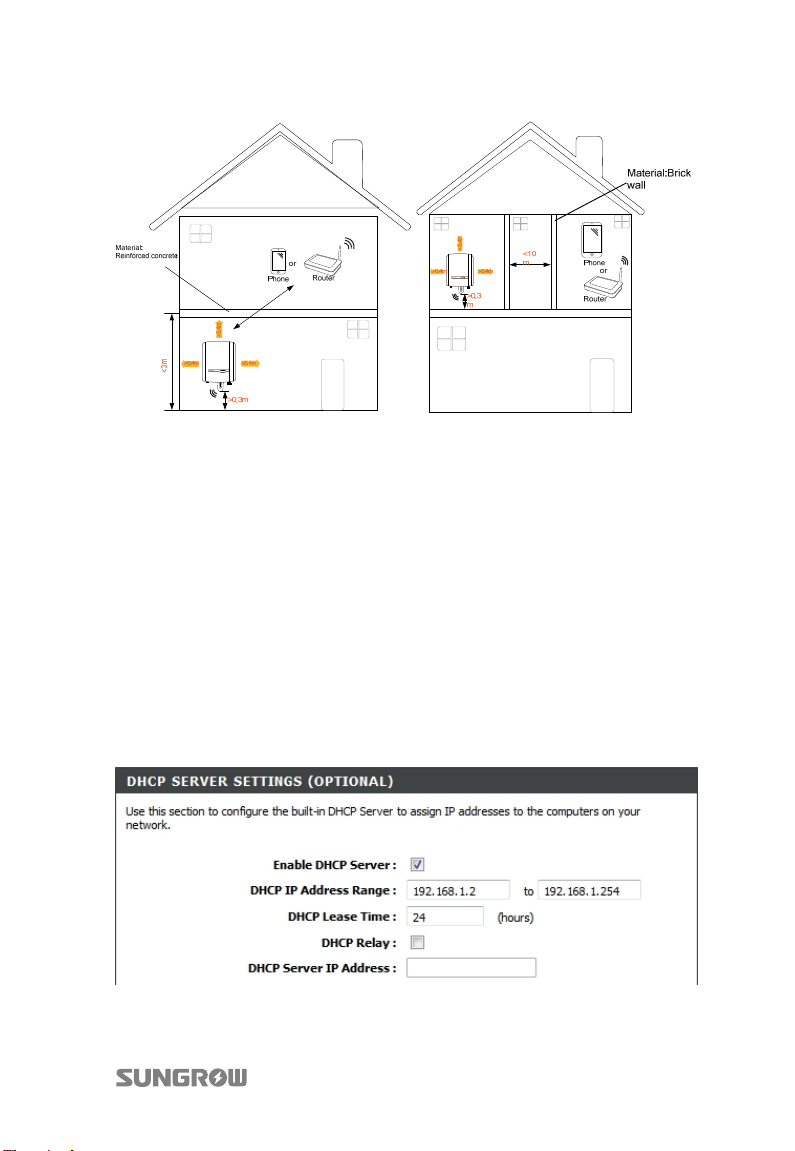

6.2.2 Inverter and smartphone / router on different floors

Inverter can be located inside the same house with the smartphone or router, yet the distance between them must not be more than one floor.

Page 50

6 Communication User Manual

<20

>0.4m

<3m

Image shown here is for reference only. The inverter can be installed indoors or outdoors.

6.2.3 Inverter and smartphone / router on the same floor, in different rooms

Page 51

User Manual 6 Communication

1. Keep the inverter in parallel with the external antenna of the router.

2. The WiFi module can not be blocked by metal.

3. In order to avoid wireless electromagnetic interference, please keep the inverter away from equipment such as cordless smartphones, microwave ovens and so on.

4. Do not install the inverter in confined environment, such as the basement.

6.3 SolarInfo Home APP

6.3.1 Acquisition and installation

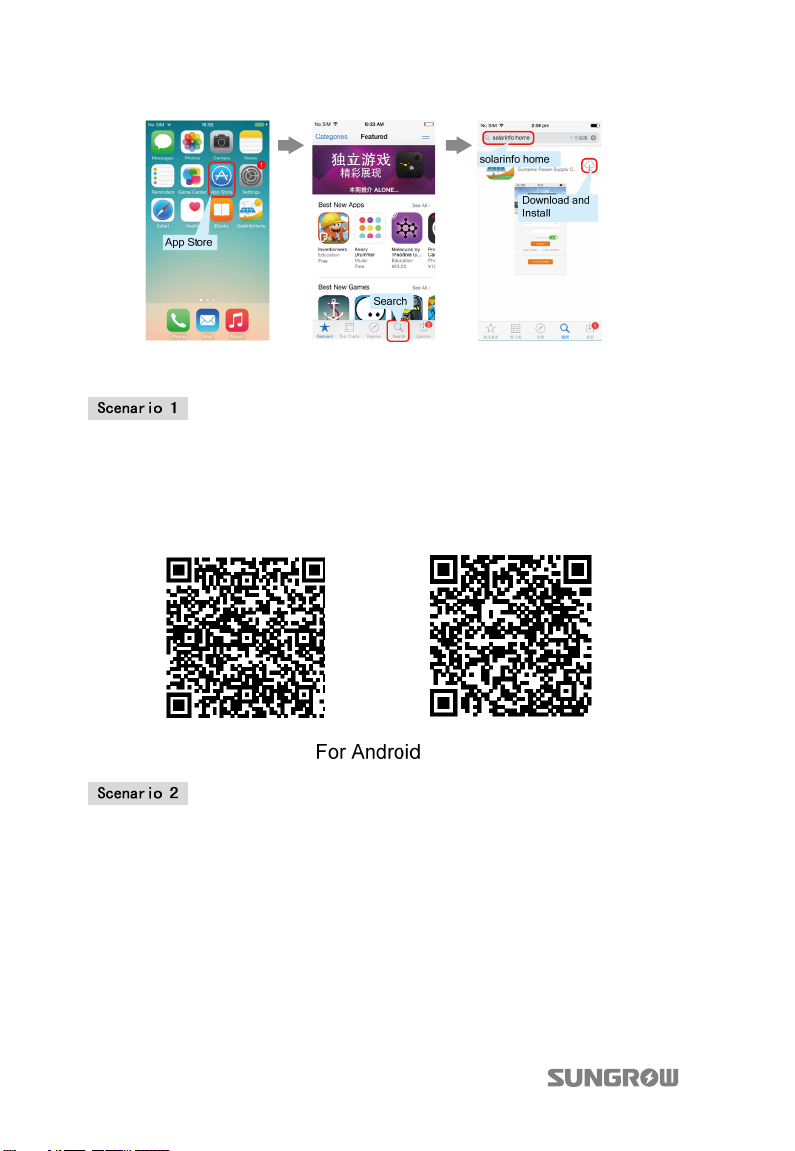

Download the SolarInfo Home APP and install it into your smartphone. You can select the APP version for iOS or Android.

For iphone(iOS)

The address for downloading SolarInfo Home APP is

https://itunes.apple.com/us/app/solarinfo-home/i d906260039?l=zh&ls=1&mt=8. You can also use

your smartphone to scan the OR code as shown on the right to download and install it.

Search SolarInfo Home in your APP Store to download and install it.

Page 52

6 Communication User Manual

For other smartphone(Android)

The address for downloading SolarInfo Home APP is

https://play.google.com/store/apps/details?id=com.sungrow.home.or Http://www.solarinfobank.com/app/SolarInfoHome_v1.0.apk.You can also use your

smartphone to scan the following OR codes to download and install it.

Search SolarInfo Home in your PlayStore to download and install it.

Page 53

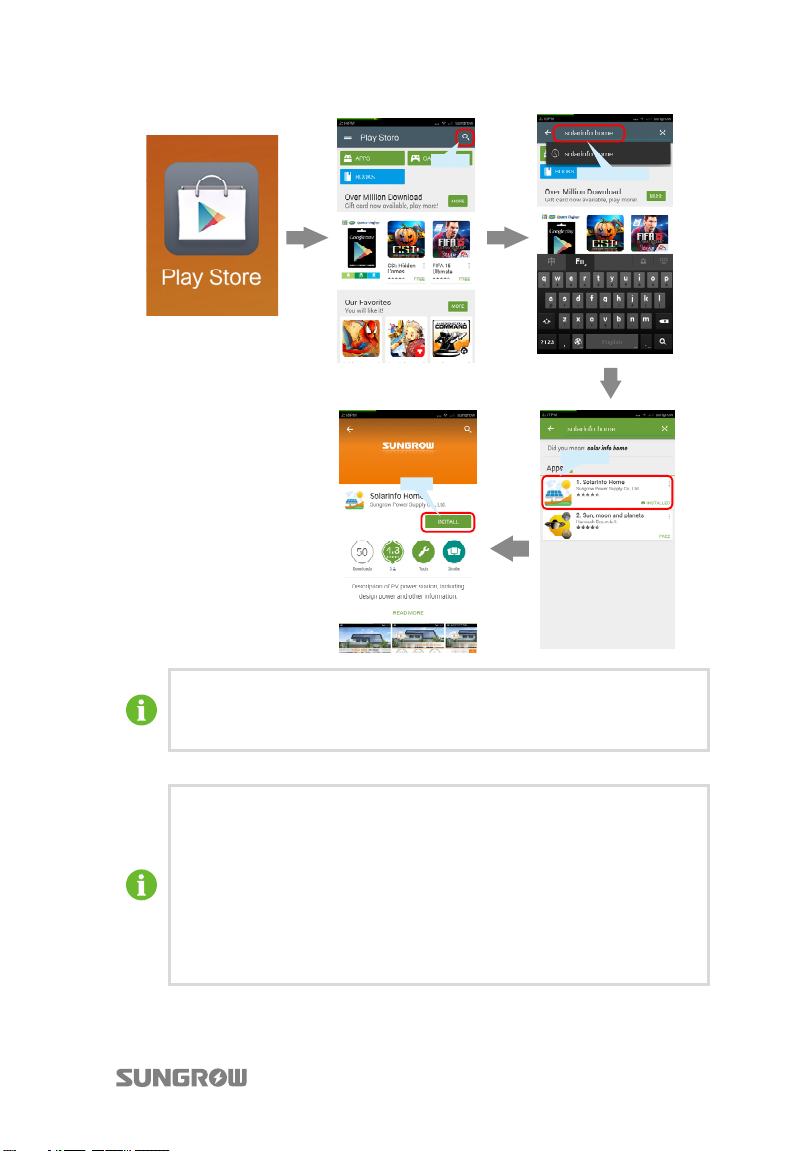

User Manual 6 Communication

Install

solarinfo home

Download

To perform the operations in the following sections, make sure the distances between the smartphone and the inverters, inverters and the routers are within the valid range.

SolarInfo Home APP supports two kinds of operation:“Remote [Login]”and “[Direct visit]”.

In “Remote [Login]” mode, you need configure the inverter to connect it to your router and complete registration. Then you can log into SolarInfo Home via the Internet to check the device running information anywhere.

In “[Direct visit]” mode, you can connect your smartphone to the inverter directly via WiFi to check the device running information anywhere.

Page 54

6 Communication User Manual

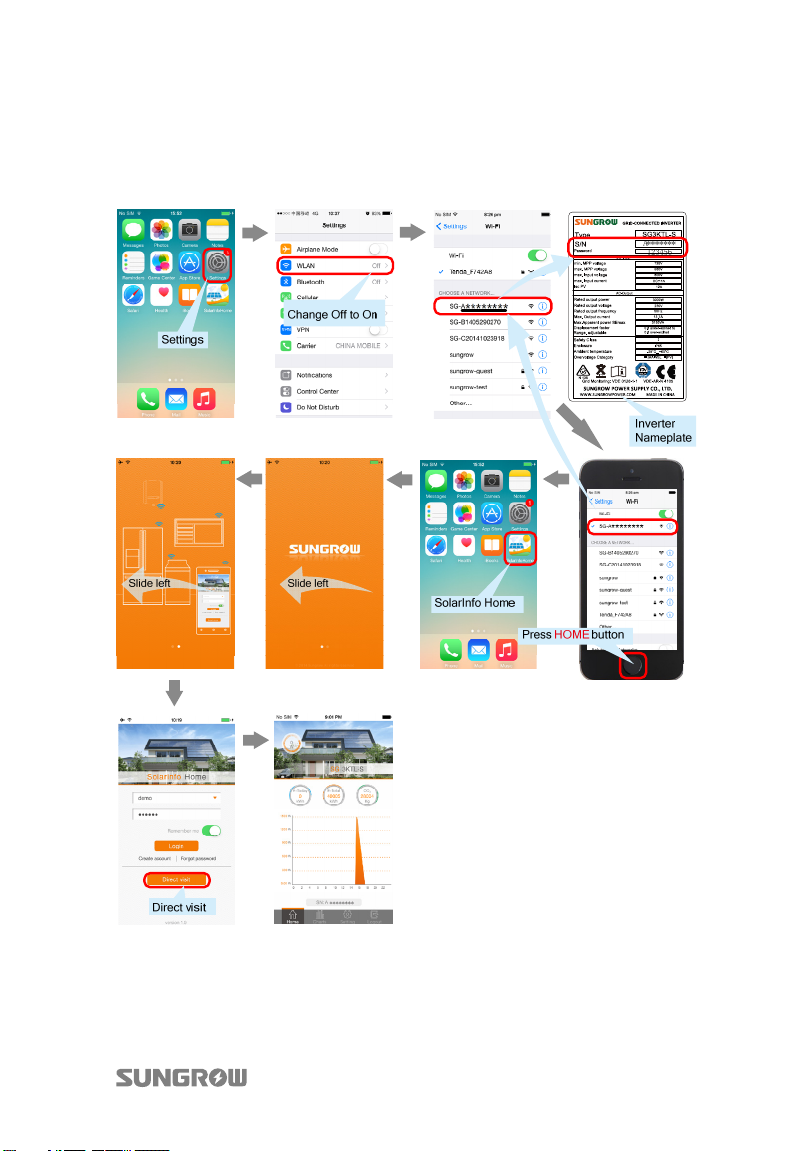

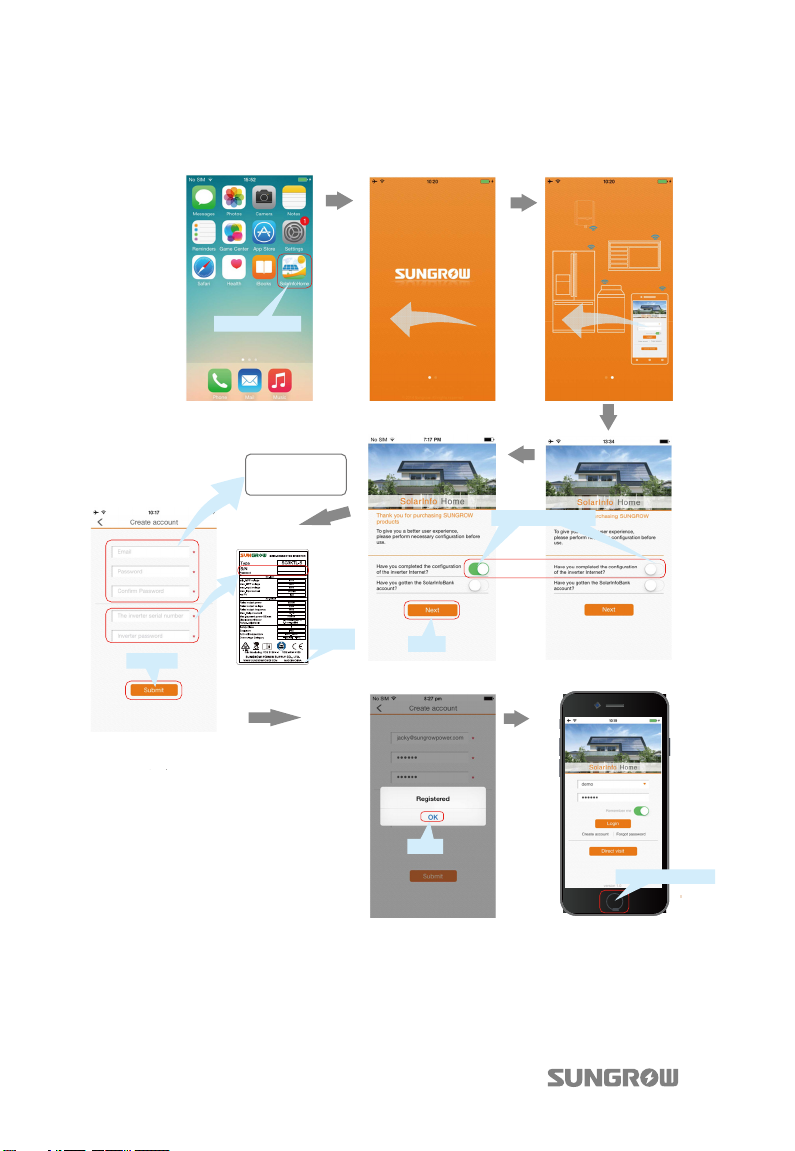

6.3.2 SolarInfo Home APP Online Registration

Submit

SolarInfo Home

NOTE

Please enter your e-mail account and the password.

Slide left

Slide right(Yes)

*******

123456

Inverter Nameplate

Slide left

Press HOME button

Page 55

User Manual 6 Communication

6.3.3 Check the running information and connect inverter to your router in “[Direct visit]”mode.

1. Check the running information

Page 56

6 Communication User Manual

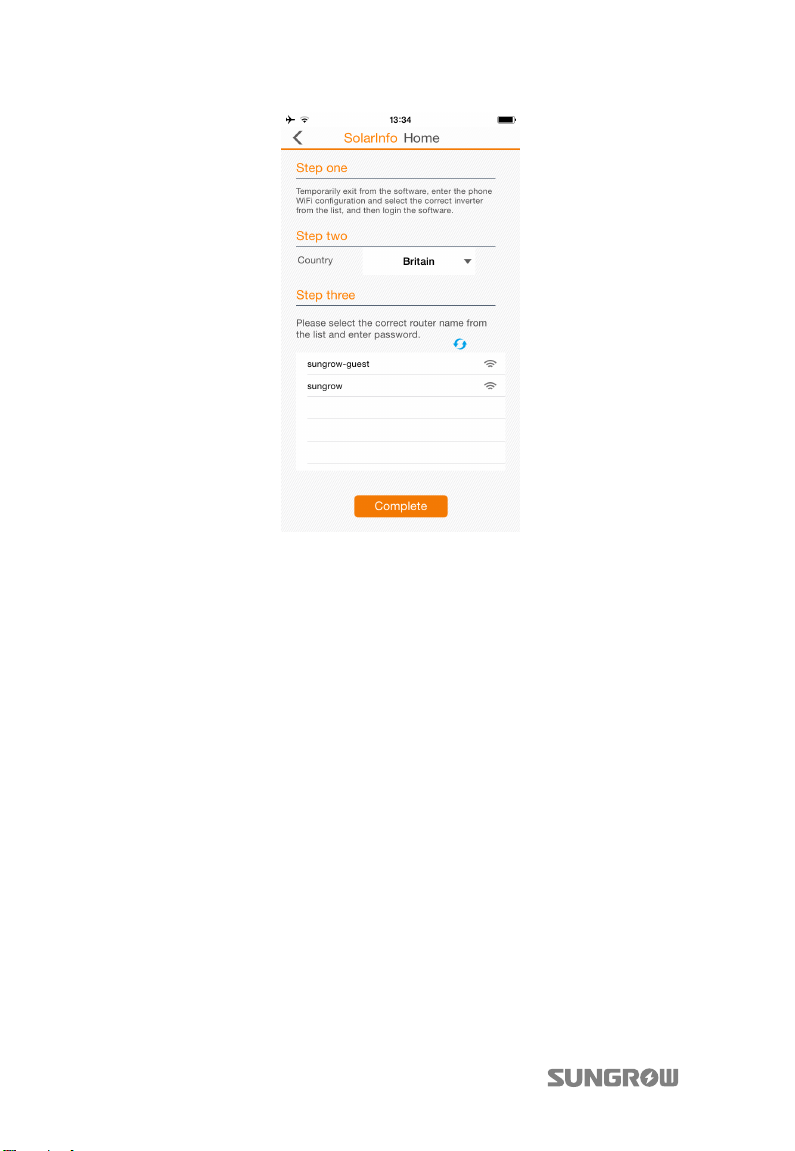

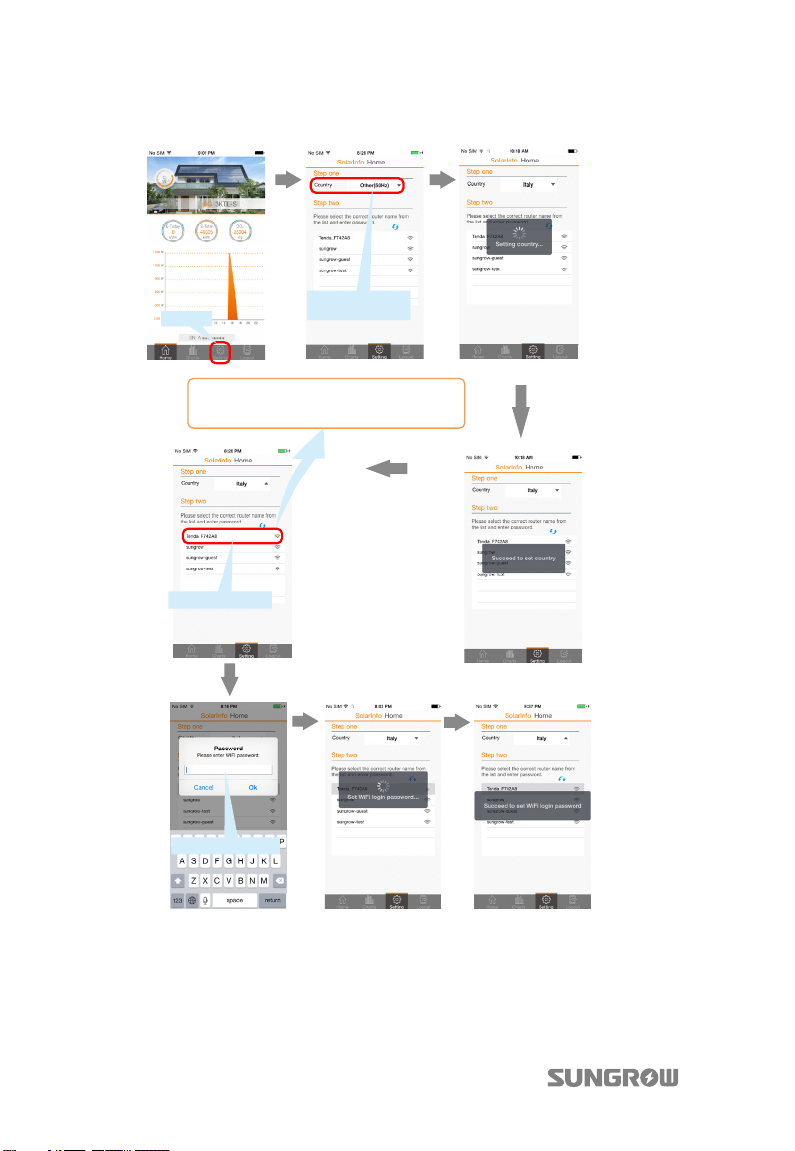

2.Select the country you are in and connect inverter to your router

Click and select the

Setting

NOTE Please do not name your router started with "SG". Otherwise you cannot find it.

Select your router

country you are in

Enter router’s password

Page 57

User Manual 6 Communication

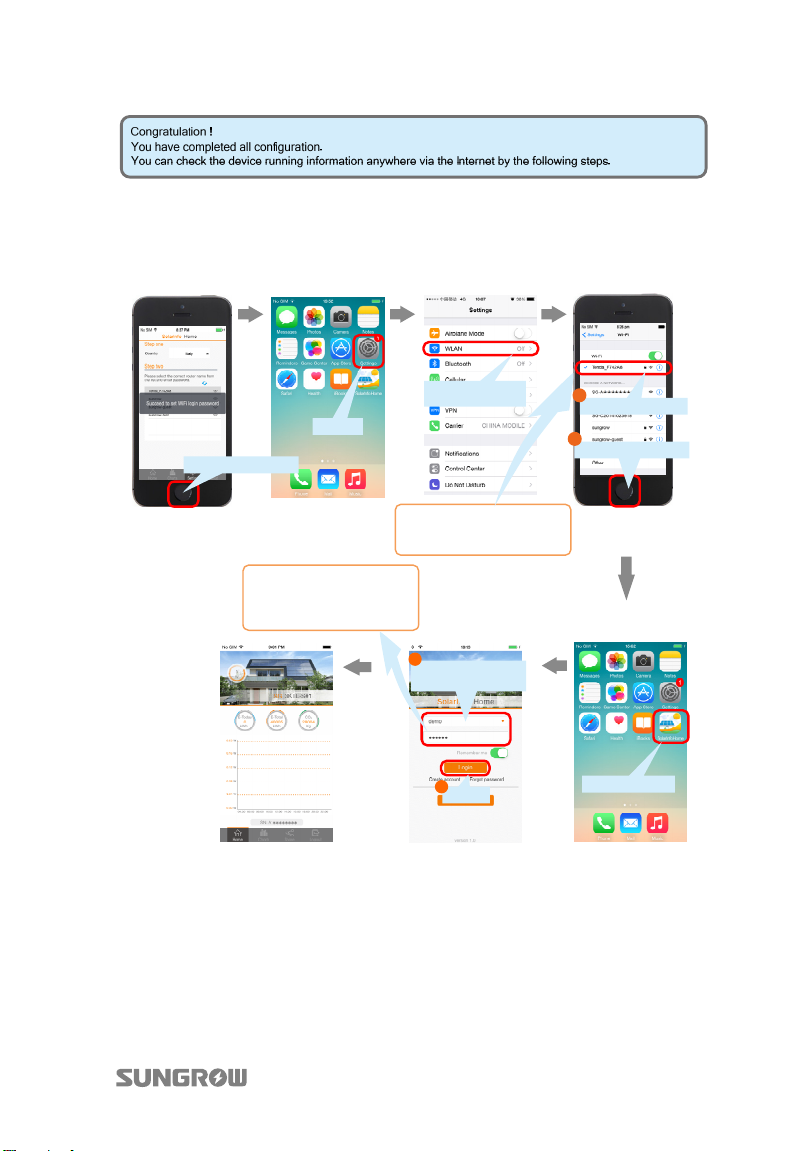

6.3.4 Check the running information in “Remote [Login]”mode.

If you want to check the running information via Internet in “Remote [Login]” mode, please follow the steps below.

Press HOME button

NOTE The account and password are what you have created in Chapter 2.2.

Settings

Change Off to On

NOTE The router must be connected to the Internet.

Input your account and password

Select your router

Press HOME button

SolarInfo Home

Page 58

7 Commissioning

7.1 Verify before Commissioning

Before starting up the inverter, you should check the following items.

1. Inverter unit is accessible for operation, maintenance and service.

2. Re-check whether the inverter is firmly secured to the wall.

3. Room for ventilation is provided for one inverter or more than one inverter.

4. Nothing is left on top of the inverter.

5. Inverter and accessories are correctly connected.

6. Cables are routed in safe place or protected against mechanical damages.

7. Specification of AC circuit breaker is reasonable.

8. Terminals unused underneath the inverter are sealed.

9. Warning signs & labels are suitably affixed and durable.

7.2 Commissioning Procedure

Step 1 Make sure all the above mentioned items meet the requirements.

Step 2 Connect the external AC circuit breaker.

Step 3 Rotate the optional DC switch to the “ON” position.

Provided that there is sufficient sunlight:

PV arrays initialize and supply DC power to inverter;

DC-link starts to charge and check the state of the utility grid;

If the conditions are OK, inverter feeds AC power to grid and enters into the running state.

Step 4 Observe the status of LED indicator.

Page 59

User Manual 7 Commissioning

State Description

Green& Red

Green

Red Flicker once every 0.3 second

Flicker once in turn every 1 second

Flicker once every 0.2 seconds to 2 seconds （ The greater the inverter current power, the faster the green light flashing）

Non-running or Non-fault (For example, the inverter is in standby state.)

Inverter is running.

A malfunction happens, or protection function triggers.

Page 60

8 Disconnecting, Dismantling and Disposing of the Inverter

8.1 Disconnecting the Inverter

For maintenance or other service work, the inverter must be switched off.

Proceed as follows to disconnect the inverter from the AC and DC power source. Lethal voltages or damages to the inverter will follow if otherwise.

Step 1 Disconnect the external AC circuit breaker and prevent it from reconnecting.

Step 2 Rotate DC switch to the “OFF” position and then turn off the upstream DC

circuit break or pull off the MC4 terminal.

Please strictly follow the sequence of the above procedures. Inverter will not work normally if otherwise.

Step 3 Wait about ten minutes until the capacitors inside the inverter are

discharged.

Step 4 Measure to confirm that the inverter AC output at the AC circuit breaker is

voltage free.

Step 5 Pull AC connector out of the inverter.

Step 6 Release the locking part of DC connectors by pressing on the ribbing of the

locking hooks with nipper pliers and pull it outwards.

For further disconnection and conductor reconnection instruction, please visit the webpage of device manufacturer.

Page 61

User Manual 8 Disconnecting, Dismantling and Disposing of the Inverter

8.2 Dismantling the Inverter

Refer to Chapter 6 for the inverter disconnection of all cables in reverse steps.

There is a risk of burn injuries and electric shock!

Wait at least 10 minutes after disconnecting the inverter from the utility grid and the PV input before touching any inner live parts.

Open the theftproof padlock and dismantle the inverter referring to Chapter 4 in reverse steps.

If necessary, remove the backplate from the wall.

If the inverter will be reinstalled in the future, please refer to “3 Unpacking and Storage” for a proper conservation.

8.3 Disposing of the Inverter

Users should take the responsibility for the disposal of the inverter.

Some parts and devices of the inverter, such as, LED indicators, batteries, capacitors, may cause environment pollution.

Disposal of the inverter must comply with the related local regulations to avoid the potential pollution.

Page 62

9 Troubleshooting and Maintenance

9.1 Troubleshooting

9.1.1 LED Indicator Troubleshooting

See “Tab. 2-2Description of LED Indicator” for the definition of LED’s status.

Type of fault Troubleshooting

LED indicator cannot be lit.

Green indicator goes out.

1. Disconnect the AC circuit breaker.

2. Rotate the optional DC switch to the “OFF” position.

3. Check the polarity of DC input.

1. Disconnect the AC circuit breaker.

2. Rotate the optional DC switch to the “OFF” position.

3. Check the correctness of the inverter electrical connection. Refer to 5 Electrical Connection.

4. Check whether the voltage of DC input exceeds the inverter start-up voltage.

5. If all above conditions are OK, please contact Sungrow.

Should you have any questions in operating the inverter, please contact us:

Telesmartphone: +86 551 6532 7817.

Email: [email protected]

We need the following information to provide you the best assistance:

Type of the inverter

Serial number of the inverter

Fault name (Each fault has a corresponding fault code, for example, 01 represents sampling fault.)

Brief description of the fault phenomenon

Page 63

User Manual 9 Troubleshooting and Maintenance

9.1.2 Troubleshooting of Faults in the smartphone application interface

When faults occur, “Fault” state can be shown in the smartphone application interface.

Fault Code

002

003

004

005

006

007 Transient AC overcurrent

008

009

Description Troubleshooting

1. Check the voltage of the grid.

The grid voltage exceeds inverter allowable upper limit.

Grid transient voltage exceeds the permissible range

The grid voltage is below inverter’s allowable lower limit.

The grid voltage is too low.

The AC output current exceeds inverter allowable upper limit.

The grid frequency exceeds inverter allowable upper limit. The grid frequency is below the inverter allowable lower limit.

2. If the grid voltage exceeds the permissible range of inverter protection parameters, ask utility grid company for solution.

3. If the grid voltage is within the permissible range, contact Sungrow Service Dept..

1. This is a short-term fault due to grid condition. Wait a moment for inverter recovery.

2. If the fault still exists, please contact Sungrow Service Dept..

1. Check the grid voltage.

2. If the grid voltage exceeds the permissible range of inverter protection parameters, ask utility grid company for solution.

3. If the grid voltage is within the permissible range, contact Sungrow Service Dept..

1. This is a short-term fault due to grid condition. Wait a moment for inverter recovery.

2. If the fault still exists, please contact Sungrow Service Dept..

1. The inverter will resume if the output current falls below the protection value.

2. If the fault still exists, please contact Sungrow Service Dept..

1. The inverter will self-recover after several seconds.

2. If the fault still exists, please contact Sungrow Service Dept..

1. Check the grid frequency.

2. If the grid frequency exceeds the permissible range of inverter protection parameters, ask utility grid company for solution.

3. If the grid frequency is within the permissible range, contact Sungrow Service Dept..

Page 64

9 Troubleshooting and Maintenance User Manual

Fault Code

010 Islanding

011

012

014

015

016

019

020 The bus voltage is high.

021

022

036

Description Troubleshooting

The DC component of AC current exceeds inverter limit.

A failure current is detected.

The average grid voltage exceeds the permissible range for over 10 minutes.

The grid voltage exceeds the permissible range

The bus voltage or power is high.

The transient bus voltage is high.

PV1 input overcurrent is detected PV2 input overcurrent is detected The temperature of radiator is too high

1. Check whether AC circuit breaker is triggered.

2. Check whether AC cables are all firmly connected.

3. Check whether grid is not in service.

4. If all conditions are OK and this fault still occurs in the LCD screen, contact Sungrow Service Dept..

1. Wait a moment for inverter recovery.

2. If the fault occurs repeatedly, contact Sungrow Service Dept..

1. Check the PV strings for ground fault.

2. If the fault occurs repeatedly, contact Sungrow Service Dept..

1. Wait a moment for inverter recovery.

2. Check the voltage of the grid. If the grid voltage exceeds the permissible range of inverter protection parameters, ask utility grid company for solution.

3. If the fault occurs repeatedly, contact Sungrow Service Dept..

1. Check the model of the AC cables.

2. Wait a moment for inverter recovery.

3. If the grid voltage exceeds the permissible range, ask utility grid company for solution.

4. If the fault occurs repeatedly, contact Sungrow Service Dept..

1. Wait a moment for inverter recovery.

2. If the fault occurs repeatedly, contact Sungrow Service Dept..

1. Wait a moment for inverter recovery.

2. If the fault occurs repeatedly, contact Sungrow Service Dept..

1. Wait a moment for inverter recovery.

2. If the fault occurs repeatedly, contact Sungrow Service Dept..

Check the layout and the wiring of PV1 input.

Check the layout and the wiring of PV2 input.

1. Check whether the placement of inverter is correctly.

Page 65

User Manual 9 Troubleshooting and Maintenance

Fault Code

037

038 Relay fault is detected

039

041

047

048 Sampling channel failure

053

054

056

Description Troubleshooting

The internal temperature of inverter is too high

The insulation resistance is low. (ISO-flt)

Leakage current self-test abnormality

The PV configuration mode set in the smartphone application interface is not in accordance with the configuration in the connection cabinet.

Auxiliary DSP detects grid voltage exceeds set protection value

Auxiliary DSP detects grid frequency exceeds set protection value

Auxiliary DSP detects leakage current exceeds set protectino range

2. Check whether the inverter operating ambient temperature is more than the range indicated in the specification.

3. Check whether AC output power exceeds the nominal power.

4. If the fault still exists, please contact Sungrow.

1. Wait a moment for inverter recovery.

2. If the fault occurs repeatedly, contact Sungrow Service Dept..

1. Check whether the positive and negative of PV panels is short-circuited with ground lead.

2. Wait a moment for inverter recovery.

3. If the fault occurs repeatedly, contact Sungrow Service Dept..

1. Wait a moment for inverter recovery.

2. If the fault occurs repeatedly, contact Sungrow Service Dept..

1. Disconnect the inverter.

2. Re-select PV configuration mode and re-connect PV strings.

1. Wait a moment for inverter recovery.

2. If the fault occurs repeatedly, contact Sungrow Service Dept..

1. Check the grid voltage.

2. If the grid voltage exceeds the permissible range of inverter protection parameters, ask utility grid company for solution.

3. If the grid voltage is within the permissible range, contact Sungrow Service Dept..

1. Check the grid frequency.

2. If the grid frequency exceeds the permissible range of inverter protection parameters, ask utility grid company for solution.

3. If the grid frequency is within the permissible range, contact Sungrow Service Dept..

1. Check whether there is a grounded fault of the PV string.

2. If the fault occurs repeatedly, contact Sungrow Service Dept..

Page 66

9 Troubleshooting and Maintenance User Manual

Fault Code

057

058

059

060

070 Fans are defective

087

088 Arc anomaly fault

089 Arc detection OFF warn

100

101

102

106

200 The bus voltage is high.

Description Troubleshooting

Auxiliary DSP AC current sampling channel anomaly Auxiliary DSP detects AC current DC injection exceeds inverter set protection range

Main and auxiliary DSP communication anomaly

Main and auxiliary DSP sampling difference

Arc self-detection anomaly warn

The AC output current exceeds inverter protection limit.

The grid frequency exceeds inverter allowable upper limit. The grid frequency is below the inverter allowable lower limit.

The inverter is not grounded

1. Wait a moment for inverter recovery.

2. If the fault occurs repeatedly, contact Sungrow Service Dept..

1. Wait a moment for inverter recovery.

2. If the fault occurs repeatedly, contact Sungrow Service Dept..

1. Wait a moment for inverter recovery.

2. If the fault occurs repeatedly, contact Sungrow Service Dept..

1. Wait a moment for inverter recovery.

2. If the fault occurs repeatedly, contact Sungrow Service Dept.. Stop the inverter and disconnect the AC & DC cables. Check whether the fan duct has been blocked. If not, replace fans. Wait a while. Contact Sungrow if device is still in self-detection warn state.

1. Stop the inverter and disconnect the AC & DC cables. Check cable connection for aging and looseness. Re-power on and remove the arc warn manually.

2. Contact Sungrow if this fault still occurs. Remove the warn by enable arc detection function or keep the warn by closing arc detection function.

1. The inverter will resume if the output current falls below the protection value.

2. If the fault still exists, please contact Sungrow Service Dept..

1. Check the grid frequency.

2. If the grid frequency exceeds the permissible range of inverter protection parameters, ask utility grid company for solution.

3. If the grid frequency is within the permissible range, contact Sungrow Service Dept.. Check whether there is a reliable inverter grounding line, if there is access to the ground, and the fault still exists, please contact Sungrow Service Dept..

1. Wait for inverter recovery after bus voltage lower.

2. If the fault occurs repeatedly, contact Sungrow Service Dept..

Page 67

User Manual 9 Troubleshooting and Maintenance

Fault Code

201

202 PV current overcurrent

205

307 DC power is too high

Description Troubleshooting

The bus voltage is too low.

AC output relay abnormal

1. Wait a moment for inverter recovery.

2. If the fault occurs repeatedly, contact Sungrow Service Dept..

1. Wait for inverter recovery after DC current is reduced.

2. If the fault occurs repeatedly, contact Sungrow Service Dept..

1. Wait a moment for inverter recovery.

2. If the fault occurs repeatedly, contact Sungrow Service Dept.. Check whether the configuration of PV is in the range indicated in the specification. If the fault occurs repeatedly, contact Sungrow Service Dept..

9.2 Fault Repair

If the inverter can not work normally, you can contact the service provider for troubleshooting.

Visit http://www.sungrowservice.com to fill in and submit the relevant information (such as “ Inverter Information”, “Customer Information / Service Address”, “Attachments” and so on).

9.3 Routine Maintenance

Items Methods Period

Check the temperature and dust of the inverter.

System clean

Clean the inverter enclosure. Check the humidity and dust of the environment. Meanwhile check whether the filter function of the air inlet is ok. Clean the air inlet and outlet, when necessary.

Six months to a year (it depends on the dust contents in air.)

Page 68

10 FAQ for SolarInfo WiFi Installation and Configuration

10.1 FAQ Index Table

No. Title

1001 Configurable terminal devices cannot find WiFi after installation

1002 Router password is correct or not

1003 Cannot find the assigned Router

1004 Communication strength is weak (Installation notice)

1005 User performs certain advanced operation to the Router

1006 2 Routers nearby have the same SSID

1007 Data cannot be uploaded to the Server after correctly connected to

Router

1008 Check the WiFi underlying data when all operations are failed

1009 Router SSID contains special characters and cannot connect to WiFi

1010 WiFi cannot find Router when Router max. rate is set to be 300Mbps

1011 Impacts of materials on the wireless signal

10.2 Question Description and Solution

No. 1001: Configurable terminal devices cannot find WiFi after installation

Applicable: All

Fault t ype: general

Page 69

User Manual 9 FAQ for SolarInfo WiFi

Question description: configuration end cannot find WiFi after installation

Solution:

1) Check if the device begins operation

2) Check if WiFi is installed correctly

3) The configuration end and WiFi should not be too far away. Move them together to check if the search can be done.

4) If all above-mentioned items are checked and the distance is close enough, yet this fault still occurs, it can be verified that the WiFi module is damaged.

No. 1002: Router password is correct or not

Applicable: All

Fault t ype: general

Question description: the signal strength and other items meet requirement, but WIFi cannot connect to Router

Solution: make sure the router password is correct. Note if there are capital and small letters.

No. 1003: Cannot find the assigned Router

Applicable: All

Fault t ype: general

Question description: smartphone or laptop cannot find the assigned Router

Solution:

1) Click the refresh button on the middle right to refresh

2) Make sure the Router is not far away from the WiFi and there is no iron materials between them

3) Make sure there is no SSID hidden configuration of the Router

4) Router name cannot be started with “SG-”

Page 70

9 FAQ for SolarInfo WiFi User Manual

No. 1004: Communication strength is weak (Installation notice)

Applicable: All

Fault type: Improper installation method

Question description: Signal strength bar is less than one

Solution:

1) Make sure the device is at least 30CM higher than the floor

2) Make sure the device is at least 40CM from the wall

3) Make sure the device is installed internally between the PC cell or installation frame and the ground

4) Make sure the device is parallel to the external antenna of the Router and vertical as possible

5) Device is not covered by metal or reinforced concrete.

6) Installation position is shown below:

Page 71

User Manual 9 FAQ for SolarInfo WiFi

20m

Prevention measure: operate as described in the figure above.

No. 1005: User performs certain advanced operation to the Router

Applicable: All routers

Fault type: Improper operation

Question description: user perform some advanced settings to the Router, for example, MAC address filtering, IP range limitation, access number limitation, SSID limitation, DHCP enable, hidden of the Router SSID or other advanced settings.

Solution: Check with the user if there are such advanced settings. Cancel these settings if any.

Prevention measure: operate as described above or reset the Router to factory settings.

Page 72

9 FAQ for SolarInfo WiFi User Manual

Check the “Enable DHCP Server”; set the “DHCP IP Address Range” as wide as possible, otherwise the accessed user numbers may decrease and cannot connect to WIFI.

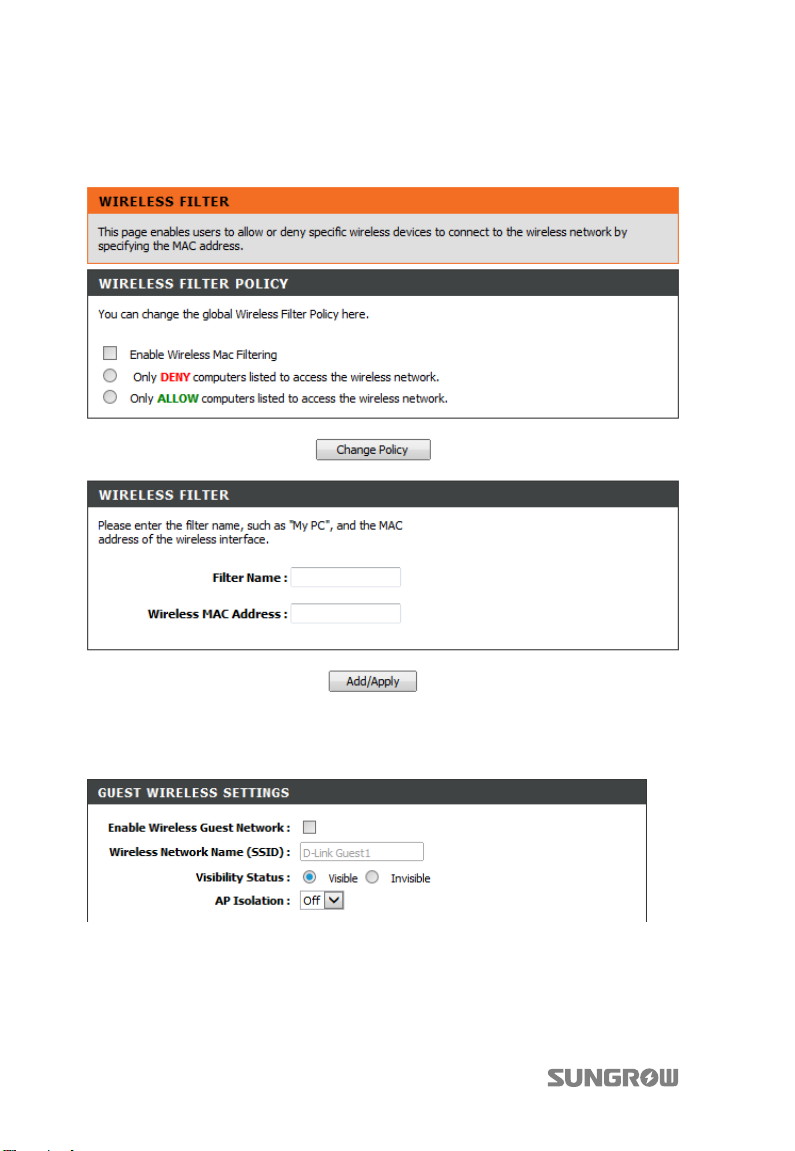

“Wireless filter policy” is to set which devices are allowed to be connected to the Router. Do not set this parameter. You may not able to connect to the Router if otherwise.

This setting may hide the Router SSID and the Router may not be searched later

Page 73

User Manual 9 FAQ for SolarInfo WiFi

No. 1006: 2 Routers nearby have the same SSID

Applicable: All

Fault type: 2 routers with the same name

Question description: two routers nearby have the same router name. Cannot connect to the target Router even if the password is correct

Solution: Change the SSID of the Router that can be changed

Prevention measure: User confirmation

No. 1007: Data cannot be uploaded to the Server after correctly connected to Router

Applicable: All

Fault type: No data can be viewed from the Server

Question description: cannot find inverter data when the WiFi is correctly connected to the Router and correctly registered.

Solution:

1) Make sure Router can correctly connect to Internet

2) Close the Router firewall

3) Check if there is advanced Router configuration

Prevention measure: confirm following the above solutions

No. 1008: Check the WiFi underlying data when all operations are failed

Applicable: All

Fault type: Configuration or WiFi module damage

Question description: Configuration or WiFi module damage

Solution: Read module data by EMW-TOOL software

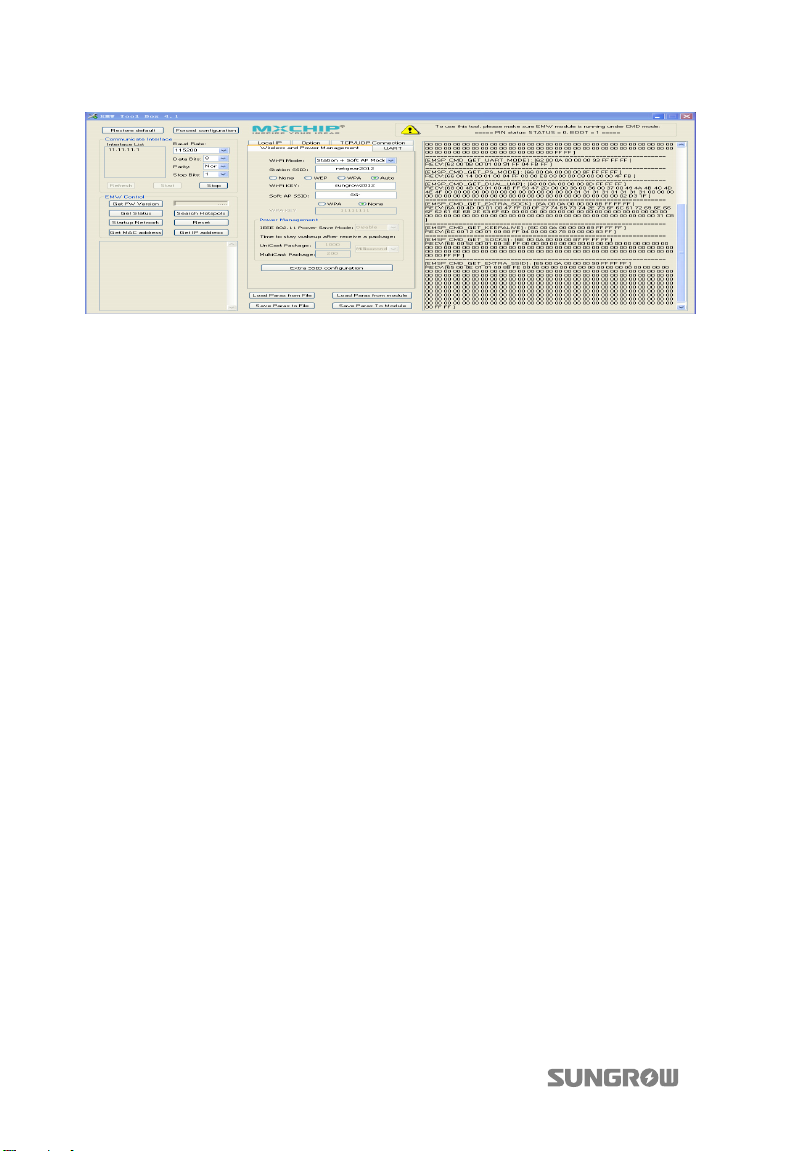

Prevention measure: strict production inspection and strict configuration operation

Page 74

9 FAQ for SolarInfo WiFi User Manual

No. 1009: Router SSID contains special characters and cannot connect to WiFi

Applicable: All

Fault type: WiFi software bug

Question description: Router SSID contains special characters and cannot connect to WiFi

Solution: modify WiFi software

Prevention measure: modify WiFi firmware

No. 1010: WiFi cannot find Router when Router max. rate is set to be 300Mbps

Fault type: compatibility of mode n

Question description: WiFi cannot find Router when Router max. rate is set to be 300Mbps

Solution: Modify WiFi software

Prevention measure: modify WiFi

Page 75

User Manual 9 FAQ for SolarInfo WiFi

No. 1011: Impacts of materials on the wireless signal

Fault type: interference

Question description: wireless transmission device and impacts of materials on the Wireless signal

Material

Wireless signal

strength

Possible Environment

Wood

Compartment

Plaster\Asbestos

Wall

Glass

Window

Water

Aquarium, pool

Brick wall

Partition

Marble

Reinforced

concrete

Metal

Floor

Floor panels, wall

Iron sheet

cordless

smartphones,

microwave

ovens

Solution: Make sure there is no abovementioned materials between or near the smartphone or router and the inverter

Prevention measure: Make sure there is no abovementioned materials between or near the smartphone or router and the inverter

Page 76

11 Appendix

11.1 Technical Data

11.1.1 Single MPPT Inverter Data

SG2KTL-S/ SG2K5TL-S

Technical Specifications

SG2KTL-S SG2K5TL-S

Input Side Data

Max. PV input power 2300W 2800W Max. PV input voltage 600V 600V Startup voltage 150V 150V Nominal input voltage MPP voltage range 125…560V 125…560V MPP voltage range for nominal power No. of MPPTs 1 Max. number of PV strings per MPPT Max. PV input current 11A 11A Max. current for input connector Short-circuit current of PV input

345V

210…520V 240…520V

1 1

20A

12A 12A

Output Side Data

Nominal AC output power Max AC output apparent power Max. AC output current Nominal AC voltage 230Vac(Single phase)

AC voltage range

Nominal grid frequency Grid frequency range 45Hz…55Hz/55Hz…65Hz (May vary as per corresponding

2000W 2490W (cosΦ=1)

2150VA 2490VA

9.5A 11.5A

180…276Vac (May vary as per corresponding country’s grid standard)

50Hz/60Hz

Page 77

User Manual 9 Appendix

Technical Specifications

THD <3% (Nominal power) DC current injection <0.5% In

Power factor

SG2KTL-S SG2K5TL-S

country’s grid standard)

>0.99@default value at nominal power (adj. 0.8 over-excited~0.8 under-excited)

Protection

Anti-islanding protection AC short circuit protection Leakage current protection

DC switch DC fuse Overvoltage

protection

Yes

Optional No

Varistors

System Data

Max. efficiency 98.00% 98.00% Max. European efficiency Isolation method Transformerless Ingress protection rating Night power consumption Operating ambient temperature range Allowable relative humidity range Cooling method Natural cooling

Noise level

Max. operating Altitude Communication WiFi DC Terminals MC4 AC Terminals Plug and play connector

97.00% 97.40%

IP65

<1 W

-25℃…+60℃(＞45℃ derating)

0…100%

≤30dB

4000m(＞2000m derating)

IEC61000-6-2,IEC61000-6-3,AS/NZS3100,AS4777.2,AS477

Certification

7.3,VDE-AR-N-4105,VDE0126-1-1,CE,G83/2,C10/11,EN504 38,CGC

Mechanical Data

Dimensions(W×H×D) 300×370×125mm

Page 78

9 Appendix User Manual

Technical Specifications

Mounting method Wall bracket Weight 9kg

SG2KTL-S SG2K5TL-S

SG3KTL-S/ SG3K6TL-S/ SG4KTL-S

Technical Specifications

SG3KTL-S SG3K6TL-S SG4KTL-S

Input Side Data

Max. PV input power 3300W 3900W 4300W Max. PV input voltage 600V 600V 600V Startup voltage 150V 150V 150V Nominal input voltage MPP voltage range 125…560V 125…560V 125…560V MPP voltage range for nominal power No. of MPPTs 1 Max. number of PV strings per MPPT Max. PV input current 11A 18A 18A Max. current for input connector Short-circuit current of PV input

345V

280…520V 210…520V 240…520V

1 2 2

20A

12A 20A 20A

Output Side Data

Nominal AC output power Max AC output apparent power Max. AC output current Nominal AC voltage 230Vac(Single phase)

AC voltage range

Nominal grid frequency

Grid frequency range

THD <3% (Nominal power) DC current injection <0.5% In

Power factor

3000W 3680W 4000W

3150VA 3680VA 4210VA

13.7A 16.0A 18.3A

180…276Vac (May vary as per corresponding country’s grid standard)

50Hz/60Hz

45Hz…55Hz/55Hz…65Hz (May vary as per corresponding country’s grid standard)

>0.99@default value at nominal power (adj. 0.8 over-excited~0.8 under-excited)

Protection

Anti-islanding

Yes

Page 79

User Manual 9 Appendix

Technical Specifications

protection AC short circuit protection Leakage current protection DC switch DC fuse Overvoltage protection

SG3KTL-S SG3K6TL-S SG4KTL-S

Yes

Optional No

Varistors

System Data

Max. efficiency 98.00% 98.00% 98.00% Max. European efficiency Isolation method Transformerless Ingress protection rating Night power consumption Operating ambient temperature range Allowable relative humidity range Cooling method Natural cooling

Noise level

Max. operating Altitude Communication WiFi DC Terminals MC4 AC Terminals Plug and play connector

97.50% 97.50% 97.50%

IP65

<1 W

-25℃…+60℃(＞45℃ derating)

0…100%

≤30dB

4000m(＞2000m derating)

IEC61000-6-2,IEC61000-6-3,AS/NZS3100,AS4777.2,AS477

Certification

7.3,VDE-AR-N-4105,VDE0126-1-1,CE,G83/2,C10/11,EN504 38,CGC

Mechanical Data

Dimensions(W×H×D) 300×370×125mm

Mounting method Wall bracket Weight 9kg

Page 80

9 Appendix User Manual

11.1.2 Double MPPTs Inverter Data

SG3KTL-D/SG3K6TL-D

Technical Specifications

SG3KTL-D SG3K6TL-D

Input Side Data

Max. PV input power 3300W 3900W Max. PV input voltage 600V 600V Startup voltage 150V 150V Nominal input voltage MPP voltage range 125…560V 125…560V MPP voltage range for nominal power No. of MPPTs 2 Max. number of PV strings per MPPT (DC1/DC2) Max. PV input current (DC1/DC2) Max. current for input connector Short-circuit current of PV input (DC1/DC2)

345V

150…520V 180…520V

1/1

11A/11A

20A

24A(12A/12A)

Output Side Data

Nominal AC output power Max AC output apparent power Max. AC output current Nominal AC voltage 230Vac(Single phase)

AC voltage range

Nominal grid frequency

Grid frequency range

THD <3% (Nominal power) DC current injection <0.5% In

Power factor

3000W (cosΦ=1) 3680W (cosΦ=1)

3150VA 3680VA

13.7A 16.0A

180…276Vac (May vary as per corresponding country’s grid standard)

50Hz/60Hz

45Hz…55Hz/55Hz…65Hz (May vary as per corresponding country’s grid standard)

>0.99@default value at nominal power (adj. 0.8 over-excited~0.8 under-excited)

Protection

Anti-islanding

Yes

Page 81

User Manual 9 Appendix

Technical Specifications

protection AC short circuit protection Leakage current protection DC switch DC fuse Overvoltage protection

SG3KTL-D SG3K6TL-D

Yes

Optional No

Varistors

System Data

Noise level

Max. operating Altitude Communication WiFi DC Terminals MC4 AC Terminals Plug and play connector

Certification

97.50% 97.50%

IP65

<1 W

-25℃…+60℃(＞45℃ derating)

0…100%

≤30dB

4000m(＞2000m derating)

IEC61000-6-2,IEC61000-6-3,AS/NZS3100,AS4777.2,AS4777.3, VDE-AR-N-4105,VDE0126-1-1,CE,G83/2,C10/11,EN50438,CG C

Mechanical Data

Dimensions(W×H×D) 360×390×133mm

Mounting method Wall bracket Weight 11kg

Page 82

9 Appendix User Manual

SG4K6TL-D/SG5KTL-D

Technical Specifications

SG4K6TL-D SG5KTL-D

Input Side Data

Max. PV input power 4900W 5400W Max. PV input voltage 600V 600V Startup voltage 150V 150V Nominal input voltage MPP voltage range 125…560V 125…560V MPP voltage range for nominal power No. of MPPTs 2 Max. number of PV strings per MPPT (DC1/DC2) Max. PV input current (DC1/DC2) Max. current for input connector Short-circuit current of PV input (DC1/DC2)

345V

220…520V 240…520V

1/1

11A/11A

20A

24A(12A/12A)

Output Side Data

Nominal AC output power Max AC output apparent power Max. AC output current Nominal AC voltage 230Vac(Single phase)

AC voltage range

Nominal grid frequency

Grid frequency range

THD <3% (Nominal power) DC current injection <0.5% In

Power factor

4600W (cosΦ=1) 5000W (cosΦ=1)

4600VA 5000VA

20A 21.7A

180…276Vac (May vary as per corresponding country’s grid standard)

50Hz/60Hz

45Hz…55Hz/55Hz…65Hz (May vary as per corresponding country’s grid standard)

>0.99@default value at nominal power (adj. 0.8 over-excited~0.8 under-excited)

Protection

Anti-islanding protection

AC short circuit

Yes

Page 83

User Manual 9 Appendix

Technical Specifications

protection Leakage current protection DC switch DC fuse Overvoltage protection

SG4K6TL-D SG5KTL-D

Yes

Optional No

Varistors

System Data

Noise level

Max. operating Altitude Communication WiFi DC Terminals MC4 AC Terminals Plug and play connector

Certification

97.50% 97.50%

IP65

<1 W

-25℃…+60℃(＞45℃ derating)

0…100%

≤30dB

4000m(＞2000m derating)

IEC61000-6-2,IEC61000-6-3,AS/NZS3100,AS4777.2,AS4777.3, VDE-AR-N-4105,VDE0126-1-1,CE,G83/2,C10/11,EN50438,CG C

Mechanical Data

Dimensions(W×H×D) 360×390×133mm

Mounting method Wall bracket Weight 11kg

For SG5KTL-D, when the national selection is set to Australia，the nominal AC output power of the inverter is 4600W and the max. AC output

current is 20A.

Page 84

9 Appendix User Manual

11.2 Exclusion of Liability

The content of these documents is periodically checked and revised where necessary. Discrepancies therefore may exist. Readers are cautioned that Sungrow reserves the right to make changes without notice. Please call us or visit our website at www.sungrowpower.com for the latest information. No guarantee is made for the completeness of these documents. Please contact our company or distributors to get the latest version.

Guarantee or liability claims for damages of any kind are excluded if they are caused by one or more of the following:

Improper or inappropriate use or install of the product

Install or operate the product in unintended environment

Install or operate the product without observing relevant safety regulations in the deployment location

Ignore the safety warnings or instructions contained in all documents relevant to the product

Install or operate the product under incorrect safety or protection conditions

Alter the product or supplied software without authority

Product malfunctions due to operation attached or neighboring devices running out of the allowed limit values

Unforeseen calamity or force majeure

The use of supplied software produced by Sungrow Power Supply Co., Ltd. is subject to the following conditions:

Sungrow Power Supply Co., Ltd. assumes no liability for direct or indirect damages arising from the use of SolarInfo software. This also applies to the provision or non-provision of support activities.

SolarInfo software used for commercial purposes is prohibited.

Decompiling, decoding or destroying the original program, including SolarInfo software and the embedded software, is prohibited.

Page 85

User Manual 9 Appendix

11.3 About Us

Sungrow power supply is a China-leading manufacturer of various power electronics products for renewable energy generation systems. Our products include converters, inverters, battery chargers and other power supplies for distributable generation system in both grid-connected and stand-alone applications. The power rating of Sungrow products covers from several hundred watt to large mega-watt systems.

The pursuit of Sungrow is to help our customers acquire stable and clean power with minimum cost, maximum reliability and enhanced safety.

Contact Information

Should you have any questions or queries about this product, please contact us through the following information. We will be more than happy to assist you!

Company: Sungrow Power Supply Co., Ltd. Website: www.sungrowpower.com Email: [email protected](China), [email protected](Overseas) Add: No.1699 Xiyou Rd., New & High Technology Industrial Development

Post Zip: 230088 Serviceline: 400 880 5578 (China), +86 551 65327834(Overseas)

Fax: +86 551 65323478

Zone, Hefei, P. R. China.

Page 86

Sungrow Power Supply Co., Ltd.

Add: No.1699 Xiyou Rd.,New & High Technology Industrial Development Zone, 230088,Hefei, P. R. China. Post Zip: 230088 Web: www.sungrowpower.com E-mail: [email protected]

Specifications are subject to changes without advance notice.

Tel: +86 551 6532 7834/6532 7845 Fax: +86 551 6532 7856
