Sungnam Electronics BFL2321D A User Manual

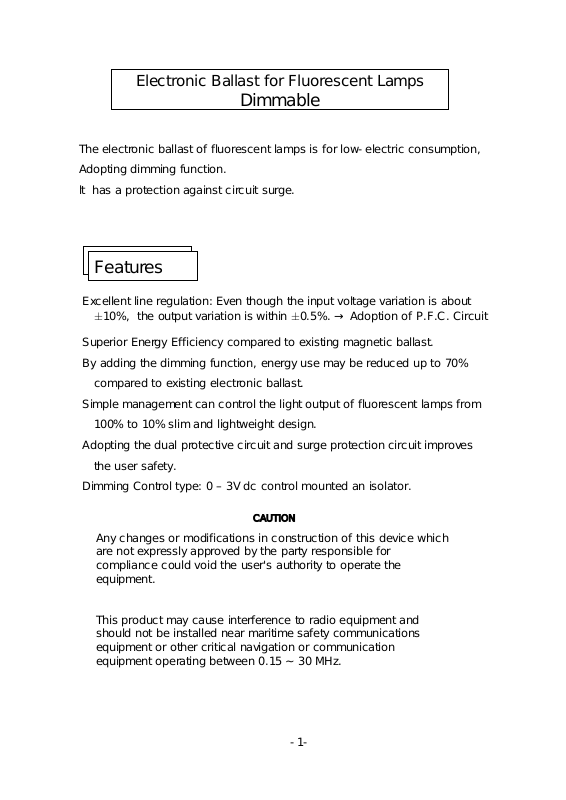

Electronic Ballast for Fluorescent Lamps

Dimmable

The electronic ballast of fluorescent lamps is for low-electric consumption,
Adopting dimming function.
lt has a protection against circuit surge.

Features

Excellent line regulation: Even though the input voltage variation is about

±10%, the output variation is within ±0.5%. → Adoption of P.F.C. Circuit

Superior Energy Efficiency compared to existing magnetic ballast.
By adding the dimming function, energy use may be reduced up to 70%

compared to existing electronic ballast.

Simple management can control the light output of fluorescent lamps from

100% to 10% slim and lightweight design.

Adopting the dual protective circuit and surge protection circuit improves

the user safety.

Dimming Control type: 0 – 3V dc control mounted an isolator.

CAUTION

Any changes or modifications in construction of this device which
are not expressly approved by the party responsible for
compliance could void the user's authority to operate the
equipment.

This product may cause interference to radio equipment and
should not be installed near maritime safety communications
equipment or other critical navigation or communication
equipment operating between 0.15 ~ 30 MHz.

-1-

Specifications

Electronic Ballast for FLR type

BFL2321 D-AITEM

FLR 32W T8 2LApplication

120 V / 60HzInput Voltage

64 W(32 W ⅹ2)Input Power

48～62kHzOutput Frequency
100 ～10%Dimming Range

Soft StartStarting

0.54 AInput Current
< 10%T.H.D

99%Power Factor

1.50Crest Factor

< 5%Flicker

Wiring Diagram

Model: BFL2321D-A[2LAMP]

YELLOW RED

WHITE

210(L) ⅹ 42(W) ⅹ 30(H)Case Size(mm)

380gWeight

LAMP 1

BLUE

LAMP 2

BALLAST

-

GREEN

BLACK[120V] DIMMER[0-3V/DC]

-2-

+
