Sunglo™ Patio Heaters
PSA265 V E
sun glosun glo
The Original Outdoor Patio Heater

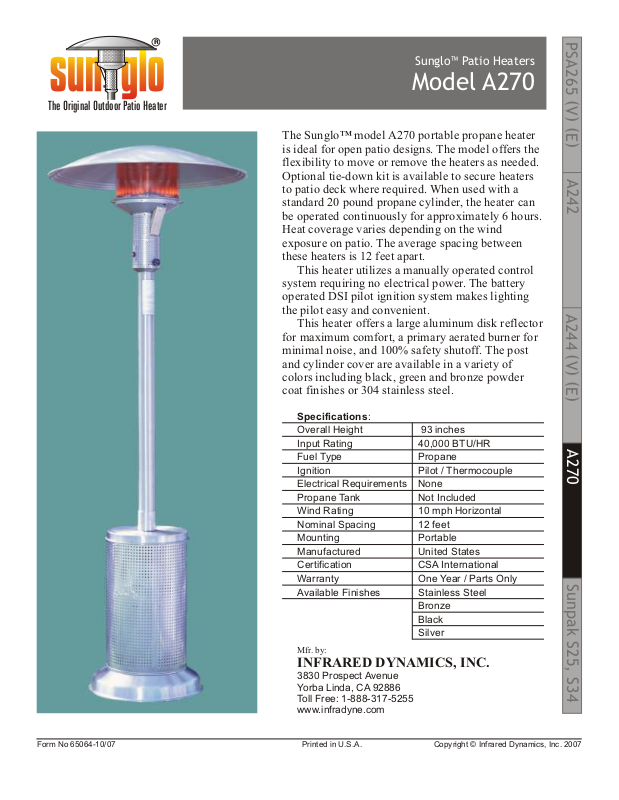

Model A270
The Sunglo™ model A270 portable propane heater
is ideal for open patio designs. The model offers the
flexibility to move or remove the heaters as needed.
Optional tie-down kit is available to secure heaters
to patio deck where required. When used with a
standard 20 pound propane cylinder, the heater can
be operated continuously for approximately 6 hours.
Heat coverage varies depending on the wind
exposure on patio. The average spacing between
these heaters is 12 feet apart.
This heater utilizes a manually operated control
system requiring no electrical power. The battery
operated DSI pilot ignition system makes lighting
the pilot easy and convenient.
This heater offers a large aluminum disk reflector
for maximum comfort, a primary aerated burner for
minimal noise, and 100% safety shutoff. The post
and cylinder cover are available in a variety of
colors including black, green and bronze powder
coat finishes or 304 stainless steel.
( ) ( )
A242
A244 V E
( ) ( )
Specifications:
Overall Height 93 inches
Input Rating 40,000 BTU/HR
Fuel Type Propane
Ignition Pilot / Thermocouple
Electrical Requirements None
Propane Tank Not Included
Wind Rating 10 mph Horizontal
Nominal Spacing 12 feet
Mounting Portable
Manufactured United States
Certification CSA International
Warranty One Year / Parts Only
Available Finishes Stainless Steel
Bronze
Black
Silver
Mfr. by:
INFRARED DYNAMICS, INC.
3830 Prospect Avenue
Yorba Linda, CA 92886
Toll Free: 1-888-317-5255
www.infradyne.com
A270
Sunpak S25, S34
Form No 65064-10/07 Printed in U.S.A. Copyright © Infrared Dynamics, Inc. 2007
Page 2
R
Sunglo™ Patio Heaters
sun glosun glo
The Original Outdoor Patio Heater
Top Clearance
18”
24” Side
Clearance
100% Safety
Shutoff Control
93” High
Decorative Cover
34 ½”Diameter
Reflector
Radiant Emitter Grid
Pilot Lighting Hole
Spark Ignition
Heater Head Base
Post
Piping Assembly
Model A270
A270 propane portable heaters provide complete
flexibility in patio heating. Heaters are completely
self-contained and designed for use with a standard
20 pound propane cylinder. Quick-connect gas
coupling in post allows heater to be easily
disassembled for storage or transport. This heater
utilizes a pilot-thermocouple 100% safety shutoff.
Pilot must be manually lit. Heater is turned off/on with
a manual control knob located at front of the heater.
The battery operated spark ignition (DSI) provides
easy relighting of pilot.
The required clearance from combustible materials
must be maintained on all heaters. In addition heaters
must have adequate fresh air and ventilation to
operate properly. Make sure you can meet these
requirements in making your heater selection.
This specification sheet was designed as a brief
summary about this heater. The primary use of this
sheet should be for heater selection only. It should not
be used as the sole guide for placement and
installation of these heaters. Complete installation
instructions can be obtained by calling toll free at
1-888-317-5255 and online at www.infradyne.com.
Post Socket Assembly
Quick Connect
Hose
Propane Regulator
Chain Assembly
Propane Tank
(Not Included)
20” Weighted Base
Suggested Specifications:
Heater shall be Sunglo™ model A270 as manufactured
by Infrared Dynamics, Inc., Yorba Linda, California. All
heaters shall be equipped with a control system for use
with propane fuel. Each heater shall have passed the
ANSI requirements for outdoor heaters.
Reflector shall be of a deep dish circular type mounted
on top of heater.
Infrared Radiant Emitter Grid shall be made of
perforated stainless steel.
Each heater shall be equipped with a 100% safety
shutoff device.
SUGGESTED SPACING WHEN
MULTIPLE HEATERS
ARE USED:
15 Ft. 15 Ft.
Spacing For - WELL PROTECTED AREAS
AND MILD CLIMATIC CONDITIONS
12 Ft. 12 Ft.
Spacing For - SEMI EXPOSED AREAS
WITH AVERAGE WEATHER CONDITIONS
8 Ft. 8 Ft.
Spacing For - COMPLETELY EXPOSED AREAS
WITH SEVERE WEATHER CONDITIONS
