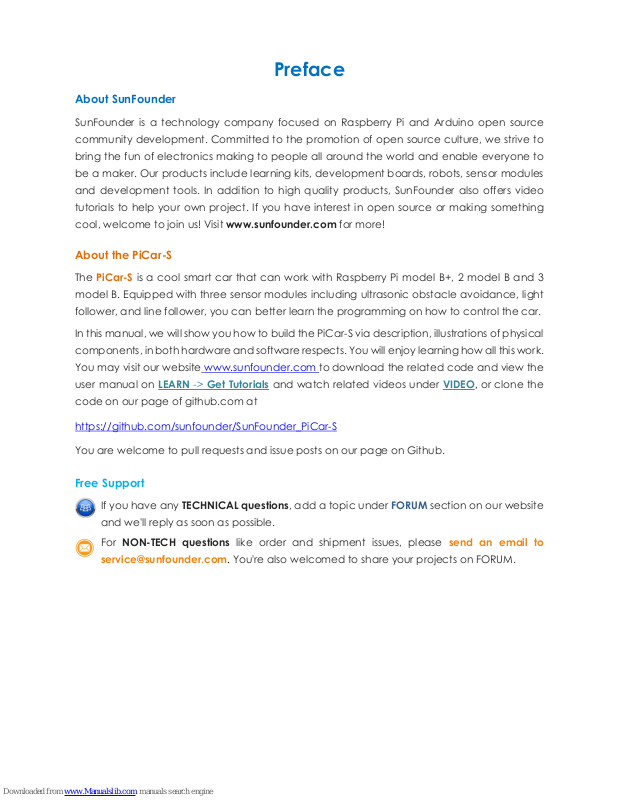

Preface
About SunFounder
SunFounder is a technology company focused on Raspberry Pi and Arduino open source
community development. Committed to the promotion of open source culture, we strive to
bring the fun of electronics making to people all around the world and enable everyone to
be a maker. Our products include learning kits, development boards, robots, sensor modules
and development tools. In addition to high quality products, SunFounder also offers video
tutorials to help your own project. If you have interest in open source or making something
cool, welcome to join us! Visit www.sunfounder.com for more!
About the PiCar-S
The PiCar-S is a cool smart car that can work with Raspberry Pi model B+, 2 model B and 3
model B. Equipped with three sensor modules including ultrasonic obstacle avoidance, light
follower, and line follower, you can better learn the programming on how to control the car.
In this manual, we will show you how to build the PiCar-S via description, illustrations of physical
components, in both hardware and software respects. You will enjoy learning how all this work.
You may visit our website www.sunfounder.com to download the related code and view the
user manual on LEARN -> Get Tutorials and watch related videos under VIDEO, or clone the
code on our page of github.com at
https://github.com/sunfounder/SunFounder_PiCar-S
You are welcome to pull requests and issue posts on our page on Github.
Free Support
If you have any TECHNICAL questions, add a topic under FORUM section on our website
and we'll reply as soon as possible.
For NON-TECH questions like order and shipment issues, please send an email to
[email protected]. You're also welcomed to share your projects on FORUM.
Page 2
Contents
Components List ........................................................................................................................................1
Acrylic Plates ..........................................................................................................................................1
Servo Accessories .................................................................................................................................2
Mechanical Fasteners .........................................................................................................................2
Wires .........................................................................................................................................................3
PCB ...........................................................................................................................................................4
Other Components ..............................................................................................................................5
Tools ..........................................................................................................................................................6
Introduction .................................................................................................................................................7
Building the Car ..........................................................................................................................................7
Fixing Rear Wheels ................................................................................................................................7
Upper Plate ......................................................................................................................................... 10
Battery Holder ..................................................................................................................................... 11
Rear Wheels (Driving) ....................................................................................................................... 13
TF Card Guard .................................................................................................................................... 15
Front Half Chassis ............................................................................................................................... 16
Front Wheels ........................................................................................................................................ 17
Steering Part ........................................................................................................................................ 18
PCB Assembly ..................................................................................................................................... 20
Circuits Building .................................................................................................................................. 21
Software Installation .......................................................................................................................... 23
1. Log into Raspberry Pi .............................................................................................................. 23
2. Get Source Code .................................................................................................................... 23
3. Go to the Code Directory ..................................................................................................... 24
4. Install the Environment ........................................................................................................... 24
Adjust the Servo to 90 Degrees ..................................................................................................... 25
Build the Rest of the Car .................................................................................................................. 26
Configuration ...................................................................................................................................... 28
Arming the Car! ....................................................................................................................................... 32
Ultrasonic Obstacle Avoidance .................................................................................................... 33
How the Obstacle Avoidance Works ..................................................................................... 33
Principle ........................................................................................................................................... 33
Procedures ..................................................................................................................................... 33
Page 3
Software Flow ................................................................................................................................ 35
Code Explanation ........................................................................................................................ 37
Light Following .................................................................................................................................... 38
How It Works ................................................................................................................................... 38
Principle ........................................................................................................................................... 38
Procedures ..................................................................................................................................... 39
Software Flow ................................................................................................................................ 41
Code Explanation ........................................................................................................................ 44
Line Following ..................................................................................................................................... 45
How to Follow Lines ...................................................................................................................... 45
Principle ........................................................................................................................................... 45
Procedures ..................................................................................................................................... 45
Software Flow ................................................................................................................................ 49
Code Explanation ........................................................................................................................ 53
Combination ....................................................................................................................................... 54
Appendix .................................................................................................................................................. 57
Appendix 1: Modules ....................................................................................................................... 57
Robot HATS ..................................................................................................................................... 57
PCA9865 .......................................................................................................................................... 58
TB6612 .............................................................................................................................................. 59
Line Follower Module ................................................................................................................... 59
Light Follower Module ................................................................................................................. 60
Ultrasonic Obstacle Avoidance Module ............................................................................... 61
SunFounder SF0180 Servo ........................................................................................................... 61
WiFi Adapter .................................................................................................................................. 62
DC Gear Motor ............................................................................................................................. 62
Page 4
1
Components List
Acrylic Plates

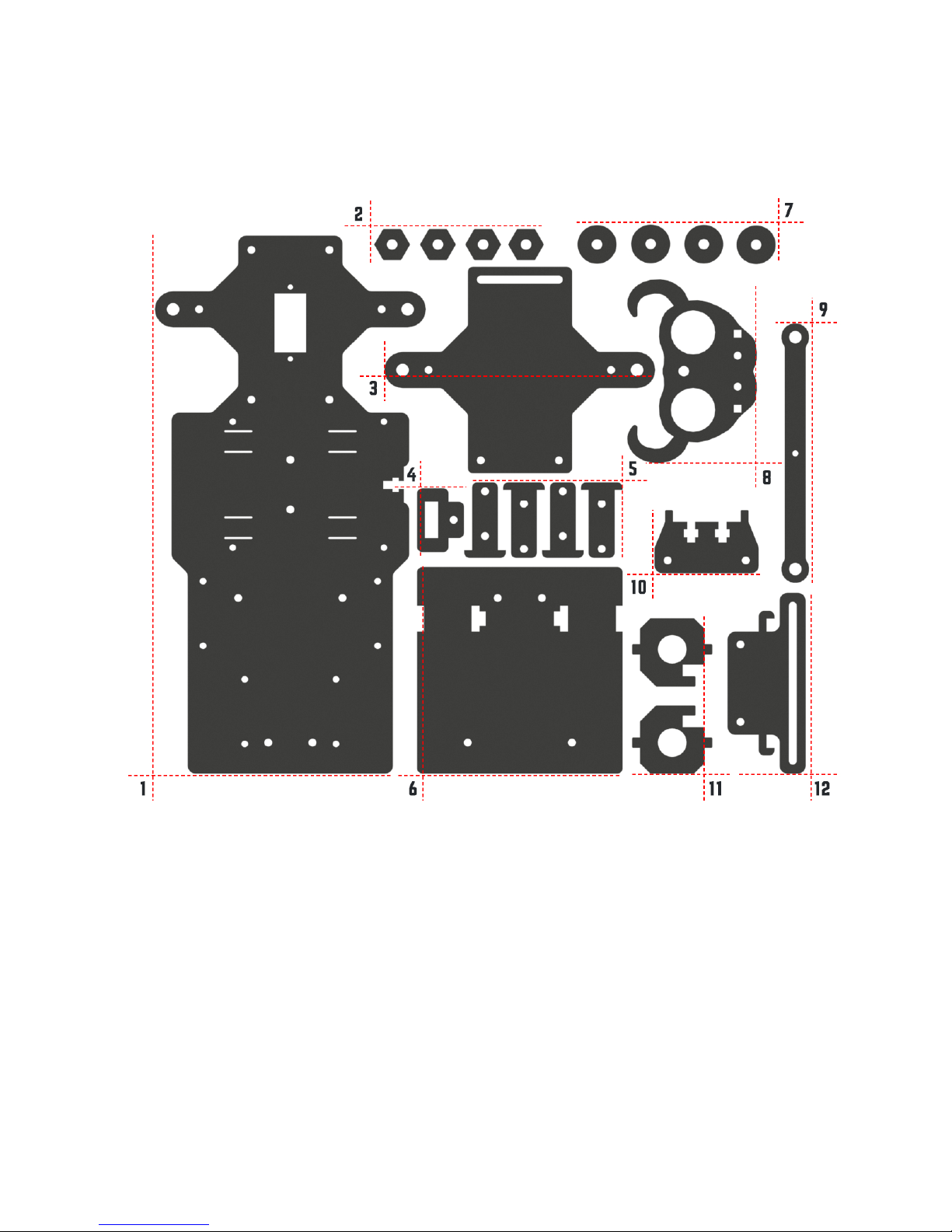

1. Upper Plate x 1
2. Hex Front Wheel Fixing Plate x 4
3. Front Half Chassis x 1
4. TF Card Guard x 1
5. Motor Support x 4
6. Back Half Chassis x 1
7. Bearing Shield x 4
8. Ultrasonic Connector x 1
9. Steering Linkage x 1
10. Ultrasonic Support x 1
11. Steering Connector x 2
12. Sensor Connector x 1
Page 5
2
Servo Accessories

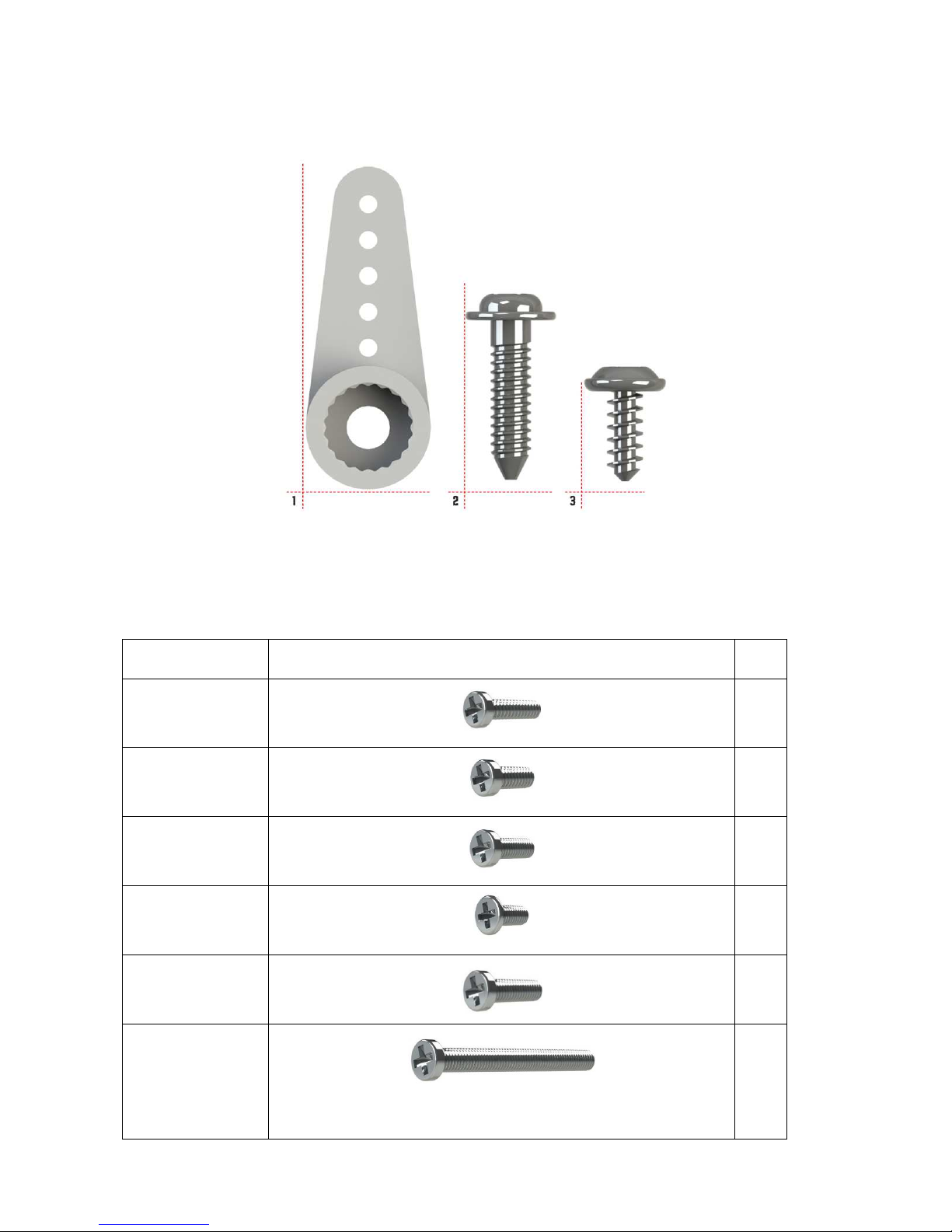

The following three parts will be used in the servo package:
1. Rocker Arm
2. Rocker Arm Screw
3. Rocker Arm Fixing Screw
Mechanical Fasteners
Name Component Qty.
M2x8 Screw
2
M2.5x6 Screw
12
M3x8 Screw
8
M3x8
Countersunk
Screw
2
M3x10 Screw
9
M3x30 Screw
4
Page 6
3
M4x25 Screw
2
M2 Nut
2
M2.5 Nut
12
M3 Nut
23
M4 Self-locking
Nut
2
M2.5x8 Copper
Standoff
16
M3x25 Copper
Standoff
8
4x11x4 F694ZZ
Flange Bearing
2

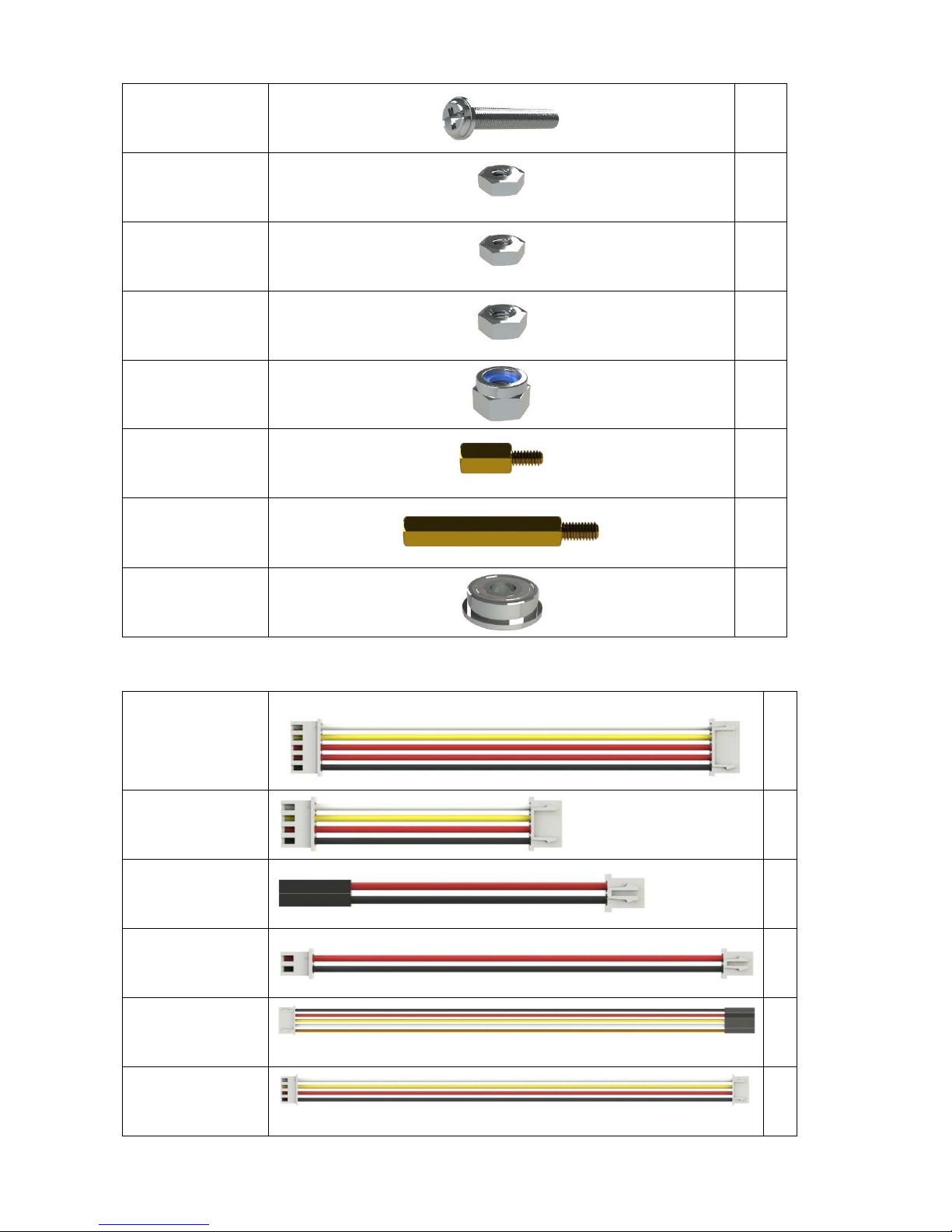

Wires
100mm HX2.54
5-Pin Jumper
Wire
1
50mm HX-2.54 4-
Pin Jumper Wire
1
50mm HX-2.54 2-
Pin Jumper Wire
1
100mm HX-2.54
2-Pin Jumper
Wire
1
200mm HX2.54
5-Pin Jumper
Wire
1
200mm HX-2.54
4-Pin Jumper
Wire
1
Page 7
4
200mm HX2.54
3-Pin Jumper
Wire
1

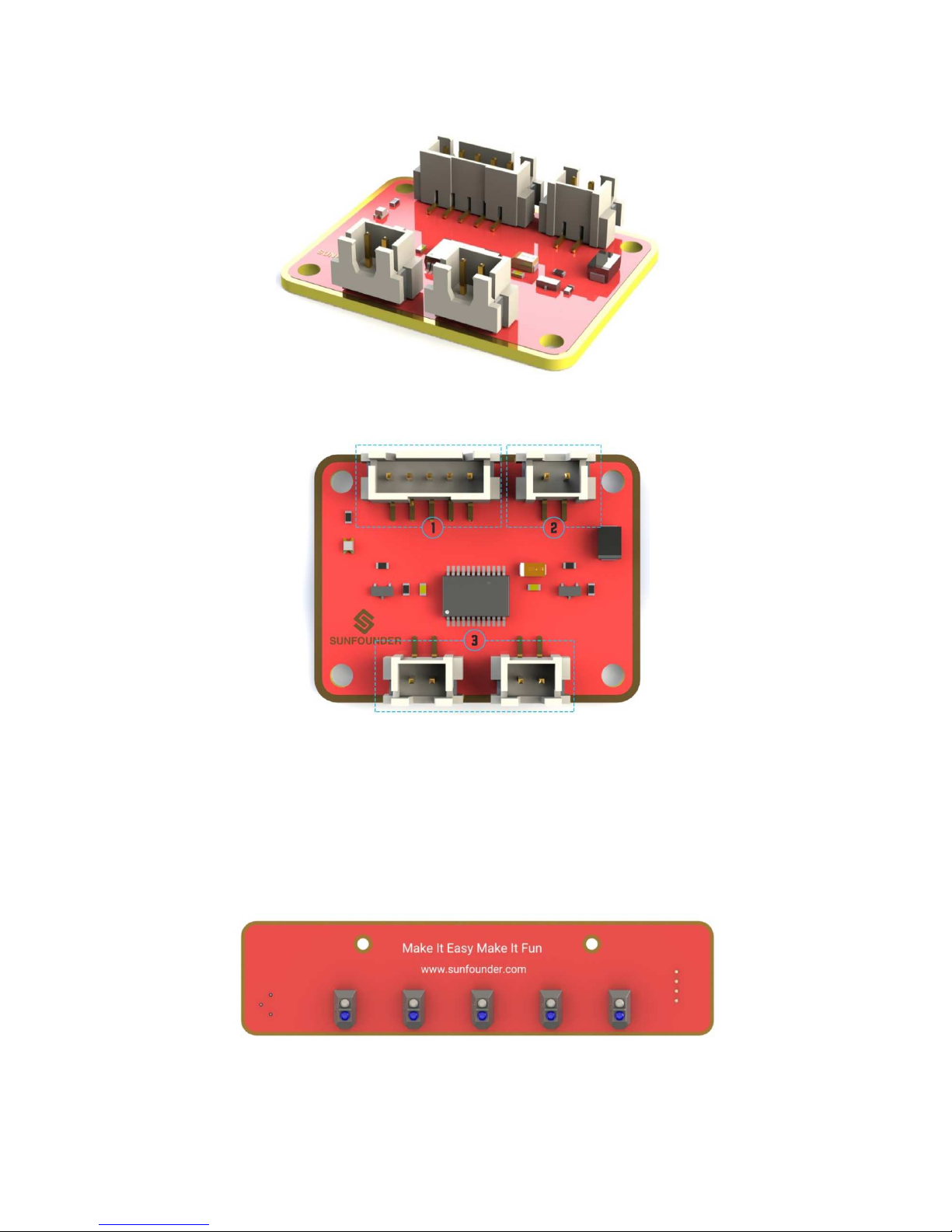

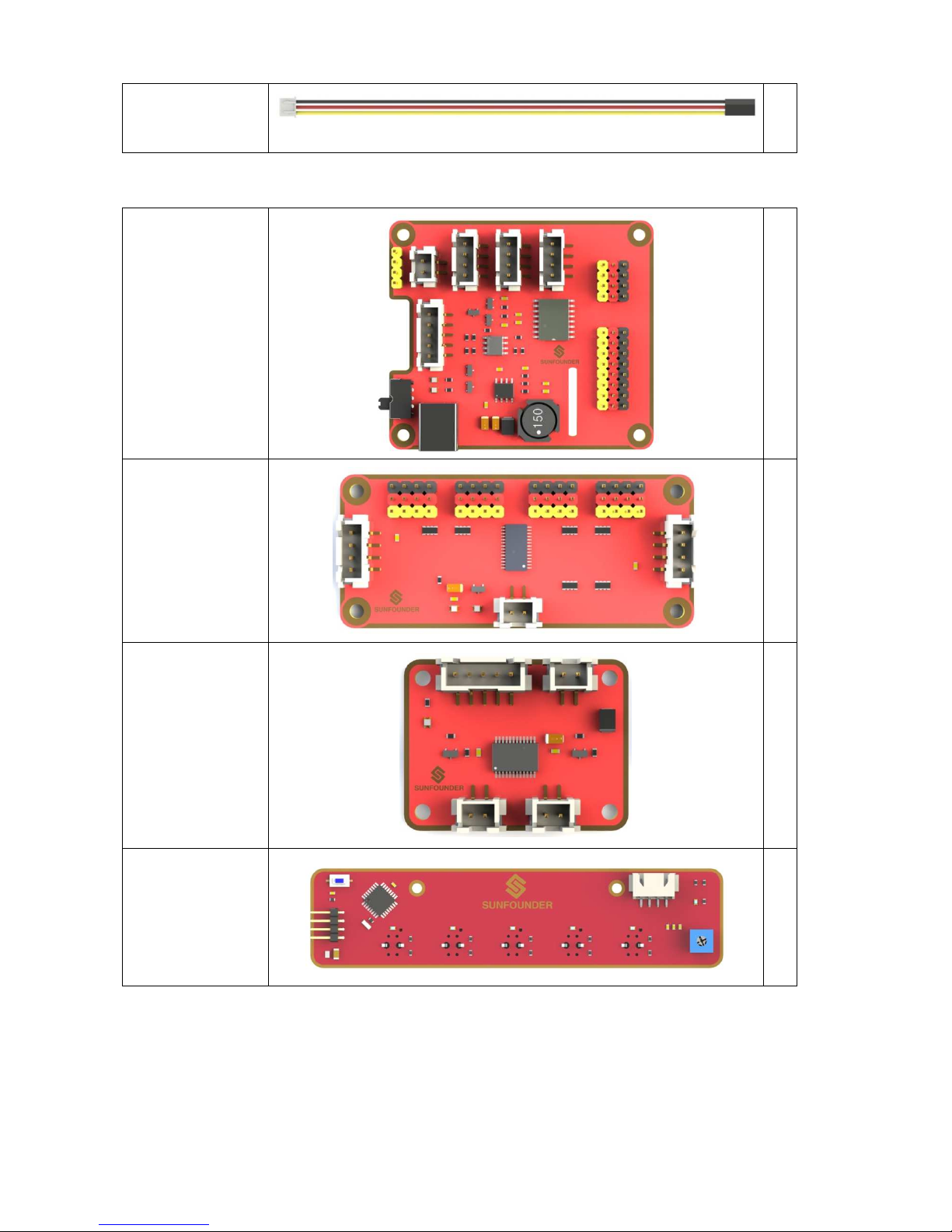

PCB

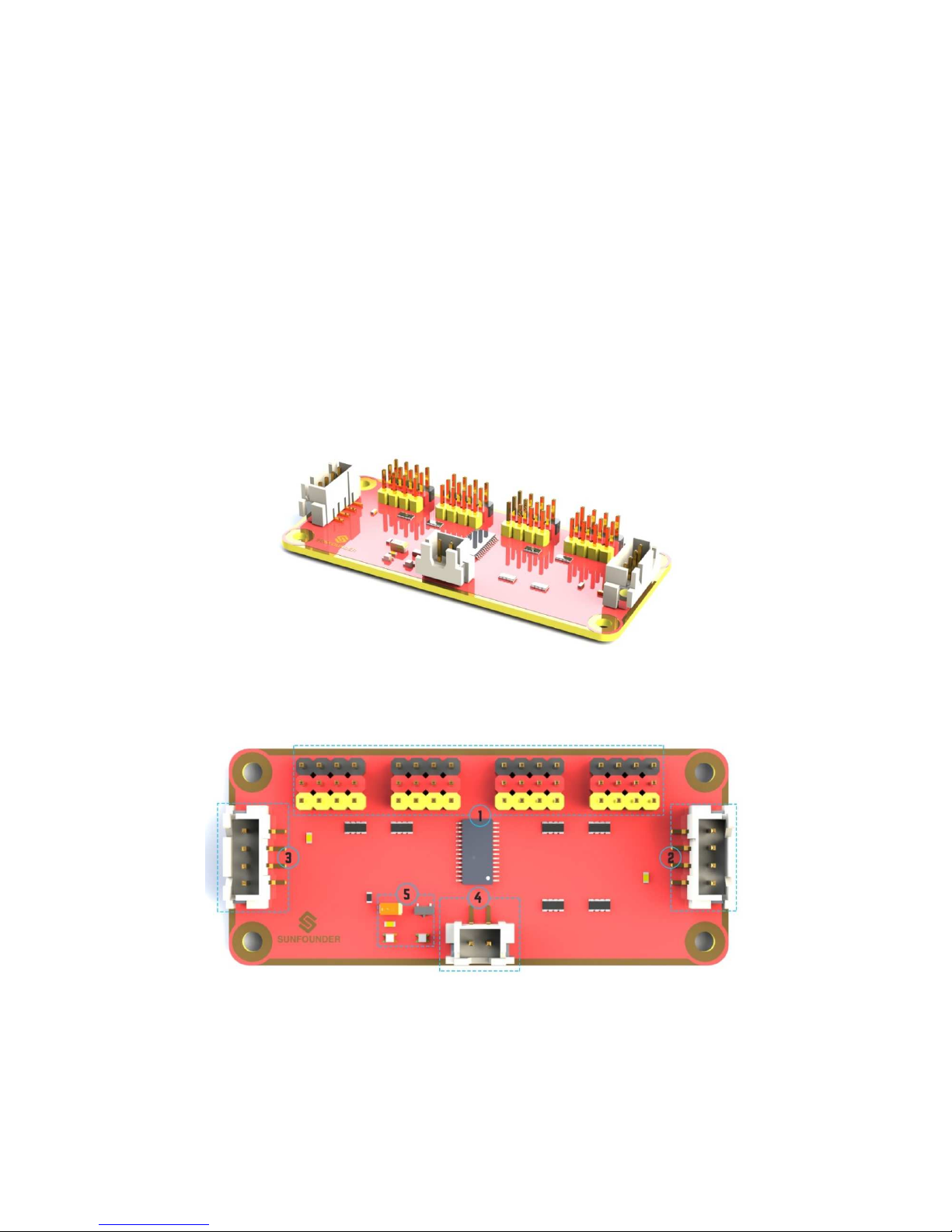

Robot HATS
1
PCA9685 PWM
Driver
1
TB6612 Motor
Driver
1
5-CH Line
Follower Module
1
Page 8
5

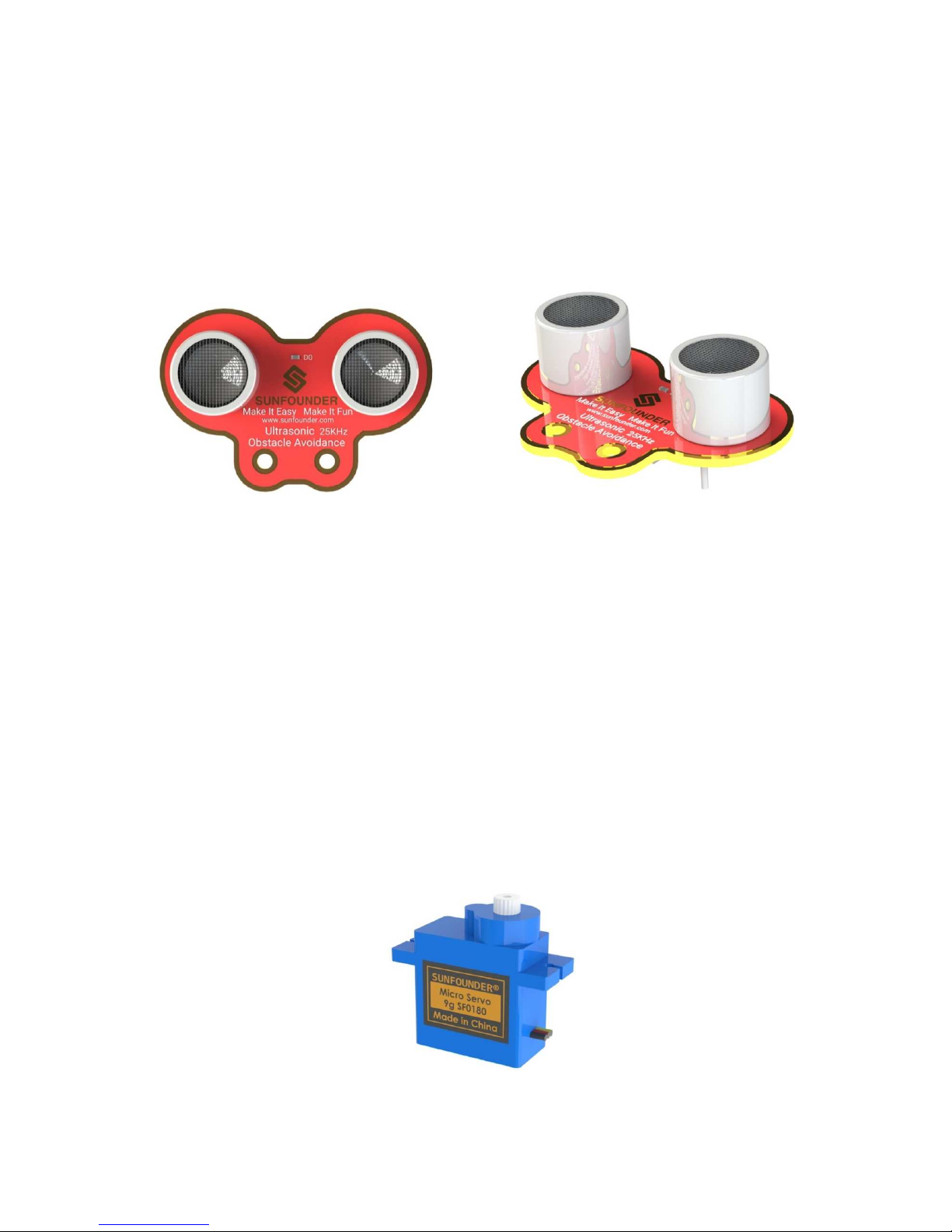

Ultrasonic
Obstacle
Avoidance
Module
1
Light Follower
Module
1

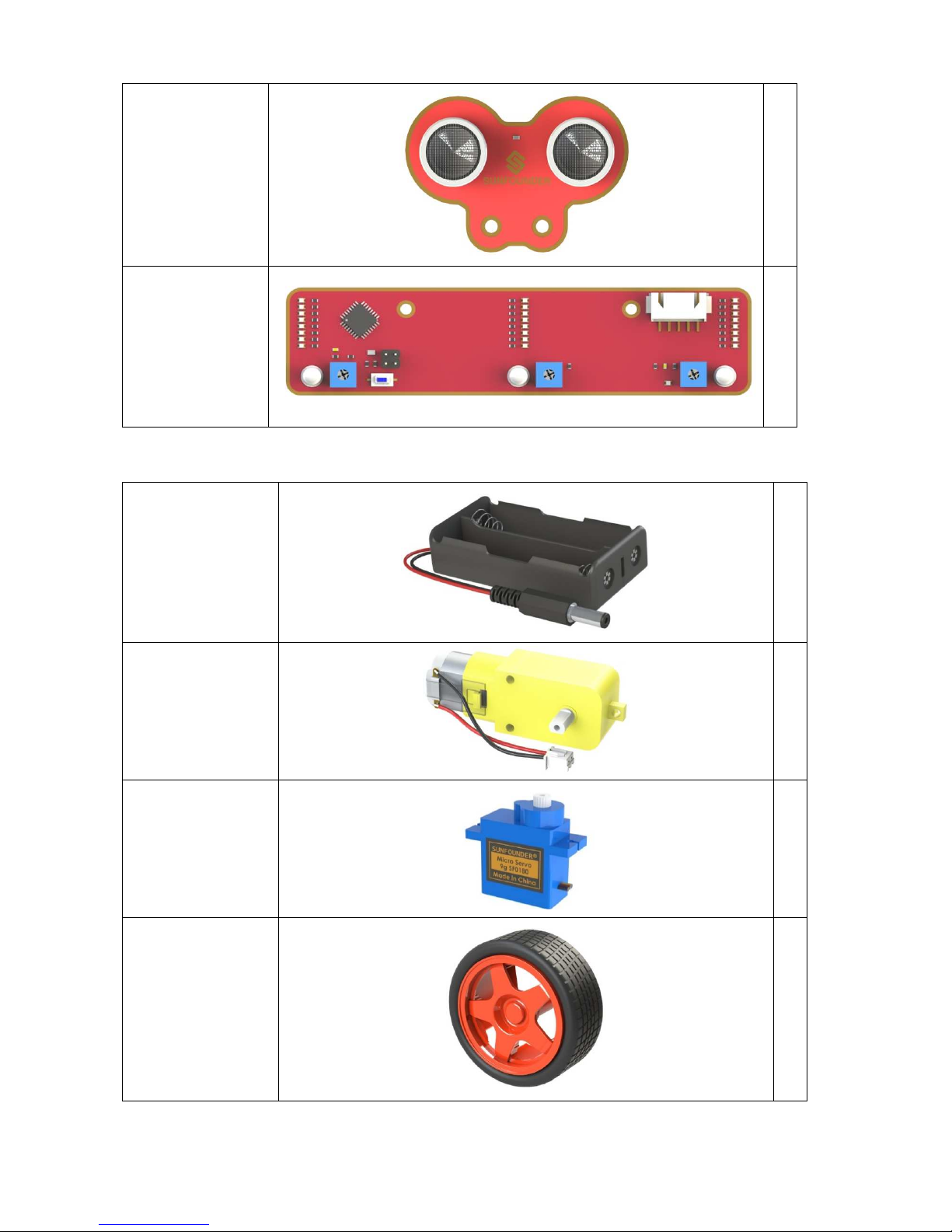

Other Components
2x18650 Battery
Holder
1
DC Gear Motor
2
SunFounder
SF0180 Servo
1
Rear Wheel
2
Page 9
6
Front Wheel
2

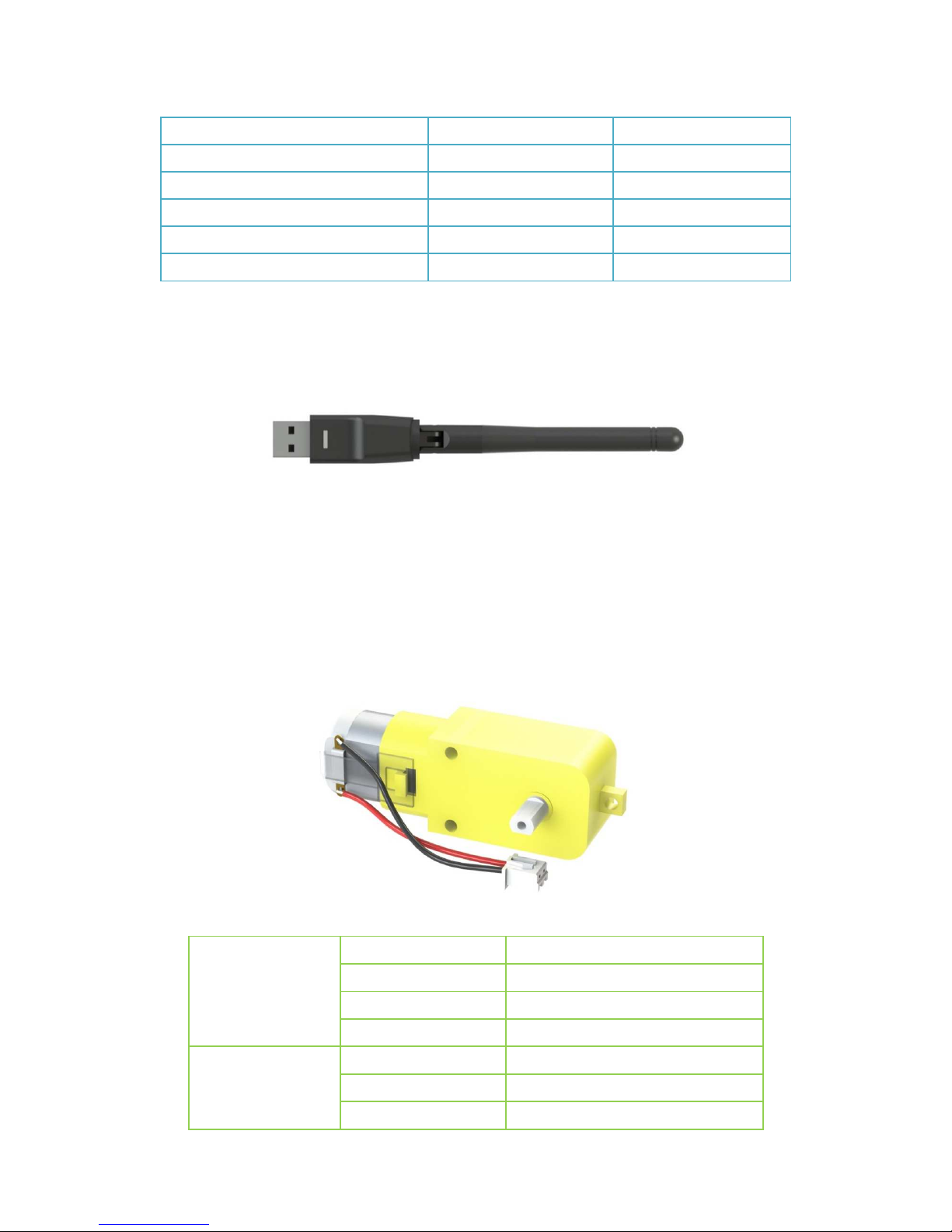

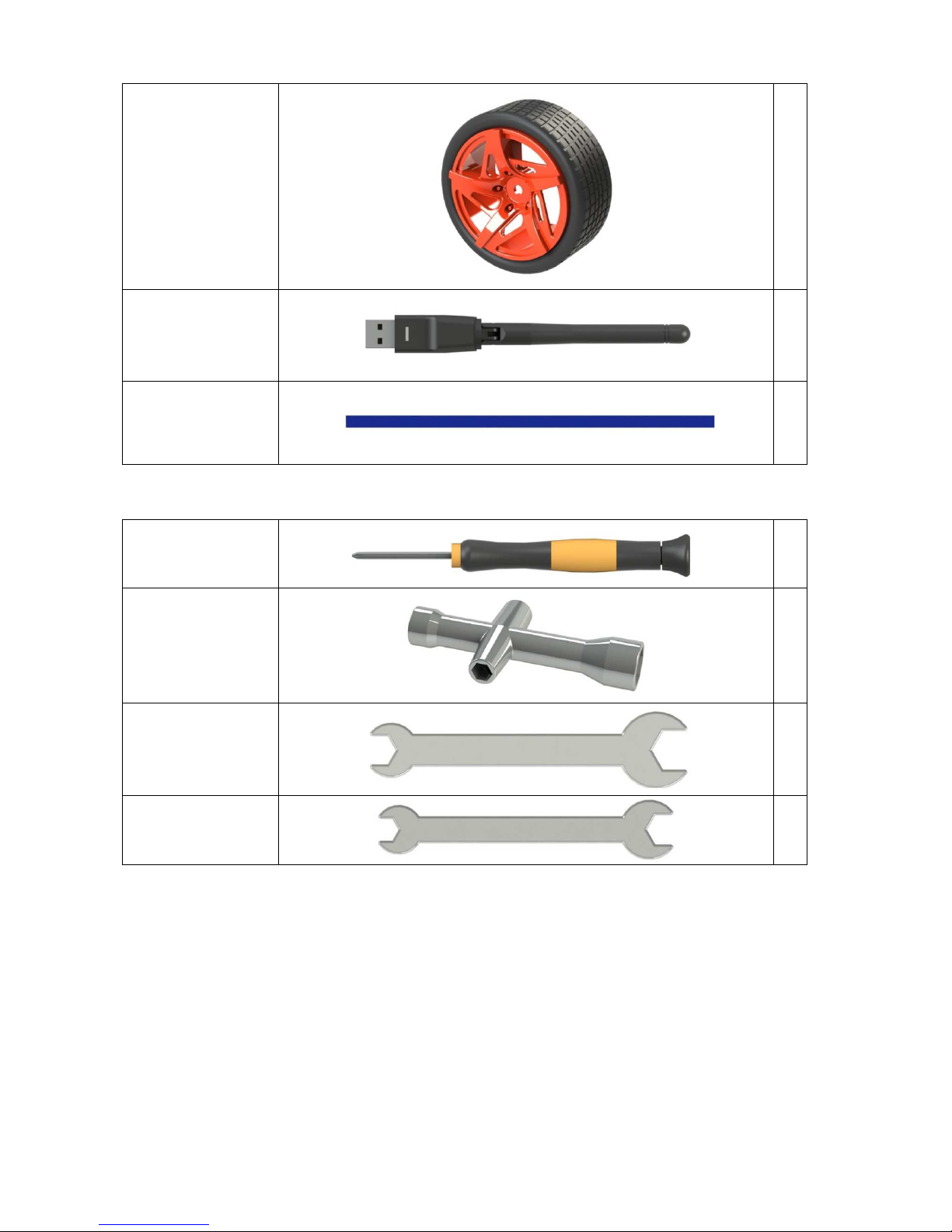

USB Wi-Fi Adapter
1
Ribbon (30cm)
1
Tools
Cross Screwdriver
1
Cross Socket
Wrench
1
M2.5/M4 Small
Wrench
1
M2/M3 Small
Wrench
1
Page 10
7
Introduction

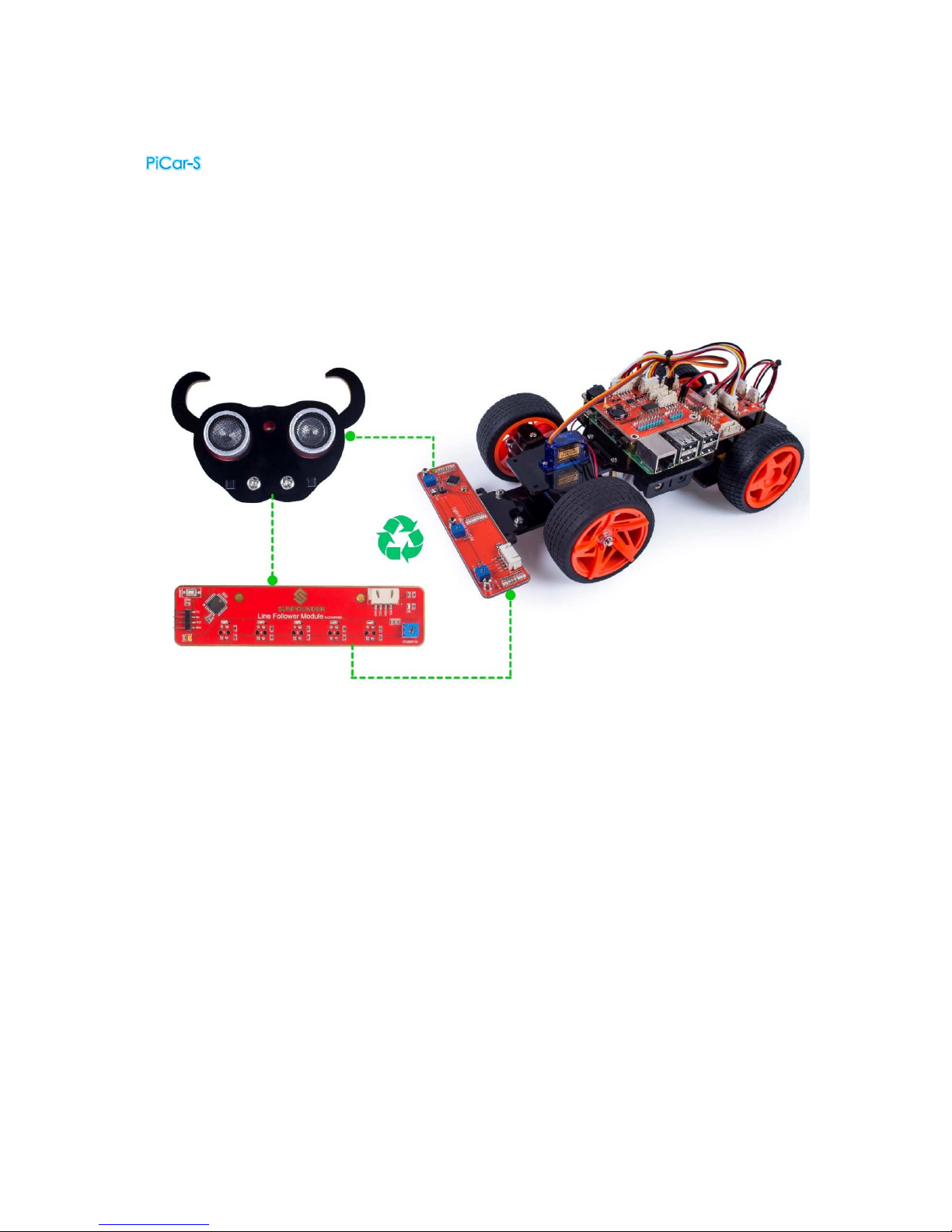

The is a SMART SENSOR car robot based on Raspberry Pi, which comes with three sensor
modules, including the light follower, line follower and ultrasonic obstacle avoidance. With
these modules, this smart car is capable of some simple automatic actions. Thus, you can
learn some basics of programming in Python to control the car with these sensors. Let’s start
with building this smart car!
Building the Car
Extremely excited when opening the box and checking so many components? Keep your
patience and take it easy. Please note that some details in the following steps need CAREFUL
observation. You should double-check your work based on the figures in the manual after
finishing each step. Don’t worry! Kindly reminders will be given in some particular steps. Just
follow the tutorial step by step. Okay, with no further ado, now let’s start!
Fixing Rear Wheels
Assemble the Motor Support Plate into the Back Half Chassis as shown below.
Page 11
8

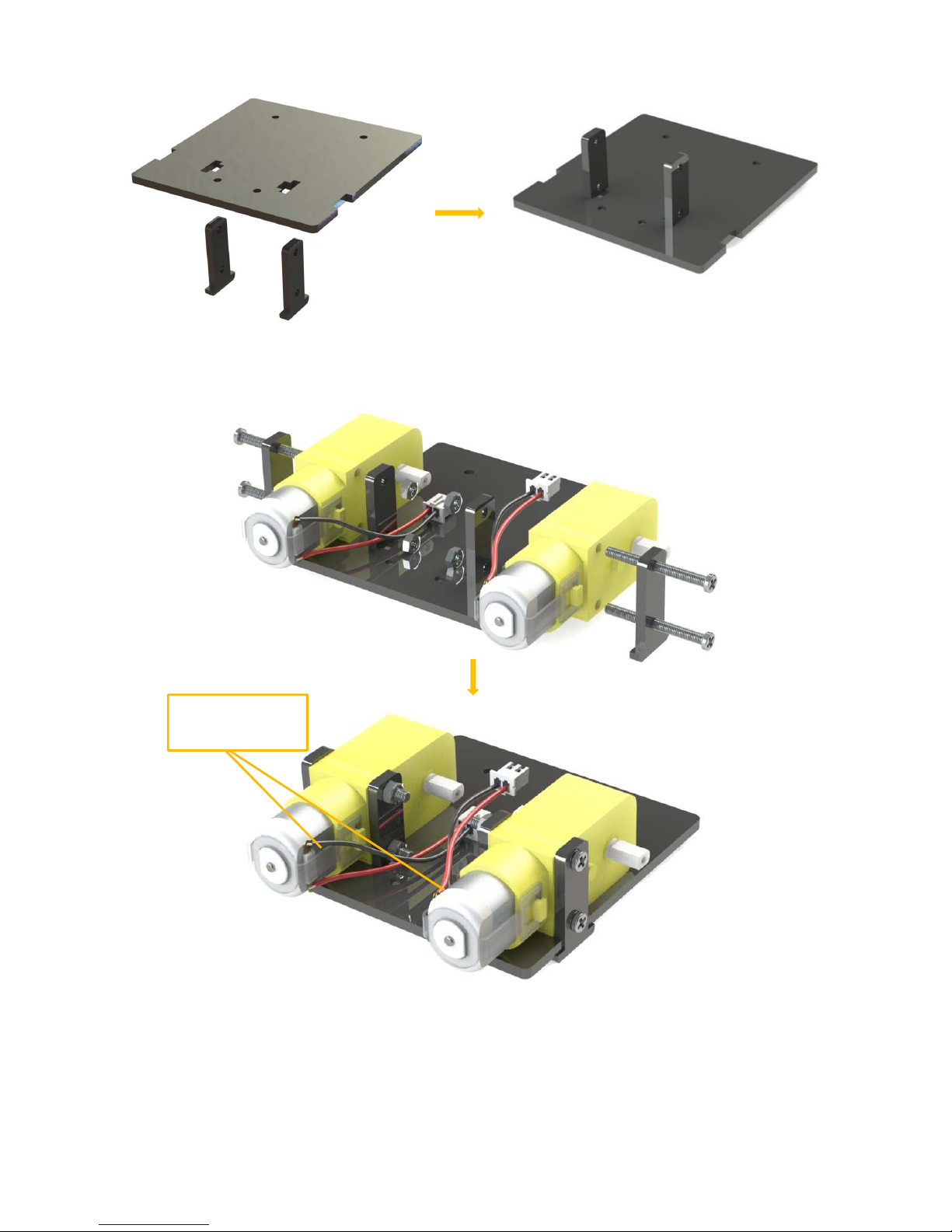

Assemble the two motors with four M3x30 screws and M3 nuts. Pay attention to place the
motors with wires inward, providing convenience for connecting the circuit.
Place wires
inwards
Page 12
9

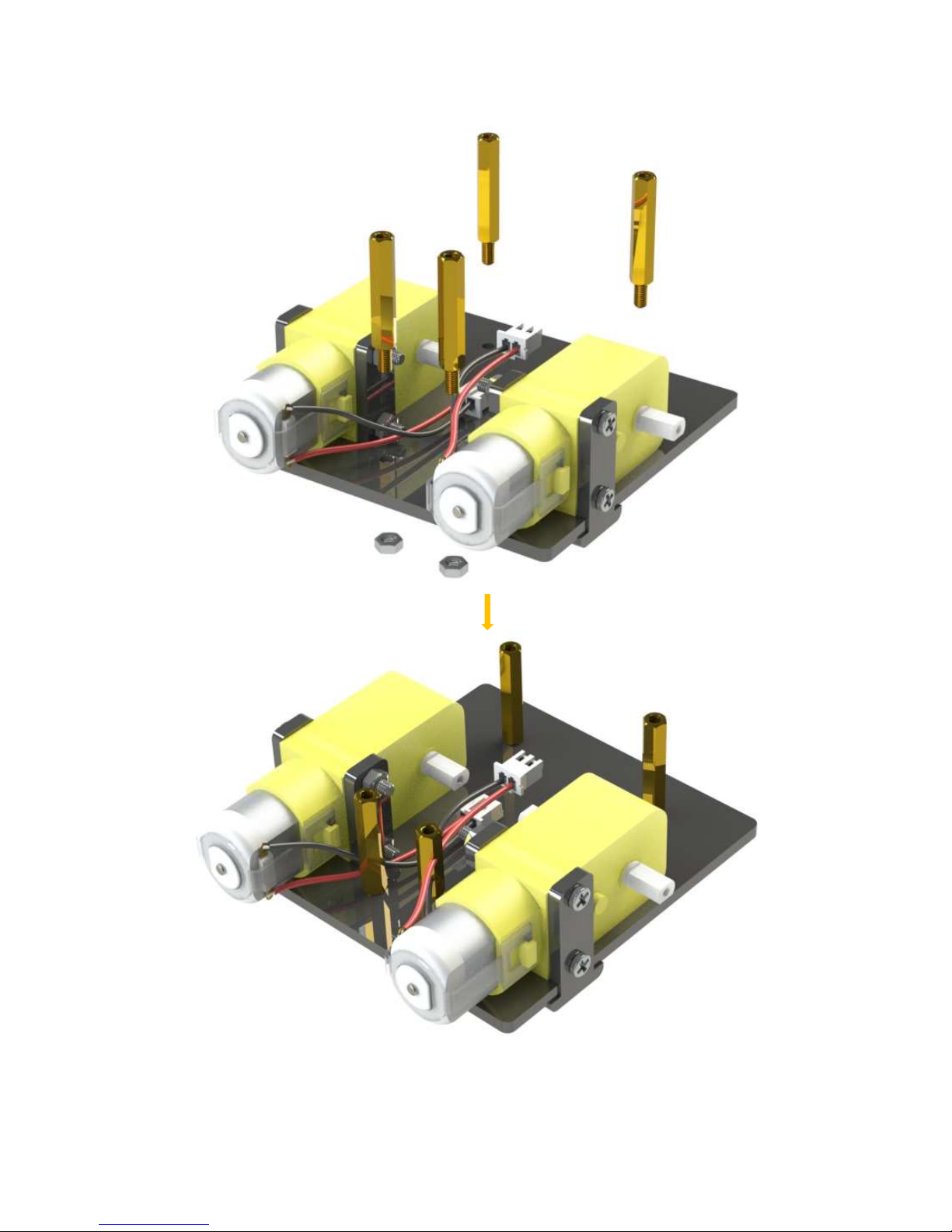

Insert four M3x25 copper standoffs through the acrylic plate into four M3 nuts as shown below:
So now this part is completed. You can put it aside for now.
Page 13
10
Upper Plate

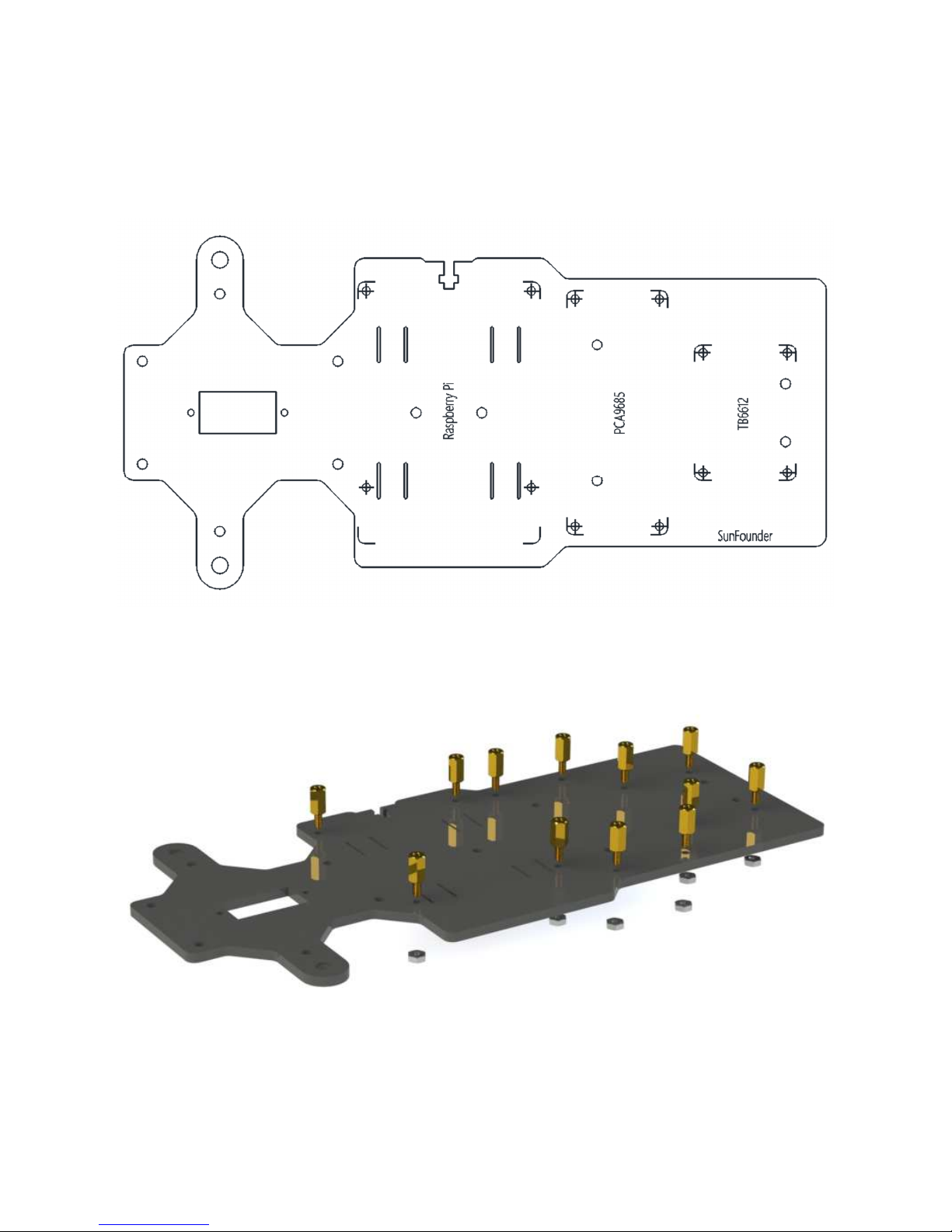

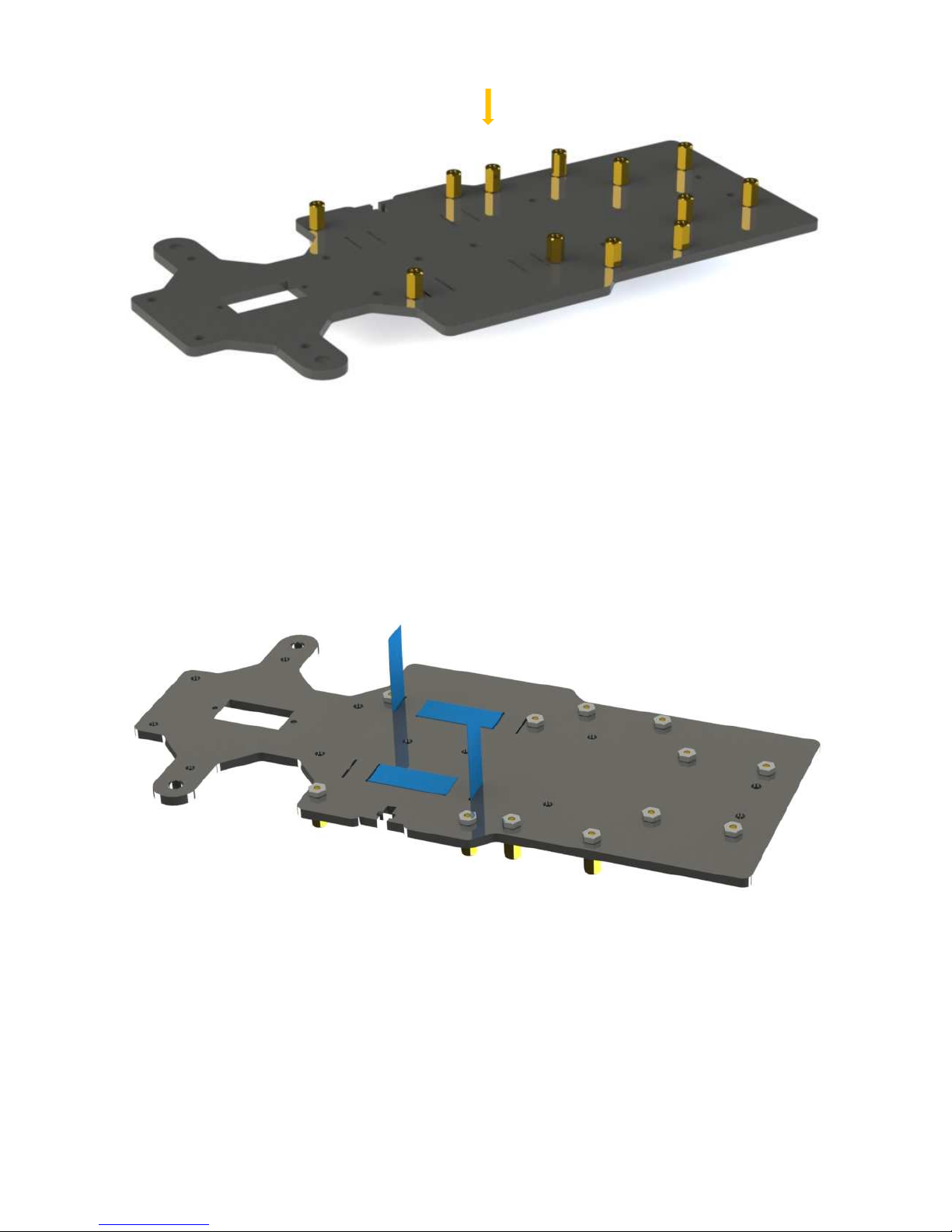

Mount the M2.5x8 copper standoffs and M2.5 nuts into the upper plate first. There are three
PCBs to be installed onto the plate and four copper standoffs are needed for each. So here
12 holes should be used, marked with cross as shown below:
Assemble the M2.5x8 copper standoffs and M2.5 nuts as shown below. Pay attention that the
side the logo carved should face up.
Page 14
11
Battery Holder
Turn the Upper Plate upside down. Cut the ribbon into two halves. Thread them through the
holes on the plate. Pay attention to the direction and leave one end longer out of the plate
for each to remove the battery easily later.
Page 15
12

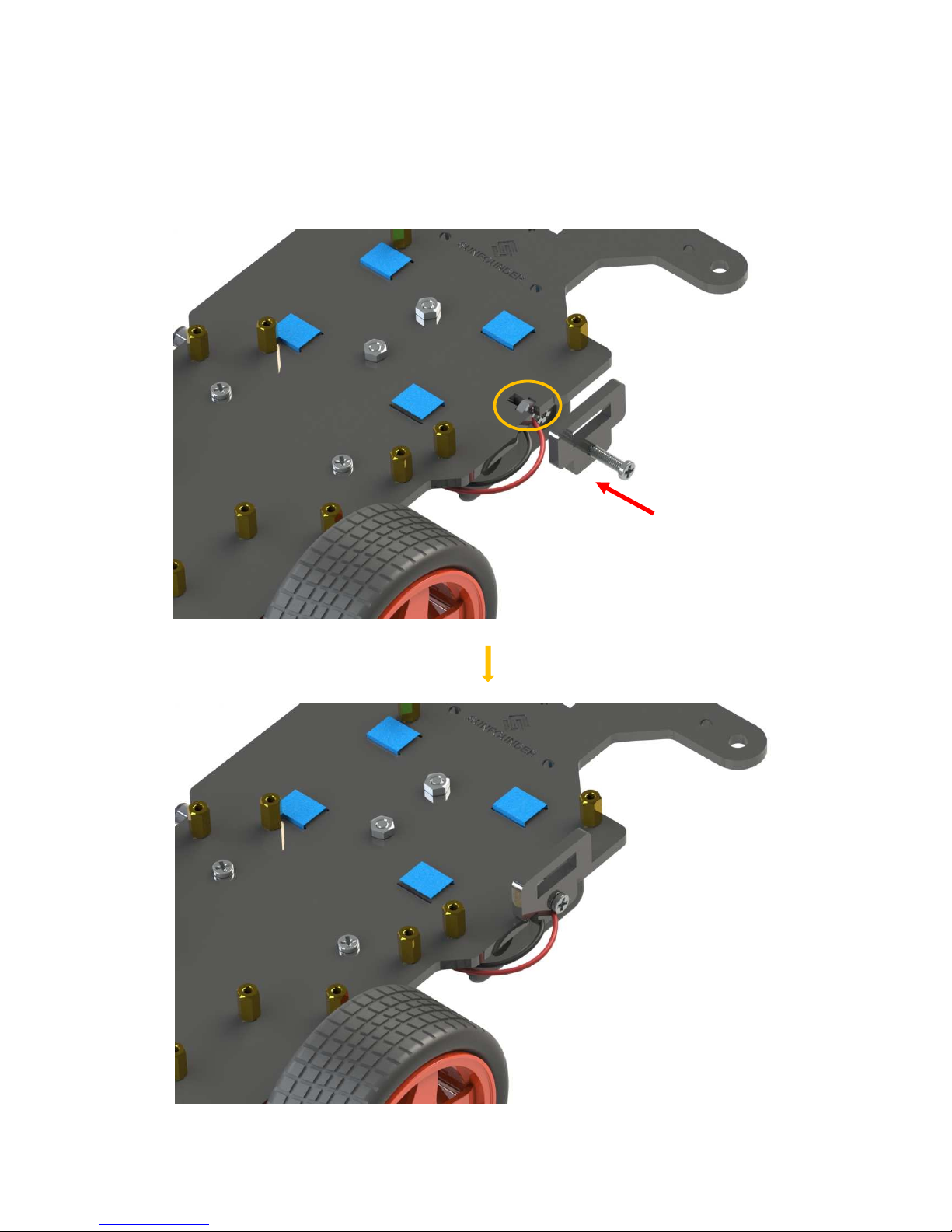

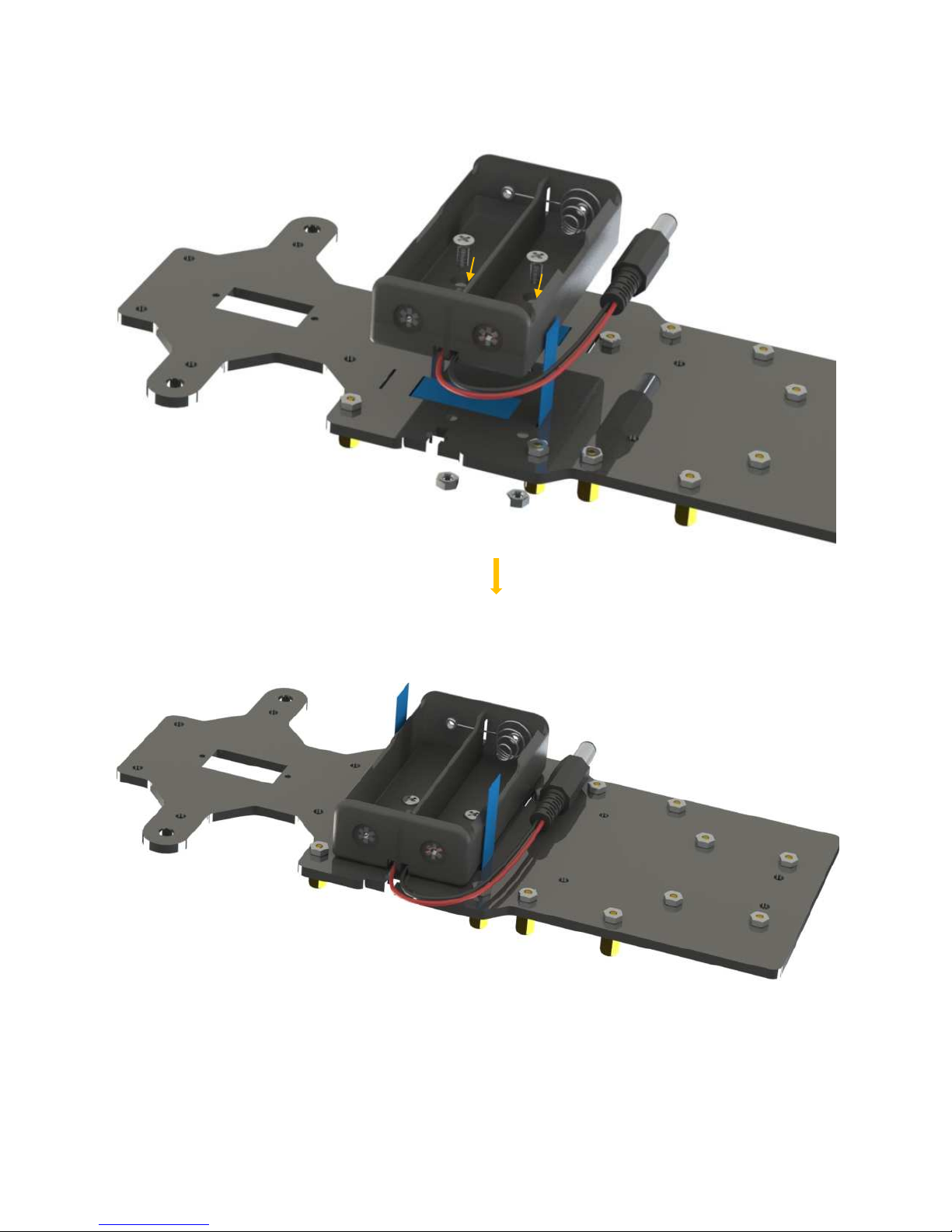

Fasten the battery holder with two M3x8 countersunk screws and two M3 nuts: pay attention
to the direction of battery holder’s wire.
Page 16
13
Rear Wheels (Driving)

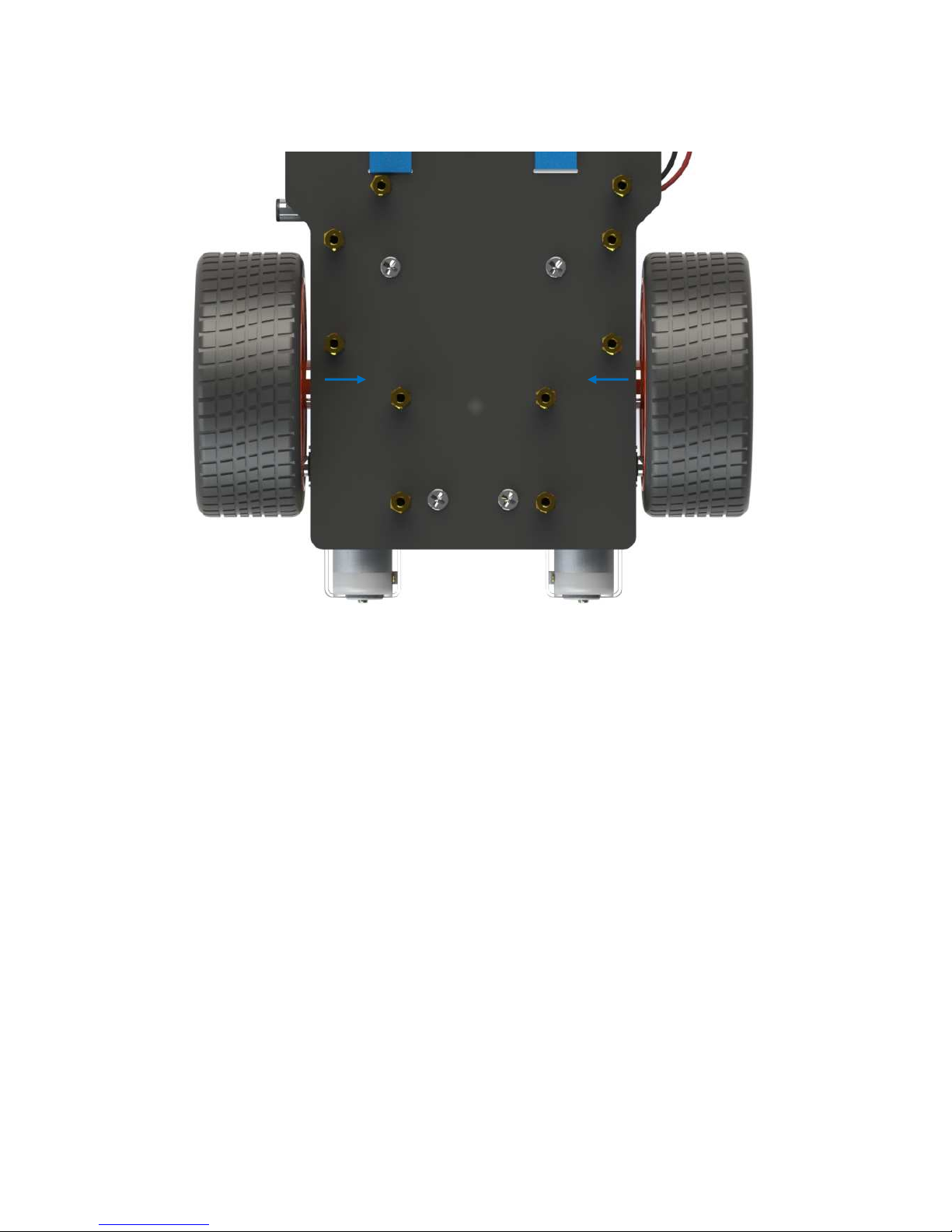

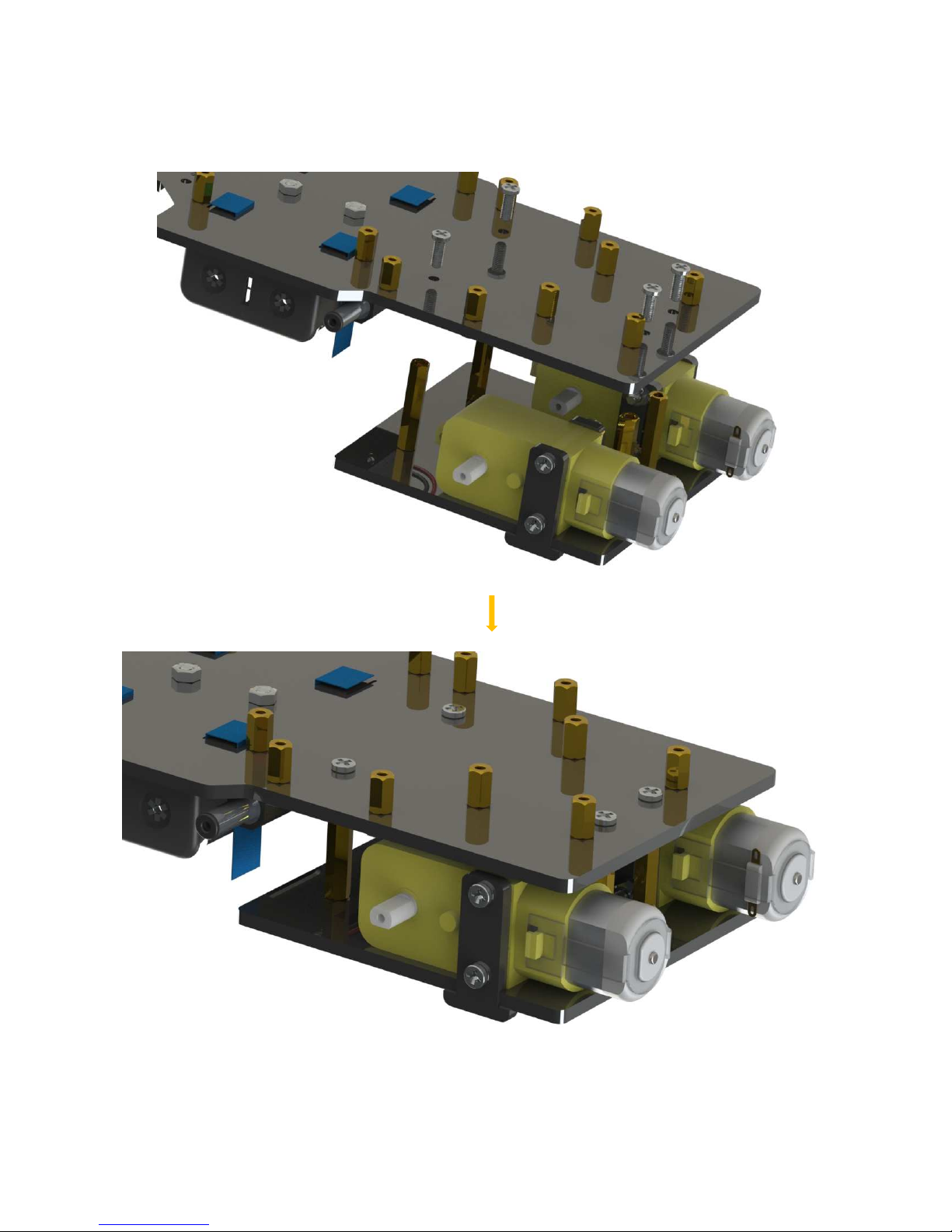

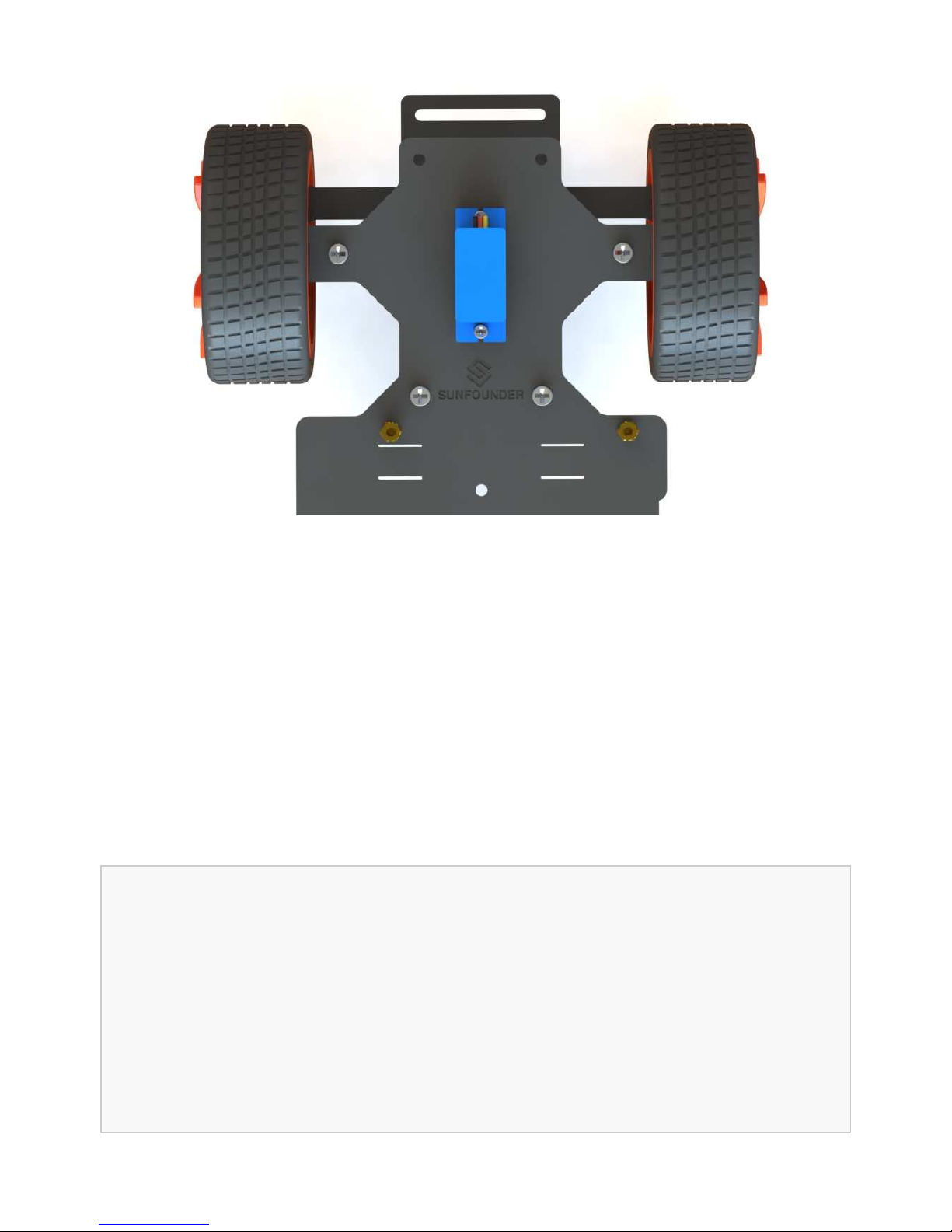

Mount the assembled rear wheel driving part onto the Upper Plate with four M3x8 screws:
Page 17
14
Assemble the rear wheels:
Align the rear wheels with the motor shaft, and rotate to insert them gently.
Page 18
15
TF Card Guard
Mount the TF Card Guard plate onto the side near the front wheel with an M3x10 screw and
an M3 nut. First place the nut into the slot from the underneath, and then insert the screw into
the nut through the plate.
Page 19
16
Front Half Chassis

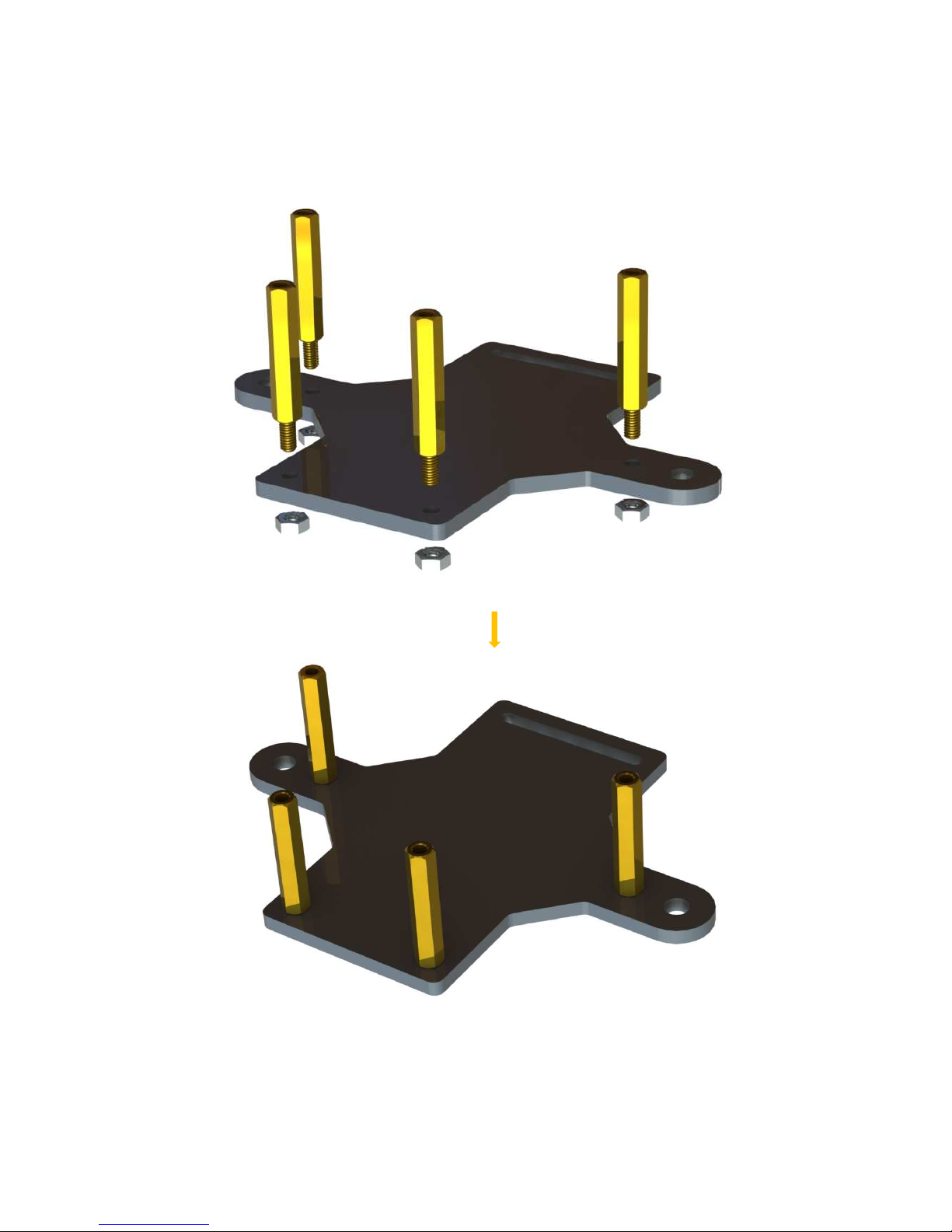

Assemble the Front Half Chassis with four M3x25 copper standoffs and four M3 nuts as shown
below:
Page 20
17
Front
Wheels

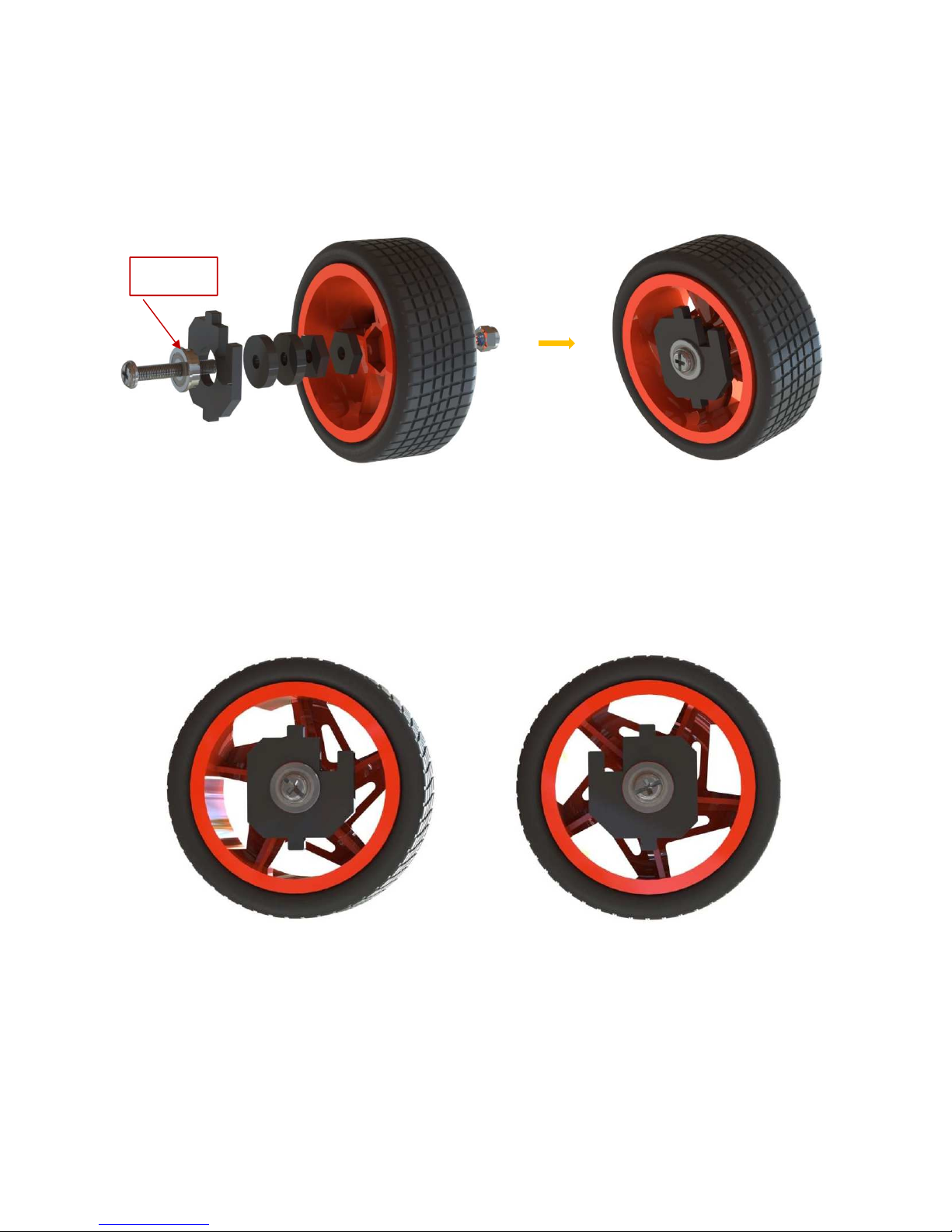

Insert an M4x25 screw through a Flange Bearing (pay attention to the direction – the flange
near the cap of the screw), a Steering Connector, 2 Bearing Shields, 2 Hex Front Wheel Fixing
Plates, and a front wheel, into an M4 Self-locking Nut (note the direction) as shown below:
The Self-locking Nut should be screwed tight enough. It would be better to tighten the screw
until the wheel and Steering Connector cannot move first, then loosen the screw a little, so
that the Steering Plate can just move. Thus, the wheel can turn flexibly when the connection
would not be too loose.
Assemble the other front wheel in the same way, but bear in mind the Steering Connector on
the wheel should be symmetric with the previous one:
Now two front wheels have finished assembly.
Flange
Page 21
18
Steering
Part

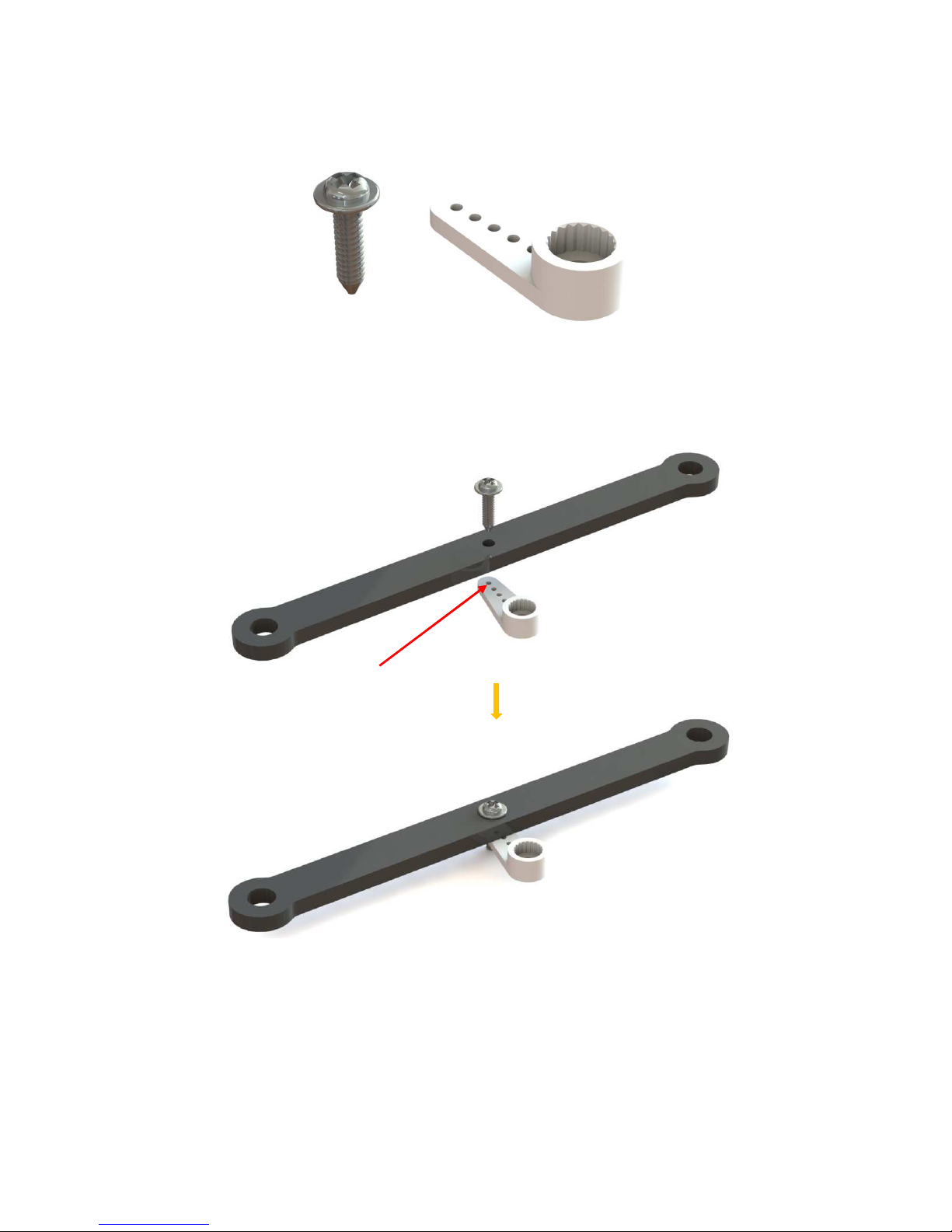

Take out the Rocker Arm and the Rocker Arm Screw (the longer one):
Connect the Steering Linkage and the rocker arm with the screw. Note: Insert it into the first
hole of the arm (as indicated by the arrow below) which is the farthest from the gears. Since
the screw is larger than the hole, you should try to screw it hardly so as tight to the arm. Don't
worry of the arm which is soft.
And also fasten them as tightly as possible, and then loosen the screw a little so the Steering
Linkage can move flexibly.
Page 22
19

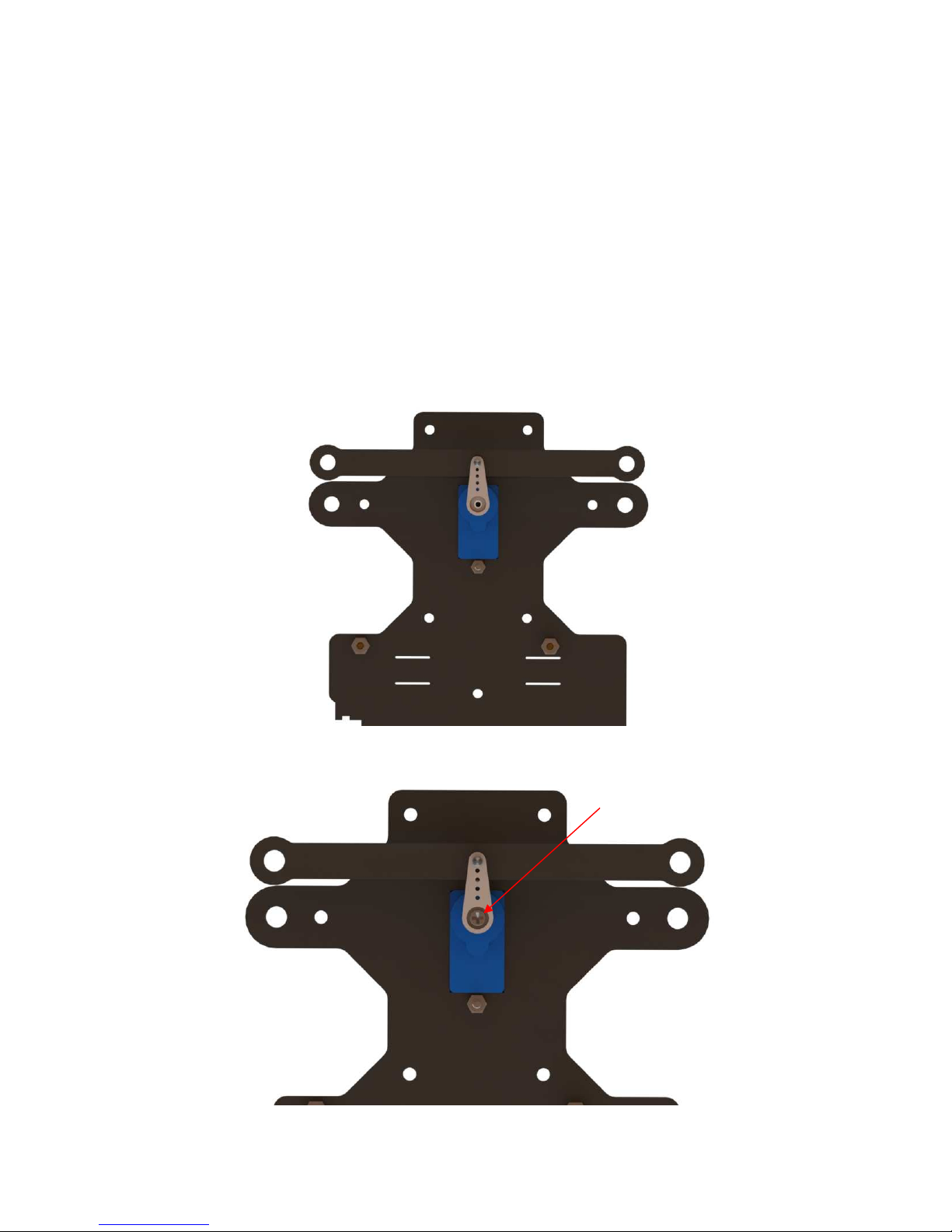

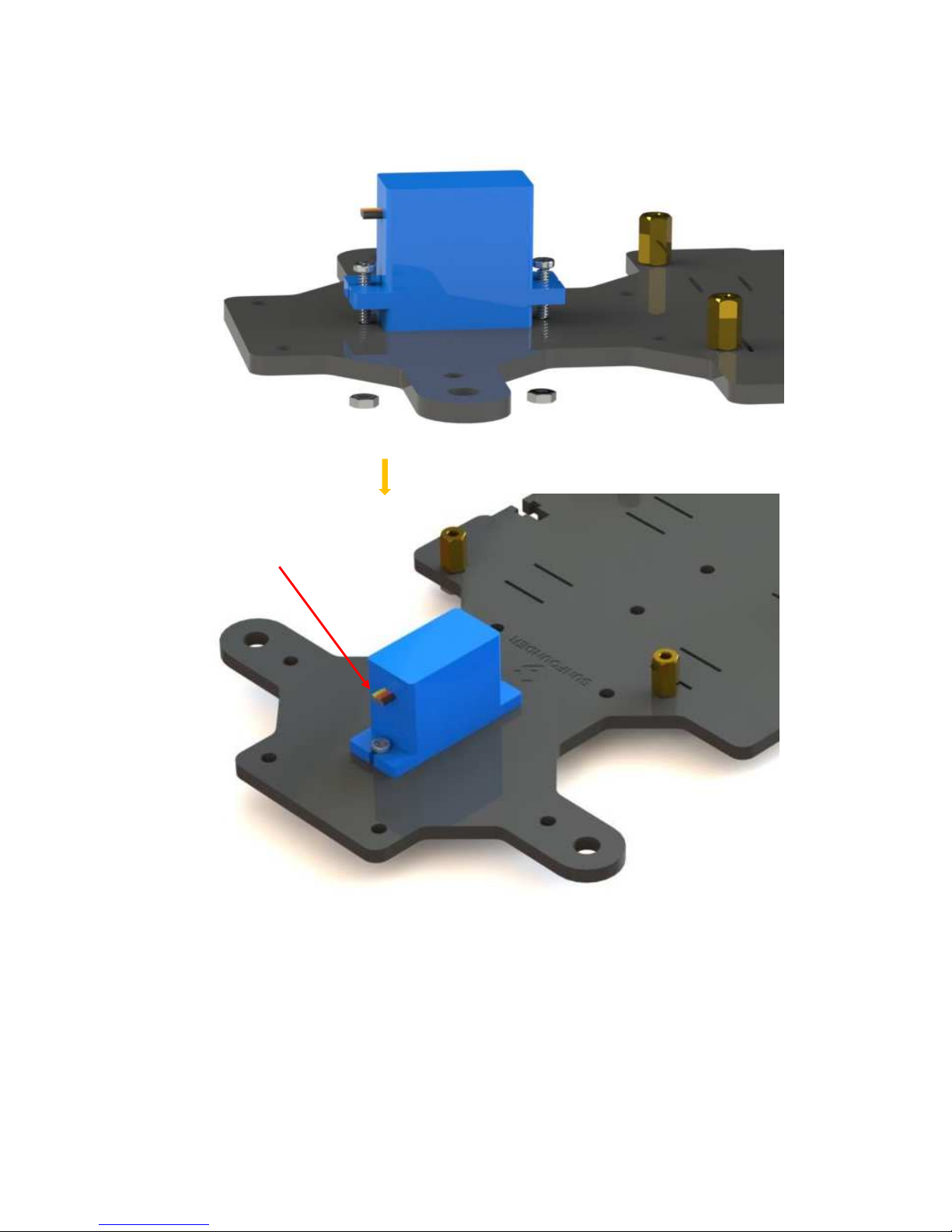

Mount the steering servo to the Upper Plate with two M2x8 Screws and two M2 nuts (pay
attention to the direction of the servo wires):
Till here the car assembly is mostly done. But don’t hurry to assemble the front wheels, because
the servo has not been adjusted yet. An unadjusted servo may get stuck and further get hot
and burnt when it is connected to power to use as it is. To adjust, you can use your own way,
like uploading an Arduino program to the servo which makes it rotate to the 90 degrees and
stop, or using the servo adjustment code provided in this kit.
For the latter method, since we need to connect the related driver board and Raspberry Pi to
adjust the servo, now let's first assemble the PCBs onto the car, which is much easier than
previous assembly.
Page 23
20
PCB Assembly

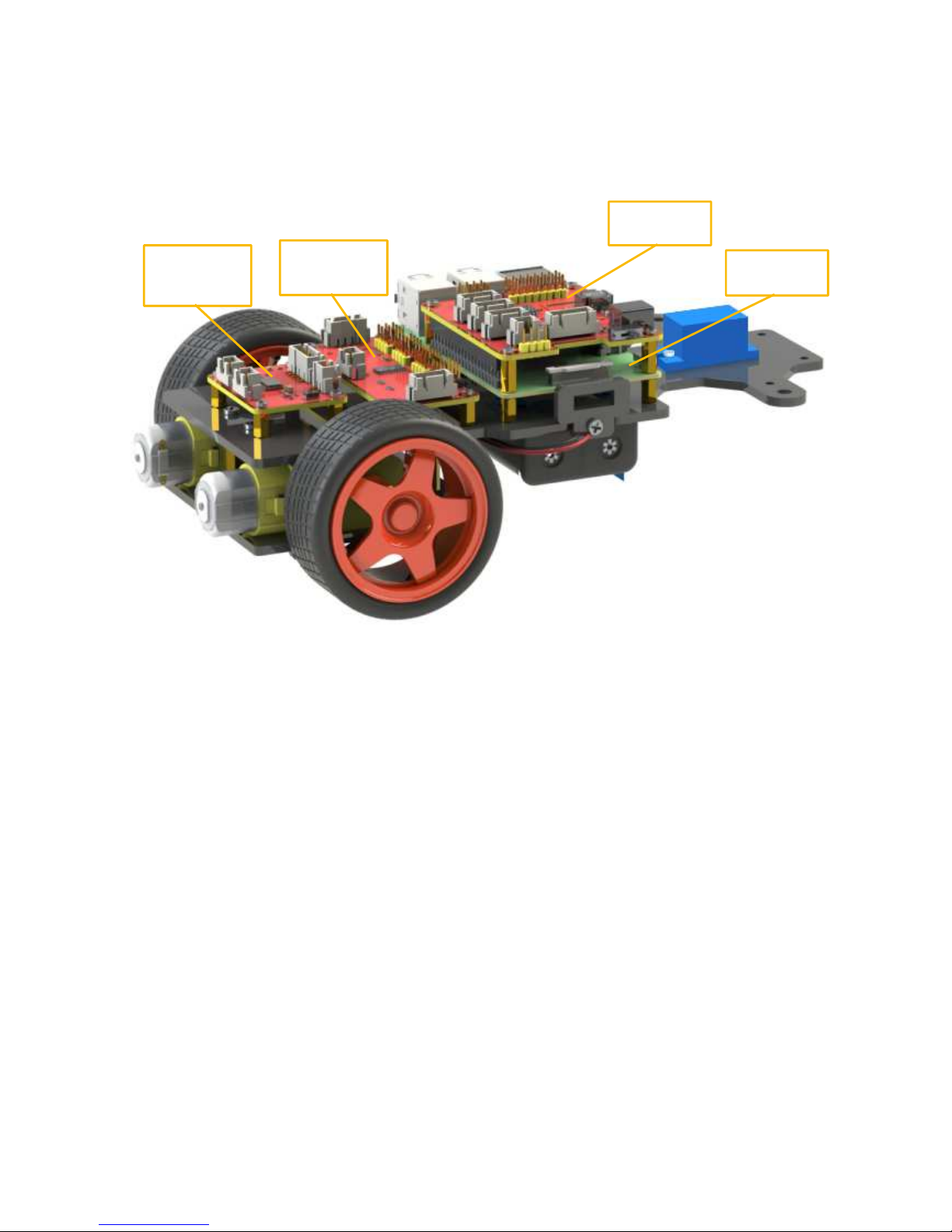

Assemble the Raspberry Pi (TF Card inserted) with four M2.5x8 copper standoffs, then plug the
Robot HATS onto it, and fix the PCA9685 PWM Driver, the TB6612 Motor Driver and the Robot
HATS with twelve M2.5x6 screws.
PCA9685
PWM Driver
TB6612
Motor Driver
Robot HATS
Raspberry Pi
Page 24
21
Circuits Building

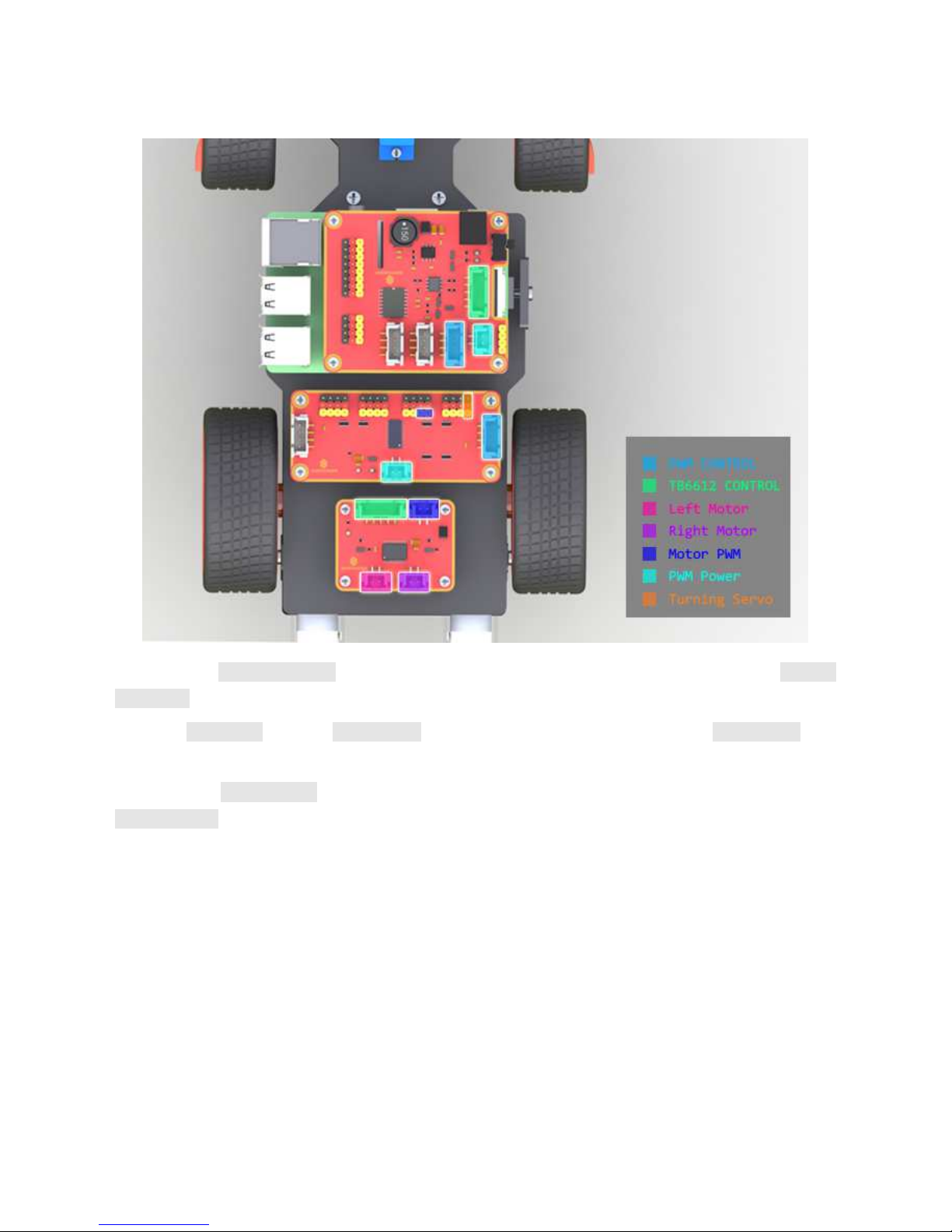

Connect the PWM CONTROL of the Robot HATS with the PCA9685 PWM Driver, and the TB6612
CONTROL with the TB6612 Motor Driver.
Then the Left Motor and the Right Motor of the TB6612 to two motors, and the Motor PWM with
the No. 4 and 5 PWM channel of the PCA9685.
Connect the PWM Power of the PCA9685 with the Robot HATS, and its channel 0 of with the
Turning Servo.
Page 25
22

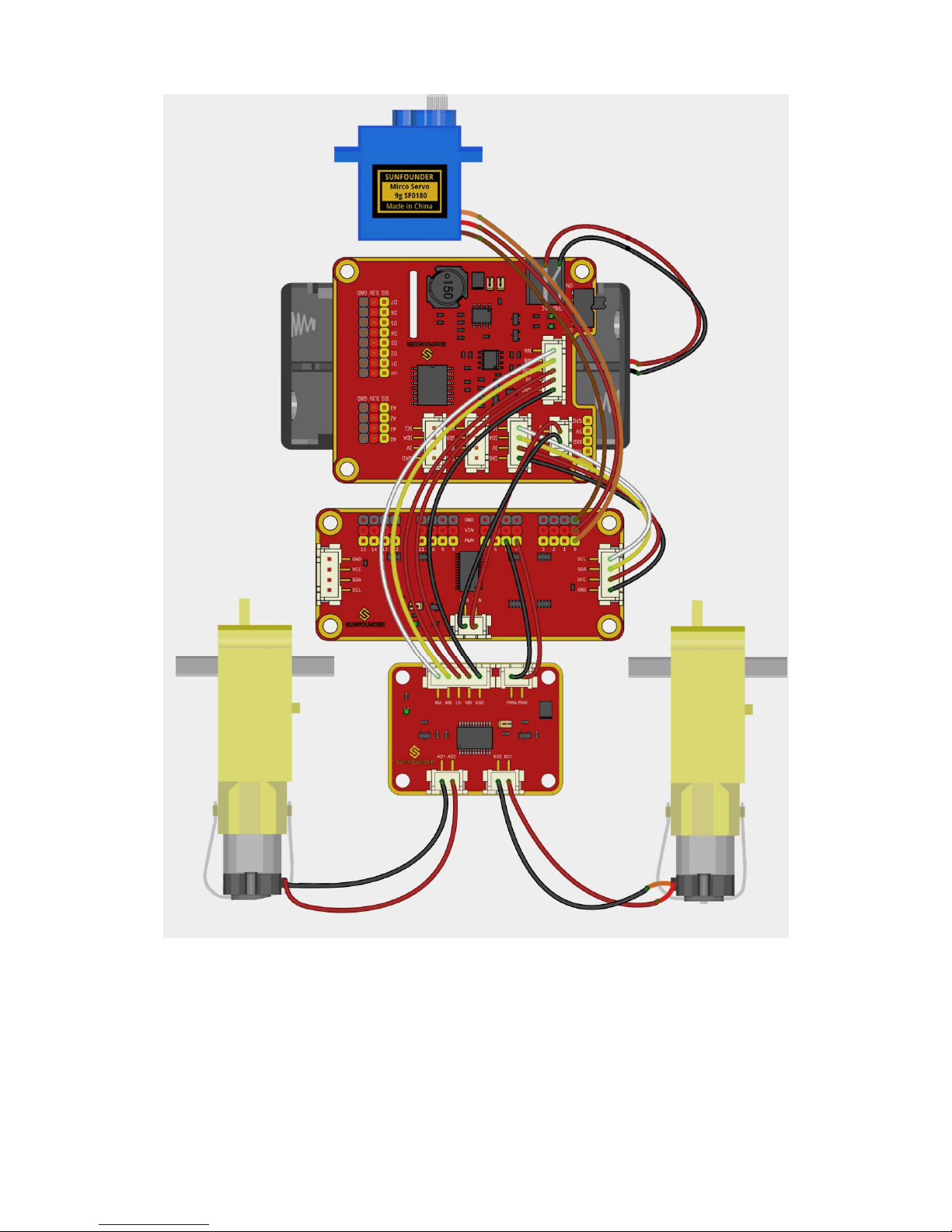

So now the circuit boards are all installed onto the car and the wiring is done. But still you're
not ready to adjust the servo yet. First you need to complete some software installation.
Page 26
23
Software Installation
1. Log into Raspberry Pi
The TF card onto which the Raspbian has been burnt is inserted into the Raspberry Pi before.
Now power the Raspberry Pi.
The installation may take a long time, so you're recommended to so you're recommended to supply the Raspberry Pi
via a USB cable and then power the Robot HAT with batteries in case of power cut-off thus causing a sudden shutdown
and file damage of the Raspberry Pi. You can directly power it via the Micro USB port because the Robot HATS won't
get damaged by it due to the built-pin protective circuit.
Plug in the USB Wi-Fi dongle (skip this if you use a Raspberry Pi 3 with the WiFi) and complete
the setting in the way you're comfortable with.
Log into the Raspberry Pi via ssh or ssh tools like PuTTY.
2. Get Source Code
You can find the source code in our Github repositories. Download the source code by git
clone:
git clone --recursive https://github.com/sunfounder/SunFounder_PiCar-S.git
pi@raspberrypi:~ $ git clone --recursive https://github.com/sunfounder/SunFounder_PiC
ar-S.git
Cloning into 'SunFounder_PiCar-S'...
remote: Counting objects: 162, done.
remote: Total 162 (delta 0), reused 0 (delta 0), pack-reused 162
Receiving objects: 100% (162/162), 61.98 KiB | 36.00 KiB/s, done.
Resolving deltas: 100% (80/80), done.
Checking connectivity... done.
Submodule 'example/SunFounder_Light_Follower' (https://github.com/sunfounder/SunFound
er_Light_Follower.git) registered for path 'example/SunFounder_Light_Follower'
Submodule 'example/SunFounder_Line_Follower' (https://github.com/sunfounder/SunFounde
r_Line_Follower.git) registered for path 'example/SunFounder_Line_Follower'
Submodule 'example/SunFounder_Ultrasonic_Avoidance' (https://github.com/sunfounder/Su
nFounder_Ultrasonic_Avoidance.git) registered for path 'example/SunFounder_Ultrasonic
_Avoidance'
Cloning into 'example/SunFounder_Light_Follower'...
remote: Counting objects: 15, done.
remote: Total 15 (delta 0), reused 0 (delta 0), pack-reused 15
Unpacking objects: 100% (15/15), done.
Checking connectivity... done.
Submodule path 'example/SunFounder_Light_Follower': checked out '10b3ccea709f34221c6d
c137aca6cb00abfca417'
Page 27
24
Cloning into 'example/SunFounder_Line_Follower'...
remote: Counting objects: 8, done.
remote: Total 8 (delta 0), reused 0 (delta 0), pack-reused 8
Unpacking objects: 100% (8/8), done.
Checking connectivity... done.
Submodule path 'example/SunFounder_Line_Follower': checked out '9560e7adbb52a883d438b
78de90d185fc168fed5'
Cloning into 'example/SunFounder_Ultrasonic_Avoidance'...
remote: Counting objects: 24, done.
remote: Total 24 (delta 0), reused 0 (delta 0), pack-reused 24
Unpacking objects: 100% (24/24), done.
Checking connectivity... done.
Submodule path 'example/SunFounder_Ultrasonic_Avoidance': checked out
'9e0349b2155fa7585021bfb979643e5f98aa51c5'
Check by the ls command, then you can see the code directory:
SunFounder_PiCar-S/
pi@raspberrypi:~ $ ls
Desktop Downloads Pictures python_games Templates
Documents Music Public SunFounder_PiCar-S Videos
3. Go to the Code Directory
cd ~/SunFounder_PiCar-S/
Enter the code directory and you can see the installation script:
pi@raspberrypi:~ $ cd SunFounder_PiCar-S/
pi@raspberrypi:~/SunFounder_PiCar-S $ ls
example install_dependencies LICENSE README.md show
4. Install the Environment
Installing Automatically by Script
You can get all the required software and configuration done with the installation script. If you
want to do step by step instead, refer to the operations in Installing Manually below.
sudo ./install_dependencies
Notes:
1. The installation script will install the required components and configure for the running environment. Make
sure your Raspberry Pi is connected to the Internet during the installation, or it would fail.
2. The Raspberry Pi will reboot after the installation, so you need to log in again.
Installing Manually
Page 28
25
1. Update the apt list
sudo apt-get update
2. Install python-smbus
sudo apt-get install python-smbus -y
3. Install the PiCar module
cd ~
git clone --recursive
https://github.com/sunfounder/SunFounder_PiCar.git
cd SunFounder_PiCar
python setup.py install
4. Enable I2C
Edit the file /boot/config.txt
sudo nano /boot/config.txt
The "#" in front of each line is to comment the following contents which does not take effect
in a sketch. The I2C configuration part is commented by default too. Add the following code
at the end of the file, or delete the pound mark "#" at the beginning of related line; either way
will do.
dtparam=i2c_arm=on
5. Reboot
sudo reboot
Adjust
the Servo to 90 Degrees
After reboot, type in the command:
picar
pi@raspberrypi:~ $ picar
Usage: picar [Command] [value]
Commands:
servo-install Set 16 channel servos to 90 degree for installation
front-wheel-test [chn] Test the steering servo connect to chn, chn default 0
rear-wheel-test Test the rear wheel
You can see three commands here.
The first one servo-install is for servo adjustment, which is used after the front wheels are
assembled. The servo will rotate to 90 degrees after this command is run, so we will use this
command here.
pi@raspberrypi:~ $ picar servo-install
pi@raspberrypi:~ $
Now the servo may or may not make noises to rotates to 90 degrees. Script will end almost
Page 29
26
immediately, but all servos will keep at 90 degrees. You can continue the rest assembly.
Warning: After power is on, a short circuit may happen because the exposed contacts of the
PCB may be touched by conductive objects like screw or screwdriver. If it occurs, please
remove the conductor immediately or unplug the power as quickly as you can.
Build the Rest of the Car
Connect the Steering Linkage and the rocker arm. Make sure the rocker arm is in an angle as
shown below. If there is just a littile deviation from the right position of the rocker arm, it can
be fine tuned by software. Try to spin the arm on the shaft. If it's unmovable, it means the servo
is adjusted to 90 degrees. But if it spins, check whether the wiring is correct. Besides, the screw
is quite sharp at the end, so be careful to assemble in case of getting hurt.
If everything is OK, take out the Rocker Arm Fixing Screw to connect them as shown below.
Page 30
27

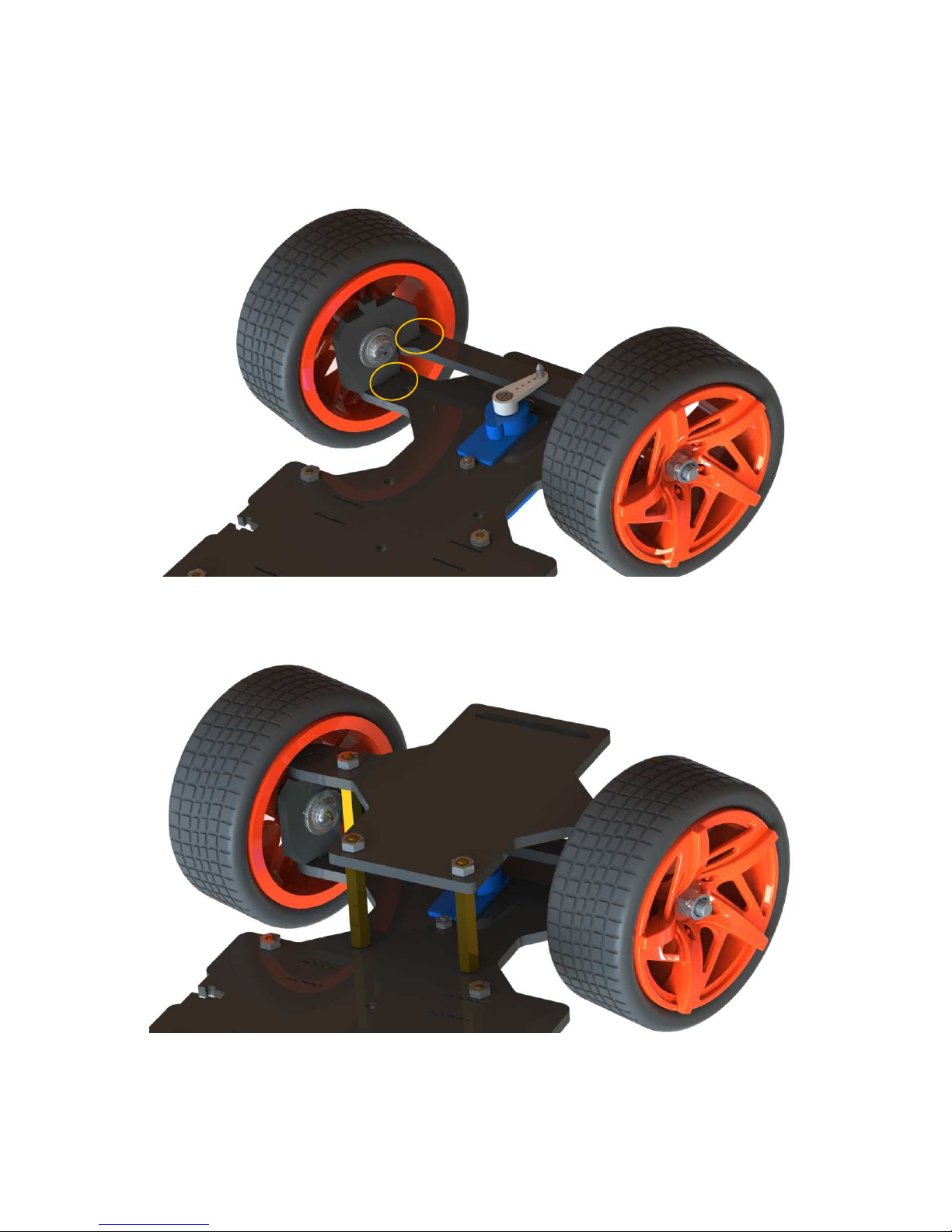

Take out the assembled front wheels and the Upper Plate, and mount the wheels onto the
Upper Plate carefully: insert one bulge of the Steering Connector at either wheel into the hole
on the Steering Linkage plate, and another bulge into the Upper Plate, and similar with the
other wheel.
Then put the assembled Front Half Chassis onto the Upper Plate with standoffs aligned with
the holes.
Hold them carefully, turn upside down, and fasten the standoffs and the Uppe Plate with four
M3x8 screws:
Page 31
28
Now, the whole assembly, the wiring and code are all DONE! Congrats! Enjoy the
satisfaction and thrill.
Configuration
Remember the commands to adjust the servo to 90 degrees previously? Now, let’s talk about
the other two commands.
The second command front-wheel-test is used to test whether the front wheels can turn
flexibly after assembly. When you run this command, it will drive them to turn left and right.
Besides, there is an optional parameter [chn]. It will be used only when you change the PWM
channel of the servo. If you use the default channel 0 according to the wiring diagram, there
is no need to enter [chn].
pi@raspberrypi:~ $ picar front-wheel-test
DEBUG "front_wheels.py": Set debug off
DEBUG "front_wheels.py": Set wheel debug off
DEBUG "Servo.py": Set debug off
turn_left
turn_straight
turn_right
turn_straight
turn_left
turn_straight
turn_right
Page 32
29
^Cturn_straight
You may find the direction of the front wheels is not facing exatly front when they are in the
straight status (they will return to the status anytime the front wheels program stops running). If
there is an obvious deviation from the middle line of the front chassis, remove the servo and
run servo-install again; if it is just a little deviation (like about 0~15 degrees), it can be
adjusted by software.
Get into the folder SunFounder_PiCar/picar:
cd /home/pi/SunFounder_PiCar/picar
ls
pi@raspberrypi:~ $ cd /home/pi/SunFounder_PiCar/picar
pi@raspberrypi:~/SunFounder_PiCar/picar $ ls
back_wheels.py filedb.py __init__.py SunFounder_PCA9685
config front_wheels.py PCF8591.py SunFounder_TB6612
pi@raspberrypi:~/SunFounder_PiCar/picar $
Open the config file under the folder with an editor. You can see a few parameters. Modify
the value of turning_offset (the first parameter) to adjust the front wheels. Its value is 0 by
default, and you can turn the wheels left by decreasing the value, or turn right by increasing
it. For example, if you want to make the front wheels turn right a bit, just modify it to a larger
number; to make it more towards the left, you can set it smaller (it can even be a negative
number).
But DO NOT over-configure the wheels (recommended a value between -30 and 30), or the
servo may be stuck and broken.
pi@raspberrypi:~/SunFounder_PiCar/picar $ nano config
GNU nano 2.2.6 File: config
# File based database
turning_offset = 10
forward_A = 1
forward_B = 1
[ Read 9 lines ]
^G Get Help ^O WriteOut ^R Read File ^Y Prev Page ^K Cut Text ^C Cur Pos
^X Exit ^J Justify ^W Where Is ^V Next Page ^U UnCut Text ^T To Spell
Page 33
30
After changing the value of turning_offset, press Ctrl + O to save the changes, and press Ctrl
+ X to exit. Run the command picar servo-install to check the front wheel’s status.
pi@raspberrypi:~/SunFounder_PiCar/picar $ picar servo-install
pi@raspberrypi:~/SunFounder_PiCar/picar $
If the front wheels is still not facing the exact front, you may need to edit the file config for a
couple of times. The front wheels may need to be adjusted about 3 to 5 times usually. We can
move on to calibration of the rear wheels when the front wheels are done.
Since the wiring of the two DC motors is random, the VCC and GND of a motor may be
connected to the wheel reversely, causing the wheel to spin forward when it should do
backward as configured in the code. Thus we can use the third command which will drive the
rear wheels to simultaneously speed up and slow down alternately.
pi@raspberrypi:~ $ picar rear-wheel-test
DEBUG "back_wheels.py": Set debug off
DEBUG "TB6612.py": Set debug off
DEBUG "TB6612.py": Set debug off
DEBUG "PCA9685.py": Set debug off
Forward, speed = 0
Forward, speed = 1
Forward, speed = 2
Forward, speed = 3
Forward, speed = 4
Forward, speed = 5
Forward, speed = 6
Forward, speed = 7
Forward, speed = 8
Forward, speed = 9
Forward, speed = 10
.
.
.
Backward, speed = 10
Backward, speed = 9
Backward, speed = 8
Backward, speed = 7
Backward, speed = 6
Backward, speed = 5
Backward, speed = 4
Backward, speed = 3
Backward, speed = 2
Backward, speed = 1
Finished, motor stop
Check whether both the two rear wheels rotate direction is the same as the screen promt.
Page 34
31
Note that the two wheels are driven by the two motors separately. It may happen that one
rotates forward, while the other does backwards. If so, we need to adjust one or both two
wheels which rotate reversely under that command.
The two other parameters in the file config are to set the rear wheels: forward_A and
forward_B. They can change the default spinning direction of the two motors. The value can
only be 0 or 1, which represents clockwise and counterclockwise rotation. By default, it's 1 for
both parameters. Thus if a wheel spins reversely, you only need to change the corresponding
parameter for the wheel to 0.
Press Ctrl + O to save the changes, and press Ctrl + X to exit. Run the command picar rear-
wheel-test again to check whether the rear wheels are rotating in accordance with the
command.
Copy config to the directory example under PiCar-S.
pi@raspberrypi:~/SunFounder_PiCar/picar $ cp config ~/SunFounder_PiCar-S/example
Page 35
32
Arming the Car!

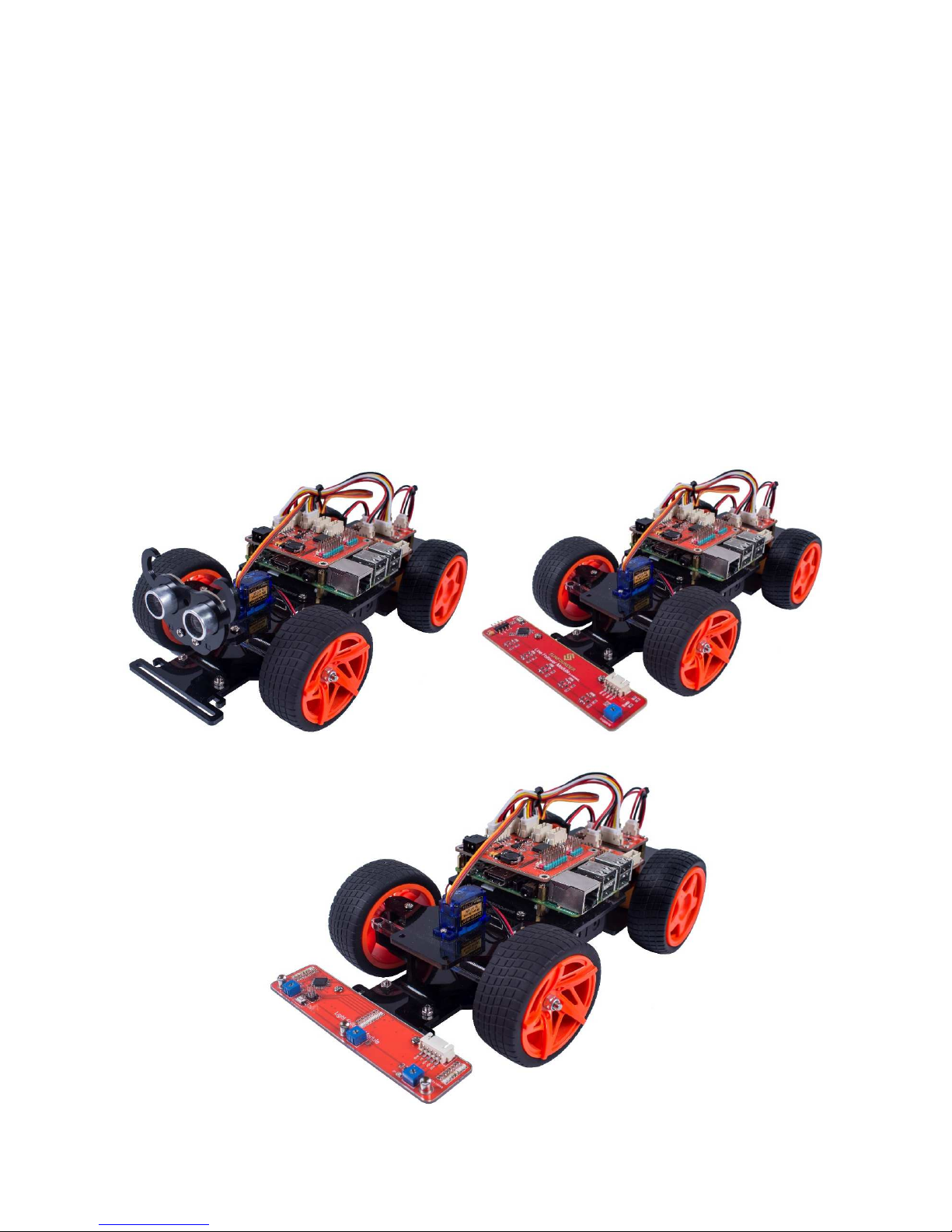

A car without sensor modules is unarmed just like a man without sight and hearing, thus he has
no feeling for the surrounding environment. So what we are going to do is arm the car,
allowing it to detect the surroundings. Now let’s turn the PiCar into the PiCar-S.
What exactly is the PiCar-S? ------- We arm the PiCar with some sensors, which endow the car
with the ability to collect and process the data. The sensor modules to the PiCar is what the
cartridges to the game console; they are added to the basic design of the game and thus
richening the play. It’s also similar to the code. The processor will use SunFounder_PiCar to
drive the car’s movement, and call the corresponding code package for different modules
(SunFounder_Light_Follower, SunFounder_Line_Follower, SunFounder_Ultrasonic_Avoidance).
Assemble the desired sensor module according to the wiring in corresponding module
instructions below. Have fun with The Transformer!
Page 36
33
Ultrasonic Obstacle Avoidance
How the Obstacle Avoidance Works
The ultrasonic obstacle avoidance module detects and transfers the collected data to
Raspberry Pi that can calculate the distance from the obstacle. The Pi will send a command
to adjust the front wheels and rear wheels direction and rotation to control the PiCar-S walk
away from the obstacle if there is one.
Principle

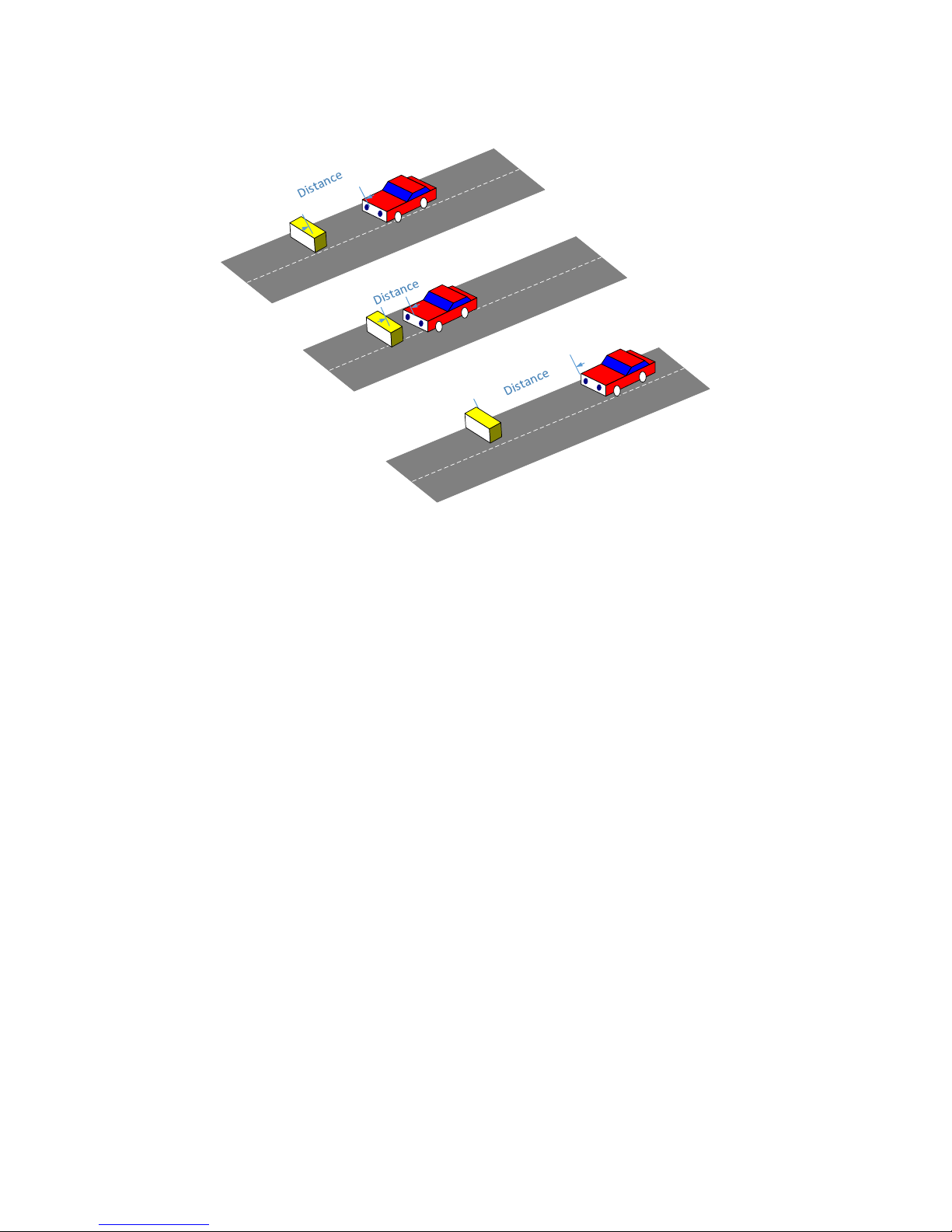

Supply a short 10µS pulse to the SIG to start the ranging, and then the module will send out an
8 cycle burst of ultrasound at 25 kHz and raise its echo back to SIG. The echo is a distance
object that is pulse width and the range in proportion. You can calculate the through
the between sending trigger signal and receiving echo signal.
Formula:
Or:
Or:
! "#$!%&'(
)*+
We suggest to use over 60ms measurement cycle, so as to prevent trigger signal to the echo.
Procedures

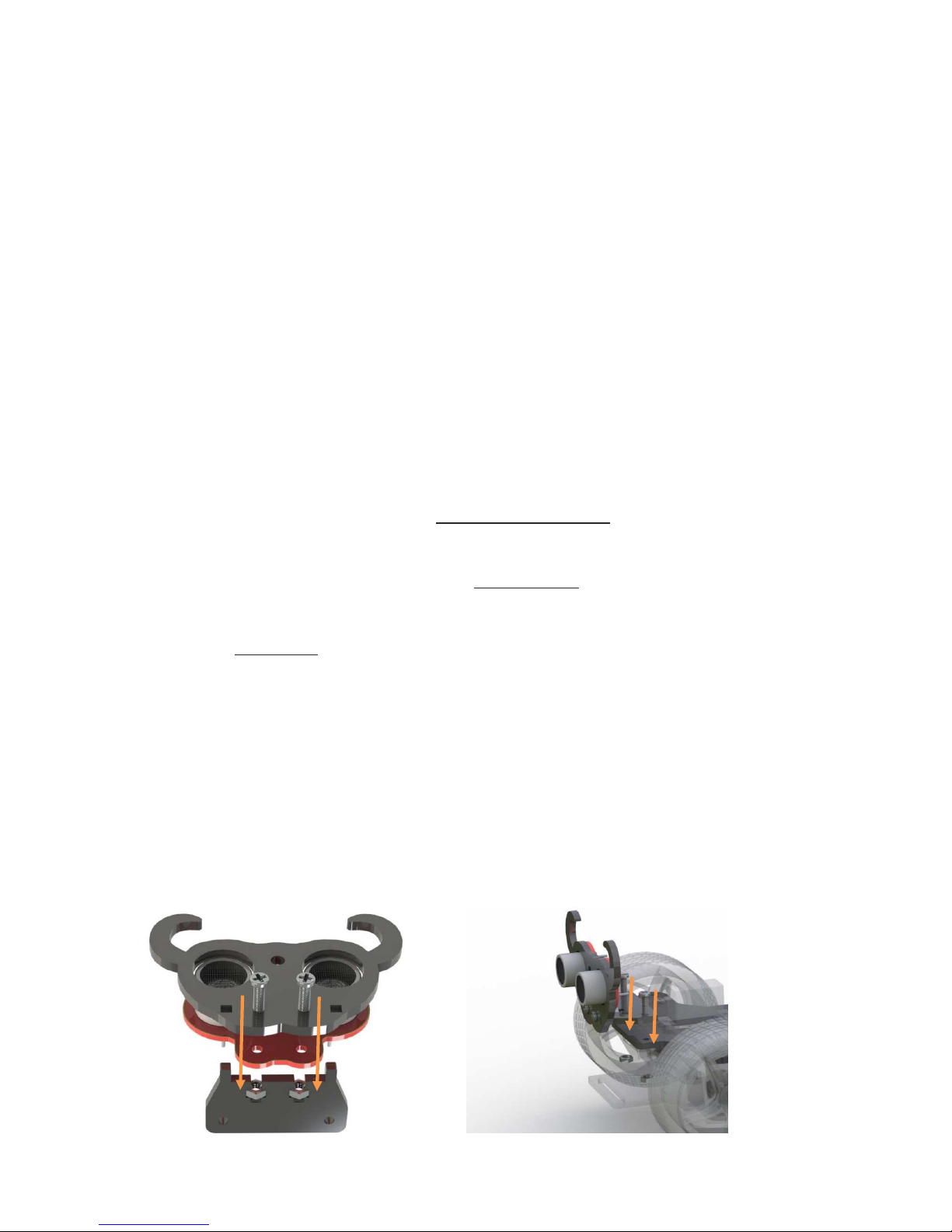

Step 1. Assembly
Connect the ultrasonic module and the ultrasonic module connector to the ultrasonic module
support with M3*10 screws and M3 nuts. Reminder: It would be easier to place the nuts into
the slots with your fingers to hold underneath. Then assemble them to the Upper Plate with
M3*10 screws and M3 nuts.
Page 37
34

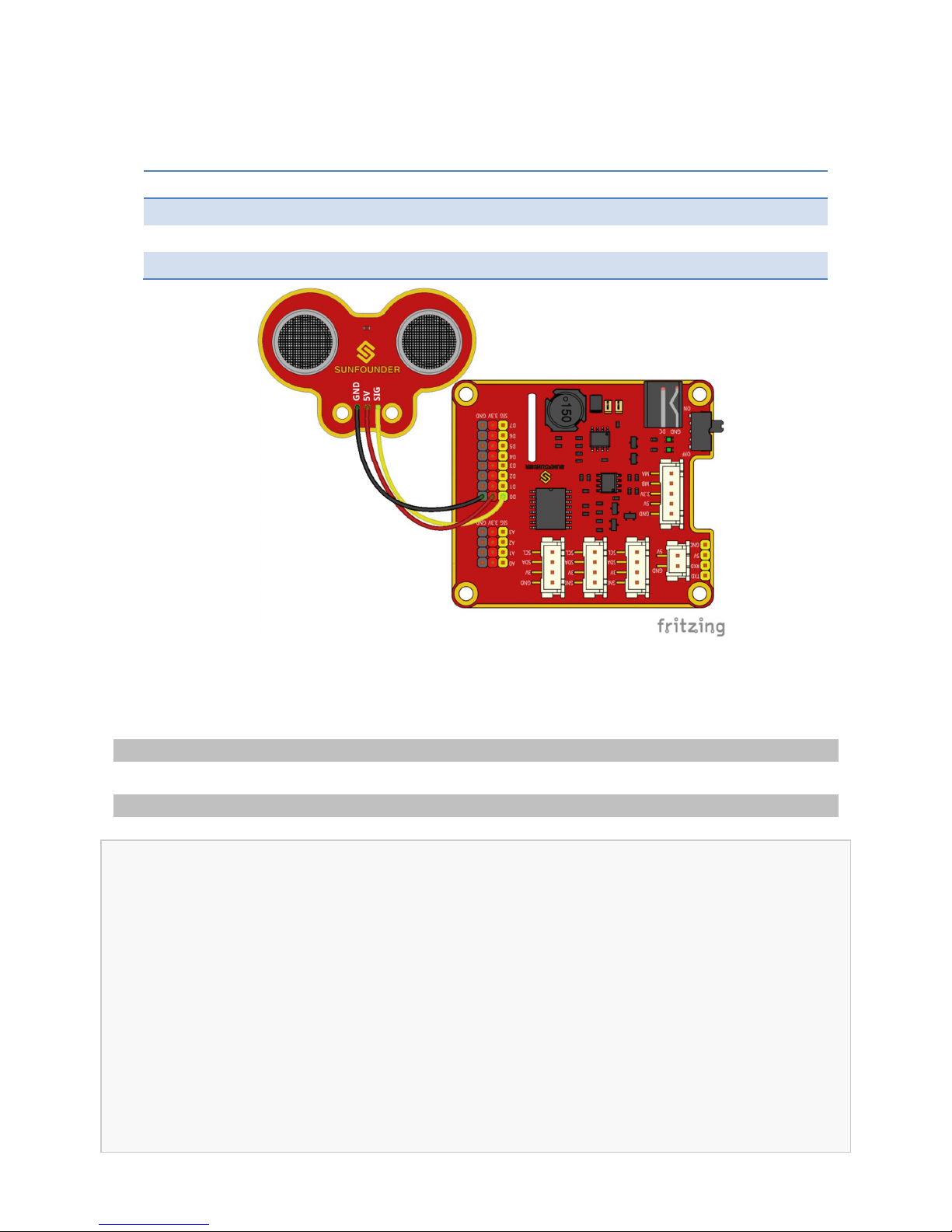

Step 2. Wiring
Connect the ultrasonic obstacle avoidance to Robot HATS with a 3-pin anti-reverse cable as
shown below.
Ultrasonic Obstacle Avoidance Robot HATS
SIG D0
5V 3.3V
GND GND
Test for Ultrasonic Obstacle Avoidance
First, test the ultrasonic obstacle avoidance module before applying.
Get into
the
directory example:
cd ~/SunFounder_PiCar-S/example/
Run the test code:
python test_ultrasonic_module.py
pi@raspberrypi:~ $ cd ~/SunFounder_PiCar-S/example/
pi@raspberrypi:~/SunFounder_PiCar-S/example $ python test_ultrasonic_module.py
distance 32 cm Over 17
distance 32 cm Over 17
distance 29 cm Over 17
distance 29 cm Over 17
Read distance error
distance 21 cm Over 17
distance 21 cm Over 17
distance 18 cm Over 17
distance 18 cm Over 17
distance 16 cm less than 17
distance 15 cm less than 17
Page 38
35
distance 13 cm less than 17
distance 10 cm less than 17
Read distance error
You may find that the distance measurement may be not that accurate. It doesn’t matter.
This 25kHz ultrasonic module is not a commonly used one, but one has a horizontal detecting
range of about 30~40 degrees. Thus the distance measured may be not so accurate, but that
small range provides convenience for obstacle avoidance. Besides, since the Raspberry Pi is
not a real-time operating system, the inaccurate time calculation will affect the accuracy of
distance measurement too. However, this ultrasonic module is precise enough for obstacle
avoidance.
Step 3. Run the Code
Now we have a general idea of the ultrasonic module’s effect after the test above. Let’s run
the code of the ultrasonic obstacle avoidance.
Get into the directory:
cd ~/SunFounder_PiCar-S/example/
Run the code:
python ultra_sonic_avoid.py
Get on the road!
The PiCar-S starts running now. Just place the car on the ground. It will follow the program to
turn when it detects an obstacle; if the obstacle is too close, it will move backwards, and turn
left/right. You can also modify the threshold of obstacle detecting range and that of moving
backwards in the code.

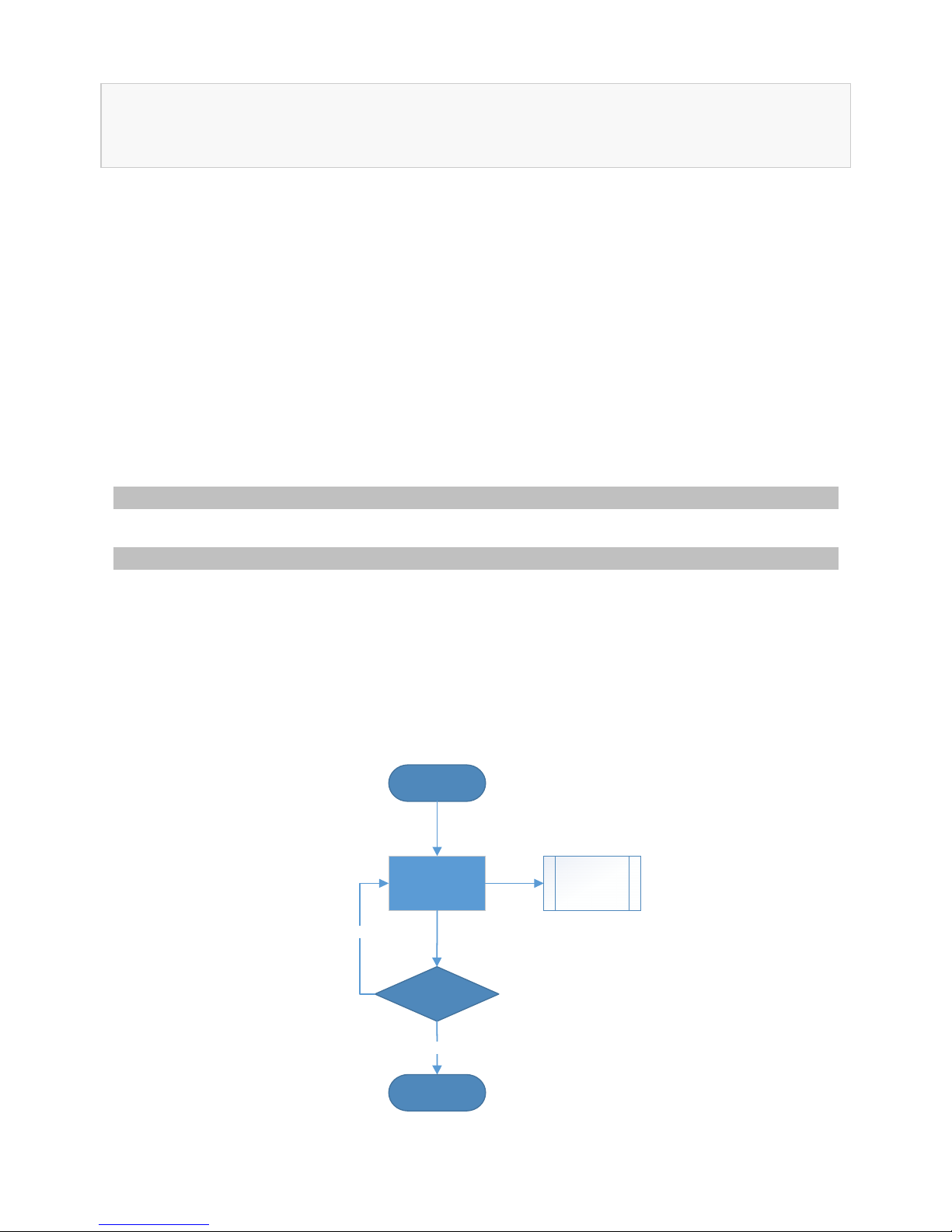

Software Flow
Run obstacle
avoidance
program
Start
Keyboard
Interrup t
Y
End
N
Avoid
obstacle
function
Page 39
36
The ultrasonic module returns a digital value, i.e., High or Low level, and the interval time
between two levels returned can be converted to the distance to the obstacle. Thus, we call
the time module in Python for timing here. The formula to calculate the distance is written in
the ultrasonic module’s driver. The main program just calls the corresponding program to get
the distance value.

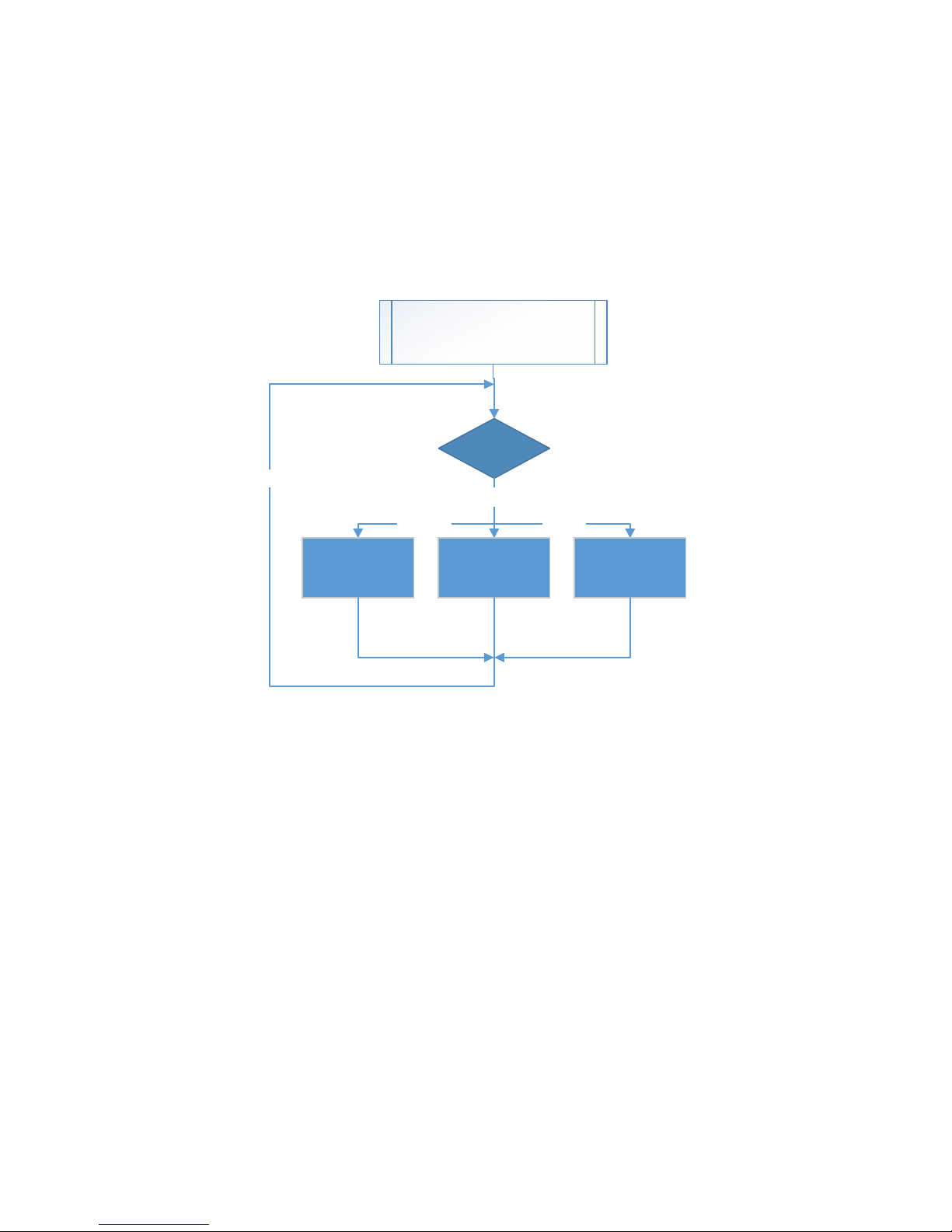

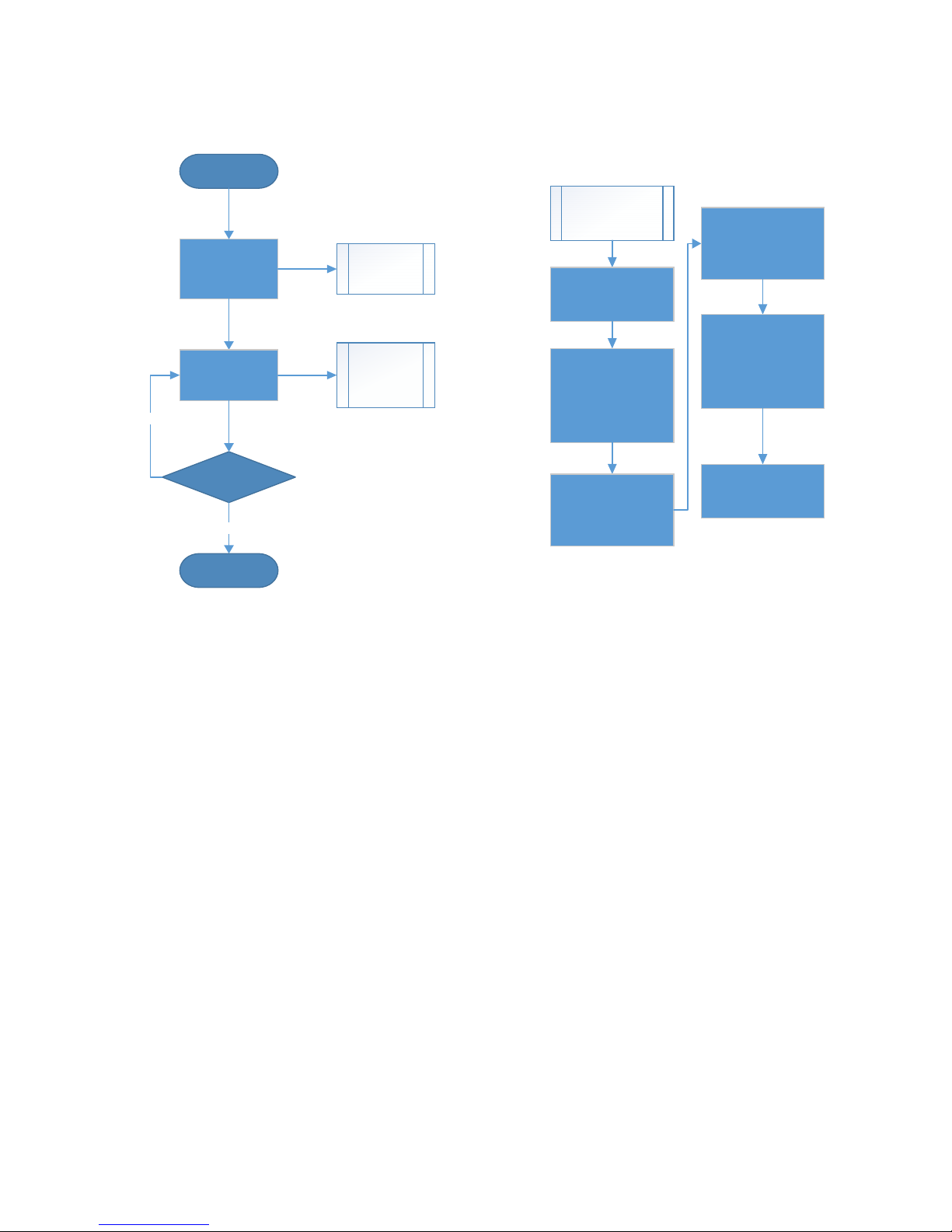

Subflow of the Obstacle Avoidance Function
When the car starts, it will detect obstacles and measure the distance in cycle, make
judgement, and take actions. Here are three cases: when the distance to the obstacle is x
(the ranging distance threshold) away, the car will turn directions; when the distance is less
than x, the car will move backwards before turning direction; when the distance is more than
x, it will keep moving forwards.
Avoid obstacle function
distance
detect
Touch
Backwards
Near by
Turns
More than
Forward
Loop
Page 40
37
Code Explanation
ua = Ultra_Sonic.UltraSonic_Avoidance(17)
Create an object ua of a UltraSonic_Avoidance class in the Ultra_Sonic module. The number
in the round bracket is the initial parameter, which represents the pin number the SIG of the
module is connected to. Since the BCM naming method is applied, the corresponding pin on
the Raspberry Pi is #17.
back_distance and turn_distance, two constants are to set the thresholds of the ranging
distance.
while() loop
When the detected distance is less than the back_distance, the car will move backwards;
when it is between back_distance and turn_distance, the car will turn a direction (you can
set the turning angle in the aforementioned parameter turning_angle and the angle can be
a positive or negative number, for turning left or turning right respectively; NOTE that the
number of the turning angle should be -90 to 90 considering the servo’s max rotation degrees,
or the servo may be burnt.); when the detected distance is greater than the turn_distance,
the car will keep moving forward.
bw.backward(), making the rear wheels rotate backwards; bw.forward(), making the rear
wheels spin forward. These two functions in the rear wheel driving module back_wheels are to
set the wheel’s rotating direction.
bw.set_speed(speed), function in the back_wheels, to set the wheel's rotating speed. The
Turn
Backward
Forward
Page 41
38
larger the number (within the range 0-100) is, the faster the wheel rotates.
fw.turn(angle), function in the back_wheels, to set the turning angle. The angle is 90 when
the car moves straight forwards; reduce the number to turn left, and increase it to turn right.
fw.turn_straight(), making the front wheels return to the angle of moving straight forwards.
More:
back_distance and turn_distance
Try to modify the constants to make the car back off and turn away in a desired distance and
angle as you like during the obstacle avoidance.
Light Following
How It Works
The light follower module detects light sources in the surroundings, and transfers the data to
the processor. The processor analyzes the data and finds the direction of the light resource,
so it will send a command to control the movement of the front and rear wheels to approach
the resource.
Principle
This light follower module applies phototransistors as photosensitive components. Similar to
common transistors, the phototransistor can amplify current, but the current at the collector
terminal is controlled not only by the circuit and current of the base area, but also by light
emission. Usually, the base terminal is not exposed, but some may still do for temperature
compensation and extra control.
Phototransistor, also known as photodiode, is a device that converts light to current. Currents
are generated when photons are absorbed in the P-N junction. When a reverse voltage is
applied, the reverse current in the device will change with the light luminance. The stronger
the light is, the larger the reverse current will be. Most phototransistors work this way.
The ADC chip on the HATS can receive 8-bit analog signals and convert them into integers,
and transfer the signals to the Raspberry Pi. The Raspberry Pi will analyze the data to determine
the direction of the brightest area (the light source), and further control the steering and
movement of the four wheels to approach the light source.
You may need a light focused flashlight in this experiment. At least, the spot size of the torch
should not be too big to reach all the 3 phototransistors on the module at the same time. Well,
you can also shine the flashlight closer to the car to get a small spot size.
Page 42
39
Procedures

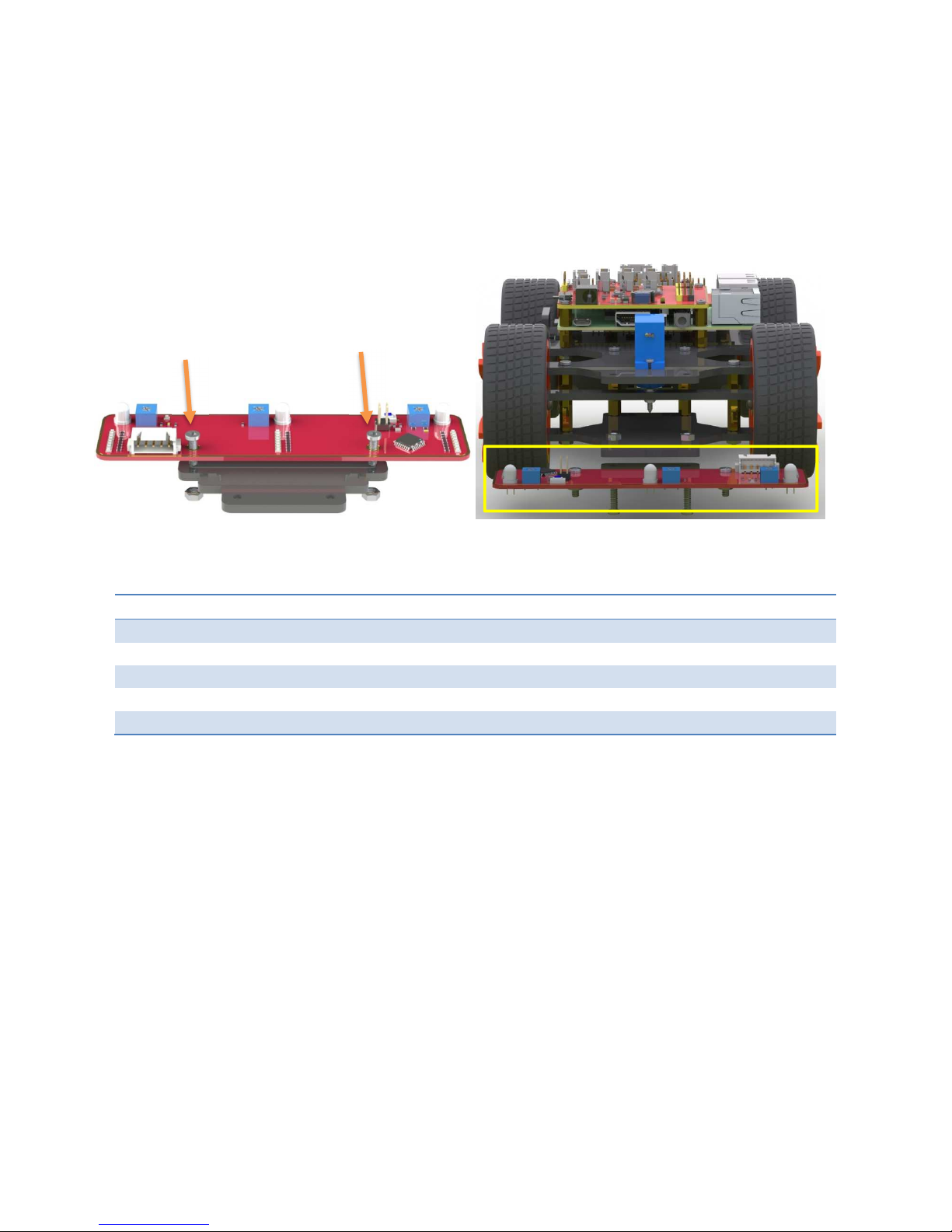

Step 1 Assembly
Connect the light follower to the Sensor Connector with M3*10 screws and M3 nuts, and then
assemble them to the car with two M3*10 screws and two M3 nuts. You're suggested to hold
the nuts underneath with your fingers.
Step 2 Wiring
Connect the light follower to the Robot HATS with a 5-pin anti-reverse cable as shown below.
Light Follower Robot HATS
AD2 A2
AD1 A1
AD0 A0
5V 3.3V
GND GND
Note: You may wonder why we connect 5V to 3.3. Well, since the working voltage of the STM8
chip on the light follower is 2.7-5.5V, we can connect it to 3.3V here. DO NOT connect 5V to 5V! All
the analog ports on the Robot HATS are led from the PCA8591, which is powerd by 3.3V. Therefore,
if the voltage is between 3.3V-5V, the output value will always be 255, thus the PCA8591 may be
damaged if connected to 5V. Remember to connect to 3.3V.

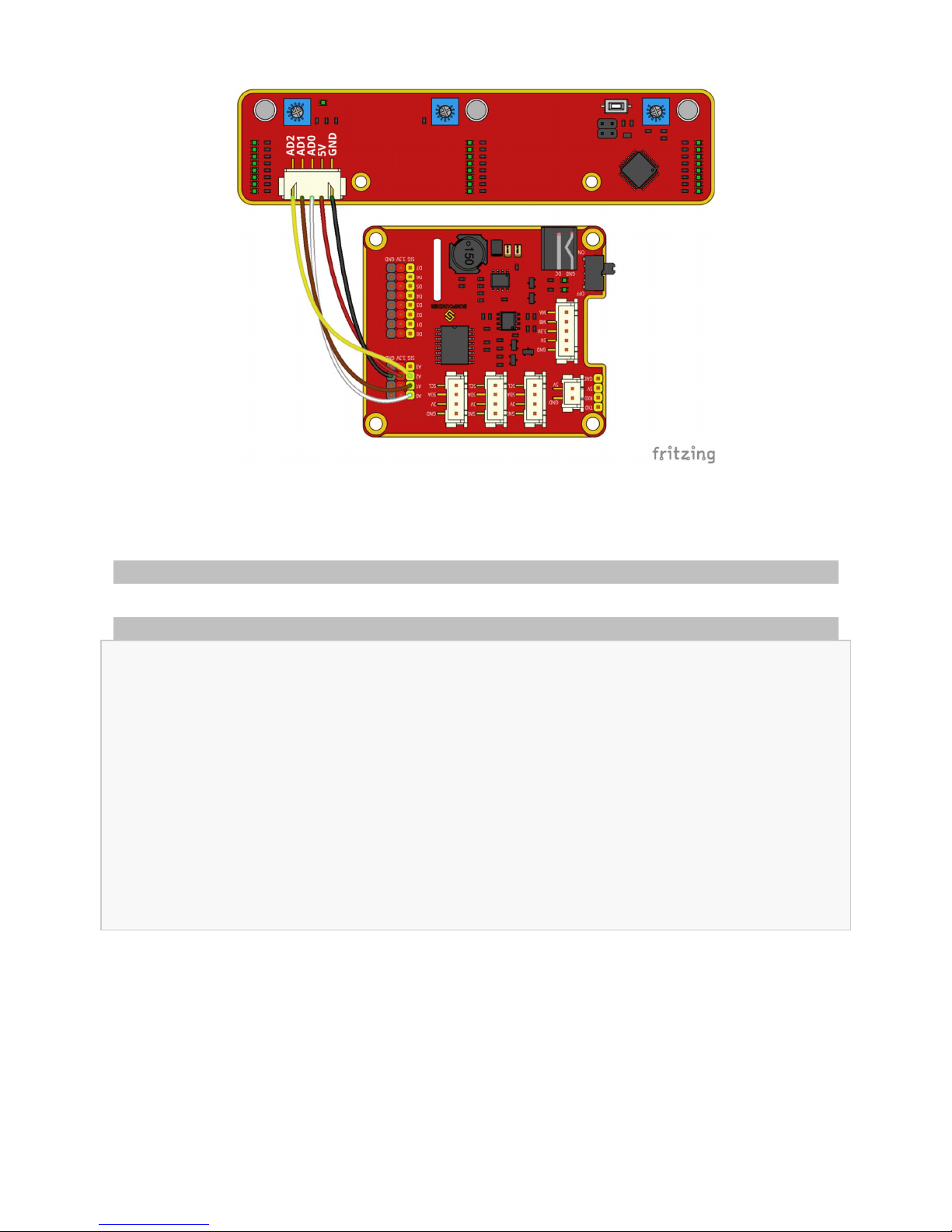

The wiring is shown as below:
Page 43
40
Test for Light Follower
Let’s test the light follower first.
Get into the directory example
cd ~/SunFounder_PiCar-S/example/
Run the test code
python test_light_module.py
pi@raspberrypi:~ $ cd ~/SunFounder_PiCar-S/example/
pi@raspberrypi:~/SunFounder_PiCar-S/example $ python test_light_module.py
[237, 233, 237]
[236, 230, 236]
[232, 238, 246]
[237, 240, 251]
[145, 175, 200]
[228, 234, 74]
[219, 226, 23]
[220, 192, 21]
[233, 238, 23]
[236, 241, 22]
Expose the phototransistors to the light spot of the flashlight. When you increase the light intensity,
more LEDs light up, and the ouput values decrease. Here we can rotate the blue adjustable resistor
to change the values under the same light luminance. If there is no light, only one LED will light up
with the output value as 255; if the light is the brightest, all the LED will light up, and it would be
better to adjust the output value to 10-25 under this circumstance.
Place the module in an open field with even light exposure so the experiment can be free of the
interference of unsteady ambient light thus the sensor is more sensitive. Check this way: expose
Page 44
41
the light follower module under the natural light (or other bright conditions) to get the output value;
then shine the flashlight on the phototransistors to get another output value. A place with a gap
of 20+ between these two values would be a better choice, so that we can get an obvious effect
when the car follows light.
Step 3 Run the Code
Get into the directory
cd ~/SunFounder_PiCar-S/example
Run the code
python light_follower.py
Calibrate the light following
The car will enter the light following configuration mode when we run the code above. It will keep
turning to the right in a circle to gather the information of light condition in different directions. So
just place the car in an open field and wait.
Picar-S follows light
When the calibration is done, the car will stop temporarily. Shine a flashlight on the light follower
module, and the car will just follow the light spot as you moves it.
Software Flow
1. Light-sensitive sensors need to be calibrated before actual use because of complex light
conditions in the environment. It gathers the information of the ambient light luminance. The car
can follow light only when the light source is brighter than the surroundings.
Page 45
42
2. Here write two main functions/modules including light following calibration and light following
in the main program.

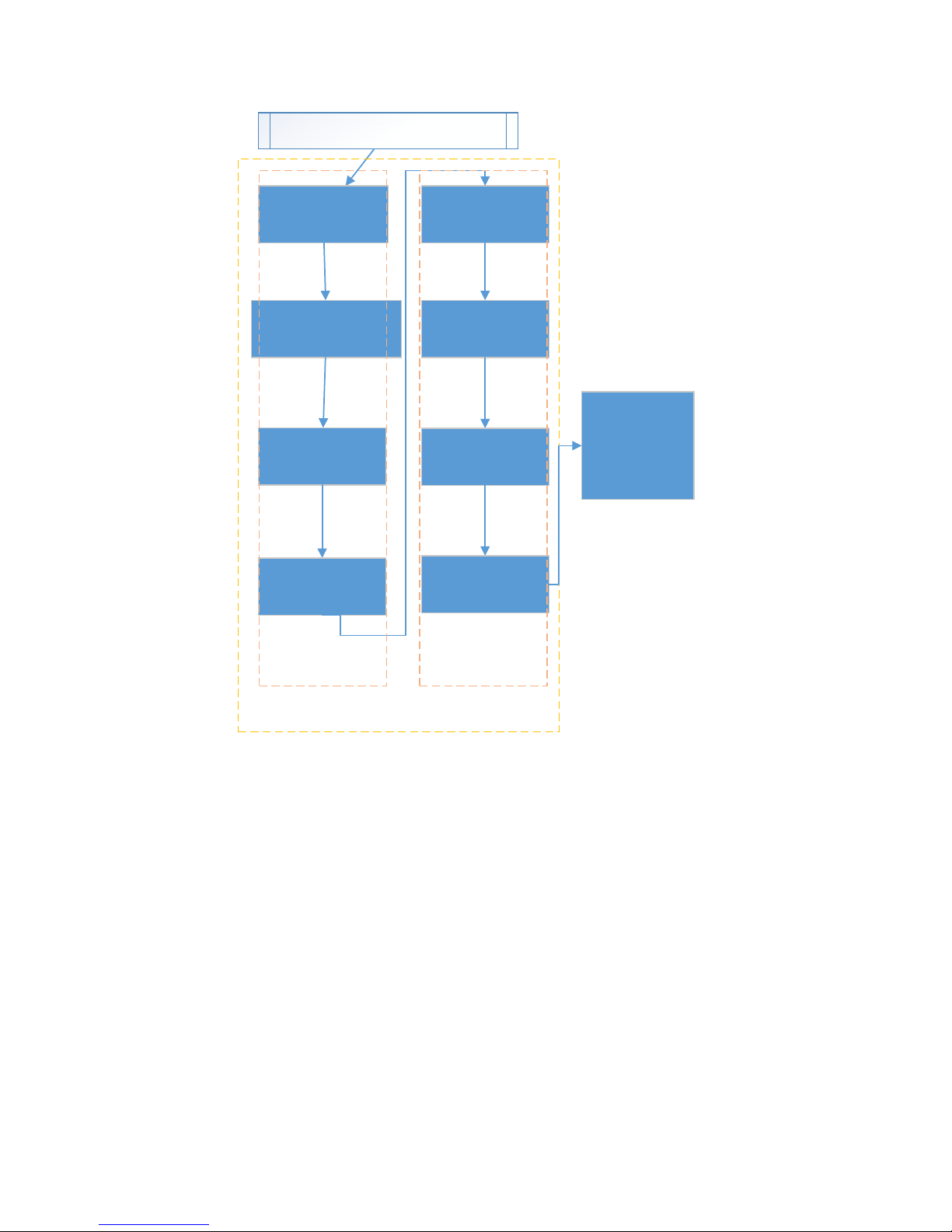

Subflow of Light Follower Calibration Function
We need to configure three light-sensitive components separately, so we set three lists to store
the values in A0, A1, and A2 collected for multiple times. Then pick out the minimum values,
which are the ouput analog values in the brightest conditions.
Since the light source we use is much brighter than the ambient light, we should take the
output values in the brightest conditions as reference.
Besides, we should set a threshold value - when the gap between the collected value of the
light source and that of the environment is beyond the threshold, trigger the value switching
to 0 or 1. Here we use [0,0,0] to represent the three photoresistors’ status when they are not
triggered. "0" will become "1" when the value detected of the corresponding photoresistor is
higher than the threshold. Thus we can set the related action of the car according to the
three-element list.
If there is light detected, the car will move and follow it; if there is no light detected, the car
will stop temporarily and keep turning to detect in a circle.
Subflow of Light Following Function
Calibra te
Check light
following
function
Start
Keyboard
Interrup t
Y
End
N
Calibra tio
n function
Light
following
subfuncti
on
Calibra tion
function
Create lists for
collected values
Car runs in a circle
to collect light
values in different
directions
Store groups of
collected value in
the lists
Take the min
values of each
sensor as
reference
Upload trigger
threshold values to
parameters of
class library
Four wheels back
to standby
Page 46
43

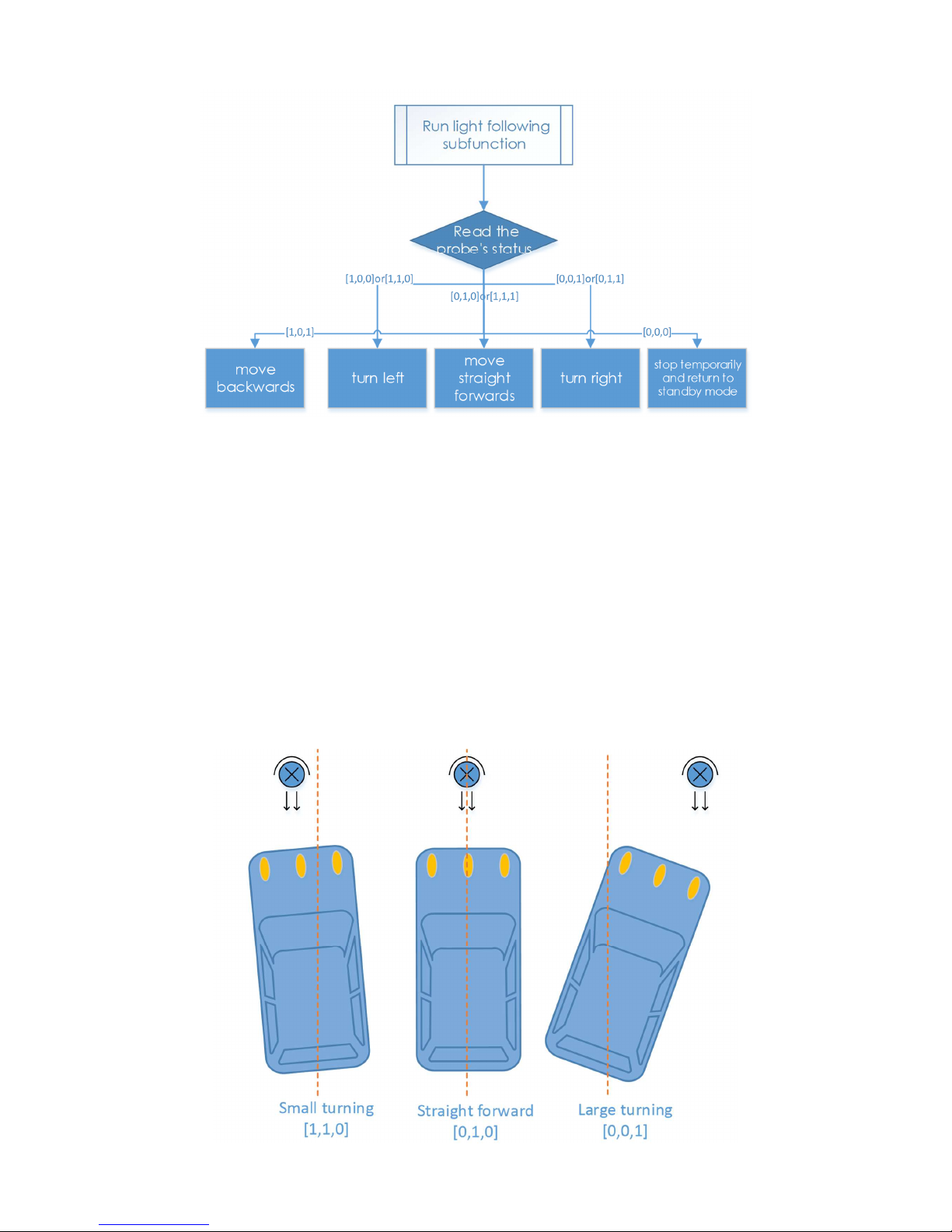

The light follower includes three phototransistors, thus its status list is composed of three
elements which represent 8 statuses (based on permutation and combination). And here we
need to set related responses to these statuses.
The three elements show the status of the three probes: 1 represents light detected, and 0, for
none. For example, [1,0,0] shows that light is detected only by the left probe, meaning th
light source is at the left of the car, thus setting the car’s response action as turning left; [1,1,0]
means that light is detected on the left and central probes, thus its response action should be
set turning left too; and set it as turning right the same way according to the corresponding
status. When there is no light detected, the status is [0,0,0], so we set the response action to
stop and return to the standby mode.
Here, we need to set another variable – the steering angle – to distinguish between the large-
Page 47
44
angle and small-angle turning. If the light is at the central left side (status [1,1,0]), we should apply
a small-angle turning; if the light is at the edge of the left side (status [1,0,0]), we should apply a
large-angle turning.
Code Explanation
To understand the code, take the software subflows above for reference.
Three Python modules are used in the code including the imported light_follower_module,
front_wheels, and back_wheel previously. They are drivers for this kit, respectively for light
following, front wheels and rear wheels.
The related classes have been defined here. When the modules are applied to use, objects
will be created for related classes, and different parts of hardware will be driven by calling a
function by the class object.
For example, for the light following module, we create an object named lf:
lf = Light_Follower.Light_Follower()
Then we can call the function by a class object.
A0 = lf.read_analog()[0]
This function read_analog() will return a list with three elements, which stores the detected
analog values of three probes. Here we use A0 = lf.read_analog()[0], A1 =
lf.read_analog()[1], and A2 = lf.read_analog()[2] to store three elements of returned
value separately into the variables A0-A2.
A for() loop is used here cycling 10 times, that is the car will acquire the analog values ten
times when the car drives in a circle under the calibration mode. The minimum values will be
taken as reference here. If you need more samples, just increase the times of the loop.
Store the detected values to a list in each loop by the env0_list.append(A0) function. When
the loop ends, the built-in list function reference[0] = min(env0_list) in Python will pick out
the minimum in the list.
lt_status_now = lf.read_flashlight()
This is to read the status of the module, which will return a 3-element list. This function is used
to solve the possible problem caused by brightness-adjustable flashlights. They blink
repeatedly due to brightness change by PWM method, so we add this function to the driver
library to prevent the car from moving and stopping repeatedly when the light source lights
up and goes out quickly or changes luminance by ON/OFF ratio.
fw.turn(turning_angle)
Function for front wheels steering. The main program will call this function if the front wheels
are applied for steering. The parameter is the turning angle.
bw.forward()
Page 48
45
bw.set_speed(forward_speed)
Here we need two functions for rear wheels. The first function is to control the rotating direction
as forward (the function for backwards is bw.backward()). The second one is to set the rotating
speed of the wheels; the parameter is the speed value (range: 0-100). The bigger the
parameter is, the faster the wheel rotates.
Line Following
How to Follow Lines
The line follower detects lines in the surrounding environment, and transfers the data to the
processor. The processor analyzes the data, and sends a command to control the movement of
front wheels and rear wheels.
Principle
The TCRT5000 IR sensor on the line follower has a TX and RX inside. If a bright color surface is
detected in front of the sensor, such as a white paper (about 1cm away), most of the IR rays will
be reflected; if a dark color like black surface is detected, most of the rays will be absorbed, while
only a small amount will be reflected. The RX will output different analog signals according to the
intensity of the reflected IR light.
The ADC chip on the HATS can receive analog signal and convert it into digital signal, and transfer
to the Raspberry Pi.
Procedures
Step 1 Assembly

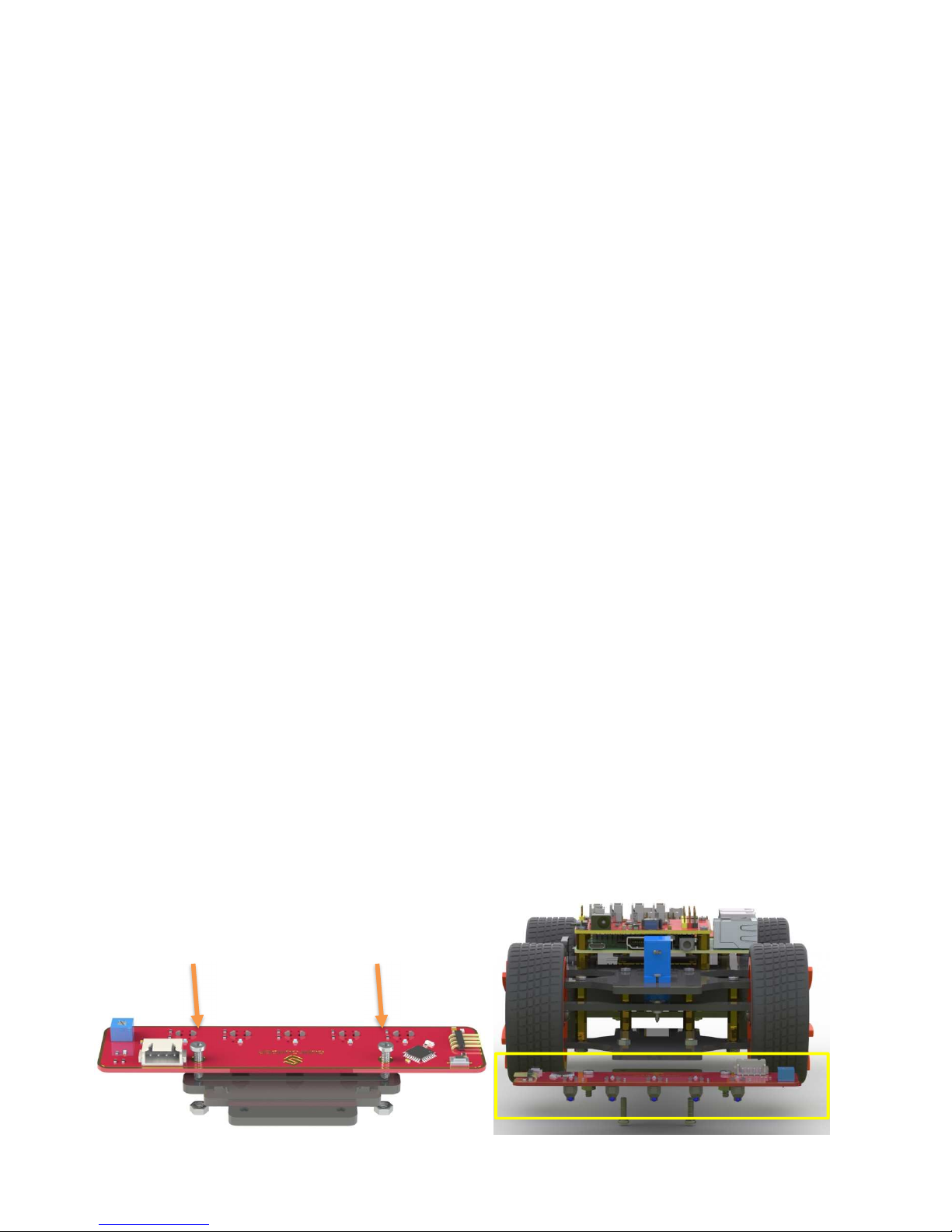

Connect the light follower to the Sensor Connector with M3*10 screws and M3 nuts, and then
assemble them to the car with two M3*10 screws and two M3 nuts. You're suggested to hold
the nuts underneath with your fingers.
Page 49
46
Step 2 Wiring

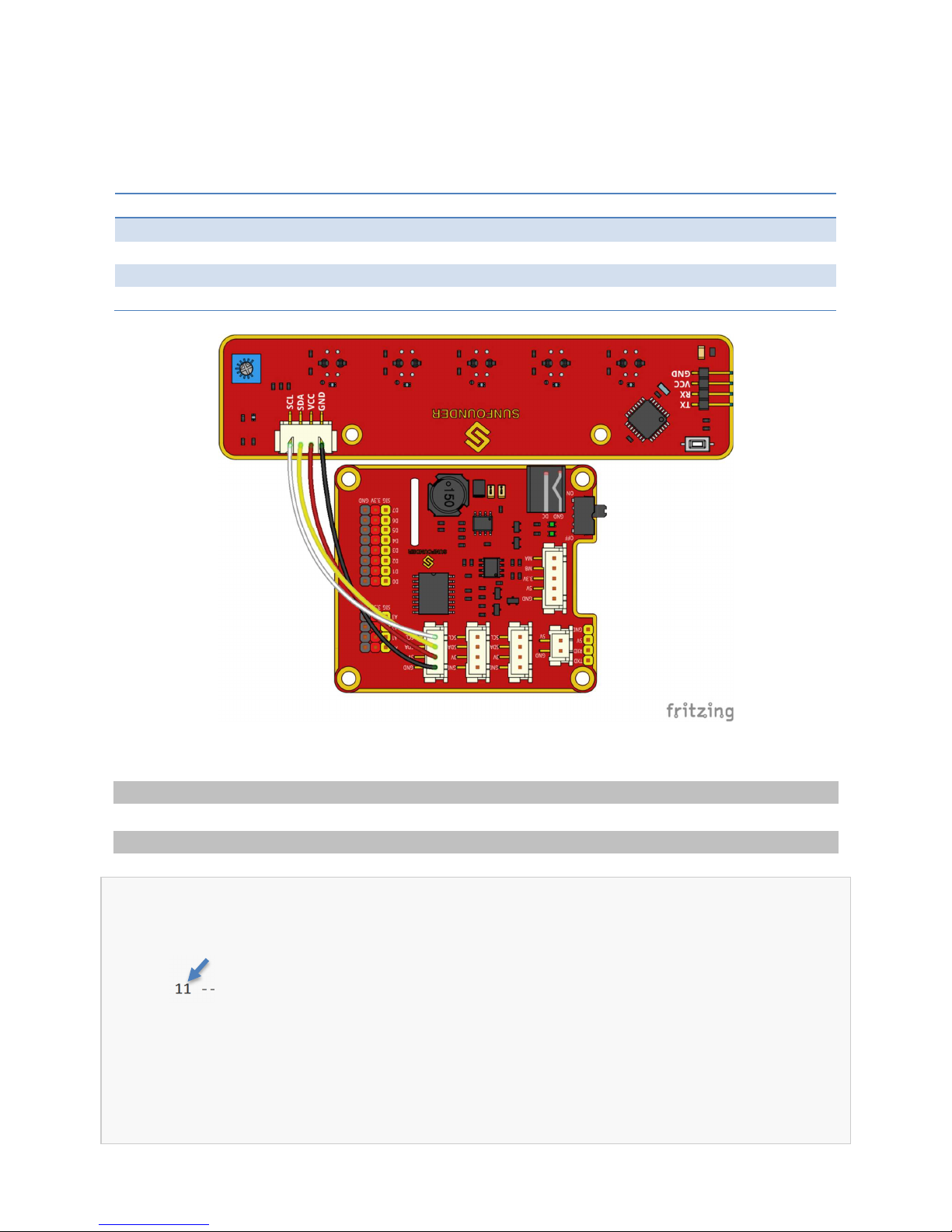

Connect the line follower module to the Robot HATS with a 4-pin anti-reverse cable as shown
below.
Line Follower Robot HATS
SCL SCL
SDA SDA
VCC 3.3V
GND GND
Test for Line Follower
Get into the directory example:
cd ~/SunFounder_PiCar-S/example
Check whether any i2c device is recognized or not via i2c-tools
sudo i2cdetect –y 1
pi@raspberrypi:~ $ cd ~/SunFounder_PiCar-S/example/
pi@raspberrypi:~/SunFounder_PiCar-S/example $ sudo i2cdetect -y 1
0 1 2 3 4 5 6 7 8 9 a b c d e f
00: -- -- -- -- -- -- -- -- -- -- -- -- -10: -- 11 -- -- -- -- -- -- -- -- -- -- -- -- -- -20: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -30: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -40: 40 -- -- -- -- -- -- -- 48 -- -- -- -- -- -- -50: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -60: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -70: 70 -- -- -- -- -- -- --
Page 50
47
We can see 11 is the line follower’s i2c address. If it is not shown, it proves your wiring is not
correct and the i2c communication with Raspberry Pi fails too. You need to check the wiring
before the next step.
Run the test code
python test_line_module.py
pi@raspberrypi:~/SunFounder_PiCar-S/example/ $ python test_line_module.py
[58, 38, 84, 121, 112]
[58, 38, 84, 121, 112]
[58, 38, 84, 121, 112]
[58, 38, 84, 121, 112]
[59, 38, 84, 121, 112]
[58, 38, 84, 121, 112]
[58, 38, 84, 121, 112]
[58, 38, 84, 121, 112]
[58, 38, 84, 121, 112]
[58, 38, 84, 121, 112]
Calibrate the line follower
The IR sensor on the line follower should be calibrated before application. Run the line
following code python Line_Follower.py. The main program will print the data of 5 channels.
Place each of the five probes above the black line, and then above a white surface, so we
can get the gap between the two values. Adjust the potentiometer, and repeat the previous
operations to get the gap again. Thus we can get the optimal resistance of the pot when the
gap is the max value.
Step 3 Run the Code
Log into the Raspberry Pi via ssh on the computer, and get into the code directory
cd ~/SunFounder_PiCar-S/example
Run the line follower code
python line_follower.py
Calibrate the line follower on the car
A prompt of calibration will be printed on the screen when the program starts to run. We will
calibrate the module on a white surface first: place all the five probes of the line follower
above a white board. The prompt of completed calibration will be printed on the screen a
few seconds later. Then let’s move on to calibration on black line. Also the prompt of starting
is printed on the screen, and then place all the probes above the black lines. And the prompt
of calibration completed will be printed on the screen a few seconds later.
Starts Running!
When the module calibration is all completed, we can run the car then. Place the PiCar-S with
probes above the black line on the white board, and then it will go forward following the line
Page 51
48
itself.
How to make a track for line following
To make a track for the car to follow a black line, you need to prepare the following materials:
A large sheet of paper, a roll of black tape (as black lines), a hard card board (the size
depending on the size of the track) or a flat surface like the floor or desk.
1. Spread the paper out smoothly on the hard board, and paste on the board or flat surface.
2. Paste the tape on the paper.
Rules for making:
1. Width of the black line: about 18-30mm, nearly the distance between two probes, no
more than the minimum distance of two nonadjacent probes
2. The gap between two lines: more than 125mm, which is the width of the whole module,
to prevent the car from getting confused when detecting two lines at the same time.
3. The semidiameter of curves: more than 138mm. When the front wheels turn left or right 45
degrees, the semidiameter of the path by which the car turns is equal to the wheelbase
(the distance between the center of the front wheels and rear wheels). The car won't be
able to turn and pass the curve smoothly if the semidiameter of the curve is too small.

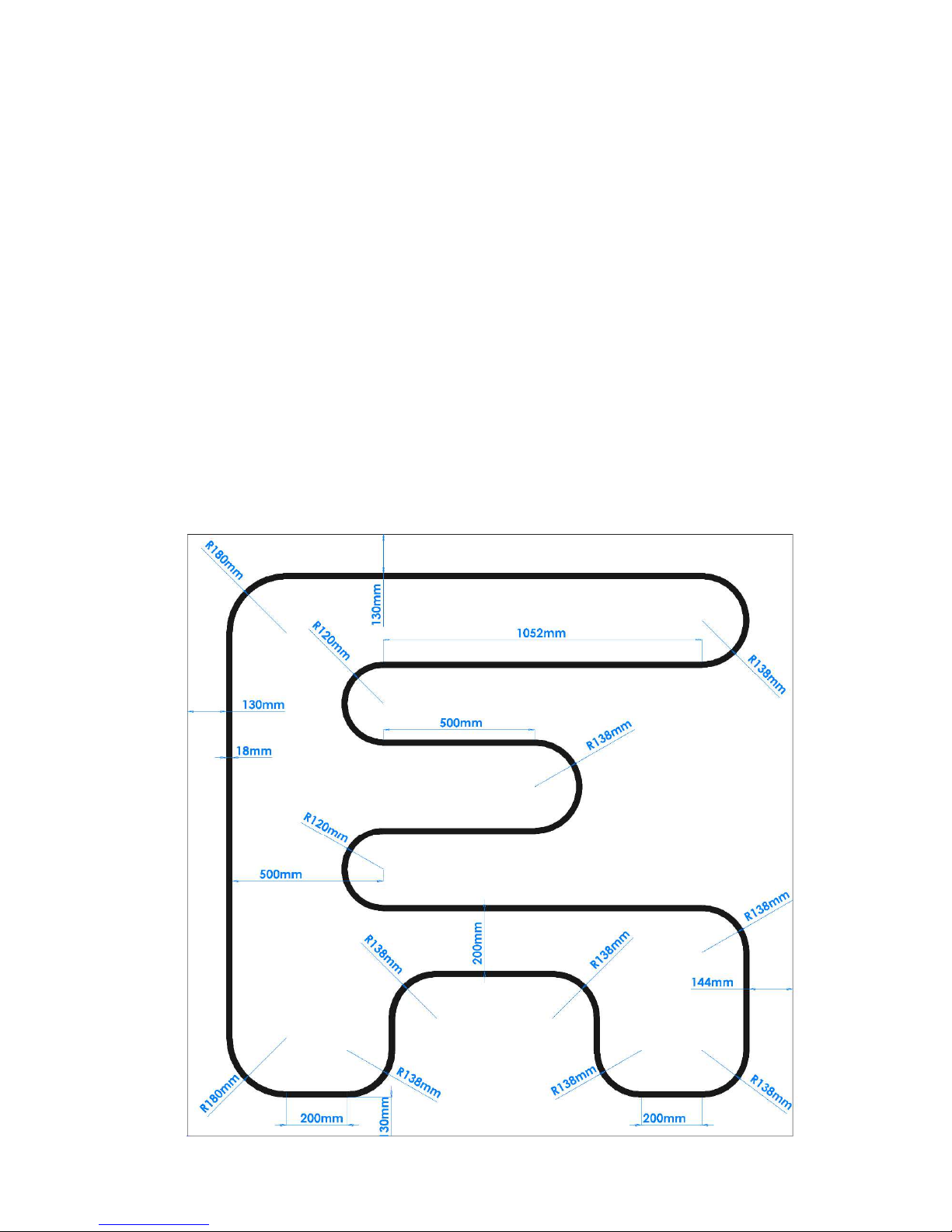

A track sample is shown as below (the original map file can be found under folder map in
github):
Page 52
49
Software Flow
Considering the interference of negative environment factors, we need to calibrate the line
follower sensor before actual use.

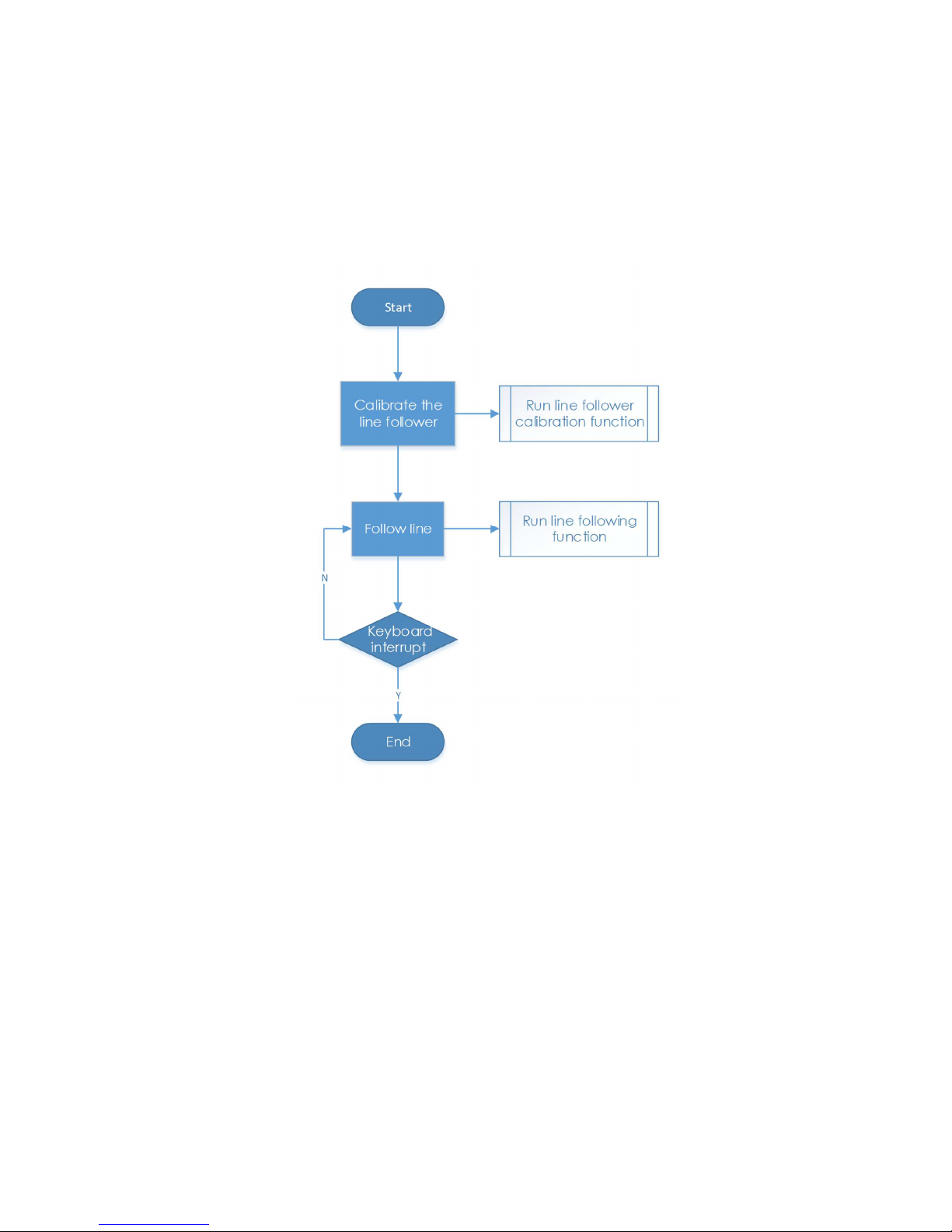

Here two main functions including the line follower calibration and line following are included in
the main program.
Subflow of Line Follower Calibration Function
When we run the line follower configuration, we will start from white color, then black color, which
is more like the upper limit and lower limit of the sensor. Then we take the average value of black
and white as reference value: if the detected value is higher than the reference, it should be white;
if the detected is lower than the reference, it should be black. We will show the five detectors’
status by 5 elements [0,0,0,0,0].
Page 53
50
Line follower calibration function
Prompt user to
calibrate for
white color
Delay for user to
place the sensor
above white surface
Sensor reads the
average value
Prompt user:
white color
calibration done
Prompt user to
calibrate for
black color
Delay for user to
place the sensor
above black line
Sensor reads the
average value
Prompt user that
black color
calibration done
White color
calibration
Black color
calibration
Take the
average value
for each sensor
for white and
black as
reference
Subflow of Line Following Function
Page 54
51
In the line following function, we set the turning angle of the servo in different levels according
Page 55
52

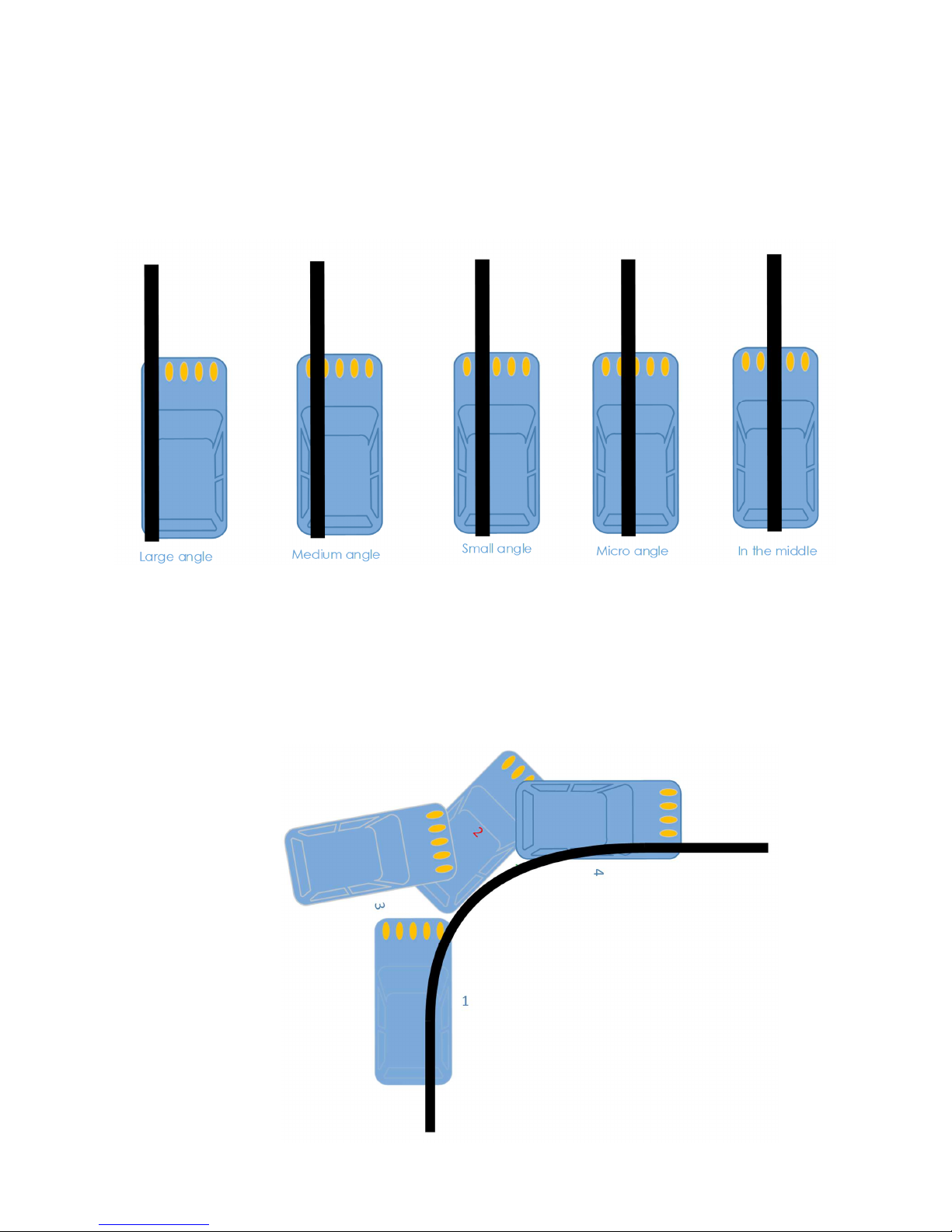

to the detection results of the probes. If the line in front of the car is detected as a small curve,
then the car will turn a small angle; if it is a big one, the car will turn a large angle. Thus, here
we set four angle-turning constants: a_step, b_step, c_step, and d_step.
When the car moves forward originally, the servo is in 90 degrees. To drive the car to turn left, the
servo should be in 90+step degrees; to turn right, the servo should be in 90-step degrees.
There is a special case: if the car runs off the track, and all the probes cannot detect the black
lines any more, then it will continue the program below.
In some case, especially when the car turns in a direction when the semidiameter of the curve is
very small (1), the car may run out of the track and cannot detect any black line (2). If there is no
response program in such case, the car will be unable to follow the line again. Thus we set the
Page 56
53
response program to let the car move backwards in the opposite direction (3), and then turn back
to the original direction until a black line is detected again and move forward (4).
Code Explanation
The logic of the code is just as shown in the flow chart above.
Three Python modules are used in the code, including the imported
SunFounder_Line_Follower, front_wheels, and back_wheels. They are the drivers for this kit,
respectively for line following , front wheels, and rear wheels
The related classes have been defined here. When the modules are applied to use, objects
will be created for related classes, and different parts of hardware will be driven by calling a
function by the class object.
Similar to the line following module, we create an object named lf:
lf = Line_Follower_module.Line_Follower(references=REFERENCES)
The parameter is initial, and then we can apply the function by calling a class object.
lf.read_digital()
This function is used to read the analog signal of all probes, and convert it into digital signal. If
the signal is larger than the reference, the corresponding parameter will be 0; if it is lower than
the reference, the parameter will be 1. There are five probes, thus we will get a 5-parameter
list.
fw.turn(turning_angle)
The function for front wheels' turning. The main program will call this function if applying the
front wheels for turning. The parameter is the turning angle.
bw.forward()
bw.set_speed(forward_speed)
Here we need two functions for rear wheels. One is to control the rotating direction as forward
(for rotating backwards, bw.backward()). The second one is to set the rotating speed; the
parameter is the speed value (range 0~100). The bigger the parameter is, the faster the wheel
rotates.
Page 57
54
Combination
So, this smart car now is smart in three separate features. But, you think only one sensor module
is not enough? Try to combine those sensor modules in one! Here we can show you an
experiment - light following with obstacle avoidance for referece.
When the car runs with the light follower, sometimes it may crash into obstacles when following
the light, and it’s not quite convenient to let the car move back (though we've set the car to
move backward if the array is [1,0,1], it’s hard to acquire these values since the the car is
moving and the light cannot be exactly as required sometimes). So we consider Also, you can
let the car move backwards by a paper board or your foot, which is quite easy.
Check below the program of this example.
Assemble the light follower module and ultrasonic obstacle avoidance module on the car first.
Log into the Raspberry Pi on your computer via ssh, and get into the directory
cd ~/SunFounder_PiCar-S/example
Run the code
python light_with_obsavoidance.py
How it works:
Set the obstacle avoidance as a superior priority than light following: if there is an obstacle in front
of the car, it walk away from the obstacle and back to the track; if not, then the car will keep
follow light.
Page 58
55
Calibration
Run light
following
program
Start
Interrupt
Y
End
Run light follower
calibration function
Light following
subfunction
Detect obstacles
avoid_flag == 2
If an obstacle
detected, move
backwards
Else
If no obstacle found,
keep following light
avoid_flag == 1
If close to an
obstacle, turn away
N
Since the light following and obstacle avoidance of the car depend on the sensor modules,
we set two functions to read the status of two sensors separately, and assign values to flags to
be returned from the functions: state_light(), and state_sonic().
In the function state_sonic(), the return value is avoid_flag.
If the car is
close to
an obstacle, it will return avoid_flag = 2;
if it is
too close to
the obstacle, it will return avoid_flag = 1;
if ahead
no obstacle
is detected near, it will return avoid_flag = 0.
In the function state_light(), the return value is light_flag.
If the light spot is
in front of
the car, it will return light_flag = 0;
if the spot is
at the right side
, it will return light_flag = 1;
Page 59
56
if the spot is
at the left side
, it will return light_flag = 2;
if the spot is
at the back
, it will return light_flag = 3;
if
no light spot
is detected, it will return light_flag = 4.
The main program main() will run the corresponding program according to avoid_flag and
light_flag, and the avoid_flag is superior in priority.
Page 60
57
Appendix
Appendix 1: Modules

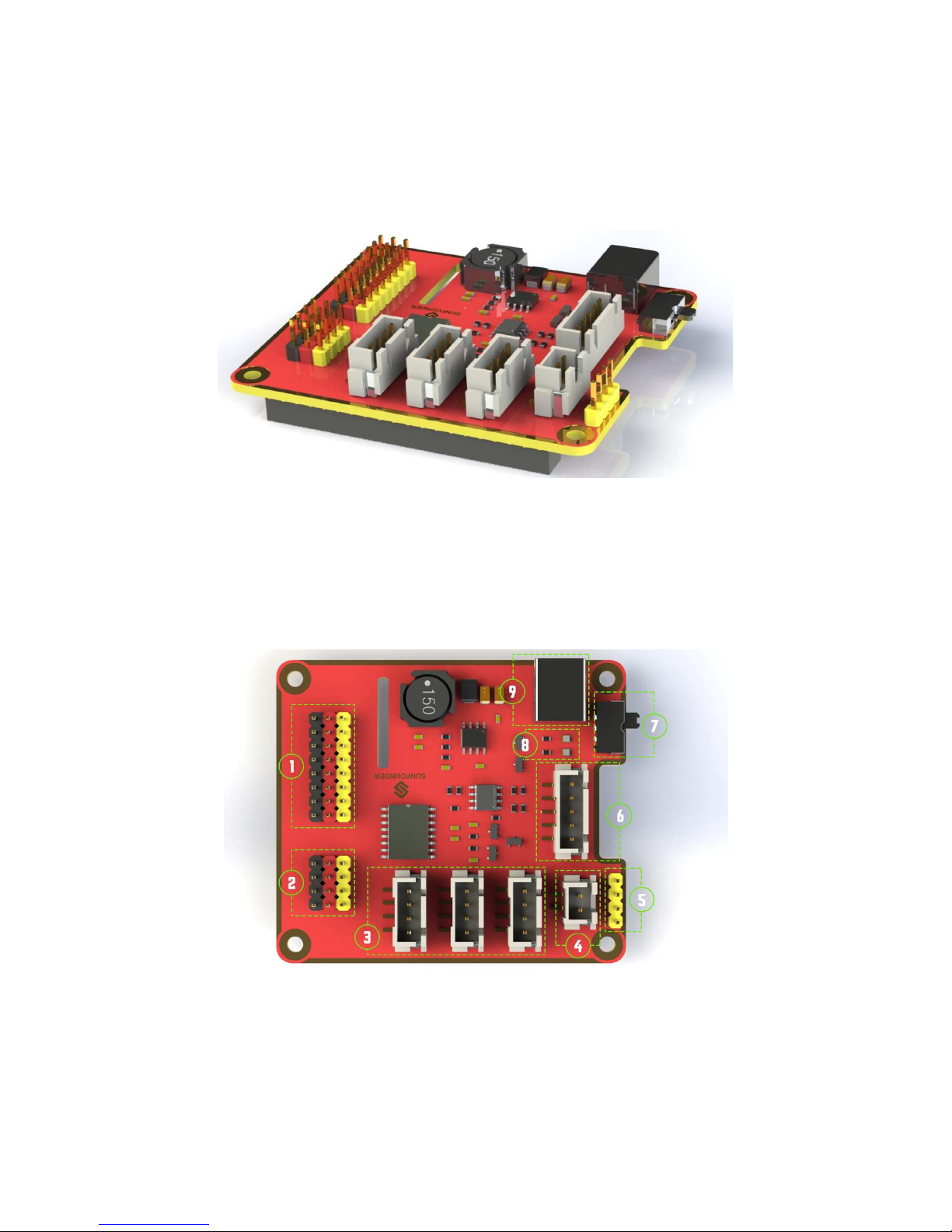

Robot HATS
Robot HATS is a specially-designed HAT for a 40-pin Raspberry Pi and can work with Raspberry
Pi model B+, 2 model B, and 3 model B. It supplies power to the Raspberry Pi from the GPIO
ports. Thanks to the design of the ideal diode based on the rules of HATS, it can supply the
Raspberry Pi via both the USB cable and the DC port thus protecting it from damaging the TF
card caused by batteries running out of power. The PCF8591 is used as the ADC chip, with I2C
communication, and the address 0x48.
○
1 . Digital ports: 3-wire digital sensor ports, signal voltage: 3.3V, VCC voltage: 3.3V.
○
2 . Analog ports: 3-wire 4-channel 8-bit ADC sensor port, reference voltage: 3.3V, VCC
voltage: 3.3V.
○
3 . I2C ports: 3.3V I2C bus ports
○
4 . 5V power output: 5V power output to PWM driver.
Page 61
58
○
5 . UART port: 4-wire UART port, 5V VCC, perfectly working with SunFounder FTDI Serial to USB.
○
6 . TB6612 motor control ports: includes 3.3V for the TB6612 chip, 5V for motors, and direction
control of motors MA and MB; working with SunFounder TB6612 Motor driver.
○
7 . Switch: power switch
○
8 . Power indicators: indicating the voltage – 2 indicators on: >7.9V; 1 indicator on: 7.9V~7.4V;
no indicator on: <7.4V. To protect the batteries, you're recommended to take them out for
charge when there is no indicator on. The power indicators depend on the voltage
measured by the simple comparator circuit; the detected voltage may be lower than
normal depending on loads, so it is just for reference.
○
9 . Power port: 5.5/2.1mm standard DC port, input voltage: 8.4~7.4V (limited operating
voltage: 12V~6V).
PCA9865
PCA9685 16-channel 12-bit I2C Bus PWM driver. It supports independent PWM output power
and is easy to use 4-wire I2C port for connection in parallel, distinguished 3-color ports for PWM
output.
○
1 . PWM output ports: 3-color ports, independent power PWM output port, connect to the
servo directly.
○
2 & ○3 . I2C port: 4-wire I2C port, can be used in parallel. Compatible with 3.3V/5.5V
○
4 . PWM power input: 12V max.
○
5 . LED: power indicator for the chip and for the PWM power input.
Page 62
59
TB6612
The TB6612 Motor Driver module is a low heat generation one and small packaged motor
drive.
○
1 Power and motor control port: includes pins for supplying the chip and the motors and
controlling the motors' direction
○
2 PWM input for the motors: PWM signal input for adjusting the speed of the two motors
○
3 Motor output port: output port for two motors

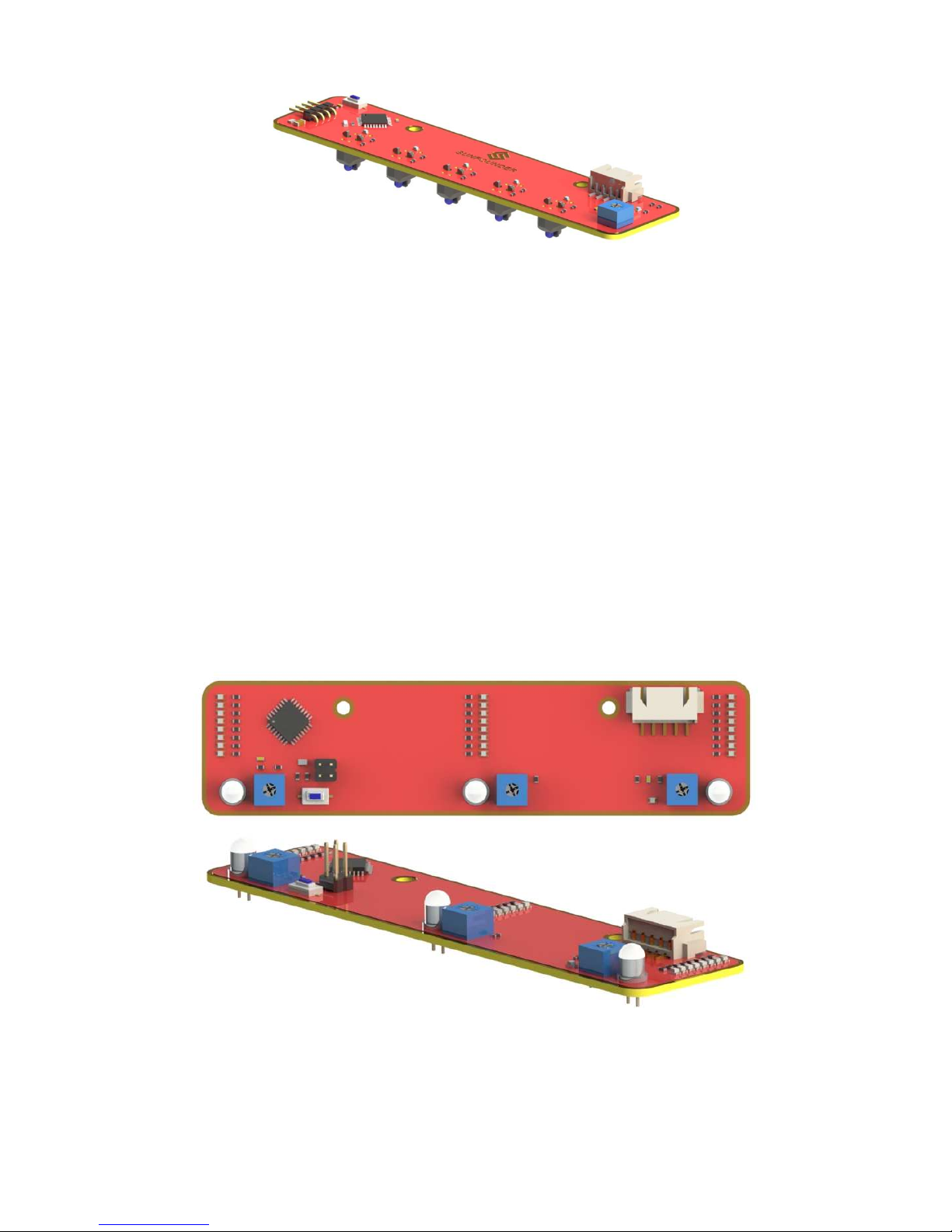

Line Follower Module
Page 63
60
The TCRT5000 infrared photoelectric switch adopts a high transmit power infrared photodiode and
a highly sensitive phototransistor. It works by applying the principle of objects' reflecting IR light –
the light is emitted, then reflected, and sensed by the synchronous circuit. Then it determines
whether there exists an object or not by the light intensity. It can easily identify black and white
lines.
In other words, the different conduction levels of the phototransistor when it passes over black and
white lines can generate different output voltages. Therefore, all we need to do is to collect data
by the AD converter on the Atmega328 and then send the data to the master control board via
I2C communication.
This module is an infrared tracking sensor one that uses 5 TRT5000 sensors. The blue LED of TRT5000
is the emission tube and after electrified it emits infrared light invisible to human eye. The black
part of the sensor is for receiving; the resistance of the resistor inside changes with the infrared light
received.
Light Follower Module
Phototransistor, or photo triode, is a photoelectric conversion component that senses the light
intensity. The stronger light, the larger currents, and better conductivity of the triode.
Based on this principle, we use it for light following. It works by converting the conductivity to
voltage output, which means the stronger light shone on it, the smaller voltage output. Then
Page 64
61
convert the voltage into digital values by the A/D converter on the MCU. And we can tell the light
intensity then by this value.
The module can be used to sense the ambient luminance. The blue potentiometer is to adjust the
sensitivity – you can change it to adapt to specific circumstances. There are two mounting holes
of 3mm diameter on the module for easy assembly on your robot.
Ultrasonic Obstacle Avoidance Module
This module contains an ultrasonic sensor to detect the distance to an obstacle in front. It is usually
used on robots to avoid obstacles. With the two holes, it can be assembled easily on the robot.
There is power indicator light added onside to indicate power on/off. The 3-pin design makes it
unique among most of the ultrasonic module in the market: the same pin to trigger and receive
signals. The 3-pin anti-reverse cable included makes the wiring tighter and more convenient. Also
the beautiful cartoon design and the red PCB add to its fascination.
The 25kHz ultrasonic module differs from common 40kHz ones. It is not so precise in distance
measurement, but it has a wider detecting range of about 30 degrees. Thus it can detect the
obstacle near ahead, and measure the distance if it’s assembled on the PiCar. Though a 40kHz
ultrasonic measures distance precisely, it can only detect obstacles which is right in front. Therefore,
the 25kHz ultrasonic module is more preferably applicable to an obstacle avoidance car, or
projects require a large detection range instead of accurate distance measurement.
SunFounder SF0180 Servo
The SunFounder SF0180 Servo is a 180-degree three-wire digital servo. It utilizes PWM signal of
60Hz and has no physical limit – only control by internal software to 180 degrees at most.
Page 65
62
Electrical Specifications:
Item V = 4.8V V = 6.0V
Operating speed (no load)
0.12 Sec/60° 0.09 Sec/60°
Running current (no load) 140 mA 200 mA
Stall torque (locked) 2.0 kg-cm 2.5 kg-cm
Stall current (locked) 520 mA 700 mA
Idle current (stop) 5 mA 5 mA
For more information, refer to SunFounder_PiCar-S/datasheet/SunFounder_SF0180.pdf in the
code package on our Github page. .
WiFi Adapter
The Ralink RT5370 Wireless Adapter is used in the car. Below are the features:
USB: XC1291
Network Connectivity: Wireless-Wi-Fi 802.11b, Wireless-Wi-Fi 802.11g, Wireless-Wi-Fi 802.11n
Applicable Network Type: Ethernet
Transmission Rate: 150Mbps
DC Gear Motor
It's a DC motor with a speed reducing gear train. See the parameters below:
Motor
Model F130SA-11200-38V
Rated Voltage 4.5V-6V
No-load Current ≤80mA
No-load Speed 10000±10%
Gear Reducer
Gear Ratio 1:48
Speed (no-load) ≈200rpm (≈180rmp in test)
Current ≤120mA
Page 66
63
Copyright Notice
All contents including but not limited to texts, images, and code in this manual are owned by the
SunFounder Company. You should only use it for personal study, investigation, enjoyment, or other
non-commercial or nonprofit purposes, under the related regulations and copyrights laws, without
infringing the legal rights of the author and relevant right holders. For any individual or organization
that uses these for commercial profit without permission, the Company reserves the right to take
legal action.
Loading...
