SUN-FLEX®DESK 600606
Assembly manual
(Rev:190312)
Page 2
SUN-FLEX®DESK 600606
Electric control part:
Input voltage: 100-240V
Output voltage: 24V DC, Max. 6A
Duty cycle: 10% MAX 2 min on 18 min o ff
Switch power supply, low energy consumption
Intuitive control
APP control system
Desk frame part:
Built-in limit switch
Dynamic load: 120KG
Static load: 140KG
Load speed: 30mm/s
Safety and warnings:
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children without
supervision.
Assembly manual
7
Installation of control box
-Attach the control box to the motor cable/cables.
-Attach the power cable to the control box.
-Assemble the control box to the underside of the desktop at preferred place with the screws incl.
-Use the intuitive control to adjust to preferred desk height.

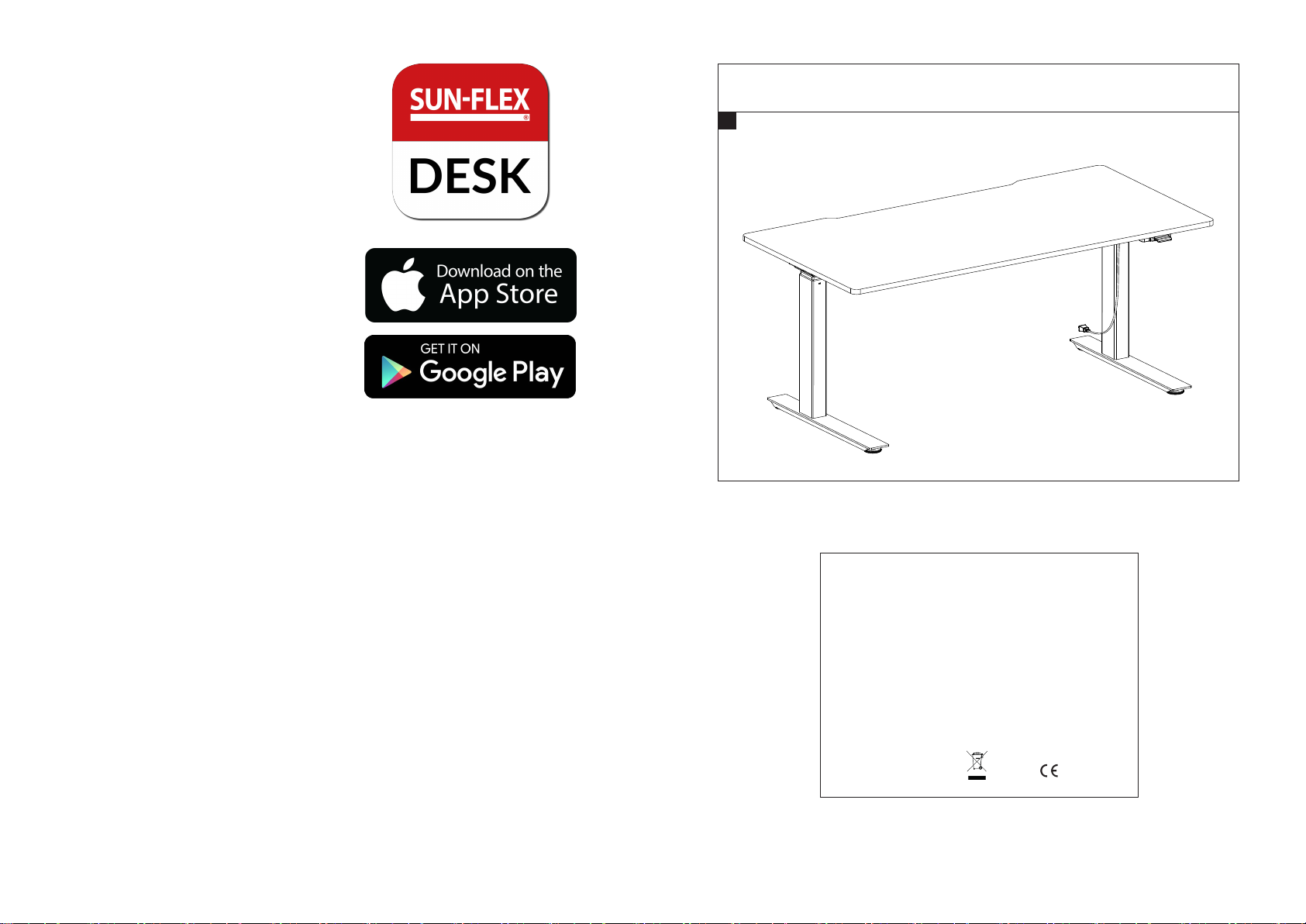

Installation of APP/control box
-Download the SUN-FLEX®DESK app from APP Store or Google Play.
-Attach the control box to the motor cable/cables.
-Attach the power cable to the control box.
-Attach the USB app stick to the USB slot on the control box.
-Assemble the control box to the underside of the desktop at preferred place with the screws incl.
-Open the SUN-FLEX®DESK app and attach via Bluetooth (recommended). Make sure the
connection is established.
-Name desk and make your individual settings in the SUN-FLEX
1
®
DESK app.
Correct Disposal of this product
This marking indicates that this product
should not be disposed with other household
wastes throughout the EU.
To prevent possible harm to the environment or
human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable
reuse of material resources. To return your used
device, please use the return and collection
systems or contact the retailer where the
product was purchased. They can take this
product for environmentally safe recycling.
RoHS
6
Page 3
Assembly manual
Assembly manual
5
C

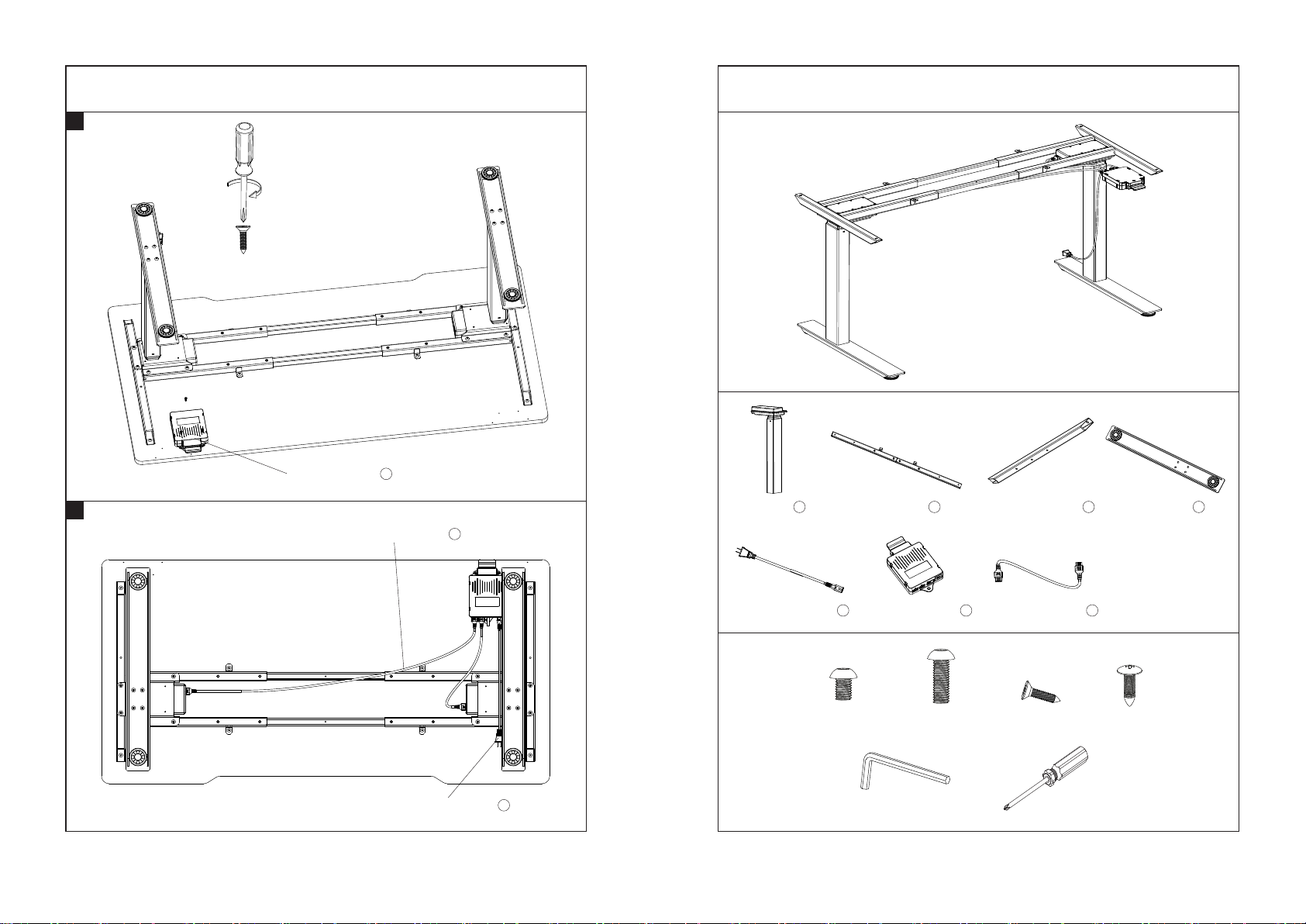

ST4.0*16 3pcs
C
C
C
Control box 1pcs
6
5
6
Motor wires 2pcs
Power cord 1pcs
Legs 2pcs
7
Power cord 1pcs
5
1 2 3 4
Long tube 2pcs
5 6 7
Control box 1pcs
A
B
M8*20 8pcs
M5
Side frame 2pcs
Motor wires 2pcs
C
ST4.0*16 3pcs M8*10 12pcs
for desktop(optional)
2
Foot 2pcs
ST5.0*16 8pcs
Page 4
Assembly manual
Assembly manual

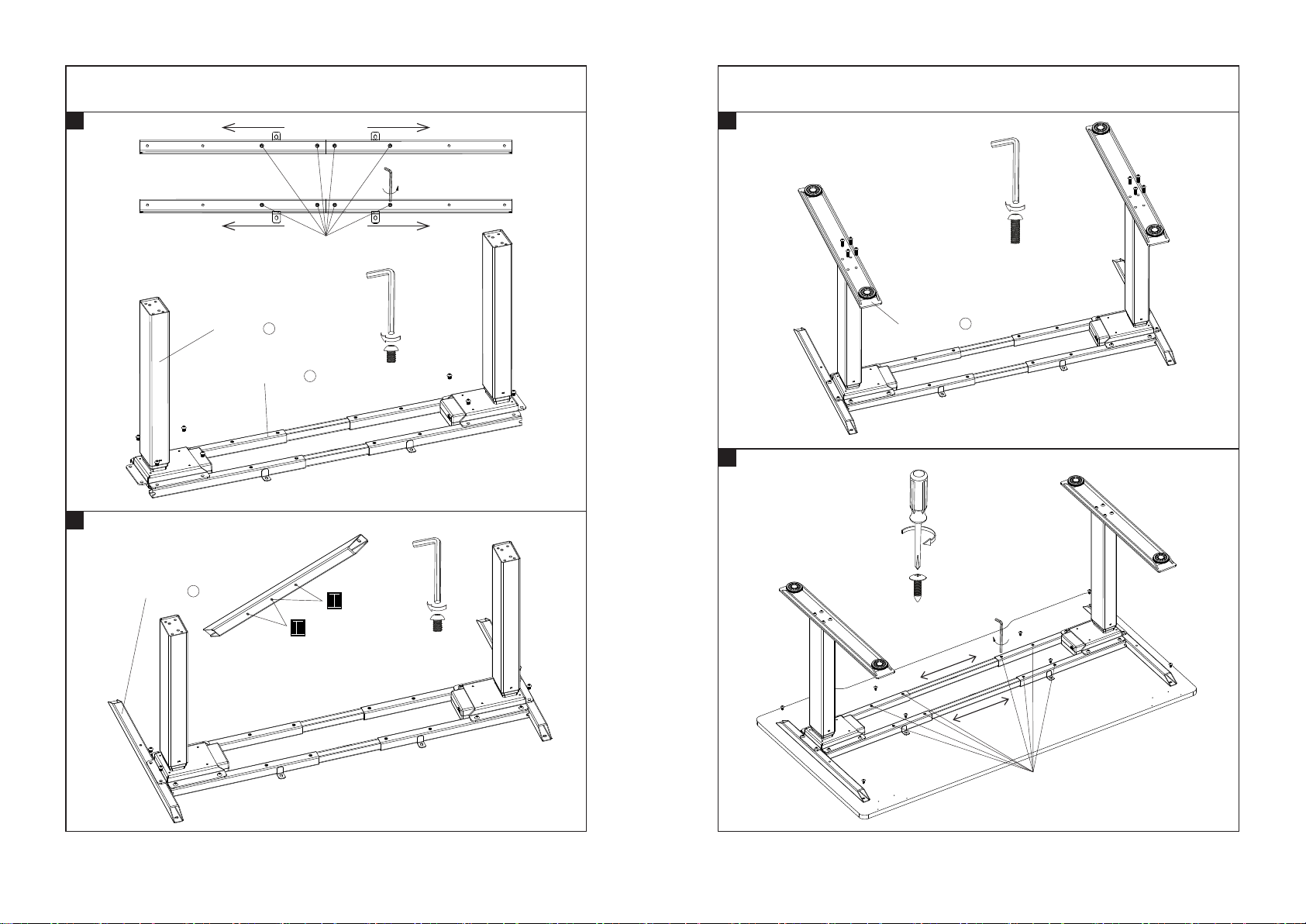

1
LOO SEN
Legs 2pcs
Long tube 2pcs
1
A
2
M8*10 8pcs
3
B
M8*20 8pcs
Foot 2pcs
4
4
2
Side frame 2pcs
3
Type C
3
Type T
A
M8*10 4pcs
ST5.0*16 8pcs
TIGHTEN
4
