Page 1

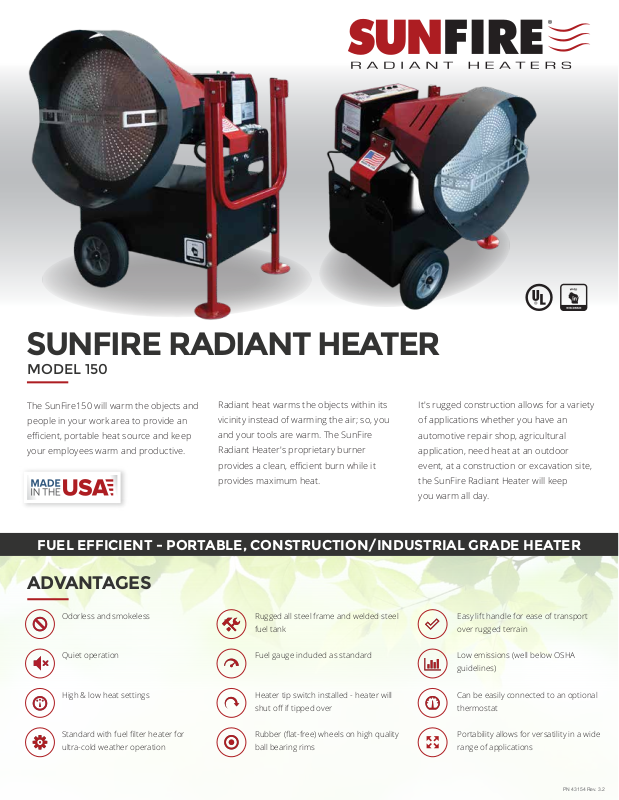

SUNFIRE RADIANT HEATER
MODEL 150
The SunFire150 will warm the objects and
people in your work area to provide an
efficient, portable heat source and keep
your employees warm and productive.
Radiant heat warms the objects within its
vicinity instead of warming the air; so, you
and your tools are warm. The SunFire
Radiant Heater's proprietary burner
provides a clean, efficient burn while it
provides maximum heat.
It's rugged construction allows for a variety
of applications whether you have an
automotive repair shop, agricultural
application, need heat at an outdoor
event, at a construction or excavation site,
the SunFire Radiant Heater will keep
you warm all day.
FUEL EFFICIENT - PORTABLE, CONSTRUCTION/INDUSTRIAL GRADE HEATER
ADVANTAGES
Odorless and smokeless
Quiet operation
High & low heat settings
Rugged all steel frame and welded steel
fuel tank
Fuel gauge included as standard
Heater tip switch installed - heater will
shut off if tipped over
Easy lift handle for ease of transport
over rugged terrain
Low emissions (well below OSHA
guidelines)
Can be easily connected to an optional
thermostat
Standard with fuel filter heater for
ultra-cold weather operation
Rubber (flat-free) wheels on high quality
ball bearing rims
Portability allows for versatility in a wide
range of applications
PN 43154 Rev. 3.2
Page 2
THE SUNFIRE 150 WILL WARM THE OBJECTS AND PEOPLE IN YOUR WORK AREA
TO PROVIDE AN EFFICIENT, PORTABLE HEAT SOURCE AND KEEP YOUR EMPLOYEES
WARM AND PRODUCTIVE.
MODEL SUNFIRE 150 SPECIFICATIONS MODEL SUNFIRE 150 SPECIFICATIONS
BTU/hour*
Flow Rate
Fuels
Overall Dimensions, Assembled
*Values indicated above are nominal. Actual values will vary depending on fuel and installation.
High: 147,000 (43kW)
Low: 130,000 (38kW)
1.1 GPH
Diesel, #2 fuel oil
29”W x 36”L x 41” H
(73.7cm x 91.4cm x 104.1cm)
STANDARD
FEATURES
Easy Lift
Folding Handle
Approx. Weight Empty Tank
Approx. Weight Full Tank
Fuel Tank Capacity
Electrical Requirements
Stainless Steel Guard
195 pounds (88kg)
320 pounds (145kg)
19 Gallons (72L)
120V 2A 60HZ or 12V Pure Sine
Power Inverter (800W Minimum)
APPLICATIONS
BUILDING CONSTRUCTION
WAREHOUSES
SPORTING EVENTS
LOGGING
All Steel Frame
Welded Steel
19 Gallon Fuel Tank
RANCHING
AGRICULTURE
AUTOMOTIVE AND TRUCK REPAIR
ANY OUTDOOR MACHINERY REPAIR
EMERGENCY HEATING
No Fill 10” Tires
4109 Capital Circle
Janesville, WI USA 53546
1-855-251-1649
www.SunFireHeater.com
PN 43154 Rev. 3.2
