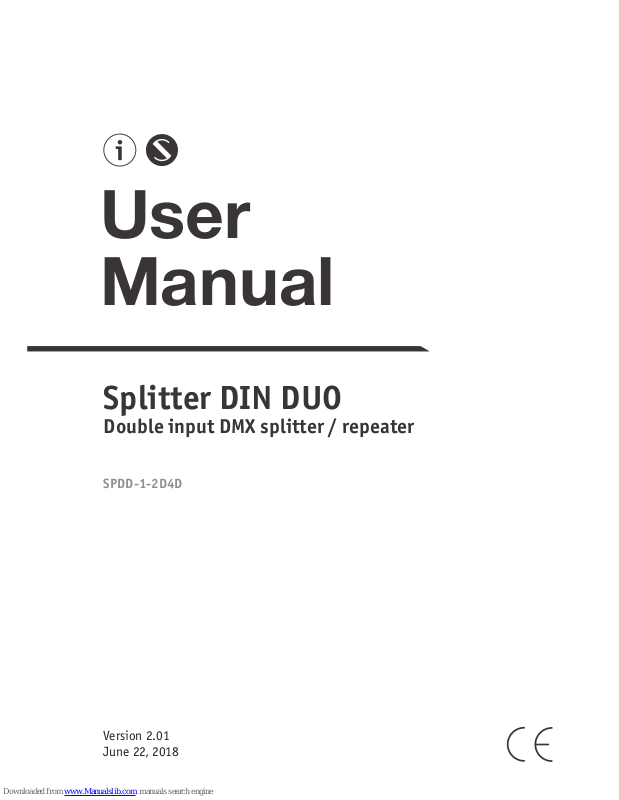

Sundrax SPDD-1-2D4D, DIN DUO User Manual

User
Manual

SPDD-1-2D4D

Version 2.01
June 22, 2018

Splitter DIN DUO

Double input DMX splitter / repeater

Table of Contents

Visual appearance

Specifications

Safe operation

General information

Installation

LED indication

Technical maintenance

Connection scheme

3

3

4

4

5

5

6

6

Visual Appearance

3

Specifications

Pic.1 Main interfaces and indicators

SPLITTER DIN

1 Fuse 4 LEDs 7 Output DMX ports

2 Power input 5 Input A DMX port 8 Grounding

3 Mode DIP switcher 6 Input B DMX port

1

Supported protocols DMX512, RDM, Modbus
DMX input ports 1 or 2 isolated
DMX output ports 4 or 5 isolated
DMX connectors 15EDGVC terminal blocks
Mounting DIN rail in the power cabinet
Setup DIP switchers
Power supply ~90-250 VAC, 50/60 Hz or 9-36VDC
Operating Temperature: -40°С... +70°С
IP Rating IP 20
Dimensions, mm 142 x 105 x 75

2 3 4 5 6

7 7 7 7 8
