Sundrax DALIGate DIN Series, DGD-1-DE4DALI, DGD-1-DE2DALI User Manual
User manual
DALIGate DIN
DGD-1-DE2DALI, DGD-1-DE4DALI
Version 1.11
March 22, 2018
Table of contents
Visual appearance
Specifications
Safe operation
General information
Installation

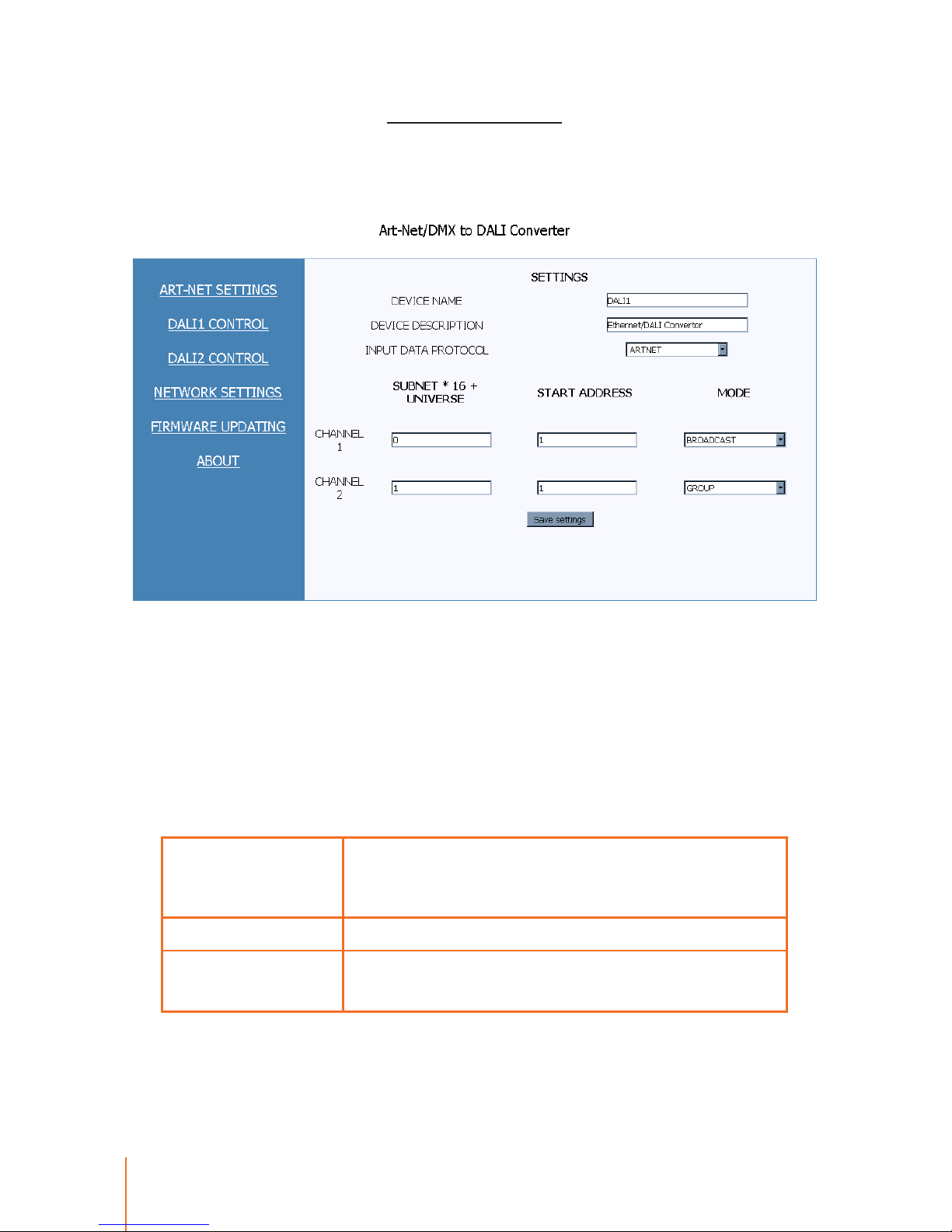

Web interface
•ArtNet settings
•DALI control

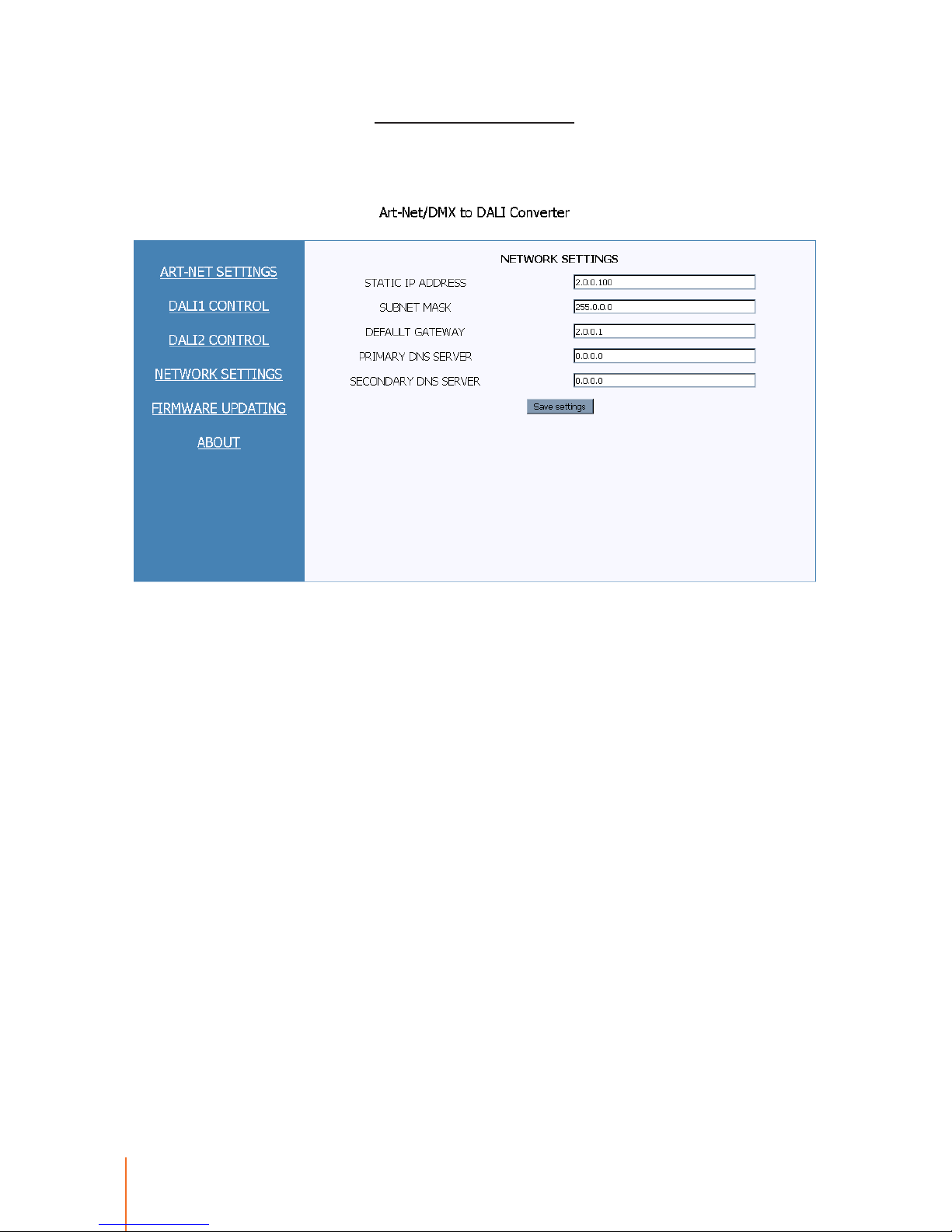

•Network settings
Operation
Technical maintenance

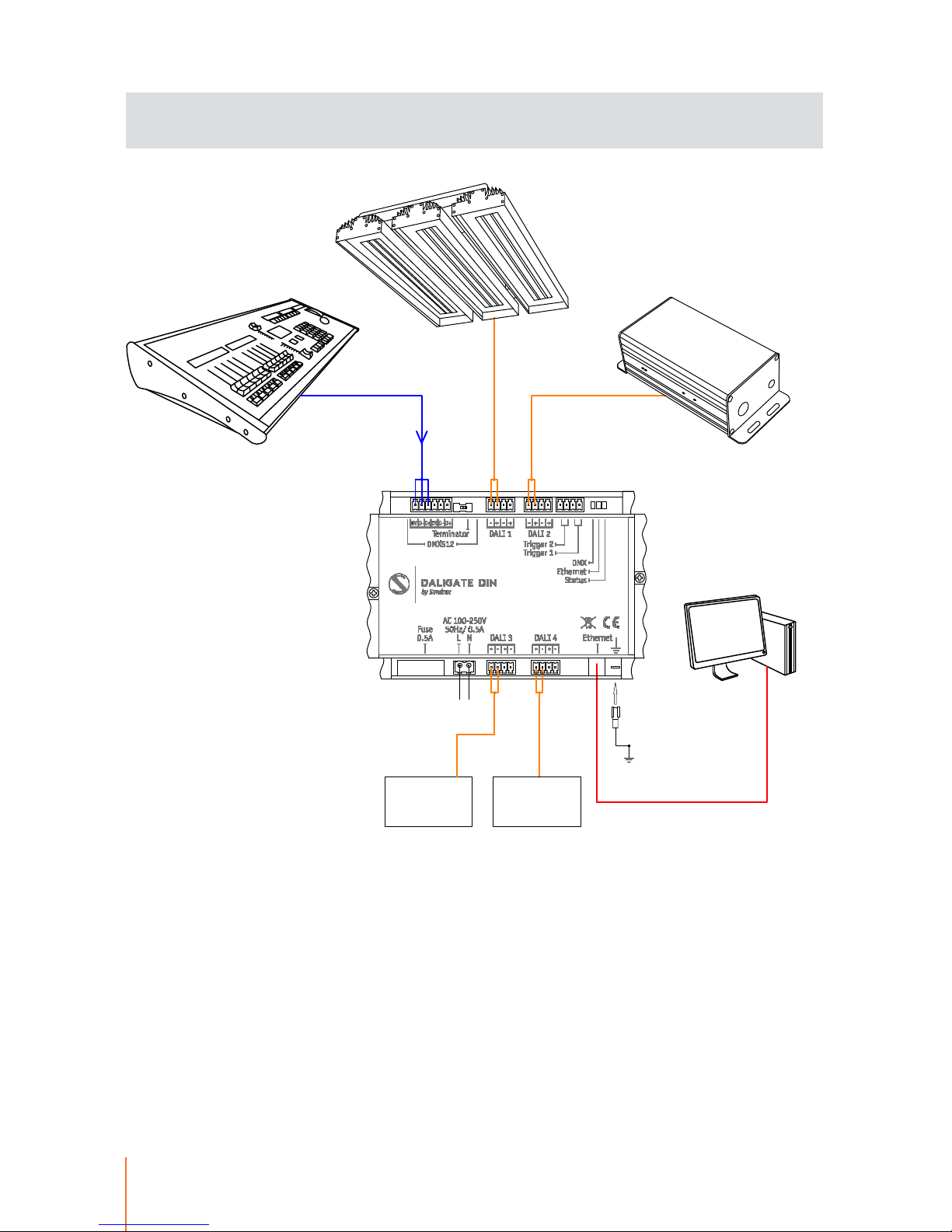

Connection scheme
1
1
2
2
3
3
4
5
6
7
7
8
Visual appearance
1
Pic.1 DALIGate DIN device appearance
Specifications
Supported protocols: ArtNet, sACN, DMX512, RDM, DALI
Data refresh rate: 44 Hz
DMX ports: 1 isolated
DMX connectors: Terminal blocks 15EDGVC
Controllable output lines: 2 or 4 DALI
Ethernet port: 10/100 Base-TX
Power supply:
~90-250 VAC, 50/60 Hz or
15V
Mains Fuse: 0.5 A
Operating Temperature: -40...+70°C
IP Rating: IP 20
Dimensions, mm: 142(D) x 105(H) x 75(W)
ON
1
1 DMX 512 input 4 Trigger inputs 7 Power input
2 DMX512 terminator 5 LED indicators 8 Ethernet port
3 DALI outputs 6 Fuse 9 Ground terminal
6
1 2 3 3 4 5
7 3 3 8 9
Safe operation
WARNING!
The device uses hazardous voltage AC 230 V
General information
2
In installation, operation, preventive maintenance and repairs of
the device, the requirements of the safety rules must be followed.
To ensure safe and reliable operation of the devices, please ob-
serve the following requirements:
• Use the device only for its intended purpose;
• Do not use devices that shows signs of malfunctioning;
• Avoid strong physical impacts on the device;
• Protect devices and cables from contact with moisture or other
corrosive liquids;
• Prevent any improper disconnection of the Ethernet cable from
the device being disconnected.
Whenever a fault is detected in the device, please contact the
manufacturer.
DALIGate DIN is DIN rail mounted converter that converts ArtNET/sACN/DMX signal into DALI protocol to include DALI lighting fixtures into controllable lighting network.
With DIN rail mounting hassle-free installation and ArtNET/
sACN/DMX input, DALIGate DIN is ideal as indoor solution for
mixed lighting control purposes in theatres, small venues, architectural installations, industrial, warehouse, and agricultural lighting.
Key features
• 2 DALI interfaces
• No external power supply for DALI is needed
• Simple web interface
• Selectable ArtNET/sACN or DMX512 control
