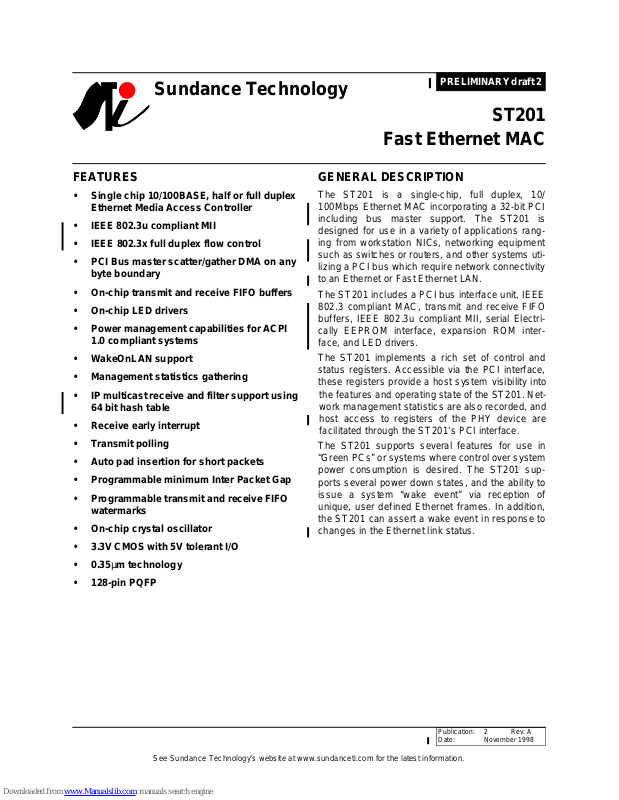

PRELIMINARY draft 2

ST201

Fast Ethernet MAC

FEATURES

• Single chip 10/100BASE, half or full duplex Ethernet Media Access Controller

• IEEE 802.3u compliant MII

• IEEE 802.3x full duplex flow control

• PCI Bus master scatter/gather DMA on any byte boundary

• On-chip transmit and receive FIFO buffers

• On-chip LED drivers

• Power management capabilities for ACPI

1.0 compliant systems

• WakeOnLAN support

• Management statistics gathering

• IP multicast receive and filter support using 64 bit hash table

• Receive early interrupt

• Transmit polling

• Auto pad insertion for short packets

• Programmable minimum Inter Packet Gap

• Programmable transmit and receive FIFO watermarks

• On-chip crystal oscillator

• 3.3V CMOS with 5V tolerant I/O

GENERAL DESCRIPTION

The ST201 is a single-chip, full duplex, 10/ 100Mbps Ethernet M AC i ncorporating a 32-bit PCI including bus master support. The ST201 is designed for use in a variety of applications ranging from workstation NICs, networking equipment such as switches or routers, and other systems utilizing a PCI bus which require network connectivity to an Ethernet or Fast Ethernet LAN.

The ST201 includes a PCI bus interface unit, IEEE

802.3 compliant MAC, transmit and receive FIFO buffers, IEEE 802.3u compliant MII, serial Electrically EEPROM interface, expansion ROM interface, and LED drivers.

The ST201 implements a rich set of control and status registers. Accessible via the PCI interface, these registers provide a host system visibility into

the features and operating state of the ST201. Network management statistics are also recorded, and host access to registers of the PHY device are facilitated through the ST201’s PCI interface.

The ST201 supports several features for use in “Green PCs” or systems where control over system power consumption is desired. The ST201 supports several power down states, and the ability to issue a system “wake event” via reception of unique, user defined Ethernet frames. In addition, the ST201 can assert a wake event in response to changes in the Ethernet link status.

• 0.35µm technology

• 128-pin PQFP

See Sundance Technology’s website at www.sundanceti.com for the latest information.

Publication: 2 Rev: A Date: November 1998

Sundance Technology ST201 PRELIMINARY draft 2 BLOCK DIAGRAM

PCI

RSTN

PCICLK

GNTN

IDSEL INTAN WAKE

REQN

AD[31..0]

CBEN[3:0]

PAR

FRAMEN

IRDYN

TRDYN

DEVSELN

STOPN PERRN SERRN

VDET

MISCELLANEOUS

PCI Bus

I/F

Status/Control

Registers

DMA

Statistic Registers

FIFO

MAC

MII

TXD[3..0] TXEN TXCLK RXD[3..0] RXCLK RXER RXDV CRS COL MDC MDIO

EEPROM

EEDO EEDI EESK EECS

EXPANSION ROM

GPIO0 GPIO1

RSTOUT

X25I

X25O

CLK25

POWER

VCC

GND

ED[7..0] EA[15..0] EWEN EOEN

PHY

PHYLNKN PHYDPLXN PHYSPDN

LED

LEDPWRN LEDLNKN LEDDPLXN LEDSPDN

FIGURE 1: ST201 Block Diagram

Sundance Technology ST201 PRELIMINARY draft 2

Sundance products are available in several combinations of packages and operating temperature ranges.

ORDERING INFORMATION

The order number is formed by a combination of the elements below

ST201

K C

TEMPERATURE RANGE

C=Commercial (0 to +70C)

PACKAGE TYPE

K=Plastic Quad Flat Pack

DEVICE NUMBER/DESCRIPTION

ST201 Fast Ethernet MAC

Sundance Technology ST201 PRELIMINARY draft 2 PIN DIAGRAM

Sundance Technology ST201 PRELIMINARY draft 2 PIN DESIGNATIONS

PIN NO.

1 VCC (5V) 33 AD9 65 EA2 97 RXCLK 2 CBEN3 34 GND (5V) 66 EA3 98 RXDV 3 IDSEL 35 AD8 67 EA4 99 RXD0 4 AD23 36 CBEN0 68 EA5 100 RXD1 5 AD22 37 AD7 69 EA6 101 RXD2 6 AD21 38 AD6 70 EA7 102 RXD3 7 AD20 39 AD5 71 EA8 103 GND (5V) 8 GND (5V) 40 GND (3.3V) 72 EA9/

9 AD19 41 VDET 73 EA10/

10 AD18 42 AD4 74 EA11/

11 AD17 43 VCC (3.3V) 75 EA12 107 PHYLNKN 12 AD16 44 AD3 76 GND (5V) 108 VCC (3.3V) 13 CBEN2 45 GND (5V) 77 EA13/EEDO 109 PHYSPDN 14 VCC (5V) 46 VCC (5V) 78 EA14/EEDI 110 VCC (5V) 15 FRAMEN 47 AD2 79 EA15/EESK 111 INTAN 16 IRDYN 48 AD1 80 EECS 112 RSTN 17 GND (5V) 49 AD0 81 X25I 113 PCICLK 18 TRDYN 50 EWEN 82 X25O 114 GNTN 19 DEVSELN 51 EOEN 83 VCC (5V) 115 REQN 20 STOPN 52 GND (3.3V) 84 RSTOUT 116 GND (3.3V) 21 PERRN 53 ED7/GPIO1 85 PHYDPLXN 117 WAKE 22 SERRN 54 ED6/GPIO0 86 CLK25 118 GND (5V) 23 PAR 55 GND (5V) 87 CRS 119 AD31 24 CBEN1 56 ED5 88 COL 120 AD30 25 GND (5V) 57 VCC (3.3V) 89 TXD3 121 AD29 26 AD15 58 ED4 90 TXD2 122 VCC (3.3V) 27 AD14 59 ED3 91 TXD1 123 AD28 28 VCC (5V) 60 ED2 92 TXD0 124 AD27 29 AD13 61 ED1 93 TXEN 125 AD26 30 AD12 62 ED0 94 GND (5V) 126 AD25 31 AD11 63 EA0 95 TXCLK 127 GND (5V) 32 AD10 64 EA1 96 RXER 128 AD24

PIN NAME

NO.

PIN NAME

TABLE 1: ST201 Pin Designations

NO.

PIN NAME

LEDPWRN

LEDLNKN

LEDDPLXN

NO.

104 MDC

105 GND (3.3V)

106 MDIO

PIN NAME

Sundance Technology ST201 PRELIMINARY draft 2 PIN DESCRIPTIONS

PIN NAME PIN TYPE PIN DESCRIPTION

PCI INTERFACE

RSTN INPUT Reset, asserted LOW. RSTN will cause the ST201 to reset all of its

functional blocks. RSTN must be asserted for a minimum duration of 10 PCICLK cycles.

PCICLK INPUT PCI Bus Clock. This clock is used to drive the PCI bus interfaces and

the internal DMA logic. All bus signals are sampled on the rising edges of PCICLK. PCICLK can operate from 0MHz to 33MHz.

GNTN INPUT PCI Bus Grant, asserted LOW. GNTN signals access to the PCI bus

has been granted to ST201.

IDSEL INPUT Initialization Device Select. The IDSEL is used to select the ST201 dur-

ing configuration read and write transactions.

INTAN OUTPUT Interrupt Request, asserted LOW. The ST201 asserts INTAN to

request an interrupt, when any one of the programmed interrupt event occurs.

WAKE OUTPUT Wake Event, assertion level is programmable (see I/O Registers sec-

tion, WakeEvent bit 3). The ST201 asserts WAKE to signal the detection of a wake event.

REQN OUTPUT Request, asserted LOW. The ST201 asserts REQN to request PCI bus

master operation.

AD[31..0] IN/OUT PCI Bus Address/Data. Address and data are multiplexed on the AD

pins. The AD pins carry the physical address during the first clock cycle of a transaction, and carry data during the subsequent clock cycles.

CBEN[3..0] IN/OUT PCI Bus Command/Byte Enable, asserted LOW. Bus command and

byte enables are multiplexed on the CBEN pins. CBEN specify the bus command during the address phase transaction, and carry byte enables during the data phase.

PAR IN/OUT Parity. PCI Bus parity is even across AD[31..0] and CBEN[3..0]. The

ST201 generates PAR during address and write data phases as a bus master, and during read data phase as a target. It checks for correct PAR during read data phase as bus master, during every address phase as a bus slave, and during write data phases as a target.

FRAMEN IN/OUT PCI Bus Cycle Frame, asserted LOW. FRAMEN is an indication of a

transaction. It is asserted at the beginning of the address phase of the bus transaction and de-asserted before the final transfer of the data phase of the transaction.

IRDYN IN/OUT Initiator Ready, asserted LOW. A bus master asserts IRDYN to indi-

cate valid data phases on AD[31..0] during write data phases, indicates it is ready to accept data during read data phases. A target will monitor IRDYN.

TABLE 2: ST201 Pin Descriptions

Sundance Technology ST201 PRELIMINARY draft 2

PIN NAME PIN TYPE PIN DESCRIPTION

TRDYN IN/OUT Target Ready, asserted LOW. A bus target asserts TRDYN to indicate

valid read data phases, and to indicate it is ready to accept data during write data phases. A bus master will monitor TRDYN.

DEVSELN IN/OUT Device Select, asserted LOW. The ST201 asserts DEVSELN when it is

selected as a target during a bus transaction. It monitors DEVSELN for any target to acknowledge a bus transaction initiated by the ST201.

STOPN IN/OUT Stop, asserted LOW. STOPN is driven by the slave target to inform the

bus master to terminate the current transaction.

PERRN IN/OUT Parity Error, asserted LOW. The ST201 asserts PERRN when it

checks and detects a bus parity errors. When it is generating PAR out-

put, the ST201 monitors for any reported parity error on PERRN. SERRN OUTPUT System Error, asserted LOW. VDET INPUT Power Detect. The ST201 detects PCI bus power supply loss when

VDET is LOW.

MII INTERFACE

TXD[3..0] OUTPUT Transmit Data. This is the 4-bit transmit data, from the transmit MAC to

the physical layer device. TXD[3..0] are synchronized to the TXCLK. TXEN OUTPUT Transmit Enable. When asserted, TXEN indicates to the PHY that

TXD[3..0] carry valid transmit data. TXEN is asserted with the first nib-

ble of the preamble until the last nibble of the frame data. TXEN is syn-

chronous with TXCLK. TXCLK INPUT Transmit Clock. TXCLK is a continuous clock supplied by the PHY to

synchronize the TXD transfer. Nominal rate of TXCLK is 25MHz for

100Mbps PHY and 2.5MHz when the PHY operates at 10Mbps. RXD[3..0] INPUT Receive Data. RXD[3..0] is the receive data from the PHY. RX D[3..0]

are synchronized to RXCLK. RXCLK INPUT Receive Clock. RXCLK provides the timing reference for RXD, RXER,

and RXDV signals. It is supplied by the PHY based on the receive

clock recovery circuit. Nominal rate for RXCLK is 25MHz (for

100Mbps) and 2.5MHz (for 10Mbps). RXER INPUT Receive Error. RXER is an indication from the PHY when it detects

coding errors, or other types of PHY layer errors during frame data

reception. RXER is synchronous with RXCLK. RXDV INPUT Receive Data Valid. RXDV signals valid frame data is present on the

RXD[3..0] pins. The PHY asserts RXDV before the SFD, and de-

asserts it after the last data nibble of the frame. RXDV is synchronous

with RXCLK. CRS INPUT Carrier Sense. CRS is asserted by the PHY to signal a non-idle

medium, with either transmit or receive activity detected. CRS is asyn-

chronous to RXCLK and TXCLK.

TABLE 2: ST201 Pin Descriptions

Sundance Technology ST201 PRELIMINARY draft 2

PIN NAME PIN TYPE PIN DESCRIPTION

COL INPUT Collision. COL is asserted by the PHY to a signal collision condition is

detected on the physical medium. COL is asynchronous to RXCLK and

TXCLK. MDC OUTPUT Management Data Clock. MDC is used to synchronize the read and

write operations of MDIO. MDIO IN/OUT Management Data Input/Output. MDIO carries management data for

the management port read and write operations.

PHY INTERFACE

PHYLNKN INPUT PHY Link Status , asserted LOW. PHYLNKN is driven by the physical

layer device. It is asserted to signal a functional link (link up). PHYDPLXN INPUT PHY Duplex Status, assertion level is programmable (see I/O Regis-

ters, PhyCtrl bit 4). PHYDPLXN is driven by the physical layer device.

It is asserted to indicate a full duplex link, and de-asserted to indicate a

half duplex link. PHYDPLXN is undefined when PHYLNKN is not

asserted. PHYSPDN INPUT PHY Speed Status. PHYSPDN is driven by the physical layer device. It

is asserted to indicate a 100Mbps link, and de-asserted to indicate a

10Mbps link. PHYSPDN is undefined when PHYLNKN is not asserted.

EEPROM INTERFACE

EEDO INPUT EEPROM Data Output. This pin is connected directly to the data output

of the EEPROM device. (This pin is shared with EA13) EEDI OUTPUT EEPROM Data In. This pin is connected directly to the data input of the

EEPROM device. (This pin is shared with EA14) EESK OUTPUT EEPROM Serial Clock. EESK is the clock used to synchronize the

EEPROM data access with EEDI and EEDO. It is connected directly to

the clock input of the EEPROM device. (This pin is shared with EA15) EECS OUTPUT EEPROM Chip Select. EECS is asserted by the ST201 to access the

EEPROM. It is connected directly to the chip select input of the

EEPROM device.

EXPANSION ROM INTERFACE

ED[7..0] IN/OUT Expansion ROM Data. The ED[7..0] provide data access to the expan-

sion ROM. EA[15..0] OUTPUT Expansion ROM Address. The EA[15..0] carry the address to the

expansion ROM. EWEN OUTPUT Expansion ROM Write Enable. EOEN OUTPUT Expansion ROM Output Enable.

LED DRIVERS

TABLE 2: ST201 Pin Descriptions

Sundance Technology ST201 PRELIMINARY draft 2

PIN NAME PIN TYPE PIN DESCRIPTION

LEDPWRN OUTPUT Power Status LED. (This pin is shared with EA9). The operation of this

pin varies based on the setting in the I/O Registers, AsicCtrl bit 14 (the

LEDMode bit). In Mode 0, LOW when power is applied, and toggling

when frame transmission is in progress. In Mode 1, this pin is always

LOW when power is applied. LEDLNKN OUTPUT Link Status LED. (This pin is shared with EA10). The operation of this

pin varies based on the setting in the I/O Registers, AsicCtrl bit 14 (the

LEDMode bit). In Mode 0, LOW when a valid link exists, toggling when

frame reception is in progress. In Mode 1, LOW when a valid link

exists, and toggling when either frame transmission or reception is in

progress. LEDDPLXN OUTPUT Duplex Status LED. (This pin is shared with EA11). This pin operates

independently of the I/O Registers, AsicCtrl bit 14 (the LEDMode bit).

This pin is LOW when the PHY is in full duplex mode, and toggles

when collisions are detected. LEDSPDN OUTPUT Speed Status LED. (This pin is shared with EA12). This pin operates

independently of the I/O Registers, AsicCtrl bit 14 (the LEDMode bit).

This pin is LOW when the link speed is 100Mbps, and HIGH when the

link speed is 10Mbps.

MISCELLANEOUS

GPIO0 IN/OUT General Purpose Input/Output. (This pin is shared with ED6) GPIO1 IN/OUT General Purpose Input/Output. (This pin is shared with ED7) RSTOUT OUTPUT Reset Output, assertion level is programmable (see I/O Registers,

AsicCtrl bit 15). The ST201 will assert RSTOUT when it is being reset.

RSTOUT is intended to be used to reset other circuitry on the adapter. X25I OSCIN 25MHz Crystal Oscillator Input. The external 25MHz crystal and capac-

itor is connected to the on-chip crystal oscillator circuit through X25I

input. Alternately, X25I can be driven by an external clock source. X25O OSCOUT 25MHz Crystal Oscillator Output. The external crystal and capacitor is

also connected to the output of the on-chip crystal oscillator circuit

through X25O. When X25I is driven by an external clock source, X25O

should be left unconnected. CLK25 OUTPUT 25MHz Clock Output. CLK25 carries the reference clock generated by

the on-chip crystal oscillator. This is a free-running and continuous

clock signal.

POWER AND GROUND

VCC (5V) POWER +5 volts power supply. GND (5V) GROUND +5 volts power return. VCC (3.3V) POWER +3.3 volts power supply. GND (3.3V) GROUND +3.3 volts power return.

TABLE 2: ST201 Pin Descriptions

Sundance Technology ST201 PRELIMINARY draft 2 ACRONYMS AND GLOSSARY

LAN Local Area Network MAC Media Access Control Layer, or a

device implementing the functions of this layer (a Media Access Con-

troller) PCI Peripheral Component Interface NIC Network Interface Cards FIFO First In First Out MII Media Independent Interface EPROM Erasable Programmable Read

Only Memory EEPROM Electrically Erasable Programma-

ble Read Only Memory LED Light Emitting Diode

PHY Physical Layer, or device imple-

menting functions of the Physical Layer

CSMA/CD Carrier Sense Multiple Access

with Collision Detect FCS Frame Check Sequence SFD Start of Frame Delimiter CRC Cyclic-Redundancy-Check IP Internet Protocol TFD Transmit Frame Descriptor RFD Receive Frame Descriptor DMA Direct Memory Access ACPI Advanced Configuration and

Power Management

STANDARDS COMPLIANCE

The ST201 implements functionality compliant with the following standards:

• IEEE 802.3u Fast Ethernet

• IEEE 802.3x Full Duplex Flow Control

• PCI Local Bus Revision 2.1

• ACPI Revision 1.0

FUNCTIONAL DESCRIPTION

The ST201 is composed of various functional blocks as shown in Figure 1. An overview of the functions performed by each block follows:

MEDIA ACCESS CONTROL

The MAC block implements the IEEE Ethernet

802.3u Media Access Control functions with 802.3x Full Duplex and Flow Control enhancements. In half duplex mode, the MAC implements the CSMA/ CD. Full duplex mode by definition does not utilize

CSMA/CD, allowing data to be transmitted on demand. An optional flow control mechanism in full duplex mode is provided via the 802.3x MAC Control PAUSE function. Additionally, the MAC also performs the following functions in either half or full duplex mode:

• Optional transmit FCS generation

• Padding to the minimum legal frame size

• Preamble and SFD generation

• Preamble and SFD removal

• Receive frame FCS checking and optional FCS stripping

• Receive frame destination address matching

• Support for multicast and broadcast frame reception or rejection (via filtering)

• Selective InterFrame Gap to avoid capture effect

• MAC Loopback

The MAC is responsible for generation of hardware signals to update the internal statistics counters.

MEDIA INDEPENDENT INTERFACE

The ST201 can support a variety of physical signaling schemes via the IEEE 802.3u defined MII. Through the MII, the ST201 supports Fast Ethernet (such as 100BASE-TX) as well as the legacy 10BASE-T standard. The MII provides a generalpurpose interface between an 802.3u MAC and various physical layer devices, and is comprised of two independent components. The data interface provides separate, 4-bit wide paths for receive and transmit data, as well as independent clock and control signals. The management interface is a bidirectional, serial link that provides the ST201 access to registers residing within the physical layer device. The host system controls the MII management interface through the PhyCtrl register.

Since the MII is independent of the signaling method (100BASE-TX, 10BASE-T, etc.), it is possible to use it to support numerous Ethernet or Fast Ethernet LAN types depending upon the availability of MII-compliant PHY devices. The most widely available PHY devices support both 10BASE-T and 100BASE-TX through a single MII.

It is most likely that a physical layer device connected to ST201 ’s MII w ill include implementation of the 802.3u Auto-Negotiation function. For instance, a PHY device may be able to auto-negotiate between 10BASE-T and 100BASE-TX. A host system attempting to determine link status should check the Auto-Negotiation function contained in the MII-based PHY device through the MII management interface of the ST201.

Sundance Technology ST201 PRELIMINARY draft 2

PCI BUS INTERFACE

The PCI Bus Interface (PBI) implements the procedures and algorithms needed to link the ST201 to a PCI bus. The ST201 can be either a PCI bus master or slave. The PBI is also responsible for managing the DMA interfaces and the host processors access to the ST201 registers. Arbitration logic within the PBI block accepts bus requests from the TxDMA Logic and RxDMA Logic. The arbiter services the four requests in the fixed priority order of:

1. RxDMA Urgent Request

2. TxDMA Urgent Request

3. RxDMA Request

4. TxDMA Request The PBI also manages interrupt generation for a

host processor.

TXDMA LOGIC

The ST201 supports a multi-frame, multi-fragment DMA gather process. Descriptors representing frames are built and linked in system memory by a host processor. The TxDMA Logic is responsible for transferring the multi-fragment frame data from the host memory into the TxFIFO.

The TxDMA Logic monitors the amount of free space in the TxFIFO, and uses this value to decide when to request a TxDMA. A TxDMABurstThresh register is used to delay the bus request until there is enough free space in the TxFIFO for a long burst.

To prevent a TxFIFO under run condition the TxDMA logic forwards an urgent request to the DMA arbiter, regardless of the TxDMABurstThresh constraint, when the number of occupied b ytes in the TxFIFO drops below the value in TxDMAUrgentThresh register.

TXFIFO

The ST201 uses 2K bytes of transmit data buffer between the TxDMA Logic and Transmit MAC. When the TxDMA logic determines there is enough space available in the TxFIFO, the TxDMA Logic will move any pending frame data into the TxFIFO. The TxReleaseThresh register value determines the amount of data which must be transmitted out of the TxFIFO before the FIFO memory space occupied by that data can be released for use by another frame.

A TxReleaseError occurs when a frame experiences a collision after the TxFIFO release threshold has been crossed. The ST201 will not be able to retransmit this frame from the TxFIFO and the

complete frame must be transferred from the host system memory to the TxFIFO again by TxDMA Logic.

RXDMA LOGIC

The ST201 supports a multi-frame, multi-fragment DMA scatter process. Descriptors representing frames are built and linked in system memory by a host processor. The RxDMA Logic is responsible for transferring the multi-fragment frame data from the RxFIFO to the host memory.

The RxDMA Logic monitors the number of bytes in the RxFIFO. After a number of bytes have been received, the frame is “visible”. A frame is visible if:

• The frame being received is determined not to be a runt, AND

• The number of frame bytes received has exceeded the value in the RxEarlyThresh register (if enabled), OR

• The entire frame has been received

After a frame becomes visible, the RxDMA Logic will issue a request to the DMA arbiter when the number of bytes in the RxFIFO is greater than the value in the RxDMABurstThresh. To prevent receive overruns, a RxDMA Urgent Request is made when the amount of free space in the RxFIFO falls below the value in RxDMAUrgentThresh.

RXFIFO

The ST201 uses 2K bytes of receive data buffer between the Receive MAC and RxDMA Logic. When the RxDMA Logic determines the number of bytes in the RxFIFO is greater than the value in RxEarlyThresh register, the ST201 will generate a RxEarly interrupt (if enabled) to the host. The values in RxEarlyThresh and RxDMABurstThresh also determine how many bytes of a frame must be received into RxFIFO before RxDMA Logic is allowed to begin data transfer.

When RxEarlyThresh is set to a value that is greater than the length of the received frame, a RxComplete interrupt will occur at the completion of frame reception rather than a RxEarly interrupt.

EEPROM INTERFACE

The external serial EEPROM is used for non-volatile storage of such information as the node address, system ID, and default configuration settings. As part of initialization after system reset, the ST201 reads certain locations from the EEPROM and places the data into host-accessible registers.

Sundance Technology ST201 PRELIMINARY draft 2

EXPANSION ROM INTERFACE

The ST201 provides support for an optional Expansion ROM. The ST201 supports the Atmel AT29C512 (64K x 8) Flash EPROM device.

The Expansion ROM is configured through the PCI configuration register, which maps the ROM into the memory space of the host system. The ROM contents can be scanned, copied to system RAM, and executed at system initialization time.

The ROM is also byte-read and byte-write accessible to the host CPU using the ExpRomData and ExpRomAddr registers. This allows a diagnostic program to read or modify the ROM contents without having to write to configuration registers.

OPERATION

Proper operation of the ST201 in a system requires an understanding of initialization tasks, register programming, transmit and receive behavior, interrupt handling, statistic gathering, PCI bus transactions, and power management capabilities.

INITIALIZATION

The ST201 provides s everal resets. The assertion of the hardware reset signal on the PCI bus causes a complete reset of the ST201. The ST201 configurations previously set are lost after reset. A similar reset is available via software using the GlobalReset bit of the AsicCtrl register. The AsicCtrl register also allows for selective reset of particular functional blocks of the ST201. See the Registers and Data Structures section for details on using the AsicCtrl register for resetting the ST201.

The external serial EEPROM is used for non-volatile storage of configuration information across ST201 resets. Shortly after reset, the ST201 will read the contents of an external EEPROM, placing the data read into the following registers:

• ConfigParm

• AsicCtrl (least significant 16 bits)

• SubsystemVendorId

• SubsystemId

• StationAddress There are several other registers which must be

configured during initialization. These registers include the ST201 PCI configuration registers which are set during a Power On Self Test (POST) routine performed by the host system. Specifically, the registers set during this stage of initialization are:

• ConfigCommand enables adapter operation by allowing it to respond to and generate PCI bus cycles. ConfigCommand is also used to enable parity error generation.

• loBaseAddress sets the I/O base address for the ST201 registers.

• MemBaseAddress sets the memory base address for the ST201 registers.

• ExpRomBaseAddress sets the base address and size for an installed expansion ROM, if any.

• CacheLineSize indicates the system’s cache line size. This value is used by the ST201 to optimize bus master data transfers.

• LatencyTimer sets the length of time the ST201 can hold the PCI bus as a bus master.

• InterruptLine maps ST201’s interrupt request to a specific interrupt line (level) on the system board.

• AsicCtrl is used to setup internal operations and parameters.

The ST201 can be accessed across the PCI bus without setting the PCI registers or reading data from an external EEPROM. In this Forced Configuration mode (useful for embedded applications without an EEPROM), the ST201 is forced to the following configuration:

• I/O base address 200h

• I/O target cycles enabled

• Memory target cycles disabled

• Bus master cycles enabled

• Expansion ROM cycles disabled

After initializing the ST201 to facilitate communication with the host system, an additional set of registers specific to operation of the Ethernet network must be set.

The first setting relates to the Auto-Negotiation features present in most Ethernet PHY devices. Since the ST201 does not participate in the Auto-Negotiation process, the host system must communicate with the PHY device (across the MII Management Interface) to determine the link status. Once the result of Auto-Negotiation is determined, if a full duplex mode has been chosen, the host system must set the FullDuplexEnable bit in the MACCtrl register. Other modes chosen during Auto-Negotiation do not require any ST201 register settings.

The ReceiveMode register determines which types of frames, based on address matching mechanism, the ST201 will receive. The host system must program the adapter’s node address into the StationAddress registers. This node address can be obtained either from the EEPROM, or the host system can set the value directly. Then, by setting the ReceiveUnicast bit in the ReceiveMode register, the ST201 will receive unicast frames whose destination address matches the value in the StationAd-

Sundance Technology ST201 PRELIMINARY draft 2

dress register. Setting the ReceiveBroadcast and ReceiveMulticast bits in the ReceiveMode register will allow the ST201 to receive all broadcast and multicast frames, respectively. The ReceiveMulticastHash bit in ReceiveMode enables a filtering mechanism for Ethernet multicast frames. This filtering mechanism uses a 64-bit hash table (HashTable register) for selective reception of Ethernet multicast frames. A CRC algorithm is applied to the destination address of incoming Ethernet multicast frames. The least significant 6 bits of the CRC result are used as an index into the hash table. The Ethernet multicast frame will be accepted by the ST201 when the corresponding hash table bit is set, otherwise the frame will be discarded. The host system must configure the hash table before any multicast frames are received using the filtering mechanism.

Additionally, Ethernet frames containing IP multicast destination addresses can also be received by setting the ReceiveIPMulticast bit in the ReceiveMode register. IP multicast, or Host Extension for IP Multicasting, datagrams map to frames with Ethernet destination addresses of 0x01005e****** (where * represents any hexadecimal value).

The MACCtrl register is used to configure parameters including full duplex, flow control, and statistics gathering.

The ST201 can operate in either half duplex or full duplex mode. In half duplex mode, the ST201 implements the CSMA/CD algorithm. CSMA/CD requires that only one node transmit at a time. If multiple nodes attempt to transmit simultaneously (indicated when both the receive and transmit signals are active) a collision will occur resulting in frame loss, and typically requiring re-transmission. In full duplex mode, the ST201 can transmit and receive frames simultaneously without incurring collisions. To configure the ST201 for full duplex mode operation, the host system must detect a full duplex physical link via the appropriate PHY device register, and must set the FullDuplexEnable bit in the MACCtrl register.

The IEEE 802.3x Full Duplex standard defines a special frame known as the PAUSE M AC Control frame. The PAUSE frame is used to implement flow control in full duplex networks allowing stations on opposite ends of a full duplex link the abil-

ity to inhibit transmission of MAC data frames for a specified period of time. The PAUSE frame format is defined as shown in Figure 1.

FIELD

DA 0x0180C2 000001

TYPE OPCODE PAUSE TIME PAD

FIGURE 1: PAUSE Frame

In Figure 1, bytes within fields are transmitted left to right, bits within bytes transmitted least-significant bit first.

Whenever the FlowControlEnable bit in the MACCtrl register is set, the ST201 compares the destination address with 0x 0180C2000001 and the type field with 0x8808 in all incoming frames. If both fields match, the ST201 further checks for the PAUSE opcode (0x0001) in the MAC Control Opcode field. If found, the ST201 inhibits transmission of all data frames for the time specified in the two-byte pause_time field. The pause_time field is specified in slot times relative to the current data rate; one slot time is 51.2 us at 10 Mbps, and 5.12 us at 100 Mbps. The transmission of PAUSE frames is the responsibility of the host. The MAC Control frame must be constructed by the host and placed into the TxFIFO. The driver should program the ReceiveMode register to receive PAUSE (MAC Control frame) when flow control is enabled. For end station applications, host system should only accept PAUSE frames, and not generate them. Flow control is designed to originate from network devices such as switches.

0x8808 0x0001

LENGTH (BYTES)

2 2 2 42

Sundance Technology ST201 PRELIMINARY draft 2

TXDMA AND FRAME TRANSMISSION

The TxDMA block transfers frame data from a host system to the ST201 based on a linked list of frame descriptors called TFDs. The frame to be transmitted is divided into data fragments (or buffers) within the host system’s memory. The host system creates a list of TFDs, also in system memory, where each TFD contains the memory locations of one or more fragments of a frame as shown in Figure 2.

HOST SYSTEM MEMORY

Next TFD Ptr. TxFrameControl 1st TxDMAFragAddr 1st TxDMAFragLen 2nd TxDMAFragAddr

TFD

2nd TxDMAFragLen

Last TxDMAFragAddr Last TxDMAFragLen

1st Data Frag (Buffer)

2nd Data Frag (Buffer)

Last Data Frag (Buffer)

FIGURE 2: TxDMA Data Structure

The TFD format is covered in the Registers and Data Structures section.

The resulting linked list of TFDs is referred to as the TxDMAList, as shown in Figure 3.

HOST SYSTEM MEMORY

TFD 1

TFD 2

FIGURE 3: TxDMA List

After reset, the ST201 MAC transmission is disabled, until the TxEnable bit is set. Any data transferred by TxDMA Logic into the TxFIFO will stay in the TxFIFO waiting for the TxEnable bit to be set enabling transmission. After enabling data transmission, the TxDMA Logic is in the idle state. In the simple case of a single frame, the host system must create a TFD within the host system memory. This TFD must contain the addresses and lengths of the fragments containing the data to be transmitted. The host system must write zero into TxDMANextPtr since this is the only frame. The host starts the TxDMA Logic by writing the memory location (a non-zero address) of the TFD into TxDMAListPtr register. The TxDMA Logic, if is not in the TxDMAHalt state, begins transferring data into the ST201 when:

• The TxFIFO has 16 or more bytes of free space, AND

• The fragment length is less than or equal to the amount of free space in the TxFIFO, OR

• The amount of free space in the TxFIFO is greater than or equal to the value (in bytes) of 32 * TxDMABurstThresh register

If these conditions hold, the TxDMA Logic fetches the fragment addresses and fragment lengths from the TFD and writes them one at a time into the ST201 registers, which are used to control the data transfer operations. If the TxDMA Logic transfers more data than can fit into the TxFIFO, an overrun will occur.

If the host system disables data transmission (by resetting the TxDisable bit) while a frame transmission is in progress, the current frame transmission will complete before data transmission is disabled.

Sundance Technology ST201 PRELIMINARY draft 2

The TxDMAListPtr I/O register within the ST201 contains the physical address that points to the head of the TxDMAList. TxDMAListPtr must point to addresses which are on 8-byte boundaries. A value of zero in the TxDMAListPtr register implies there are no pending TFD’s for the ST201 to process.

Generally, it is desirable for the host system to queue multiple frames. Multiple TFD’s are linked together in a list by pointing the TxDMANextPtr of each TFD at the next TFD. The last TFD in the linked list should have a value of zero for it’s TxDMANextPtr.

It is required that the host halt the TxDMA Logic by setting the TxDMAHalt bit before modifying TxDMAList or writing a new value to TxDMAListPtr (unless it is already zero). When the host has finished manipulating the list, it sets the TxDMAResume bit.

The TxDMA process returns to the idle state upon detection of a zero value for TxDMANextPtr. When a new frame is available to transfer, the host system must write the address of the new TFD into the TxDMANextPtr memory location of the last TFD, and either set the TxEnable bit, or utilize the ST201’s automatic polling capability. Using automatic polling, the ST201 will monitor the TxDMANextPtr memory location until a non-zero value is found at that location in system memory. The TxDMAPollPeriod register controls this polling function, which is enabled when TxDMAPollPeriod contains a non-zero value. The value written to TxDMAPollPeriod determines the TxDMANextPtr polling interval.

The ST201 can be configured to generate TxDMAComplete interrupts on a per frame basis by setting the TxDMAIndicate bit within the TFC field of each TFD. In response to a TxDMAComplete interrupt, when data transfer by TxDMA is finished, the host system acknowledges the interrupt and returns the frame data buffers to the system. In the case of a multi-frame TxDMAList, multiple frames may have been transferred by TxDMA when the host system enters its interrupt service routine. The host system can traverse the list of TFD’s, examining the TxDMAComplete bit in each TFD to determine which frames have been transferred by TxDMA.

The ST201 fetches the TFC before frame data transfer, and again at the end of TxDMA operation to examine the TxDMAIndicate bit. This allows the host system to change TxDMAIndicate while data transfer of the frame is in progress. For instance, a frame’s TFD might be at the end of the TxDMAList when it starts TxDMA, so the host system would

probably set TxDMAIndicate to generate an interrupt. However, if during the TxDMA process of this frame, the host system added a new TFD to the end of the list, it might clear TxDMAIndicate in the currently active TFD so that the interrupt is delayed until the next TFD.

The ST201 has the ability to automatically round up the length of a transmit frame. This is useful in some NOS environments in which frame lengths need to be an even number of words. Frame length word-alignment is performed based upon the sum of the fragment lengths specified in a TFD, and the 2-bit WordAlign field in the TFD’s TFC field. Wordalignment occurs when the frame length implied by the sum of the fragment lengths is not an even multiple of the value indicated by WordAlign. The frame length is rounded up to either a word or dword boundary, depending upon the value of WordAlign. Host systems may disable frame length word-alignment by setting the WordAlign bits in the TransmitFrameControl to x1.

The MAC will initiate frame transmission (if transmission is enabled) as soon as either the entire frame is resident in the TxFIFO, or the number of bytes present in the TxFIFO is greater than the value in the TxStartThresh register.

As a frame transmits out of the TxFIFO, it is desirable to be able to release the FIFO space so that it may be used for another frame. The value programmed into TxReleaseThresh determines how much of a frame must be transmitted before its FIFO space can be released.

A TxReleaseError occurs when a frame experiences a collision after the frame’s release threshold has been crossed. The ST201 will be unable to retransmit the frame and the host needs to re-start the TxDMA transfer. When a transmit error occurs, a TxComplete interrupt is generated, and the specific error is indicated by status bits in TxStatus. To recover from a transmit error, the host system must re-enable the transmitter and, in the case of an under run error, reset the transmit logic with TxReset, before subsequent transmissions can occur. When MaxCollisions or TxStatusOverflow errors occur, any pending frames in the TxFIFO are preserved (except the frame that experienced MaxCollisions). The frames are held in the TxFIFO due to the fact that MaxCollisions and TxStatusOverflow errors do not require assertion of TxReset. The preserved frames will be transmitted following a transmitter re-enable.

Since TxDMA writes into one end of the TxFIFO and the transmit MAC reads from the other end, TxDMA and transmit completes (including errors)

Sundance Technology ST201 PRELIMINARY draft 2

are independent of each other in general. A special case is when a transmit under run occurs. In this case the current frame being transmitted is the only frame in the TxFIFO. When a transmit under run occurs, the ST201 stops TxDMA operation and generates an interrupt with a TxUnderrun error flagged in TxStatus. The host system can determine which is the under run error frame by examining the current value of TxDMAListPtr. The host system can assume that all frames in the TxDMAList ahead of the under run e rror frame have been transmitted successfully. To recover from an under run, the host system should halt the TxDMA Logic by setting the TxDMAHalt bit, wait until TxDMAInProg and TxInProg are cleared, then issue a TxReset to reset the under run (TxFIFO and Transmit MAC). Transmission needs to be enabled (by TxEnable) again and all transmit-related thresholds (TxStartThresh in particular) should be restored. To re-transmit the frame, the host system writes the value of the under run frame’s TFD into the TxDMAListPtr register.

FRAME RECEPTION AND RXDMA

The frame RxDMA mechanism is similar to the TxDMA mechanism. RxDMA is structured around a linked list of frame descriptors, called RFDs. RFDs

contain pointers to the fragment buffers into which the ST201 is to place receive data, as shown in Figure 4.

HOST SYSTEM MEMORY

Next RFD Ptr. RxFrameStatus 1st RxDMAFragAddr 1st RxDMAFragLen 2nd RxDMAFragAddr

RFD

2nd RxDMAFragLen

Last RxDMAFragAddr Last RxDMAFragLen

1st Data Frag (Buffer)

2nd Data Frag (Buffer)

Last Data Frag (Buffer)

FIGURE 4: RxDMA Data Structure

The RFD format is covered in the Registers and Data Structures section.

Similar to TFDs, the resulting linked list of RFDs is referred to as the RxDMAList. One option available to RxDMA that differs from TxDMA is that the RxDMAList can be formed into a ring as shown in Figure 5. A host system can allocate a number of full size frame buffers, create a RFD for each one, and link the RFDs into a circular list. As frames are

Sundance Technology ST201 PRELIMINARY draft 2

Configuration

received and transferred by RxDMA, a RxDMAComplete interrupt will be generated for each frame.

HOST SYSTEM MEMORY

RFD 1

RFD 2

RFD n

FIGURE 5: RxDMA List Shown in Ring

The host system must create a RxDMAList and the associated buffers prior to reception of a frame. One approach calls for the host system to allocate a block of full size (i.e. large enough to hold a maximum size Ethernet frame of 1518 bytes) frame buffers in system data space and create RFDs that point to them. Another approach is for the host system to request the buffers from the protocol ahead of time.

After reset, the ST201 receive function is disabled. Once the RxEnable bit is set, frames will be received according to the matching mode programmed in ReceiveMode register. Reception can be disabled by setting the RxDisable bit. If set while a frame is being received, RxDisable only takes effect after the active frame reception is finished. The receive function begins with the RxDMA Logic in the idle state. The RxDMA Logic will begin processing a RxDMAList as soon as a non-zero address is written into the RxDMAListPtr register. The host system creates a RFD with the addresses and lengths of the buffers to be used and programs the RxDMAListPtr register to point to the head of the list. The host system must program a zero into the RxDMANextPtr of the last RFD to indicate the end of the RxDMAList. When a frame is received in the RxFIFO, the ST201 fetches the fragment address and fragment length values one by one from the current RFD, and writes these values into internal registers which control data transfer opera-

tions. Similar to TxDMA, the RxDMA Logic can be controlled by the RxDMAHalt and RxDMAResume bits. The host system should set the RxDMAHalt bit before modifying the list pointers in the RxDMAList. The RxDMA Logic will return to the idle state when the RxDMAListPtr register is zero.

For RxDMA lists configured as a ring, the host system should clear the RxDMAComplete bit within the ReceiveFrameStatus field of the RFD from which the host system has finished reading data. If RxDMAPollPeriod is zero the host system should also issue a RxDMAResume in case the ST201 has halted due to detection of a set RxDMAComplete bit within the ReceiveFrameStatus field of the next RFD in the ring. If the ST201 fetches a RxDMAListPtr for a RFD that has already been used (a RFD in which the RxDMAComplete bit is set in ReceiveFrameStatus), the RxDMA Logic will either assert an implicit RxDMAHalt or, if the RxDMAPollPeriod register is set to a non-zero value, the RxDMA Logic will automatically recheck RxDMAComplete periodically until it is cleared.

The operation for adding RFDs into the RxDMAList starts with halting the RxDMA Logic by setting the RxDMAHalt bit within the DMACtrl register. The host system then updates RxDMANextPtr in the last RFD in the RxDMAList to point at the new RFD. The host system will also need to read the RxDMAListPtr, and if it was zero, write the address of the just added RFD into RxDMAListPtr and set the RxDMAResume bit within the DMACtrl register to re-start the RxDMA Logic.

The ST201 can be configured to generate a RxDMAComplete interrupt when RxDMA completes a frame reception. In response to a RxDMAComplete interrupt, the host system must examine the ReceiveFrameStatus field in the RFD of the received frame to determine the size of the frame and whether there were any errors. The host system must then copy the frame out of the receive buffers, if needed.

In general, when the host system enters its interrupt service routine, multiple frames may have been transferred by RxDMA. The host system can read RxDMAListPtr to determine which RFDs in the list have been used. The host system begins at the head of the RFD list, and traverses the list u ntil it reaches the RFD whose address matches RxDMAListPtr. However, since I/O operations are costly, it is more efficient to use the RxDMAComplete bit in each RFD to determine which frames have been transferred by RxDMA.

Sundance Technology ST201 PRELIMINARY draft 2

Systems using the ST201 can be programmed to generate an interrupt based upon the number of bytes that have been received in a frame. The RxEarlyThresh register sets the value for early receive threshold. As soon as the number of bytes that have been received is greater than the value in RxEarlyThresh register, the ST201 will generate a RxEarly interrupt, if it is enabled, to the host. The RxEarly interrupt will only occur when the frame being received is the top frame, i.e., can be transferred by the host during reception. The RxEarlyThresh mechanism will cause one RxEarly interrupt per frame. The host system can program any value greater than or equal to 0x08 into RxEarlyThresh. The ST201 needs a minimum of 8 frame bytes to perform destination address filtering before generating an RxEarly interrupt. The value in RxEarlyThresh may also determine how many bytes of a frame must be received before RxDMA transfers for the frame are allowed to begin. If RxEarlyEnable in DMACtrl is set, a frame becomes eligible to start RxDMA when RxEarlyThresh bytes have been received. Setting RxEarlyThresh too low will cause the host to respond to the interrupt before the entire receive frame header has been received. Setting RxEarlyThresh too high will introduce unnecessary delays in the system’s receive response sequence. When RxEarlyThresh is set to a value that is greater than the length of the received frame, a RxComplete interrupt will occur at the completion of frame reception rather than a RxEarly interrupt. If the host system is particularly slow in responding to a RxEarly interrupt, then it is likely that the frame will have been completely received by the time the driver examines the ST201. In this case, RxEarly will be overridden by RxComplete. RxEarly is cleared when RxComplete becomes set, hence they are mutually exclusive. In order to prevent spurious interrupts, RxComplete should only be disabled if RxEarly is also disabled.

In some host systems, it may be desirable t o copy received frame data out of the scatter buffer to the protocol buffer while t he frame is still being transferred by RxDMA. The RxDMAStatus register is provided for this purpose. If the host system sets the RxDMAHalt bit in the DMACtrl register, reads the RxDMAListPtr register and the RxDMAStatus register, then sets the RxDMAResume bit in the DMACtrl register, the host system can determine how much of the frame has been transferred by RxDMA. The RxDMAStatus register indicates the number of bytes transferred by RxDMA for the current RFD pointed to by the RxDMAListPtr register.

The host system can then perform memory copies out of the RFD buffer in parallel with the RxDMA operation.

INTERRUPTS

The term “interrupt” is used loosely to refer to interrupts and indications. An interrupt is the actual assertion of the hardware interrupt signal on the PCI bus. An indication, or a set bit in the IntStatus register, is the reporting of any event enabled by the host. The host system will configure the ST201 to generate an interrupt for any indication that is of interest to it. There are 10 different types of interrupt indications that can be generated by the ST201. The IntEnable register controls which of the 10 indication bits can assert a hardware interrupt. In order for an indication bit to be allowed to generate an interrupt, its corresponding bit-position in IntEnable must be set. When responding to an interrupt, the host reads the IntStatus register to determine the cause of the interrupt. The least significant bit of IntStatus, InterruptStatus, is always set whenever any of the interrupts are asserted. InterruptStatus must be explicitly acknowledged (cleared) by writing a 1 into the bit in order to prevent spurious interrupts on the host bus.

Interrupts are acknowledged by the host carrying out various actions specific to each interrupt. These actions are as follows:

• HostError, acknowledged by issuing the appropriate resets

• TxComplete, acknowledged by writing to TxStatus

• RxComplete, acknowledged automatically by the hardware

• UpdateStats, acknowledged by reading statistics registers

• InterruptStatus, acknowledged by writing a 1 into this bit

• RxEarly, acknowledged by writing a 1 into this bit

• IntRequested, acknowledged by writing a 1 into this bit

• LinkEvent, acknowledged by writing a 1 into this bit

• TxDMAComplete, acknowledged by writing a 1 into this bit

• RxDMAComplete, acknowledged by writing a 1 into this bit

• MACControlFrame, acknowledged by writing a 1 into this bit

Sundance Technology ST201 PRELIMINARY draft 2 STATISTICS

The ST201 implements 16 statistics counters of various widths. Each statistic implemented complies to the corresponding definition given in the IEEE 802.3 standard. Setting the StatisticsEnable bit in the MACCtrl register enables the gathering of statistics. Reading a statistics register will clear the read register. Statistic registers may be read without disabling statistics gathering. For diagnostics and testing purposes, the host system may write a value to a statistic register, in which case the value written is added to the current value of the register. Whenever one or more of the statistics registers reaches 75% of its maximum value, an UpdateStats interrupt is generated. Reading that statistics register will acknowledge the UpdateStats interrupt. A summary of the transmit and receive statistics follows. Detailed descriptions of the statistic registers related to data transmission and reception can be found in the Registers and Data Structures section.

TRANSMIT STATISTICS

• FramesTransmittedOk: The number frames of all types transmitted without errors. Loss of carrier is not considered to be an error by this statistic.

• BroadcastFramesTransmittedOk: The number of frames with broadcast destination address that are transmitted without errors.

• MulticastFramesTransmittedOk: The number of frames with multicast destination address that are transmitted without errors.

• OctetsTransmittedOk: The number of total octets for all frames transmitted without error.

• FramesWithDeferredXmission: A count of frames whose transmission was delayed on it’s first attempt because network traffic.

• FramesWithExcessiveDeferral: If the transmission of a frame has been deferred for an excessive period of time due to network traffic, the event is recorded in this statistic.

• SingleCollisionFrames: Frames that are transmitted without errors after one and only one collision (including late collisions) are counted by this register.

• MultipleCollisionFrames: All frames transmitted without error after experiencing from 2 through 15 collisions (including late collisions) are counted here.

• LateCollisions: Every occurrence of a late collision (there could be more than one per frame transmitted) is counted by this statistic.

• FramesAbortedDueToXSColls: If the transmission of a frame had to be aborted due to excessive collisions, the event is recorded in

this statistic.

• CarrierSenseErrors: Frames that were transmitted without error but experienced a loss of carrier are counted by this statistic.

RECEIVE STATISTICS

• FramesReceivedOk: Frames of all types that are received without error are counted here.

• BroadcastFramesReceivedOk: Frames of broadcast destination address that are received without error are counted here.

• MulticastFramesReceivedOk: Frames of multicast destination address that are received without error are counted here.

• OctetsReceivedOk: A total octet count for all frames received without error.

• FramesLostRxErrors: This is a count of frames that would otherwise be received by the ST201, but could not be accepted due to an overrun condition in the RxFifo.

PCI BUS MASTER OPERATION

The ST201 supports all of the PCI memory commands and decides on a burst-by-burst basis which command to use in order to maximize bus efficiency. The list of PCI memory commands is shown below. For all commands, “read” and “write” are with respect to the ST201 (i.e. read implies the ST201 obtains information from an off-chip location, write implies the ST201 sends information to an off-chip location).

• Memory Read (MR)

• Memory Read Line (MRL)

• Memory Read Multiple (MRM).

• Memory Write (MW)

• Memory Write Invalidate (MWI)

MR is used for all fetches of descriptor information. For reads of transmit frame data, MR, MRL, or MRM is used, depending upon the remaining number of bytes in the fragment, the amount of free space in the TxFIFO, and whether the RxDMA Logic is requesting a bus master operation.

MW is used for all descriptor writes. Writes of receive frame data use either MW or MWI, depending upon the remaining number of bytes in the fragment, the amount of frame data in the RxFIFO, and whether the TxDMA Logic is requesting a bus master operation.

The ST201 provides three configuration bits to control the use of advanced memory commands. The MWlEnable bit in the ConfigCommand configuration register allows the host to enable or disable the use of MWI. The MWIDisable and MRLDisable bits in DMACtrl allow the host system the ability to

Sundance Technology ST201 PRELIMINARY draft 2

disable the use of MWI and MRL. MWIDisable and MRLDisable are cleared by default, enabling MWI and MRL.

The ST201 provides a set of registers that control the PCI burst behavior. These registers allow a trade-off to be made between PCI bus efficiency and under run/ overrun frequency. Arbitration logic within the PCI Bus Interface block accepts bus requests from the TxDMA Logic and RxDMA Logic. The TxDMA Logic uses the TxDMABurstThresh register, as described in the TxDMA Logic section, to delay the bus request until there is enough free space in the TxFIFO for a long, efficient burst. The TxDMA Logic can also make an urgent bus request as described in the TxDMA Logic section, where burst efficiency is sacrificed in favor of avoiding a TxFIFO under run condition.

The RxDMA process is described in the RxDMA Logic section. Typically, RxDMA requests will be forwarded to the Arbiter, however RxDMA Urgent Requests are also possible in order to prevent receive overruns. The Arbiter services the four requests in the fixed priority order as described in the PCI Bus Interface section.

POWER MANAGEMENT

The ST201 supports operating system directed power management according to the ACPI specification. Power management registers in the PCI configuration space, as defined by the PCI Bus Power Management Interface specification, Revision 1.0 are described in the Registers and Data Structures section.

The ST201 supports several power management states. The PowerState field in the PowerMgmtCtrl register determines ST201’s current power state. The power states are defined as follows:

• D0 Uninitialized (power state 0) is entered as a result of hardware reset, or after a transition from D3 Hot to D0. This state is the same as D0 Active except that the PCI configuration registers are uninitialized. In this state, the ST201 responds to PCI configuration cycles only.

• D0 Active (power state 0) is the normal operational power state for the ST201. In this state, the PCI configuration registers have been initialized by the system, including the IoSpace, MemorySpace, and BusMaster bits in ConfigCommand, so the ST201 is able to respond to PCI I/O, memory and configuration cycles and can operate as a PCI master. The ST201 cannot signal wake (PMEN) from the D0 state.

• D1 (power state 1) is a “light-sleep” state. The

ST201 optionally supports this state determined by the D1Support bit in the ConfigParm word in EEPROM. The D1 state allows transition back to D0 with no delay. In this state, the ST201 responds to PCI configuration accesses, to allow the system to change the power state. In D1 the ST201 does not respond to any PCI I/O or memory accesses. The ST201’s function in the D1 state is to recognize wake events and link state events and pass them on to the system by asserting the PMEN signal on the PCI bus.

• D2 (power state 2) is a partial power-down state. The ST201 optionally supports this state determined by the D2Support bit in the ConfigParm word in EEPROM. D2 allows a faster transition back to D0 than is possible from the D3 state. In this state, the ST201 responds to PCI configuration accesses, to allow the system to change the power state. In D2 the ST201 does not respond to any PCI I/O or memory accesses. The ST201’s function in the D2 state is to recognize wake events and link state events and pass them on to the system by asserting the PMEN signal on the PCI bus.

• D3 Hot (power state 3) is the full power-down state for the ST201. In D3 Hot, the ST201 loses all PCI configuration information except for the value in PowerState. In this state, the ST201 responds to PCI configuration accesses, to allow the system to change the power state back to D0 Uninitialized. In D3 hot, the ST201 does not respond to any PCI I/O or memory accesses. The ST201’s main responsibility in the D3 Hot state is to recognize wake events and link state events and signal those to the system by asserting the PMEN signal on the PCI bus.

• D3 Cold (power state undefined) is the power-off state for the ST201. The ST201 does not function in this state. When power is restored, the system guarantees the assertion of hardware reset, which puts the ST201 into the D0 Uninitialized state.

The ST201 can generate wake events to the system as a result of Wake Packet reception, Magic Packet reception, or due to a change in the link status. The WakeEvent register gives the host system control over which of these events are passed to the system. Wake events are signaled over the PCI bus using the PMEN pin.

A Wake Packet event is controlled by the WakePktEnable bit in WakeEvent register. WakePktEnable has no effect when ST201 is in the D0 power state, as the wake process can only take place in states

Sundance Technology ST201 PRELIMINARY draft 2

D1, D2, or D3. When the ST201 detects a Wake Packet, it signals a wake event on PMEN (if PMEN assertion is enabled), and sets the WakePktEvent bit in the WakeEvent register. The ST201 can signal that a wake event has occurred when it receives a pre-defined frame from another station. The host system transfers a set of frame data patterns into the TxFIFO using the TxDMA function before placing the ST201 in a power-down state. Once powered down, the ST201 compares receive frames with the frame patterns in the TxFIFO. When a matching frame is received (and also passes the filtering mode set in the ReceiveMode register), a wake event is signaled.

Frame patterns are written to the TxFIFO in a single “pseudo-packet”. Prior to transferring this pseudo-packet, the host system s hould first issue TxReset (to reset the TxFIFO pointers and prevent transmission) then prepare a TFD that points to a single data buffer. The buffer should contain one or more frame patterns placed contiguously. The number of frame patterns is limited by the TxFIFO size. The TxDMAFragLen field in the TFD must exactly equal the sum of the frame pattern bytes. Also, the host system must set WordAlign to ‘x1’ in the TransmitFrameControl field of the TFD to prevent frame word-alignment. Finally, the host system must write the TFD’s address to the TxDMAListPtr register to transfer the frame into the TxFIFO.

The frame patterns in the TxFIFO specify which bytes in the incoming frames are to be examined. A CRC is calculated over these bytes and compared with a CRC value supplied in the frame pattern. This matching technique may result in false wake events being reported to the host system. Each wake packet pattern contains one or more byte-offset/byte-count pairs, an end-of-pattern symbol, and a 4-byte CRC value. The byte-offset indicates the number of frame bytes to be skipped in order to reach the next group of bytes to be included in the CRC calculation. The byte-count indicates the number of bytes in the next group to be included in the CRC calculation. End-of pattern, which is a byte value of 00, indicates the end of the pattern for that wake frame. Immediately following the end-of-pattern is a 4-byte CRC. The CRC calculation uses the same polynomial as the Ethernet MAC FCS. The pseudo packet frame patterns are described in the Registers and Data Structures section.

An example pseudo-packet (based on the ARP packet example from Appendix A of the “OnNow Network Device Class Power Management Specification”) loaded into the TxFIFO of the ST201 is shown in Figure 6.

TXFIFO

0xc2 0x71 0xf4

psuedo

packet

Using the pseudo packet in Figure 6, the ST201 will assert a wake event if a packet of the form shown in Figure 7 is received whereby a 32-bit CRC over the indicated bytes of the received packet yields the value 0xf31908d7.

byte 12 byte 13

byte 21 0x15

byte 38 byte 39 byte 40 byte 41

0x10 0x00 0xf3 0x19 0x08 0xd7

FIGURE 6: Example Psuedo Packet

Received Packet

FIGURE 7: Example Wake Packet

Byte Offset Within Packet

0x0c

0x0d

0x26

0x27

0x28

0x29

The ST201 also supports Magic Packet ™ technology developed by Advanced Micro Devices to allow remote wake-up of a sleeping station on a

Sundance Technology ST201 PRELIMINARY draft 2

network via transmission of a special frame. Once the ST201 has been placed in Magic Packet mode and put to sleep, it scans all incoming frames addressed to it for a data sequence consisting of 16 consecutive repetitions of its own 48-bit Ethernet MAC StationAddress. This sequence can be located anywhere within the frame, but must be preceded by a synchronization stream. The synchronization stream is defined as 6 bytes of 0xFF. For example, if the MAC address programmed into the StationAddress register is 0x11:22:33:44:55:66, then the ST201 would be scanning for the frame data shown in Figure 8.

Received Packet

0xFFFFFFFFFFFF 0x112233445566 0x112233445566 0x112233445566 0x112233445566 0x112233445566 0x112233445566 0x112233445566 0x112233445566 0x112233445566 0x112233445566 0x112233445566 0x112233445566 0x112233445566 0x112233445566 0x112233445566 0x112233445566

FIGURE 8: Example Magic Packet

Magic Packet wake up is controlled by the MagicPktEnable bit in the WakeEvent register. A wake event can only take place in the D1, D2, or D3 states, and MagicPktEnable has no effect when the ST201 is in the D0 power state. The Magic Packet must also pass the address matching criteria set in ReceiveMode. A Magic Packet may also be a broadcast frame. When the ST201 detects a

Magic Packet, it signals a wake event on PMEN (if PMEN assertion is enabled), and sets the MagicPktEvent bit in WakeEvent.

The ST201 can also signal a wake event when it senses a change in the network link state, either from LINK_OK to LINK_FAIL, or vice versa. Link state wake is controlled by the LinkEventEnable bit in the WakeEvent register. At the time LinkEventEnable is set by the host system, the ST201 samples the current link state. It then waits for the link state to change. If the link state changes before the ST201 returns to state D0 or LinkEventEnable is cleared, LinkEvent is set in WakeEvent, and (if it is enabled) the PMEN signal is asserted.

HOST SYSTEM RELATED INFORMATION

PROGRAMMING THE MII MANAGEMENT INTERFACE

Register accesses across the MII Management Interface occur serially, and are controlled by manipulating the MgmtClk, MgmtData, and MgmtDir bits in the PhyCtrl register. The direction of the serial transmission is controlled by MgmtDir. MgmmtDir is set when writing bits to the PHY device, and cleared when reading bits from the PHY. Data bits are read from and written to MgmtData. MgmtClk supplies the synchronization clock for the interface.

Management frames are transmitted from the ST201 to the PHY device using one or more Read, Write, or Z cycles. The actions which must be taken by the host system to perform a Read, Write, or Z cycle are described below. Note, in the cycle descriptions below, time delays of 200ns can generally be assumed from back-to back I/O cycles on the PCI bus. The host system may also use an arbitrarily long timer to guarantee meeting minimum transition delays.

To perform a Read cycle, consisting of a single data bit read from the PHY device, the host system must follow the procedure below.

1. Clear MgmtClk

2. Wait a minimum of 200 ns

3. Set MgmtClk

4. Wait a minimum of 200 ns

5. Read the next data bit from MgmtData

6. Wait a minimum of 200 ns

To perform a Write cycle, consisting of a single data bit written to the PHY device, the host system should follow the procedure below.

1. Clear MgmtClk

2. Wait a minimum of 200 ns

Sundance Technology ST201 PRELIMINARY draft 2

3. Set MgmtClk

4. Write the desired data bit to MgmtData

5. Wait a minimum of 200 ns To perform a Z cycle used during the Turnaround

portion of a register read frame, the host system should follow the procedure below.

1. Clear MgmtClk

2. Wait a minimum of 200 ns

3. Set MgmtClk

4. Clear MgmtDir

5. Wait a minimum of 200 ns Using the read, write, and Z cycle procedures, a

Read management frame is executed as follows.

1. Set MgmtDir.

2. Execute 32 write cycles to transmit the 32 bit Preamble of 0xffffffff.

3. Execute 2 write cycles to transmit the 2 bit Start of Frame of 0x01.

4. Execute 2 write cycles to transmit the 2 bit Operation Code of 0x02.

5. Execute 5 write cycles to transmit the 5 bit PHY Address to identify the target PHY device for the Read frame.

6. Execute 5 write cycles to transmit the 5 bit Register Address to identify the register to be read within the PHY device.

7. Execute a Z cycle to prepare the interface to receive read data bits (first half of Read Turnaround).

8. Execute a single read cycle (second half of Read Turnaround). The bit read from the PHY will be a zero if the PHY intends to respond to the Read frame. A value of one indicates that no PHY device is responding, and the data to follow is invalid.

9. Execute 16 read cycles to read the data from the PHY register. Data bits are read starting with register bit 15 and ending with register bit

10. Execute a Z cycle to terminate the frame.

Using the read, write, and Z cycle procedures, a Write management frame is executed as follows.

1. Set MgmtDir.

2. Execute 32 write cycles to transmit the 32 bit Preamble of 0xffffffff.

3. Execute 2 write cycles to transmit the 2 bit Start of Frame of 0x01.

4. Execute 2 write cycles to transmit the 2 bit Operation Code of 0x01.

5. Execute 5 write cycles to transmit the 5 bit PHY Address to identify the target PHY device for the Write frame.

6. Execute 5 write cycles to transmit the 5 bit Register Address to identify the register to be

written within the PHY device.

7. Execute 2 write cycles to transmit the 2 bit Write Turnaround value of 0x02.

8. Execute 16 write cycles to write the data to the PHY register. Data bits are written starting with register bit 15 and ending with register bit 0.

9. Execute a Z cycle to terminate the frame.

EEPROM COMMANDS

The EepromCtrl register provides the host with a method for issuing commands to the ST201’s serial EEPROM controller. Individual 16-bit word locations within the EEPROM may be written, read or erased. Also, the EEPROM’s WriteEnable, WriteDisable, EraseAll and WriteAll commands can be issued.

Two-bit opcodes and 8-bit addresses are written to the EepromCtrl register to cause the ST201 to carry out the desired EEPROM command. If data is to be written to the EEPROM, the 16-bit data word must be written to EepromData by the host system prior to issuing the associated write command. Similarly, if data is to be read from the EEPROM, the read data will be available via EepromData register after issuing the associated read command.

A mechanism within the EEPROM interface automatically disables writes and erasures to prevent accidental data changes should power be interrupted. The ST201 disables writes and erasures after every write or erase type command has been executed. To write or erase a series of locations, the host must issue the WriteEnable command prior to every write or erase type command.

The serial EEPROM can only clear bits to zero during a write command and cannot set individual bits to ones. Therefore, an Erase or EraseAll command must be issued prior to attempting to write data to the EEPROM.

The EEPROM is a particularly slow device. It is important that the host wait until the EepromBusy bit is false before issuing a command to EepromCtrl.

The procedure for a typical write operation to the EEPROM is as follows:

1. Verify EepromBusy is false.

2. Issue the WriteEnable command (opcode = 00 11xx xxxx)

3. Verify EepromBusy is false.

4. Issue EraseRegister command (opcode = 11 aaaa aaaa)

5. Verify EepromBusy is false.

6. Write data pattern to EepromData.

7. Issue WriteEnable command (opcode = 00 11xx xxxx)

Sundance Technology ST201 PRELIMINARY draft 2

8. Verify EepromBusy is false.

9. Issue WriteRegister command (opcode = 01 aaaa aaaa)

Step 4 through 8 may be skipped for certain types of EEPROM devices.

ADAPTER TXDMA SEQUENCE

Beginning with the host system writing to the TxDMAListPtr register (when starting from an empty TxDMAList, for instance), the ST201 performs the following procedure during transfers of TxDMA frames.

1. Verifies the TxDMAListPtr is non-zero.

2. Verifies not in the TxDMAHalt state.

3. Fetches the second dword from the TFD pointed to by TxDMAListPtr and writes this value into the TxFIFO.

4. One by one, fetches the TxDMAFragAddr/TxDMAFragLen entries from the TFD, and moves the associated data fragments to the TxFIFO.

5. Sets the TxDMAComplete bit in the TFD.

6. If TxDMAHalt is in effect, waits until a TxDMAResume is issued.

7. If a transmit under run has occurred, waits until the host system sets the TxReset bit.

8. Re-fetches the TFC and, if the TxDMAIndicate bit is set, sets TxDMAComplete (which may in turn cause an interrupt if the IntEnable masks are set appropriately)

9. Fetches the TxDMANextPtr from the current TFD. If TxDMANextPtr is zero, the TxDMA Logic becomes idle. If polling is disabled (TxDMAPollPeriod is zero), the TxDMA Logic waits for a non-zero value to be written to TxDMAListPtr. If polling is enabled (TxDMAPollPeriod is non-zero), the old value in TxDMAListPtr is preserved, and the ST201 polls on TxDMANextPtr in the TFD until it fetches a non-zero value from it. If the value fetched from TxDMANextPtr is non-zero, then the value is loaded into TxDMAListPtr, advancing the ST201 to the new TFD.

10. With a new TFD to process, the ST201 returns to step 2.

ADDING TFD’S TO THE END OF THE TXDMALIST

The following sequence describes the process for adding TFD’s to the end of the TxDMAList when TxDMA polling is disabled (TxDMAPollPeriod is zero).

1. Set the TxDMAHalt bit.

2. Wait for the TxDMAHalt to complete by polling on TxDMAHalted bit.

3. Update TxDMANextPtr in the last TFD in the

TxDMAList with the address of the TFD being added.

4. Read TxDMAListPtr.

5. If TxDMAListPtr is zero, write the address of the new TFD to TxDMAListPtr.

6. Resume the TxDMA Logic by setting TxDMAResume bit. The TxDMA Logic will become idle when it fetches a zero TxDMANextPtr value from a TFD. One way to restart the TxDMA process is by writing a non-zero value to TxDMAListPtr.

When polling is enabled (TxDMAPollPeriod is nonzero), TFD’s can be added to the end of the TxDMAList with no register accesses by writing the address of the new TFD in the last TFD’s TxDMANextPtr field.

INSERTING A TFD AT THE HEAD OF THE TXDMALIST

TFD’s cannot be added before the active TFD in the TxDMAList, they can only be added after the active (unfinished) TFD. The following sequence describes the process for adding TFD’s to the head of the TxDMAList when TxDMA polling is disabled (TxDMAPollPeriod is zero).

1. Set TxDMAHalt bit.

2. Wait for the TxDMAHalt to complete by polling the TxDMAHalted bit. When halted, the TxDMAListPtr register will hold the address of the TFD which just completed transfer into the ST201 (the “last TFD in the TxDMAList”).

3. Find the last TFD in the TxDMAList, corresponding to the TFD at the address held in the TxDMAListPtr register. This will also be the last TFD in the TxDMAList with the TxDMAComplete bit set.

4. Copy the value in the “last TFD’s” TxDMANextPtr into the TxDMANextPtr field of the TFD to be inserted.

5. Update TxDMANextPtr field in the “last TFD” with the address of the inserted TFD.

6. Read TxDMAListPtr.

7. If TxDMAListPtr is zero, write the address of the inserted TFD to TxDMAListPtr.

8. Resume the TxDMA Logic by setting TxDMAResume.

When polling is enabled (TxDMAPollPeriod is nonzero), TFD’s can be inserted to the head of the TxDMAList with no register accesses as follows.

1. Find the first TFD in the list with TxDMAComplete bit cleared (the “first TFD”).

2. Set the “first TFD’s” TxDMANextPtr to zero.

3. Check the TxDMAComplete bit of “the first TFD”. If clear, proceed to the next step. If set, it’s too late to insert the new TFD at the loca-

Sundance Technology ST201 PRELIMINARY draft 2

tion of the “first TFD” in the TxDMAList. Restore the TxDMANextPtr of the “first TFD”, and restart this process.

4. Copy the value of the “first TFD’s” TxDMANextPtr into the TxDMANextPtr field of the inserted TFD.

5. Update the TxDMANextPtr field of the “first TFD” with the address of the inserted TFD.

TRANSMIT INTERRUPT OPTIMIZATIONS

The transmit mechanism can be optimized by the host system, allowing a reduction in the number of interrupts generated. The host system can limit the number of frames in the TxDMAList for which a TxDMAComplete interrupt is generated. For example, the host system could only set TxDMAIndicate for the frame on the tail of the list (clearing TxDMAIndicate for the current tail before adding a new frame to the list). Or it might require an interrupt every N frames. In any case, on each interrupt it would then dequeue all of the frames which were transferred via TxDMA before that interrupt occurred (TFDs in which TxDMAComplete is set). Obviously, the host system is responsible for the trade-off between latency and the number of interrupts generated by the ST201.

RXDMA SEQUENCE

The ST201 performs the following procedure during transfers of RxDMA frames.

1. Verifies the RxDMAListPtr register is non-zero.

2. Verifies not in the RxDMAHalt state.

3. Resets the RxDMAStatus register.

4. Fetches ReceiveFrameStatus from the current RFD. If the current RFD has the RxDMAComplete bit set, the ST201 performs an implicit RxDMAHalt, halting the RxDMA process. (If RxDMAPollPeriod contains a nonzero value, the ST201 will then poll on the RxDMAComplete bit, waiting for it to be cleared before continuing.) Otherwise, the RxDMA process continues.

5. Waits for the top receive frame to become eligible for RxDMA.

6. Transfers the frame via RxDMA into the fragments specified in the RFD, or into the implied buffer if ImpliedBufferEnable is set. If there is more data in the frame than space in the fragment buffers, the ST201 generates a RxDMAOverflow error.

7. As the frame is being transferred by the RxDMA process, the ST201 maintains the RxDMAStatus register, specifically the RxDMAFrameLen field.

8. At the end of the frame RxDMA process, the

ST201 updates the RxDMAStatus register with any error codes from the frame transfer and sets the RxDMAComplete bit.

9. Issues an internal RxDiscard and waits for completion.

10. If a RxDMAHalt has been asserted, waits until a RxDMAResume has been issued.

11. Fetches RxDMANextPtr from the RFD. If RxDMANextPtr is zero and polling is enabled, the ST201 begins a polling loop. If polling is disabled, the ST201 loads the fetched value into RxDMAListPtr.

12. Writes ReceiveFrameStatus to the RFD in host memory.

13. If a polling loop has begun, polls on RxDMANextPtr until a non-zero value is fetched. Loads the value into RxDMAListPtr.

14. If the RxDMAListPtr value is zero (polling is disabled), then the RxDMA Logic becomes idle, waiting for a non-zero value to be written into the RxDMAListPtr register.

15. Repeat process at step 1.

WAKE EVENT PROGRAMMING

This section describes the sequences involved in programming ST201 for wake events.

Powering down the ST201 will typically occur while in the operating state (D0). The host system is notified by the operating system that a power state change is imminent. The host system prepares for power down with these steps.

1. Halt the ST201 TxDMA process, halt the TxDMA Logic, wait for any TxDMA in progress to complete, wait for any transmissions to complete, and issue TxReset to reset the TxFIFO pointers.

2. Perform the RxDMA process for any receive frames remaining in RxFIFO, halt RxDMA Logic (frames will potentially keep filling the RxFIFO between now and when operating system powers down the system, and once the power down state is entered and Wakeup Packet scanning enabled, these frames in the RxFIFO will be scanned and could potentially wake the system immediately).

3. Clear IntEnable register so no interrupts occur before PowerState is changed.

4. Save any volatile state, such as a pending power state and the HashTable settings, to system memory (system memory is restored after a power down).

5. The host system transfers Wakeup Packet patterns to the TxFIFO (if Wakeup Packets are to be enabled) and programs the WakeEvent register to enable the desired wake events. The

Sundance Technology ST201 PRELIMINARY draft 2

host system then returns to the operating system an indication of readiness to be powered down (making sure to leave the ReceiveMode register set to receive the appropriate Wake/ Magic packets). The operating system eventually writes to the PowerMgmtCtrl register, placing the ST201 in one of the power down states, and enabling PMEN assertion, while the ST201 monitors for the occurrence of enabled wake events.

WAKE EVENT

When a desired wake event occurs, the ST201 sets the appropriate event bit in the WakeEvent register, sets the PmeStatus bit in the PowerMgmtCtrl register, and asserts the PMEN pin.

The host system responds to PMEN by scanning the power management configuration registers of all devices, looking for the device which asserted PMEN. If the device with the ST201 signaled wake, the system will find PmeStatus set in ST201’s PowerMgmtCtrl register. The operating system then clears the PmeEn bit in the PowerMgmtCtrl register causing PMEN to be de-asserted.

The operating system raises the power state (probably to D0) by writing to the PowerState bits in the PowerMgmtCtrl register. If the ST201 was previously in the D3 state, PCI configuration is lost and must be restored by the operating system.

The host system must set TxReset to clear any wake patterns out of the TxFIFO (if this is not done, the patterns will be treated as frames and transmitted once the transmitter is enabled).

The host system reads the WakeEvent register to determine the wake event, and if requested, passes it back to the operating system. The host system restores any volatile state that was saved in the power down sequence. The host system reenables interrupts by programming IntEnable. The host system restores the RxDMAList (and any other data structures required for operation). Any wake packets in the RxFIFO are transferred by RxDMA and passed to the operating system.

Sundance Technology ST201 PRELIMINARY draft 2 REGISTERS AND DATA STRUCTURES

DMA DATA STRUCTURES

A TFD is used to move data, which is to be transmitted onto a LAN, from host system memory to the TxFIFO within the ST201. A TFD is 16 to 512 bytes in length, and it’s location in host system memory is indicated by the value in the TxDMAListPtr register.

A RFD is used to move data, which has been received from a LAN, from the RxFIFO within the ST201 to host system memory. A RFD is 16 to 512 bytes in length, and it’s location in host system memory is indicated by the value in the RxDMAListPtr register.

Figure 9 shows the two DMA data structures.

HOST SYSTEM MEMORY

Next TFD Ptr. TxFrameControl 1st TxDMAFragAddr 1st TxDMAFragLen 2nd TxDMAFragAddr

TFD

2nd TxDMAFragLen

nth TxDMAFragAddr nth TxDMAFragLen

HOST SYSTEM MEMORY

Offset from TFD Start

0x00 0x04 0x08 0x0c 0x10 0x14

0x00+n·8 0x04+n·8

FIGURE 9: TFD and RFD DMA Data Structures

Next RFD Ptr. RxFrameStatus 1st RxDMAFragAddr 1st RxDMAFragLen 2nd RxDMAFragAddr

RFD

2nd RxDMAFragLen

nth RxDMAFragAddr nth RxDMAFragLen

Offset from RFD Start

0x00 0x04 0x08 0x0c 0x10 0x14

0x00+n·8 0x04+n·8

Sundance Technology ST201 PRELIMINARY draft 2

TXDMAFRAGADDR

Class.................... DMA Data Structures, TFD

Base Address ...... Start of TFD

Address Offset.....0x00+n·8 for nth fragment

Access Mode.......Read/Write

Width ...................32 bits

BIT BIT NAME BIT DESCRIPTION

31..0 TxDMAFragAddr Transmit Fragment Address contains the physical address of a contiguous block of data to be transferred by TxDMA into the ST201 and transmitted. A fragment can start on any byte boundary.

Sundance Technology ST201 PRELIMINARY draft 2

TXDMAFRAGLEN

Class.................... DMA Data Structures, TFD

Base Address ...... Start of TFD

Address Offset..... 0x04+n·8 for nth fragment

Access Mode.......Read/Write

Width ...................32 bits

Transmit Fragment Length (TxDMAFragLen) contains fragment length and control information for the block of data pointed to by the corresponding TxDMAFragAddr.

BIT BIT NAME BIT DESCRIPTION

12..0 FragLen The length of the contiguous block of data pointed to by the TxDMAFragAddr. The maximum fragment length is 8192 bytes.

30..13 Reserved Reserved for future use. Should be set to 0.

31 TxDMAFragLast Set by the host system to indicate the last fragment of the transmit

frame and that the ST201 should proceed to the next TFD.

Sundance Technology ST201 PRELIMINARY draft 2

TXDMANEXTPTR

Class.................... DMA Data Structures, TFD

Base Address ...... Start of TFD

Address Offset.....0x00

Access Mode.......Read/Write

Width ...................32 bits

BIT BIT NAME BIT DESCRIPTION

31..0 TxDMANextPtr Transmit Next Pointer, the first double word in the TFD contains the physical address of the next TFD in the TxDMAList. The value of zero accompanies the last frame of the list and it indicates there are no more TFD’s in the TxDMAList. All TFD’s must be aligned on 8-byte physical address boundaries, requiring Bits [2..0] of TxDMANextPtr to be zero.

Sundance Technology ST201 PRELIMINARY draft 2

TXFRAMECONTROL

Class.................... DMA Data Structures, TFD

Base Address ...... Start of TFD

Address Offset.....0x04

Access Mode.......Read/Write

Width ...................32 bits

TxFrameControl contains frame control information for the TxDMA function and the transmit function.

BIT BIT NAME BIT DESCRIPTION

1..0 WordAlign These bits determine the boundary to which transmit frame lengths are rounded up in the TxFIFO, and transmitted onto the network medium. 00: Align to dword 10: Align to word X1: Align disabled

9..2 FrameId This field can be used as a frame ID or sequence number. This value is saved with the frame in the TxFIFO, and made visible in the TxFrameId register while the frame is being transmitted. When a transmit error occurs, the driver checks TxFrameId to determine which frame experienced the error.

12..10 Reserved Reserved for future use. Should be set to 0.

13 FcsAppendDisable The host system sets this bit to prevent the ST201 from appending the

4-byte FCS to the end of the current frame. In this case, the host system must supply the frame’s FCS as part of the data transferred by TxDMA to the TxFIFO. An exception exists when a transmit under run occurs; in this case a guaranteed-bad FCS will be appended to the frame by the ST201. When FcsAppendDisable is cleared, the ST201 will compute and append FCS to this transmit frame.

14 Reserved Reserved for future use. Should be set to 0. 15 TxIndicate The host system sets this bit to request a TxComplete interrupt upon

completion of MAC transmission of this frame. If TxComplete is cleared, no interrupt of transmit completion will be given by the ST201, unless a transmit error occurs.

16 TxDMAComplete Indicates that the frame transfer by TxDMA is complete. The ST201

sets this bit after it has finished transferring v ia the TxDMA process all of the fragments specified in the TFD.

30..17 Reserved Reserved for future use. Should be set to 0.

31 TxDMAIndicate Set if the host system desires a TxDMAComplete interrupt upon com-

pletion of TxDMA of this frame. The TFC is read twice by the ST201; the first time to write the TFC to the TxFIFO before frame data transfer, and again after the TxDMA operation is complete to test TxDMAIndicate in order to determine whether to generate an interrupt. This allows the host system time to change TxDMAIndicate while the transfer by TxDMA is in progress.

Sundance Technology ST201 PRELIMINARY draft 2

RXDMANEXTPTR

Class.................... DMA Data Structures, RFD

Base Address ...... Start of RFD

Address Offset.....0x00

Access Mode.......Read/Write

Width ...................32 bits

BIT BIT NAME BIT DESCRIPTION

31..0 RxDMANextPtr The first dword in the RFD contains the physical address of the next RFD in the RxDMAList. If this is the last RFD in the RxDMAList, then this value must be zero. RFDs must be aligned on 8-byte physical address boundaries.

Sundance Technology ST201 PRELIMINARY draft 2

RXFRAMESTATUS

Class.................... DMA Data Structures, RFD

Base Address ...... Start of RFD

Address Offset.....0x04

Access Mode.......Read/Write

Width ...................32 bits

The second dword in the RFD is ReceiveFrameStatus. At the end of a RxDMA frame transfer, the ST201 writes the value of the RxDMAStatus register into this location in the RFD. The bit definitions for TxFrameStatus for bits[31..29] and [27..0] are identical to the corresponding bits of the I/O Register RxDM-

AStatus. Only bit[28] differs between the RFD field RxFrameStatus and the register RxDMAStatus.

BIT BIT NAME BIT DESCRIPTION

12..0 RxDMAFrameLen During frame RxDMA, RxDMAFrameLen gives a real-time indication of the number of bytes transferred by RxDMA for the frame. RxDMAFrameLen is cleared when the ST201 fetches a new RxDMAListPtr, and counts up in steps no larger than a bus master burst. When the frame has been completely transferred by RxDMA, RxDMAFrameLen indicates the true frame length, except in the case where the frame is larger than the number of bytes specified in the RxDMA fragments. In this case, the RxDMAOverflow bit will be set.

13 Reserved Reserved for future use. Should be set to 0. 14 RxFrameError Indicates that an error occurred in the receipt of the frame. The driver

should examine bits 16 through 20 to determine the type of error(s). This bit is undefined until RxDMAComplete bit is set.

15 RxDMAComplete Indicates that the frame transfer by RxDMA is complete. Unless a

RxDMA halt is in effect this bit would normally only remain set momentarily (too short for the software to read it) since the hardware will then fetch the next RFD.

16 RxFIFOOverrun Indicates that the hardware was unable to remove data from the

RxFIFO quickly enough (most likely because the software failed to free a RFD quickly enough, or kept the ST201 in the RxDMAHalt state for too long). Bytes will be missing from the frame at one or more locations in the frame (unpredictable). This bit is undefined until RxDMAComplete bit is set.

17 RxRuntFrame Indicates that the frame was a runt (less than 60 bytes). Normally such

frames are not transferred by RxDMA unless RxEarlyThresh is set to a value less than the actual size of the runt frame, and the RxEarlyEnable of MacCtrl register must be set. This bit is undefined until RxDMAComplete bit is set.

18 RxAlignmentError Indicates that the frame had an alignment error (bad FCS and dribble

bits). This bit is undefined until RxDMAComplete bit is set.

19 RxFCSError Indicates a FCS checksum error on the frame data. This bit is unde-

20 RxOversizedFrame Indicates the frame size was equal to or greater than the value set in

fined until RxDMAComplete bit is set.

the MaxFrameSize register. This bit is undefined until RxDMAComplete bit is set.

Sundance Technology ST201 PRELIMINARY draft 2

BIT BIT NAME BIT DESCRIPTION

22..21 Reserved Reserved for future use. Should be set to 0.

23 DribbleBits Indicates that the frame had accompanying dribble bits. This bit is

informational only, and does not indicate a frame error.

24 RxDMAOverflow Indicates that the RFD had insufficient buffer space for the frame data

and there were still data left to be transferred by RxDMA when the ST201 ran out of fragment space. The ST201 will transfer what it can into the buffers provided, discard the remainder of the frame and set this bit.

27..25 Reserved Reserved for future use. Should be set to 0.

28 ImpliedBufferEn-

able

31..29 Reserved Reserved for future use. Should be set to 0.

This bit enables a special RxDMA mode. Setting this bit instructs the ST201 not to fetch any RxDMAFragAddr/RxDMAFragLen entries from this RFD. Instead, the ST201 assumes there is one receive buffer of length 1528 bytes, starting immediately after ReceiveFrameStatus at (RFD address + 8).

The host system sets this bit when it prepares the RFD. The ST201 tests this bit before RxDMA a frame, at the same time it tests the RxDMAComplete bit. When the ST201 updates ReceiveFrameStatus at the end of the RxDMA operation (in order to set RxDMAComplete), the value written to ImpliedBufferEnable is undefined. A driver cannot assume a certain value is left in this bit after the RFD is used. Therefore, the driver must write the desired value to this bit every time it releases a RFD to the ST201. This mode of operation reduces the number of information fetches by the ST201, and is intended for server applications in which frames are received into a ring of maximum frame sized buffers.

Sundance Technology ST201 PRELIMINARY draft 2

RXDMAFRAGADDR

Class.................... DMA Data Structures, RFD

Base Address ...... Start of RFD

Address Offset.....0x00+n·8 for nth fragment

Access Mode.......Read/Write

Width ...................32 bits

BIT BIT NAME BIT DESCRIPTION

31..0 RxDMAFragAddr The third and all subsequent odd dwords in the RFD contains the physical address of a contiguous block of system memory to which receive data is to be transferred by RxDMA. A fragment can start on any byte boundary.

Sundance Technology ST201 PRELIMINARY draft 2

RXDMAFRAGLEN

Class.................... DMA Data Structures, RFD

Base Address ...... Start of RFD

Address Offset.....0x04+n·8 for nth fragment

Access Mode.......Read/Write

Width ...................32 bits

The fourth and all subsequent even dwords in the RFD contains fragment length and control information for the block of data pointed to by the previous RxDMAFragAddr.

BIT BIT NAME BIT DESCRIPTION

12..0 FragLen The length of the contiguous block of data pointed to by the previous RxDMAFragAddr.

30..13 Reserved Reserved for future use. Should be set to 0.

31 RxDMALastFrag Set by the host system to indicate the last fragment of the receive

frame.

Sundance Technology ST201 PRELIMINARY draft 2

WAKE EVENT DATA STRUCTURES

The first Wake Event Data Structure is the Pseudo Packet. A Pseudo Packet is a set of patterns loaded into the ST201 TxFIFO which specify bytes to be examined within received frames. A CRC is calculated over these bytes and compared with a CRC value supplied in the Pseudo P acket. If a match is found, the ST201 issues a Wake Event. The matching technique may result in false wake events being reported to the host system. Each Pseudo Packet consists of one or more byte-offset/byte-count pairs (or Pseudo Patterns), a terminator symbol, and a 4-byte CRC value. The byte offsets within the Pseudo Patterns indicate the number of received frame bytes to be skipped in order to reach the next group of bytes to be included in the CRC calculation. The byte-counts within the Pseudo Patterns indicate the number of bytes in the next group to be included in the CRC calculation. The terminator indicates the end of the Pseudo Patterns for the Pseudo Packet. Immediately following the terminator is a 4-byte CRC. If there is another Pseudo Packet, it will immediately follow the CRC value.

The second Wake Event Data Structure is the Magic Packet. Magic Packets are uniquely formatted frames, which upon reception invoke a Wake Event by the ST201. Once the ST201 has been placed in Magic Packet mode and put to sleep, it scans all incoming frames addressed to it for a data sequence consisting of a synchronization stream followed immediately by 16 consecutive repetitions of the station’s own 48-bit Ethernet MAC station address. The sequence can be located anywhere within the received frame.

The pseudo packet and Magic Packet data structures are shown in Figure 10.

ST201 TXFIFO

Received Packet

psuedo

packet

PsuedoPattern 1

Terminator

PsuedoCRC

0x00 0x01PsuedoPattern 2

0x00+n-1PsuedoPattern n 0x00+n 0x00+n+1

Magic

Packet™

Ethernet Header

MagicSyncStream

MagicSequence

0x00

0x06

FIGURE 10: Wake Event Data Structures, Pseudo Packet and Magic Packet

Ethernet CRC

Sundance Technology ST201 PRELIMINARY draft 2

PSEUDOPATTERN

Class.................... Wake Event Data Structures, Pseudo Packet

Base Address ...... Start of Pseudo Packet

Address Offset.....0x00 thru 0x00+n-1 for nth PseudoPattern

Access Mode.......Write only

Width ...................8 bits

BIT BIT NAME BIT DESCRIPTION

3..0 ByteCount ByteCount can take on a value of 0x0 to 0xe. A value of 0xf indicates an extended value. The extended value will occupy 8 bits and is contained in the next PseudoPattern. If both the ByteOffset and the ByteCount values are 0xf, the next PseudoPattern will be the extended ByteOffset, and the PseudoPattern after that will be the extended ByteCount.

7..4 ByteOffset ByteOffset can take on a value of 0x0 to 0xe. A value of 0xf indicates an extended value. The extended value will occupy 8 bits and is contained in the next PseudoPattern. If both the ByteOffset and the ByteCount values are 0xf, the next PseudoPattern will be the extended ByteOffset, and the PseudoPattern after that will be the extended ByteCount.

Sundance Technology ST201 PRELIMINARY draft 2

TERMINATOR

Class.................... Wake Event Data Structures, Pseudo Packet

Base Address ...... Start of Pseudo Packet

Address Offset.....0x00+n for n PseudoPattern

Access Mode.......Write only

Width ...................8 bits

BIT BIT NAME BIT DESCRIPTION

7..0 Terminator A value of 0x00 indicates the end of the PseudoPattern.

Sundance Technology ST201 PRELIMINARY draft 2

PSEUDOCRC

Class.................... Wake Event Data Structures, Pseudo Packet

Base Address ...... Start of Pseudo Packet

Address Offset.....0x00+n+1 for n PseudoPatterns

Access Mode.......Write only

Width ...................32 bits

The 32-bit CRC as defined in the IEEE 802.3 Ethernet standard for the FCS, taken over the bytes (indicated by the PseudoPattern values) of a received frame.

BIT BIT NAME BIT DESCRIPTION

7..0 PsuedoCRCbyte0 The least significant byte of the PseudoCRC.

15..8 PsuedoCRCbyte1 The second lest significant byte of the PseudoCRC.

23..16 PsuedoCRCbyte2 The second most significant byte of the PseudoCRC.

31..24 PsuedoCRCbyte3 The most significant byte of the PseudoCRC.

Sundance Technology ST201 PRELIMINARY draft 2

MAGICSYNCSTREAM

Class.................... Wake Event Data Structures, Magic Packet

Base Address ...... Start of Magic Packet

Address Offset.....0x00

Access Mode.......Read only

Width ...................48 bits

BIT BIT NAME BIT DESCRIPTION

47..0 MagicSyncStream A stream of 6 bytes with the value 0xff indicates the start of the MagicSequence.

Sundance Technology ST201 PRELIMINARY draft 2

MAGICSEQUENCE

Class.................... Wake Event Data Structures, Magic Packet

Base Address ...... Start of Magic Packet

Address Offset.....0x06

Access Mode.......Read only

Width ...................768 bits

BIT BIT NAME BIT DESCRIPTION

767..0 MagicSequence A sequence of 96 bytes, consisting of 16 consecutive, identical 6 bytes sequences, where each 6 byte sequence equals the station address of the station receiving the Magic Packet.

Sundance Technology ST201 PRELIMINARY draft 2

I/O REGISTERS

The host interacts with the ST201 mainly through slave registers, which occupy 128 bytes in the host system’s I/O space, memory space, or both. Generally, registers are referred to as “I/O registers”, implying that the registers may in fact be mapped and accessed by the host system i n memory space. I/O registers must be accessed with instructions that are no larger than the bit-width of that register. For instance, even though the FramesWithExcessiveDeferral, FramesLostRxErrors, and FramesWithDeferredXmission registers all appear in the same double word at offset 78, it is not legal to read all three registers with a single 32-bit I/O read instruction.

The ST201 I/0 register layout is show in Figure 11.

Sundance Technology ST201 PRELIMINARY draft 2

byte 3 byte 2 byte 1 byte 0 Offset

McstFramesRcvdOk McstFramesXmtdOk BcstFramesRcvdOk BcstFramesXmtdOk 0x7c

FramesAbortXSColls FramesWEXDeferral FramesLostRxErrors FramesWDeferedXmt 0x78

SingleColFrames MultipleColFrames LateCollisions CarrierSenseErrors 0x74

FramesReceivedOk FramesTransmittedOk 0x70

OctetsTransmittedOk(1) OctetsTransmittedOk(0) 0x6c

OctetsReceivedOk(1) OctetsReceivedOk(0) 0x68

HashTable(3) HashTable(2) 0x64 HashTable(1) HashTable(0) 0x60

PhyCtrl TxReleaseThresh ReceiveMode 0x5c

MaxFrameSize StationAddress(2) 0x58

StationAddress(1) StationAddress(0) 0x54

MACCtrl(1) MACCtrl(0) 0x50

IntStatus IntEnable 0x4c

IntStatusAck Countdown 0x48

TxFrameId TxStatus WakeEvent ExpRomData 0x44

ExpRomAddr 0x40

RxEarlyThresh TxSrartThresh 0x3c

FIFOCtrl 0x38

EepromCtrl EepromData 0x34

AsicCtrl 0x30

0x2c 0x28 0x24 0x20

0x1c

DebugCtrl 0x18

RxDMAPollPeriod RxDMAUrgentThresh RxDMABurstThresh 0x14

RxDMAListPtr 0x10 RxDMAStatus 0x0c

TxDMAPollPeriod TxDMAUrgentThresh TxDMABurstThresh 0x08

TxDMAListPtr 0x04

DMACtrl 0x00

FIGURE 11: ST201 I/O Register Layout

Sundance Technology ST201 PRELIMINARY draft 2

ASICCTRL

Class.................... I/O Registers, Control and Status

Base Address ...... IoBaseAddress register value

Address Offset.....0x30

Access Mode.......Read/Write

Width ...................32 bits

AsicCtrl provides chip-specific, non-host-related settings. The contents of the least significant byte of AsicCtrl are read from EEPROM at reset.

BIT BIT NAME BIT DESCRIPTION

0 Reserved Reserved for future use. Should be set to 0. 1 ExpRomSize Specifies the size of the Expansion ROM installed on the adapter, as

follows: 0 = 32 kB (default after reset) 1 = 64 kB

2 TxLargeEnable This read/write bit, when set, enables transmission of frames that are

larger than the TxFIFO. Since ST201’s TxFIFO size is 2KB, this bit can be left clear (the reset default).

3 RxLargeEnable This read/write bit, when set, enables reception of frames that are

larger than the RxFIFO. Since ST201’s RxFIFO size is 2KB, this bit can be left clear (the reset default).

4 ExpRomDisable This bit, when set, disables accesses to the on-adapter Expansion

ROM. This bit is included to allow bypassing the Expansion ROM without having to physically remove it from the board. When this bit is set, the ST201 responds to any read in its configured Expansion ROM space by returning 00000000h, and it ignores writes to the Expansion ROM. This bit resets to 0.

5 PhySpeed10 This read-only bit, when set, indicates the 10Mb/s operation is avail-

able from the PHY on the adapter. “0” indicates the PHY is not 10Mb/s capable.

6 PhySpeed100 This read-only bit, when set, indicates the 100Mb/s operation is avail-

able from the PHY on the adapter. “0” indicates the PHY is not 100Mb/ s capable.

7 PhyMedia This read-only bit indicates the media type that is available on the

adapter. “0” indicates twisted-pair media, and “1” indicates fiber media. The combination of PhyMedia, PhySpeed100, and PhySpeed10 will determine the capability of the adapter. For example, [7,6,5] = 000: undefined 001: 10BASE-T PHY 010: 100BASE-T PHY 011: 10BASE-T and 100BASE-T dual-speed PHY 100: undefined 101: 10BASE-F PHY 110: 100BASE-F PHY 111: 10BASE-F and 100BASE-F dual-speed PHY

Sundance Technology ST201 PRELIMINARY draft 2

BIT BIT NAME BIT DESCRIPTION

10..8 ForcedConfig These bits are used to place the ST201 into Forced Configuration mode. The bit values are latched in from ED[2..0] pins with a logic inversion at the end of RSTN or power on reset. 000: no forced configuration 001: forced configuration mode 1 010-111: reserved Note: When ForcedConfig[10] is set, the ST201 will use an alternate DeviceID and VendorID.

11 D3ResetDisable This read/write bit, when set, indicates that the ST201 is configured for

operation in an AMD-style (pre-ACPI) Wake-On-LAN environment. Specifically, when the ST201 is in the D3 power state, assertion of PCI RSTN will not reset the ST201. It is cleared upon reset.

12 Reserved Reserved for future use. Should be set to 0. 13 SpeedupMode This read/write bit is used for simulation only. When set, it indicates a

speed-up mode to decrease simulation time. The bit value is latched in from ED5 pin with a logic inversion at the end of RSTN or power on reset.

14 LEDMode This bit is used to control the LED outputs. When cleared (default after

reset), the LED outputs are in mode 0; when set, the LED outputs are in mode 1. LEDPWRN: Mode 0: steady ON when power is applied, flashing when frames are being transmitted. Mode 1: ON all the time. LEDLNKN: Mode 0: steady ON when link is up, and flashing when frames are being received. Mode 1: steady ON when link is up, and flashing when frames are being transmitted or received. LEDDPLXN: Mode 0/1: steady ON when PHY is in full duplex mode, and flashing when collisions are being detected. LEDSPDN: Mode 0/1: steady ON when link speed is 100mb/s, and OFF when link speed is 10Mb/s.

15 RstOutPolarity When set, RSTOUT is asserted high. When cleared, RSTOUT is

asserted low.

16 GlobalReset This is a self-clearing global reset bit for the entire ST201. This bit con-

trols reset to various logic blocks depending on the values of the selection bits [24..19]. The ST201 should be re-initialized after a GlobalReset. The registers in the PCI configuration space are not reset by the GlobalReset; they are handled by the Power On Reset Test routine executed by the host.

17 RxReset When set, will reset receive logic throughout the ST201, including net-

work interface receive logic, RxFIFO control logic, and RxDMA Logic if the corresponding selection bits [21..19] are set. This bit is self-clearing. The RxReset should not be used after initialization except to recover from receive errors such as a RxFIFO under run.

18 TxReset When set, will reset transmit logic throughout the ST201, including net-

work interface transmit logic, TxFIFO control logic, and TxDMA Logic, if the corresponding selection bits [21..19] are set. This bit is self-clearing. The TxReset is required after a transmit under run error.

Sundance Technology ST201 PRELIMINARY draft 2

BIT BIT NAME BIT DESCRIPTION

19 DMA When set, together with GlobalReset, RxReset, or TxReset bits, will

reset RxDMA and TxDMA Logic, including: TxDMAListPtr, RxDMAListPtr, TxDMAComplete TxDMAInProg RxDMAComplete and RxEarlyEnable in DMACtrl and RxDMAStatus. When cleared, reset will not have action on the DMA Logic. This bit is self-clearing. Setting this bit has no meaning if the corresponding reset bits are not set.

20 FIFO When set, together with GlobalReset, RxReset, or TxReset bits, will

reset FIFO control logic, including TxStartThresh, TxReleaseThresh, and RxEarlyThresh. When cleared, reset will not have action on the DMA Logic. This bit is self-clearing. Setting this bit has no meaning if the corresponding reset bits are not set.

21 Network When set, together with GlobalReset, RxReset, or TxReset bits, will

reset network interface logic, including CSMA/CD MAC core, ReceiveMode, TxStatus, and the statistics registers. When cleared, reset will not have action on the network logic. This bit is self-clearing. Setting this bit has no meaning if the corresponding reset bits are not set.

22 Host When set, together with GlobalReset bit, will reset host bus interface

logic, including IntStatus, IntEnable, and Countdown. When cleared, reset will not have action on the host bus interface logic. This bit is selfclearing. Setting this bit has no meaning if the corresponding GlobalReset bit is not set.

23 AutoInit When set, together with GlobalReset bit, will reset auto-initialize state

machine logic and EEPROM data is reloaded. This bit is self-clearing. Setting this bit has no meaning if the corresponding GlobalReset bit is not set.

24 RstOut When set, together with GlobalReset bit, will assert RSTOUT accord-

ing to RstOutPolarity. When cleared, reset will not cause any action on RSTOUT. This bit is self-clearing. Setting this bit has no meaning if the corresponding GlobalReset bit is not set.

25 InterruptRequest When set, the ST201 will assert IntRequested bit in the IntStatus regis-

ter. This bit is self-clearing.

26 ResetBusy When set, this bit indicates the reset is in progress. As the adapter’s

serial EEPROM may need to be read as part of the reset process, this operation can take as long as 1 ms to complete. The ResetBusy bit must be polled to be assured that the reset operation has completed.

31..27 Reserved Reserved for future use. Should be set to 0.

Sundance Technology ST201 PRELIMINARY draft 2

DEBUGCTRL

Class.................... I/O Registers, Control and Status

Base Address ...... IoBaseAddress register value

Address Offset.....0x1a

Access Mode.......Read/Write

Width ...................16 bits

DebugCtrl selects the functions of the GPIO pins. DebugCtrl is cleared by reset.

BIT BIT NAME BIT DESCRIPTION

0 GPIO0Ctrl This bit controls the GPIO0 pin. When cleared, GPIO0 pin is an input.

When set, GPIO0 pin is an output. This bit is cleared on reset.

1 GPIO1Ctrl This bit controls the GPIO1 pins. When cleared, GPIO1 pin is an input.

When set, GPIO1 pin is an output. This bit is cleared on reset.

2 GPIO0 When read, this bit shows the status values of the GPIO0 pin. When

written into, this bit will drive the GPIO0 pin if GPIO0Ctrl is set, and GPIO0 pin functions as an output.

3 GPIO1 When read, this bit shows the status values of the GPIO1 pin. When

written into, this bit will drive the GPIO1 pin if GPIO1Ctrl is set, and GPIO1 pin functions as an output.

15..4 Reserved Reserved for future use. Should be set to 0.

Sundance Technology ST201 PRELIMINARY draft 2

HASHTABLE

Class.................... I/O Registers, Control and Status

Base Address ...... IoBaseAddress register value

Address Offset.....0x66, 0x64, 0x62, 0x60

Access Mode.......Read/Write

Width ...................64 bits (accessible as 4, 16 bit words)

The host stores the 64-bit hash table in this register for selectively receiving multicast frames. Setting the ReceiveMulticastHash bit in ReceiveMode enables the filtering mechanism. The hash table is cleared upon reset, and must be properly programmed by the host.

BIT BIT NAME BIT DESCRIPTION

15..0 HashTableWord0 The least significant word of the hash table, corresponding to address 0x60.

31..16 HashTableWord1 The second least significant word of the hash table, corresponding to address 0x62.

47..32 HashTableWord2 The second most significant word of the hash table, corresponding to address 0x64.

63..48 HashTableWord3 The most significant word of the hash table, corresponding to address 0x66.

The ST201 applies a cyclic-redundancy-check (the same CRC used to calculate the frame data FCS) to the destination address all incoming multicast frames (with multicast bit set). The low-order 6 bits of the CRC result are used as an addressing index into the hash table. The MSB of HashTable(3) is the most significant, and the LSB of HashTable(0) is the least significant bit, addressed by the 6-bit index. If the HashTable bit addressed by the index is set, the frame is accepted by the ST201 and transferred to higher layers. If the addressed hash table bit is cleared, the frame is discarded.

Sundance Technology ST201 PRELIMINARY draft 2

MACCTRL

Class.................... I/O Registers, Control and Status

Base Address ...... IoBaseAddress register value

Address Offset.....0x50

Access Mode.......Read/Write

Width ...................32 bits

This register provides for setting of MAC-specific parameters. It is cleared upon reset.

BIT BIT NAME BIT DESCRIPTION

1..0 IFSSelect This field is used to select the size of Inter-Frame Spacing (IFS). By programming a larger number of bit times for the IFS, the ST201 will become less “aggressive” on the network and may defer more than normal. The performance of the ST201 may decrease as the IFS value is increased from the standard value. This, however, will prevent the ST201 from “capturing” the network.

00: no IFS extension, IFS = 96 BT (802.3 standard value). 01: IFS extended by 32 BT, IFS = 128 BT. 10: IFS extended by 128 BT, IFS = 224 BT. 11: IFS extended by 448 BT, IFS = 544 BT.

4..2 Reserved Reserved for future use. Should be set to 0.

5 FullDuplexEnable Setting this bit configures the ST201 to function in a full duplex man-

ner. Specifically, it disables transmitter deference to receive traffic, allowing simultaneous receive and transmit traffic. It has the side-effect of disabling CarrierSenseErrors statistics collection, since full duplex operation requires carrier sense to be masked to the transmitter. TxReset and RxReset bits in AsicCtrl must be set after changing the value of this bit.

6 RcvLargeFrames This bit determines the frame size at which the OversizedFrame error

is generated for receive frames. When RcvLargeFrames is cleared, minimum OversizedFrame size is 1514 bytes. When RcvLargeFrames is set, minimum OversizedFrame size is 4491 bytes. (This value was the maximum FDDI frame size of 4500 bytes, subtracting bytes for fields that have no Ethernet equivalent.)

The frame size at which an OversizedFrame error will be flagged includes the destination and source addresses, the type/length field, and the FCS field.

7 Reserved Reserved for future use. Should be set to 0. 8 FlowControlEnable Flow control enable. When it is cleared (default), the ST201 treats all

incoming frames as data frames. When it is set, Flow control is enabled and the ST201 will act upon incoming flow control PAUSE frame. Note that FlowControlEnable should not be set unless FullDuplexEnable is also set.

Sundance Technology ST201 PRELIMINARY draft 2

BIT BIT NAME BIT DESCRIPTION

9 RcvFCS This bit is set by the host if it is desired for the receive frame’s FCS to

be passed to the host as part of the data in the RxFIFO. The state of RcvFCS does not affect the ST201’s checking of the frame’s FCS and its posting of FCS error status. RcvFCS is cleared by a system reset. To avoid confusing the RxFIFO logic, the value of RcvFCS should only be changed when the receiver is disabled and the RxFIFO is empty.

10 FIFOLoopback Setting this bit forces data loopback from the TxFIFO directly into the

RxFIFO. When using FIFO Loopback mode, it is the software’s responsibility to ensure that the proper interframe gap is inserted between frames, to avoid losing data in the receive path. To do this, the software must not load more than one transmit frame into the TxFIFO at a time. TxReset and RxReset bits in AsicCtrl must be set after changing the value of this bit.

11 MACLoopback Setting this bit will cause the ST201 to loop back transmissions at the

output of the media access controller. TxReset and RxReset bits in AsicCtrl must be set after changing the value of this bit.

15..12 Reserved Reserved for future use. Should be set to 0.

16 CollisionDetect This read-only bit provides a real-time indication of the state of the

COL signal within ST201.

17 CarrierSense This read-only bit provides a real-time indication of the state of the

CRS signal within ST201.

18 TxInProg A real-time indication that a frame is being transmitted. This bit is used

by drivers during under run recovery to delay issuing a TxReset.

19 TxError If a TxUnderrun occurs, this bit is set, indicating that the transmitter

needs to be reset with the TxReset.

20 Reserved Reserved for future use. Should be set to 0. 21 StatisticsEnable When set, ST201 will collect statistics with the various statistics

counters and registers. This bit is self-clearing.

22 StatisticsDisable When set, ST201 will stop collection of statistics with the statistics reg-

isters. The values in the statistics registers will remain unchanged. This bit is self-clearing.

23 StatisticsEnabled This read-only status bit is set by ST201 to indicate that statistics col-

lection is enabled.

24 TxEnable When set, the transmitter logic is enabled. This bit is self-clearing. 25 TxDisable When set, the transmitter logic is disabled. This bit is self-clearing. 26 TxEnabled This read-only status bit is set by ST201 to indicate that transmitter is

27 RxEnable When set, the receiver logic is enabled. This bit is self-clearing. 28 RxDisable When set, the receiver logic is disabled. This bit is self-clearing. 29 RxEnabled This read-only status bit is set by ST201 to indicate that receiver is

enabled.

Sundance Technology ST201 PRELIMINARY draft 2

BIT BIT NAME BIT DESCRIPTION

30 Paused This read-only status bit is set by ST201 to indicate that a PAUSE MAC

Control frame had been received and halted the transmit MAC for the duration of the pause_time. It is cleared when the MAC can resume transmission.

31 Reserved Reserved for future use. Should be set to 0.

The loopback modes available to a host system when using the ST201 are shown in Table 3.

Loopback Mode FIFOLoopback MACLoopback FullDuplexEnable FIFO Loopback 1 0 x MAC Loopback 0 1 x External Loopback (MII) or

True “On-wire” External

TABLE 3: ST201 Loopback Modes

External loopback type is controlled by the Mll PHY device. The host system must enable a loopback mode within MII PHY device using the MII Management Interface. For the true “on-the-wire” loopback mode, use a loopback plug (connector), clear all of the loopback bits, set the FullDuplexEnable bit in the MACCtrl register, and enable the full duplex mode within the MII PHY device.

0 0 1

Sundance Technology ST201 PRELIMINARY draft 2

MAXFRAMESIZE

Class.................... I/O Registers, Control and Status

Base Address ...... IoBaseAddress register value

Address Offset.....0x5a

Access Mode.......Read/Write

Width ...................16 bits

Sets the maximum frame size for received frames.

BIT BIT NAME BIT DESCRIPTION

15..0 MaxFrameSize Received frames with sizes equal to or larger than the value in MaxFrameSize will be flagged as oversize by RxOversizedFrame bit in RxDMAStatus. MaxFrameSize defaults to 1514 upon reset. Upon RxReset, MaxFrameSize is automatically loaded with 1514 or 4491 depending upon the value of RcvLargeFrames in MACCtrl.

Sundance Technology ST201 PRELIMINARY draft 2

RECEIVEMODE

Class.................... I/O Registers, Control and Status

Base Address ...... IoBaseAddress register value

Address Offset.....0x5c

Access Mode.......Read/Write

Width ...................8 bits

Each bit in ReceiveMode, when set, enables reception of a different type of frame. ReceiveMode is cleared upon reset.

BIT BIT NAME BIT DESCRIPTION

0 ReceiveUnicast Setting this bit enables the ST201 to receive unicast frames that match

the 48-bit StationAddress of the ST201.

1 ReceiveMulticast Setting this bit causes the ST201 to receive all multicast frames,

including broadcast.

2 ReceiveBroadcast Setting this bit causes the ST201 to receive all broadcast frames. 3 ReceiveAllFrames Setting this bit causes the ST201 to receive all frames promiscuously. 4 ReceiveMulticast-

Hash

5 ReceiveIPMulticast Setting this bit enables the ST201 to receive all multicast IP data-

7..6 Reserved Reserved for future use. Should be set to 0.

Setting this bit enables the ST201 to receive frames that pass the hash filtering mechanism.

grams, which are mapped into Ethernet multicast frames with destination address of 01:00:5e:xx:xx:xx as defined in RFC 1112 and RFC

1700. The first 3 bytes require exact match, and the last 3 bytes are ignored.

Sundance Technology ST201 PRELIMINARY draft 2

STATIONADDRESS

Class.................... I/O Registers, Control and Status

Base Address ...... IoBaseAddress register value

Address Offset.....0x47

Access Mode.......Read/Write

Width ...................8 bits

StationAddress is used to define the individual destination address that the ST201 will respond to when receiving frames. Network addresses are generally specified in the form of 01:23:45:67:89:ab, where the bytes are received left to right, and the bits within each byte are received right to left (Isb to msb). The actual transmitted and received bits are in the order of 10000000 11000100 10100010 11100110

10010001 11010101.

BIT BIT NAME BIT DESCRIPTION

15..0 StationAddres s

Word0

31..16 StationAddress

Word1

47..32 StationAddress

Word2

The address comparison logic will compare the first 16 received destination address bits against StationAddress(0), the second 16 received destination address bits against StationAddress(1), and the third 16 received destination address bits against StationAddress(2). The value set in the StationAddress register is not inserted into the source address field of frames transmitted by the ST201. The source address field for every frame must be specified by the host system as part of the frame data contents .

The least significant word of the station, corresponding to address 0x54.

The second least significant word of the station, corresponding to address 0x56.

The most significant word of the station, corresponding to address 0x58.

Sundance Technology ST201 PRELIMINARY draft 2

TXFRAMEID

Class.................... I/O Registers, Control and Status

Base Address ...... IoBaseAddress register value

Address Offset.....0x5c

Access Mode.......Read

Width ...................8 bits

TxFrameId contains the frame ID for the currently transmitting or most recently transmitted frame.

BIT BIT NAME BIT DESCRIPTION

7..0 TxFrameId This register contains the value from FrameId sub-field within the frame’s TFD, TransmitFrameControl field.

Host systems can use TxFrameId register during transmit error recovery by scanning through the TFD’s in the TxDMAList, searching for a match between the TxFrameId register value and a FrameId value in the TFD.

Sundance Technology ST201 PRELIMINARY draft 2

TXSTATUS

Class.................... I/O Registers, Control and Status

Base Address ...... IoBaseAddress register value

Address Offset.....0x4 6

Access Mode.......Read (write to advance queue)

Width ...................8 bits

The TxStatus register returns the status of frame transmission or transmission attempts. TxStatus actually implements a queue of up to 31 transmit status bytes. An I/O write of an arbitrary value to TxStatus will

advance the queue to the next transmit status byte.

BIT BIT NAME BIT DESCRIPTION

0 Reserved Reserved for future use. Should be set to 0. 1 TxReleaseError Indicates that a transmit release error occurred, meaning that the

frame transmission experienced a collision after the front of the frame had already been released to the TxFIFO free space. Refer to TxReleaseThresh register for complete description.

2 TxStatusOverflow When set, indicates that the TxStatus stack is full and as a result the

transmitter has been disabled. Writing TxStatus clears this bit, but the transmitter must be re-enabled with the TxEnable before transmissions may resume.

3 MaxCollisions When set, the frame was not successfully transmitted due to encoun-

tering 16 collisions. TxEnable must be set to recover from this condition. The frame is discarded from the TxFIFO, so driver should resubmit the frame for transmission.

4 TxUnderrun This bit indicates that the frame experienced an under run during the

transmit process because the host was unable to supply the frame data fast enough to keep up with the network data rate. An under run will halt the transmitter and the TxFIFO. The TxReset and TxEnable bits must be set prior to re-starting any frame.

5 Reserved Reserved for future use. Should be set to 0. 6 TxIndicateReqd This bit is asserted if the TxIndicate bit was set when the 32-bit Trans-

mitFrameControl was written to the ST201 for the frame.

7 TxComplete If this bit is cleared, then the remainder of the status bits are undefined.

If the host chooses to poll this register while waiting for a frame transmission to complete, then this bit is used to determine that a frame transmission attempt has either experienced an error, or has completed successfully with the TxIndicate bit set in the TransmitFrameControl.

Sundance Technology ST201 PRELIMINARY draft 2

WAKEEVENT

Class.................... I/O Registers, Control and Status

Base Address ...... IoBaseAddress register value

Address Offset.....0x45

Access Mode.......Read/Write

Width ...................8 bits

WakeEvent contains enable bits to control which types of events can generate a wake event to the host system. It also contains status bits indicating the specific events that have occurred.

BIT BIT NAME BIT DESCRIPTION

0 WakePktEnable Setting this read/write bit enables the ST201 to generate wake events

via a PCI interrupt due to Wake Packet reception. PmeEn must be set in the PowerMgmtCtrl register in order for WakePktEnable to be recognized. WakePktEnable has no effect in power mode D0.

1 MagicPktEnable Setting this read/write bit enables the ST201 to generate wake events

via a PCI interrupt due to Magic Packet reception. MagicPktEnable is set after a ST201 reset. PmeEn must be set in the PowerMgmtCtrl register in order for MagicPktEnable to be recognized. MagicPktEnable has no effect in power mode D0.

2 LinkEventEnable Setting this read/write bit enables the ST201 to generate wake events

via a PCI interrupt due to a change in link status (cable connect or disconnect). PmeEn must be set in the PowerMgmtCtrl register in order for LinkEventEnable to be recognized. LinkEventEnable has no effect in power mode D0.

3 WakePolarity Setting this read/write bit will cause the Wake pin to be asserted in the

HIGH state (default after RESET). MagicPktEnable is set after a ST201 reset.

4 WakePktEvent Indicates that a wake packet (which meets the reception criteria set by

driver) has been received. WakePktEvent is masked by WakePktEnable, and must be set for WakePktEvent to operate. WakePktEvent is cleared when the WakeEvent register is read.

5 MagicPktEvent Indicates that a magic packet has been received. MagicPktEvent is

masked by MagicPktEnable, and must be set for MagicPktEvent to operate. MagicPktEvent is cleared when the WakeEvent register is read.

6 LinkEvent Indicates that a link status event has occurred. LinkEvent is masked by

LinkEventEnable, and must be set for LinkEvent to operate. LinkEvent is cleared when the WakeEvent register is read.

7 WakeOnLanEnable Setting this read/write bit puts the ST201 in the WakeOnLan mode

regardless of the power management register settings in the configuration space.

Sundance Technology ST201 PRELIMINARY draft 2

FIFOCTRL

Class.................... I/O Registers, FIFO Control

Base Address ...... IoBaseAddress register value

Address Offset.....0x3a

Access Mode.......Read/Write

Width ...................16 bits

The bits in this register provide various control and indications of TxFIFO and RxFIFO diagnostic.

BIT BIT NAME BIT DESCRIPTION

0 RAMTestMode When set, the FIFO RAM is in the test mode. This bit is cleared after

reset.

8..1 Reserved Reserved for future use. Should be set to 0.

9 RxOverrunFrame This read/write bit determines how the ST201 handles receive overrun

frames. The default is zero, which causes the ST201 to discard all overrun frames. Setting this bit causes the ST201 to keep and make visible all overrun frames that have been made visible to the host, so that they may be inspected for diagnostic purposes.

10 Reserved Reserved for future use. Should be set to 0. 11 RxFIFOFull This read-only bit is set when the RxFIFO is full. This bit does not in

itself indicate an overrun condition. However, if more data is received while this bit is set, an overrun will occur. This bit is informational in nature only. This bit is cleared as soon as the RxFIFO is no longer full.

13..12 Reserved Reserved for future use. Should be set to 0.

14 Transmitting Transmitting is read-only and set by ST201 whenever the MAC is

transmitting or waiting to transmit (deferring).

15 Receiving This read-only bit is set whenever the ST201 is receiving a frame into

the RxFIFO. No particular action is expected on the part of the host based on the state of this bit.

Sundance Technology ST201 PRELIMINARY draft 2

RXEARLYTHRESH

Class.................... I/O Registers, FIFO Control

Base Address ...... IoBaseAddress register value

Address Offset.....0x3e

Access Mode.......Read/Write

Width ...................16 bits

The value stored in this register defines the number of bytes of the top of the frame that must be received before a RxEarly interrupt will occur. The first byte of the destination address is considered to be byte 1. The value in RxEarlyThresh may also determine how many bytes of a frame must be received before

RxDMA transfers for the frame are allowed to begin. If RxEarlyEnable in DMACtrl is set, a frame is not eligible to start RxDMA until RxEarlyThresh bytes have been received. RxEarlyThresh resets to the value 1ffch, which disables the threshold mechanism.

BIT BIT NAME BIT DESCRIPTION

12..0 RxEarlyThresh The number of bytes which must be present in the RxFIFO before a RxEarly interrupt is asserted. The minimum value is 0x08, any value smaller than this will be interpreted as 0x08. Values greater than 0x08 will be interpreted using a resolution of 4 bytes (i.e. 0x08, 0x0c, 0x0f, etc.)

15..13 Unused These bits are ignored.

Sundance Technology ST201 PRELIMINARY draft 2

TXRELEASETHRESH

Class.................... I/O Registers, FIFO Control

Base Address ...... IoBaseAddress register value

Address Offset.....0x5d

Access Mode.......Read/Write

Width ...................8 bits

The value in TxReleaseThresh determines how much data of a frame must be transmitted before the TxFIFO space can be released for use by another frame. Once the number of bytes equal to the value in TxReleaseThresh have been transmitted, that number of bytes are discarded from the TxFIFO. Thereafter, bytes are discarded as they are transmitted to the network. TxReleaseThresh resets to 8, i.e., a release threshold of 128 bytes. A value of 255 in TxReleaseThresh disables the release mechanism and TxFIFO frame space is not released until the entire frame is transmitted. A TxReleaseError is signaled in TxStatus when a frame experiences a collision after its release threshold has been crossed, preventing MAC from retry. When a release error occurs, the transmitter is disabled, and the frame’s ID or sequence number is

visible in TxFrameId.

BIT BIT NAME BIT DESCRIPTION

7..0 TxReleaseThresh The number of 16 byte words which must be transmitted before the space in the TxFIFO occupied by the transmitted data can be released. To avoid excessive release errors due to in-window collisions, value less than 4 should not be written into TxReleaseThresh.

Sundance Technology ST201 PRELIMINARY draft 2

TXSTARTTHRESH

Class.................... I/O Registers, FIFO Control

Base Address ...... IoBaseAddress register value

Address Offset.....0x3c

Access Mode.......Read/Write

Width ...................16 bits

The value in TxStartThresh is used to control when frames are transmitted. Transmission of a frame begins when the number of bytes for the frame transferred into the TxFIFO is greater than the value in

TxStartThresh. If TxStartThresh is set too low, the TxFIFO may experience under run due to the DMA data transfers not able to keep up with the wire data rate. Host systems should use under run i ndications as a hint to increase the TxStartThresh value. This register resets to 1ffch, which disables the threshold mechanism.

BIT BIT NAME BIT DESCRIPTION

12..0 TxStartThresh The number of bytes which must be present in the TxFIFO before frame transmission begins. Values will be interpreted using a resolution of 4 bytes (i.e. 0x00, 0x04, 0x08, 0x0c, 0x0f, etc.)

15..13 Unused These bits are ignored.

Sundance Technology ST201 PRELIMINARY draft 2

COUNTDOWN

Class.................... I/O Registers, Interrupt

Base Address ...... IoBaseAddress register value

Address Offset.....0x48

Access Mode.......Read/Write

Width ...................16 bits

Countdown is a programmable down-counter that will generate an interrupt upon its expiration. If the CountdownIntEnable bit in DMACtrl is set, the IntRequested interrupt will be generated when Countdown counts through zero. Countdown has two modes of operation that is selected by the CountdownMode bit in DMACtrl.When CountdownMode is cleared, Countdown is loaded by the host software with an initial countdown value, then decrements at a rate determined by the CountdownSpeed bit in DMACtrl. When CountdownSpeed is cleared, the count rate is once every 3.2 us. When CountdownSpeed is set, the count rate is once every 320 ns. When Countdown reaches zero, it continues to count down, wrapping to 0xffff. When CountdownMode is set, Countdown begins counting only when TxDMAComplete in IntStatus

becomes set. Countdown is cleared by reset.

BIT BIT NAME BIT DESCRIPTION

15..0 Countdown Value of current state of Countdown timer.

Sundance Technology ST201 PRELIMINARY draft 2

INTENABLE

Class.................... I/O Registers, Interrupt

Base Address ...... IoBaseAddress register value

Address Offset.....0x4c

Access Mode.......Read/Write

Width ...................16 bits

Enables individual interrupts as specified in the IntStatus register. Setting a bit in IntEnable will allow the specific source to generate an interrupt on the PCI bus. IntEnable is cleared upon reset. IntEnable is also

cleared by a read of IntStatusAck.

BIT BIT NAME BIT DESCRIPTION

0 Unused This bit will be ignored. 1 EnHostError Enables the HostError interrupt. 2 EnTxComplete Enables the TxComplete interrupt. 3 EnMACControl-

Frame 4 EnRxComplete Enables the RxComplete interrupt. 5 EnRxEarly Enables the RxEarly interrupt. 6 EnInRequested Enables the InRequested interrupt. 7 EnUpdateStats Enables the UpdateStats interrupt. 8 EnLinkEvent Enables the LinkEvent interrupt. 9 EnTxDMACom-

plete 10 EnRxDMACom-

plete

15..11 Unused These bits bill be ignored.

Enables the MACControlFrame interrupt.

Enables the TxDMAComplete interrupt.

Enables the RxDMAComplete interrupt.

Sundance Technology ST201 PRELIMINARY draft 2

INTSTATUS

Class.................... I/O Registers, Interrupt

Base Address ...... IoBaseAddress register value

Address Offset.....0x4e

Access Mode.......Read/Write

Width ...................16 bits

IntStatus register indicates the source of interrupts and indications on the ST201. Bits 1 through 10 are the interrupt-causing sources for the ST201. These bits can be individually disabled as interrupt sources using the IntEnable register. The host can acknowledge the interrupt by writing a “1” into the indication bit(s),

which will cause ST201 to clear the interrupt indication. IntStatus is cleared by reset.

BIT BIT NAME BIT DESCRIPTION

0 InterruptStatus Asserted when the ST201 is driving the bus interrupt signal. It is a logi-

cal OR of all the interrupt-causing bits after they have been filtered through the IntEnable register.

1 HostError This bit is set when a catastrophic error related to the bus interface

occurs. The errors which set HostError are: PCI target abort and PCI master abort. HostError is cleared by GlobalReset/DMA bits set.

2 TxComplete This bit is asserted when a frame whose TxIndicate bit is set has been

successfully transmitted or for any frame that experiences a transmission error. This interrupt is acknowledged by writing to TxStatus to advance the status queue.

3 MACControlFrame This bit is set when a MAC Control frame has been received by the

ST201. MACControlFrame is acknowledged by writing a 1 to this bit.

4 RxComplete This bit is set when one or more entire frames have been received into

the RxFIFO. This bit is automatically acknowledged by the RxDMA Logic as it transfers frames. Drivers should disable this interrupt and mask this bit when reading IntStatus.

5 RxEarly This bit is set when the number of bytes of the top frame that have

been received is greater than the value of RxEarlyThresh. When the top frame has been completely received by the ST201, RxEarly will be negated and RxComplete will assert. RxEarly is acknowledged by writing a 1 to this bit.

6 IntRequested This bit is set when the host requested interrupt by setting InterruptRe-

quest bit or by the expiration of the Countdown. It is acknowledged by writing a 1 to this bit.

7 UpdateStats This bit indicates that one or more of the statistics counters is nearing

overflow condition (typically half of its maximum value). A driver should respond to an UpdateStats interrupt by reading all of the statistics, thereby acknowledging and clearing UpdateStats bit.

8 LinkEvent This bit indicates transition of link status of the PHY. This bit can be

acknowledged by writing a 1 into this bit.

Sundance Technology ST201 PRELIMINARY draft 2

BIT BIT NAME BIT DESCRIPTION

9 TxDMAComplete This bit indicates that a frame TxDMA has completed, and the TFD in

question had the TxDMAIndicate bit in its TFC set. This bit can be acknowledged by writing a 1 to this bit. The host should examine the TxDMAListPtr to determine which frame(s) have been transferred by TxDMA. Those frames in the TxDMAList before the current TxDMAListPtr have already been transferred by TxDMA. I f the TxDMAListPtr is zero, then all the frames are transmitted.

10 RxDMAComplete This bit indicates that a frame RxDMA has completed. This bit can be

acknowledged by writing a 1 to this bit.

15..11 Reserved Reserved for future use. Should be set to 0.

Sundance Technology ST201 PRELIMINARY draft 2

INTSTATUSACK

Class.................... I/O Registers, Interrupt

Base Address ...... IoBaseAddress register value

Address Offset.....0x4a

Access Mode.......Read only

Width ...................16 bits

IntStatusAck is another version of the IntStatus register, having the same bit definition as IntStatus, but providing additional functionality to reduce the number of I/O operations required to perform common tasks related to interrupt handling. In addition to returning the IntStatus value for the specified interrupt, when read IntStatusAck also acknowledges the TxDMAComplete, RxDMAComplete, RxEarly, IntRequested, MACControlFrame, and LinkEvent bits within the IntStatus register (if they are set), and clears the IntEna-

ble register (preventing subsequent events from generating an interrupt).
