Sundance SMT8096 User Manual

SMT8096

User Manual

Version 1.2 Page 2 of 13 SMT8096 User Manual

Revision History

Date Comments Engineer Version

13/10/2005 Original Document PSR 1.0
09/12/2005 Partslist updated PSR 1.1
22/12/2005 3L Application instructions added PSR 1.2

Version 1.2 Page 3 of 13 SMT8096 User Manual

Table of Contents

Revision History.......................................................................................................... 2

Table of Contents....................................................................................................... 3

Contacting Sundance................................................................................................. 4

Notes..........................................................................................................................4

Precautions................................................................................................................. 4

Outline description...................................................................................................... 5

Architecture. ............................................................................................................... 6

What is provided in the SMT8096 system? ................................................................ 7

Hardware installation.................................................................................................. 7

Hardware Connections............................................................................................. 11

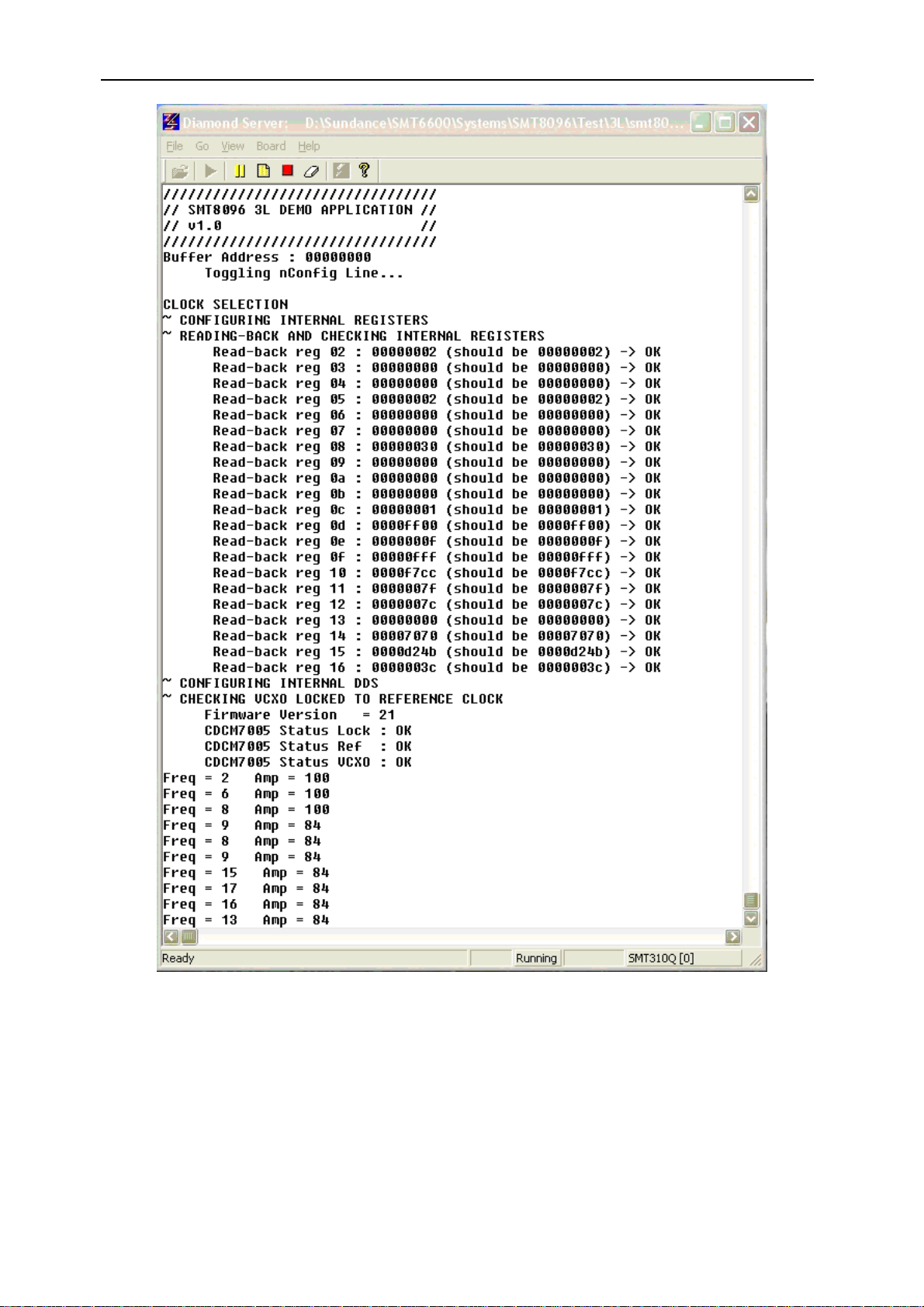

3L Application........................................................................................................... 11

Version 1.2 Page 4 of 13 SMT8096 User Manual

Contacting Sundance.

You can contact Sundance for additional information by sending email to

[e-mail].

Notes.

- SHB stands for Sundance High-speed Bus.

- Comport denotes an 8-bit communication port following the TI C4x standards.

- SMT8096 is a PCI system to be plugged in a PC. The only software

requirement is to have 3L Diamond server installed. Application files can be
found in the SMT6600 package provided when purchasing an SMT8096
system.

Precautions

In order to guarantee that Sundance’s boards function correctly and to protect the
module from damage, the following precautions should be taken:

- They are static sensitive products and should be handled accordingly.
Always place the modules in a static protective bag during storage and
transition.

- When operated in a closed environment make sure that the heat

generated by the system is extracted e.g. a fan extracting heat or blowing
cool air. Sundance recommends and uses PAPST 12-Volt fans (Series

8300) producing an air flow of 54 cubic meters per hour (equivalent to 31.8
CFM). Fans are placed so they blow across the PCI bus.
