Sundance SMT702 User Manual

Unit / Module Description:

Unit / Module Number:

Document Issue Number:

Issue Date:

Original Author:

User Manual

Dual 3-GHz PXIe ADC Module

SMT702

8

11/12/12

PhSR

for

SMT702

Sundance Multiprocessor Technology Ltd, Chiltern House,

Waterside, Chesham, Bucks. HP5 1PS.

This document is the property of Sundance and may not be copied

nor communicated to a third party without prior written

permission.

Revision History

Issue Changes Made Date Initials

1 Original Document released 12/09/08 PhSR

2 DMA and system monitor added 30/01/09 PhSR

3 ADCs Output characteristics updated. Ordering

information updated with FX70t part.

4 FPGA Design supports Xlinks. 06/05/10 PhSR

5 Added missing currents; Added weight. 22/05/10 PhSR

6 Soft Reset added in the control register. 14/07/10 PhSR

7 Comment added on board modification (ADC

reset)

8 Added FX100T version 11/12/12 JV

01/12/09 PhSR

27/07/10 PhSR

Table of Contents

1

Introduction........................................................................................................................ 7

2

Related Documents...........................................................................................................8

2.1 Referenced Documents ................................................................................................ 8

3

Acronyms, Abbreviations and Definitions................................................................8

3.1 Acronyms and Abbreviations .....................................................................................8

4

Functional Description ....................................................................................................9

4.1 General Block Diagram.................................................................................................9

4.2 Block Diagram - Standard SMT702 (PXIe) ..............................................................10

4.3 Block Diagram – SMT702-HYBRPXI32 (option 32-bit PXI)..................................11

4.1 Block Diagram – SMT702-CPCI32 (Option 32-bit PCI).........................................12

4.2 Module Description.....................................................................................................13

4.2.1 ADCs..........................................................................................................................13

4.2.2 FPGA ..........................................................................................................................13

4.2.2.1 General Description......................................................................................13

4.2.2.2 Resources used – XC5VLX110T. ................................................................13

4.2.2.3 Resources used – XCV5FX70T....................................................................15

4.2.2.4 Resources used – XCV5FX100T. ................................................................16

4.2.3 Configuration (CPLD+Flash).................................................................................18

4.2.4 DDR2 Memory .........................................................................................................19

4.2.5 Clock circuitry.........................................................................................................20

4.2.6 Data (samples) path / Data capture...................................................................21

4.2.7 PXI Express Bus.......................................................................................................22

4.2.8 SHB Connector ........................................................................................................24

4.2.9 Power dissipation ...................................................................................................24

4.2.10JTAG ..........................................................................................................................25

4.2.11PXI Express Hybrid Connectors...........................................................................27

4.3 FPGA Design .................................................................................................................28

4.3.1 Control Registers....................................................................................................28

4.3.1.1 Memory Map...................................................................................................28

4.3.1.2 Register Descriptions...................................................................................31

4.3.1.2.1 General Control Register – 0x8 (read-only)......................................31

4.3.1.2.2 Set Control Register – 0x10 (write)....................................................34

4.3.1.2.3 Clear Control Register – 0x20 (write)................................................36

4.3.1.2.4 Board Name and Version – 0x24 (read-only)...................................36

4.3.1.2.5 Firmware Version and Revision Numbers – 0x40 (read-only). ....36

4.3.1.2.6 ADCA (ADC083000) Register 0x1 – Configuration Register –

0x44 (write). ................................................................................................................37

4.3.1.2.7 ADCA (ADC083000) Register 0x2 – Offset Adjust – 0x48 (write and read). 37

4.3.1.2.8 ADCA (ADC083000) Register 0x3 – Full Scale Voltage Adjust –

0x4C (write and read). ..............................................................................................38

4.3.1.2.9 ADCA (ADC083000) Register 0xD – Extended Clock Phase Adjust

Fine – 0x74 (write and read)....................................................................................38

4.3.1.2.10 ADCA (ADC083000) Register 0xE – Extended Clock Phase

Adjust Coarse – 0x78 (write and read).................................................................39

4.3.1.2.11 ADCA (ADC083000) Register 0xF – Test Pattern register – 0x7C

(write and read)..........................................................................................................39

4.3.1.2.12 ADCB (ADC083000) Register 0x1 – Configuration Register –

0x84 (write and read)................................................................................................40

4.3.1.2.13 ADCB (ADC083000) Register 0x2 – Offset Adjust – 0x88 (write and read). 41

4.3.1.2.14 ADCB (ADC083000) Register 0x3 – Full Scale Voltage Adjust –

0x8C (write and read). ..............................................................................................41

4.3.1.2.15 ADCB (ADC083000) Register 0xD – Extended Clock Phase

Adjust Fine 0xB4 (write and read).........................................................................42

4.3.1.2.16 ADCB (ADC083000) Register 0xE – Extended Clock Phase

Adjust Coarse – 0xB8 (write and read).................................................................42

4.3.1.2.17 ADCB (ADC083000) Register 0xF – Test Pattern register – 0xBC

(write and read)..........................................................................................................43

4.3.1.2.18 Frequency Synthesizer (LMX2531) Register R0 – 0xC0 (write and read). 43

4.3.1.2.19 Frequency Synthesizer (LMX2531) Register R1 – 0xC4 (write and read). 44

4.3.1.2.20 Frequency Synthesizer (LMX2531) Register R2 – 0xC8 (write and read). 44

4.3.1.2.21 Frequency Synthesizer (LMX2531) Register R3 – 0xCC (write and read). 45

4.3.1.2.22 Frequency Synthesizer (LMX2531) Register R4 – 0xD0 (write and read). 45

4.3.1.2.23 Frequency Synthesizer (LMX2531) Register R5 – 0xD4 (write and read). 46

4.3.1.2.24 Frequency Synthesizer (LMX2531) Register R6 – 0xD8 (write and read). 47

4.3.1.2.25 Frequency Synthesizer (LMX2531) Register R7 – 0xDC (write and read). 48

4.3.1.2.26 Frequency Synthesizer (LMX2531) Register R8 – 0xE0 (write and read). 48

4.3.1.2.27 Frequency Synthesizer (LMX2531) Register R9 – 0xE4 (write and read). 49

4.3.1.2.28 Frequency Synthesizer (LMX2531) Register R12 - 0xE8 (write and read). 49

4.3.1.2.29 ADCA – DCM Phase Shift – 0x108 (write). .....................................50

4.3.1.2.30 ADCB – DCM Phase Shift – 0x10C (write).......................................50

4.3.1.2.31 System Monitor – FPGA Die Temperatures – 0x180 (read)........51

4.3.1.2.32 System Monitor – FPGA Die Temperature thresholds – 0x180 (write). 51

4.3.1.2.33 System Monitor – FPGA Core Voltages – 0x184 (read)................52

4.3.1.2.34 System Monitor – FPGA core voltage thresholds – 0x184 (write). 52

4.3.1.2.35 System Monitor – FPGA Aux Voltages – 0x188 (read).................53

4.3.1.2.36 System Monitor – FPGA aux voltage thresholds – 0x188 (write). 53

4.3.1.2.37 Amount of samples stored in DDR2 – Bank A – 0x18C (write).54

4.3.1.2.38 Amount of samples stored in DDR2 – Bank B – 0x190 (write). 54

4.3.2 System Monitor. ......................................................................................................54

4.3.3 External Signal characteristics.............................................................................55

5

Board Layout ....................................................................................................................57

5.1 Top View........................................................................................................................57

5.2 Bottom View..................................................................................................................58

6

Photo...................................................................................................................................59

6.1 Overview of the board................................................................................................59

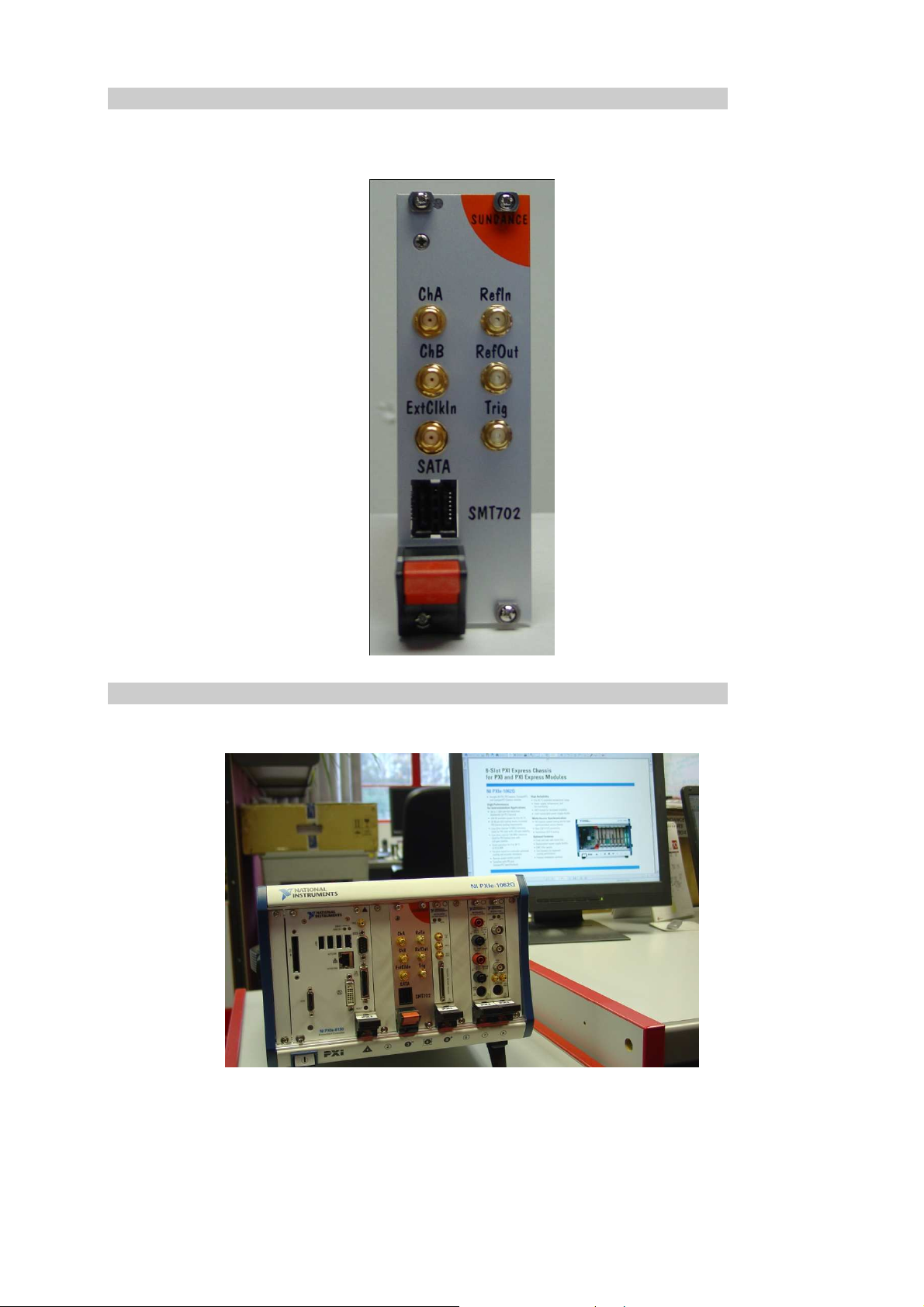

6.2 Front panel....................................................................................................................61

6.3 How is it going to stand on your desk?..................................................................61

7

Software Packages ..........................................................................................................62

8

Physical Properties .........................................................................................................64

9

Hardware Modification..................................................................................................65

10 Safety ..................................................................................................................................66

11 EMC......................................................................................................................................66

12 Ordering Information.....................................................................................................66

Table of Figures

Figure 1 - SMT702 General Block Diagram............................................................................. 9

Figure 2 - SMT702 Block Diagram (Standard SMT702 - PXI Express).............................10

Figure 3 - SMT702 Block Diagram (32-bit PXI Option).......................................................11

Figure 4 - SMT702-CPCI32 Block Diagram (32-bit CPCI Option) .....................................12

Figure 5 - Configuration (Flash)..............................................................................................18

Figure 6 - Clock circuitry Block Diagram..............................................................................21

Figure 7 - Data (samples) path. ...............................................................................................22

Figure 8 - Standard SMT702 - PXI Express Peripheral Module.........................................23

Figure 9 - SMT702-HYBRPXI32 (opt.) - Hybrid Peripheral Slot Compatible PXI-1

Module..................................................................................................................................23

Figure 10 - Forced airflow for a 3U module.........................................................................24

Figure 11 - JTAG Connector.....................................................................................................25

Figure 12 - Photo of a Xilinx Parallel IV cable and its ribbon cable for JTAG

connection ...........................................................................................................................26

Figure 13 - Block Diagram - FPGA Design (standard Firmware)......................................28

Figure 14 – Register Memory Map..........................................................................................30

Figure 15 – Main Characteristics. ...........................................................................................56

Figure 16 - Board Layout (Top View)......................................................................................57

Figure 17 - Board Layout (Bottom View) ...............................................................................58

Figure 18 - Overview of the board..........................................................................................60

Figure 19 - SMT702 Front Panel..............................................................................................61

Figure 20 - SMT702 - PXI Express Chassis............................................................................61

Figure 21 - SMT702 Demo application..................................................................................63

Figure 22 - ADC Reset structure modification. ...................................................................65

1 Introduction

The SMT702 is a PXI Express (opt. Hybrid) Peripheral Module (3U), which integrates two fast 8-bit ADCs, a clock circuitry, 2 banks of DDR2 Memory (1GByte each), IO connectors (2 SHBs, SATA and RSL) and a Virtex5 Xilinx FPGA, under the 3U format.

The PXIe specification integrates PCI Express signalling into the PXI standard for more backplane bandwidth. It also enhances PXI timing and synchronisation features by incorporating a 100MHz differential reference clock and triggers. The SMT702 can also integrate the standard 32-bit PXI signalling as an option.

Both ADC chips are identical and can produce 3 Giga-samples per second each, with an 8-bit resolution. The manufacturer is National Semiconductor and the part number is ADC083000. Analog-to-Digital converters are clocked by circuitry based on a PLL coupled with a VCO in order to generate a low-jitter signal. Each ADC integrates settings such as offset and scale factor, which makes the pair of ADC suitable to be combined together in order to make a 6GSPS single Analog to Digital converter. This will be subject to a specific FPGA design.

An on-board PLL+VCO chip ensures a stable fixed sampling frequency (maximum rate), in order for the board to be used as a digitiser without the need of external clock signal. The PLL will be able to lock its internal VCO either on the 100MHz PXI express reference, on the 10MHz PXI reference or on an external reference signal. The sampling clock for the converters can be either coming from the PLL+VCO chip (fixed frequency of 1.5ghz) or from an external source. The chip used is a National Semiconductor part: LMX2531LQ1500. The reference clock selected is also output on a connector in order to pass it to an other module.

The Virtex5 FPGA is responsible for controlling all interfaces, including PXI (32-bit) and PXIe (up to 8 lanes – not all PXI Express controller support 8 lane), as well as routing samples. The FPGA fitted on the SMT702 is part of the Virtex-5 familly from Xilinx, XC5VLX110T-3 (fastest speed grade available).

Two DDR2 memory banks are accessible by the FPGA in order to store data on the fly. Each bank can store up to 1GByte.

An SHB connector is available in order to transfer data/samples to an other Sundance module (SMT712 for instance)

All analog connectors on the front panel are SMA.

2 Related Documents

2.1 Referenced Documents

1 - National Semiconductor ADC083000: http://www.national.com/pf/DC/ADC083000.html 2 – National Semiconductor LMX2531LQ1500:

http://www.national.com/pf/LM/LMX2531LQ1500E.html

3 - Virtex5 FPGA: http://www.xilinx.com/products/silicon_solutions/fpgas/virtex/virtex5/index.htm 4 - PXIe specifications: http://www.pxisa.org/Spec/PXIEXPRESS_HW_SPEC_R1.PDF 5 – Micron 2Gigabit DDR2 chip

http://download.micron.com/pdf/datasheets/dram/ddr2/2gbddr2.pdf

6 – Sundance xlink presentation:

ftp://ftp2.sundance.com/Pub/documentation/pdf-files/X-Link.pdf

7 – Sundance xlink specifications:

ftp://ftp2.sundance.com/Pub/documentation/pdf-files/D000051S-spec.pdf

MT47H128M16:

3 Acronyms, Abbreviations and Definitions

3.1 Acronyms and Abbreviations

PXIe : PXI Express. SNR: Signal-to-Noise Ratio. It is expressed in dBs. It is defined as the ratio of a signal

power to the noise power corrupting the signal. SINAD: Signal-to-Noise Ratio plus Distorsion. Same as SNR but includes harmonics

too (no DC component). ENOB: Effective Number Of Bits. This is an alternative way of defining the Signal-to-

Noise Ratio and Distorsion Ratio (or SINAD). This means that the ADC is equivalent to a perfect ADC of ENOB number of bits.

SFDR: Spurious-Free Dynamic Range. It indicates in dB the ratio between the powers of the converted main signal and the greatest undesired spur.

4 Functional Description

4.1 General Block Diagram

Below is the general block diagram showing all resources available on the board. Note that not all option are implement in the standard firmware.

Figure 1 - SMT702 General Block Diagram.

The following block diagram shows all three options. The first option (PXIe) can be plugged into any PXI Express slot, the second (32-bit PXI) into any Hybrid PXI Express slot and the third can go in any CPCI system.

4.2 Block Diagram - Standard SMT702 (PXIe)

Figure 2 - SMT702 Block Diagram (Standard SMT702 - PXI Express)

This option implements a PCI Express Endpoint core (Xilinx) based on 4 lanes. It can support up to 8 lanes or only one. The FPGA also has accesses to all PXI triggers and synchronisation signals.

In case the user has in mind to recompile/change the firmware, the PCI Express Core is free and provided by Xilinx. A free license locked on a PC MAC key has to be requested.

The SMT702 (PXIe version) can only be plugged into a PXI Express or CompactPCI Express Rack.

Note that not all resources are implemented in the standard FPGA firmware.

4.3 Block Diagram – SMT702-HYBRPXI32 (option 32-bit PXI)

Figure 3 - SMT702 Block Diagram (32-bit PXI Option)

This option implements a 32-bit PCI core (33 Mhz). The FPGA also has accesses to all PXI triggers and synchronisation signals.

The PCI core source core cannot be supplied by Sundance as the license held does not cover such use for it. In case the user intends to recompile the source code or design his own firmware, he would have to purchase a license for the core.

The SMT702-HYBRPXI32 can only be plugged into a PXI Express or CompactPCI Express rack.

Note that not all ressoures shown on the above diagram are implemented in the standard firmware.

4.1 Block Diagram – SMT702-CPCI32 (Option 32-bit PCI)

Figure 4 - SMT702-CPCI32 Block Diagram (32-bit CPCI Option)

This option implements a 32-bit PCI core (33 Mhz). Note that PXI trigger signals and reference clock (10Mhz) are not accessible by the PFGA (not available on a standard CPCI rack). An external reference clock would have to be used or an external clock to feed the converter with.

The PCI core source core cannot be supplied by Sundance as the license held does not cover such use for it.

The SMT702-CPCI32 can be plugged in either a PXI (CompactPCI) or PXI Express rack.

Note that not all resources shown on the above diagram are implemented in the standard firmware.

4.2 Module Description

4.2.1 ADCs

The ADCs are 8-bit parts from National Semiconductor (ADC083000). On the SMT702, each ADC can achieve up to 3 GSPS, in DDR mode.

Both ADCs are used in the extended mode. For more information, please refer to the ADC083000 datasheet (National Semiconductor). This implies that they are configured using a Serial Interface implemented in the FPGA.

The typical Bit Error Rate (BER) of the ADC083000 is 10 Each ADC takes a DDR clock, i.e. to achieve 3GSPS, a clock of 1.5Ghz is required.

The ADCs can only work with a DDR clock within the range 500-1500MHz, which means they can sample at a rate between 1 and 3 GSPS.

Both ADCs are AC-coupled using an RF Transformer. They have functionalities such as offset and scale adjustments, as well as test

pattern mode. There is also calibration cycle that can be run once the system is in temperature.

The FPGA is able to synchronise the ADCs so they samples in phase. The FPGA is able to return the phase shift between ADCA and ADCB to the host application by sampling their clock with its local clock and phase shifting it with a DCM.

4.2.2 FPGA

-18

.

4.2.2.1 General Description

The FPGA fitted as standard on the SMT702 is part of the Virtex5 LXT family: XC5VLX110T. The package used if FFG1136 and the speed grade is -3 (fastest part). The SMT702 can also receive an FPGA from the Virtex5 FXT family (XC5VFX70T and XC5VFX100T in the same package).

The FPGA is fitted with a heatsink coupled with a fan to keep it within an appropriate range of temperature when using the default firmware provided. Nevertheless the board requires some forced cooling. It is recommended to use a PXI-1062Q chassis or equivalent from National instrument as it already integrates a built-in cooling system. Using slot blockers from National Instrument would improve even more the cooling capacity of the system.

In order to improve the heat dissipation is a system, some slot blockers can be used (from National Instrument), which redirect the air flow of non-used slots to where it is needed.

4.2.2.2 Resources used – XC5VLX110T.

Below is a summary (ISE11.4) of the resources used in the FPGA by the default firmware (Standard SMT702 – XCV5VLX110T FPGA – PXIe option):

Slice Logic Utilization:

Number of Slice Registers: 15,254 out of 69,120 22% Number used as Flip Flops: 15,244 Number used as Latches: 4 Number used as Latch-thrus: 6 Number of Slice LUTs: 11,699 out of 69,120 16% Number used as logic: 11,230 out of 69,120 16% Number using O6 output only: 9,310 Number using O5 output only: 295

Number using O5 and O6: 1,625 Number used as Memory: 439 out of 17,920 2% Number used as Dual Port RAM: 308 Number using O6 output only: 204 Number using O5 output only: 20 Number using O5 and O6: 84 Number used as Shift Register: 131 Number using O6 output only: 131 Number used as exclusive route-thru: 30 Number of route-thrus: 357 Number using O6 output only: 325 Number using O5 output only: 32 Slice Logic Distribution: Number of occupied Slices: 6,129 out of 17,280 35% Number of LUT Flip Flop pairs used: 18,945 Number with an unused Flip Flop: 3,691 out of 18,945 19% Number with an unused LUT: 7,246 out of 18,945 38% Number of fully used LUT-FF pairs: 8,008 out of 18,945 42% Number of unique control sets: 812 Number of slice register sites lost to control set restrictions: 1,801 out of 69,120 2%

A LUT Flip Flop pair for this architecture represents one LUT paired with one Flip Flop within a slice. A control set is a unique combination of clock, reset, set, and enable signals for a registered element. The Slice Logic Distribution report is not meaningful if the design is over-mapped for a non-slice resource or if Placement fails. OVERMAPPING of BRAM resources should be ignored if the design is over-mapped for a non-BRAM resource or if placement fails.

IO Utilization:

Number of bonded IOBs: 463 out of 640 72% Number of LOCed IOBs: 461 out of 463 99% IOB Flip Flops: 693 IOB Master Pads: 1 IOB Slave Pads: 1 Number of bonded IPADs: 10 out of 50 20% Number of bonded OPADs: 8 out of 32 25% Specific Feature Utilization: Number of BlockRAM/FIFO: 38 out of 148 25% Number using BlockRAM only: 22 Number using FIFO only: 16 Total primitives used: Number of 36k BlockRAM used: 21 Number of 18k BlockRAM used: 1 Number of 36k FIFO used: 14 Number of 18k FIFO used: 2 Total Memory used (KB): 1,314 out of 5,328 24% Number of BUFG/BUFGCTRLs: 23 out of 32 71% Number used as BUFGs: 23 Number of IDELAYCTRLs: 6 out of 22 27% Number of BUFDSs: 1 out of 8 12% Number of BUFIOs: 16 out of 80 20% Number of DCM_ADVs: 8 out of 12 66% Number of LOCed DCM_ADVs: 8 out of 8 100% Number of GTP_DUALs: 2 out of 8 25% Number of LOCed GTP_DUALs: 2 out of 2 100% Number of PCIEs: 1 out of 1 100% Number of PLL_ADVs: 1 out of 6 16% Number of SYSMONs: 1 out of 1 100% Number of RPM macros: 128

Average Fanout of Non-Clock Nets: 3.00

4.2.2.3 Resources used – XCV5FX70T.

Below is a summary (ISE11.4) of the resources used in the FPGA by the default firmware (Standard SMT702 – XCV5VFX70T FPGA – PXIe option):

Slice Logic Utilization:

Number of Slice Registers: 15,344 out of 44,800 34%

Number used as Flip Flops: 15,337 Number used as Latches: 1 Number used as Latch-thrus: 6 Number of Slice LUTs: 11,832 out of 44,800 26% Number used as logic: 11,372 out of 44,800 25% Number using O6 output only: 9,458 Number using O5 output only: 289 Number using O5 and O6: 1,625 Number used as Memory: 429 out of 13,120 3% Number used as Dual Port RAM: 308 Number using O6 output only: 204 Number using O5 output only: 20 Number using O5 and O6: 84 Number used as Shift Register: 121 Number using O6 output only: 121 Number used as exclusive route-thru: 31 Number of route-thrus: 393 Number using O6 output only: 318 Number using O5 output only: 75 Slice Logic Distribution: Number of occupied Slices: 6,261 out of 11,200 55% Number of LUT Flip Flop pairs used: 19,052 Number with an unused Flip Flop: 3,708 out of 19,052 19% Number with an unused LUT: 7,220 out of 19,052 37% Number of fully used LUT-FF pairs: 8,124 out of 19,052 42% Number of unique control sets: 821 Number of slice register sites lost to control set restrictions: 1,821 out of 44,800 4%

A LUT Flip Flop pair for this architecture represents one LUT paired with one Flip Flop within a slice. A control set is a unique combination of clock, reset, set, and enable signals for a registered element. The Slice Logic Distribution report is not meaningful if the design is over-mapped for a non-slice resource or if Placement fails. OVERMAPPING of BRAM resources should be ignored if the design is over-mapped for a non-BRAM resource or if placement fails.

IO Utilization:

Number of bonded IOBs: 463 out of 640 72% Number of LOCed IOBs: 463 out of 463 100% IOB Flip Flops: 693 IOB Master Pads: 1 IOB Slave Pads: 1 Number of bonded IPADs: 10 out of 50 20% Number of bonded OPADs: 8 out of 32 25% Specific Feature Utilization: Number of BlockRAM/FIFO: 38 out of 148 25% Number using BlockRAM only: 22 Number using FIFO only: 16 Total primitives used: Number of 36k BlockRAM used: 21

Number of 18k BlockRAM used: 1 Number of 36k FIFO used: 14 Number of 18k FIFO used: 2 Total Memory used (KB): 1,314 out of 5,328 24% Number of BUFG/BUFGCTRLs: 25 out of 32 78% Number used as BUFGs: 25 Number of IDELAYCTRLs: 6 out of 22 27% Number of BUFDSs: 1 out of 8 12% Number of BUFIOs: 16 out of 80 20% Number of DCM_ADVs: 8 out of 12 66% Number of LOCed DCM_ADVs: 8 out of 8 100% Number of GTX_DUALs: 2 out of 8 25% Number of LOCed GTX_DUALs: 2 out of 2 100% Number of PCIEs: 1 out of 3 33% Number of LOCed PCIEs: 1 out of 1 100% Number of PLL_ADVs: 1 out of 6 16% Number of SYSMONs: 1 out of 1 100% Number of RPM macros: 128 Average Fanout of Non-Clock Nets: 3.00

4.2.2.4 Resources used – XCV5FX100T.

Below is a summary (ISE14.3) of the resources used in the FPGA by the default firmware (Standard SMT702 – XCV5VFX100T FPGA – PXIe option):

Slice Logic Utilization:

Number of Slice Registers: 16,720 out of 64,000 26% Number used as Flip Flops: 16,712 Number used as Latches: 2 Number used as Latch-thrus: 6 Number of Slice LUTs: 12,911 out of 64,000 20% Number used as logic: 12,053 out of 64,000 18% Number using O6 output only: 10,065 Number using O5 output only: 348 Number using O5 and O6: 1,640 Number used as Memory: 816 out of 19,840 4% Number used as Dual Port RAM: 308 Number using O6 output only: 204 Number using O5 output only: 20 Number using O5 and O6: 84 Number used as Shift Register: 508 Number using O6 output only: 507 Number using O5 and O6: 1 Number used as exclusive route-thru: 42 Number of route-thrus: 441 Number using O6 output only: 389 Number using O5 output only: 51 Number using O5 and O6: 1

Slice Logic Distribution: Number of occupied Slices: 7,335 out of 16,000 45% Number of LUT Flip Flop pairs used: 21,153 Number with an unused Flip Flop: 4,433 out of 21,153 20% Number with an unused LUT: 8,242 out of 21,153 38% Number of fully used LUT-FF pairs: 8,478 out of 21,153 40% Number of unique control sets: 987 Number of slice register sites lost to control set restrictions: 2,113 out of 64,000 3%

A LUT Flip Flop pair for this architecture represents one LUT paired with one Flip Flop within a slice. A control set is a unique combination of clock, reset, set, and enable signals for a registered element. The Slice Logic Distribution report is not meaningful if the design is over-mapped for a non-slice resource or if Placement fails. OVERMAPPING of BRAM resources should be ignored if the design is over-mapped for a non-BRAM resource or if placement fails.

IO Utilization:

Number of bonded IOBs: 465 out of 640 72% Number of LOCed IOBs: 465 out of 465 100% IOB Flip Flops: 694 IOB Master Pads: 1 IOB Slave Pads: 1 Number of bonded IPADs: 10 Number of LOCed IPADs: 2 out of 10 20% Number of bonded OPADs: 8

Specific Feature Utilization: Number of BlockRAM/FIFO: 42 out of 228 18% Number using BlockRAM only: 26 Number using FIFO only: 16 Total primitives used: Number of 36k BlockRAM used: 22 Number of 18k BlockRAM used: 4 Number of 36k FIFO used: 14 Number of 18k FIFO used: 2 Total Memory used (KB): 1,404 out of 8,208 17% Number of BUFG/BUFGCTRLs: 26 out of 32 81% Number used as BUFGs: 26 Number of IDELAYCTRLs: 6 out of 22 27% Number of BSCANs: 1 out of 4 25% Number of BUFDSs: 1 out of 8 12% Number of BUFIOs: 16 out of 80 20% Number of DCM_ADVs: 8 out of 12 66% Number of LOCed DCM_ADVs: 8 out of 8 100% Number of GTX_DUALs: 2 out of 8 25% Number of LOCed GTX_DUALs: 2 out of 2 100% Number of PCIEs: 1 out of 3 33% Number of LOCed PCIEs: 1 out of 1 100% Number of PLL_ADVs: 1 out of 6 16% Number of SYSMONs: 1 out of 1 100%

Number of RPM macros: 137 Average Fanout of Non-Clock Nets: 3.12

The parts mentioned above (XC5VLX110T, XC5FX70T, XC5FX100T) are also footprint compatible with the SXT series: XC5VSX50T and XC5VSX95T. The SXT series implements a DSP48E core, which if used on the SMT702 may result an increase of the power consumption. Please contact Sundance if you require details about the SXT series.

4.2.3 Configuration (CPLD+Flash)

On the SMT702, the FPGA is connected to a CPLD via a serial link. The CPLD is responsible for controlling read and write operations to and from the Flash memory and to route data to the FPGA configuration port.

The following diagram show how connections are made on the board between the CPLD, the Flash memory and the FPGA:

Ctrl[4:0]

Switch[1:0]

Data[7:0]

Address[25:0]

jtag

Configuration port

Figure 5 - Configuration (Flash).

A reset coming from the bus (PXI or PXI Express) triggers a configuration cycle and the FPGA is configured with the default firmware (stored in factory at location 0).

The on-board Flash memory (256-Mbit part) is big enough to store several versions of firmware. A switch (SW1) at the back of the board allows the selection among 4 locations (Switches select the bitstream to be booted at power up). Each can contain up to 8Mbytes of data, which is big enough to store an XC5LX110T bitstream (about

3.8 Mbytes) and some text (comments or description of the firmware version). The user can store a ‘user’ bitstream at location 1 (see table below) for instance

using the SMT6002 piece of software, also called Flash Utility. The SMT6002 also allows to add comments (text) above the bitstream in flash memory.

Note that switches don’t have any influence when programming the flash. This architecture allows the SMT702 to be used as a development platform for

signal processing and algorithms implementation. The function Reboot can be used from the SMT6002 GUI to boot from any flash location within seconds.

Both FPGA and CPLD can be reprogrammed/reconfigured at anytime via JTAG (J8 connector – Using a Xilinx parallel/USB programming cable) but it can cause problems as it will break the access to the board from the host.

At power up or under a reset on the PXI or PXI Express bus, it takes 140ms for the FPGA (XC5VLX110T-3) to be fully configured and ready to answer the requests from the host.

The following table shows the settings that can be used and the start addresses of the bitstream in the Flash memory.

Position

Switch 2

Position

Switch 1

Bitstream start

address in

Description

flash

ON ON 0x1800000

User Bitstream 2

(Location 3)

ON OFF 0x1000000

User Bitstream 1

(Location 2)

OFF ON 0x0800000

(Location 1)

OFF OFF 0x0000000

(Location 0)

User bitstream 0

Default

bitstream

Default

selection

Note that the CPLD routes the contents of the flash starting from the location selected (SW1) until the FPGA indicates that it is configured. Addresses are incremented by a counter that rolls over to 0 when the maximum address is reached. For instance, in the case where Location 1 is selected and a corrupted bitstream is loaded at that location (or if there is no bitstream at that location), the default bitstream will end up being loaded.

The default bitstream returns ‘DEF’ as firmware version (see register ‘Firmware Version and Revision numbers).

It is recommended to keep the Switch SW1 so the User bitstream 0 is selected and store a custom/user bitstream at Location 1 is needed. The card would then boot from this location. Otherwise the card would boot automatically from the default firmware (Location 0)

Storing a new bitstream using the SMT6002 first involves erasing the appropriate sectors before programming them with the bitstream. This is automatically handled by the SMT6002. Storing a new bitstream at location 1 (User Bitstream 0) will only require from the user to select the file (.bit for instance) and press the ‘Comit’ button. The advanced tab offers more options such as a full erase or a partial erase of the flash memory. None of them should be required in normal mode of operation. Note that a full erase will erase the entire contents of the flash including the default firmware and that it can take up to 3-4 minutes. The partial erase will erase the User bitstreams only.

4.2.4 DDR2 Memory

Two banks of DDR2 memory are available on the SMT702, directly connected to the FPGA. Interfaces are part of the default FPGA design. Each bank is 64-bit wide and 128-Meg deep, so each bank can store up to 1 Giga bytes (or 8-bit ADC samples). Each memory bank is dedicated to one ADC. Both DDR2 interfaces are independent.

The type of memory fitted on the board can be clocked at a maximum or 333MHz.

In order to achieve storage real-time of the ADC samples, the DDR2 interface is clocked at 250MHz (Default bitstream).

4.2.5 Clock circuitry

An on-board PLL+VCO chip ensures a stable fixed sampling frequency (maximum rate, i.e. 1500MHz), in order for the board to be used as a digitiser without the need of external clock signal. The PLL will be able to lock its internal VCO either on the 10MHz PXI reference or the 100MHz PXI express reference or on an external reference signal. The sampling clock for the converters can be either coming from the PLL+VCO chip or from an external source. The chip used is a National Semiconductor part: LMX2531LQ1500.

The selection Internal/External clock is made via a bit in the control register. The same applies to the selection of the reference clock.

Note that the PLL+VCO chip also has the possibility to output half of the fixed VCO frequency, i.e. 1500/2=750MHz.

Below is a block diagram of the clock circuitry.

Ref Out

#5

PXIe Ref (10MHz)

(back-plane)

PXIe Ref (100MHz)

(back-plane)

Ext Ref

#4

Ext Clk

#3

#2

“

1

0

”

“01

”

0

“

Reference Clock Sele ction

c_RF_CLK_SEL[1:0]

c_REF_CLK_

OUT_DIV

Fixed on-board clock g enerator

c_REF_CLK_ON

5-80

BOARD_DIV

MHz

500-1500

MHz

Clock Distribution LMX2531

National Semiconductor

(1.5GHz or half of it)

LMX2531

750 or 1500

M

H

z

“

0

”

1

“

LMX2531

c_CLK_SOURCE_SEL

National Semiconductor

500

-15

0

M

H

z

ADCA (8-bit,

3GSPS)

ADC083000

ADCB (8-bit,

#1

SMA connector on

#x

the front panel

Note that all blocks are control by the Register Block. Command are received from the PXIe bus and decoded.

3GSPS)

ADC083000

National Semiconductor

Figure 6 - Clock circuitry Block Diagram.

4.2.6 Data (samples) path / Data capture

This section details how samples from the ADCs are being captured and stored. By default and after a power-up or reset operation, all interfaces are in reset state. The only exception is the PXI/Express Interface. Relevant interface should first be taken out of the initial reset state.

The next step is to program both ADCs and the clock generator and make sure it locked to a reference signal. This is not needed in case of using an external sampling clock. An ADC calibration cycle can be run. ADCs are then ready to output samples and a clock to the FPGA.

Here are the details of the following step. One Xilinx DCM per ADC clock is used inside the FPGA to ensure a good capture of data. The status of these DCMs should be checked to make sure they are ‘locked’. They are available in the Global Control Register. After being latched, samples go through a multiplexer to be pipelined and then stored into the DDR2 memory available on the board. The DDR2 interface uses some Xilinx specific blocks, such as idelays, DCMs and Phy, which have to be ‘locked’ and ‘ready’ as well. These have to be checked the same way, using the bits available from the Global Control Register.

Each ADC is being dedicated a DDR2 Memory bank, which can be seen as a Fifo. Both Fifos have status bits to check whether they are empty or full (bit available from Global Control Register). Each Fifo is connected to a DMA channel. DMA channel are implemented as Xlinks.

Samples coming from the ADCs are also routed straight on the SHB connector (DDR 32-bit bus).

The following diagram shows the data path implemented in order to capture samples from the ADCs:

Figure 7 - Data (samples) path.

The SMT702 comes with a piece of software, the SMT7002. It is a demo application that shows how to set up the module and allows capturing samples into text files.

Source code of the SMT7002 is available to purchase under the product name SMT7026.

4.2.7 PXI Express Bus

As standard, the SMT702 is a 3U PXI Express peripheral module, which means it comes with two PXI Express connectors: XP4 (PXI timing and synchronisation signals) and XP3 (x8 PCI Express and additional synchronisation signals). The SMT702 dedicates 8 lanes to the PXI Express bus, which gives an effective bandwidth per direction of 16Gb/s. It also implies core and user clocks to be 250 MHz. Note that not all PXIe Express chassis and controller can handle 8 lanes on peripheral modules. Currently only 1 and 4 lanes are supported. The Express core developed by Sundance and based on Xlinks is able to achieve over 700Mbytes per second for a 4-lane core clocked at 250MHz and half of it when clocked at 125MHz.

The standard SMT702 can plug in any PXI Express Peripheral Slot or any PXI Express Hybrid Slot (PXI Express chassis, such as the NI-1062Q from National Instrument or equivalent).

Reference clock selection is made on the board via a jumper (J11). Position 1-2 selects the PXI reference clock (100Mhz provided by the PXI Express chassis – Factory setting). Position 2-3 selects the on-board 250Mhz crystal.

Figure 8 - Standard SMT702 - PXI Express Peripheral Module

Optionally, the module can be a 3U Hybrid Peripheral Slot Compatible PXI-1 Module, which means it comes with two connectors: XP4 (PXI timing and synchronisation signals) and P1 (32-bit, 33MHz PCI Signals). This version of the SMT702 can only plug in a PXI Express Hybrid Slot (PXI Express chassis, such as the NI-1062Q from National Instrument or equivalent).

Figure 9 - SMT702-HYBRPXI32 (opt.) - Hybrid Peripheral Slot Compatible PXI-1 Module

4.2.8 SHB Connector

An SHB Connector is available from the FPGA. It maps 32 single-ended data lines and a set of control signals including a clock.

It can be used to transfer samples to an other Sundance module, for instance the SMT712.

A second SHB connector is available on the standard version of the SMT702 (not available on the option -HYBRPXI32 and –CPCI32).

Note that in order to achieve transfers to an SMT712 board, the standard SHB interface can’t be used but requires its DDR version (implement into default firmware).

The SHB transfers have been tested at 375MHz, DDR mode, 32-bit words, giving a continuous transfer speed of 3GBytes per second.

4.2.9 Power dissipation

The SMT702 has been designed to work in a PXI Express chassis, which has built-in cooling facilities. It provides enough airflow and has a fan regulation.

PXI Express chassis are specified so they can dissipate 30 Watts of heat. The following picture shows the direction of the forced air flow across a 3U PXI

Express module:

Figure 10 - Forced airflow for a 3U module.

A PXI Express rack has a capacity of dissipating 30 watts of heat per slot using forced air-cooling system via typically two 110-cfm fans with filter.

In case the SMT702 is used in an other type of chassis, some similar airflow must be implemented as the board requires it.

The SMT702 has been developed using the following PXI Express rack from Nation Instrument: PXIe-1062Q.

4.2.10 JTAG

A connector (J8) is specifically dedicated for FPGA and CPLD detection and programming. Both the CPLD and the FPGA are part of the JTAG chain. A 14position (2x7) connector (2mm) is available and shows TDI, TDO, TCK and TMS lines, as well as a Ground and a reference voltage, as shown below:

Figure 11 - JTAG Connector.

It can connect directly to a Xilinx Parallel IV cable using the ribbon cable provided by Xilinx. The connector is a Molex part:

Molex 87831-1428.

Figure 12 - Photo of a Xilinx Parallel IV cable and its ribbon cable for JTAG connection

4.2.11 PXI Express Hybrid Connectors

As being a PXI Express Hybrid Peripheral Module, the SMT702 is a 3U card with 2 PXI connectors, XP4 and XP3 or P1. The following table shows their pinouts.

The SMT702 implements up to eight 2.5-Gigabit PCI Express lanes, allowing a maximum theoretical data transfer of 2 gigabytes per second. It also implements optionally a 32-bit, 33-MHz PCI interface.

4.3 FPGA Design

The following block diagram shows how the default FPGA design is organised.

DDR2 Memory BankA

64-bit wide

1Gbytes, 250MHz

DDR2 Memory BankB

64-bit wide

1Gbytes, 250MHz

Flash

\

DDR2 Interface DDR2 Interface

32-bit SHB

#5

CPLD

Ref Out

PXI Ref (10MHz)

)

x

4

4x8 bit

(375 MHz DDR

8

s

M

5

7

3

(

s

t

i

b

D

(Endpoint)

)

z

H

R

D

RSL

Interface

PCI

Express

Core

PCI Interface

(opt)

Control

2xlanes

e

s

xla

n

4

4 PXIe Lanes

Data&Control

32-bit PXI/SHB

PXIe Ref (100MHz)

Ext Ref

#4

Ext Clk

#3

#2

National Semiconductor

#1

National Semiconductor

Clock

Distribution

LMX2531

ADCA (8-bit,

3GSPS)

ADC083000

ADCB (8-bit,

3GSPS)

ADC083000

4

(37

L

4x8 bit

(

3

LVD

x

8 bits

5MHz)

D

DR

VDS

75M

DDR

s

H

z)

S

ADC and

Clock SPIs

Demux

1:2

Demux

1:2

8

x8 bits

(18

7.5 MHz

DDR

L

VDS

8x8 bit

(187.5 MH

DDR

LVD

DDR LVDS

8x8 bits (187.5 MHz)

)

s

z

)

S

Registers

Virtex 5 LXT

SMA connector on

#x

the front panel

1 - Note that all blocks are control by the Register Block. Command are received from the PXIe bus and decoded. 2 – Samples are stored directly in the memory and played back to be sent over PXIe, RSL, optionally SATA or optionally PCI

Figure 13 - Block Diagram - FPGA Design (standard Firmware).

4.3.1 Control Registers

The Control Registers drive the complete functionality of the SMT702. They are setup via the PXIe bus (standard firmware provided). The settings of the ADCs, triggers, clocks and the configuration of the RSL/PXI interfaces (optional SATA) and the internal FPGA data path settings can be configured.

The data passed on to the SMT702 over the PXIe bus must conform to a certain packet structure and to specific addresses and offsets. Only valid packets will be.

DDR

SHB(ChA)

connector

Dual SATA

connector

(optional)

4xRSL

via RSL connectors

(4xlinks@2.5Gbits/s)

PXIe

Bus

4 Lanes@2.5Gbits/s

32-bit PXI

Bus (optional)

or DDR SHB

(ChB)

connector

(standard SMT702)

4.3.1.1 Memory Map

The write packets must contain the address where the data must be written to and the read packets must contain the address where the required data must be read. The following figure shows the memory map for the writable and readable registers on the SMT702:

The access to a specific register is made by reading or writing to the address:

Address from Host = Offset + Register Address

Offset Description.

0x0000

0x0400

0x0800

0x0C00

0x1000

0x1400

0x2400

SMT7xx Boards common registers (Reboot, global reset).

SMT702 Registers (ADCs, Clock and control).

ADCa data channel (Xlink)

ADCb data channel (Xlink)

Table of Contents (see Xlink Specifications for more details).

Flash memory for bitstream storage.

Event Block

Offset 0x0000 – SMT7xx Common Registers.

Register Address

0x04

0x80

Register Address

0x08

0x010

0x020

0x24

0x40

0x44

0x48

0x4C

0x74

0x78

0x7C

0x84

0x88

0x8C

0xB4

0xB8

0xBC

0xC0

0xC4

Global Reset (bit31). Reserved.

Reconfiguration – Bitstream number. Reserved.

Reserved. General Control Register.

Set Control Register. Reserved.

Clear Control Register. Reserved.

Reserved Board Name and Version.

Reserved. Firmware Version and Revision Numbers.

ADCA (ADC083000) Register 0x1. Read-back (FPGA Register) ADCA (ADC083000)

ADCA (ADC083000) Register 0x2. Read-back (FPGA Register) ADCA (ADC083000)

ADCA (ADC083000) Register 0x3. Read-back (FPGA Register) ADCA (ADC083000)

ADCA (ADC083000) Register 0xD. Read-back (FPGA Register) ADCA (ADC083000)

ADCA (ADC083000) Register 0xE. Read-back (FPGA Register) ADCA (ADC083000)

ADCA (ADC083000) Register 0xF. Read-back (FPGA Register) ADCA (ADC083000)

ADCB (ADC083000) Register 0x1. Read-back (FPGA Register) ADCB (ADC083000)

ADCB (ADC083000) Register 0x2. Read-back (FPGA Register) ADCB (ADC083000)

ADCB (ADC083000) Register 0x3. Read-back (FPGA Register) ADCB (ADC083000)

ADCB (ADC083000) Register 0xD. Read-back (FPGA Register) ADCB (ADC083000)

ADCB (ADC083000) Register 0xE. Read-back (FPGA Register) ADCB (ADC083000)

ADCB (ADC083000) Register 0xF. Read-back (FPGA Register) ADCB (ADC083000)

Frequency Synthesizer (LMX2531) register R0 Read-back (FPGA register) Frequency Synthesizer

Frequency Synthesizer (LMX2531) register R1 Read-back (FPGA register) Frequency Synthesizer

Writable Registers Readable Registers

Offset 0x0400 – SMT702 Registers.

Writable Registers Readable Registers

Register 0x1.

Register 0x2.

Register 0x3.

Register 0xD.

Register 0xE.

Register 0xF.

Register 0x1.

Register 0x2.

Register 0x3.

Register 0xD.

Register 0xE.

Register 0xF.

(LMX2531) register R0

(LMX2531) register R1

0xC8

0xCC

0xD0

0xD4

0xD8

0xDC

0xE0

0xE4

0xE8

0x108

0x10C

0x180

0x184

0x188

0x18C

0x190

Frequency Synthesizer (LMX2531) register R2 Read-back (FPGA register) Frequency Synthesizer

(LMX2531) register R2

Frequency Synthesizer (LMX2531) register R3 Read-back (FPGA register) Frequency Synthesizer

(LMX2531) register R3

Frequency Synthesizer (LMX2531) register R4 Read-back (FPGA register) Frequency Synthesizer

(LMX2531) register R4

Frequency Synthesizer (LMX2531) register R5 Read-back (FPGA register) Frequency Synthesizer

(LMX2531) register R5

Frequency Synthesizer (LMX2531) register R6 Read-back (FPGA register) Frequency Synthesizer

(LMX2531) register R6

Frequency Synthesizer (LMX2531) register R7 Read-back (FPGA register) Frequency Synthesizer

(LMX2531) register R7

Frequency Synthesizer (LMX2531) register R8 Read-back (FPGA register) Frequency Synthesizer

(LMX2531) register R8

Frequency Synthesizer (LMX2531) register R9 Read-back (FPGA register) Frequency Synthesizer

(LMX2531) register R9

Frequency Synthesizer (LMX2531) register R12 Read-back (FPGA register) Frequency Synthesizer

(LMX2531) register R12

ADCA – DCM Phase Shift. Reserved.

ADCB – DCM Phase shift. Reserved.

FPGA Die temperature thresholds. System Monitor – Read-back FPGA die

temperature measured

FPGA Core voltage thresholds. System Monitor – Read-back FPGA Vccint (Core

Voltage) measured

FPGA Aux voltage thresholds System Monitor – Read-back FPGA Vccaux (Core

Voltage) measured

Reserved Amount of samples left to be read out out of

DDR2 BankA

Reserved Amount of samples left to be read out out of

DDR2 BankB

Figure 14 – Register Memory Map.

Note that ADC registers are write-only (ADC chips), which means that the contents of the ADC registers can only be read-back from the FPGA. THe same applies to the Clock chip.

4.3.1.2 Register Descriptions

4.3.1.2.1 General Control Register – 0x8 (read-only).

Offset 0x0400 – General control Register – 0x8 (Read-only register).

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

3

Defaul

t

2

Defaul

t

1

Defaul

t

0

Defaul

t

ADCb synch

reference

state

‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’

DDR2 Fifo

Full

(Memory

Bank A)

‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘1’ ‘1’

DDR2 Fifo

empty

(Memory

Bank A)

‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘1’ ‘1’

ADCB

Programme

d

‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’

ADCa synch

reference

state

DDR2 Fifo

Ready

(Memory

Bank B)

DDR2 lock

status

(Memory

Bank A)

ADCA

Programme

d

System

Monitor

–

Vccaux

alarm

IDelay

Control

Ready

(Memor

y Bank

B)

DDR2

phy init

done

(Memor

y Bank

A)

ADCb

DCM Lock

Status

System

Monitor –

Vccint

alarm

DDR2 Fifo

empty

(Memory

Bank B)

ADCb

ADCa DCM

Lock

Status

System

Monitor

– Die

temperat

ure

alarm

DDR2

lock

status

(Memory

Bank B)

calibrati

on

complete

d

Lock Detect (Clock

Chip)

DDR2 Fifo

Almost

Empty

(Memory

Bank B)

DDR2 phy

init done (Memory

Bank B)

ADCa calibration completed

Clock Chip

Programme

d

DDR2 Fifo

Almost

Empty

(Memory

Bank A)

Ddr2 Fifo

Ready

(Memory

Bank A)

ADCa

DCM Busy

ADCB

Calibratio

n Running

DDR2 Fifo

Full

(Memory

Bank B)

IDelay

Control

Ready

(Memory

Bank A)

ADCb

DCM Busy

ADCA

Calibratio

n Running

Offset 0x0400 – General control Register – 0x8 (Read-only register).

Setting Bit 0 Description – ADCA Calibration Running

0

1

Setting Bit 1 Description – ADCB Calibration Running

0

1

Setting Bit 2 Description – Clock chip programmed

0

1

0 Normal Mode of Operation – ADCA not calibrating. A calibration cycle lasts 14000

sampling clock cycles.

1 ADCA is busy running a Calibration cycle. A calibration cycle lasts 14000 sampling clock

cycles. Nothing should be done while ADCa is in the middle of a calibration cycle.

0 Normal Mode of Operation – ADCB not calibrating. A calibration cycle lasts 14000

sampling clock cycles.

1 ADCB is busy running a Calibration cycle. A calibration cycle lasts 14000 sampling clock

cycles. Nothing should be done while ADCb is in the middle of a calibration cycle.

0 Clock chip not yet programmed.

1 Clock chip has been programmed with all registers after an update request has been sent.

Setting Bit 3 Description – Lock Detect (Clock chip)

0

1

0 The Clock chip hasn’t locked (reference on internal VCO).

1 The clock chip has lock. The on-board clock can be used to clock the ADCs.

Setting Bit 4 Description – ADCa DCM Lock Status.

0

1

0 FPGA DCM not locked.

1 FPGA DCM Locked. Normal Mode of Operation.

Setting Bit 5 Description – ADCb DCM Lock Status.

0

1

0 FPGA DCM not locked.

1 FPGA DCM Locked. Normal Mode of Operation.

Setting Bit 6 Description – ADCa programmed.

0

1

0 ADCa not yet programmed.

1 ADCa has been programmed with all registers after an update request has been sent.

Setting Bit 7 Description – ADCb programmed.

0

1

0 ADCb not yet programmed.

1 ADCb has been programmed with all registers after an update request has been sent.

Setting Bit 8 Description – ADCa DCM Busy.

0

1

0 Normal Mode of Operation.

1 The DCM is busy, meaning either in the process of locking or updating its phase shift.

Can be polled when one needs to reprogram phase shifts to make sure it is in the middle of a cycle.

Setting Bit 9 Description – ADCb DCM Busy.

0

1

0 Normal Mode of Operation.

1 The DCM is busy, meaning either in the process of locking or updating its phase shift.

Can be polled when one needs to reprogram phase shifts to make sure it is not in the middle of a cycle.

Setting Bit 13 Description – DDR2 phy init done. Memory Bank A.

0

1

0 A problem occurred or Memory Bank A is kept in reset.

1 Normal Mode of Operation.

Setting Bit 14 Description – DDR2 lock status. Memory Bank A.

0

1

0 A problem occurred or Memory Bank A is kept in reset.

1 Normal Mode of Operation.

Setting Bit 15 Description – DDR2 fifo empty. Memory Bank A.

0

1

0 DDR2 fifo contains samples.

1 DDR2 fifo is empty.

Setting Bit 16 Description – IDelay Control Ready. Memory Bank A.

0

1

0 A problem occurred or Memory Bank A is kept in reset.

1 Normal Mode of Operation.

Setting Bit 17 Description – DDR2 Fifo Ready. Memory Bank A.

0

1

0 Fifo not ready. Data should not be written.

1 Normal Mode of Operation.

Setting Bit 18 Description – DDR2 phy init done. Memory Bank B.

0

1

0 A problem occurred or Memory Bank B is kept in reset.

1 Normal Mode of Operation.

Setting Bit 19 Description – DDR2 lock status. Memory Bank B.

0

0 A problem occurred or Memory Bank B is kept in reset.

1

Setting Bit 20 Description – DDR2 fifo empty. Memory Bank B.

0

1

Setting Bit 21 Description – IDelay Control Ready. Memory Bank B.

0

1

Setting Bit 22 Description – DDR2 Fifo Ready. Memory Bank B.

0

1

Setting Bit 23 Description – DDR2 Fifo Full. Memory Bank A

0

1

Setting Bit 24 Description – DDR2 Fifo Full. Memory Bank B

0

1

Setting Bit 25 Description – DDR2 Fifo almost empty. Memory Bank A

0

1

Setting Bit 26 Description – DDR2 Fifo almost empty. Memory Bank B

0

1

Setting Bit 27 Description – System Monitor – FPGA Die Temperature Alarm

0

1

Setting Bit 28 Description – System Monitor – Vccint Alarm

0

1

Setting Bit 29 Description – System Monitor – Vccaux Alarm

0

1

Setting Bit 30

0

1

Setting Bit 31

0

1

1 Normal Mode of Operation.

0 DDR2 fifo contains samples.

1 DDR2 fifo is empty.

0 A problem occurred or Memory Bank B is kept in reset.

1 Normal Mode of Operation.

0 Fifo not ready. Data should not be written.

1 Normal Mode of Operation.

0 Memory bank A not full.

1 Memory bank A full.

0 Memory bank B not full.

1 Memory bank B full.

0 Memory bank A not almost empty.

1 Memory bank A almost empty.

0 Memory bank B not almost empty.

1 Memory bank B almost empty.

0 Normal Mode of Operation.

1 Upper die temperature threshold reached.

0 Normal Mode of operation.

1 Upper Vccint threshold reached.

0 Normal Mode of Operation.

1 Upper Vccaux threshold reached.

Description – ADCa synch reference state

0 The clock coming out of ADCa is at a low logic level at the time it’s been scanned.

1 The clock coming out of ADCa is at a high logic level at the time it’s been scanned.

Description – ADCb synch reference state

0 The clock coming out of ADCb is at a low logic level at the time it’s been scanned.

1 The clock coming out of ADCb is at a high logic level at the time it’s been scanned.

4.3.1.2.2 Set Control Register – 0x10 (write).

Offset 0x0400 - Reset Register – 0x10 (write)

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

3

Default

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

2

Default

1

Default

0

Default

‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’

System

Monitor

Reset

‘0’ ‘1’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’

DCM Reset

‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘1’ ‘00’

Sampling

Clock

Selection

Source

‘0’ ‘0’ ‘0’ ‘0’ ‘1’ ‘0’ ‘0’ ‘0’

Soft Reset SHB2

ADC

Calibration

request

(auto-

clears)

CLOCK

Power

Supplies

Enable

Reset

Reference

Clock

OnBoard

Divider

ADCB Power

Supplies

Enable

SHB1

Reset

Reference Clock Out

Divider

ADCA Power

Supplies

Enable

DDR2

Reset

Ref

ADC

Reset

DDR2

ChA&B

Read

Enable

Clock

Circuitry

Reset

Clock

Update

(auto-

clears)

External

Trigger

Selection

Ref Clock Selection

ADCB

Update

(auto-clear)

DDR2

Capture

enable

ADCA

Update

(auto-

clears)

Offset 0x0400 - Reset Register – 0x10 (write)

Setting Bit 0 Description – ADCA Update (Auto-Clears)

0

1

Setting Bit 1 Description – ADCB Update (Auto-Clears)

0

1

Setting Bit 2 Description – Clock Update (Auto-Clears)

0

1

Setting Bit 3 Description – ADC Reset (Does not auto-clear)

0

1

Setting Bit 4 Description – ADCA Power Supplies Enable

0

1

Setting Bit 5 Description – ADCB Power Supplies Enable

0

1

Setting Bit 6 Description – CLOCK Power Supplies Enable

0

1

0 Normal Mode of Operation

1 All Current ADCA Register are passed from the FPGA to the ADCA Chip

0 Normal Mode of Operation

1 All Current ADCB Register are passed from the FPGA to the ADCB Chip

0 Normal Mode of Operation

1 All Current Clock Register are passed from the FPGA to the Clock Chip

0 Normal Mode of Operation.

1 ADCs kept in Reset (Default).

0 ADCA is not powered.

1 Normal Mode of Operation – ADCA under power.

0 ADCB is not powered.

1 Normal Mode of Operation – ADCB under power.

0 CLOCK circuitry is not powered.

1 Normal Mode of Operation – CLOCK under power.

Setting Bit 7 Description – Sampling Clock Source Selection

0

1

0 ADCs are clocked using the on-board clock synthesizer.

1 ADCs are clocked using an external source.

Setting Bit 9-8 Description – Reference Clock Selection

0

1

2

3

00 External Reference Selected.

01 100-MHz PXI Express Reference Clock.

10 10-MHz PXI Express Reference Clock.

11 100-MHz PXI Express Reference Clock.

Setting Bit 10 Description – Reference Clock Circuitry Reset

0

1

0 Normal Mode of Operation.

1 Reference Clock Circuitry kept in Reset (Default).

Setting Bit 12 Description – Reference Clock Out Divider.

0

1

0 Divide by 1.

1 Divide by 2.

Setting Bit 13 Description – On-board Reference Clock Divider

0

1

0 Divide by 1.

1 Divide by 2.

Setting Bit 14 Description – ADCs Calibration Request (Auto-Clears)

0

1

0 Normal Mode of Operation (Default)

1 Forces the FPGA to recalibrate its IOs. This is required when the sampling clock of the

ADCs has been changed.

Setting Bit 15 Description – ADC DCMs Reset

0

1

0 Normal Mode of operation

1 Resets ADC DCMs.

Setting Bit 16 Description – DDR2 Capture Enable

0

1

0 DDR2 Memory not enabled. Nothing can be written.

1 DDR2 memory enabled, meaning samples can be written in memory until it is full.

Setting Bit 17 Description – Trigger Source Selection

0

1

0 On-board trigger selected (bit 16)

1 External trigger selected (Trig Input). A Level ‘high’ on the Trig Input is required to start

an acquisition (length of the pulse being at least 1/8th of the ADC sampling clock.

Setting Bit 18 Description – DDR2 read Enable

0

1

0 DDR2 Memory read operation not enabled.

1 DDR2 memory read operation enabled, meaning samples contained in DDR2 memory can

be transferred to the host.

Setting Bit 19 Description – DDR2 Reset

0

1

0 Normal Mode of Operation

1 Keeps DDR2 circuitry in Reset

Setting Bit 20 Description – SHB1 Reset

0

1

0 Normal Mode of Operation

1 Keeps SHB1 circuitry in Reset

Setting Bit 21 Description – SHB2 Reset

0

1

0 Normal Mode of Operation

1 Keeps SHB2 circuitry in Reset

Setting Bit 22 Description – Soft Reset

0

1

Setting

0

1

0 Normal Mode of Operation

1 Resets Xlinks blocks – usually used before starting an acquisition to clear Xlinks FIFOs.

Bit 23 Description – System Monitor Reset

0 Normal Mode of Operation

1 Keeps System Monitor circuitry in Reset

Note 1: The on-board reference clock is used by the on-board clock generator, which can only take reference clock within the range 5-80MHz. Bit13 must be set for all reference reaching the chip above 80MHz.

4.3.1.2.3 Clear Control Register – 0x20 (write).

Same as Set Control Register (0x10) but used to clear individual register bits.

4.3.1.2.4 Board Name and Version – 0x24 (read-only).

Offset 0x0400 - Reset Register – 0x24 (read-only)

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

3

2

1

0

FPGA Type PCB Revision

Board Name (MSB)

Board Name (LSB)

FPGA Type

Offset 0x0400 - Reset Register – 0x24 (read-only)

Setting Bit 3:0 Description – PCB Revision

Setting Bit 11:4 Description – FPGA Type

Setting Bit 31:12 Description – Board name

Return a number coded in binary on 4 bits.

Return 110 for an LX110T FPGA, 070 for and FX70T FPGA, 100 for and FX100T FPGA.

Returns 0702, as an hexadecimal value.

4.3.1.2.5 Firmware Version and Revision Numbers – 0x40 (read-

only).

Offset 0x0400 - Reset Register – 0x40 (read-only)

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

3

2

1

0

Offset 0x0400 - Reset Register – 0x40 (read-only)

Setting Bit 15:0 Description – Firmware Revision

Setting Bit 31:16 Description – Firmware Version

Return a number coded in binary on 16 bits.

Returns 0DEF (hexadecimal value) for the default firmware.

Firmware Version Number (MSB)

Firmware Version Number (LSB)

Firmware Revision Number (MSB)

Firmware Revision Number (LSB)

4.3.1.2.6 ADCA (ADC083000) Register 0x1 – Configuration

Register – 0x44 (write).

Offset 0x0400 - ADCA (ADC083000) Register 0x1 – Configuration Register – 0x44 (write)

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

Offset 0x0400 - ADCA (ADC083000) Register 0x1 – Configuration Register – 0x44 (write)

Setting Bit 14 Description (DRE – Differential Reset Enable)

0

1

Setting Bit 13 Description (RTD – resistor Trim Disable)

0

1

Setting Bit 12 Description (DCS – Duty Cycle Stabilizer)

0

1

Setting Bit 11 Description (DCP – DDR Clock Phase – DDR Mode only)

0

1

Setting Bit 10 Description (nDE – DDR Enable)

0

1

Setting Bit 9 Description (OV – LVDS Output Voltage amplitude)

0

1

Setting Bit 8 Description (OE –Output Edge)

0

1

Reserved DRE RTD DCS DCP nDE OV OE

‘1’ ‘1’ ‘0’ ‘1’ ‘0’ ‘1’ ‘1’ ‘0’

Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved

‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’

0 Single-ended Reset enabled.

1 Differential Reset enabled.

0 Normal Operation.

1 Input termination resistor is not trimmed during calibration cycle.

0 Stabilisation circuit disabled.

1 Duty Cycle Stabilizer applied to the sampling clock.

0 0° phase – ADC output clock time-aligned with data.

1 90° phase – ADC output clock placed in the middle of data.

0 DDR Mode.

1 SRD Mode.

0 Reduced output amplitude – 510mV. This setting is recommended on the SMT702. It

reduces the overall noise on the board and therefore increases the performance of the ADCs.

1 Standard output amplitude – 710mV.

0 1:4 Demux Mode (DDR Mode must be Selected).

1 1:2 Demux Mode (DDR Mode must be selected).

4.3.1.2.7 ADCA (ADC083000) Register 0x2 – Offset Adjust – 0x48

(write and read).

Offset 0x0400 - ADCA (ADC083000) Register 0x2 – Offset Adjust – 0x48 (write and read)

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved

Offset Value

“00000000”

Default

‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’

Offset 0x0400 - ADCA (ADC083000) Register 0x2 – Offset Adjust – 0x48 (write and

Setting Bit 8-15 Description (Offset Adjust)

0

Setting Bit 7 Description (Offset sign)

0

1

0 8-bit value - 0.176mV per bit – 0x0 is 0mv and 0xFF is 45mV.

0 Positive offset.

1 Negative offset.

read)

4.3.1.2.8 ADCA (ADC083000) Register 0x3 – Full Scale Voltage

Adjust – 0x4C (write and read).

Offset 0x0400 - ADCA (ADC083000) Register 0x3 – Full Scale Voltage Adjust – 0x4C (write and

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

Adjust

Value

‘0’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’

Reserved Reserved Reserved Reserved Reserved Reserved Reserved

read)

Adjust Value

“10000000”

Offset 0x0400 - ADCA (ADC083000) Register 0x3 – Full Scale Voltage Adjust – 0x4C

Setting Bit 7-15 Description (Full Scale Voltage Adjust)

0

0 9-bit value – 20% adjustment around the nominal 700mVpp differential value – 0x0 is

560mVp-p and 0x1FF is 840mVp-p.

(write and read)

4.3.1.2.9 ADCA (ADC083000) Register 0xD – Extended Clock Phase

Adjust Fine – 0x74 (write and read).

Offset 0x0400 - ADCA (ADC083000) Register 0xD – Extended Clock Phase Adjust Fine – 0x74

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

Phase

Adjust

‘0’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’

Reserved Reserved Reserved Reserved Reserved Reserved Reserved

Offset 0x0400 - ADCA (ADC083000) Register 0xD – Extended Clock Phase Adjust Fine –

Setting Bit 7-15 Description (Fine Adjust Magnitude)

0x74 (write and read)

(write and read)

Phase Adjust (Fine)

“00000000”

0

0 9-bit value – With all bits set, adjust=110ps.

4.3.1.2.10 ADCA (ADC083000) Register 0xE – Extended Clock Phase

Adjust Coarse – 0x78 (write and read).

Offset 0x0400 - ADCA (ADC083000) Register 0xE – Extended Clock Phase Adjust Coarse – 0x78

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

ENA Phase Adjust (Coarse) LFS Reserved Reserved

‘0’ ‘0’ ‘1’ ‘1’

Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved

‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’

Offset 0x0400 - ADCA (ADC083000) Register 0xE – Extended Clock Phase Adjust Coarse

Setting Bit 10 Description (LFS – Low Frequency Sample Clock)

0

1

Setting Bit 11-14 Description (Coarse Adjust Magnitude)

0

Setting Bit 15 Description (ENA - enable)

0

1

0 Sample Clock above 900MHz.

1 Sample Clock below 900MHz.

0 4-bit value – Each LSB adds approximately 70ps of Clock Adjust.

0 Disabled.

1 Enabled.

– 0x78 (write and read)

(write and read)

4.3.1.2.11 ADCA (ADC083000) Register 0xF – Test Pattern register –

0x7C (write and read).

Offset 0x0400 - ADCA (ADC083000) Register 0xF – Test Pattern Register – 0x7C (write and read)

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

Offset 0x0400 - ADCA (ADC083000) Register 0xF – Test Pattern Register – 0x7C (write

Setting Bit 11 Description (TPO – Test Pattern Output Enable)

0

1

Reserved Reserved Reserved Reserved TPO Reserved Reserved Reserved

‘1’ ‘1’ ‘1’ ‘1’ ‘0’ ‘1’ ‘1’ ‘1’

Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved

‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’

and read)

0 Normal mode of Operation.

1 All ADC outputs in Test Pattern mode.

4.3.1.2.12 ADCB (ADC083000) Register 0x1 – Configuration Register

– 0x84 (write and read).

Offset 0x0400 - ADCB (ADC083000) Register 0x1 – Configuration Register – 0x84 (write and read)

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

Offset 0x0400 - ADCB (ADC083000) Register 0x1 – Configuration Register – 0x84 (write

Setting Bit 14 Description (DRE – Differential Reset Enable)

0

1

Setting Bit 13 Description (RTD – resistor Trim Disable)

0

1

Setting Bit 12 Description (DCS – Duty Cycle Stabilizer)

0

1

Setting Bit 11 Description (DCP – DDR Clock Phase – DDR Mode only)

0

1

Setting Bit 10 Description (nDE – DDR Enable)

0

1

Setting Bit 9 Description (OV – LVDS Output Voltage amplitude)

0

1

Setting Bit 8 Description (OE –Output Edge)

0

1

Reserved DRE RTD DCS DCP nDE OV OE

‘1’ ‘1’ ‘0’ ‘1’ ‘0’ ‘1’ ‘1’ ‘0’

Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved

‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’

and read)

0 Single-ended Reset enabled.

1 Differential Reset enabled.

0 Normal Operation.

1 Input termination resistor is not trimmed during calibration cycle.

0 Stabilisation circuit disabled.

1 Duty Cycle Stabilizer applied to the sampling clock.

0 0° phase – ADC output clock time-aligned with data.

1 90° phase – ADc output clock placed in the middle of data.

0 DDr Mode.

1 SRD Mode.

0 Reduced output amplitude – 510mV. This setting is recommended on the SMt702. It

reduces the overall noise on the board and therefore increases the performance of the ADCs.

1 Standard output amplitude – 710mV.

0 1:4 Demux Mode (DDR Mode must be Selected).

1 1:2 Demux Mode (DDR Mode must be selected).

4.3.1.2.13 ADCB (ADC083000) Register 0x2 – Offset Adjust – 0x88

(write and read).

Offset 0x0400 - ADCB (ADC083000) Register 0x2 – Offset Adjust – 0x88 (write and read)

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved

‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’

Offset 0x0400 - ADCB (ADC083000) Register 0x2 – Offset Adjust – 0x88 (write and read)

Setting Bit 8-15 Description (Offset Adjust)

0

Setting Bit 7 Description (Offset sign)

0

1

0 8-bit value - 0.176mV per bit – 0x0 is 0mv and 0xFF is 45mV.

0 Positive offset.

1 Negative offset.

Offset Value

“00000000”

4.3.1.2.14 ADCB (ADC083000) Register 0x3 – Full Scale Voltage

Adjust – 0x8C (write and read).

Offset 0x0400 - ADCB (ADC083000) Register 0x3 – Full Scale Voltage Adjust – 0x8C (write and

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

Adjust

Value

‘0’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’

Reserved Reserved Reserved Reserved Reserved Reserved Reserved

Offset 0x0400 - ADCB (ADC083000) Register 0x3 – Full Scale Voltage Adjust – 0x8C

Setting Bit 7-15 Description (Full Scale Voltage Adjust)

0

0 9-bit value – 20% adjustment around the nominal 700mVpp differential value – 0x0 is

560mVp-p and 0x1FF is 840mVp-p.

(write and read)

read)

Adjust Value

“10000000”

4.3.1.2.15 ADCB (ADC083000) Register 0xD – Extended Clock Phase

Adjust Fine 0xB4 (write and read).

Offset 0x0400 - ADCB (ADC083000) Register 0xD – Extended Clock Phase Adjust Fine – 0xB4

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

Phase

Adjust

‘0’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’

Reserved Reserved Reserved Reserved Reserved Reserved Reserved

Offset 0x0400 - ADCB (ADC083000) Register 0xD – Extended Clock Phase Adjust Fine –

Setting Bit 7-15 Description (Fine Adjust Magnitude)

0

0 9-bit value – With all bits set, adjust=110ps.

0xB4 (write and read)

(write and read)

Phase Adjust (Fine)

“00000000”

4.3.1.2.16 ADCB (ADC083000) Register 0xE – Extended Clock Phase

Adjust Coarse – 0xB8 (write and read).

Offset 0x0400 - ADCB (ADC083000) Register 0xE – Extended Clock Phase Adjust Coarse – 0xB8

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

ENA Phase Adjust (Coarse) LFS Reserved Reserved

‘0’ ‘0’ ‘1’ ‘1’

Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved

‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’

Offset 0x0400 - ADCB (ADC083000) Register 0xE – Extended Clock Phase Adjust Coarse

Setting Bit 10 Description (LFS – Low Frequency Sample Clock)

0

1

Setting Bit 11-14 Description (Coarse Adjust Magnitude)

0

Setting Bit 15 Description (ENA - enable)

0

1

0 Sample Clock above 900MHz.

1 Sample Clock below 900MHz.

0 4-bit value – Each LSB adds approximately 70ps of Clock Adjust.

0 Disabled.

1 Enabled.

– 0xB8 (write and read)

(write and read)

4.3.1.2.17 ADCB (ADC083000) Register 0xF – Test Pattern register –

0xBC (write and read).

Offset 0x0400 - ADCB (ADC083000) Register 0xF – Test Pattern Register – 0xBC (write and read)

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

Reserved Reserved Reserved Reserved TPO Reserved Reserved Reserved

‘1’ ‘1’ ‘1’ ‘1’ ‘0’ ‘1’ ‘1’ ‘1’

Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved

‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’ ‘1’

Offset 0x0400 - ADCB (ADC083000) Register 0xF – Test Pattern Register – 0xBC (write

Setting Bit 11 Description (TPO – Test Pattern Output Enable)

0

1

0 Normal mode of Operation.

1 All ADC outputs in Test Pattern mode.

and read)

4.3.1.2.18 Frequency Synthesizer (LMX2531) Register R0 – 0xC0

(write and read).

The LMX2531 in the SMT702 is a clock synthesizer that generates a frequency within the range 1499-1510MHz. The chip has a built-in VCO and uses a reference clock to lock its pll.

Offset 0x0400 - Frequency Synthesizer (LMX2531) Register R0 – 0xC0 (write and read)

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

2

Default

1

Default

0

Default

Reserved N[7:4]

‘0000’ ‘0000’

N[3:0] NUM[11:8]

‘0000’ ‘0000’

NUM[7:0]

‘00000000’

Offset 0x0400 - Frequency Synthesizer (LMX2531) Register R0 – 0xC0 (write and read)

Setting Bit 11-0 Fractional numerator (NUM[11:0])

0

Setting Bit 21-12 N Counter (N[7:0])

0

0 Value between 0 (all 0s) and 4194303 (all 1s)

0 Value between 0 (0x0) and 2039 (0x3F7)

4.3.1.2.19 Frequency Synthesizer (LMX2531) Register R1 – 0xC4

(write and read).

Offset 0x0400 - Frequency Synthesizer (LMX2531) Register R1 – 0xC4 (write and read)

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

2

Default

1

Default

0

Default

‘000’ ‘000’ ‘00’

ICP[3:0] N[10:8] NUM[21:20]

Offset 0x0400 - Frequency Synthesizer (LMX2531) Register R1 – 0xC4 (write and read)

Setting Bit 9-0 Fractional numerator (NUM[21:12])

0

Setting Bit 12-10 N Counter (N[10:8])

0

Setting Bit 16-13 Charge Pump Current (ICP[4:0])

0

0 Value between 0 (all 0s) and 4194303 (all 1s)

0 Value between 0 (0x37) and 2039 (0x3F7)

0 0x0 corresponds to 90uA (state 1x) and 0xF (State 16x) to 1440uA (90uA per state)

Reserved Reserved ICP[4]

‘000000’ ‘1’ ‘0’

NUM[19:12]

‘00000000’

4.3.1.2.20 Frequency Synthesizer (LMX2531) Register R2 – 0xC8

(write and read).

Offset 0x0400 - Frequency Synthesizer (LMX2531) Register R2 – 0xC8 (write and read)

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

2

Default

1

Default

0

Default

DEN[11:0] R[5:0]

‘00’ ‘000000’

Offset 0x0400 - Frequency Synthesizer (LMX2531) Register R2 – 0xC8 (write and read)

Setting Bit 5-0 R Counter Value (R[5:0])

0

Setting Bit 17-6 Fractional Denominator DEN[11:0]

0

0 R Country Value – These bits determine the phase detector frequency. Only possible

values are 1, 2, 4, 8, 16 or 32

0 Value between 0 (all 0s) and 4194303 (all 1s)

Reserved Reserved DEN[11:0]

‘00000’ ‘1’ ‘00’

DEN[11:0]

‘00000000’

4.3.1.2.21 Frequency Synthesizer (LMX2531) Register R3 – 0xCC

(write and read).

Offset 0x0400 - Frequency Synthesizer (LMX2531) Register R3 – 0xCC (write and read)

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

2

Default

1

Default

0

Default

ORDER[1:0] FoLD[3:0]=’0000’ DEN[21:12]

‘00’ ‘0000’ ‘00’

Offset 0x0400 - Frequency Synthesizer (LMX2531) Register R3 – 0xCC (write and read)

Setting Bit 9-0 Fractional Denominator DEN[21:12]

0

Setting Bit 13-10 Multiplexed Output for Ftest/LD pin FoLD[3:0]

0

Setting Bit 15-14 Order of Delta Sigma modulator ORDER[1:0]

0

1

2

3

Setting Bit 17-16 Dithering DITHER[1:0]

0

1

2

3

Setting Bit 18 Fractional Denominator Mode FDM

0

1

Setting Bit 19 Divide By 2 option DIV2

0

1

0 Value between 0 (all 0s) and 4194303 (all 1s)

0x0 Ftest/LD pin not used on the SMT702 – Set Register to 0x0

0x0 Fourth

0x1 Reset Modulator (all fractions are ignored)

0x2 Second

0x3 Third

0x0 Weak dithering

0x1 Reserved

0x2 Strong Dithering

0x3 Dithering Disabled

0x0 Only 12 LSBs of the fractional numerator and denominator are considered

0x1 Only the 10 MSBs of the fractional numerator and denominator are considered

0x0 VCO output frequency not divided by 2

0x1 VCO output frequency divided by 2

Reserved DIV2 FDM DITHER[1:0]

‘0000’ ‘0’ ‘0’ ‘00’

DEN[21:12]

‘00000000’

4.3.1.2.22 Frequency Synthesizer (LMX2531) Register R4 – 0xD0

(write and read).

Offset 0x0400 - Frequency Synthesizer (LMX2531) Register R4 – 0xD0 (write and read)

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

2

Default

1

Default

ICPFL[3:0] TOC[13:0]

‘00’ ‘000000’

Reserved ICPFL[3:0]

‘000000’ ‘00’

0

Default

TOC[13:0]

‘00000000’

Offset 0x0400 - Frequency Synthesizer (LMX2531) Register R4 – 0xD0 (write and read)

Setting Bit 13-0 Timeout Counter for fastlock (TOC[13:0])

0

Setting Bit 17-14 Charge Pump Current for fastlock ICPFL[3:0]

0

0 0x0 Timeout 0 – 0x1 Timeout always enable – 0x2 – timeout 0 – 0x3 timeout 0 – 0x4

timeout 4x2 phase detector - … - 0x3FFF 16383x2 phase detector

0 0x0 corresponds to 90uA (state 1x) and 0xF (State 16x) to 1440uA (90uA per state)

4.3.1.2.23 Frequency Synthesizer (LMX2531) Register R5 – 0xD4

(write and read).

Offset 0x0400 - Frequency Synthesizer (LMX2531) Register R5 – 0xD4 (write and read)

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

TOC[13:0]

‘000000’

Reserved EN_DIGLOD EN_PLLLDO2 EN_PLLL

DO1

‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’

EN_VCOLD EN_OSC EN_VCO EN_PLL

Offset 0x0400 - Frequency Synthesizer (LMX2531) Register R5 – 0xD4 (write and read)

Setting Bit 0 Enable bit for pll – EN_PLL

0

1

Setting Bit 1 Enable bit for vco – EN_VCO

0

1

Setting Bit 2 Enable bit for Oscillator inverter – EN_OSC

0

1

Setting Bit 3 Enable bit for VCO LDO – EN_VCOLDO

0

1

Setting Bit 4 Enable bit for PLL LDO1 – EN_PLLLDO1

0

1

Setting Bit 5 Enable bit for PLL LDO2 – EN_PLLLDO2

0

1

Setting Bit 6 Enable bit for Digital LDO – EN_DIGLDO

0

1

Setting Bit 14 Reset all register REG_RST

0 PLL powered off

1 PLL powered on

0 VCO powered off

1 VCO powered on

0 Reference Oscillator powered off

1 Reference Oscillator powered on

0 LDO powered off

1 LDO powered on

0 LDO powered off

1 LDO powered on

0 LDO powered off

1 LDO powered on

0 PLL powered off

1 PLL powered on

0

1

0 Normal Operation

1 All register set to the default values

4.3.1.2.24 Frequency Synthesizer (LMX2531) Register R6 – 0xD8

(write and read).

Offset 0x0400 - Frequency Synthesizer (LMX2531) Register R6 – 0xD8 (write and read)

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

2

Default

1

Default

0

Default

Offset 0x0400 - Frequency Synthesizer (LMX2531) Register R6 – 0xD8 (write and read)

Setting Bit 2-0 Value for C3 and C4 in the internal loop filter – C3_4_ADJ[2:0]

0

1

2

3

4

5

6

7

R4_ADJ_FL[1:0] R3_ADJ[1:0] R3_ADJ_FL[1:0] C3_4_ADJ[2:0]

0x0 C3=50pF and C4=50pF

0x1 C3=50pF and C4=100pF

0x2 C3=50pF and C4=150pF

0x3 C3=100pF and C4=50pF

0x4 C3=150pF and C4=50pF

0x5 C3=100pF and C4=100pF

0x6 C3=50pF and C4=150pF

0x7 C3=50pF and C4=150pF

VCO_ACI_SEL[3:0] EN_LPF

‘00’ ‘00’ ‘00’ ‘000’

Reserved XTLSEL[2:0]

‘00000’ ‘000’

LTR

‘0000’ ‘0’ ‘00’ ‘00’

R4_ADJ[1:0] R4_ADJ_FL[1:0

]

Setting Bit 4-3 Value for internal loop filter resistor R3 during fastlock – R3_ADJ_FL[1:0]

0

1

2

3

Setting Bit 6-5 Value for internal loop filter resistor R3 – R3_ADJ[1:0]

0

1

2

3

Setting Bit 8-7 Value for internal loop filter resistor R4 during fastlock – R3_ADJ_FL[1:0]

0

1

2

3

Setting Bit 10-9 Value for internal loop filter resistor R4 – R4_ADJ[1:0]

0

1

2

3

0x0 10 kΩ

0x1 20 kΩ

0x2 30 kΩ

0x3 40 kΩ

0x0 10 kΩ

0x1 20 kΩ

0x2 30 kΩ

0x3 40 kΩ

0x0 10 kΩ

0x1 20 kΩ

0x2 30 kΩ

0x3 40 kΩ

0x0 10 kΩ

0x1 20 kΩ

0x2 30 kΩ

0x3 40 kΩ

Setting Bit 11 Enable for partially integrated internal loop filter – EN_LPFLTR

0

1

Setting Bit 15-12 Optimisation of VCO Phase noise – VCO_ACI_SEL

0

Setting Bit 18-16 Crystal Selection – XTLSEL[2:0]

0

1

2

3

4

5

6

7

0 Disabled (R3 and R4=0R and C3+C4=200pF)

1 Enabled

0 Should always be set to 8

0x0 <25MHz

0x1 25-50MHz

0x2 50-70MHz

0x3 >70MHz

0x4 Manual mode

0x5 Reserved

0x6 Reserved

0x7 Reserved

4.3.1.2.25 Frequency Synthesizer (LMX2531) Register R7 – 0xDC

(write and read).

Offset 0x0400 - Frequency Synthesizer (LMX2531) Register R7 – 0xDC (write and read)

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

2

Default

1

Default

0

Default

Offset 0x0400 - Frequency Synthesizer (LMX2531) Register R7 – 0xDC (write and read)

Setting Bit 5-4

0

1

2

3

Setting Bit 17-6 Manual Crystal Mode – XTLMAN[11:0]

0

XTLMAN[11:0] XTLDIV[1:0] Reserved

‘000000000000’ ‘00’ ‘0000’

Division Ratio for the Crystal Frequency – XTLDIV[1:0]

0x0 Reserved

0x1 Divide by 2 - <20Mhz

0x2 Divide by 4 – 20-40Mhz

0x3 Divide by 8 - >40Mhz

0x0 To be programmed with 0s

Reserved XTLMAN[11:0]

‘00000’ ‘000000000000’

XTLMAN[11:0]

‘000000000000’

4.3.1.2.26 Frequency Synthesizer (LMX2531) Register R8 – 0xE0

(write and read).

Offset 0x0400 - Frequency Synthesizer (LMX2531) Register R8 – 0xE0 (write and read)

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

2

Default

1

Reserved

‘00000000’

Reserved

Default

0

Default

‘00000000’

Reserved XTLMAN

2

‘0000000’ ‘0’

Offset 0x0400 - Frequency Synthesizer (LMX2531) Register R8 – 0xE0 (write and read)

Setting Bit 0

0

0x0 To be programmed with zeros

Manual crystal mode second adjustment – XTLMAN2

4.3.1.2.27 Frequency Synthesizer (LMX2531) Register R9 – 0xE4

(write and read).

Offset 0x0400 - Frequency Synthesizer (LMX2531) Register R9 – 0xE4 (write and read)

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

2

Default

1

Default

0

Default

Reserved

‘00000000’

Reserved

‘00000000’

Reserved

‘10111010’

Offset 0x0400 - Frequency Synthesizer (LMX2531) Register R9 – 0xE4 (write and read)

Setting

0

0x0 Should be programmed as above

4.3.1.2.28 Frequency Synthesizer (LMX2531) Register R12 - 0xE8

(write and read).

Offset 0x0400 - Frequency Synthesizer (LMX2531) Register R12 – 0xE8 (write and read)

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

2

Default

1

Default

0

Default

Offset 0x0400 - Frequency Synthesizer (LMX2531) Register R12 – 0xE8 (write and read)

Setting

0

0x0 Should be programmed as above

Reserved

‘00000000’

Reserved

‘00010000’

Reserved

‘01001000’

4.3.1.2.29 ADCA – DCM Phase Shift – 0x108 (write).

Offset 0x0400 – ADCA – DCM Phase Shift – 0x108 (write).

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

Offset 0x0400 - ADCA – DCM Phase Shift – 0x108 (write)

Setting Bit 8 Sign of Phase Shift

0

1

Setting Bit 7-0 Phase Shift value

0

0x0 Positive phase shift

0x1 Negative phase shift

8-bit phase shift value to describe a phase shift between 0 and 255

The default firmware implements one DCM_ADV (see Xilinx Virtex 5 documentation for more details) per ADC data path, i.e. one DCM_ADV for ADCA and one for ADCB. Both are set to have a programmable phase shift, which means it can be changed from the host application. Both DCMs are set in mode VARIABLE_CENTER.

There is one bit to set the sign of the phase shit and 8 bit to set the value. The phase shift range is -255…+255. Once the control word of send, the DCM is being reset and programmed with the new phase shift. By default, the shift register is set to 0.

Phase Shift

Sign

‘0’

Phase Shift[7:0]

‘00000000’

4.3.1.2.30 ADCB – DCM Phase Shift – 0x10C (write).

Offset 0x0400 – ADCB – DCM Phase Shift – 0x10C (write).

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

Offset 0x0400 - ADCB – DCM Phase Shift – 0x10C (write)

Setting Bit 8 Sign of Phase Shift

0

1

Setting Bit 7-0 Phase Shift value

0

0x0 Positive phase shift

0x1 Negative phase shift

8-bit phase shift value.

The default firmware implements one DCM_ADV per ADC data path, i.e. one DCM_ADV for ADCA and one for ADCB. Both are set to have a programmable phase shift, which means it can be changed from the host application. Both DCMs are set in mode VARIABLE_CENTER.

Phase Shift

Sign

‘0’

Phase Shift[7:0]

‘00000000’

There is one bit to set the sign of the phase shit and 8 bit to set the value. The phase shift range is -255…+255. Once the control word of send, the DCM is being reset and programmed with the new phase shift. By default, the shift register is set to 0.

4.3.1.2.31 System Monitor – FPGA Die Temperatures – 0x180 (read).

Offset 0x0400 – System Monitor – FPGA Die Temperatures – 0x180 (read).

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

3

Default

2

Default

1

Default

0

Default

Offset 0x0400 – System Monitor – FPGA Die Temperatures – 0x180 (read).

Setting Bit 29..20 Maximum FPGA Die Temperature (measured)

2

Setting Bit 19..10 Minimum FPGA Die Temperature (measured)

1

Setting Bit 9..0 Current FPGA Die Temperature (measured)

0

Reserved Maximum Die Temperature[9:4]

‘00’ ‘000000’

Maximum Die Temperature[3:0] Minimum Die Temperature[9:6]

‘0000’ ‘0000’

Minimum Die Temperature[5:0] Current Die

Temperature[9:8]

‘000000’ ‘00’

Current Die Temperature[7:0]

‘00000000’

The Temperature is coded on 10 bits.

4.3.1.2.32 System Monitor – FPGA Die Temperature thresholds –

0x180 (write).

Offset 0x0400 – System Monitor – FPGA Die Temperature thresholds – 0x180 (write).

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

3

Default

2

Default

1

Default

0

Default

Offset 0x0400 – System Monitor – FPGA Die Temperature thresholds – 0x180 (write).

Setting Bit 29..20 Die Temperature OT (Over temperature) lower threshold

2

Setting Bit 19..10 Die Temperature upper threshold

1

Reserved Die Temperature OT lower threshold[9:4]

‘00’ ‘000000’

Die Temperature OT lower threshold[3:0] Die Temperature upper threshold[9:6]

‘0000’ ‘0000’

Die Temperature upper threshold[5:0] Die Temperature lower

threshold[9:8]

‘000000’ ‘00’

Die Temperature lower threshold[7:0]

‘00000000’

The Temperature is coded on 10 bits.

Setting Bit 9..0 Die Temperature lower threshold

0

The Temperature is coded on 10 bits.

4.3.1.2.33 System Monitor – FPGA Core Voltages – 0x184 (read).

Offset 0x0400 – System Monitor – FPGA Core Voltages – 0x184 (read).

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

3

Default

2

Default

1

Default

0

Default

Offset 0x0400 – System Monitor – FPGA Core Voltages – 0x184 (read).

Setting Bit 29..20 Maximum FPGA Vccint (measured)

2

Setting Bit 19..10 Minimum FPGA Vccint (measured)

1

Setting Bit 9..0 Current FPGA Vccint (measured)

0

Reserved Maximum Vccint[9:4]

‘00’ ‘000000’

Maximum Vccint[3:0] Minimum Vccint [9:6]

‘0000’ ‘0000’

Minimum Vccint [5:0] Current Vccint [9:8]

‘000000’ ‘00’

Current Vccint [7:0]

‘00000000’

The Voltage is coded on 10 bits.

4.3.1.2.34 System Monitor – FPGA core voltage thresholds – 0x184

(write).

Offset 0x0400 – System Monitor – FPGA core voltage thresholds – 0x184 (write).

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

3

Default

2

Default

1

Default

0

Default

Reserved Vccint upper threshold[9:6]

‘0000’ ‘0000’

Vccint upper threshold[5:0] Vccint lower

‘000000’ ‘00’

Vccint lower threshold[7:0]

Offset 0x0400 – System Monitor – FPGA core voltage thresholds – 0x184 (write).

Setting Bit 19..10 FPGA Core voltage upper threshold

1

The Voltage is coded on 10 bits.

Reserved

‘00000000’

threshold[9:8]

‘00000000’

Setting Bit 9..0 FPGA Core voltage lower threshold

0

The Voltage is coded on 10 bits.

4.3.1.2.35 System Monitor – FPGA Aux Voltages – 0x188 (read).

Offset 0x0400 – System Monitor – FPGA Aux Voltages – 0x188 (read).

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

3

Default

2

Default

1

Default

0

Default

Offset 0x0400 – System Monitor – FPGA Aux Voltages – 0x188 (read).

Setting Bit 29..20

2

Setting Bit 19..10

1

Setting Bit 9..0

0

Reserved Maximum Vccaux[9:4]

‘00’ ‘000000’

Maximum Vccaux [3:0] Minimum Vccaux [9:6]

‘0000’ ‘0000’

Minimum Vccaux [5:0] Current Vccaux [9:8]

‘000000’ ‘00’

Current Vccaux [7:0]

‘00000000’

Maximum FPGA Vccaux (measured)

The Voltage is coded on 10 bits.

Minimum FPGA Vccaux (measured)

The Voltage is coded on 10 bits.

Current FPGA Vccaux (measured)

The Voltage is coded on 10 bits.

4.3.1.2.36 System Monitor – FPGA aux voltage thresholds – 0x188

(write).

Offset 0x0400 – System Monitor – FPGA aux voltage thresholds – 0x188 (write).

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

3

Default

2

Default

1

Default

0

Default

Reserved Vccaux upper threshold[9:6]

‘0000’ ‘0000’

Vccaux upper threshold[5:0] Vccaux lower

‘000000’ ‘00’

Vccaux lower threshold[7:0]

Offset 0x0400 – System Monitor – FPGA aux voltage thresholds – 0x188 (write).

Setting Bit 19..10 FPGA Aux voltage upper threshold

1

Setting Bit 9..0 FPGA Aux voltage lower threshold

The Voltage is coded on 10 bits.

Reserved

‘00000000’

threshold[9:8]

‘00000000’

0

The Voltage is coded on 10 bits.

4.3.1.2.37 Amount of samples stored in DDR2 – Bank A – 0x18C

(write).

Offset 0x0400 – Amount of samples stored in DDR2 – Bank A – 0x18C (read).

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

3

Default

2

Default

1

Default

0

Default

Offset 0x0400 – Amount of samples stored in DDR2 – Bank A – 0x18C (read).

Setting Bit 25..0 Amount of samples.

0

Returns the amount of samples currently left to be transferred to the host.

Reserved Amount of samples

‘000000’ ‘00’

Amount of samples

‘00000000’

Amount of samples

‘00000000’

Amount of samples

‘00000000’

4.3.1.2.38 Amount of samples stored in DDR2 – Bank B – 0x190

(write).

Offset 0x0400 – Amount of samples stored in DDR2 – Bank B – 0x190 (read).

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

3

Default

2

Default

1

Default

0

Default

Offset 0x0400 – Amount of samples stored in DDR2 – Bank B – 0x190 (read).

Setting Bit 25..0 Amount of samples.

0

Returns the amount of samples currently left to be transferred to the host.

4.3.2 System Monitor.

Virtex 5 FPGAs implement a function block called System Monitor (Xilinx). It allows the user to monitor the FPGA Die temperature, the FPGA core voltage (Vccint) and the Auxiliary voltage (Vccaux). It also provides the minimum and maximum values measured since a system monitor reset has been applied.

Reserved Amount of samples

‘000000’ ‘00’

Amount of samples

‘00000000’

Amount of samples

‘00000000’

Amount of samples

‘00000000’

The SMT702 firmware implements a state machine that collects minimum,

ended (Termination implemented

maximum and current readings for the die temperature, Vccint and Vccaux. They are all accessible

4.3.3 External Signal characteristics

The main characteristics of all external signals of the SMT702 are gathered into the following table.

Analogue Inputs

Input voltage range

Impedance Bandwidth

Input Voltage Level

Input Impedance

Frequency Range

Output Voltage Level

Output Impedance

Input Voltage Level

Input Format

Frequency range

AC coupled option. 600 or 800mV - AC coupled via

RF transformer. 50Ω. ADC bandwidth: 3 Ghz (ADC datasheet).

External Reference Input

10-15dBm (AC-coupled)

50-Ohm (Termination implemented at the connector)

0 – 100 MHz.

External Reference Output

1.6 Volts peak-to-peak (AC-coupled)

50-Ohm (Termination implemented at the connector)

External Sampling Clock Input

0.5 – 3.3 Volts peak-to-peak (AC-coupled)

Single-ended or differential on option (3.3V LVPECL).

500-1500 MHz (DDR sampling clock)

External Trigger Inputs

Input Voltage Level

Format

Impedance

Frequency range

The figures below have been obtained using WaveVision version 5 with default options.

On-board VCO used - ADCs running at 3GSPS – 16k-point FFT -

E4433B Signal Generator coupled with a 6th-order filter – Coherent sampling captures

Bandwidth

at -3dBs at -6dBs

ENOB

373 MHz (filtered) – Full Scale-0.5dB –

3GSPS – On-board VCO

749 MHz (filtered) – Full Scale-0.5dB –

3GSPS – On-board VCO

1498 MHz (filtered) – Full Scale-0.5dB –

1.5-3.3 Volts peak-to-peak.

DC-coupled and Single-

at the connector). Differential on option (3.3 V PECL).

50-Ohm.

62.5 MHz maximum

ADCs Output characteristics

2.2GHz

2.6GHz

7.1 bits (Cha) 6.76 bits (Chb)

7.2 bits (Cha) 6.906 bits (Chb)

6.7 bits (Cha) 6.563 bits (Chb)

3GSPS – On-board VCO

SNR

373 MHz (filtered) – Full Scale-0.5dB –

3GSPS – On-board VCO

749 MHz (filtered) – Full Scale-0.5dB –

3GSPS – On-board VCO

1498 MHz (filtered) – Full Scale-0.5dB –

3GSPS – On-board VCO

SINAD

373 MHz (filtered) – Full Scale-0.5dB –

3GSPS – On-board VCO

749 MHz (filtered) – Full Scale-0.5dB –

3GSPS – On-board VCO

1498 MHz (filtered) – Full Scale-0.5dB –

3GSPS – On-board VCO

SFDR

373 MHz (filtered) – Full Scale-0.5dB –

3GSPS – On-board VCO

749 MHz (filtered) – Full Scale-0.5dB –

3GSPS – On-board VCO

1498 MHz (filtered) – Full Scale-0.5dB –

3GSPS – On-board VCO

Output Data Width

44.6dBs (Cha) 42.5dBs (Chb)

46.5dBs (Cha) 46.3dBs (Chb)

43.2dBs (Cha) 41.8dBs (Chb)

44.6dBs (Cha) 42.4dBs (Chb)

45.1dBs (Cha) 43.3dBs (Chb)

42.6dBs (Cha) 41.6dBs (Chb)

58.165dBs (Cha) 46.722dBs (Chb)

53.183dBs (Cha) 47.234dBs (Chb)

54.454dBs (Cha) 47.859dBs (Chb)

8-Bits

Data Format

Minimum Sampling Clock (DDR)

Maximum Sampling Clock (DDR)

Figure 15 – Main Characteristics.

Offset Binary

500 MHz (equivalent to ADC sampling at 1GSPS)

1500 MHz (equivalent to ADC sampling at 1GSPS)

5 Board Layout

5.1 Top View

Figure 16 - Board Layout (Top View)

5.2 Bottom View

Figure 17 - Board Layout (Bottom View)

6 Photo

6.1 Overview of the board

Figure 18 - Overview of the board

6.2 Front panel

On the front panel of the SMT702, 6 SMA connectors are available for ADC ChannelA, ADC ChannelB, External Reference and Clock in and out. There is also a dual SATA-I connector.

Figure 19 - SMT702 Front Panel.

6.3 How is it going to stand on your desk?

The SMT702 has been designed to be plugged into a PXI Express chassis from National Instrument – The NI PXIe-1062Q is an example.

Figure 20 - SMT702 - PXI Express Chassis.

7 Software Packages

Here is a list of the software packages that will be required for the SMT702 to work.

• SMT6300 is the software package that installs the Sundance driver for the

SMT702 board.

• SMT6002 is the software package that installs the server application to write

into flash memory (this is to store bitstreams and to reboot dynamically the board). The application is called Flash Utility.

• SMT7002 is the software package that installs a demo application (smt702

Configuration) for the SMT702 as shown below:

As soon as the application is launched, it reads from the FPGA the board name, type of FPGA, PCB revision and the firmware version. Once running, status flags are displayed in the status section as well as the temperature of the FPGA and its internal voltages (1.0V and 2.5V). A log is available on the right hand side.

Figure 21 - SMT702 Demo application.

Parameters to configure the clock chip and dcm phase shifts can be loaded (Hardware selection section – example files are provided in \\Program Files\Sundance\SMT7026\Host\Smt702Config\Custom_Parameters) from a configuration file, as well as the clock and reference source. Samples can be stored into DDR2 memory, played back, stored into files and displayed into 2 graphs. The first one shows the raw samples and the second the FFT of the captured samples (2048 points). Each captured can be stored into individual files (smt7002_cha.txt or smt7002_chb.txt) and also a concatenated version of all captures made (smt7002_total_cha.txt or smt7002_total_chb.txt)

In order to have the software source code for the SMT7002, the SMT7026 package will have to be purchased. They come as a visual C++ project with all necessary files to recompile the application and modify it.

8 Physical Properties

Dimensions PXI Express 3U

SMT702-LX110T

Weight 272 grams

Supply Currents +12V 0.88 amp. 1.03 amps. 1.07 amps.

+3.3V 1.70 amps. 4.4 amps. 5.5 amps.

MTBF

Dimensions PXI Express 3U

SMT702-FX70T

Weight 272 grams

Supply Currents +12V 0.9 amp. 1.06 amp. 1.08 amp.

+3.3V 1.95 amps. 4.4 amps. 5.4 amps.

MTBF

The SMT7002 GUI has been used to configure the boards from which currents consumed were measured. Boards were setup as follows, internal clock locked on external 10-MHz reference, ADCs clocked at 3GSPS and set in Test mode, continuous acquisitions (DMAs).

Board Booted ADCs OFF Clock OFF SHBs OFF

Board Booted ADCs ON Clock ON SHBs OFF

Board Booted ADCs ON Clock ON SHBs ON

9 Hardware Modification

It has been found that modifying the converter reset structure improves the synchronisation between the ADCs. The non-symetrical structure previously used would add a non-wanted delay on the second ADC channels.

The new structure consists in removing some ICs and replacing them by 2 sets of differential wires. ADCs can now be more accurately synchronised in frequency. A software function has been added to the software package, returning the skew between the 2 ADC sampling clocks. A typical skew measured at the FPGA is 170pS.

Figure 22 - ADC Reset structure modification.

10 Safety

This module presents no hazard to the user when in normal use.

11 EMC

This module is designed to operate from within an enclosed host system, which is build to provide EMC shielding. Operation within the EU EMC guidelines is not guaranteed unless it is installed within an adequate host system.

This module is protected from damage by fast voltage transients originating from outside the host system which may be introduced through the output cables.

Short circuiting any output to ground does not cause the host PC system to lock up or reboot.

12 Ordering Information

Three variations of this product are available: 1 – SMT702 with an XC5VLX110T-3 (fastest speed grade available) FPGA and works

as a PXI Express Peripheral Module. The part number for this option is SMT702. Requires a PXI Express chassis such as the NI-1062Q from National Instrument.

2 – SMT702 with an XC5VLX110T-3 (fastest speed grade available) FPGA and works as a PXI Express Hybrid Peripheral Module (PXI P1 connector). The part number for this option is SMT702-HYBRPXI32. Requires a PXI Express chassis such as the NI1062Q from National Instrument.

3 - SMT702 with an XC5VLX110T-3 (fastest speed grade available) FPGA and works as a Compact PCI Module. The part number for this option is SMT702-CPCI32. Requires a Compact PCI rack. Note that it can also be plugged into a PXI Express chassis such as the NI-1062Q from National Instrument.

4 - SMT702 with an XC5VLX110T-3 (fastest speed grade available) FPGA and works in standalone. It can be fitted in a PCI slot (Can be PCI-32 or 64 or PCI-X on a PC motherboard) without being electrically connected to it. This option requires an external power cable and a connection to an other piece of hardware from Sundance via SHB or RSL or SATA (optional). The part number for this option is SMT702- STANDALONE. Note that the Standalone version of the SMT702 does not have any dual SATA connector.

5 – SMT702 with an XC5VFX70T-3 (fastest speed grade available) FPGA and works as a PXI Express Peripheral Module. The part number for this option is SMT702- FX70T. Requires a PXI Express chassis such as the NI-1062Q from National Instrument.

6 – SMT702 with an XC5VFX70T-3 (fastest speed grade available) FPGA and works as a PXI Express Hybrid Peripheral Module (PXI P1 connector). The part number for this option is SMT702-HYBRPXI32-FX70T. Requires a PXI Express chassis such as the NI-1062Q from National Instrument.

7 - SMT702 with an XC5VFX70T-3 (fastest speed grade available) FPGA and works as a Compact PCI Module. The part number for this option is SMT702-CPCI32-FX70T. Requires a Compact PCI rack. Note that it can also be plugged into a PXI Express chassis such as the NI-1062Q from National Instrument.

8 – SMT702 with an XC5VFX100T-3 (fastest speed grade available) FPGA and works as a PXI Express Peripheral Module. The part number for this option is SMT702- FX100T. Requires a PXI Express chassis such as the NI-1062Q from National Instrument.

9 – SMT702 with an XC5VFX100T-3 (fastest speed grade available) FPGA and works as a PXI Express Hybrid Peripheral Module (PXI P1 connector). The part number for this option is SMT702-HYBRPXI32-FX100T. Requires a PXI Express chassis such as the NI-1062Q from National Instrument.

710- SMT702 with an XC5VFX100T-3 (fastest speed grade available) FPGA and works as a Compact PCI Module. The part number for this option is SMT702-CPCI32- FX100T. Requires a Compact PCI rack. Note that it can also be plugged into a PXI Express chassis such as the NI-1062Q from National Instrument.

Note that an SMT702 can also be used in a PC. This will require a PXIe to PCIe adaptor (Sundance part number SMT580) as show below:

The SMT580 only routes the PCI express lanes, reference clock and power supplies. None of the PXI signals are routed.

Sundance SMT702 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
