1. INTRODUCTION

1.1. OVERVIEW

The SMT6060 provides a network of DSP modules access to Ethernet though the
Berkeley socket-API. Each of the modules in a multiprocessor DSP application is able to access the
Ethernet using the socket API. The SMT363 module contains a NET50 processor and is used as a
network interface.

The SMT6060 consists of a collection of software examples that simplify the development of network
applications.

1.2. RELATED DOCUMENTS

TBD

Sundance Digital Signal Processing Inc.

4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.

Tel: [phone], Fax: [phone], email: [e-mail]

www.sundancedsp.com

2. REQUIEREMENTS

To develop with the SMT6060, you need

Code Composer Studio. v3.1 or later

•

o Code composer is used to compile programs for the TI DSPs in the network.

3L Diamond RTOS version 3.1.4 or later

•

Diamond is used as an RTOS that enables any task on the network to access the SMT363.

o

SMT6001 v6.01 or later (recommended)

•

o The SMT6001 is a utility with which you manage the contents of the flash for Sundance

modules.

SMT6300 v3.07 or later (recommended)

•

o Low level driver support for the host machine.

Revision 0.4

Page 9 of 9

Sundance Digital Signal Processing Inc.

4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.

Tel: [phone], Fax: [phone], email: [e-mail]

www.sundancedsp.com

Revision 0.4

Page 10 of 10

3. CONNECTING THE HARDWARE

You should have received a cable that connects to the SMT363 module. This
cable provides an Ethernet connection as well as a RS232 connection to the
SMT363. Plug the RS232 port int o your development PC. Use HyperTerminal, and configure the
port to 9600 baud, 8-N-1.

Note:

This port will later be used to output debug information from the SMT363.

Figure 1 - SMT6060-TCPIP Hardware Connections

Sundance Digital Signal Processing Inc.

4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.

Tel: [phone], Fax: [phone], email: [e-mail]

www.sundancedsp.com

Revision 0.4

Page 11 of 11

4. SYSTEM CONFIGURATION

Before you start developing, you need to ensure that you have an up to date system
configuration. You need to configure the flash of the SMT363 with the correct data so
that it can configure the NET50 once you power the system up.

4.1. CONFIGURING THE SMT363

Use the SMT6001 utility from Sundance to ensure that the flash of the SMT363 contains an appropriate
configuration.

Select “Start->Program Files->Sundance->SMT6001->SmtFlash utility”
Ensure that you have bootloader version 5.04 or later programmed as shown below.

Select the “User blocks” tab.

4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.

Tel: [phone], Fax: [phone], email: [e-mail]

Figure 2 -SMT6060-TCPIP Configuring SMT363

Sundance Digital Signal Processing Inc.

www.sundancedsp.com

Revision 0.4

Page 12 of 12

Figure 3 - SMT363 Configuration Data

There need to be two raw data sections as shown. The files used to create these data sections can be
found in the

\cfg

directory of your installation.

Figure 4 - SMT363 netbboot file selection

The first section should have an ID value of 0xB50. (The file is cfg/netboot_v4/netboot44mv4.bin).
(NOTE: Use netboot33mv4.dat for 33 MHz Net+50 boards)

If you need to add this data section, make sure that you select “big-endian” and an ID value of 0xB50.

Sundance Digital Signal Processing Inc.

4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.

Tel: [phone], Fax: [phone], email: [e-mail]

www.sundancedsp.com

Revision 0.4

Page 13 of 13

Figure 5 - Block properties

The second raw data section is cfg/netsocksvr/release.dat also wit h “big-endian” sele cted, and with an
ID value of 0xA50. (This is the netsocksvr application that will be loaded and run on the NET50
processor.)

Figure 6 - Block properties ID

4.1.1. Overwriting the default IP and MAC addresses

The SMT363 will automatically obtain an IP address from a DHCP server. The SMT363 will have a
MAC address of "00:40: AF: 00:42:06". If these values are acceptable, then you can skip this section.

If you do wish to overwrite the default values for the IP and MAC address, this can be done by specifying
a data section that is programmed with the SMT6001.

Create a file that is 20 bytes long, and that has the content shown: (An example is provided with this
installation package. See sampleconfig.dat)

Sundance Digital Signal Processing Inc.

4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.

Tel: [phone], Fax: [phone], email: [e-mail]

www.sundancedsp.com

Word Meaning

0 IP Address (32 bits)

1 Subnet mask (32 bits)

2 Default gateway (32 bits)
3 MAC0 (32 bits)

4 MAC1 (32 bits)

Table 1 – Change IP and MAC Address

Revision 0.4

Page 14 of 14

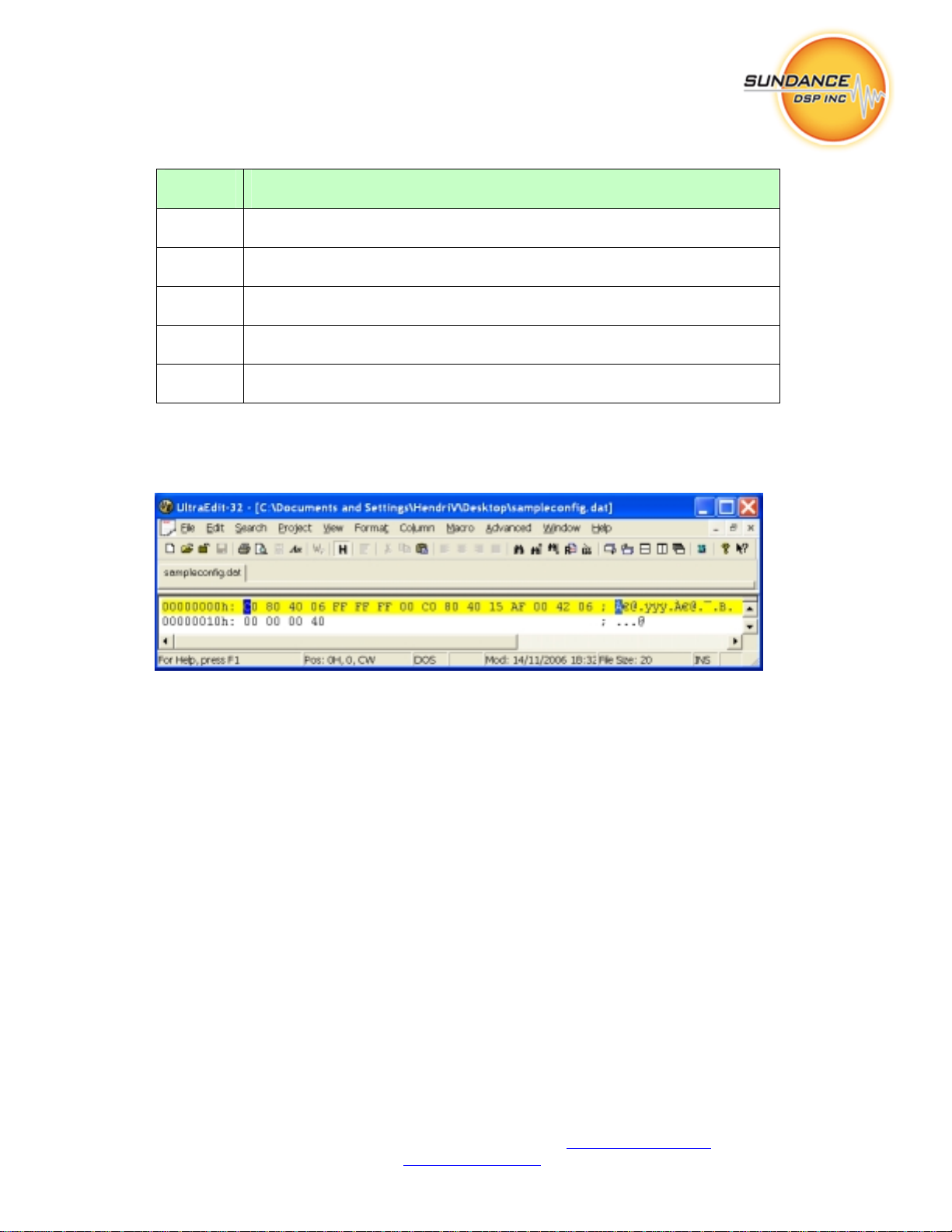

For example: The file shown below

Figure 7 - Change IP and MAC file example

Defines the IP address to be 192.128.64.11 (0xC080400B)
The subnet mask to be FF.FF.FF.00
The default gateway to be 192.128.64.21 (0xC0804015)
And the MAC address to be 01.02.03.04.05.06
Now use the SMT6001 to create a raw data section (big-endian) with the ID 0xC50

Sundance Digital Signal Processing Inc.

4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.

Tel: [phone], Fax: [phone], email: [e-mail]

www.sundancedsp.com

Revision 0.4

Page 15 of 15

Figure 8 - File selection for IP and MAC change

Note: Specifying an IP address of 0.0.0.0 will cause the SMT363 to obtain an IP address from a DHCP
server; this way you are able to specify the MAC address independently from the IP.

4.1.2. Confirming the configuration

Close the SMT6001 and Code Composer Studio. Ensure that you have HyperTerminal configured and
the RS232 port connected from the SMT363 to your development PC.

Use the SMTBoardInfo application from Sundance, and issue a “Board Reset”.
In the HyperTerminal window of your development PC, you should see output similar to the following:

Sundance Digital Signal Processing Inc.

4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.

Tel: [phone], Fax: [phone], email: [e-mail]

www.sundancedsp.com

Revision 0.4

Page 16 of 16

Figure 9 - HyperTerminal output

NOTE: your IP address will be different according to what your DHCP server assigned for the Net+50
processor (or what you have configured yourself by providing the 0xC50 data section). Take note of
this IP address, as you will need to refer to it later on again.

NOTE: when using DHCP, it can take ~20sec for the Net+50 processor to get its address. The NetOS
delays starting the application until the address are received.

Sundance Digital Signal Processing Inc.

4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.

Tel: [phone], Fax: [phone], email: [e-mail]

www.sundancedsp.com

Revision 0.4

Page 17 of 17

5. DESCRIPTION

The SMT363 provides an interface to Ethernet. It also provides an RS232 port. This
port is used to output debug logging information.

You create your Diamond application as a number of tasks distributed onto the network of processors.
Refer to the 3L Diamond documentation for a more detailed description of this process.

Each of the tasks that wish to access the Ethernet is linked with the socketapi.lib library. This library is
your task’s interface to the standard socket API.

Internally, socketapi.lib uses 3L Diamond channels to communicate with an RPCProxy task that runs on
the DSP of the SMT363 module. The proxy task in turn communicates with the NET50 on the SMT363
to perform the actual network operations.

RS232

Your application

Channel

Sockapi.lib

Channel

Node

Ethernet

NET50

TI DSP

Rpcproxy.tsk

SMT363

Your application

Channel

Sockapi.lib

Channel

Node

Figure 10 - SMT6060-TCPIP Block Diagram

It is important that you understand the overall system design, because you will need to ensure that the
appropriate 3L Diamond configuration file is used for your application. Examples included in this
package illustrate the process.

Note that you always have to place RPCProxy.tsk on the SMT363 module. Each task that you place on
the network of processors will have at least 1 input and 1 output port. And each task on the network of
processors should have their input and output channels connected to the proxy task as shown.

5.1. DIRECTORY STRUCTURE

The SMT6060 installs into the structure shown below. The examples directories contain a number of
examples that illustrate how to use the SMT6060 libraries. The include folder contains the shared header
files that are used by the examples.

Sundance Digital Signal Processing Inc.

4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.

Tel: [phone], Fax: [phone], email: [e-mail]

www.sundancedsp.com

Revision 0.4

Page 18 of 18

The lib folder contains the all important sockapi.lib file that you need to link your tasks
to.

Figure 11 -SMT6060-TCPIP Directory Structure

5.2. THE SOCKET API LIBRARY

The socket API implemented for each of the node processors requires an initialization in each task before
use. The

sock_init()

call is provided for this purpose. This call accepts two of the (CHAN *) arguments
which were provided by the 3L loader to the main() for the task. The function below shows an extract
from the DSP task’s code.

int main( int argc, char *argv[], char *envp[],

CHAN * in_ports[], int ins,
CHAN *out_ports[], int outs )

{

/*
** initialize socket API

This is a major component of the Ethernet support. This routine
will create threads and allocate message buffers to support the

"sockapi.h" functions.
*/
sockapi_init = sock_init( in_ports[0], out_ports[0]);
if( sockapi_init != 0 ) {

printf(": sockapi init failure");

thread_stop();
}
…

An example of a 3L Diamond configuration file is shown below. This file shows the case of two
Sundance modules used as the embedded system. The root processor is a SMT395_VP30 and the node
is the SMT363.

Sundance Digital Signal Processing Inc.

4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.

Tel: [phone], Fax: [phone], email: [e-mail]

www.sundancedsp.com

Revision 0.4

Page 19 of 19

Note: This hardware configuration is used for all of the examples installed with this
package.

The “option noloadcheck” is required to avoid the host from failing to load the
Diamond application because the SMT363 will take some time to configure itself after a reset.

The “Wire” statement tells Diamond that there is an electrical connection between the SMT395 and
SMT363 in the form of a comport. T1C1 -> T2C4

Next follows the connection and placement of the node task (echod in this case) to the RPCProxy task on
the SMT363.

PROCESSOR root SMT395_VP30
PROCESSOR node SMT363XC2_2
option noloadcheck

WIRE ? root[CP:1] node[CP:4]

upr MAX=65408 BUFFERS=16

task rpcproxy ins=1 outs=1 stack=128K heap=?
TASK echod ins=2 outs=1 stack=128K heap=56M

connect ? rpcproxy[0] echod[0]
connect ? echod[0] rpcproxy[0]

place rpcproxy node
PLACE echod root

Sundance Digital Signal Processing Inc.

4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.

Tel: [phone], Fax: [phone], email: [e-mail]

www.sundancedsp.com

Revision 0.4

Page 20 of 20

6. EXAMPLES

6.1. BACKGROUND

The folder smt6060-tcpip\examples contains a number of examples. Some of these
examples run on the host machine, and some of them run on the embedded network.

Host

development PC

SMTxxx

Other PCs Other PCs

Ethernet n etwork

SMT363

SMTxxx

SMTxxx

Your embedded system

Figure 12 - Example System Diagram

6.2. BEFORE YOU START

The examples are distributed assuming 1 node module (SMT395_VP30) and the SMT363.

PROCESSOR root SMT395_VP30
PROCESSOR node SMT363XC2_2

You need to change the configuration files of the individual examples to reflect the hardware you have.
Also, make sure you have the relevant wire statements and that the physical wires have been connected
between processors.

The examples are using a wire connection between TIM1 comport 1 and TIM2 comport 4. This comport
connection is available on the SMT310Q carrier board by selecting it with the SmtBoardInfo application.

Sundance Digital Signal Processing Inc.

4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.

Tel: [phone], Fax: [phone], email: [e-mail]

www.sundancedsp.com

Revision 0.4

Page 21 of 21

Figure 13 - SMT6060-TCPIP Boardinfo application

6.3. BUILDING THE EXAMPLES

The examples all use the standard socket API. You build and run the examples using 3L Diamond. To
build an application, open the relevant dsp directory. For example. smt6060-tcpip\examples\echod\dsp

And run nmake from a command line.
The output file is produced in the output directory that is created for that purpose.
For example: smt6060-tcpip\examples\echod\output

Note:

The examples under “clients” and “servers” are all build using make.exe and not nmake.exe.

6.4. RUNNING THE EXAMPLES

All examples are run using the 3L Diamond server application. This server application is used to display
printf type messages from the running application. Note that it is possible to build “stand-alone”
applications that does not communicate with the Diamond server. In those cases, you will have to
remove any STDIO type functions from the example. See the 3L Diamond documentation for more
information.

Note:

If you do build your applications as stand-alone, then you will still be able to use HyperTerminal

and the RS232 port to print debug information.

Sundance Digital Signal Processing Inc.

4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.

Tel: [phone], Fax: [phone], email: [e-mail]

www.sundancedsp.com

Revision 0.4

Page 22 of 22

6.5. ECHOD EXAMPLE

This example demonstrates a telnet/ECHO server application. A task on a DSP node
initializes the sockets API, opens a listening socket and then proceeds to handle
inbound connections in a single-threaded "select loop" style. Multiple connections are possible, and each
connection will be serviced through the select-loop.

Upon a connection, the echo server will print a banner identifying the connection addresses and the
current time (the DSP does not have access to the host's clock in standalone mode). Following that,
every character received by the server will be echo-ed back.

Build and run echo.app.
Note the IP address of your SMT363 by looking at the output displayed in the HyperTerminal window.
On your development machine, run a telnet command and open a connection to the SMT363 module by

specifying its IP address. (Also select port 1).
You should see something similar to this in your telnet session window:

Connected to echo server @192.128.64.3:1 from 192.128.64.3:1622
Mon Jan 1 00:01:41 1900

At this point, any keys you type to the telnet session will be echoed back from the SMT363 network.

Connected to echo server @192.128.64.3:1 from 192.128.64.3:1622
Mon Jan 1 00:01:41 1900
ffoorr eexxaammppllee

6.6. FTPD EXAMPLE

This example demonstrates an FTP server application. A task on a DSP node initializes the sockets API,
and then initializes a daemon to listen on inbound FTP connections. Each daemon listens on a different
port number, thus creating a number of independent FTP servers on various ports.

By default, the first ftpd will listen on the canonical FTP control port, 21.
The higher-numbered daemons will listen on ports separated by 1000, respectively.
Build and run ftpd.app and wait until the SMT363 has obtained an IP address.
Now open an FTP session to the IP address of the SMT363. For example:

ftp> open 192.128.64.6
Connected to 192.128.64.6.
220 RTEMS FTP server (Version 1.1-JWJ) ready.
User (192.128.64.6:(none)): me
230 User logged in.
ftp>

Log in (the user name doesn’t matter).

Sundance Digital Signal Processing Inc.

4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.

Tel: [phone], Fax: [phone], email: [e-mail]

www.sundancedsp.com

Revision 0.4

Page 23 of 23

Because the example doesn’t actually implement a file system on the SMT363 we
emulate a simple file system by providing a file “test1”. To test, execute a get
command like this:

ftp> get test1

200 PORT command successful.
150 Opening ASCII mode data connection.

6.7. RECV EXAMPLE

This example demonstrates a simple socket receive application. A task on a DSP node initializes the
sockets API, and then proceeds to use standard socket semantics to open a port and read a quantity of
bytes from a remotely networked machine .

For this example, we used an SMTP mail server’s address.You need to change "smt6060­tcpip/examples/recv/dsp/socktest.c".

#define CONFIG_INET_ADDR "207.22.44.49"
#define CONFIG_INET_PORT "25"

to values appropriate for your network. In the above example, the test will open a socket to an SMTP
port (mail s erver) and read t he header that i s offered. You can make su re that a target machine i s ready,
by simply telnet-ing to it.

Next, build and run recv.app. You should see output similar to this on your 3L Diamond server.

Figure 14 - SMT6060-TCPIP RECV Example Output

6.8. RECVC EXAMPLE

This example illustrates a simple receive client. You need to run a sender server on your development
machine.

In the folder smt6060-tcpip\examples\servers\sender run the command

sender 1

sender: listening on 0.0.0.0:1 ...

Sundance Digital Signal Processing Inc.

4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.

Tel: [phone], Fax: [phone], email: [e-mail]

www.sundancedsp.com

Revision 0.4

Page 24 of 24

sender: connect from 192.128.64.6:1591 [8192 sndbuf]

sender: continuous send

send: No error

sender: 10010624 bytes in 18.000 sec (4.449 Mbps)

sender: stats min=8192 max=8192 avg=8192 cnt=1222

sender: listening on 0.0.0.0:1 ...

This will run the sender server application on your development machine.
Next you need to build the DSP application. Before you do, change the value in recvc.c to the IP address

of the development machine where the sender server is running.

#define CONFIG_IP_ADDR "192.128.64.3" // address of server

Next, build and run the recvc.app file on the DSP.

Figure 15 -SMT6060-TCPIP Recvc Example Output

The receiver client application will open a connection to the sender server and exchange data with it.

6.9. RECVD EXAMPLE

This example demonstrates a recv() socket server application running on the DSP network. A daemon
task on a DSP node initializes the sockets API, and then listens on a socket to inbound TCP/IP
connections. Each task listens on a different port number, thus creating a number of independent
receiver servers on various ports.

Build and run the recvd.app application on the DSP network. Wait until the SMT363 has obtained an IP
address, and the application is running.

Next, in the folder smt6060-tcpip\examples\clients\sender, run sender.exe and specify the IP address of
the SMT363 as well as port 1. (The third parameter is the number of bytes to transfer during the test)

sender 192.128.64.6 1 100000

Sundance Digital Signal Processing Inc.

4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.

Tel: [phone], Fax: [phone], email: [e-mail]

www.sundancedsp.com

Revision 0.4

Page 25 of 25

sender: connecting to 192.128.64.6:1 ...
sender: connected to 192.128.64.6:1 [8192 sndbuf]
sender: 100000 maximum bytes to send
send: No error
sender: 100000 bytes in 1.000 sec (0.800 Mbps)
sender: stats min=1696 max=8192 avg=7692 cnt=13

The Diamond server should be displaying an output similar to this:

Figure 16 - SMT6060-TCPIP Recvc Example Output

The sender client application connects to the recvd server application running on the SMT363 and
exchanges data with it.

6.10. SENDC EXAMPLE

This application is a simple sender client implemented on the DSP network. To run, make sure you have
the receiver server running on your development machine.

smt6060-tcpip\examples\servers\receiver

receiver 1
receiver: listening on 0.0.0.0:1 ...
receiver: connect from 192.128.64.6:1646 [8192 rcvbuf]
receiver: continuous recv
recv: No error
receiver: 10000000 bytes in 7.000 sec (11.429 Mbps)
receiver: stats min=292 max=4380 avg=1453 cnt=6879
receiver: listening on 0.0.0.0:1 ...

The client application running on the DSP will connect to a sender server to exchange data with it.
In sendc.c, change the value

#define CONFIG_IP_ADDR "192.128.64.3" // address of server

to the address of where the receiver server is running, and rebuild the DSP application.
Now run sendc.app.

Sundance Digital Signal Processing Inc.

4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.

Tel: [phone], Fax: [phone], email: [e-mail]

www.sundancedsp.com

Revision 0.4

Page 26 of 26

Figure 17 - SMT6060-TCPIP Sendc Example Output

6.11. SENDD EXAMPLE

This example demonstrates an send() socket server application. A daemon task on a DSP node initializes
the sockets API, and then listens on a socket to inbound TCP/IP connections. Each task listens on a
different port number, thus creating a number of independent send servers on various ports.

Build and run the DSP application.

Figure 18 -SMT6060-TCPIP Sendc Example Output

smt6060-tcpip\examples\clients\receiver
Now run a receiver client instance on your development machine, and specify the IP address of the

SMT363. (The third parameter is the number of bytes to use during the test)
receiver 192.128.64.6 1 10000

receiver: connecting to 192.128.64.6:1 ...
receiver: connected to 192.128.64.6:1 [8192 rcvbuf]
receiver: 10000 maximum bytes to recv

recv: No error
receiver: 10000 bytes in 0.000 sec (0.000 Mbps)
receiver: stats min=1240 max=1460 avg=1428 cnt=7

Sundance Digital Signal Processing Inc.

4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.

Tel: [phone], Fax: [phone], email: [e-mail]

www.sundancedsp.com

Revision 0.4

Page 27 of 27

During this test, the receiver client application connected with the sender server
application and exchanged data with it.

6.12. MULTIC EXAMPLE

This is a multi client example. It make use of the sendc and recvc tasks, so you need to have build those
before attempting to build this example. The configuration file for this example places a single instance
of both the sendc and recvc tasks on the embedded network.

You need to run the sender and receiver server programs on your development machine.

sender 12601
sender: listening on 0.0.0.0:12601 ...
sender: connect from 192.128.64.6:2122 [8192 sndbuf]
sender: continuous send

receiver 12701
receiver: listening on 0.0.0.0:12701 ...
receiver: connect from 192.128.64.6:1865 [8192 rcvbuf]
receiver: continuous recv

Build and run the multic application. You should see output similar to that shown below.

Figure 19 - SMT6060-TCPIP Multic Example Output

Note that the port values 12601 and 12701 are specified in the configuration file for the application. The
technique used is to bind values to the input ports of a task. Refer to the 3L Diamond user guide for
more information.

6.13. MULTID EXAMPLE

This example illustrates a multi daemon application running on the embedded system. It uses the sendd
and recvd tasks, so please ensure that you have build those prior to building this application.

Build and run the multid application.

Sundance Digital Signal Processing Inc.

4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.

Tel: [phone], Fax: [phone], email: [e-mail]

www.sundancedsp.com

Revision 0.4

Page 28 of 28

Figure 20 - SMT6060-TCPIP Multid Example Output

Take note of the IP address that has been assigned to the SMT363 module, by looking at the output
displayed on the HyperTerminal window.

Run an instance of the sender client, and specify the IP address of the SMT363 and port 12401 as shown.

sender 192.128.64.6 12401
sender: connecting to 192.128.64.6:12401 ...
sender: connected to 192.128.64.6:12401 [8192 sndbuf]
sender: continuous send

Likewise, run an instance of the receiver client as shown

receiver 192.128.64.6 12301
receiver: connecting to 192.128.64.6:12301 ...
receiver: connected to 192.128.64.6:12301 [8192 rcvbuf]
receiver: continuous recv

Note that the port numbers 12401 and 12301 are specified in the configuration file of this application.

6.14. SMT363 AS NETWORK INTERFACE EXAMPLE

The folder

\appnotes\net2dsp

contains an example application that configures the SMT363 as a network
interface so that a programming running elsewhere on the network can remotely boot and run programs
on the embedded network. The Net2Dsp application has been developed with the SMT6060.

The idea is that the SMT363 becomes a “dumb” module that does not participate in the Diamond
network directly. The SMT363’s flash is programmed with the net2dsp application, and this application
starts running immediately once the module has been reset. One of the comports of the SMT363 is
selected to be used to talk to the rest of the embedded network. This essentially replaces the “host
comport”.

Sundance Digital Signal Processing Inc.

4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.

Tel: [phone], Fax: [phone], email: [e-mail]

www.sundancedsp.com

Revision 0.4

Page 29 of 29

Carrier board

Other

SMT363

NET2DSP

Other

modules

Ethernet

PC running host

application or

Diamond server

modules

Figure 21 - SMT6060-TCPIP SMT363 Configuration as Network Interface

Note: This technique can be used to run the Diamond server on a notebook computer connected to the
Ethernet of a stand-alone carrier board.

The net2dsp application implements a simple server that accepts connections from network applications.
The network application then sends instructions to the server. The instructions could be:

1. Write data to a comport of the SMT363

2. Read data from a comport of the SMT363

All transactions take the form of a data structure like this:

typedef struct {

int device;
int cmd;
int bytes;

} command;

“device”

refers to which Diamond channel (and indirectly which comport) should be used for the

operation.

“cmd” indicates read or write from device. (0 = read, and 1 = write)
“bytes”

selects how many by tes to read or write.

6.15. CONFIGURING THE HOST

The host application is build into the Sundance host driver software. You activate the host functionality
by making a number of entries into the registry of the machine where you wish to run the host software.

The key
HKEY_LOCAL_MACHINE\SOFTWARE\SmtDrv\ethernet

Sundance Digital Signal Processing Inc.

4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.

Tel: [phone], Fax: [phone], email: [e-mail]

www.sundancedsp.com

Revision 0.4

Page 30 of 30

Shown below needs to contain the following values:

Figure 22 - SMT6060-TCPIP Configuring the Host

“comport”

specifies which of the SMT363 comports you are using as a host comport. Valid values are

1,2,3 or 4.

“ip”

specifies the IP address of the SMT363 module that you wish this host application to connect to.

“port”

must be 1234 decimal.

When you have these values configured on the host machine, you should see a new hardware board
called “Ethernet” appear. For example.

Figure 23 - SMT6060-TCPIP Boardinfo Host Configuration

Any access you now make from a host program is now going to go thought the Ethernet to the SMT363
comport you selected. Note that reset is not implemented, and that you will need to ensure that you reset
the embedded system each time before loading an application to it. (This is typically done with a switch
on the stand alone board.)

Note.

The net2dsp application can be provided to customers that do not use 3L Diamond.

Sundance Digital Signal Processing Inc.

4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.

Tel: [phone], Fax: [phone], email: [e-mail]

www.sundancedsp.com

Revision 0.4

Page 31 of 31

6.16. CONFIGURING THE SMT363

To enable the SMT363 to automatically run the net2dsp application when the module
is reset, use the SMT6001 flash programming utility from Sundance, and add the
net2dsp.app file.

Figure 24 - SMT6060-TCPIP Using the Flash Utility

Mark the entry as bootable to ensure that it is loaded automatically when the module is reset.

Figure 25 - SMT6060-TCPIP Marking the Bootable file

Sundance Digital Signal Processing Inc.

4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.

Tel: [phone], Fax: [phone], email: [e-mail]

www.sundancedsp.com

Revision 0.4

Page 32 of 32

7. ACCESS TO THE SERIAL PORT OF THE NET50

SockAPI.lib provides the following functions to access the serial port of the NET50.

int serial232_port_in(char * buf, int bytes);
int serial232_port_printf( const char *fmt, ... );
int serial232_port_out(const char *B, int bytes);

These functions can be used by any task on the network of DSPs to access the serial RS232 port of the
NET50. This allows developers to output debug information on the terminal window connected to the
RS232.

Sundance Digital Signal Processing Inc.

4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.

Tel: [phone], Fax: [phone], email: [e-mail]

www.sundancedsp.com
