Sundance SMT350 User Manual

SMT350

User Manual

Version 1.9 Page 2 of 45 SMT350 User Manual

Revision History

Changes Made Issue Initials

11/10/05
18/01/06

25/01/06
31/10/06

11/12/06
25/01/2007
05/02/2007
21/02/2007

23/03/2007

18/12/2007

Original Document. 1.0 PSR
Updates on ADC inputs and DAC outputs

1.1 PSR

(impedances)
Added details on PHSTR synch. 1.2 PSR
Dac Trigger was missing. Corrected 0x0 and 0x1C

1.3 PSR

register descriptions.
LED description added as well as J1 description. 1.4 PSR
Connector list added; Control structure corrected. 1.5 PSR
Figure 6 corrected. 1.6 PSR
Scratch Test register description corrected. ADC

1.7 PSR

PLL register (0x2) corrected.
Details added to the clock circuitry. 1.8 PSR

Ordering Information added 1.9 PSR

Version 1.9 Page 3 of 45 SMT350 User Manual

Table of Contents

Physical Properties ....................................................................................................... 6

Ordering Information..................................................................................................... 6

Precautions................................................................................................................... 7

Introduction ................................................................................................................... 8

Overview ................................................................................................................... 8

Module features ........................................................................................................ 8

Possible applications ................................................................................................ 9

Related Documents .................................................................................................. 9

Functional Description ................................................................................................ 10

Block Diagram......................................................................................................... 10

Module Description ................................................................................................. 10

ADC Channels. ....................................................................................................... 12

ADC Main Characteristics. .................................................................................. 12

ADC Input Stage. ................................................................................................ 12

Dual-Channel DAC. ................................................................................................ 13

DAC Main characteristics. ................................................................................... 13

DAC output stage. ............................................................................................... 13

Clock Structure........................................................................................................ 14

Power Supply and Reset Structure......................................................................... 17

JumperJ1 ................................................................................................................ 17

Green LEDs. ........................................................................................................... 17

Mezzanine module Interface................................................................................... 17

Control Register Settings............................................................................................ 25

Control Packet Structure......................................................................................... 25

Reading and Writing Registers ............................................................................... 25

Memory Map ........................................................................................................... 26

Register Descriptions.............................................................................................. 27

Reset Register – 0x0........................................................................................... 27

Test Register – 0x1. ............................................................................................ 28

ADCA Register 0 – 0x2. ...................................................................................... 28

ADCA Register 1 – 0x3. ...................................................................................... 28

ADCA Register 2 – 0x4. ...................................................................................... 29

Version 1.9 Page 4 of 45 SMT350 User Manual

ADCB Register 0 – 0x5. ...................................................................................... 29

ADCB Register 1 – 0x6. ...................................................................................... 29

ADCB Register 2 – 0x7. ...................................................................................... 30

DAC Register 0 – 0x8.......................................................................................... 30

DAC Register 1 – 0x9.......................................................................................... 30

DAC Register 2 – 0xA. ........................................................................................ 31

DAC Register 3 – 0xB. ........................................................................................ 31

DAC Register 4 – 0xC. ........................................................................................ 31

DAC Register 5 – 0xD. ........................................................................................ 31

DAC Register 6 – 0xE. ........................................................................................ 32

DAC Register 7 – 0xF. ........................................................................................ 32

CDCM7005 Register 0 – 0x10. ........................................................................... 32

CDCM7005 Register 1 – 0x11. ........................................................................... 32

CDCM7005 Register 2 – 0x12. ........................................................................... 33

CDCM7005 Register 3 – 0x13. ........................................................................... 33

CDCM7005 Register 4 – 0x14. ........................................................................... 33

CDCM7005 Register 5 – 0x15. ........................................................................... 33

CDCM7005 Register 6 – 0x16. ........................................................................... 34

CDCM7005 Register 7 – 0x17. ........................................................................... 34

Main Module Temperature (not implemented) – 0x18........................................ 34

Main Module FPGA Temperature (not implemented) – 0x19 ............................. 34

Mezzanine Module Temperature (not implemented) – 0x1A.............................. 34

Mezzanine Module Converters Temperature (not implemented) – 0x1B ........... 35

Miscellaneous Register – 0x1C........................................................................... 35

Updates, Read-back and Firmware Version Registers – 0x1D .......................... 36

DDS Register 0 – Start Phase Increment LSB - 0x20 ........................................ 37

DDS Register 1 – Start Phase Increment MSB - 0x21 ....................................... 37

DDS Register 2 – Stop Phase Increment LSB - 0x22 ........................................ 38

DDS Register 3 – Stop Increment MSB - 0x23................................................... 38

DDS Register 0 – Step Phase Increment LSB - 0x24 ........................................ 38

DDS Register 5 – Step Increment MSB - 0x25................................................... 39

FPGA Design.............................................................................................................. 40

Serial Interfaces ...................................................................................................... 40

Version 1.9 Page 5 of 45 SMT350 User Manual

Block of registers .................................................................................................... 41

Space available in FPGA ........................................................................................ 41

PCB Layout................................................................................................................. 42

Connectors ................................................................................................................. 44

Description .............................................................................................................. 44

Location on the board ............................................................................................. 45

Table of Figures

Figure 1 – Fan across PCI. ......................................................................................................7

Figure 2 - Block Diagram........................................................................................................10

Figure 3 - Main features. ........................................................................................................12

Figure 4 - ADC Input Stage. ...................................................................................................12

Figure 5 - DAC Output Stage. ................................................................................................14

Figure 6 - Clock Structure. .....................................................................................................14

Figure 7 - External Clock........................................................................................................16

Figure 8 - Clock Architecture Main Characteristics. ...............................................................17

Figure 9 – Mezzanine module Connector Interface (SLB data and power connectors).........18

Figure 10 – Mezzanine Module Interface Power Connector and Pinout. ...............................20

Figure 11 – Daughter Module Interface: Data Signals Connector and Pinout (Bank A). ......21

Figure 12 – Daughter Module Interface: Data Signals Connector and Pinout (Bank B). .......23

Figure 13 – Daughter Module Interface: Data Signals Connector and Pinout (Bank C). .......24

Figure 14 – Setup Packet Structure. ......................................................................................25

Figure 15 – Control Register Read Sequence. ......................................................................25

Figure 16 – Register Memory Map.........................................................................................27

Figure 17 - Firmware Block Diagram......................................................................................40

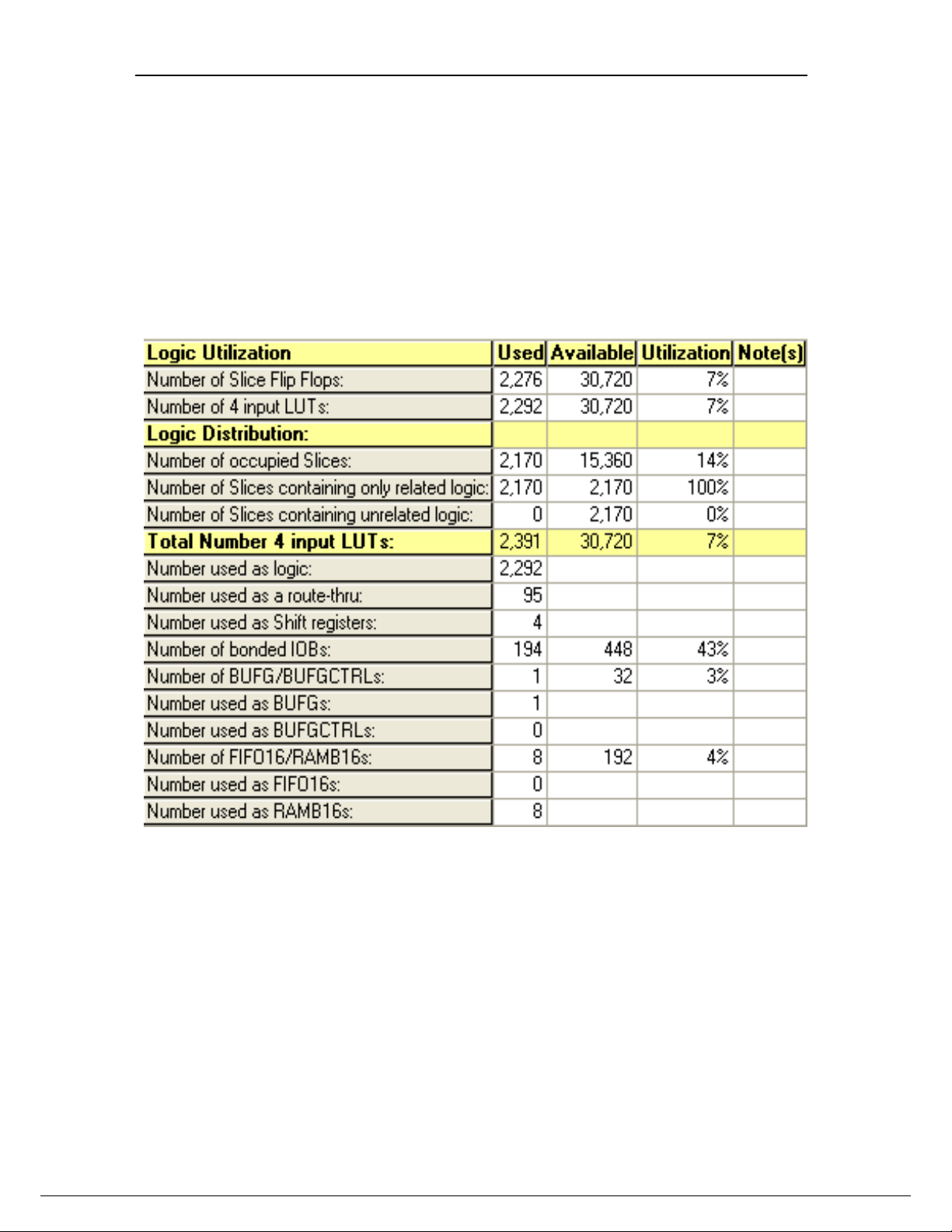

Figure 18 - Space available in FPGA .....................................................................................41

Figure 19 – Main Module Component Side............................................................................42

Figure 20 - Main Module (SMT368) Solder Side....................................................................42

Figure 21 - Daughter Module Component Side......................................................................43

Figure 22 - Daughter Module Solder Side..............................................................................43

Figure 23 - Connectors Location. ...........................................................................................45

Version 1.9 Page 6 of 45 SMT350 User Manual

Physical Properties

Dimensions 63.5mm x 106.7mm x 18mm

Weight 35 grams

Supply Voltages

Supply Current +12V N/A

+5V 1.2 Amps (reset

/ converters
active)

1.4 Amps max

+3.3V 0.14 Amp (reset

/ converters
active)

0.4 Amps max

-5V N/A

-12V N/A

MTBF

Ordering Information

SMT350 (Standard Product): ADC inputs and DAC outputs are AC-coupled.

SMT350-DC: ADCs inputs are DC-coupled and DAC outputs are AC-coupled.

Version 1.9 Page 7 of 45 SMT350 User Manual

Precautions

In order to guarantee that Sundance’s boards function correctly and to protect the
module from damage, the following precautions should be taken:

- They are static sensitive products and should be handled accordingly.

Always place the modules in a static protective bag during storage and transition.

- When operated in a closed environment make sure that the heat generated
by the system is extracted e.g. a fan extracting heat or blowing cool air. Sundance
recommends and uses PAPST 12-Volt fans (Series 8300) producing an air flow of 54
cubic meters per hour (equivalent to 31.8 CFM). Fans are placed so they blow across
the PCI bus as show on the following picture:

Figure 1 – Fan across PCI.

Version 1.9 Page 8 of 45 SMT350 User Manual

Introduction

Overview

The SMT350 is a single width expansion TIM that plugs onto the SLB

SMT368

Converters (ADS5500
Converter (DAC5686
based on a CDCM7005

(Virtex-4 FPGA) and incorporates 2 Texas Instrument Analog-to-Digital

) and a Texas Instrument dual-channel Digital-to-Analog

). The SMT350 implements a comprehensive clock circuitry

chip that allows synchronisation among the converters and

base module

cascading modules for multiple receiver or transmitter systems as well as the use of
an external reference clock. It provides a complete conversion solution and stands as
a platform that can be part of a transmit/receive base station.

ADCs are 14-bit and can sample at up to 125 MHz. The DAC has a resolution of 16
bits and is able to update outputs at up to 500MHz. All converters are 3.3-Volt.

The Xilinx FPGA

(Virtex-4) on the base module is responsible for handling data

going/coming to/from one of the following destination/source: TI converters, Comport

(TIM-40 standard

), Sundance High-speed Bus (SHB). These interfaces are

compatible with a wide range of Sundance’s modules.

The memory on base module can be divided into two 16-bit wide independent blocks
for storing incoming and/or outgoing samples.

Converter configuration, sampling and transferring modes are set via internal control
registers stored inside the FPGA and accessible via Comport.

Module features

The main features of the SMT350 are listed below:

● Dual 14-bit 125MSPS ADC (ADS5500

),

● Dual channel 16-bit 500MSPS DAC (DAC5686

● On-board low-jitter clock generation (CDCM7005

● One external clocks, two external triggers and one reference clock via

MMCX

connector,

● One SLB

connector to link SMT350 and SMT368,

● Synchronisation signals,

● All Analogue inputs to be connected to 50-Ohm sources.

● All Analogue outputs to be connected to 50-Ohm loads.

● Temperature sensors.

),

),

Version 1.9 Page 9 of 45 SMT350 User Manual

Possible applications

The SMT350 can be used for the following application (this non-exhaustive list

should be taken as an example):

● High Intermediate-Frequency (IF) sampling architecture,

● Cellular base station such as CDMA and TDMA,

● Baseband I&Q systems,

● Wireless communication systems,

● Communication instrumentation,

● ...

Related Documents

ADS5500 Datasheet – Texas Instrument:

http://focus.ti.com/docs/prod/folders/print/ads5500.html

DAC5686 Datasheet – Texas Instrument:

http://focus.ti.com/docs/prod/folders/print/dac5686.html

CDCM7005 Datasheet – Texas Instrument:

http://focus.ti.com/docs/prod/folders/print/cdcm7005.html

Sundance High-speed Bus (SHB) specifications – Sundance.

ftp://ftp2.sundance.com/Pub/documentation/pdf­files/SHB_Technical_Specification.pdf

Sundance LVDS Bus (SLB) specifications – Sundance.

http://www.sundance.com/docs/SLB%20-%20Technical%20Specifications.pdf

TIM specifications.

ftp://ftp2.sundance.com/Pub/documentation/pdf-files/tim_spec_v1.01.pdf

Xilinx Virtex-4 FPGA.

http://direct.xilinx.com/bvdocs/publications/ds031.pdf

MMCX Connectors – Hubert Suhner.

MMCX Connectors

Surface Mount MMCX connector

Sundance Multiprocessor Technology Ltd.

SMT368

Version 1.9 Page 10 of 45 SMT350 User Manual

Functional Description

In this part, we will see the general block diagram and some comments on some the

SMT350 entities.

Block Diag ram

The following diagram describes the architecture of the SMT350, coupled – as an
example – with an SMT368 to show how mezzanine and base modules are

connected together:

Power
Supplies: 1.8
and 3.3 Volts

ADC Input

Ch A MMCX

50-Ohm

ADC Input

Ch B MMCX

50-Ohm

ADCs and DAC External

Clock In - MMCX

ADCs and DAC External

Clock Out - MMCX

External Reference
Clock Out - MMCX

External Reference

Clock In - MMCX

DAC Output
Ch A MMCX

50-Ohm

DAC Output
Ch B MMCX

50-Ohm

Temperature

Sensors

Channel A

Signal

Conditioning

Channel B

Signal

Conditioning

Channel A

Signal

Conditioning

Channel B

Signal

Conditioning

ADS5500

ADC ChA

14-bit 125MSPS

ADS5500

ADC ChB

14-bit 125MSPS

PECL Clock

Generation and

Distribution

based on

CDCM7005 and

SN65LVPC23

DAC5686

Dual Channel DAC

16-bit 500MSPS

Interpolation

External ADC

Trigger

ChA Data(14),
Clock and Control

ChB Data(14),
Clock and Control

ChA Data (16)
and Control

ChB Data (16)
and Control

External ADC

Trigger

DAC Clock

Daughter Card

Daughter Card

SMT350

interface

connector

SLB

Power

connector

SLB

Bank A

Bank B

Bank C

Virtex-4

XCV4SX35

FF668 Package

448 IOs

ChA&ChB Data, Clock
and Control (60)

2xComports and
Control (24)

ChA&ChB Data, Clock
and Control (60)

Power

Supplies: 1.25,

1.5, 2.5 and 3.3
Volts

SHBB

ADC Channel A and

Channel B

Spare SHB connector

(SHBA)

Top and Bottom TIM

Connectors

Spare SHB connector

(SHBC)

SHBD

DAC Channel A and

Channel B

SMT368

Figure 2 - Block Diagram.

Module Description

The module is built around two TI ADS5500
converters and one TI DAC5686

ADCs

: Analog data enters the module via two MMCX connectors, one for each

dual 16-bit digital-to-analog converter.

14-bit sampling analog-to-digital

channel. Both signals are then conditioned (AC coupling; DC optional) before being
digitized. Both ADCs gets their own sampling clock, which can be either on-board
generated or from an external reference or an external clock, common to ADCs and
DAC (MMCX connector). Digital samples travel to the FPGA on the base module via

Version 1.9 Page 11 of 45 SMT350 User Manual

the inter-module connector (SLB – Sundance LVDS Bus, used in this case as

‘single-ended’).

DAC

: Digital samples are routed from the FPGA to the DAC via the inter-module
connector. Internal interpolation scheme allows reaching 500 Mega Samples per
Second. The DAC shows other modes such as Dual DAC, Single side-band,
Quadrature or up conversion. Both outputs are AC-coupled. By default they are
single-ended but can optionally be differential. The DAC mode is selected via Jumper
J1, that enables or disables the DAC Internal PLL (see DAC5686 datasheet for more
details).

Clock generator and distribution

: All samplings clocks are generated by the same

chip. It allows having them all synchronized to a single reference clock.

Multi-module Synchronization

: There are two types of synchronization available on

the SMT350. The first one is frequency synchronization, by passing the external

reference clock to an other module. It first goes through a 0-delay buffer and is then
output. Note that the synchronization is in frequency and not in phase. The second
type is register synchronization between DACs. It is achieved by the way of an extra
link between several modules to synchronize DAC internal registers (DAC signal
PHSTR passed from one module to the other and driven by the master FPGA – it
resets the internal VCO).

Inter-module Connector

pins). It is called Sundance LVDS Bus. Please refer to the SLB specifications

: it is made of a power (33 pins) and data connectors (120

for

more details. In the case of the SMT350, the SLB is used as ‘single-ended’.

A global reset signal is mapped to the FPGA from the bottom TIM connector.

External Clock signals

, used to generate Sampling clocks. There is one external
clock, common to ADCs and DAC When used, the CDCM7005 is used as a clock
multiplexer. Also available, an external reference clock that can be passed to an
other SMT350 module with ‘0-delay’.

External Trigger

: passed directly to base module. There are two, one for the ADCs

and one for the DAC.

Temperature Sensor
provided.

: available for constant monitoring. Not part of default firmware

Version 1.9 Page 12 of 45 SMT350 User Manual

ADC Channels.

ADC Main Characteristics.

The main characteristics of the SMT350 ADCs are gathered into the following table.

Analogue Inputs

Input voltage range

Impedance

Bandwidth

Output Data Width

Data Format

SFDR

SNR

Minimum Sampling Clock

Maximum Sampling Frequency

2.4 Vp-p (11.5 dbm – 50 Ohm) Full scale ­AC coupled

ADC single-ended inputs are to be
connected to a 50Ω source. Source
impedance matching implemented between
RF transformers and ADC.

ADC bandwidth: 750 MHz.

ADCs Output

14-Bits
2’s Compliment or offset binary
(Changeable via control register)
82dBs maximum (manufacturer)
70dBs maximum (manufacturer)
10 MHz (ADC DLL off)
125 MHz (ADC DLL on)

Figure 3 - Main features.

ADC Input Stage.

Each ADC Analogue input is AC-coupled via and RF transformer. The 50-Ohm
resistor between the connector and the first RF transformer is not fitted because the
source impedance match is implemented between the second RF transformer and
the ADC by the way of two 25-Ohm resistors.

Figure 4 - ADC Input Stage.

Version 1.9 Page 13 of 45 SMT350 User Manual

Dual-Channel DAC.

DAC Main characteristics.

The main characteristics of the SMT350 DAC are gathered into the following table.

Analogue Outputs

Input voltage range

Impedance

Bandwidth

Output Data Width per channel

Data Format

SFDR

SNR

Maximum input data rate

Maximum Sampling rate

1 Vp-p – Full scale - AC coupled
DAC single-ended outputs are to be

connected to a 50Ω load, which impedance
matching implemented between DAC and
RF transformers.

TBD

DAC Input

16-Bits
2’s Compliment or offset binary
(Changeable via control register)
89dBs maximum (manufacturer)
80dBs maximum (manufacturer)
160 MSPS (Clk1 – DAC5686)
500 MSPS (Clk2 – DAC5686)

Jumper J1 disables (position 1-2; also called External Clock Mode) or enables
(position2-3; also called Internal Clock Mode) the DAC internal PLL.

DAC output stage.

The following piece of schematics shows how the DAC outputs are coupled. The
DAC5686 generates differential output signals that are fed into an RF transformer
(Ohm ratio 4), that makes both DAC channels AC coupled. 100-Ohm resistors to Vcc
on the primary stage of the transformer allow balancing the secondary stage to 50
Ohm single-ended. (Note that R153 is not mounted).

Version 1.9 Page 14 of 45 SMT350 User Manual

Figure 5 - DAC Output Stage.

Clock Structure

There is one integrated clock generator on the module (CDCM7005 – Texas
instrument). The user can either use this clock (on-board) or provide the module with
an external clock (input via MMCX connector).

Figure 6 - Clock Structure.

Version 1.9 Page 15 of 45 SMT350 User Manual

ADCs can both receive the same clock or the fraction of the CDCM7005 input clock
(/2, /3, /4, /6, /8 or /16), the maximum being 125MHz for each ADC. This input clock
can be coming from the on-board fixed VCXO or from an external source. Here is a
list of possible sampling frequencies for the ADCs:

ADC Sampling

CDCM7005 Setting Clock source

Frequency

Not Allowed

/1 On-board VCXO (fixed

245.76MHz)

122.88 MHz /2 On-board VCXO (fixed

245.76MHz)

81.92 MHz /3 On-board VCXO (fixed

245.76MHz)

61.44 MHz /4 On-board VCXO (fixed

245.76MHz)

40.96 MHz /6 On-board VCXO (fixed

245.76MHz)

30.72 MHz /8 On-board VCXO (fixed

245.76MHz)

15.36 MHz /16 On-board VCXO (fixed

245.76MHz)

Anything between 10

and 125 MHz

/1, /2, /3, /4, /6, /8 or

/16

External Clock

The same applies to the DAC, with a maximum sampling frequency for clk1 of
160MHz and for clk2 of 500Mhz.

Below is shown how the external clock is fed to the system. By default it is single­ended and AC-coupled before being converted into LVPECL format. The option of
having a differential external clock is still possible on the hardware by the way of
fitting or not some of the components.

Version 1.9 Page 16 of 45 SMT350 User Manual

r

Figure 7 - External Clock.

The main characteristics of the SMT350 Clocks are gathered into the following table.

External Reference Input

Input Voltage Level

Input Impedance

Frequency Range

Output Voltage Level

Output Impedance

External Sampling Clock Input

Input Voltage Level

Input Format

Frequency range

External Sampling Clock Output

Output Voltage Level

Output Format

0.5 – 3.3 Volts peak-to-peak (AC-coupled)
50-Ohm (Termination implemented at the

connector)

0 – 100 MHz.

External Reference Output

1.6 Volts peak-to-peak (AC-coupled)

50-Ohm (Termination implemented at the

connector)

0.5 – 3.3 Volts peak-to-peak (AC-coupled)

Single-ended or differential on option (3.3V

LVPECL).

10-500 MHz

0-2.4 Volts fixed amplitude

LVTTL

External Trigger Inputs

Input Voltage Level

Format

DC-coupled and Single-ended (Termination

implemented at the connecto

1.5-3.3 Volts peak-to-peak.

). Differential

Version 1.9 Page 17 of 45 SMT350 User Manual

on option (3.3 V PECL).

Impedance

Frequency range

Delay

External Ref. Input to Ext Ref. Out

External Clk Input to Ext Clk Out

Figure 8 - Clock Architecture Main Characteristics.

50-Ohm.

62.5 MHz maximum

9ns (between J29 and J4)

Power Supply and Reset Structure

The SMT350 gets two power sources from the base module: 3.3 and 5 Volts. Linear

regulators are used to provide a clean and stable voltage supply to the analog
converters.

JumperJ1

There is one jumper (3 pin header) on the board. It is to control the power supply of
the DAC internal PLL. When fitted on positions 2 and 3, the PLL is enabled, whereas
on positions 1 and 2, it is disabled. Please refer to the DAC5686 datasheet for more
details.

Green LEDs.

There are 7 LEDs on the SMT350 Daughter Module. Five are dedicated for power
supplies monitoring: LED1 (1.8V DAC), LED2 (3.3V Clock), LED3 (3.3V DAC), LED4
(3.3V ADCA), LED6 (3.3V ADCB) should be all ON when the board is under power.
They state that power supplies all work fine.

LED5 (ADCs) should be flashing once the ADC Clocks are set up. It is actually a
divided version of ADCA sampling clock). LED7 (DAC) is a divided version of
PLLLOCK coming from the Dac (DAC5686).

Mezzanine module Interface

The daughter module interface is made up of two connectors (data and power). The
first one is a 0.5mm-pitch differential Samtec connector. This connector is for
transferring data such as ADC or DAC samples to and from the FPGA on the main
module. The second one is a 1mm-pitch Samtec header type connector. This
connector is for providing power to the daughter-card.

Sundance defines these two connectors as the Sundance LVDS Bus (SLB). It has

originally been made for data transfers using LVDS format but can also be used with

single-ended lines, which is the case for the SMT350. To know more about the SLB,

please refer to the SLB specifications

.

Version 1.9 Page 18 of 45 SMT350 User Manual

The figure underneath illustrates this configuration. The bottom view of the daughter
card is shown on the right. This view must the mirrored to understand how it connects
to the main module.

Data

Bank A

Bank B Bank C

Power

connectors

Figure 9 – Mezzanine module Connector Interface (SLB data and power connectors).

The female differential connector is located on the base module. The Samtec Part
Number for this connector is QTH-060-01-F-D-DP-A.

The female power connector is located on the base module. The Samtec Part
Number for this connector is BKS-133-03-F-V-A

The male differential connector is located on the mezzanine card. The Samtec Part
Number for this connector is QSH-060-01-F-D-DP-A

The male power connector is located on the mezzanine card. The Samtec Part
Number for this connector is BKT-133-03-F-V-A

The mated height between the main module and the daughter card is 5 mm.

Version 1.9 Page 19 of 45 SMT350 User Manual

Some JTAG Lines are also mapped onto this connector to be used in case the
Daughter module would have a TI Processor. They would allow debugging and
programming via JTAG.

The following table shows the pin assignment on the power connector:

2

1

33

Pin Number Pin Name Description of Signal

1 D+3V3 Digital 3.3 Volts

2 DGND Digital Ground

3 D+3V3 Digital 3.3 Volts

4 DGND Digital Ground

5 D+3V3 Digital 3.3 Volts

6 DGND Digital Ground

7 D+3V3 Digital 3.3 Volts

8 DGND Digital Ground

9 D+5V0 Digital 5.0 Volts

10 DGND Digital Ground

11 D+5V0 Digital 5.0 Volts

12 DGND Digital Ground

13 D+5V0 Digital 5.0 Volts

14 DGND Digital Ground

15 D+5V0 Digital 5.0 Volts

16 DGND Digital Ground

17 D+12V0 Digital +12.0 Volts – not used on the SMT350

18 DGND Digital Ground

19 D+12V0 Digital +12.0 Volts – not used on the SMT350

20 DGND Digital Ground

Version 1.9 Page 20 of 45 SMT350 User Manual

21 D-12V0 Digital –12.0 Volts – not used on the SMT350

22 DGND Digital Ground

23 D-12V0 Digital –12.0 Volts – not used on the SM350

24 DGND Digital Ground

25 DGND Digital Ground

26 EMU0 Emulation Control 0 – not used on SMT350

27 EMU1 Emulation Control 1 – not used on SMT350

28 TMS JTAG Mode Control – not used on SMT350

29 nTRST JTAG Reset – not used on SMT350

30 TCK JTAG Test Clock – not used on SMT350

31 TDI JTAG Test Input – not used on SMT350

32 TDO JTAG Test Output – not used on SMT350

33 DGND Digital Ground

Figure 10 – Mezzanine Module Interface Power Connector and Pinout.

The following few pages describes the signals on the data connector between the
main module and the daughter card. Bank A on the connector is used for the ADC
Channels A and B. Bank C is used for the DAC channels A and B. Bank B is used for
system clock and trigger signals, ADC/DAC/Clock control signal.

Version 1.9 Page 21 of 45 SMT350 User Manual

Bank A Bank B Bank C

1 3 5 7 41 43 81 83

2 4 6 8

Bank A (ADCs)

Pin No Pin Name Signal Description Pin No Pin Name Signal Description

Dir Daughter Card to Main Module Dir Daughter Card to Main Module

1 DOAI0p Data Out 0, Channel A. 2 DOBI0p Data Out 1, Channel A.

3 DOAI0n Data Out 2, Channel A. 4 DOBI0n Data Out 3, Channel A.

Dir Daughter Card to Main Module Dir Daughter Card to Main Module

5 DOAI1p Data Out 4, Channel A. 6 DOBI1p Data Out 5, Channel A.

7 DOAI1n Data Out 6, Channel A. 8 DOBI1n Data Out 7, Channel A.

Dir Daughter Card to Main Module Dir Daughter Card to Main Module

9 DOAI2p Data Out 8, Channel A. 10 DOBI2p Data Out 9, Channel A.

11 DOAI2n Data Out 10, Channel A. 12 DOBI2n Data Out 11, Channel A.

Dir Daughter Card to Main Module Dir Daughter Card to Main Module

13 DOAI3p Data Out 12, Channel A. 14 DOBI3p Data Out 13, Channel A.

15 DOAI3n Over Range, Channel A. 16 DOBI3n Data Out 0, Channel B.

Dir Daughter Card to Main Module Dir Daughter Card to Main Module

17 DOAI4p Data Out 1, Channel B. 18 DOBI4p Data Out 2, Channel B.

19 DOAI4n Data Out 3, Channel B. 20 DOBI4n Data Out 4, Channel B.

Dir Daughter Card to Main Module Dir Daughter Card to Main Module

21 DOAI5p Data Out 5, Channel B. 22 DOBI5p Data Out 6, Channel B.

23 DOAI5n Data Out 7, Channel B. 24 DOBI5n Data Out 8, Channel B.

Dir Daughter Card to Main Module Dir Daughter Card to Main Module

25 DOAI6p Data Out 9, Channel B. 26 DOBI6p Data Out 10, Channel B.

27 DOAI6n Data Out 11, Channel B. 28 DOBI6n Data Out 12, Channel B.

Dir Daughter Card to Main Module Dir Daughter Card to Main Module

29 DOAI7p Data Out 13, Channel B. 30 DOBI7p Over Range, Channel B.

31 DOAI7n Led ADC 32 DOBI7n Status Lock CDCM7005

Dir Daughter Card to Main Module Dir Daughter Card to Main Module

33 ClkOIp Data Clock Out, Channel A. 34 DOIRIp Status VCXO CDCM7005

35 ClkOIn Data Clock Out, Channel B. 36 DOIRIn Status Ref CDCM7005

Dir Reserved. Dir Reserved.

37 Reserved. Reserved. 38 Reserved ADC External Trigger, P.

39 Reserved. Reserved. 40 Reserved ADC External Trigger, N.

Figure 11 – Daughter Module Interface: Data Signals Connector and Pinout (Bank A).

Version 1.9 Page 22 of 45 SMT350 User Manual

Bank A Bank B Bank C

1 3 5 7 41 43 81 83

2 4 6 8

Bank B

Pin No Pin N a me Signal Description Pin No Pin Name Signal Description
Type Clock and Trigger System Signals Type Clock and Trigger System Signals

Dir Daughter Card to Main Module Dir Daughter Card to Main Module

41 SMBClk Temperature Sensor Clock. 42 SMBData Temperature Sensor Data.

43 SMBnAlert Temperature Sensor Alert. 44 SerialNo Reserved

Dir Daughter Card to Main Module Dir Reserved

45 AdcVDacI Reserved 46 AdcVDacQ Reserved

47 AdcVRes Reserved 48 AdcReset Reserved

Dir Main Module to Daughter Card Dir Main Module to Daughter Card

49 D3v3Enable Reserved 50 D2v5Enable Reserved

51 AdcMode ADCA Serial Clock. 52 AdcClock ADCA Serial Data.
Type ADC Specific Sign als Type ADC Specific Signals

Dir Main Module to Daughter Card Dir Reserved

53 AdcLoad ADCA Serial Enable. 54 AdcData ADCB Serial Clock.

55 AdcCal ADCB Serial Data. 56 AdjClkCntr0 ADCB Serial Enable.

Dir Main Module to Daughter Card Dir Main Module to Daughter Card

57 AdjClkCntr1 ADCs Format (binary, 2’s) 58 AdjClkCntr2 ADCs Reset

59 AdjClkCntr3 ADCs Output Enable 60 PllCntr0 CDCM7005 serial Enable.

Dir Daughter Card to Main Module Dir Daughter Card to Main Module

61 PllCntr1 CDCM7005 serial Clock. 62 PllCntr2 CDCM7005 serial Data.

63 PllCntr3 CDCM7005 Clock Selection. 64 AdcAClkSel DAC PhStr.
Type Module Control Signals Type Module Control Signals

Dir Main Module to Daughter Card Dir Main Module to Daughter Card

65 AdcBClkSel DAC Reset. 66 IntClkDivEn DAC Pll Lock.

67 IntClkDivnReset DAC Serial Enable. 68 IntExtClkDivEn DAC Serial Clock.

Dir Main Module to Daughter Card Dir Main Module to Daughter Card

69 IntExtClkDivnReset DAC Serial Data. 70 FpgaVRef Reserved

71 FpgaTck Reserved 72 FpgaTms Reserved

Dir Daughter Card to Main Module Dir Reserved

73 FpgaTdi Reserved 74 FpgaTdo Reserved

75 MspVRef Reserved 76 MspTck Reserved

Dir Daughter Card to Main Module Dir Reserved

Version 1.9 Page 23 of 45 SMT350 User Manual

77 MspTms Reserved 78 MspTdi Reserved.

79 Msptdo Reserved 80 MspnTrst Reserved

Figure 12 – Daughter Module Interface: Data Signals Connector and Pinout (Bank B).

Version 1.9 Page 24 of 45 SMT350 User Manual

Bank A Bank B Bank C

1 3 5 7 41 43 81 83

2 4 6 8

Bank C (DAC)

Pin No Pin Name Signal Description Pin No Pin Name Signal Description

Dir Daughter Card to Main Module Dir Daughter Card to Main Module

81 DOAQ0p Data In 0, Channel A. 82 DOBQ0p Data In 1, Channel A.

83 DOAQ0n Data In 2, Channel A. 84 DOBQ0n Data In 3, Channel A.

Dir Daughter Card to Main Module Dir Daughter Card to Main Module

85 DOAQ1p Data In 4, Channel A. 86 DOBQ1p Data In 5, Channel A.

87 DOAQ1n Data In 6, Channel A. 88 DOBQ1n Data In 7, Channel A.

Dir Daughter Card to Main Module Dir Daughter Card to Main Module

89 DOAQ2p Data In 8, Channel A. 90 DOBQ2p Data In 9, Channel A.

91 DOAQ2n Data In 10, Channel A. 92 DOBQ2n Data In 11, Channel A.

Dir Daughter Card to Main Module Dir Daughter Card to Main Module

93 DOAQ3p Data In 12, Channel A. 94 DOBQ3p Data In 13, Channel A.

95 DOAQ3n Data In 14, Channel A. 96 DOBQ3n Data In 15, Channel A.

Dir Daughter Card to Main Module Dir Daughter Card to Main Module

97 DOAQ4p Data In 0, Channel B. 98 DOBQ4p Data In 1, Channel B.

99 DOAQ4n Data In 2, Channel B. 100 DOBQ4n Data In 3, Channel B.

Dir Daughter Card to Main Module Dir Daughter Card to Main Module

101 DOAQ5p Data In 4, Channel B. 102 DOBQ5p Data In 5, Channel B.

103 DOAQ5n Data In 6, Channel B. 104 DOBQ5n Data In 7, Channel B.

Dir Daughter Card to Main Module Dir Daughter Card to Main Module

105 DOAQ6p Data In 8, Channel B. 106 DOBQ6p Data In 9, Channel B.

107 DOAQ6n Data In 10, Channel B. 108 DOBQ6n Data In 11, Channel B.

Dir Daughter Card to Main Module Dir Daughter Card to Main Module

109 DOAQ7p Data Out 12, Channel B. 110 DOBQ7p Data Out 13, Channel B.

111 DOAQ7n Data Out 14, Channel B. 112 DOBQ7n Data Out 15, Channel B.

Dir Daughter Card to Main Module Dir Daughter Card to Main Module

113 Reserved. DAC Clock P. 114 Reserved. DAC LED.

115 Reserved. DAC Clock N. 116 Reserved. DAC Power Down.

Dir Reserved. Dir Reserved.

117 Reserved. Reserved. 118 Reserved. DAC External Trigger, P.

119 Reserved. Reserved. 120 Reserved. DAC External Trigger, N.

Figure 13 – Daughter Module Interface: Data Signals Connector and Pinout (Bank C).

Version 1.9 Page 25 of 45 SMT350 User Manual

Control Register Settings

The Control Registers control the complete functionality of the SMT350. They are

setup via the Comport3 (standard firmware provided). The settings of the ADC,
triggers, clocks and the configuration of the SHB interfaces and the internal FPGA
data path settings can be configured via the Control Registers.

Control Packet Structure

The data passed on to the SMT350 over the Comport must conform to a certain

packet structure. Only valid packets will be accepted and only after acceptance of a
packet will the appropriate settings be implemented. Each packet will start with a
command (4 bits – 0x1 for a write operation – 0x2 for a read operation) information,
followed by a register address (12 bits – see table Memory Map), followed by a 16-bit
data. This structure is illustrated in the following figure:

Byte Content

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

3

2
1
0

Command 3 Command 2 Command 1 Command

0

Address 7 Address 6 Address 5 Address 4 Address 3 Address 2 Address 1 Address 0

Data 15 Data 14 Data 13 Data 12 Data 11 Data 10 Data 9 Data 8

Data 7 Data 6 Data 5 Data 4 Data 3 Data 2 Data 1 Data 0

Address 11 Address 10 Address 9 Address 8

Figure 14 – Setup Packet Struc ture.

Reading and Writing Registers

Control packets are sent to the SMT350 over Comport3. This is a bi-directional

interface. The format of a ‘Read Packet’ is the same as that of a write packet.

Figure 15 – Control Register Read Sequence.

Version 1.9 Page 26 of 45 SMT350 User Manual

Memory Map

The write packets must contain the address where the data must be written to and
the read packets must contain the address where the required data must be read.
The following figure shows the memory map for the writable and readable Control

Registers on the SMT350:

Address Writable Registers Readable R e g isters

0x00
0x01
0x02
0x03
0x04
0x05
0x06
0x07
0x08
0x09
0x0A
0x0B
0x0C
0x0D
0x0E
0x0F
0x10
0x11
0x12 CDCM7005 Register 2. Read-back (FPGA Register) CDCM7005 Register 2.
0x13
0x14 CDCM7005 Register 4. Read-back (FPGA Register) CDCM7005 Register 4.
0x15
0x16
0x17
0x18
0x19
0x1A
0x1B
0x1C
0x1D
0x20
0x21
0x22
0x23

Reset Register. Reserved.

Test Register. Test Register.

ADCA Register 0. Read-back (FPGA Register) ADCA Register 0.

ADCA Register 1. Read-back (FPGA Register) ADCA Register 1.

ADCA Register 2. Read-back (FPGA Register) ADCA Register 2.

ADCB Register 0. Read-back (FPGA Register) ADCB Register 0.

ADCB Register 1. Read-back (FPGA Register) ADCB Register 1.

ADCB Register 2. Read-back (FPGA Register) ADCB Register 2.

DAC Register 0. Read-back (FPGA Register) DAC Register 0.

DAC Register 1. Read-back (FPGA Register) DAC Register 1.

DAC Register 2. Read-back (FPGA Register) DAC Register 2.

DAC Register 3. Read-back (FPGA Register) DAC Register 3.

DAC Register 4. Read-back (FPGA Register) DAC Register 4.

DAC Register 5. Read-back (FPGA Register) DAC Register 5.

DAC Register 6. Read-back (FPGA Register) DAC Register 6.

DAC Register 7. Read-back (FPGA Register) DAC Register 7.

CDCM7005 Register 0. Read-back (FPGA Register) CDCM7005 Register 0.

CDCM7005 Register 1. Read-back (FPGA Register) CDCM7005 Register 1.

CDCM7005 Register 3. Read-back (FPGA Register) CDCM7005 Register 3.

CDCM7005 Register 5. Read-back (FPGA Register) CDCM7005 Register 5.

CDCM7005 Register 6. Read-back (FPGA Register) CDCM7005 Register 6.

CDCM7005 Register 7. Read-back (FPGA Register) CDCM7005 Register 7.

Reserved Main Module Temperature

Reserved Main Module FPGA Temperature

Reserved Mezzanine Module Temperature

Reserved Mezzanine Module Converter Temperature

Misc Register (Trigger, Clock Selection, etc…). Read-back Misc Register.

Update and Read-back command Register Firmware Version and Status bits.

DDS Register 0 – Start Phase Increment LSB Read-back (FPGA Register) DDS Register 0.

DDS Register 1 – Start Phase Increment MSB Read-back (FPGA Register) DDS Register 1.

DDS Register 2 – Stop Phase Increment LSB Read-back (FPGA Register) DDS Register 2.

DDS Register 3 – Stop Phase Increment MSB Read-back (FPGA Register) DDS Register 3.

Version 1.9 Page 27 of 45 SMT350 User Manual

0x24
0x25

DDS Register 4 – Step Phase Increment LSB Read-back (FPGA Register) DDS Register 4.

DDS Register 5 – Step Phase Increment MSB Read-back (FPGA Register) DDS Register 5.

Figure 16 – Register Memory Map.

Register Descriptions

Reset Register – 0x0.

Reset Register – 0x0

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

0

Default

Reserved Reserved DDS

‘0’ ‘0’ ‘1’ ‘00’ ‘1’ ‘1’ ‘1’

Reset

PHSTR CDCM7005

Reset

DAC Reset ADCs

Reset Register – 0x0

Setting Bit 0 Description

0
1

Setting Bit 1 Description

0
1

Setting Bit 2 Description

0 0 Normal Operation.
1

Setting Bit 4&3 Description

0
1
2
3

Setting Bit 5 Description

0
1

0 Normal Operation.

1 Resets both ADC devices as well as their corresponding Serial Interfaces.

0 Normal Operation.

1 Resets both DAC device as well as its Serial Interfaces.

1 Resets both CLK device as well as its Serial Interfaces.

00 Normal Operation – DAC PHSTR is Tri-Stated.

01 DAC PHSTR line is driven High.

10 DAC PHSTR line is driven Low.

11 Normal Operation – DAC PHSTR is Tri-Stated.

0 DDS Activated and SHB put on hold.

1 Resets DDS Core (SHB samples are routed to the DAC)

Reset

Note 1: What is mentioned as DAC PHSTR line is the physical net on the board that
connects together the FPGA to the PHSTR pin (DAC5686) as well as to J5 (+). In a
multiple board system, one board can be used as a master and its PHSTR pin can
be driven high or low and an other one as slave, in which case its DAC PHSTR pin
must be tri-stated.

Note 2

: The Reset bits don’t get cleared automatically, so a device can remain reset

while not used to reduce the global power consumption.

Version 1.9 Page 28 of 45 SMT350 User Manual

Test Register – 0x1.

Any 8-bit value written in this register can be read-back to check that the Comport
used works properly.

Test Register – 0x1

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

0

ADCA Register 0 – 0x2.

For more details, refer to ADS5500 datasheet.

ADCA Register 0 – 0x2

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

Setting Bit 1 Description

0
1

0 PLL OFF – for sampling frequencies between 10 and 80 MHz

1 PLL ON – for sampling frequencies between 60 and 125 MHz

Reserved PLL Reserved

‘000000’ ‘0’ ‘0’

ADCA Register 0 – 0x2

Reserved

‘0000000’

ADCA Register 1 – 0x3.

For more details, refer to ADS5500 datasheet.

ADCA Register 1 – 0x3

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

Setting TP1 TP0 Description

0
1
2
3

0 0 Normal Mode of Operation

0 1 All outputs are zeroes

1 0 All outputs are ones

1 1 Continuous stream of ‘10’

Reserved TP1 TP0 Reserved

‘00000’ ‘0’ ‘0’ ‘0’

Reserved

‘00000000’

ADCA Register 1 – 0x3

Version 1.9 Page 29 of 45 SMT350 User Manual

ADCA Register 2 – 0x4.

For more details, refer to ADS5500 datasheet.

ADCA Register 2 – 0x4

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

Setting PDN Description

0
1

0 Normal Mode of Operation

1 Device in Power Down Mode

Reserved PDN Reserved

‘000’ ‘0’ ‘000’

Reserved

‘00000000’

ADCA Register 2 – 0X4

ADCB Register 0 – 0x5.

For more details, refer to ADS5500 datasheet.

ADCB Register 0 – 0x5

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

Setting Bit 1 Description

0
1

0 PLL OFF – for sampling frequencies between 10 and 80 MHz

1 PLL ON – for sampling frequencies between 60 and 125 MHz

Reserved PLL Reserved

‘000000’ ‘0’ ‘0’

ADCB Register 0 – 0x5

Reserved

‘0000000’

ADCB Register 1 – 0x6.

For more details, refer to ADS5500 datasheet.

ADCB Register 1 – 0x6

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

Setting TP1 TP0 Description

0

0 0 Normal Mode of Operation

Reserved TP1 TP0 Reserved

‘00000’ ‘0’ ‘0’ ‘0’

Reserved

‘00000000’

ADCB Register 1 – 0x6

Version 1.9 Page 30 of 45 SMT350 User Manual

1
2
3

0 1 All outputs are zeroes

1 0 All outputs are ones

1 1 Continuous stream of ‘10’

ADCB Register 2 – 0x7.

For more details, refer to ADS5500 datasheet.

ADCB Register 2 – 0x7

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

Setting PDN Description

0
1

0 Normal Mode of Operation

1 Device in Power Down Mode

Reserved PDN Reserved

‘000’ ‘0’ ‘000’

Reserved

‘00000000’

ADCB Register 2 – 0x7

DAC Register 0 – 0x8.

For more details, refer to DAC5686 datasheet.

DAC Register 0 – 0x8

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

0

Default

1

Default

atest Version

‘000000’ ‘000’

Freq_int[7:0]

‘00000000’

DAC Register 1 – 0x9.

For more details, refer to DAC5686 datasheet.

DAC Register 1 – 0x9

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

0

Default

1

Default

Freq_int[15:8]

‘00000000’

Freq_int[23:16]

‘00000000’

Version 1.9 Page 31 of 45 SMT350 User Manual

DAC Register 2 – 0xA.

For more details, refer to DAC5686 datasheet.

DAC Register 2 – 0xA

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

0

Default

1

Default

Freq_int[31:24]

‘00000000’

Phase_int[7:0]

‘00000000’

DAC Register 3 – 0xB.

For more details, refer to DAC5686 datasheet.

DAC Register 3 – 0xB

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

0

Default

1

Default

Mode[1:0] Div[1:0] Sel[1:0] Counter Full bypass

‘00’ ‘00’ ‘00’ ‘0’ ‘0’

Phase _int[15:8]

‘00000000’

DAC Register 4 – 0xC.

For more details, refer to DAC5686 datasheet.

DAC Register 4 – 0xC

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

0

Default

1

Default

Ssb Interl Sinc Dith Sync Phstr Nco Sif4 Twos

‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’

Dual_clk DSS_gain[1:0] Rspect Qflag Pll_rng[1:0] Rev_bus

‘0’ ‘00’ ‘0’ ‘0’ ‘00’ ‘0’

DAC Register 5 – 0xD.

For more details, refer to DAC5686 datasheet.

DAC Register 5 – 0xD

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

0

Default

1

Default

Daca_offset[7:0]

‘00000000’

Daca_gain[7:0]

‘00000000’

Version 1.9 Page 32 of 45 SMT350 User Manual

DAC Register 6 – 0xE.

For more details, refer to DAC5686 datasheet.

DAC Register 6 – 0xE

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

0

Default

1

Default

Daca_offset[10:8] sleepa Daca_gain[11:8]

‘0’ ‘0000’

Dacb_offset[7:0]

‘00000000’

DAC Register 7 – 0xF.

For more details, refer to DAC5686 datasheet.

DAC Register 7 – 0xF

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

0

Default

1

Default

Dacb_offset[10:8] sleepb Dacb_gain[11:8]

‘000’ ‘0’ ‘0000’

Dacb_gain[7:0]

‘00000000’

CDCM7005 Register 0 – 0x10.

For more details, refer to CDCM7005 datasheet.

CDCM7005 Register 0 – 0x10

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

VCXO_divider[3:0] Reference Divider[9:6]

‘0000’ ‘0000’

Reference Divider[5:0] Register Selection[1:0]

‘000000’ ‘00’

CDCM7005 Register 1 – 0x11.

For more details, refer to CDCM7005 datasheet.

CDCM7005 Register 1 – 0x11

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

Freq Detect Manual or Auto

Ref.

‘0’ ‘0’ ‘000’ ‘000’

Programmable Delay N[2:0] Programmable Delay M[2:0]

VCXO_divider[11:4]

‘00000000’

Version 1.9 Page 33 of 45 SMT350 User Manual

CDCM7005 Register 2 – 0x12.

For more details, refer to CDCM7005 datasheet.

CDCM7005 Register 2 – 0x12

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

OUT2A0 OUT1B1 OUT1B0 OUT1A1 OUT1A0 OUT0B1 OUT0B0 OUT0A1

‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’

OUT0A0 Output Signaling Selcetion[5:0] Register Selection[1:0]

‘0’ ‘00000’ ‘01’

CDCM7005 Register 3 – 0x13.

For more details, refer to CDCM7005 datasheet.

CDCM7005 Register 3– 0x13

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’

0

Default

90Div8 90Div4 ADClock Status

VCXO

OUT4A0 OUT3B1 OUT3B0 OUT3A1 OUT3A0 OUT2B1 OUT2B0 OUT2A1

‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’

Status Ref OUT4B1 OUT4B0 OUT4A1

CDCM7005 Register 4 – 0x14.

For more details, refer to CDCM7005 datasheet.

CDCM7005 Register 4 – 0x14

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

Y0_MUX Width FB_MUX PDF Pulse

‘000’ ‘000’ ‘00’

CP Current PRECP CP_DIR Register Selection[1:0]

‘0000’ ‘0’ ‘0’ ‘10’

CDCM7005 Register 5 – 0x15.

For more details, refer to CDCM7005 datasheet.

CDCM7005 Register 5– 0x15

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

Hold Reset ResHold Power

Down

‘0’ ‘0’ ‘0’ ‘0’ ‘000’ ‘0’

Y3_MUX Y2_MUX Y1_MUX

‘00’ ‘000’ ‘000’

Y4_MUX Y3_MUX

Version 1.9 Page 34 of 45 SMT350 User Manual

CDCM7005 Register 6 – 0x16.

For more details, refer to CDCM7005 datasheet.

CDCM7005 Register 6 – 0x16

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default ‘0000’ ‘0’ ‘0’ ‘0’ ‘0’

0

Default ‘0’ ‘0’ ‘00’ ‘00’ ‘11’

Reserved Cycle Slip Lock Cycles Lock Window Register Selection[1:0]

Reserved Hold Reserved Hold

Function1

Reserved

CDCM7005 Register 7 – 0x17.

For more details, refer to CDCM7005 datasheet.

CDCM7005 Register 7 – 0x17

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default ‘00000000’

0

Default

Reserved

Reserved

‘00000000’

Main Module Temperature (not implemented) – 0x18

Main Module Temperature – 0x18

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

0

Default

Temperature in Celcius Degrees

‘00000000’

Main Module FPGA Temperature (not implemented) – 0x19

Main Module FPGA Temperature – 0x19

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

0

Default

Temperature in Celcius Degrees

‘00000000’

Mezzanine Module Temperature (not implemented) – 0x1A

Mezzanine Module Temperature – 0x1A

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

0

Default

Temperature in Celcius Degrees

‘00000000’

Version 1.9 Page 35 of 45 SMT350 User Manual

Mezzanine Module Converters Temperature (not implemented) – 0x1B

Mezzanine Module Converters Temperature – 0x1B

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

0

Default

Temperature in Celcius Degrees

‘00000000’

Miscellaneous Register – 0x1C.

Miscellaneous Register – 0x1C

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

0

Default

1

Default ‘00’ ‘0’ ‘0’ ‘0’ ‘0’ ‘00’

Miscellaneous Register – 0x1C

Setting Bit 13 Description

0
1

Miscellaneous Register – 0x1C

Setting Bit 12 Description

0
1

Miscellaneous Register – 0x1C

Setting Bit 11 Description

0
1

Miscellaneous Register – 0x1C

Setting Bit 9/8 Description

0
1
2
3

Miscellaneous Register – 0x1C

Setting Bit 5 Description

0
1

Miscellaneous Register – 0x1C

Setting Bit 4 Description

0 0 Polarity ADC Trigger signal selected – Non-Inverting.
1

Miscellaneous Register – 0x1C

Reserved ADC Trigger

‘00’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’

Reserved DAC Trigger

0 Internal DAC Trigger (from register 0x1C – bit 11) selected.

1 External DAC Trigger (from connector J24) selected.

0 Polarity DAC Trigger signal selected – Non-Inverting.

1 Polarity DAC Trigger signal selected – Inverting.

0 Internal DAC Trigger set to ‘0’.

1 Internal DAC Trigger set to ‘1’.

00 ADC Channel A and B ; 1 sample of each ADC channel packed onto one 32-bit word. [ChB ChA]

01 ADC Channel A only ; 2 samples packed onto one 32-bit word [word(t+1) word(t)]

10 ADC Channel B only ; 2 samples packed onto one 32-bit word [word(t+1) word(t)]

11 ADC Channel A and B ; 1 sample of each ADC channel packed onto one 32-bit word. [ChB ChA]

0 Internal ADC Trigger (from register 0x1C – bit 3) selected.

1 External ADC Trigger (from connector J24) selected.

1 Polarity ADC Trigger signal selected – Inverting.

- Selection

- Selection

ADC Trigger

- Polarity

DAC Trigger

- Polarity

ADC Trigger

- Internal

DAC Trigger

- Internal

ADCs

Data

Reserved SHB Selection

Clock

Selection

Reference

Selection

Version 1.9 Page 36 of 45 SMT350 User Manual

Setting Bit 3 Description

0
1

Miscellaneous Register – 0x1C

Setting Bit 2 Description

0
1

Miscellaneous Register – 0x1C

Setting Bit 1 Description

0
1

Miscellaneous Register – 0x1C

Setting Bit 0 Description

0
1

0 Internal ADC Trigger set to ‘0’.

1 Internal ADC Trigger set to ‘1’.

0 Binary Format.

1 2’s Complement.

0 VCXO selection.

1 External Source Selected.

0 On-Board 10-MHz Reference Clock selected.

1 External Reference Selected.

Updates, Read-back and Firmware Version Registers – 0x1D

The Update bit activates the corresponding Serial Interface to pass registers
previously written in the FPGA, into the corresponding device (ADCA, ADCB, DAC or
CLK devices).

The Read-back bit activates the corresponding Serial Interface to read-back register
values from the corresponding device and to pass them to the FPGA. This operation
must be followed by Read-back register operations.

Note that only the DAC allows proper read-back operation. Other devices read-back
commands would only perform a read-back of the FPGA register.

Update and Read-back commands – 0x1D

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

0

Default

1

Default

Reserved DDS Step

Update

‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’

DAC

‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’

DDS Stop

Update

DDS Start

Update

CLK

Update

DAC

Update

Read-back

ADCB

Update

ADCA

Update

Reading-back this register returns the Firmware version as well as some Status
signals coming from the CDCM7005.

Version 1.9 Page 37 of 45 SMT350 User Manual

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

0

Default

1

Default

CDCM7005

‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’ ‘0’

Firmware Version – 0x1D

Firmware Version

‘00000000’

Status
VCXO

CDCM7005

Status Ref

CDCM7005
Status Lock

DDS Register 0 – Start Phase Increment LSB - 0x20

DDS Register 0 – 0x20

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

DDS Start Phase Increment[15…8]

‘00000000’

DDS Start Phase Increment [7…0]

‘00000000’

DDS Register 1 – Start Phase Increment MSB - 0x21

DDS Register 1 – 0x21

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

DDS Start Phase Increment [31…24]

‘00000000’

DDS Start Phase Increment [23…16]

‘00000000’

The Start Phase Increment value is coded on 32 bits (DDS Data registers 0x20 and
0x21). Each value corresponds to a frequency generated worked out as follows:

Fout = Start Phase Increment * F

DAC sampling

(MHz) / 232

When the DDS is used in sweep mode, Start Phase Increment should be lower than
Stop Phase Increment and Step Phase Increment should be greater than 0. When
used to generate a fixed frequency, Start Phase Increment should be equal to Stop
Phase Increment and Step Phase Increment should be equal to 1.

For Registers 0x20 and 0x21 to take effect, Bit 4 of register 0x1D must be set to 1.

DAC Channel A is the Sine output of the DDS and DAC Channel B is the Cosine
output of the DDS. Both outputs are therefore is quadrature.

The Maximum Phase increment value supported by the design is 0x40000000, which
corresponds to a frequency of 30.72MHz when sampling at 122.88MHz with no
interpolation.

Version 1.9 Page 38 of 45 SMT350 User Manual

DDS Register 2 – Stop Phase Increment LSB - 0x22

DDS Register 2 – 0x22

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

DDS Stop Phase Increment [15…8]

‘00000000’

DDS Stop Phase Increment [7…0]

‘00000000’

DDS Register 3 – Stop Increment MSB - 0x23

DDS Register 3 – 0x23

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

DDS Stop Phase Increment [31…24]

‘00000000’

DDS Stop Phase Increment [23…16]

‘00000000’

The Stop Phase Increment value is coded on 32 bits (DDS Data registers 0x22 and
0x23). Each value corresponds to a frequency generated worked out as follows :

Fout = Stop Phase Increment * F

DAC sampling

(MHz) / 232

When the DDS is used in sweep mode, Start Phase Increment should be lower than
Stop Phase Increment and Step Phase Increment should be greater than 0. When
used to generate a fixed frequency, Start Phase Increment should be equal to Stop
Phase Increment and Step Phase Increment should be equal to 1.

For Registers 0x22 and 0x23 to take effect, Bit 5 of register 0x1D must be set to 1.

DAC Channel A is the Sine output of the DDS and DAC Channel B is the Cosine
output of the DDS. Both outputs are therefore is quadrature.

The Maximum Phase increment value supported by the design is 0x40000000, which
corresponds to a frequency of 30.72MHz when sampling at 122.88MHz with no
interpolation.

DDS Register 0 – Step Phase Increment LSB - 0x24

DDS Register 4 – 0x24

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

DDS Step Phase Increment [15…8]

‘00000000’

DDS Step Phase Increment [7…0]

‘00000000’

Version 1.9 Page 39 of 45 SMT350 User Manual

DDS Register 5 – Step Increment MSB - 0x25

DDS Register 5 – 0x25

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

1

Default

0

Default

DDS Step Phase Increment [31…24]

‘00000000’

DDS Step Phase Increment [23…16]

‘00000000’

The Step Phase Increment value is coded on 32 bits. It corresponds to the increment
in phase on each sampling clock cycle (Sweep Mode).

When used to generate a fixed frequency, Start Phase Increment should be equal
to Stop Phase Increment and Step Phase Increment should be equal to 1.

For Registers 0x24 and 0x25 to take effect, Bit 6 of register 0x1D must be set to 1.

DAC Channel A is the Sine output of the DDS and DAC Channel B is the Cosine
output of the DDS. Both outputs are therefore is quadrature.

Version 1.9 Page 40 of 45 SMT350 User Manual

FPGA Design

The following block diagram shows how the default FPGA design is structured:

Figure 17 - Firmware Block Diagram.

Serial Interfaces

All serial interfaces have been designed in accordance with manufacturers
datasheets and validated by probing and checking against timing provided.

Version 1.9 Page 41 of 45 SMT350 User Manual

Block of registers

This implements what has previously been described in this document.

Space available in FPGA

This is the summary provided by Xilinx ISE 7.1.04i regarding the amount of
resources required by the default FPGA design – this is targeting a Virtex4
XC4VSX35.

Figure 18 - Space available in FPGA

Version 1.9 Page 42 of 45 SMT350 User Manual

PCB Layout

The following figures show the top and bottom view of the main module, the top view
of the daughter-card and the module composition viewed from the side.

Figure 19 – Main Module Component Side.

Figure 20 - Main Module (SMT368) Solder Side.

Version 1.9 Page 43 of 45 SMT350 User Manual

Figure 21 - Daughter Module Component Side.

Figure 22 - Daughter Module Solder Side.

Version 1.9 Page 44 of 45 SMT350 User Manual

Connectors

Description

The following table gathers all connectors on the board and describes their function.

Connector name

Description Location on the board
(silkscreen and
schematics)

J13 ADCA Analog Input Middle / Left

J11 ADCB Analog Input Middle / Left

J32 DACA Analog Output Middle / Right

J31 DACB Analog Output Middle / Right

J30 External Reference Input Top / Left

J29 External Clock Input Top / Left

J34 External Reference Output Top / Right

J4 External Clock Output Top / Right

J24 External Trigger ADCs Bottom / Left

J25 External Trigger DAC Bottom / Left

Version 1.9 Page 45 of 45 SMT350 User Manual

Location on the board

Figure 23 - Connectors Location.
