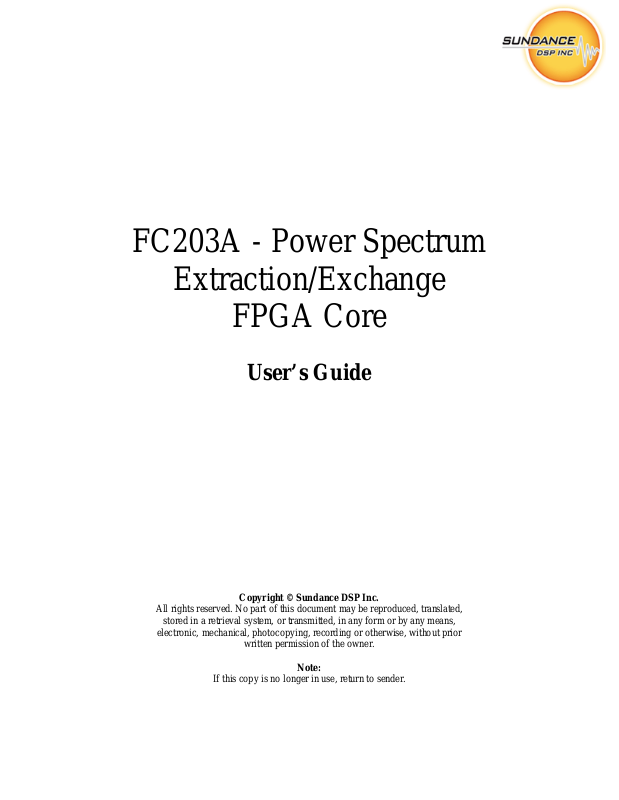

Sundance FC203A User Manual

FC203A - Power Spectrum
Extraction/Exchange
FPGA Core
User’s Guide
Copyright © Sundance DSP Inc.
All rights reserved. No part of this document may be reproduced, translated,
electronic, mechanical, photocopying, recording or otherwise, without prior
written permission of the owner.
Note:
If this copy is no longer in use, return to sender.
Page 2 of 2
Revision 0.5
AUTHORS
Name Signature Date
F. Huettig 8-Apr-07
DOCUMENT HISTORY
Date Initials Revision Description of Change
19-Feb-07 FH 0.0 Initial Release for Internal Review
2-Apr-07 FH 0.1 SPAN is now size of burst on each output stream 3-Apr-07 FH 0.2 Input is always ready, output must be too 5-Apr-07 FH 0.3 Fixed table 3 8-Apr-07 FH 0.5 Added resource Info
Sundance Digital Signal Processing Inc.
4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.
Tel: +1 (775) 827-3103, Fax: +1 (775) 827-3664, email: sales@sundancedsp.com
www.sundancedsp.com
Page 3 of 3
Revision 0.5
Table of Contents
1. GENERAL DESCRIPTION...................................................................................................4
2. I/O DESCRIPTION.................................................................................................................5
3. PRESENTATION...................................................................................................................8
4. USAGE....................................................................................................................................8
5. VERIFICATION...................................................................................................................10
6. DELIVERABLES.................................................................................................................11
7. LICENSING AND PROPERTY RIGHTS...........................................................................11
8. ORDERING INFORMATION.............................................................................................11
Table of Figures
Figure 1 – FC203A Component Diagram....................................................................................... 4
Sundance Digital Signal Processing Inc.
4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.
Tel: +1 (775) 827-3103, Fax: +1 (775) 827-3664, email: sales@sundancedsp.com
www.sundancedsp.com
Page 4 of 4
A
Revision 0.5
1. GENERAL DESCRIPTION
The FC203A - Power Spectrum Extraction/Exchange FPGA module is an efficient implementation of a general table “chop/swap” operation, specifically designed for use in front of the FC203B Power Spectrum Interleave module. A control word defines how many input samples are to be passed through to the output, and the low-order half of those samples are passed to one output while the high-order samples are passed to the second output. The high/low division may optionally be exchanged by asserting a bit in the control word.
In order for it to be used within a Diamond/FPGA system, the I/O interfaces are ‘standardized’ to the model described by Diamond1.
FC203
I0_IN
Q0_IN
F0_OUT
I1_IN
Q1_IN
16
CTRL_IN

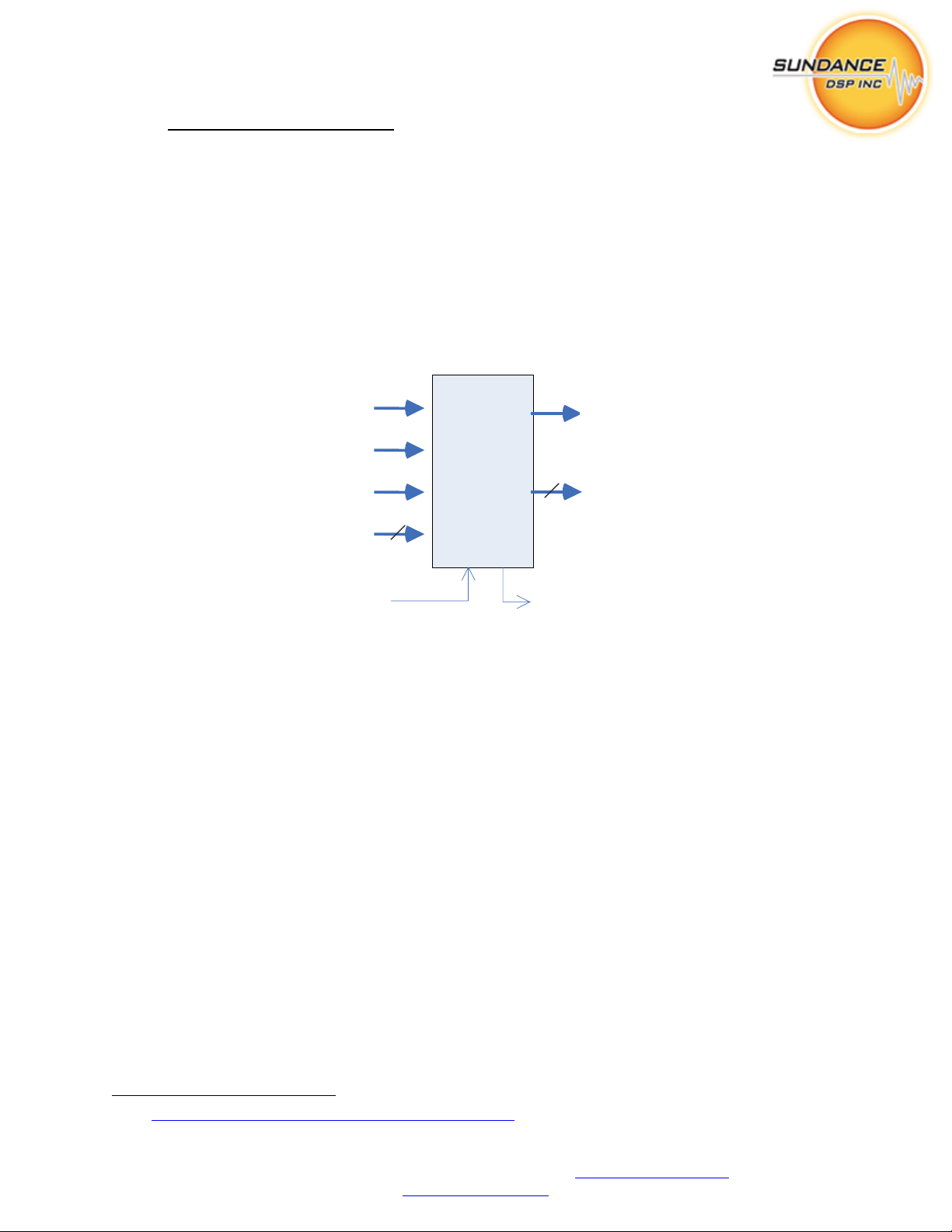

Figure 1 – FC203A Component Diagram
F1_OUT
64
STATUS_OUT
1
See: http://www.3l.com/Diamond/Documentation/Diamond.pdf (Chapter 28, “FPGA Tasks”)
Sundance Digital Signal Processing Inc.
4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.
Tel: +1 (775) 827-3103, Fax: +1 (775) 827-3664, email: sales@sundancedsp.com
www.sundancedsp.com
Page 5 of 5
Revision 0.5
2. I/O DESCRIPTION
The FC203A component presents as a pure-FPGA ‘task’, and implements the following interface:
Port Name Channel Valid
Direction Description
Width
I0_IN, I1_IN Q0_IN, Q1_IN
0, 2 1, 3
16 Input In-Phase Component, frequency-domain
data (2 channels)
16 Input Quadrature Component, frequency-domain
data (2 channels) CTRL_IN 4 32 Input Control Word F0_OUT, F1_OUT
0, 1
64 Output In-phase/Quadrature components, 2-
channels each STATUS_OUT 2 32 Output Pass-through control/status
Table 1 –FC203A Interfaces
Additional port descriptions are provided below:
I0_IN .. I1_IN
There are two input ports for in-phase frequency domain streams. Data values are pairs of 16-bit extended twos-complement as described in the FC108 User Manual, although the extended sign value in bits 16-31 is ignored. These ports are suitable for connecting to the FC108-D’s I_OUT ports.
Q0_IN .. Q1_IN
There are two input ports for the quadrature frequency streams. Data values are pairs of 16-bit extended twos-complement as described in the FC108 User Manual. These ports are suitable for connecting to the FC108-D’s Q_OUT ports.
NOTE: In agreement with the implementation of FC108, the input ports xn_IN are always “ready” when any enable bit is set. To avoid the need for buffering in this module the downstream data sinks must also be ready whenever this module has data to write. A FIFO may be required at the output of this module to insure this.
NOTE: For simplicity, it is assumed that all four input channels (or the active subset) will “write” at the same time. If this does not occur then the FC203A’s bin count will be in error on some channels. There is currently no way to detect or report this condition.
CTRL_IN
Control miscellaneous parameters and features of the FC203A subcomponent. The port accepts data one 32-bit word at a time.
Sundance Digital Signal Processing Inc.
4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.
Tel: +1 (775) 827-3103, Fax: +1 (775) 827-3664, email: sales@sundancedsp.com
www.sundancedsp.com
Page 6 of 6
Revision 0.5
Signal Bits Mode Description
m 3..lsb R/W Configure m for input streams LOW_FREQ 15..4 R/W Select lowest frequency bin SPAN 25..16 R/W Select number of activ e freq uency bins EXCHANGE 26 R/W Enable high/low exchange RESERVED 27 R/W Pass-through (reserved) ENABLE msb..28 R/W Output/function enable
Table 2 - FC203A Control Word
The FC203A sub-component ignores some of the bits in the control word; they exist to enable the configuration of multiple modules (including FC203B) in a daisy-chain manner.
‘m’ determines the number of raw frequency component samples that are accepted at the Ix_IN and Qx_IN ports to make up one frame. The relation between the frame size M and the control word value ‘m’ is M=2m. After M samples are received on each input the internal count of bin number is reset to zero. The maximum value of m is 12, corresponding to 4096 samples per frame.
LOW_FREQ determines the frequency bin offset (from 0) which determines the start of the spectral sampling on each of the input samples. All bins up to but not including LOW_FREQ are discarded. If LOW_FREQ is zero, then no samples are discarded initially.
SPAN determines the number of frequency bins that will be passed along to each of the FC203A outputs. Both F0_OUT and F1_OUT will receive SPAN samples on each frame. LOW_FREQ + 2 * SPAN must be less than M or the results will be undefined. SPAN is ten bits in size, a value of zero indicates the maximum 1024 samples will be passed.
EXCHANGE determines if a spectral exchange of the low vs. high frequencies will be performed on the streams. Low frequency bins are in the range [LOW_FREQ, LOW_FREQ + SPAN – 1]. High frequency bins are in the range [LOW_FREQ + SPAN, LOW_FREQ + 2 * SPAN – 1]. If EXCHANGE is zero, the low-frequency bins are passed to F0_OUT. If EXCHANGE is one, the low-frequency bins are passed to F1_OUT.
ENABLE will cause the module to generate data on its output (F0_OUT, F1_OUT) ports if any of the four bits are non-zero.
NOTE: To simplify the FPGA logic, the control word is assumed to be static while the module is enabled. Changes to m, LOW_FREQ, SPAN, or EXCHANGE while any ENABLE bit is set may result in unpredictable output.
F0_OUT, F1_OUT
These are dual-channel partitioned frequency data ports. Data values are groups of 64-bit values in bursts of SPAN qwords. The 64-bit values consist of the in-phase and quadrature components (16-bit two’s complement as described in the FC108 User Manual) of two channels. This port is suitable for connecting to the Fx_IN ports of the FC203B subcomponent.
Bit 15..0
I0(0) I0(1) … I0(SPAN 1)
Sundance Digital Signal Processing Inc.
4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.
Tel: +1 (775) 827-3103, Fax: +1 (775) 827-3664, email: sales@sundancedsp.com
www.sundancedsp.com
Page 7 of 7
Revision 0.5
Bit 31..16 Bit 47..32 Bit 63..48
Table 3 – Stream Format of Fx_OUT Port, low-frequency channel, LOW_FREQ = 0
Q0(0) Q0(1) Q0(SPAN – 1) I1(0) I1(1) … I1(SPAN 1) Q1(0) Q1(1) Q1(SPAN – 1)
STATUS_OUT
The module control/status word is driven on this channel; in this case all bits are passed unchanged. This register may be read at any time, not just when a new control value has been written. This port is suitable for connecting to a HOST port for the purpose of system state feedback or to another FC203A or FC203B sub-component for daisy-chained configuration.
Sundance Digital Signal Processing Inc.
4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.
Tel: +1 (775) 827-3103, Fax: +1 (775) 827-3664, email: sales@sundancedsp.com
www.sundancedsp.com
Page 8 of 8
Revision 0.5
3. PRESENTATION
The firmware module is instantiated in a Diamond/FPGA configuration file as follows:
FC203A\ +---analysis\ Implementation Analysis +---fc203a\ Task Source Code +---specifications\ Documentation \---test\ Verification Test Benches
Users of the FC203A firmware module will reference the Diamond .fcd file (top level) from the fc203a\ above.
4. USAGE
The firmware module is instantiated in a Diamond/FPGA configuration file as follows:
! declare tasks ! task chop0 ins=5 outs=3 file="..\fc203a\fc203a.fcd" ! ! place tasks on FPGA ! place chop0 <fpga> ! ! connect dataflow ! connect ? <user_1>[w] chop0[0] connect ? <user_1>[x] chop0[1] connect ? <user_1>[y] chop0[2] connect ? <user_1>[z] chop0[3] connect ? <user_cfg>[n] chop0[4] connect ? chop0[0] <user_2>[a] connect ? chop0[1] <user_3>[b] connect ? chop0[2] <user_stat>[c]
Where <user_1> is a four-channel data source, <user_2> and <user_3> are data-sink tasks, and <user_stat> is a status-sink task. <user_cfg> is a connection which supplies the 32-bit configuration control word.
Sundance Digital Signal Processing Inc.
4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.
Tel: +1 (775) 827-3103, Fax: +1 (775) 827-3664, email: sales@sundancedsp.com
www.sundancedsp.com
Page 9 of 9
Revision 0.5
In some cases, it is useful to provide some amount of elastic buffering before or after the FC203A task in order to help close timing in the FPGA design. This can be accomplished as follows:
! declare tasks ! task fifo1 ins=1 outs=1 file="..\fifo\fifo8.fcd" task chop0 ins=5 outs=3 file="..\fc203a\fc203a.fcd" task fifo2 ins=1 outs=1 file="..\fifo\fifo8.fcd" ! ! place tasks on FPGA ! place fifo1 <fpga> place chop0 <fpga> place fifo2 <fpga> ! ! connect dataflow ! connect C1 <user_1>[x] fifo1[0] connect ? fifo1[0] chop0[0] ! …repeat for other inputs… connect C2 <user_cfg>[y] chop0[4] connect ? chop0[0] fifo2[0] connect C3 fifo2[0] <user_2>[z] ! …repeat for other outputs…
Note: When implementing on some FPGA devices, a slower clock may be needed.
In order to close timing on some (slow) FPGA device/speed grades, the task may need to run under a slower clock. To do this, use Diamond's facility to generate a custom clock, and provide this clock to each FC203A instance.
See the 3L/Diamond User Guide v3.1.3 pg. 306 for additional details.
For example:
! Use a slower clock for the UUT ! clock slow processor=<fpga> source=DEFAULT output=50MHz ! ! place tasks on FPGA ! place chop0 <fpga> clock=slow
Sundance Digital Signal Processing Inc.
4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.
Tel: +1 (775) 827-3103, Fax: +1 (775) 827-3664, email: sales@sundancedsp.com
www.sundancedsp.com
Page 10 of 10
Revision 0.5
5. VERIFICATION
The firmware module will be supported by two types of test benches. In all cases, compilation is performed using gmake (distributed with CCS3.0 or greater)2.
Unit Test Benches
A C- Reference Model is implemented as a Diamond/DSP Task. This model is not yet implemented as of this revision.
Resource and Performance Analysis Benches
A mechanism to obtain the resource utilization of the FC203A core is provided. The basic principle is to generate a “baseline” implementation of the target FPGA that contains a ‘stub’. The ‘stub’ has all the same inputs and outputs, but is a trivial implementation of the FPGA task. This “baseline” is compared to a real instantiation of the FC203A module. The stub FPGA task is provided as ‘FC203A\FC203A_base.fcd’.
Comparing the two MAP report files and subtracting the Slices, BRAM and MPY in use provides an accurate real-word estimate of the resources used by the FC203A module.
Finally, Diamond application configuration files are provided which enable the FC203A module to be instantiated into a supported single (stand-alone) FPGA board. By connecting the dataflow inputs of the FC203A to SDB resources, and the CTRL_IN to the default Comport (CP3, typically) resource, a hardware reference is created which can be added to any system and operated at line rate.
The configuration files and makefile for accomplishing these are provided in the analysis\ folder.
MODULE FPGA Slices BRAM MPY F
SMT348-10 XC4VSX55-10 110 0 0 262 SMT365-8-1 XC2V1000-4 108 0 0 172 SMT368-10 XC4VSX35-10 110 0 0 262 SMT368-12 XC4VSX35-12 110 0 0 331 SMT398-8000 XC2V8000-4 108 0 0 172 SMT398-VP70 XC2VP70-6 100 0 0 227 SMT417 XC2VP50-5 99 0 0 202
(MHz) Notes
MAX
Table 4 –FC203A Performance Estimates and Resource Utilization
The results in table 4 are estimates only, based on very lightly-loaded FPGA configurations. Some trade-off between slice usage and speed is possible depending on synthesis and fitting options. Exceeding F
may cause logic errors and unexpected results, which can be
MAX
exceedingly hard to debug. It is the system designer’s responsibility to avoid this condition.
2
Only gmake has the necessary syntax to effectively implement the build system. Contact Sundance DSP for
assistance if your installation lacks CCS.
Sundance Digital Signal Processing Inc.
4790 Caughlin Parkway 233, Reno, NV 89519-0907, U.S.A.
Tel: +1 (775) 827-3103, Fax: +1 (775) 827-3664, email: sales@sundancedsp.com
www.sundancedsp.com
Page 11 of 11
Revision 0.5
6. DELIVERABLES
FC203A is a complete Diamond/FPGA firmware module that includes:
Firmware source (.vhd) files
Diamond/FPGA integration support (.fcd, _pkg.vhd) and example implementations
VHDL Module-level testbench (included with FC203B)
C Simulation harness [NOTE: Not available in Release 0.1]
Matlab analysis tools [NOTE: Not available in Release 0.1]
User Guide
7. LICENSING AND PROPERTY RIGHTS
Sundance DSP retains copyright and licensing rights, and distributes the FC203A firmware module under non-disclosure agreement only. Special arrangements are made on a case-by-case basis.
All customers need to purchase support contracts from Sundance DSP in order to be able to obtain updates and technical support for the FC203A firmware module.
For support, please register on http://support.sundancedsp.com and post all questions on the forum. You can also contact any of Sundance offices, around the world, by telephone or email. For details, please see the Sundance web site at http://www.sundancedsp.com
8. ORDERING INFORMATION
The FC203A component may be ordered separately, or bundled with any other package containing multiple products. Contact Sundance DSP for specific details.
