Sun Cupid Technology N5702L Users manual

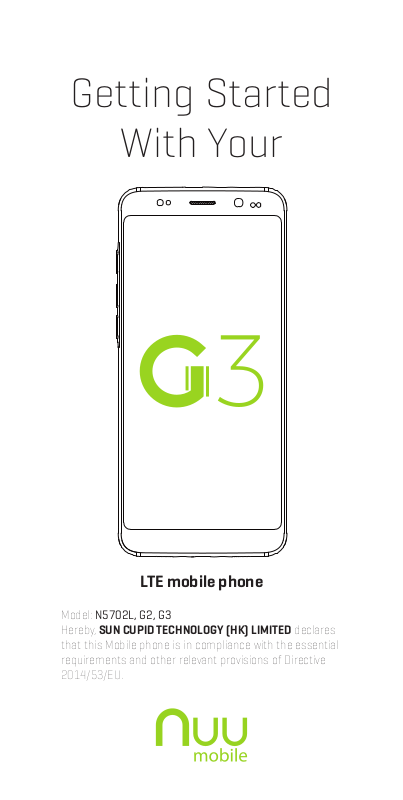

Getting Started

With Your

LTE mobile phone

Model: N5702L, G2, G3
Hereby, SUN CUPID TECHNOLOGY (HK) LIMITED declares
that this Mobile phone is in compliance with the essential
requirements and other relevant provisions of Directive
2014/53/EU.

G3 OverviewIndex

G3 Overview 3

Setting up Your Phone 4

Getting Start 6

Safety information 8

Certificate 12

Warranty information & Registration 15

Customer Support 15

Front/Back

Volume

control

Wake/Sleep

button

Top

Bottom

Primary

camera

Secondary

camera

Rear
camera flash

Fingerprint

sensor

SIM Tray

Type-C
connector

Front
camera

Earpiece

Front
camera flash

Speaker Microphone

3

Setting Up Your Phone

Follow these step-by-step instructions to set up your G3.
Power off the phone before inserting any cards!

1

Remove SIM Tray

• Remove the SIM tray by inserting a pin eject key/

paper clip in the small circular hole at the bottom of
the tray. The tray will then eject from the phone.

2

Configuration 1: Dual SIM Standby

• Orient SIM card to match layout on tray.

• SIM 1 (Nano) supports 4GLTE connections.

• SIM 2 (Nano) supports 4GLTE connections.

3

Configuration 2: microSD™ Card/SIM

• Orient microSD/SIM card to match layout on tray.

• microSD card supports up to 64GB

• SIM 2 (Nano) supports 4GLTE connections.

4

Replace SIM Tray

• After placing the SIMs and/or memory card in the

tray, slide it back into its slot. It will click and hold
in place.

5

Charge/Sync

• Plug in the type C connector to charge the phone

or transfer data.

1

2

3

Warning:

SIM cards are small enough to become a choking hazard, so
please keep them away from Children & Pets. SIM cards are also
quite delicate. Please be careful when handling your card.

4 5

Getting Started

How to use the phone keys

In any screen, tap the back key “ ” to return to previous screen or exit the application.

EN

Tap the home key “ ” to return to the home screen. Tap the recent key “ ” to display
all the programs that are currently in use. Tap the “on/off” button, to turn on or off the
screen and lock the screen. Long press “on/off” to shut down or to restart your mobile
device. Press and hold the “on/off” button and the volume down key at the same time
to take a screen capture.

Language

Tap the settings icon. Scroll down under “Personal” and tap “Language & input”, then
select your preferred language by tapping “Language”.

Calls

Tap the “Phone” icon, then tap on “ ” to select the contact you would like to call. Or,
simply make a call by entering the number after selecting the “

Android Messages™

Tap the Android Messages icon, then tap “ ” to create a new message. Input a name or
number into the “To” field or choose someone from your contact list, then tap “ ”, and
input your message. Press the paperclip icon if you want to attach a picture, video or other
media. When done, tap “Send”.

Writing and copying a text

The phone will make recommendations as you type. If you want to copy or cut text, long
press the text for a few seconds and use the selecting arrows to select, or use the “select
all” option, then copy or paste your text.

Camera

Tap the “camera” icon to open the camera. The phone supports a variety of picture modes
such as HDR, flash, Face beauty etc. To access these modes, select the “options” icon.

Google Photos™

Tap the Google Photos icon in the Google™ folder to open the gallery to browse your
photos, tap on a photo to open it. Tap “ ” to enter edit mode. You can add color filter
effects, rotate, crop and so on. Click “save”.

Video camera

Tap the “camera” icon to open the camera and switch to “video” mode by tapping “ ”
to record.

Gmail™

Tap the Gmail icon in the Google folder. Then select the “ ” icon in the lower right
corner to compose a new message. Use the paperclip to attach files or images. Tap on
“ ” when done. Note: You must set up an email account first.

Google Play Music™

Tap the Google Play Music icon in the Google Folder. Select the playlist or song you would
like to play. Playlists can be categorized by Artist, Albums, Genre or what you have created.

FM Radio

Connect earphones to the audio jack, tap the “FM Radio” icon in All Apps “ ” and
select frequency.

” icon.

Primeros pasos

¿Cómo usar las teclas del teléfono?

Desde cualquier pantalla, toque la tecla para ir hacia atrás “ ” y regresará a la pantalla
anterior o saldrá de la aplicación. Toque la tecla de inicio “ ” para regresar a la pantalla de
inicio. Toque la tecla con el cuadrado “ ” para ver todos los programas que están en uso.
Toque el botón de encendido/apagado “on/off”, para encender o apagar la pantalla o para
bloquearla. Presione durante unos segundos el botón “on/off” para apagar o reiniciar su
dispositivo. Mantenga presionado el botón “on/off” y la tecla de volumen al mismo tiempo
para obtener una captura de la pantalla.

Idioma

Toque el ícono de configuraciones. Baje hasta la opción “Personal” y toque “Idioma &
Entrada”, luego toque “Idioma” para seleccionar su idioma de preferencia.

Llamadas

Toque el ícono del “Teléfono”, luego toque “ ” para seleccionar el contacto al que desea
llamar. O, simplemente haga una llamada ingresando el número de teléfono luego de
seleccionar el ícono “ ”.

Mensajes Android™

Toque el ícono de Mensajes Android Messages, luego toque “ ” para crear un nuevo
mensaje. Ingrese el nombre o el número en el campo “Para” o elija algún contacto de su
lista, luego toque “ ”e ingrese su mensaje. Presione el ícono con el clip si desea adjuntar
una imagen, video u otro archivo multimedia. Cuando haya terminado presione “Enviar”.

Escritura y copiado de mensajes

El teléfono le hará recomendaciones a medida que vaya escribiendo. Si desea copiar o
cortar texto, presione durante algunos segundos el texto y use las flechas de seleccionado
o elija la opción “seleccionar todo”, y luego copie su texto.

Cámara

Toque el ícono de la “cámara” para abrir la cámara. El teléfono soporta distintos modos de
imágenes como por ejemplo HDR, flash, Face beauty, etc. Para acceder a estos modos,
seleccione el ícono de “Opciones”.

Fotos de Google (Google Photos™)

Toque el ícono de Google Photos dentro de la carpeta Google™ para abrir la galería y ver
sus fotos. Toque una foto para abrirla. Toque “ ” para ingresar al modo de edición. Se
pueden agregar efectos de filtros de color, rotación, recortado, entre otras cosas. Haga
clic en “Guardar”.

Cámara de video

Toque el ícono de “Cámara” para abrir la cámara y para cambiar al modo de “Video”
toque “ ” para grabar.

Gmail™

Toque el ícono de the Gmail en la carpeta de Google. Luego seleccione el ícono “ ”
que se encuentra en la esquina inferior a la derecha para componer un nuevo mensaje.
Use el clip para adjuntar imágenes o archivos. Toque “ ” cuando haya terminado.
Nota: Deberá contar con una cuenta de correo electrónico antes de realizar estos pasos.

Reproductor de música “Google Play Music™”

Toque el ícono de Google Play Music en la carpeta de Google. Seleccione una lista de
temas o una canción que desee reproducir. Las listas de temas se pueden categorizar por
artista, género o por una categoría creada por usted.

Radio FM

Conecte los auriculares en el enchufe, toque el ícono de “Radio FM” en todas las
aplicaciones “ ” y elija la frecuencia.

SP

6 7

Safety information

• This section contains important information about the operation of your device, it also
contains information about how to use the device safely. Read this information carefully
before using your device.

Electronic device

Do not use your device if using the device is prohibited.

Do not use the device if doing so causes danger or interference with other electronic devices.

Interference with medical equipment

• Follow rules and regulations set forth by hospitals and health care facilities. Do not use your
device where prohibited.

• Some wireless devices may affect the performance of hearing aids or pacemakers. Consult
your service provider for more information.

• Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained
between a device and a pacemaker to prevent potential interference with the pacemaker. If
using a pacemaker, hold the device on the side opposite the pacemaker and do not carry
the device in your front pocket.

Protecting your hearing when using a headset

• To prevent possible hearing damage, do not listen at high volume levels for long periods.

• Using a headset at high volumes may damage your hearing. To reduce this risk, lower the
headset volume to a safe and comfortable level.

• Exposure to high volumes while driving may cause distraction and increase your risk of an
accident.

Areas with flammables and explosives

Do not use the device where flammables or explosives are stored (in a gas station, oil depot,

•

or chemical plant, for example). Using your device in these environments increases the risk of
explosion or fire. In addition, follow theinstructions indicated in text or symbols.

• Do not store or transport the device in containers with flammable liquids, gases, or explosives.

Traffic security

• Observe local laws and regulations while using the device. To reduce the risk of accidents, do

not use your wireless device while driving.

• Concentrate on driving. Your first responsibility is to drive safely.

• Do not hold the device while driving. Use hands-free accessories.

• When you must make or answer a call, pull off the road safely and park the vehicle first.

• RF signals may affect the electronic systems of motor vehicles. For more information, consult

the vehicle manufacturer.

• Do not place the device over the air bag or in the air bag deployment area in a motor vehicle.

Doing so may hurt you because of the strong force when the air bag inflates.

• Wireless devices may interfere with the airplane’s flight system. Do not use your device where

wireless devices are not allowed according to the airplane company’s regulations.

Operating environment

• Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in these

environments may result in circuit malfunctions. Do not use your device during thunderstorms

8 9

to protect your device against any danger caused by lightning.

• Ideal operating temperatures are 0 °C to 35 °C. Ideal storage temperatures are -20 °C to
45 °C. Extreme heat or cold may damage your device or accessories.

• Do not expose your device to direct sunlight (such as on a car dashboard) for prolonged
periods.

• To protect your device or accessories from fire or electrical shock hazards, avoid rain and
moisture.

• Keep the device away from sources of heat and fire, such as a heater, microwave oven, stove,
water heater, radiator, or candle.

• Do not place sharp metal objects, such as pins, near the earpiece or speaker. The earpiece
may attract these objects and result in injury.

• Stop using your device or applications for a while if the device is overheated. If skin is exposed
to an overheated device for an extended period, low temperature burn symptoms, such as
red spots and darker pigmentation, may occur.

• Do not use your device’s camera flash directly in the eyes of people or pets. Otherwise
temporary loss of vision or damage to the eyes may occur.

• Do not touch the device’s antenna. Otherwise, communication quality may be reduced.

• Do not allow children or pets to bite or suck the device or accessories. Doing so may result
in damage or explosion.

• Observe local laws and regulations, and respect the privacy and legal rights of others.

Child’s safety

• Comply with all precautions with regard to child’s safety. Letting children play with the device
or its accessories may be dangerous. The device includes detachable parts that may present
a choking hazard. Keep away from children.

• The device and its accessories are not intended for use by children. Children should only use
the device with adult supervision.

Accessories

• Using an unapproved or incompatible power adapter, charger or battery may cause fire,
explosion or other hazards.

• Choose only accessories approved for use with this model by the device manufacturer. The
use of any other types of accessories may void the warranty, may violate local regulations and
laws, and may be dangerous.

• If the power cable is damaged (for example, the cord is exposed or broken), or the plug
loosens, stop using it at once. Continued use may lead to electric shocks, short circuits,
or fire.

• Do not touch the power cord with wet hands or pull the power cord to disconnect the
charger.

• Do not touch the device or the charger with wet hands. Doing so may lead to short circuits,
malfunctions, or electric shocks.

• If your charger has been exposed to water, other liquids, or excessive moisture, only an
authorized service center has the right to inspect.

Battery safety

• Do not connect battery poles with conductors, such as keys, jewelry, or other metal materials.
Doing so may short-circuit the battery and cause injuries or burns.

• Keep the battery away from excessive heat and direct sunlight. Do not place it on or in heating
devices, such as microwave ovens, stoves, or radiators. Batteries may explode if overheated.

• Do not attempt to modify or remanufacture the battery, insert foreign objects into it, or
immerse or expose it to water or other liquids. Doing so may lead to fire, explosion, or other
hazards.

• If the battery leaks, ensure that the electrolyte does not make direct contact with your skins or
eyes. If the electrolyte touches your skins or splashes into your eyes, immediately flush with
clean water and consult a doctor.

• In case of battery deformation, color change, or overheating while charging or storing,
immediately stop using the device and remove the battery. Continued use may lead to battery
leakage, fire, or explosion.

• Do not put batteries in fire as they may explode. Damaged batteries may also explode.

• Dispose of used batteries in accordance with local regulations. Improper battery use may lead
to fire, explosion, or other hazards.

• Do not allow children or pets to bite or suck the battery. Doing so may result in damage
or explosion.

• Do not smash or pierce the battery, or expose it to high external pressure. Doing so may lead
to a short circuit or overheating.

• Do not drop the device or battery. If the device or battery is dropped, especially on a hard
surface, it may be damaged.

• If the device standby time shortens significantly, replace the battery.

Cleaning and maintenance

• Keep the device and accessories dry. Do not attempt to dry it with an external heat source,
such as a microwave oven or hair dryer.

• Do not expose your device or accessories to extreme heat or cold. These environments may
interfere with proper function and may lead to fire or explosion.

• Avoid collision, which may lead to device malfunctions, overheating, fire, or explosion.

• Before you clean or maintain the device, stop using it, stop all applications, and disconnect
all cables connected to it.

• Do not use any chemical detergent, powder, or other chemical agents (such as alcohol and
benzene) to clean the device oraccessories. These substances may cause damage to parts
or present a fire hazard. Use a clean, soft, and dry cloth to clean the device and accessories.

• Do not place magnetic stripe cards, such as credit cards and phone cards, near the device for
extended periods of time. Otherwise the magnetic stripe cards may be damaged.

• Do not dismantle or remanufacture the device and its accessories. This voids the warranty
and releases the manufacturer from liability for damage. In case of damage, contact an
authorized service center for assistance or repair.

• If the device screen is broken in a collision, immediately stop using the device. Do not touch or
attempt to remove the broken parts. Promptly contact an authorized service center.

Emergency calls

• The availability of emergency calls is subject to your cellular network quality, service
provider policy, and local laws and regulations. Never rely solely on your device for critical
communications like medical emergencies.

Environmental protection

• The device and its accessories (if included), such as the power adapter, headset, and battery
should not be disposed of with household garbage.

• Disposal of the device and its accessories is subject to local regulations. Support proper
collection and recycling.

Safety precautions

• Use of wireless hands-free system (headphone, headset) with a low power Bluetooth emitter.

• Make sure the cell phone has a low SAR.

• Keep your calls short or send a text message (SMS) instead. This advice applies especially to
children, adolescents and pregnant women.

• Use cell phone when the signal quality is good.

• People having active medical implants should preferably keep the cell phone at least 15 cm
away from the implant.

Disposal and recycling information

This symbol on the device or on its packaging indicates that the device
(including its electrical accessories) should not be disposed of as normal
household garbage. Do not dispose of your device as unsorted municipal
waste. The device should be handed over to an authorized collection center
for recycling or proper disposal at the end of its life.

Battery Caution

1. Use only NUU approved batteries, chargers, and cables to charge your phone.

Unapproved chargers or cables can cause the battery to explode or damage the device.

2. Use only NUU approved batteries, chargers and cables. Use unapproved batteries,

chargers and cables may cause safety issue and the warranty will be lost.

3. You can recharge your battery many times, but all batteries have a limited lifespan. If you

notice a significant deterioration in your phone’s battery life, you will need to purchase
a replacement battery for replacement. If the battery is built-in in the phone, do not
attempt to remove built-in batteries and contact an authorized NUU service center for
a replacement.

4. Your phone may become warm after prolonged use or when exposed to high ambient

temperatures. If your phone becomes hot to the touch, unplug the USB cable, disable
non-essential features, and avoid prolonged skin contact. Place your phone in a cool
location and allow it to cool down to room temperature.

5. Charging times may vary depending on the ambient temperature and the remaining

battery level.

6. Avoid using your phone when it is charging. Do not cover your phone or the charger

when it is charging.

10 11

FCC Information

FCC STATEMENT

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that
may cause undesired operation.

2. Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

NOTE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of
the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

SAR Information Statement

Your wireless phone is a radio transmitter and receiver. It is designed and manufactured
not to exceed the emission limits for exposure to radio frequency (RF) energy set
by the Federal Communications Commission of the U.S. Government. These limits
are part of comprehensive guidelines and establish permitted levels of RF energy for
the general population. The guidelines are based on standards that were developed
by independent scientific organizations through periodic and thorough evaluation
of scientific studies. The standards include a substantial safety margin designed to
assure the safety of all persons, regardless of age and health. The exposure standard
for wireless mobile phones employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. * Tests for SAR are
conducted with the phone transmitting at its highest certified power level in all tested
frequency bands. Although the SAR is determined at the highest certified power level,
the actual SAR level of the phone while operating can be well below the maximum
value. This is because the phone is designed to operate at multiple power levels so
as to use only the power required to reach the network. In general, the closer you
are to a wireless base station antenna, the lower the power output. Before a phone
model is available for sale to the public, it must be tested and certified to the FCC that
it does not exceed the limit established by the government adopted requirement for
safe exposure. The tests are performed in positions and locations (e.g., at the ear and
worn on the body) as required by the FCC for each model. The highest SAR value for
this model phone when tested for use at the ear is 0.235W/Kg and when worn on the
body, as described in this user guide, is 0.369W/Kg (Body-worn measurements differ
among phone models, depending upon available accessories and FCC requirements).

12 13

The maximum scaled SAR in hotspot mode is 0.487W/Kg. While there may be
differences between the SAR levels of various phones and at various positions, they
all meet the government requirement for safe exposure. The FCC has granted an
Equipment Authorization for this model phone with all reported SAR levels evaluated
as in compliance with the FCC RF exposure guidelines. SAR information on this model
phone is on file with the FCC and can be found under the Display Grant section of
http://www.fcc.gov/oet/fccid after searching on

FCC ID: 2ADINN5702L Additional information on Specific Absorption Rates (SAR)
can be found on the Cellular Telecommunications Industry Asso-ciation (CTIA) web­site at http://www.wow-com.com. * In the United States and Canada, the SAR limit
for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one
gram of tissue. The standard incorporates a sub-stantial margin of safety to give
additional protection for the public and to account for any variations in measurements.

Body-wornOperation

This device was tested for typical body-worn operations. To comply with RF exposure
requirements, a minimum separation distance of 10mm must be maintained between
the user’s body and the handset, including the antenna. Third-party belt-clips,
holsters, and similar accessories used by this device should not contain any metallic
components. Body-worn accessories that do not meet these requirements may not
comply with RF exposure requirements and should be avoided. Use only the supplied
or an approved.

IC STATEMENT

This device complies with Industry Canada licence-exempt RSS standard(s)

Operation is subject to the following two conditions:

(1) This device may not cause interference, and

(2) This device must accept any interference, including interference that may cause

undesired operation of the device.

This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. End user must follow the specific operating instructions for satisfying RF
exposure compliance. This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.

These requirements set a SAR limit of 1.6W/kg averaged over one gram of tissue.

The highest SAR value for this model phone when tested for use at the ear is 0.235W/
Kg and when worn on the body is 0.390W/Kg. The maximum scaled SAR in hotspot
mode is 0.487W/Kg. This device was tested for typical body-worn operations. To comply
with RF exposure requirements, a minimum separation distance of 15mm must be
maintained between the user’s body and the handset, including the antenna. Third-party
belt-clips, holsters, and similar accessories used by this device should not contain any
metallic components. Body-worn accessories that do not meet these requirements may
not comply with RF exposure requirements and should be avoided. Use only the supplied
or an approved antenna.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils
radio exempts de licence.

Ce dispositif est conforme aux normes autoriser-exemptes du Canada RSS d’industrie
L’exploitation est autorisée aux deux conditions suivantes :

(1) l’appareil ne doit pas produire de brouillage, et

(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le

brouillage est susceptible d’en compromettre le fonctionnement. Cet équipement
est conforme avec l’exposition aux radiations IC définies pour un environnement
non contrôlé. L’utilisateur final doit respecter les instructions de fonctionnement
spécifiques pour satisfaire la conformité aux expositions RF. Cet émetteur ne doit pas
être co-localisées ou opérant en conjonction avec une autre antenne ou transmetteur.

Ces exigences définissent la valeur SAR limite à 1.6 W/kg en moyenne par gramme de tissu.

La valeur SAR la plus élevée pour ce modèle de téléphone testé à l’oreille est 0.235W/
Kg et lorsque porté sur le corps est 0.390W/Kg. l’échelle maximale sar en mode
hotspot est de 0.487W/Kg Cet appareil a été testé pour des opérations portés sur le
corps typiques. Pour se conformer aux exigences d’exposition aux radiofréquences,
une distance minimale de 15 mm doit être maintenue entre le corps de l’utilisateur et
le combiné, y compris l’antenne. Les pinces de ceinture, les étuis et autres accessoires
similaires utilisés par cet appareil ne doivent pas contenir de composants métalliques. Les
accessoires portatifs qui ne répondent pas à ces exigences peuvent ne pas se conformer
aux exigences d’exposition RF et doit être évitée. Utilisez uniquement l’antenne fournie
ou une antenne approuvée

Warranty information

Please visit our website for details on warranty information.

Warranty Registration

Register Your Device

Thank you for choosing NUU mobile. To receive helpful tips and faster
tech support, register your device online at

US:

us.nuumobile.com/my-account/product-registration

Customer Support

Questions? Let us help. We’re here to support you.

US:

Service Center: 3111 19th Street NW Rochester, MN 55901-6606 USA
Phone: Toll Free: 844-NUU-3365

U.S. hours: M-F 8:00am-4:30pm CT

Email: [e-mail]

14 15

Learn more about NUU Mobile products,

features and accessories at

www.nuumobile.com

© 2017 NUU Limited.

Android is a trademark of Google Inc.

Made in China

©2017 Google Inc., used with permission.
Android, Google Play, Gmail, Google and other marks are trademarks of Google Inc.
