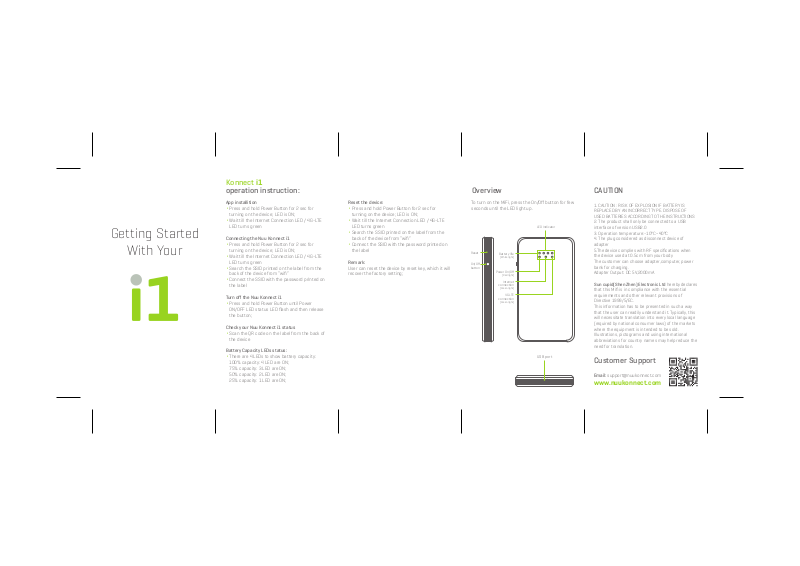

Sun Cupid Technology KONI1 Users manual

Konnect i1

operation instruction:

Overview

CAUTION

Getting Started

With Your

App installition

・ Press and hold Power Button for 2 sec for

turning on the device; LED is ON;

・ Wait till the Internet Connection LED / 4G-LTE

LED turns green

Connecting the Nuu Konnect i1

・ Press and hold Power Button for 2 sec for

turning on the device; LED is ON;

・ Wait till the Internet Connection LED / 4G-LTE

LED turns green

・ Search the SSID printed on the label from the

back of the device from “wifi”

・ Connect the SSID with the password printed on

the label

Turn off the Nuu Konnect i1

・ Press and hold Power Button until Power

ON/OFF LED status LED flash and then release
the button;

Check your Nuu Konnect i1 status

・ Scan the QR code on the label from the back of

the device

Battery Capacity LEDs status:

・ There are 4 LEDs to show battery capacity:

100% capacity: 4 LED are ON;
75% capacity: 3 LED are ON;
50% capacity: 2 LED are ON;
25% capacity: 1 LED are ON;

Reset the device:

・ Press and hold Power Button for 2 sec for

turning on the device; LED is ON;

・ Wait till the Internet Connection LED / 4G-LTE

LED turns green

・ Search the SSID printed on the label from the

back of the device from “wifi”

・ Connect the SSID with the password printed on

the label

Remark:

User can reset the device by reset key, which it will
recover the factory setting;

To turn on the MiFi, press the On/Off button for few
seconds until the LED light up.

LED Indicator

Reset

On/Off
button

Battery life

(White light)

Power On/Off

(Red light)

Internet

connection

(Green light)

4G LTE

connection

(Green light)

USB port

1. CAUTION : RISK OF EXPLOSION IF BATTERY IS
REPLACED BY AN INCORRECT TYPE. DISPOSE OF
USED BATTERIES ACCORDING TO THE INSTRUCTIONS

2. The product shall only be connected to a USB
interface of version USB2.0

3. Operation temperature:-10ºC ~40ºC

4. The plug considered as disconnect device of
adapter

5.The device complies with RF specifications when
the device used at 0.5cm from your body
The customer can choose adapter,computer, power
bank for charging.
Adapter Output: DC 5V,2000mA

Sun cupid(Shen Zhen) Electronic Ltd hereby declares
that this Mifi is in compliance with the essential
requirements and other relevant provisions of
Directive 1999/5/EC.
This information has to be presented in such a way
that the user can readily understand it. Typically, this
will necessitate translation into every local language
(required by national consumer laws) of the markets
where the equipment is intended to be sold.
Illustrations, pictograms and using international
abbreviations for country names may help reduce the
need for translation.

Customer Support

Email: [e-mail]

www.nuukonnect.com

FCC Information

FCC STATEMENT

1. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and
(2) This device must accept any interference
received, including interference that may cause
undesired operation.

2. Changes or modifications not expressly approved
by the party responsible for compliance could void
the user's authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not occur
in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try
to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.

Consult the dealer or an experienced radio/TV
technician for help.

SAR Information Statement
Your wireless Mifi is a radio transmitter and receiver.
It is designed and manufactured not to exceed the
emission limits for exposure to radiofrequency (RF)
energy set by the Federal Communications
Commission of the U.S. Government. These limits are
part of comprehensive guidelines and establish
permitted levels of RF energy for the general
population. The guidelines are based on standards
that were developed by independent scientific
organizations through periodic and thorough
evaluation of scientific studies. The standards
include a substantial safety margin designed to
assure the safety of all persons, regardless of age
and health. The exposure standard for wireless
mobile Mifis employs a unit of measurement known
as the Specific Absorption Rate, or SAR. The SAR limit
set by the FCC is 1.6 W/kg. * Tests for SAR are
conducted with the Mifi transmitting at its highest
certified power level in all tested frequency bands.
Although the SAR is determined at the highest
certified power level, the actual SAR level of the Mifi
while operating can be well below the maximum
value. This is because the Mifi is designed to operate
at multiple power levels so as to use only the power
required to reach the network. In general, the closer
you are to a wireless base station antenna, the lower
the power output. Before a Mifi model is available for
sale to the public, it must be tested and certified to
the FCC that it does not exceed the limit established
by the government adopted requirement for safe
exposure. The tests are performed in positions and
locations (e.g., at the ear and worn on the body) as
required by the FCC for each model. The highest SAR

value for this model Mifi when worn on the body, as
described in this user guide, is 1.19
W/Kg(Body-worn measurements differ among Mifi
models, depending upon available accessories and
FCC requirements). While there may be differences
between the SAR levels of various Mifis and at various
positions, they all meet the government requirement
for safe exposure. The FCC has granted an
Equipment Authorization for this model Mifi with all
reported SAR levels evaluated as in compliance with
the FCC RF exposure guidelines. SAR information on
this model Mifi is on file with the FCC and can be
found under the Display Grant section of
http://www.fcc.gov/ oet/fccid after searching on
FCC ID: 2ADINKONI1 Additional information on
Specific Absorption Rates (SAR) can be found on the
Cellular Telecommunications Industry Asso-ciation
(CTIA) web-site at http://www.wow-com.com. * In the
United States and Canada, the SAR limit for mobile
Mifis used by the public is 1.6watts/kg (W/kg)
averaged over one gram of tissue. The standard
incorporates a sub-stantial margin of safety to give
additional protection for the public and to account
for any variations in measurements.

Body-worn Operation

This device was tested for typical body-worn
operations. To comply with RF exposure
requirements, a minimum separation distance of
10mm must be maintained between the user’s body
and the handset, including the antenna. Third-party
belt-clips, holsters, and similar accessories used by
this device should not contain any metallic
components. Body-worn accessories that do not
meet these requirements may not comply with RF
exposure requirements and should be avoided. Use
only the supplied or an approved antenna.

8

IC STATEMENT

This device complies with Industry Canada
licence-exempt RSS standard(s)
Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference,
including interference that may cause undesired
operation of the device.
This equipment complies with IC radiation exposure
limits set forth for an uncontrolled
environment. End user must follow the specific
operating instructions for satisfying RF
exposure compliance. This transmitter must not be
co-located or operating in conjunction with
any other antenna or transmitter.
These requirements set a SAR limit of 1.6 W/kg
averaged over one gram of tissue.
The SAR value for this Mifi when worn on the body is

8

1.19 W/Kg. This device was tested for typical body-worn
operations. To comply with RF
exposurerequirements, a minimum separation
distance of 10mm must be maintained between the
user’s body and the handset, including the antenna.
Third-party belt-clips, holsters, and similar
accessories used by this device should not contain
any metallic components. Body-worn accessories
that do not meet these requirements may not
comply with RF exposure requirements and should
be avoided. Use only the supplied or an approved
antenna.

Le présent appareil est conforme aux CNR
d'Industrie Canada applicables aux appareils radio
exempts de licence.
Ce dispositif est conforme aux normes

autoriser-exemptes du Canada RSS d'industrie
L'exploitation est autorisée aux deux conditions
suivantes :

(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le
fonctionnement.Cet équipement
est conforme avec l'exposition aux radiations IC
définies pour un environnement
non contrôlé. L'utilisateur final doit respecter les
instructions de fonctionnement spécifiques pour
satisfaire la conformité aux expositions RF. Cet
émetteur ne doit pas être co-localisées
ou opérant en conjonction avec une autre antenne ou
transmetteur.Ces exigences définissent
la valeur SAR limite à 1.6 W / kg en moyenne par
gramme de tissu.
La valeur SAR la plus élevée pour ce modèle de
téléphone et lorsque porté sur le corps est 1.19
W/Kg.
Cet appareil a été testé pour des opérations portés
sur le corps typiques. Pour se conformer
aux exigences d'exposition aux radiofréquences, une
distance minimale de 15 mm doit être
maintenue entre le corps de l'utilisateur et le
combiné, y compris l'antenne. Les pinces de
ceinture, les étuis et autres accessoires similaires
utilisés par cet appareil ne doivent pas
contenir de composants métalliques. Les
accessoires portatifs qui ne répondent pas à ces
exigences peuvent ne pas se conformer aux
exigences d'exposition RF et doit être évitée.
Utilisez uniquement l'antenne fournie ou une
antenne approuvée

8
