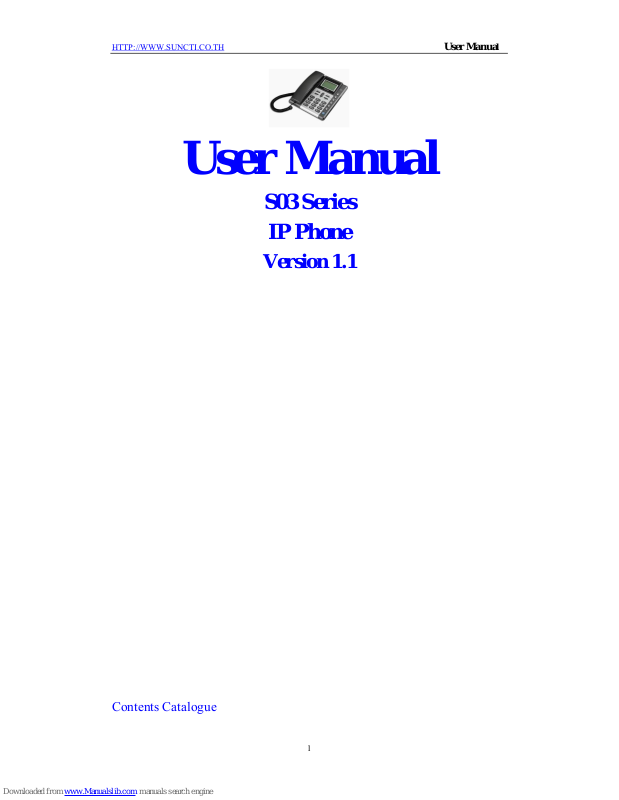

Suncti S03 Series, S07 Series User Manual

HTTP://WWW.SUNCTI.CO.TH User Manual

User Manual

S03 Series

IP Phone

Version 1.1

Contents Catalogue

1

HTTP://WWW.SUNCTI.CO.TH User Manual

1 INTRODUCTION...................................................................................................3

2 INSTALLATION.....................................................................................................3

2.1 Appearance..........................................................................................................................3

2.2 Package List ........................................................................................................................4

2.3 Installation............................................................................................................................4

2.4 Check installation by ICON of LCD....................................................................................4

3 PRODUCT OVERVIEW ........................................................................................5

3.1 Software Features.................................................................................................................5

3.2 Hardware Specifications ......................................................................................................6

4 BASIC OPERATIONS............................................................................................6

4.1 Get familiar with Keypad.....................................................................................................6

4.2 Dialing or Making Calls.......................................................................................................6

4.3 Answering Calls ..................................................................................................................7

4.4 Call hold...............................................................................................................................7

4.5 Call Transfer........................................................................................................................7

4.6 Three-way Calling...............................................................................................................8

5 CONFIGURATION GUIDE ................................................................................8

5.1 Config IP Phone through Keypad .......................................................................................8

5.1.1 Minimum configuration ...................................................................................................8

5.2 Config IP Phone through Web browser...............................................................................9

5.2.1 Access to IP Phone Configuration Menu..........................................................................9

5.2.2 User Verification ...........................................................................................................10

5.2.3 Network Configuration .................................................................................................10

5.2.4 VoIP Configuration .......................................................................................................11

5.2.5. System Reboo

5.2.6 Config Manage (Save and Clear Configuration)............................................................14

5.2.7 System Manage ..............................................................................................................15

6 FIRMWARE UPGRADE......................................................................................17

6.1 FTP Web update.................................................................................................................17

6.2 URL Update .......................................................................................................................17

6.3 IP Phone System Report………………………………………………………………….17

7 DEFAULT FACTORY SETTING ........................................................................18

8. General System Connect of IP Phone………………………………………………19

t...............................................................................................................12

2

HTTP://WWW.SUNCTI.CO.TH User Manual

Introduction

About This Manual

This Manual provides basic information on how to install and connect S03 IP Phone to the

network. It also includes features and functions of S03 IP phone components, and how to use them

correctly. We sincerely hope you could enjoy the convenience and capabilities brought forward by

our products.

Before Getting Started

Before you can connect S03 to the network and use it, you must have a high-speed Internet

connection installed. A high-speed connection includes environments such as XDSL, cable

modem, and a leased line.

S03 IP Phone

S03 IP phone is a stand-alone device, which requires no PC to make Internet calls. S03 IP phone

supports both data and voice thru IP network, and also provides all the features and functionalities

of conventional phone and more.

Our IP phone guarantees clear and reliable voice quality on IP network, which is fully compatible

with SIP industry standard and able to interoperate with many other SIP compliant devices and

software on the market.

Notice

This publication describes the instruction for S03 series IP phone functions only. We reserve the

rights to do any changes or make enhancements of this publication without further notice. The

most updated electronic revision of user manual can be downloaded from WISH’s website:

www.wishproduct.com timely, thanks for your understanding and continuous support.

Installation

2.1 Appearance

S03 series IP phone are designed to look like the conventional telephones. The following photo

illustrates the appearance of S03 IP phone.

3

HTTP://WWW.SUNCTI.CO.TH User Manual

2.2 Package list

1) One S03 IP phone (Main body + Handset + Cord)

2) One Straight Ethernet cable

3) One universal power adapter

4) One User Manual

Warning: Although the adapter of S03 series IP Phone is compliant with UL standard,
please do not attempt to use other difference power adapter or cut off power supply
during configuration or updating phone. Using other power adapter may damage S03
series phone and will void the manufacturer warranty.

Caution: All operations of our product must abide by the instructions provided by IP
Phone manufacturer. Any Changes or modifications to this product without formal
authorization by manufacturer, or operation of S03 series phone in any way other
than the instructions stated on this user manual will void the manufacturer warranty.

2.3 Installation

1) Insert handset cord into the handset jack and left jack of IP Phone

2) Insert the power adapter’s plug into the phone front Power jack (DC 5V) and the 2-prong plug

end of which into grounded power outlet

3) Remove the LAN cable for Internet connection from your PC and connect it to WAN port of

S03, then follow below installation checking way

2.4 Check Installation by LATTICE of LCD

S03 IP Phone has a 75mmx24mm LCD that can display three lines of below characters each. Here

is the display when all segments illuminate:

The LCD is equipped with a backlight. When the phone is in the normal idle state, the backlight is

off. Whenever an event occurs, the backlight turns on automatically and brings the user’s attention.

The definitions for each character displayed on LCD described as below table.

4

HTTP://WWW.SUNCTI.CO.TH User Manual

Product Overview

S03 IP Phone is a next generation IP network telephone based on industry open standard SIP

(Session Initiation Protocol) and H.323.Built on innovative technology, S03 series IP Phone offer

customer superb sound quality and rich functionalities at mass-affordable price.

3.1 Software Features

 Support two modes: Bridge and Router (NAT&NAPT)
 Network Protocols: TCP/UDP/IP,ICMP,HTTP,DHCP Client （ WAN Interface）,DHCP
Server（LAN Interface）,DNS Client, DNS Relay, SNTP,FTP, TFTP

 VOIP Protocols: Support H323 (V4) & SIP (RFC3261, RFC3262, RFC3264, RFC3265)

synchronously
 Voice Codecs: G.711（A-law/U-law）,G.723.1(High/low), G.729
 NAT transversal: Support STUN client, AVS and Citron etc. Can modify SIP register port,
HTTP server port, Telnet server port and RTP port
 Support two SIP server synchronously：Can register two different SIP Server, and can make a

call by either proxy

 Support standard voice features such as numeric Caller ID Display, Call Waiting, Hold, ransfer,

Do-Not-disturb, Forward, in-band and out-of-band DTMF, Hotline (off-hook autodial), auto

answer, ban outgoing

 Full duplex hand free speakerphone, redial, call log, volume control, voice record with indicator

 Support standard encryption and authentication (DIGEST using MD5, MD5-sess)

 Support Silence Suppression, VAD (Voice Activity Detection), CNG (Comfort Noise

eneration), Line Echo Cancellation (G.168), and AGC (Automatic Gain Control)

 Provide easy configuration thru manual operation (phone keypad, Web interface and Telenet)

or automated centralized configuration file via TFTP or HTTP

 Support firmware upgrade via TFTP/FTP and HTTP

 Support syslog, can send event of phone to syslog server

3.2 Hardware Specifications

The below table describes the hardware specifications of S03 Phone

Item S03

Power Adapter Input: 100-240VAC 50~60Hz

Output: +5VDC, 500mA

CPU DSP621 PSB21553 150MHz

WAN 10/100Base T RJ-45 for LAN Port

Power Consumption Idle: 1.4W / Active: 1.8W

LCD size 65×24mm
Operating Temperature 0～40℃(32°～104℉)
Storage Temperature -10°～60℃(14°～140℉)
Relative Humidity 10～65% (Non-condensing)

Dimension (W×H×D) 20.5×22.5×7.5cm

Weight (packaging included) 0.80kg

5

HTTP://WWW.SUNCTI.CO.TH User Manual

Certification CE / FCC Part 15 Class B

BASIC OPERATIONS

4.1 Get Familiar with Keypad

S03 phone has a 25-button keypad. Definitions of each state as below

Key Button Mode Definitions

Key Button Mode Definitions

In the dial-up mode

0 -9

*

# In the dial-up mode

DISPLAY In the IDLE mode

ENTER

HOLD

REDIAL In the dial-up mode

H.F In the IDLE mode Enter hands-free mode

UP

DOWN

XFER

In the keypad configure
mode

In the dial-up mode As one part of phone number when call out

In the call hold mode

In the keypad configure
mode

In the keypad configure
mode
In the keypad configure
ode

In the keypad
configure mode
In the keypad
configure mode

In the keypad
configure mode

Decimal digit number 0-9, star and pound keys
are usually used to make phone calls

Rapid first button press display the digit
number 0-9,rapid second button press display
the English character or others

Ready to call a third party’s number to make
three-way (or conference) calling

Equal to the dots notation when input IP
address

As one part of phone number if “#” is the first
dialed number, otherwise as the ending symbol
to end up dialing

Continuous thrice press display assigned IP
address of WAN Port, gateway’s IP address and
the phone number registered on public server

Confirm configuration or enter submenu mode

Temporarily hold the active call

Redial the number last dialed, or force a
call to go out immediately before timeout

Go back to previous menu item or
increase handset/speakerphone volume
Go down to lower menu items or reduce
handset/speakerphone volume

In the keypad
configure mode

4.2 Dialing or Making Calls

4.2.1 Dialing general PSTN Phone or extension.

There are three dialing modes:

1. Pick up handset or press SPEAKER button, and then enter the phone numbers, IP phone will

6
