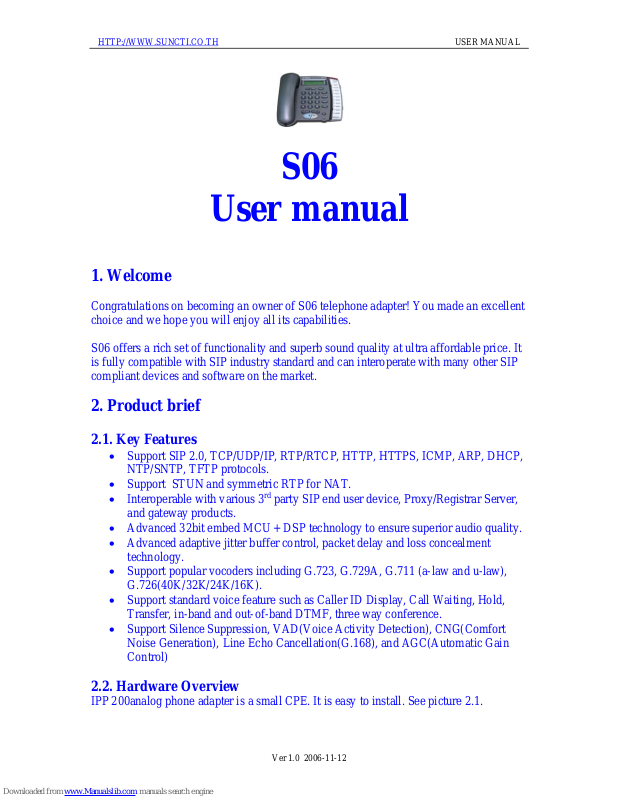

S06
User manual
1. Welcome
S06 offers a rich set of functionality and superb sound quality at ultra affordable price. It is fully compatible with SIP industry standard and can interoperate with many other SIP compliant devices and software on the market.
2. Product brief
2.1. Key Features
• Support SIP 2.0, TCP/UDP/IP, RTP/RTCP, HTTP, HTTPS, ICMP, ARP, DHCP,
NTP/SNTP, TFTP protocols.
• Support STUN and symmetric RTP for NAT.
• Interoperable with various 3
and gateway products.
• Advanced 32bit embed MCU + DSP technology to ensure superior audio quality.
• Advanced adaptive jitter buffer control, packet delay and loss concealment
technology.
• Support popular vocoders including G.723, G.729A, G.711 (a-law and u-law),
G.726(40K/32K/24K/16K).
• Support standard voice feature such as Caller ID Display, Call Waiting, Hold,
Transfer, in-band and out-of-band DTMF, three way conference.
• Support Silence Suppression, VAD(Voice Activity Detection), CNG(Comfort
Noise Generation), Line Echo Cancellation(G.168), and AGC(Automatic Gain Control)
2.2. Hardware Overview
IPP 200analog phone adapter is a small CPE. It is easy to install. See picture 2.1.
rd
party SIP end user device, Proxy/Registrar Server,
Ver 1.0 2006-11-12
Page 2
HTTP://WWW.SUNCTI.CO.TH USER MANUAL
IPP 200has following interfaces for networking, visual status indication, and power:
1. One phone (FXS) RJ-11 jack interface.
2. Two Ethernet 10baseT RJ-45 jack interface.
3. One unit status LED.
4. One data link and activity LED.
5. One 5V power adapter interface. It is used to connect to the power adapter going
with the unit. If you connect the unit to some other power adapter, we are not
guarantee that the unit works properly.
2.2.1. LED Indicator
Unit status indicator (STATUS): It is blinking when unit is booting. It will be off when booting is finished. It will be on when you pick up the phone. It will be off when you hang up the phone. It is blinking when an inbound call from VoIP. It will be on after phone is picked up. It will be off after phone is hanged up. Data link and activity indicator (ACT): It will blink when there is data transferring.
3. Installation
Please make sure you have the following items in the product package you received,
1. Analog Telephone Adapter Box
2. 5V power supply In addition, you need,
1. An analog telephone set or fax machine
2. One RJ-11 telephone wire
3. Two Cat-5 Ethernet cables
4. An Ethernet port connecting to IP networks
Please follow the instruction below for S06 setup:
1. Insert one end of Cat-5 Ethernet cable to one “LAN” port on the back of ATA and the other end to Ethernet port connecting to IP networks.
2. Insert one end of Cat-5 Ethernet cable to another “LAN” port on the back of ATA and the other end to Ethernet port connecting to PC.
3. Insert one end of RJ-11 telephone wire to the “Phone” port on the back of ATA, and the other end to either the phone set or fax machine.
4. Insert 5V power supply cable into the power plug of ATA.
5. Check and confirm all connections are correct.
Now you can power on the 5V power supply.
4. Setup Guide
It is possible that this product has been pre-setup by either a service provider or network manager. Then user’s own configurable settings can be very limited. However, if end-
Ver 1.0 2006-11-12
Page 3
HTTP://WWW.SUNCTI.CO.TH USER MANUAL
user is allowed to make changes to the system and service settings, the following are the instructions for your device setup.
End-user needs to get the following information from his/her service provider or network manager,
• IP address if it is static, subnet and network gateway IP address, or user DHCP.
• SIP proxy server IP address and any registration information.
• User information such as user ID and password.
4.1 Setup with Keypad
Connecting telephone to I-06’s “Phone” port, press “**00”to enter into S06 setup menu. You can use keypad referencing following menu to do basic network setup. Please use web browser to do more advance setup.
4.1.1 Keypad Setup Menu
Option Code User Input Notes =============================================================== Enter configuration menu **00 None After “Setup menu”,
enter option and end by “#”
------------------------------------------------------------------------------------------------------------
Check DHCP 10 None Announce
DHCP Status on or off
------------------------------------------------------------------------------------------------------------
Set DHCP 11 1 to enable Press “#”
0 to disable to confirm the
input
------------------------------------------------------------------------------------------------------------
Check IP Address 20 None
------------------------------------------------------------------------------------------------------------
Set static IP Address 21 Enter value using End input numbers on the by ‘#’ telephone pad. Use‘*’when enter
a decimal point.
------------------------------------------------------------------------------------------------------------
Check Subnet Mask 30 None
------------------------------------------------------------------------------------------------------------
Set Subnet Mask 31 Enter value using End input numbers on the by ‘#’ phone pad. Use ‘*’ for decimal point.
------------------------------------------------------------------------------------------------------------
Check Gateway 40 None
----------------------------------------------------------------------------------------------------------
Ver 1.0 2006-11-12
Page 4
HTTP://WWW.SUNCTI.CO.TH USER MANUAL
Set Gateway 41 Enter value using End input number on the , by ‘#’. phone pad. Using
‘*’ for decimal
point
------------------------------------------------------------------------------------------------------------
Check primary DNS 50 None Server setting
------------------------------------------------------------------------------------------------------------
Set Primary DNS Server 51 Enter value using End input number on the by ‘#’. phone pad. Using ‘*’ for decimal
point
------------------------------------------------------------------------------------------------------------
Manufacture Reboot 79898 Enter “1” to confirm ATA will reboot and Enter “*” to cancel all the datas will
return to the original form
===============================================================
4.2 Setup with Web Browser
Connecting S06’s “LAN” port to a router. The procedure in 4.2.1 shows you how to setup your ATA and the menu in 4.2.2 for your reference.
4.2.1 Use Web Browser for system setup
1. After you have got your ATA’s IP address, you can use web browser for system setup within the same subnet.
2. Enter http://<ATA IP address>/, where <ATA IP Address> is the said IP address of your ATA.
3. Web browser will show the webpage interface of the system setup menu. Choose “Admin Login” to enter administrator setup,
4. We use Free-World-Dialup(FWD) IP phone service as an example to setup network and service.
If your ATA is in a LAN and your LAN connect to Internet through a firewall (with NAT), your ATA’s IP address will be private. Your system settings should include the follows,
1. Choose outbound proxy server for NAT traversal
Under User Account Setup
• Set “User ID” to the number provided by your service provider. If you use FWD,
here you can put your FWD number e.g. 180000. As for how to get free FWD number, please check details of http://www.fwd.pulver.com
• Set “Password” to the password provided by your service provider.
.
Ver 1.0 2006-11-12
Page 5
HTTP://WWW.SUNCTI.CO.TH USER MANUAL
Under Proxy Server Setup
• Set “Proxy” to the SIP proxy server IP address or domain name. In FWD case, it
is “fwd.pulver.com”.
• Set “Use Outbound Proxy” to “yes”.
• Set “Outbound Proxy” to be the outbound proxy server IP address or domain
name. In FWD case, it is http://fwdnat.pulver.com:5082.
At bottom of the pager:
• Click “Save Changes” to apply the changes.
2. Choose STUN server for NAT traversal
Under User Account Setup:
• Set“User ID”to the number provided by your service provider. If you use FWD,
here you can put your FWD number e.g. 180000.
• Set “Password” to the password provided by your service provider.
Under Proxy Server Setup:
• Set “Proxy” to the SIP proxy server IP address or domain name. In FWD case, it
is “fwd.pulver.com”.
• Set “Use Outbound Proxy” to “no”.
Under NAT Support:
• Set“NAT Mapping Enable”to “yes”.
• Set“NAT Keep Alive Enable”to “yes”.
• Set “Substitute VIA address” to “yes”.
• Set “Stun Enable” to “yes”.
• Set “STUN server” to be one of the public STUN sever IP address or domain
name. For an example, http://stun01.sipphone.com
.
At bottom of the pager:
• Click “Save Changes” button to apply all the changes.
If your ATA is connected to the Internet directly, your ATA’s IP address will most likely be public IP address. Your setting should be,
Under User Account Setup:
• Set“User ID”to the number provided by your service provider. If you use FWD,
here you can put your FWD number e.g. 180000.
• Set “Password” to the password provided by your service provider.
Under Proxy Server Setup:
• Set “Proxy” to the SIP proxy server IP address or domain name. In FWD case, it
is “fwd.pulver.com”.
Ver 1.0 2006-11-12
Page 6
HTTP://WWW.SUNCTI.CO.TH USER MANUAL
At bottom of the pager:
• Click “Save Changes” button to apply all the changes.
4.2.2 Setup Menu
Network Information
Under this tab, the current network information of ATA is presented.
Product Information
Under this tab, the current product information of ATA is presented.
System Status
Under this tab, The states and statistics information, which are collected by ATA during normal operation, are presented. Line maintains up to 2 calls: Call 1 and 2.
Hook State State of the hook switch Registration State Registration state of the line State State of the call Tone Tone playing for this call RTP Packets Sent Total number of RTP packets sent RTP Bytes Sent Total number of RTP bytes sent RTP Packets Recv Total number of RTP packets received RTP Bytes Recv Total number of RTP bytes received SIP Messages Sent Total number of SIP messages sent SIP Bytes Sent Total number of SIP bytes sent SIP Messages Recv Total number of SIP messages received SIP Bytes Recv Total number of SIP bytes received
Password Setup
Parameter Name Function Default Admen Password The password for administrator
User Password The password for User
Note: the above password is only for getting in “Setup Menu”
Network Setup
Parameter Name Function Default DHCP Enable or Disable DHCP yes
Static IP Static IP address of ATA, which will take 0.0.0.0
effect if DHCP is disabled HostName Host Name of ATA Domain The network domain of ATA NetMask The NetMask used by ATA when DHCP is 255.255.255.0 disabled
Ver 1.0 2006-11-12
Page 7
HTTP://WWW.SUNCTI.CO.TH USER MANUAL
Gateway The default gateway used by ATA when 0.0.0.0 DHCP is disable Primary DNS DNS server used by ATA in addition to DHCP supplied DNS servers if DHCP is
enable; when DHCP is disable, this will be
the primary DNS server Secondary DNS DNS server used by ATA in addition to DHCP supplied DNS servers if DHCP is
enable; when DHCP is disable, this will be
the secondary DNS server
SIP and RTP
Parameter Name Function Default =============================================================== SIP port SIP message listening port and transmission 5060 port Ext SIP Port External port to substitute for the actual SIP port of the unite in all outgoing SIP Messages. If “0” is specified, no SIP port substitution is performed. RTP Port Min Minimum port number for RTP 16580 transmission and reception RTP Port Max Maximum port number for RTP 16680 transmission and reception RTP Packet Size Packet size in sec. Value must be multiple 0.020 of 0.01s(0.01 to 0.16)
NAT Support
Parameter Name Function Default =============================================================== NAT Mapping Enable Enable the use of externally mapped of IP yes address and SIP/RTP ports in SIP message. NAT Keep Alive Enable If it is sent to “yes”, “NAT Keep Alive Msg” yes is sent periodically. Handle_VIA_reveived If set to “yes”, the ATA will process the no “received” parameter in the VIA header inserted by the server in a response to any
one of its request. Else the parameter is
ignored Handle_VIA_rport If set to “yes”, the ATA will process the no “rport” parameter in the VIA header inserted by the server in a response to any one of its request. Else the parameter is ignored. Insert VIA reveived Insert received parameter in VIA header no
Ver 1.0 2006-11-12
Page 8
HTTP://WWW.SUNCTI.CO.TH USER MANUAL
in SIP responses if received from IP and
VIA sent-by IP differ Insert VIA rport Insert rport parameter in VIA header in no SIP responses if received-from port and VIA sent-by port differ Substitute VIA addr Use nat-mapped IP: port value in VIA no header Send Resp To Src Port Send response to the request source port no instead of the VIA sent-by port STUN Enable Enable the use of STUN to discover NAT no mapping STUN Sever STUN server to contact for NAT mapping discovery Ext IP External IP address to substitute for the actual IP address of the unit in all outgoing SIP Messages. If “0.0.0.0” is specified, no IP Address substitution is performed. Ext RTP Port Min External port mapping of “RTP Port Min”. If value is non-zero, the RTP port number in all outgoing SIP messages is substituted by the corresponding port value in the external RTP port range
Proxy Server Setup
Parameter Name Function Default =============================================================== Proxy SIP Proxy Server for all outbound requests Use Outbound Proxy Enable the use of “Outbound Proxy” Outbound Proxy SIP Outbound Proxy Sever Register Enable periodic registration with the yes
“Proxy” Make Call Without Reg Allow making outbound calls without no successful registration by the unit. If it set to “no”, dial tone will not play unless registration is successful Register Expires Expires value in second in a “REGISTER” 3600 request. Ans Call Without Reg Allow answering inbound calls without no successful registration by the unit
User Account Setup
Parameter Name Function Default Display Name Subscriber’s display name to appear in
caller-id User ID Subscriber’s user-id Password Subscriber’s password
Ver 1.0 2006-11-12
Page 9
HTTP://WWW.SUNCTI.CO.TH USER MANUAL
Auth ID Subscriber’s authentication ID Use Auth ID If it is set to “yes”, the pair “Auth ID> and no “Password” are used for SIP authentication. Else the pair “User ID” and “Password” are used
Audio Setup
Parameter Name Function Default Preferred Codec Preferred codec for all calls. However, the G729a
Actual codec used in a call still depends on The outcome of the codec negotiation Protocol. DTMF Tx Method Method to transmit DTMF signals to the auto Far end Use Pref Codec Only Only use the preferred codec for all calls. no Silence Supp Enable Enable silence suppression, if it set to no “yes”, silent audio frames are not
transmitted Echo Canc Enable If it set to “yes”, the use of echo canceller yes
is enabled. Echo Canc Adap Enable If it set to “yes”, echo canceller to adapter yes is enabled
4.3. Call features
Name Code Description
----------------------------------------------------------------------------------------------------------­Call return *21 call the last caller code
-----------------------------------------------------------------------------------------------------------­Call forward *31 forward all calls to the target specified after the activation code. Example: A with number 1000, B with number 2000, pick up A, key in *312000, then hang up. when number 1000 is called, B rings instead of A. This will stay until someone picks up A, then key in *32.
-----------------------------------------------------------------------------------------------------------­Cancel call forward *32 cancel call forward code
-----------------------------------------------------------------------------------------------------------­Call transfer None example: A call B, B transfer A’s call to C.
1)A dial B’s number.
2)B answer, then click hang up hook. After head a dial tone, key in C’s number.
3)After C answers the phone, B hang up, A’s call will transfer to C.
Ver 1.0 2006-11-12
Page 10
HTTP://WWW.SUNCTI.CO.TH USER MANUAL
-----------------------------------------------------------------------------------------------------------­Three way conference None example: A call B and C for conference.
1)A dial B’s number.
2)After B answered, A(or B)click hang up hook.
3)After A(or B)heard a dial tone, A(or B) dial C’s number.
4)After C answered, A(or B)click hang up hook again, Three way conference is on.
------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------
5. Product Use Environment
S06 is recommended to work as in-door equipment.
Ver 1.0 2006-11-12
