1.1 Symbols used in this manual ..................................................................................................................... 3
2.1 General safety information ........................................................................................................................ 4
2.2 Requirements for working in safety ........................................................................................................... 4
2.3 Working environment ................................................................................................................................. 4
3 TECHNICAL TABLES FOR INSTALLATION .......................................................................... 5
3.1 Table of minimum dimension ..................................................................................................................... 5
3.2 Table for no. of arms, square bar brackets and hood supports ................................................................ 5
3.3 Table for awning dimensions / component placement .............................................................................. 6
3.4 Diagrams of the covering and footprints ................................................................................................... 9
3.5 Exploded view of Tucson Patio components ............................................................................................ 10
This manual was prepared by the Manufacturer to provide the necessary information to those authorized to install
and perform special maintenance on the product. It is prohibited to remove, rewrite or in any way modify the
pages of the manual and their content.
Operations must be carried out by personnel with the technical and professional skills required by current
applicable national laws or standards.
This manual must be kept complete in all its parts in an easily accessible place.
The manufacturer reserves the right to update products and corresponding manuals without the obligation to
update previous manuals.
The manufacturer reserves all rights on this manual. It may not be reproduced in any way, wholly or in part,
without the manufacturer's written authorization.
1.1 - Symbols used in this manual
The CAUTION symbols used in this manual are given below.
INFORMATION AND PRECAUTIONS
Useful advice and instructions to be observed to ensure proper installation and/or maintenance of the awning.
Failure to observe these messages may compromise the integrity and/or the resistance of the product.
CAUTION
DANGER TO OPERATOR! Instructions to be evaluated and followed carefully. Failure to comply with these
messages may compromise individual safety.
1115
1.2 - Personnel Requirements
Personnel assigned to this operation must have technical knowledge of the product obtained either through two
years' experience or by means of a suitable technical training course.
1.3 - Required Equipment
To ensure proper installation of the awning, and consequently best operation of the nished product, the following
equipment is required:
• power screwdriver
• a level
• string
• complete tool set
• equipment for working at heights (scaffolding, ladders, aerial platforms, etc.) which are compliant with current
standards of individual safety in the workplace.
CAUTION
All of the screws used on aluminum components must be tightened with a maximum force of 20Nm (=2Kgm).
Greater tightening force causes the castings to break and damage to the stainless steel screws. It is advisable
to use dynamo-metric power screwdrivers and wrenches.
CAUTION
Use low-speed power screwdrivers. Screwing in the stainless steel screws at high speed may cause the
threads to jam, especially in the case of stainless steel/stainless steel and stainless steel/aluminum screws
and threads.
CAUTION
In the mounting brackets with double screw, be sure to evenly screw the two fastening screws of the square
bar, distributing the tightening force alternatively on the two screws up to a maximum of 20 Nm. Uneven
tightening may cause abnormal tension in the casting, causing it to fail immediately, or lead to subsequent
problems caused by external stress on the awning (e.g. gusts of wind).
33
TUCSON PATIO AWNING
Installation Manual
1.4 - Contents of packaging
The awning is delivered complete with arms, fabric, control (manual or motorized) and any requested optional.
INFORMATION AND PRECAUTIONS
Never move the shoulders from the position in which they are supplied.
2 SAFETY
2.1 - General Safety Information
• During all operations described in this manual, make sure that ONLY individuals involved in the work are
in the work zone (see Chap. 1.2 “Personnel requirements”) .
• Do not set objects on the fabric of the awning.
• IT IS prohibited to stand on or hang from the awning. This would create the risk of severe personal injury, as
well as damaging the awning.
• Wear personal protective equipment and clothing as required by current standards on safety in the workplace.
CAUTION
Installation, adjustment, and special maintenance of the awning must be carried out only by specialized,
skilled technical personnel.
CAUTION
IT IS necessary to ensure a distance of at least 20 INCHES between the end of the fully-opened awning
(outermost part) and any xed obstacle (wall, terrace, etc.).
CAUTION
IT IS prohibited to install or place ladders or other objects near the awning, as this would reduce the space
required for installation.
CAUTION
Never loosen the awning more than the tension in the arms as there is the risk that the awning return under
the tube and be ruined.
1115
2.2 Requirements for working in safety
• Before use, check that all temporary structures (scaffolding, ladders, etc.) and all individual safety gear
(harnesses, belts, etc.) are compliant with standards and in good condition.
• Do not set objects on the fabric of the awning.
• Always use suitable individual protection gear.
• If there is more than one installation technician, their work must be coordinated.
• Operators must work in compliance with the safety instructions given to them.
• If the awning is to be installed above ground level, the area underneath the awning must be marked off and
guarded so that no one can get underneath the hanging load.
• Firmly tie the ropes or straps around the arm supports so that it does not slip and risk falling.
2.3 Working environment
• Installation and special maintenance must be carried out in a place that is sufciently illuminated (based on
specic standards) by either natural or articial lighting. The operator must have a clear view of the work to
be performed, and he must also prevent third persons from approaching the work area around the awning.
44
3 TECHNICAL TABLES FOR INSTALLATION
3.1 - Table of minimum dimensions
MINIMUM FOOTPRINTS
PROJECTIONWIDTH (in)
ARM1 PAIR OF ARMS
6'11"95
8'6"115
10'2"134
11'9"154
13'5"174
INFORMATION AND PRECAUTIONS
It is advisable always to use an even number of arms.
TUCSON PATIO AWNING
Installation Manual
1115
3.2 Table of no. of arms, mounting brackets, tube balance supports and hood supports
For a correct installation it is advisable to follow the instructions here above.
55
TUCSON PATIO AWNING
Installation Manual
3.3 Table of awning dimensions / component placement
WARNING
THE FOLLOWING TABLES ARE PURELY INDICATIVE. TO THE BEST OF OUR KNOWLEDGE THE INFORMATION
IS UP TO DATE SW SUN CONTROL DOES NOT PROVIDE ANY GUARANTEE REGARDING ACCURACY,
RELIABILITY, AND COMPLETENESS OF THE INFORMATION CONTAINED HEREIN. INDEED, IT IS THE USER’S
RESPONSIBILITY TO ENSURE THE SUITABILITY AND CORRECTNESS OF THIS INFORMATION.
INFORMATION AND PRECAUTIONS
For the number of accessories to install on the awning, please refer to the table on page 4.
WARNING
Distribute the HOOD SUPPORTS evenly throughout the width of the awning. If the position of the supports
coincides with that of the mounting brackets, position them adjacent to the latter. If the TUBE BALANCE
SUPPORTS coincides with that of a deck seam, position the support centered directly over the deck seam.
WARNING
The awning is tested in its maximum size of no more than 236 in.
INFORMATION AND PRECAUTIONS
Determine the center point of the overall width of the square bar for proper component placement. Component
placement goes from square bar edge to center and is the identical on both sides of awning.
The instructions below refer to wall-mounting; ceiling mounting is the same. If any options are in use, rst read
Chapter 6 "Optionals"
CAUTION
Ensure a minimum space of 19.75 inches between the open awning and any xed obstacle.
The awning must be installed at a minimum height of 98.5 inches. If this is not possible, for awnings equipped
with automations it is obligatory to install an acoustic CAUTION device.
INFORMATION AND PRECAUTIONS
Use the most suitable attachment hardware for the type of wall where the awning is to be installed.
INFORMATION AND PRECAUTIONS
For CEILING INSTALLATION, DO NOT FASTEN THE BRACKETS TO THE BLOCKS.
The awning may fall with the risk of serious injury to individuals and damage to the product.
INFORMATION AND PRECAUTIONS
The procedure described below refers to the model of awning with two arms. The operator must take the
necessary measures for the installation of models with more than two arms (see the tables in Chap. 3.2).
4.1 - Fastening brackets to wall
INFORMATION AND PRECAUTIONS
The instructions that follow are of a general nature and must therefore be adapted to the model of awning
being assembled.
1115
1) Before starting installation, take note of the following
information, which is indispensable to nd the right
position for fastening the brackets:
• dimensions of the awning (see Chap 3.1 and Chap. 3.4)
• dimensions of the mounting brackets (see Chap. 3.6)
• number of shoulders (see Chap.3.2)
• side of awning where control is located;
• dimensions of the wall/ceiling where the awning is to
be installed.
(For the shoulder and mounting bracket positions, see
Chap. 3.3)
2) Using a string and a level, mark the position of the
holes to be made on the wall.
INFORMATION AND PRECAUTIONS
To facilitate the installation process, pages 13, 14 and
15 may be printed in A4 format for use as templates
to nd the best positions for the holes.
CAUTION
To avoid gross errors, make sure the print out scale
is 1:1, checking the measurements indicated on
the paper with a ruler or caliper in relation to the
dimensions indicated on page 11.
1212

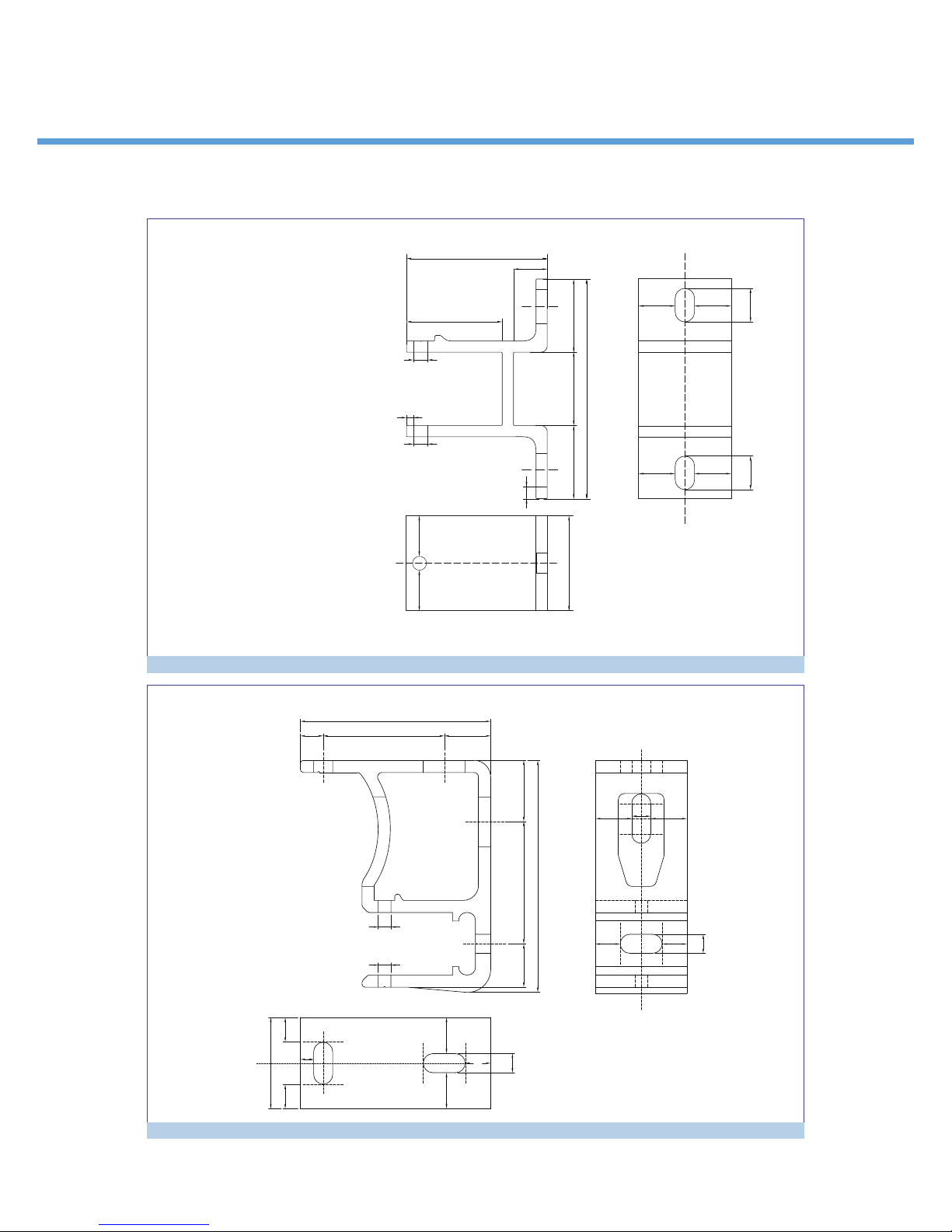

WALL BRACKET
1:1
TEMPLATE
TUCSON PATIO AWNING
Installation Manual
1115
scale
1313

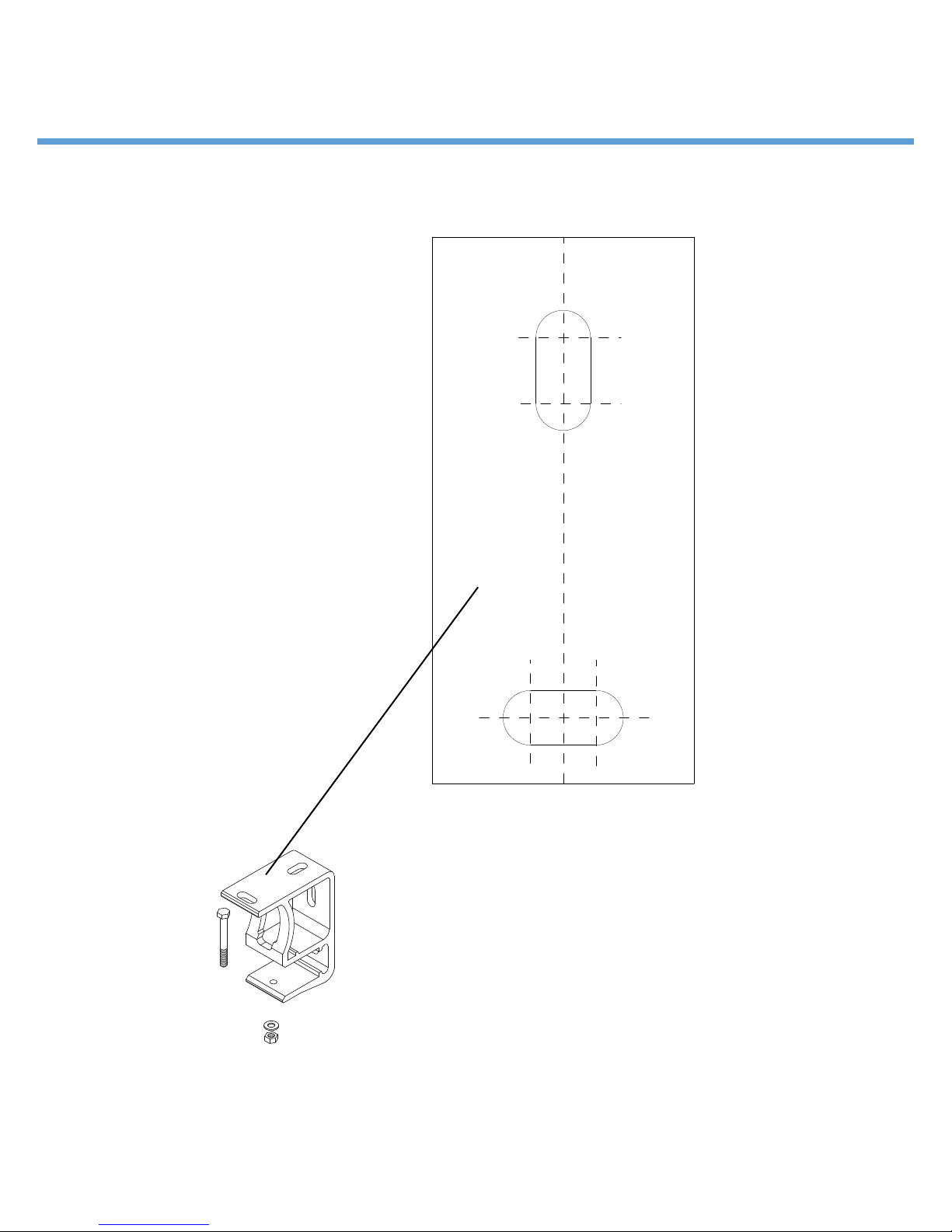

CEILING BRACKET
scale 1:1
TEMPLATE
TUCSON PATIO AWNING
1115
1414
CEILING BRACKET
scale 1:1
TEMPLATE
TUCSON PATIO AWNING
Installation Manual
1115
1515

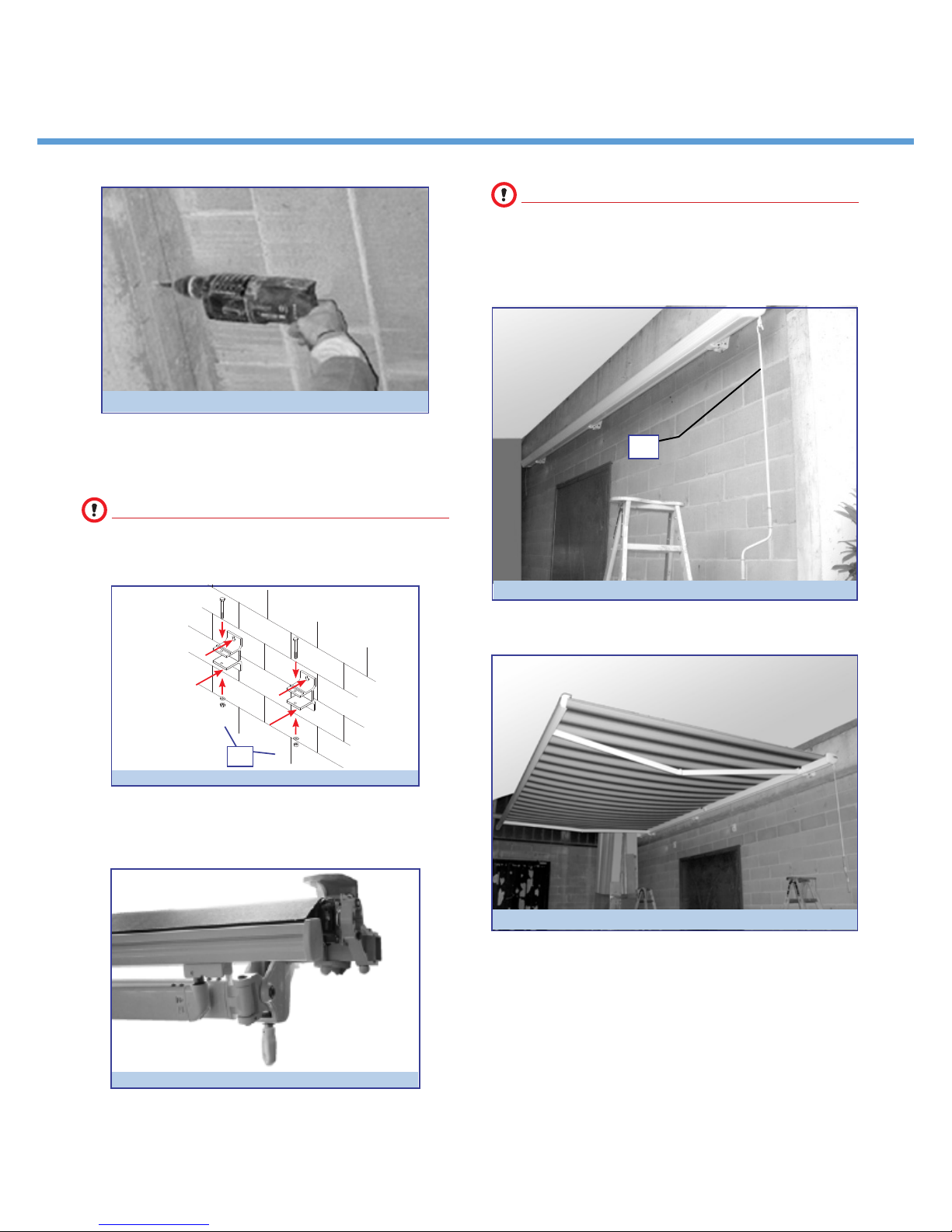

FIG. 2
3) Make the holes in the wall using suitable drill based
on the type of wall and type of screw to be used.
4.2 - Wall installation
INFORMATION AND PRECAUTIONS
The instructions that follow are of a general nature
and must therefore be adapted to the model of
awning being assembled.
TUCSON PATIO AWNING
Installation Manual
1115
INFORMATION AND PRECAUTIONS
If the wall is off-square, it may difcult to install the
awning on the wall brackets. It is therefore advisable
to check the alignment of the brackets and to
provide inserts to ensure proper alignment for good
installation. Use a string to check alignment.
B
FIG. 3
4) For a manual awning, fasten the hand brace (B) to
the gear.
A
1) Fix the brackets to the wall and insert the square
bar (including the awning) on the wall brackets.
2) Afx the square bar to the brackets using the
screws (A).
3) Center the awning on the brackets referring to the
table “Awning dimensions / component placement”
in Chap. 3.3.
FIG. 1
FIG. 2
FIG. 10
For ceiling-mounted awnings, follow the same
instructions as for wall installation.
4.3 - Adjustment of Awning Inclination
For this procedure, one worker will need to work on
the brackets, and the other, only after opening the
awning, will guide the front bar so as to raise or lower
the awning easily.
1616
CAUTION
A
FIG. 2
FIG. 3
B
FIG. 4
C
Make sure that when opening/closing the awning,
there are no individuals within its range of action
who are not involved in the work.
FIG. 1
1) Adjust the awning inclination using the hand brace
on the adjustable shoulder eyelet. (Fig.1 - A).
Repeat for both arms.
TUCSON PATIO AWNING
Installation Manual
1115
loose to increase inclination
tighten to decrease inclination
CAUTION
When adjusting the slope, start with one side
making sure that it does not exceed 10" at the time,
then adjust the other side bringing the front bar
in the horizontal position, repeat the operation if
necessary.
2) Using the level (Fig. 3 - B), positioned near the tip
of the arm, check that the front bar is perfectly
horizontal. If not, adjust the adjustable shoulder
that corresponds to the arm that is not level,
following the procedure described previously.
3) Check that the elbows of the arms are parallel.
FIG. 5
4) If not, tighten the grub screw (C) to raise the elbow
of the arm, and unscrew to lower it.
5) Repeat the same steps for the other end of the
awning.
INFORMATION AND PRECAUTIONS
Arm alignment can also be performed with the awning
closed as the grub screws are located externally to
the adjustable shoulder.
1717
TUCSON PATIO AWNING
Installation Manual
5 INSTALLATION OF MOTORIZED AWNING
The instructions below refer to wall-mounting; ceiling mounting is the same. If any options are in use, rst read
Chapter 6 "Optionals"
CAUTION
IT IS PROHIBITED to install the motorized product in an explosive atmosphere.
CAUTION
Use a locking switch (with key) if the awning is installed in sensitive locations such as schools, colleges,
hospitals, retirement homes, etc. If the awning is equipped with a radio remote control, keep it out of the reach
of children.
CAUTION
If there is an opening/closing switch, it must be located in a protected position at a height of at least 59 inches
above ground level and in a safe place.
CAUTION
The awning must be installed at a minimum height of 98.5 inches. If this is not possible, for awnings equipped
with automations it is obligatory to install an acoustic CAUTION device.
1115
5.1 - Limit switch calibration
INFORMATION AND PRECAUTIONS
Before installation, check that the limit switch is properly calibrated. If it requires adjustment, follow the
instructions in the "Motor Manual".
5.2 - Electrical connections and installation
CAUTION
The electrical connections must be performed by qualied personnel and with the electrical energy
disconnected.
INFORMATION AND PRECAUTIONS
It is prohibited to connect two or more motors to the same switch due to the risk of induced current which
would result in damage to the motors.
Installation of the motorized awning involves the same procedure as for the manual awning, except for the
application of the hand brace (Chap. 4.2, "Wall installation", step 4).
Instructions for electrical connection and programming the type of operation are described in the "Motor Manual".
6 OPTIONALS
6.1 - Automations
(Only for motorized awnings)
WIND SENSOR, RAIN SENSOR, SUN SENSOR, VIBRATION SENSOR: installation of these options are described
in the manuals for automations and for requested controls.
CAUTION
For awnings with automations, the awning must be installed at a minimum height of 98.5 inches; if this is not
possible, an acoustic CAUTION device must be installed.
1818
TUCSON PATIO AWNING
Installation Manual
7 SPECIAL MAINTENANCE
7.1 - Troubleshooting table
MANUAL AWNING
PROBLEMSCAUSESSOLUTIONS
The fabric does not roll up straightIncorrect symmetry of armsSee manual for Assembly, Chap. 7
Uneven fabricRoll the fabric all the way back up
Noisy during operationLoose bolt or attachmentTighten all bolts or attachments
MOTORIZED AWNING
PROBLEMSCAUSESSOLUTIONS
The fabric does not roll up straightIncorrect symmetry of armsSee manual for Assembly, Chap. 7
Uneven fabricRoll the fabric all the way back up
The awning does not fully close
Incorrect adjustment of limit switch.See manual for motor
The awning does not fully open
1115
The motor is very noisy
The motor shuts down after 4-5 min
of continuous operation
The awning does not movePower lossBreaker and GF1
The awning does not roll up in high
winds.
With radio control, the awning opens
or closes by itself.
Incorrect wiring
Motor failed
Thermal protection of motor tripsLet motor cool off for a few minutes
Incorrect wiringSee manual for motor
Power loss to awning or sensor
Faulty wind sensor
Sensor battery dead
Sensor power loss
See manual for motor
See instructions on automationSensor needs adjustment
Replace battery in radio remote
control
Toll Free 877-792-1775 | Fax 877-792-0031
swsuncontrolpro.com | sales@swsuncontrol.com
1919
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
