Operator's
EZ-8EZ-8
EZ-8
EZ-8EZ-8
Manual
READ THIS BOOK
This book has important information for the use and safe operation of this machine. Failure to read
this book prior to operating or attempting any service or maintenance procedure to your Clarke
American Sanders machine could result in injury to you or to other personnel; damage to the machine
or to other property could occur as well. You must have training in the operation of this machine
before using it. If operator(s) cannot read this manual, have it explained fully before attempting to
operate this machine.
Si Ud. o sus operadores no pueden leer el Inglés, se hagan explicar este manual completamente
antes de tratar el manejo o servicio de esta máquina.
All directions given in this book are as seen from the operator’s position at the rear of the machine.
Sander
Form No. 70214A 7/03 Printed in the U.S.A.
Contents of this Book
Operator Safety Instructions .........................................................3
Introduction and Machine Specifications.......................................5
How to Transport the Machine ......................................................6
Machine Set-Up ...........................................................................7
How to Operate the Machine ........................................................7
Sanding Cuts and Sandpaper .................................................... 9
Sander Adjustment Procedures..................................................10
Routine Maintenance..................................................................11
Troubleshooting .........................................................................12
Section II Parts and Service Manual
Assembly Drawing #1 ................................................................14
Assembly Parts List #1 ..............................................................15
Assembly Drawing #2 ................................................................16
Assembly Parts List #2 ..............................................................17
Wiring Diagram..........................................................................18
Page 2 Sunbelt EZ - 8 Sander Operator's Manual
OPERATOR SAFETY INSTRUCTIONS
WARNING AVERTISSEMENT ADVERTENCIA
DANGER means: Severe bodily injury or death can occur to you or other personnel if the
DANGER statements found on this machine or in this Owner's Manual are
ignored or are not adhered to. Read and observe all DANGER statements
found in this Owner's Manual and on your machine.
WARNING means: Injury can occur to you or to other personnel if the WARNING statements
found on your machine or in this Owner's Manual are ignored or are not
adhered to. Read and observe all WARNING statements found in this Owner's
Manual and on your machine.
CAUTION means: Damage can occur to the machine or to other property if the CAUTION state-
ments found on your machine or in this Owner's Manual are ignored or are not
adhered to. Read and observe all CAUTION statements found in this Owner's
Manual and on your machine.
DANGER: Failure to read the Owner's Manual prior to operating or attempting any service or mainte-
nance procedure to your Clarke American Sanders machine could result in injury to you or
to other personnel; damage to the machine or to other property could occur as well. You
must have training in the operation of this machine before using it. If your operator(s)
cannot read English, have this manual explained fully before attempting to operate
this machine.
DANGER: Sanding/finishing wood floors can create an environment that can be a fire hazard or
explosive. Do not operate this machine around solvents, thinners, alcohol, fuel, floor
finishes, wood dust or any other flammable materials. Vapors and wood dust generated by
sanding or finishing wood flooring can create an explosive environment. Cigarette lighters,
pilot lights, electrical sparks and all other sources of ignition should be extinguished or
avoided. Keep work area well ventilated.
DANGER: Hitting a nail while sanding can cause sparks and create an explosion or fire. Always use
a hammer and punch to countersink all nails before sanding floors.
DANGER: Spontaneous combustion or an explosion can occur when working with sanding dust. The
sanding dust can ignite and cause injury or damage. Never over fill dust bag or leave
machine unattended with dust in bag. Empty the sanding dust in a metal container clear of
any combustible materials. Do not empty into fire.
DANGER: Operating a machine that is not completely or fully assembled could result in injury or
property damage. Do not operate this machine until it is completely assembled. Keep
all fasteners tight. Keep adjustments according to machine specifications.
DANGER: Moving parts of this machine can cause severe injury. Keep hands, feet and loose clothing
away from all moving parts of the sander. Disconnect machine from power source before
accessing the sanding drum, drive belts, or fan chamber. Do not operate unless drum cover,
belt guard, and dust pipe are in place. Never leave machine unattended while motor is running
or connected to power source.
Sunbelt EZ - 8 Sander Operator's Manual Page 3
DANGER: Electrocution or injury could occur if the power cord encounters the sanding drum. Keep the
cord clear of the sanding drum. Always lift the power cord over the machine.
DANGER: Electrocution or severe injury could occur if machine is connected to an electrical system that
is not properly grounded. Do not remove or disable grounding pin.
DANGER: Electrocution could occur if maintenance or repairs are performed on a machine that has not
been disconnected from the power source. Always unplug machine before servicing.
WARNING: Sanding dust can be airborne and can be breathed in while operating a sander. Always wear
a dust mask while operating sanding equipment.
WARNING: Injury to the eyes and/or body can occur if protective clothing and/or equipment is not worn
while sanding. Always wear safety goggles, protective clothing, and a dust mask while
performing any sanding operation.
CAUTION: Maintenance and repairs performed by unauthorized personnel could result in damage or
injury. Maintenance and repairs performed by unauthorized personnel will void your warranty.
Servicing of this unit must always be referred to an authorized Clarke American Sanders
distributor.
CAUTION: Use of this machine to move other objects or to climb on could result in injury or damage. Do
not use this machine as a step or furniture. Do not ride on this machine.
CAUTION: The machine is heavy. Use the proper lifting technique when transporting the machine. Get
help to lift the machine.
CAUTION: Serious damage to the floor can occur if the machine is left running in one spot while the
sanding drum is in contact with the floor. To avoid damage to the floor, feather cut in at a normal
sanding rate. Do not dwell while lowering or raising the sanding drum. Always sand at a
constant rate.
Page 4 Sunbelt EZ - 8 Sander Operator's Manual

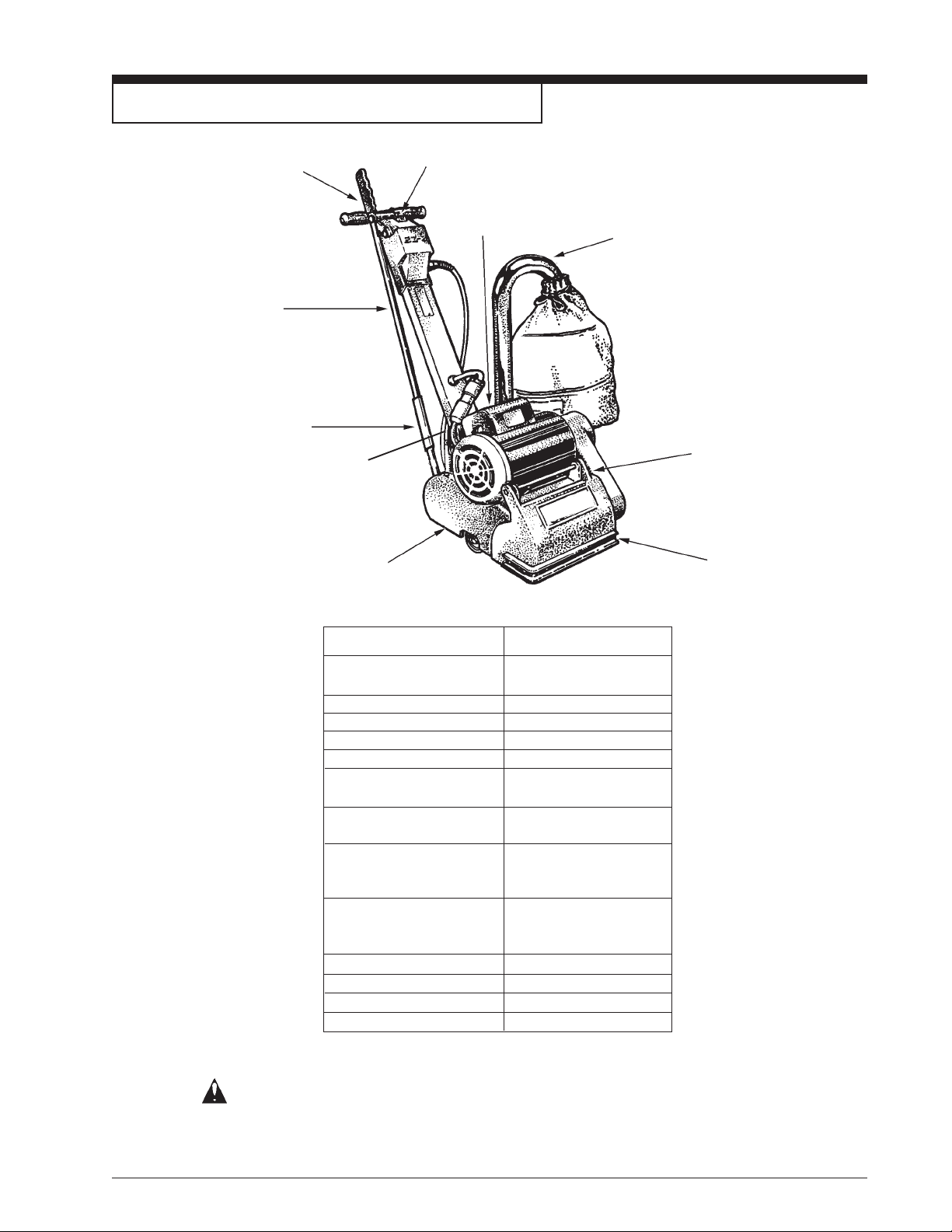

Introduction & Machine Specifications
Operating
Control Lever
Control Link
Locking Collar
Handle Latch
Level Adjustment
Control Switch
Transport Handle
Dust Pipe
Transport Handle
Drum Cover
Model 07058S
Abrasive Size 8 in x 19 in
sleeve
Abrasive Rate 2830 ft/min
Drum Rate 1800 RPM
Dust Control Rate 76 CFM
Drum Pressure 25 lbs
Leveling Controls Externally
Adjustable
Operating Controls Lever
Operated
Motor 1½ HPTEFC
Thermally
Protected
Power Cable 40' 12 Gauge
Abrasive
Resistant
Voltage/Frequency 115 / 60
Amperage 12
Dimensions (in)* 21½x16x35½"
Weight (lbs)* 125
*Shipping Value
CAUTION: Your equipment may be inappropriate on some installations. Always consult with
the flooring manufacturer on the proper installation, preparation, and finishing of
their product. Determine suitability of your equipment in preparing the product.
Sunbelt EZ - 8 Sander Operator's Manual Page 5
How to Transport the Machine
Transporting the Machine With Limited
Cargo Area:
To transport the machine, follow this procedure:
1. Lower sanding drum with control lever. See figure
#1.
2. Slide collar up beyond overlap of control link;
remove pin from notch. See figure #2.
3. Twist and remove handle pigtail from motor cord.
See figure #3.
4. Release handle latch and remove handle from
chassis. See figure # 2.
5. Remove dust pipe from chassis.
6. Lift chassis with transport handles and place in
cargo area. See figure # 4 A and B.
WARNING: Machine is heavy (95 lbs.). To
avoid injury or damage grasp
transport handles firmly; use
proper lifting technique.
7. Secure chassis to prevent movement in cargo area.
Place handle and dust pipe in cargo area.
Figure # 1
Figure # 2
A
B
Figure # 4
Page 6 Sunbelt EZ - 8 Sander Operator's Manual
Figure # 3
Machine Set-up
To set up the machine follow this procedure:
1. Familiarize yourself with the machine. Read all
danger, warning, and caution statements as well
as the Operator's Manual. If operator is unable
to read, have the manual explained
before operating.
2. Install handle and fasten latch. Insert control link
into notch and slide collar to pin. See figure # 5.
3. Raise sanding drum with control lever. See
figure # 6.
4. Install dust tube. Tie dust bag over bell opening
of dust tube.
5. Connect the handle pigtail to the motor cord.
Align ground pin, insert and twist.
To install abrasive on sanding drum, slide abrasive
over drum, center abrasive, and close drum cover.
Figure # 5
Figure # 6
Figure # 7
Sunbelt EZ - 8 Sander Operator's Manual Page 7
How to Operate the Machine
To operate the machine follow this procedure:
1. Set any exposed nails with a hammer and punch
to avoid encounter with sanding drum. Connect
the machine to an appropriate grounded and
fused circuit (power supply). Press the selector
switch to the start (S) position. Once started,
allow switch to return to run (R) position.
CAUTION: To prevent damage to the surface,
make sure the machine is always
moving when the sanding drum is
in contact with the floor.
2. Work right to left. For each forward pass, move
the machine 4" over the pass you have just
finished. Retrace your reverse path without
overlapping. See figure # 8.
3. Feather-cut in by easing the sanding drum down
onto the surface with the control lever while the
sander is in motion.
1
3
2
4
Figure 8
4. When sanding drum is fully engaged with the
surface, release control lever and adjust your
pace for adequate stock removal. Keep sander
in motion while the sanding drum is engaged with
the surface or dwell marks will occur.
5. Move the machine in the direction of the grain in
the wood whenever possible. Sand the surface
at a constant pace.
6. Gradually feather-cut out at the termination point
(the end of your pass) by easing the sanding
drum up with the control lever. Stagger the
termination points for a better blend when
edging. See figure # 8.
7. When replacing abrasive, emptying contents of
dust bag, or when sanding operation is com pleted, press selector switch to off (O) position.
Disconnect the machine from the power supply.
8. Empty dust bag whenever it is 1/3 full. Never
leave a dust bag unattended with sanding dust in
it. Sanding dust can spontaneously ignite and
cause a fire or explosion. Empty dust into a
metal container clear of any combustible material.
Page 8 Sunbelt EZ - 8 Sander Operator's Manual
Sanding Cuts and Sandpaper
Initial Cut
The purpose of the initial cut is to remove old finish and gross imperfections on the floor surface. A coarse
abrasive should be used. If the surface is severely damaged by deep scratches, pre-existing dwell marks,
uneven planks, etc., it may be necessary to sand across or diagonally to the grain to restore evenness to the
surface. If these conditions are not present, the initial cut should be done in the direction of the grain.
If glazing, loading, or burning takes place immediately into an initial cut, select a coarser abrasive. If this
should occur during an initial cut, the abrasive has dulled and must be replaced.
Final Cuts
The purpose of a finishing cut is to remove the scratches produced during the initial cut. Use a fine (60 - 80
grit) grain abrasive.
If the surface remains rough after a finishing cut, it may be necessary to use an even finer grain of abrasive (80
- 100 grit). Care should be taken in selecting the grit size of the abrasive. A very fine grain will close the
pores on a wood floor making admission of a stain difficult.
If glazing or burning should occur immediately into a finishing cut, increase pace. If it should occur during a
finishing cut, the abrasive has dulled and must be replaced.
Grain Use
24 grit For removing gross imperfections and restore
evenness to old flooring. To remove build-up of
paints and varnishes.
40 grit For the first sanding of new flooring (maple, oak).
For removing minor imperfections and finishes
from old flooring.
60 grit For clean-up from initial cut 36 grit.
80 grit For final sanding of certain hardwoods. For
clean-up of initial cuts (50 grit).
100 grit For final sanding of certain hardwoods and
conifers where a smooth surface is desired.
8x 19 Sleeve 8 x 18
Cloth Back Paper Back
Part No./Cnt. Part No./Cnt.
945930/10 945416/10
945933/10 945418/10
945935/10 945420/10
945936/10 945421/10
945937/10 945422/10
55
/64 Sleeve
Sunbelt EZ - 8 Sander Operator's Manual Page 9
Sander Adjustment Procedures
DANGER: Electrocution could occur if main-
tenance and repairs are performed
on a unit that is not properly disconnected from the power source.
Disconnect the power supply before attempting any maintenance
or service.
DANGER: Moving parts of this machine can
cause serious injury and/or damage. Keep hands, feet and loose
clothing away from all moving parts
of the sander.
The following information provides details on how to
adjust different features/controls of the sander.
Dust Shoe
Figure # 9
To adjust the dust shoe follow this procedure:
1. Disconnect machine from power supply.
2. Loosen the four screws fastening the dust shoe to
the chassis.
3. Adjust the dust shoe towards the drum to improve
recovery of fine particles.
4. Adjust the dust shoe away from the drum to
improve recovery of coarse particles.
5. Align the dust shoe with the drum and tighten
screws. See figure # 9.
Leveling
To adjust the machine leveling follow this procedure:
1. Locate the leveling screw. See figure # 10.
2. Tighten the screw (compress the leveling spring)
to sand heavier on drive belt side of sanding drum.
Figure # 10
3. Loosen the leveling screw (relax the leveling
spring) to sand heavier on the side opposite the
drive belts.
Page 10 Sunbelt EZ - 8 Sander Operator's Manual
Routine Maintenance
The following items need to be periodically inspected
and maintained to keep your sander in good working
condition.
Sanding Chamber
Periodically blow out the sanding chamber to prevent
large accumulations of debris which could interfere
with the performance of the dust recovery system.
Wheels
Periodically remove the debris from the truck and
caster wheels. Debris can cause waves on a sanded
surface.
Dust Bag
Remove the dust bag from the machine and shake it
thoroughly to remove the sanding dust from the dust
bag. Turn the dust bag inside out and machine wash
in cold water to prevent pore blockage and loss of
dust recovery.
Drive Belt
Periodically check the drive belts for broken cogs or
frayed edges. Frayed edges may indicate poor
tracking. Realign effected belt.
Bearings
Periodically check the bearings for wear or damage
according to the following schedule.
Arbor shaft Relubricate every 150
hrs. w/.10 oz. of a NLGI
grade 2, -300F to 2500F,
58-75 SUS at 2100 F,
grease lubricant.
Motor shaft after 1st 5000 hrs.
Fan shaft After first 1500 hrs.
Sunbelt EZ - 8 Sander Operator's Manual Page 11
Troubleshooting
Problem Cause Action
Drive belts jump teeth or squeak. Damaged belt. Replace belt.
Insufficient tension. Tension drive belt.
Poor belt tracking. Align Pulley.
Squealing, growling or grinding Damage and/or worn bearing. Remove drive belts, rotate arbor
noise coming from machine. motor and fan shafts to locate
Dust pick-up is poor. Dust bag is over
Dust bag is dirty. Shake debris from bag and wash.
Dust shoe is improperly adjusted. Readjust dust shoe.
Dust chute is obstructed. Remove dust shoe and clear throat.
1
/3 full. Empty contents of bag.
dragging or rough bearing.
Contact an authorized Clarke
American Sanders dealer.
Motor will not start. Defective motor starter. Contact an authorized Clarke
Defective start capacitor. Contact an authorized Clarke
Defective start switch. Contact an authorized Clarke
Poor connections. Check connections.
Motor overload tripped. Remove power. Depress reset
Defective motor. Contact an authorized Clarke
No power.
Motor runs sluggishly. Low voltage from excessive length, Locate power source nearer to work
undersized extension cord, or poor site. Check connections.
connection.
Defective run capacitor. Contact an authorized Clarke
Defective motor. Contact an authorized Clarke
Motor overload trips/repeatedly Low voltage from excessive length, Remove power, allow motor to cool.
trips undersized extension cord, or poor Depress reset button on motor.
connection. Locate power source nearer to
Excessive load. Contact an authorized Clarke
Defective start switch. Contact an authorized Clarke
Defective motor starter. Contact an authorized Clarke
Defective motor. Contact an authorized Clarke
Defective capacitor. Contact an authorized Clarke
American Sanders dealer.
American Sanders dealer.
American Sanders dealer.
button on motor
American Sanders dealer.
Check power supply and connections.
American Sanders dealer.
American Sanders dealer.
worksite. Check connections.
Contact an authorized Clarke
American Sanders dealer.
American Sanders dealer
American Sanders dealer.
American Sanders dealer.
American Sanders dealer.
American Sanders dealer.
Uneven cut. Leveling out of adjustment. Readjust leveling.
Burning or glazing. Dull abrasive. Replace abrasive.
Waves on sanded surface. Debris on wheels. Remove and clean wheels.
Page 12 Sunbelt EZ - 8 Sander Operator's Manual
Too fine of an abrasive. Use a coarser abrasive.
Flat spot on tire(s). Replace tires.
EZ-8EZ-8
EZ-8
EZ-8EZ-8
Sander
Section II
Parts and Service Manual
(70214A)
Sunbelt EZ - 8 Sander Operator's Manual Page 13
EZ-8 Sander
Assembly Drawing #1 10/01
57
30
23
22
37
25
39
40
36
38
41
35
42
45
54
46
43
44
47
56
50
48
51
58
49
55
19
52
12
10
53
1
2
4
5
6
8
7
9
11
12
16
15
18
11
14
13
17
34
27
32
33
32
31
28
4
29
26
20
21
23
24
25
7
Page 14 Sunbelt EZ - 8 Sander Operator's Manual
EZ-8 Sander
Assembly Drawing #1 11/01
Ref. # Part No. Description Qty
1 419 49A Cord, Motor 1
2 912169 Plug L5-15P 1
4 962831 Screw Set 10-32 x 5/16 3
5 170686 Nut Conduit ½ 1
6 61 089A Pulley, Fan/Drum 1
7 80027A Screw 5/16 -18x1 Sq. Neck 6
8 50 917A Belt, Fan 1
9 50 91 6A Belt, Drum 1
10 22122C Cover, Fan 1
11 902567 Bearing 2
12 915561 Key, Hardened 2
13 920196 Nut ½-13 Jam 1
14 66 1 59 A Pulley, Fan 1
15 167312 Ring, Retaining 1
16 962798 Screw 10-24 x 1/2 3
17 67 457A Shaft, Fan 1
18 980681 Washer, Bowed 1
19 877307 Ring, Retaining 1
20 65005A Impeller 1
21 60 1 66 A Axle, Truck 1
22 980648 Spacer 3
23 5994 5A Wheel 2
24 86 1 1 3A Screw ½-13 x 2 1
25 920365 Nut 1/2 - 13 Nylock 2
26 80501A Key 3/16 x 1¼ 1
27 81 211A Nut, Flanged 5/16 -18 2
28 962689 Screw Set ¼-28 x ¼ 4
Ref. # Part No. Description Qty
29 66161A Pulley, Drum 1
30 86114A Screw ½-13 x 2½ 1
31 915082 Key 3/16 x 3/16 x ¾ 1
32 51178A Bearing, Arbor 2
33 81211A Nut, Flanged 5/16 -18 4
34 67459A Shaft, Arbor Clamp 1
35 60434A Arm, Truck Level 1
36 85835A Screw ¼-20x 2½ 1
37 920196 Nut, ½-13 Jam 1
38 980645 Washer 3/8 SAE 2
39 60435A Arm, Truck, Lift 1
40 920110 Nut 5/16 -18 ESNA 1
41 65707A Link Adjust 1
42 58698A Spring, Truck Leveling 1
43 58699A Spring, Drum, Pressure 1
44 80026A Bolt, Shoulder 3/8 x ½ 1
45 920284 Nut ¼ ESNA 1
46 68015A Stud 2
47 69031A Spacer, Shim 1
48 82504A Pin, Clevis 5/16 x ¾ 1
49 25903C Frame, Main 1
50 81208A Nut Flanged 5/16-24 2
51 44642A Motor, 1.5Hp 115V/60Hz 1
52 170637 Relief, Strain 1
53 915580 Key 3/16 x 1½ 1
54 57423A Ring, Retaining 1
55 77234A Label, Lifting Warning 1
56 40545A Fan 1
57 52 465A Cover, Fan 1
58 51 095A Capacitor Cover 1
Motor Parts Not Illustrated
Motor 44642A
Part No. Description Qty
41306A Capacitor Run 1
413 07A Capacitor Start 1
474 09 A Starter Switch 1
47391A Thermal Switch 1
Sunbelt EZ - 8 Sander Operator's Manual Page 15
26
25
27
28
26
29
EZ-8 Sander
Assembly Drawing #2 10/01
31
32
30
63
41
40
39
38
33
37
36
34
67
35
1
2
24
23
22
59
64
21
65
20
19
42
57
62
66
43
44
60
45
56
47
46
3
50
49
48
61
51
52
55
53
54
4
10
18
7
17
5
11
16
6
15
14
13
12
8
9
58
Page 16 Sunbelt EZ - 8 Sander Operator's Manual
EZ-8 Sander
Assembly Parts List #2 10/01
Ref. # Part No. Description Qty
1 69106C Tube, Handle 1
2 69107A Tube, Dust 1
3 509 5 1A Bag, Dust 1
4 68285A Support Tube 1
5 23807C Guard, Belt 1
6 962988 Screw ¼-20 x 1¼ 2
7 521 25 A Caster Asm. Complete 1
8 676 12 A Shoe, Dust 1
9 962826 Screw 10-24 x 3/8 4
10 67 468A Shaft, Caster 1
11 80 0 1 2A Bolt, Shoulder 5/16 x 1½ 1
12 65 3 10A Key, Washer 1
13 920365 Nut 1/2 - 13 Nylock 3
14 59 960A Wheel Caster 1
15 81307A Nut, 7/16 -14 Jam 1
16 920284 Nut, ¼-20 ESNA 1
17 29 405 A Yoke, Caster 1
18 51194A Bearing, Caster 2
19 962170 Screw Set 10-24 x ¼ 1
20 669 48A Retainer, Bumper 1
21 31 223A Bumper, Front 1
22 22123C Cover, Front 1
23 64469A Handle, Front 1
24 61659A Collar 1
25 65 706A Link, Control 1
26 960952 Bolt, Shoulder 3/8 x 3/8 2
27 34609A Grip, Lever 1
28 65618A Lever, control 1
29 980022 Washer, Wave 1
30 920110 Nut 5/16 -18 ESNA 1
31 980645 Washer 3/8 SAE 2
32 63 928A Guard, Switch 1
33 346 10A Grip, Handle 2
Ref. # Part No. Description Qty
34 930093 Rivet 1/8 2
35 97100A Trim, Vinyl, Black Ref
36 7 40 52 A Plate Safety 1
37 4 218 3A Cord Set, Power 115V 1
38 911248 Plug 5-15P 1
39 4180 7 A Contactor 1
40 4 7387 A Switch, Control 1
41 24525C Housing Control 1
42 8 12 1 0A Nut, Fixture 3/8 PT 1
43 980675 Washer 1
44 962677 Screw 10-24 x 3/4 6
45 962826 Screw 10-24 x 3/8 1
46 962109 Screw 10-24 x 5/8 2
47 337504 Relief, Strain 1
48 911461 Adapter L5-15R 1
49 41948A Cord, Interconnect 1
50 51523 A Relief, Strain 1
51 962094 Screw ¼-20 x 3/8 2
52 170892 Washer, ¼ Lock 2
53 920196 Nut, ½-13 Jam 1
54 980648 Washer ½ 1
55 55 7 11A Latch 1
56 920296 Nut #10 ESNA 2
57 6 90 98 A Wear, Strip 1
58 22603 A Drum Expansion 1
59 70215A Label 1
60 8 1 2 1 7 A Nut, ¼-20 x .218H Nylk. 2
61 60906A Block, Wear 2
62 962162 Screw, ¼-20 x ½ Ft. 2
63 77 299A Label, Caution 1
64 8 5 38 1 A Screw, 10-24 x 3/4
PN-SB
2
65 8 5 51 7 A Screw, 10-24 x ½ PN-SB 8
66 980603
Washer, #10 Lock Ext. Th.
1
67 70175A Tag, Warning 1
Accessories Available:
70401A- Package of two disposable paper dust collection bags
837304- Bag retainer for 70401A
Sunbelt EZ - 8 Sander Operator's Manual Page 17
EZ-8 Sander
Wiring Diagram 8/00
Page 18 Sunbelt EZ - 8 Sander Operator's Manual
Sunbelt EZ - 8 Sander Operator's Manual Page 19
Clarke
This Clarke American Sanders Industrial/Commercial Product is warranted to be free from defects in
materials and workmanship under normal use and service for a period of one year from the date of purchase,
when operated and maintained in accordance with Clarke American Sanders' Maintenance and Operations
Instructions.
This warranty is extended only to the original purchaser for use of the product. It does not cover normal
wear parts such as electrical cable or V-belts.
If difficulty develops with the product, you should:
(a). Contact the nearest authorized Clarke American Sanders repair location or contact Nilfisk-Advance Inc.,
for the nearest authorized Clarke American Sanders repair location. Only these locations are authorized to
make repairs to the product under this warranty.
(b). Return the product to the nearest Clarke American Sanders repair location. Transportation charges to
and from the repair location must be prepaid by the purchaser .
(c). Clarke American Sanders will repair the product and or replace any defective parts without charge within
a reasonable time after receipt of the product.
Clarke American Sanders' liability under this warranty is limited to repair of the product and/or replacement
of parts and is given to purchaser in lieu of all other remedies, including INCIDENTAL AND CONSEQUENTIAL
DAMAGES.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE SPECIFIED HEREIN. THERE ARE NO
WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION OF THE FACE HEREOF. NO WARRANTIES,
INCLUDING BUT NOT LIMITED TO WARRANTY OF MECHANTABILITY, SHALL BE IMPLIED. A warranty
registration card is provided with your Clarke American Sanders product. Return the card to assist Clarke
American Sanders in providing the performance you expect from your new floor machine.
®
American Sanders U. S. Warranty
Clarke American Sanders reserves the right to make
changes or improvements to its machine without notice.
Always use genuine Clarke American Sanders Parts for repair.
Division of
Loading...
