Sunbeam VS5500, VAC550 Service Manual

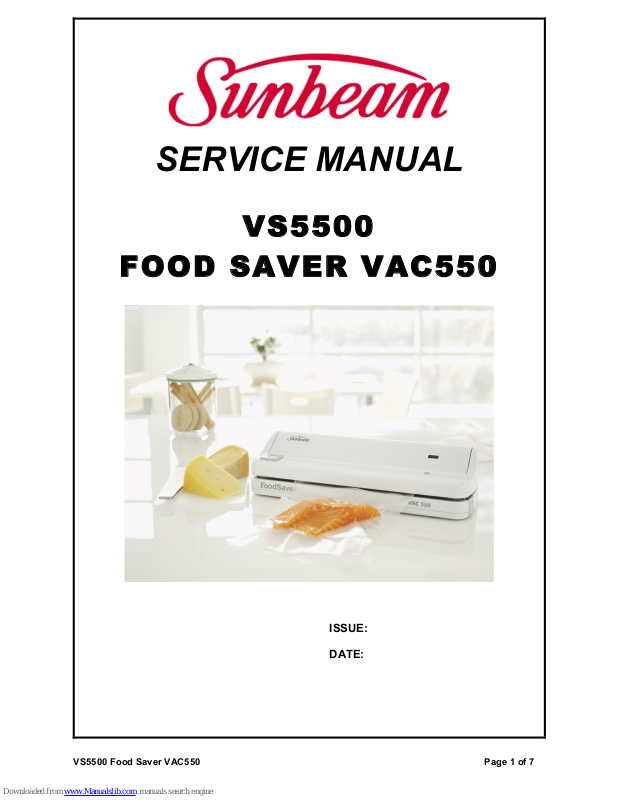

VS5500 Food Saver VAC550 Page 1 of 7
SERVICE MANUAL
VS5500
FOOD SAVER VAC550
ISSUE:
DATE:
VS5500 Food Saver VAC550 Page 2 of 7
SPARE PARTS LIST
Note: Not all parts are available as spare parts. Please check price list.
ITEM
DRW. NO.
PART NAME
Q'TY
SUNBEAM PART NO.
PLASTIC PARTS
1
FS-C-01E
LID
1
2
FS-C-02R
HOUSING
1
3
FS-C-03J
BASE
1
4
FS-C-04C
BUTTON
1
5
FS-U-09A
ELBOW JUNCTION
1
6
VAC550-04
UPPER TROUGH ASS'Y
1
6a
VAC550-03
UPPER TROUGH
1
7
FS-C-07A
PLUNGER,BUTTON
1
8
FS-C-08B
BUCKLE
2
9
FS-C-09K
CLIP, LEFT
1
10
FS-C-10J
CLIP, RIGHT
1
11
CDC-04A
LENS
1
12
FS-U-13B
PISTON ROD，PUMP
1
13
FS-U-14
PISTON COVER，PUMP
1
14
VAC420-01E
MOTOR PUMP ADAPTOR
1
15
VAC420-02B
PUMP COVER
1
16
FS-U-19C
PORT，AIR IN-LET
1
17
FS-C-05A
SLEEVE，BUTTON
1
18
CDC-33D
POWER CORD
RETAINER
1
RUBBER PARTS
20
FS-U-20A
SW. CAP
1
21
FS-C-12A
RU AIR STOPPER
1
23
CDC-03
CUSHION
11
24
DDC-31A
LOWER GASKET
1
25
FS-U-23C
SEALER PROFILE
1
26
FS-U-25
VALVE PLATE,PUMP
1
27
FS-U-26
FOOT
4
28
FS-U-27
PISTON CAP
1
29
PVC TUBE 200
1
METAL WARES
32
FS-U-28B
GUIDE
PLATE,HEAT.WIRE
2
33
PRO-06B
SPRING,HEATING
ELEMENT
2
34
FS-U-30
COMPRESS SPRING,AIR INLET
1
VS5500 Food Saver VAC550 Page 3 of 7
35
FS-C-14
SPRING, AIR STOPPER
1
36
FS-C-13
SPRING, BUTTON
1
37
FS-U-31
STEEL BALL(AIR IN-LET)
1
38
DDC-004C
CRANK PIECE
1
39
FS-U-33C
CRANK PIN
1
40
FS-C-028
SPRING, CLIP
2
ELECTRIC PARTS
43
PCBA
1
43a
P1 VACUUM SENSOR
1
44
MOTOR
1
45
CAPACITOR
2
46
TRANSFORMER
1
46a
FUSE
1
47
METALIZED CAPACITOR
1
48
VAC550-06
POWER CORD
1
49
MICRO SWITCH
1
50
HEATING ELEMENT
1
51
HI TEMP TAPE
1
52
CLOSED END CHW-C4
2
53
NYLON TIE
1
54
TERMINAL RING
2
55
TERMINAL, REC.187
8
56
TERMINAL, REC.187
2
57
INSULATING SLEEVE
4
58
CDC-A02A
#20 WIRE, RED L=320
1
59
CDC-A03A
#20 WIRE, BLK. L=320
1
60
CDC-A04A
#20 WIRE, WHT L=250
1
61
CDC-A05
#18 WIRE, YELLOW L=280
1
62
MICA STRIP
2
FASTINING PARTS
65
SCREW 3*6PM
2
66
SCREW 3*10PA
3
67
SCREW 3*10PA
5
68
SCREW 3.5*10PT
7
69
SCREW 3.5*14PT
4
70
SAFETY SCREW LIT 3.5*12H
1
MISC.
73
OIL FELT,PISTON ROD
1
74
SPONGE
1
75
TAPE,DOUBLE SIDE
2
76
SERIAL NO.LABEL
1
