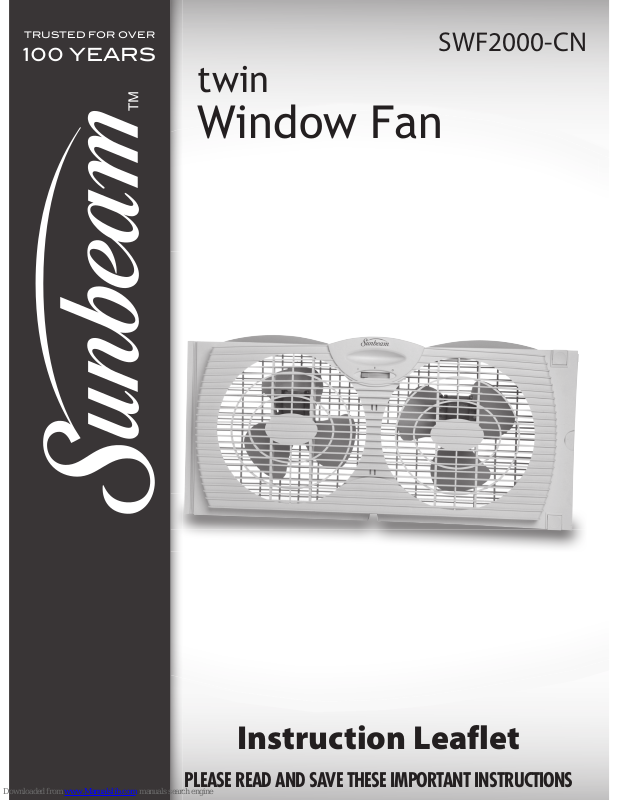

TRUSTED FOR OVER
100 YEARS
twin
Window Fan
SWF2000-CN
Instruction Leaflet
PLEASE READ AND SAVE THESE IMPORTANT INSTRUCTIONS
PLEASE READ AND SAVE THESE
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, basic safety precautions
should always be followed to reduce the risk of fire,
electric shock, and injury to persons, including the
following:
1. Read all instructions before using this appliance.
2. Use fan only for purposes described in the instruction
manual.
3. To protect against electrical shock do not immerse
unit, plug or cord in water or spray with liquids. Plug
the appliance directly into a 120V AC electrical outlet.
4. WARNING: To reduce the risk of fire or electrical
shock, DO NOT use this fan with any solid-state speed
control device.
5. Close supervision is necessary when any appliance is
used by or near children.
6. Unplug from outlet when not in use, when moving
fan from one location to another, before putting on
or taking off parts and before cleaning.
7. Avoid contact with moving parts.
8. DO NOT operate in the presence of explosives and/
or flammable fumes.
9. To avoid fire hazard, NEVER place the cord under
rugs or any parts near an open flame, cooking or
other heating appliance.
10. DO NOT operate any appliance with a damaged cord
or plug after the appliance malfunctions, or has been
dropped/damaged in any manner.
11. The use of attachments not recommended or sold by
the appliance manufacturer may cause hazards.
12. DO NOT use outdoors.
13. DO NOT let the cord hang over the edge of a table,
counter or come in contact with hot surfaces or leave
exposed to high traffic areas.
14. To disconnect, grip plug and pull from wall outlet.
Never yank on cord.
15. Always use on a dry, level surface.
16. DO NOT operate fan until fully assembled with all
parts properly in place.
17. This product is intended for household use only and
not for commercial or industrial applications.
PLEASE READ AND SAVE
THESE IMPORTANT
SAFETY INSTRUCTIONS
THIS APPLIANCE HAS A POLARIZED PLUG (one blade is wider than the
other). To reduce the risk of electric shock, this plug is intended to fit in
a polarized outlet only one way. If the plug does not fit fully in the
outlet, reverse the plug. If it still does not fit, contact a qualified
electrician to install the proper outlet.
DO NOT ATTEMPT TO MODIFY THIS PLUG OR DEFEAT THIS
SAFETY FEATURE IN ANY WAY.
FEATURES - OPERATIONS
PRE-INSTALLATION INSTRUCTIONS
NOTE: MAKE SURE YOU REMOVE ALL CONTENTS FROM
THE PACKAGE. PLEASE CHECK PACKAGING MATERIALS FOR
PARTS THAT COULD BE REQUIRED TO OPERATE YOUR FAN.
• The window fan comes fully assembled and is ready
for immediate installation.
• Before installation, familiarize yourself with the
built-in 7 inch (17cm) extender on the right side of
the fan and the additional 3.5 inch (9cm) extender
which attaches to the left side of the fan housing (see
Figure 1). The extra extender is packed in styrofoam
at end of the box.
This window fan has been designed to fit double-hung
windows with minimum openings of 22 inches (55cm)
wide and 10 inches (25cm) high.
WINDOW FAN INSTALLATION
NOTE: WE RECOMMEND KEEPING YOUR WINDOW
SCREEN IN PLACE.
1. Align the Window Fan horizontally in the window with
the controls facing you and the Built-In Extender
Panel to the right.
2. With the window open take an accurate measurement
of the opening where the unit will be placed.
3. Match your window measurement with the
INSTALLATION GUIDE.
4. Once you have attached the extender panel(s) (if
needed), set the fan in the window. You will complete
installation with built-in extender. Pull out both clips
on right side of the fan then pull out the built-in
extender. To lock extender into place, push the clips
down.
5. Carefully close the window onto the top of the fan so
that the bottom edge of the window rests behind top
line of fan housing. This helps keep the fan in place.
For slider windows (will fit windows 10
inches/25cm and 36 inches/91cm high)
In a slider window, the control must face inward, towards
the window. The 7 inch (17cm) built-in extender will be
positioned on top. Prior to installing unit in window,
measure the height and adjust the upper extender for a
snug fit.
NOTE: In some slider windows you may need to remove
the screen.
INSTALLATION GUIDE
For 22 inches (55cm) to 29 inches (73cm) :
Use up to 7 inch (17cm) of right side, pull out extender
panel.
For 29 inches (73cm) to 33.25 inches (83cm) :
Use one 3.5 inch (9cm) extender panel on the left side.
Adjust the pull out extender on the right side for a tight
fit (from 0.5 inch (1cm) to 7 inch (17cm) ).
Larger than 33.25 inches (83cm) :
Additional extender panels will be required (See Window
Fan Accessory Section).
FIGURE 1
A. 3.5 inch (9cm) Slide
on Extender
B. Top Window Support
C. 2 Speed Motor Control
D. Built-in Adjustable
Extender Panel (pulls
out 7 inch/17cm )
A
D
C
B
FIGURE 2
22 inches (55cm)
UNIT’S LENGTH
FRONT VIEW
RIGHT
Built-in extender, pulls out
up to 7 inch (17cm)
LEFT
3.5 inch (9cm)
extender panel
OPERATING INSTRUCTIONS
• Make sure rotary switch is in the OFF (O) position.
• Plug into 120V AC electric outlet.
• To start the unit, turn the rotary switch to desired
speed (High = II , Low = I).
• To use in EXHAUST mode, manually turn the unit
around in the window. (Controls can be operated
from both sides.)
WARNING: BE SURE FAN IS SECURELY INSTALLED IN
YOUR WINDOW AT ALL TIMES. DO NOT LEAN OR PUSH ON
FAN WHILE IT IS IN THE WINDOW.
CLEANING/MAINTENANCE
INSTRUCTIONS
Follow these instructions to correctly and safely care for
your window fan. Please remember:
• Always unplug the fan before cleaning or
disassembling.
• Do not allow water to drip on or enter into the fan
motor housing.
• Be sure to use a soft cloth moistened with mild soap
solution.
• Do not use any of the following as a cleaner:
gasoline, thinner, benzene.
Fan Blade and Front Grill Cleaning
1. Always unplug the fan before cleaning.
2. Using a Phillips head screwdriver, remove the screws
located around the perimeter of the rear grill.
Carefully separate the front and the rear grills from
the end opposite the built in extender. Do not
completely detach the grills as this may damage the
extender clips. Separate only enough to gain access
to the blades with one hand.
3. Clean blades and grills with a soft, moist cloth
(see above).
4. Securely fasten the grills together.
FAN STORAGE
For all window fans, and fans that come already
assembled.
• It is important to keep it in a safe, dry location.
• We recommend using the original (or appropriately
sized) box.
• Please remember to protect the fan from dust or
moisture.
WINDOW FAN ACCESSORIES
FEATURES - OPERATIONS
CLEANING/MAINTENANCE
Window Fan
Extender Panel
(2310010000417)
To order please go to
www.sunbeam.ca or call
1-888-264-9669
If you have any questions regarding your product or
would like to learn more about other SunbeamTM
products, please contact our Consumer Service
Department at 1-888-264-9669 or visit our website at
www.sunbeam.ca.
1 YEAR LIMITED WARRANTY
Sunbeam Products, Inc. doing business as Jarden Consumer Solutions or if in Canada, Sunbeam Corporation (Canada)
Limited doing business as Jarden Consumer Solutions (collectively “JCS”) warrants that for a period of one year from
the date of purchase, this product will be free from defects in material and workmanship. JCS, at its option, will repair
or replace this product or any component of the product found to be defective during the warranty period.
Replacement will be made with a new or remanufactured product or component. If the product is no longer available,
replacement may be made with a similar product of equal or greater value. This is your exclusive warranty. Do NOT
attempt to repair or adjust any electrical or mechanical functions on this product. Doing so will void this warranty.
This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable.
Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. JCS dealers, service
centers, or retail stores selling JCS products do not have the right to alter, modify or any way change the terms and
conditions of this warranty.
This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or
misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly,
repair or alteration by anyone other than JCS or an authorized JCS service center. Further, the warranty does not
cover: Acts of God, such as fire, flood, hurricanes and tornadoes.
What are the limits on JCS’s Liability?
JCS shall not be liable for any incidental or consequential damages caused by the breach of any express, implied or
statutory warranty or condition.
Except to the extent prohibited by applicable law, any implied warranty or condition of merchantability or fitness for
a particular purpose is limited in duration to the duration of the above warranty.
JCS disclaims all other warranties, conditions or representations, express, implied, statutory or otherwise.
JCS shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, or inability to use
the product including incidental, special, consequential or similar damages or loss of profits, or for any breach of
contract, fundamental or otherwise, or for any claim brought against purchaser by any other party.
Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages
or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights that vary from province to province,
state to state or jurisdiction to jurisdiction.
How to Obtain Warranty Service
In the U.S.A.
If you have any question regarding this warranty or would like to obtain warranty service, please call
1-888-264-9669 and a convenient service center address will be provided to you.
In Canada
If you have any question regarding this warranty or would like to obtain warranty service, please call
1-888-264-9669 and a convenient service center address will be provided to you.
WARRANTY INFORMATIONWARRANTY INFORMATION
131039/9100010011650 SWF2000CN09EFM2 Printed In China
GCDS-SUN15674-JC
In the U.S.A., this warranty is offered by Sunbeam Products, Inc. doing business as Jarden Consumer Solutions located
in Boca Raton, Florida 33431. In Canada, this warranty is offered by Sunbeam Corporation (Canada) Limited doing
business as Jarden Consumer Solutions, located at 20 B Hereford Street, Brampton, Ontario L6Y 0M1. If you have any
other problem or claim in connection with this product, please write our Consumer Service Department. PLEASE DO
NOT RETURN THIS PRODUCT TO ANY OF THESE ADDRESSES OR TO THE PLACE OF PURCHASE.
TRUSTED FOR OVER
100 YEARS
© 2009 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions. All rights reserved. Imported and
distributed by Sunbeam Corporation (Canada) Limited doing business as Jarden Consumer Solutions, 20B Hereford
Street, Brampton, Ontario L6Y 0M1.
