Sunbeam Steam Master Instruction Manual

Instruction Manual

STEAM MASTER” IRON

Manuel d’lnstructions

FER A

REPASSER STEAM MASTER’=

Manual de lnstrucciones

PLANCHA STEAM MASTER”

Manual de

Instrutees

FERRO STEAM MASTER”

When using your flatiron; basic safety precautions should always be followed

including the following:

READ ALL INSTRUCTIONS BEFORE USING

1. Use iron only for its intended use.

2. To protect against risk of electric shock, do not immerse the iron in water or other liquids.

3. The iron should always be turned to

"OFF"

before plugging or unplugging

, from outlet. Never yank cord to disconnect from outlet; instead, grasp plug

and pull to disconnect.

4. Do not allow cord to touch hot surfaces. Let iron cool completely before

putting away. Loop cord loosely around iron when storing.

5. Always disconnect iron from electrical outlet when filling with water or

emptying and when not in use.

6. Do not operate iron with a damaged cord or if the iron has been dropped

or damaged. To avoid the risk of electric shock, do not disassemble the iron. Take it to a qualified serviceman for examination and repair.

Incorrect reassembly can cause a risk of electric shock when the iron is used.

7. Close supervision is necessary for any appliance being used by or near children. Do not leave iron unattended while connected or on

an ironing board.

8. Burns can occur from touching hot metal parts, hot water or steam. Use caution, when you turn a steam iron upside down -there may be

hot water in the reservoir.

9. If the flatiron is not operating normally, disconnect from the power supply and have the flatiron serviced by qualified service personnel.

10. Your Sunbeam” Iron is designed to rest on the heel rest. Do not leave the iron unattended. Do not set the iron on an unprotected surface, even if it is on its

heel rest.

SPECIAL INSTRUCTIONS

1. This is a 1200 Watt appliance? To avoid a circuit overload, do not operate another high wattage appliance on the same circuit.

2. If an extension cord is absolutely necessary, a IO-ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange

the cord so that it cannot be pulled or tripped over.

FOR PRODUCTS PURCHASED IN THE U.S. AND CANADA ONLY

To reduce the risk of electrical shock, this appliance has a polarized plug (one blade is wider than the other). This plug fits a polarized outlet only one way;

if the plug does not fit fully into the outlet, reverse the plug. If it still does not fit,

contact a qualified electrician. Do not attempt to defeat this safety feature. *In

Mexico, the

iron runs at 127 Volts, 1350 Watts. If an extension cord is

necessary, a 13 ampere cord should be used.

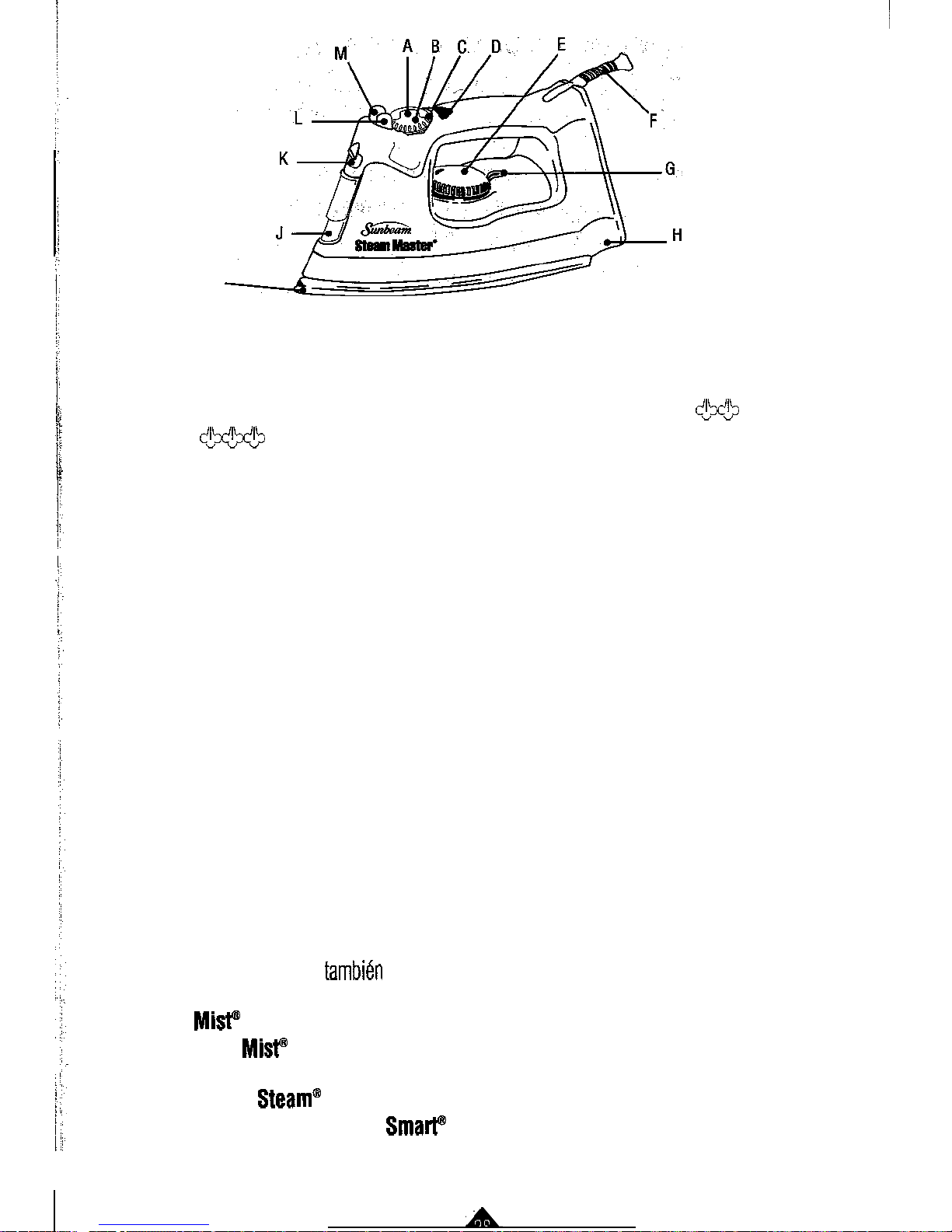

FEATURES

Variable Steam Dial -Adjusts steam level for different ironing needs. For dry ironing,

turn dial to DRY. For steam ironing, turn dial to the

For additional steam, turn dial to

the

&$&&

(Refer to Ironing

Guide

for recommended settings).

“”

B. Steam Valve (connected to the variable steam dial) Removable to prevent scale build up.

C. Steam Indicator Mark D.

Auto-Off Indicator (some models only)

E. Temperature Dial -Controls heat output of iron. Adjust dial according to ironing needs.

For low temperatures, turn dial to first dot. For medium temperatures, turn dial to second set of dots. For high temperatures, turn dial to third set of dots. (Refer to ironing Guide for recommended settings).

F. Swivel Cord -Pivots up and down and is supported to prevent dragging on fabric.

Flexible grommet protects the cord from fraying.

G. Temperature Indicator Mark (some models only) H. Cord wrap - provides quick, convenient cord storage. I. Soleplate -Has full length button grooves for added convenience when ironing shirts

and blouses; some models have non-stick coating.

J. Sliding Water

Reservoir Cover-Prevents

dust and foreign matter from entering

the water tank; stops any water spillage during ironing.

K. Spray Mist” L. Spray Mist” Button

Provides a fine spray mist for spot dampening.

M. Shot of Steam” Button - Provides a powerful burst of steam for maximum steam power.

Safety Smart@’ Automatic Shut-Off (some models only) - Shuts off if iron is unmoved for 15 minutes in the upright position or 30 seconds in the ironing position.

BEFORE FIRST USE

When turned on for the first time, your new iron may give off a slight odor for up to ten minutes. This is due to the initial heating of the materials used. It is safe, not detrimental to the performance of the product, and will not recur.

Prior to first use, clean steam vents using the Shot of Steam” feature.

After cleaning vents, run iron over an all-cotton cloth to remove any

residue.

When not ironing, always have steam dial turned to DRY (See diagram)

INSTRUCTIONS FOR

USE

DRY

IRONING

Plug

the cord

into a 120 volt AC outlet. On units with

automatic shutoff, the auto off light will illuminate.

Turn the temperature dial to the desired setting

(refer to ironing Guide for recommended settings) While iron is heating, place iron on heel rest on a stable, protected surface.

Set the steam dial on DRY to prevent steam flow if

water IS in tne tank.

STEAM IRONING

Make sure

the plug is removed from the wall socket before filling the iron

with water.

Turn the steam dial

to DRY.

Place the iron on its heel and open the water reservoir cover. Pour water slowly into the

water reservoir. Fill up to

the maximum

water level. To prevent the risk of burns,

use caution when filling a hot

iron

with wafer. ‘Burns can occur from touching

hot

metal parts, hot water or steam. Push firmly to close the cover.

Note: Tap water

may be

used due

to the

special design of this iron. However, in areas with very hard water, distilled or

demineralized water

recommended.

Turn the temperature dial to any of the temperatures within the steam band and allow the iron

to heat for approximately 2 minutes before ironing. While heating, place iron on heel rest on a

stable,

protected surface.

Turn steam dial to $3 for regular steam, or to

C’~‘&

for extra steam or

&&&

for ultra steam. Note: When using extra or ultra steam it may be necessary to fill the tank

more often.

SHOT OF STEAM”

The Shot of Steam” provides an extra burst of steam for deep penetration of stubborn wrinkles.

The Shot of

Steamm can be used with dry or steam ironing provided the tank is at least

l/4

full

of water and the temperature dial is set within the steam band.

Allow the iron to heat for approximately two minutes.

Press the white Shot of Steame button several times to prime the pump.

Pump Shot of Steam” button another three to four times in order to clean the unit.

The Shot of

Steam@

is now ready for use. The Shot of Steam@’ can be used continuously with

just a short pause between shots. The Shot of Steam’

most effective with the

iron

held in

a horizontal position just above the fabric being ironed.

If the tank runs dry, unplug the iron and refill with water. The iron may be filled with water

while it is hot. Note: It may be necessary to re-prime the pump before using the

Shot of

Steama again.

SPRAY MIST”

(some models only)

Use the Spray Mis? to dampen fabrics with stubborn wrinkles

Press the gray Spray

Mist@’

button firmly to produce spray.

SAFETY

SMAW

AUTO SHUT-OFF

(some models only)

When the iron is plugged into 120 volt AC electrical outlet, the steady red light signals the iron

is on or is ready to be turned on.

l If the iron is left on the heel rest unmoved the iron will stop heating in 15 minutes.

The light on the handle will blink to indicate the iron has automatically shut off

and will continue blinking until the iron is restarted or unplugged.

l If the iron is left unmoved in the ironing position or accidentally tipped over, the iron will stop

heating in

seconds.

Again, the light on the handle will blink to indicate the iron

has automatically shuf off and will continue blinking until fhe iron is restarted or unplugged.

l Note: If the temperature dial is turned to the Off position, the light will continue blinking

and then go off.

To restart the iron, move the iron back and forth. Allow the iron to heat and continue ironing

as normal.

Note:

Although heat is no longer generated once the iron has automatically shut

off

allow sufficient time for the iron to cool before touching the soleplate or storing the iron.

NON-STICK FINISH

(some models only)

l The non-stick coating prevents sticking of fabrics and starch residue to the soleplate.

l To clean the soleplate, allow iron to cool and wipe with a soft cloth using a mild

vinegar solution.

l Do not use scouring pads, abrasives or chemical cleaning solvents as they may

damage

the finish.

l Note: Scratches in the non-stick soleplate do not affect the performance of the iron.

l Turn the steam dial to DRY. l Unplug the iron from the power outlet.

l Empty the water tank by opening the water reservoir cover and turning the iron upside down to

allow water to flow from the opening. Shake the iron gently to remove trapped water drops.

l Close cover and allow the iron to cool l Loop cord loosely around cord wrap. Always store iron on its heel rest,

l When not ironing, always set steam dial to DRY.

(ARE

AND

MAINTENANCE

STEAM VALVE

The steam valve (attached to the variable steam dial) is removable for easy cleaning of lint and

scale build up. Cleaning the steam valve is only’necessary if you notice a reduction in steam performance. To remove the steam valve, empty the water tank and place iron on the soleplate.

Turn the variable steam dial to CLEAN. The valve will “pop-up.” Pull up to remove the steam valve fully. Wipe the tip gently with a damp cloth to clean. To replace, align CLEAN with the

indicator mark. Push down and rotate clockwise to the DRY.

Note: Do not pour water into the steam valve hole.

SOLEPLATE

If starch or other material clings to the iron’s soleplate, allow the iron to cool and wipe with a soft, damp cloth. Avoid ironing over snaps, zippers, rivets, etc., as they may scratch the soleplate.

STORAGE

Always store your iron on the heel rest. Never store with the soleplate facing down or in the carton. Always store your iron with the steam dial turned to DRY. Wrap cord

around cord wrap.

WINTENANCE

Other than the recommended instructions in this pamphlet. no further maintenance is necessary.

However, following is a list of frequently asked questions and their resolutions. If for any mason

your iron continues to exhibit one of these symptoms, or requires repair for another reason,

send it to the Sunbeam Appliance Service Station or call our Consumer Hot Line l-800-597-5978.

SYMPTOM

RESOLlJTtOld

Iron emits an odor

iron gives

off

an odor when turned on for the-first time.

Allow ten minutes for odor to disappear.

Iron does not heat

Iron should be plugged into a

120

volt,

AC electrical

outlet only.

The temperature dial must be set at the desired temperature.

The auto shut-oft feature may have been activated (some models

only). Move the iron back and forth to restart.

Iron does not steam

The water tank may be empty Turn steam valve to DRY

and add water.

Allow iron to heat, then set the steam dial to one of the steam settings.

Use temperature settings within the steam band.

There may be an obstruction. Remove steam valve by turning it

to CLEAN. Replace and set the steam

dial

to one of the steam settings.

Shot of Steam*

The water tank must be at least

l/4

full.

does not work

Temperature must be set to steam position.

Iron should be in the horizontal position.

Prime pump briefly.

Allow a short pause between shots.

sure to fully depress the Shot of Steam”

button.

Spray MisP

The water tank must be at least 1/4 full.

does not work Iron is leaking

The variable steam dial must be set on DRY, until the iron is hot.

The temperature setting is too low to produce steam

[see ironing guide)

;

Always read garment labels and follow the manufacturer’s ironing instructions.

Sort the articles to be ironed according lo the type of fabric.

Garments

requiring low temperature

and steam should be ironed first to avoid damaging

garments with a too-hot iron.

I~ If

you are unsure of the fabric content of the garment, test a small area such as a seam or facing before ironing

a visible area.

Start with a low temperature and gradually increase the heat to find

the

best setting.

9 When

changing the temperature from a high setting to a

low setting.

allow approximatety

5 minutes for the lower temperature to be reached.

When steam ironing, use long

slow glides. This will allow the steam to penetrate the fabric

while it

allows the heat of the

soleplate to dry out the moisture.

To iron linens, turn

garment

inside out. Be

careful

not to use a too-hot iron as lining may melt or

stick

soleplate.

? To iron

zippers,

use

an ironing

cloth or make sure the zipper is closed and iron over the flap.

Never iron directly over an unprotected zipper.

Use the

following

chart to select

the

best setting and

method

for the fabric you plan to iron.

Recommendations

Dry iron inside out.

Dry iron inside out while still damp.

Iron

inside out. Use an ironing cloth to prevent

shine marks.

Iron inside out while still damp. Iron inside out while still damp.

Check label and follow

manufacturer’s instructions.

Use setting for the fiber requiring the lowest setting.

Steam iron inside out or

use

ironing cloth and brush

the pile.

Dry iron while still damp or use extra steam and/or

Shot of Steam”. Iron dark fabrics on wrong side to avoid <hi”&-

]

Iron inside out or use an ironing cloth to prevent

shine

marks, especially with dark colors. Dry iron while still

damp or use steam and/or Shot of Steam’. Iron each

section until entirely dry.

Use extra steam and/or Shot of

Steam@.

2 YEAR LIMITED WARRANTY

Sunbeam Products Inc. warrants to the original purchaser, subject to the limitations and exclusions set forth below, that this product shall be free, in all material respects, of mechanical and electrical

defects in material and workmanship from the date of purchase for two years. This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to operating instructions

or disassembly, repair or alteration by any person other than an authorized service center. Our obligation hereunder is limited to repair or replacement, at manufacturer’s option, of the

product during the warranty period, provided that the product, along with the model number and original dated proof of purchase, is sent postage prepaid, directly to the following address:

For products purchased in the United States:

SUNBEAM APPLIANCE SERVICE STATION

117

Central

Industrial Row

Purvis, MS 39475

For products purchased in Canada:

SUNBEAM APPLIANCE SERVICE STATION’(KND)

100 Alfred Kuehne Boulevard

Brampton, ON

L4T 4K4

Do not return this product to the place of purchase or to the manufacturer; doing so may delay the processing of your warranty claim.

Answers to questions regarding

this warranty

or for your nearest authorized service location may

be obtained by calling toll-free l-800-597-5978 or by writing to Sunbeam -Consumer Affairs, at P.O. Box 948389, Maitland, FL 32794-8389. Answers to questions regarding this warranty or for

your nearest Canadian authorized service location may be obtained by calling toll-tree in Canada l-800-667-8623. For warranty information or lor an authorized service location outside of the

United States and Canada, please see the warranty service card inserted in the product packaging.

DISCLAIMER

Product repair or replacement as provided under this warranty is your exclusive remedy.

SUNBEAM PRODUCTS, INC. SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED

WARRANTY ON THIS PRODUCT OR ANY PART THEREOF. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, SUNBEAM PRODUCTS, INC. DISCLAIMS ANY

IMPLIED WARRANN OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OF THIS PRODUCT OR ANY PART THEREOF. Some states and provinces do not

allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from State to State or Province to Province.

I I

Lors de l’utilisation du fer a repasser,

veiller a

toujours respecter des mesures de

précaution

élementaires, notamment:

LIRE TOUTES LESINSTRUCTIONS

1. Utiliser ce fer uniquement

2. Pour écarter les risques

Andes

tâches pour lesquelles il est conçu.

d%lectrocution;

ne pas

immerger le fer dans l’eau ni

dans aucun autre liquide.

3. Veiller ou de le débrancher: Ne jamais tirer sur le fil

toujours mettre le fer en position ARRÊT

pour

(OFF)

avant de le brancher

débrancher le cordon;

saisir la fiche et l’extraire de la prise.

4. Ne pas laisser le cordon d’alimentation venir au contact des surfaces chaudes.,

Laisser le fer refroidir

complèrement avant de le ranger. Pour le rangement,

enrouler le cordon autour du fer sans serrer.

5. Veiller à toujours débrancher le fer de la prise de courant avant de remplir ou vider le réservoir d’eau ou lorsque le fer n’est pas utilisé.

6. Ne pas utiliser un fer dont le cordon d’alimentation est endommagé ou qui a

subi une chute ou a ne pas démonter le fer. Confier les contrôles et qualifie.

fer mai remonté présente un danger d’electrocution durant son

éteendommagé. Pour

ecarter

les risques d’electrocution,

reparations à un réparateur

utilisation.

7. Faites

paniculierement attention lorsque le fer est utilisé par, ou en présence

d’enfants. Ne pas laisser sans surveillance un fer branché ou posé sur la table

repasser.

8. Les brûlures seproduisent en cas de contact avec des parties métalliques chaudes, de l’eau chaude ou de

vapeur. Attention avant de tourner un

fer a

repasser vapeur à l’envers: le reservoir peut contenir de l'eau bouillante

9. Si le fer d’alimentation et faire réparer le fer par un

10. Ce fer à repasser

repasser ne fonctionne pas correctement, debrancher le cordon

Sunbeam@

est conçu pour reposer sur talon d’appui.

ceparateur

qualifié.

Ne pas laisser le fer sans surveillance. Ne pas placer le fer sur une surface non protégée, même s’il repose sur son talon d’appui.

INSTRUCTIONS PARTICULIÈRES

1. Ceci est un appareil de 1200

W*.

Pour éviter toute surcharge du réseau

électrique, ne pas utiliser un autre appareil de forte puissance sur le

même circuit.

2. S’il est absolument nécessaire de se servir d’une rallonge électrique, utiliser un cordon de 10 A. Les cardons de capacité moindre présentent des risques

d’échauffement. Veiller à placer le cordon de manière à ce qu’il ne risque pas d’être arraché ou de provoquer de trébuchement.

PRODUITS ACHETÉS AUX ÉTATS-UNIS ET AU CANADA UNIQUEMENT:

Pour rkduire le risque de choc électrique, cet appareil est doté d’une fiche polarisée (une broche est plus large que l'autre).

Cette

fiche ne va que

dan's

un sens seulement sur une prise de courant polarisée. Si la fiche ne s’enfonce pas complètement dans la prise, la retourne et essayer de nouveau. Si elle ne s’adapte

toujours pas à fond, consulter un électricien qualifié. Veillez à respecter les

mesures de

securité de la prise polarisée.

*Au

Mexique, où il fonctionne à une tension de 127 volts, 1350 watts. s’il est

nécessaire de se servir d’une rallonge

electrique, utiliser un cordon de 13 A.

A. Bouton de Réglage de la Vapeur - Permet

dGrégler:le neveau de vapeur

en fonction des besoins. Pour repasser à sec, placer ce bouton sur DRY. Pour repasser à la vapeur, le mettre en position

C$I.

Pour obtenir plus de vapeur, placer le bouton

sur

&@?

C~?$C~~; (Voir le

r6glag.s consei//é dans le Guide

de Repassage).

B. Soupape à Vapeur (reliée au

bouton de

vapeur) -Amovible pour

6viter l'entartrage.

C. Repère du Bouton de Vapeur

D. Témoin

d’Arrêt Automatique

(certains mo@les

seulement)

E. Bouton de

Tempérafuie CorMIe la production de

chaleur

du fer.

Reg!er

ce bouton

en fonction des besoins. Poix les basses temperatures, placer ce bouton

sur le

point

unique. Pour les

temp&atures moyennes, le placer sur le second groupe de points.

Pour les

temp&atures elevées, le placer sur le troisieme groupe de points (voir le réglage

recommandé dans le guide de température).

F. Cordon Arlfklé,-

Pivote

de haut en bas et disposed’un support qui

I’empêche

de traîner sur le tissu. Le manchon souple protège le cordon contre la

dkhirure.

Repère du Bouton de Temperature (certains

modeles

seulement)

Enroulement du Cordon

Permet un rangement rapide et pratique du cordon electrique.

Semelle - Dispose de rainures pour le passage des boutons sur toute sa longueur, très

pratiques lors du repassage de chemises et de chemisiers certains

modeles présentent

un revêtement antiadhérent.

J. Couvercle de Réservoir d’Eau Coulissant Empêche les poussières et autres corps

étrangers de pénétrer dans le

rkervoir

d’eau; évite’de renverser l’eau durant le repassage.

K. Spray MfsP

L. Bouton Spray

MisP Produit un fin brouillard pour humectage local.

M. Bouton Shot of

Steam”

Permet de produire une puissante décharge

de vapeur

suppkmentaire.

Arrêt automatique Safety Smart@ (certains modèles seulement) Éteint le fer s’il est

inutilise

pendant 15 minutes en position verticale et 30 secondes en position

de repassage.

Lorsque le fer n’est pas

utilisé,

touiours placer le bouton de vapeur en position DRY

(V&Schéma). .

INSTRUCTIONS D’UTILISATION

REPASSAGE A

SEC

Brancher le cordon d'alimentation sur une prise

de courant 120 V. Sur les

modiies à

arrêt automatique,

le voyant d’arrêt automatique s’allume.

Tourner le bouton de température jusqu’à la position

désir6e

(voir le

réglase recommandé dans

Guide

AVANT LA PREMltRE UTILISATION

Lorsque vous le mettez en marche pour la première

fois,

un fer à repasser neuf pourra

émettre des odeurs durant un maximum de 10 minutes, en raison du chauffage

initial

des matériaux à I’intérieur du fer. Ces odeurs

initiales

sont normales, n’influent en rien

sur le rendement du fer, et ne se reproduiront pas par la suite.

Avant la première

utilisation,

nettoyer les

orifices

de vapeur à I’aide la fonction Shot

Steam?

Après nettoyage des

orifices,

passer le fer sur un

tìssu

100%

coton

pour

eliminer tout résidu.

de Repassage). Pour laisser chauffer le fer, le poser sur son

talon

d’appui sur une surface stable et bien protégke.

RéQler le bouton de vapeur sur DRY pour eviter tout

déQaQeIWnt de vapeur si le réservoir

contient

de I’eau.

REPASSAGE i LA VAPEUR

S’assurer que la fiche d’alimentation est sortie de la prise de courant avant

de remplir le fer d’eau.

Mettre le bouton de vapeur sur

DRY.

Poser le fer sur son

talon

d’appui et ouvrir le bouchon du réservoir d’eau.

Verser lentement I’eau dans le réservoir. Remplir jusqu’au niveau maximum.

Pour écarter les risques de brûlure, remplir un fer

chaud

en faisant

preuve de précauiion. Les

briilures se produisent en cas de

contact

avec des parties métalliques chaudes, de I’eau

chaude ou

de la

vapeur. Appuyer fermement pour refermer le boucho?. Remarque: Ce fer est

concu

pour

permettre

I’utilisation d’eau du robinet. Toutefois, lorsque

cette eau

est

très

dure, il est préférable d’utiliser de

I’eau

distillée ou déminéralisée.

RéQler

le bouton de température sur la valeur

desirée dans

la plage

JJapeur,>

laisser

le fer chauffer pendant 2 minutes environ avant de I’utiliser. Durant le chauffage, poser

le fer sur son

talon

d’appui sur une surface stable et bien protégée.

RéQler le bouton de vapeur sur

C~X

vapeur normale, sur

c$c’$

vapeur plus ou sur

&$3&

vapeur ultra. Remarque: En mode vapeur plus ou vapeur ultra, il peut

être nécessaire de remplir le réservoir plus souvent.

+ 33 hidden pages

Sunbeam Steam Master Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
