User’s Manual
5,850 BTU Room Air Conditioner
Model: SCA062RWB1
Table of Contents
Page
Introduction
Parts Identification
Electrical Specifications
Tips Before Installation
Installation Instructions
Operating Instructions
Care and Maintenance
Troubleshooting Guide
2
2
4
5
6
9
13
14
1
Introduction
Thank you for choosing this room air conditioner to cool your home. This USE AND CARE MANUAL
provides information necessary for the proper care and maintenance of your new room air conditioner.
If properly maintained, your air conditioner will give you many years of trouble free operation. To avoid
installation difficulties, read instructions completely before starting. This manual contains information for the
installation and operation of your room air conditioner.
Part Identification
Mechanical control model
Interior Air Outlet
Air Filter(Inside)
Front Panel
Interior Air
Inlet Grille
Note:
The figures in this manual are based on the external view of a standard model.
Consequently, the shape may differ from that of the air conditioner you have selected.
Horizontal Air Vane
Vertical Air Vane
Control Knob
Fresh Air Lever (for 8K model only)
Power Cord
Cabinet
Exterior
Air Inlet
2
Introduction
Part Identification
Remote control model
Interior Air Outlet
Air Filter(Inside)
Front Panel
Interior Air
Inlet Grille
Remote Control
Control Panel
Horizontal Air Vane
Control Panel
Vertical Air Vane
T
im
er
F
a
n
M
ode
Aircondition
er
Fresh Air Lever (for 8K model only)
Power Cord
Remote Control
Power
Timer
Power Saver
Mode
Mid
Auto
Fan Speed
High Low
_
+
Temp/Time
Cabinet
Exterior
Air Inlet
Fan
Timer
Speed
Mode
Airconditioner
Note:
The figures in this manual are based on the external view of a standard model.
Consequently, the shape may differ from that of the air conditioner you have selected.
3
Electrical specifications
1. All wiring must comply with local and national
electrical codes and must be installed by a
licensed electrician. Once you have any
questions regarding the following instructions,
contact a licensed electrician.
2. Check available power supply and resolve any
wiring problems BEFORE installing and operating
this unit.
3. For your safety and protection, this unit is
grounded through the power cord when
plugged into a matching wall outlet. If you are
not sure whether your wall outlet is properly
grounded, please consult a licensed
electrician.
4. The wall outlet(3-pin) must match the plug
(3-pin) on the power cord supplied with the unit.
DO NOT use plug adapters or extension cords.
See (Table 1) for receptacle and fuse information.
Electric Shock Hazard
!
If the air conditioner has a serial plate rating
of 115 volts and up to and including 7.5 amps
the unit maybe on a fuse or circuit breaker
with other devices. However, the maximum
amps of all devices on that fuse or circuit
breaker can not exceed the amps of the fuse
of circuit breaker.
If the air conditioner has a serial plate rating
of 115 volts and greater than 7.5 amps it
must have its own fuse or circuit breaker,
and no other device or unit should be
operated on the fuse or circuit breaker.
To avoid the possibility of personal injury,
disconnect the power to the unit before
installing or servicing.
5. The rating plate on the unit contains electrical
and other technical data. The rating plate is located
on the right side of the unit.
COOLING CAPACITY
RATED VOLTS
AMPS
WALL OUTLET
FUSE SIZE
Time Delay Fuse
(or circuit breaker)
RECEPTACLE AND FUSE TYPES
5K 6K 8K
125
15
15
Plug type
Table 1
Tips before installation
Your Room Air Conditioner unit is designed to
be highly efficient and save energy. Follow these
recommendations for greater efficiency.
1. Select thermostat setting that suits your
comfort needs and leave the thermostat at
that chosen setting.
2. The air filter is very efficient in removing airborne
particles. Keep the air filter clean. Typically, filter
should be cleaned once a month. More
frequent cleaning may be necessary depending
on outdoor and indoor air quality.
3. Use drapes, curtains, or shades to keep
direct sunlight from heating your room, but
DO NOT obstruct the air conditioner. Allow air to
circulate around the unit without obstructions.
4. Start your air conditioner before outdoor
air becomes hot and uncomfortable. This
avoids an initial period of discomfort while
the unit is cooling off the room.
5. When outdoor temperature is cool
enough, use HIGH or LOW FAN
only. This circulates indoor air, providing
some cooling comfort, and utilizes less
electricity than when operating on a
cooling setting.
Your Room Air Conditioner was designed
for easy installation in a single or double-hung
window. NOTE: This unit is NOT designed for
vertical (slider type) windows.
! !
To avoid installation/operating difficulties,
read the instructions thoroughly.
NOTE: Save the shipping carton and packing
materials for future storage or transport of the unit.
Please check the contents of the hardware kit
against the corresponding model check list, prior to
installation of the unit.
See lists below.(Fig.1)
3/4"Screws (12)
2/5"Screws (8)
Top Channel(1)
factory installed
L Bracket(2)
Side Bracket(2)
NOTE: Surplus screw(s) for spare use.
CAUTION
Installation Hardware
Seal(1)
Foam(1)
Side Curtain RH(1)
Side Curtain LH(1)
Fig.1
5
Tools Needed for Window Installation
Screw drivers: Both Philips and flat head
Power drill: 1/8 inch diameter drill bit
Pencil
Measuring tape
Scissors
Carpenters level
Installation instructions
! !
Because the compressor is located on the
controls side of the unit (right side), this side
will be heavier and more awkward to manipulate.
Inadequate support on control side of the unit
can result in personal injury and damage to your
unit and property. Therefore, it is recommended
to have someone assist you during the installation
of this unit.
1. Select the Best Location
A. Your room air conditioner was designed to
fit easily into a single or double hung window. However,
since window designs vary, it may be necessary to
make some modifications for safe and proper
installation.
B. Make sure the window and frame are structurally
sound and free from dry and rotted wood.
CAUTION
F. Your unit was designed to evaporate condensation
under normal conditions. However, under extreme
humidity conditions, excess condensation may cause
the base pan to overflow to the outside.
The unit should be installed where condensation
run-off cannot drip on pedestrians or neighboring
properties.
Awning
20"
Min.
12" Min.
C. For maximum efficiency, install the air conditioner
on side of the house or building which favors more
shade than sunlight. If the unit is in direct sunlight,
it is advisable to provide an awning over the unit.
D. Provide sufficient clearance around the cabinet
to allow for ample air circulation through the unit.
See (Fig.2). The rear of the unit should be outdoors
and not in a garage nor inside of a building.
Keep unit as far away as possible from obstacles
and obstructions and at least 30" above the floor or
ground. Curtains and other objects within a room
should be prevented from blocking the air flow.
E. Be certain the proper electrical outlet is within reach
of the installation. Use only a single outlet circuit rated
at 15 amps. All wiring should be in accordance with
local and national electrical codes.
.
Side
obstruction
Ground
Window opening requirements
(see table below)
SizeSize
Cabinet size
Cabinet size
(W*H*D)
(W*H*D)
Min. Window
Min. Window
opening
opening
Max. Window
Max. Window
opening
opening
ModelModel 5K-6K5K-6K
17.7" *12.4" *15.7" 17.7" *12.4" *15.7"
30" Min.
Fig.2
21" 21"
35" 35"
20"
Min.
Fence,
wall, or
other
obstacle.
8K 8K
18.5" *13.7" *17.7" 18.5" *13.7" *17.7"
22" 22"
36" 36"
6
Installation instructions
Window installation step
1. If your air conditioner cabinet 18'' wide, it will fit
window openings 21'' to 32'' in wide. Minimum
opening height is 14'' from bottom of sash to sill
(Fig. 1).
2. Insert the guide panels into the guides of the air
conditioner. Fasten the curtains to the unit with screws
(Fig. 2).
14'' Min
21'' to 32''
Fig. 1
3. Cut the adhesive-backed seal strip the window width.
Remove the backing from the seal strip and attach
the seal strip to the underside of the bottom window.
(Fig. 3)
4. Measure the inside window sill width and find
the center line as shown in Fig. 4.
2/5 '' Screws
Fig. 2
Seal
Fig. 3
Center Line
Fig. 4
7
Installation instructions
5. Install the L brackets on the outer sill with the
short side of the bracket against the back of the
inner sill. Install one L bracket 7.5 to each side
of center line. See Fig. 5.
6. Carefully lift the air conditioner and slide it into
the open window. Make sure the bottom guide of
the air conditioner drops into the notches of the L
brackets. When the air conditioner drops into the L
brackets, the air conditioner will be centered in window
opening as show in Fig. 6.
While steadying the air conditioner, carefully bring
the window sash down behind the top channel
of the air conditioner, as shown in Fig. 7.
First, fix both sides onto the window sill with two 3/4
screws and one 2/5 screw ( which is unscrewed from
each side of the unit). Then fix top channel to widow
sash with one 3/4 screw and fix side curtain frames
with four 3/4 screws as shown in Fig.6.
Outer Sill
3/4 screw
3/4 screw
Bracket
Short Side
3/4'' Screw
Inner Sill
7.5
Fig. 5
3/4 screw
7.5
T
i
m
e
r
F
a
n
M
o
d
e
A
ir
c
o
nd
it
ion
e
r
Center Line
3/4'' Screw
3/4 screw
2/5 screw
3/4 screw
3/4 screw
Foam
3/4 screw
7. If storm window presents interference, fasten a
2'' wide wood strip to the inner window sill across
the full width of the sill. The wood strip should be thick
enough to raise the height of the window sill so that
the unit can be installed without interference from the
storm window frame, as show in Fig. 8.
Top of wood strip should be approximately 3/4'' higher
than the storm window frame to help condensation to
drain properly to the outside.
Install a second wood strip (approximately 6'' long by
11/2''wide and same thickness as first strip) in the center
of the outer sill flush against the back of the inner sill.
Screw the L brackets into this strip.
This will raise the L bracket as shown in Fig. 8.
Inner sill
Fig. 6
L Bracket
Fig.8
Fig.7
Seal
About 5
3/4''Clearance
Storm window
frame
8
Operating Instructions
Mechanical control model
MODE
The mode knob controls fan speeds and cooling
speeds. To set desired cooling temperature, simply
rotate the mode knob dial to the appropriate
setting. See Fig. 9.
THERMOSTAT
The thermostat automatically controls the cooling
cycle (compressor) of the air conditioner to maintain
room temperature. However, the fan motor will
continue to operate after the compressor (cooling
cycle) is completed. See Fig.9.
LOW FAN will circulate the air at a minimum speed
without cooling.
HIGH FAN will circulate the air at a maximum speed
without cooling.
LOW COOL provides cooling, automatically with
minimum air circulation. Recommended for nighttime use.
HIGH COOL provides cooling, automatically with
quick cooling or for extremely hot days. Once room
is cooled, reduce setting to LOW COOL.
OFF will completely shut-off the unit.
NOTE: After setting the mode, allow 3
minutes before switching to another mode.
Thermostat knob
Fig.9
! !
When using FAN control, turn slowly allowing unit
to adjust.
When using THERMOSTAT, be sure to allow three
minutes before changing temperature. Adjusting
too quickly may cause an overload resulting in a
blown fuse.
CAUTION
Mode knob
Fresh Air Ventilation is usually kept in the closed
position. Use only when clearing smoke and/or
odors from the room. Pull to open. (See Fig.10).
Fresh Air
Vent Lever
Fig.10
9

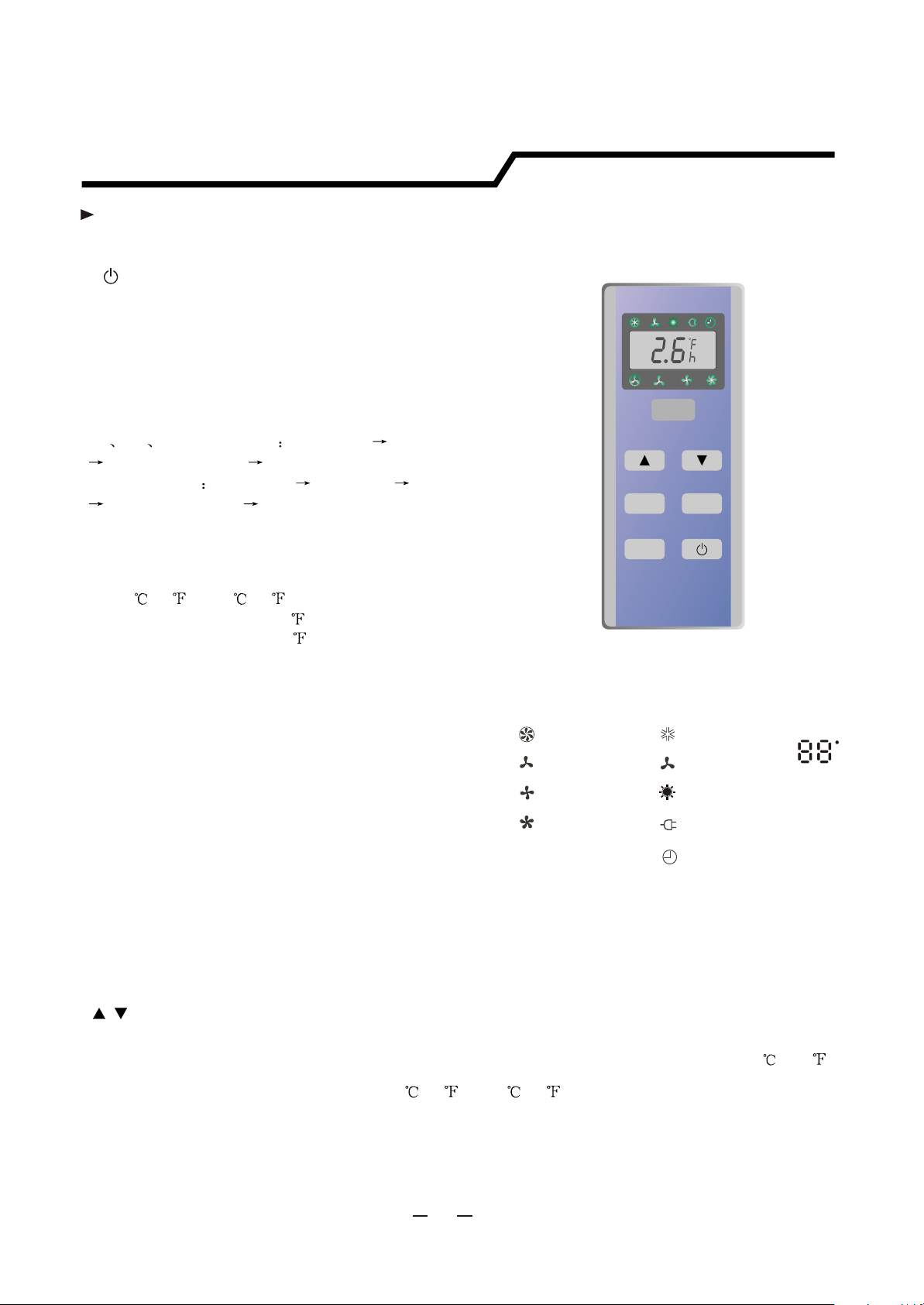

Operating Instructions
Control Panel
You can easily operate this air conditioner by pressing relevant
button on the control panel as well as the remote control.
Button
The air conditioner will be started when it is energized or will
be stopped when it is in operation, if you press this button.
When the air conditioner is heating, allow 3 minutes after you
press this button.
Mode button
Each time Mode button is pressed, the operation
mode is changed in sequence:
5K 6K 8K cooling only COOLING FAN ONLY
ENERGY SAVING COOLING
8K with heater COOLING FAN ONLY HEATING
ENERGY SAVING COOLING
NOTE: After setting the mode, allow 3 minutes before switching
to another mode.
In the FAN ONLY Mode , Room Temperature display range is
from
0 (32 ) to 38 (99 ).
Room Temperature below 32 ,the Temperature display L0.
Room Temperature above 99 ,the Temperature display H1.
Fan Speed button
Used to select fan speed in sequence auto, low, medium
and high (low and medium are in same fan speed).
Indication symbols of LED on control panel :
Control Panel
Timer
Mode
Fan
Speed
Airconditioner
Timer button
Auto fan speed Cooling
Used to set or cancel timer operation.
Fan only
Heating
Energy-saving
Timer
Display set temp
Display set timer
When the unit is in operation, you can set OFF TIMER.
When the unit is off, you can set ON TIMER.
Timer setting range is 0 to 24 hours.
If the OFF TIMER is set, the timer LED displays the
remaining time to turn off the unit for only 12 seconds,
then LED shifts to display set temperature. If you press
Low fan speed
Medium fan speed
High fan speed
Above LED lights on when the relevant mode is in used.
TIMER button within the 12 seconds, OFF TIMER will be
canceled.
If the ON TIMER is set, the timer LED displays the
remaining time to turn on the unit. If you want to cancel
ON TIMER, press TIMER button.
Button
Used to set room temperature in COOLING mode or used to set time in TIMER mode.
If the two keys are pressed at the same time, the temperature LED display will alternate between and .
NOTE: Temperature setting range is from 19 (66 ) to 31 (88 ).
F
h
10
Operating Instructions
Remote control
1
Power
Timer
2
Mode
Power Saver
8
9
Power BUTTON
1
The appliance will be started when it is
energized or will be stopped when it is
in operation, if you press this button.
Mode BUTTON
2
Used to select the operation mode.
7
Auto
Fan Speed
4
3
High Low
_
Temp/Time
Mid
+
5
6
BUTTONS
3
Used to set room temperature in COOLING
mode or used to set time in Timer mode.
High BUTTON
4
Used to select the mode.high fan speed
Mid BUTTON
5
Used to select the mid (same as low)
speed
Low BUTTON
6
Used to select the low mode.fan speed
Auto BUTTON
7
Used to select the auto mode. fan speed
Timer BUTTON
8
Used to set or cancel timer operation.
Power Saver BUTTON
9
Used to select the mode.Energy-saving
mode.
fan
When changing modes during operation, sometimes the unit does not always response at once. Wait 3 minutes.
Wait 3 minutes before restarting the appliance.
11
Operating Instructions
Remote control
How to Insert the Batteries
Remove the battery cover according to the arrow direction.
Insert new batteries making sure that the (+) and (-) of
battery are matched correctly.
Reattach the cover by sliding it back into position.
Note:
Use 2 LR6 AA(1.5volt) batteries. Do not use rechargeable batteries.
Replace batteries with new ones of the same type when the display
becomes dim.
If the replacement is done within 1 minute, the remote control
will keep original presetting. (This function only for LCD remote
control)
How to Use
To operate the room air conditioner , aim
the remote control to the signal receptor.
The remote control will operate the air
conditioner at a distance of up to 23 feet
when pointing at signal receptor of indoor
unit.
T
i
m
e
r
F
a
n
M
o
d
e
A
ir
co
n
d
itione
r
Signal receptor
12
Care and Maintenance
When servicing the air conditioner, be sure to
turn the mode switch to the "OFF" position and
disconnect the power cord from the electrical outlet.
1. DO NOT use gasoline, benzine, thinner or
other chemicals on the air conditioner as these
substances may cause damage to the paint finish
and deformation of plastic parts.
2. Never attempt to pour water directly in front
of the unit as this will cause deterioration of
the electrical insulation.
Cleaning the Air Filter
If the air filter becomes clogged with dust, air-flow
is obstructed and reduces efficiency. The air filter
should be cleaned once a month. More frequent
cleaning may be necessary depending on outdoor
and indoor air quality.
Air Filter Removal
The air filter on the above models is located
behind the air intake front grill.
! !
DO NOT forget to install the air filter. If the air
conditioner is left to operate without the air filter,
dust is not removed from the room and may
cause your air conditioner to fail.
When the air filter inlet grill and cabinet are dirty,
wipe with lukewarm water (below 104 F).Use of
mild detergent is recommended.
Cleaning of Air Filter
1. Remove dust clogged in the filter by
tapping it or vacuum clean it.
2. Wash the filter well with lukewarm water below
40 C (104 F) while rubbing lightly. To get better
results, wash it with soapy water or a neutral
cleaning agent.
3. Rinse the filter well using clean water then
dry completely.
End-of-Season Care
CAUTION
To remove the air filter, grasp the filter handle(tab)
located on the up (center) side of the air inlet grille
and slide the air filter to the up.
To reinstall the air filter, reverse the above
procedure.
1. Operate the fan alone for half a day to dry out
the inside of the unit.
2. Turn off power and remove plug from wall socket.
3. Clean filter.
4. Store in a dry location.
13
Troubleshooting Guide
Frequently, a problem is minor and a service call may not be necessary, use this troubleshooting guide for a
possible solution.
PROBLEM POSSIBLE CAUSE SUGGESTED SOLUTION
Air conditioner will
not operate
Inefficient or no cooling
Noisy unit
Odors
No power to the unit.
Dirty air filter.
Inappropriate capacity
for application.
Blocked air flow.
Power interruption, settings
change too quickly, or
compressor overload tripped.
Loose parts.
Inadequate support.
Formation of mold, mildew, or
algae on wet surfaces.
Check connection of power cord to
power source.
Check fuse or circuit breaker.
Set MODE knob to position other
than "OFF".
Clean or replace air filter.
Check with dealer to determine proper unit
capacity for application.
Remove obstruction from grill or
outdoor louvers.
Let fan run to restart compressor
(in approximately 10 minutes).
Tighten loose parts.
Provide additional support to unit.
Remove
Replace drain plug.
Clean unit thoroughly.
drain plug and drain base pan.
Water dripping outside
Water dripping inside
Ice or frost build-up Low outside temperature.
NOTE:
If circuit breaker is tripped repeatedly, or fuse is blown more than once, contact a licensed technician.
Condensation run-off is normal
during hot and humid weather
Unit is not properly angled to
.
allow water to drain outside.
Unit air filter is dirty.
Add flexible tubing to redirect water flow.
Unit must be installed on an angle for proper
condensation run-off. Check the unit and
make adjustments.
When outdoor temperature is approximately
65 F or below, frost may form when unit is in
cooling mode. Switch unit to FAN (only)
operation until frost melts.
Remove and clean filter.
14
© 2006 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions.
All rights reserved. Sunbeam
®
is a registered trademark of Sunbeam Products,
Inc. used under license. Distributed by Petters Consumer Brands, LLC. 4400 Baker
Road, Minnetonka, MN 55343.
For service, support and warranty information, visit www.sunbeammajorappliances.com or in the US call 1-866-866-6283.
Loading...
