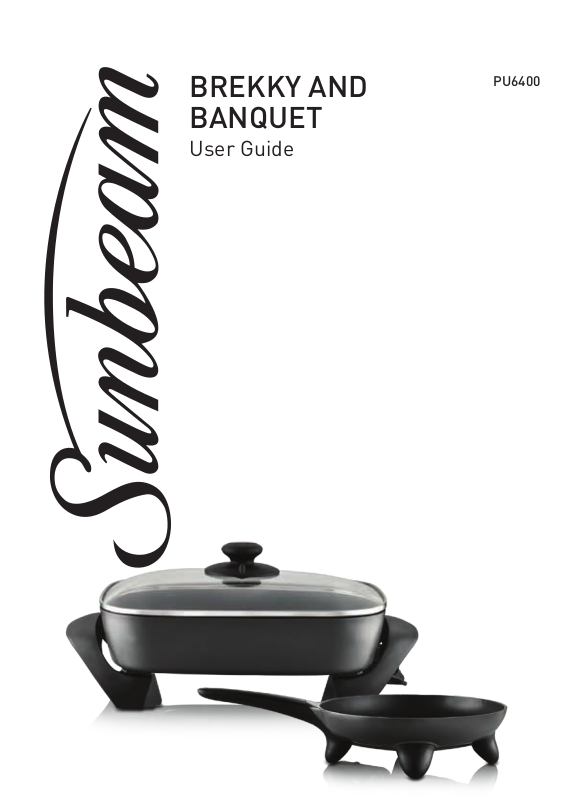

Sunbeam PU6400 User Guide

BREKKY AND
BANQUET

User Guide

PU6400

Contents

Sunbeam’s Safety Precautions 1

Features of your Sunbeam Fryware

Sunbeam Banquet Frypan 2

Sunbeam Skillet 4

Temperature Setting Guide 6

Using your Fryware 7

Cooking with your Sunbeam Fryware 8

Care and Cleaning 10

Recipes 11

Sunbeam’s Safety Precautions

SAFETY PRECAUTIONS FOR YOUR
SUNBEAM FRYWARE.

• Use your fryware at least 200mm away from
walls and curtains.

• Do not immerse the control probe in water.

• If using a plastic spatula do not leave in
cooking vessel when hot.

• The fryware must only be used with the control
probe provided.

Sunbeam is very safety conscious when

designing and manufacturing consumer products,
but it is essential that the product user also
exercise care when using an electrical appliance.
Listed below are precautions which are essential
for the safe use of an electrical appliance:

• Read carefully and save all the instructions
provided with an appliance.

• Always turn the power off at the power outlet
before you insert or remove a plug. Remove
by grasping the plug - do not pull on the cord.

• Turn the power off and remove the plug
when the appliance is not in use and
before cleaning.

• Do not use your appliance with an extension
cord unless this cord has been checked
and tested by a qualified technician or
service person.

• Always use your appliance from a power
outlet of the voltage (A.C. only) marked
on the appliance.

• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.

• Children should be supervised to ensure that
they do not play with the appliance.

• The temperature of accessible surfaces may be
high when the appliance is operating.

If you have any concerns regarding the performance and use of your appliance,

please visit www.sunbeam.com.au or contact the Sunbeam Consumer Service Line.

Ensure the above safety precautions are understood.

• Avoid using on metal surfaces e.g. sink,
hotplate.

• Remove the control probe before cleaning the
frypan.

• After cleaning the fryware ensure that the
control probe inlet area is completely dry
before using again.

• Never leave an appliance unattended while
in use.

• Do not use an appliance for any purpose
other than its intended use.

• Do not place an appliance on or near a hot gas
flame, electric element or on a heated oven.

• Do not place on top of any other appliance.

• Do not let the power cord of an appliance hang
over the edge of a table or bench top or touch
any hot surface.

• Do not operate any electrical appliance with
a damaged cord or after the appliance has
been damaged in any manner. If damage is
suspected, return the appliance to the nearest
Sunbeam Appointed Service Centre
for examination, repair or adjustment.

• For additional protection, Sunbeam
recommend the use of a residual current
device (RCD) with a tripping current not
exceeding 30mA in the electrical circuit
supplying power to your appliances.

• Do not immerse the appliance in water
or any other liquid unless recommended.

• Appliances are not intended to be operated
by means of an external timer or separate
remote control system.

• This appliance is intended to be used in
household and similar applications such
as: staff kitchen areas in shops, offices and
other working environments; farm houses; by
clients in hotels, motels and other residential
type environments; bed and breakfast type
environments.

1

Features of your Sunbeam
Banquet Frypan

Integrated knob and adjustable steam vent

Allows you to accurately control moisture levels
during cooking.

™

EasyClean

Enables fat-free cooking and easy wipe down
cleaning.

non-stick cooking surface

Control probe inlet

Pan tilt lever

When the lever is in the lowered
position the cooking pan is tilted, forcing
juices to collect at one end of the pan.
Both hands are then free for basting.

Extra large cooking vessel

The large rectangular frypan (380mm x 292mm)
is 78mm deep, ideal for cooking extra large
meals or liquid-based dishes.

2

1

2

3

4

5

6

7

8

9

1

0

S

I

M

M

E

R

Trigger release control probe

The probe is thermostatically controlled
and incorporates an indicator light that
switches off automatically when the
selected temperature has been reached,
it then cycles on and off to indicate that
the temperature is being maintained.

Glass lid

The clear glass lid allows you to monitor
the cooking process without lifting the
lid and allowing the heat to escape,
ensuring the selected temperature is
maintained.

Cast-in element

The 2200W element is is completely
cast into the heavy duty base providing
superior heat distribution.

3

Features of your Sunbeam Skillet

Cool touch handle

For safe cooking and carrying of your skillet.

Control probe inlet

Cast-in element

The 1200W element is completely cast into
the heavy duty base providing superior heat
distribution.

4

Trigger release control probe

1

2

3

4

5

6

7

8

9

1

0

S

I

M

M

E

R

The probe is thermostatically controlled
and incorporates an indicator light that
switches off automatically when the
selected temperature has been reached,
it then cycles on and off to indicate that
the temperature is being maintained.

EasyClean

™

non-stick cooking surface

Enables fat-free cooking and easy wipe
down cleaning.

5

Heading

Temperature Setting Guide

The following table provides approximate temperatures for each setting on the control probe.

Preheat your frypan/skillet on setting 7-8, then change to your desired setting.

DIAL

SETTING

1

2

3

4

5

6

7

8

9

10

Note: The suggested uses above are provided as a guide only and may require adjustment to
suit different foods and individual tastes.
When the dial is set to a low setting, it is normal for food to stop and start bubbling, as the
thermostat maintains the selected temperature.

CELSIUS
(approx)

100°C

110°C

125°C

140°C

150°C

160°C

175°C

185°C

200°C

210°C

FAHRENHEIT

(approx)

212°F

230°F

260°F

285°F

300°F

320°F

350°F

365°F

390°F

410°F

SUGGESTED USES TEMPERATURE

Keeping food warm

Simmering, slow cooking

Pan frying, roasting

Shallow frying

Searing, sealing and baking

LOW

MEDIUM

HIGH

6

Using your Fryware

Before the first use: Wash, rinse and dry your
frypan, skillet and lid. Season the cooking
surface by applying a thin coat of cooking oil
and rub in with paper towelling.

1. Insert the control probe into the inlet on
the frypan/skillet.

2. Plug the cord into a 230-240V power
outlet and turn the power on.

3. Preheat the frypan/skillet on setting 7-8.
Then set the control probe dial to the
desired temperature setting. Refer to page
8 for the temperature guide.

Note: The light on the control probe will
illuminate and will remain on until the set
temperature is reached. It will then cycle
on and off throughout cooking, as the
temperature is maintained by the thermostat.
On initial heating of the frypan/skillet, it
is recommended that the temperature be
allowed to cycle (the light cycling on and
off) several times. This will help the cooking
surface to adjust to a more accurate cooking
temperature.

Using the pan tilt lever

The pan tilt lever on the frypan is positioned
under the inlet where the control probe is
inserted.
To tilt the frypan, push the lever down. This
allows the fat and juices to drain from the
food for crisp, low fat cooking. It also makes it
easier to baste food and serve sauces or gravy.

Note: Any discolouration on the cooking
surface that may occur will not affect the
cooking performance. Do not use metal
utensils, these will scratch and damage
the non-stick cooking surface. Sunbeam
recommends only using heat-proof plastic
or wooden utensils to stir food.

7
