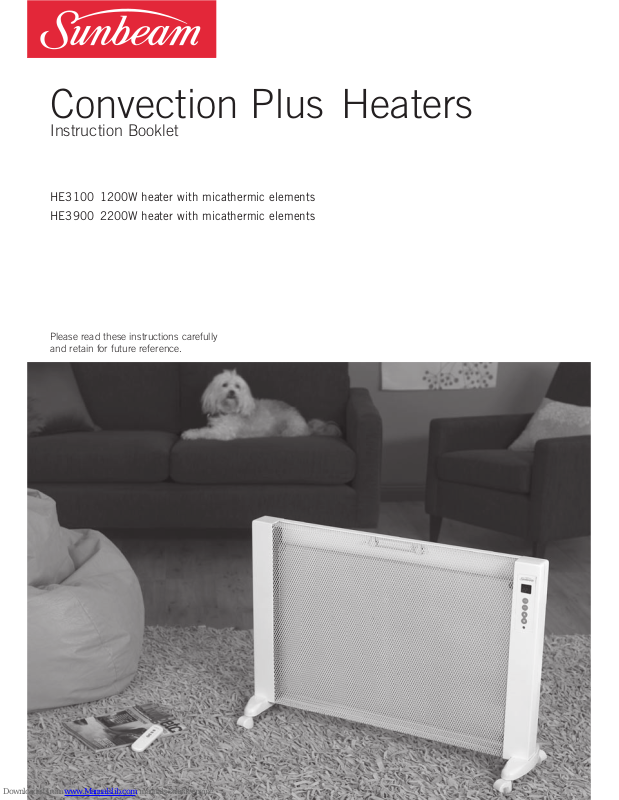

Convection Plus Heaters
Instruction Booklet
HE3100 1200W heater with micathermic elements
HE3900 2200W heater with micathermic elements
Please read these instructions carefully
and retain for future reference.
Contents
Important instructions – retain for
future use.
Sunbeam’s Safety Precautions 1
Sunbeam’s Total Safety System 3
Features of your HE3100 Convection Plus Heater 4
Features of your HE3900 Convection Plus Heater 6
Using your Convection Plus Heater – HE3100 8
Using your Convection Plus Heater – HE3900 9
Wall Mounting and Attaching the Wheels 11
Care and Cleaning 12
1
If you have any concerns regarding the performance and use of your appliance,
please visit www.sunbeam.com.au or contact the Sunbeam Consumer Service Line.
Ensure the above safety precautions are understood.
Sunbeam’s Safety Precautions
Sunbeam are very safety conscious when
designing and manufacturing consumer products,
but it is essential that the product user also
exercise care when using an electrical appliance.
Listed below are precautions which are essential
for the safe use of an electrical appliance:
• Read carefully and save all the instructions
provided with an appliance.
• Always turn the power off at the power outlet
before you insert or remove a plug. Remove
by grasping the plug – do not pull on the cord.
• Turn the power off and remove the plug
when the appliance is not in use and
before cleaning.
• Do not use your appliance with an extension
cord unless this cord has been checked
and tested by a qualified technician or
service person.
• Always use your appliance from a power
outlet of the voltage (A.C. only) marked
on the appliance.
• This appliance is not intended for use by young
children or infirm persons unless they have
been adequately supervised by a responsible
adult to ensure that they can use the appliance
safely.
• Young children should be supervised to ensure
that they do not play with the appliance.
• Never leave an appliance unattended while
in use.
• Do not use an appliance for any purpose
other than its intended use.
• Do not place an appliance on or near a hot gas
flame, electric element or on a heated oven.
Do not place on top of any other appliance.
• Do not let the power cord of an appliance hang
over the edge of a table or bench top or touch
any hot surface.
• For safety reasons and to avoid maintenance
by unskilled persons, some appliances are
‘sealed’ using tamperproof screws. Such
appliances should always be returned to the
nearest Sunbeam Appointed Service Centre
for adjustment or repair if required.
• Do not operate any electrical appliance with
a damaged cord or after the appliance has
been damaged in any manner. If damage is
suspected, return the appliance to the nearest
Sunbeam Appointed Service Centre
for examination, repair or adjustment.
• For additional protection, Sunbeam
recommend the use of a residual current
device (RCD) with a tripping current not
exceeding 30mA in the electrical circuit
supplying power to your appliances.
• Do not immerse the appliance in water
or any other liquid unless recommended.
2
If you have any concerns regarding the performance and use of your appliance,
please visit www.sunbeam.com.au or contact the Sunbeam Consumer Service Line.
Ensure the above safety precautions are understood.
Sunbeam’s Safety Precautions
• This heater becomes hot during use. To avoid
burns, do not let bare skin touch hot surfaces.
If provided, use handles when moving this
heater. Keep combustible materials such as
furniture, pillows, bedding, papers, clothes and
curtains at least 3 feet (90cm) away from the
front of the heater and keep them away from
the sides and rear.
• Extreme caution is necessary when any heater
is used by or near children or invalids and
whenever the heater is left unattended.
• Always unplug the heater when not in use.
• Do not use outdoors.
• Do not run the cord of the heater under
carpeting. Do not cover the cord with throw
rugs, runners or other floor coverings. Arrange
the cord away from traffic areas where it will
not be tripped over.
• Do not locate the heater immediately below a
socket outlet.
• Do not use this heater in the immediate
surrounds of a bath, shower, laundry area or
swimming pool.
• Do not insert or allow foreign objects to enter
any ventilation or exhaust openings as this may
cause electric shock or fire, or damage to the
heater.
• To prevent a possible fire, do not block air
intakes or exhaust in any manner. Do not use
on soft surfaces, such as beds, where opening
may become blocked.
• A heater has hot and arcing or sparking parts
inside. Do not use it in areas where petrol,
paint or flammable liquids are used or stored.
• To prevent overheating, do not cover the
heater.
• When turned on for the first time, your
new heater will emit a slight odour for
up to 8 hours. This is due to the initial
heating of the materials used. It is safe, not
detrimental to the performance of the heater
and will not reoccur. Sunbeam advises that
the heater be placed in a well ventilated
area during this period.
3
Safety auto shut-off
Your Sunbeam Convection Plus Heater is
equipped with a safety system that detects
any abnormally high temperatures within the
heater and automatically cuts power to the
heating element, preventing overheating.
Once the heater has cooled it will
automatically resume normal operation.
Thermal back-up fuse
In addition to this automatic shut-off, your
heater contains a thermal back-up fuse to
provide additional back-up protection. If the
heater is in an overheat situation, the backup fuse will open, stopping the power flow
to the heating element. This fuse cannot
be reset, so in the event that the back-up
fuse is activated, the heater will need to be
replaced.
Instant tip-over cut-out
Your Sunbeam Convection Plus Heater is also
equipped with an instant tip over cut-out
switch. This switch automatically interrupts
the power flow to the heating element when
the heater is tilted to a certain angle. If
the heater is tipped over, it will not turn on
until it has been placed back in the upright
position.
Note: The tip over cut-out switch will activate
when the heater is tilted forward, backward
or sideways. Care should be taken to ensure
your heater remains upright at all times.
Sunbeam’s Total Safety System
Double heat micathermic elements
The revolutionary micathermic heating
elements produce both radiant and
convection heat. Instant heat radiates from
the large surface area in one minute, while
natural convection circulates warm air around
the room quickly and evenly.
Wall mountable
The slim design is ideal for wall mounting.
The unique reflective design keeps the rear of
the heater cooler, enabling it to be mounted
directly onto the wall, without the clearance
required by other panel heaters.
Safety auto shut-off
This built-in safety system detects any
abnormally high temperatures within the
heater and automatically switches it off to
prevent overheating.
Handle and wheels
Wheels and a handle at the rear of
the unit allow you to safely move the
heater while in use.
Instant tip over cut-out
The instant tip over cut-out switch
automatically cuts the power flow to the
heating element if the heater is tipped over.
The heater will not resume operation until it
is replaced in the upright position.
4
Features of your HE3100
Convection Plus Heater
Figure 1
5
Power ON light
Illuminates to indicate that the
heater is switched on.
Mode dial
Turn the mode dial to select your
desired setting: OFF, LOW (1)
or HIGH (2).
Thermostat indicator light
The red thermostat light indicates
that the heater is warming up to the
selected temperature and will go out
when the selected temperature has
been reached.
Thermostat dial
Turn the thermostat dial clockwise to
select your desired temperature.
Adjustable thermostat
The adjustable thermostat allows you
to set the temperature to your desired
comfort level.
Once the selected heat level is
reached, the heater will automatically
cycle on and off to maintain it.
Dimensions
When the wheels are attached, your
HE3100 Convection Plus heater is
approximately:
(L)620 x (W)245 x (H)510mm
HI
C
6
Features of your HE3900
Convection Plus Heater
Double heat micathermic elements
The revolutionary micathermic heating
elements produce both radiant and
convection heat. Instant heat radiates from
the large surface area in one minute, while
natural convection circulates warm air around
the room quickly and evenly.
Safety auto shut-off
This built-in safety system detects any
abnormally high temperatures within the
heater and automatically switches it off to
prevent overheating.
Instant tip over cut-out
The instant tip over cut-out switch
automatically cuts the power flow to the
heating element if the heater is tipped over.
The heater will not resume operation until it
is replaced in the upright position.
Handle and wheels
Wheels and a handle at the rear of
the unit allow you to safely move the
heater while in use.
Wall mountable
The slim design is ideal for wall mounting.
The unique reflective design keeps the rear of
the heater cooler, enabling it to be mounted
directly onto the wall, without the clearance
required by other panel heaters.
Adjustable thermostat
The adjustable thermostat allows you to set
the temperature to your desired comfort level.
Once the selected heat level is reached, the
heater will automatically cycle on and off to
maintain it.
Figure 2
HI
C
7
Remote control
The easy to use remote control enables the
heater to be operated from anywhere in the
room.
LED screen
The LED screen displays the current settings
including the ambient room temperature, the
selected mode, or timer setting.
ON/OFF switch
Illuminates to indicate that the heater is
switched on.
Mode button
Press the mode button to select your desired
operating mode: STANDBY, LO, HI or AUTO.
Select the AUTO mode when setting the
digital thermostat.
Timer button
The timer button allows you to program the
heater to automatically switch on or off after
a desired time period. It can be set to turn
on between 1 and 12 hours or off between
0.5 and 8 hours.
Infrared receiver
Point the remote control towards the infrared
receiver to operate the heater from anywhere
in the room.
Plus/minus arrows
Use the plus/minus arrow buttons when
in AUTO mode to select your desired heat
setting or after pressing the timer button to
select your desired time setting.
Dimensions
When the wheels are attached your
HE3900 Convection Plus heater is
approximately:
(L)850 x (W)245 x (H)600mm
Figure 3
1. Place the heater on a flat level surface and
ensure that the air intake and outlet are
clear of obstructions.
Note: When turned on for the first time,
your new heater will emit a slight odour
for up to 8 hours. This is due to the initial
heating of the materials used. It is safe,
not detrimental to the performance of
the heater and will not reoccur. Sunbeam
advises that the heater be placed in a well
ventilated area during this period.
2. Ensure that the mode dial and thermostat
dial are both in the OFF position.
3. Insert the plug into a 230/240V power
outlet and turn the power on. The power
ON light will illuminate.
4. Move the mode dial to your desired heat
setting, either low heat (1) or high heat
(2).
5. Turn the thermostat dial clockwise until
the red thermostat indicator light turns on,
indicating that the heater is warming to
the selected temperature. This light will go
out when the selected temperature level is
reached.
6. The thermostat is now set and will
automatically maintain the pre-set
temperature level by turning the heater on
and off.
7. To adjust the selected temperature level,
rotate the thermostat dial anti-clockwise to
lower or clockwise to raise the temperature.
8. To turn the heater off, move the mode dial
to the OFF position.
8
Using your Convection Plus Heater
HE3100 – 1200W heater with micathermic elements
9
1. Place the heater on a flat level surface and
ensure that the air intake and outlet are
clear of obstructions.
(Refer to Note on Page 8).
2. Ensure that the ON/OFF switch is in the
OFF position.
3. Insert the plug into a 230/240V power
outlet and turn the power on. Move the
ON/OFF switch (located on the side of the
heater) to the ON position. The ON/OFF
switch will then illuminate.
The LCD screen will display the ambient
room temperature.
Note: When the heater is switched on it will
be automatically set to the standby mode.
4. Press the mode button to select your
desired operating mode. Each time you
press the mode button, it will scroll
through the various settings as follows:
STANDBY
the heater remains inactive
when in this mode
LO
the heater will continuously run
at approximately 800 watts
HI
the heater will continuously run
at approximately 2200 watts
AUTO
for operating the digital
thermostat
5. To turn the heater off, move the ON/OFF
switch to the OFF position.
Using the remote control
The remote control allows you to conveniently
operate the heater from anywhere in the room.
The buttons on the remote control are
identical to the buttons on the heater. When
using your remote control simply follow the
normal operation instructions outlined on
pages 9 and 10 in addition to the points
below.
1. Ensure that the remote control contains
2 x AAA batteries.
2. Point the remote towards the infrared
receiver on the heater (located below the
plus/minus arrows). Ensure that there are
no objects blocking the path between the
remote and the infrared receiver.
3. Follow steps 1 to 4 on the left column of
this page.
Note: The maximum transmission distance
between the heater and remote is
approximately 30 metres.
Setting the digital thermostat
The digital thermostat allows you to set your
desired temperature for the room. The heater
will then cycle on and off to maintain it.
1. Follow steps 1 to 3 on the left column of
this page.
2. Press the mode button until the AUTO
mode is displayed. Once in AUTO mode,
the LED screen will flash your previous
pre-set temperature for 5 seconds. After
5 seconds the LED screen will display the
ambient room temperature.
Using your Convection Plus Heater continued
HE3900 – 2200W heater with micathermic elements and remote control
10
3. Use the plus/minus arrows to select your
desired setting. The LED screen will
flash the set value for 5 seconds. After 5
seconds the LED screen will display the
ambient room temperature.
Note: The temperature range is from 15ºC
to 28ºC. If you scroll past 28ºC the display
will automatically return to 15ºC.
4. The digital thermostat is now set and
will automatically maintain your selected
temperature level by turning the heater on
and off.
Note: It is normal for the heater to cycle
on and off as it maintains the selected
temperature.
5. To turn the heater off, move the ON/OFF
switch to the OFF position.
Using the timer
Your HE3900 Convection Plus heater features
a timer function that switches the heater off
after a specified period of time, eg: 3 hours.
It also enables you to preheat the room by
switching the heater on automatically.
Timer auto OFF function
1. Set the heater to the desired setting using
the mode button.
2. Press the timer button. The LED screen
will display a default time of 0.0hr.
3. Use the plus/minus arrows to select the
number of hours you wish the heater to
operate before it automatically switches
off, between 0.5 and 8 hours.
Note: The timer will automatically set
within 5 seconds of the last time that
either the plus/minus arrows or timer
button are pressed.
4. Once you have selected your desired timer
setting, the ambient room temperature and
the timer icon
will display on the LED
screen.
Note: When the time has run out, the
timer icon
will cease to appear on the
LED screen. The heater will then return to
STANDBY mode.
Timer auto ON function
The timer auto on function allows you
to program the heater to switch on at a
specified time to preheat the room.
1. Set the heater to the standby mode, by
pressing the mode button.
Note: The LED screen will appear black in
this mode.
2. Press the timer button. The LED screen
will display a default time of 0.0hr.
3. Use the plus/minus arrows to select the
number of hours you wish the heater to
operate before it automatically switches on,
between 1 and 12 hours.
Note: The timer will automatically set
within 5 seconds of the last time that
either the plus/minus arrows or timer
buttons are pressed.
4. Once you have selected your desired timer
setting, the ambient room temperature and
the timer icon
will display on the LED
screen.
Note: When the time has run out, the
timer icon
will cease to appear on the
LED screen. The heater will then return
to AUTO mode, set to your last pre-set
temperature.
Using your Convection Plus Heater continued
11
Wall mounting
1. Before wall mounting your heater, remove
the wheels.
2. Mark the screw location on the wall,
approximately 1 metre from the floor.
Note: The heater must be fixed no lower
than 6.5cm above the floor and no higher
than 1.8 metres above the floor. The heater
must also be fixed at least 1 metre from
both the corner and ceiling (refer to figure
4 below).
Drill the first hole using a suitable drill bit.
Note: Any electrical appliances to be fitted
in a bathroom should be installed by a
qualified electrician in accordance with
Australian/New Zealand Standard Wiring
Rules. Portable heaters should not be used
in a bathroom.
Heaters that can be permanently fixed
must be installed so that any controls
cannot be reached by a person using a
bath or shower, as shown in Figure 5.
3. Insert one of the screw anchors into
the hole.
4. Put the mounting support on the wall over
the hole and screw it into place.
5. Mark the second screw location,
approximately 138mm from the first hole,
and 1 metre from the floor. Drill the second
hole.
6. Insert the second screw anchor into the
hole.
7. Place the mounting support over the second
hole and screw it into place. Tighten both
screws.
8. Lift the heater and position over the screws.
Attaching the wheels
Fix each wheel support in position with the
screws provided.
Wall Mounting and Attaching
the Wheels
Figure 4
Figure 5
12
Ensure that the heater is switched off and
disconnected from the power outlet before
cleaning.
Carefully wipe the exterior of the heater
with a soft damp cloth and dry thoroughly
with a dry cloth.
Over time, dust may accumulate on the
front grille. This can be removed by wiping
with a damp cloth, or by carefully going
across the grille with a vacuum cleaner or
hand held vacuum.
Do not use harsh or abrasive cleaners to
clean your heater, as these will damage the
surface.
If not wall mounted, store the heater in a
cool dry place when not in use.
Care and Cleaning
‘Sunbeam’, is a registered trademark of Sunbeam
Corporation.
Made in China. Due to minor changes in design or
otherwise, the product may differ from the one shown
in this leaflet. Backed by Sunbeam’s 3 Year Replacement
Guarantee and National Service Network.
© Copyright. SUNBEAM CORPORATION LIMITED 2006.
ABN 45 000 006 771
Sunbeam Corporation is a division of GUD Holdings Ltd.
For more information or advice on this or any other
Sunbeam appliance, visit www.sunbeam.com.au or
contact the Sunbeam Consumer Service Line.
Australia 1800 025 059
New Zealand 0800 786 232
01/06
Consumer Hotline
Australia
1800 025 059
New Zealand
0800 786 232
www.sunbeam.com.au
is a registered Trademark of Sunbeam
Corporation Limited. ABN 45 000 006 771.
© Sunbeam Corporation Limited 2006.
Loading...
