WARNING
ntenance instructions
DANGER!
WARNING
com
bustion of propane.
CAN/CGA
-
B149.2, Propane Installation Code.
Improper installation,
adjustment, alteration,
service or maintenance
can cause injury or
property damage.
Read the installation,
operation and
mai
thoroughly before
installing or servicing
this equipment.
Failure to follow these
instructions could result
in fire or explosion,
which could cause
property damage,
personal injury, or death.
By UniFlame
Model BC1712G
Deluxe Portable LP
Gas grill
DO NOT use gas grill for
indoor cooking or
heating. TOXIC fumes
can accumulate and
cause asphyxiation. NOT
to be used in or on boats
or recreational vehicles.
Chemicals known to the
state of California to
cause cancer, birth
defects, or other
reproductive harm are
created by the
SAVE THESE
INSTRUCTIONS FOR
FUTURE REFERENCE. IF
YOU ARE ASSEMBLING
THIS UNIT FOR SOMEONE
ELSE, GIVE THIS MANUAL
TO HIM OR HER TO SAVE
FOR FUTURE REFERENCE.
NOTE: The use and installation of this product must conform to local codes. In absence of local
codes, use the National Fuel and Gas Code, ANSI Z223.1, Storage and Handling of Liquefied
Petroleum Gasses, NFPA / ANSI 58 of CAN/CGA-B149.1, Natural Gas Installation Code of
Owner’s Manual,
Model BC1712G Portable Gas Grill
Dear Valued Customer,
Congratulations on your new barbecue grill: You’ve made the right choice! In this
manual, you will find assembly instructions, suggestions for grilling, and helpful hints,
as well as guidelines for the safe operation, proper care of, and use of your grill. Our
expert staff strives to provide you with an easy to assemble product. However, in the
unlikely event that a part is missing or defective, please call our customer satisfaction
department seven days a week at (800) 762-1142 from 8 a.m. to 5 p.m. central
standard time. You also can fax your request to (847) 731-6032. When faxing,
please include your name, address, model number, part needed, name of the store
and where you purchased your grill. We then will ship your request as soon as
possible. We appreciate and encourage customer feedback. Please contact us if
you have any suggestions or comments regarding this product.
Best Regards,
UniFlame Corporation
Customer Satisfaction Department
Owner’s Manual,
WARNING
Extinguish any open
fire department.
WARNING
Model BC1712G Portable Gas Grill
IMPORTANT NOTICE: READ ALL INSTRUCTIONS PRIOR TO ASSEMBLY AND USE!
Safety First!
Read and understand all warnings and precautions prior to
FOR YOUR SAFETY
If you smell gas:
Shut off gas to the
appliance.
flame.
Open Lid.
If odor continues,
immediately call
your gas supplier or
FOR YOUR SAFETY
hen cooking with
° F (177°C). Do not
any
operating your grill.
DANGER
To prevent fire or explosion hazard when testing for a leak:
1. Always perform “leak test” before lighting the grill, each time the cylinder
is connected for use.
2. No smoking. Do not use or permit sources of ignition in the area while
conducting a leak test.
3. Conduct the leak test outdoors in a well-ventilated area.
4. Do not use matches, lighters, or a flame to check for leaks.
5. Do not use grill until any and all leaks are corrected. If you are unable
to stop a leak, disconnect the propane supply. Call a gas appliance
serviceman or your local propane gas supplier.
WARNING
1. This grill is for outside use only, and shall not be used in a building,
garage, or any other enclosed area.
2. This grill is for use with propane gas only (propane gas cylinder not
included).
3. Never attempt to attach this grill to the self-contained propane system of
a camper trailer, motor home, or house.
4. Never use charcoal or lighter fluid.
5. The use of alcohol, or prescription or non-prescription drugs may impair
the consumer's ability to properly assemble or safely operate the
appliance.
6. Do not use gasoline, kerosene, or alcohol for lighting! The LP-gas
supply cylinder must be constructed and marked in accordance with the
specifications for LP-gas cylinders of the U.S. Department of
Transportation (DOT) CFR 49 or the National Standard of Canada,
CAN/CSA-B339, Cylinders, Spheres and Tubes for the Transportation
of Dangerous Goods.
7. Always open grill lid carefully and slowly as heat and steam trapped
within grill can severely burn you.
8. Always place your grill on a hard, level surface far away from
combustibles. An asphalt or blacktop surface may not be acceptable for
this purpose.
9. Do not attempt to move the grill while it is lit.
10 Do not leave a lit grill unattended, especially keep children and pets
away from grill at all times.
11. This is not a tabletop grill. Therefore, do not place this grill on any type
of tabletop surface.
12. Do not use grill in high winds.
Warning
cylinder within 10
or
° F (177°C).
w
Owner’s Manual,
Model BC1712G Portable Gas Grill
13 Do not use the grill unless it is COMPLETELY assembled and all parts
are securely fastened and tightened.
14 Keep all combustible items and surfaces at least 12 inches (30 cm)
away from the grill at all times. DO NOT use this gas grill or any gas
product under any overhead or near any unprotected combustible
constructions.
CAUTION
1. To prevent liquid propane from entering the regulator valve and causing
a possible safety hazard, make sure that during installation and use, the
propane cylinder is lower than the regulator valve / regulator.
2. Do not touch metal parts of grill until it has completely cooled (about 45
min.) to avoid burns, unless you are wearing protective gear (potholders,
gloves, BBQ mittens, etc.).
3. Do not use in an explosive atmosphere. Keep grill area clear and free
from combustible materials, gasoline and other flammable vapors and
liquids.
4. Do not alter grill in any manner
CAUTION: Liquid propane (LP) gas is flammable and hazardous if
handled improperly. Become aware of the characteristics before using
any LP product.
• LP Characteristics: Flammable, explosive under pressure, heavier than
air, and settles and pools in low areas.
• In its natural state propane has no odor. for your safety, an odorant is
added that smells like rotten cabbage.
• Contact with LP can cause freeze burns to skin.
• This grill is shipped from the factory for LP gas use Only.
• Never use an LP cylinder with a damaged body.
• Dented or rusted LP cylinders may be hazardous and should be
checked by your LP gas supplier
CAUTION: It is essential to keep the grill’s valve compartment, burners,
and circulating air passages clean. Inspect grill before each use.
GENERAL INFORMATION:
1. PROPANE GAS CYLINDER NEEDED TO OPERATE:
2. This Gas Grill is NOT for commercial use!
Illustrated parts list
Owner’s Manual,
Model BC1712G Portable Gas Grill
1: Lid ……………………..……. ….1 PC
55-12-588
4:Lid Handle…...…………………. 1 PC
55-12-591
7: Side Handles……………….…. 2 PCS
55-12-594
10:Hinges-A………….……….….2 PCS
55-12-597
13: Heat Shield ……..……………1 PC
55-12-600
.
2: Grill Bottom. ……………………. 1 PC
55-12-589
5: Cooking Grid …………………… 1 PC
55-12-592
8: Heating Plate ……………………. 1 PC
55-12-595
11: Hinges-B…………………...….2 PCS
55-12-598
14. Side handle support………………2 PC
55-12-601
3: Wire Legs …………….… 2 PCS
55-12-590
6: Burner.………………….....1 PC
55-12-593
9: Gas Regulator Valve.….…. 1 PC
55-12-596
12:Warming Rack……………1 PC
55-12-599
A
B
C
Bolt For Burner
D
Large Bolts
Medium Bolts
Small Bolts
Large Wing Nuts
E
Small Wing Nuts
F
Round Heat Resistant Washers
G
Large Lock Washers
H
55-12-602
55-12-603
55-12-604
55-12-605 1pc
55-12-606
55-12-607
55-12-608 8pcs
55-12-609
2pcs
4pcs
6pcs K
2pcs
10pcs
2pcs
I
J
L
M
N
Small Lock Washers
Large Washers
Small Washers
Pins
Phillips Screwdriver
55-12-610
55-12-611
55-12-612
55-12-613
Cotter Pins
55-12-614
55-12-615
10pcs
2pcs
10pcs
2pcs
2pcs
1pc
Owner’s Manual,
washers (G),
washers
wa
Keep all combustible items and surfaces at least 12 inches (30 cm) away from the grill at all
y
Standards Used:
CSA 6.99 U.S.
, 2nd Ed.
Outdoor Specialty Cooking Gas Appliance CAN 1
-
11.2 Portable Type Gas Camp Stoves
For use with Propane Gas
B.B.Q. Portatif Au Gaz
Usage Avec Gaz Propane
Model BC1712G Portable Gas Grill
Assembly Instructions
For Best Results
Remove all contents from packaging, and make sure all parts are present before attempting
to assemble! Tighten all bolt connections by hand first, then when the grill is fully
assembled, go back and tighten.
Remove this shipping insert befort using grill
Model # BC1712G
For Outdoor Use Only! Pour utilisation a l’exterieur seulement
Portable Gas Grill
This Appliance Is Not Intended for Commercial Use
•
times. DO NOT use this gas grill or any gas product under any overhead or near an
unprotected combustible constructions.

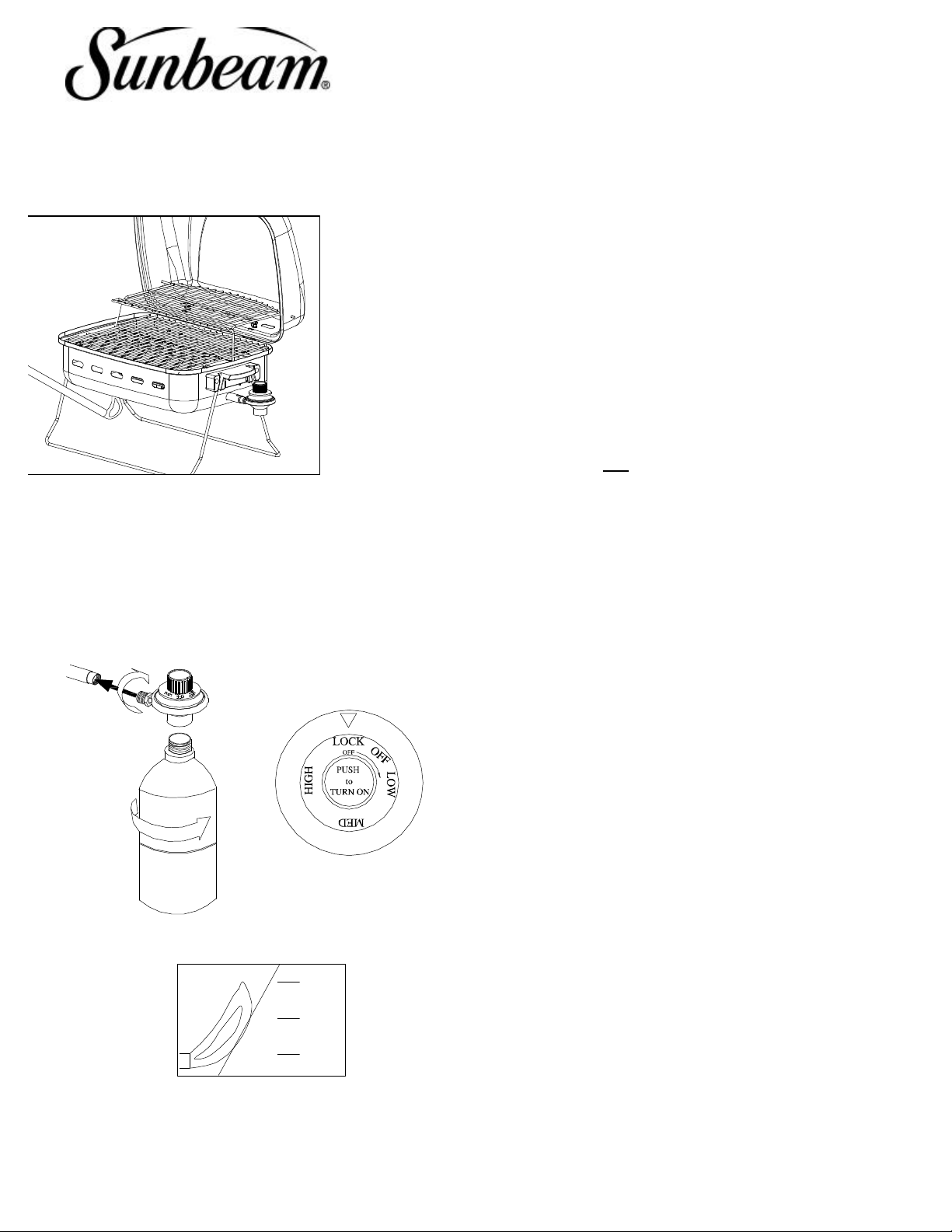

Lighting Instructions
•
Read all instructions before lighting
•
Open lid during lighting
• Maintenez en tout temps tous les articles et surfaces inflammables à au moins 30 cm (12") du gril de
cuisson. NE PAS utiliser ce B.B.Q. ou tout autre produit au gaz sous toute partie d'une construction en
saillie ou près de constructions inflammables non protégées.
Directives d'allumage
• Lisez toutes les directives avant de procéder à l'allumage.Open lid during lighting
•
Ouvrez le couvercle durant l'allumage.
Model # BC1712G

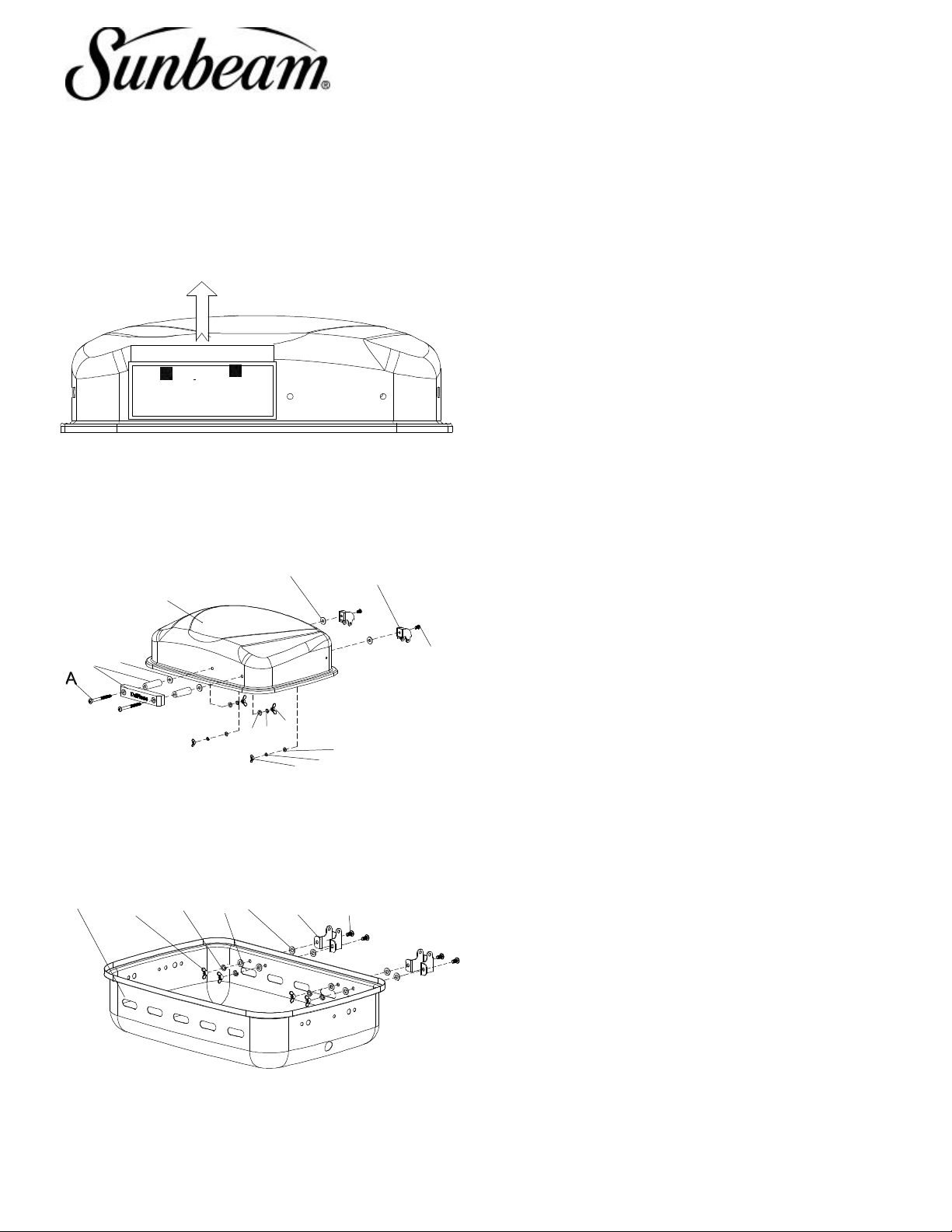

Step 1
Remove the packing cardboard from
behind the rating plate.
G
1
10
Step 2
Attach handle (4) to lid (1), as shown,
using bolts (A), heat resistant
G
4
C
nuts (E). Then attach the hinges-A (10)
using heat resistant washers (G), small
(J), lock washers (H), and wing
bolts (C), small washers (K), small lock
E
H
J
K
I
F
shers (I) and small wing nuts (F).
2
K
G
11
C
Step3
Attach hinges-B (11) to bottom bowl (2)
F
I
as shown, using small bolts (C), heat
resistant washers (G), small washers
(K), small lock washers (I) and small
wing nuts (F).
Owner’s Manual,
medium
valve (9) to threaded burner inlet,
will rotate.
Model BC1712G Portable Gas Grill
F I K
14
7 B
3

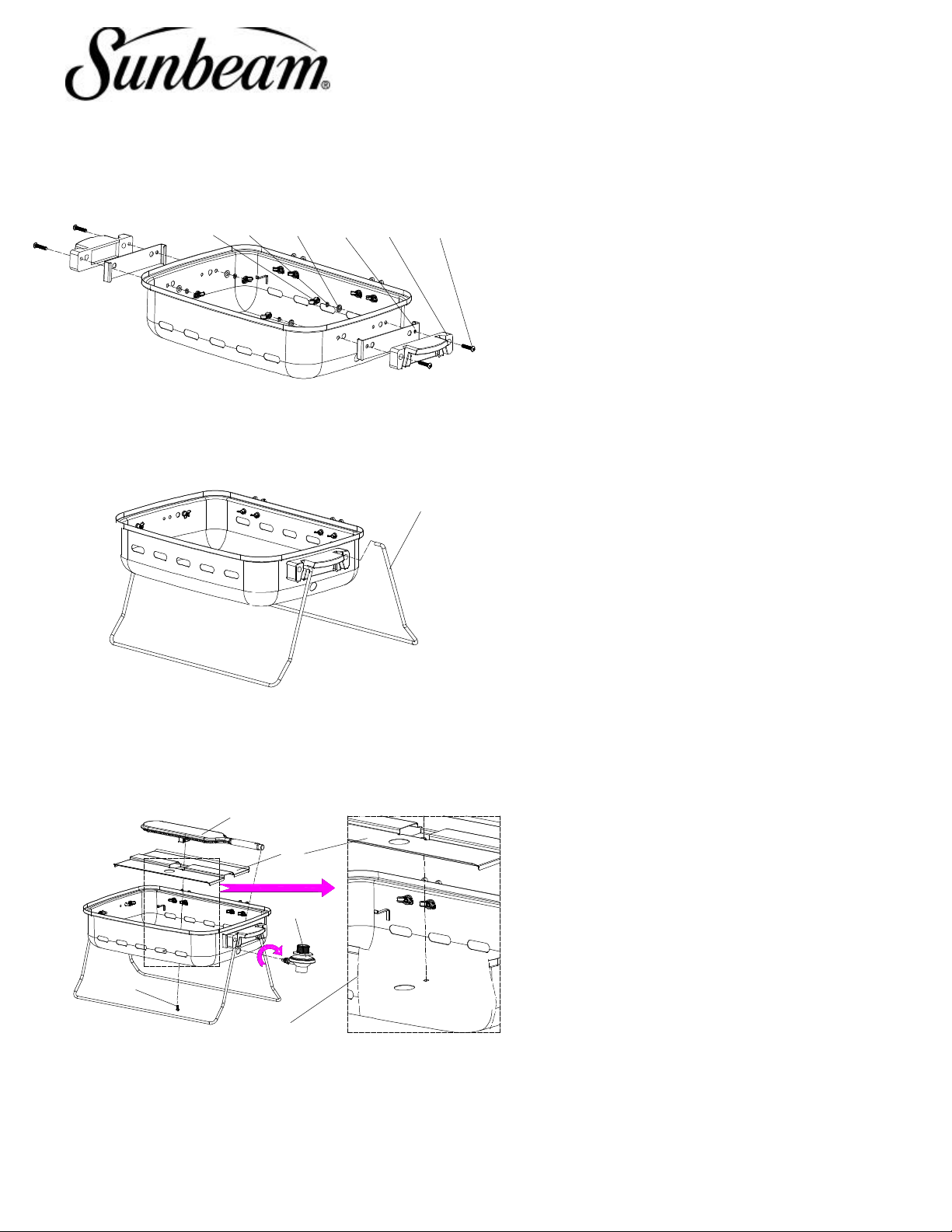

Step 4
Position handle support (14)
between handle and grill, and
attach side handles (7) to grill
bottom (2) as shown, using
bolts (B), small washers (K), small
lock washers (I) and small wing
nuts (F).
Step 5
Attach legs (3) to grill bottom as
shown, by inserting into holes in
side handles.
6
13
9
D
2
Step 6
Position heat shield (13) between burner
and grill bottom, and secure burner (6),
and heat shield (13) to grill bottom using
burner bolt (D). Assure that the lighting
hole in the heat shield lines up with the
hole in the grill bottom. Finger tighten gas
regulator
as shown.
IMPORTANT: The gas regulator valve is
properly positioned when the hex portion
of regulator valve is flat against burner
inlet.
Note: when attached, the regulator valve
Owner’s Manual,
(2) at hinges (10, 11), using
pins (L), and cotter pins (M)
Model BC1712G Portable Gas Grill
M
L
Step 7
Attach lid (1) to grill bottom
as shown.
12
5
8

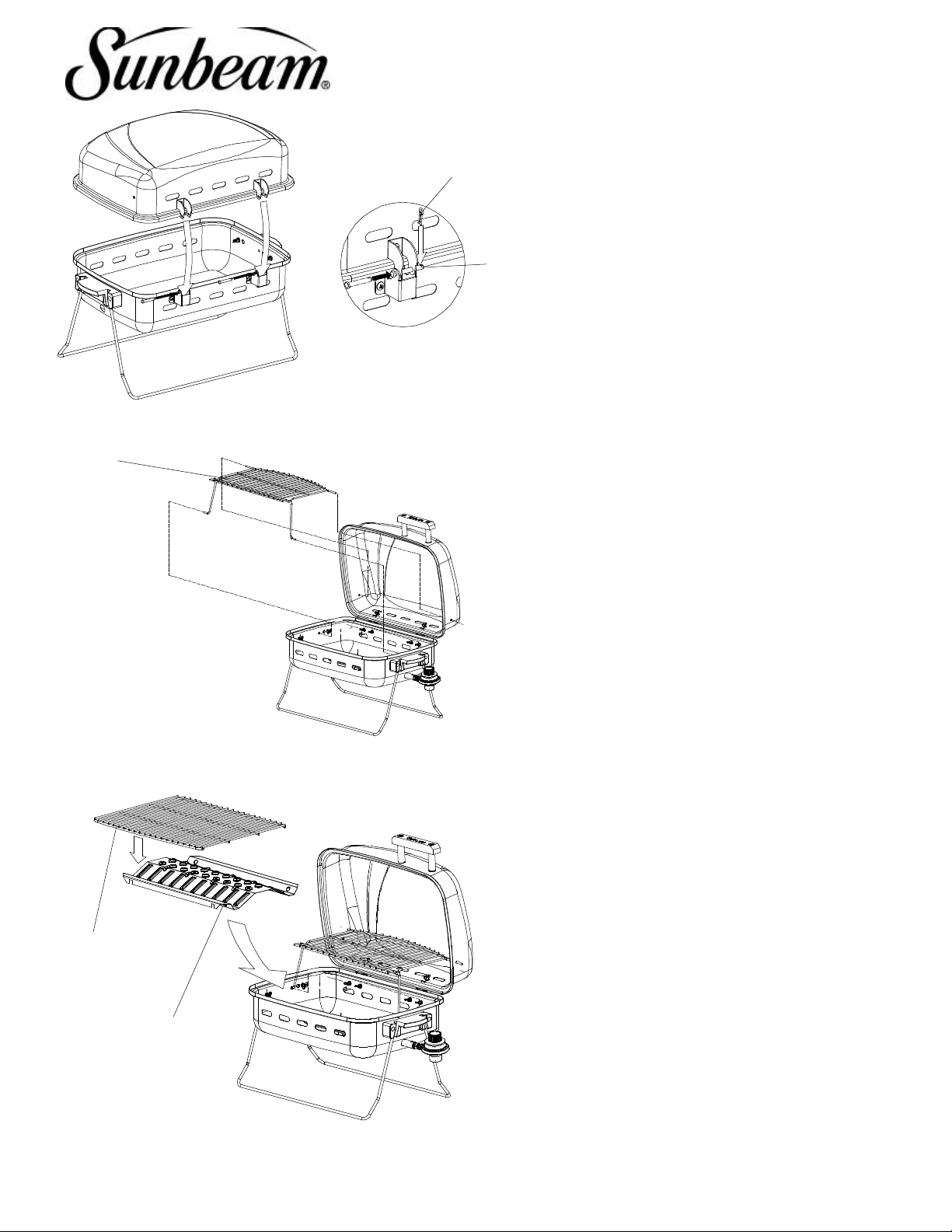

Step 8
Attach warming rack (12) to grill
by inserting into holes, as
shown.
Step 9
Insert heating plate (8) and cooking
grid (5) into assembled grill, as
shown.
Note: When assembling the cooking
grid (5), assure that the curved side
faces the front of the grill.
Owner’s Manual,
USE ONLY THE REGULATOR PROVIDED!
Model BC1712G Portable Gas Grill
OPERATING YOUR GRILL
If a replacement is necessary, please call our customer service center. The
Connecting gas cylinder:
This grill is designed to operate with a (DOT 39 Cylinder) one pound 7-3/8” High disposable / 16.4
oz. propane gas cylinder. DO NOT ATTEMPT TO REFILL ANY PROPANE GAS CYLINDERS! The
LP-gas supply cylinder to be used must be constructed and marked in accordance with the
specifications for LP-gas cylinders of the U.S. Department of Transportation (DOT) CFR49 or the
National Standard of Canada, CAN/CSA-B339, Cylinders, Spheres, and Tubes for the
Transportation of Dangerous Goods. Only cylinders marked “propane” may be used. The gas
cylinder should not be dropped or handled roughly! If the appliance is not in use, the gas cylinder
must be disconnected. Storage of an appliance indoors is permissible only if the cylinder is
disconnected and removed from the appliance. Cylinders must be stored outdoors out of the reach
of children and must not be stored in a building, garage, or any other enclosed area. Your cylinder
must never be stored where temperatures can reach over 125°F! Before connection, be sure that
there is no debris caught in the head of the gas cylinder, head of the regulator valve, or in the head
of the burner and burner ports. Lubricate the threads of the regulator valve with petroleum jelly,
insert the gas cylinder into the regulator valve and hand-tighten firmly. Disconnect the propane
cylinder from the regulator valve when the grill is not in use. DO NOT obstruct the flow of
combustion air and ventilation air to the grill.
Duration:
One pound (1 cylinder) of propane gas has slightly more than 21,000 BTU’s of heat energy. Your
gas grill burns gas at a rate of 10,000 BTU/hr. This gas grill will cook for approximately 2 hours
with the regulator valve set on “high.”
use of unauthorized parts can create an unsafe conditions and environment
Check for leaks. Make sure the regulator valve is securely fastened to the burner and the cylinder.
Make 2-3 oz. of leak solution by mixing one part liquid dishwashing soap with three parts water.
-Make sure control knob is off.
-Spoon several drops of solution at the cylinder to regulator valve connection.
-Inspect the solution at the connection, looking for bubbles. If NO bubbles appear, the
connection is secure. If bubbles appear, you have a leak and must retest in following
steps.
-Turn control knob to the Lock Off position.
-Disconnect cylinder and reconnect, making sure the connection is secure.
-Retest with solution. If you continue to see bubbles, replace the cylinder.
TO CHECK FOR LEAKS:
Owner’s Manual,
Observe Flame Height When lit:
0”
IMPORTANT: Unfold, lock and secure legs in place. Open lid
prior to lighting grill. Attempting to light the burner with the lid
there are no
obstructions of airflow to the gas unit. Spiders and insects can
nest within and clog the burner / venturi tube at the orifice. A
clogged burner tube can lead to a fire beneath the appliance.
er. Make sure
control knob is in the “lock off” position. Place a lighted match
Turn the regulator
valve to its “high” setting. After lighting, please observe the
a blue /
burner rod should appear
seconds, turn the
gas regulator to its “off” position and wait 5 minutes for gas to
goes out during
open lid to let the
light. Before
cooking on this grill for the first time, operate the grill for about
urned on “high.”
This will “heat clean” the internal parts and dissipate odor from
the painted finish. Clean your grill after each use, DO NOT use
abrasive or flammable cleaners, as it will damage the parts of
Model BC1712G Portable Gas Grill
Lighting Your Grill
closed may cause an explosion! Make sure
Clean burner holes with a heavy-duty pipe clean
up through the hole in the bottom of the unit.
burner flame, make sure all burner ports are lighted -
yellow flame of 1-2 inches from the
(refer to drawing). If burner does not light in 5
clear before trying again. If burner flame
operation, immediately turn the gas “off” and
gas clear for about 5 minutes. Attempt to re-
15 minutes with the lid closed and the gas t
this product and may start a fire. Clean in warm soapy water.
Assure that the regulator control knob is in
the “lock off” position when attaching the
propane cylinder to the regulator.
When lighting, turn control knob to the off
position, and push in to turn on. Please
refer to “lighting instructions,” above.
When turning gas off, push the regulator
2”
1”
control knob and turn to “OFF” position.
Flame should be a Blue / Yellow
color Between1”– 2” High
Owner’s Manual,
Model BC1712G Portable Gas Grill
Cleaning and Care
Caution: All cleaning and maintenance should be done when grill is cool and with the fuel supply turned off at the LP
cylinder. DO NOT clean any grill part in a self-cleaning oven. The extreme heat will damage the finish.
Cleaning – Burning-off the grill after every use (approx. 15 minutes) will keep excessive food residue from
building up.
RECOMMENDED CLEANING MATERIALS -
Mild dishwashing liquid detergent Hot water
Nylon cleaning pad Wire brush
Paper clip Putty knife/scraper
Compressed air
DO NOT use cleaners that contain acid, mineral spirits or xylene.
Outside surfaces - The porcelain finish of the grill lid has a glass-like composition that should be handled
with care not to chip. Use mild dishwashing detergent or baking soda and hot water solution. Non abrasive
scouring powder can be used on stubborn stains, then rinse with water.
If the inside surface of the grill lid has the appearance of peeling paint, baked on grease buildup has turned
to carbon and is flaking off. Clean thoroughly with strong solution of detergent and hot water. Rinse with
water and allow to completely dry. NEVER USE OVEN CLEANER.
Interior of grill bottom – Remove residue using brush, scraper and/or cleaning pad, then wash with
dishwashing detergent and hot water solution. Rinse with water and let thoroughly dry.
Plastic surfaces – Wash with a soft cloth and dishwashing detergent and hot water solution. Rinse with
water. Do not use abrasive cleaners, degreasers or a concentrated grill cleaner on plastic parts.
Cooking Grid –Use mild dishwashing detergent and hot water solution. Non abrasive scouring powder can
be used on stubborn stains, then rinse with water.
Heat Plate – Clean residue with wire brush and wash with soapy water, then rinse with water.
Cleaning the burner assembly -
1. Turn gas off at the control knob and disconnect cylinder.
2. Remove cooking grate and heat plate.
3. Remove burner by unscrewing the regulator valve from burner inlet and removing the fastener securing
the burner to the grill bottom.
4. Lift burner up and away from gas valve area.
5. Clean inlet (venturi) of burner with small bottle brush or compressed air.
6. Remove all food residue and dirt on outside of burner surface.
7. Clean any clogged ports with heavy-duty pipe cleaner or a stiff wire (such as an opened paper clip)
8. Inspect burner for any damage (cracks or holes). If damage is found, replace with new burner.
Reinstall burner; check to insure that gas valve orifices are correctly positioned and secured inside
burner inlet (venturi).
Owner’s Manual,
Model BC1712G Portable Gas Grill
Award-Winning Barbecue Recipes
Never-fail barbecue sauce
Ingredients:
¼ cup Finely Chopped Onion
2 tablespoons Butter Or Margarine
¼ cup Brown Sugar, Firmly Packed
1 tablespoon Worcestershire Sauce
¼ teaspoon Hot Pepper Sauce
1 Clove Garlic, Finely Chopped
1 cup Catsup
¼ cup Lemon Juice
1 teaspoon Prepared Mustard
Prepare:
Cook onion and garlic in margarine until tender. Add remaining ingredients and bring to a boil. Simmer
uncovered 15 to 20 minutes. Refrigerate leftovers after using.
Mamma’s Marinated Chicken
Ingredients:
¼ cup Dijon mustard
2 tablespoons fresh lemon juice
1 ½ teaspoons Worcestershire sauce
½ teaspoon dried tarragon
¼ teaspoon freshly ground black pepper
4 boneless skinless chicken breast halves
Prepare:
Combine ingredients, mixing well. Marinade chicken for several hours. Grill uncovered, over medium heat,
for 10 to 15 minutes or to taste.
Barbecued Honey Steak
Ingredients:
5 pounds Beef sirloin steak
2 tablespoons Red pepper -- crushed
1 teaspoon Black pepper
2 Garlic cloves -- crushed
1 large Onion
1 cup Honey
Prepare:
Combine all ingredients and marinate steak for 7-8 hours. Remove meat from marinade and grill over very
hi gh heat. Heat leftover marinade and pour over grilled steak to serve.
Owner’s Manual,
Model BC1712G Portable Gas Grill
Hardcore Grilled Trout
Ingredients:
1/4 cup lemon or lime juice
2 tablespoons melted butter
2 tablespoons vegetable oil
2 tablespoons chopped parsley
1 tablespoon hot sauce
1/2 teaspoon ground ginger
1/2 teaspoon salt
4 brook trout -- about 1 pound each
Prepare:
Combine lemon juice, margarine, oil, parsley, sesame seeds, hot sauce, ginger and salt. Mix well. Pierce
skin of fish in several places. Roll fish in juice mixture to coat inside and out. Cover. Refrigerate 30 minutes
to 1 hour, turning occasionally. Remove fish from marinade. Place fish on grill; brush fish with marinade
while grilling. Cook over high heat for 5 minutes. Turn; brush with marinade, cook 5 minutes longer. Fish is
done when it flakes easily with fork – Cook to taste.
Grilled Veggies
Ingredients:
¾ cup Olive oil
¼ cup Red wine vinegar
1 teaspoon Fresh rosemary
1 teaspoon Fresh thyme leaves
1 teaspoon Fresh basil; chopped
1 teaspoon Fresh oregano; chopped
1 tablespoon minced garlic
½ teaspoon salt
½ teaspoon Ground black pepper
2 pounds assorted vegetables, chopped or whole, according to taste.
Prepare
Combine all ingredients in a small bowl. Marinade vegetables with sauce, and cover and refrigerate for 2
hrs. Grill vegetables over medium heat until tender, brushing them with marinade while they cook. Cooking
times will vary according to the vegetables chosen.
Owner’s Manual,
Model BC1712G Portable Gas Grill
Gas Grill Troubleshooting
Problem Possible Cause Prevention/Cure
___________________________________________________________________________
Burner will not light with No gas flow Check if LP cylinder is empty
match.
Obstruction of gas flow. Clear burner tube
Spider webs or insect nest in venturi. Clean venturi.
Burner ports clogged or blocked. Clean burner ports.
Irregular flame pattern, flame Burner ports are clogged or blocked Clean burner ports.
does not run the full length
of burner.
__________________________________________________________________________________________
Flame is yellow or orange. New burner may have residual Burn grill for 15 minutes with the lid closed.
Manufacturing oils.
Spider webs or insect nest in venturi. Clean venturi.
Food residue, grease or seasoning Clean burner.
Salt on burner.
Flame blow out High or gusting winds Turn front of grill to face wind or increase
flame height.
Low on LP gas. Replace LP cylinder.
Flare-up Grease buildup. Clean grill.
Excessive fat in meat. Trim fat from meat before grilling.
Excessive cooking temperature. Adjust (lower) temperature accordingly.
Persistent grease fire. Grease trapped by food buildup Turn knobs to LOCK OFF position.
around burner system. Leave lid in closed position and let fire burn
out. After grill cools, remove and clean all
parts.
__________________________________________________________________________________________
Flashback (fire in burner Burner and /or burner tube is Clean burner and/or burner tube.
Tube) blocked.
Inside of lid is peeling – like The lid is baked enamel Baked on grease buildup has turned to
paint peeling. carbon and is flaking off. Clean thoroughly
Owner’s Manual,
Model BC1712G Portable Gas Grill
1 YEAR LIMITED WARRANTY
UniFlame Corporation warrants to the original retail purchaser of this grill that if it is assembled and operated in
accordance with the printed instructions accompanying it then for a period of one (l) year from the date of purchase. All
parts shall be free from defects in material and workmanship. UniFlame may require reasonable proof of your date of
purchase. Therefore, you should retain your sales slip or invoice.
This Limited Warranty shall be limited to the repair or replacement of parts, which prove defective under normal use
and service and which on examination, shall indicate, to UniFlame's satisfaction, they are defective. Before returning
any parts, contact UniFlame's Customer Service Department. If UniFlame confirms the defect and approves the claim,
Uniflame will elect to replace such parts without charge. If you are required to return defective parts, transportation
charges must be prepaid. UniFlame will return parts to the purchaser, freight or postage prepaid.
This Limited Warranty does not cover any failures or operating difficulties due to accident, abuse, misuse, alteration,
misapplication, improper installation or improper maintenance or service, or failure to perform normal and routine
maintenance, as set out in this owners manual. There are no other express warrants except as set forth herein and any
applicable implied warranties of merchantability and fitness are limited in duration to the period of coverage of this
express written Limited Warranty. Some states do not allow limitation on how long an implied warranty lasts, so this
limitation may not apply to you.
UniFlame is not liable for any special, indirect or consequential damages. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.
UniFlame does not authorize any person or company to assume for it any other obligation or liability in connection with
the sale, installation, use, removal, return, or replacement of its equipment, and no such representations are binding on
UniFlame.
UniFlame Corporation
1817 N. Kenosha Road
Zion, Illinois 60099,USA
(800) 762-1142
24 Hour Fax: (847) 731-6032
Loading...
