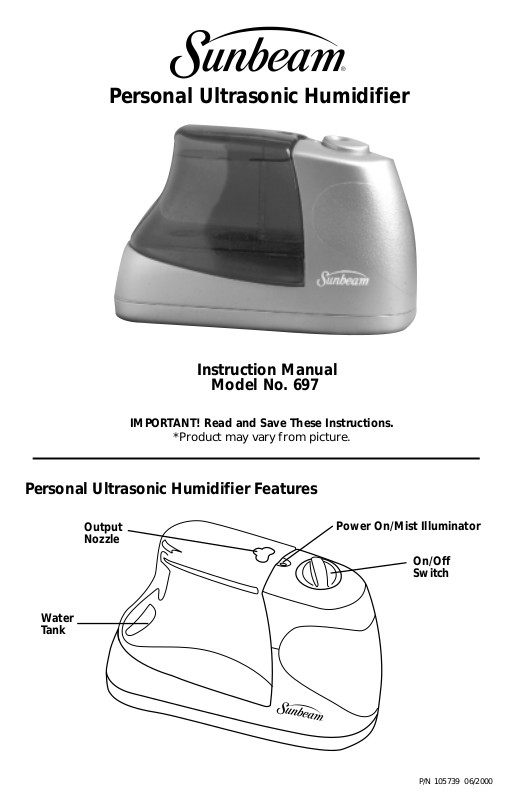

Page 1
IMPORTANT! Read and Save These Instructions.
*Product may vary from picture.
Instruction Manual
Model No. 697
Personal Ultrasonic Humidifier
P/N 105739 06/2000
Personal Ultrasonic Humidifier Features
On/Off
Switch
Water
Tank
Power On/Mist Illuminator
Output
Nozzle
Page 2
When using electrical appliances,
especially when children are present,
basic safety precautions should always
be followed, including the following:
1. Always have water in the water tank
when operating unit.
2. Use only clean, cool, tap water to fill
tank (softened or distilled water is
recommended, if tap water is hard).
3.To avoid white dust (caused by high
mineral content in tap water), you
may use distilled water.
4. Use only 110-120v AC outlet. As with
any electrical device, plug and unplug
unit with dry hands only. Turn unit off
to unplug.
5. Never operate unit with a damaged
cord or plug.
6. Always place unit on a flat, level
surface away from direct sunlight.
Keep cord away from heated surfaces
and areas where it could be walked
on or tripped over.
Note: The mist will automatically shut
off when the tank is empty; however
the fan will continue to run.
7. Unplug the unit when not in use and
whenever you clean or move the unit.
8. Do not add medication of any type
into the nozzle, base or water tank.
Do not cover any opening of the unit
or insert objects into any openings.
9. The unit should not be left
unattended in closed rooms as air
could become saturated and leave
condensation on walls or furniture.
Always leave room door partly open.
10.Do not tilt or tip unit or attempt to
empty or fill it while it is operating.
1
Read all instructions:
Important Safeguards
IMPORTANT!
Place unit on a level surface away from direct sunlight. Keep cord away from heated surfaces and areas where it could be walked on or tripped over.
Using the Ultrasonic Humidifier
1. Fill Water Tank.
Remove tank from base. Turn upside
down and unscrew filling cap. Fill tank
with clean, cool, distilled, or tap water.
Water temperature should NEVER be
too hot or too cold. Return tank to
base and let sit for a few minutes.
Be sure the filling cap of the tank is
tightened firmly.
2. Turn Unit On.
Plug power cord into a 110-120V AC
wall outlet only. Turn power switch to
“On” position. Power light will illumi-
nate. Turn mist nozzle until the desired
level is being released. Aim nozzle away
from furniture and walls.
3. Turn Unit Off When Finished.
Always turn humdifier off when water
runs* out. Unit will continue to operate
when tank is empty.
(*)Humidifier will run up to 12 hours on
Low; 6 hours on High.
NOTE: Do not let water sit in tank for long. This can encourage bacterial growth.
• Aim for 30 to 50% relative humidity.
• Humidity will vary room to room, so
adjust accordingly.
• If windows and walls fog or frost,
reduce mist intensity.
• If a room is too humid, ventilate it by
opening a door or window, and adjust
mist intensity. High levels of humidity
can allow moisture to collect and
harm furniture and walls, especially
wallpaper. It can also encourage
bacterial and fungal growth.
Finding the Ideal Humidity Level For Your Home
Page 3
2
Regular Care and Maintenance
IMPORTANT! Always unplug the unit
before cleaning!
When to Clean the Humidifier
• Every third day during heating season
• Before storing.
• After long periods of storage.
• When cleaning inside of unit, keep
water away from the air outlet.
Exterior may be wiped with a damp
cloth (except for electrical controls)
when unit is off. Any part may be
wiped with a damp cloth when unit is
unplugged.
Sanitizing the Water Tank
• Use a mild bleach and water solution.
Never use detergent.
Cleaning the Nebulizer and Water
Sensor
1 Remove tank from base and empty
reservoir.
2. Take the brush stored in base and
clean off mineral deposits and debris
from nebulizer and water sensor.
Do not scrape or clean with tools that
have metal parts.
3. Do not use detergent to clean any
water containing parts of the unit.
Detergent film dissolved in the water
supply can interfere with the output
of the unit.
4. The nebulizer (ultrasonic transducer)
is highly sensitive. Keep this important part clean and treat it gently. Do
not touch the nebulizer while the unit
is operating, as possible burns could
result. Do not touch the nebulizer
with bare fingers. Any residue on the
metal will reduce mist output.
Storing the Humidifier
• Make sure all parts are thoroughly dry.
• Leave the filling door of the tank
loosened. This will keep the door and
gasket from sticking together.
Troubleshooting Guide
Problem... Cause... Try...
No Power • Unit not plugged in. • Plug in unit.
(LED is OFF) • No power at outlet. • Check circuits, fuses, and
test outlet with a test lamp.
No Air or Mist • No water in unit. • Fill water tank.
(LED is ON) • Inoperative Fan. • See Warranty.
• Inoperative Components. • See Warranty (Unit not
serviceable).
No Mist, but • Mist setting is too low. • Reset mist knob to a higher
Water Tank setting.
is Full • Unit is not level. • Place unit on a level surface.
• Mineral deposits on. • Clean nebulizer and sensor
nebulizer or sensor. with brush provided and
refill with distilled water.
• Water tank was washed • Rinse thoroughly with clean
with detergent. water.
•
Nebulizer worn or inoperative
.• See Warranty.
Damaged Plug • Worn insulation. • Do not use unit. See
or Cord Warranty.
• Damaged or exposed wires. • Do not use unit. See
Warranty.
• Inoperative components • Do not use unit. See
(non serviceable). Warranty.
White Dust • High mineral-tap water • Use distilled water
Accumulation or hard water condition. or 1/2 distilled, 1/2 tap water.
Page 4
Servicing the Ultrasonic Humidifier
Take the product to an authorized Sunbeam service center. If a service center is not
conveniently located, attach a tag to the product that includes your name, address,
daytime phone number and description of the problem. Include a copy of the original sales receipt. Carefully package the product and send either by UPS or Parcel
Post with shipping and insurance prepaid to:
1 Year Limited Warranty
Do not return this product to the
place of purchase.
If you have any questions regarding this warranty
please call 1-800-435-1250 or write to: Sunbeam
Consumer Affairs, P.O. Box 948389, Maitland, FL
32794-8389.
Sunbeam Products, Inc. (“Sunbeam”) warrants that
for a period of one year from the date of purchase,
this product will be free from defects in material
and workmanship. Sunbeam, at its option, will
repair or replace this product or any component of
the product found to be defective during the warranty period. Replacement will be made with a
new or remanufactured product or component. If
the product is no longer available, replacement
may be made with a similar product of equal or
greater value. This is your exclusive warranty. This
warranty is valid for the original retail purchaser
from the date of initial retail purchase and is not
transferable. Keep the original sales receipt. Proof
of purchase is required to obtain warranty performance. Sunbeam dealers, service centers, or
retail stores selling Sunbeam Products do not have
the right to alter, modify or any way change the
terms and conditions of this warranty.
This warranty does not cover normal wear of parts
or damage resulting from any of the following
negligent use or misuse of the product, use on
improper voltage or current , use contrary to the
opening instructions, disassembly, repair or alteration by anyone other than Sunbeam or an authorized service center. Further, the warranty does not
cover Acts of God, such as fire, flood, hurricanes
and tornadoes.
Sunbeam shall not be liable for any incidental or
consequential damages caused by the breach of
any express or implied warranty. Except to the
extent prohibited by applicable law, any implied
warranty of merchantability or fitness for a particular purpose is limited in duration to the duration of
the above warranty. Some states, provinces or jurisdictions do not allow the exclusion or limitation of
incidental or consequential damages or limitations
on how long an implied warranty lasts, so the
above limitations or exclusion may not apply to
you. This warranty gives you specific legal rights,
and you may also have other rights that vary from
state to state or province to province.
P/N 105739 06/2000
Printed in China
© 2000 Sunbeam Products, Inc. All rights reserved.
Sunbeam
®
is a registered trademark of Sunbeam Products, Inc.
For products purchased in the United States:
Sunbeam Service Center
117 Industrial Central Row
Purvis, MS 39475
