Sun Bandit Blade 1000, Blade 2000 Getting Started Manual

Sun Blade™1000

and Sun Blade 2000

Getting Started Guide

Sun Microsystems, Inc.
901 San Antonio Road
Palo Alto, CA 94303-4900 U.S.A.
650-960-1300

Part No 816-3216-10 (v1)
January 2002, Revision A

Send comments about this document to: [e-mail]

Copyright 2002 SunMicrosystems, Inc.,901 SanAntonio Road, Palo Alto, CA94303-4900 U.S.A.All rightsreserved.
This product ordocument isdistributed underlicenses restricting itsuse, copying,distribution, anddecompilation. No part of thisproduct or

document may bereproduced in any form byany meanswithout priorwritten authorizationof Sun and its licensors,if any.Third-party
software,including fonttechnology, is copyrighted and licensedfrom Sunsuppliers.

Parts of theproduct maybe derivedfromBerkeley BSDsystems, licensedfrom the University of California.UNIX isa registeredtrademarkin
the U.S. andother countries,exclusively licensedthrough X/Open Company,Ltd.

Sun, Sun Microsystems,the Sunlogo, SunBlade, SunForum, SunPCI, SunSpectrum,Access1, AnswerBook2,docs.sun.com, Java, Java Coffee
Cup logo, Java3D,JDK, JumpStart,OpenBoot, OpenGL,Power Management,ShowMe How,ShowMe TV,Solstice DiskSuite, SPARC,
StarOffice,and Solarisare trademarks, registeredtrademarks, orservice marks of Sun Microsystems,Inc. inthe U.S.and other countries. All
SPARC trademarks areused underlicense andaretrademarks orregistered trademarks of SPARCInternational, Inc.in the U.S. and other
countries. Products bearingSPARCtrademarks are basedupon anarchitecturedeveloped bySun Microsystems,Inc. The EnergyStar logois a
registeredtrademark ofEPA.

The OPEN LOOKand Sun™Graphical UserInterface wasdeveloped by Sun Microsystems, Inc.for itsusers andlicensees. Sun acknowledges
the pioneering effortsof Xeroxin researching anddeveloping the concept of visualor graphicaluser interfacesfor thecomputer industry.Sun
holds a non-exclusivelicense fromXerox to theXerox GraphicalUser Interface, which license also covers Sun’slicensees whoimplement OPEN
LOOK GUIs andotherwise complywith Sun’swritten licenseagreements.

As an Energy Star partner, Sun Microsystems, Inc. has determined that configurations of this
product that bear the Energy Star Logo meet the Energy Star guidelines for energy efficiency.

Federal Acquisitions: CommercialSoftware—Government Users Subject to StandardLicense Termsand Conditions.
DOCUMENTATION IS PROVIDED “AS IS” AND ALL EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS AND WARRANTIES,

INCLUDING ANY IMPLIED WARRANTYOF MERCHANTABILITY, FITNESS FOR A PARTICULARPURPOSE ORNON-INFRINGEMENT,
ARE DISCLAIMED, EXCEPT TO THE EXTENT THAT SUCH DISCLAIMERS ARE HELD TO BE LEGALLY INVALID.

Copyright 2002 SunMicrosystems, Inc.,901 SanAntonio Road, Palo Alto, CA94303-4900 Etats-Unis.Tousdroitsréservés.
Ce produit oudocument estdistribué avecdes licences qui en restreignentl’utilisation, la copie, la distribution,et ladécompilation. Aucune

partie de ceproduit oudocument nepeut être reproduitesous aucune forme,par quelquemoyen quece soit,sans l’autorisation préalable et
écrite de Sunet deses bailleursde licence,s’il y en a. Lelogiciel détenupar destiers, etqui comprend latechnologie relativeaux polices de
caractères,est protégépar un copyright et licenciépar desfournisseurs deSun.

Des parties dece produitpourront être dérivéesdes systèmesBerkeley BSDlicenciés par l’Université de Californie.UNIX estune marque
déposée aux Etats-Uniset dansd’autres payset licenciée exclusivement par X/OpenCompany,Ltd.

Sun, Sun Microsystems,le logoSun, SunBlade, SunForum, SunPCI, SunSpectrum,Access1, AnswerBook2,docs.sun.com, Java, le logo Java
CoffeeCup, Java3D,JDK, JumpStart,OpenBoot, OpenGL,Power Management, ShowMe How,ShowMe TV, Solstice DiskSuite,SPARC,
StarOffice,et Solarissont desmarques de fabriqueou desmarques déposées,ou marques deservice, deSun Microsystems,Inc. aux Etats-Unis
et dans d’autrespays. Toutes lesmarques SPARCsont utiliséessous licenceet sont des marques defabrique oudes marquesdéposées de
SPARC International, Inc.aux Etats-Uniset dansd’autres pays. Les produits portantles marquesSPARC sont baséssur unearchitecture
développée par SunMicrosystems, Inc.

L’interfaced’utilisationgraphique OPENLOOK etSun™ aété développée par Sun Microsystems,Inc. pourses utilisateurset licenciés. Sun
reconnaîtles effortsde pionniers de Xerox pourla rechercheetle développementdu conceptdes interfacesd’utilisation visuelle ou graphique
pour l’industrie del’informatique. Sundétient unelicence nonexclusive de Xeroxsur l’interfaced’utilisation graphiqueXerox, cette licence
couvrant également leslicenciés deSun quimettent enplace l’interface d’utilisation graphique OPENLOOK etqui enoutre se conforment aux
licences écrites deSun.

LA DOCUMENTATIONEST FOURNIE “EN L’ETAT” ET TOUTES AUTRES CONDITIONS, DECLARATIONSET GARANTIES EXPRESSES
OU TACITESSONT FORMELLEMENTEXCLUES, DANSLA MESURE AUTORISEEPARLA LOI APPLICABLE,Y COMPRISNOTAMMENT
TOUTE GARANTIE IMPLICITE RELATIVE A LA QUALITE MARCHANDE, A L’APTITUDE A UNE UTILISATION PARTICULIERE OU A
L’ABSENCE DE CONTREFAÇON.

Please

Recycle

Contents

Getting Started With the Sun Blade 1000 and Sun Blade 2000 Systems 1
Setting Up the System 2
Setting Up the Preinstalled Solaris Operating Environment Software 9
Getting Started With the Additional Preinstalled Software 15
Installing Optional Hardware 28
Installing a CPU Module 43
For More Information 46
Troubleshooting 47
How to Get Technical Assistance 49

iii

iv Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

Safety Agency Compliance
Statements

Read this section before beginning any procedure. The
following text provides safety precautions to follow when
installing a Sun Microsystems product.

Safety Precautions

For your protection, observe the following safety
precautions when setting up your equipment:

■ Follow all cautions and instructions marked on the

equipment.

■ Ensure that the voltage and frequency of your power

source match the voltage and frequency inscribed on
the equipment’s electrical rating label.

■ Never push objects of any kind through openings in

the equipment. Dangerous voltages may be present.
Conductive foreign objects could produce a short
circuit that could cause fire, electric shock, or damage
to your equipment.

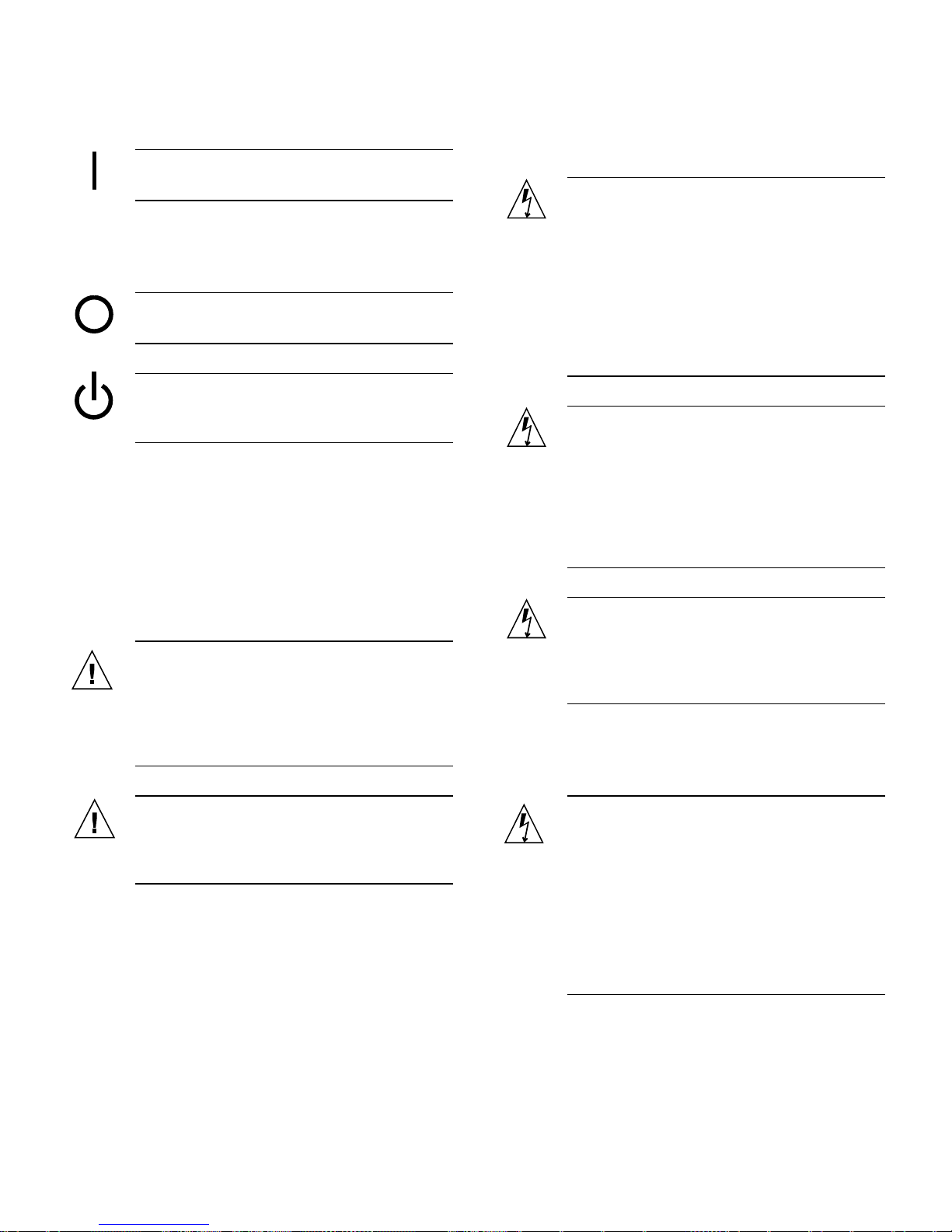

Symbols

The following symbols may appear in this book:

Depending on the type of power switch your device has,
one of the following symbols may be used:

Caution – Removes AC power from the
system.

Caution – The On/Standby switch is in the
standby position.

Modifications to Equipment

Do not make mechanical or electrical modifications to the
equipment. Sun Microsystems is not responsible for
regulatory compliance of a modified Sun product.

Placement of a Sun Product

Caution – Do not block or cover the openings
of your Sun product. Never place a Sun
product near a radiator or heat register.
Failure to follow these guidelines can cause
overheating and affect the reliability of your
Sun product.

Caution – There is a risk of personal injury
and equipment damage. Follow the
instructions.

Caution – Hot surface. Avoid contact.
Surfaces are hot and may cause personal
injury if touched.

Caution – Hazardous voltages are present. To
reduce the risk of electric shock and danger to
personal health, follow the instructions.

Caution – Applies AC power to the system.

Caution – The workplace-dependent noise

level defined in DIN 45 635 Part 1000 must be
70Db(A) or less.

SELV Compliance

Safety status of I/O connections comply to SELV
requirements.

Power Cord Connection

Caution – Sun products are designed to work
with single-phase power systems having a
grounded neutral conductor. To reduce the
risk of electric shock, do not plug Sun
products into any other type of power system.
Contact your facilities manager or a qualified
electrician if you are not sure what type of
power is supplied to your building.

v

Caution – Not all power cords have the same

current ratings. Household extension cords do
not have overload protection and are not
meant for use with computer systems. Do not
use household extension cords with your Sun
product.

Caution – Your Sun product is shipped with a
grounding type (three-wire) power cord. To
reduce the risk of electric shock, always plug
the cord into a grounded power outlet

Caution – Do not operate Sun products
without the top cover in place. Failure to take
this precaution may result in personal injury
and system damage.

Laser Compliance Notice

Sun productsthat use laser technology complywith Class 1
laser requirements.

The following caution applies only to devices with a
Standby power switch:

Caution – The power switch of this product
functions as a standby type device only. The
power cord serves as the primary disconnect
device for the system. Be sure to plug the
power cord into a grounded power outlet that
is nearby the system and is readily accessible.
Do not connect the power cord when the
power supply has been removed from the
system chassis.

Lithium Battery

Caution – On Sun CPU boards, there is a
lithium battery molded into the real-time
clock, SGS No. MK48T59Y, MK48TXXB-XX,
MK48T18-XXXPCZ, M48T59W-XXXPCZ, or
MK48T08. Batteries are not customer
replaceable parts. They may explode if
mishandled. Do not dispose of the battery in
fire. Do not disassemble it or attempt to
recharge it.

Class 1 Laser Product

Luokan 1 Laserlaite

Klasse 1 Laser Apparat

Laser KLasse 1

CD-ROM

Caution – Use of controls, adjustments, or the
performance of procedures other than those
specified herein may result in hazardous
radiation exposure.

System Unit Cover

You must remove the cover of your Sun computer system
unit to add cards, memory, or internal storage devices. Be
sure to replace the top cover before powering on your
computer system.

vi Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

Einhaltung sicherheitsbehördlicher
Vorschriften

Auf dieser Seite werden Sicherheitsrichtlinien beschrieben,
die bei der Installation von Sun-Produkten zu beachten
sind.

Sicherheitsvorkehrungen

Treffen Sie zu Ihrem eigenen Schutz die folgenden
Sicherheitsvorkehrungen, wenn Sie Ihr Gerät installieren:

■ Beachten Sie alle auf den Geräten angebrachten

Warnhinweise und Anweisungen.

■ Vergewissern Sie sich, daß Spannung und Frequenz

Ihrer Stromquelle mit der Spannung und Frequenz
übereinstimmen, die auf dem Etikett mit den
elektrischen Nennwerten des Geräts angegeben sind.

■ Stecken Sie auf keinen Fall irgendwelche Gegenstände

in Öffnungen in den Geräten. Leitfähige Gegenstände
könnten aufgrund der möglicherweise vorliegenden
gefährlichen Spannungen einen Kurzschluß
verursachen, der einen Brand, Stromschlag oder
Geräteschaden herbeiführen kann.

Symbole

Die Symbole in diesem Handbuch haben folgende
Bedeutung:

Achtung – Gefahr von Verletzung und
Geräteschaden. Befolgen Sie die Anweisungen

Achtung – Hohe Temperatur. Nicht berühren,
da Verletzungsgefahr durch heiße Oberfläche
besteht.

Achtung – Gefährliche Spannungen.
Anweisungen befolgen, um Stromschläge und
Verletzungen zu vermeiden

Achtung – Setzt das System unter
Wechselstrom

Je nach Netzschaltertyp an Ihrem Gerät kann eines der
folgenden Symbole benutzt werden:

Achtung – Unterbricht die
Wechselstromzufuhr zum Gerät.

Achtung – (Stand-by-Position) - Der Ein-/
Wartezustand-Schalter steht auf
Wartezustand. Änderungen an Sun-Geräten.

Nehmen Sie keine mechanischen oder elektrischen

Änderungen an den Geräten vor. Sun Microsystems,
übernimmt bei einem Sun-Produkt, das geändert wurde,

keine Verantwortung für die Einhaltung behördlicher
Vorschriften

vii

Aufstellung von Sun-Geräten

Achtung – Um den zuverlässigen Betrieb
Ihres Sun-Geräts zu gewährleisten und es vor

Überhitzung zu schützen, dürfen die
Öffnungen im Gerät nicht blockiert oder

verdeckt werden. Sun-Produkte sollten
niemals in der Nähe von Heizkörpern oder
Heizluftklappen aufgestellt werden

Achtung – Der arbeitsplatzbezogene
Schalldruckpegel nach DIN 45 635 Teil 1000
beträgt 70Db(A) oder weniger.

Einhaltung der SELV-Richtlinien

Die Sicherung der I/O-Verbindungen entspricht den
Anforderungen der SELV-Spezifikation.

Anschluß des Netzkabels

Achtung – Sun-Produkte sind für den Betrieb
an Einphasen-Stromnetzen mit geerdetem
Nulleiter vorgesehen. Um die
Stromschlaggefahr zu reduzieren, schließen
Sie Sun-Produkte nicht an andere
Stromquellen an. Ihr Betriebsleiter oder ein
qualifizierter Elektriker kann Ihnen die Daten
zur Stromversorgung in Ihrem Gebäude
geben.

Die folgende Warnung gilt nur für Geräte mit
Wartezustand-Netzschalter:

Achtung – Der Ein/Aus-Schalter dieses
Geräts schaltet nur auf Wartezustand (Stand­By-Modus). Um die Stromzufuhr zum Gerät
vollständig zu unterbrechen, müssen Sie das
Netzkabel von der Steckdose abziehen.
Schließen Sie den Stecker des Netzkabels an
eine in der Nähe befindliche, frei zugängliche,
geerdete Netzsteckdose an. Schließen Sie das
Netzkabel nicht an, wenn das Netzteil aus der
Systemeinheit entfernt wurde.

Lithiumbatterie

Achtung – CPU-Karten von Sun verfügen
über eine Echtzeituhr mit integrierter

Lithiumbatterie (Teile-Nr. MK48T59Y,
MK48TXXB-XX, MK48T18-XXXPCZ,
M48T59W-XXXPCZ, oder MK48T08). Diese
Batterie darf nur von einem qualifizierten
Servicetechniker ausgewechselt werden, da sie
bei falscher Handhabung explodieren kann.
Werfen Sie die Batterie nicht ins Feuer.
Versuchen Sie auf keinen Fall, die Batterie
auszubauen oder wiederaufzuladen.

Batterien

Achtung – Nicht alle Netzkabel haben die
gleichen Nennwerte. Herkömmliche, im
Haushalt verwendete Verlängerungskabel
besitzen keinen Überlastungsschutz und sind
daher für Computersysteme nicht geeignet.

Achtung – Ihr Sun-Gerät wird mit einem
dreiadrigen Netzkabel für geerdete
Netzsteckdosen geliefert. Um die Gefahr eines
Stromschlags zu reduzieren, schließen Sie das
Kabel nur an eine fachgerecht verlegte,
geerdete Steckdose an.

viii Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

Achtung – Die Geräte Product Name
enthalten auslaufsichere Bleiakkumulatoren.
Produkt-Nr. TLC02V50 für portable
Stromversorgung. Werden bei der Behandlung
oder beim Austausch der Batterie Fehler
gemacht, besteht Explosionsgefahr. Batterie
nur gegen Batterien gleichen Typs von Sun
Microsystems austauschen. Nichtdemontieren
und nicht versuchen, die Batterie außerhalb
des Geräts zu laden. Batterie nicht ins Feuer
werfen. Ordnungsgemäß entsprechend den
vor Ort geltenden Vorschriften entsorgen.

Gehäuseabdeckung

Sie müssen die obere Abdeckung Ihres Sun-Systems
entfernen, um interne Komponenten wie Karten,
Speicherchips oderMassenspeicher hinzuzufügen.Bringen
Sie die obere Gehäuseabdeckung wieder an, bevor Sie Ihr
System einschalten.

■ Ne jamais introduire d’objets quels qu’ils soient dans

une des ouvertures de l’appareil. Vous pourriez vous
trouver en présence de hautes tensions dangereuses.
Tout objet conducteur introduit de la sorte pourrait
produire un court-circuit qui entraînerait des
flammes, des risques d’électrocution ou des dégâts
matériels.

Achtung – Bei Betrieb des Systems ohne obere
Abdeckung besteht die Gefahr von
Stromschlag und Systemschäden.

Einhaltung der Richtlinien für Laser

Sun-Produkte, die mit Laser-Technologie arbeiten,
entsprechen den Anforderungen der Laser Klasse 1.

Class 1 Laser Product

Luokan 1 Laserlaite

Klasse 1 Laser Apparat

Laser KLasse 1

CD-ROM

Achtung – Die Verwendung von anderen
Steuerungen und Einstellungen oder die
Durchfhrung von Prozeduren, die von den
hier beschriebenen abweichen, knnen
gefhrliche Strahlungen zur Folge haben.

Symboles

Vous trouverez ci-dessous la signification des différents
symboles utilisés :

Attention – risques de blessures corporelles et
de dégâts matériels. Veuillez suivre les
instructions.

Attention – surface à température élevée.
Evitez le contact. La température des surfaces
est élevée et leur contact peut provoquer des
blessures corporelles.

Attention – présence de tensions dangereuses.
Pour éviter les risques d’électrocution et de
danger pour la santé physique, veuillez suivre
les instructions.

Attention – Votre système est sous tension
(courant alternatif).

Un des symboles suivants sera peut-être utilisé en fonction
du type d'interrupteur de votre système:

Conformité aux normes de sécurité

Ce texte traite des mesures de sécurité qu’il convient de
prendre pour l’installation d’un produit Sun Microsystems.

Mesures de sécurité

Pour votre protection, veuillez prendre les précautions
suivantes pendant l’installation du matériel :

■ Suivre tous les avertissements et toutes les

instructions inscrites sur le matériel.

■ Vérifier que la tension et la fréquence de la source

d’alimentation électrique correspondent à la tension et
à la fréquence indiquées sur l’étiquette de
classification de l’appareil.

Attention – Votre système est hors tension
(courant alternatif).

Attention – L'interrupteur Marche/Veilleuse
est en position « Veilleuse ».

ix

Modification du matériel

Ne pas apporter de modification mécanique ou électrique
au matériel. Sun Microsystems n’est pas responsable de la
conformité réglementaire d’un produit Sun qui a été
modifié.

Positionnement d’un produit Sun

Attention – pour assurer le bon
fonctionnement de votre produit Sun et pour
l’empêcher de surchauffer, il convient de ne
pas obstruer ni recouvrir les ouvertures
prévues dans l’appareil. Un produit Sun ne
doit jamais être placéàproximité d’un
radiateur ou d’une source de chaleur.

Attention – Le niveau de pression acoustique
au poste de travail s'élève selon la norme DIN
45 635 section 1000, à 70 dB (A) ou moins.

Conformité SELV

Sécurité : les raccordements E/S sont conformes aux
normes SELV.

Connexion du cordon d’alimentation

Attention – tous les cordons d’alimentation
n’ont pas forcément la même puissance
nominale en matière de courant. Les rallonges
d’usage domestique n’offrent pas de
protection contre les surcharges et ne sont pas
prévues pour les systèmes d’ordinateurs. Ne
pas utiliser de rallonge d’usage domestique
avec votre produit Sun.

Attention – votre produit Sun a été livré
équipé d’un cordon d’alimentation à trois fils

(avec prise de terre). Pour écarter tout risque
d’électrocution, branchez toujours ce cordon
dans une prise mise à la terre.

L'avertissement suivant s'applique uniquement aux
systèmes équipés d'un interrupteur VEILLEUSE:

Attention – Le commutateur d’alimentation
de ce produit fonctionne comme un dispositif
de mise en veille uniquement. C’est la prise
d’alimentation qui sert à mettre le produit
hors tension. Veillez donc à installer le produit
à proximité d’une prise murale facilement
accessible. Ne connectez pas la prise
d’alimentation lorsque le châssis du système
n’est plus alimenté.

Attention – les produits Sun sont conçus pour
fonctionner avec des alimentations
monophasées munies d’un conducteur neutre
mis à la terre. Pour écarter les risques
d’électrocution, ne pas brancher de produit
Sun dans un autre type d’alimentation secteur.
En cas de doute quant au type d’alimentation
électrique du local, veuillez vous adresser au
directeur de l’exploitation ou à un électricien
qualifié.

x Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

Batterie au lithium

Attention – sur les cartes CPU Sun, une
batterie au lithium (référence MK48T59Y,
MK48TXXB-XX, MK48T18-XXXPCZ,
M48T59W-XXXPCZ, ou MK48T08.) a été
moulée dans l’horloge temps réel SGS. Les
batteries ne sont pas des pièces remplaçables
par le client. Elles risquent d’exploser en cas
de mauvais traitement. Ne pas jeter la batterie
au feu. Ne pas la démonter ni tenter de la
recharger.

Bloc-batterie

CD-ROM

Attention – Les unités Product Name
contiennent une batterie étanche au plomb
(produits énergétiques portatifs n˚TLC02V50).
Il existe un risque d’explosion si ce bloc­batterie est manipulé de façon erronée ou mal
mis en place. Ne remplacez ce bloc que par un
bloc-batterie Sun Microsystems du même
type. Ne le démontez pas et n’essayez pas de
le recharger hors du système. Ne faites pas
brûler la batterie mais mettez-la au rebut
conformément aux réglementations locales en
vigueur.

Couvercle

Pour ajouter des cartes, de la mémoire, ou des unités de
stockage internes, vous devrez démonter le couvercle de
l’unitésystème Sun.Ne pasoublier de remettrece couvercle
en place avant de mettre le système sous tension.

Attention – il est dangereux de faire
fonctionner un produit Sun sans le couvercle
en place. Si l’on néglige cette précaution, on
encourt des risques de blessures corporelles et
de dégâts matériels.

Attention – L’utilisation de contrôles, de
réglages ou de performances de procédures
autre que celle spécifiée dans le présent
document peut provoquer une exposition à
des radiations dangereuses.

Normativas de seguridad

El siguiente texto incluye las medidas de seguridad que se
deben seguir cuando se instale algún producto de Sun
Microsystems.

Precauciones de seguridad

Para su protección observe las siguientes medidas de
seguridad cuando manipule su equipo:

■ Siga todas los avisos e instrucciones marcados en el

equipo.

■ Asegúrese de que el voltaje y la frecuencia de la red

eléctrica concuerdan con las descritas en las etiquetas
de especificaciones eléctricas del equipo.

■ No introduzca nunca objetos de ningún tipo a través

de los orificios del equipo. Pueden haber voltajes
peligrosos. Los objetos extraños conductores de la
electricidad pueden producir cortocircuitos que
provoquen un incendio, descargas eléctricas o daños
en el equipo.

Conformité aux certifications Laser

Les produitsSun quifont appel auxtechnologies laserssont
conformes aux normes de la classe 1 en la matière.

Class 1 Laser Product

Luokan 1 Laserlaite

Klasse 1 Laser Apparat

Laser KLasse 1

Símbolos

En este libro aparecen los siguientes símbolos:

Precaución – Existe el riesgo de lesiones
personales y daños al equipo. Siga las
instrucciones.

Precaución – Superficie caliente. Evite el
contacto. Las superficies están calientes y
pueden causar daños personales si se tocan.

Precaución – Voltaje peligroso presente. Para
reducir el riesgo de descarga y daños para la
salud siga las instrucciones.

xi

Precaución – Aplica la alimentacióndeCAal
sistema.

Según el tipo de interruptor de encendido que su equipo
tenga, es posible que se utilice uno de los siguientes
símbolos:

Precaución – Elimina la alimentacióndeCA
del sistema.

Precaución – El interruptor de Encendido/En
espera se ha colocado en la posicióndeEn
espera.

Modificaciones en el equipo

No realice modificacionesde tipo mecánico o eléctrico enel
equipo. Sun Microsystems no se hace responsable del
cumplimiento de las normativas de seguridad en los
equipos Sun modificados.

Conexión del cable de alimentación eléctrica

Precaución – Los productos Sun están
diseñados para trabajar en una red eléctrica
monofásica con toma de tierra. Para reducir el
riesgo de descarga eléctrica, no conecte los
productos Sun a otro tipo de sistema de
alimentacióneléctrica. Póngase en contacto
con el responsable de mantenimiento o con un
electricista cualificado si no está seguro del
sistema de alimentacióneléctrica del que se
dispone en su edificio.

Precaución – No todos los cables de
alimentacióneléctrica tienen la misma
capacidad. Los cables de tipo doméstico no
están provistos de protecciones contra
sobrecargas y por tanto no son apropiados
para su uso con computadores. No utilice
alargadores de tipo doméstico para conectar
sus productos Sun.

Ubicación de un producto Sun

Precaución – Para asegurar la fiabilidad de
funcionamiento de su producto Sun y para
protegerlo de sobrecalentamien-tos no deben
obstruirse o taparse las rejillas del equipo. Los
productos Sun nunca deben situarse cerca de
radiadores o de fuentes de calor.

Precaución – De acuerdo con la norma DIN
45 635, Parte 1000, se admite un nivel de
presiónacústica para puestos de trabajo
máximo de 70Db(A).

Cumplimiento de la normativa SELV

El estado de la seguridad de las conexiones de entrada/
salida cumple los requisitos de la normativa SELV.

Precaución – Con el producto Sun se
proporciona un cable de alimentación con
toma de tierra. Para reducir el riesgo de
descargas eléctricas conéctelo siempre a un
enchufe con toma de tierra.

La siguiente advertencia se aplica solamente a equipos con
un interruptor de encendido que tenga una posición "En
espera":

Precaución – El interruptor de encendido de
este producto funciona exclusivamente como
un dispositivo de puesta en espera. El enchufe
de la fuente de alimentación está diseñado
para ser el elemento primario de desconexión
del equipo. El equipo debe instalarse cerca del
enchufe de forma que este último pueda ser
fácil y rápidamente accesible. No conecte el
cable de alimentación cuando se ha retirado la
fuente de alimentación del chasis del sistema.

xii Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

Batería de litio

Precaución – En las placas de CPU Sun hay
una batería de litio insertada en el reloj de
tiempo real, tipo SGS Núm. MK48T59Y,
MK48TXXB-XX, MK48T18-XXXPCZ,
M48T59W-XXXPCZ, o MK48T08. Las baterías
no son elementos reemplazables por el propio
cliente. Pueden explotar si se manipulan de
forma errónea. No arroje las baterías al fuego.
No las abra o intente recargarlas.

Aviso de cumplimiento con requisitos de láser

Los productos Sun que utilizan la tecnología de láser
cumplen con los requisitos de láser de Clase 1.

Class 1 Laser Product

Luokan 1 Laserlaite

Klasse 1 Laser Apparat

Laser KLasse 1

Paquete de pilas

Precaución – Las unidades Product Name
contienen una pila de plomo sellada,
Productos de energía portátil nº TLC02V50.
Existe riesgo de estallido si el paquete de pilas
se maneja sin cuidado o se sustituye de
manera indebida. Las pilas sólo deben
sustituirse por el mismo tipo de paquete de
pilas de Sun Microsystems. No las desmonte
ni intente recargarlas fuera del sistema. No
arroje las pilas al fuego. Deséchelas siguiendo
el método indicado por las disposiciones
vigentes.

Tapa de la unidad del sistema

Debe quitarla tapa del sistema cuandosea necesario añadir
tarjetas, memoria o dispositivos de almacenamiento
internos. Asegúrese de cerrar la tapa superior antes de
volver a encender el equipo.

Precaución – Es peligroso hacer funcionar los
productos Sun sin la tapa superior colocada.
El hecho de no tener en cuenta esta precaución
puede ocasionar daños personales o
perjudicar el funcionamiento del equipo.

CD-ROM

Precaución – El manejo de los controles, los
ajustes o la ejecución de procedimientos
distintos a los aquí especificados pueden
exponer al usuario a radiaciones peligrosas.

GOST-R Certification Mark

xiii

Nordic Lithium Battery Cautions

Norge

Caution – Litiumbatteri —
Eksplosjonsfare.Ved utskifting benyttes kun
batteri som anbefalt av apparatfabrikanten.
Brukt batteri returneres apparatleverandøren.

Sverige

Caution – Explosionsfara vid felaktigt
batteribyte. Använd samma batterityp eller en
ekvivalent typ som rekommenderas av
apparattillverkaren. Kassera använt batteri
enligt fabrikantens instruktion.

Danmark

Caution – Litiumbatteri — Eksplosionsfare
ved fejlagtig håndtering. Udskiftning må kun
ske med batteri af samme fabrikat og type.
Levér det brugte batteri tilbage til
leverandøren.

Suomi

Caution – Paristo voi räjähtää, jos se on
virheellisesti asennettu. Vaihda paristo
ainoastaan laitevalmistajan suosittelemaan
tyyppiin. Hävitä käytetty paristo valmistajan
ohjeiden mukaisesti.

xiv Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

en

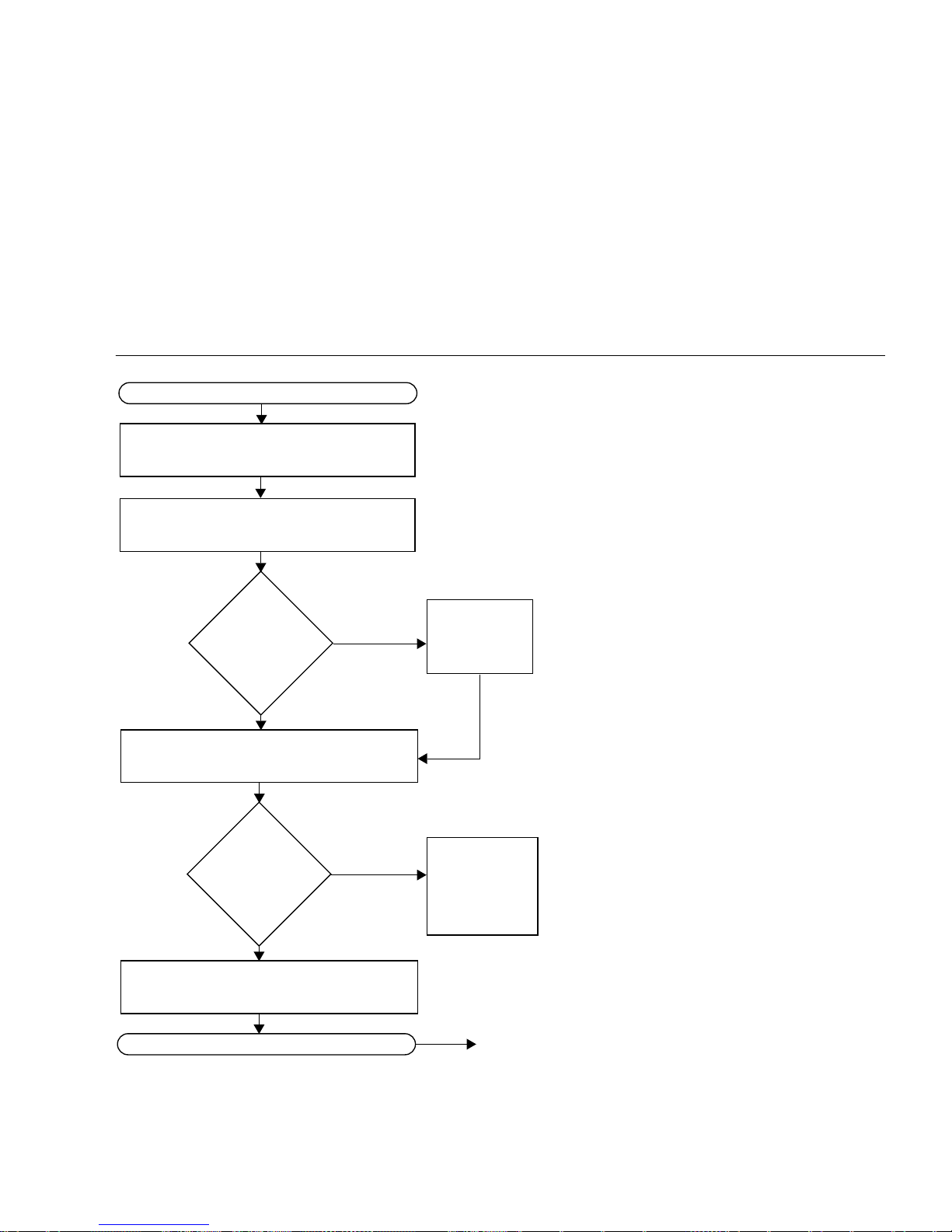

Getting Started With the Sun Blade
1000 and Sun Blade 2000 Systems

START

Unpack thesystem and familiarize yourselfwith
system features.

Connect system and peripheral cables.

Install optional
hardware?

No

Power on the system.

Use preinstalled
version of
software?

Yes

Yes

No

See “Unpacking the System” on page 2.
See “Front Panel Overview” on page 3.
See “Back Panel Overview” on page 4.

See “Cabling the System” on page 6.

Install
optional
hardware.

Install
newer
version
(if newer
version exists).

See “Installing Optional Hardware” on page 28.

See “Powering On the System” on page 7.

Refer to the instructions in your version of the Solaris
Media Kit.

Answer Solaris software prompts.

READY TO WORK!

See “Setting Up Your Operating Environment” on page 10.

Also see “Getting Started With the Additional Preinstalled
Software” on page 15.

1

Setting Up the System

microsystems

Unpacking the System

Carefully remove all system components and documentation from all packing
cartons. The contents shown in
configuration you have ordered.

FIGURE 1 may vary, depending on what system

s

m

e

t

s

y

s

o

r

ic

m

SETTING UP

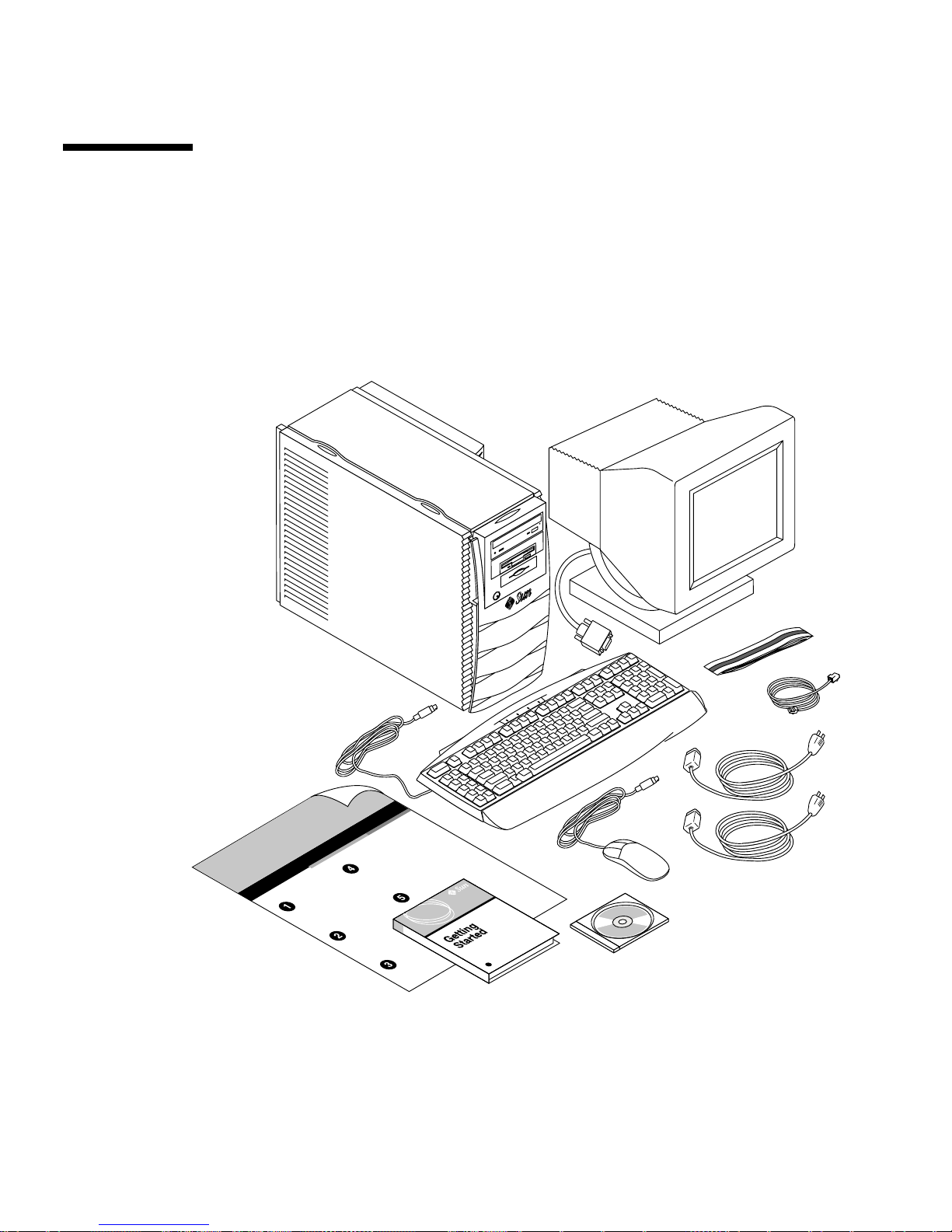

FIGURE 1 Unpacking the System

2 Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

s

m

te

ys

s

ro

ic

m

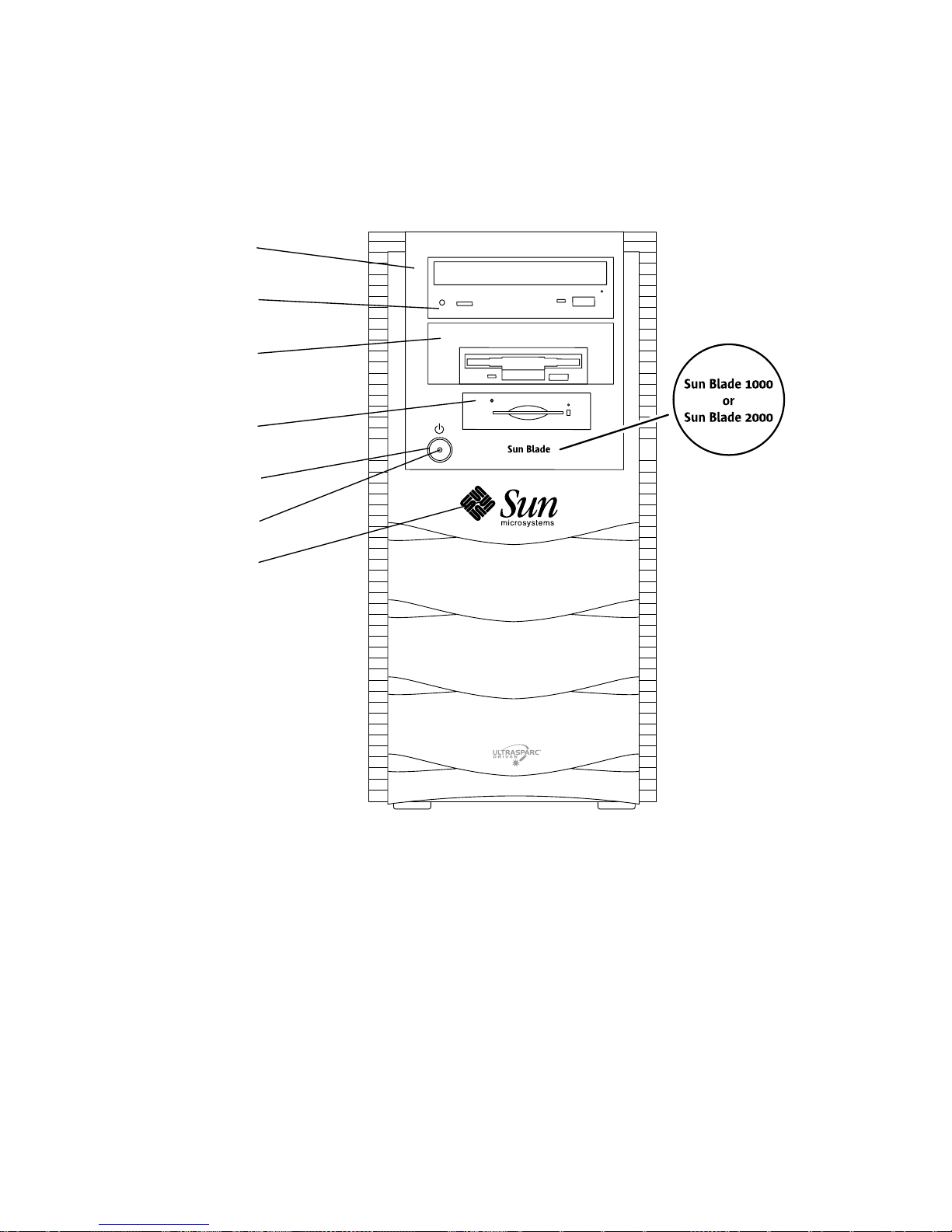

Front Panel Overview

The numbered list below corresponds to the numeric captions in FIGURE 2.

1

2

3

4

5

6

7

FIGURE 2 Front Panel Overview

1. Peripheral bezel

2. 5.25-inch drive bay (optional DVD-ROM drive shown)

3. 5.25- or 3.5-inch drive bay (optional diskette drive shown)

4. Smart card reader

5. Power switch

6. Power indicator LED

7. Back-lit Sun logo

Getting Started With the Sun Blade 1000 and Sun Blade 2000 Systems 3

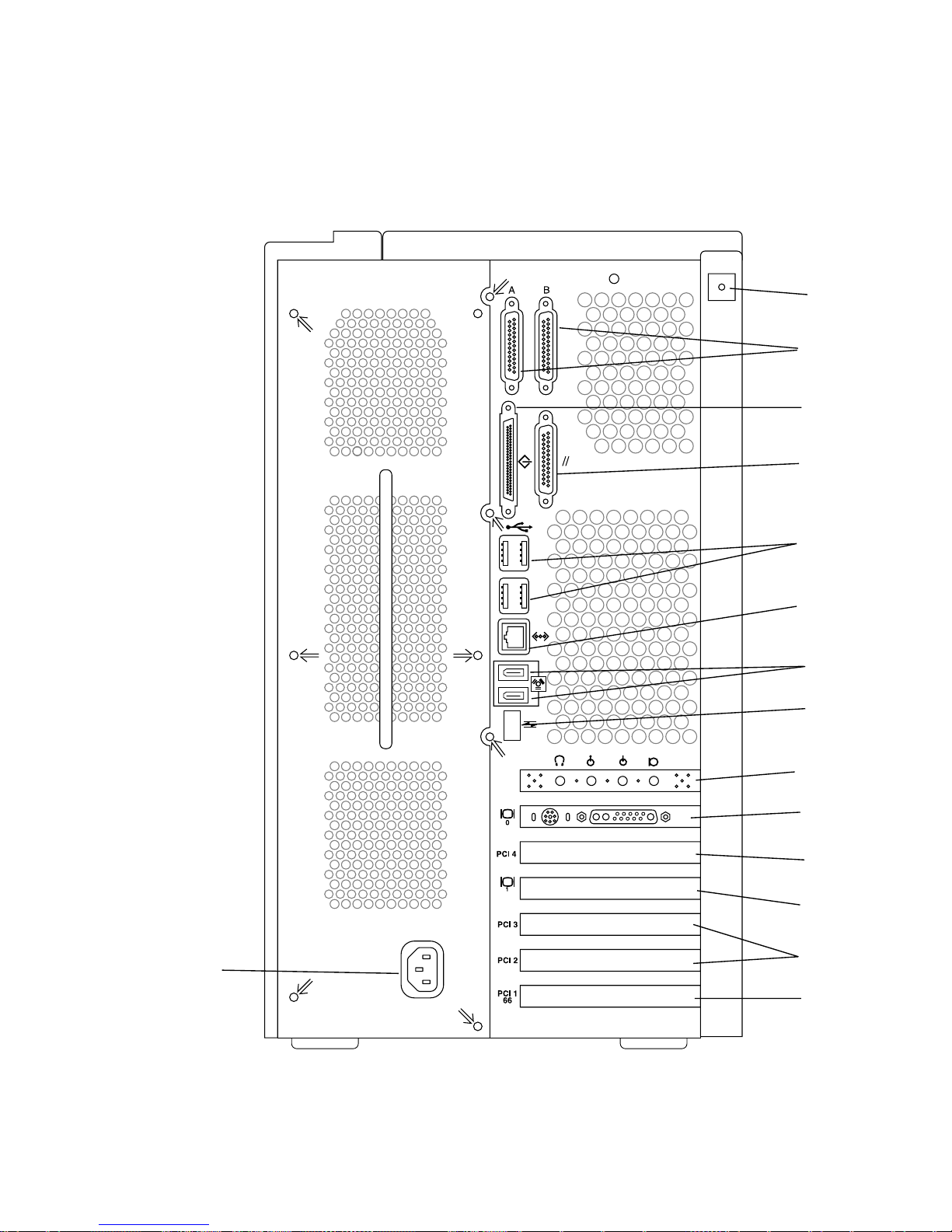

Back Panel Overview

TABLE 1 defines the items and symbols shown in FIGURE 3.

1

2

3

4

5

6

15

FIGURE 3 Back Panel Overview

7

8

9

10

11

12

13

14

4 Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

TABLE 1 Back Panel Description and Connector Symbols

Item shown

in Figure 3 Explanation Back Panel Symbol

1 Access panel lock block (customer-installed,

included in the accessory box)

2 Serial connectors A and B, DB-25 (can support

RS-423 and RS-232 protocols, see “Setting the Serial

Port Mode” on page 8)
3 SCSI connector (Ultra SCSI, 68-pin)
4 Parallel connector, DB-25
5 Universal serial bus (USB) connectors
6 Twisted-pair Ethernet (TPE) connector
7 IEEE 1394 (Firewire) connectors
8 Fibre Channel-Arbitrated Loop (FC-AL) connector
9 Audio module headphone connector
9 Audio module line-in connector
9 Audio module line-out connector
9 Audio module microphone connector

10 Graphics card/video connector (frame buffer 0)

None

AB

0

11 PCI card slot 4 (33 MHz)
12 Graphics card/video connector (frame buffer 1)

13 PCI card slot 3 (33 MHz)
13 PCI card slot 2 (33 MHz)
14 PCI card slot 1 (66 MHz)

15 Power connector

PCI 4

1

PCI 3
PCI 2
PCI 1

66

None

Getting Started With the Sun Blade 1000 and Sun Blade 2000 Systems 5

Cabling the System

1. Connect the system power cord to a grounded electrical outlet (see FIGURE 4).

2. Connect the keyboard and the mouse to the USB connectors on the system.

Note – Use of more than one mouse or keyboard at a time is not supported.

3. Connect the monitor power cord to a grounded electrical outlet.

4. Connect the monitor video cable to a graphics card connector on the system.

5. Connect the Ethernet cable to the TPE connector on the system (if the system is to
be networked).

6. Connect any additional external devices to the system’s other connectors.

Help

Esc F2F1 F3 F4 F5 F6 F7 F8

~‘!@#$%^&* ()_-+=Back Space

Stop Again

1234567 890

Tab

QWERTYUIOP{[}

Props

Undo

ASDFGH JKL

Front

Copy

Caps Lock

ZXCVBNM<,>.?

Open

Paste

Shift

Find Cut

Control Alt

ComposeScroll LockCaps LockNum Lock

F9 F10 F11 F12

:
;

/

4

3

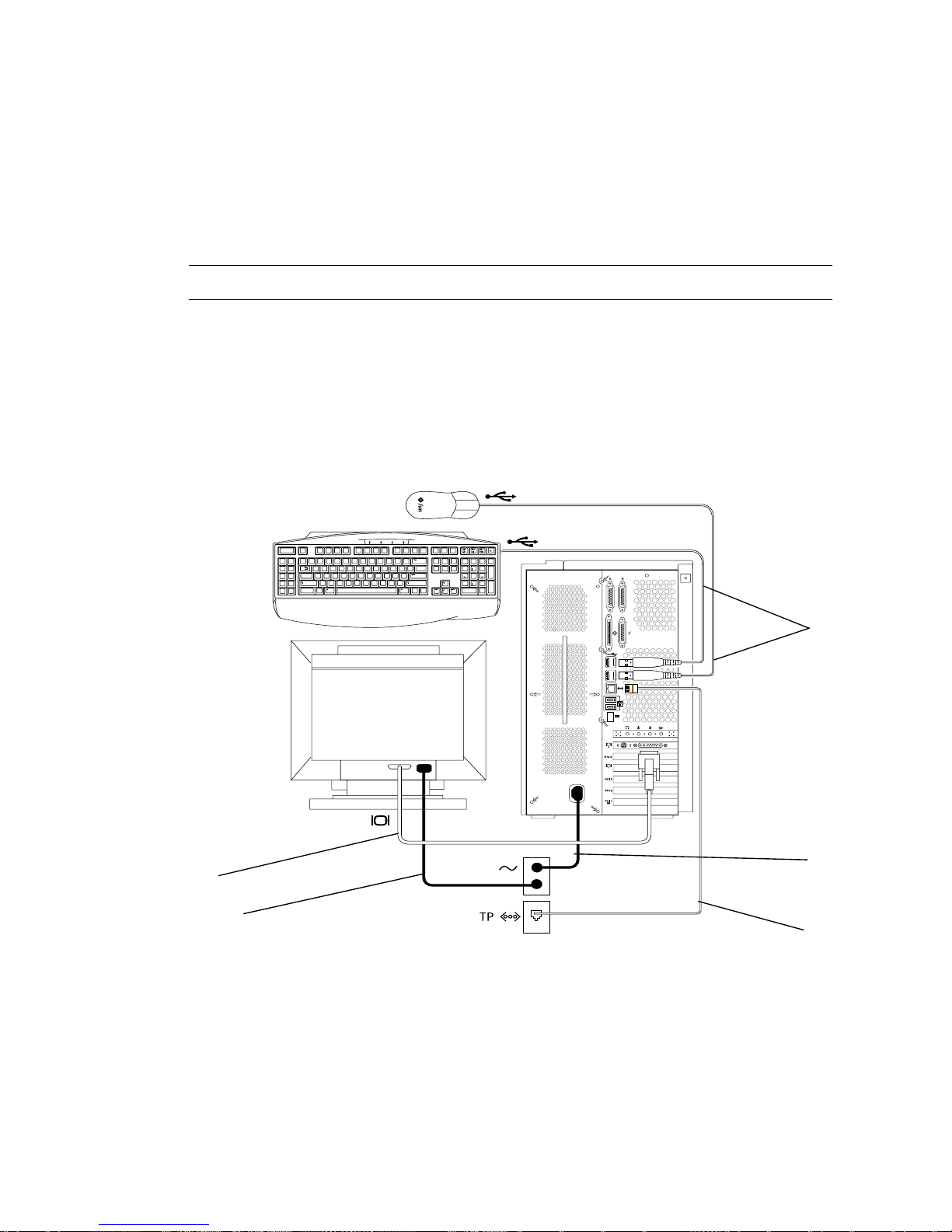

FIGURE 4 Cabling the System

Print

Scroll

Pause

Screen

Lock

BreakSysRq

Num

Up

Down

/

Lock

89

7
Home

456

1

23

End

0
Ins

-

*

+

PgUp

Enter
PgDn

.
Del

Insert Home Page

|

Del End Page

]

\

"

Enter

’

Shift

Com-

Alt

pose

Graph

2

1

5

6 Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

Powering On the System

Helpful Hint – If you are installing optional components, go to “Installing Optional

Hardware” on page 28 before powering on the system. If you are not installing
optional components, you are ready to power on the system.

Note – Any keyboard or mouse must be connected before you power on the system.

If you connect a keyboard or mouse after power on, you must reboot the system. For
more information, refer to Appendix D, “USB Supplement,” in the Sun Blade 1000
and Sun Blade 2000 Service Manual (816-3217).

1. Turn on power to the monitor and to all external devices.

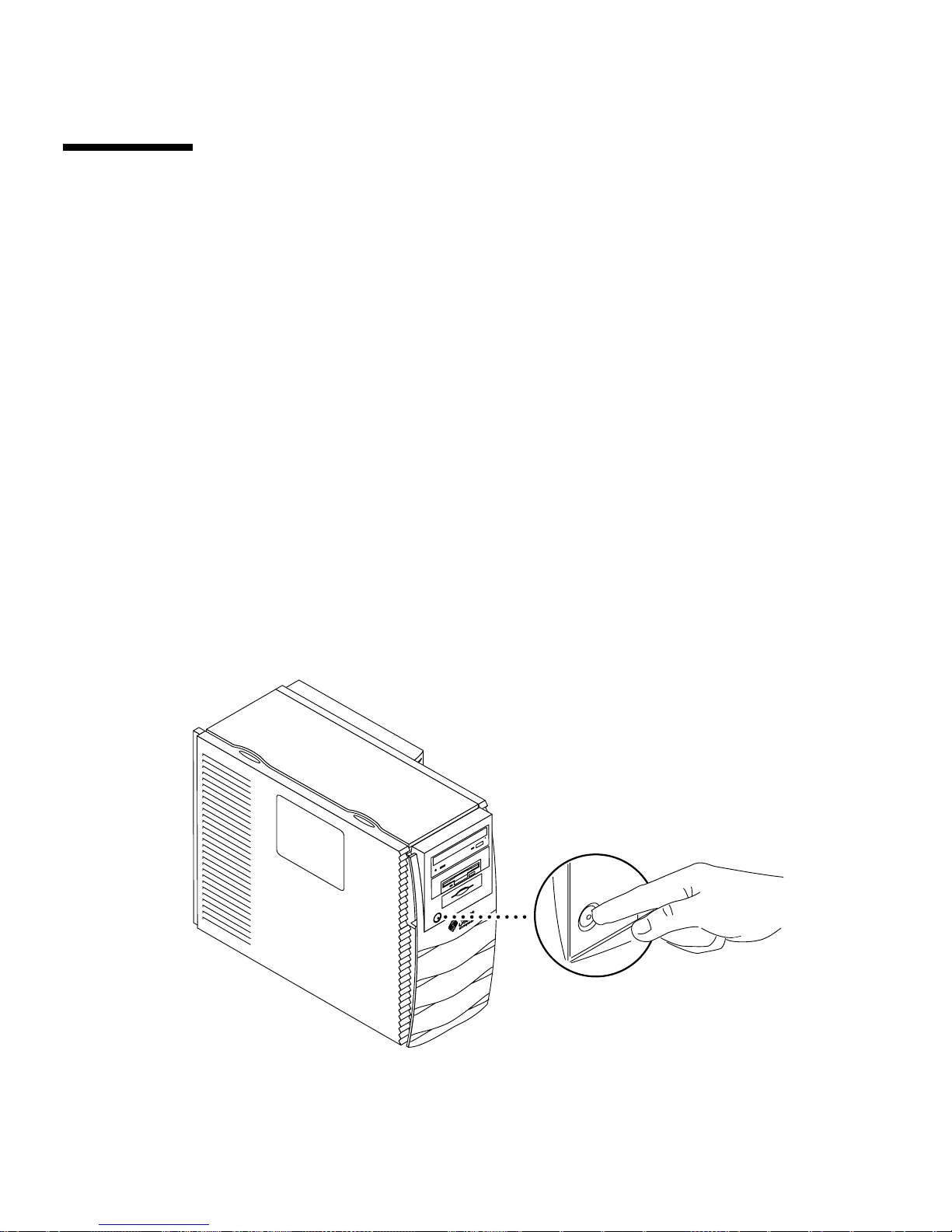

2. Press the power switch on the front panel and release it (see

FIGURE 2).

3. After several seconds, verify that the power indicator LED on the power switch is
lit and listen to verify that the system fans are spinning.

■ The power indicator LED on the power switch lights after the system begins the

internal booting process. If you experience problems during power on, see
“Troubleshooting” on page 47.

Note – The first time that you power on the system, an illustration of your Sun

™

Blade

system should be displayed. This illustration is only displayed on the first

power on sequence.

Helpful Hint – After you power on the system for the first time, you are ready to set

up the preinstalled Solaris operating environment software. Go to “Setting Up the
Preinstalled Solaris Operating Environment Software” on page 9.

Getting Started With the Sun Blade 1000 and Sun Blade 2000 Systems 7

Setting the Serial Port Mode

The serial ports of the system support the RS-232 and RS-423 protocols.
The default mode on both ports of new systems is RS-423. You can set the modes of
the ports with a software command, as follows:

1. Halt the system to display the system ok prompt.

2. Type one of the following, depending on which port you are setting:

■ To set the serial port A mode, type:

setenv ttya-mode 9600,8,n,1,-,mode

■ To set the serial port B mode, type:

setenv ttyb-mode 9600,8,n,1,-,mode

where mode is either rs232 or rs423.

3. Type

reset-all to make the new mode operational on your system.

Note – If you set the mode of only one of the serial ports, both ports are set to the

mode of this single port.

8 Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

Setting Up the Preinstalled Solaris
Operating Environment Software

Your system has the Solaris™operating environment and additional productivity
software installed on its hard disk. The exact configuration that has been preinstalled
is as follows:

■ Disk root partition—6144 Mbytes

■ Disk swap partition—512 Mbytes

■ Disk/space partition—the remainder of the disk

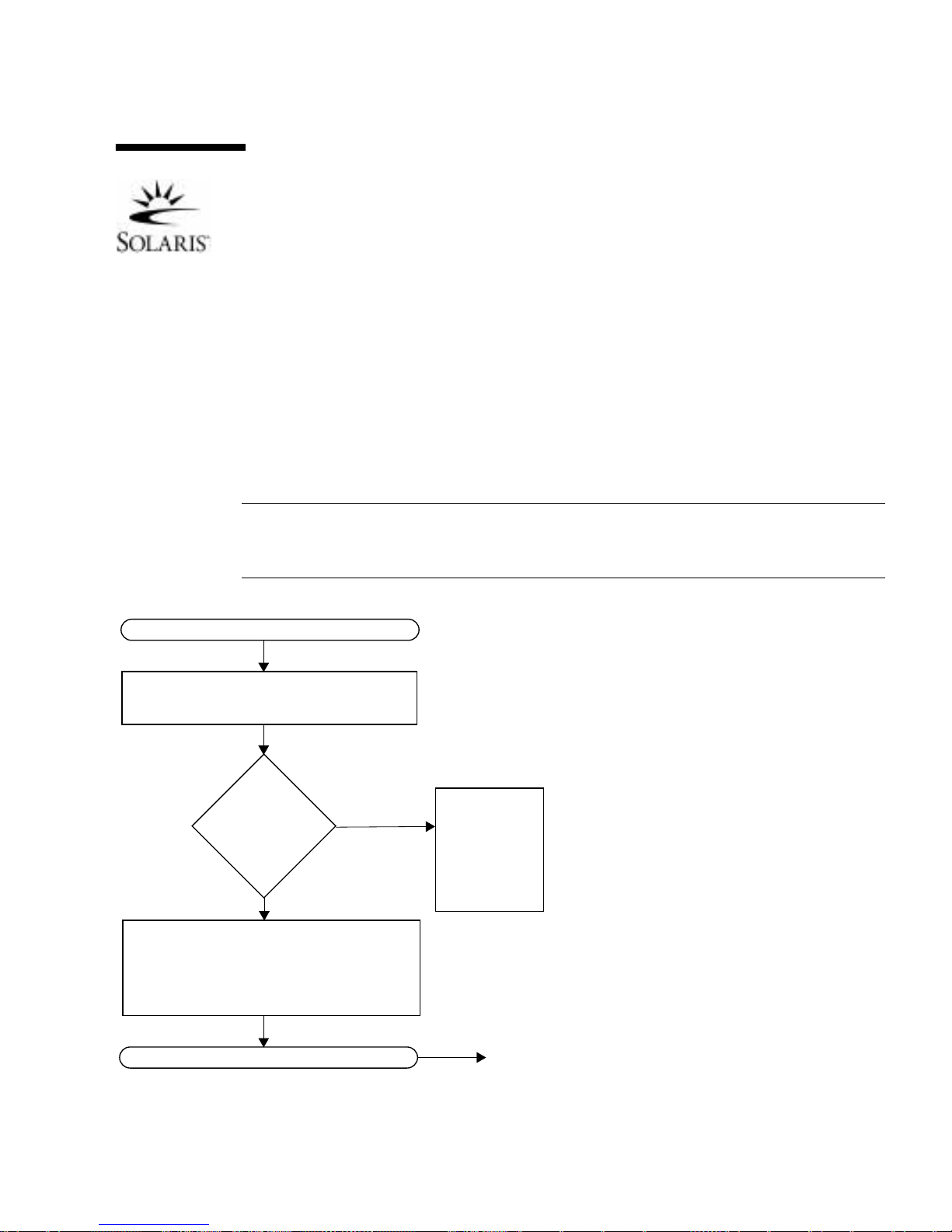

As the flowchart below shows, simply power on your system, answer the Solaris
setup prompts, and you are ready to begin using your system. Alternatively, you can
install a newer version of the Solaris software (if any).

Caution – The Sun Blade 1000 system requires Solaris 8, software release 10/00 or a

subsequent compatible release. The Sun Blade 2000 system requires Solaris 8,
software release 10/01 or a subsequent compatible release.

START

Power on the system.

Use preinstalled
version of
software?

Yes

Answer Solaris software prompts
(using information specific to your site that
your system administrator provides).

READY TO WORK!

No

See “Powering On the System” on page 7.

Install a
newer
version
(if a
newer
version exists).

See “Setting Up Your Operating Environment” on page 10.

NOTE: If you remove the preinstalled software, be sure that
you install the latest patches required for the new software.

Also see “Getting Started With the Additional Preinstalled
Software” on page 15.

Refer to the instructions in your version of the Solaris
Media Kit.

Getting Started With the Sun Blade 1000 and Sun Blade 2000 Systems 9

Setting Up Your Operating Environment

1. Power on the system (see “Powering On the System” on page 7).

2. Answer the setup prompts by following the on-screen instructions.

TABLE 2

summarizes the setup prompts.

Helpful Hint – To help answer the setup prompts, your system administrator (SA)

should provide you with information specific to your site before you begin. Some of
this information might already be set up in a JumpStart

™

profile on an install server

in your network—check with your SA. Before you begin, you can use a copy of

TABLE 2 to write down the information you must input.

TABLE 2 Information Needed to Set Up the Solaris Desktop Operating Environment

Setup Window Explanation and Notes Your Information

Select Language Asks for the native language to use for the system.
Host Name Asks for the name to give this system.
Network

Connectivity/
IP Address

Name Service Asks which service to use: NIS+, NIS, DNS, or None.

Asks whether this system is on a network.
Note: Depending on how you answer and what information is

provided by your network, you may also be prompted for this
system’s IP address.

This window is not displayed if the system is not networked.

Domain Name Asks for the domain where the system resides.

This window is not displayed if the system is not networked.

Name Server/
Subnet/
Subnet Mask

Time Zone Asks for local time zone (select by geographic region, GMT

Date and Time Asks for the current date and time (accept the default or enter

Root Password Asks for the root (superuser) password for the system.
Proxy Server

Configuration

10 Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

Asks for the name server (specify the server or have the system
find one on a local subnet).

This window is not displayed if the system is not networked.
Note: Depending on how you answer and what information is

provided by your network, you may also be prompted for:

- Subnet (Asks whether this system is on a subnet.)

- Subnet Mask (Asks for subnet mask for this system’s subnet.)

offset, or a time zone file).

the current date and time).

Asks whether this system is connected to the Internet directly or
through a proxy server.

3. When you reach the setup window titled End, click the Confirm button.

The system displays the login window, in which you can enter your user name and
password to log in and begin using the system.

Helpful Hint – A number of other useful software packages have also been

preinstalled on your system. For information on those applications, see “Getting
Started With the Additional Preinstalled Software” on page 15.

4. Review the Solaris release notes for any late-breaking information about your
preinstalled software:

The Solaris 8 Release Notes are installed on your system at:

/usr/share/release_info/Solaris_8/locale/S8FCSreleasenotes

Getting Started With the Sun Blade 1000 and Sun Blade 2000 Systems 11

Power Management Features

All standard configurations of the Sun Blade 1000 and Sun Blade 2000
workstations meet Energy Star® guidelines. Any other configuration
may not comply with Energy Star guidelines.

For additional information about Sun Blade 1000 and Sun Blade 2000 configurations
that are Energy Star compliant go to: http://store.sun.com

Then, select the following links in order:

1. Desktops

2. Workstations

3. Sun Blade 1000 Workstation (or Sun Blade 2000 Workstation)
The Power Management

™

software that is integrated with your Solaris software
improves the energy efficiency of your system. Internal subsystems enter a low­power mode after a specified period of inactivity. Power is returned to subsystems
on an as-needed basis.

While in low-power mode, your system retains network-awareness, such that it
responds to tasks directed to it. For details and information on how to change the
power management settings on your system, refer to the preinstalled “Solaris User
Collection” document, Using Power Management (see “Hardware and Software
Documentation” on page 16).

The power-indicator LED in the center of the front panel power switch has three
states that indicate the power status of the system, as described in

TABLE 3 Power-Indicator LED States

LED Activity Meaning

LED off System power is off or system is booting up.
LED blinking All internal subsystems are in lowest possible power consumption

mode for this system*.

*Some hardware components and software drivers do not support
this system’s lowest possible power consumption mode. When this
occurs, the power indicator LED will not blink.

TABLE 3.

LED on Full power is on in one or more of the internal subsystems and

12 Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

system self test has completed successfully.

Putting the System Into Low-Power Mode

Although the system (or subsystems) automatically enter low-power mode after a
period of inactivity, you can manually put the system into low-power mode, such as
when you are leaving for the day. To put a system into low-power mode:

1. Press the Sun

The Power Off Selection dialog box is displayed.

Note – The Sun Type-6 USB keyboard Power key cannot be used to power on the

system (as the Power key could be used on earlier versions of Sun keyboards).

2. Select “Low Power” from the Power Off Selection dialog box.

The system completes any in-process activities and then places all idle subsystems into
low-power mode.

Help

Esc F2F1 F3 F4 F5 F6 F7 F8

~‘!@#$%^& *( )_-+=Back Space

Stop Again

12345 67890

Tab

QWERTYUIOP{[}

Props

Undo

Front

Open

Find Cut

ASDF GHJKL

Copy

Caps Lock

ZXCVBNM<,>.?

Paste

Shift

Control Alt

ComposeScroll LockCaps LockNum Lock

F9 F10 F11 F12

]

:

"

;

’

Shift

/

™

Type-6 USB keyboard Power key (see FIGURE 5).

Print

Scroll

Pause

Screen

Lock

BreakSysRq

Num

Insert Home Page

|
\

Enter

Com­pose

Up

Del End Page

Down

Alt
Graph

/

*

Lock

89

7

PgUp

Home

456

1

23

End

PgDn

.

0
Ins

Del

-

+

Enter

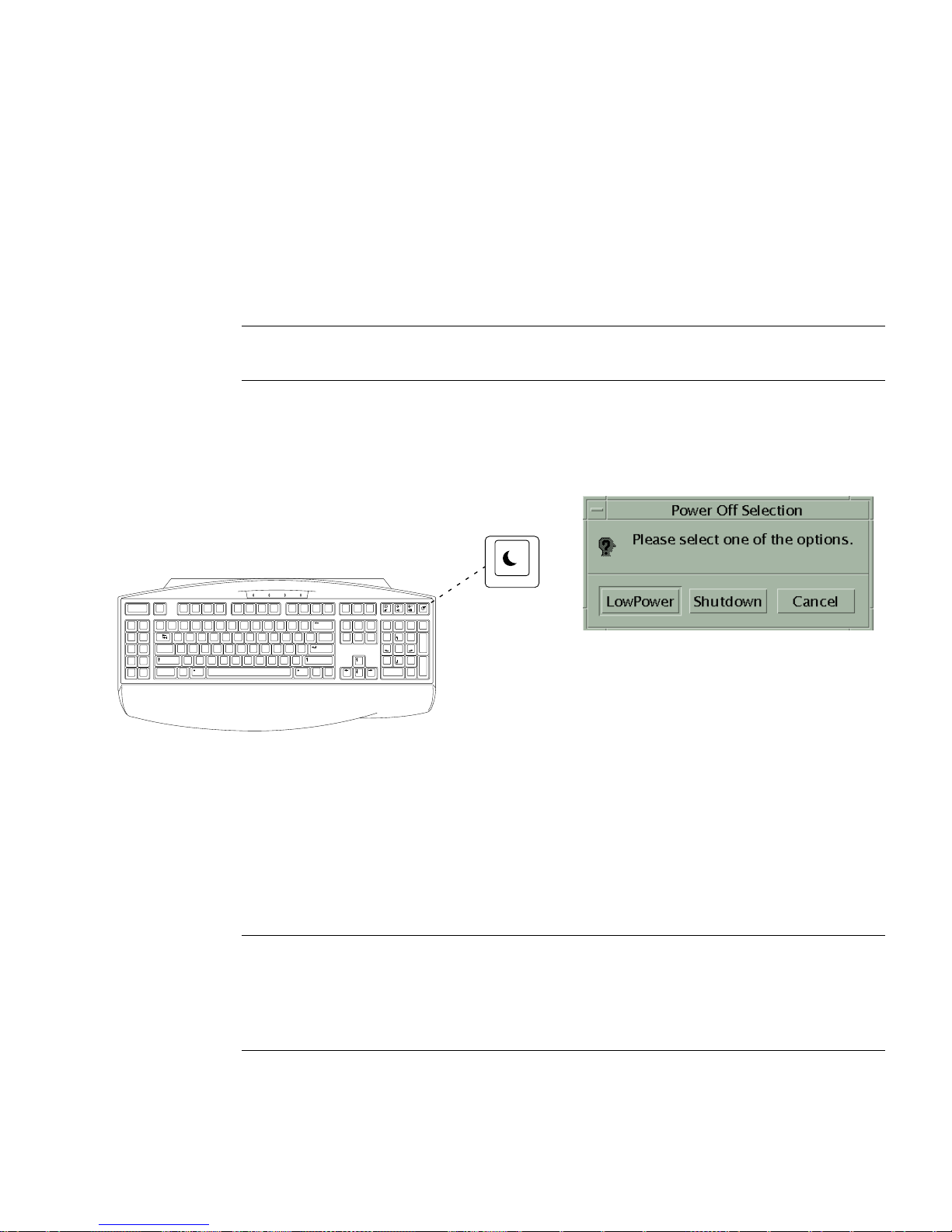

FIGURE 5 Sun USB Type-6 Keyboard Power Key and Power Off Selection Dialog Box

Activating the System From Low-Power Mode

To activate a system that is in low-power mode, click a mouse button or press any
key on your keyboard. The monitor display, if blank, refreshes and the subsystems
return to full power as they are needed while you use the system.

Note – By default, the hard disk drive is spun down when the system is in the low-

power mode. The drive can take as long as 30 seconds to spin back up. If this delay
is unacceptable, you can disable hard disk drive power management. Refer to the
“Solaris User Collection” document, Using Power Management (see “Hardware and
Software Documentation” on page 16).

Getting Started With the Sun Blade 1000 and Sun Blade 2000 Systems 13

Disabling Power Management

Sun Blade 1000 and Sun Blade 2000 users can disable the Energy Star power
management feature by using the Dtpower GUI.

1. At the system prompt, type:

/usr/dt/bin/dtpower

2. Select Disabled for the Current Power Saving Scheme.

Note – You can select Customized, Disabled, Minimal, or Standard as the Current

Power Saving Scheme.

14 Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

Getting Started With the Additional
Preinstalled Software

Sun has preinstalled an additional collection of useful software applications. The
following diagram gives an overview of this preinstalled software and shows which
page contains information about getting started for each application.

Hardware and Software Documentation: See page 16

Sun Blade 1000 and Sun Blade 2000 Hardware Documentation
Solaris Software Developer Collection Solaris User Collection
Solaris on Sun Hardware Collection Solaris System Administrator Collection

StarOffice:

See page 18

StarOffice Writer
StarOffice Calc
StarOffice Impress
StarOffice Draw
StarOffice Base
StarOffice Schedule
StarOffice Mail
StarOffice Discussion
StarOffice Chart
StarOffice Image
StarOffice Math

Apache Server:

See page 20

Perl:

See page 21

Java Development:
Tools: See page 22

Java 2 Software Dev. Kit
Java 3D API
Java Plug-In
Java Media Framework
Java Communications API

ShowMe TV:

See page 23

SunForum:

See page 26

Adobe Acrobat Reader:

See page 20

Netscape
Communicator:

See page 24

Sun OpenGL for
Solaris:

See page 25

PC file viewer:

See page 25

PC launcher:

See page 26

Caldera
CameleoLIGHT:

See page 23

Solstice DiskSuite:

See page 24

Getting Started With the Sun Blade 1000 and Sun Blade 2000 Systems 15

Hardware and Software Documentation

The following preinstalled documentation collections contain reference information
about your system’s hardware and software.

■ Sun Blade 1000 and Sun Blade 2000 Hardware Documentation Collection

■ Solaris on Sun Hardware Collection

■ Solaris User Collection

■ Solaris System Administrator Collection

■ Solaris Software Developer Collection

The hardware documentation is installed in HTML format that can be viewed with
any HTML-compliant browser. You can view or print the HTML file from:

/opt/SunBlade1000_2000_Service_Manual/HTML/index.html

The Sun Blade 1000 and Sun Blade 2000 hardware documentation is also installed in
PDF format, which can be viewed with Adobe

®

Acrobat Reader. You can view or

print the PDF file from:

/opt/SunBlade1000_2000_Service_Manual/PDF/816-3217-10.pdf

The Solaris documentation is installed as AnswerBook2

™

collections. Refer to the
following section for instructions on viewing AnswerBook2 documents. You can
view the documents online or print them.

Viewing AnswerBook2 Documentation

English and European-language AnswerBooks are preloaded on the system. When
AnswerBook2 is launched, documentation in English and European languages is
listed.

1. To start AnswerBook2, do one of the following:

■ Type the following at a command line:

/usr/dt/bin/answerbook2

■ Click on the arrow above the Help menu icon on your Common Desktop

Environment (CDE) task bar (as shown by the icon on the left), then select
AnswerBook2 from the pop-up Help menu.

2. When the browser window appears, select the document you want from the
Contents list.

16 Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

Smart Card Documentation

Your smart card reader can be used for Dtlogin authentication. For more
information, read the Solaris Smart Cards Administration Guide (806-1646).

Getting Started With the Sun Blade 1000 and Sun Blade 2000 Systems 17

x

StarOffice™is the optimum in office productivity software from Sun Microsystems.
StarOffice is a powerful and comprehensive office suite that integrates word
processing, spreadsheets, graphics, presentations, HTML, and database components
into a single workspace.

Key features include:

■ Robust and scalable integrated office productivity tools that include word

processing, spreadsheets, e-mail, graphics, web publishing, scheduling, and
database applications.

■ A cross-platform, open-world approach—StarOffice runs natively on Solaris

software (SPARC

™

and Intel processors), Microsoft Windows NT, Windows 95,

Windows 98, and Linux.

■ Inter operability with Microsoft Office files, allowing seamless and transparent

migration and exchange of word processing, spreadsheet, and presentation files.

■ A fully integrated work environment that utilizes a single workspace, enabling

easy access, management, editing, and sharing of information.

■ Built-in web publishing that enables easy HTML web page creation, design, and

publishing.

■ Team-oriented communication and workflow management, promoting

workgroup collaboration for time-critical projects.

Product Components:

■ StarOffice Writer—a universal word processing application for creating business

letters, extensive text documents, professional layouts, and HTML creation

■ StarOffice Calc—a sophisticated application for performing advanced spreadsheet

functions, such as analyzing figures, creating lists, and viewing data

■ StarOffice Impress—a tool for creating effective, eye-catching presentations

■ StarOffice Draw—a vector-oriented drawing module that enables the creation of

3D illustrations

■ StarOffice Base—a powerful data management tool that enables data to be moved

between documents

■ StarOffice Schedule—a seamless, integrated organizer that helps users keep their

events, tasks, contacts, and projects under control

■ StarOffice Mail—an electronic mail application

■ StarOffice Discussion—an application that enables participation in Internet

newsgroups

18 Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

Getting Started With StarOffice

To start the preinstalled StarOffice software, click the StarOffice icon on the CDE
desktop task bar, as shown at left.

You can also start StarOffice by typing a command:

■ To start the English version of StarOffice, type:

/opt/office52/program/soffice

To start the other available languages, type one of the path names given in TABLE 4.

TABLE 4 StarOffice Language Versions

Language Pathname

Danish /opt/office52/danish/so-5_2-ga-bin-solsparc-da.bin
Dutch /opt/office52/dutch/so-5_2-ga-bin-solsparc-nl.bin
English /opt/office52/english/so-5_2-ga-bin-solsparc-en.bin
French /opt/office52/french/so-5_2-ga-bin-solsparc-fr.bin
German /opt/office52/german/so-5_2-ga-bin-solsparc-de.bin
Italian /opt/office52/italian/so-5_2-ga-bin-solsparc-it.bin
Polish /opt/office52/polish/so-5_2-ga-bin-solsparc-pl.bin
Portuguese /opt/office52/portuguese/so-5_2-ga-bin-solsparc-pt.bin
Russian /opt/office52/russian/so-5_2-ga-bin-solsparc-ru.bin
Spanish /opt/office52/spanish/so-5_2-ga-bin-solsparc-es.bin
Swedish /opt/office52/swedish/so-5_2-ga-bin-solsparc-sv.bin

The first time you start StarOffice, the application will prompt you to select an
installation method. Select “Standard Workstation Installation.”

For details about using StarOffice software, refer to the application’s built-in help
system. You can also order a full product media kit that includes user
documentation and the software on CD from the following web site:

http://www.sun.com/products/staroffice/get.cgi#fullmediakit

Note – If you need to restore the StarOffice software, you can download the latest

version from the following web site:

http://www.sun.com/products/staroffice/

Getting Started With the Sun Blade 1000 and Sun Blade 2000 Systems 19

Note – Support for StarOffice is not included with your hardware purchase.

StarOffice software support services must be contracted separately. For the latest
information on StarOffice support services, see the following web site:

http://www.sun.com/staroffice/support

Adobe Acrobat Reader

Adobe Acrobat Reader is a free and freely distributable software program that
allows you to view and print Portable Document Files Format (PDF) files. PDF is a
file format that allows you view and print a file exactly as the author designed it
without needing to have the same application or fonts used to create the file.

Getting Started with Acrobat Reader

Adobe Acrobat Reader is installed on your system at /usr/bin/acroread

Apache Server

Apache Server is an open-source HTTP server for various modern desktop and
server operating systems, such as UNIX
Server provides a secure, efficient, and expandable server that provides HTTP
services that comply with the current HTTP standards.

®

and Microsoft Windows NT. The Apache

Getting Started With Apache Server

To activate the web server on your system, follow the steps below:

1. Become superuser (root) by typing

2. Copy the example configuration file httpd.conf-example to httpd.conf by
typing the following:

cp /etc/apache/httpd.conf-example /etc/apache/httpd.conf

su and your superuser password.

20 Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

3. Edit the configuration file to customize it for your system. For example, you
should set the HTML directory for your system.

For more information, refer to the online Apache User’s Guide by following the
“Server Documentation” link from the following web site:

http://www.apache.org/httpd.html

4. Start the web server daemon by typing the following:

/etc/rc3.d/S50apache start

Perl

Perl is a programming language available as open-source software. Perl’s process,
file, and text manipulation facilities make it particularly well-suited for tasks
involving quick prototyping, system utilities, or software tools.

Getting Started With Perl

Perl is installed on your system at /usr/bin. For information about using Perl, refer
to the man pages for the application by typing:

man perl.

Getting Started With the Sun Blade 1000 and Sun Blade 2000 Systems 21

Development Tools for the Java Platform

The following Sun development tools for the Java™platform are preinstalled on
your system.

Note – If you need to restore the Java products, you can download the latest

versions by selecting links from the following web site:

http://java.sun.com/products/

■ Java 2 Runtime Environment and Software Development Kit is installed at

/usr/java/. For more information, refer to the following web site:

http://java.sun.com/products/j2se/

■ Java 3D

™

API is available in the Java 2 SDK. For more information, refer to the

documentation links from the following web site:

http://java.sun.com/products/java-media/3D/

■ Java Plug-In is a plug-in for the Netscape

™

browser that provides complete
support for the standard Java runtime. For more information refer to the
following web site:

http://java.sun.com/products/plugin

■ Java Media Framework is installed at /opt/JMF. For more information, refer to

the following web site:

http://java.sun.com/products/java-media/jmf

■ The Java Communications API can be used to write platform-independent

communications applications for technologies such as voice mail, fax, and smart
cards. For more information, refer to the following web site:

http://java.sun.com/products/javacomm

22 Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

ShowMe TV

ShowMe TV™is a powerful audio/video tool that delivers up-to-the-minute news,
special reports, or internal communications directly to the system. ShowMe TV is a
television system for local and wide-area networks that can be used to view and
broadcast live or prerecorded video programs on the network, or to play back video
or audio files (QuickTime, AVI, and MPEG). It is also a tool for broadcasting and
viewing training courses, lectures, corporate messages, and for monitoring
important news events.

Getting Started With ShowMe TV

For more information, refer to the readme file installed on your system at

/opt/SUNWsmtv/GettingStarted.txt, or the following web site:
http://www.sun.com/desktop/products/software/ShowMeTV

The ShowMe TV program also has its own help system.
To start ShowMe TV, type:

/opt/SUNWsmtv/bin/showmetv

Caldera Graphics CameleoLIGHT

CameleoLIGHT from Caldera Graphics is a professional UNIX software package that
provides a number of graphics capabilities such as image acquisition from scanners
or digital cameras, image processing, retouching, composing, and image output to
devices such as printers, film recorders, and CD recorders. CameleoLIGHT is a
useful complement to the tools used in CAD, technical desktop publishing, scientific
and medical imaging, and web authoring. CameleoLIGHT is also available from the
following web site:

http://www.calderagraphics.com/en/download/index.html

Getting Started With CameleoLIGHT

To start CameleoLIGHT, type: /opt/caldera/bin/cameleo
User documentation for CameleoLIGHT is pre-installed on the system. Launch the

CameleoLIGHT application and use the right mouse button to select user
documentation. This will open the user documentation from the Netscape
Communicator application.

Getting Started With the Sun Blade 1000 and Sun Blade 2000 Systems 23

Netscape Communicator

Netscape Communicator is the world’s premiere browser for the Internet.
The version of Netscape Communicator that is preinstalled on your system has been

modified to allow shipment into countries that restrict the importation of encryption
software. Therefore, this version does not support the encryption required for secure
HTTP connections such as those used in e-commerce.

To obtain an S/MIME version of Netscape Communicator, you can order the Solaris
Media Kit (“Restoring the Preinstalled Software” on page 27). You can also download
the S/MIME version from the following Sun web sites:

http://sunsolve.sun.com
http://www.sun.com/solaris/netscape

Alternatively, you can download the latest full 128-bit encryption version of
Netscape Communicator directly from the Netscape web site:

http://www.netscape.com

Note – The version of Netscape Communicator available from the Netscape site

might be more recent, but has not been compatibility-tested by Sun.

Getting Started With Netscape

To start Netscape, click on the globe/clock face icon on the CDE desktop task bar (as
shown at left). Netscape has built-in help files for more information. The Netscape
files on your system are installed at /usr/dt/appconfig/netscape.

Solstice DiskSuite

Solstice DiskSuite™is a disk and storage management application for the Solaris
operating environment that enables high data availability, improved data reliability,
enhanced system and I/O performance and simple large system and disk
administration.

Getting Started with Solstice DiskSuite

The Solstice DiskSuite binaries are installed on your system at /usr/sbin. For
additional information on starting Solstice DiskSuite, see the Solstice DiskSuite User’s
Guide at http://docs.sun.com.

24 Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

Sun OpenGL for Solaris

Sun OpenGL®for Solaris is Sun’s native implementation of the OpenGL application
programming interface (API). The OpenGL API is an industry-standard, vendor­neutral graphics library.

Getting Started With OpenGL

The runtime portion of OpenGL is already preinstalled on your system and no
instructions are required.

PC File Viewer

PC File Viewer provides the ability to view and copy text from many popular types
of PC files instantly, whether or not users have the originating applications installed
on their systems. For example, PC File Viewer incorporated into the Solaris
operating environment allows users to share attachments and files created in
Microsoft Word, Excel, PowerPoint, Lotus 1-2-3, and AutoCAD applications.

Getting Started With PC File Viewer

For details about PC File Viewer features and supported file types, refer to the text
file installed on your system at: /opt/SUNWdtpcv/GettingStarted.txt,
or the following web site:

http://www.sun.com/products-n-solutions/
software/interoperability

Getting Started With the Sun Blade 1000 and Sun Blade 2000 Systems 25

PC Launcher

Note – PC Launcher requires an optional SunPCi card to be installed in the system.

™

PC Launcher gives SunPCi
print many popular types of PC files or attachments instantly, by automatically
launching the associated Microsoft Windows application and file.

PC Launcher provides easy editing, viewing, searching, and navigating of PC file
attachments and Microsoft Windows executable files. Users can copy and paste text
from Windows applications into any Solaris application. PC Launcher also gives
easy and quick access to PC file type attachments in Sun’s CDE Mail and File
Manager, as well as drag-and-drop capability for any file on the CDE front panel
icon.

Getting Started With PC Launcher

For details about PC Launcher features and supported file types, refer to the
following web site:

http://www.sun.com/products-n-solutions/
software/interoperability

card users seamless access and power to view, edit, and

SunForum

SunForum™lets you collaborate with colleagues while working in a heterogeneous
environment of Sun workstations, PCs, and Apple computers. Using SunForum, you
can choose to interact through any of the following industry standard H.323 features
over your TCP/IP network:

■ Video and audio conferencing between two or more people

■ Shared native and non-native applications that enable PC applications to run on a

Solaris desktop, and vice-versa, providing the ability to transfer control of the
applications between participants

■ A shared whiteboard, chat window, clipboard, or file

Getting Started With SunForum

For more information about SunForum, or to download the latest version, refer to
the following web site:

http://www.sun.com/desktop/products/software/sunforum

26 Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

Restoring the Preinstalled Software

Your system comes preconfigured with the Solaris operating environment and other
preinstalled software. However, if you should replace your hard drive for any
reason, the replacement drive does not come preconfigured with the Solaris
operating environment or the other preinstalled software.

Therefore, you should make and keep a full backup of the operating environment,
which can be used to restore your system if it is ever needed. Instructions for
backing up your operating environment are included in the preinstalled Solaris
System Administration Guide AnswerBook2.

You can also restore some of the software that is preinstalled on your disk from the
CDs included in the appropriate version of the Solaris Media Kit. This media kit
contains some of the same software that is preinstalled on your system, with the
exception of the Java software. However, you can download these products from the
web sites listed in their respective sections in this document (also note that some
software products, such as Netscape, offer different versions than those in the media
kit, from their respective web sites).

To restore your hard drive from the Solaris Media Kit CDs, take the following steps:

1. Get the backup media, the Solaris Media Kit.

You might already have this kit if you ordered it with your system. If you did not
order the kit with your system, contact your Sun sales representative and ask to
order the Solaris Media Kit for your language and Solaris version.

2. Follow the installation instructions in the Start Here document that comes with
the kit.

You can install the Solaris operating environment and as much of the additional
software as you want.

3. To restore the system hardware documentation, reinstall it from the Sun Blade
1000 and Sun Blade 2000 Hardware Documentation CD (705-0073) that is included
with your system.

Use the instructions in the CD insert document Sun Blade 1000 and Sun Blade 2000
Hardware Documentation (818-0073).

Getting Started With the Sun Blade 1000 and Sun Blade 2000 Systems 27

Installing Optional Hardware

Preparing for Installation

To prepare for installation of optional hardware, you must power off the system,
remove the access panel, and attach an antistatic wrist strap.

Powering Off the System

1. Prior to turning off power to the workstation, save, back up, and close any open
files. Notify any affected users that you are powering off your workstation.

2. To power off the workstation:

If the Solaris OS is running in a windowing environment:

a. Press and immediately release the front panel Power switch (see

automatically shut down all programs and the operating system, and to power
off the workstation.

b. From the menu displayed on the system monitor, select Shutdown.

FIGURE 6) to

FIGURE 6 Powering off the System

28 Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

If the Solaris OS is not running in a windowing environment:
a. Press the front panel Power switch (see

FIGURE 6) to power off the workstation.

This action automatically shuts down the operating system, all software
programs, and it powers off the workstation.

If the system is at the ok prompt (OpenBoot

a. Press and hold the front panel Power switch for four seconds (see

™

interface):

FIGURE 6)to

power off the workstation.

This action forces an immediate power off of the workstation. Any unsaved data
is lost.

Caution – Pressing the power switch does not remove all power from the

workstation. A trickle current remains in the power supply. To remove all power
from the workstation, disconnect the power cord.

3. Verify that the backlit Sun logo on the front panel is off and the workstation fans
are not spinning.

4. Turn off power to the monitor and other external peripherals.

5. Disconnect the cables for any peripheral equipment.

Getting Started With the Sun Blade 1000 and Sun Blade 2000 Systems 29

Removing the Access Panel

Note – If the power cord is connected, removal of the access panel activates the

workstation power interlock circuit. This safety mechanism prevents all DC voltages
(except +5 VDC standby power) from reaching any internal components.

1. Remove the lock block, if one is installed (see

FIGURE 7).

2. Press down on the two depressions at the top of the access panel (see

3. Tilt the top of the access panel about an inch away from the chassis.

4. Lift the access panel up.

5. Lift the access panel off.

FIGURE 8).

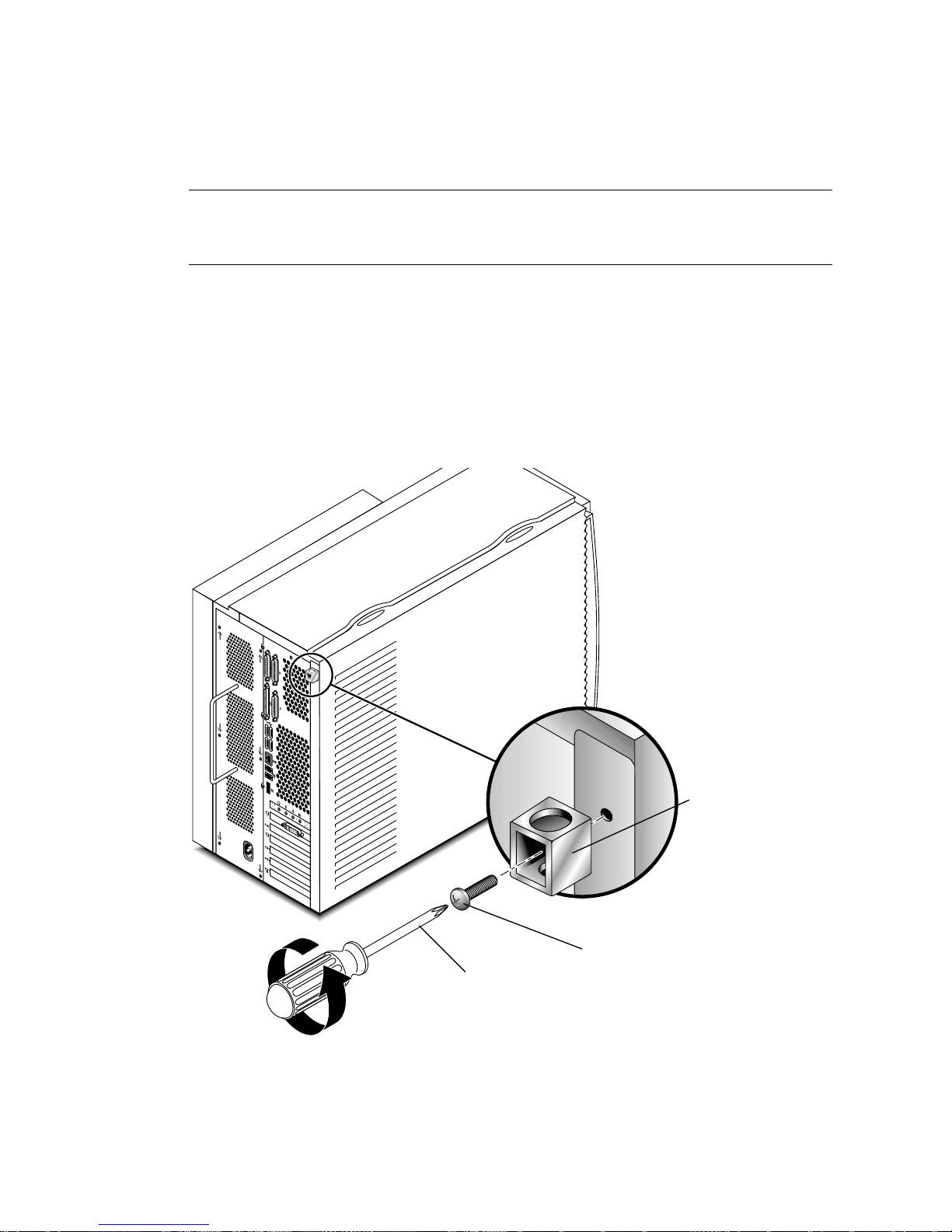

FIGURE 7 Removing the Lock Block

30 Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

Lock block

Screw
Phillips
screwdriver

1

2

3

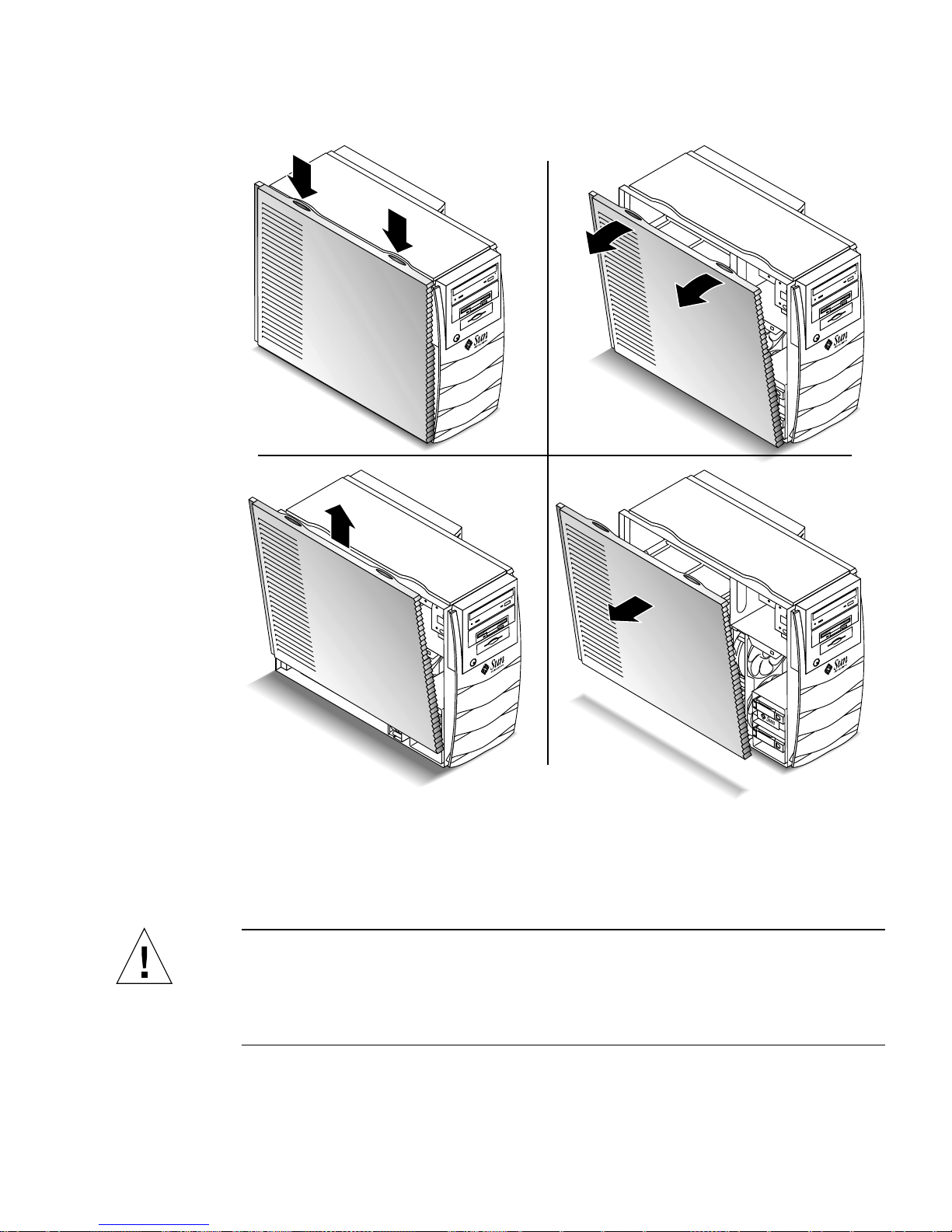

FIGURE 8 Preparing for Installation of Internal Components

4

Attaching an Antistatic Wrist Strap

Caution – Wear an antistatic wrist strap and use an antistatic mat when handling

workstation components. Before servicing or removing workstation components,
attach the strap to your wrist and then to a metal area on the chassis. Then
disconnect the power cord from the workstation and the wall receptacle. Following
this caution equalizes all electrical potentials within the workstation.

Getting Started With the Sun Blade 1000 and Sun Blade 2000 Systems 31

1. Place the workstation on its side on a work surface, open side facing up (see

FIGURE 9).

2. Unwrap the first two folds of the disposable antistatic wrist strap and wrap the
adhesive side firmly against your wrist.

3. Peel the liner from the copper foil at the opposite end of the wrist strap.

4. Attach the copper end of the wrist strap to the chassis (see

5. Disconnect the power cord.

FIGURE 9).

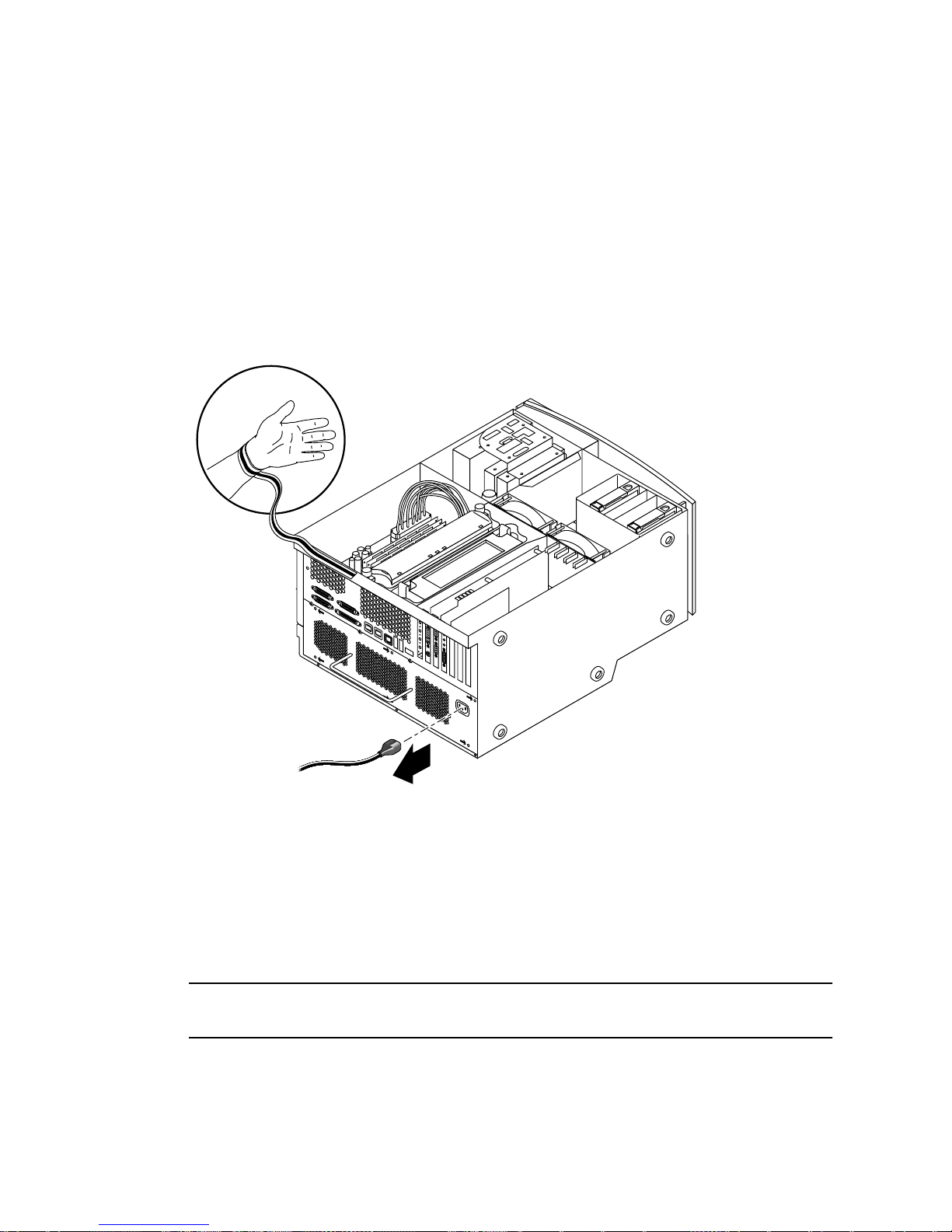

FIGURE 9 Attaching the Antistatic Wrist Strap

System Internal Layout

The system’s internal layout is shown in FIGURE 10 to help you locate internal
components discussed in this guide.

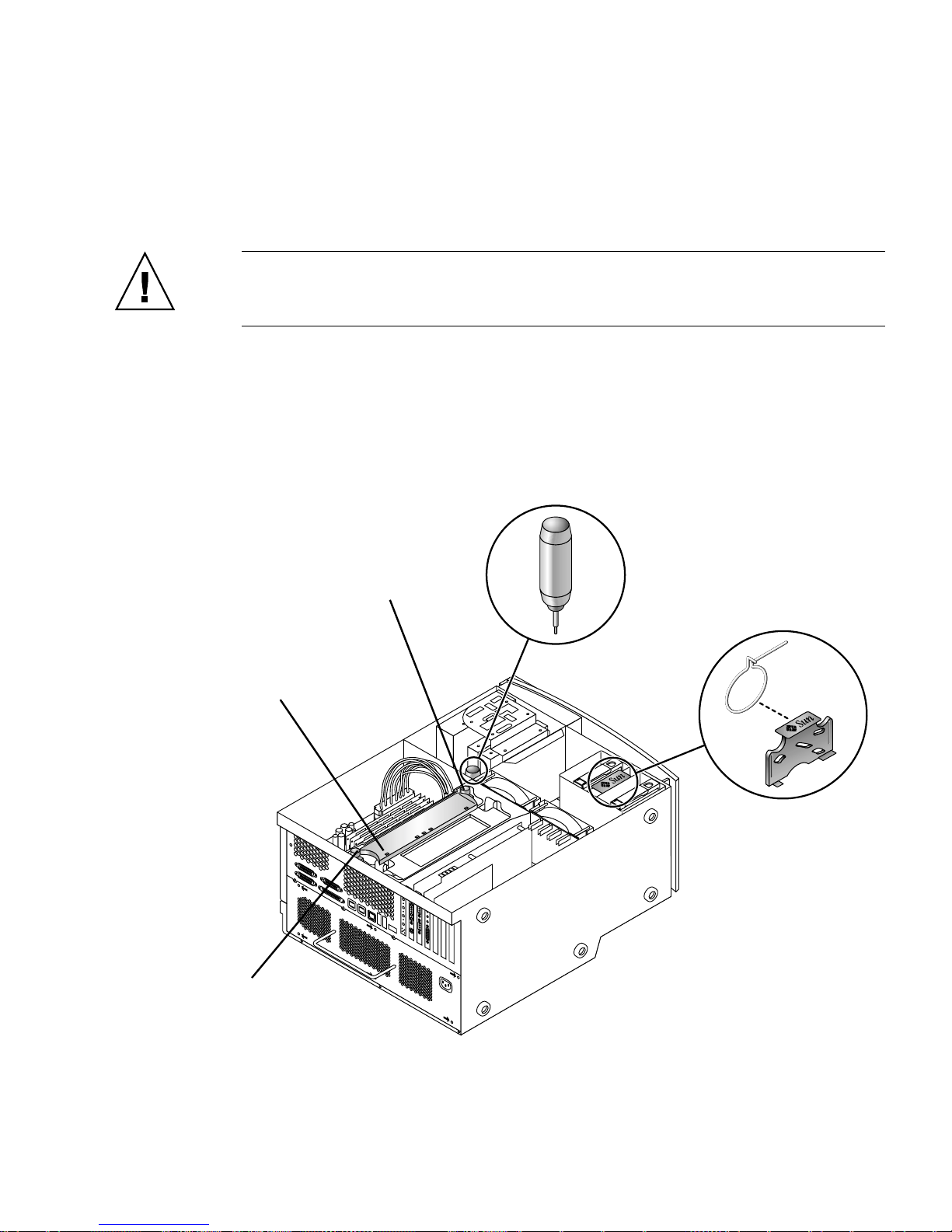

Note – Two types of torque indicator tool will work with your system. Your system

is equipped only with one type of torque indicator tool.

32 Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

1. Dual in-line memory module (DIMM) connectors on the motherboard (eight)

microsystems

microsystems

2. Torque indicator tool A (green socket driver)

3. Peripheral assembly, which contains a smart card reader, and optionally,
a DVD-ROM, tape, or diskette drive

4. Hard drive bracket with two hard drive bays

5. Torque indicator tool B in green plastic holder

6. System/CPU cooling fans (two)

7. PCI card slots (four)

8. Graphics card slots (two)

9. CPU slots (two) in the CPU shroud

1

1
0
1
0
1
0
1
0

2

5

3

9

10

4

8

5

7

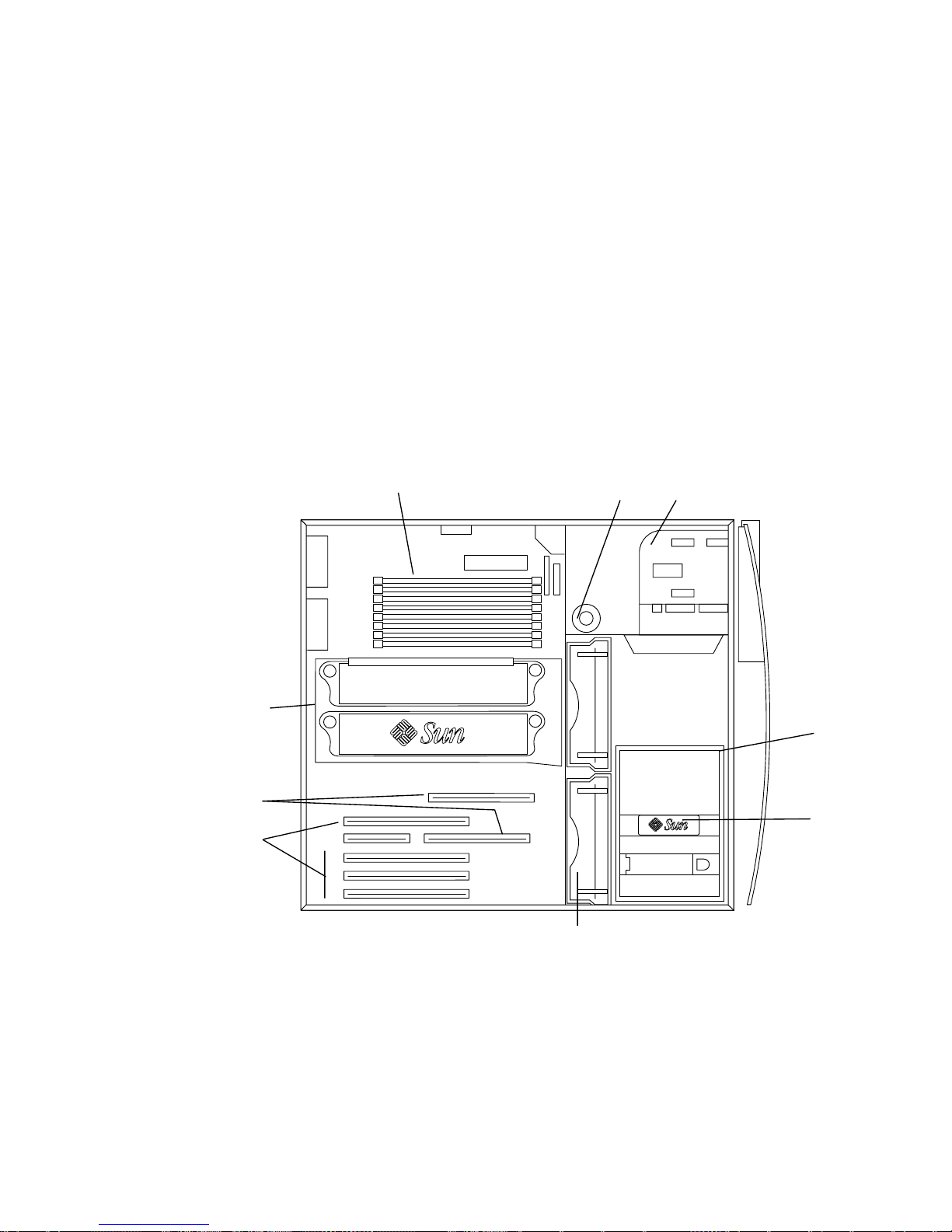

FIGURE 10 System Internal Layout

6

Getting Started With the Sun Blade 1000 and Sun Blade 2000 Systems 33

Installing an Additional Hard Drive

1. Power off the system, remove the access panel, and attach an antistatic wrist strap
as described in “Preparing for Installation” on page 28.

2. Locate the empty hard drive bay in the hard drive bracket (see

FIGURE 11).

Caution – Ensure that the metal plate on the face of the new hard disk drive has

two notches. If the metal plate does not have notches do not install the hard disk
drive.

3. Open the drive handle on the new hard drive by sliding the release button in the
direction indicated by the arrow printed on the hard drive.

4. Holding the drive handle, insert the hard drive into the bay along the plastic
guides until the drive handle begins to close.

5. Push down and lock the hard drive handle to secure the hard drive into the
bracket.

6. Continue with “Finishing the Installation” on page 42.

34 Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

Hard drive

0

1

Release button

Drive Handle

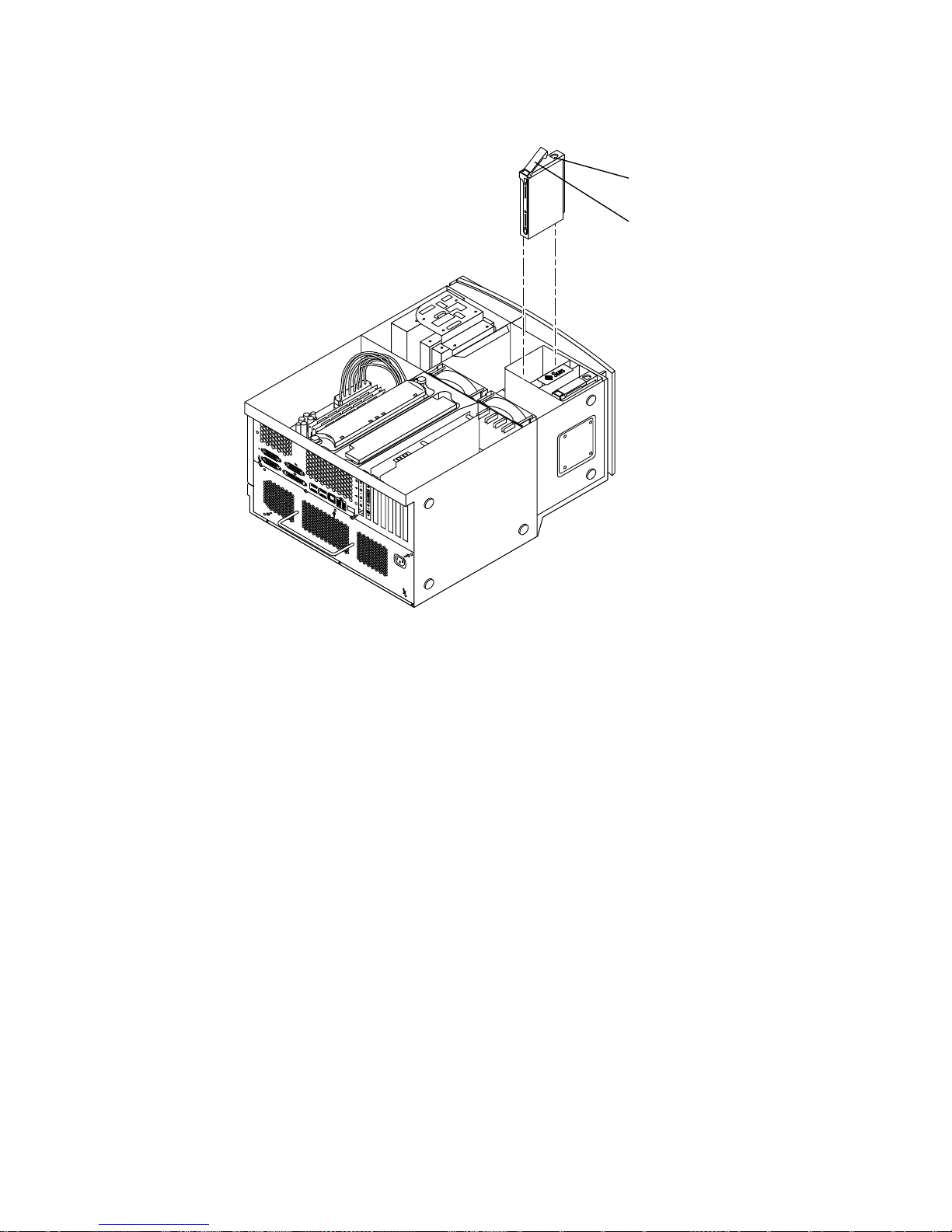

FIGURE 11 Installing an Additional Hard Drive

Getting Started With the Sun Blade 1000 and Sun Blade 2000 Systems 35

Installing Graphics or PCI Cards

1. Power off the system, remove the access panel, and attach an antistatic wrist strap
as described in “Preparing for Installation” on page 28.

2. Use a No. 2 Phillips screwdriver to remove an empty card slot’s metal filler panel
from the chassis back panel (see

0

FIGURE 12).

1

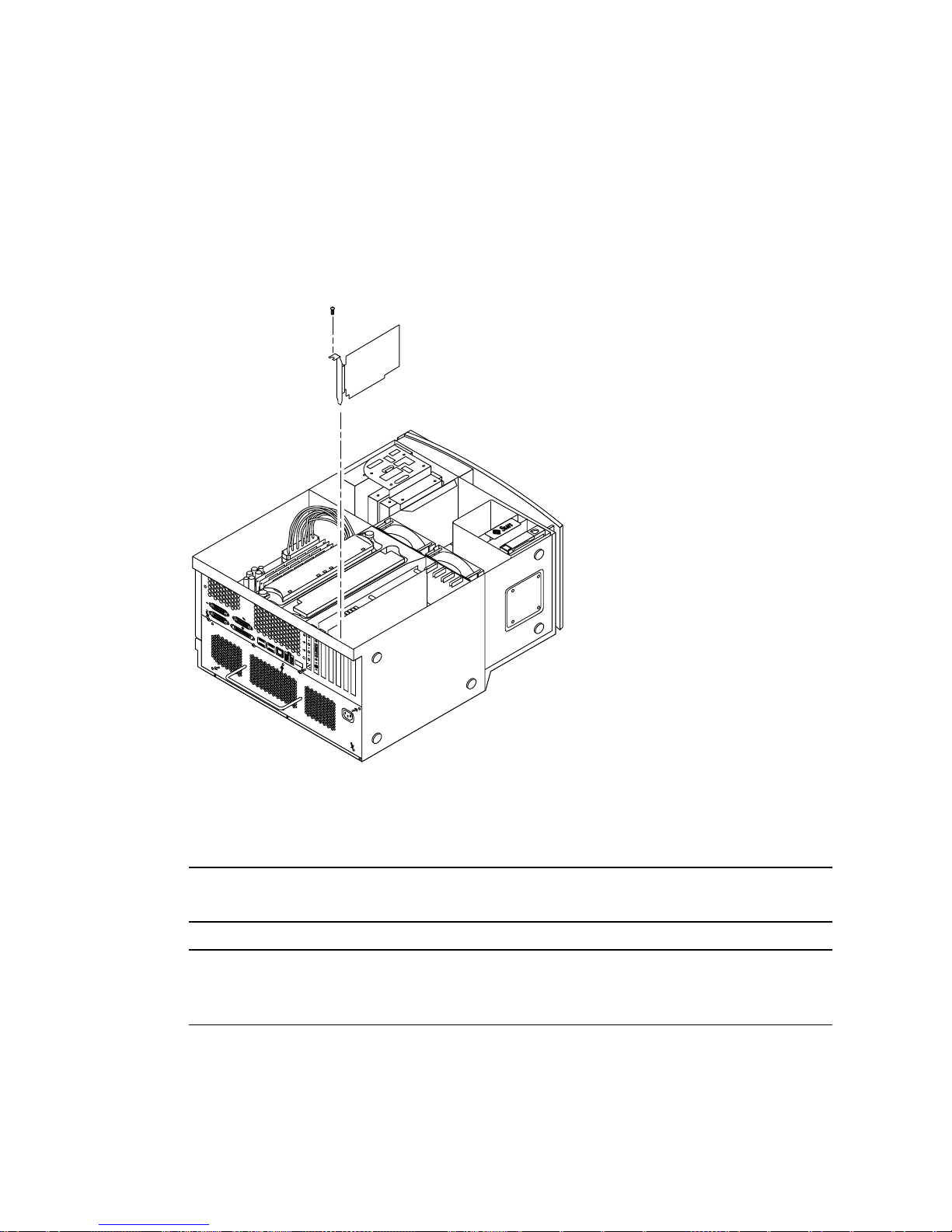

FIGURE 12 Installing Additional Graphics or PCI Cards

3. Position the card into the chassis above the empty connector on the motherboard.

Note – If you are installing an Expert3D card, do not install it in the 66-MHz PCI

slot (the bottom slot). The Expert3D card does not operate in the 66-MHz slot.

Note – Some stereo graphics cards occupy two motherboard slots. For special

installation instructions for these cards, refer to the installation guide that is shipped
with the card.

36 Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

4. Position the card’s metal bracket tab into the chassis back panel opening; position
the opposite end of the card into the card guide on the fan bracket so that the card
is aligned evenly with the motherboard connector.

5. Push the card straight into the motherboard connector until it is fully seated.

6. Install the screw that secures the card’s bracket tab to the chassis back panel.

7. Continue with “Finishing the Installation” on page 42.

Installing Peripheral Drives

1. Power off the system, remove the access panel, and attach an antistatic wrist strap
as described in “Preparing for Installation” on page 28.

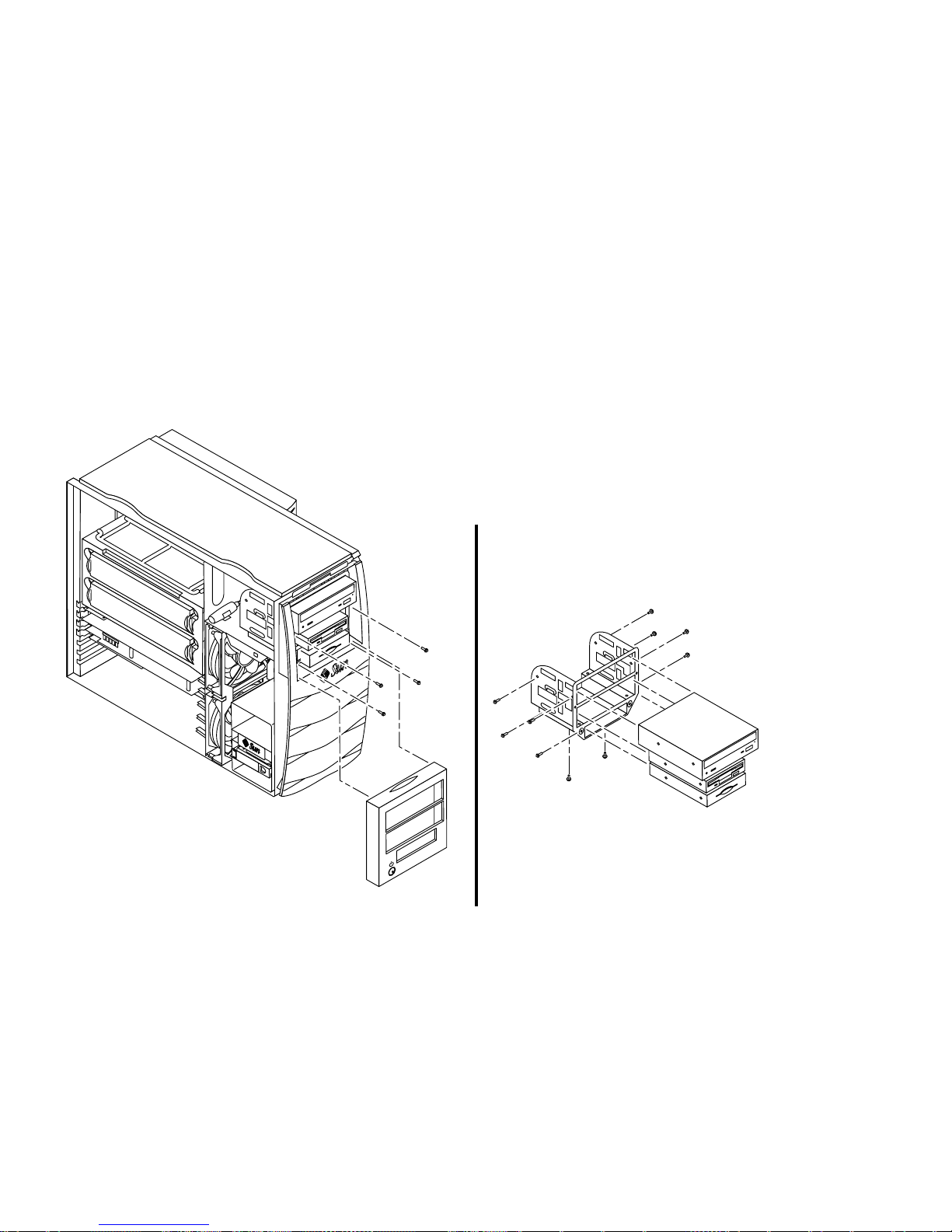

2. Remove the peripheral assembly as follows (see

FIGURE 13):

Note – This procedure is easier if the system is standing upright on its feet.

a. Remove the front peripheral bezel by pushing down on the depression on the

bezel top.
b. Remove the four screws that secure the peripheral assembly to the chassis.
c. Partially pull out the peripheral assembly from the chassis front.
d. Disconnect the data cables and power cables from any existing drives,

including the smart card reader.
e. Remove the peripheral assembly from the chassis.

3. Place the peripheral assembly on an antistatic mat.

4. If necessary, remove any metal filler panel from the peripheral bay to which you
are installing.

5. Position the new peripheral drive into the peripheral assembly.

6. Install the four screws that secure the peripheral drive to the peripheral assembly.

Note – If you are installing a diskette drive, you must remove the smart card reader

from the peripheral assembly to provide clearance for the diskette drive screws,
which are inserted into the bottom of the diskette drive.

Getting Started With the Sun Blade 1000 and Sun Blade 2000 Systems 37

7. Replace the peripheral assembly as follows:

microsystems

a. Position the peripheral assembly into the chassis front.
b. Connect power and data cables to the rear cable connectors on all drives,

including the smart card reader.

c. Replace the four screws that secure the peripheral assembly to the chassis.

8. If necessary, remove any plastic filler panel from the front peripheral bezel
opening to which you are installing.

9. Replace the front peripheral bezel.

10. Continue with “Finishing the Installation” on page 42.

s

m

icrosyste

m

FIGURE 13 Installing Additional Peripheral Drives

38 Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

Installing Additional Memory

microsystems

1. Power off the system, remove the access panel, and attach an antistatic wrist strap
as described in “Preparing for Installation” on page 28.

2. Review the following important memory installation information before you
begin installing the memory:

■ The system’s dual in-line memory modules (DIMMs) are arranged in two logical

banks, bank 0 and bank 1, each bank consisting of four connectors. See

■ The system must have either four or eight DIMMs installed to operate.

■ Each DIMM bank being used must contain four DIMMs of equal density to

function properly (for example, four 256-Mbyte DIMMs in bank 0, four 1-GB
DIMMs in bank 1). Do not mix DIMM densities within any logical bank.

■ The default position for DIMMs installed at the factory is in the four connectors

labeled “0” in

■ When adding additional DIMMs, fill the four connectors labeled “1”.

FIGURE 14.

FIGURE 14.

1
0
1
0
1
0
1
0

CPU

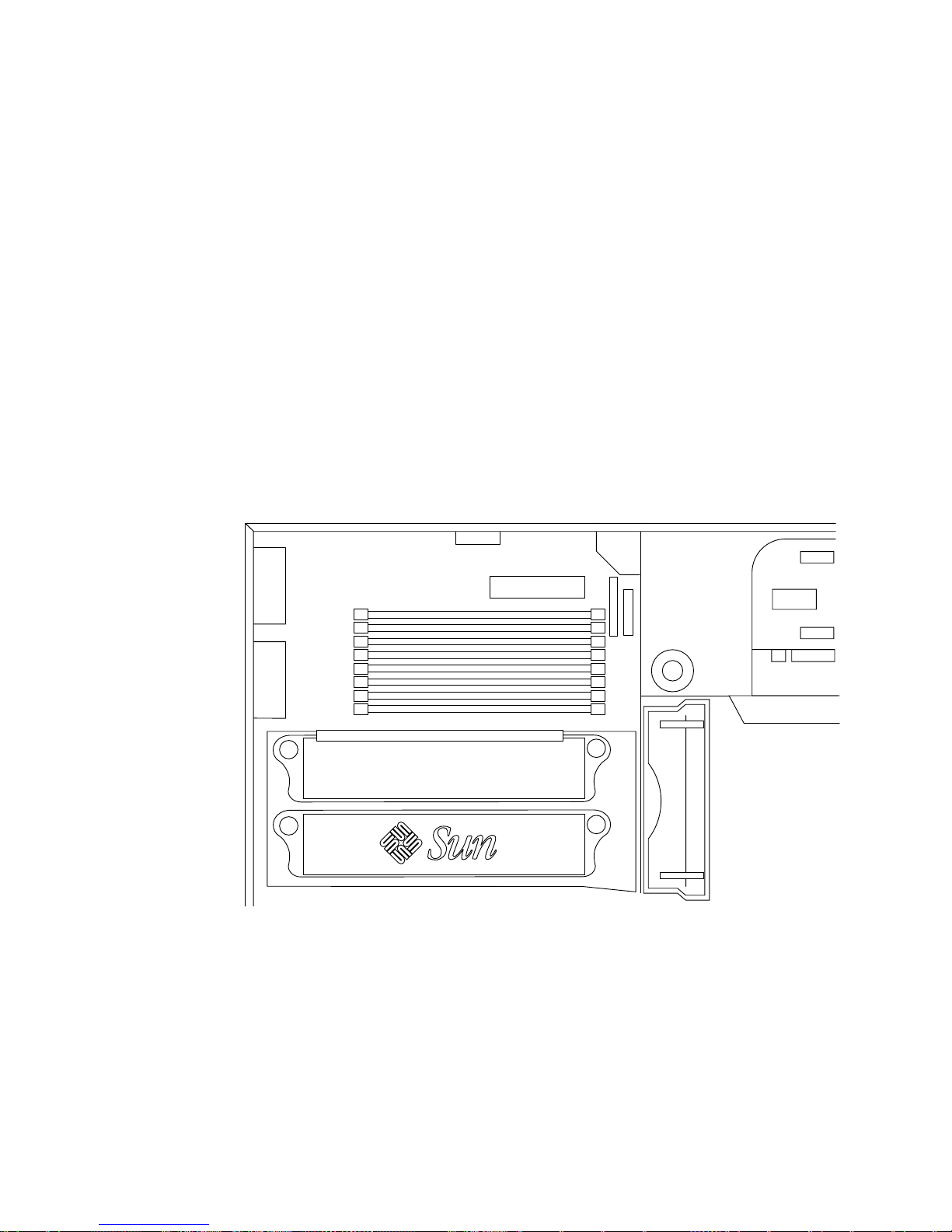

FIGURE 14 DIMM Banks on the Motherboard

5

10

Getting Started With the Sun Blade 1000 and Sun Blade 2000 Systems 39

Caution – Hold DIMMs only by their edges. Place DIMMs on an antistatic mat

whenever you set them down. Small amounts of static electricity can damage
DIMMs.

3. Install four DIMMs in the empty motherboard DIMM connectors as follows (see

FIGURE 15):

a. Open both ejector levers outward on the empty DIMM connector.
b. Position the DIMM into the connector. Use the alignment notches on the

bottom edge of the DIMM to ensure correct orientation.

c. Without touching any DIMM components, press straight down on both DIMM

top corners until the DIMM is fully seated and both ejector levers on the
connector close into the DIMM’s side notches.

Caution – Verify that the DIMMs are fully and evenly seated. Failure to properly

seat the DIMM can cause electrical shorts that can damage the DIMM and/or the
system.

d. Continue installing DIMMs until you have filled the DIMM bank with four

identical DIMMs.

4. Continue with “Finishing the Installation” on page 42.

Note – For additional information on configuring system memory and memory

interleaving techniques, see the Sun Blade 1000 and Sun Blade 2000 Service Manual
(816-3217).

40 Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

microsystems

microsystems

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

OR

1
0
1
0
1
0
1
0

10

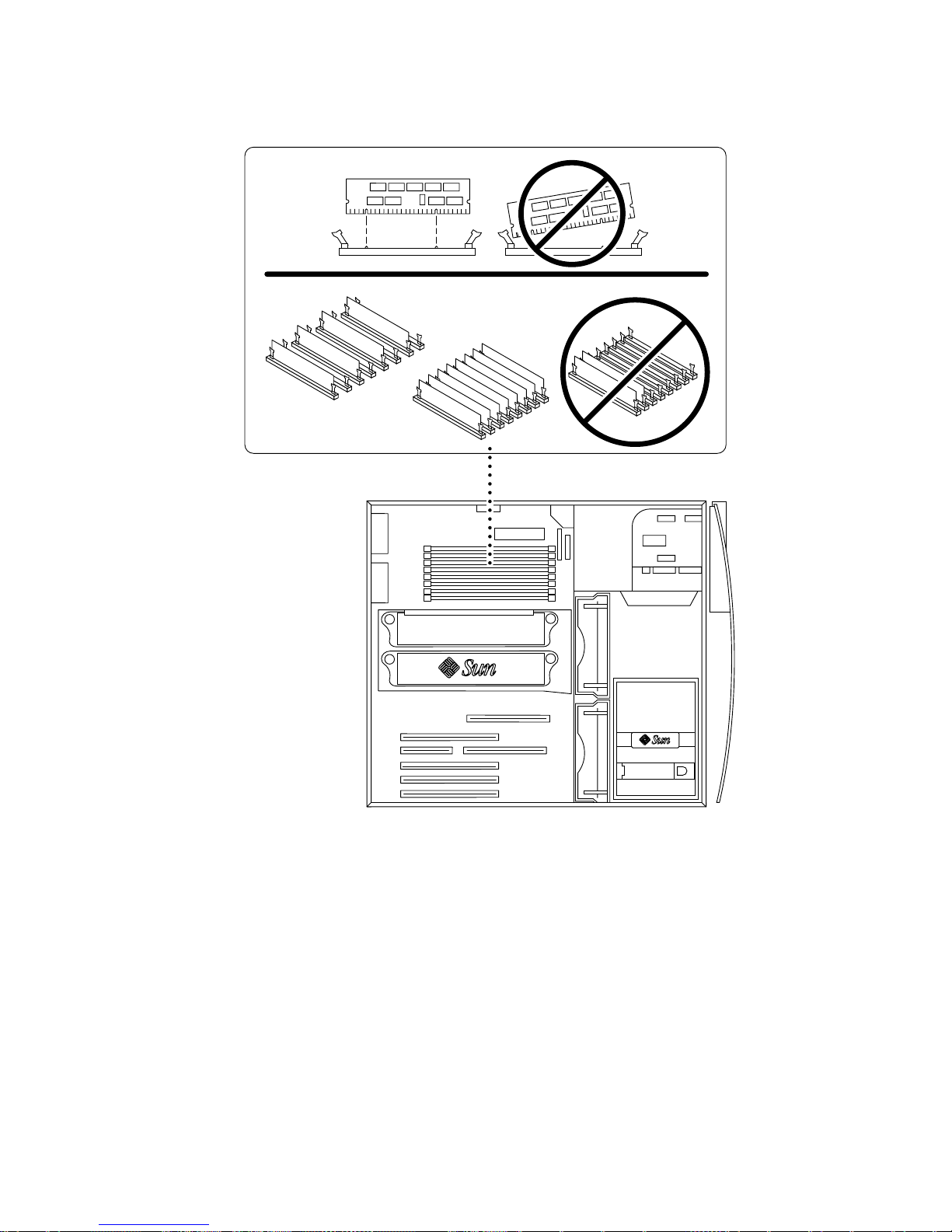

FIGURE 15 Installing Additional DIMMs

Getting Started With the Sun Blade 1000 and Sun Blade 2000 Systems 41

Finishing the Installation

1. Remove the antistatic wrist strap from the chassis.

2. Replace the access panel.

3. If desired, install a lock block on the back panel of the workstation. See

4. Reconnect any cables from external devices to the workstation.

5. Reconnect the workstation power cord.

6. Power on the workstation:
a. Turn on power to the monitor and to all external devices.
b. Press the power switch on the front panel and release it.
c. After several seconds, verify that the power-indicator LED on the power switch

is energized and listen to verify that the workstation fans are operating
(spinning).

FIGURE 7.

Helpful Hint – After you finish installing optional internal components and power

on the system, you are ready to set up the Solaris operating environment software (if
you have not already done so). See “Setting Up the Preinstalled Solaris Operating
Environment Software” on page 9 for instructions.

42 Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

Installing a CPU Module

There are two types of UltraSPARC III CPU modules:

■ UltraSPARC III 600, 750, or 900 MHz CPU modules

■ UltraSPARC III Cu CPU modules

Note – UltraSPARC III Cu CPU modules are marked “USIII Cu” (FIGURE 16).

To Install an UltraSPARC III 600, 750, or 900 MHz CPU module, see the Sun Blade
1000 UltraSPARC III Module Installation Instructions (816-0416).

To Install an UltraSPARC III Cu CPU module, see the Sun Blade 1000 UltraSPARC III
Cu Module Installation Instructions (816-2722).

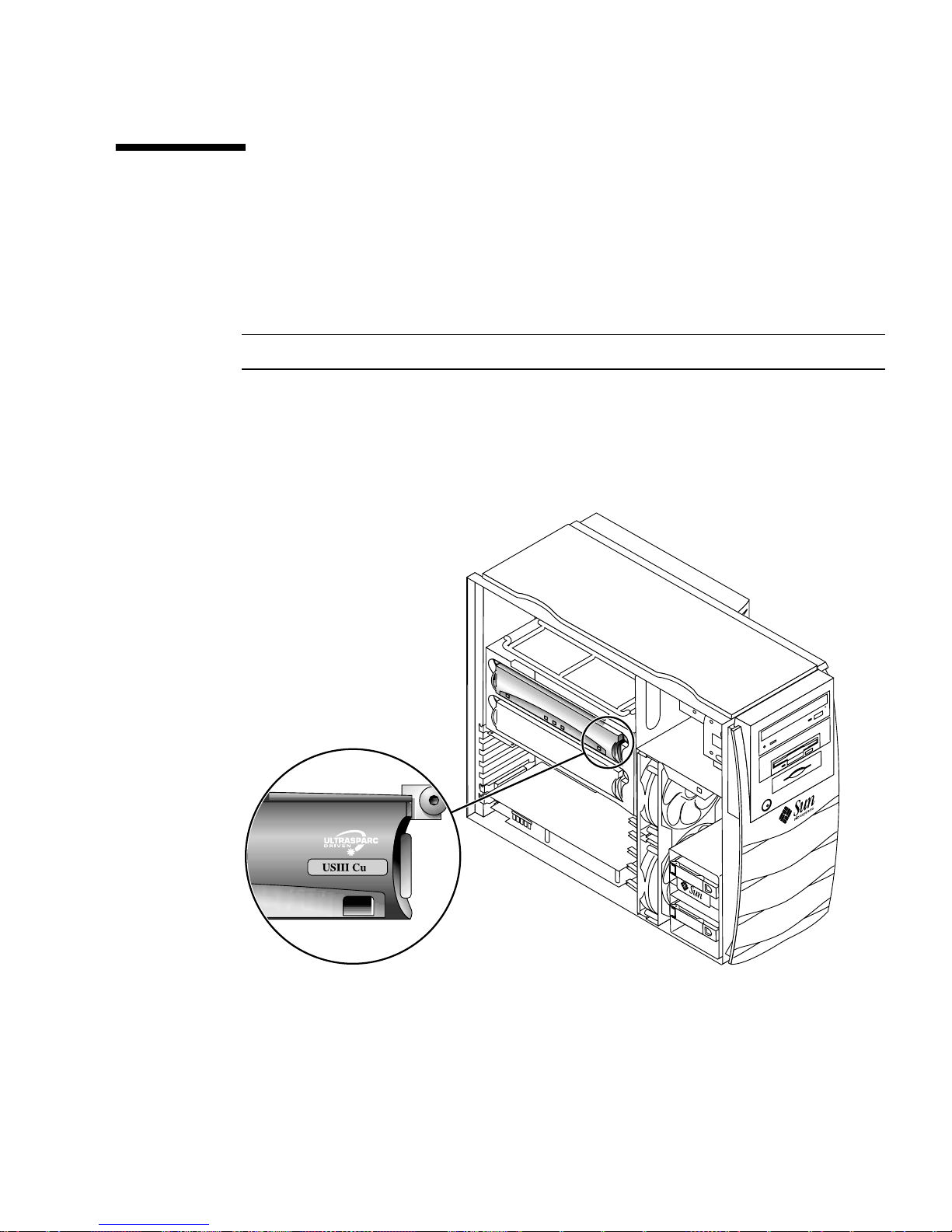

FIGURE 16 UltraSPARC III Cu CPU Module

Getting Started With the Sun Blade 1000 and Sun Blade 2000 Systems 43

About UltraSPARC III and UltraSPARC III Cu
CPU Modules

The UltraSPARC III and UltraSPARC III Cu CPU modules are high-performance,
highly-integrated superscalar processors, implementing the SPARC-V9 64-bit
reduced instruction set computer (RISC) architecture. Both types of CPU modules
have been updated and improved to further advance reliability, availability,
scalability, and serviceability features.

The workstation motherboard provides slots for two CPU modules.

Note – Never mix an UltraSPARC III 600, 750, or 900 MHz CPU module with an

UltraSPARC III Cu CPU module. If the modules are mixed, the workstation will not
boot.

Each processor module includes one CPU chip with an integrated memory cache for
data and instructions, as well as up to 8 Mbytes of external static random access
memory (SRAM) cache memory.

The CPU modules communicate with the main memory and I/O subsystem via the
high-speed data bus. The CPU modules are automatically synchronized with the
system bus that runs at the appropriate clock speeds.

Configuration Rules

■ You can install one or two CPU modules into the workstation motherboard.

■ Always insert the first CPU module into CPU (processor) slot 0 (connectors J0501

and J0601).

■ Install the second CPU module into CPU (processor) slot 1 (connectors J0701 and

J0801).

■ You can install more than one UltraSPARC III 600, 750, or 900 MHz CPU module.

These modules do not need to be identical speeds.

■ You can install more than one UltraSPARC III Cu CPU module. However, these

modules must be identical speeds.

44 Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

CPU Module Positions in the Workstation

The CPU modules are enclosed in a cooling shroud and secured to the shroud with
captive screws that must be torqued to specific values.

Caution – CPU processor slot 0 is the required position for all workstations that

contain only one CPU. The slot positions of the two CPU modules are shown in

FIGURE 17.

Your workstation will only contain one torque indicator tool, either torque tool A, or
torque tool B. The CPU installation guides describe how to use each tool for each
type of CPU module.

Sun Blade 1000 UltraSPARC III Module Installation Instructions (816-0416).
Sun Blade 1000 UltraSPARC III Cu Module Installation Instructions (816-2722).

Torque tool A

Captive screw

CPU processor 0

Captive screw

Torque tool B

FIGURE 17 Location of CPU Processor Slot 0, Captive Screws, and Torque Tools

Getting Started With the Sun Blade 1000 and Sun Blade 2000 Systems 45

For More Information

Refer to the following documentation for more detailed information about system
specifications and service procedures.

Hardware

The Sun Blade 1000 and Sun Blade 2000 Hardware Documentation CD (705-0073), which
is shipped with your system, contains:

■ The Sun Blade 1000 and Sun Blade 2000 Service Manual. This manual provides

detailed procedures for removing and replacing system components and includes
system specifications. You can also order this manual as hard copy (816-3217), or
view it online at: http://docs.sun.com

■ The Sun Blade 1000 and Sun Blade 2000 ShowMe How

which demonstrates service procedures with interactive audio and video
animations. These multimedia procedures are launched from links within the
service manual.

Additional information can be found in these documents:

■ Sun Blade 1000 UltraSPARC III Module Installation Instructions (816-0416)

■ Sun Blade 1000 UltraSPARC III Cu Module Installation Instructions (816-2722)

™

Multimedia documentation,

■ Solaris Smart Cards Administration Guide (806-1646)

Software

Much detailed information about the Solaris software and the additional preinstalled
software on your system is preinstalled on your hard disk. See “Hardware and
Software Documentation” on page 16.

46 Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

Troubleshooting

If you experience problems when setting up your system, refer to the
troubleshooting information in the following table. If the problem persists, see “How
to Get Technical Assistance” on page 49.

TABLE 5 Setup Troubleshooting the Sun Blade 1000 and Sun Blade 2000

Problem Solution

System does not power on
when the front panel power
switch is pressed.

System and monitor power
on, but no video displays on
the monitor screen.

Keyboard or mouse does not
respond to actions.

An installed hard drive or
peripheral drive is not
recognized by the system
after power on.

Installed memory is not
recognized by the system
after power on.

1) Verify the system power cord is connected to the system and a wall
outlet.

2) Verify there is power to the wall outlet.

3) Verify that the system access panel is fully closed (system will not power
on if access panel interlock-switch is open).

1) Verify the monitor cable is firmly attached to the system graphics card.

1) Verify the mouse cable is attached to a system USB connector.

2) Verify the keyboard cable is attached to a system USB connector.

3) Verify that the system is powered on.

1) Power off the system, remove the access panel, and attach an antistatic
wrist strap as described in “Preparing for Installation” on page 28.

2) Verify that power and data cables are firmly attached to peripheral
drives.

3) Close and power on the system as described in “Finishing the
Installation” on page 42.

4) Reboot your system with the command:

1) Power off the system, remove the access panel, and attach an antistatic
wrist strap as described in “Preparing for Installation” on page 28.

2) Verify that DIMMs are firmly pressed down into the motherboard
connector. See “Installing Additional Memory” on page 39 for more
information.

3) Verify that each DIMM bank contains DIMMs of the same density.

4) Close and power on the system as described in “Finishing the
Installation” on page 42.

boot -r

During boot procedure, the
system gives the error
message:

Warning: timed out
waiting for NIS to come
up.

1) Verify the Ethernet cable is connected at the system and at the wall
outlet.

2) Verify with your system administrator that the network is operational.

Getting Started With the Sun Blade 1000 and Sun Blade 2000 Systems 47

TABLE 5 Setup Troubleshooting the Sun Blade 1000 and Sun Blade 2000

Problem Solution

The system does not
recognize external plug-and­play devices that are
connected to the system IEEE
1394 connectors.

The system does not
recognize external plug-and­play devices that are
connected to the system FC­AL connector.

Pressing the eject button on
the DVD-ROM drive does not
eject the media tray.

The system appears to be in
low-power mode, but the
power-indicator LEDdoesnot
blink.

The buses for the connectors might be in low-power mode.

1) To activate the buses, start an application that the plug-and-play device
uses. For example, starting ShowMeTV activates the 1394 bus when the
application searches for cameras or other plugged-in devices.

2) Alternatively, you can set your Power Management software to the
Minimal setting to turn off power management to the buses. Refer to the

“Solaris User Collection” document, Using Power Management (see
“Hardware and Software Documentation” on page 16).

The bus for the connector might be in low-power mode.

1) To activate the bus, start an application that accesses the devices on the
bus. For example, accessing internal FC-AL disks will activate the FC-AL
bus.

2) Set your Power Management software to the Minimal setting to turn off
power management to the buses. Refer to the “Solaris User Collection”
document, Using Power Management (see “Hardware and Software
Documentation” on page 16).

The drive might be in low-power mode.

1) To activate peripheral drives that are in low-power mode, move the
mouse or press any key on the keyboard.

1) If your system has a tape drive* installed, the power-indicator LED will
not blink. Tape drives do not go into low-power mode. The power­indicator LED only blinks when all system components are in low-power
mode.

*Some hardware options and software drivers do not support this system’s
lowest possible power consumption mode, when this occurs, the power
indicator LED will not blink.

48 Sun Blade 1000 and Sun Blade 2000 Getting Started Guide • January 2002

How to Get Technical Assistance

There are three ways to get further information and assistance:

1. Refer to the system documentation (see “For More Information” on page 46).

2. Refer to Sun’s online support tools.
Sun has designed interactive support tools to help you solve problems, provide

patches, and give you access to bug reports and other valuable information. These
tools are located at the following website:

http://www.sun.com/service/online/

■ SunSolve Online

In conjunction with the SunSpectrumSMsupport program, SunSolve Online
provides 24-hour access to Sun’s extensive knowledge database. This site
contains many free downloadable patches.

■ Access1

SM

In conjunction with the Access support programs, Access1 provides up-to-date
information on the full line of Sun’s software products, technical bulletins
written by support engineers, and product patches. Like SunSolve Online,
Access1 provides a variety of free patches and drivers.

■ docs.sun.com

SM

SM

The http://docs.sun.com online documentation system contains new and
existing product information, including a searchable list of manuals, guides,
AnswerBook2 collections, and man pages.

■ Free Services Areas

This page provides access to recommended patches, security information, x86
drivers, and public information.

3. Call a SunService

SM

Solution Center.

To contact SunService Solution Centers for answers to your technical questions,
find the Solution Center closest to you at the following website:

http://www.sun.com/service/contacting/solution.html

Getting Started With the Sun Blade 1000 and Sun Blade 2000 Systems 49
