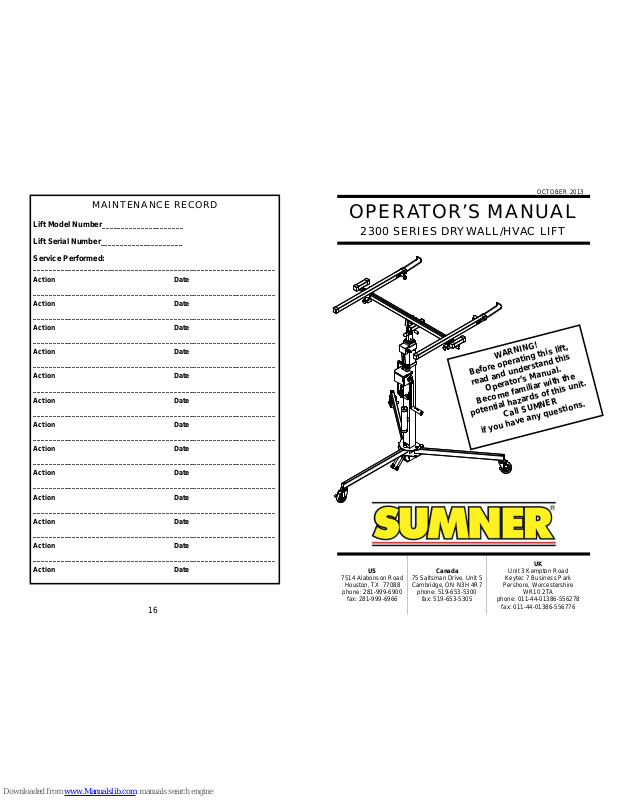

Sumner 2300 Series Operator's Manual

16

MAINTENANCE RECORD

Lift Model Number_____________________
Lift Serial Number_____________________
Service Performed:

______________________________________________________________
Action Date
______________________________________________________________
Action Date
______________________________________________________________
Action Date
______________________________________________________________
Action Date
______________________________________________________________
Action Date
______________________________________________________________
Action Date
______________________________________________________________
Action Date
______________________________________________________________
Action Date
______________________________________________________________
Action Date
______________________________________________________________
Action Date
______________________________________________________________
Action Date
______________________________________________________________
Action Date
______________________________________________________________
Action Date

OCTOBER 2013

OPERATOR’S MANUAL

2300 SERIES DRYWALL/HVAC LIFT

W

A

R

N

I

N

G

!

B

e

f

o

r

e

o

p

e

r

a

t

i

n

g

t

h

i

s

l

i

f

t

,

r

e

a

d

a

n

d

u

n

d

e

r

s

t

a

n

d

t

h

i

s

O

p

e

r

a

t

o

r

’

s

Ma

n

u

a

l

.

B

e

c

o

m

e

f

a

m

i

l

i

a

r

w

i

t

h

th

e

p

o

t

e

n

t

i

a

l

h

a

za

r

d

s

o

f

t

h

i

s

u

n

i

t

.

C

a

l

l

S

U

MN

E

R

i

f

y

o

u

h

a

v

e

a

n

y

q

u

e

s

t

i

o

n

s

.

US

7514 Alabonson Road

Houston, TX 77088

phone: [phone]

fax: [phone]

Canada

75 Saltsman Drive, Unit 5
Cambridge, ON N3H 4R7

phone: [phone]

fax: [phone]

UK

Unit 3 Kempton Road

Keytec 7 Business Park

Pershore, Worcestershire

WR10 2TA

phone: [phone]-556278

fax: [phone]-556776

2

Index

Owner’s Responsibilities........................................................2

Operator Safety Instructions.................................................. 3

Operating Procedure ..................................................5-10

Moving Lift to Work Area .................................................6

Moving Lift with Load ......................................................6

Lifting and Lowering Loads..............................................7

Attaching Cross Arms......................................................8

Extending Load Rails....................................................... 8

Load Support Hooks........................................................9

Steering Handle...............................................................9

Back Up Brake...............................................................10

Storing and Transporting Lift .........................................10

Specifications.......................................................................11

Lift Diagram ......................................................................... 12

Maintenance Instructions................................................13-14

Troubleshooting................................................................... 15

Maintenance Record............................................................16

OWNER’S RESPONSIBILITIES

Throughout this publication, the words WARNING, CAUTION

and IMPORTANT will be used to alert the user to special

instructions concerning a particular operation that may be

hazardous if performed incorrectly or carelessly.

OBSERVE THEM CAREFULLY !!

WARNING

Hazards or unsafe practices which could result in

severe personal injury or death.

CAUTION

Hazards or unsafe practices which could result in

minor personal injury, product or property

damage.

IMPORTANT

Indicates information or instructions that are

necessary for proper operation and/or

maintenance.

15

PROBLEM CAUSE SOLUTION

Masts not rising in

succession

Overloading

Check to make sure that the

load does not exceed the 150

lb/70 kilo load limit.

Remove excess weight.

Load may not be centered

properly on the cradle.

Check load capacity and

reposition load.

Slide pads obstructed. Inspect

tracks for debris, grease, or any

foreign obstruction.

Clean mast sections with a

degreaser or brake cleaner and

lubricate with a silicon lubricant.

Inspect Lifting cable for

damage.

If Lifting cable is cut, worn or

frayed, replace the

cable.

Slide pads are clean but masts

still not sliding freely.

Inspect mast sections for dam-

age. Replace damaged mast

section.

Load is easing down

slowly

The brake on the winch or

ratchet dog are not installed

correctly.

Tighten lock nut on winch shaft

down completely, then back off

one half turn.

You have checked the

winch and the brake does

not work at all.

The brake ratchet or ratchet dog

are not installed correctly or are

damaged and/or worn.

Replace the worn or damaged

components.

The winch is hard to crank

down.

The brake is over-engaged Remove the load and turn the

winch handle counter clockwise.

The brake will not disengage Replace the worn or damaged

components.

If none of these

solutions seem to fix the

problem...

Call distributor’s

Customer Service Department.

NOTE: Mast sections may rise out of succession when load is near maximum

capacity. If this occurs, the masts will correct themselves during continued use or when

the load is removed from the cradle. Movement of the mast sections will not affect the

position of the load.

TROUBLESHOOTING

14

General Maintenance:

1. Check the winch handle for wear or bends.

2. Examine all bolts and nuts to be sure they are tight.

3. Legs, cross arms, rails, load hooks, masts and base should be dent free
and damage free.

4. Check damage (indentations) which can restrict the movement of the mast
sections.

5. Check legs by rotating them into each position to check locking mechanism.

6. Inspect masts and hold-down device.

7. Raise mast sections to inspect for free, smooth sliding action. Make sure
slide pads are free of dust and debris and spray a light coat of silicone lubri­cation on slide pads.

8. Make sure caster wheels rotate freely and are undamaged.

9. Check to be sure that all mast covers are attached to the lift.

WARNING

Replace all worn or damaged parts only with
Sumner parts.

WARNING

Modifying the lift in any way can cause injury or
death!

3

OPERATOR SAFETY INSTRUCTIONS

IMPORTANT

Read and understand Operators Manual before
using Lift.

Inspect cable before each use. Do not use if cable
is frayed, worn, cut, burnt or otherwise damaged.

Use only on solid level surface. Keep work area
clean and clear of clutter and debris.

Test load balance before lifting. Do not use without
properly locking legs. Never exceed rated load

capacity. Never lift more than one sheet of
drywall at a time.

Stay clear of overhead wires and obstructions.

Never operate in gusty winds. Lifting loads during
high winds can result in the lift tipping over and the
possibility of operator injury.

Do not stand under an elevated load.

Never leave lift unattended with an elevated load.

4

Do not use to lift personnel. Do not sit or stand on

lift.

Do not climb on mast or put a side load on mast.

Do not use unit to support ladders for climbing or

hoisting.

Do not use unit outside in thunder, lightning, or

severe weather.

Wear proper clothing. Hard hat, safety shoes and

gloves should be worn as a precaution when

operating this lift.

Avoid horseplay around equipment, and keep bystanders at a

safe distance. Do not allow children to operate this unit and

always keep them out of work areas.

Do not misuse the lift. Perform only the functions for which the

lift was designed.

Never use two lifts in tandem to lift a load that exceeds the

capacity of a single lift.

Prior to each use of the unit, inspect all moving parts and the

lifting cable to ensure they are in proper working condition.

13

Before each use:

1. Inspect the lifting cable for frays, cuts or burns. If any damage is visible

on the lifting cable, do not use the lift.

2. Make certain winch operates freely and lifting cable is not tangled on the

winch drum.

3. Check cradle assembly, legs, masts and base for bends.

4. Make sure caster wheels move freely.

Recommended Inspection Every 6 Months:

1. Inspect the lifting cable for frays, cuts or burns. If any damage is visible

on the lifting cable, do not use the lift.

2. Make certain winch works freely and that there are no loose or damaged

parts.

Winch Maintenance:

1. Be sure that the winch cover is on the winch.

2. Check ratchet dogs and brake ratchet for wear. If any wear is visible,

replace the components. If not, lubricate both parts with a light oil.

3. For proper brake adjustment see “Troubleshooting” section on page 15.

Replacing the Lifting Cable:

1. Lower the masts to engage the safety latch.

2. Remove the large gear cover from the winch.

3. Disconnect the cable from the winch drum. Make note of the

direction the cables are wrapped around the drum.

4. Remove the cradle assembly from on top of the lift.

5. Remove the mast assembly and lay it down flat on a work surface.

6. Extend the center mast up until the six allen head screws are exposed.

7. Remove the six allen head screws.

8. Slide the center and upper mast out the bottom of the outer mast.

9. Re-reeve the new cable through the lift using the existing cable as a

guide..

10. Attach cable to winch drum making sure cable are wrapped in proper

direction. Note: The cable must be wrapped in the direction noted in

step 3.

11. Wind the slack cable tightly and evenly across the load drum.

12. Replace the center and upper mast sections into the outer mast.

13. Replace the six allen head screws.

14. Replace the winch cover.

MAINTENANCE INSTRUCTIONS

12

LIFT DIAGRAM

Backup Brake

Outer Mast

Load Support Hook

Cradle Assembly

Lift Rail

Winch
Assembly

Base Leg

Center Mast

Top Mast

Caster

Cross Arm

5

OPERATING PROCEDURE

1. Assembling Drywall
Lift

Your 2300 series Drywall lift will arrive in three sections, the
Base, the Mast and the Cradle. Complete assembly will take
less than five minutes.

To assemble your lift, first
open the legs on the base
assembly to their operating
position. Make sure the
spring loaded plungers are
fully engaged and the legs
are locked securely into
position. Next, place the
mast assembly firmly into
the base. Make sure the
mast locating ring is firmly
seated onto the base locating post.

Cradle

Mast

Base

Base Assembly

Locating
post

Mast locating ring

6

Finally, place the cradle assembly

onto the mast. Ensure that the cradle

is locked to the mast with the locking

pin and that it is facing the proper

direction.

2. Moving Lift to Work Area

(No Load)

The lift is normally moved to the job site by rolling on its 4”

casters using the steering handle. Note: Do not pull by the

load lifting cable.

3. Moving Lift in Work Area (With Load)

Although it is best to move the unit to the

job site unloaded, light loads may be

transported as long as the unit is rolled

on the casters on a level surface. Always

have the load in the lowest possible

position before moving the unit.

If it is necessary to move the unit with an

elevated load:

 Make sure the area is clear of ob-

structions

 Keep personnel away from the load and behind the

operator’s position

 Move the unit slowly, avoiding sudden jerky starts and stops

 Make sure the load is secure and properly balanced

CAUTION

If a load is being transported, it should be secured

to the cradle to avoid shifting.

WARNING

Moving the unit with elevated loads should be

contained to short distances; i.e., 10-15 feet/4-5

meters.

Steering handle

front

Locking

pin

11

SPECIFICATIONS

2311 2315

Dimensions

Height Operating 63” 160 cm 75” 190.5

cm

Length Operating 52” 132 cm 52” 132 cm

Base Width 55” 139.7 cm 55” 139.7

cm

Ground Clearance 1.5” 3.8 cm 1.5” 3.8 cm

Load Height (minimum) 34” 86 cm 48” 122 cm

Load Height (maximum)

11' 2-3/4”

3.4 m

14' 9-3/4”

4.5 m

Weight

Net Weight 99 lb 45 kg 99 lb 45 kg

Load Capacity

Load Capacity (13" L.C.) 150 lb 70 kg 150 lb 70 kg

Number of Cables

1 1

Drywall Cradle Specifications

Cradle Length (max) 119” 302.3 cm

Cradle Length (min) 49” 124.5 cm

Cradle Width 41” 104.1 cm

Cradle Length (max) 29” 73.7 cm

Cradle Length (min) 16” 40.0 cm

Cradle Width 34” 86.4 cm

HVAC Cradle Specifications

10

9. Back Up Brake

The 2300 series drywall lift is
outfitted with a “Back Up Brake.”
This stops the lift from rolling
backward when working up against
a wall or ceiling. To engage the
brake, simply press down on it with
your foot. This will release the
brake. The brake will now prevent
the lift from rolling backward. To
place the brake back into the
stored position, lift it up
with your foot until it
locks onto the rear leg.

10. Storing and Transporting the Lift

The 2300 series lift is designed for easy
transport. The unit is easily broken down
into three sections. All
three sections are easy to
carry. The main mast
even has a carrying handle
centrally located. Prior to
transporting the main
mast, attach the mast hold
down cable to prevent the
masts from extending un­intentionally.

Mast Latch

7

4. Lifting and Lowering Loads

Use the winch to crank mast up or
down into the desired position.

Any unstable load must be balanced
and secured to the cradle prior to
lifting.

Turn winch crank clockwise to
elevate the load, while watching for overhead obstruc­tions. Turn winch handle counter clockwise
to lower the load.

Each handle is equipped with two
mounting positions. With the handles
mounted in the “standard” position, the
operator can raise and lower loads as
normal. With the handles mounted in the
“high speed” position, the operator can
raise and lower the lift in half the time.

raise

CAUTION

Make sure the floor surface is level.

WARNING

No riders allowed on this unit. This is
not a personnel lift and never should be
used for hoisting or moving people.

standard

high speed

8

5. Attaching Cross Arms

The cross arms arrive on the cradle assembly

in the storage position. To place the cross arms in their

operating positions, pull the ring

on the spring loaded plunger

and remove from the storage

bar. Position the cross arm

over one of the operating

positions and drop down into

place ensuring that the spring

loaded plunger has fully

engaged in the locating hole.

6. Extending Load Rails

The load rails can be extended

to help support wide loads. To

extend the rails, pull the ring on

the spring loaded plunger and

slide the rail out. The spring

loaded plunger will engage in the

next available position.

cross arm

CAUTION

The load support hook should be positioned on the

side of the lift opposite the winch.

load rail

WARNING

The spring loaded plunger must be fully engaged

prior to lifting a load.

WARNING

Never lift a load without ensuring it is properly

balance and supported on the cradle.

9

7. Load Support Hooks

To position the load support

hooks in the operating position,

pull the ring on the spring

loaded plunger and rotate the

hook from the stowed position.

Ensure that the spring loaded

plunger is fully engaged prior to

loading drywall onto the lift.

Never attempt to lift a sheet of

drywall without positioning the

load support hooks into the

operating position.

8. Steering Handle

The 2300 series lift comes equipped with a steering handle. This

handle aids the operator in positioning the lift during operation.

To position the handle, pull out (approximately 1 in. (2.5 cm))

past the stop block and

rotate up 90 degrees. Release the

handle and it will lock in place.

Reverse this procedure for storage.

WARNING

The spring loaded plunger must be fully engaged

prior to loading drywall onto the lift.

WARNING

Attempting to lift a sheet of drywall without using the

load support hooks can result in injury.

WARNING

Attempting to lift more than one sheet of drywall can

result in injury.

load support hook
