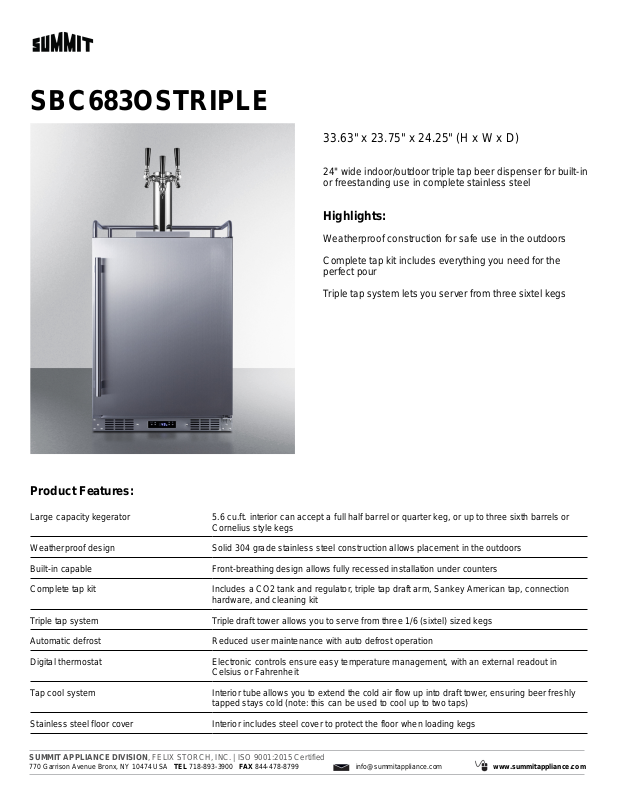

Page 1
SBC683OSTRIPLE
33.63" x 23.75" x 24.25" (H x W x D)
24" wide indoor/outdoor triple tap beer dispenser for built-in
or freestanding use in complete stainless steel
Highlights:
Weatherproof construction for safe use in the outdoors
Complete tap kit includes everything you need for the
perfect pour
Triple tap system lets you server from three sixtel kegs
Product Features:
Large capacity kegerator 5.6 cu.ft. interior can accept a full half barrel or quarter keg, or up to three sixth barrels or
Cornelius style kegs
Weatherproof design Solid 304 grade stainless steel construction allows placement in the outdoors
Built-in capable Front-breathing design allows fully recessed installation under counters
Complete tap kit Includes a CO2 tank and regulator, triple tap draft arm, Sankey American tap, connection
hardware, and cleaning kit
Triple tap system Triple draft tower allows you to serve from three 1/6 (sixtel) sized kegs
Automatic defrost Reduced user maintenance with auto defrost operation
Digital thermostat Electronic controls ensure easy temperature management, with an external readout in
Celsius or Fahrenheit
Tap cool system Interior tube allows you to extend the cold air flow up into draft tower, ensuring beer freshly
tapped stays cold (note: this can be used to cool up to two taps)
Stainless steel floor cover Interior includes steel cover to protect the floor when loading kegs
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
Page 2
SBC683OSTRIPLE Specifications:
Overview
Height of Cabinet 33.63" (85 cm)
Width 23.75" (60 cm)
Depth 24.25" (62 cm)
Depth with Handle 26.25" (67 cm)
Depth with door at
90°
Capacity 5.6 cu.ft. (159 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical
Safety
Sanitation ETL-S
Energy Usage/Year 305.0kWh/year
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 120.0 lbs. (54 kg)
Shipping Weight 130.0 lbs. (59 kg)
Parts & Labor
Warranty
Compressor
Warranty
UPC 761101083940
Kegerator
Door Swing RHD
Reversible Yes
Tap Kit Yes
Height with Tap 51.5" (131 cm)
Number of Taps 3
Adjustable Shelves Yes
Shelf Type Chrome
Shelf Qty 2
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant R600a
Refrigerant Amount 1.06 oz.
High Side PSI 150.0
Low Side PSI 50.0
46.75" (119 cm)
ETL-C
1 Year
5 Years
Inter Height 26.75" (68 cm)
Interior Width 20.0" (51 cm)
Interior Depth 19.0" (48 cm)
Level Legs Qty 4
Wheel Qty 4
Temperature Range 34°F to 68°F (1°C to
20°C)
Sound Level 34.0 db
