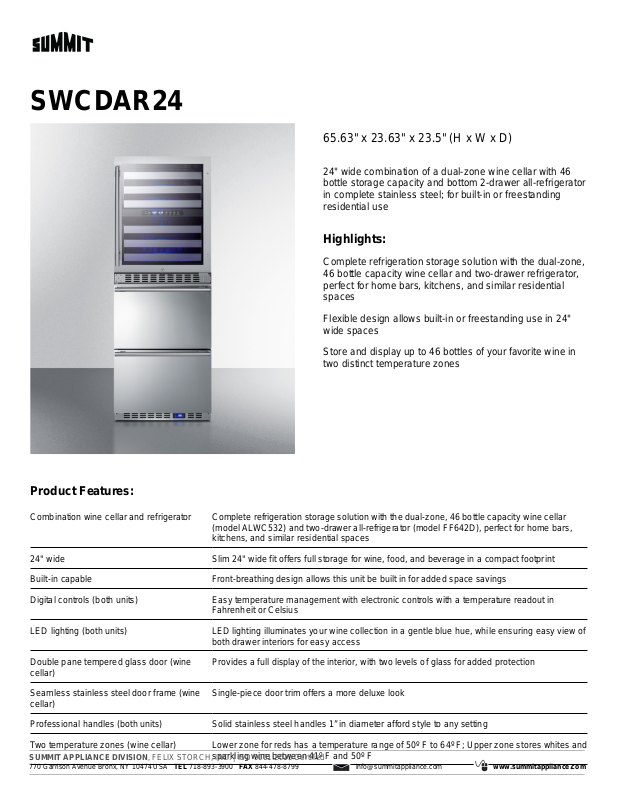

Page 1
SWCDAR24
65.63" x 23.63" x 23.5" (H x W x D)
24" wide combination of a dual-zone wine cellar with 46
bottle storage capacity and bottom 2-drawer all-refrigerator
in complete stainless steel; for built-in or freestanding
residential use
Highlights:
Complete refrigeration storage solution with the dual-zone,
46 bottle capacity wine cellar and two-drawer refrigerator,
perfect for home bars, kitchens, and similar residential
spaces
Flexible design allows built-in or freestanding use in 24"
wide spaces
Store and display up to 46 bottles of your favorite wine in
two distinct temperature zones
Product Features:
Combination wine cellar and refrigerator Complete refrigeration storage solution with the dual-zone, 46 bottle capacity wine cellar
(model ALWC532) and two-drawer all-refrigerator (model FF642D), perfect for home bars,
kitchens, and similar residential spaces
24" wide Slim 24" wide fit offers full storage for wine, food, and beverage in a compact footprint
Built-in capable Front-breathing design allows this unit be built in for added space savings
Digital controls (both units) Easy temperature management with electronic controls with a temperature readout in
Fahrenheit or Celsius
LED lighting (both units) LED lighting illuminates your wine collection in a gentle blue hue, while ensuring easy view of
both drawer interiors for easy access
Double pane tempered glass door (wine
cellar)
Seamless stainless steel door frame (wine
cellar)
Professional handles (both units) Solid stainless steel handles 1” in diameter afford style to any setting
Two temperature zones (wine cellar) Lower zone for reds has a temperature range of 50º F to 64º F; Upper zone stores whites and
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
Provides a full display of the interior, with two levels of glass for added protection
Single-piece door trim offers a more deluxe look
sparkling wine between 41º F and 50º F
Page 2
SWCDAR24 Specifications:
Overview
Height of Cabinet 65.63" (167 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.5" (65 cm)
Depth with door at
90°
Capacity 3.4 cu.ft. (96 L)
Bottles 46 bottles
Defrost Type Automatic
Door Glass/SS
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical
Safety
Energy Usage/Year 275.0kWh/year
Other Energy Info ALWC532: 1.25Ams;
Amps 2.05
Voltage/Frequency 115 V AC/60 Hz
Weight 229.0 lbs. (104 kg)
Shipping Weight 239.0 lbs. (108 kg)
Parts & Labor
Warranty
Compressor
Warranty
UPC 761101082806
Wine Cellar
Number of Zones 2
Door Swing RHD
Reversible Yes
Shelf Type Wire
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Interior Height 1 11.88" (30 cm)
Interior Width 1 20.5" (52 cm)
Interior Depth 1 18.0" (46 cm)
45.75" (116 cm)
ETL-C
FF642D: 0.8 Amps
1 Year
5 Years
Interior Height Drawer 1
Interior Width Drawer 1
Interior Depth Drawer 1
Interior Height Drawer 2
Interior Width Drawer 2
Interior Depth Drawer 2
Temperature Range ALWC532: 41°F to
64°F; FF642D: 36°F to
Interior Height 2 11.63" (30 cm)
Interior Width 2 20.5" (52 cm)
Interior Depth 2 18.0" (46 cm)
9.25" (23 cm)
17.25" (44 cm)
15.5" (39 cm)
10.0" (25 cm)
17.25" (44 cm)
15.5" (39 cm)
43°F
