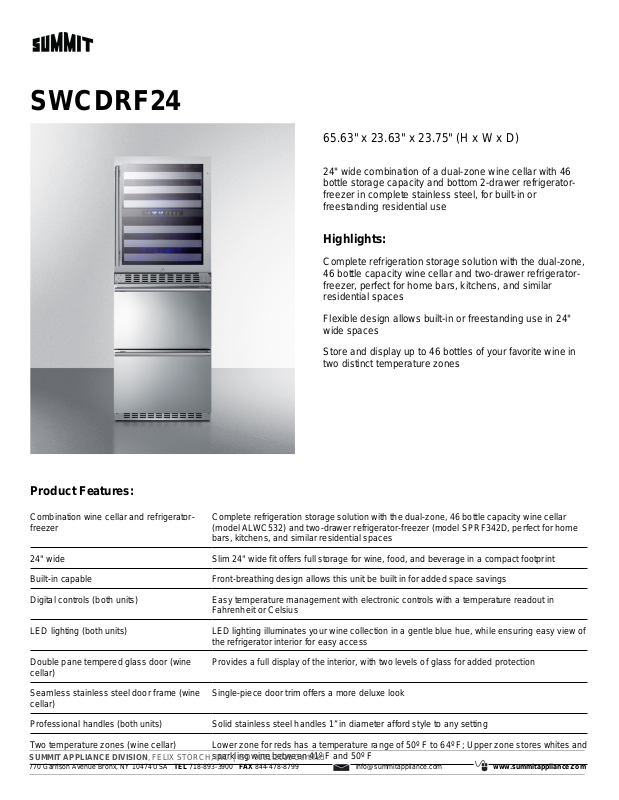

Summit Appliance TDCM1510 Specifications

SWCDRF24

65.63" x 23.63" x 23.75" (H x W x D)

24" wide combination of a dual-zone wine cellar with 46
bottle storage capacity and bottom 2-drawer refrigerator­freezer in complete stainless steel, for built-in or
freestanding residential use

Highlights:

Complete refrigeration storage solution with the dual-zone,
46 bottle capacity wine cellar and two-drawer refrigerator­freezer, perfect for home bars, kitchens, and similar
residential spaces

Flexible design allows built-in or freestanding use in 24"
wide spaces

Store and display up to 46 bottles of your favorite wine in
two distinct temperature zones

Product Features:

Combination wine cellar and refrigerator­freezer

24" wide Slim 24" wide fit offers full storage for wine, food, and beverage in a compact footprint
Built-in capable Front-breathing design allows this unit be built in for added space savings
Digital controls (both units) Easy temperature management with electronic controls with a temperature readout in

LED lighting (both units) LED lighting illuminates your wine collection in a gentle blue hue, while ensuring easy view of

Double pane tempered glass door (wine
cellar)

Seamless stainless steel door frame (wine
cellar)

Professional handles (both units) Solid stainless steel handles 1” in diameter afford style to any setting
Two temperature zones (wine cellar) Lower zone for reds has a temperature range of 50º F to 64º F; Upper zone stores whites and

SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified

770 Garrison Avenue Bronx, NY 10474 USA TEL [phone] FAX [phone] [email protected] www.summitappliance.com

Complete refrigeration storage solution with the dual-zone, 46 bottle capacity wine cellar
(model ALWC532) and two-drawer refrigerator-freezer (model SPRF342D, perfect for home
bars, kitchens, and similar residential spaces

Fahrenheit or Celsius

the refrigerator interior for easy access
Provides a full display of the interior, with two levels of glass for added protection

Single-piece door trim offers a more deluxe look

sparkling wine between 41º F and 50º F

SWCDRF24 Specifications:

Overview

Height of Cabinet 65.63" (167 cm)
Width 23.63" (60 cm)
Depth 23.75" (60 cm)
Depth with Handle 25.75" (65 cm)
Depth with door at

90°
Capacity 3.9 cu.ft. (110 L)
Bottles 46 bottles
Defrost Type Automatic
Door Glass/SS
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical

Safety
Energy Usage/Year 380.0kWh/year
Other Energy Info ALWC532: 1.25Ams;

Amps 2.25
Voltage/Frequency 115 V AC/60 Hz
Weight 221.0 lbs. (100 kg)
Shipping Weight 231.0 lbs. (105 kg)
Parts & Labor

Warranty
Compressor

Warranty
UPC 761101082844

Wine Cellar

Number of Zones 2
Door Swing RHD
Reversible Yes
Shelf Type Wire
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.23 oz.
High Side PSI 150.0
Low Side PSI 50.0
Interior Height 1 11.88" (30 cm)

45.75" (116 cm)

ETL-C

SPRF34D: 1.0 Amp

1 Year

5 Years

Interior Width 1 20.5" (52 cm)
Interior Depth 1 18.0" (46 cm)
Interior Height -

Drawer 1
Interior Width -

Drawer 1
Interior Depth -

Drawer 1
Interior Height -

Drawer 2
Interior Width -

Drawer 2
Interior Depth -

Drawer 2
Temperature Range ALWC532: 41°F to

64°F; SPRF34D: 36°F
to 43°F/Freezer: -11°F

Interior Height 2 11.63" (30 cm)
Interior Width 2 20.5" (52 cm)
Interior Depth 2 18.0" (46 cm)

10.0" (25 cm)

18.75" (48 cm)

15.5" (39 cm)

9.25" (23 cm)

18.75" (48 cm)

15.5" (39 cm)

to 11°F
