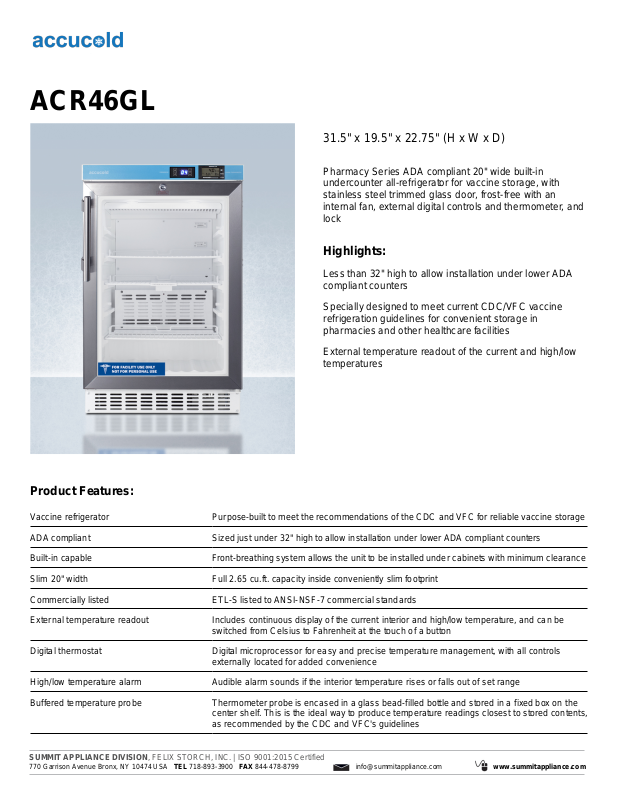

Page 1
ACR46GL
31.5" x 19.5" x 22.75" (H x W x D)
Pharmacy Series ADA compliant 20" wide built-in
undercounter all-refrigerator for vaccine storage, with
stainless steel trimmed glass door, frost-free with an
internal fan, external digital controls and thermometer, and
lock
Highlights:
Less than 32" high to allow installation under lower ADA
compliant counters
Specially designed to meet current CDC/VFC vaccine
refrigeration guidelines for convenient storage in
pharmacies and other healthcare facilities
External temperature readout of the current and high/low
temperatures
Product Features:
Vaccine refrigerator Purpose-built to meet the recommendations of the CDC and VFC for reliable vaccine storage
ADA compliant Sized just under 32" high to allow installation under lower ADA compliant counters
Built-in capable Front-breathing system allows the unit to be installed under cabinets with minimum clearance
Slim 20" width Full 2.65 cu.ft. capacity inside conveniently slim footprint
Commercially listed ETL-S listed to ANSI-NSF-7 commercial standards
External temperature readout Includes continuous display of the current interior and high/low temperature, and can be
switched from Celsius to Fahrenheit at the touch of a button
Digital thermostat Digital microprocessor for easy and precise temperature management, with all controls
externally located for added convenience
High/low temperature alarm Audible alarm sounds if the interior temperature rises or falls out of set range
Buffered temperature probe Thermometer probe is encased in a glass bead-filled bottle and stored in a fixed box on the
center shelf. This is the ideal way to produce temperature readings closest to stored contents,
as recommended by the CDC and VFC's guidelines
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
Page 2
ACR46GL Specifications:
Overview
Height of Cabinet 31.5" (80 cm)
Width 19.5" (50 cm)
Depth 22.75" (58 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 41.0" (104 cm)
Capacity 2.65 cu.ft. (75 L)
Defrost Type Frost-Free
Door Glass/SS
Cabinet White
US Electrical Safety ETL
Canadian Electrical
Safety
Sanitation ETL-S
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 89.0 lbs. (40 kg)
Shipping Weight 99.0 lbs. (45 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101059426
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and
Refrigerant Type R600a
Refrigerant Amount 0.99oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 2º to 8ºC
Dimensions
Interior Height 21.25" (54 cm)
Interior Width 15.0" (38 cm)
ETL-C
Exterior
Interior Depth 16.13" (41 cm)
Compressor Step Height 3.5" (9 cm)
Compressor Step Width 15.0" (38 cm)
Compressor Step Depth 4.75" (12 cm)
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
