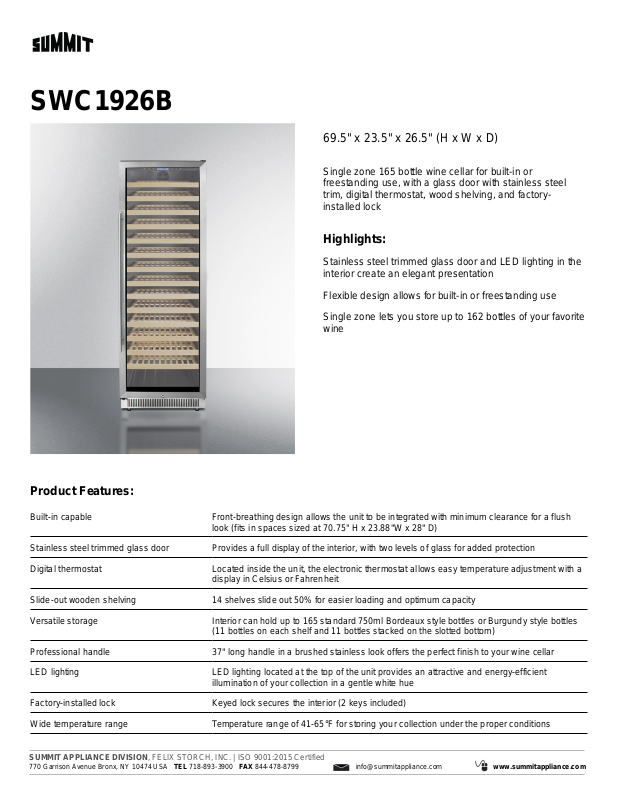

SWC1926B
69.5" x 23.5" x 26.5" (H x W x D)
Single zone 165 bottle wine cellar for built-in or
freestanding use, with a glass door with stainless steel
trim, digital thermostat, wood shelving, and factoryinstalled lock
Highlights:
Stainless steel trimmed glass door and LED lighting in the
interior create an elegant presentation
Flexible design allows for built-in or freestanding use
Single zone lets you store up to 162 bottles of your favorite
wine
Product Features:
Built-in capable Front-breathing design allows the unit to be integrated with minimum clearance for a flush
look (fits in spaces sized at 70.75" H x 23.88"W x 28" D)
Stainless steel trimmed glass door Provides a full display of the interior, with two levels of glass for added protection
Digital thermostat Located inside the unit, the electronic thermostat allows easy temperature adjustment with a
display in Celsius or Fahrenheit
Slide-out wooden shelving 14 shelves slide out 50% for easier loading and optimum capacity
Versatile storage Interior can hold up to 165 standard 750ml Bordeaux style bottles or Burgundy style bottles
(11 bottles on each shelf and 11 bottles stacked on the slotted bottom)
Professional handle 37" long handle in a brushed stainless look offers the perfect finish to your wine cellar
LED lighting LED lighting located at the top of the unit provides an attractive and energy-efficient
illumination of your collection in a gentle white hue
Factory-installed lock Keyed lock secures the interior (2 keys included)
Wide temperature range Temperature range of 41-65°F for storing your collection under the proper conditions
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
Page 2
SWC1926B Specifications:
Overview
Height of Cabinet 69.5" (177 cm)
Width 23.5" (60 cm)
Depth 26.5" (67 cm)
Depth with Handle 28.25" (72 cm)
Depth with door at 90° 48.75" (124 cm)
Bottles 165 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical
Safety
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 200.0 lbs. (91 kg)
Shipping Weight 230.0 lbs. (104 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Yes
Shelf Type Wood
Shelf Qty 14
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and
Refrigerant Type R600a
Refrigerant Amount 1.76 oz.
High Side PSI 320.0
Low Side PSI 120.0
Interior Height 1 60.75" (154 cm)
Interior Width 1 20.25" (51 cm)
Interior Depth 1 21.0" (53 cm)
Level Legs 2
Temperature Range 41-65°F
ETL-C
Exterior
