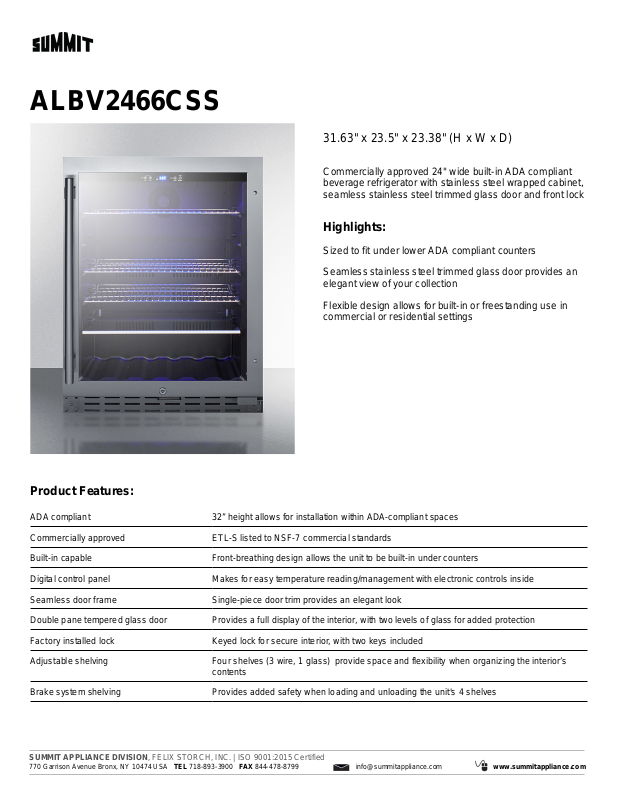

Page 1
ALBV2466CSS
31.63" x 23.5" x 23.38" (H x W x D)
Commercially approved 24" wide built-in ADA compliant
beverage refrigerator with stainless steel wrapped cabinet,
seamless stainless steel trimmed glass door and front lock
Highlights:
Sized to fit under lower ADA compliant counters
Seamless stainless steel trimmed glass door provides an
elegant view of your collection
Flexible design allows for built-in or freestanding use in
commercial or residential settings
Product Features:
ADA compliant 32” height allows for installation within ADA-compliant spaces
Commercially approved ETL-S listed to NSF-7 commercial standards
Built-in capable Front-breathing design allows the unit to be built-in under counters
Digital control panel Makes for easy temperature reading/management with electronic controls inside
Seamless door frame Single-piece door trim provides an elegant look
Double pane tempered glass door Provides a full display of the interior, with two levels of glass for added protection
Factory installed lock Keyed lock for secure interior, with two keys included
Adjustable shelving Four shelves (3 wire, 1 glass) provide space and flexibility when organizing the interior’s
contents
Brake system shelving Provides added safety when loading and unloading the unit's 4 shelves
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
Page 2
ALBV2466CSS Specifications:
Overview
Height of Cabinet 31.63" (80 cm)
Width 23.5" (60 cm)
Depth 23.38" (59 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 45.75" (116 cm)
Capacity 4.2 cu.ft. (119 L)
Bottles 6 bottles
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical
Safety
Sanitation ETL-S
Energy Usage/Year 295.0kWh/year
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 112.0 lbs. (51 kg)
Shipping Weight 117.0 lbs. (53 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Sabbath Mode Yes
Door Swing RHD
Reversible Yes
Height Adjustable No
Shelf Type Glass and Chrome
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and
Refrigerant Type R600a
Refrigerant Amount 1.23oz.
High Side PSI 150.0
Low Side PSI 50.0
Level Legs Qty 2
Interior Light Yes
ETL-C
Exterior
Temperature Range 34 to 65ºF
Dimensions
Interior Height 23.5" (60 cm)
Interior Width 19.0" (48 cm)
Interior Depth 17.0" (43 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 19.0" (48 cm)
Compressor Step Depth 5.0" (13 cm)
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
