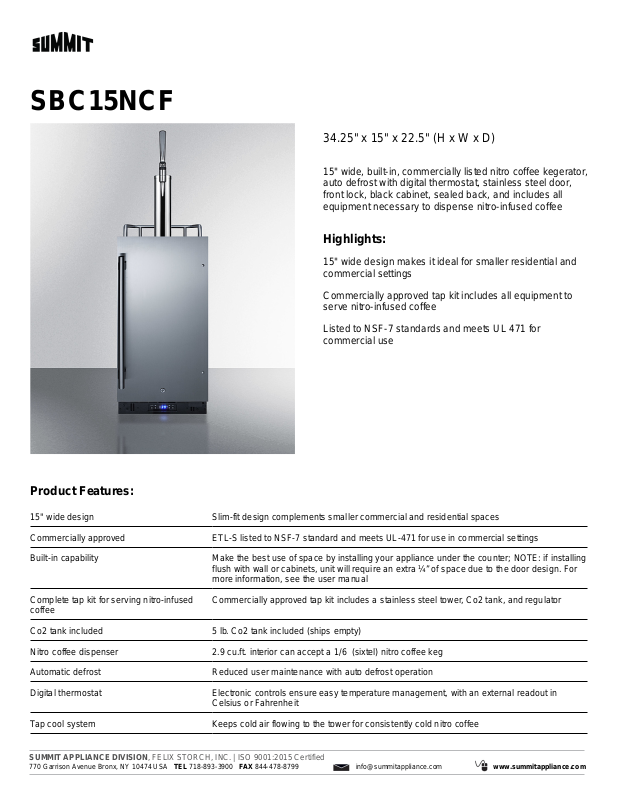

Page 1
SBC15NCF
34.25" x 15" x 22.5" (H x W x D)
15" wide, built-in, commercially listed nitro coffee kegerator,
auto defrost with digital thermostat, stainless steel door,
front lock, black cabinet, sealed back, and includes all
equipment necessary to dispense nitro-infused coffee
Highlights:
15" wide design makes it ideal for smaller residential and
commercial settings
Commercially approved tap kit includes all equipment to
serve nitro-infused coffee
Listed to NSF-7 standards and meets UL 471 for
commercial use
Product Features:
15" wide design Slim-fit design complements smaller commercial and residential spaces
Commercially approved ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
Built-in capability Make the best use of space by installing your appliance under the counter; NOTE: if installing
flush with wall or cabinets, unit will require an extra ¼” of space due to the door design. For
more information, see the user manual
Complete tap kit for serving nitro-infused
coffee
Co2 tank included 5 lb. Co2 tank included (ships empty)
Nitro coffee dispenser 2.9 cu.ft. interior can accept a 1/6 (sixtel) nitro coffee keg
Automatic defrost Reduced user maintenance with auto defrost operation
Digital thermostat Electronic controls ensure easy temperature management, with an external readout in
Tap cool system Keeps cold air flowing to the tower for consistently cold nitro coffee
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
Commercially approved tap kit includes a stainless steel tower, Co2 tank, and regulator
Celsius or Fahrenheit
Page 2
SBC15NCF Specifications:
Overview
Height of Cabinet 34.25" (87 cm)
Width 15.0" (38 cm)
Width with Door Open 15.25" (39 cm)
Depth 22.5" (57 cm)
Depth with Handle 24.5" (62 cm)
Depth with door at 90° 36.5" (93 cm)
Capacity 2.9 cu.ft. (82 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 280.0kWh/year
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 78.0 lbs. (35 kg)
Shipping Weight 84.0 lbs. (38 kg)
Estimated Time to Ship 1 to 2 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Kegerator
Door Swing RHD
Reversible Yes
Tap Kit Yes
Height with Tap 49.75" (126 cm)
Number of Taps 1
Adjustable Shelves Yes
Shelf Type Chrome
Shelf Qty 2
Thermostat Type Digital
Fan Type Exterior
Refrigerant R600a
Refrigerant Amount 1.06 oz.
High Side PSI 150.0
Low Side PSI 50.0
Inter Height 26.75" (68 cm)
Interior Width 11.75" (30 cm)
Interior Depth 17.5" (44 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 11.75" (30 cm)
Compressor Step Depth 5.0" (13 cm)
Level Legs Qty 4
Wheel Qty 4
Temperature Range 34º to 50º F
SUMMIT APPLIANCE DIVISION, FELIX STORCH, INC. | ISO 9001:2015 Certified
770 Garrison Avenue Bronx, NY 10474 USA TEL 718-893-3900 FAX 844-478-8799 [email protected] www.summitappliance.com
